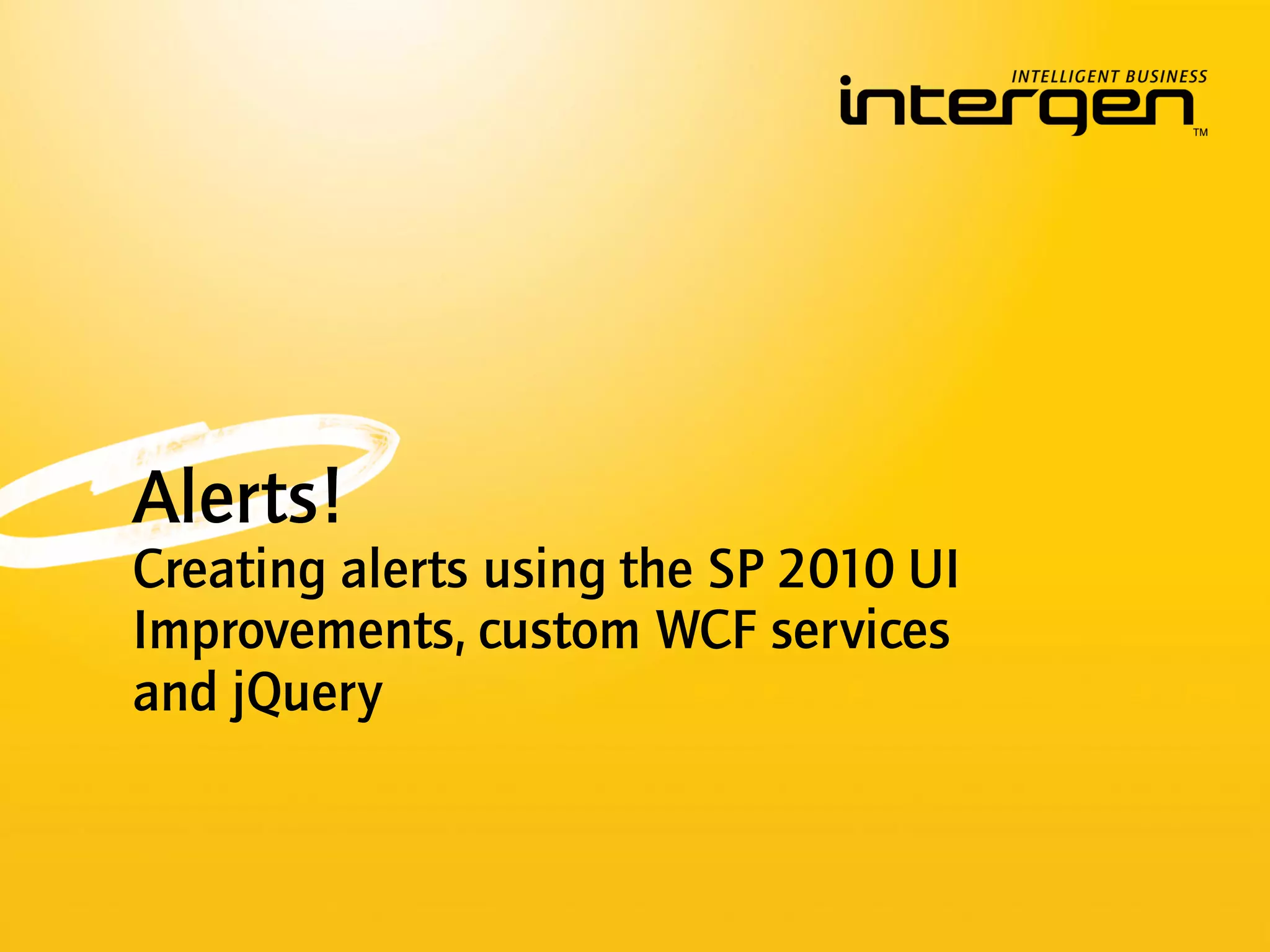

1. Alerts!
Creating alerts using the SP 2010 UI
Improvements, custom WCF services
and jQuery

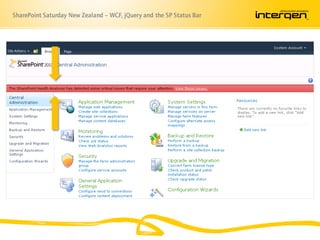

2. SharePoint Saturday New Zealand – WCF, jQuery and the SP Status Bar

3. SharePoint Saturday New Zealand – WCF, jQuery and the SP Status Bar

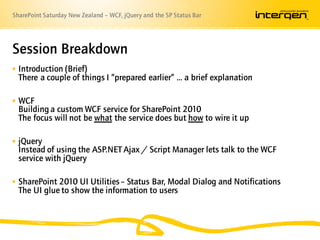

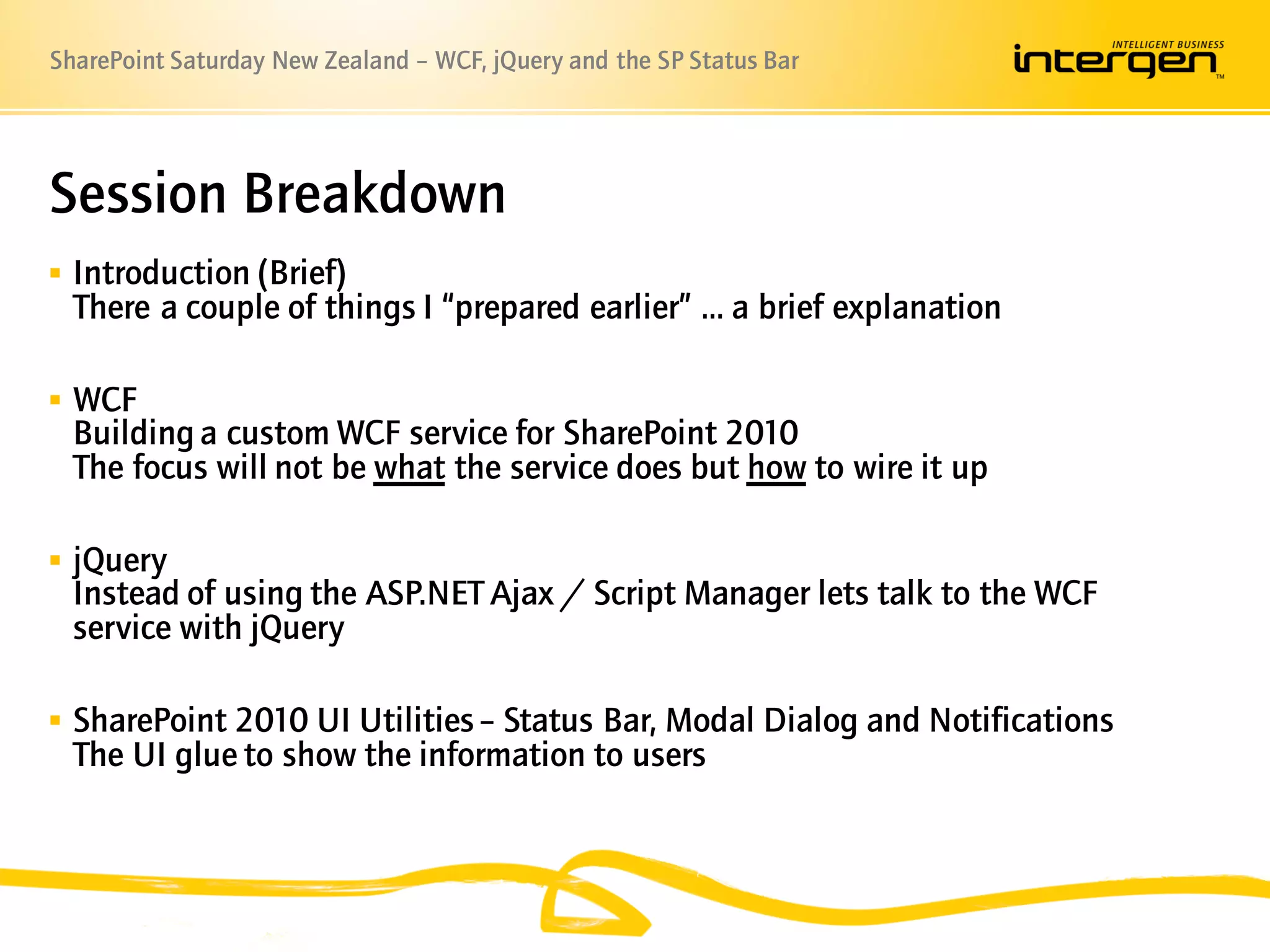

Session Breakdown
 Introduction (Brief)
There a couple of things I “prepared earlier” … a brief explanation
 WCF
Building a custom WCF service for SharePoint 2010
The focus will not be what the service does but how to wire it up
 jQuery
Instead of using the ASP.NET Ajax / Script Manager lets talk to the WCF
service with jQuery
 SharePoint 2010 UI Utilities – Status Bar, Modal Dialog and Notifications
The UI glue to show the information to users

4. SharePoint Saturday New Zealand – WCF, jQuery and the SP Status Bar

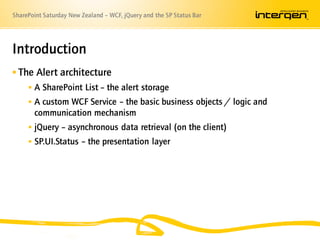

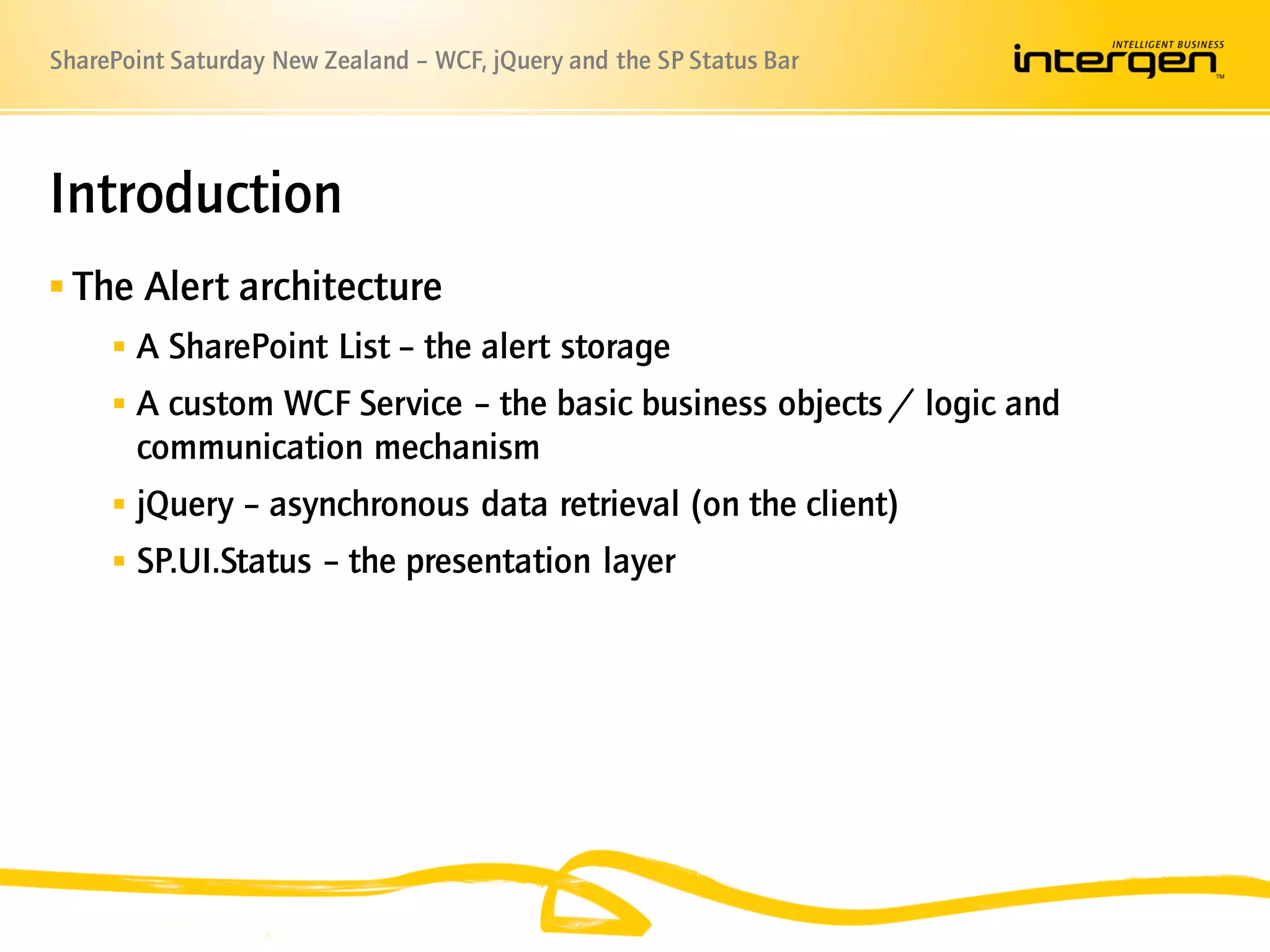

Introduction
 The Alert architecture
 A SharePoint List – the alert storage
 A custom WCF Service – the basic business objects / logic and
communication mechanism
 jQuery – asynchronous data retrieval (on the client)
 SP.UI.Status – the presentation layer

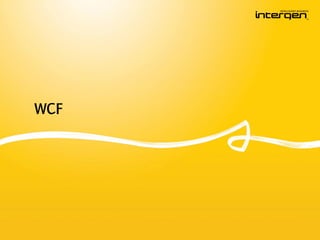

5. WCF

6. SharePoint Saturday New Zealand – WCF, jQuery and the SP Status Bar

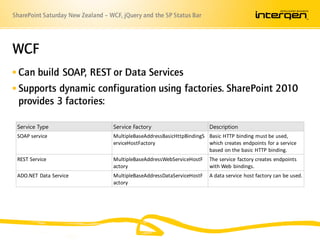

WCF
 Can build SOAP, REST or Data Services
 Supports dynamic configuration using factories. SharePoint 2010
provides 3 factories:
Service Type Service Factory Description
SOAP service MultipleBaseAddressBasicHttpBindingS Basic HTTP binding must be used,
erviceHostFactory which creates endpoints for a service
based on the basic HTTP binding.
REST Service MultipleBaseAddressWebServiceHostF The service factory creates endpoints
actory with Web bindings.
ADO.NET Data Service MultipleBaseAddressDataServiceHostF A data service host factory can be used.
actory

7. SharePoint Saturday New Zealand – WCF, jQuery and the SP Status Bar

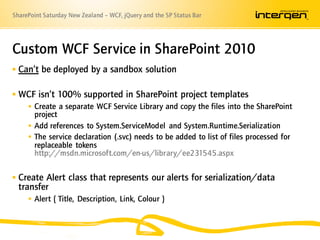

Custom WCF Service in SharePoint 2010
 Can’t be deployed by a sandbox solution
 WCF isn’t 100% supported in SharePoint project templates
 Create a separate WCF Service Library and copy the files into the SharePoint
project
 Add references to System.ServiceModel and System.Runtime.Serialization
 The service declaration (.svc) needs to be added to list of files processed for
replaceable tokens
http://msdn.microsoft.com/en-us/library/ee231545.aspx
 Create Alert class that represents our alerts for serialization/data
transfer
 Alert { Title, Description, Link, Colour }

8. SharePoint Saturday New Zealand – WCF, jQuery and the SP Status Bar

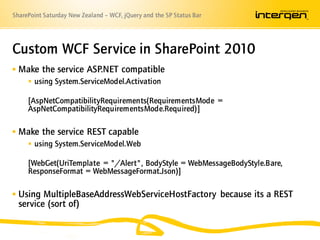

Custom WCF Service in SharePoint 2010
 Make the service ASP.NET compatible
 using System.ServiceModel.Activation
[AspNetCompatibilityRequirements(RequirementsMode =
AspNetCompatibilityRequirementsMode.Required)]
 Make the service REST capable
 using System.ServiceModel.Web
[WebGet(UriTemplate = "/Alert", BodyStyle = WebMessageBodyStyle.Bare,
ResponseFormat = WebMessageFormat.Json)]
 Using MultipleBaseAddressWebServiceHostFactory because its a REST
service (sort of)

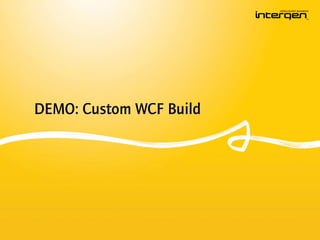

9. DEMO: Custom WCF Build

10. jQuery

11. SharePoint Saturday New Zealand – WCF, jQuery and the SP Status Bar

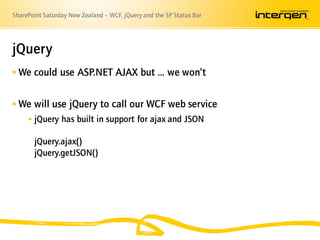

jQuery
 We could use ASP.NET AJAX but … we won’t
 We will use jQuery to call our WCF web service
 jQuery has built in support for ajax and JSON
jQuery.ajax()
jQuery.getJSON()

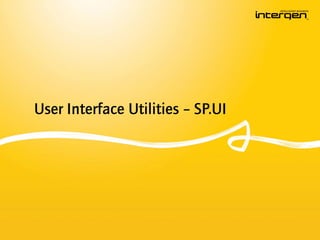

12. User Interface Utilities – SP.UI

13. SharePoint Saturday New Zealand – WCF, jQuery and the SP Status Bar

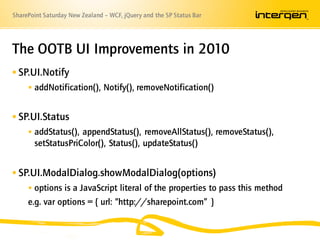

The OOTB UI Improvements in 2010
 SP.UI.Notify
 addNotification(), Notify(), removeNotification()
 SP.UI.Status
 addStatus(), appendStatus(), removeAllStatus(), removeStatus(),
setStatusPriColor(), Status(), updateStatus()
 SP.UI.ModalDialog.showModalDialog(options)
 options is a JavaScript literal of the properties to pass this method
e.g. var options = { url: “http://sharepoint.com” }

14. DEMO: How to use jQuery and SP.UI

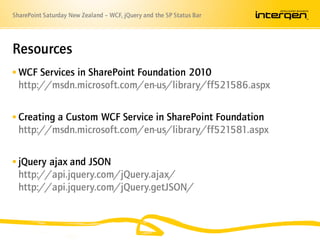

15. SharePoint Saturday New Zealand – WCF, jQuery and the SP Status Bar
Resources
 WCF Services in SharePoint Foundation 2010
http://msdn.microsoft.com/en-us/library/ff521586.aspx
 Creating a Custom WCF Service in SharePoint Foundation
http://msdn.microsoft.com/en-us/library/ff521581.aspx
 jQuery ajax and JSON
http://api.jquery.com/jQuery.ajax/
http://api.jquery.com/jQuery.getJSON/

16. SharePoint Saturday New Zealand – WCF, jQuery and the SP Status Bar
Resources
 SP.UI.Notify
http://msdn.microsoft.com/en-us/library/ff408137.aspx
 SP.UI.Status
http://msdn.microsoft.com/en-us/library/ff412058.aspx
 SP.UI.ModalDialog
http://msdn.microsoft.com/en-us/library/ff408909.aspx
http://msdn.microsoft.com/en-us/library/ff411351.aspx
 Enabling Intellisense in Visual Studio
http://msdn.microsoft.com/en-us/library/ff798328.aspx

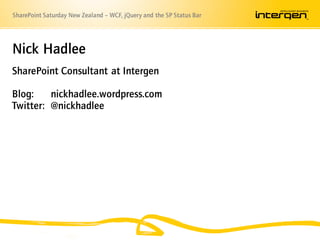

17. SharePoint Saturday New Zealand – WCF, jQuery and the SP Status Bar
Nick Hadlee
SharePoint Consultant at Intergen
Blog: nickhadlee.wordpress.com
Twitter: @nickhadlee
