The document discusses sandboxed solutions in SharePoint 2010. It begins with an agenda that includes existing challenges, sandboxed solutions, demos of creating and deploying sandboxed solutions, monitoring and validating solutions. It then covers why sandboxed solutions are used, when they should be used, restrictions, and provides references for additional information.

1. SharePoint 2010 Sandboxed Solutions Created 08/8/2009 Srini Sistla

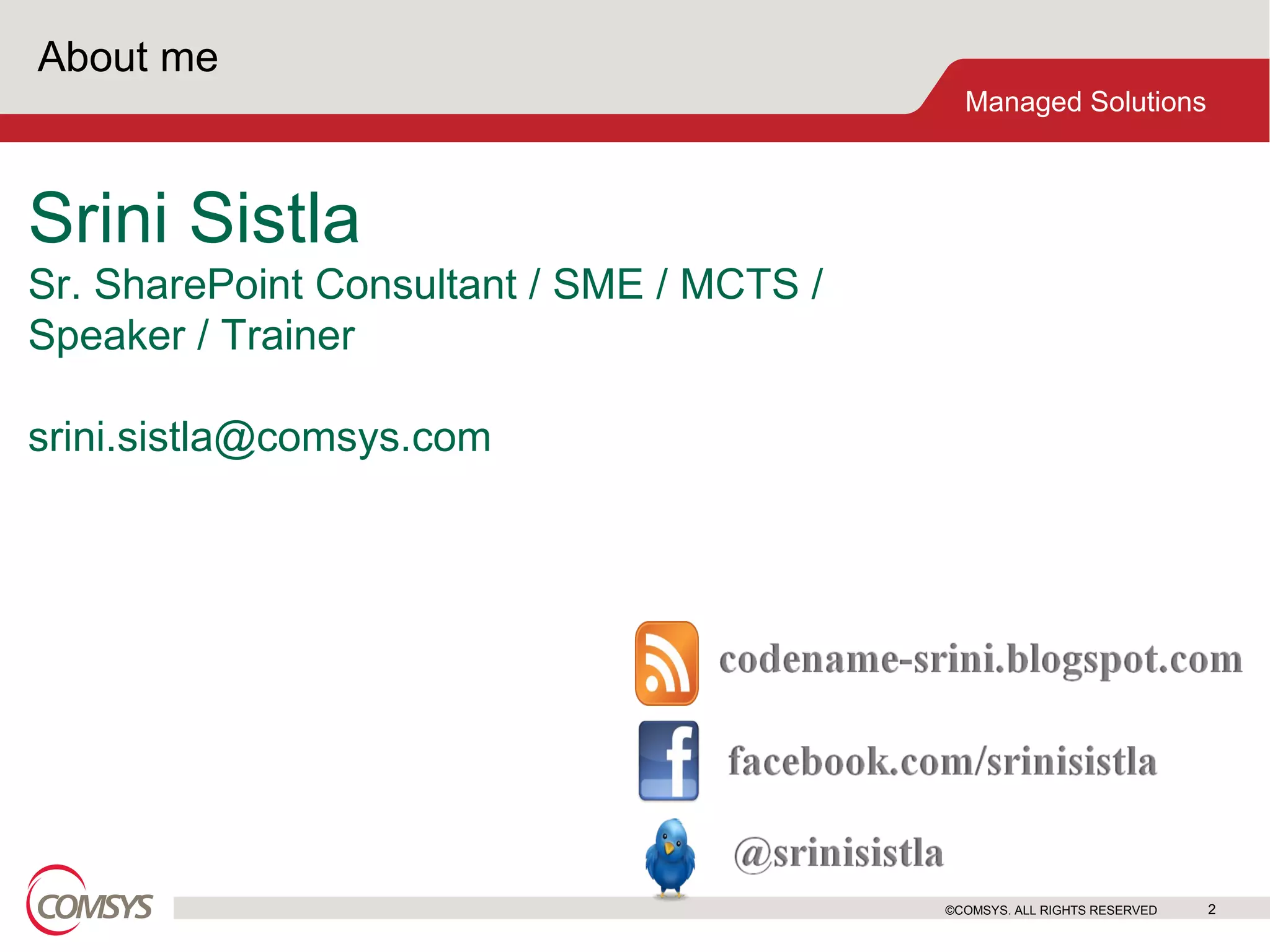

2. About me ©COMSYS. ALL RIGHTS RESERVED Srini Sistla Sr. SharePoint Consultant / SME / MCTS / Speaker / Trainer [email_address]

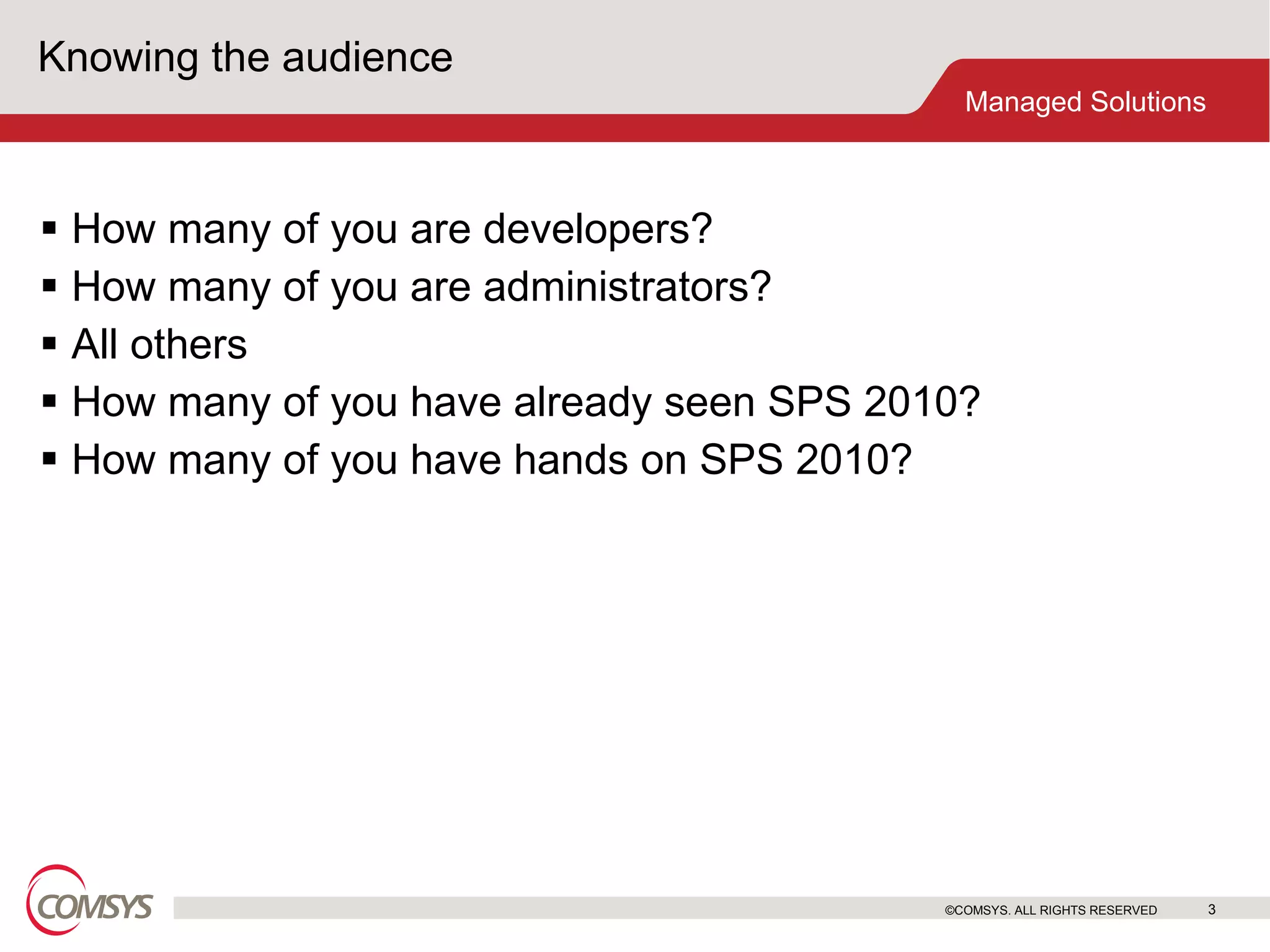

3. Knowing the audience How many of you are developers? How many of you are administrators? All others How many of you have already seen SPS 2010? How many of you have hands on SPS 2010? ©COMSYS. ALL RIGHTS RESERVED

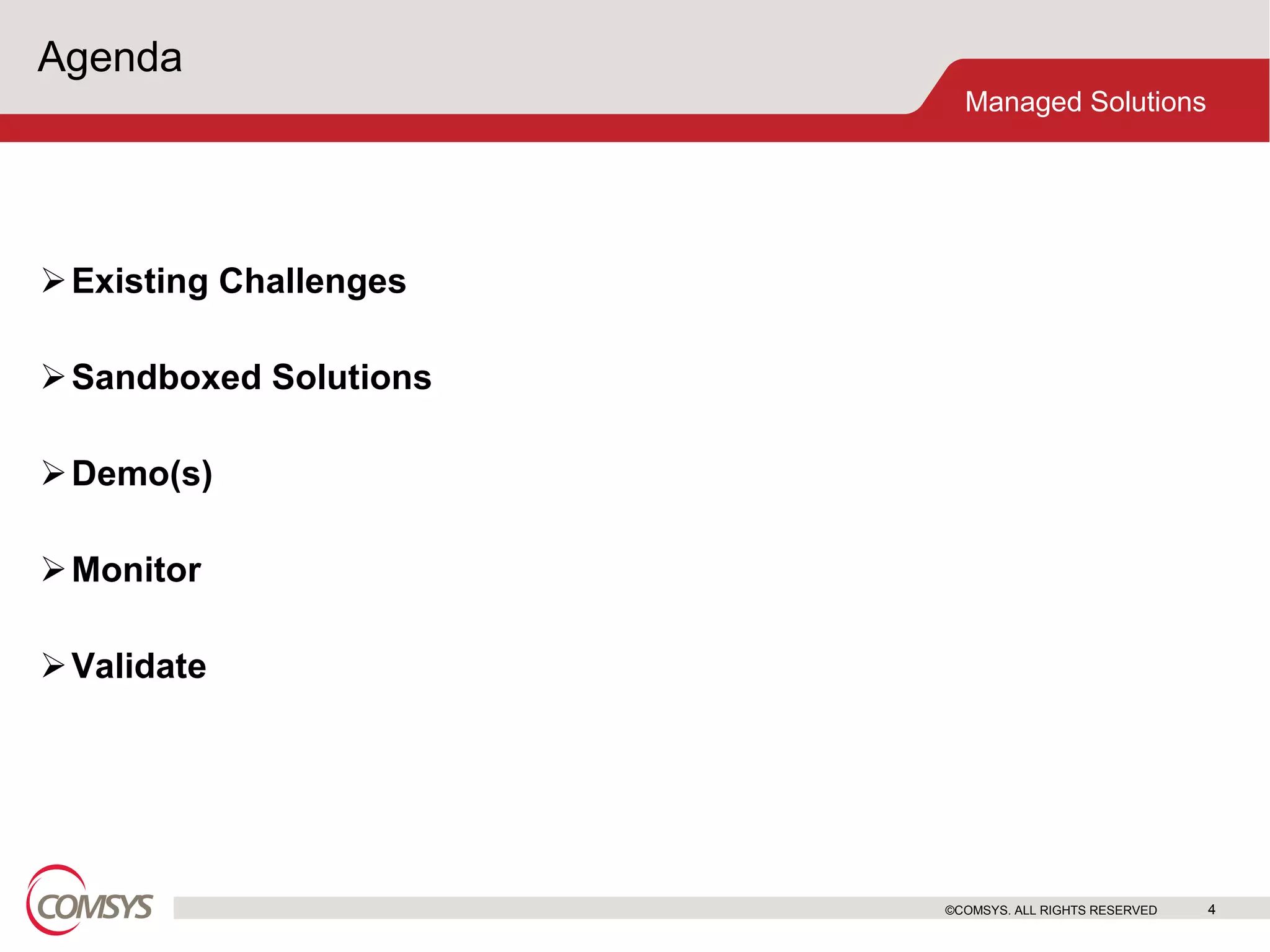

4. Agenda Existing Challenges Sandboxed Solutions Demo(s) Monitor Validate ©COMSYS. ALL RIGHTS RESERVED

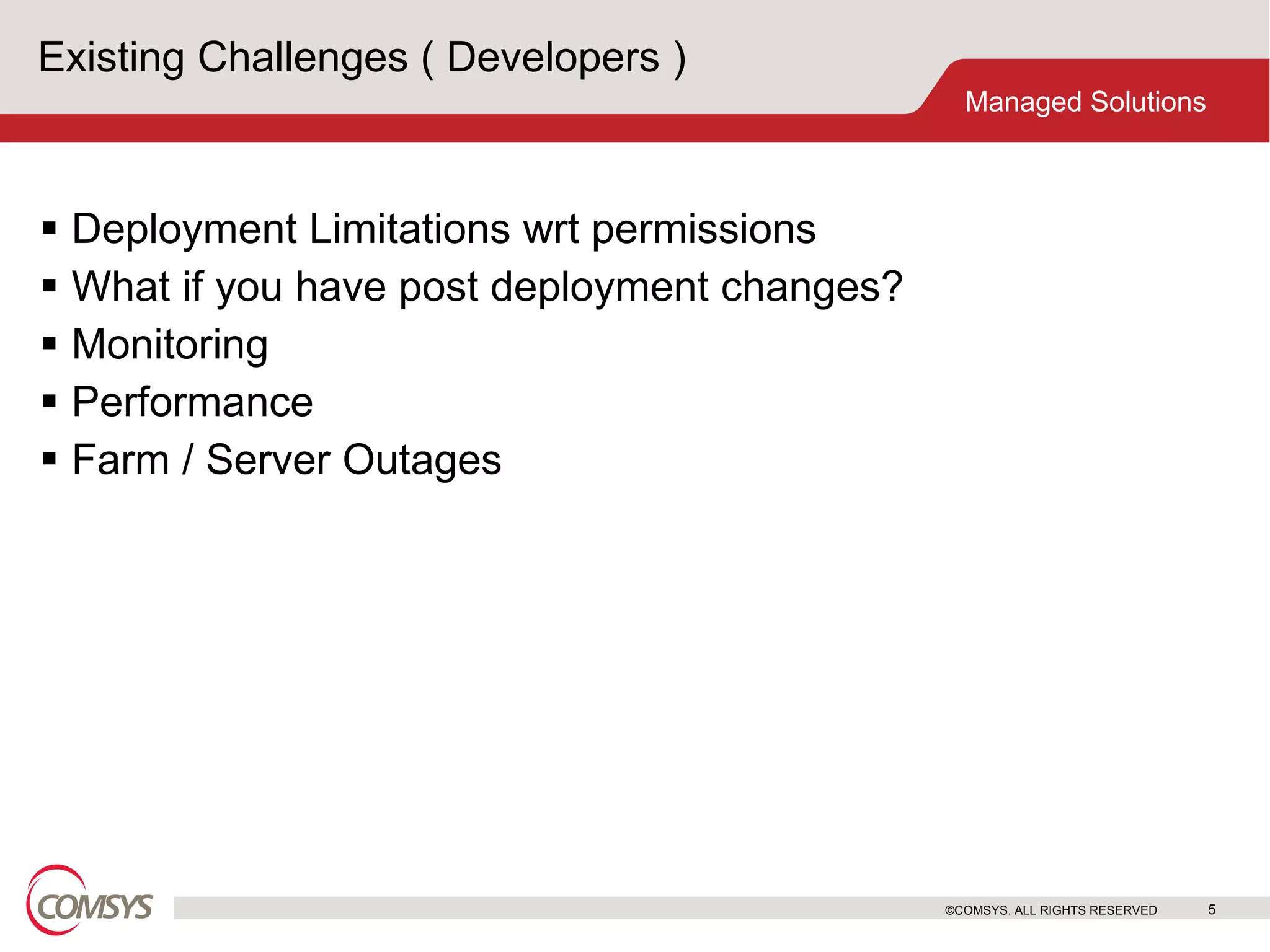

5. Existing Challenges ( Developers ) Deployment Limitations wrt permissions What if you have post deployment changes? Monitoring Performance Farm / Server Outages ©COMSYS. ALL RIGHTS RESERVED

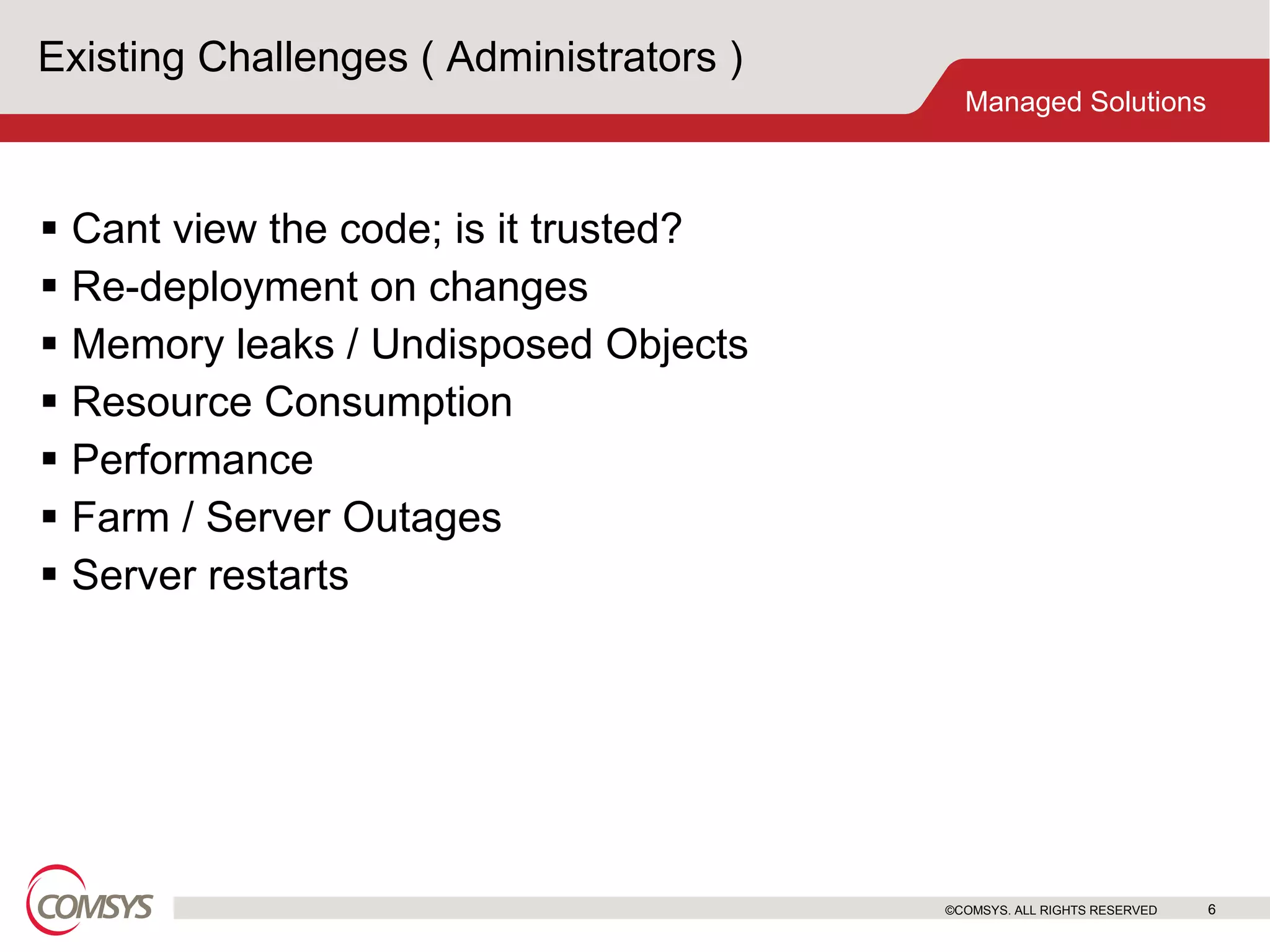

6. Existing Challenges ( Administrators ) Cant view the code; is it trusted? Re-deployment on changes Memory leaks / Undisposed Objects Resource Consumption Performance Farm / Server Outages Server restarts ©COMSYS. ALL RIGHTS RESERVED

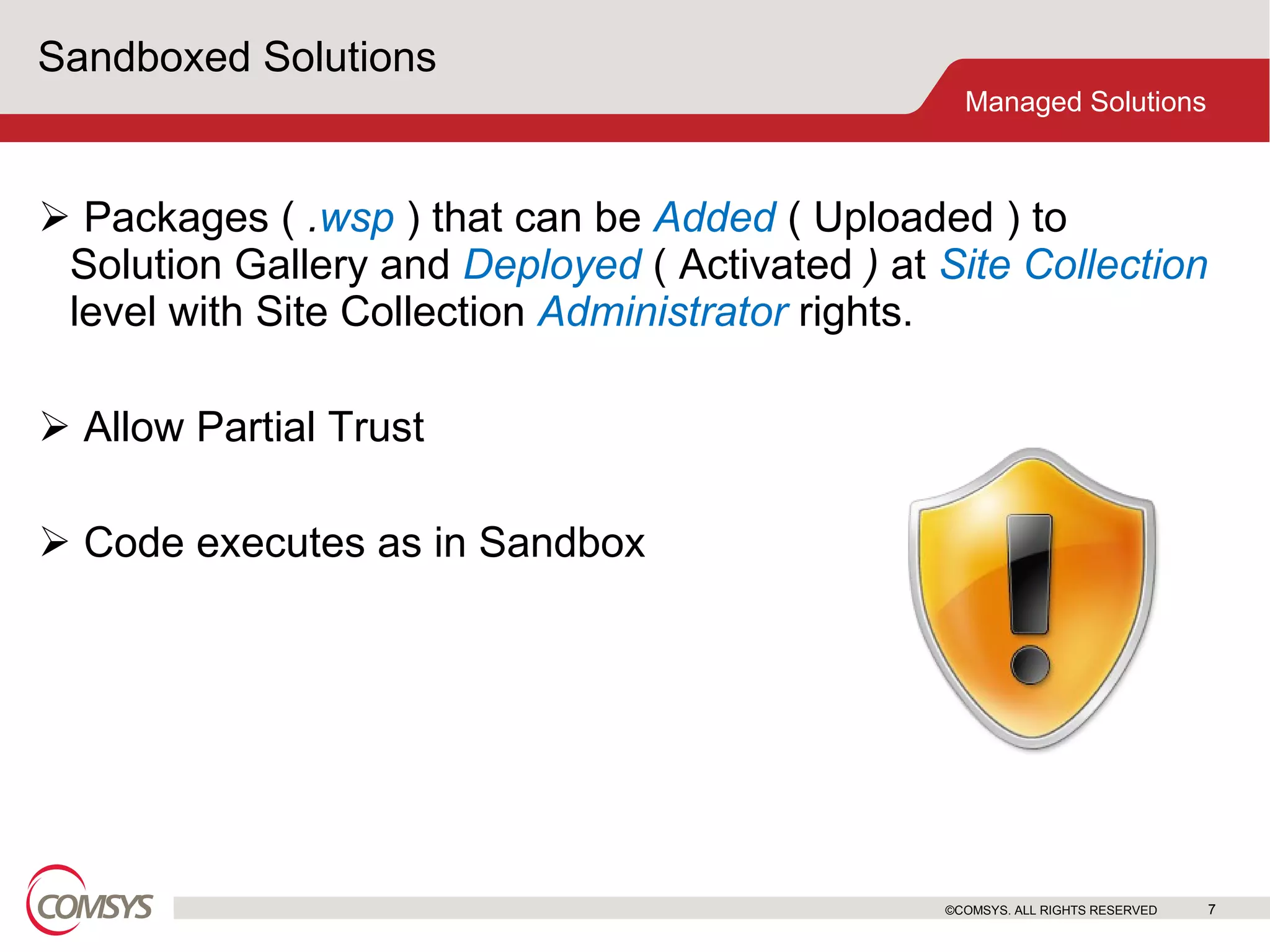

7. Sandboxed Solutions Packages ( . wsp ) that can be Added ( Uploaded ) to Solution Gallery and Deployed ( Activated ) at Site Collection level with Site Collection Administrator rights. Allow Partial Trust Code executes as in Sandbox ©COMSYS. ALL RIGHTS RESERVED

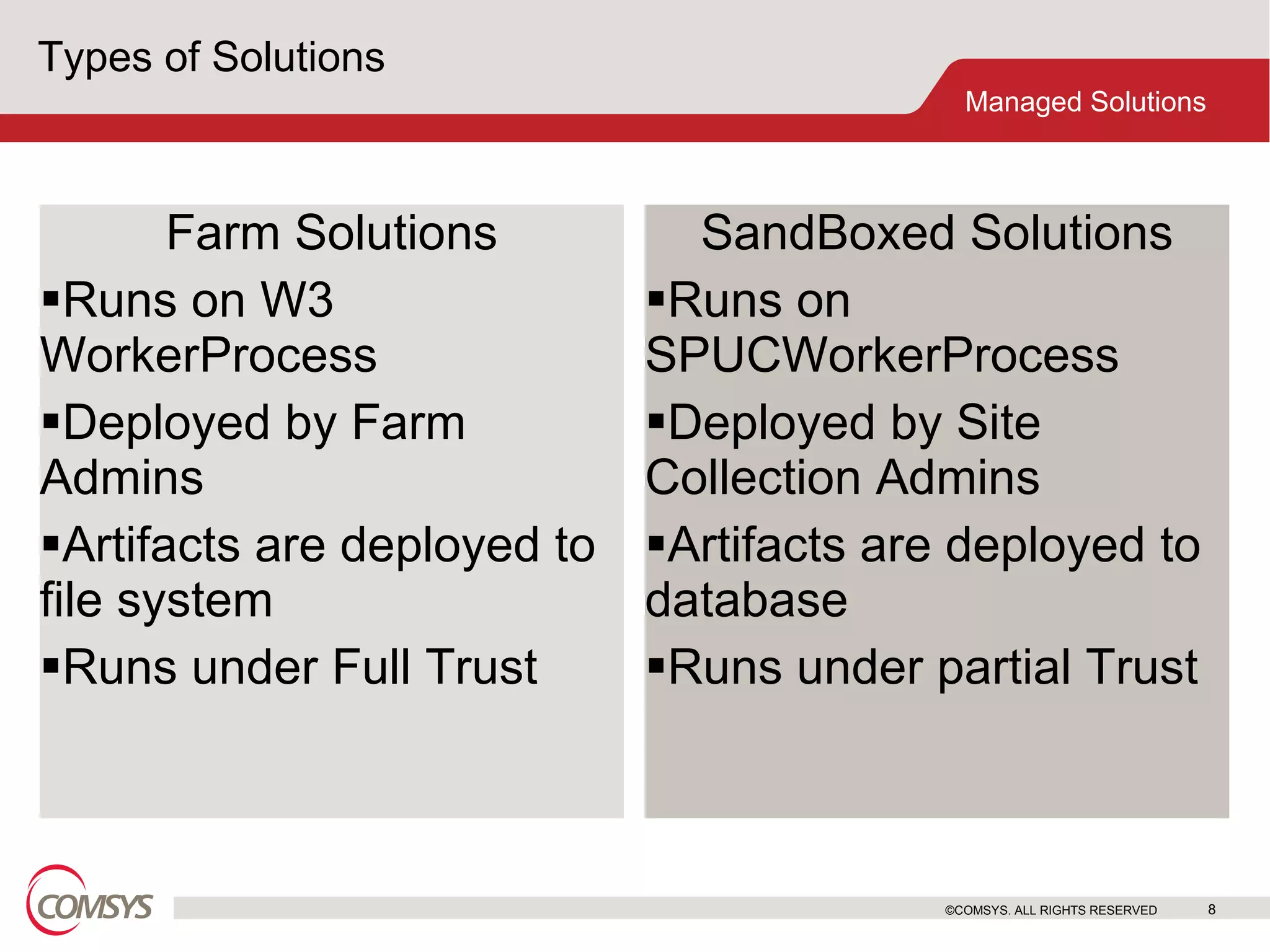

8. Types of Solutions Farm Solutions Runs on W3 WorkerProcess Deployed by Farm Admins Artifacts are deployed to file system Runs under Full Trust SandBoxed Solutions Runs on SPUCWorkerProcess Deployed by Site Collection Admins Artifacts are deployed to database Runs under partial Trust ©COMSYS. ALL RIGHTS RESERVED

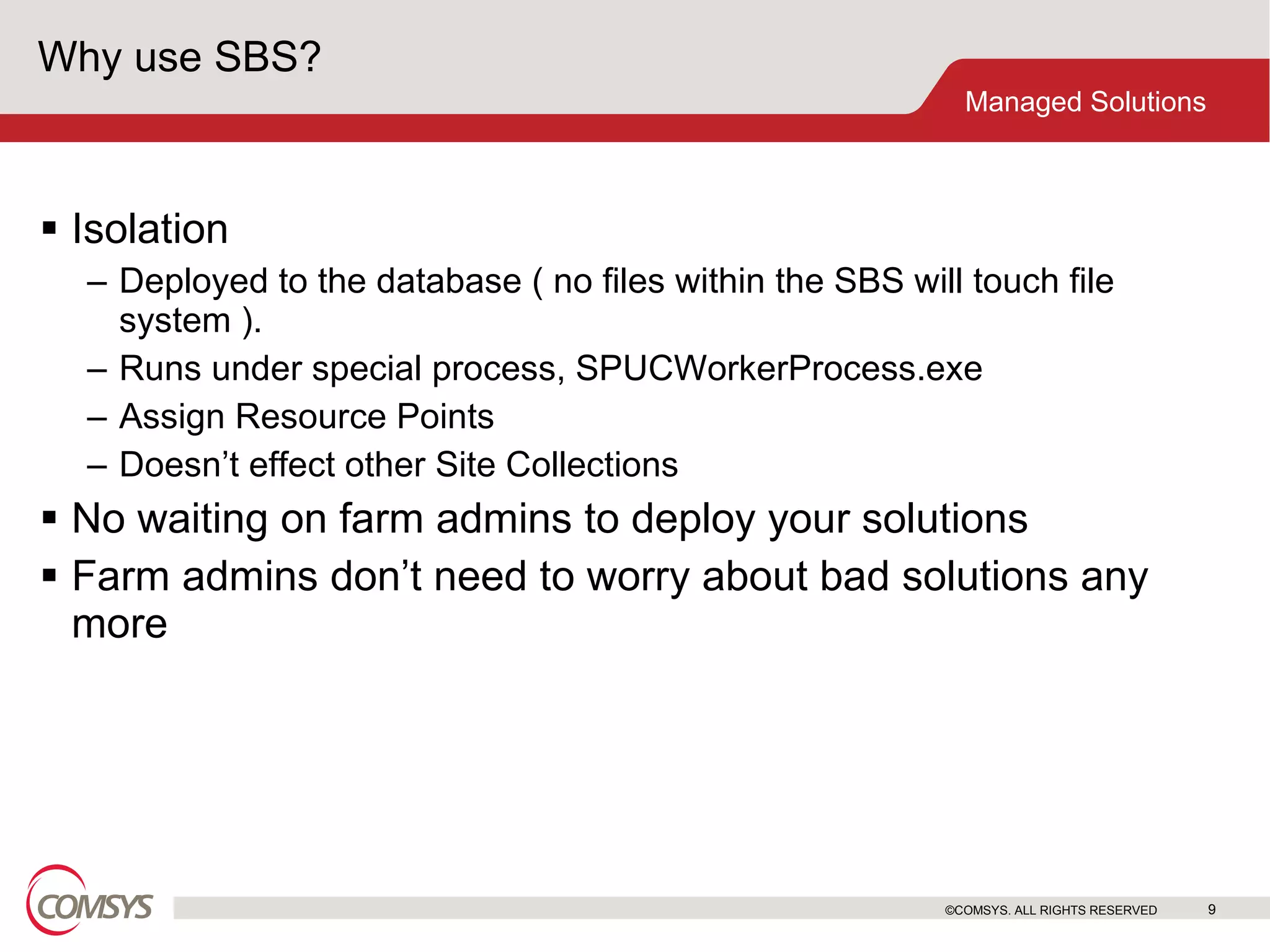

9. Why use SBS? Isolation Deployed to the database ( no files within the SBS will touch file system ). Runs under special process, SPUCWorkerProcess.exe Assign Resource Points Doesn’t effect other Site Collections No waiting on farm admins to deploy your solutions Farm admins don’t need to worry about bad solutions any more ©COMSYS. ALL RIGHTS RESERVED

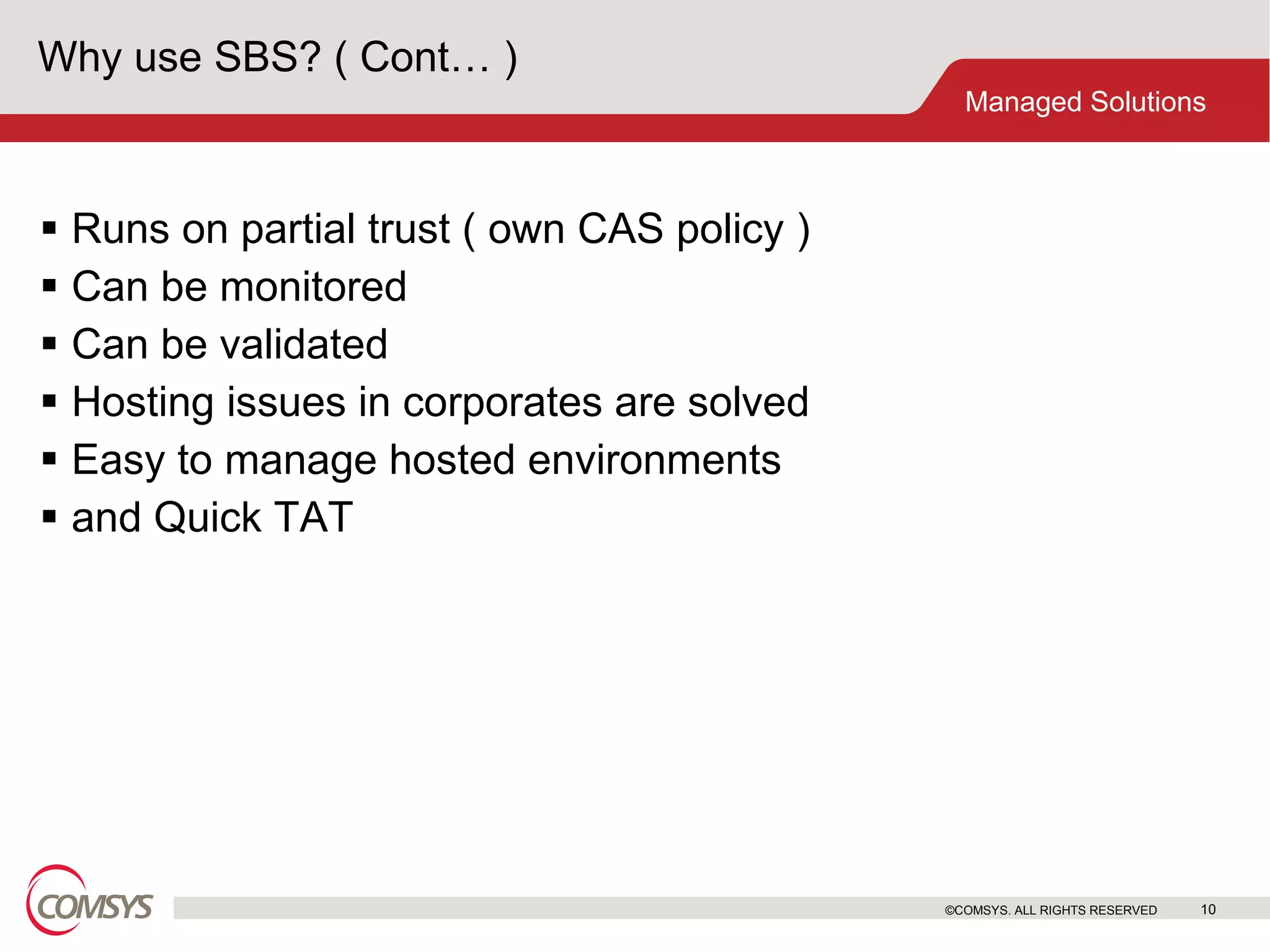

10. Why use SBS? ( Cont… ) Runs on partial trust ( own CAS policy ) Can be monitored Can be validated Hosting issues in corporates are solved Easy to manage hosted environments and Quick TAT ©COMSYS. ALL RIGHTS RESERVED

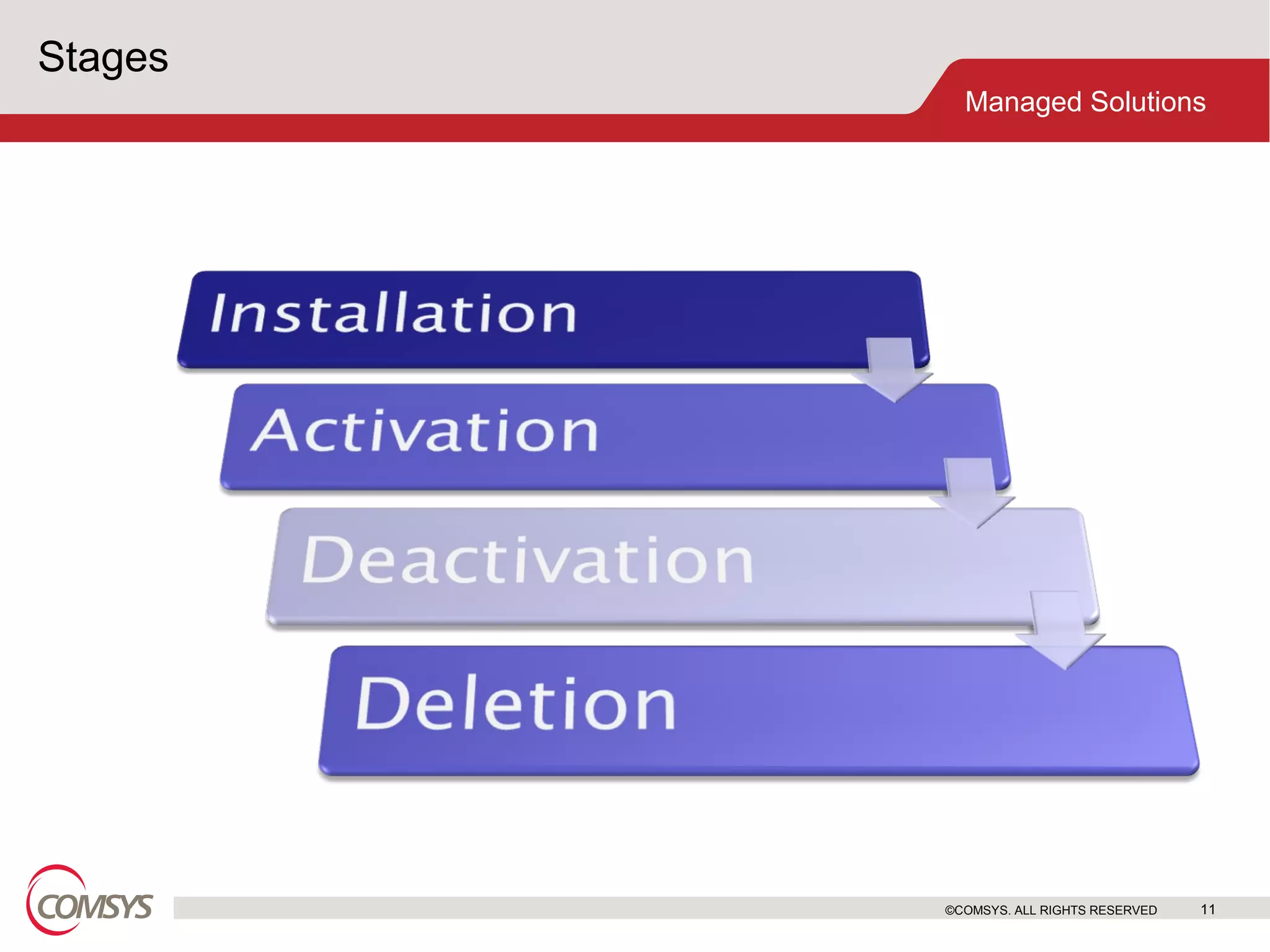

11. Stages ©COMSYS. ALL RIGHTS RESERVED

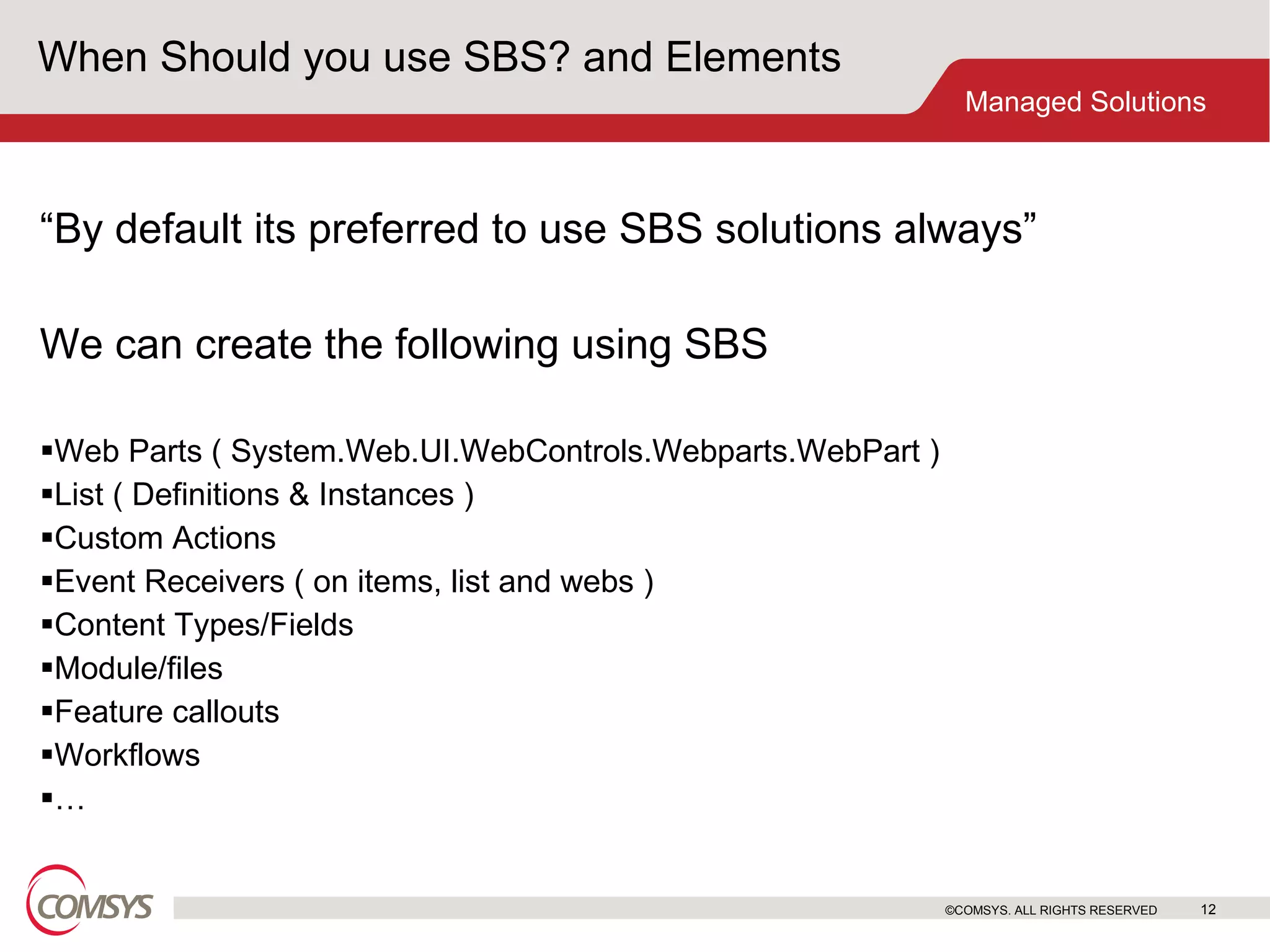

12. When Should you use SBS? and Elements “ By default its preferred to use SBS solutions always” We can create the following using SBS Web Parts ( System.Web.UI.WebControls.Webparts.WebPart ) List ( Definitions & Instances ) Custom Actions Event Receivers ( on items, list and webs ) Content Types/Fields Module/files Feature callouts Workflows … ©COMSYS. ALL RIGHTS RESERVED

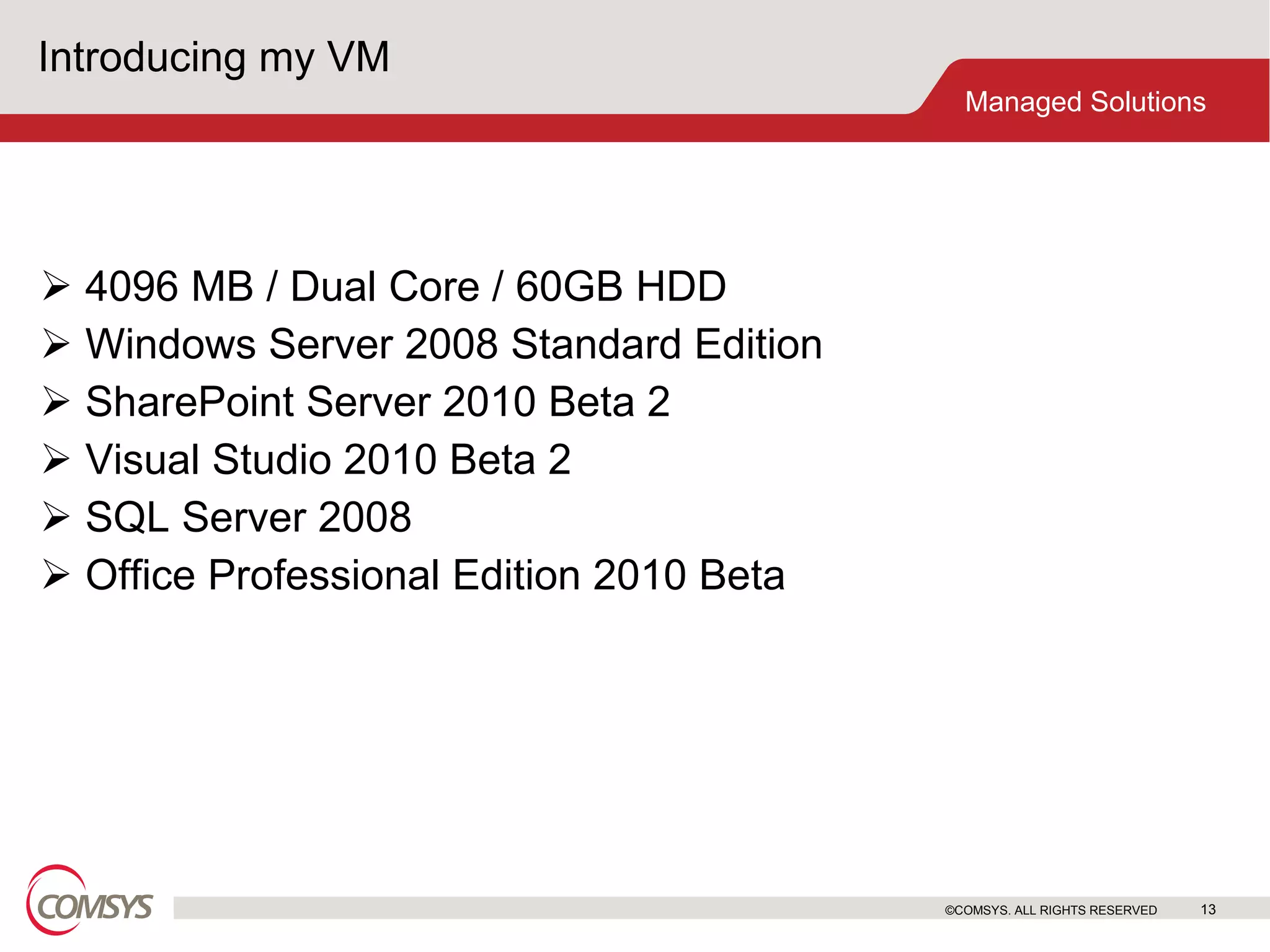

13. Introducing my VM 4096 MB / Dual Core / 60GB HDD Windows Server 2008 Standard Edition SharePoint Server 2010 Beta 2 Visual Studio 2010 Beta 2 SQL Server 2008 Office Professional Edition 2010 Beta ©COMSYS. ALL RIGHTS RESERVED

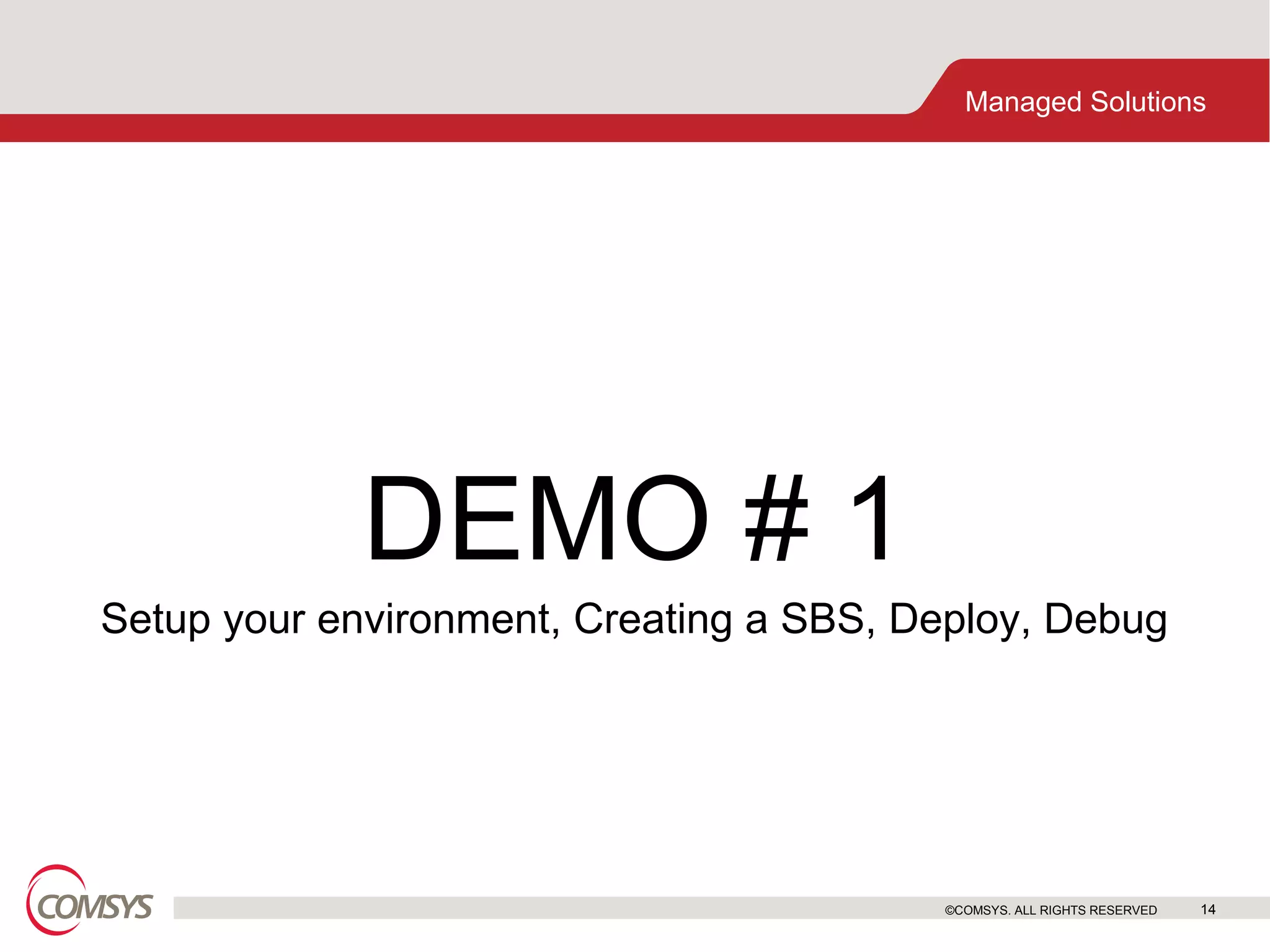

14. DEMO # 1 Setup your environment, Creating a SBS, Deploy, Debug ©COMSYS. ALL RIGHTS RESERVED

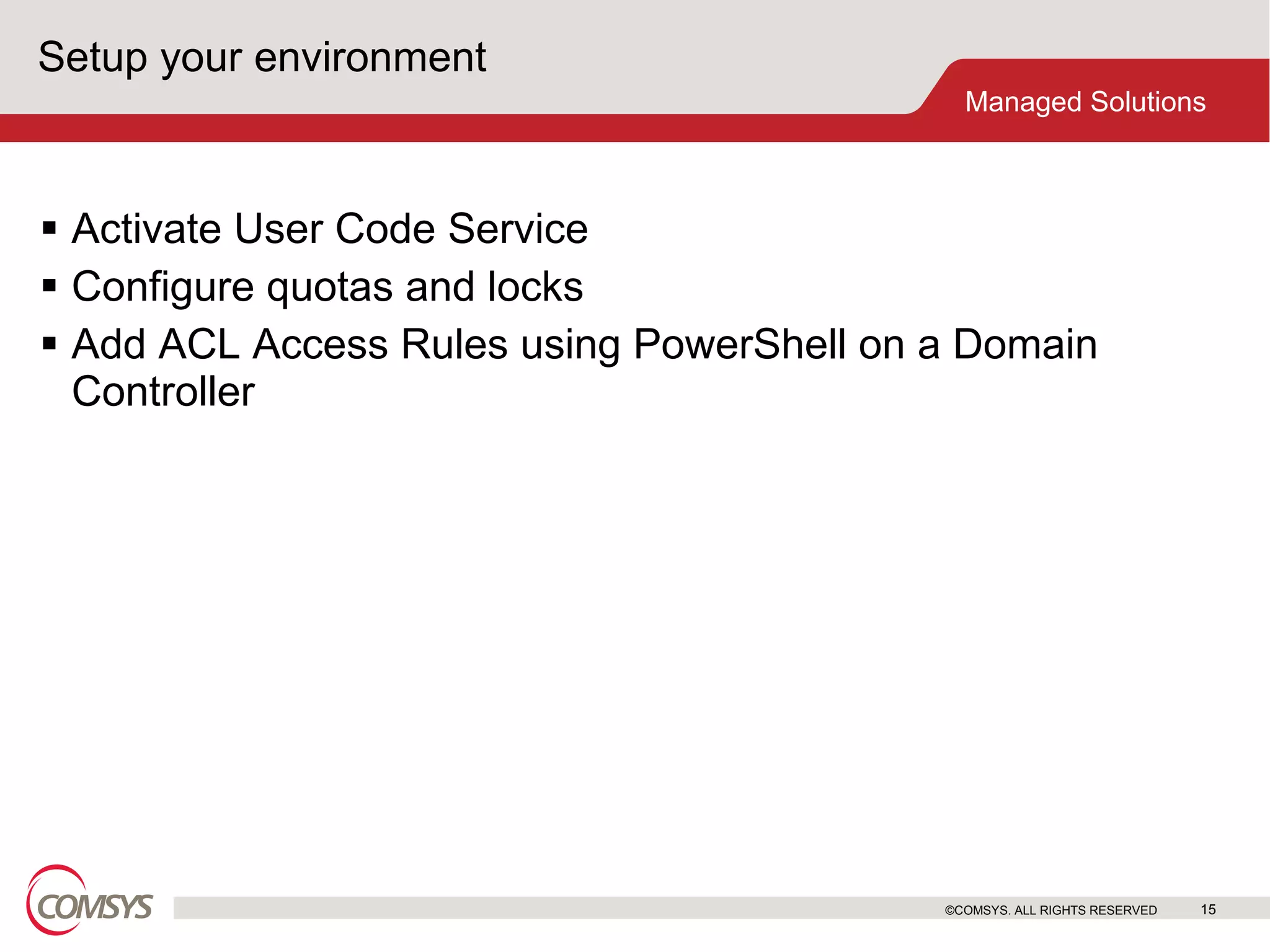

15. Setup your environment Activate User Code Service Configure quotas and locks Add ACL Access Rules using PowerShell on a Domain Controller ©COMSYS. ALL RIGHTS RESERVED

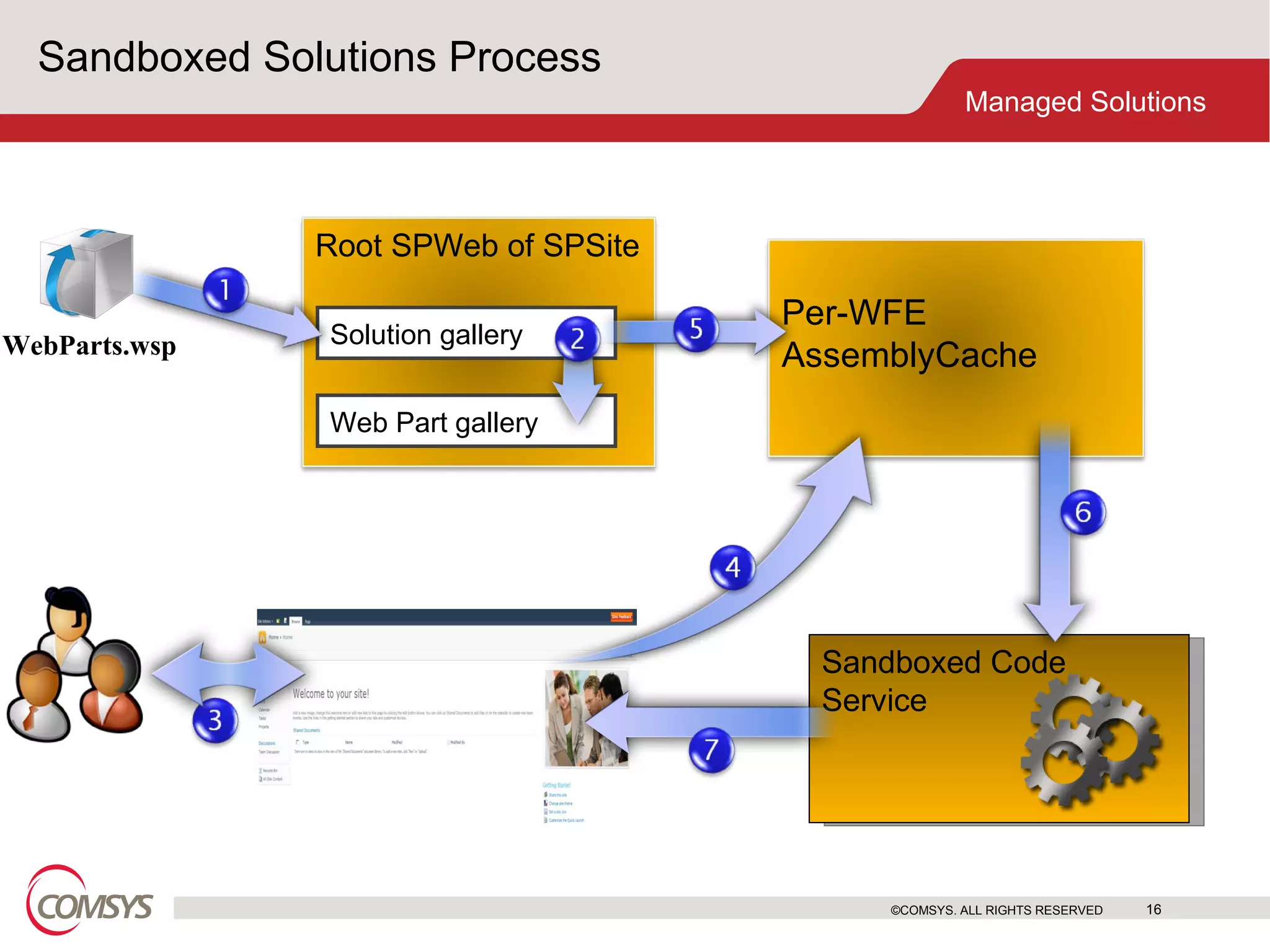

16. Sandboxed Solutions Process ©COMSYS. ALL RIGHTS RESERVED Solution gallery Web Part gallery Root SPWeb of SPSite WebParts.wsp Per-WFE AssemblyCache Sandboxed Code Service

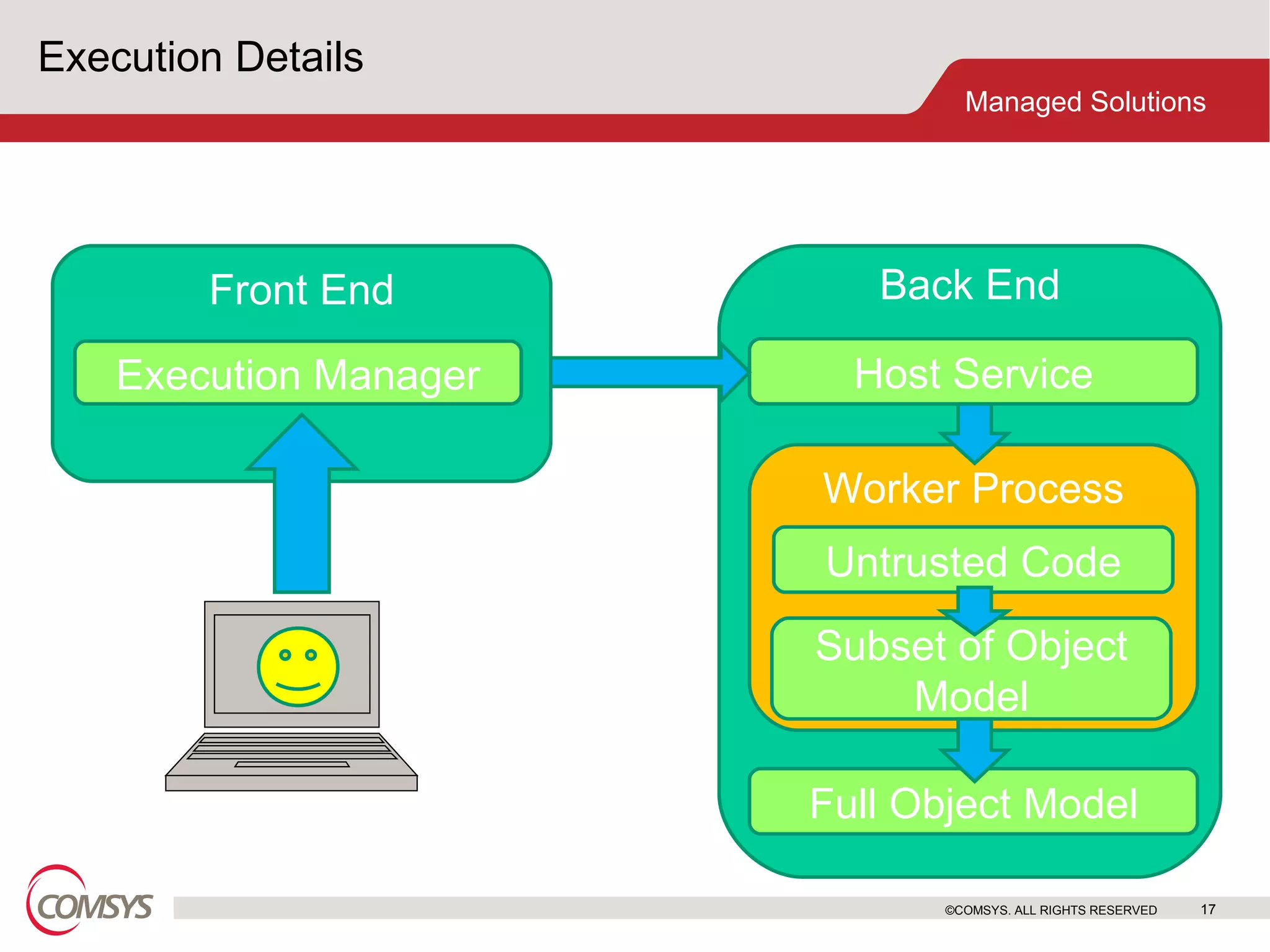

17. Execution Details ©COMSYS. ALL RIGHTS RESERVED Front End Execution Manager Back End Host Service Worker Process Full Object Model Untrusted Code Subset of Object Model

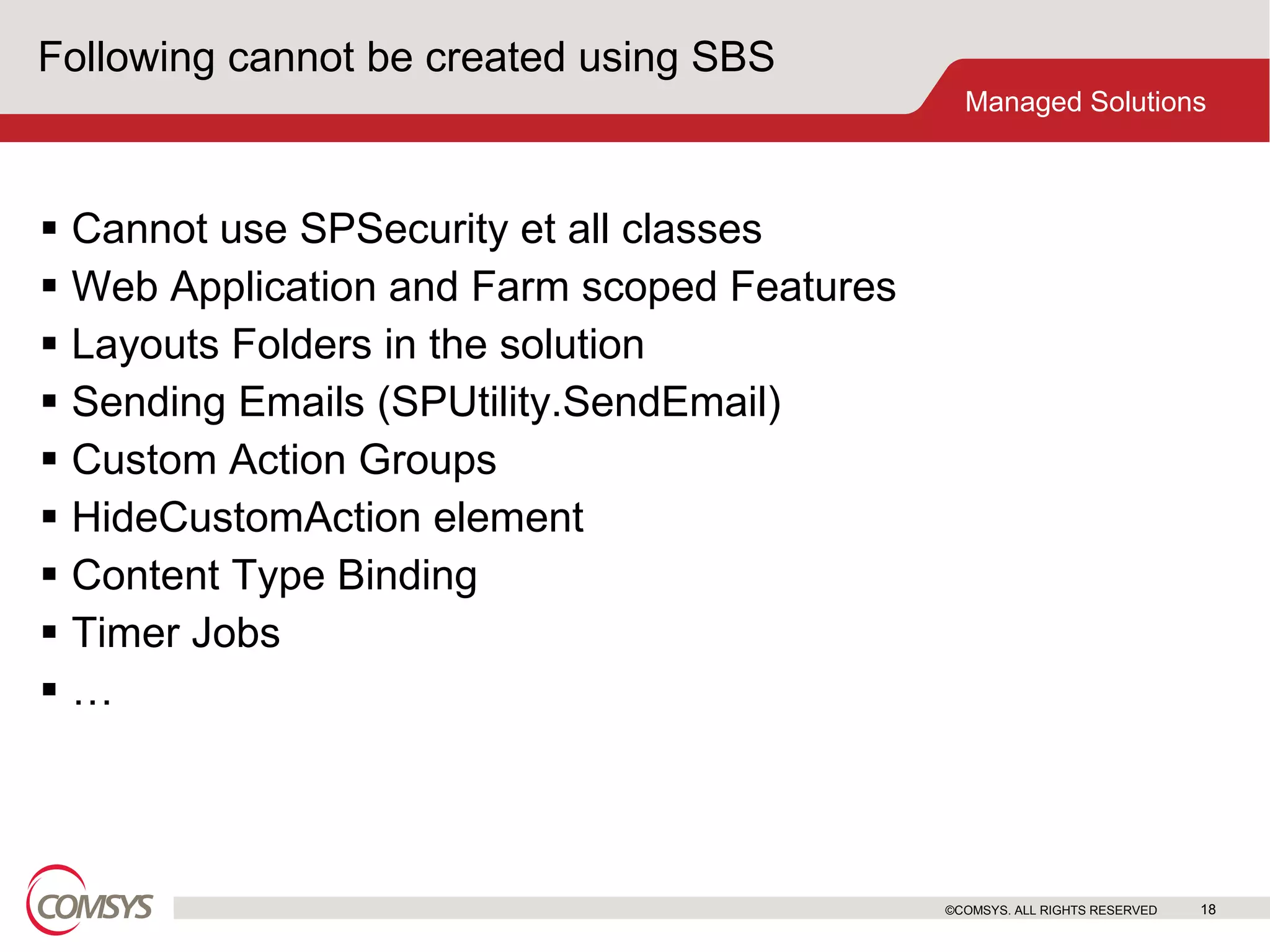

18. Following cannot be created using SBS Cannot use SPSecurity et all classes Web Application and Farm scoped Features Layouts Folders in the solution Sending Emails (SPUtility.SendEmail) Custom Action Groups HideCustomAction element Content Type Binding Timer Jobs … ©COMSYS. ALL RIGHTS RESERVED

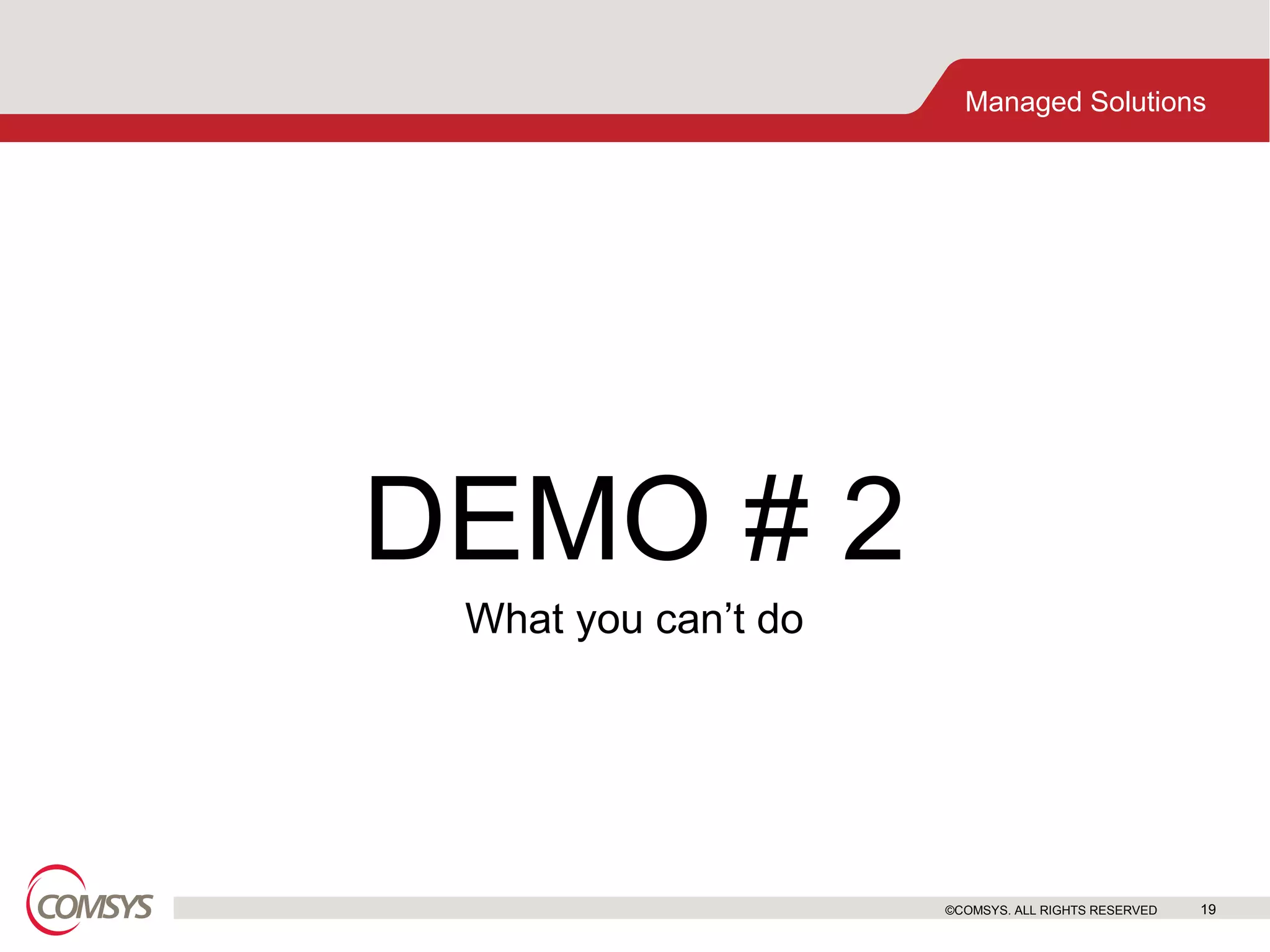

19. DEMO # 2 What you can’t do ©COMSYS. ALL RIGHTS RESERVED

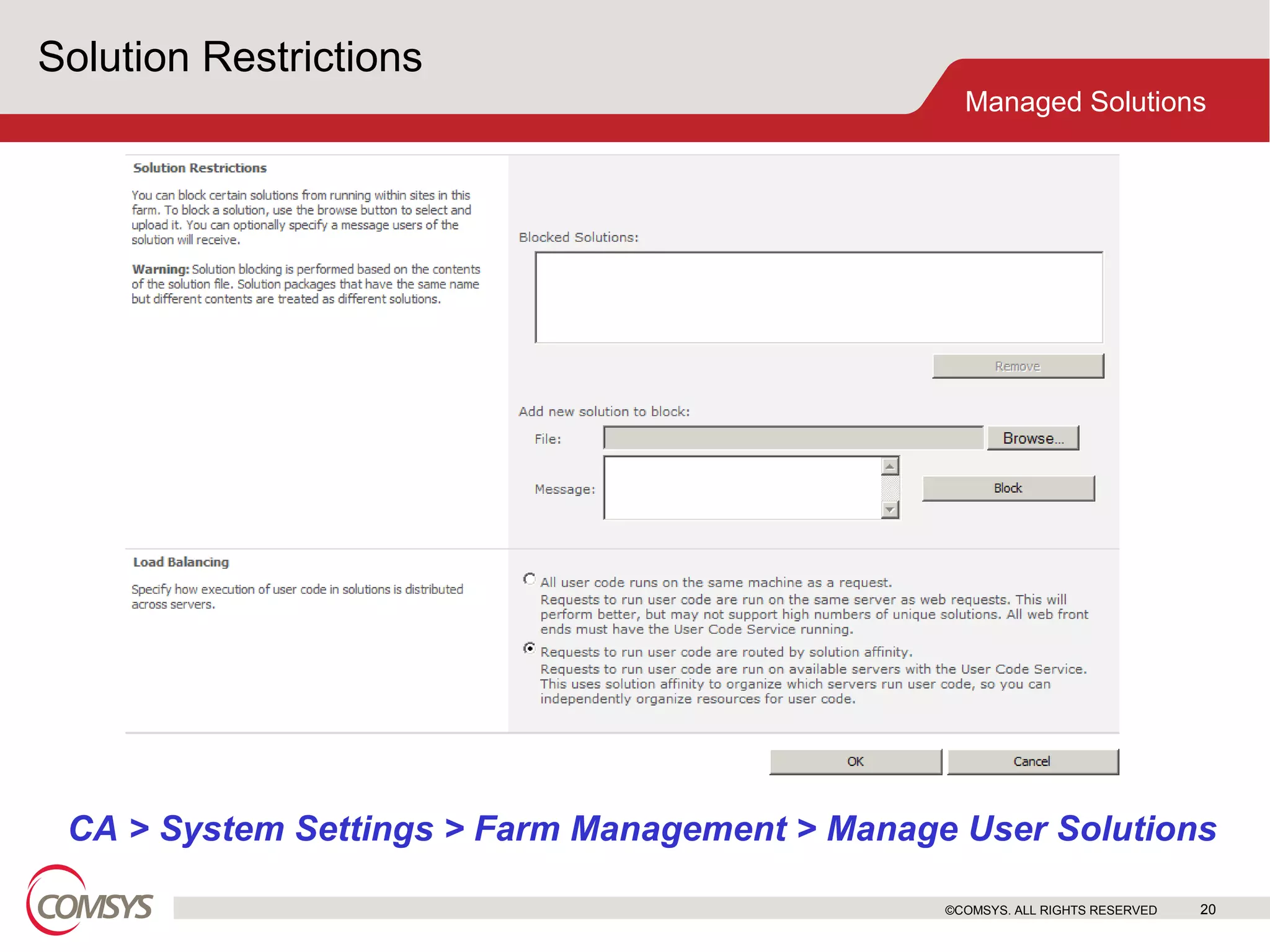

20. Solution Restrictions ©COMSYS. ALL RIGHTS RESERVED CA > System Settings > Farm Management > Manage User Solutions

21. DEMO # 3 Restrict a Solution ©COMSYS. ALL RIGHTS RESERVED

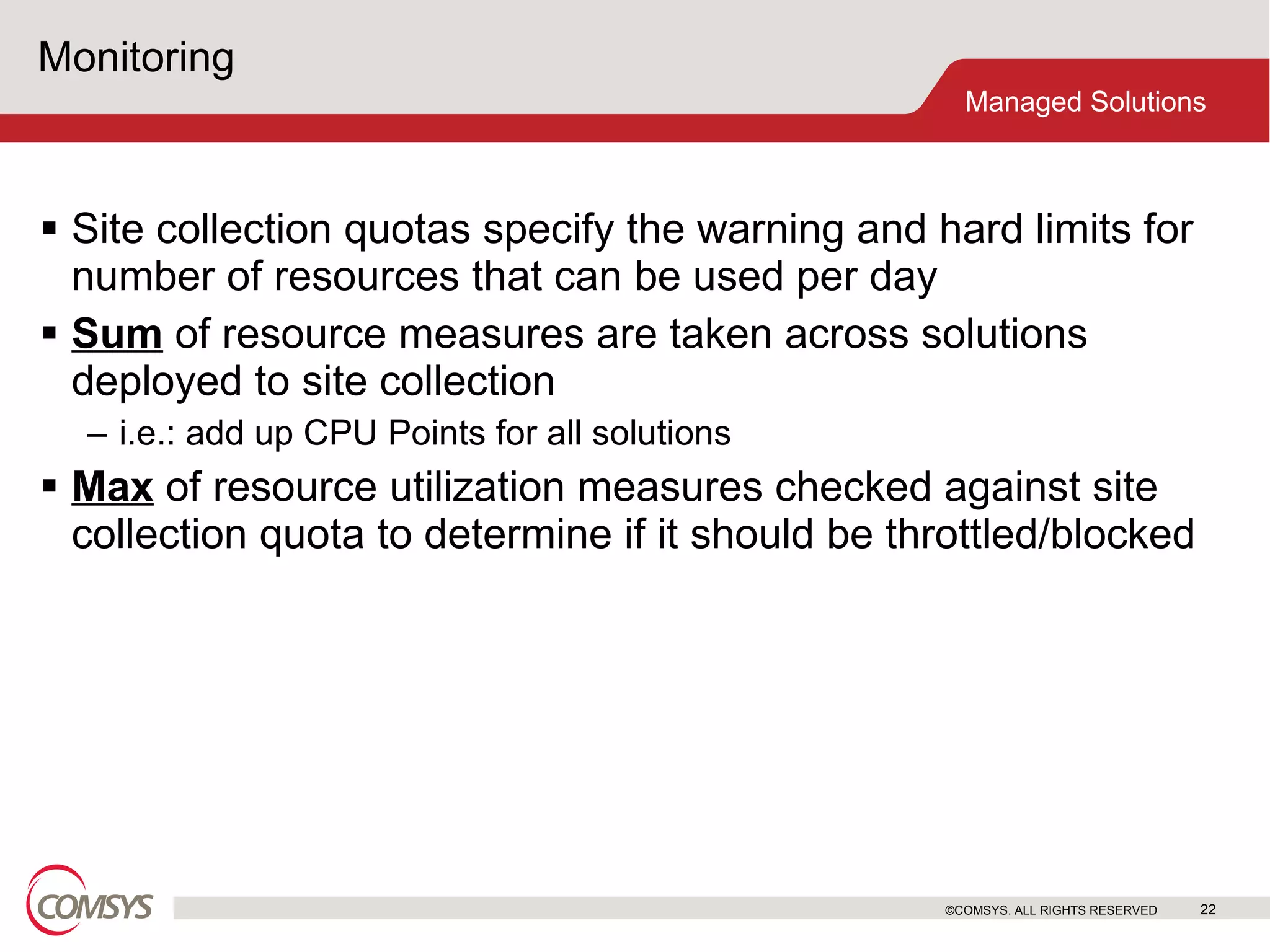

22. Monitoring Site collection quotas specify the warning and hard limits for number of resources that can be used per day Sum of resource measures are taken across solutions deployed to site collection i.e.: add up CPU Points for all solutions Max of resource utilization measures checked against site collection quota to determine if it should be throttled/blocked ©COMSYS. ALL RIGHTS RESERVED

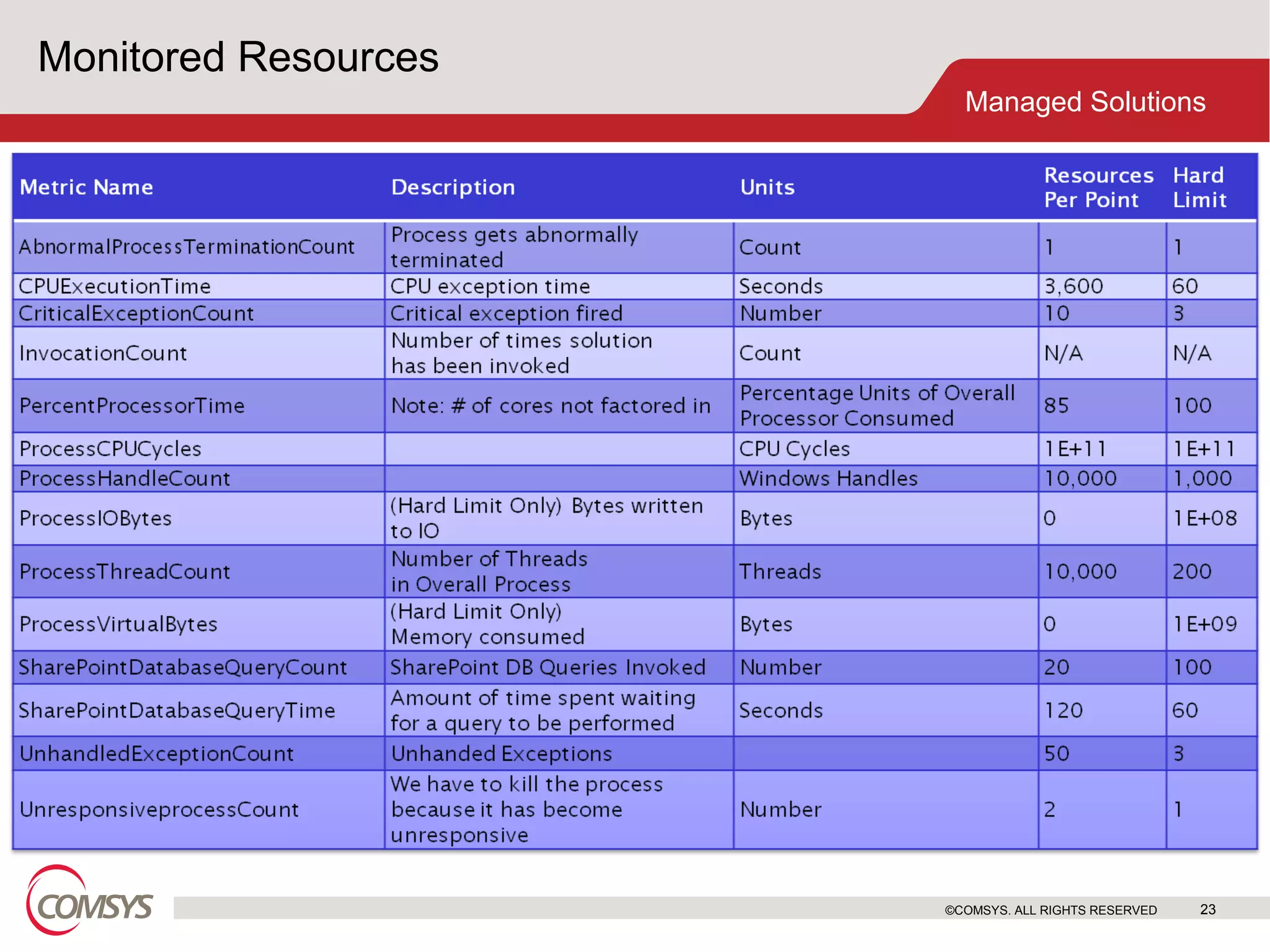

23. Monitored Resources ©COMSYS. ALL RIGHTS RESERVED

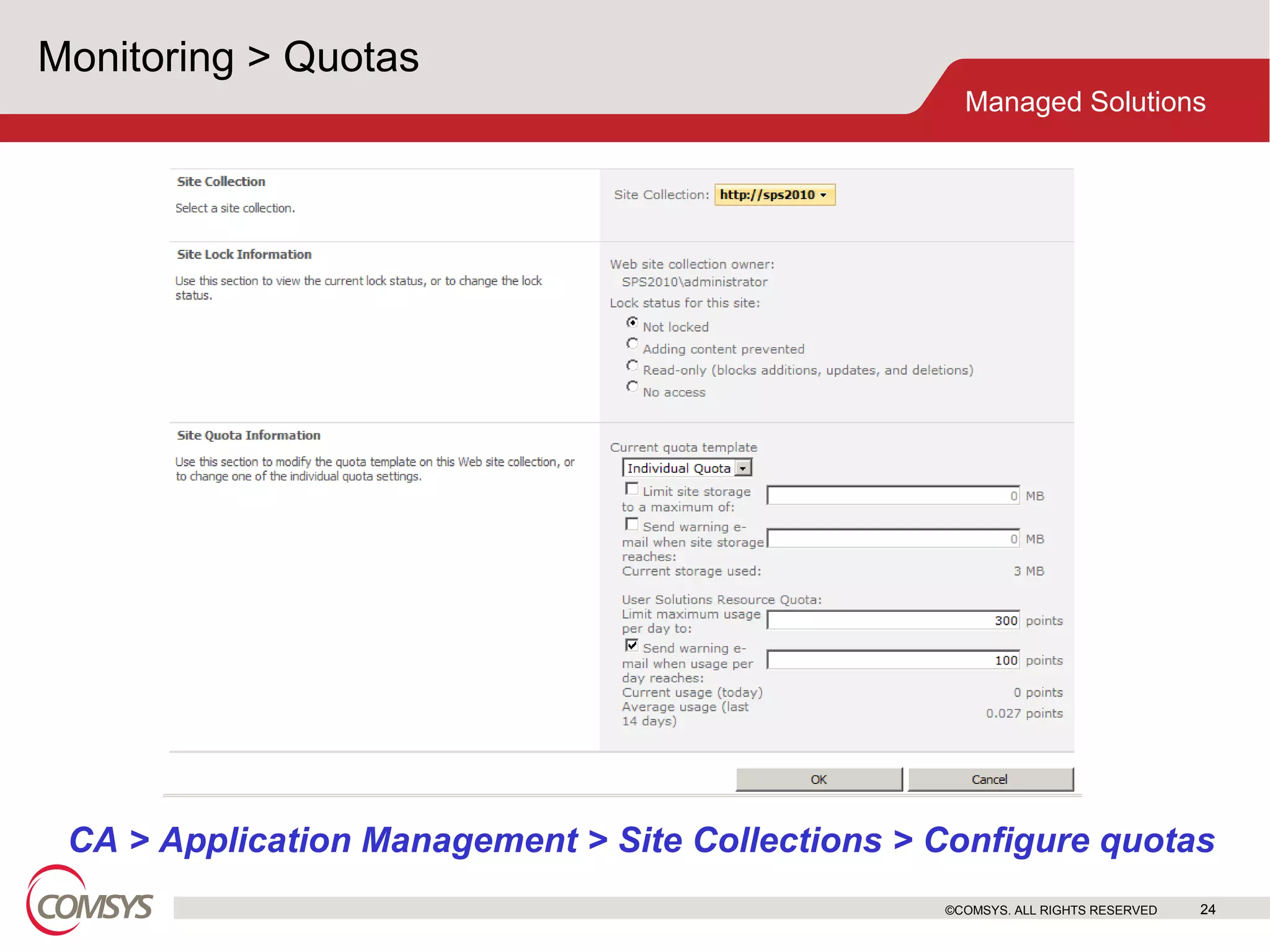

24. Monitoring > Quotas ©COMSYS. ALL RIGHTS RESERVED CA > Application Management > Site Collections > Configure quotas

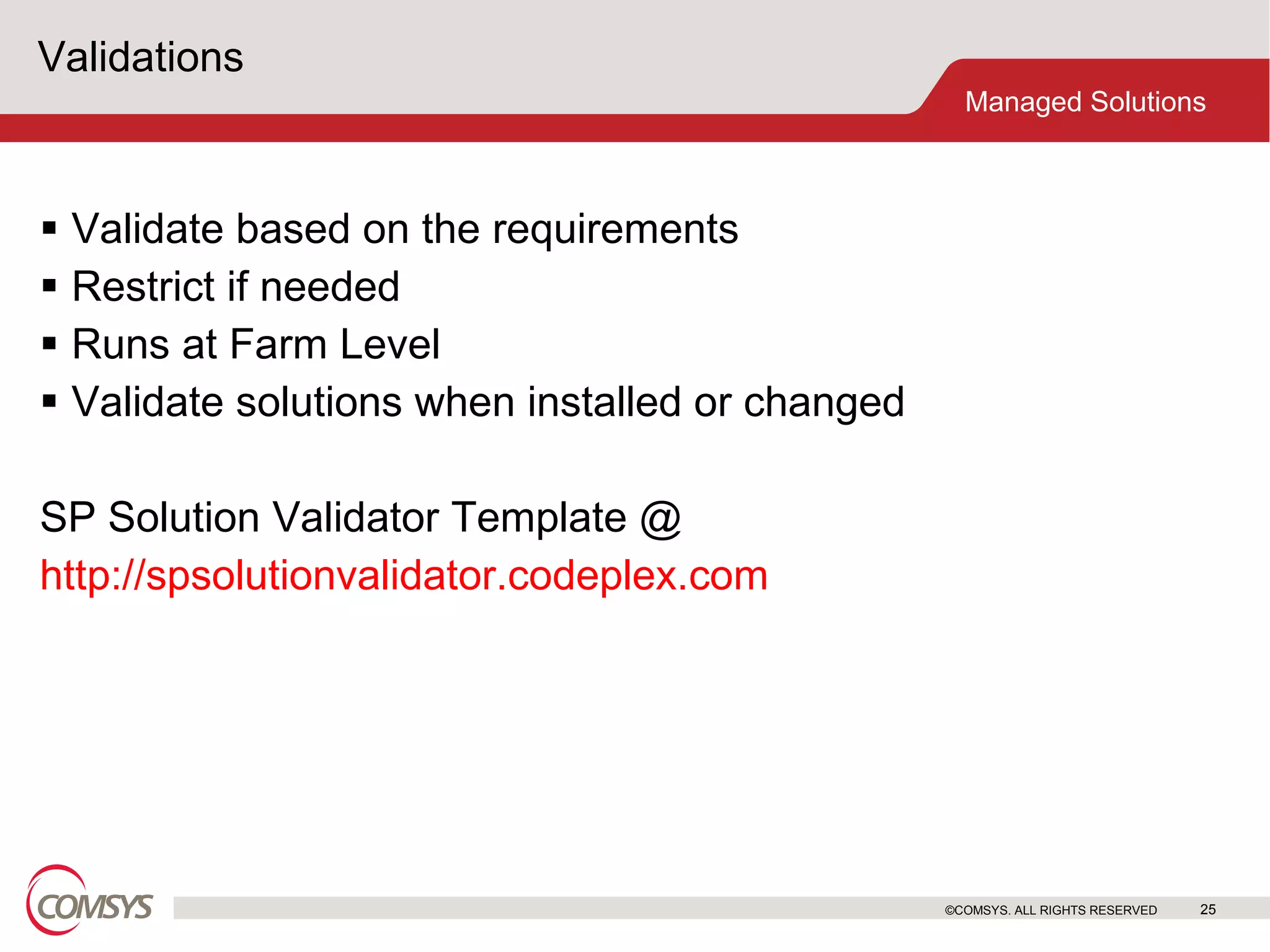

25. Validations Validate based on the requirements Restrict if needed Runs at Farm Level Validate solutions when installed or changed SP Solution Validator Template @ http://spsolutionvalidator.codeplex.com ©COMSYS. ALL RIGHTS RESERVED

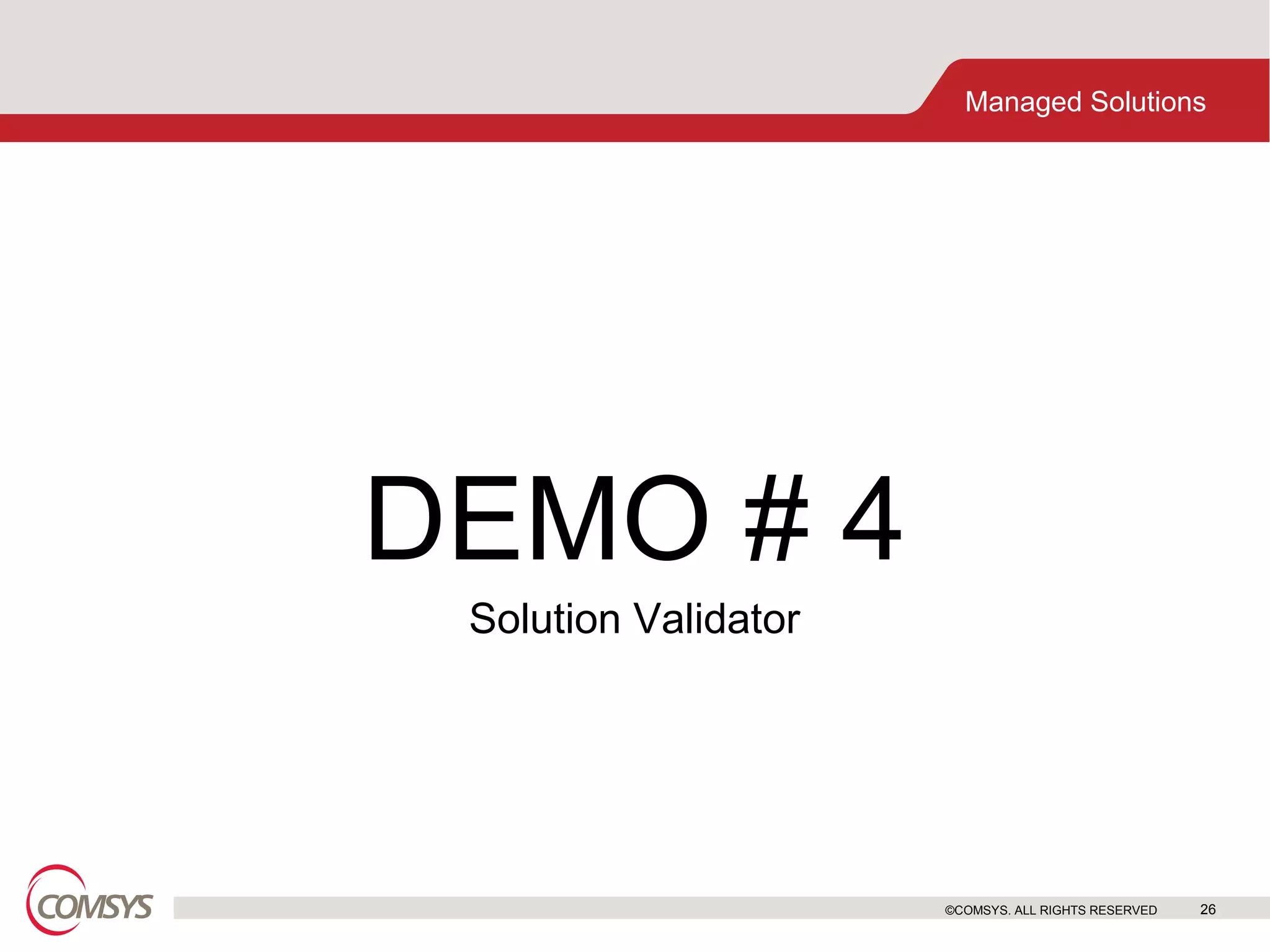

26. DEMO # 4 Solution Validator ©COMSYS. ALL RIGHTS RESERVED

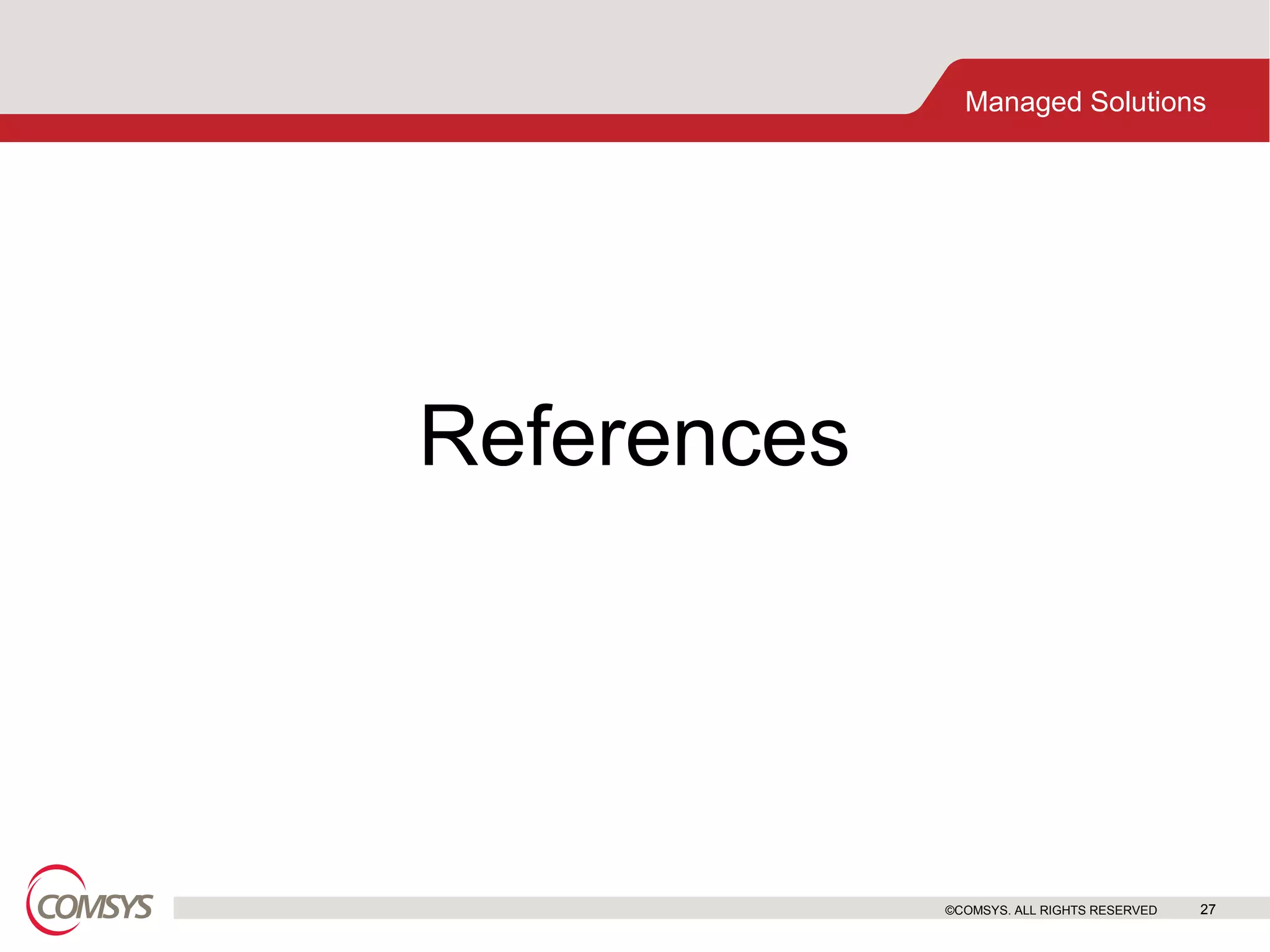

27. References ©COMSYS. ALL RIGHTS RESERVED

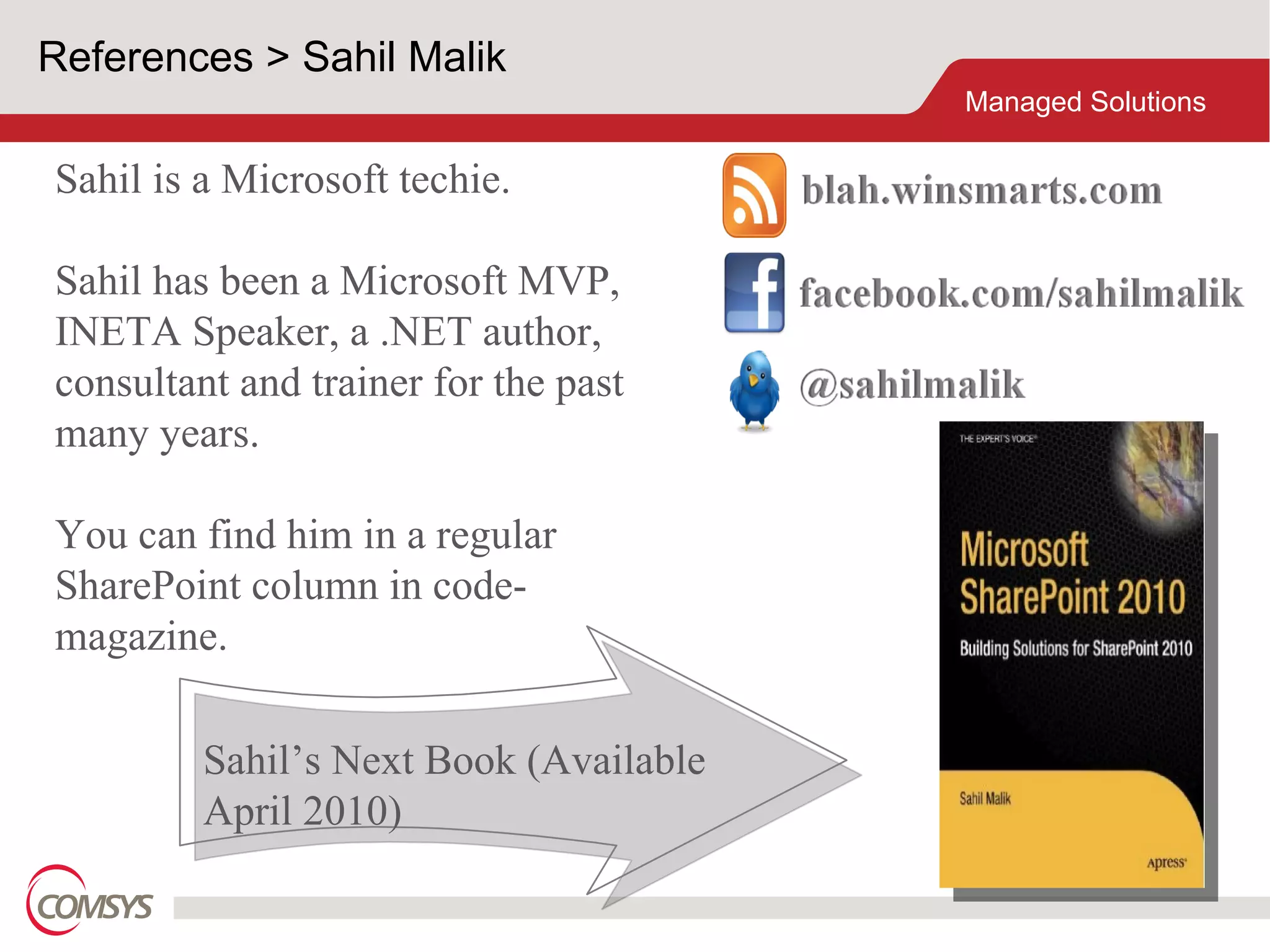

28. References > Sahil Malik Sahil is a Microsoft techie. Sahil has been a Microsoft MVP, INETA Speaker, a .NET author, consultant and trainer for the past many years. You can find him in a regular SharePoint column in code-magazine. Sahil’s Next Book (Available April 2010)

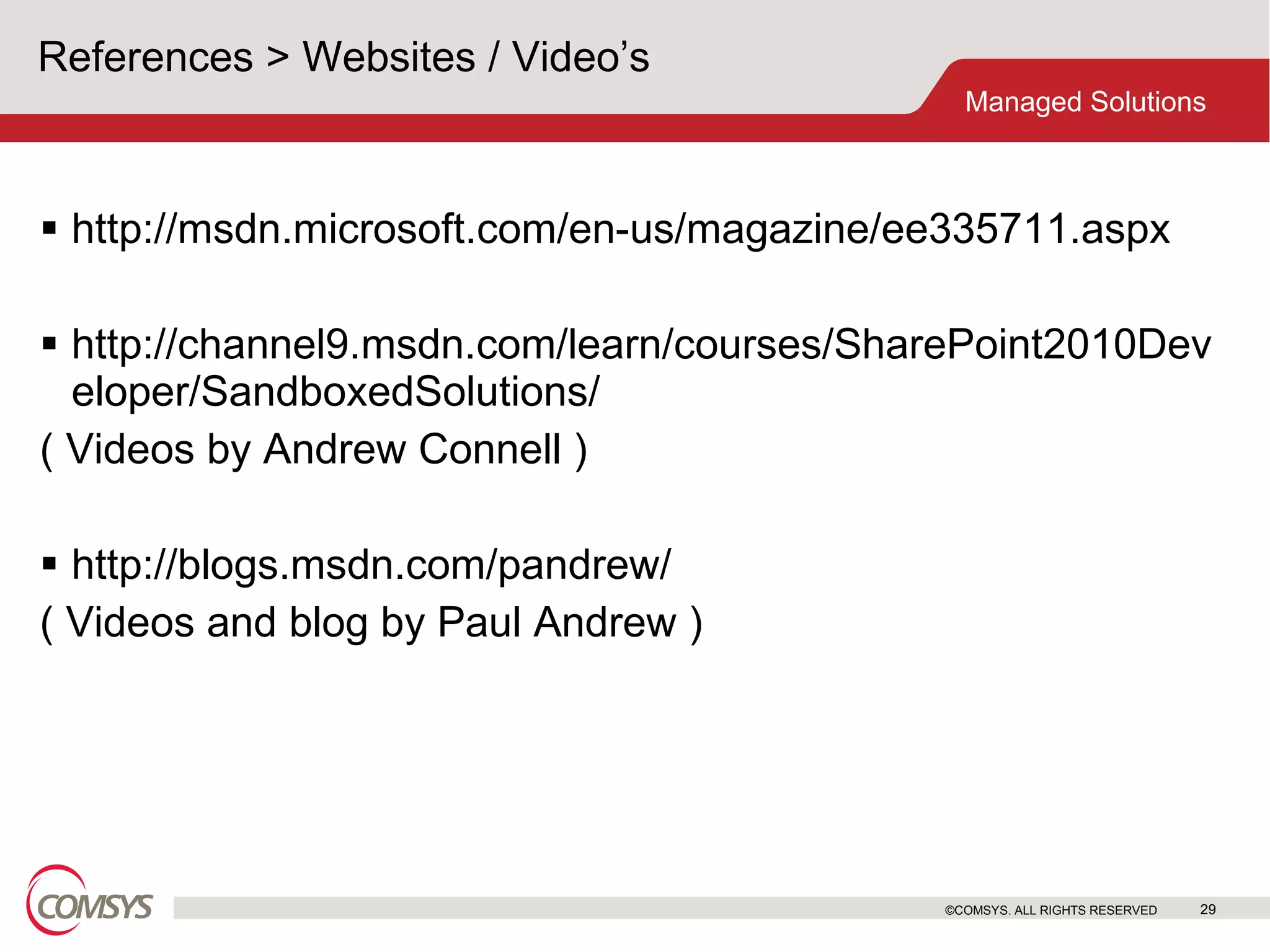

29. References > Websites / Video’s http://msdn.microsoft.com/en-us/magazine/ee335711.aspx http://channel9.msdn.com/learn/courses/SharePoint2010Developer/SandboxedSolutions/ ( Videos by Andrew Connell ) http://blogs.msdn.com/pandrew/ ( Videos and blog by Paul Andrew ) ©COMSYS. ALL RIGHTS RESERVED

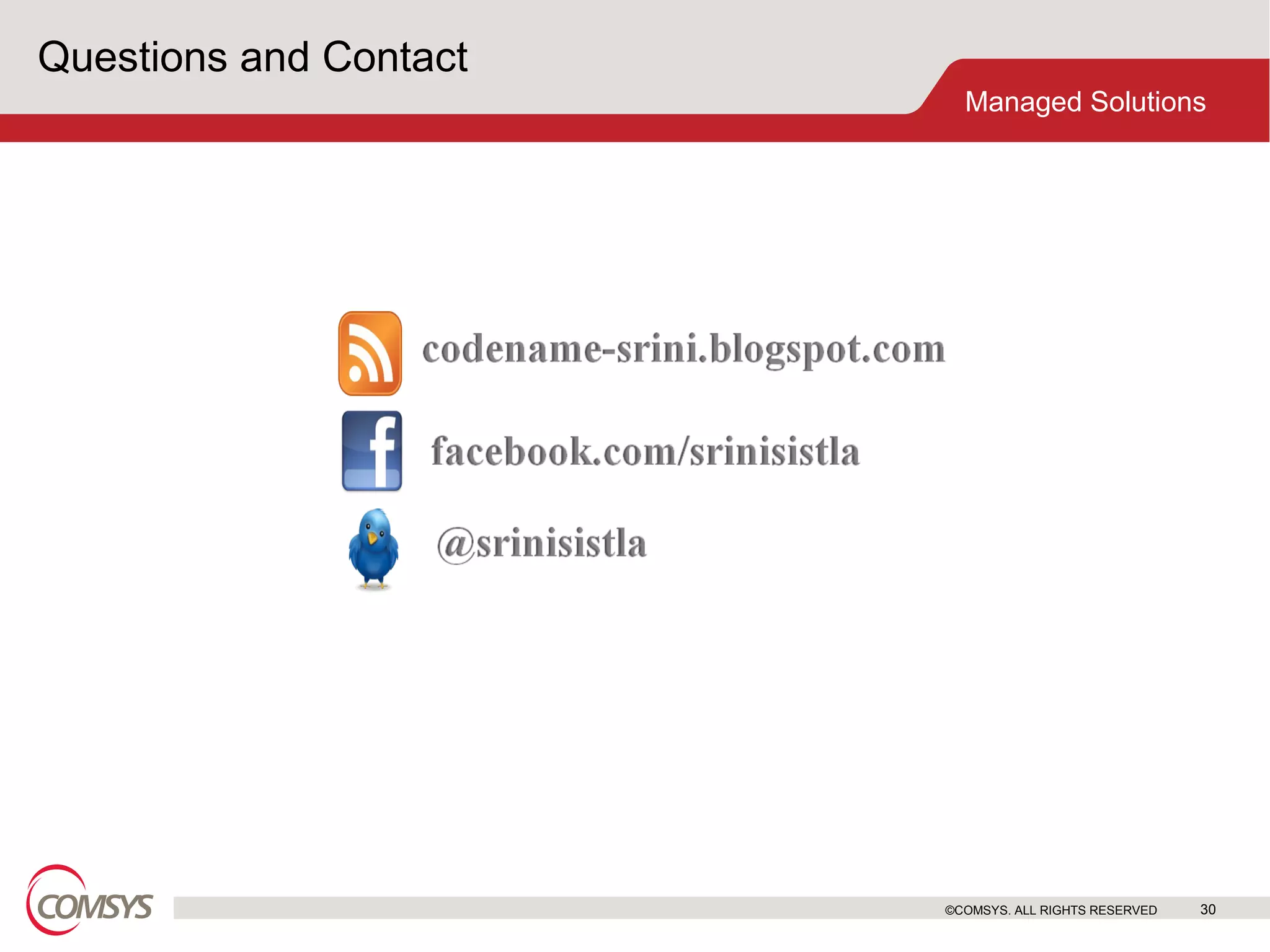

30. Questions and Contact ©COMSYS. ALL RIGHTS RESERVED
