1. Service Discovery w/
Consul
Ali Demirsoy @kloia

2. “Digital Transition Accelerator“
33 Queen St, London EC4R
1AP, United Kingdom
blog.kloia.com
@kloia_com
AND Binası 10-12, 34752
Kozyatagi/Istanbul, Turkey
kloia.com
Cloud
DevOps
Test Automation
Microservices

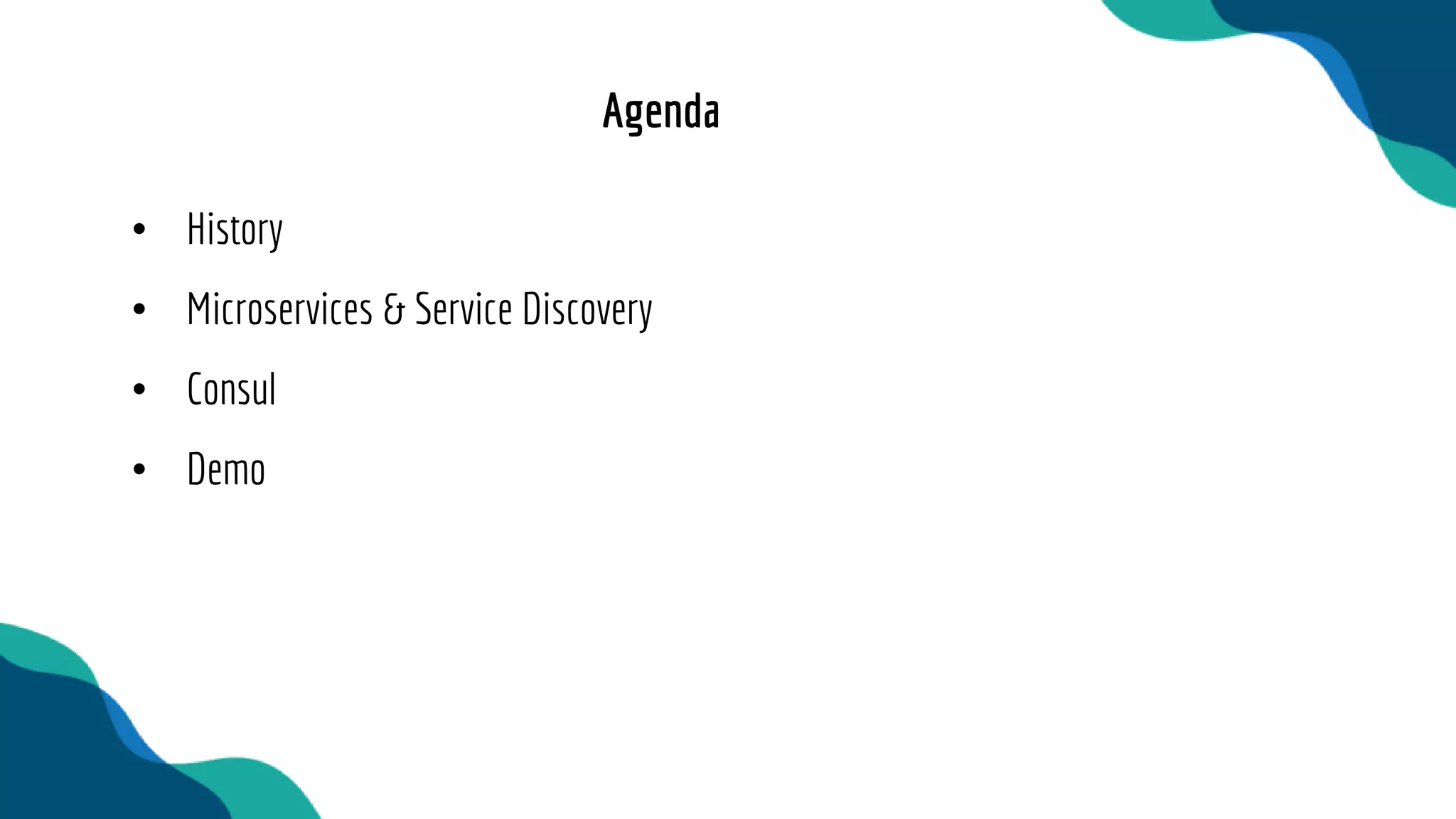

3. • History
• Microservices & Service Discovery
• Consul
• Demo
Agenda

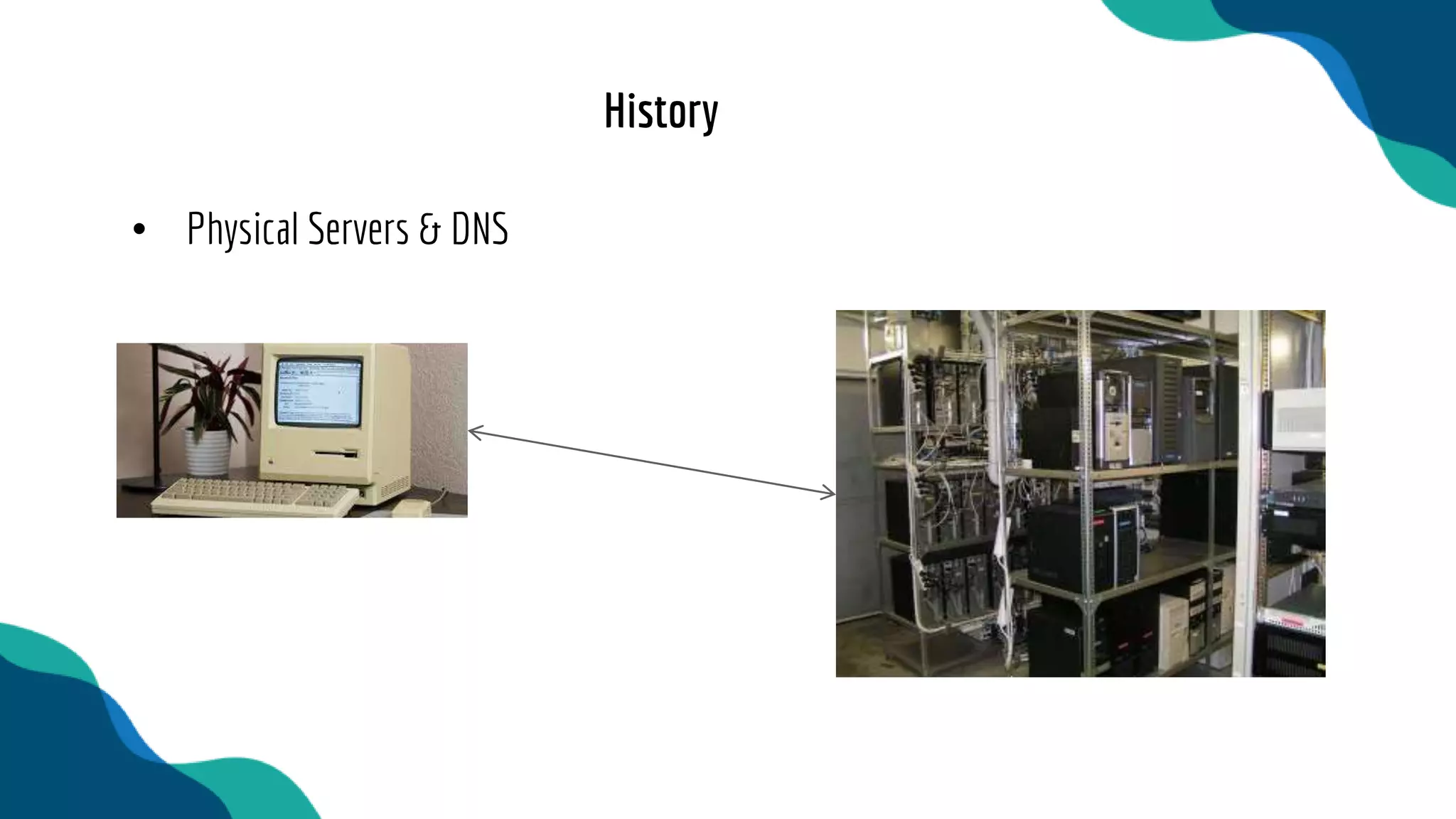

4. • Physical Servers & DNS
History

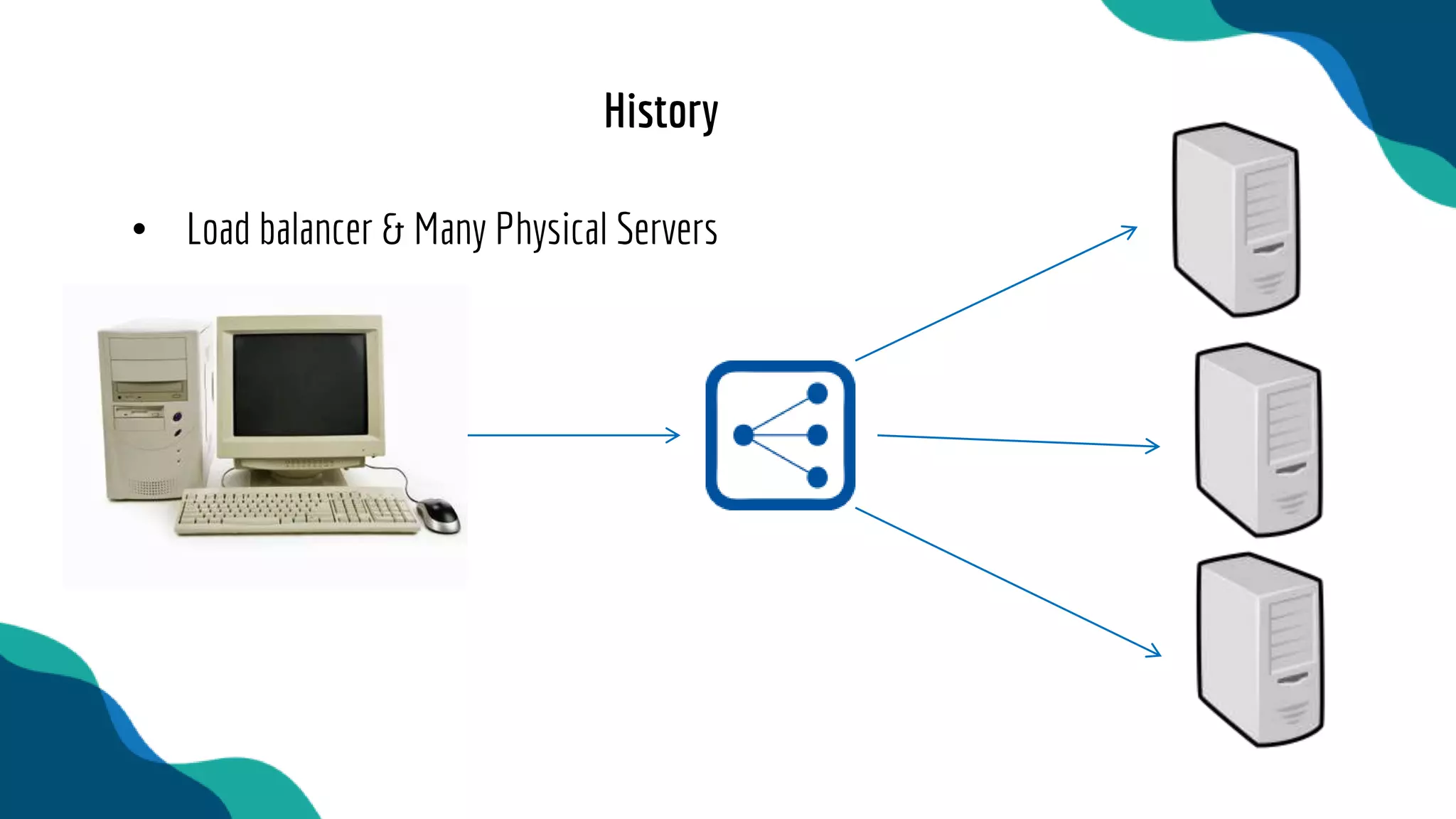

5. • Load balancer & Many Physical Servers
History

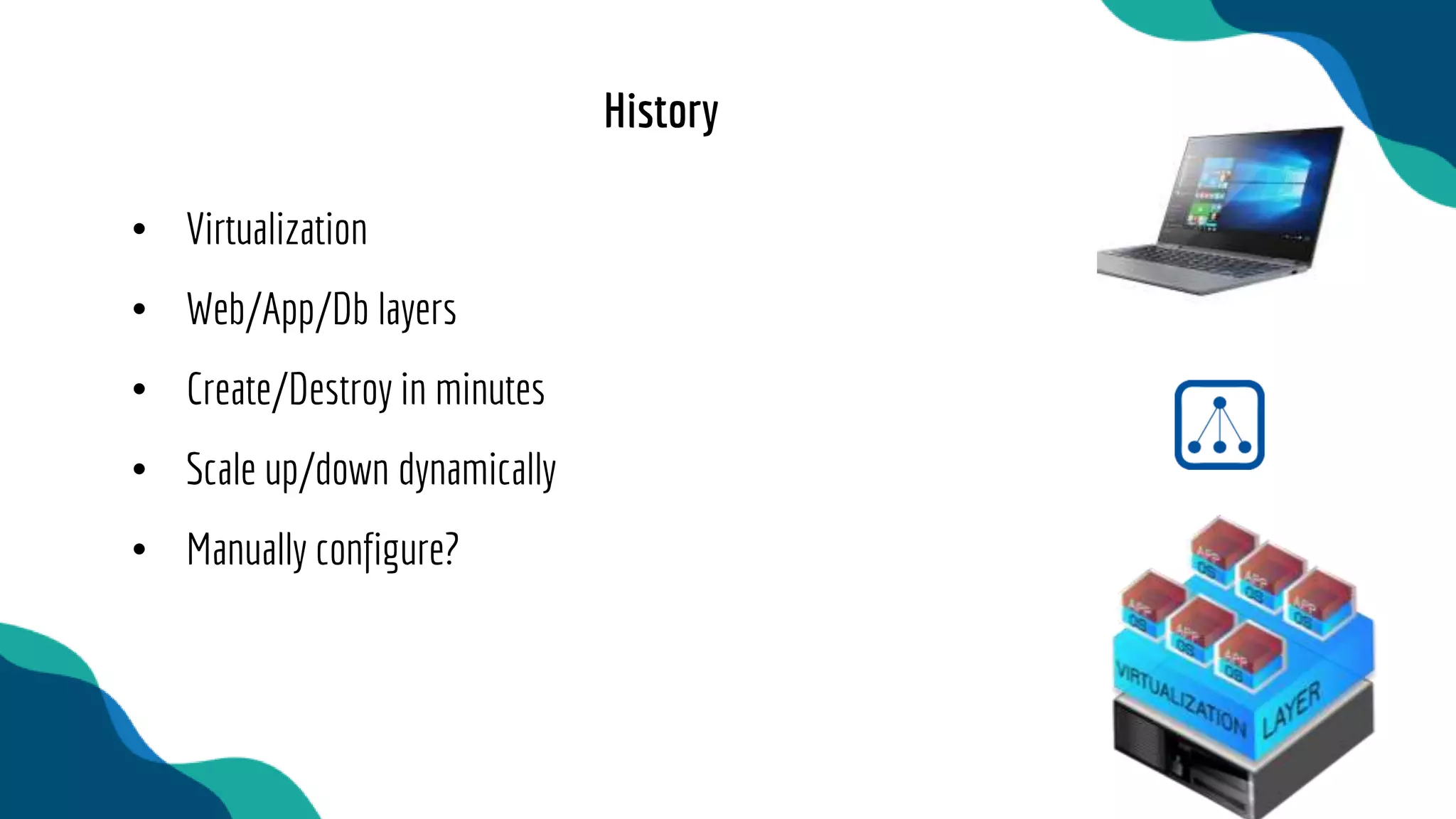

6. • Virtualization
• Web/App/Db layers
• Create/Destroy in minutes
• Scale up/down dynamically
• Manually configure?
History

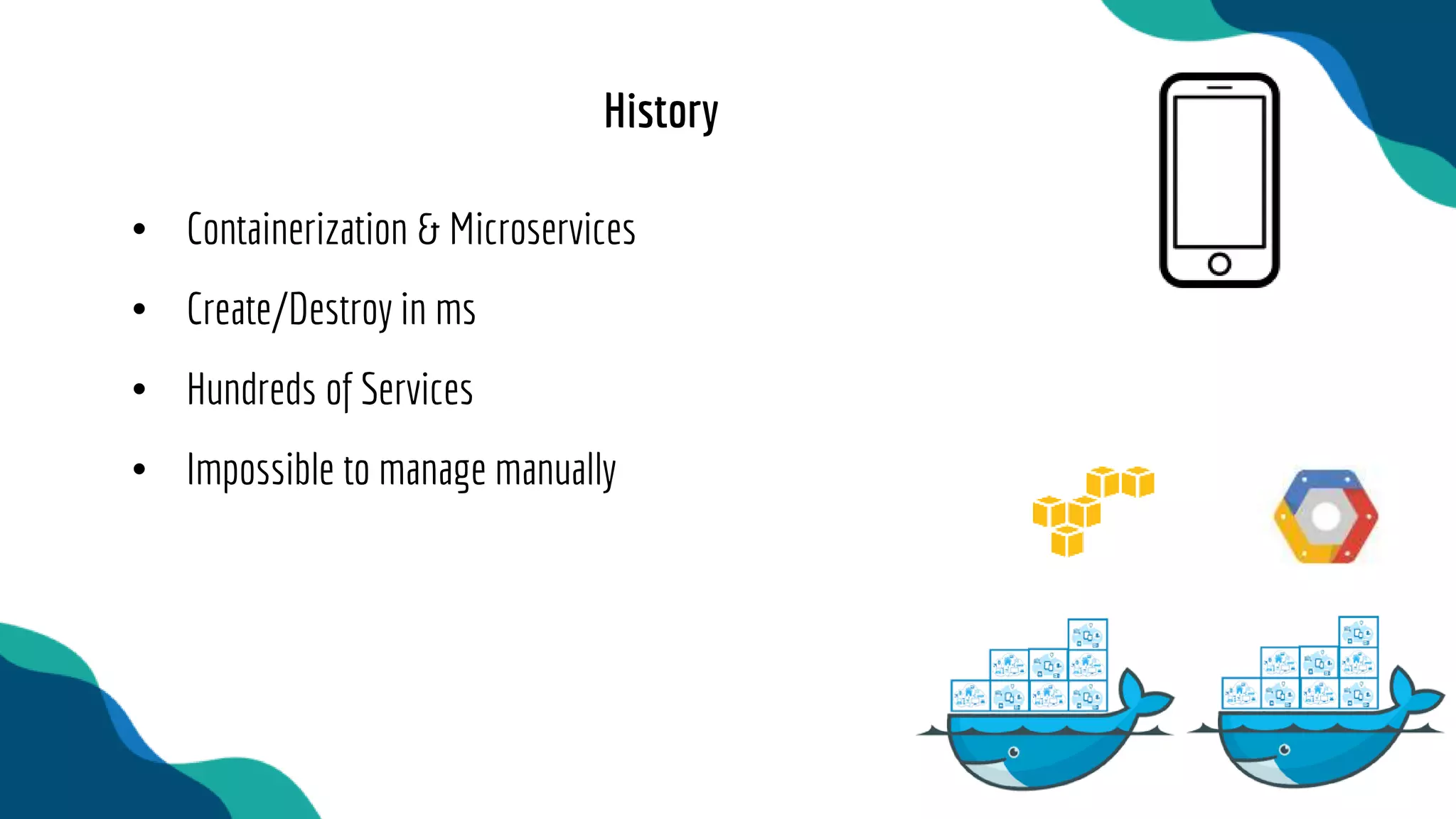

7. • Containerization & Microservices
• Create/Destroy in ms
• Hundreds of Services
• Impossible to manage manually
History

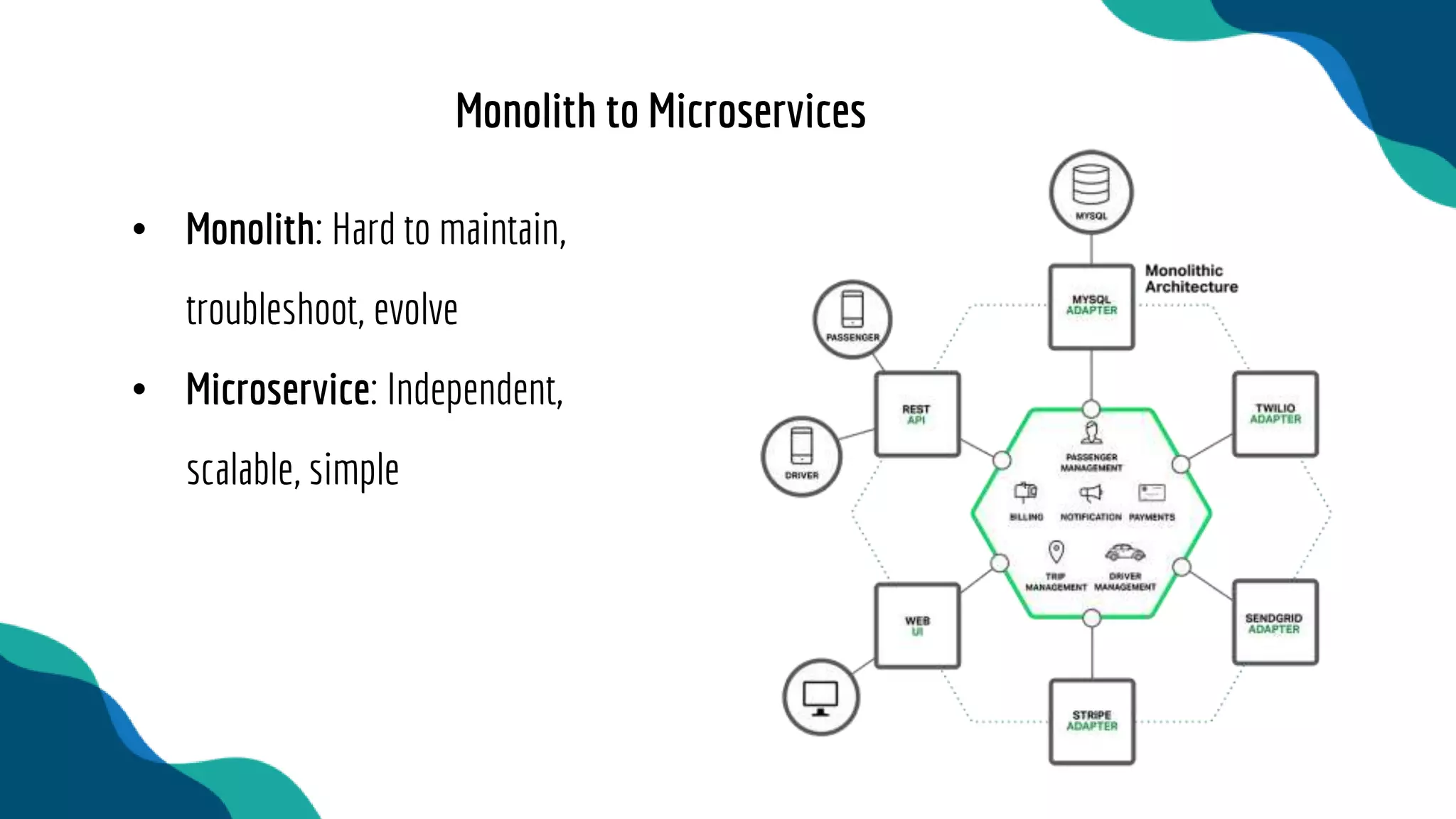

8. • Monolith: Hard to maintain,
troubleshoot, evolve
• Microservice: Independent,
scalable, simple
Monolith to Microservices

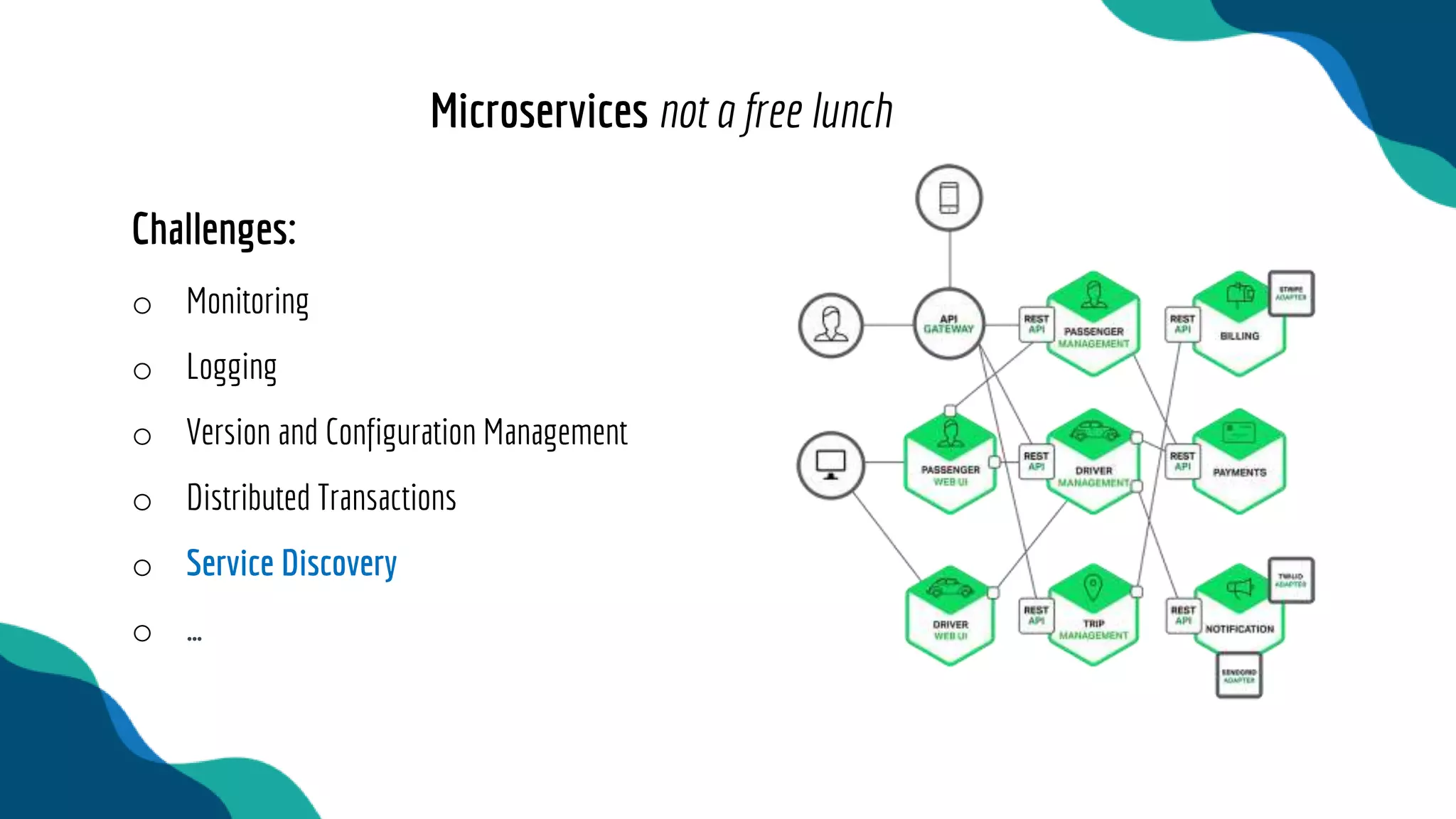

9. Challenges:
o Monitoring
o Logging
o Version and Configuration Management
o Distributed Transactions
o Service Discovery
o …
Microservices not a free lunch

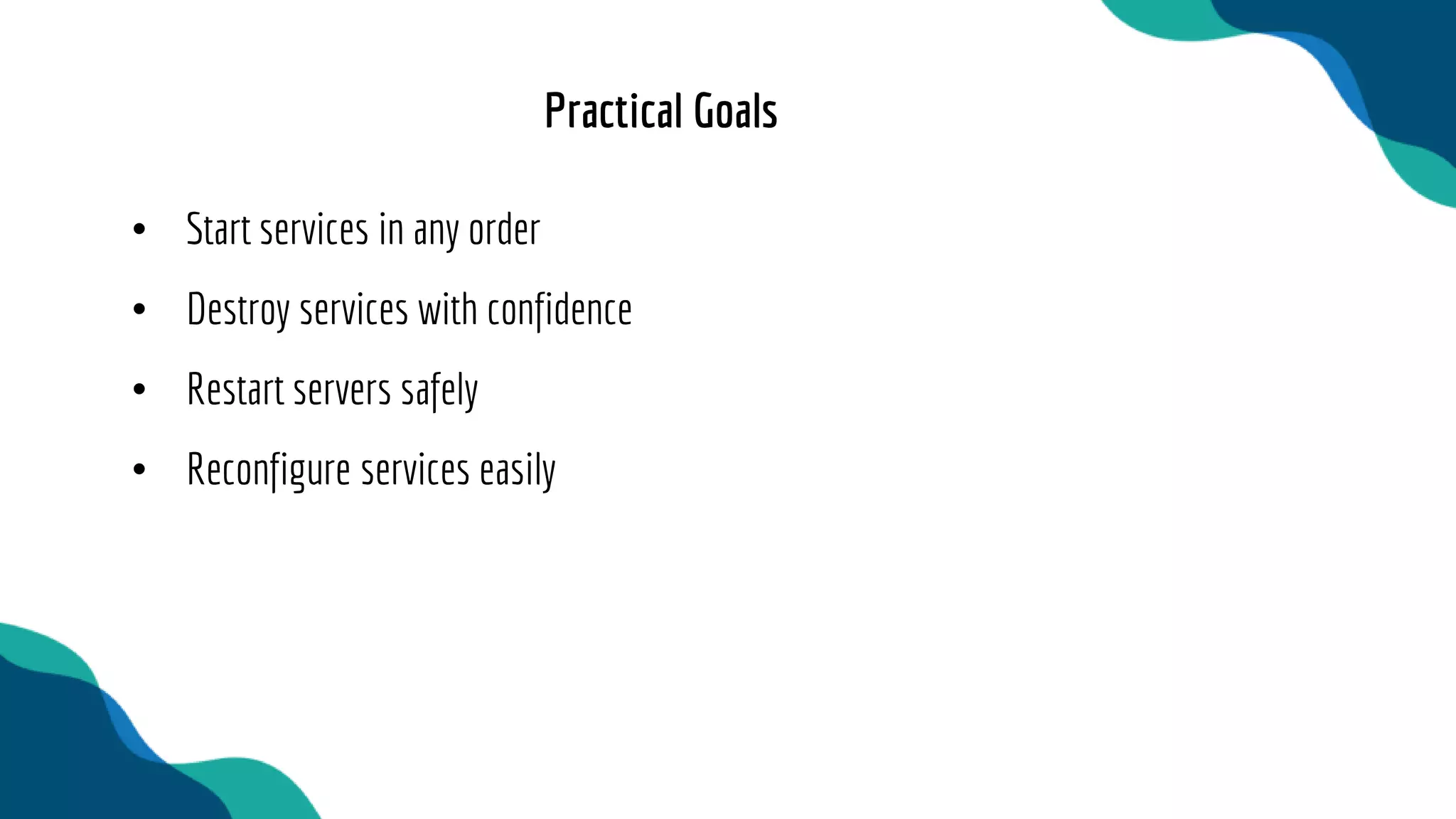

10. • Start services in any order
• Destroy services with confidence
• Restart servers safely
• Reconfigure services easily
Practical Goals

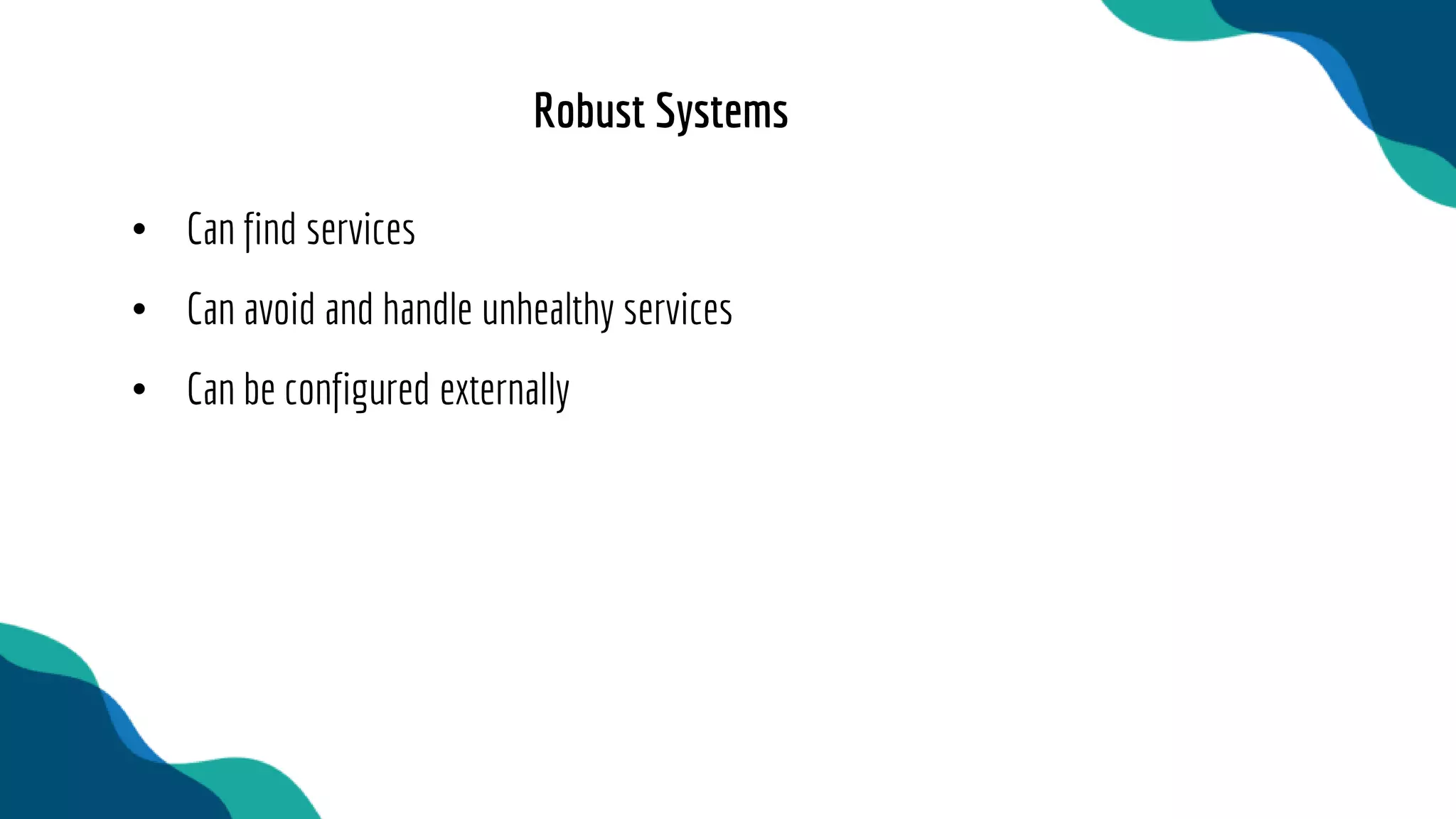

11. • Can find services
• Can avoid and handle unhealthy services
• Can be configured externally
Robust Systems

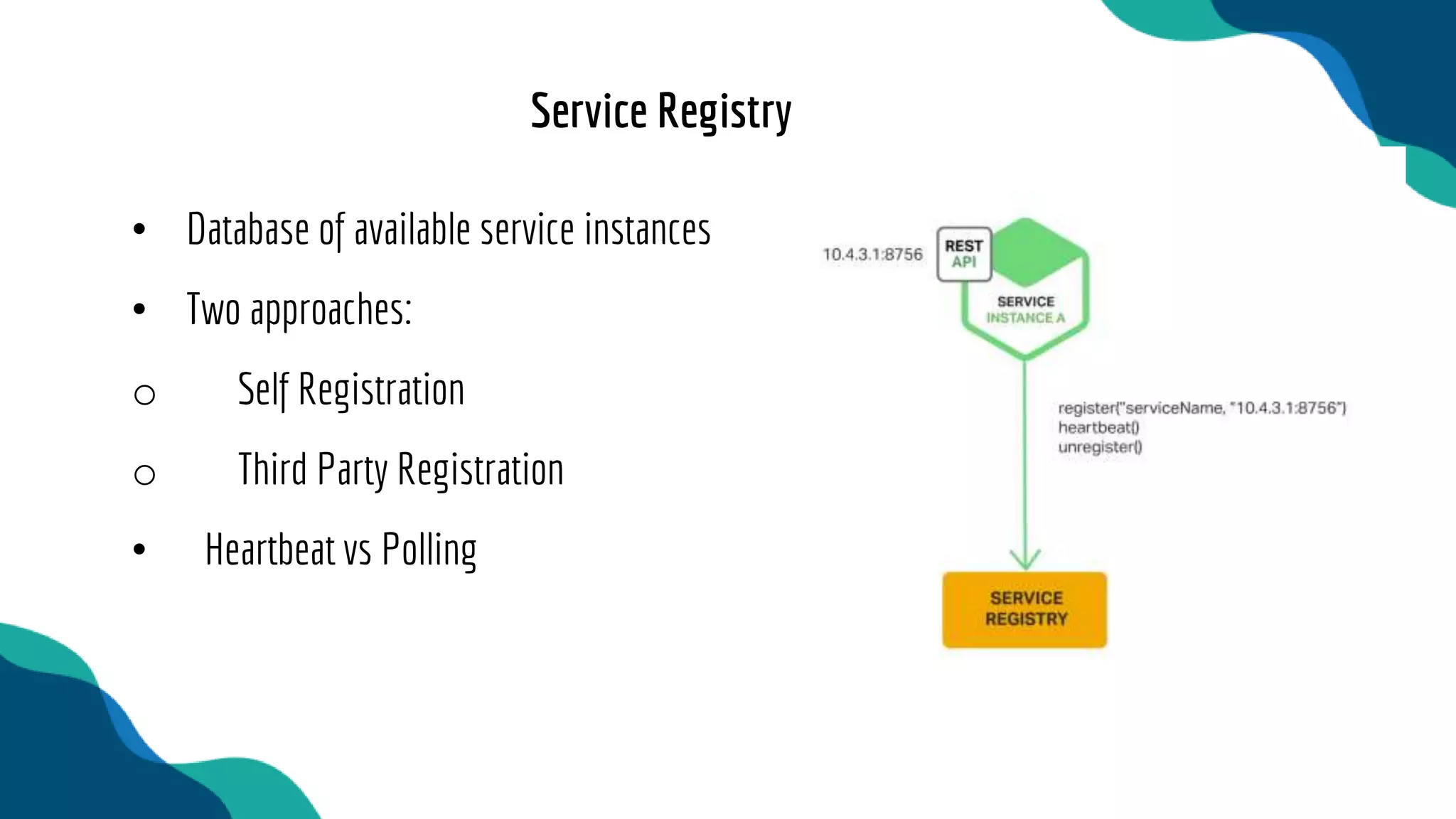

12. • Database of available service instances
• Two approaches:
o Self Registration
o Third Party Registration
• Heartbeat vs Polling
Service Registry

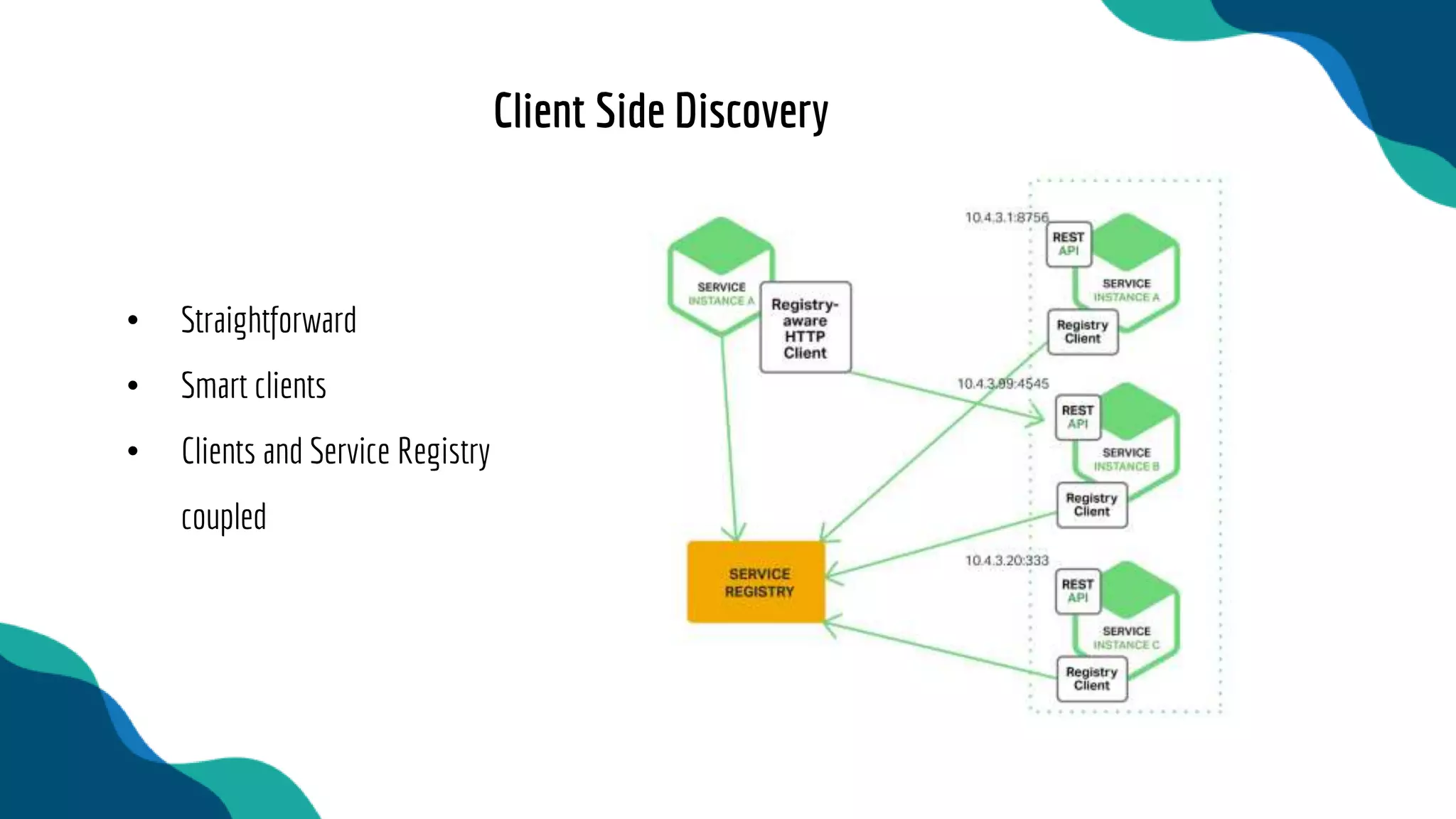

13. • Straightforward
• Smart clients
• Clients and Service Registry
coupled
Client Side Discovery

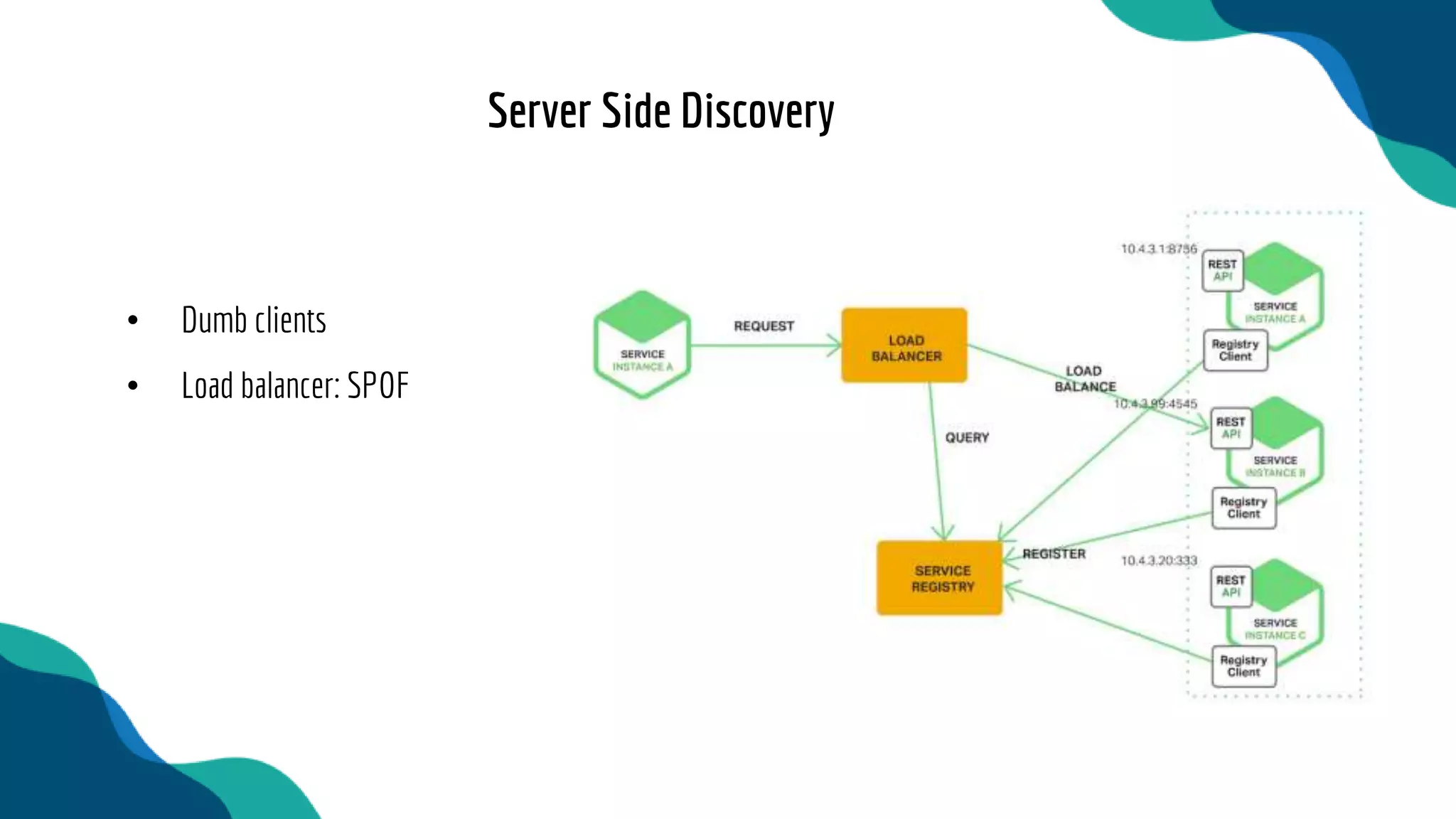

14. • Dumb clients
• Load balancer: SPOF
Server Side Discovery

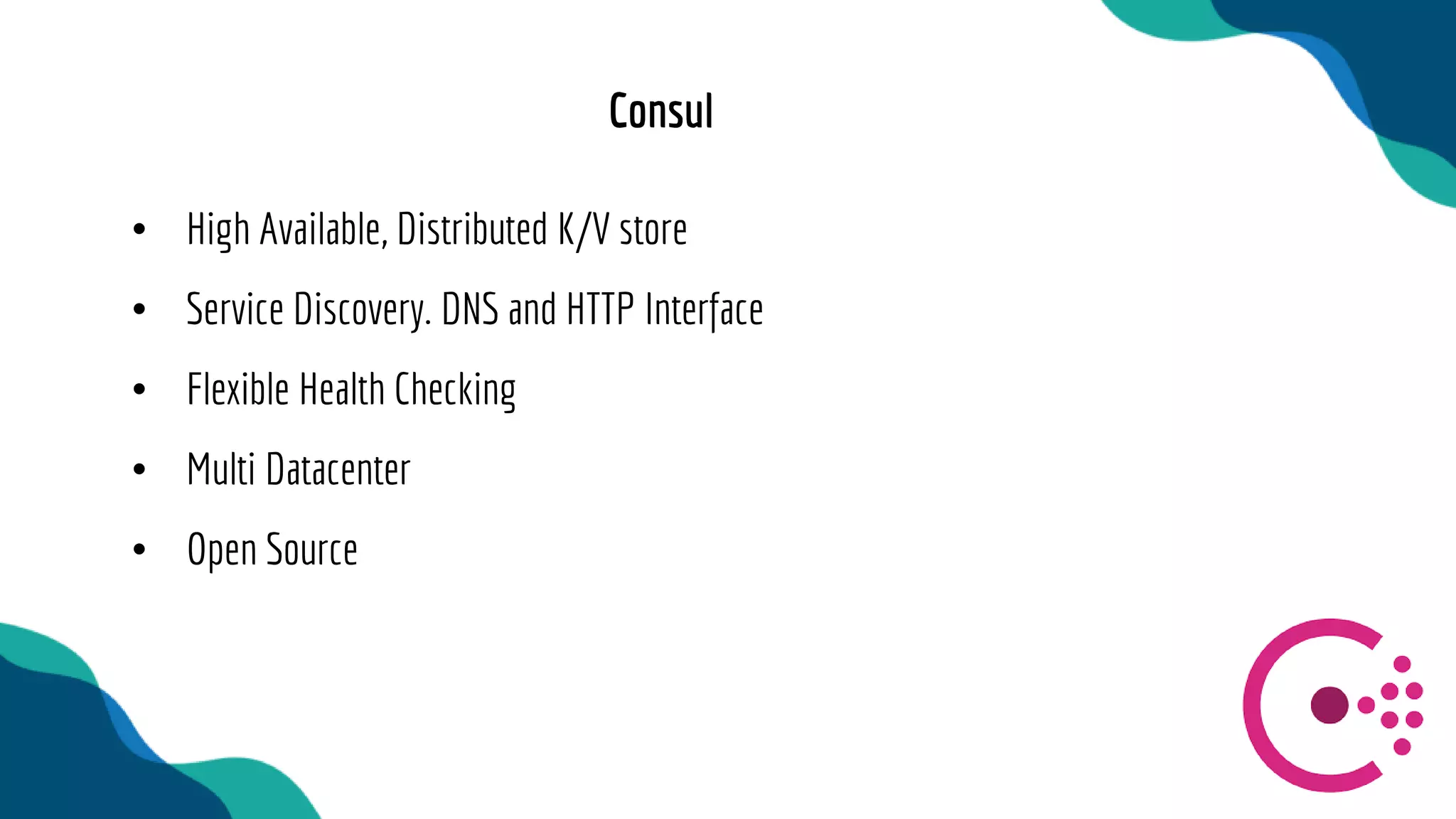

15. • High Available, Distributed K/V store
• Service Discovery. DNS and HTTP Interface
• Flexible Health Checking
• Multi Datacenter
• Open Source
Consul

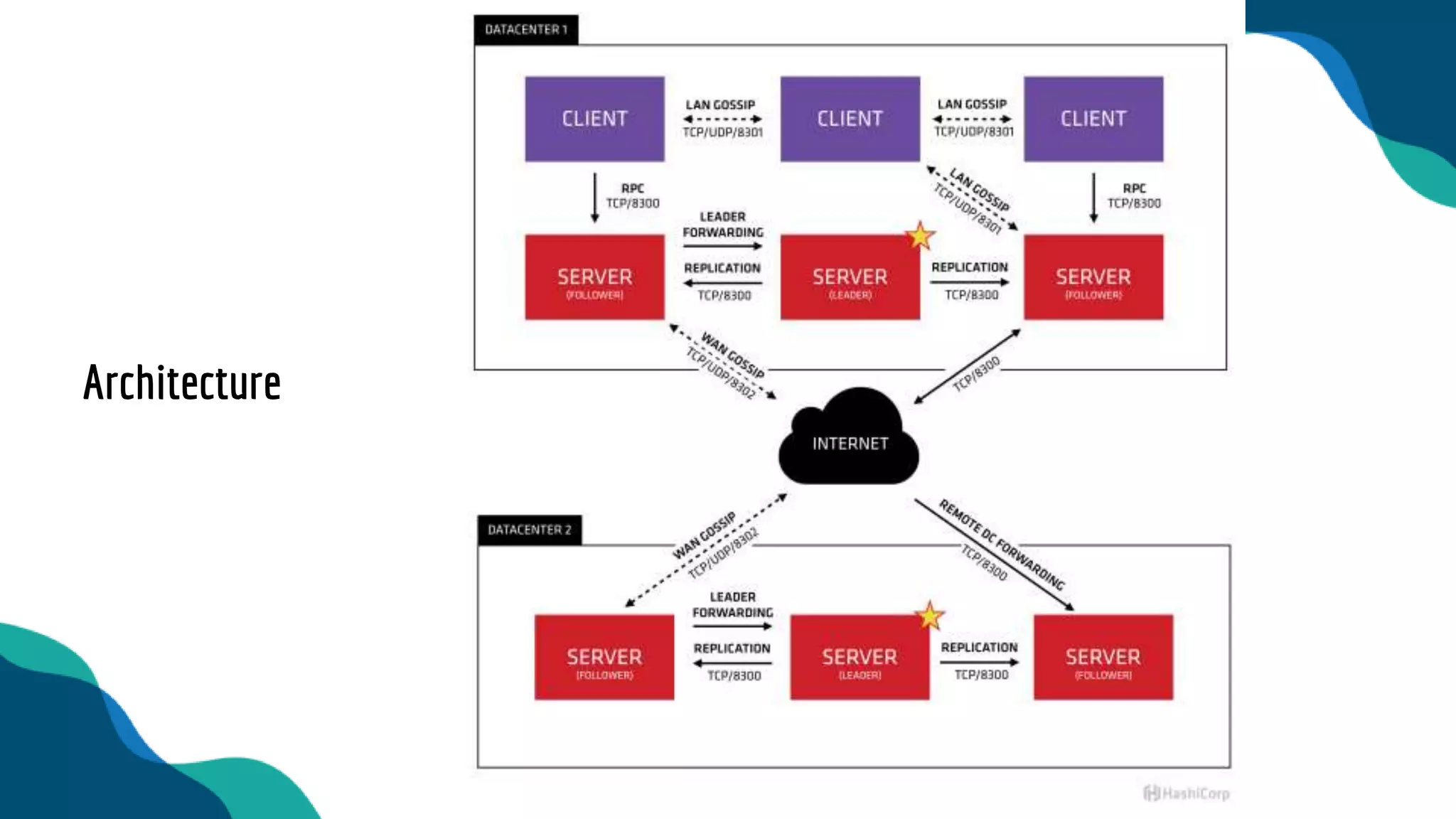

16. Architecture

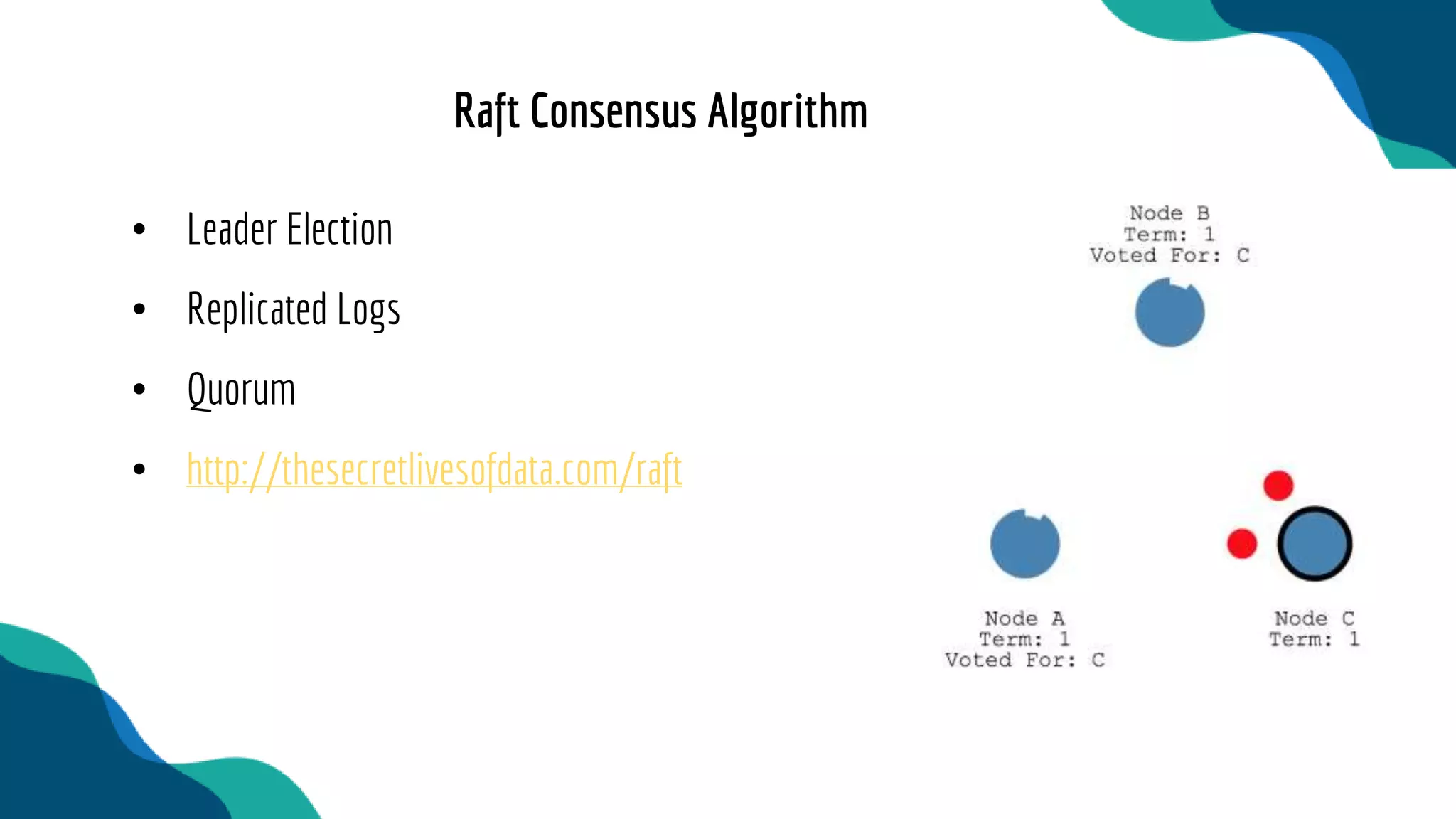

17. • Leader Election
• Replicated Logs
• Quorum
• http://thesecretlivesofdata.com/raft
Raft Consensus Algorithm

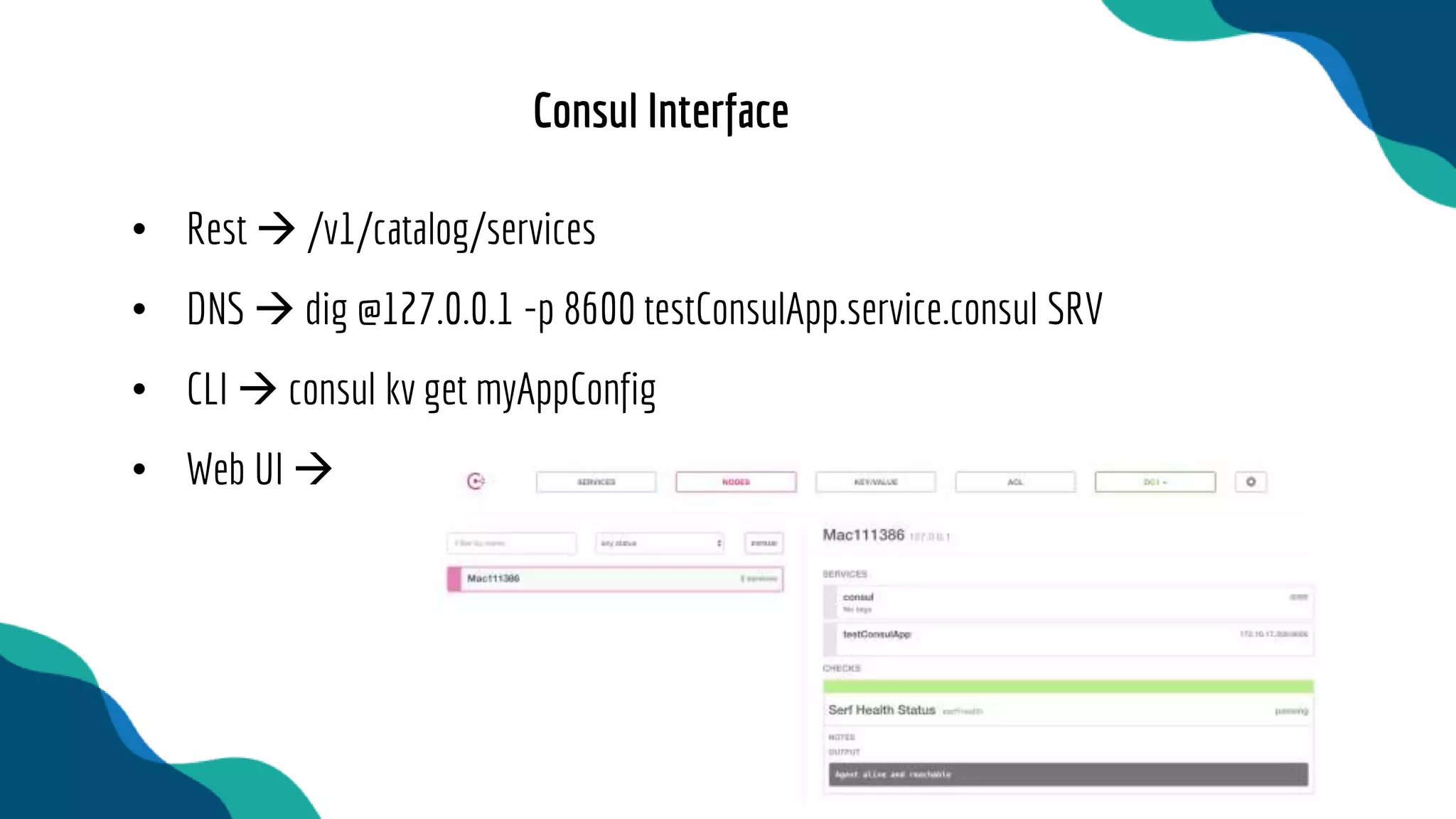

18. • Rest  /v1/catalog/services
• DNS  dig @127.0.0.1 -p 8600 testConsulApp.service.consul SRV
• CLI  consul kv get myAppConfig
• Web UI 
Consul Interface

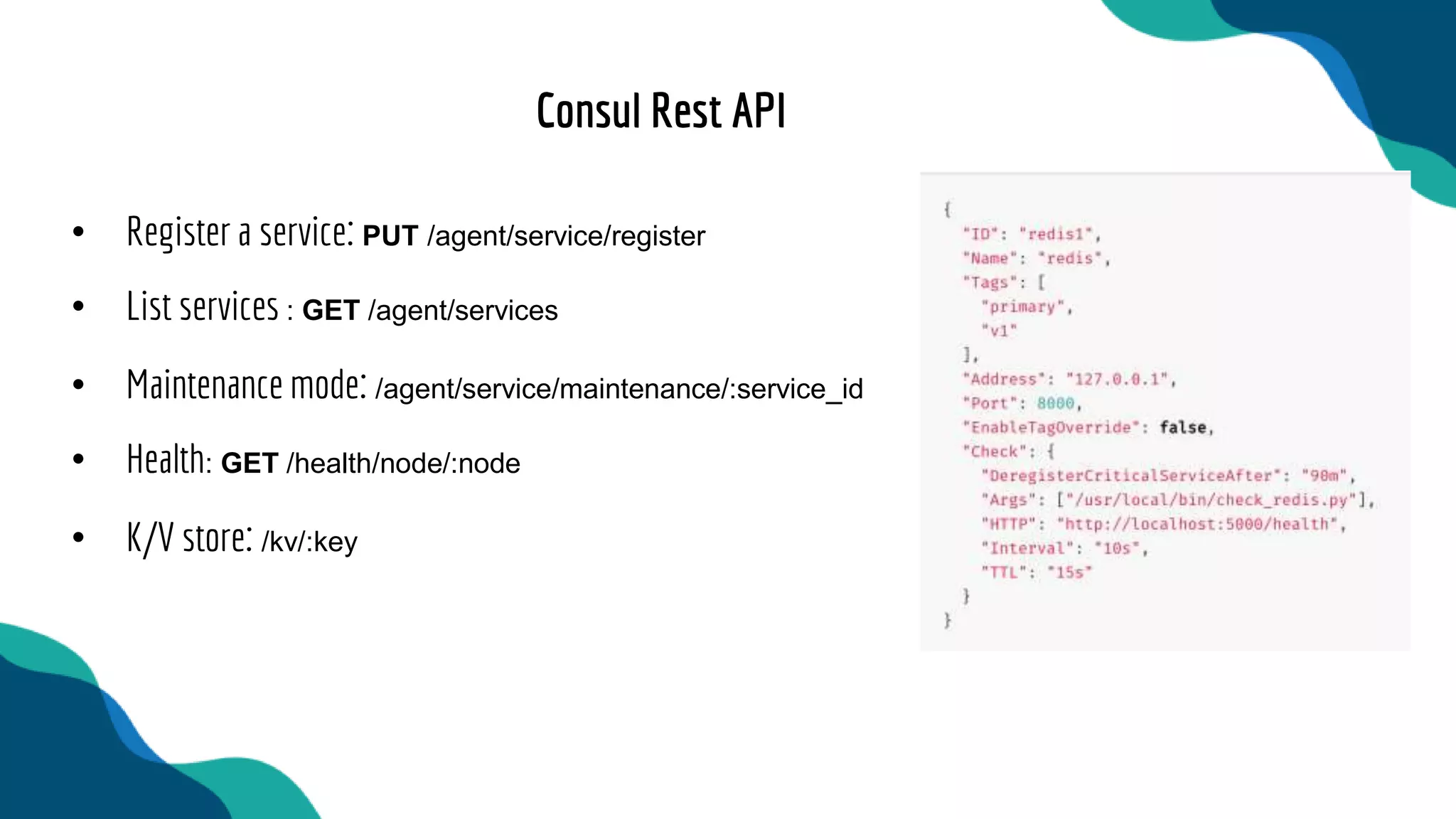

19. • Register a service: PUT /agent/service/register
• List services : GET /agent/services
• Maintenance mode: /agent/service/maintenance/:service_id
• Health: GET /health/node/:node
• K/V store: /kv/:key
Consul Rest API

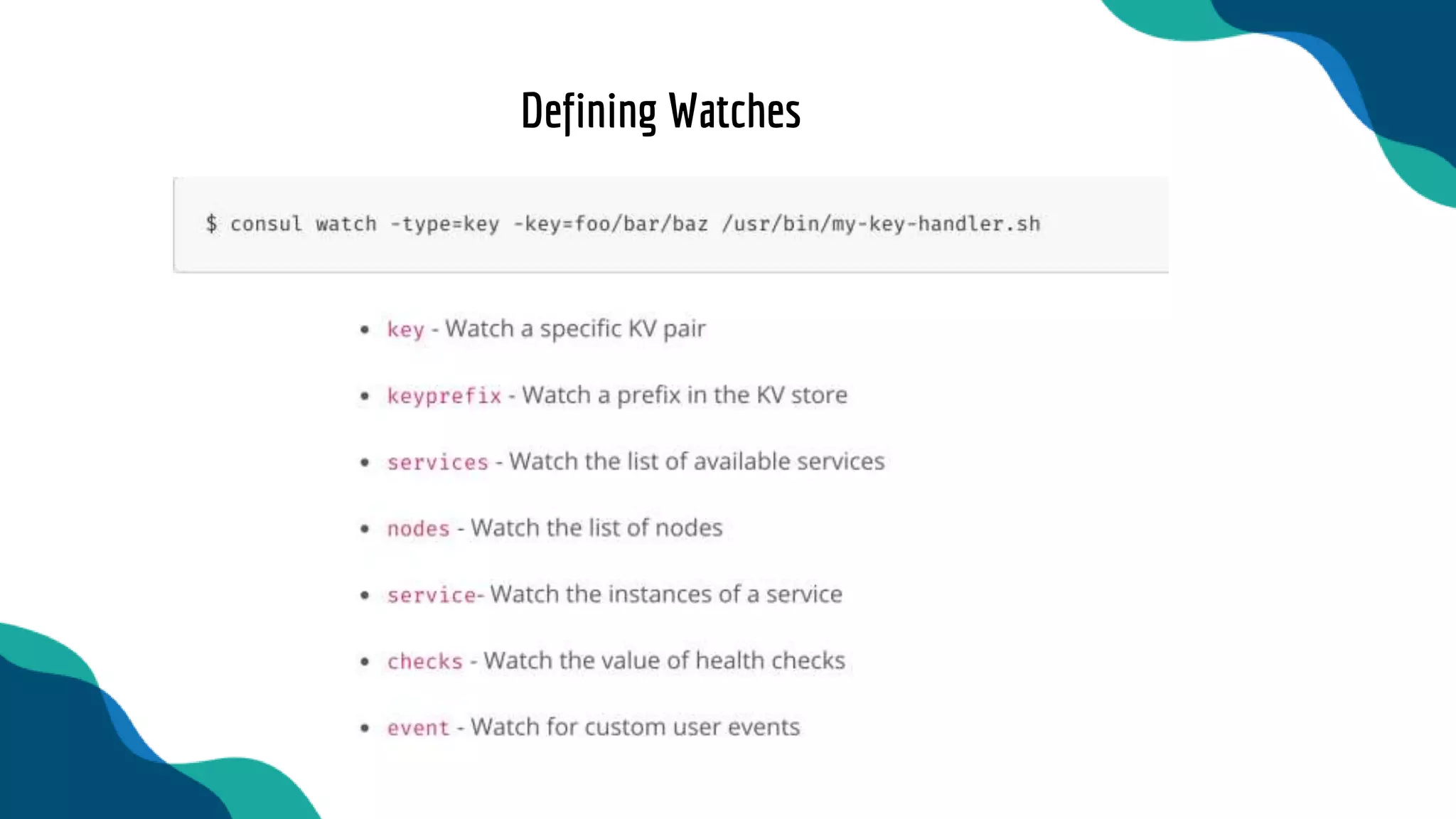

20. Defining Watches

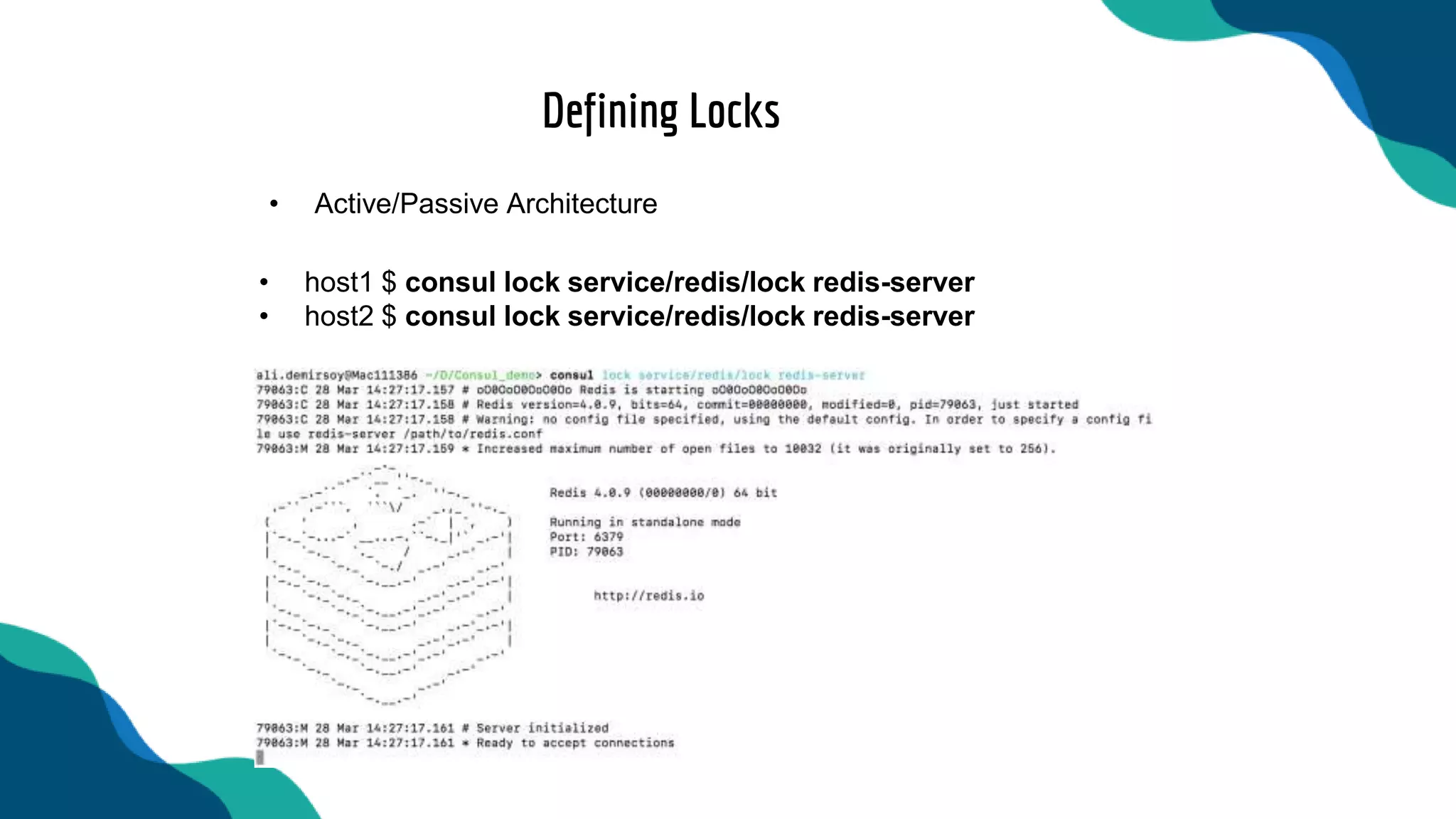

21. Defining Locks
• host1 $ consul lock service/redis/lock redis-server
• host2 $ consul lock service/redis/lock redis-server
• Active/Passive Architecture

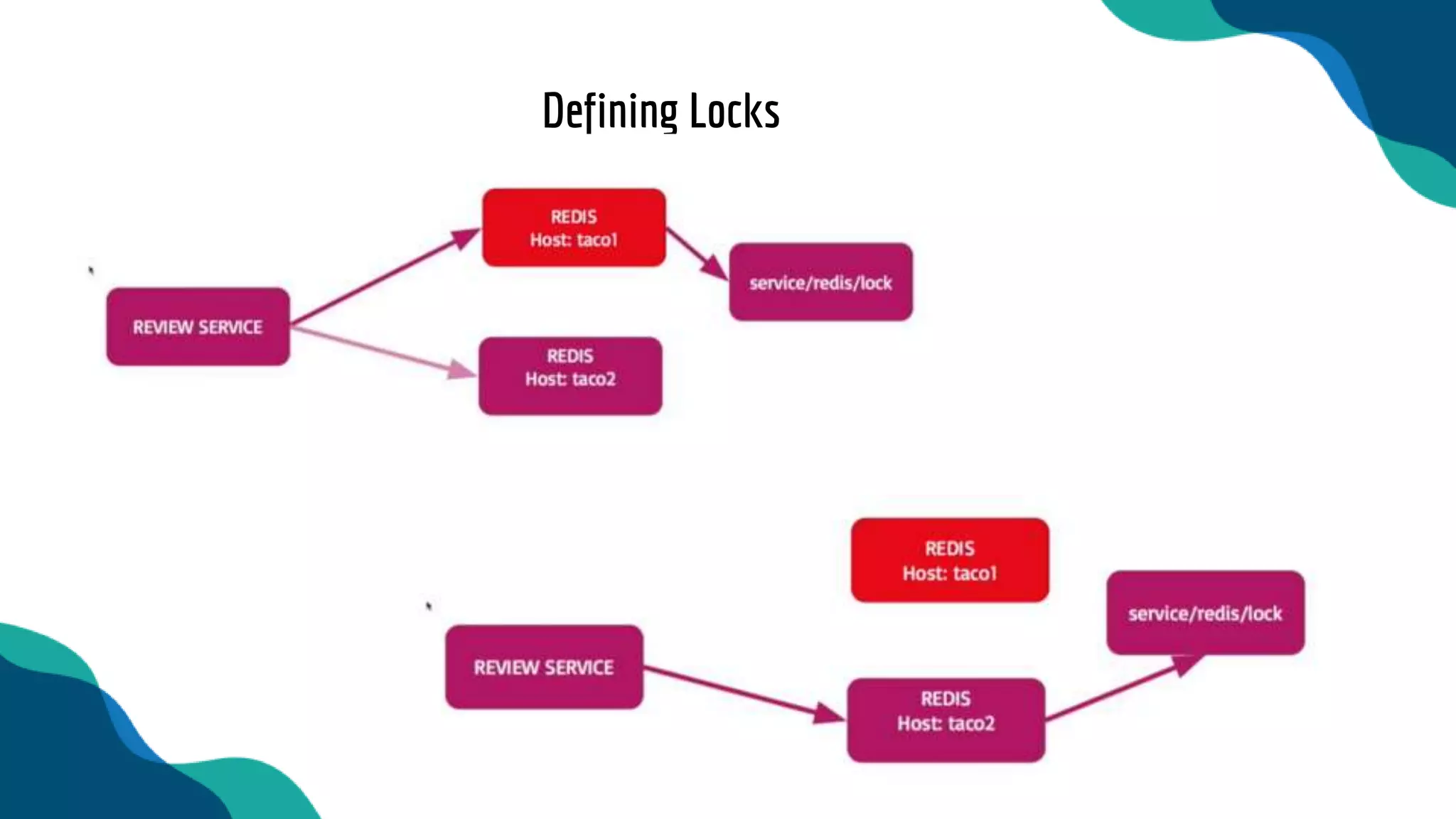

22. Defining Locks

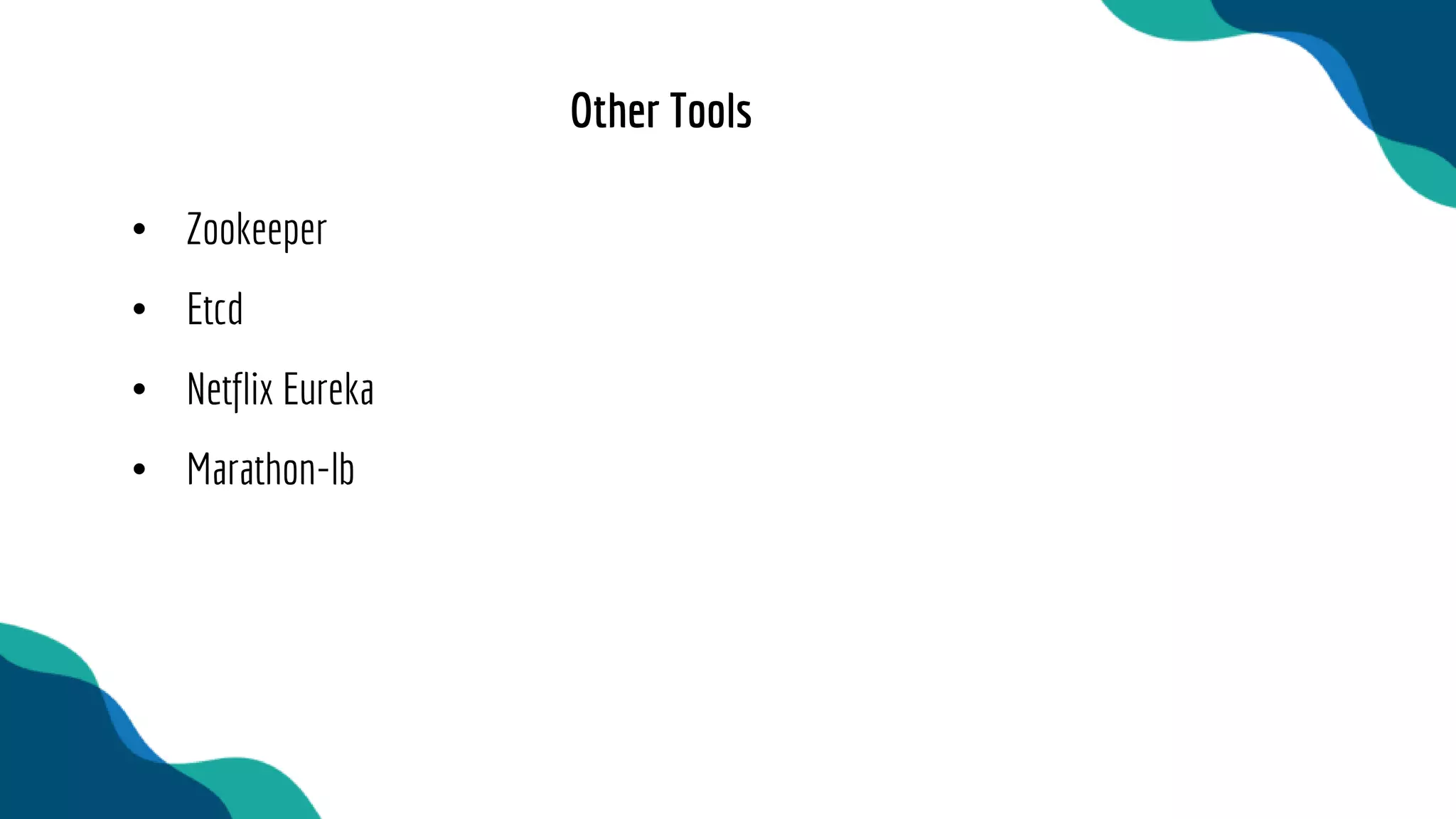

23. • Zookeeper
• Etcd
• Netflix Eureka
• Marathon-lb
Other Tools

24. Demo

25. Istanbul HashiCorp Meetup
https://www.meetup.com/Istanbul-
HashiCorp-Meetup/
20, September 2018
Radisson, Sisli
http://devopsdays.istanbul
