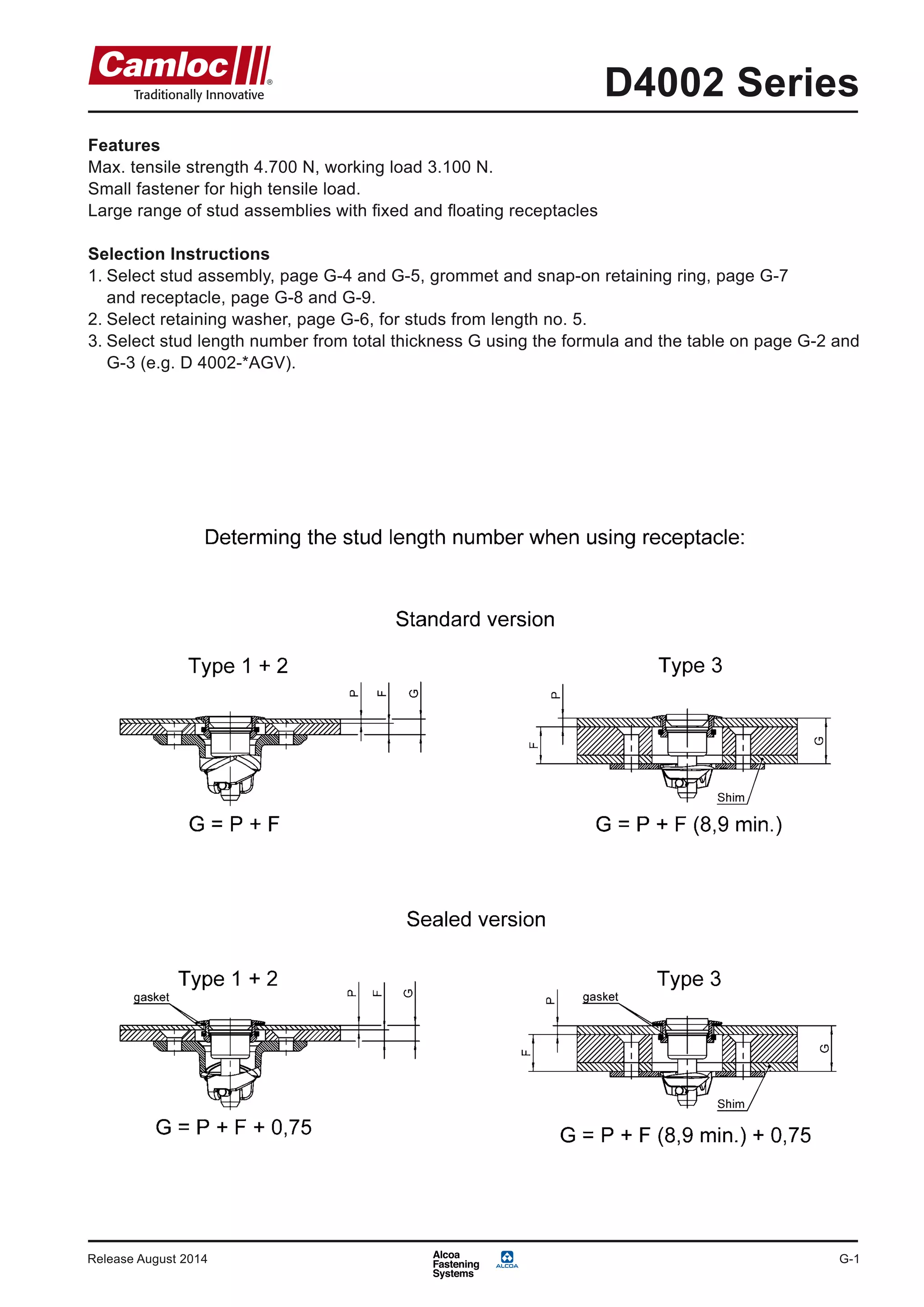

The document provides information on the D4002 series of fasteners from Alcoa, including:
- The fasteners have a maximum tensile strength of 4,700 N and working load of 3,100 N.
- It provides tables to select the appropriate stud length based on the total thickness of panels and types of grommets and receptacles being used.
- Pages G4-G9 describe various stud assembly styles and receptacle options with specifications on dimensions and materials.
