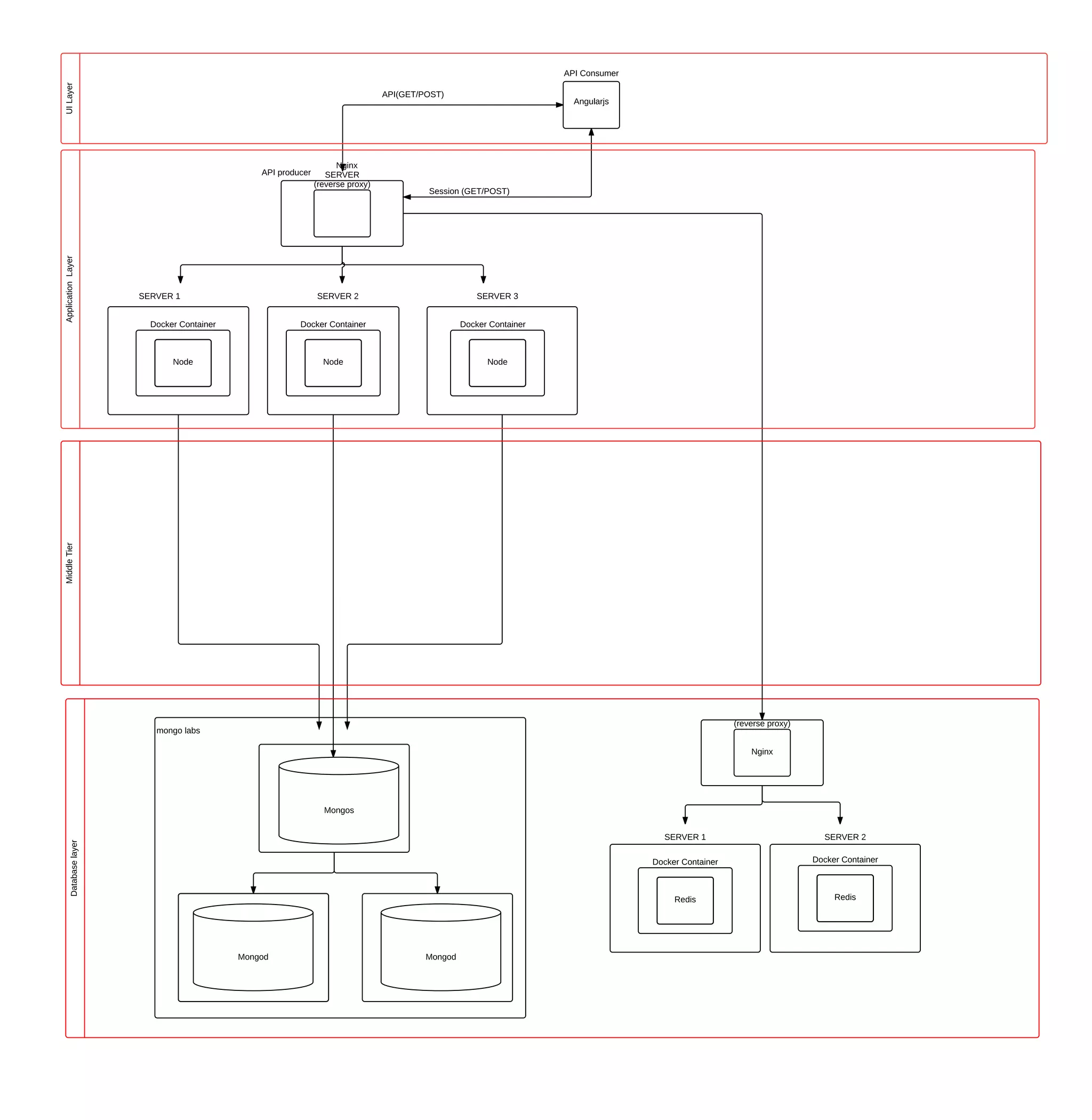

This diagram shows a microservices architecture with Nginx acting as a reverse proxy load balancer across 3 server nodes running Docker containers of a Node.js application tier that communicates with a Redis cache and MongoDB database hosted on MongoDB Atlas, with the user interface layer running AngularJS applications that make API requests to the middle tier.

1. Nginx
Docker Container
Node
Docker Container
Node
Docker Container
Node
SERVER 1 SERVER 2 SERVER 3
Docker Container
Redis
Docker Container
Redis
SERVER
(reverse proxy)
Mongos
SERVER 1 SERVER 2
Angularjs
API(GET/POST)
Session (GET/POST)
API producer
API Consumer
MongodMongod
mongo labs
Databaselayer
UILayer
Nginx
(reverse proxy)
ApplicationLayerMiddleTier
