The document describes Monkey, an open source HTTP server. It aims to be lightweight, fast, flexible and community-oriented while supporting embedded systems. Key features include HTTP/1.1, asynchronous sockets, Linux kernel support, multiple hardware architectures, and an indented configuration format. It uses a multi-layered architecture with worker threads for scheduling connections and tracking time. Plugins add functionality for logging, security, SSL, websockets and more. Benchmarks show it uses less memory than Nginx, Cherokee and Apache. Future plans include FastCGI, NoSQL support, URL rewriting and improved documentation. The project encourages community involvement through beta testing, artwork, documentation and coding.

1. Monkey
HTTP Server everywhere
Eduardo Silva ( edsiper )
edsiper@monkey-project.com
Jonathan Gonzalez ( Zeus )
zeus@gnu.org

2. < Project Goals >
● Community !
● Embedded in mind
● Small core / Lightweight
● Fast
● Flexible API
● Linux Kernel

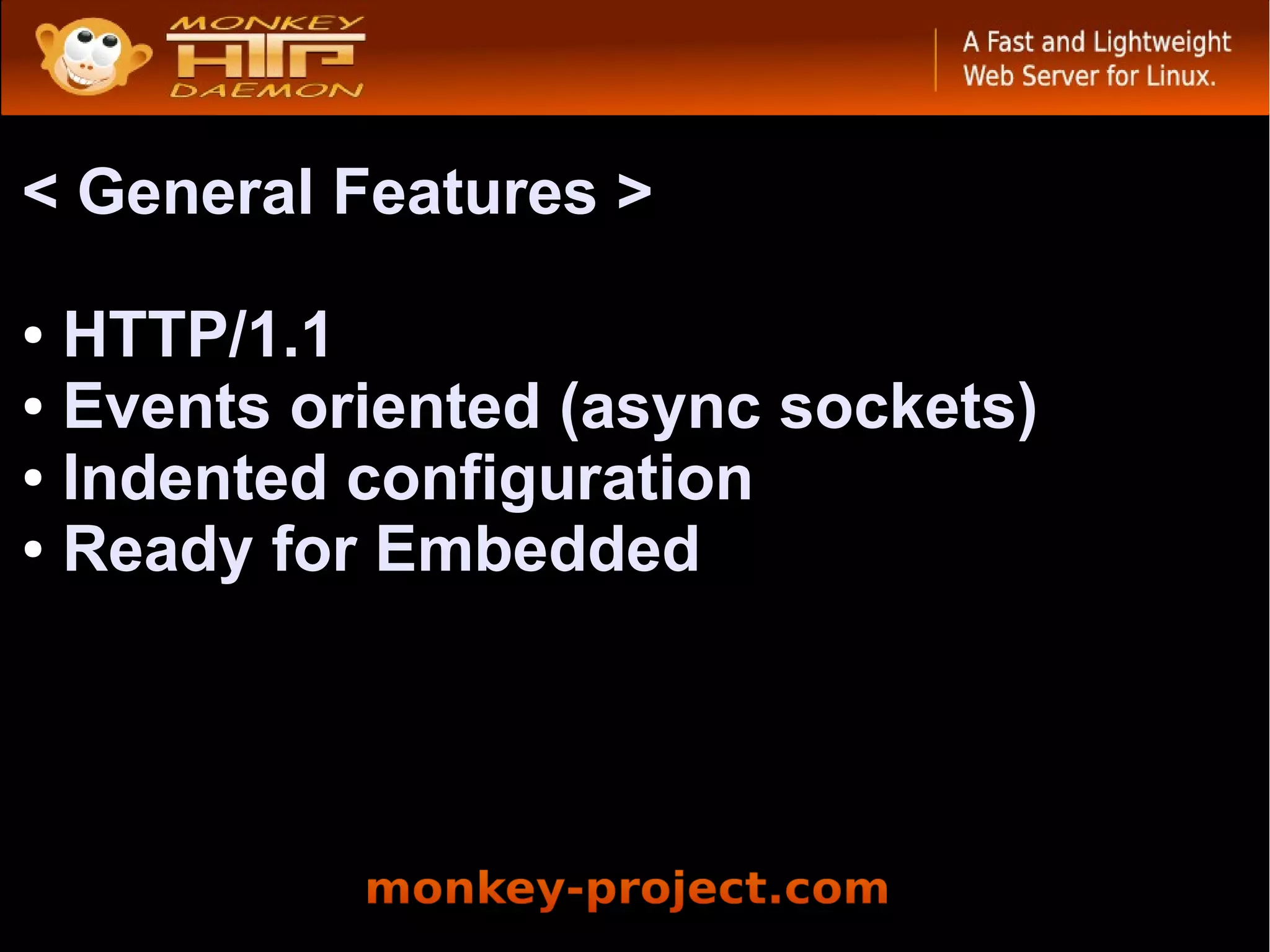

3. < General Features >
● HTTP/1.1
● Events oriented (async sockets)
● Indented configuration
● Ready for Embedded

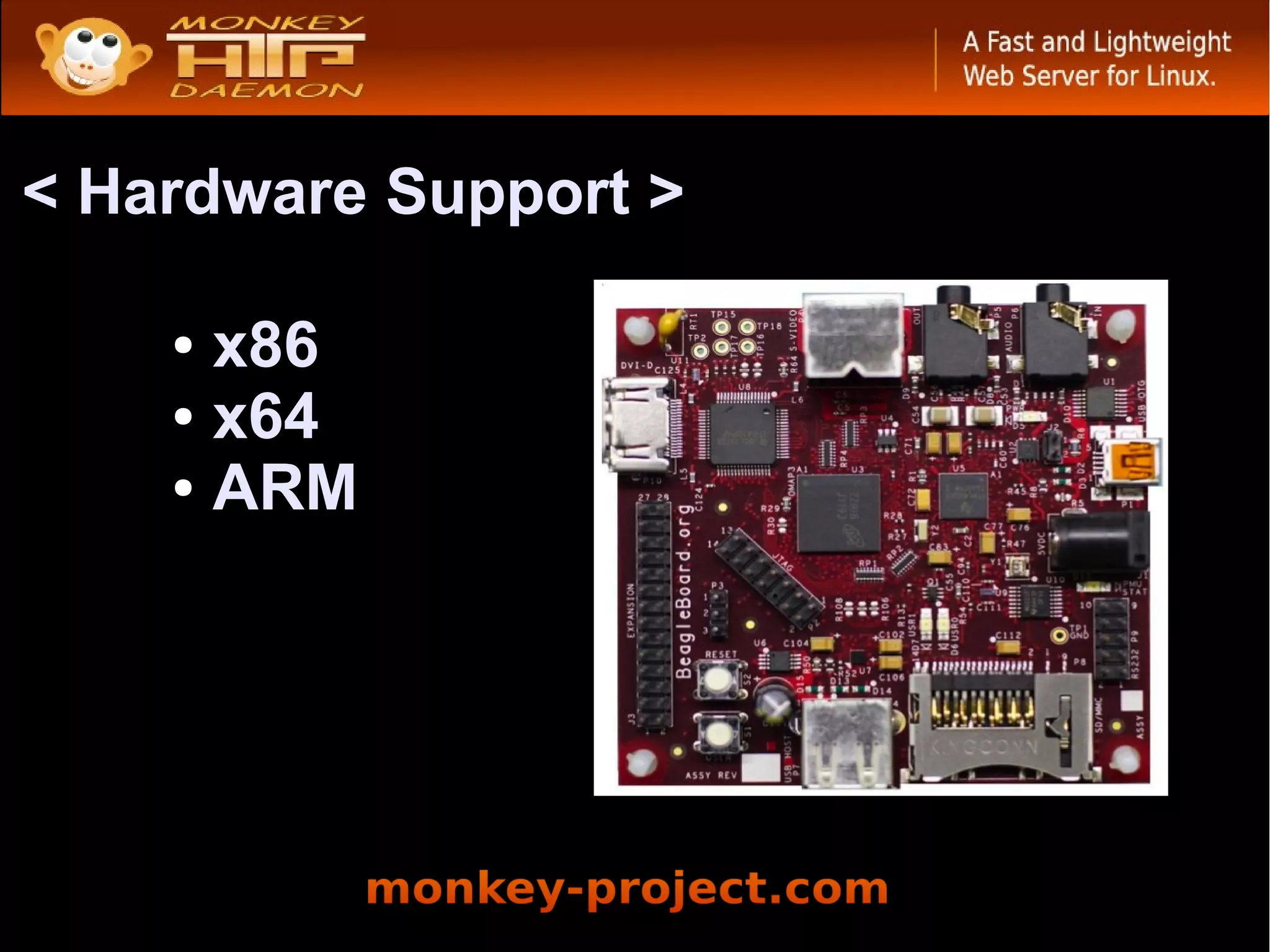

4. < Hardware Support >
● x86
● x64
● ARM

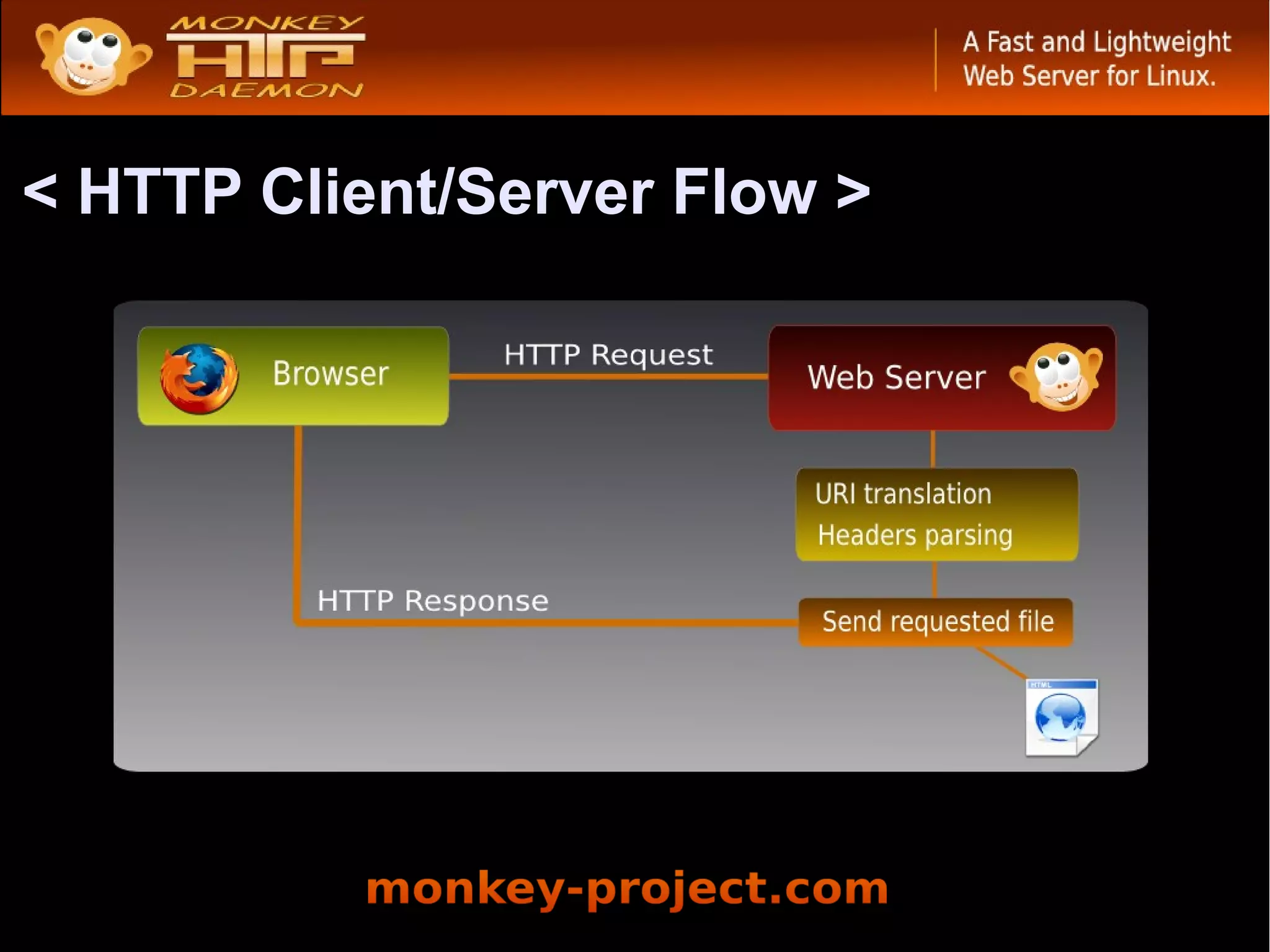

5. < HTTP Client/Server Flow >

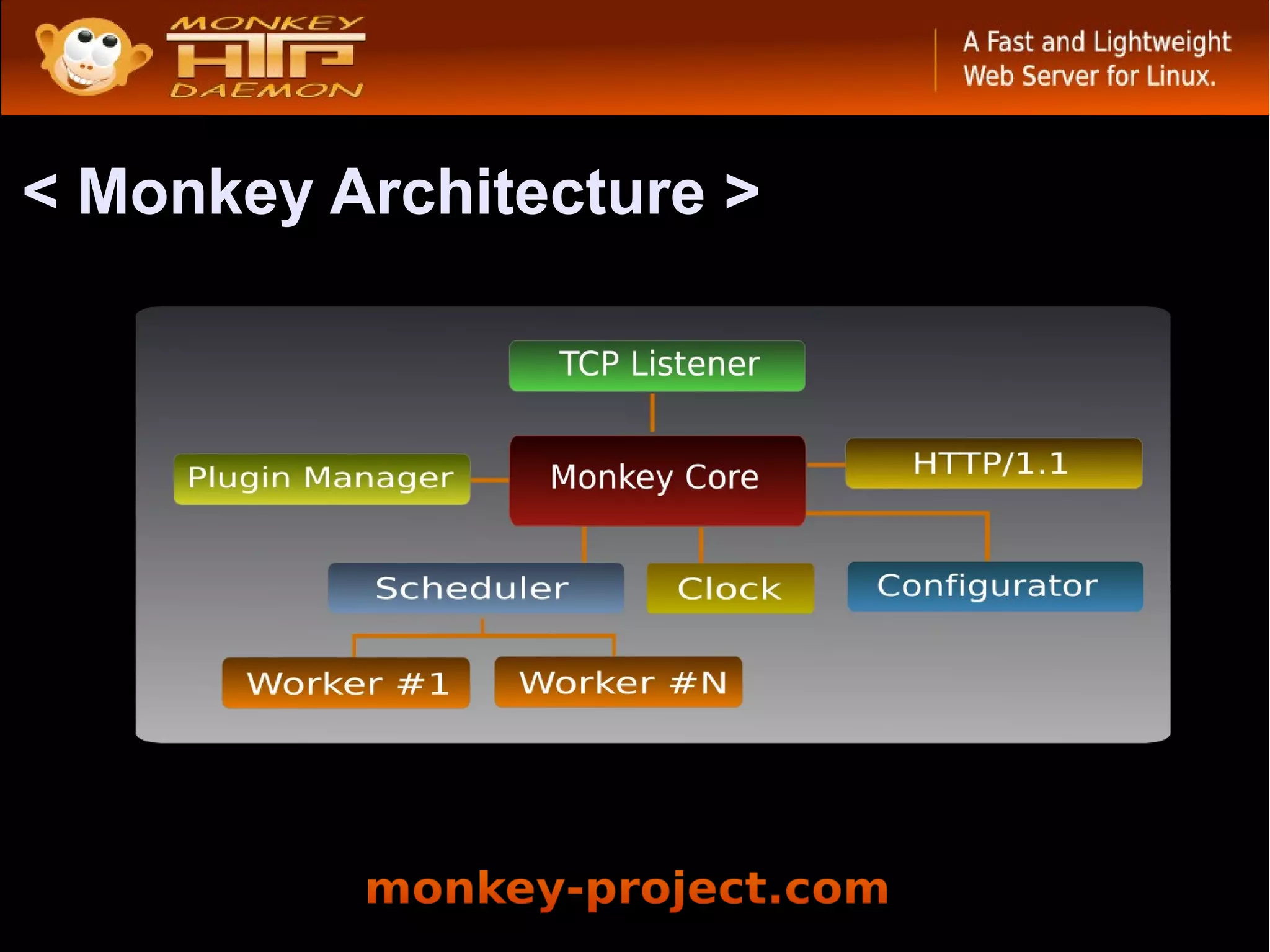

6. < Monkey Architecture >

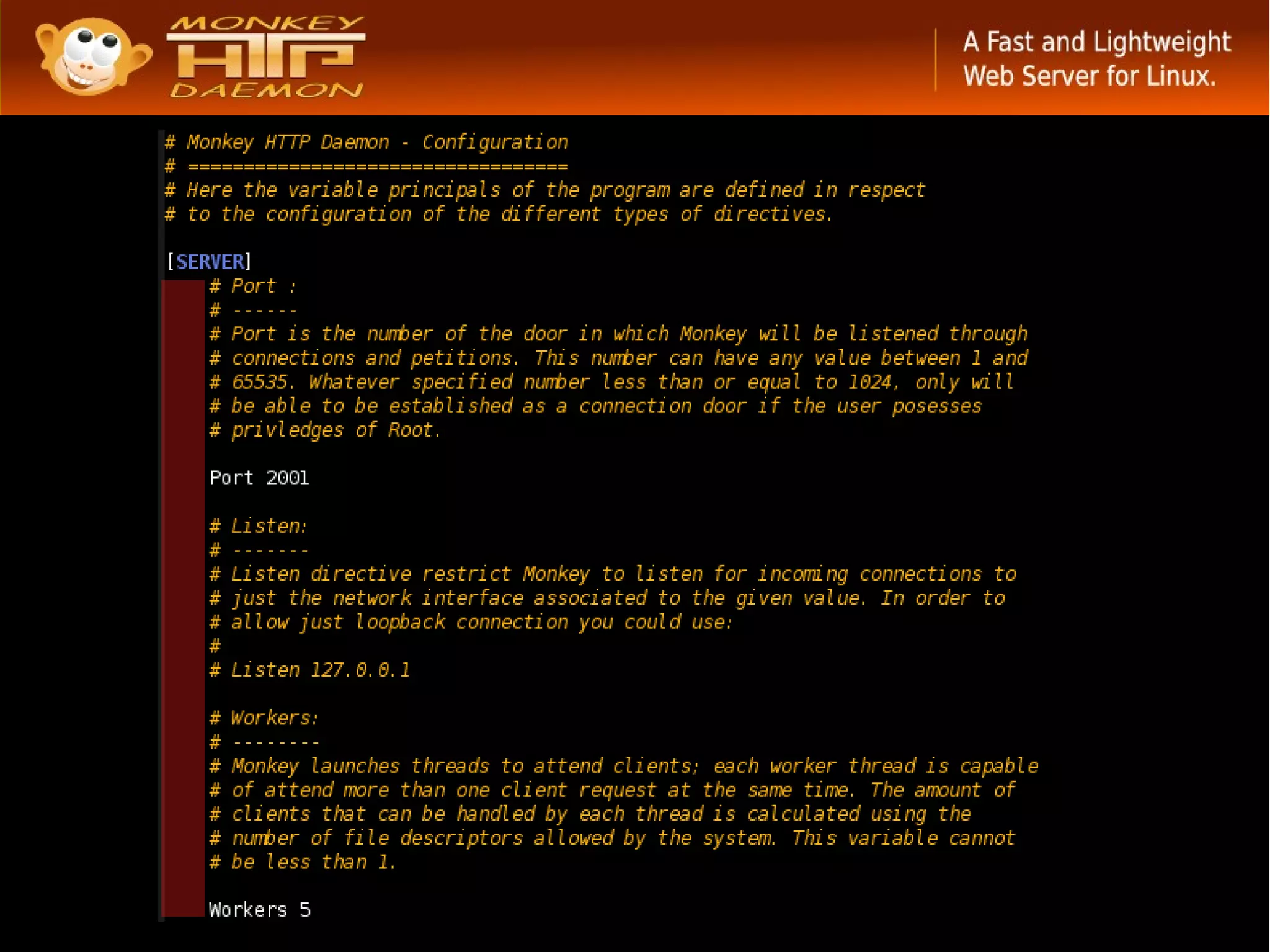

7. Indented Configuration

9. < WORKERS >
● Scheduler
● Clock

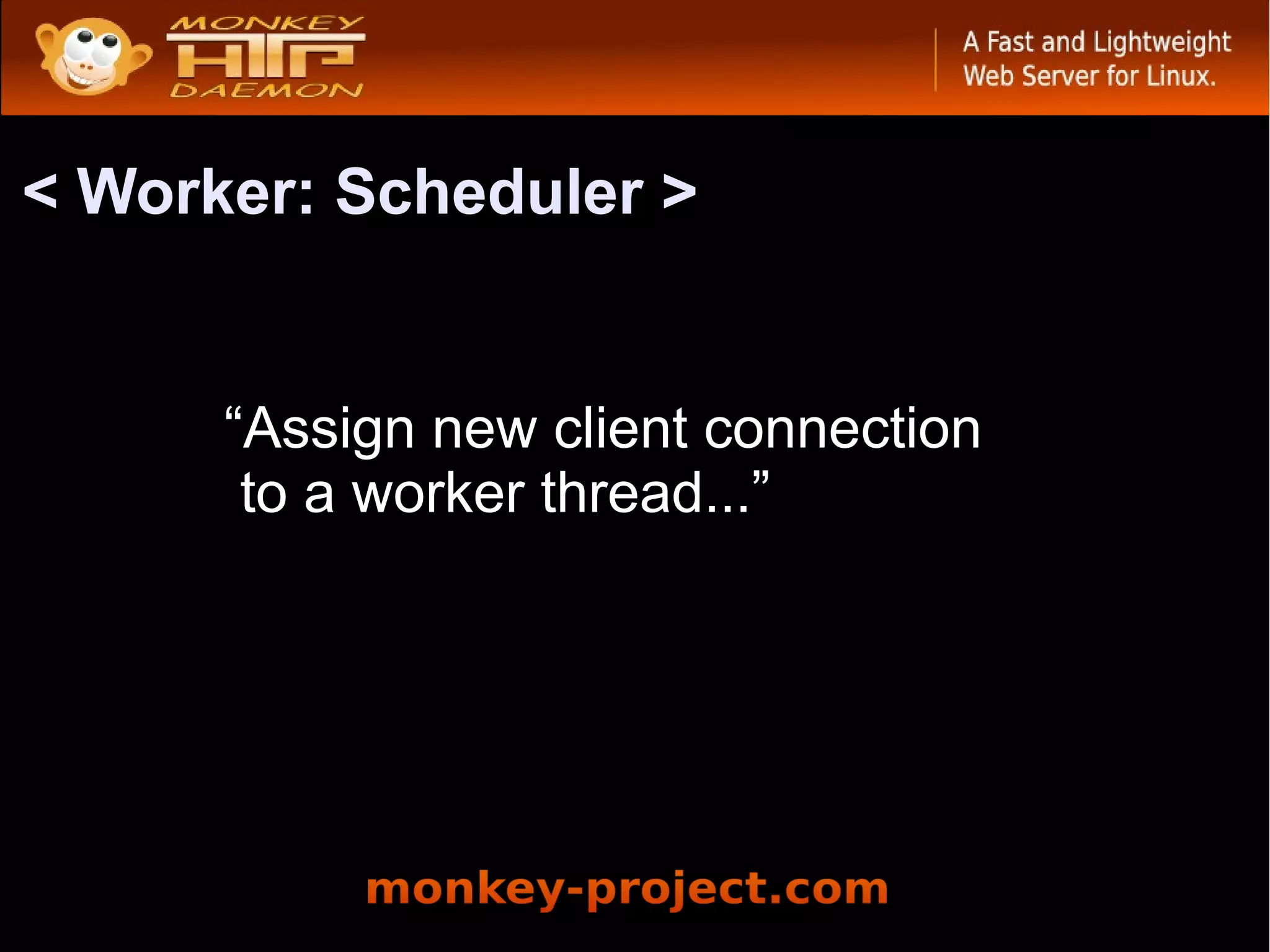

10. < Worker: Scheduler >
“Assign new client connection
to a worker thread...”

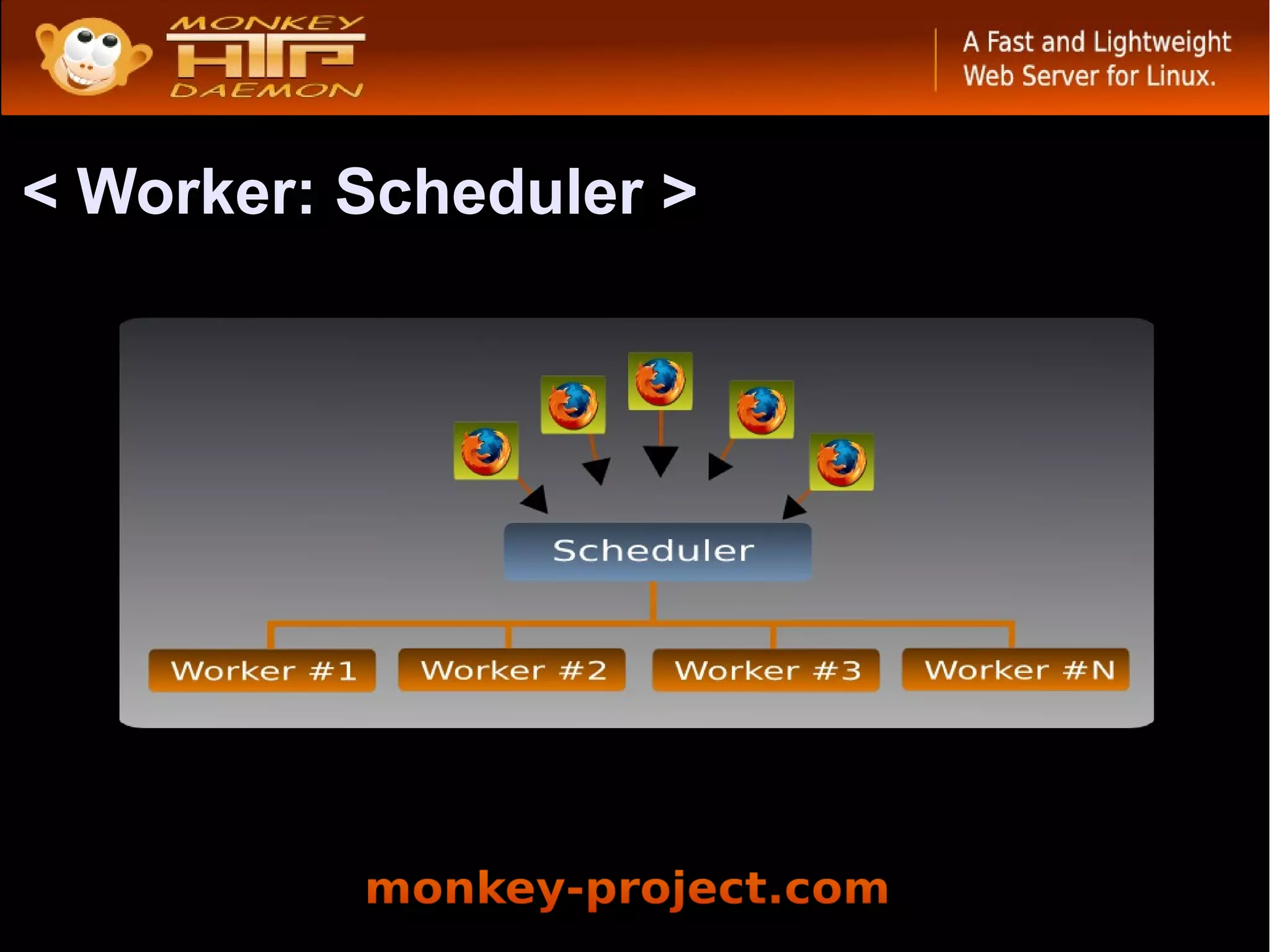

11. < Worker: Scheduler >

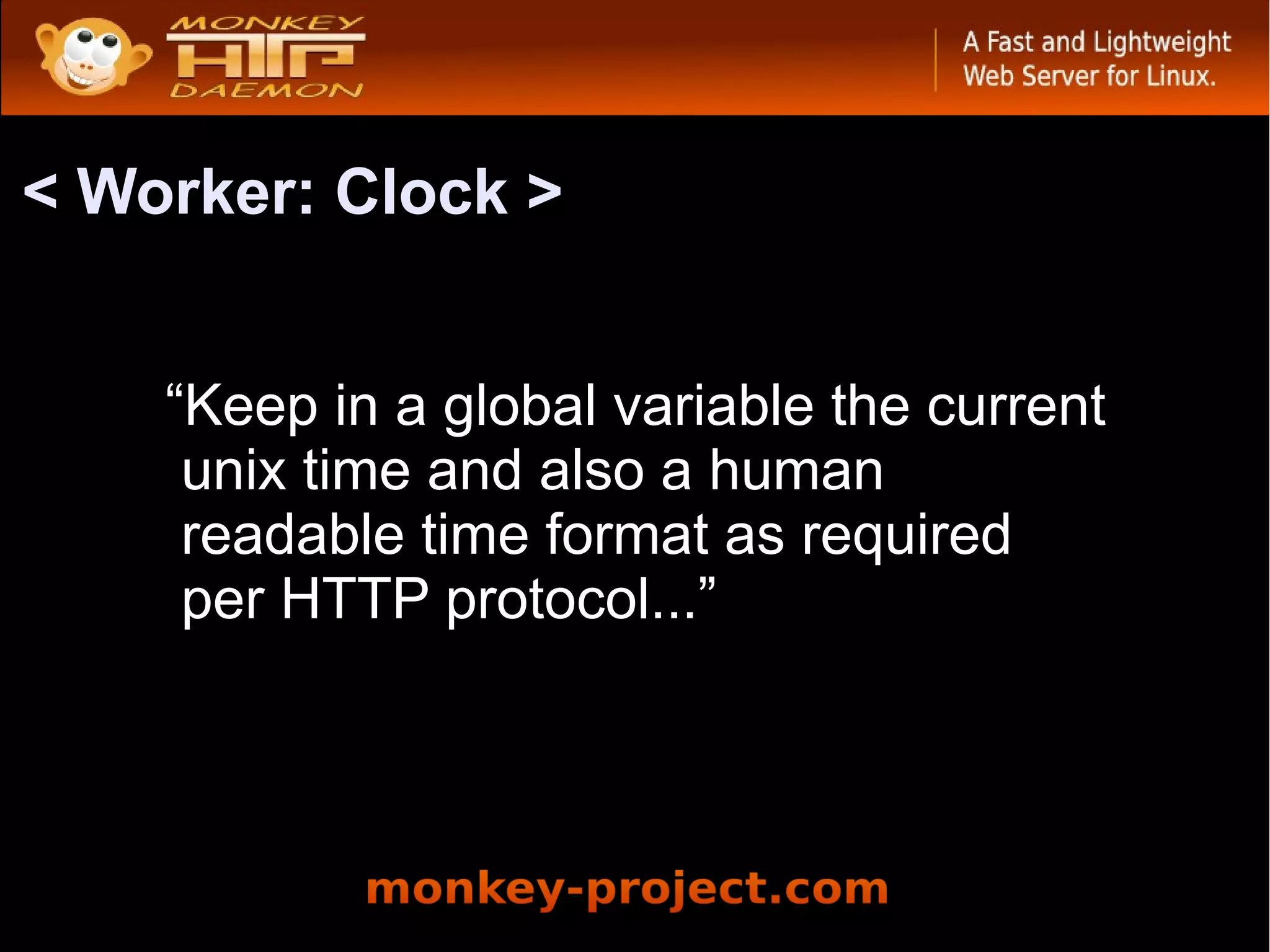

12. < Worker: Clock >
“Keep in a global variable the current
unix time and also a human
readable time format as required
per HTTP protocol...”

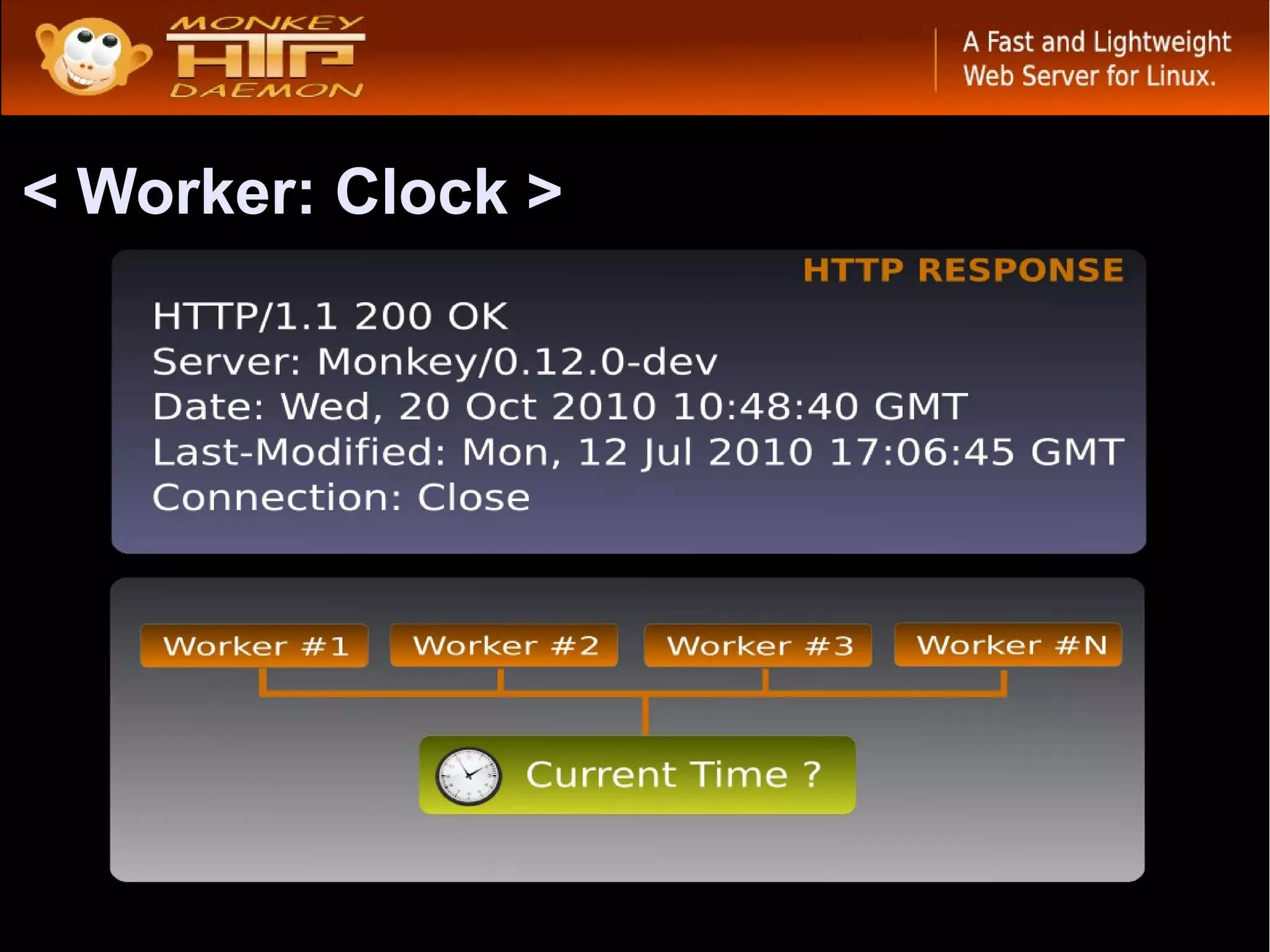

13. < Worker: Clock >

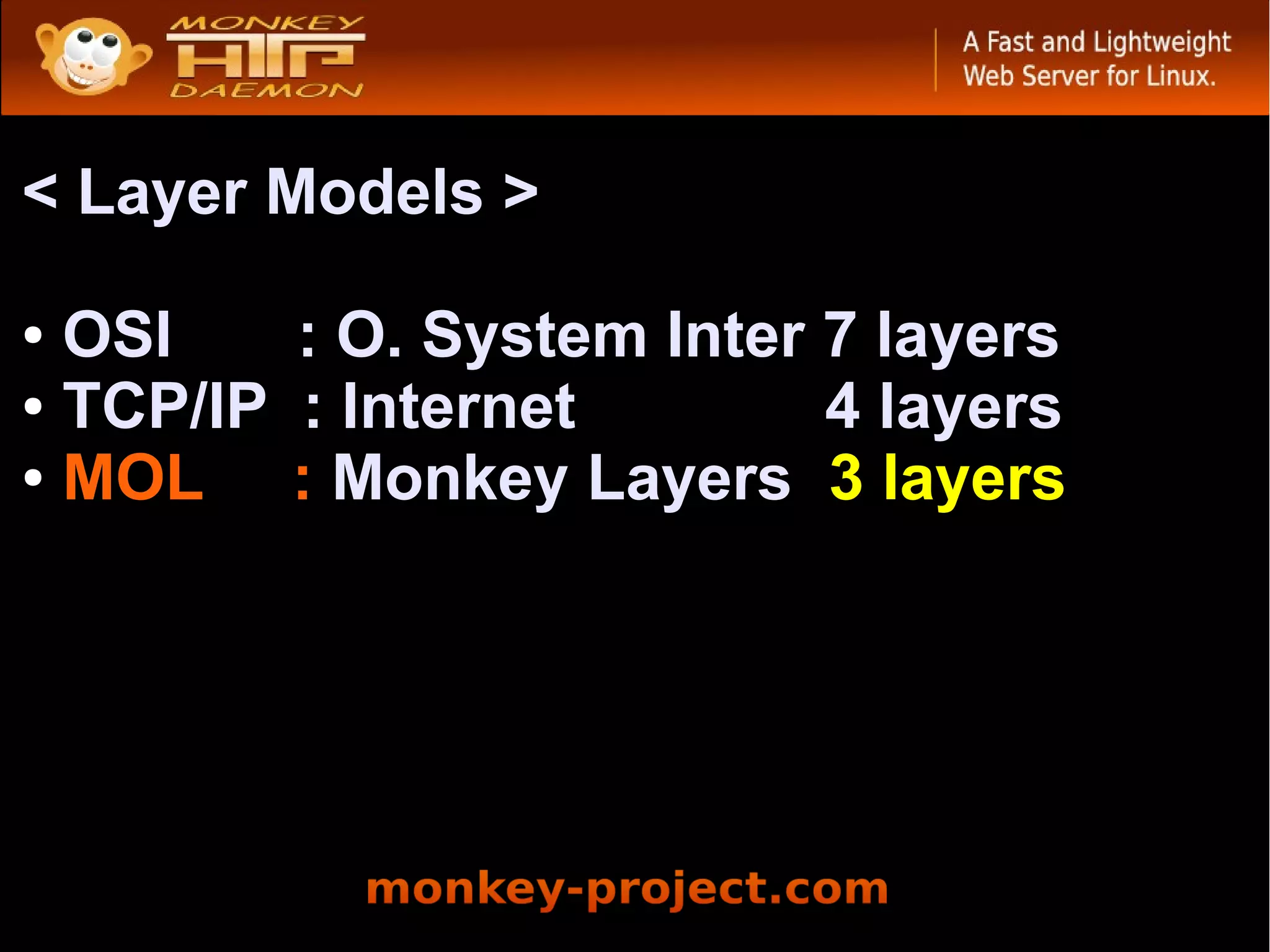

14. < Layer Models >
● OSI : O. System Inter 7 layers
● TCP/IP : Internet 4 layers
● MOL : Monkey Layers 3 layers

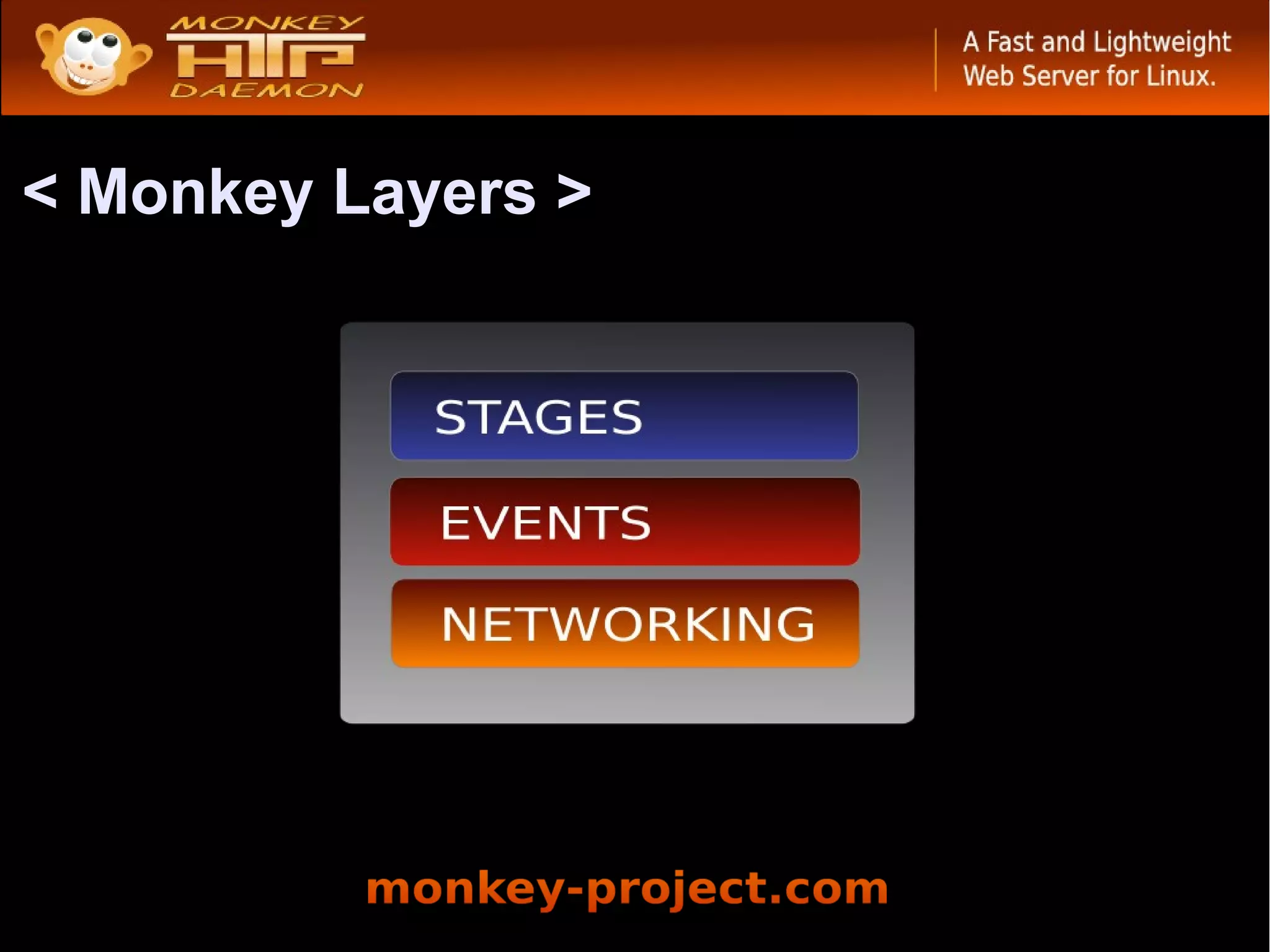

15. < Monkey Layers >

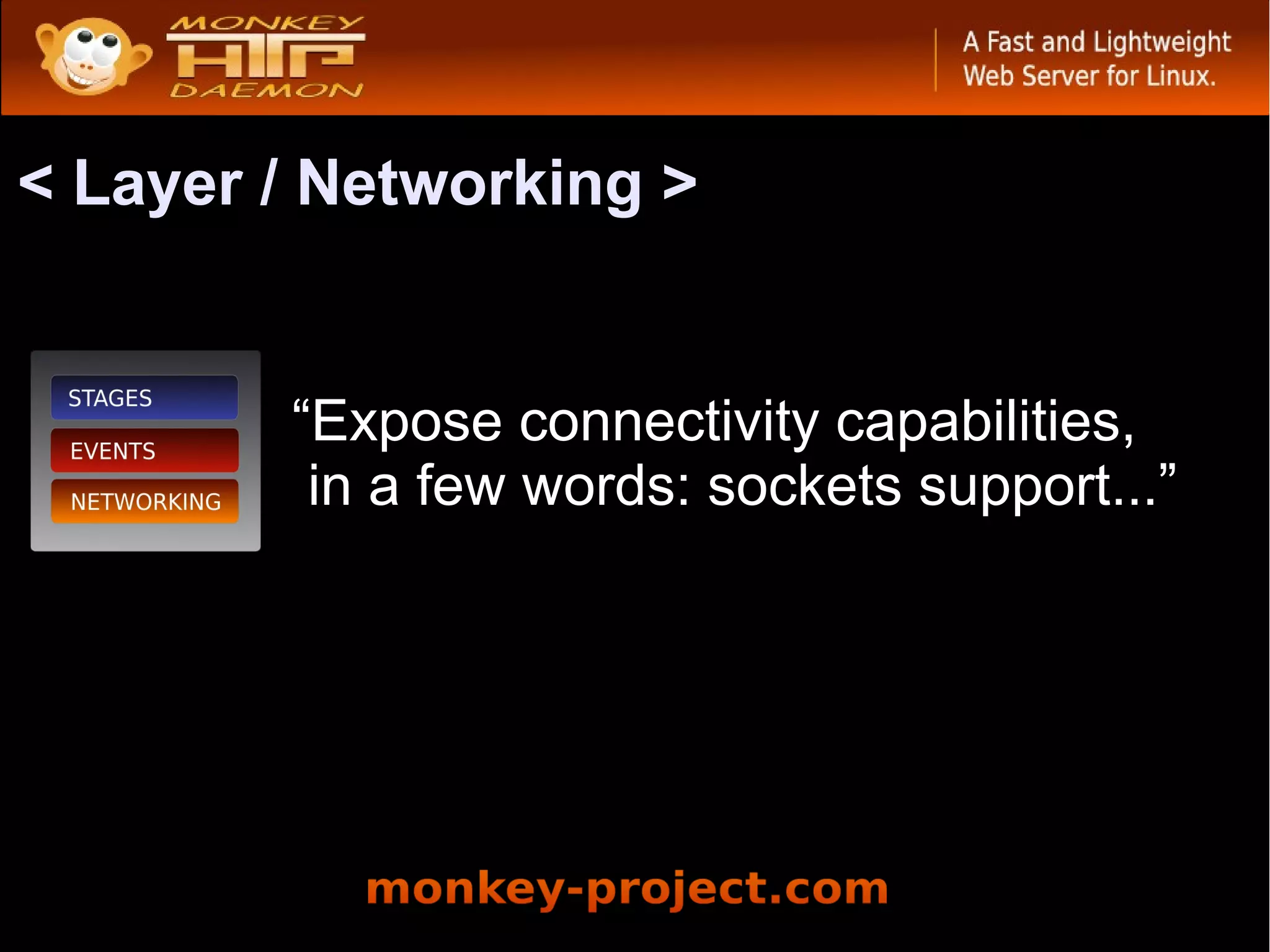

16. < Layer / Networking >
“Expose connectivity capabilities,
in a few words: sockets support...”

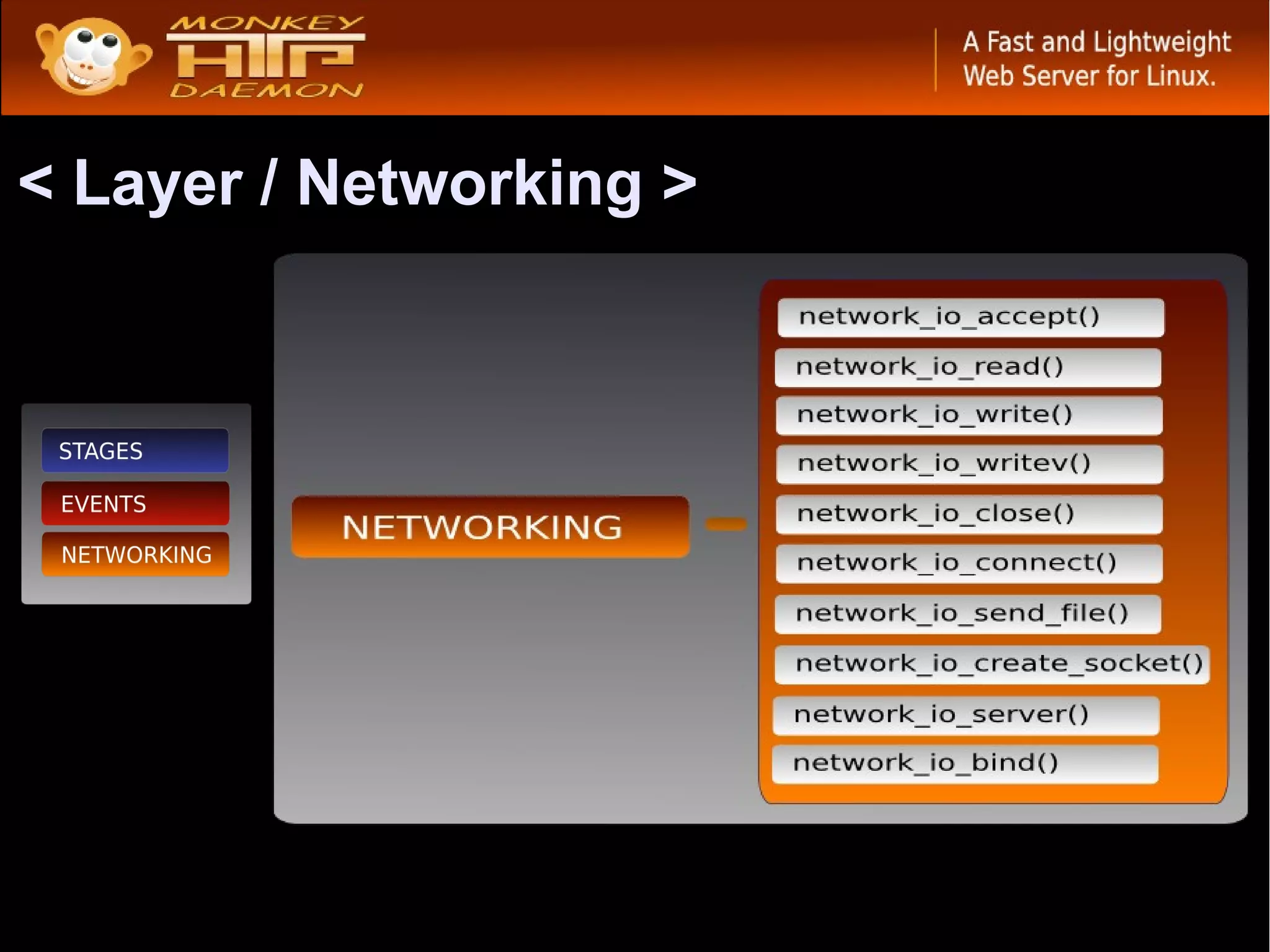

17. < Layer / Networking >

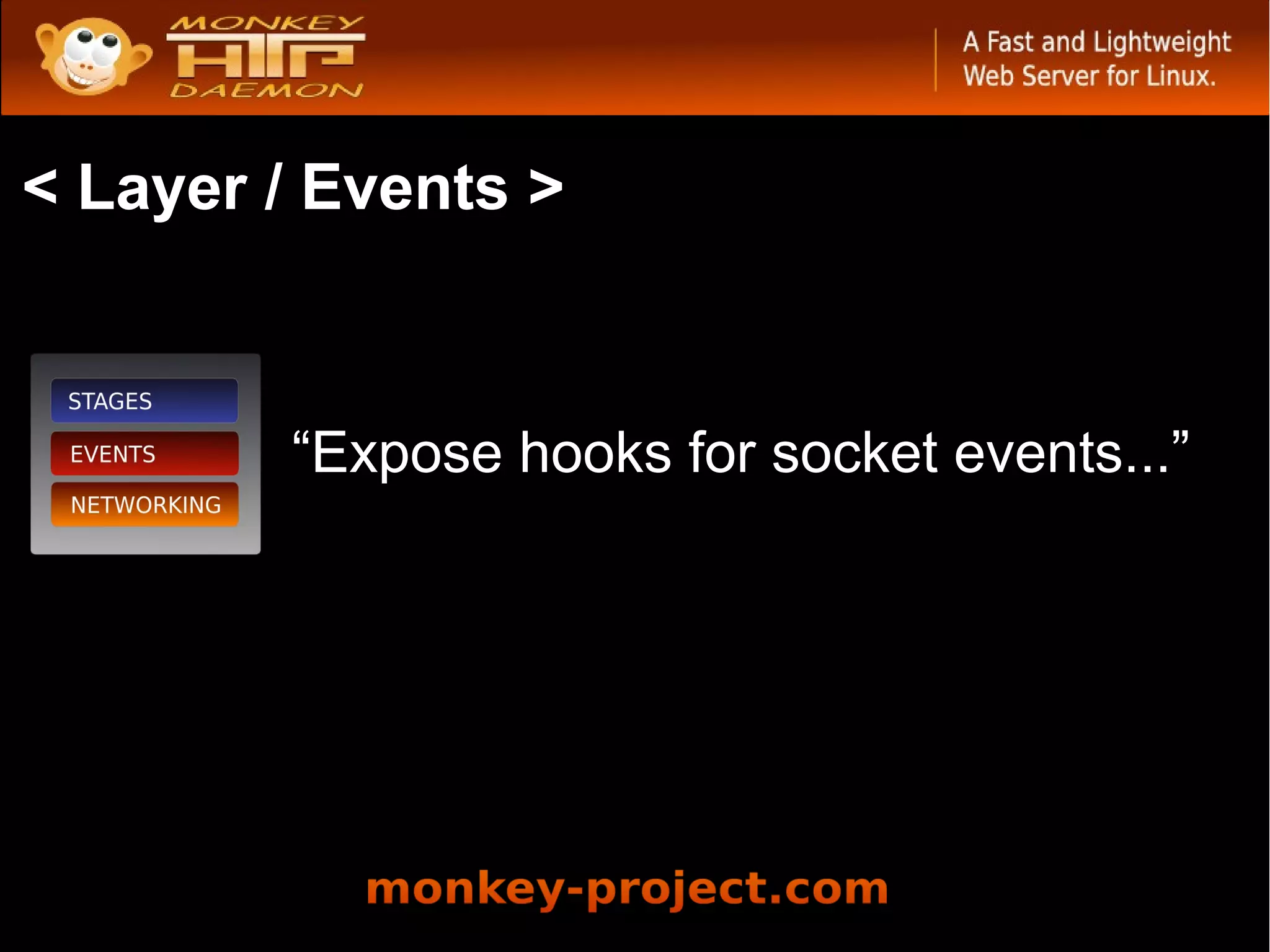

18. < Layer / Events >
“Expose hooks for socket events...”

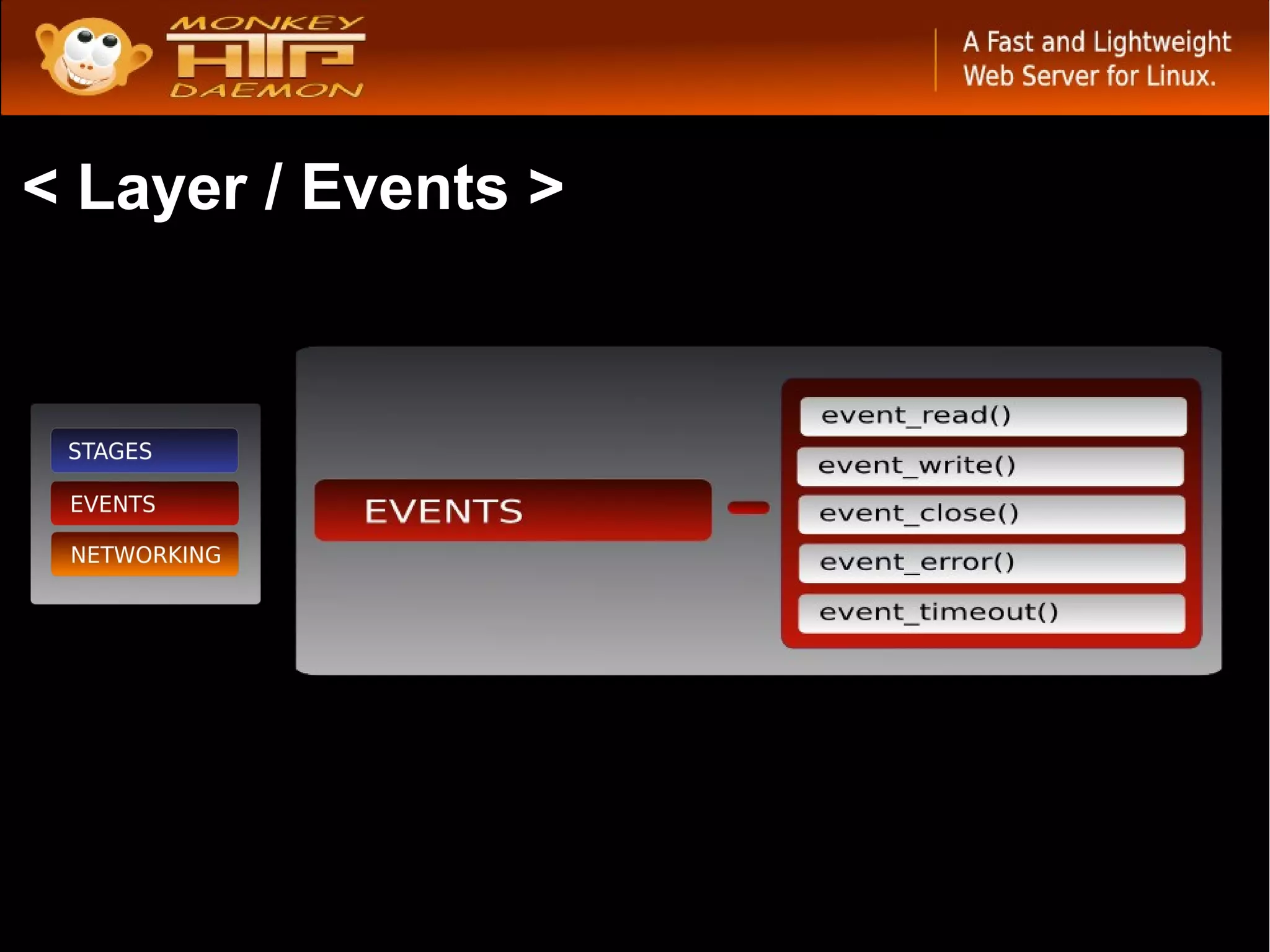

19. < Layer / Events >

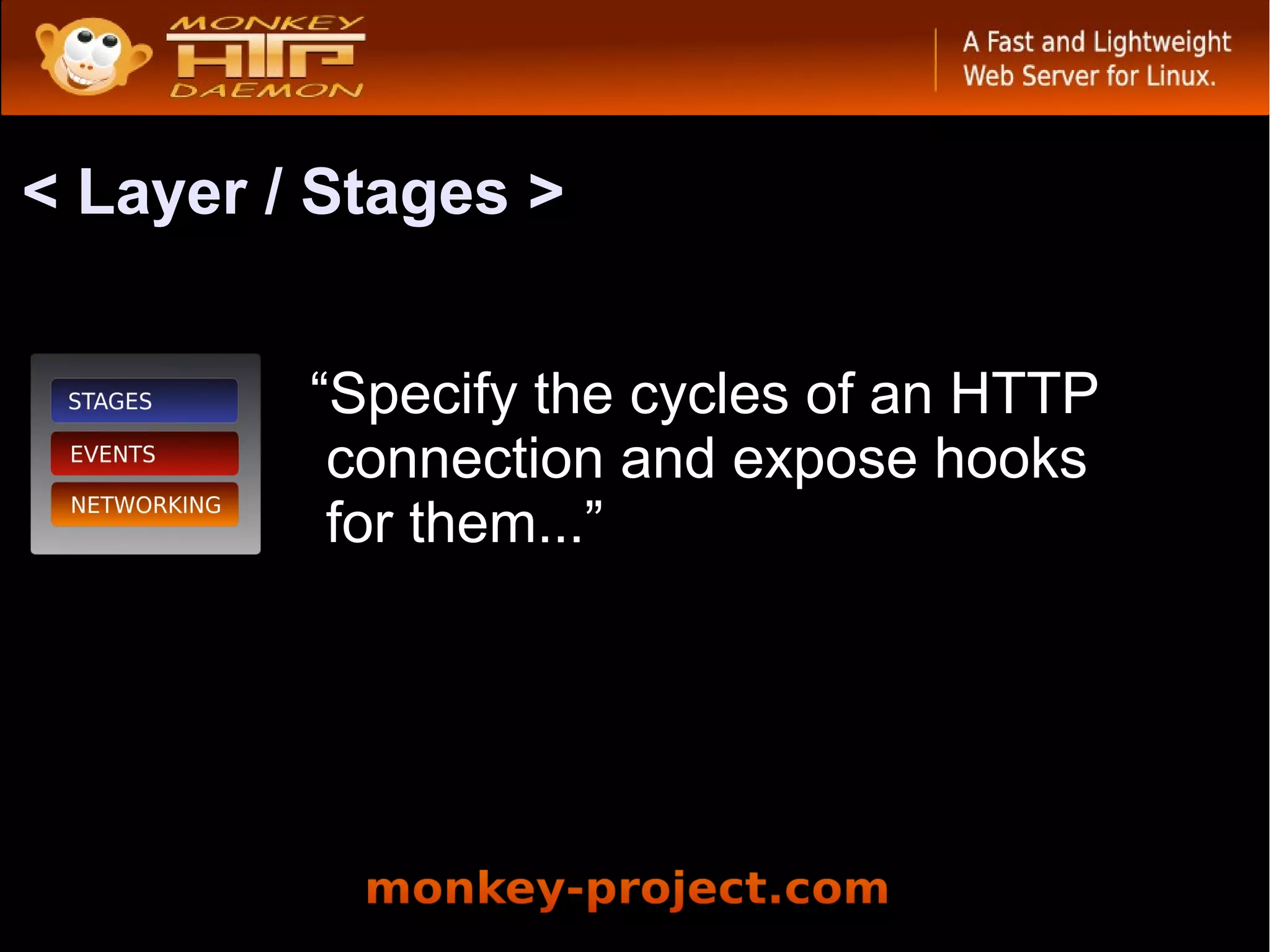

20. < Layer / Stages >
“Specify the cycles of an HTTP
connection and expose hooks
for them...”

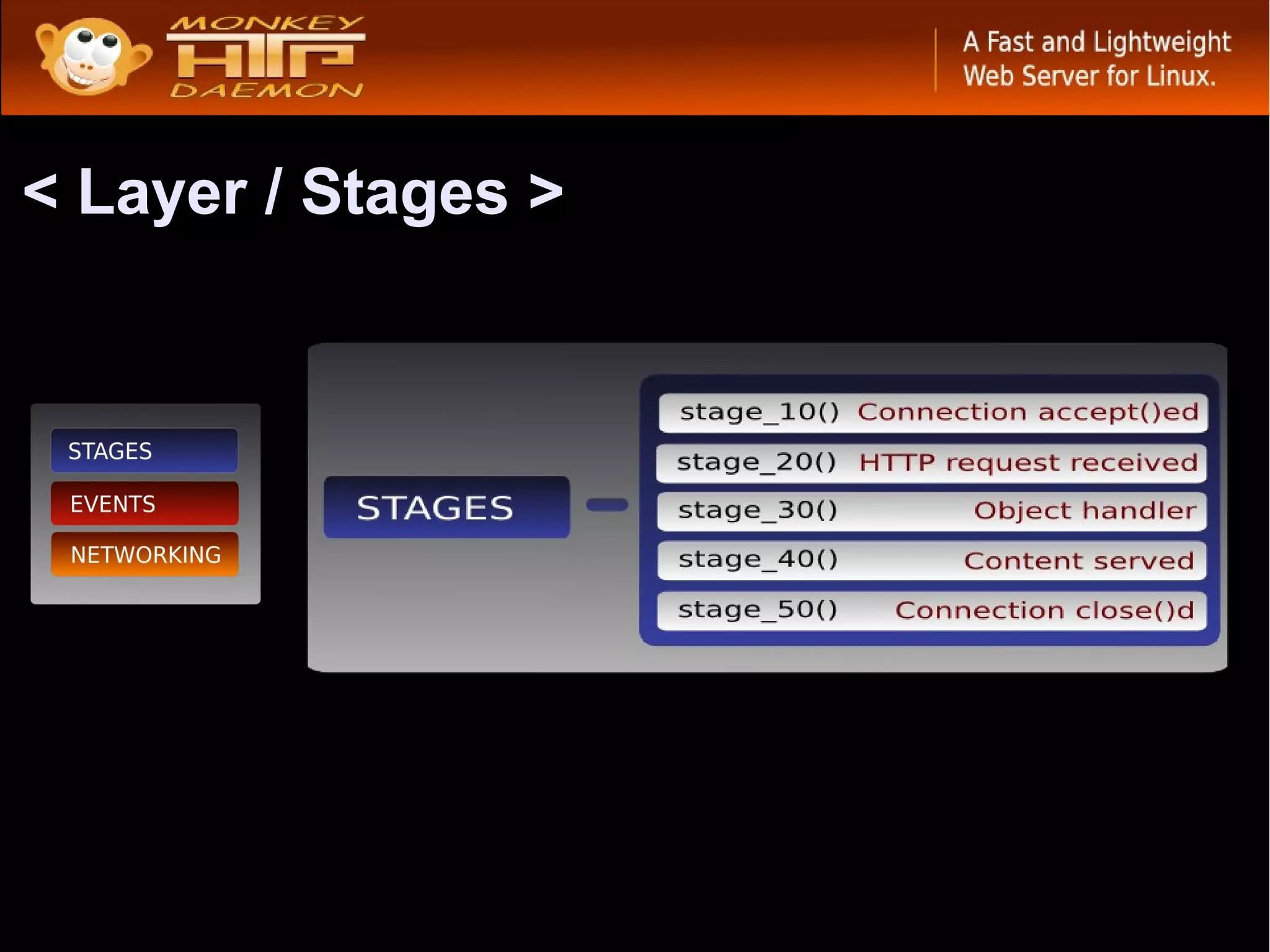

21. < Layer / Stages >

22. Plugins

23. < Logger Plugin >

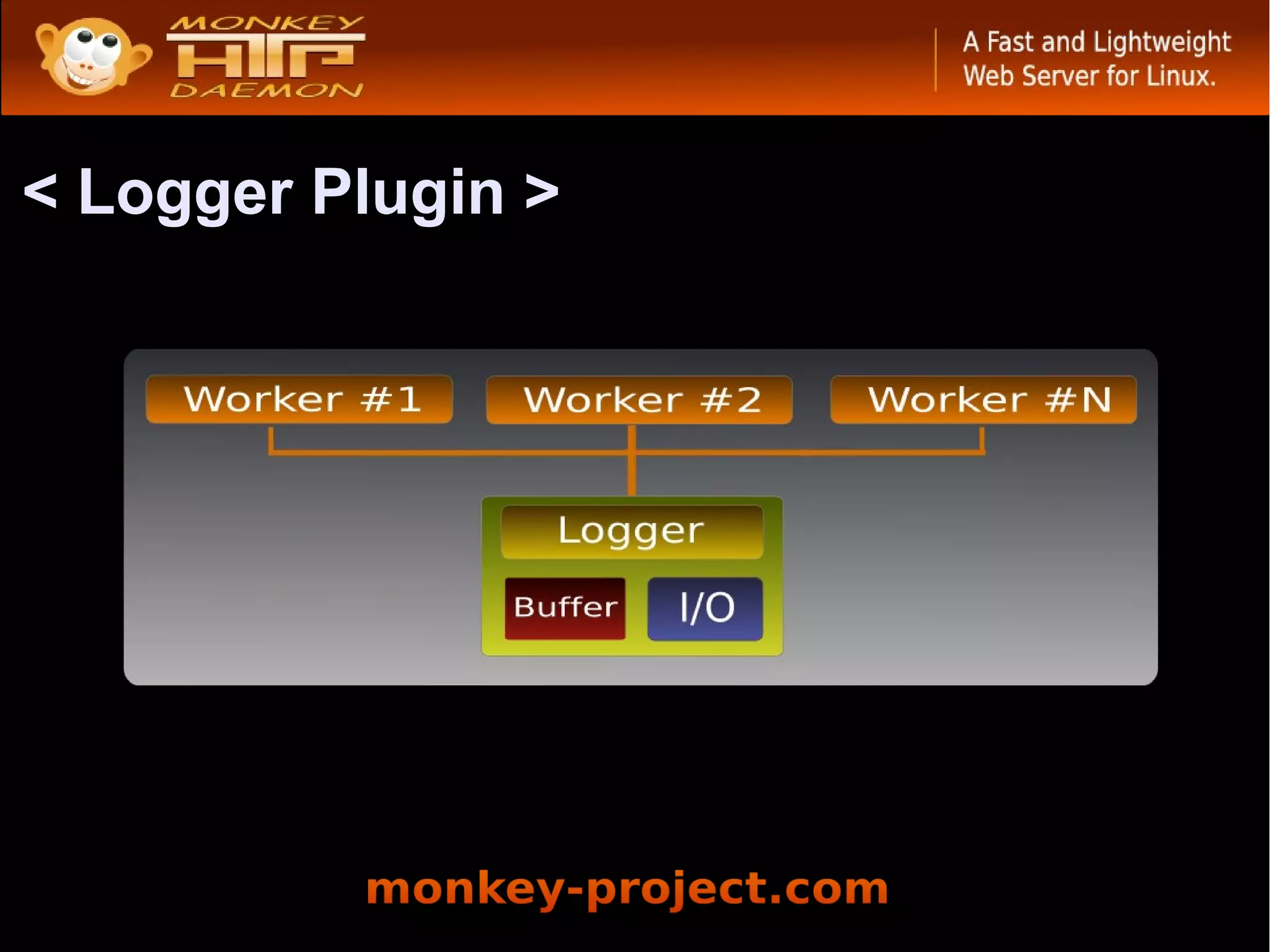

24. < Logger Plugin >

25. < Mandril Plugin >
Security

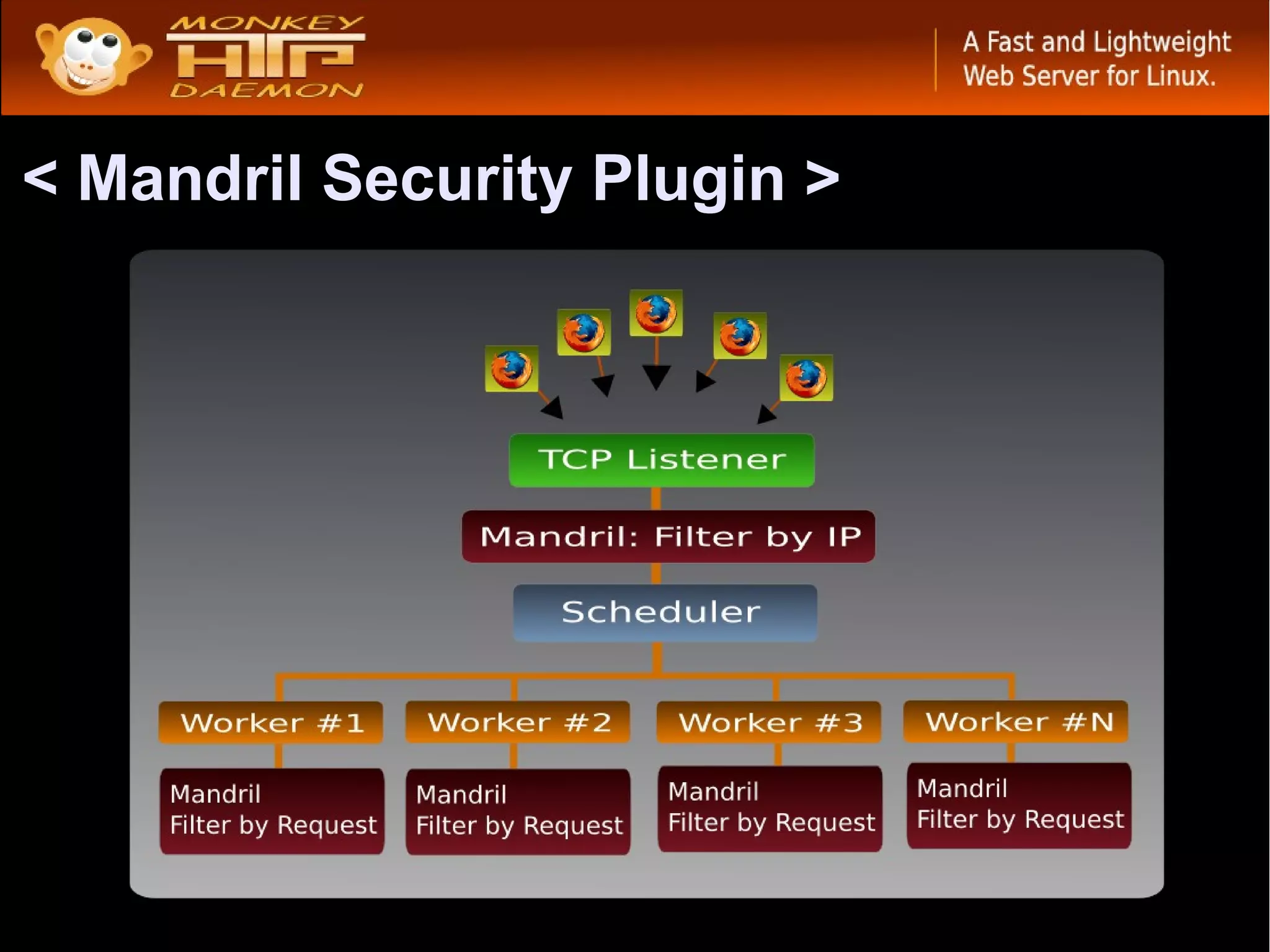

26. < Mandril Security Plugin >

27. < Liana Plugin >
Connectivity

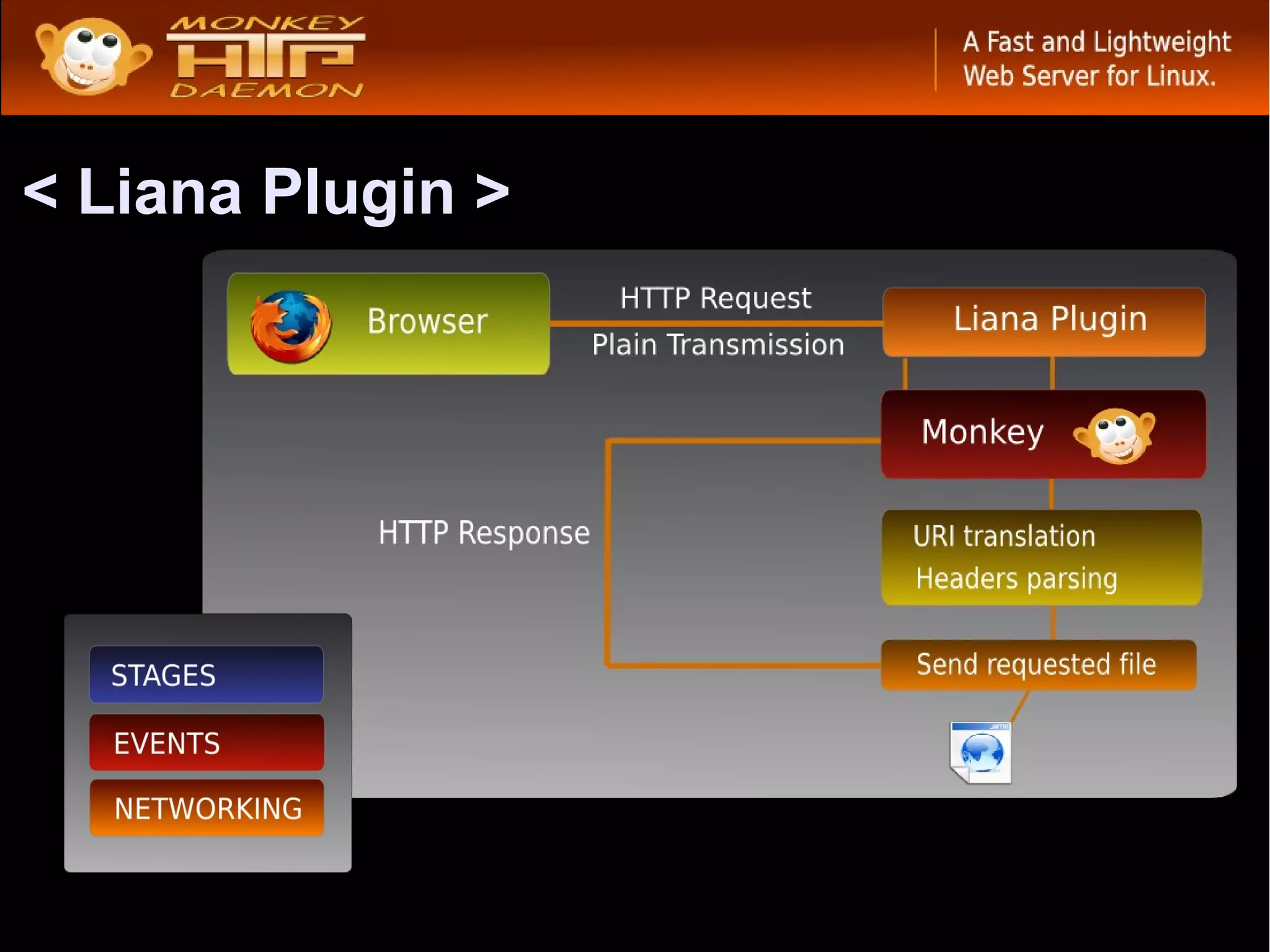

28. < Liana Plugin >

29. SSL ?

30. ...Yes!
using MatrixSSL

31. < Liana SSL Plugin >

32. Liana 6
IPv6 Support

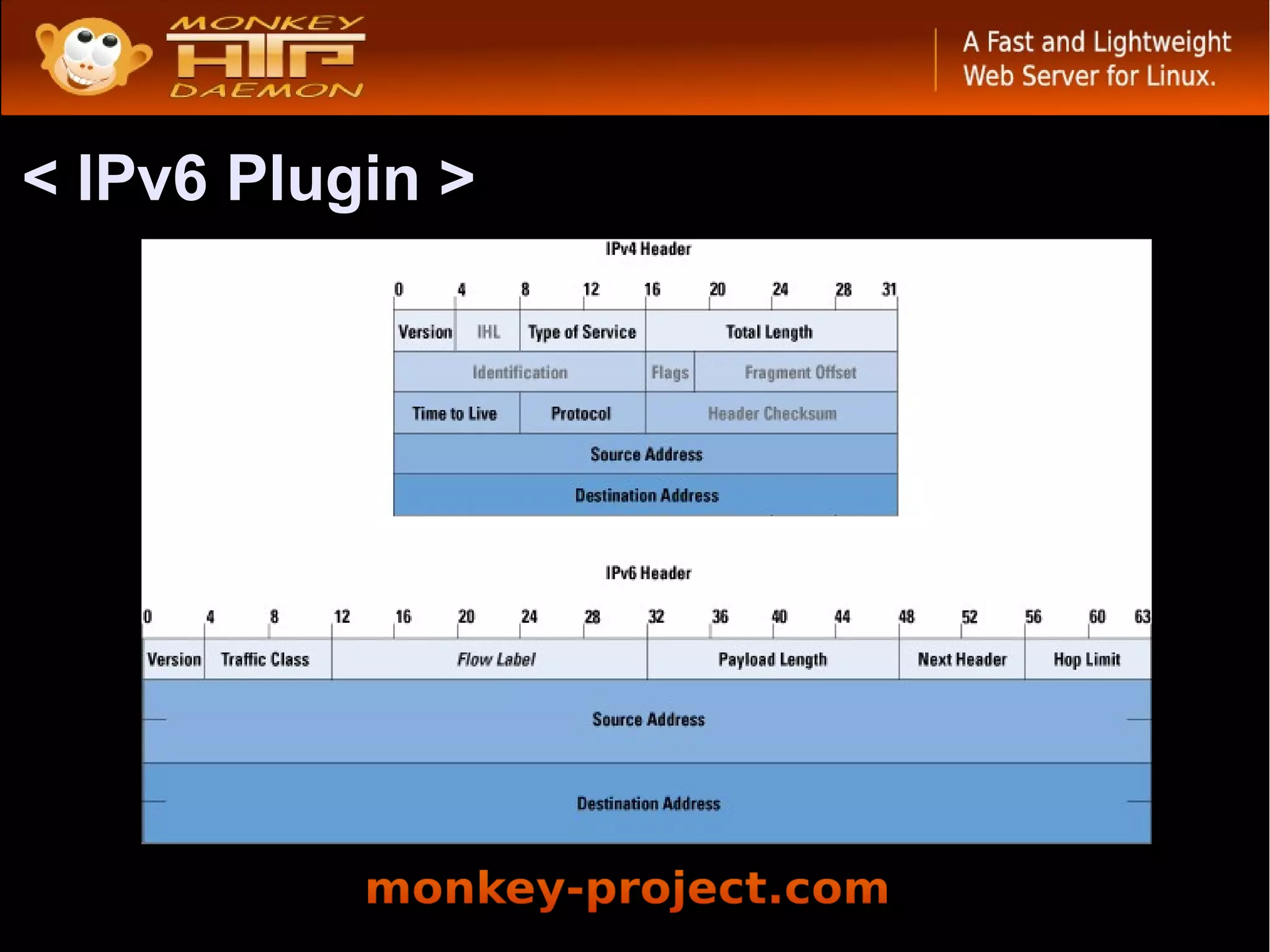

33. < IPv6 Plugin >

34. HTML5
Web Sockets

35. < WebSockets Plugin >

37. Palm Plugin & App Server

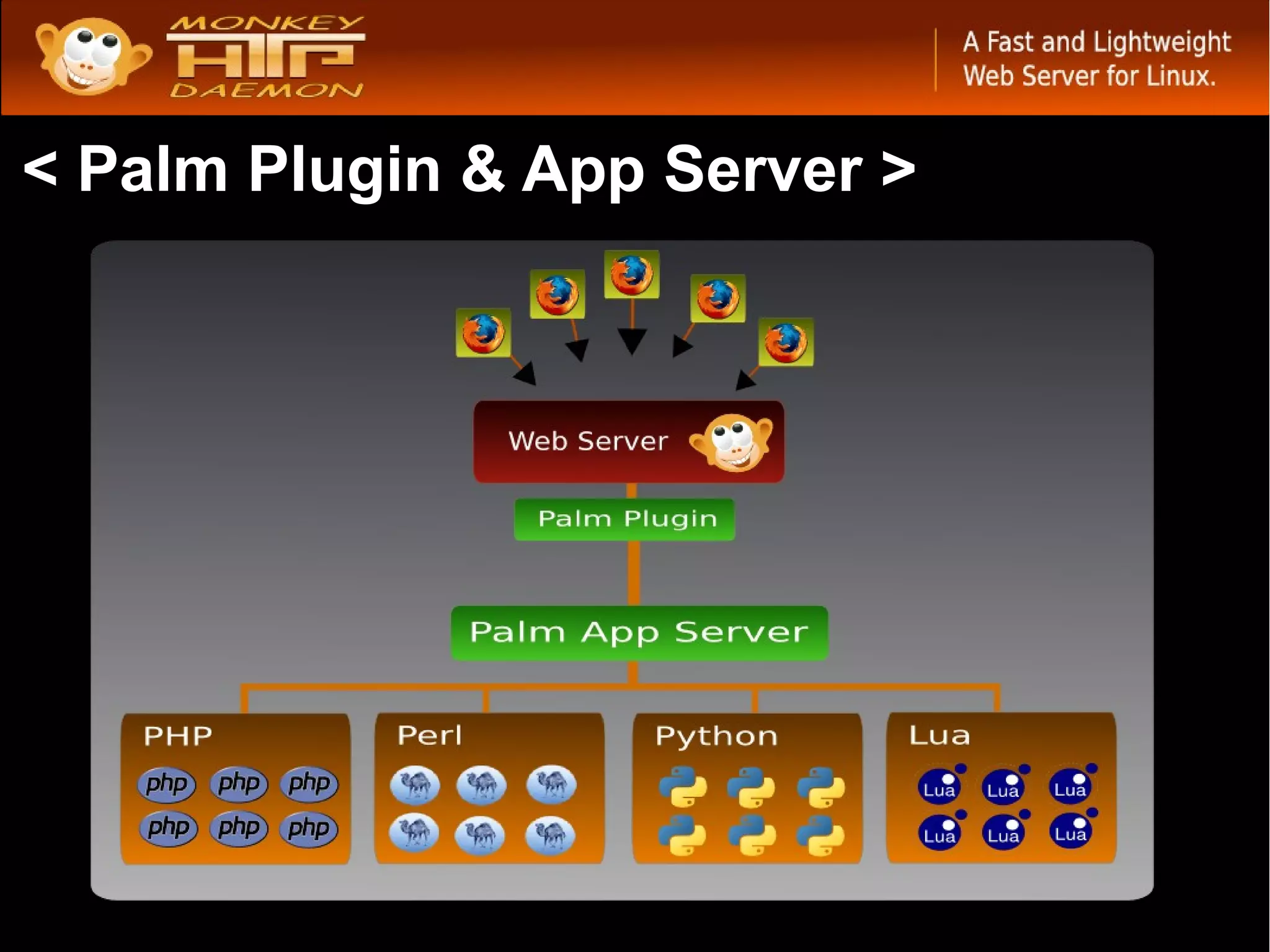

38. < Palm Plugin & App Server >

39. < Benchmark >

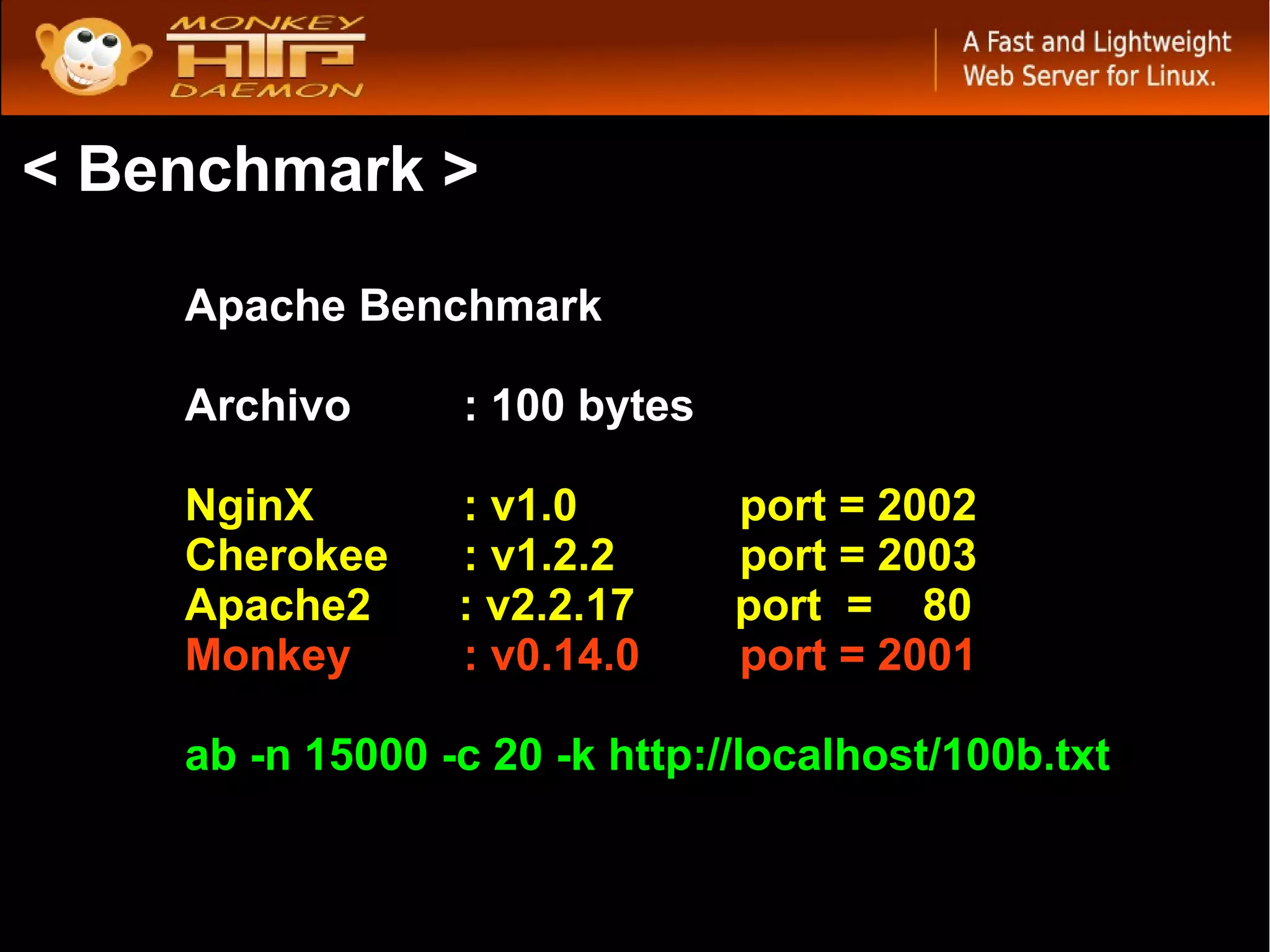

40. < Benchmark >
Apache Benchmark
Archivo : 100 bytes
NginX : v1.0 port = 2002
Cherokee : v1.2.2 port = 2003
Apache2 : v2.2.17 port = 80
Monkey : v0.14.0 port = 2001
ab -n 15000 -c 20 -k http://localhost/100b.txt

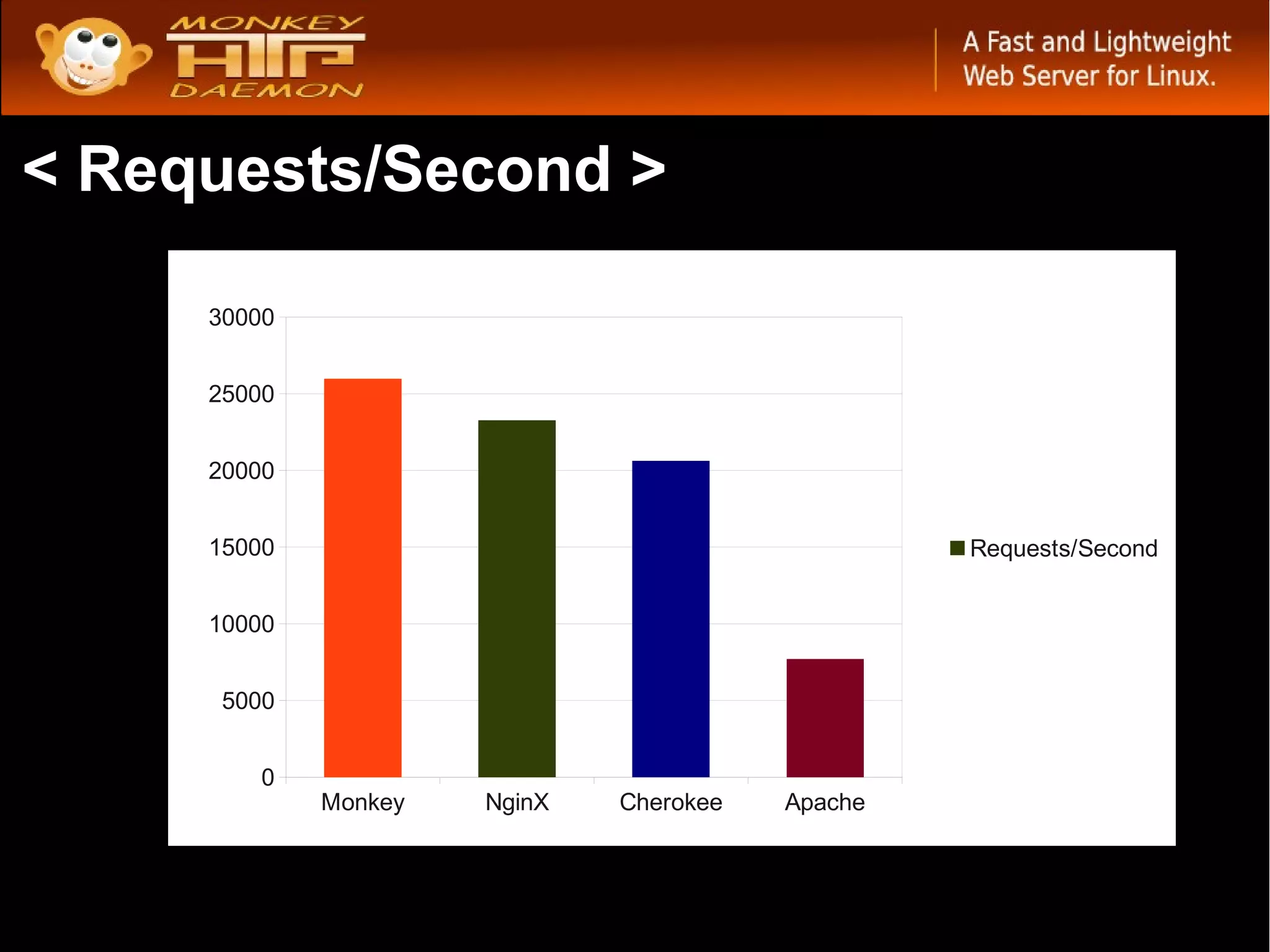

41. < Requests/Second >
30000
25000
20000
15000 Requests/Second
10000
5000
0
Monkey NginX Cherokee Apache

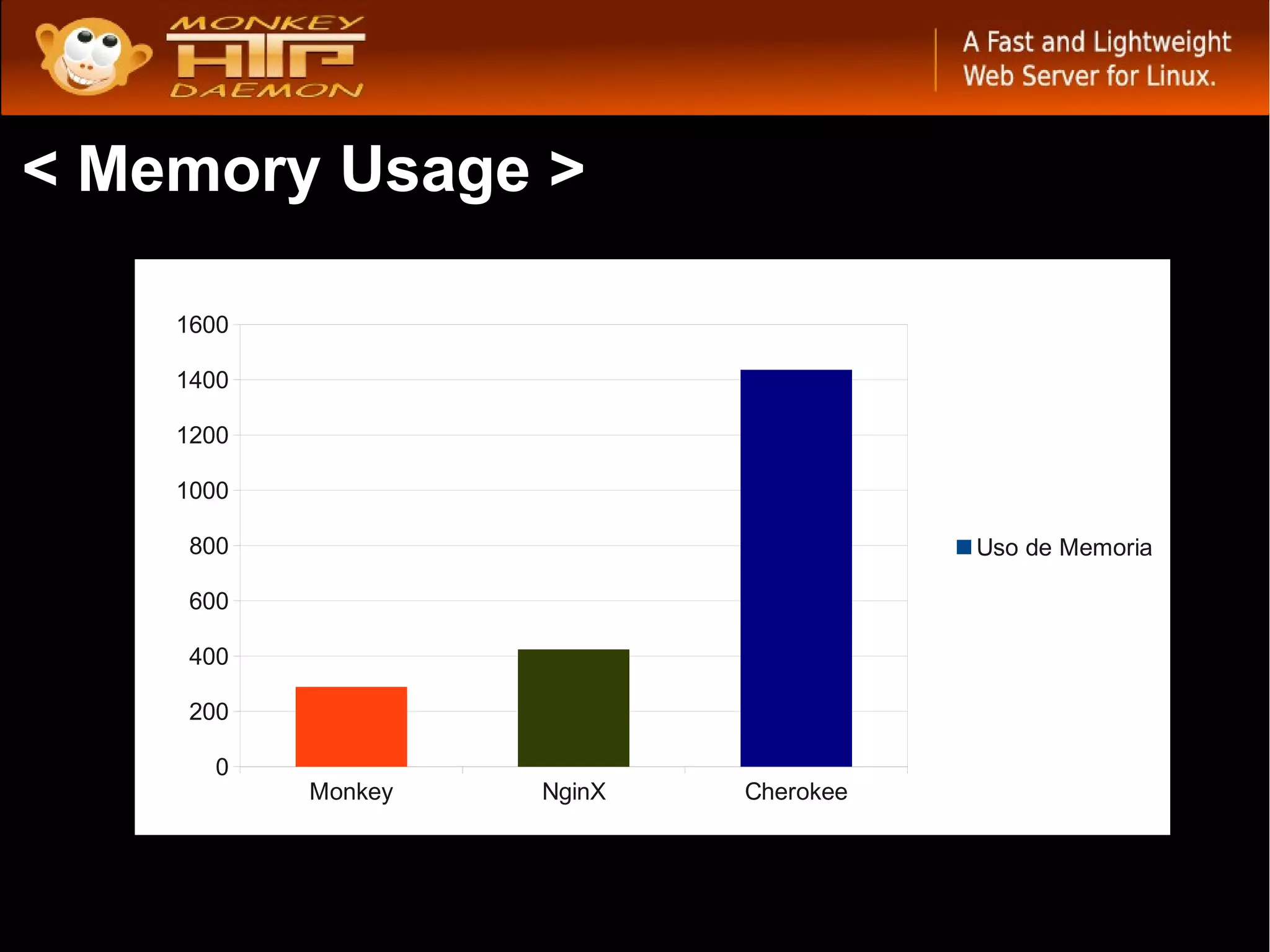

42. < Memory Usage >
1600
1400
1200
1000
800 Uso de Memoria
600
400
200
0
Monkey NginX Cherokee

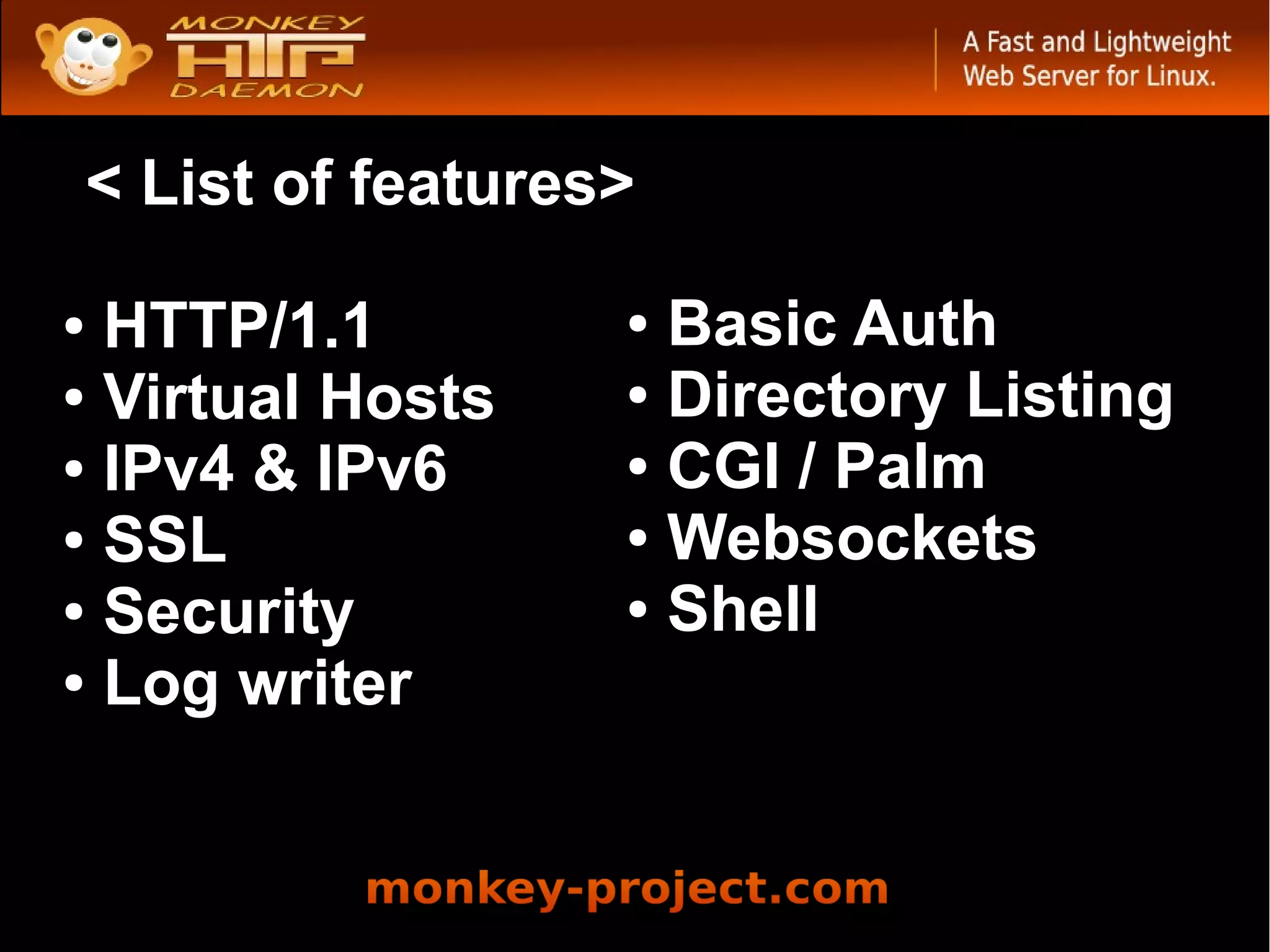

43. < List of features>
● HTTP/1.1 ● Basic Auth
● Virtual Hosts ● Directory Listing
● IPv4 & IPv6 ● CGI / Palm
● SSL ● Websockets
● Security ● Shell
● Log writer

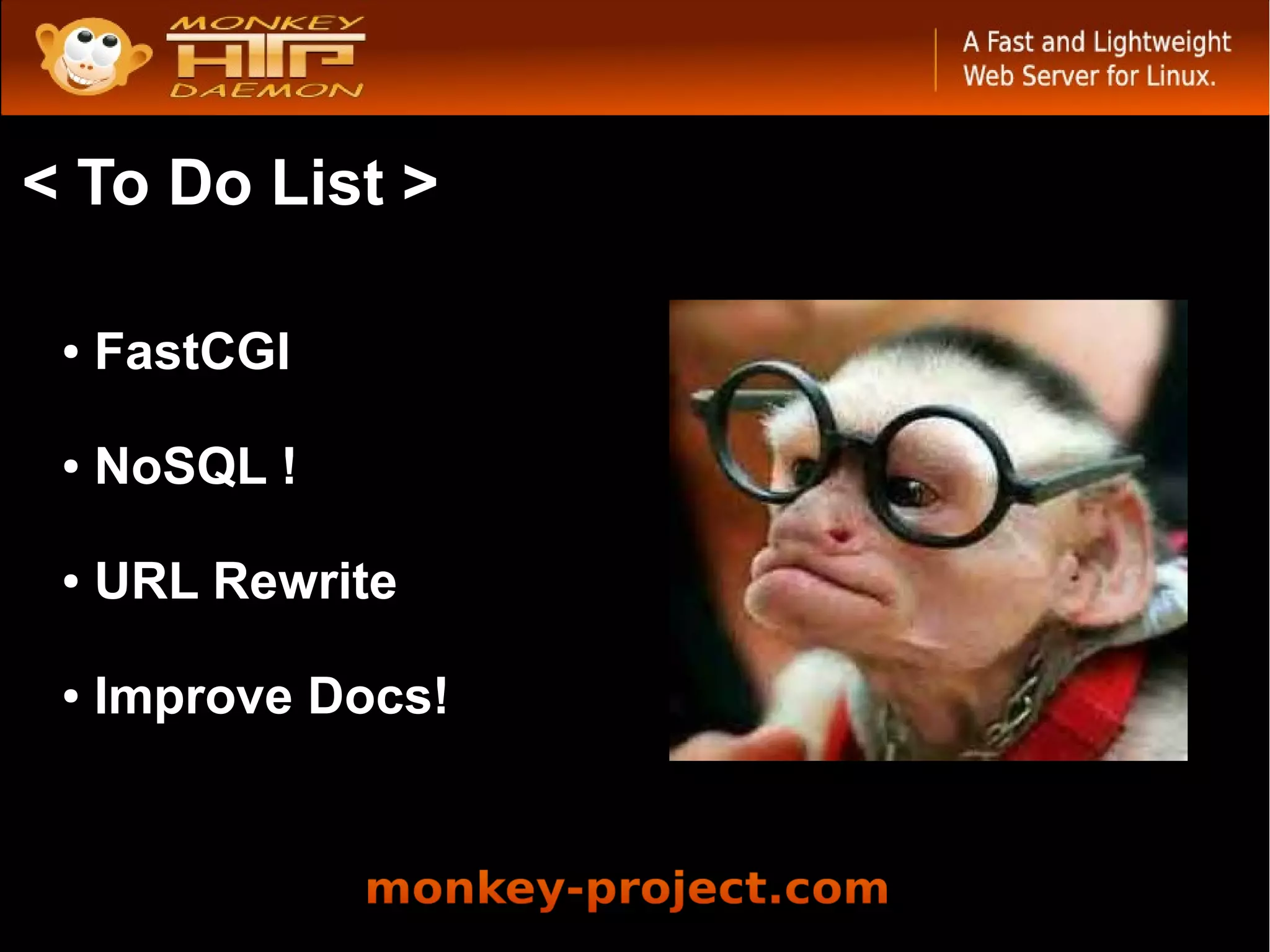

44. < To Do List >
● FastCGI
● NoSQL !
● URL Rewrite
● Improve Docs!

45. < Get Involved ! >
● Community
● Beta Testers
● Art Work
● Documentation
● Coding

46. Q&A
Eduardo Silva ( edsiper ) Jonathan Gonzalez ( Zeus)
edsiper@monkey-project.com zeus@gnu.org
