This document discusses PubSubHubbub (PuSH) and how it can be used to provide notifications of changes to structured data defined by SPARQL queries. It introduces sparqlPuSH, which combines SPARQL, SPARQL Update and PuSH to enable proactive notifications when relevant data changes in an RDF store. Queries can be registered to define which changes to track. When data is updated, sparqlPuSH identifies relevant changes and broadcasts notifications using PuSH. This allows applications to receive real-time updates without polling.

1. Digital Enterprise Research Institute www.deri.ie
SemWebbers, LODers:
What PubSubHubbub can do for you
Alexandre Passant
DERI, NUI Galway
Seminar @ Talis
23 Sept 2010, Birmingham, U.K.
© Copyright 2009 Digital Enterprise Research Institute. All rights reserved.

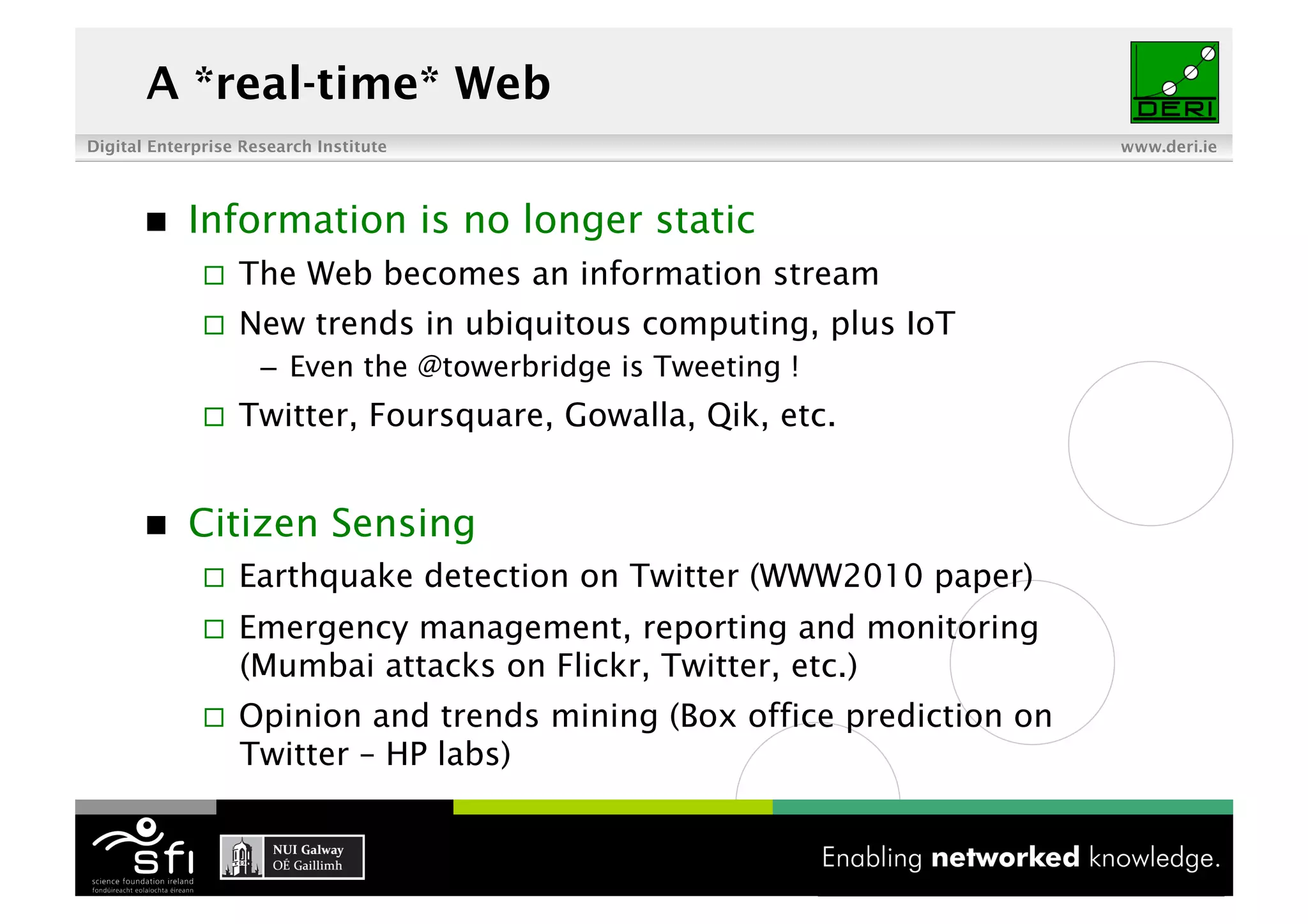

2. A *real-time* Web
Digital Enterprise Research Institute www.deri.ie
 Information is no longer static
 The Web becomes an information stream
 New trends in ubiquitous computing, plus IoT
– Even the @towerbridge is Tweeting !
 Twitter, Foursquare, Gowalla, Qik, etc.
 Citizen Sensing
 Earthquake detection on Twitter (WWW2010 paper)
 Emergency management, reporting and monitoring
(Mumbai attacks on Flickr, Twitter, etc.)
 Opinion and trends mining (Box office prediction on
Twitter – HP labs)
2 of XYZ

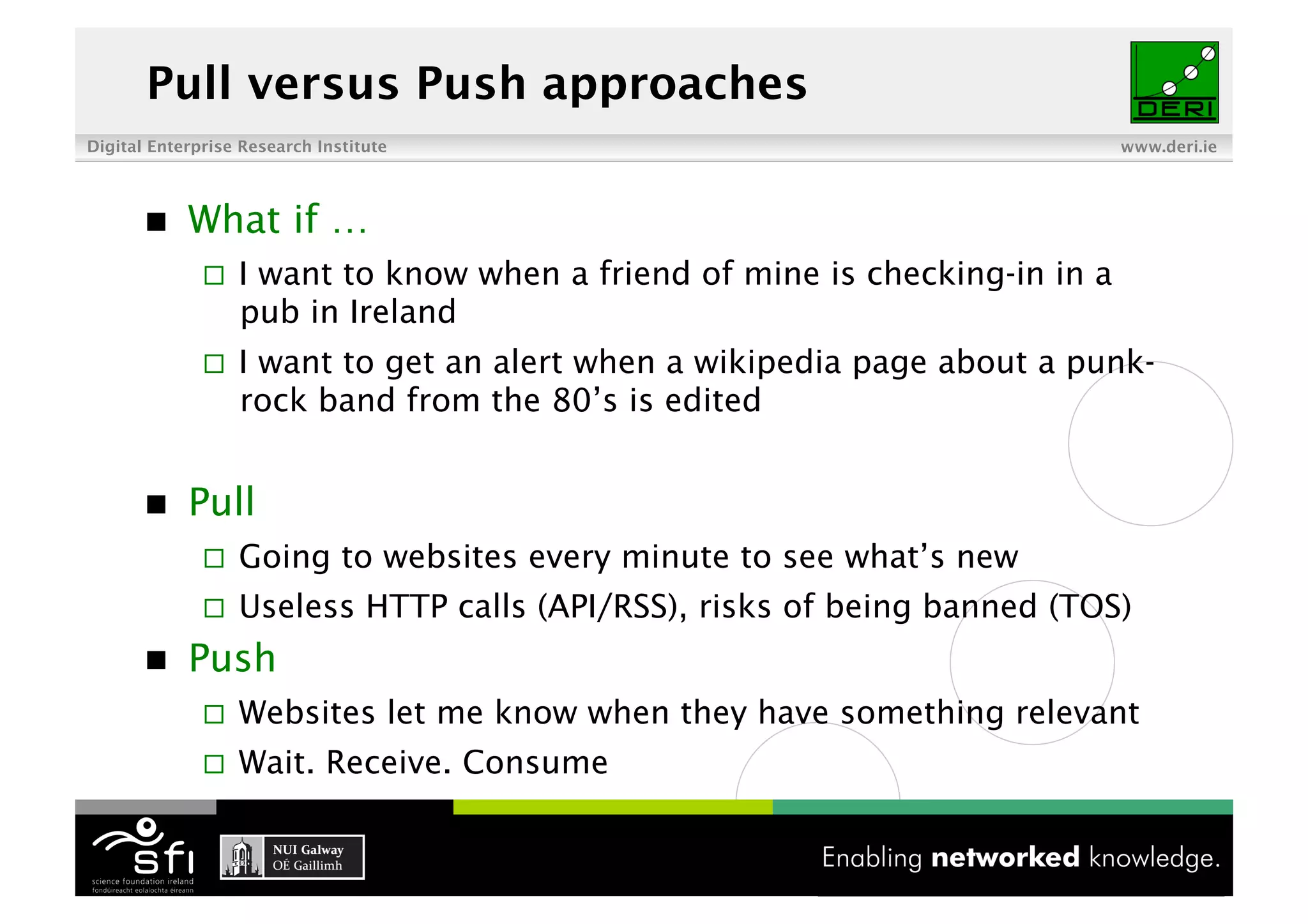

3. Pull versus Push approaches
Digital Enterprise Research Institute www.deri.ie
 What if …
 I want to know when a friend of mine is checking-in in a
pub in Ireland
 I want to get an alert when a wikipedia page about a punk-
rock band from the 80’s is edited
 Pull
 Going to websites every minute to see what’s new
 Useless HTTP calls (API/RSS), risks of being banned (TOS)
 Push
 Websites let me know when they have something relevant
 Wait. Receive. Consume
3 of XYZ

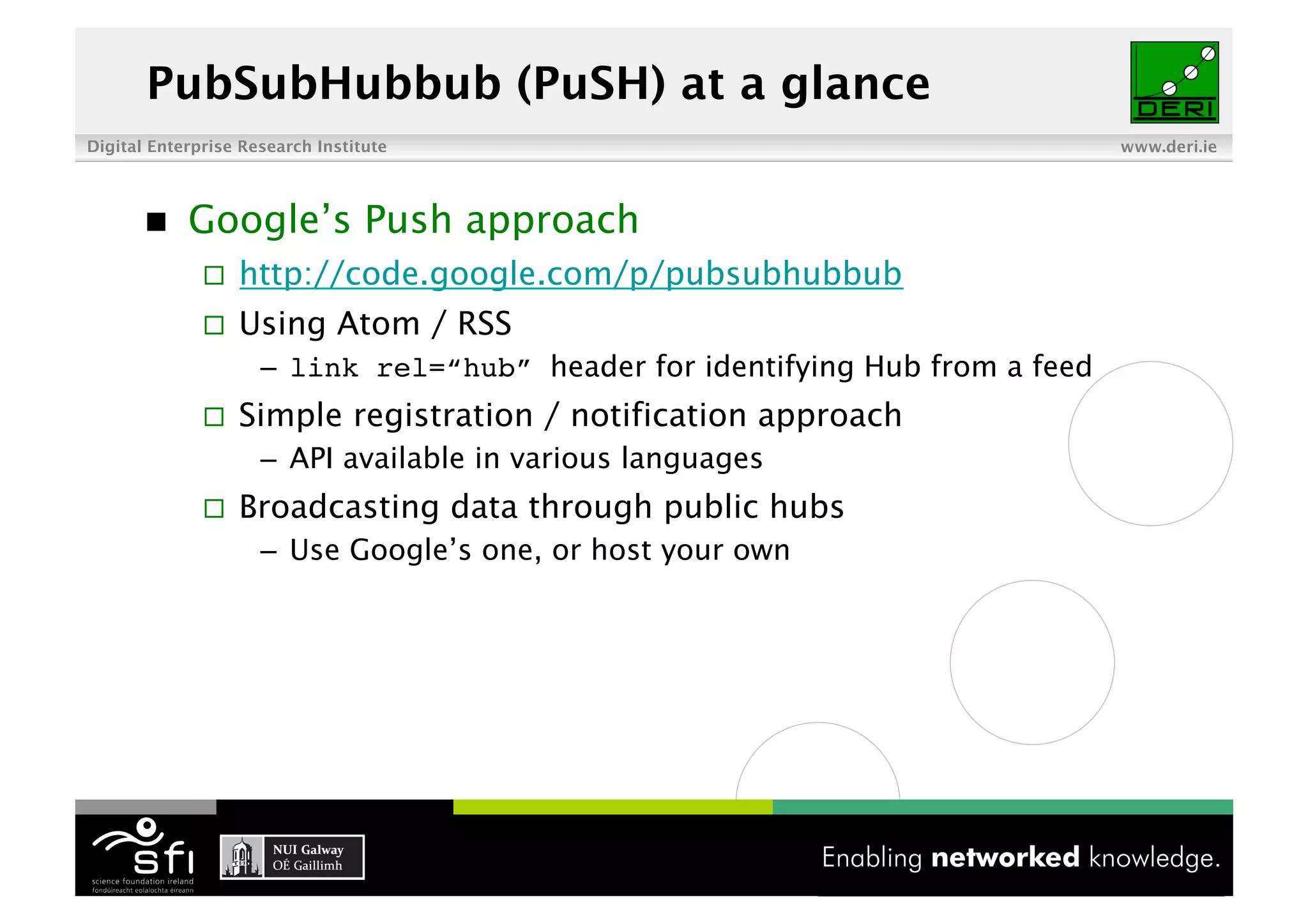

4. PubSubHubbub (PuSH) at a glance
Digital Enterprise Research Institute www.deri.ie
 Google’s Push approach
 http://code.google.com/p/pubsubhubbub
 Using Atom / RSS
– link rel=“hub” header for identifying Hub from a feed
 Simple registration / notification approach
– API available in various languages
 Broadcasting data through public hubs
– Use Google’s one, or host your own
4 of XYZ

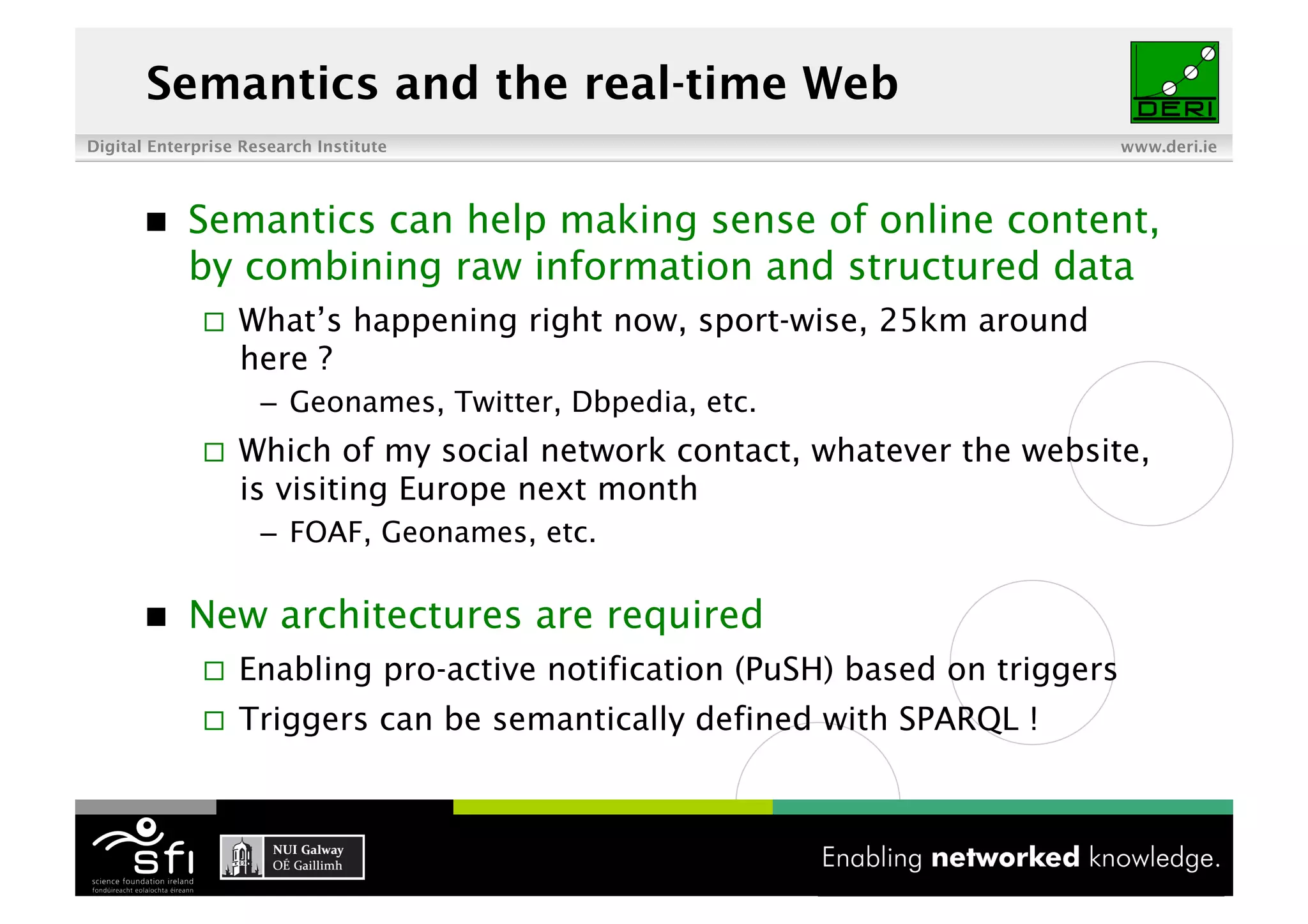

5. Semantics and the real-time Web
Digital Enterprise Research Institute www.deri.ie
 Semantics can help making sense of online content,
by combining raw information and structured data
 What’s happening right now, sport-wise, 25km around
here ?
– Geonames, Twitter, Dbpedia, etc.
 Which of my social network contact, whatever the website,
is visiting Europe next month
– FOAF, Geonames, etc.
 New architectures are required
 Enabling pro-active notification (PuSH) based on triggers
 Triggers can be semantically defined with SPARQL !
5 of XYZ

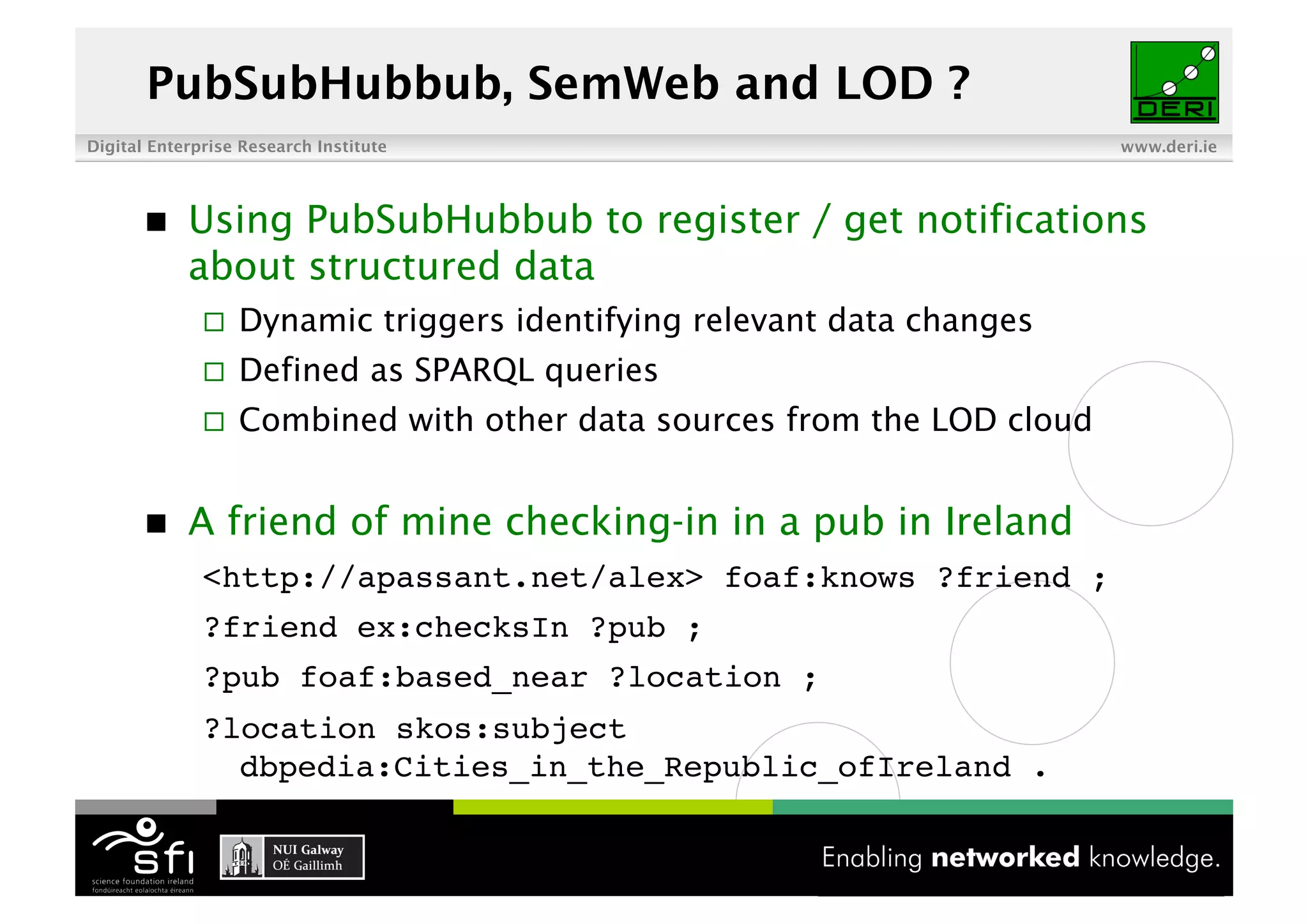

6. PubSubHubbub, SemWeb and LOD ?
Digital Enterprise Research Institute www.deri.ie
 Using PubSubHubbub to register / get notifications
about structured data
 Dynamic triggers identifying relevant data changes
 Defined as SPARQL queries
 Combined with other data sources from the LOD cloud
 A friend of mine checking-in in a pub in Ireland
<http://apassant.net/alex> foaf:knows ?friend ;!
?friend ex:checksIn ?pub ;!
?pub foaf:based_near ?location ;!
?location skos:subject
dbpedia:Cities_in_the_Republic_ofIreland .!
6 of XYZ

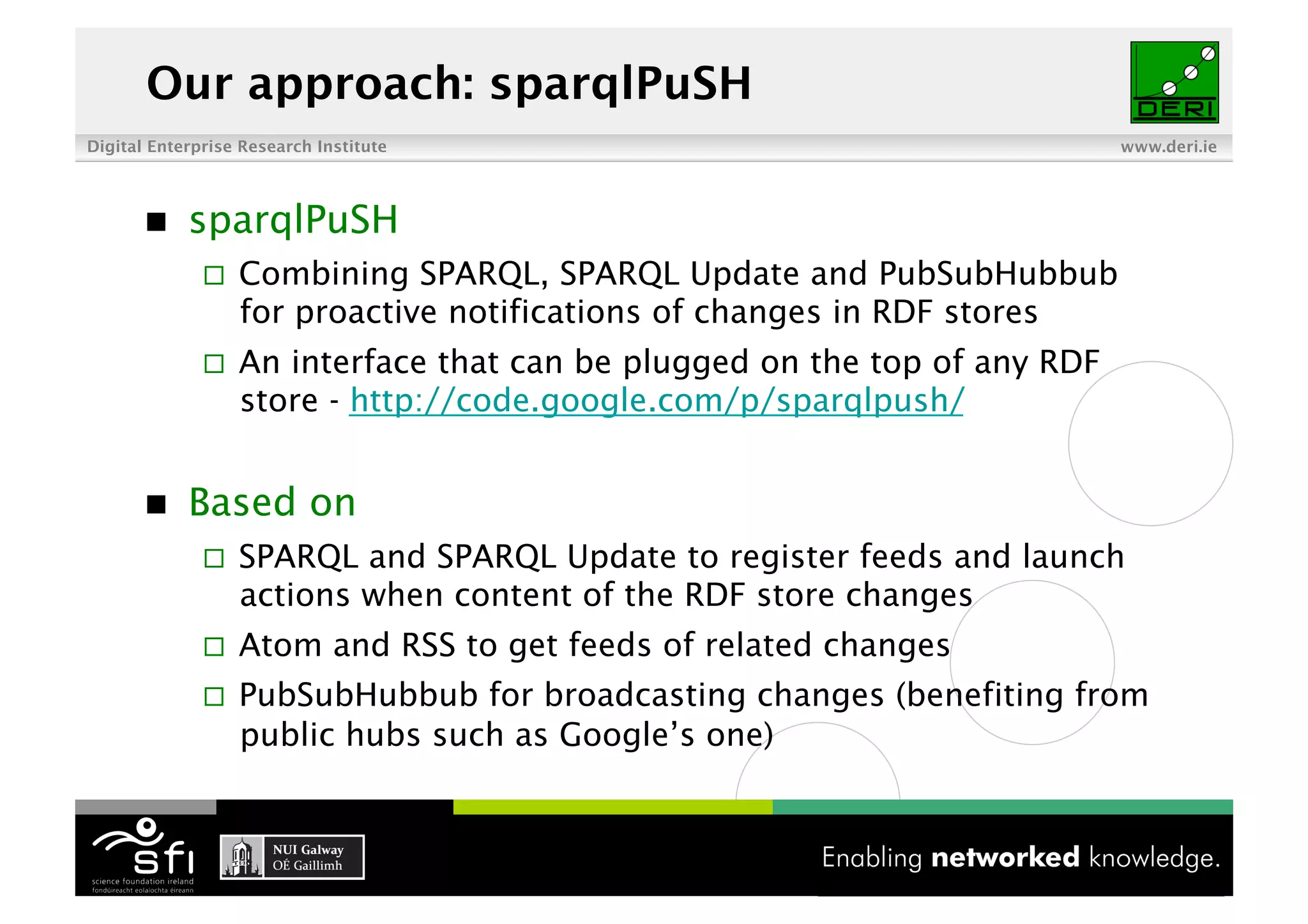

7. Our approach: sparqlPuSH
Digital Enterprise Research Institute www.deri.ie
 sparqlPuSH
 Combining SPARQL, SPARQL Update and PubSubHubbub
for proactive notifications of changes in RDF stores
 An interface that can be plugged on the top of any RDF
store - http://code.google.com/p/sparqlpush/
 Based on
 SPARQL and SPARQL Update to register feeds and launch
actions when content of the RDF store changes
 Atom and RSS to get feeds of related changes
 PubSubHubbub for broadcasting changes (benefiting from
public hubs such as Google’s one)
7 of XYZ

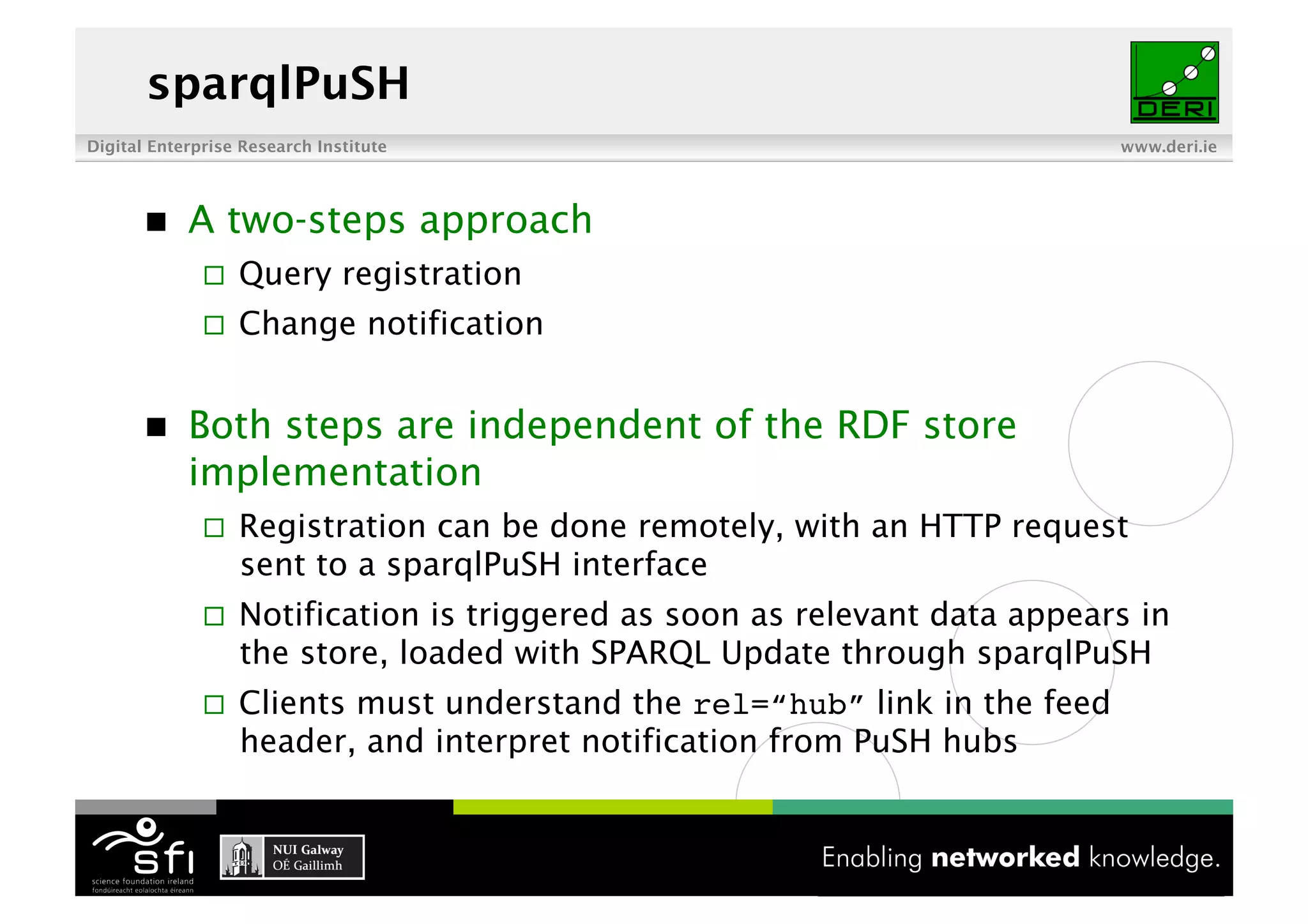

8. sparqlPuSH
Digital Enterprise Research Institute www.deri.ie
 A two-steps approach
 Query registration
 Change notification
 Both steps are independent of the RDF store
implementation
 Registration can be done remotely, with an HTTP request
sent to a sparqlPuSH interface
 Notification is triggered as soon as relevant data appears in
the store, loaded with SPARQL Update through sparqlPuSH
 Clients must understand the rel=“hub” link in the feed
header, and interpret notification from PuSH hubs
8 of XYZ

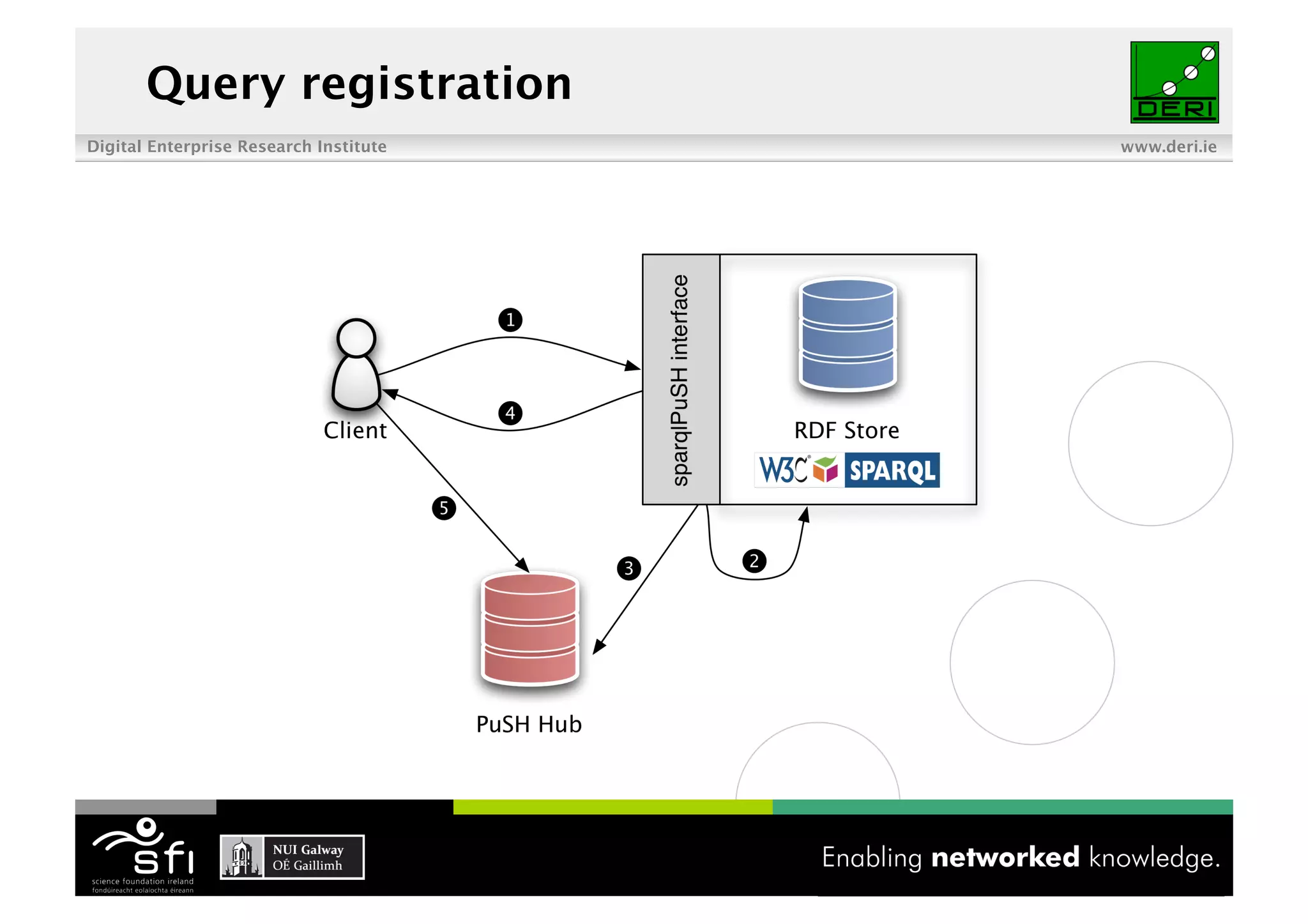

9. Query registration
Digital Enterprise Research Institute www.deri.ie
9 of XYZ

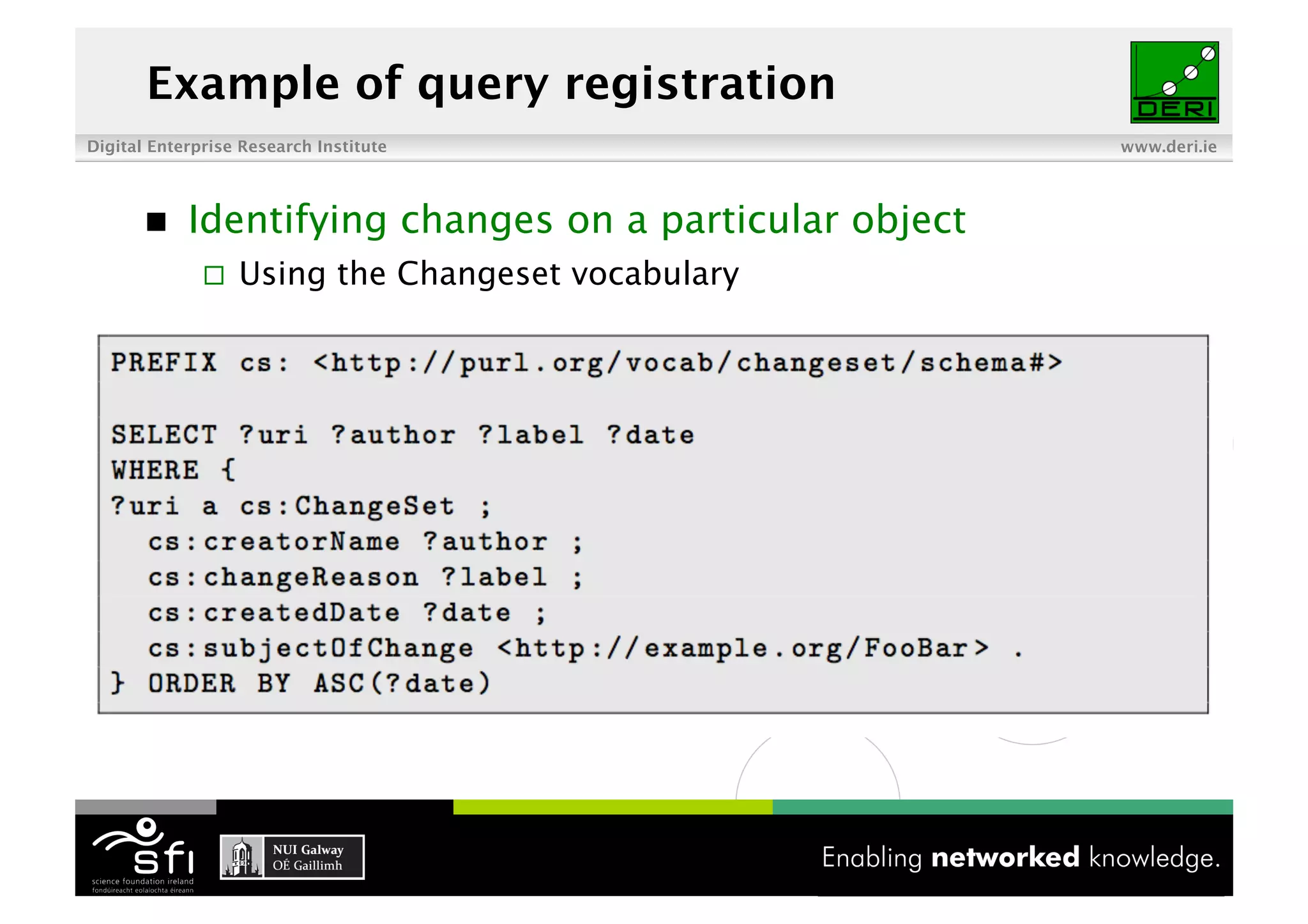

10. Example of query registration
Digital Enterprise Research Institute www.deri.ie
 Identifying changes on a particular object
 Using the Changeset vocabulary
10 of XYZ

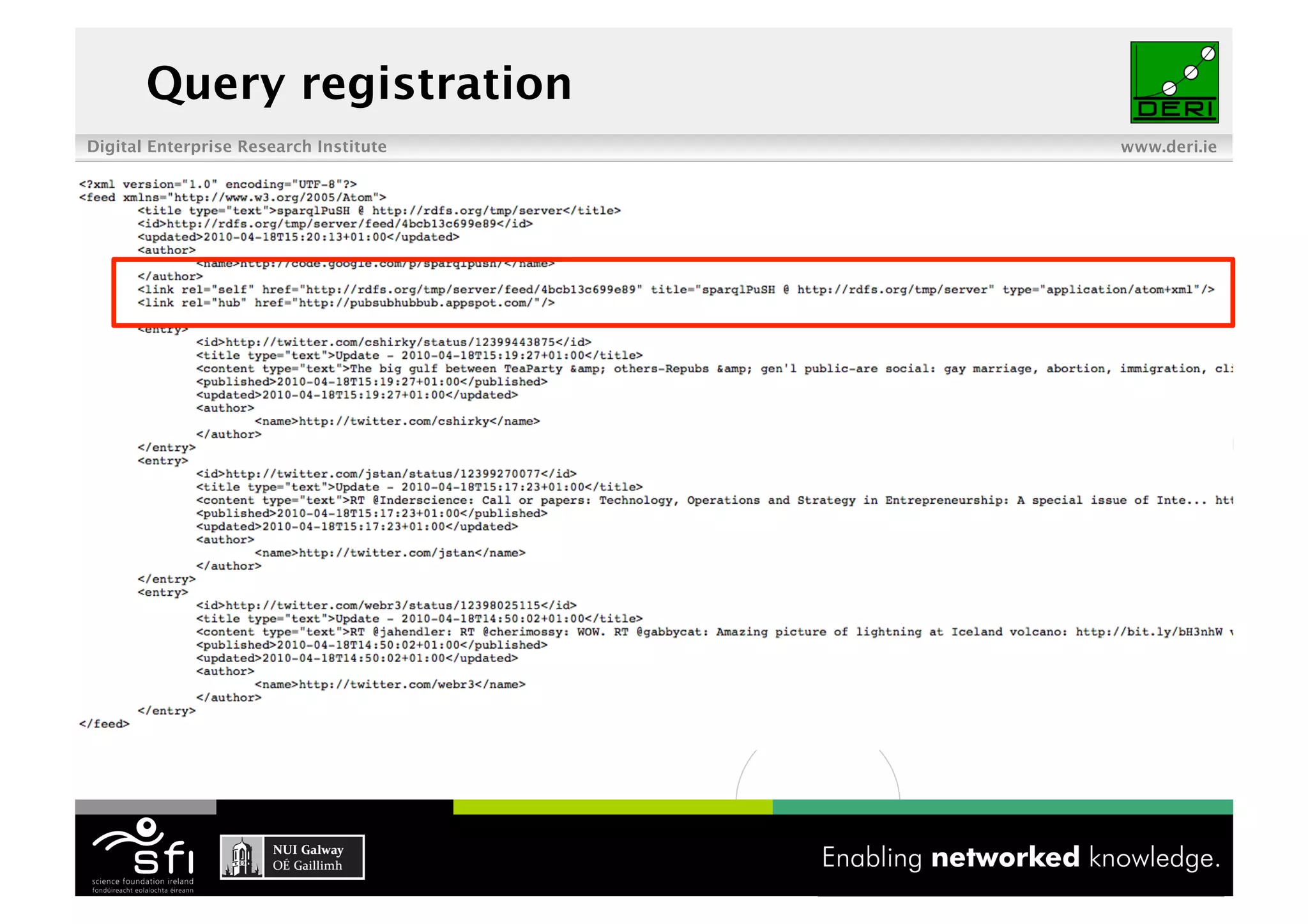

11. Query registration
Digital Enterprise Research Institute www.deri.ie
11 of XYZ

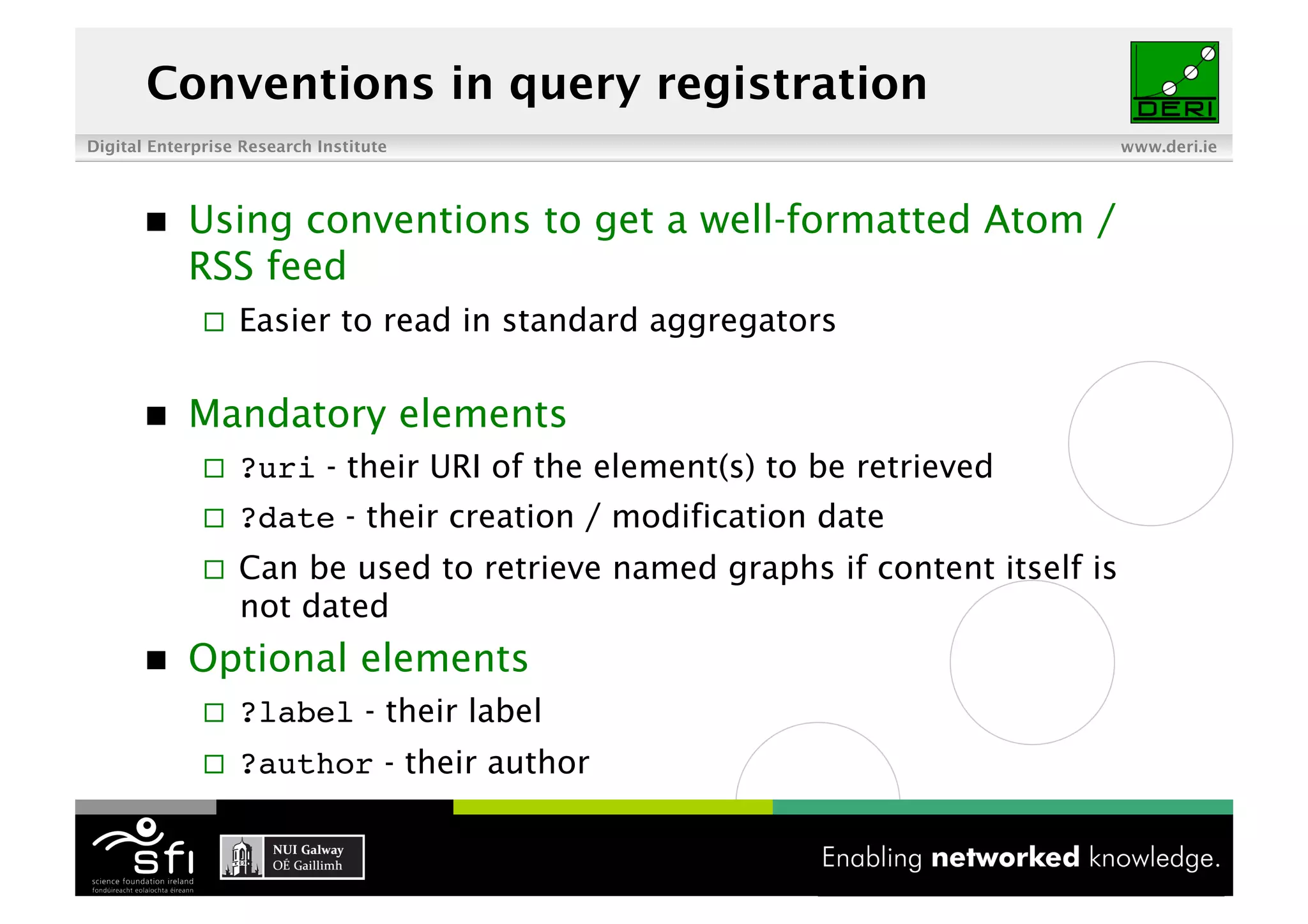

12. Conventions in query registration
Digital Enterprise Research Institute www.deri.ie
 Using conventions to get a well-formatted Atom /
RSS feed
 Easier to read in standard aggregators
 Mandatory elements
 ?uri - their URI of the element(s) to be retrieved
 ?date - their creation / modification date
 Can be used to retrieve named graphs if content itself is
not dated
 Optional elements
 ?label - their label
 ?author - their author
12 of XYZ

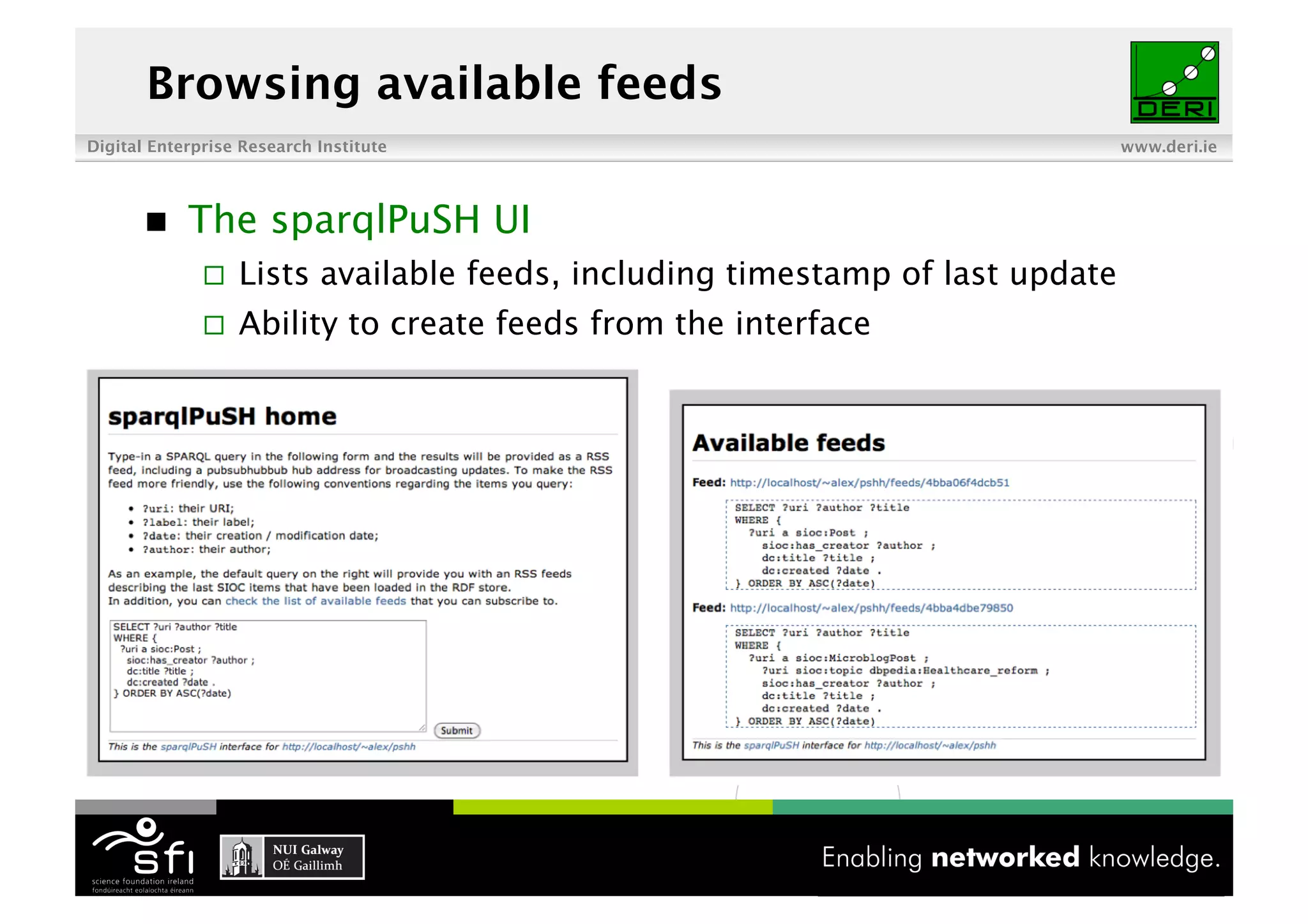

13. Browsing available feeds
Digital Enterprise Research Institute www.deri.ie
 The sparqlPuSH UI
 Lists available feeds, including timestamp of last update
 Ability to create feeds from the interface
13 of XYZ

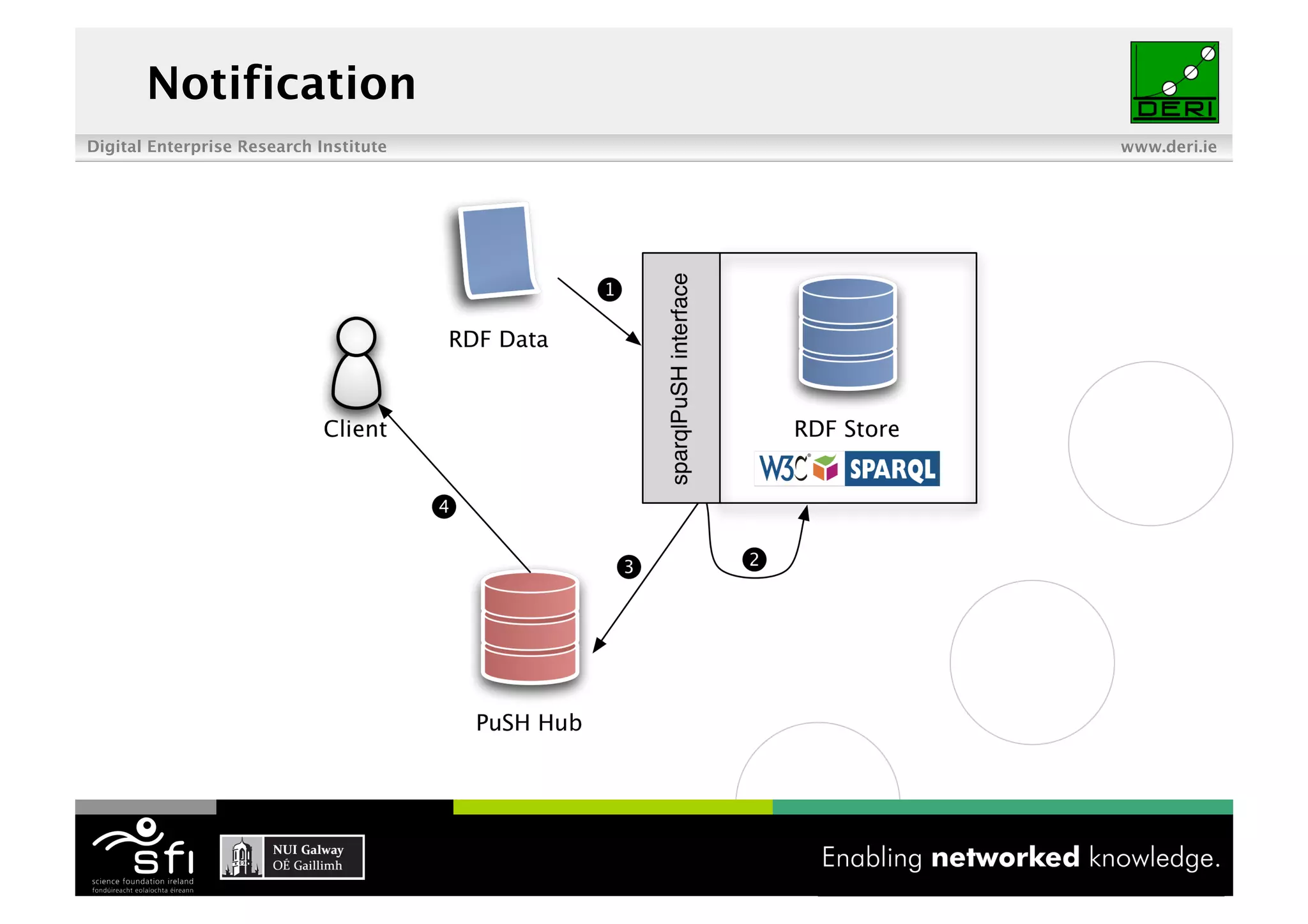

14. Notification
Digital Enterprise Research Institute www.deri.ie
14 of XYZ

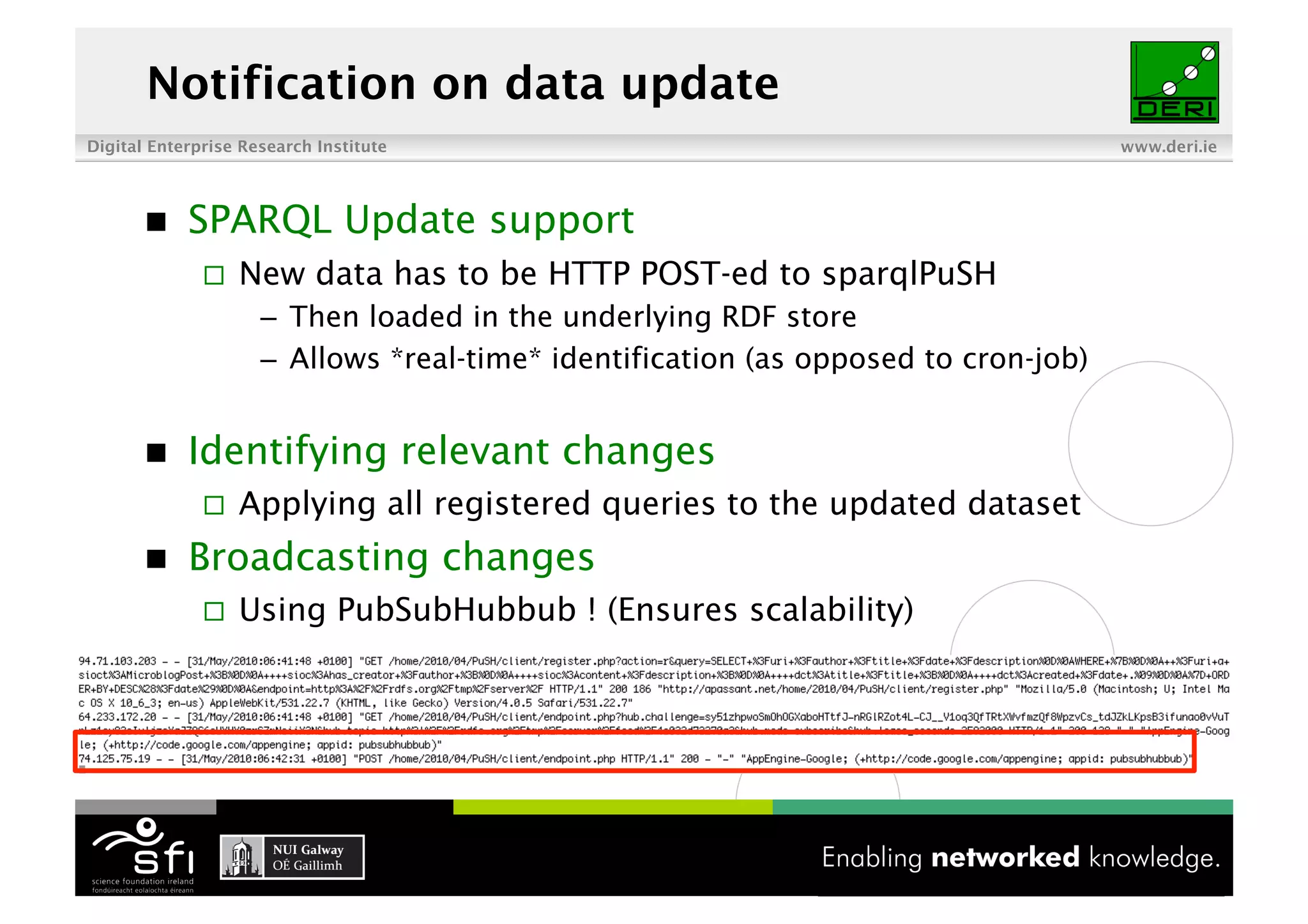

15. Notification on data update
Digital Enterprise Research Institute www.deri.ie
 SPARQL Update support
 New data has to be HTTP POST-ed to sparqlPuSH
– Then loaded in the underlying RDF store
– Allows *real-time* identification (as opposed to cron-job)
 Identifying relevant changes
 Applying all registered queries to the updated dataset
 Broadcasting changes
 Using PubSubHubbub ! (Ensures scalability)
15 of XYZ

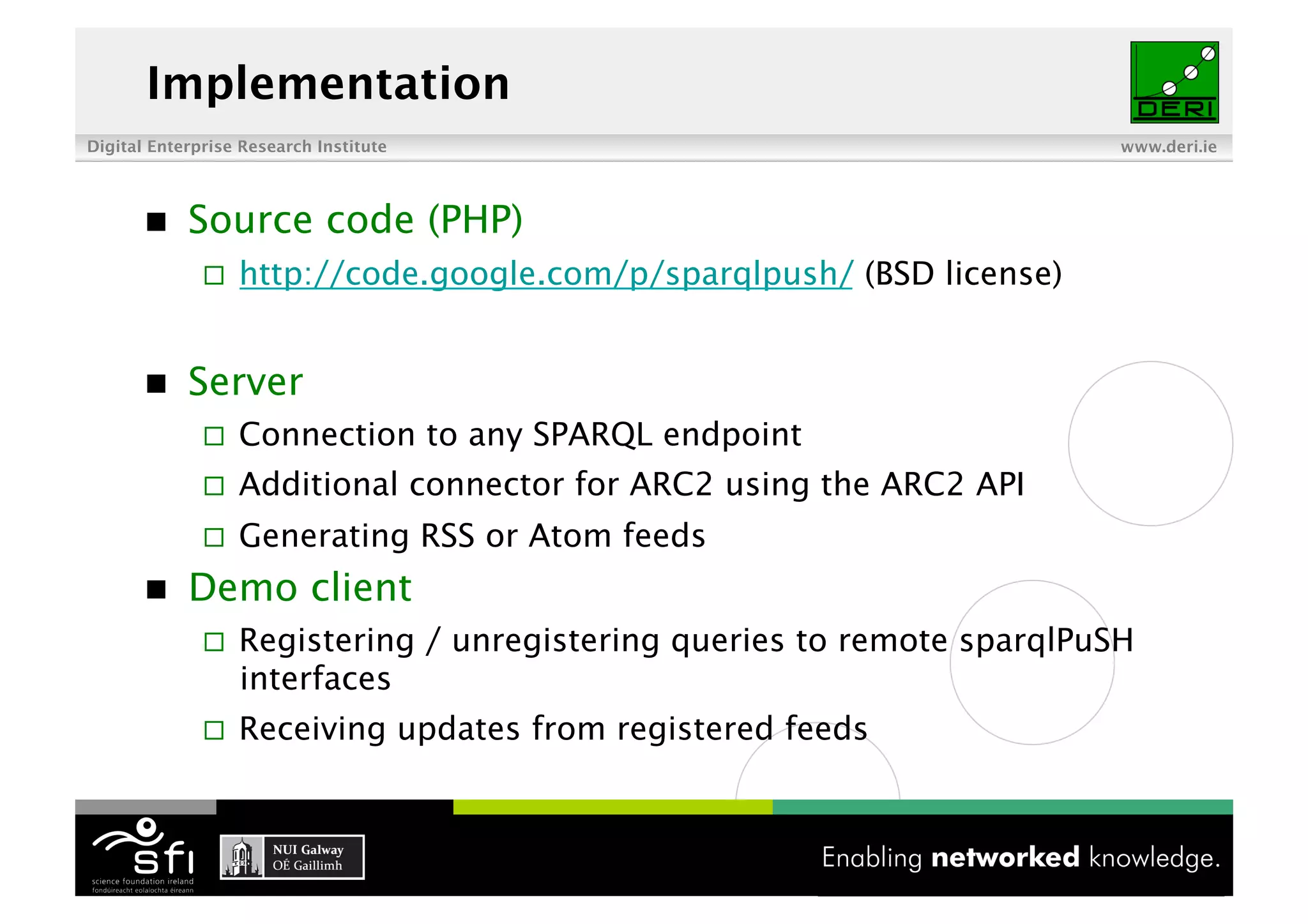

16. Implementation
Digital Enterprise Research Institute www.deri.ie
 Source code (PHP)
 http://code.google.com/p/sparqlpush/ (BSD license)
 Server
 Connection to any SPARQL endpoint
 Additional connector for ARC2 using the ARC2 API
 Generating RSS or Atom feeds
 Demo client
 Registering / unregistering queries to remote sparqlPuSH
interfaces
 Receiving updates from registered feeds
16 of XYZ

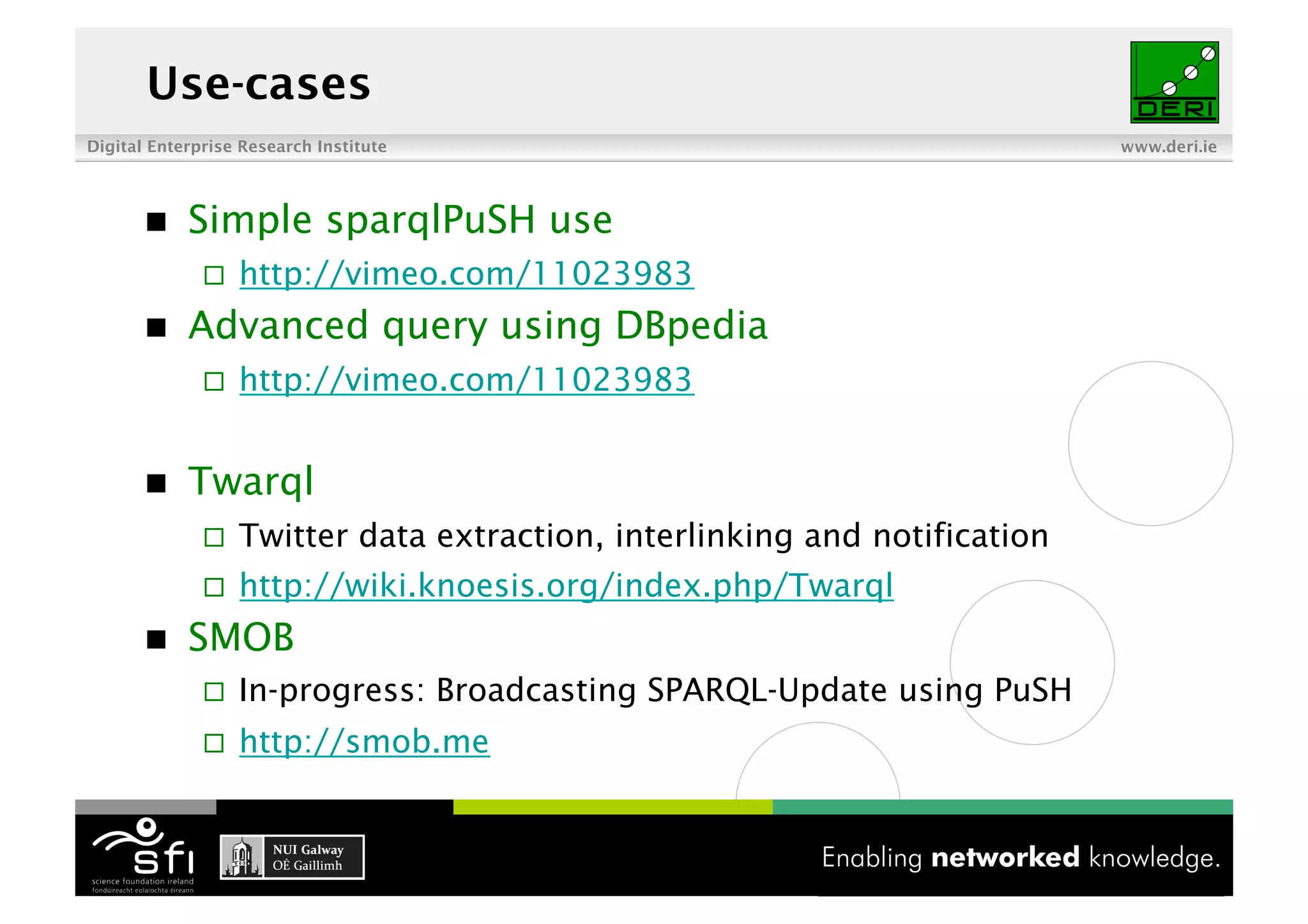

17. Use-cases
Digital Enterprise Research Institute www.deri.ie
 Simple sparqlPuSH use
 http://vimeo.com/11023983
 Advanced query using DBpedia
 http://vimeo.com/11023983
 Twarql
 Twitter data extraction, interlinking and notification
 http://wiki.knoesis.org/index.php/Twarql
 SMOB
 In-progress: Broadcasting SPARQL-Update using PuSH
 http://smob.me
17 of XYZ

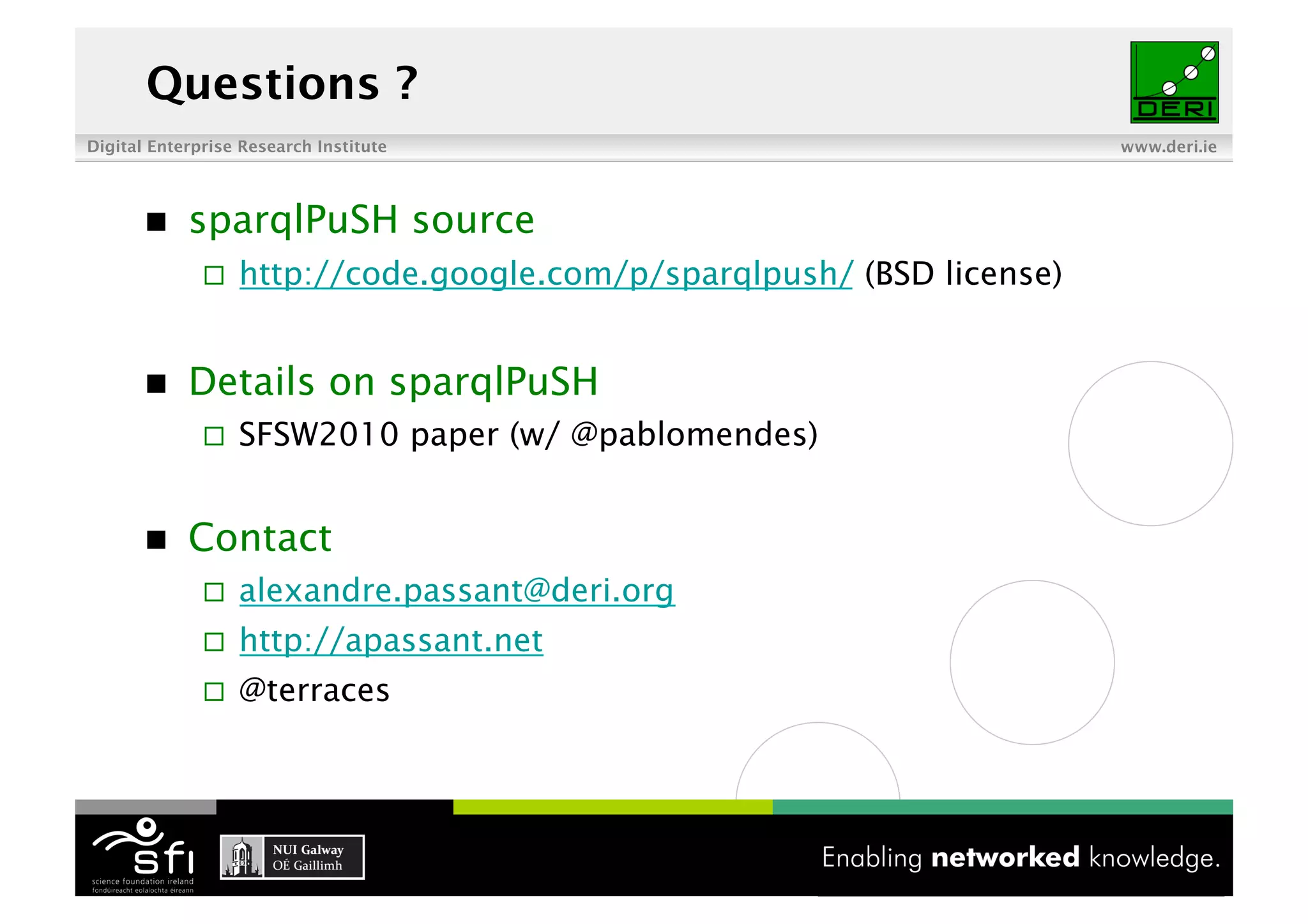

18. Questions ?
Digital Enterprise Research Institute www.deri.ie
 sparqlPuSH source
 http://code.google.com/p/sparqlpush/ (BSD license)
 Details on sparqlPuSH
 SFSW2010 paper (w/ @pablomendes)
 Contact
 alexandre.passant@deri.org
 http://apassant.net
 @terraces
18 of XYZ
