The eye gaze system is a communication and control system that uses eye tracking to allow people with physical disabilities to control a computer. It works by using an infrared camera to track the user's pupil and determine where they are looking on the screen. It then uses this eye gaze data to select icons, type, or control other devices. The system requires the user to first calibrate by looking at points on the screen. It has applications in communication, education, and research. While expensive, it provides an important access method for people unable to use other input devices.

1. PULLAREDDY.C
(4BD14BM008)
EYE-GAZE SYSTEM
(Eye gaze human computer interface)
Presented By:
1

2. 2

3. Introduction
•The Eye gaze System is a
communication and control
system for people with complex
physical disabilities.
•The Eye gaze System is a direct-
select vision controlled
communication and control
system.
3

4. •This system is mainly developed for those who lack the use of their hands
or voice
•Its users are adults and children with cerebral palsy, spinal cord injuries,
brain injuries, multiple sclerosis, brainstem strokes
4

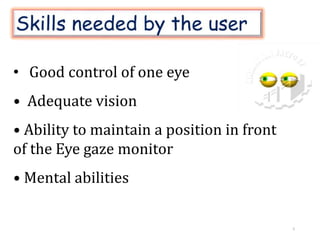

5. • Good control of one eye
• Adequate vision
• Ability to maintain a position in front
of the Eye gaze monitor
• Mental abilities
5

6. Software & hardware requirements
Software Programs
.Main Menu
.Games
.Read Text
.Teach
.Settings Program
Hardware
.Desktop computer with OS
.CD and floppy drives
.15" LCD Flat Panel Monitor
.Adjustable monitor tray with camera bracket
.High-speed infrared sensitive camera and lens
6

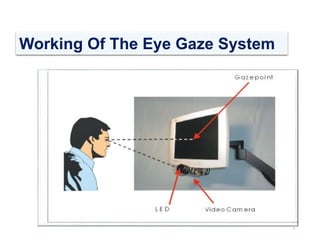

7. Working Of The Eye Gaze System
7

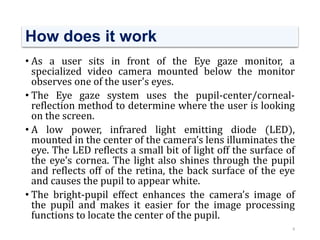

8. • As a user sits in front of the Eye gaze monitor, a
specialized video camera mounted below the monitor
observes one of the user's eyes.
• The Eye gaze system uses the pupil-center/corneal-
reflection method to determine where the user is looking
on the screen.
• A low power, infrared light emitting diode (LED),
mounted in the center of the camera’s lens illuminates the
eye. The LED reflects a small bit of light off the surface of
the eye’s cornea. The light also shines through the pupil
and reflects off of the retina, the back surface of the eye
and causes the pupil to appear white.
• The bright-pupil effect enhances the camera’s image of
the pupil and makes it easier for the image processing
functions to locate the center of the pupil.
How does it work
8

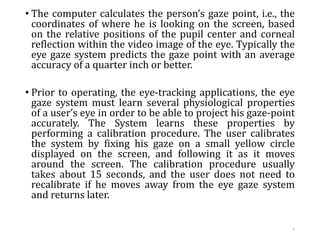

9. • The computer calculates the person’s gaze point, i.e., the
coordinates of where he is looking on the screen, based
on the relative positions of the pupil center and corneal
reflection within the video image of the eye. Typically the
eye gaze system predicts the gaze point with an average
accuracy of a quarter inch or better.
• Prior to operating, the eye-tracking applications, the eye
gaze system must learn several physiological properties
of a user’s eye in order to be able to project his gaze-point
accurately. The System learns these properties by
performing a calibration procedure. The user calibrates
the system by fixing his gaze on a small yellow circle
displayed on the screen, and following it as it moves
around the screen. The calibration procedure usually
takes about 15 seconds, and the user does not need to
recalibrate if he moves away from the eye gaze system
and returns later.
9

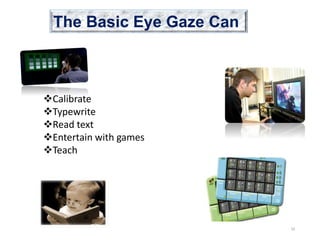

10. The Basic Eye Gaze Can
•Calibrate
Calibrate
Typewrite
Read text
Entertain with games
Teach
•Read Text
•Entertain with games
10

11. Main Menu In Eye Gaze System
11

12. Phrase Program Telephone program
CONVERSATION
Hello Good Bye Good To
See You
Where Have
You Been
How Have
You Been?
I’ Have
Missed You
I'm Happy I'm Sad
I Need A
Hug
Good I Like That Talk To
Me
Yes No Pause Menu
12

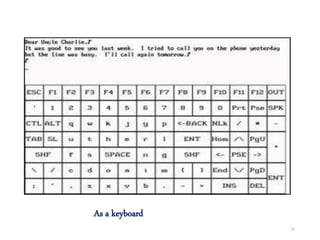

13. As a keyboard
13

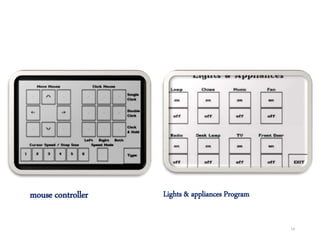

14. Lights & appliances Program
mouse controller
14

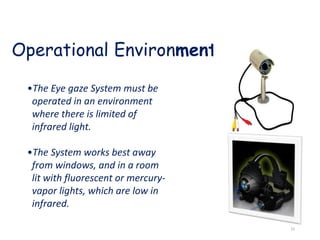

15. Operational Environment
•The Eye gaze System must be
operated in an environment
where there is limited of
infrared light.
•The System works best away
from windows, and in a room
lit with fluorescent or mercury-
vapor lights, which are low in
infrared.
15

16. Applications
Cognitive Studies
Medical Research
Computer Usability
Translation Process Research
In-vehicle Research
Training Simulators
Virtual Reality
Commercial eye tracking (web usability, advertising,
marketing, automotive, etc.)
Communication systems for disabled
Improved image and video communications
Employee training
16

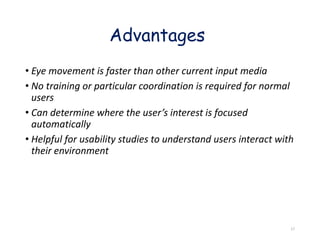

17. • Eye movement is faster than other current input media
• No training or particular coordination is required for normal
users
• Can determine where the user’s interest is focused
automatically
• Helpful for usability studies to understand users interact with
their environment
Advantages
17

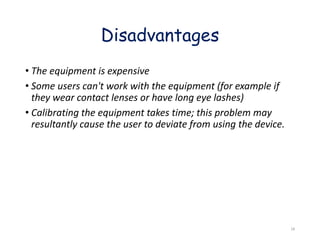

18. • The equipment is expensive
• Some users can't work with the equipment (for example if
they wear contact lenses or have long eye lashes)
• Calibrating the equipment takes time; this problem may
resultantly cause the user to deviate from using the device.
Disadvantages
18

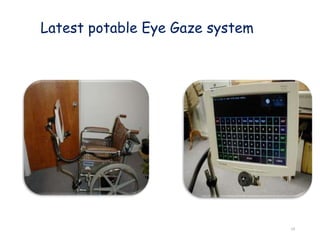

19. Latest potable Eye Gaze system
19

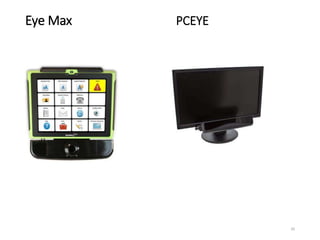

20. Eye Max PCEYE
20

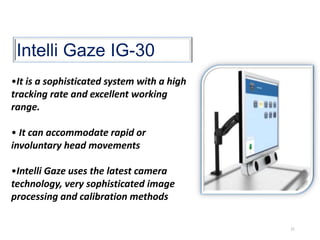

21. Intelli Gaze IG-30
•It is a sophisticated system with a high
tracking rate and excellent working
range.
• It can accommodate rapid or
involuntary head movements
•Intelli Gaze uses the latest camera
technology, very sophisticated image
processing and calibration methods
21

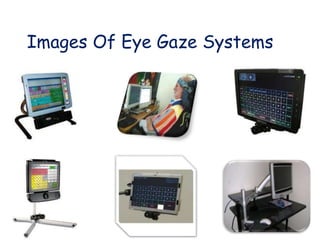

22. Images Of Eye Gaze Systems
22
