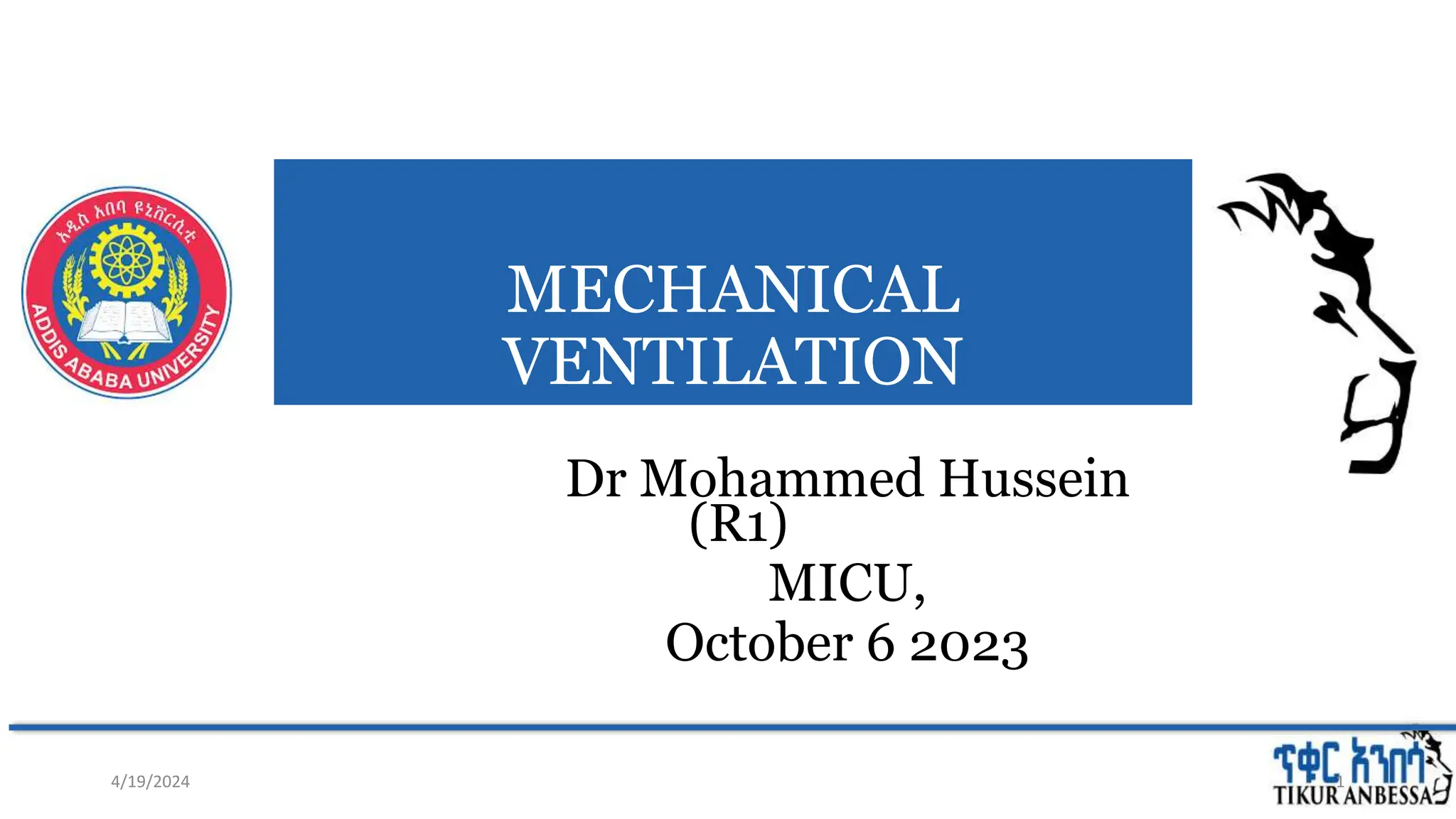

MECHANICAL VENTILATION Dr Mohammed Hussein (R1) MICU, October 6 2023 4/19/2024 1

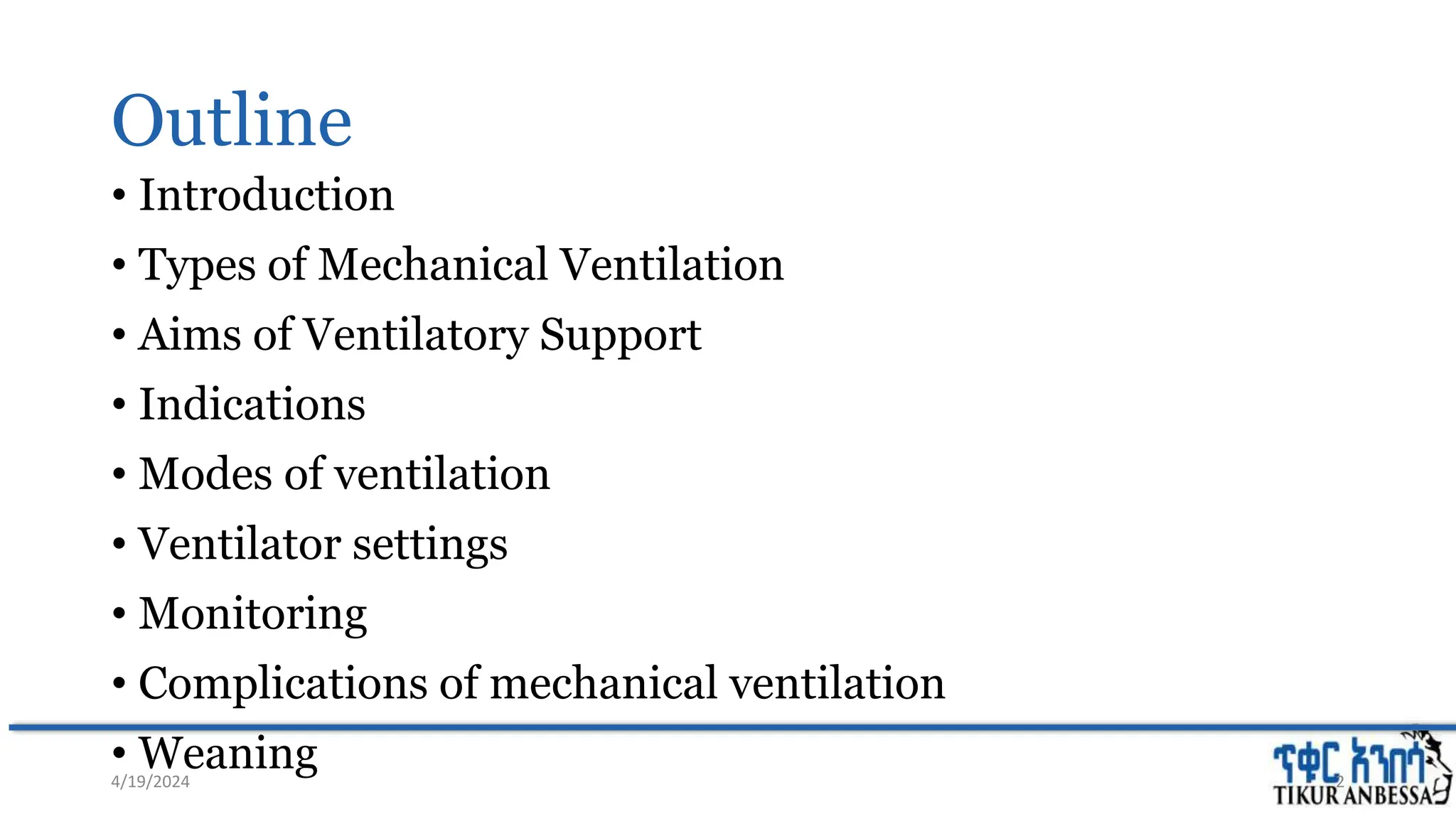

Outline • Introduction • Types of Mechanical Ventilation • Aims of Ventilatory Support • Indications • Modes of ventilation • Ventilator settings • Monitoring • Complications of mechanical ventilation • Weaning 4/19/2024 2

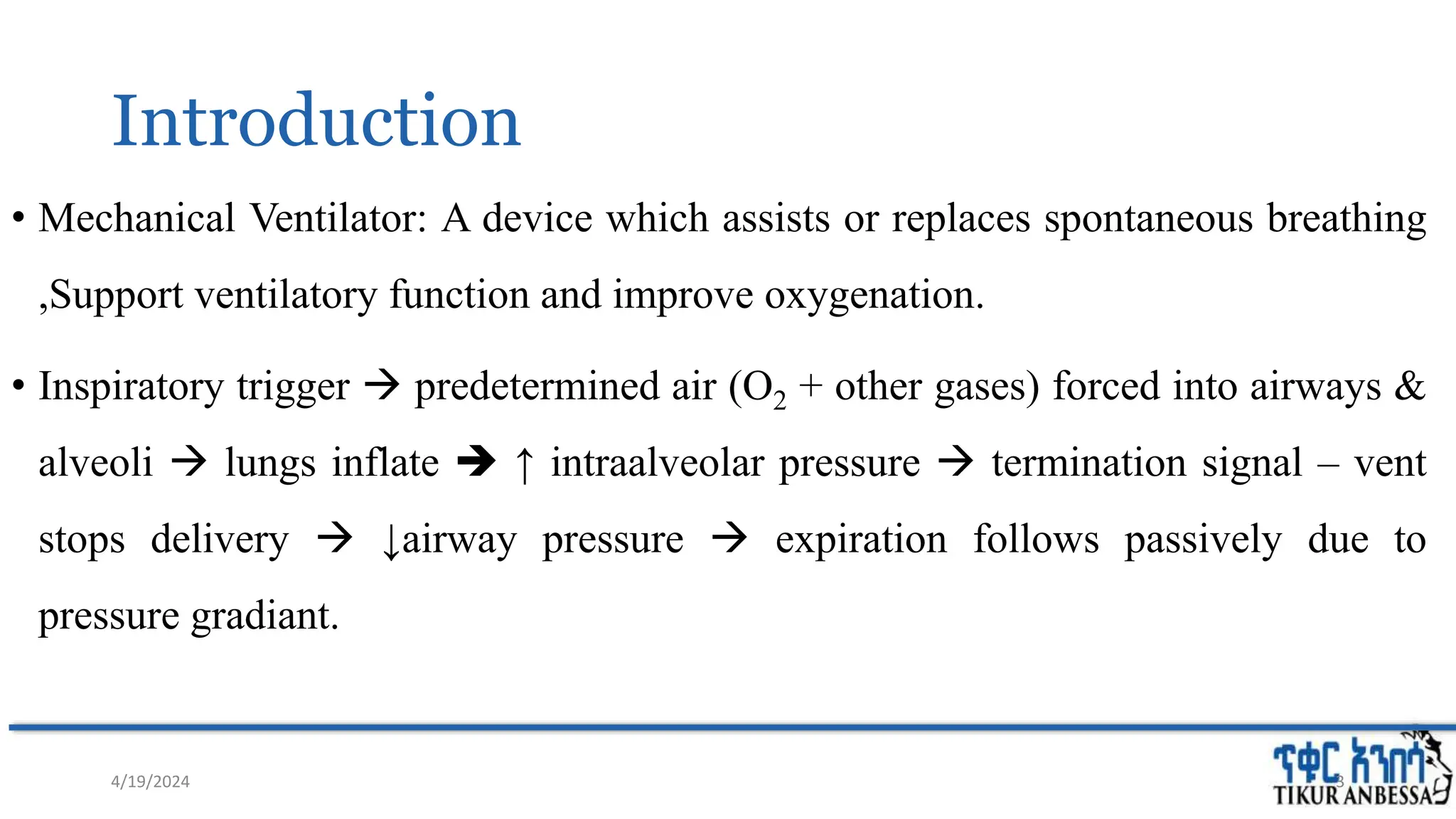

Introduction • Mechanical Ventilator: A device which assists or replaces spontaneous breathing ,Support ventilatory function and improve oxygenation. • Inspiratory trigger  predetermined air (O2 + other gases) forced into airways & alveoli  lungs inflate  ↑ intraalveolar pressure  termination signal – vent stops delivery  ↓airway pressure  expiration follows passively due to pressure gradiant. 4/19/2024 3

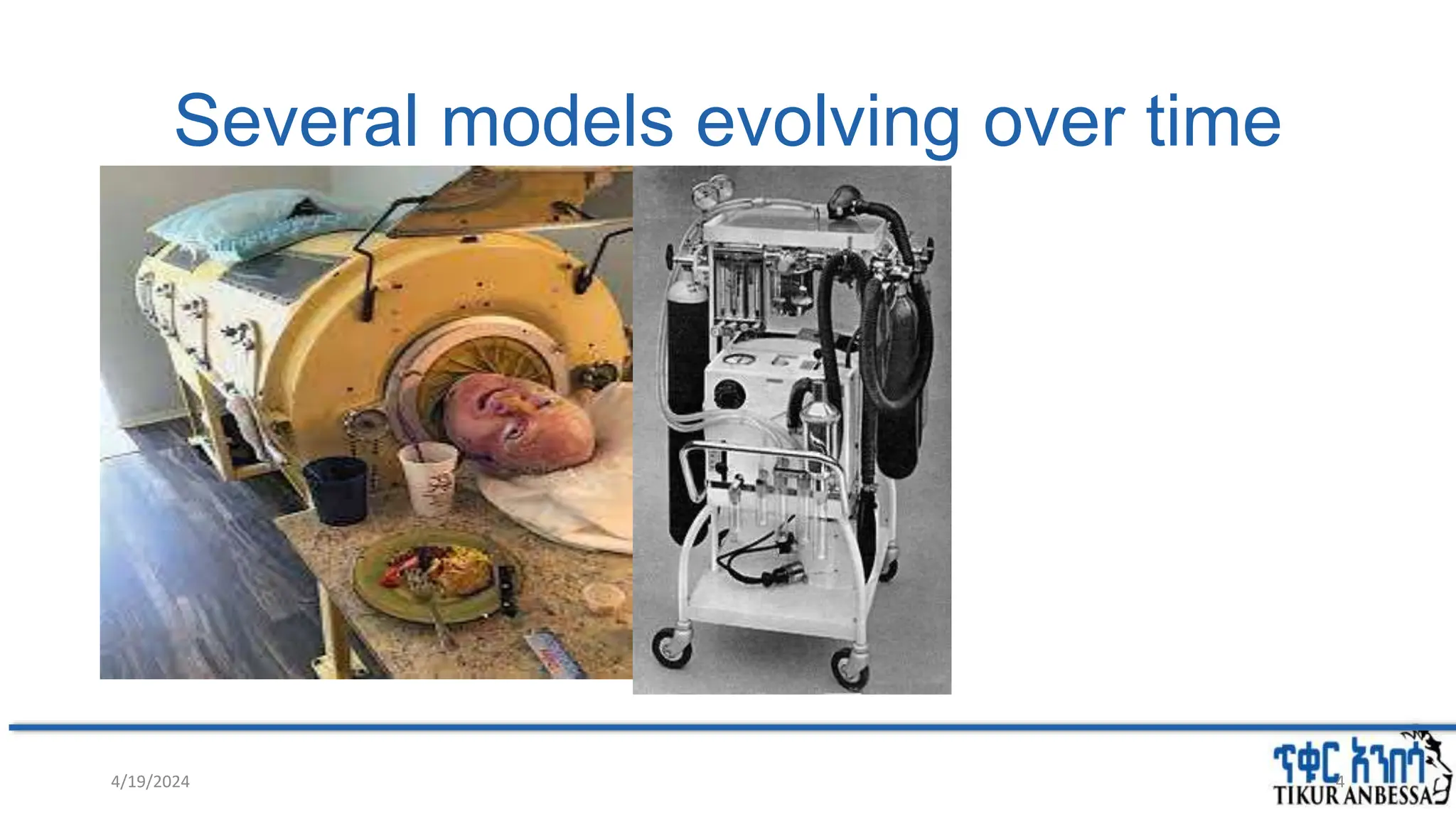

Several models evolving over time • Negative pressure ventilation – past • Positive pressure ventilation – present 4/19/2024 4

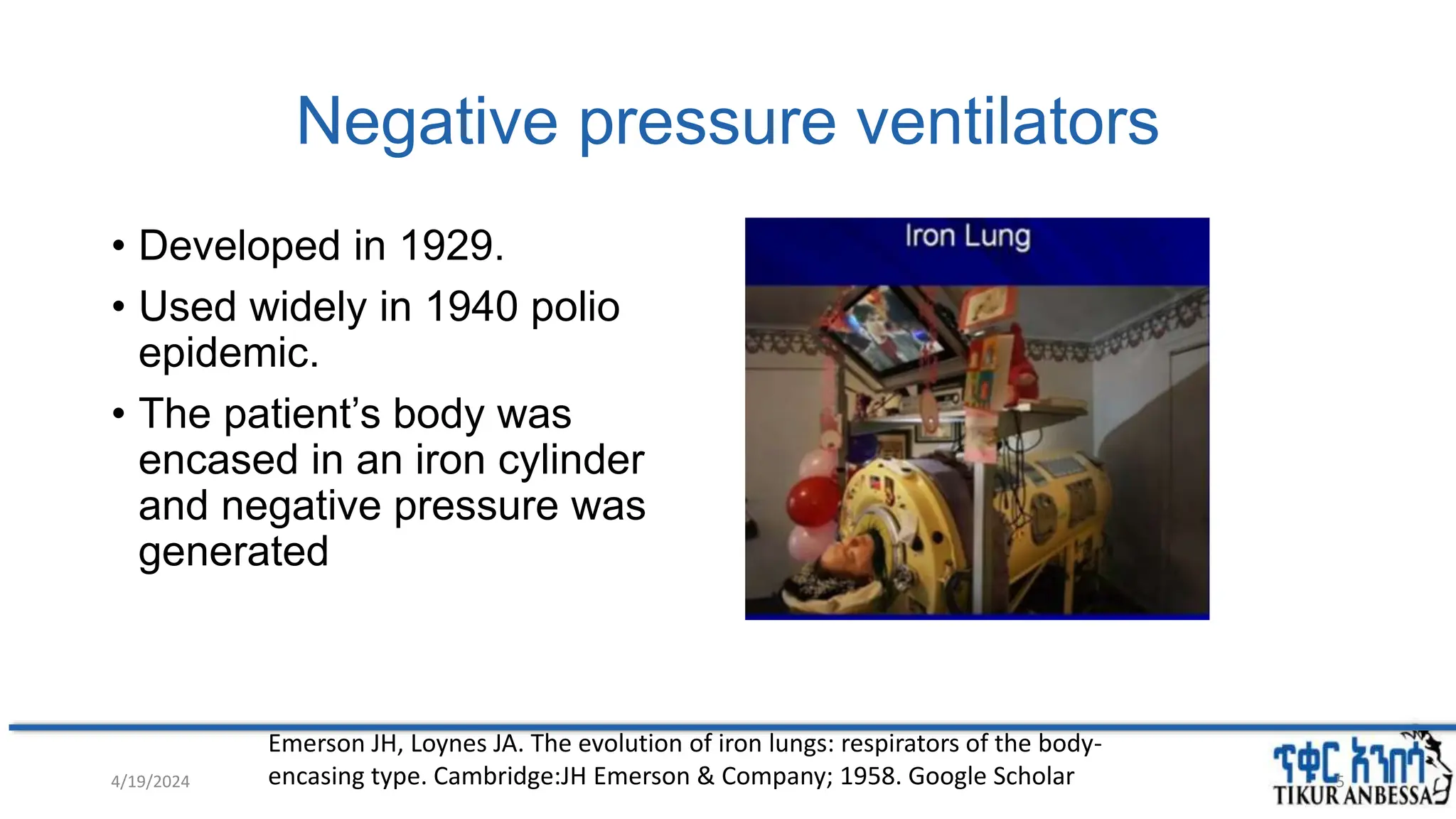

Negative pressure ventilators • Developed in 1929. • Used widely in 1940 polio epidemic. • The patient’s body was encased in an iron cylinder and negative pressure was generated Emerson JH, Loynes JA. The evolution of iron lungs: respirators of the body- encasing type. Cambridge:JH Emerson & Company; 1958. Google Scholar 4/19/2024 5

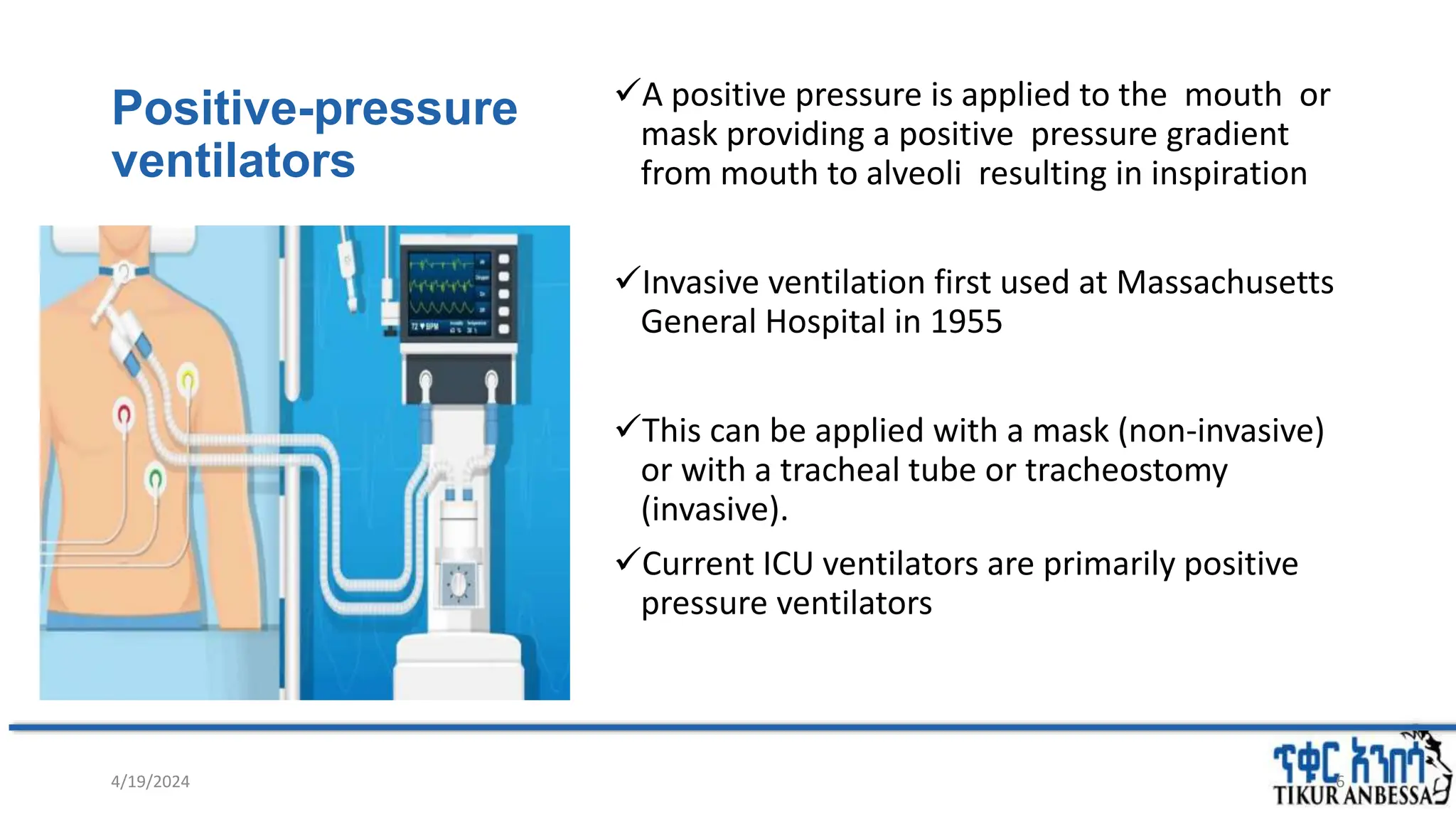

Positive-pressure ventilators A positive pressure is applied to the mouth or mask providing a positive pressure gradient from mouth to alveoli resulting in inspiration Invasive ventilation first used at Massachusetts General Hospital in 1955 This can be applied with a mask (non-invasive) or with a tracheal tube or tracheostomy (invasive). Current ICU ventilators are primarily positive pressure ventilators 4/19/2024 6
Noninvasive ventilation (NIV) • Provided with tight fitting face mask or nasal mask • Candidates for NIV trial: exacerbations of COPD and respiratory acidosis (pH <7.35) • Several RCTs – NIV is associated with low failure rate (15-20%) and good outcome (intubation rate, length of stay in ICU, mortality) in patients with ventilatory failure characterized by blood pH levels between 7.25 and 7.35 • For pH <7.25: As pH decreases, failure rate increases • For pH >7.35: NIV is not better than conventional therapy (oxygen therapy & pharmacotherapy like bronchodilator, steroid, antibiotics) 4/19/2024 7

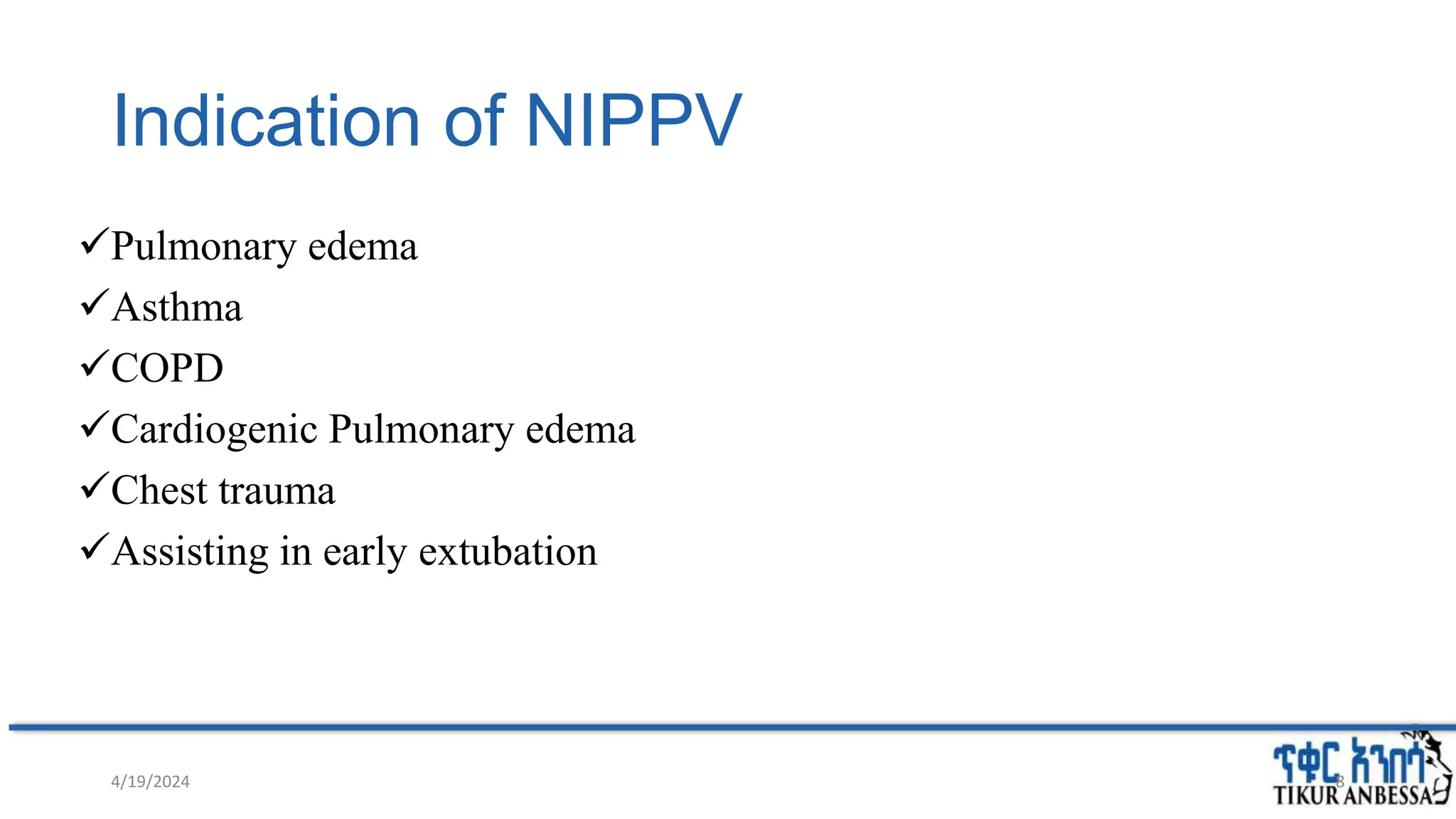

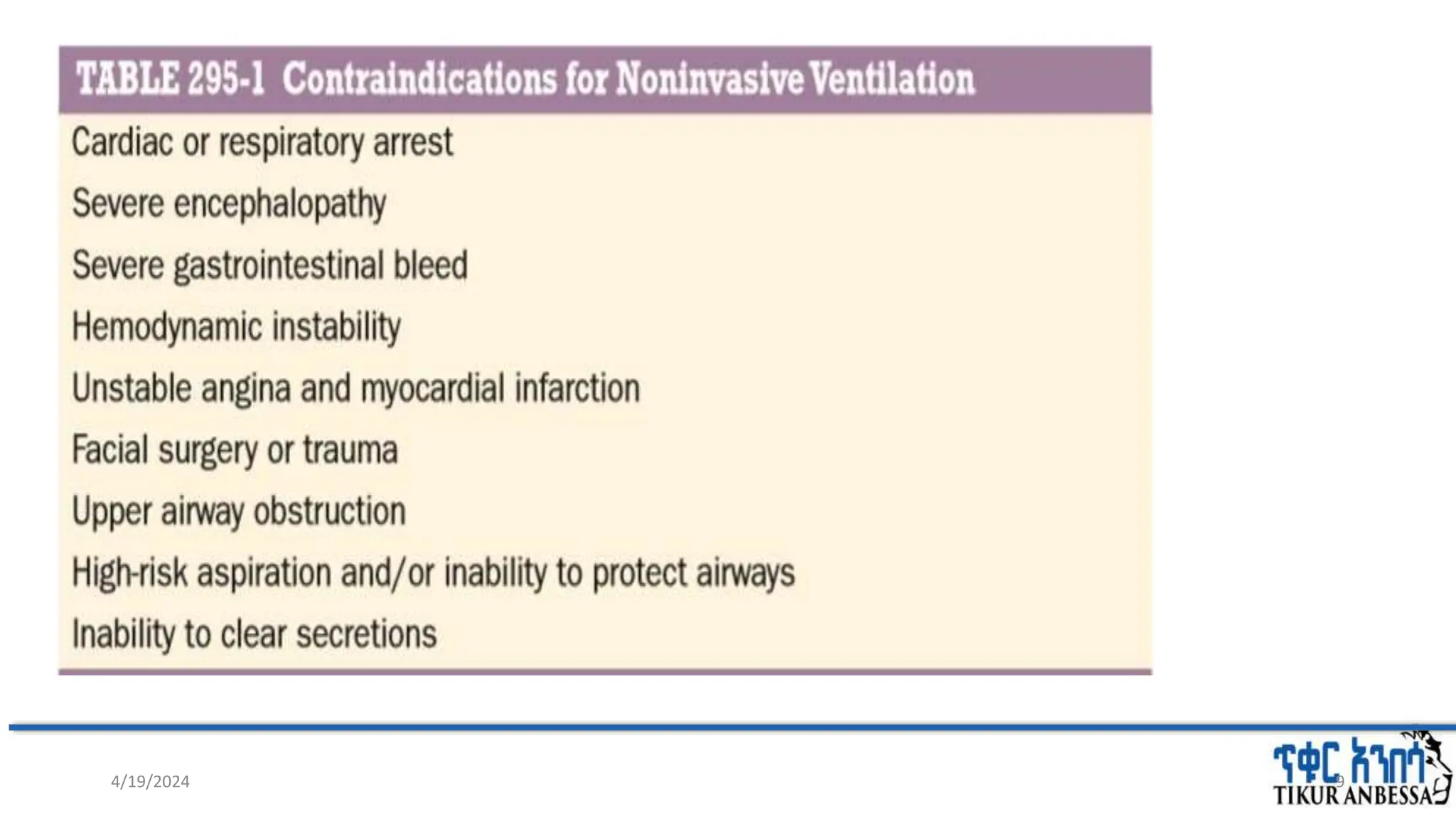

Indication of NIPPV Pulmonary edema Asthma COPD Cardiogenic Pulmonary edema Chest trauma Assisting in early extubation 4/19/2024 8
4/19/2024 9

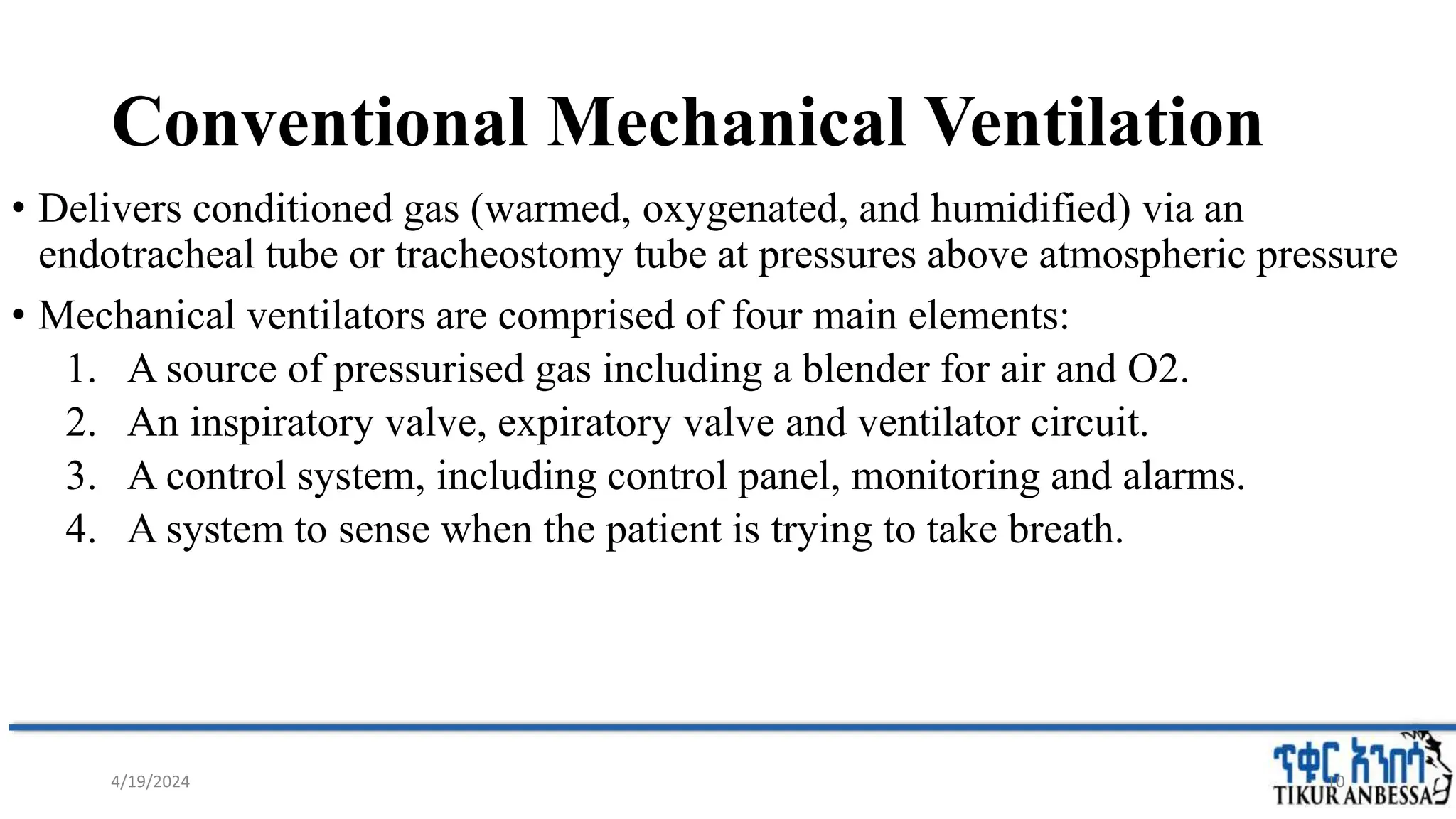

Conventional Mechanical Ventilation • Delivers conditioned gas (warmed, oxygenated, and humidified) via an endotracheal tube or tracheostomy tube at pressures above atmospheric pressure • Mechanical ventilators are comprised of four main elements: 1. A source of pressurised gas including a blender for air and O2. 2. An inspiratory valve, expiratory valve and ventilator circuit. 3. A control system, including control panel, monitoring and alarms. 4. A system to sense when the patient is trying to take breath. 4/19/2024 10

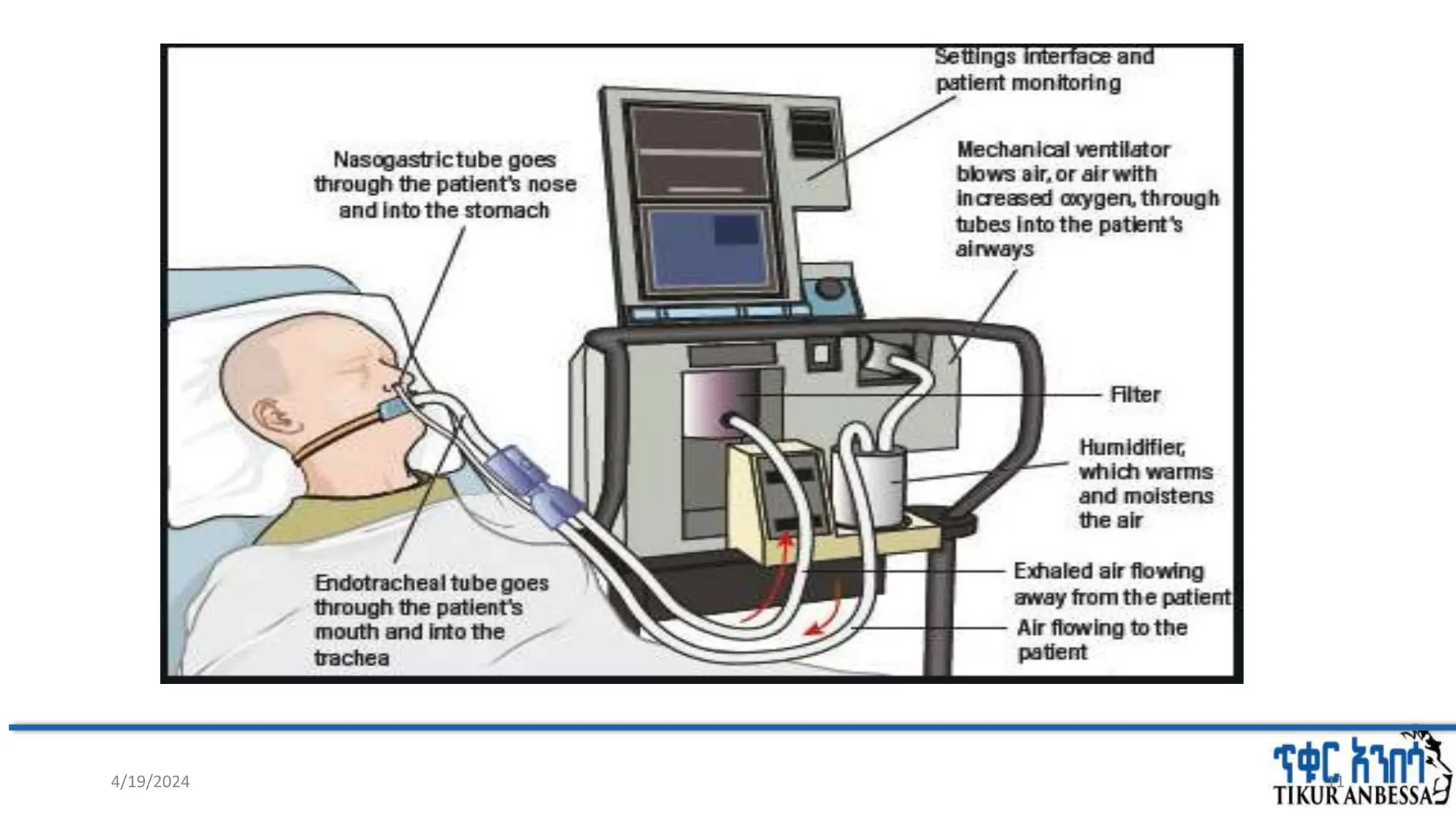

4/19/2024 11

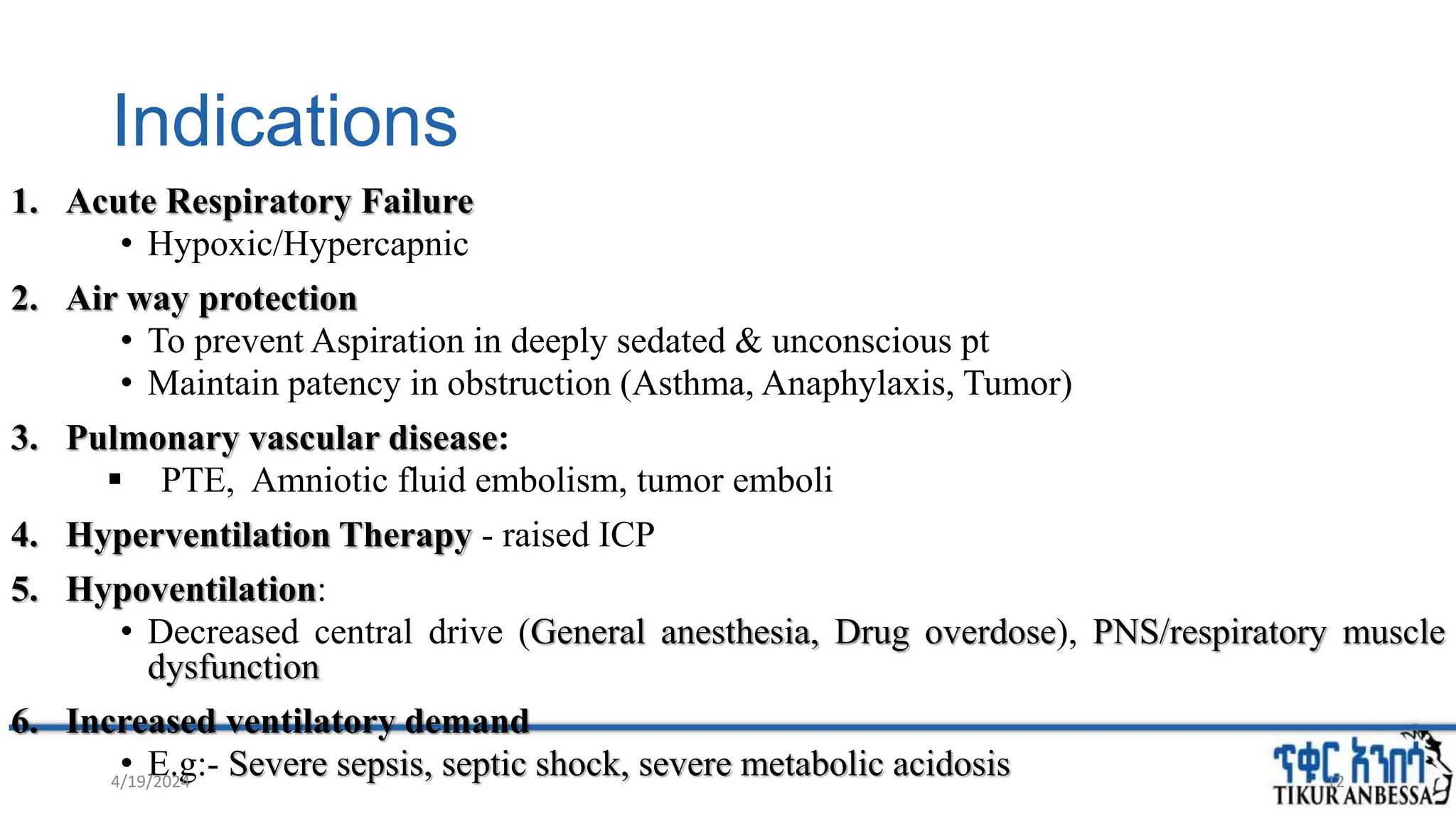

Indications 1. Acute Respiratory Failure • Hypoxic/Hypercapnic 2. Air way protection • To prevent Aspiration in deeply sedated & unconscious pt • Maintain patency in obstruction (Asthma, Anaphylaxis, Tumor) 3. Pulmonary vascular disease:  PTE, Amniotic fluid embolism, tumor emboli 4. Hyperventilation Therapy - raised ICP 5. Hypoventilation: • Decreased central drive (General anesthesia, Drug overdose), PNS/respiratory muscle dysfunction 6. Increased ventilatory demand • E.g:- Severe sepsis, septic shock, severe metabolic acidosis 4/19/2024 12

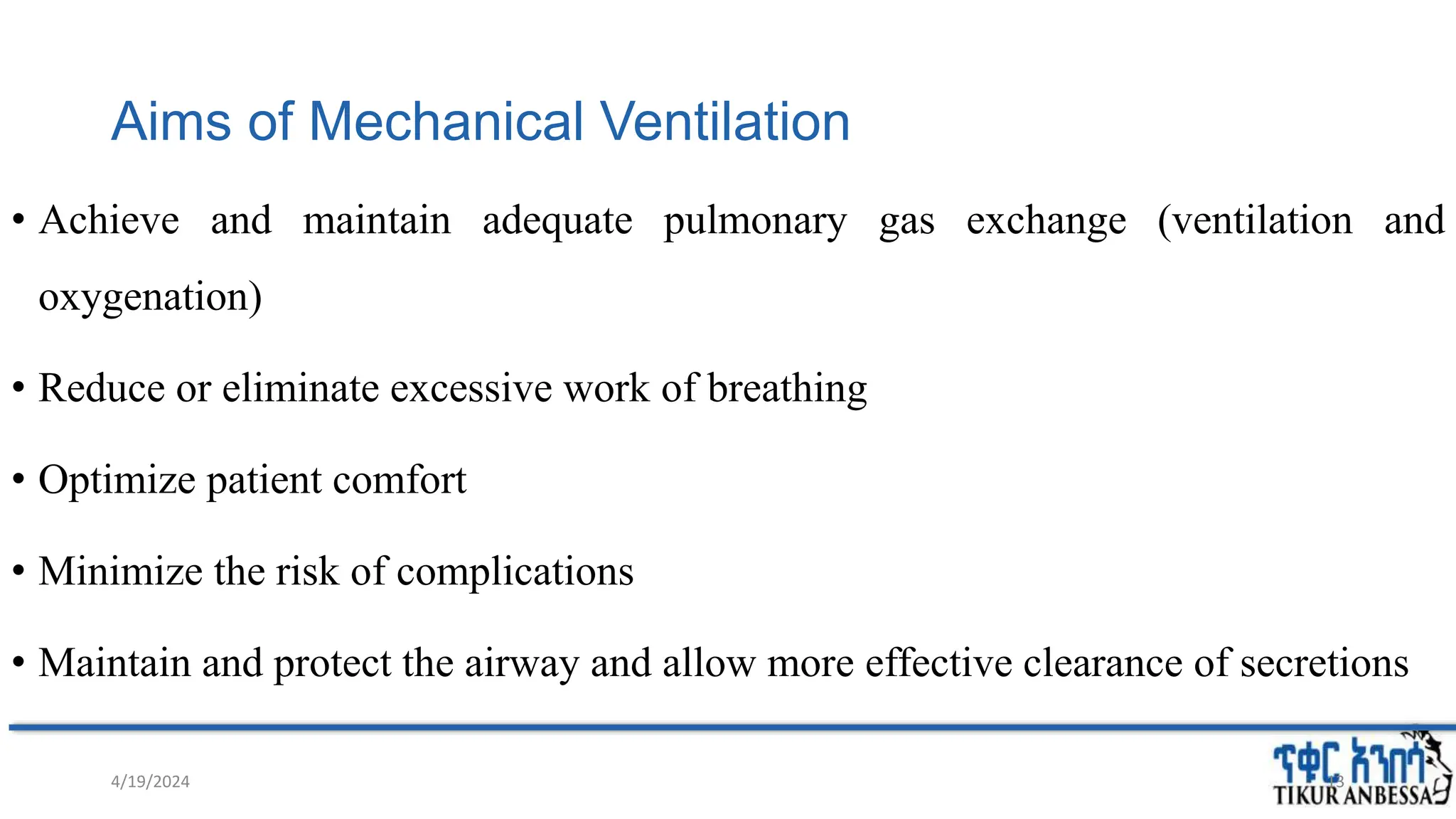

Aims of Mechanical Ventilation • Achieve and maintain adequate pulmonary gas exchange (ventilation and oxygenation) • Reduce or eliminate excessive work of breathing • Optimize patient comfort • Minimize the risk of complications • Maintain and protect the airway and allow more effective clearance of secretions 4/19/2024 13

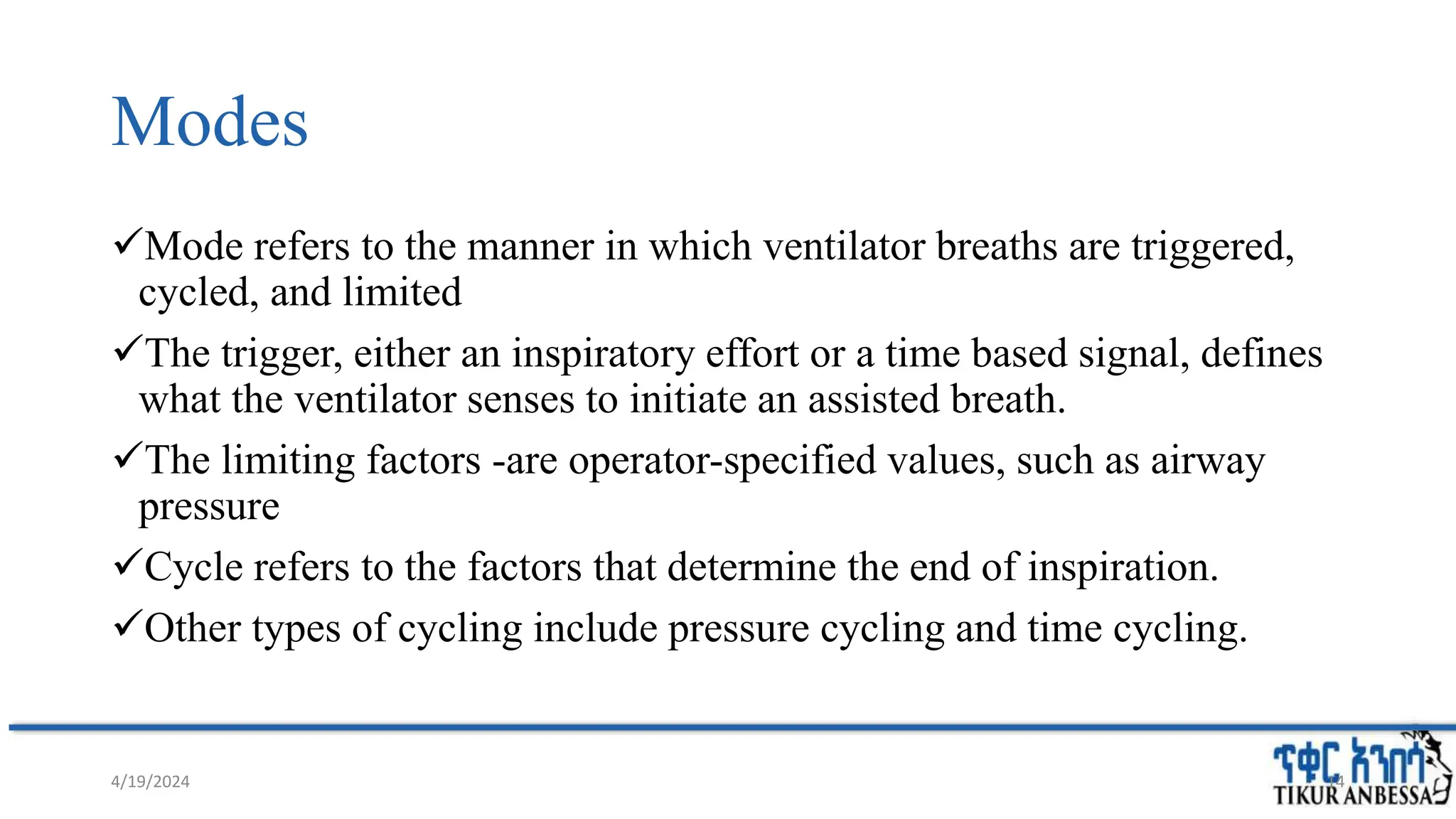

Modes Mode refers to the manner in which ventilator breaths are triggered, cycled, and limited The trigger, either an inspiratory effort or a time based signal, defines what the ventilator senses to initiate an assisted breath. The limiting factors -are operator-specified values, such as airway pressure Cycle refers to the factors that determine the end of inspiration. Other types of cycling include pressure cycling and time cycling. 4/19/2024 14

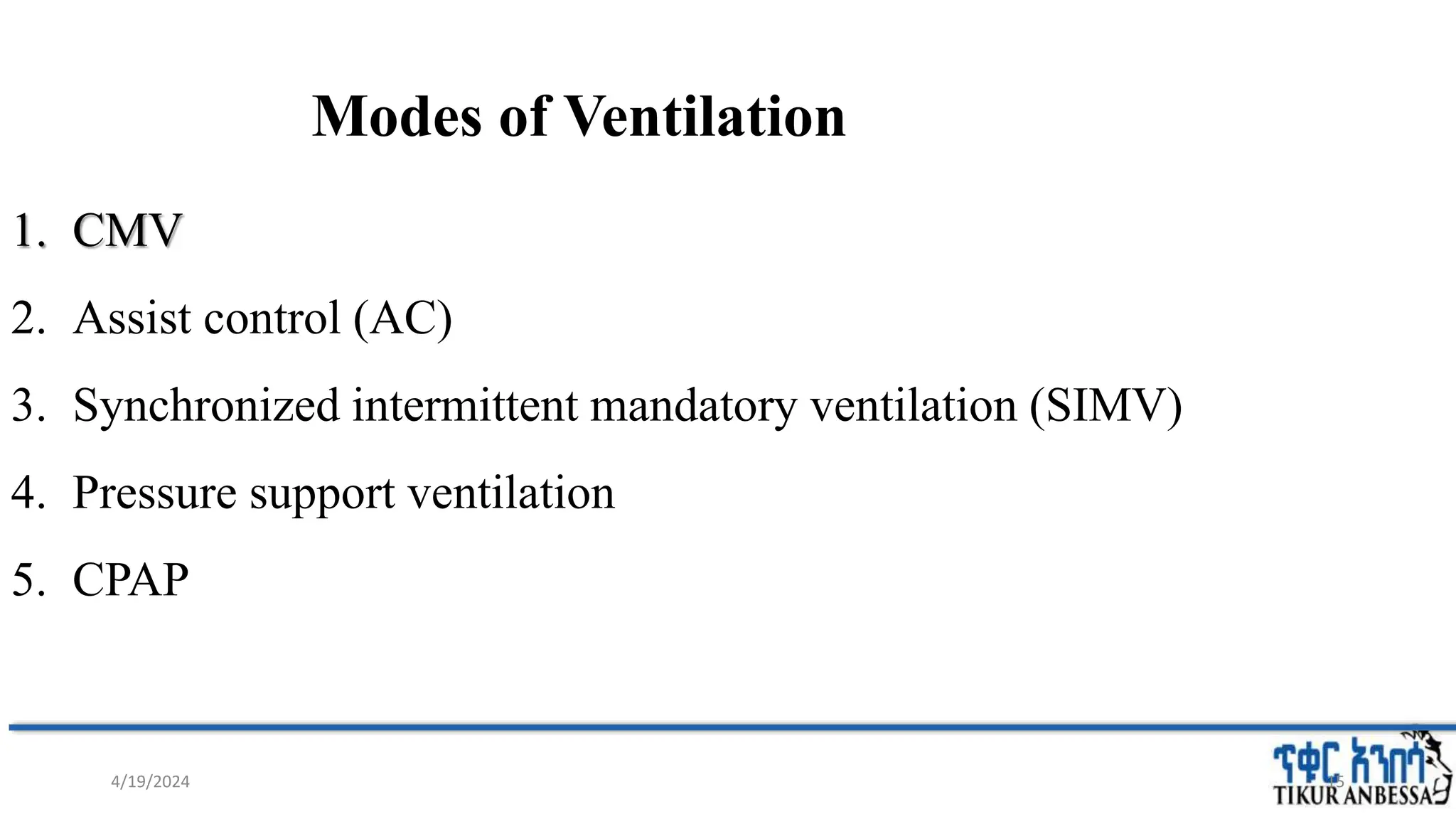

Modes of Ventilation 1. CMV 2. Assist control (AC) 3. Synchronized intermittent mandatory ventilation (SIMV) 4. Pressure support ventilation 5. CPAP 15 4/19/2024

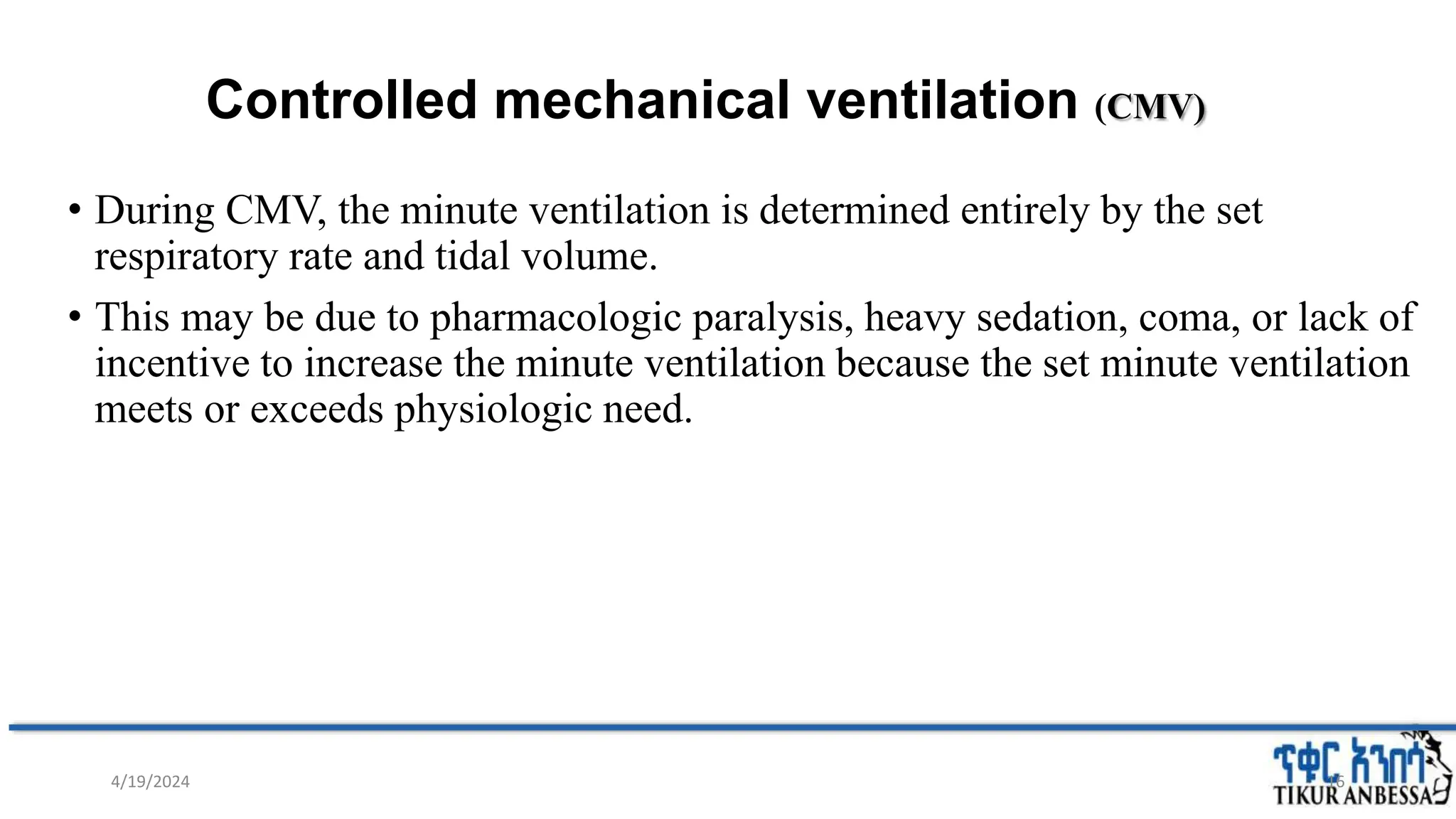

Controlled mechanical ventilation (CMV) • During CMV, the minute ventilation is determined entirely by the set respiratory rate and tidal volume. • This may be due to pharmacologic paralysis, heavy sedation, coma, or lack of incentive to increase the minute ventilation because the set minute ventilation meets or exceeds physiologic need. 16 4/19/2024
VCV • Trigger – timed, limit – flow, termination – volume • Set: TV, flow rate, RR, FiO2, PEEP, inspiratory time • Monitor: Pplat, PIP, 4/19/2024 17

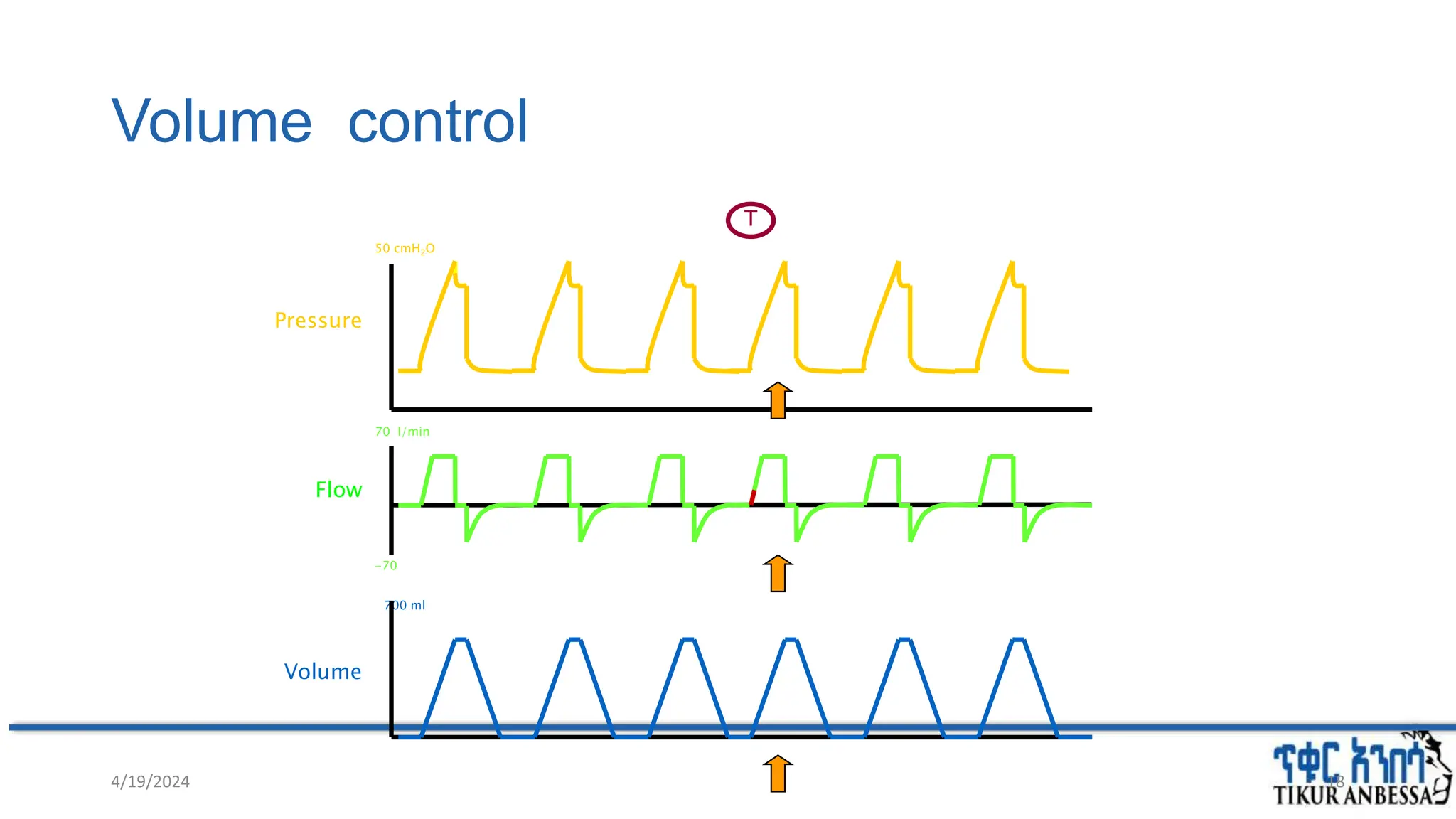

700 ml -70 70 l/min 50 cmH2O Volume control Pressure Flow Volume T 4/19/2024 18

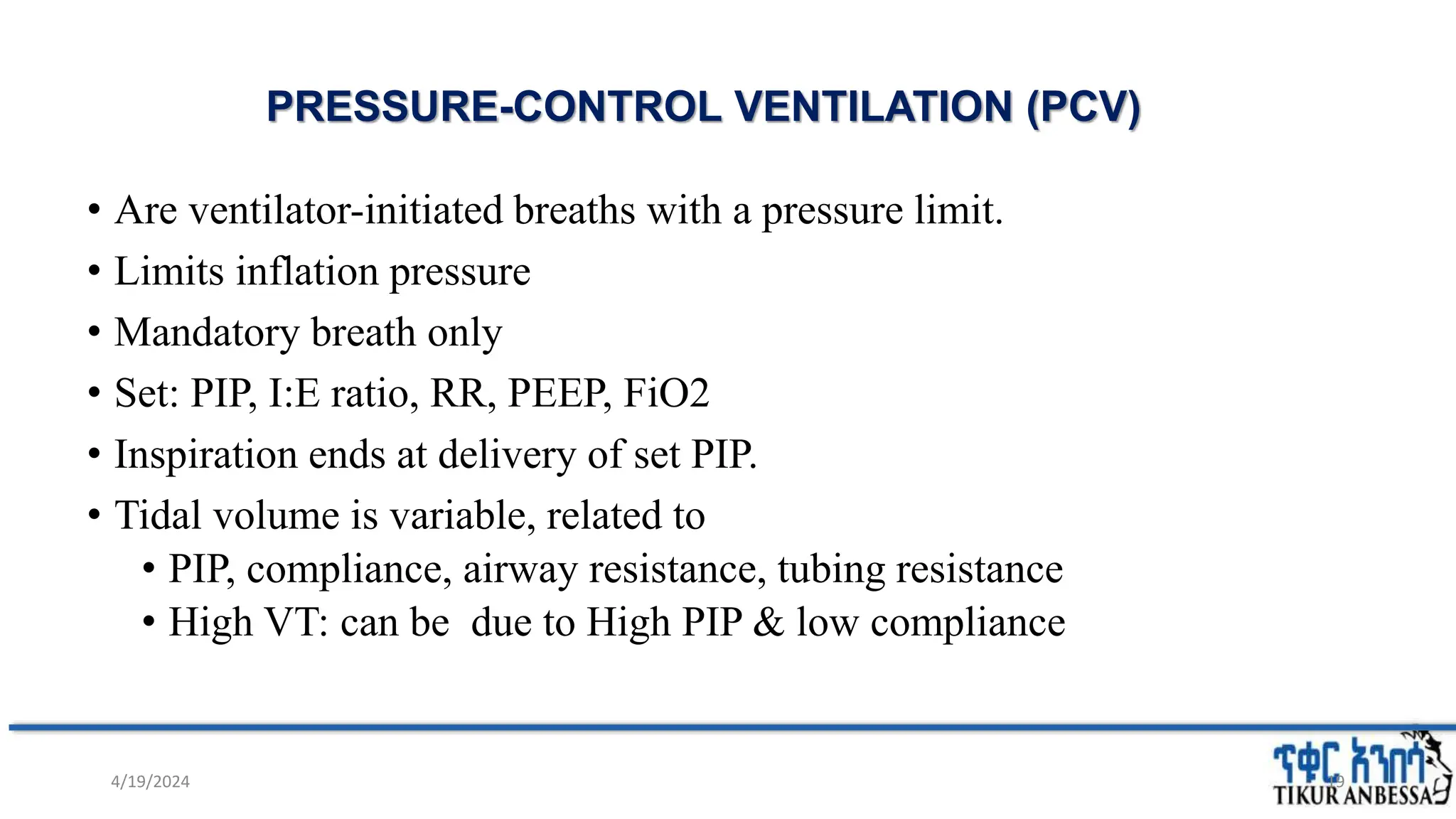

PRESSURE-CONTROL VENTILATION (PCV) • Are ventilator-initiated breaths with a pressure limit. • Limits inflation pressure • Mandatory breath only • Set: PIP, I:E ratio, RR, PEEP, FiO2 • Inspiration ends at delivery of set PIP. • Tidal volume is variable, related to • PIP, compliance, airway resistance, tubing resistance • High VT: can be due to High PIP & low compliance 19 4/19/2024

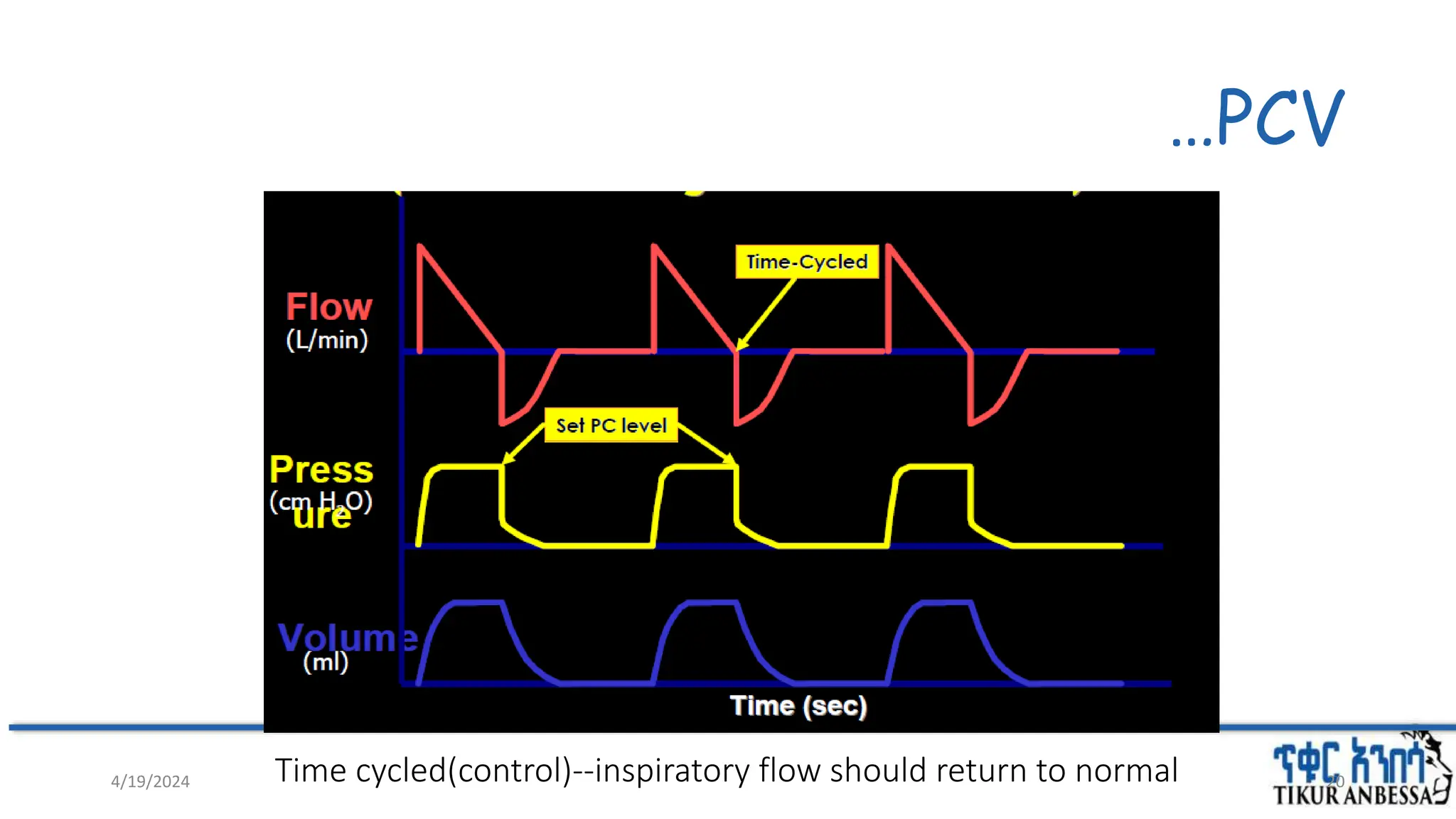

…PCV 20 Time cycled(control)--inspiratory flow should return to normal 4/19/2024

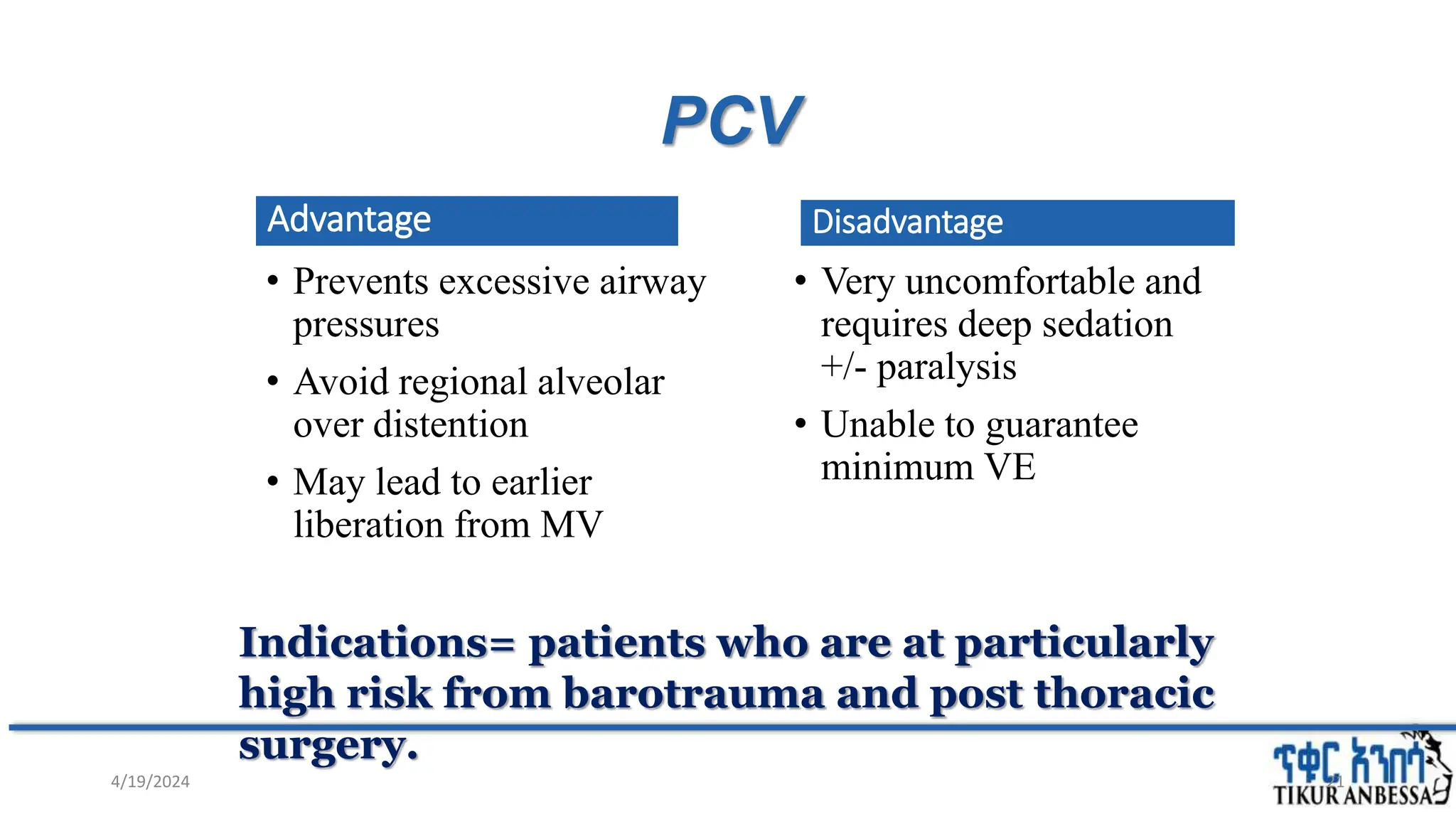

PCV Advantage • Prevents excessive airway pressures • Avoid regional alveolar over distention • May lead to earlier liberation from MV Disadvantage • Very uncomfortable and requires deep sedation +/- paralysis • Unable to guarantee minimum VE 21 Indications= patients who are at particularly high risk from barotrauma and post thoracic surgery. 4/19/2024

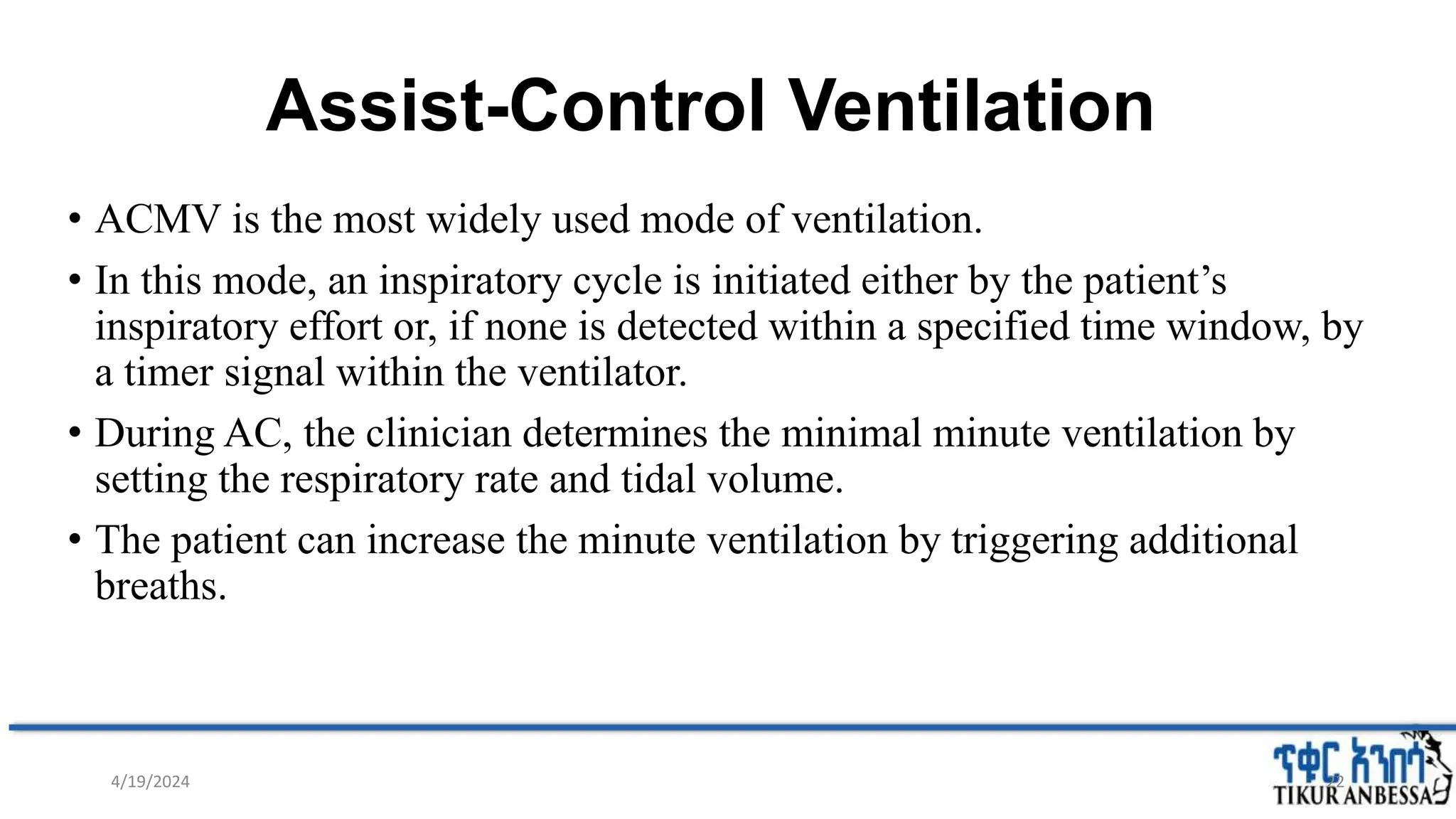

Assist-Control Ventilation • ACMV is the most widely used mode of ventilation. • In this mode, an inspiratory cycle is initiated either by the patient’s inspiratory effort or, if none is detected within a specified time window, by a timer signal within the ventilator. • During AC, the clinician determines the minimal minute ventilation by setting the respiratory rate and tidal volume. • The patient can increase the minute ventilation by triggering additional breaths. 22 4/19/2024

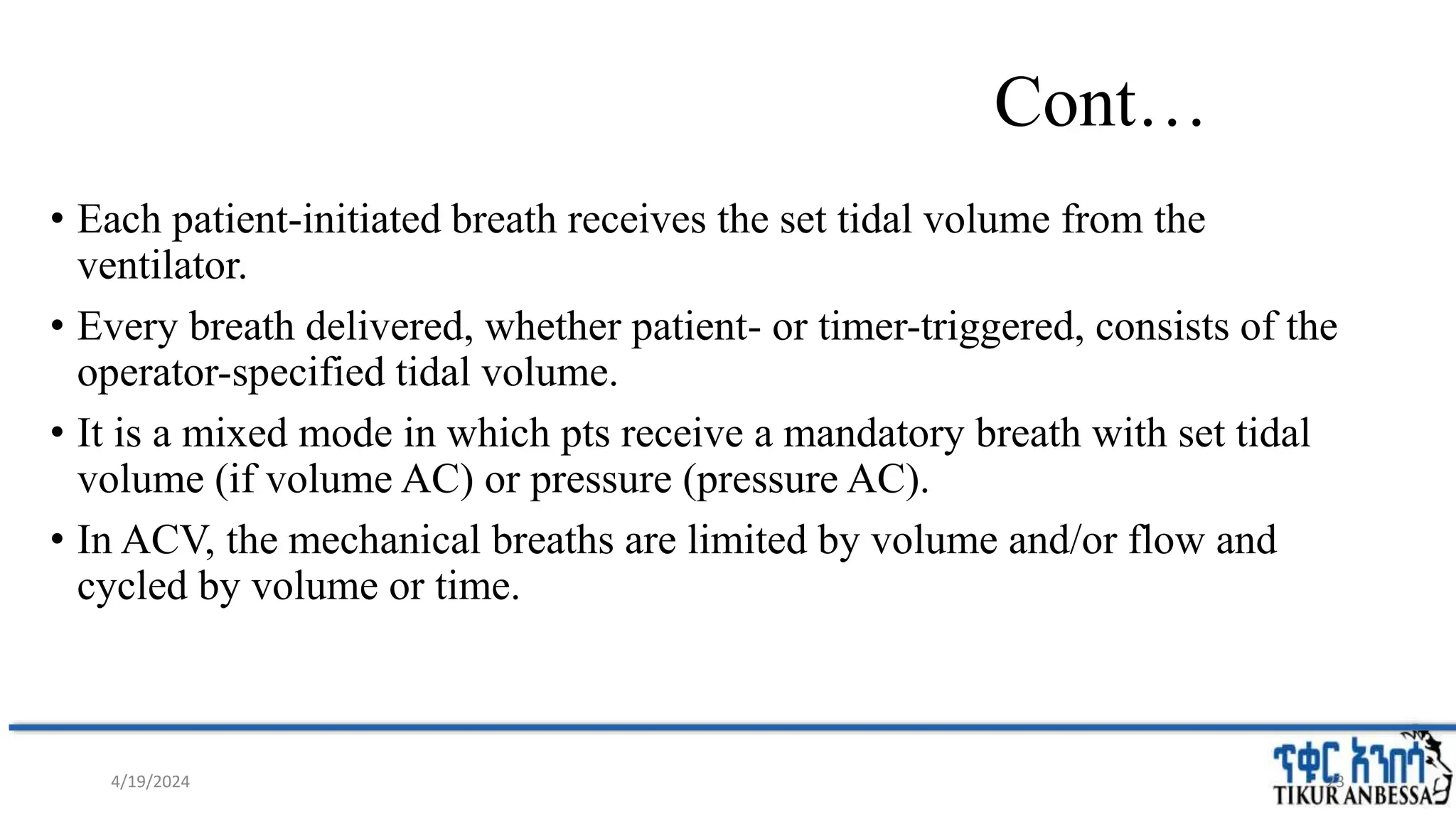

Cont… • Each patient-initiated breath receives the set tidal volume from the ventilator. • Every breath delivered, whether patient- or timer-triggered, consists of the operator-specified tidal volume. • It is a mixed mode in which pts receive a mandatory breath with set tidal volume (if volume AC) or pressure (pressure AC). • In ACV, the mechanical breaths are limited by volume and/or flow and cycled by volume or time. 23 4/19/2024
24 4/19/2024

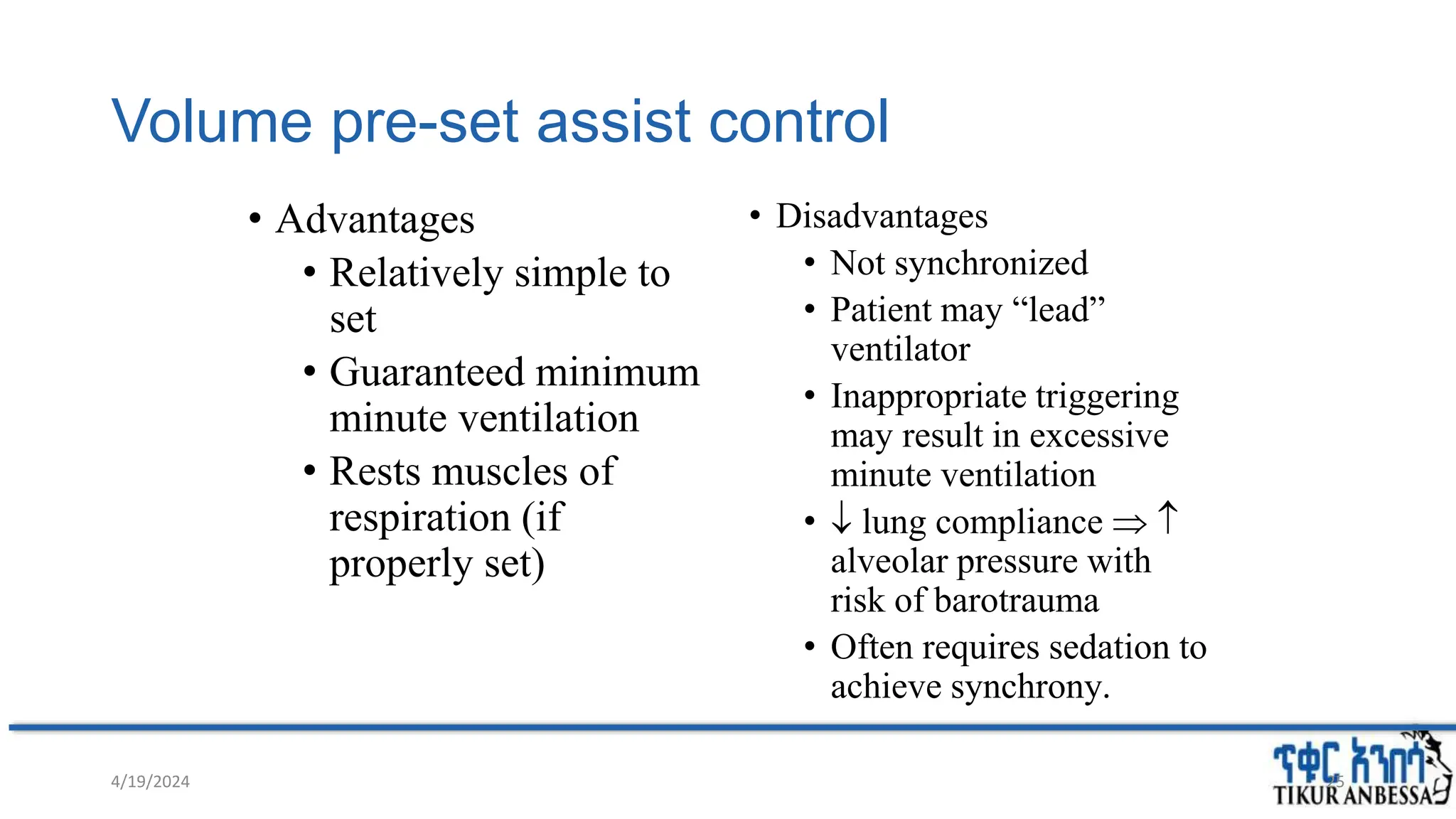

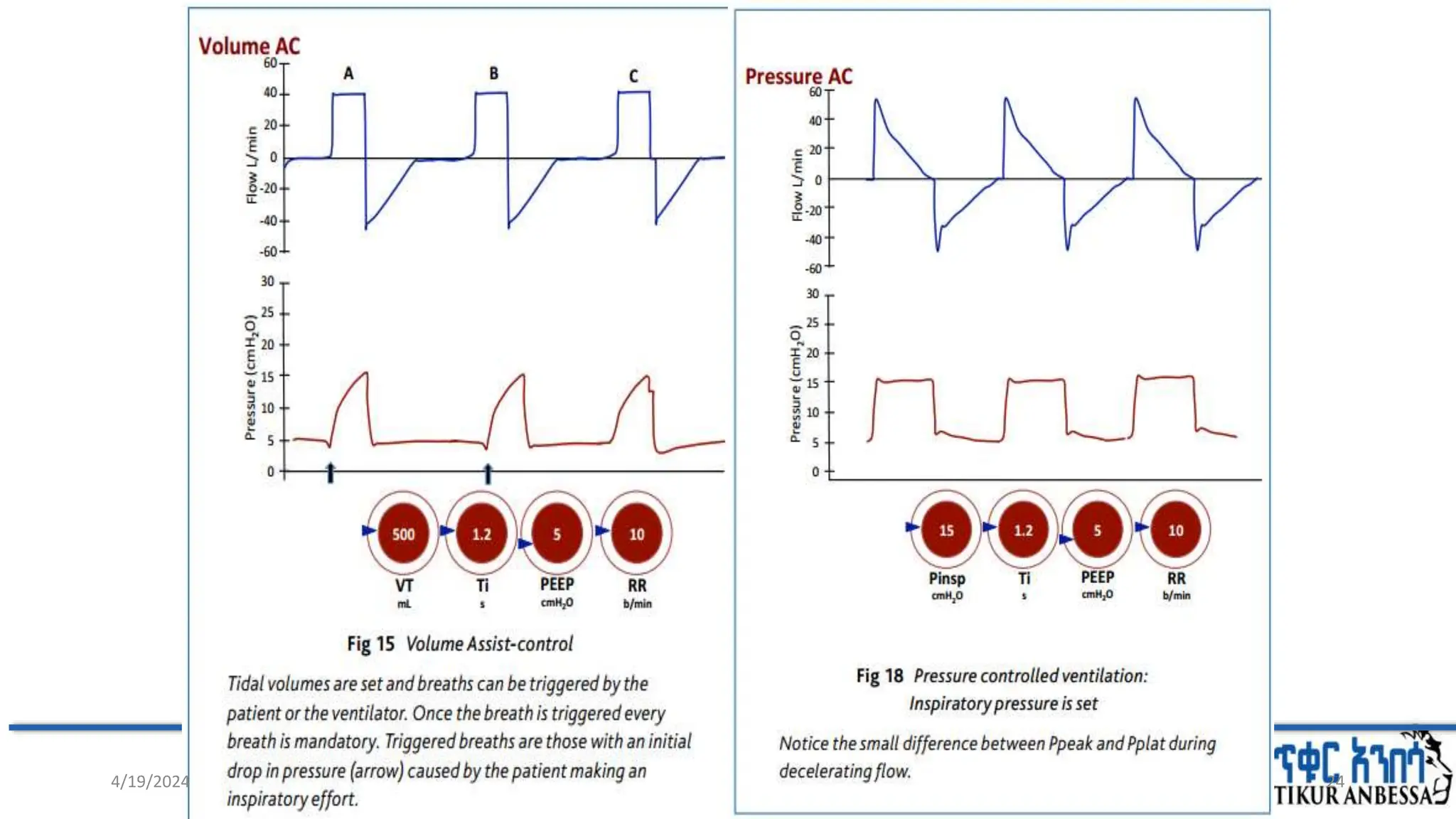

Volume pre-set assist control • Advantages • Relatively simple to set • Guaranteed minimum minute ventilation • Rests muscles of respiration (if properly set) • Disadvantages • Not synchronized • Patient may “lead” ventilator • Inappropriate triggering may result in excessive minute ventilation •  lung compliance   alveolar pressure with risk of barotrauma • Often requires sedation to achieve synchrony. 4/19/2024 25

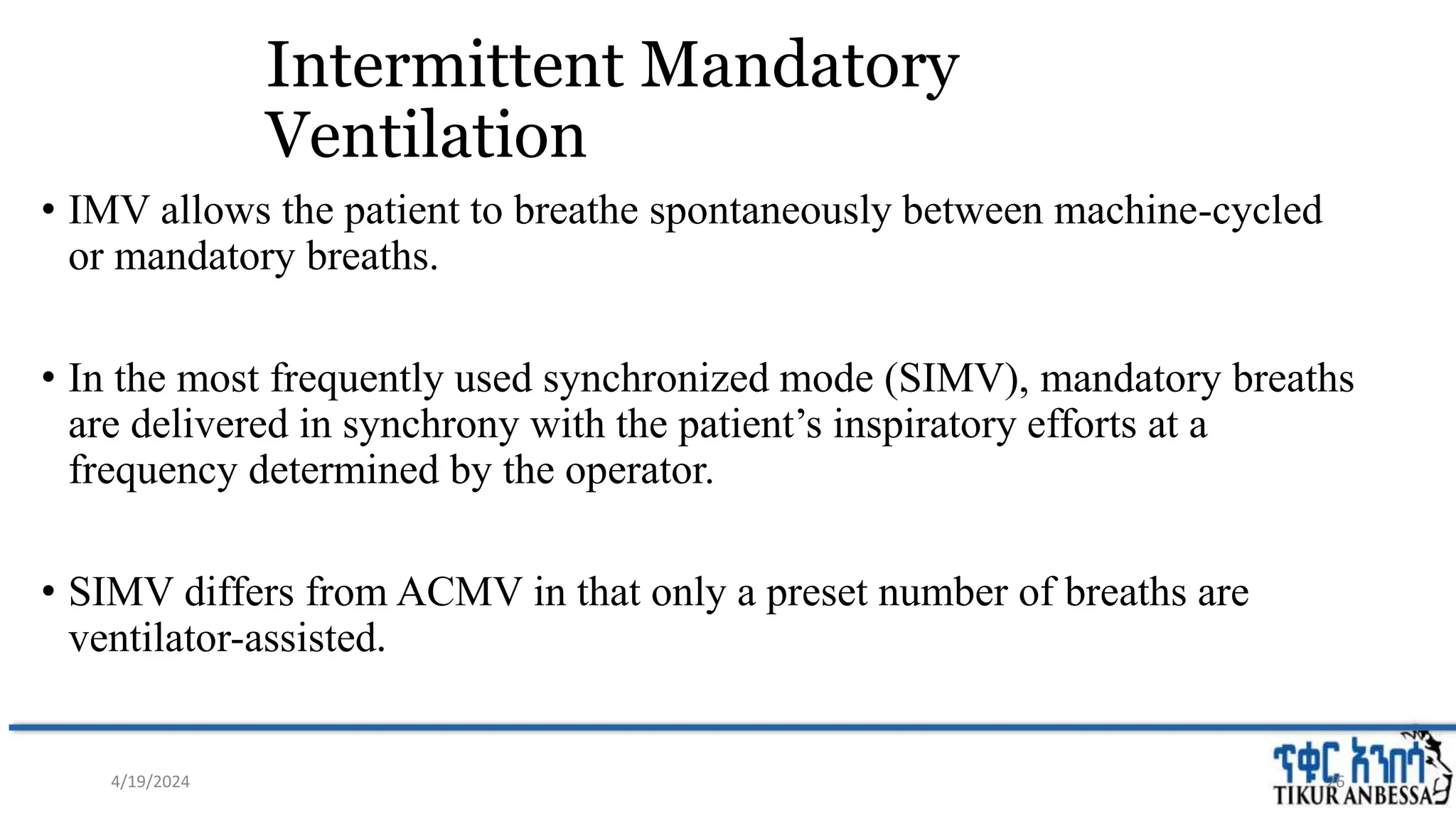

Intermittent Mandatory Ventilation • IMV allows the patient to breathe spontaneously between machine-cycled or mandatory breaths. • In the most frequently used synchronized mode (SIMV), mandatory breaths are delivered in synchrony with the patient’s inspiratory efforts at a frequency determined by the operator. • SIMV differs from ACMV in that only a preset number of breaths are ventilator-assisted. 26 4/19/2024

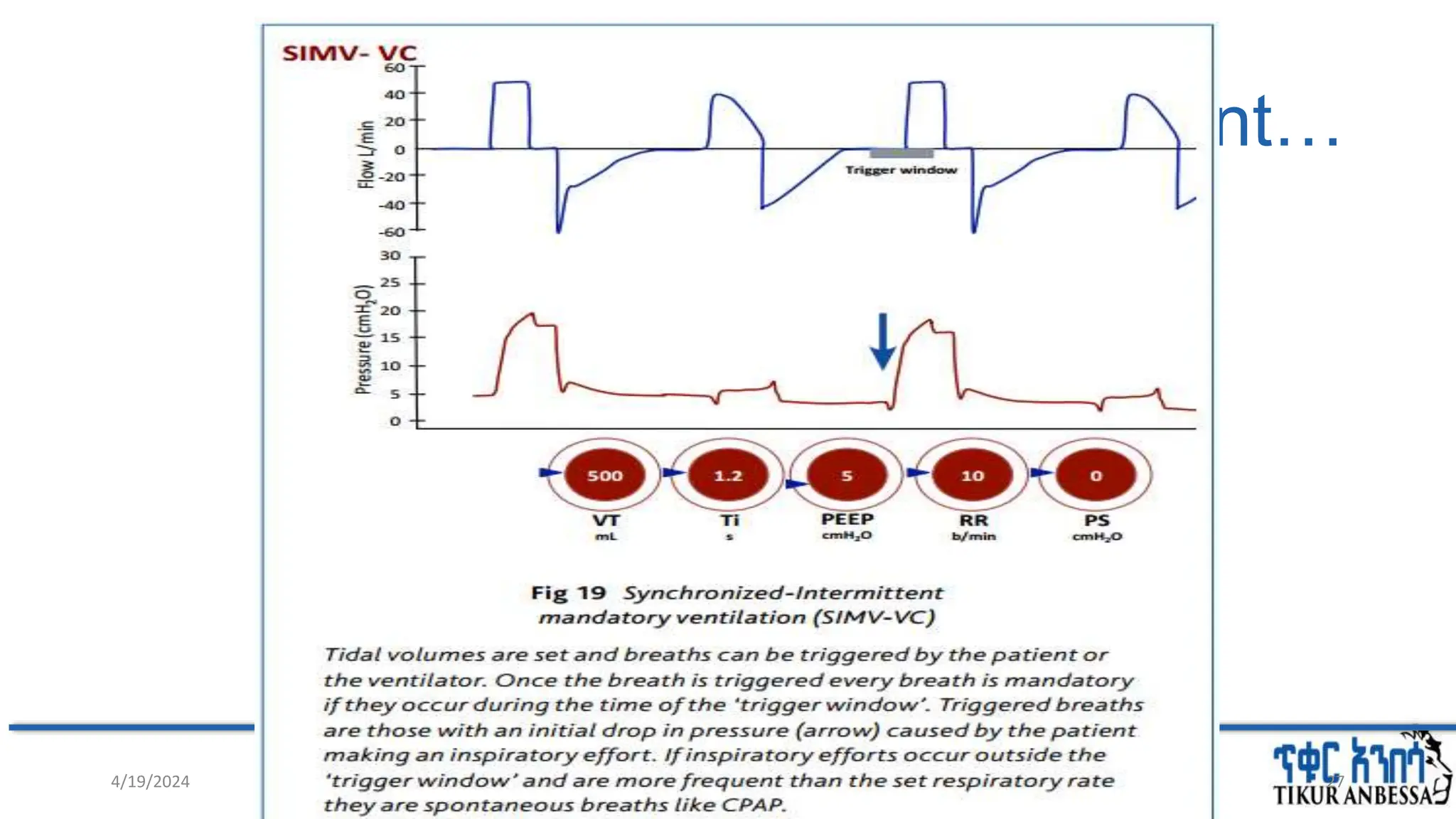

Cont… 27 4/19/2024

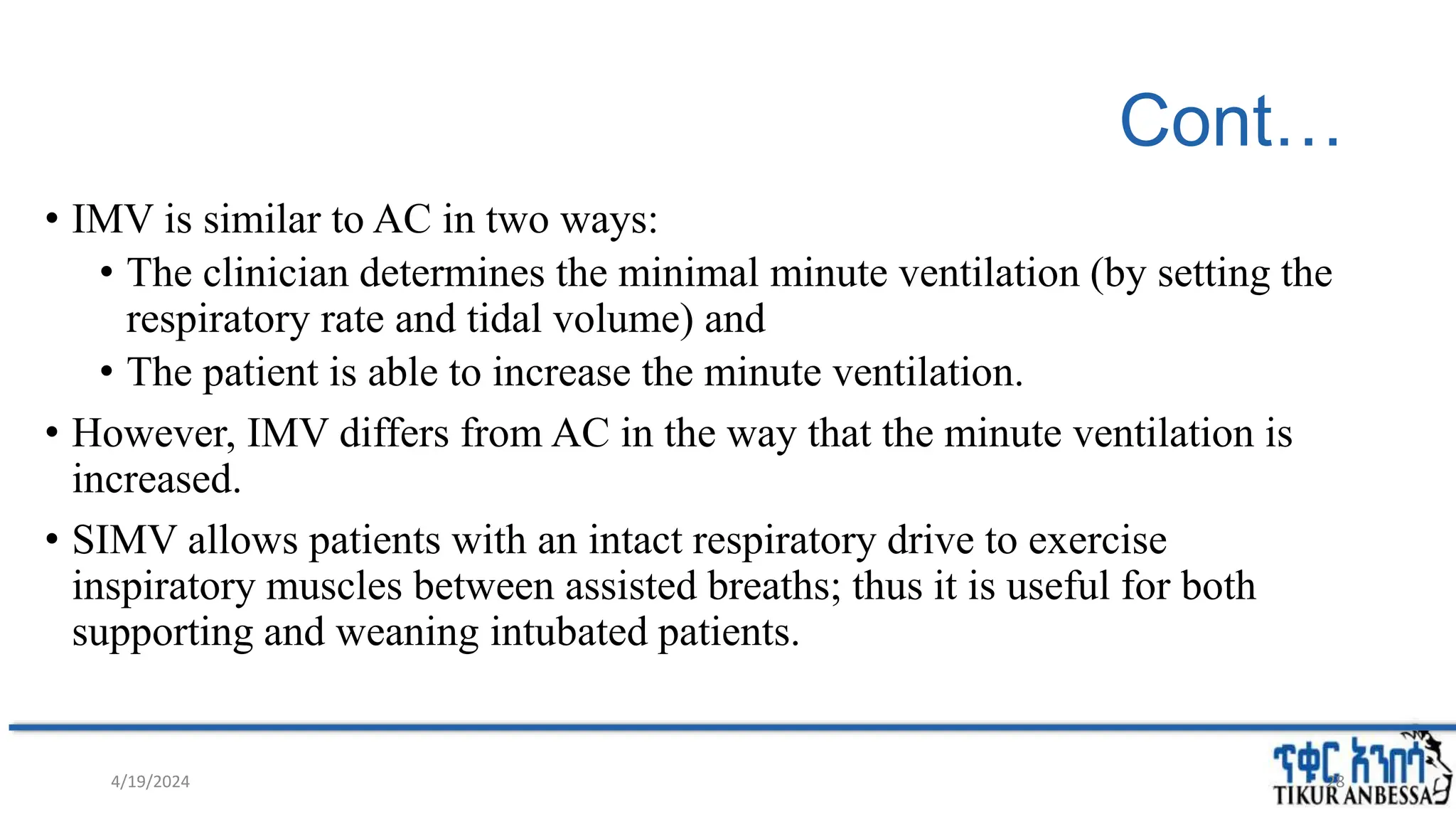

Cont… • IMV is similar to AC in two ways: • The clinician determines the minimal minute ventilation (by setting the respiratory rate and tidal volume) and • The patient is able to increase the minute ventilation. • However, IMV differs from AC in the way that the minute ventilation is increased. • SIMV allows patients with an intact respiratory drive to exercise inspiratory muscles between assisted breaths; thus it is useful for both supporting and weaning intubated patients. 28 4/19/2024

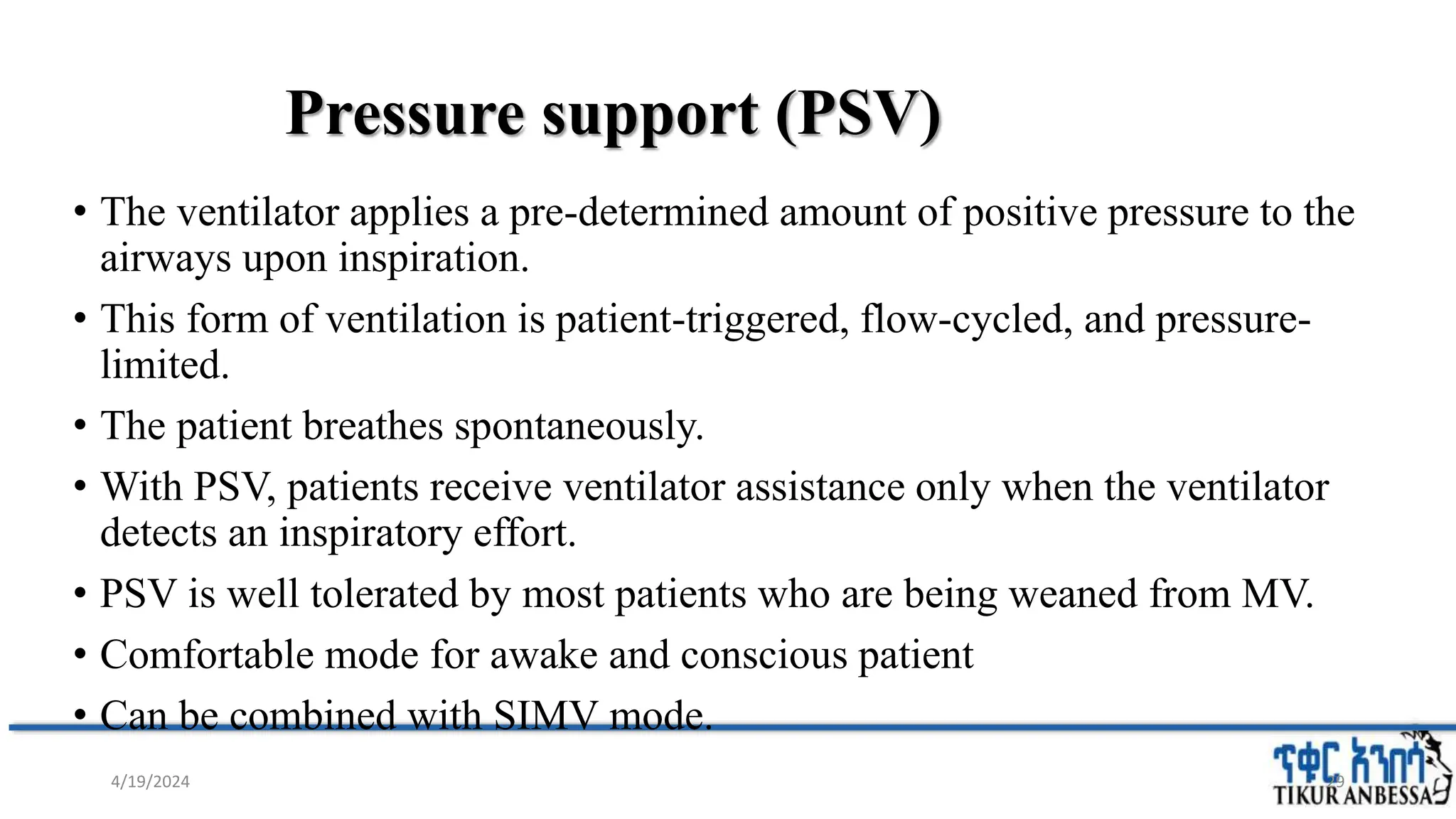

Pressure support (PSV) • The ventilator applies a pre-determined amount of positive pressure to the airways upon inspiration. • This form of ventilation is patient-triggered, flow-cycled, and pressure- limited. • The patient breathes spontaneously. • With PSV, patients receive ventilator assistance only when the ventilator detects an inspiratory effort. • PSV is well tolerated by most patients who are being weaned from MV. • Comfortable mode for awake and conscious patient • Can be combined with SIMV mode. 29 4/19/2024

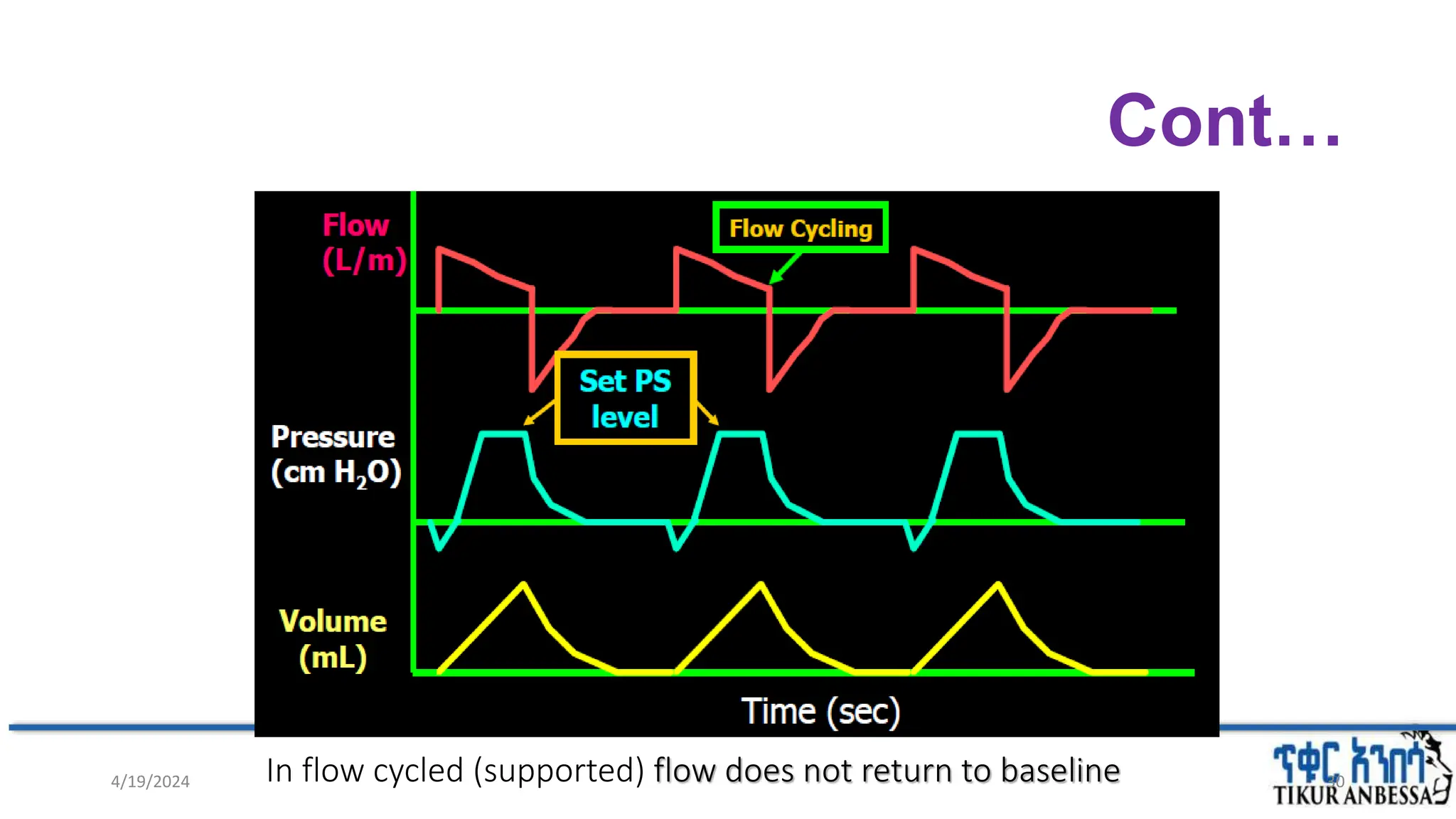

Cont… 30 In flow cycled (supported) flow does not return to baseline 4/19/2024

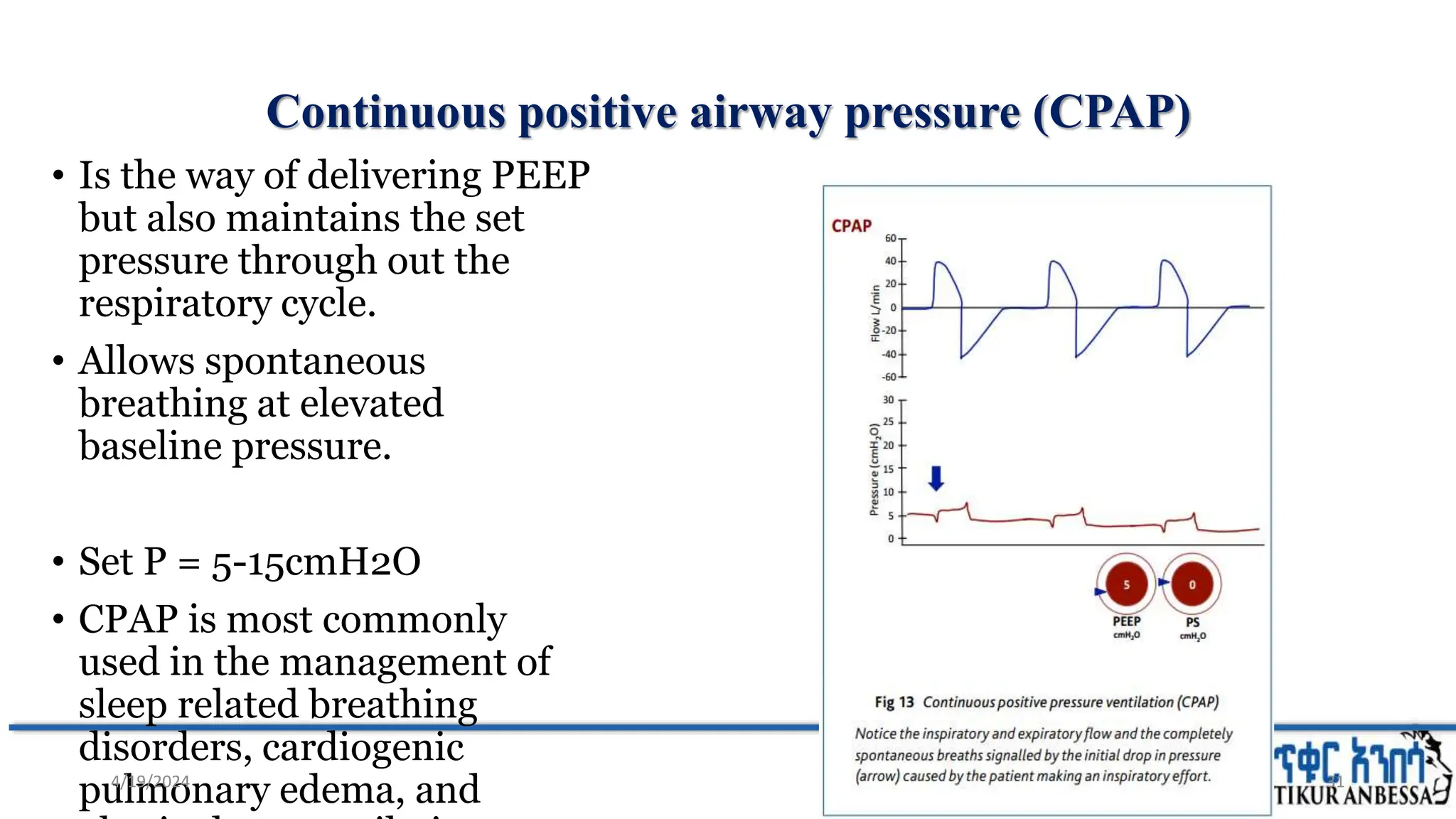

Continuous positive airway pressure (CPAP) • Is the way of delivering PEEP but also maintains the set pressure through out the respiratory cycle. • Allows spontaneous breathing at elevated baseline pressure. • Set P = 5-15cmH2O • CPAP is most commonly used in the management of sleep related breathing disorders, cardiogenic pulmonary edema, and 31 4/19/2024

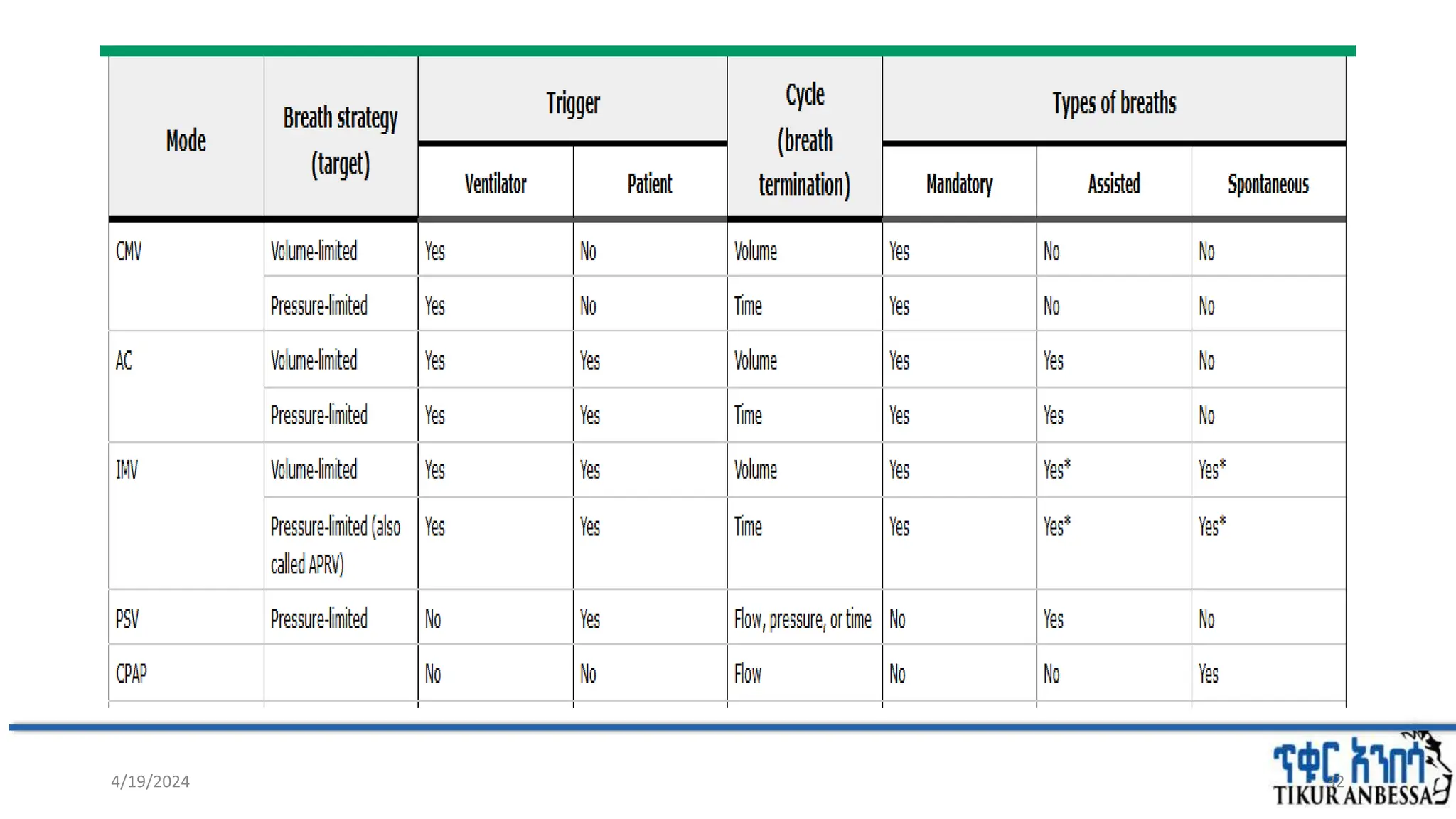

4/19/2024 32

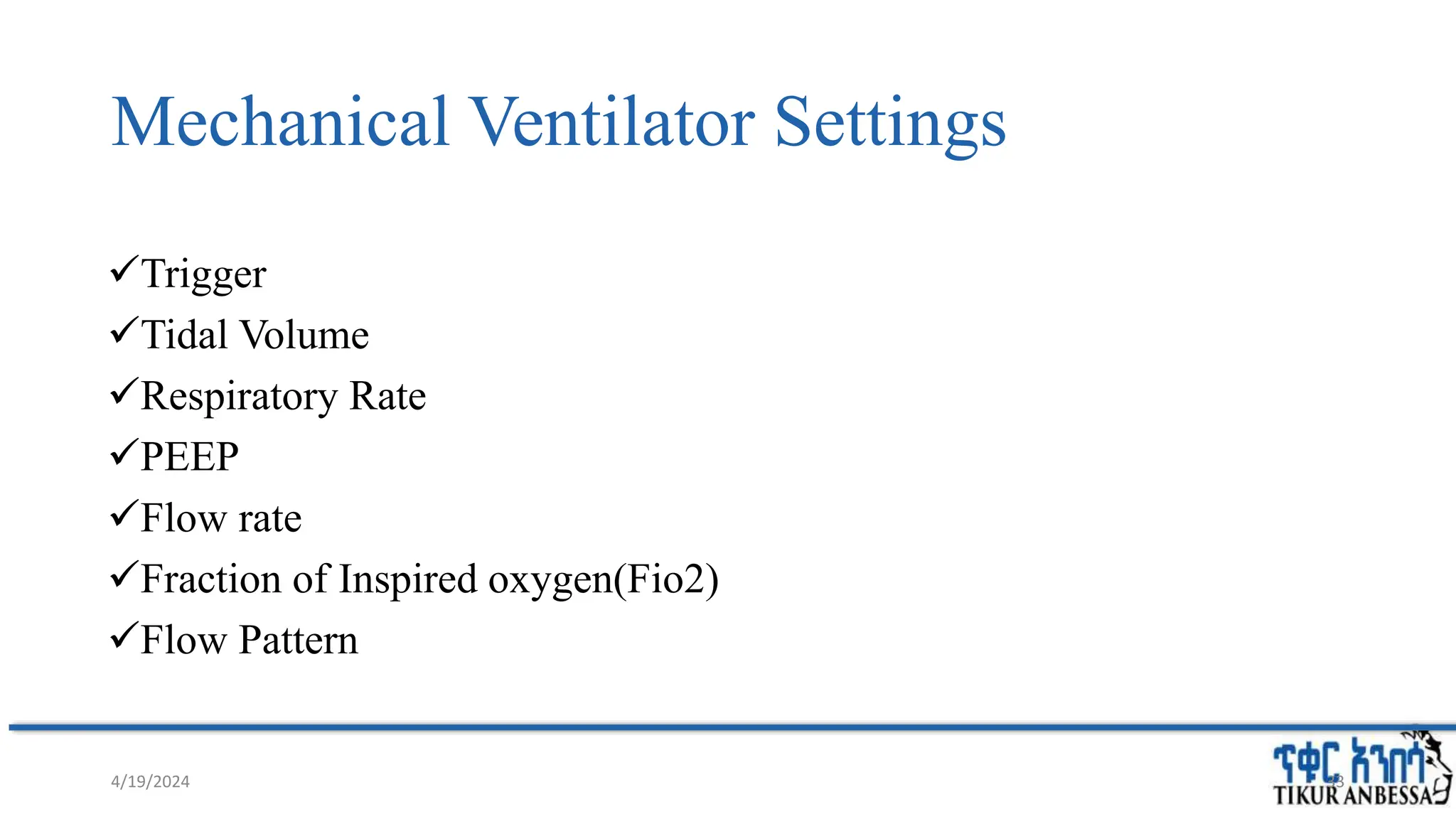

Mechanical Ventilator Settings Trigger Tidal Volume Respiratory Rate PEEP Flow rate Fraction of Inspired oxygen(Fio2) Flow Pattern 4/19/2024 33

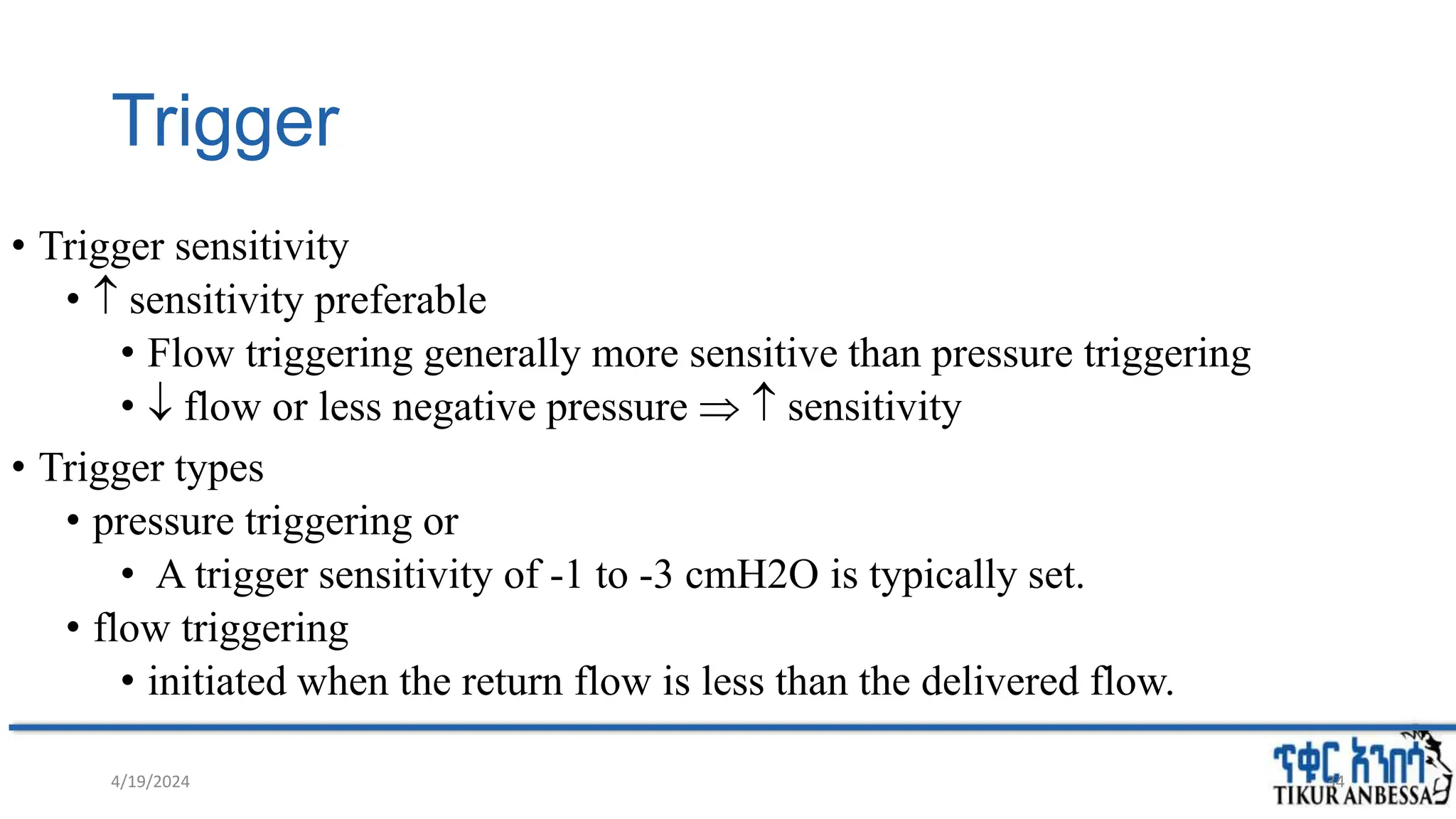

Trigger • Trigger sensitivity •  sensitivity preferable • Flow triggering generally more sensitive than pressure triggering •  flow or less negative pressure   sensitivity • Trigger types • pressure triggering or • A trigger sensitivity of -1 to -3 cmH2O is typically set. • flow triggering • initiated when the return flow is less than the delivered flow. 4/19/2024 34

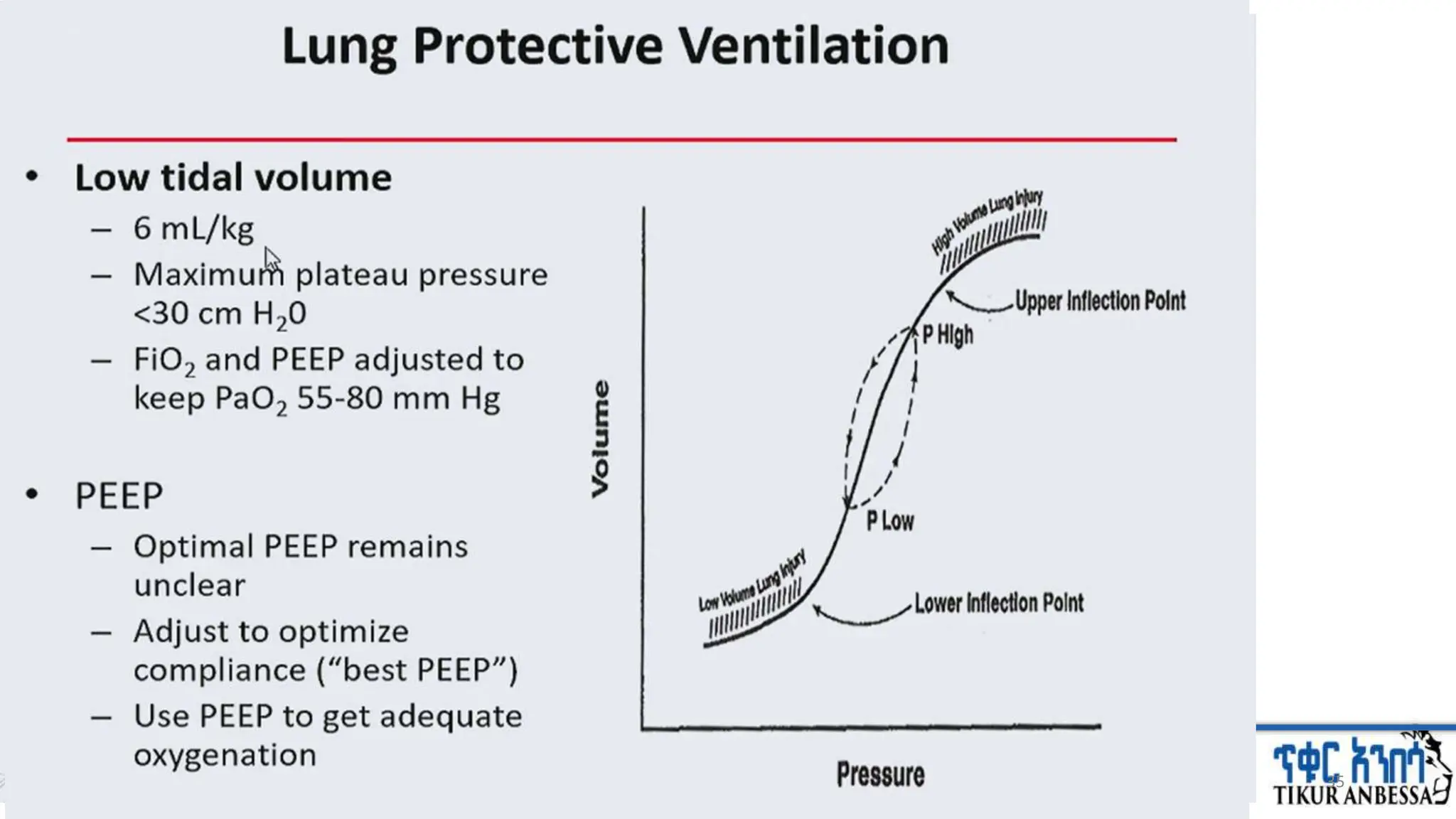

Tidal volume • Optimal tidal volume for mechanically ventilated patients:- • without existing lung disease 6-8ml/kg of IBW. • For ARDS-4-6 ml/kg of IBW • Female PBW= 45.5 + 0.91 (Ht – 152.4) • Male PBW = 50 + 0.91 (Ht – 152.4) • As Tv inc., peak airway pressure also inc.(>45cmH20 barotrauma) 4/19/2024 35

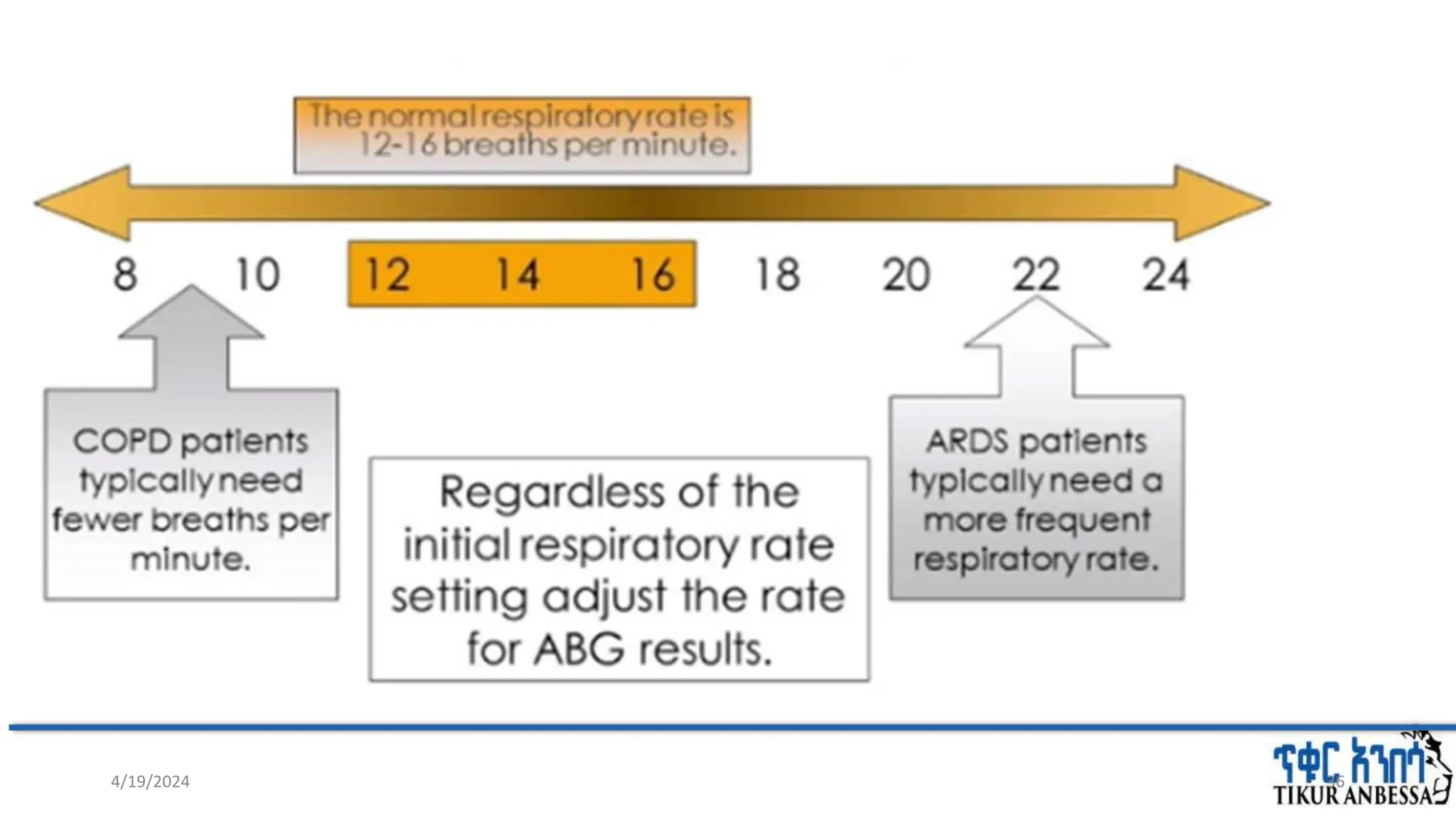

Respiratory rate • Initial respiratory rate between 12 and 16 breaths per minute is reasonable. • RR adjustment- • Modification according to mode • Desired PH & paco2 • autoPEEP(if >5cmH20) • For ALI/ARDS-up to 35’ • MV= TV X RR 4/19/2024 36

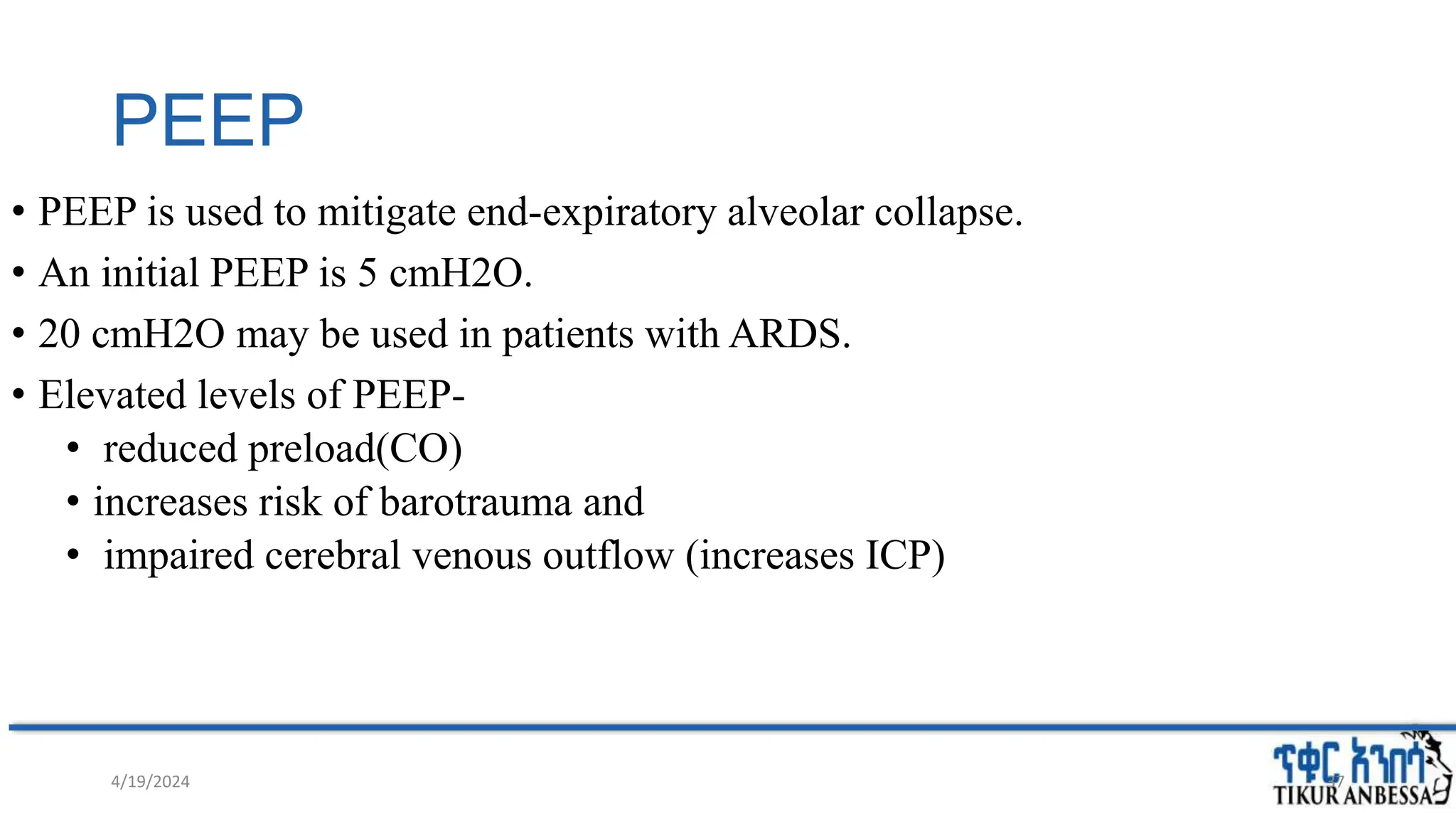

PEEP • PEEP is used to mitigate end-expiratory alveolar collapse. • An initial PEEP is 5 cmH2O. • 20 cmH2O may be used in patients with ARDS. • Elevated levels of PEEP- • reduced preload(CO) • increases risk of barotrauma and • impaired cerebral venous outflow (increases ICP) 4/19/2024 37

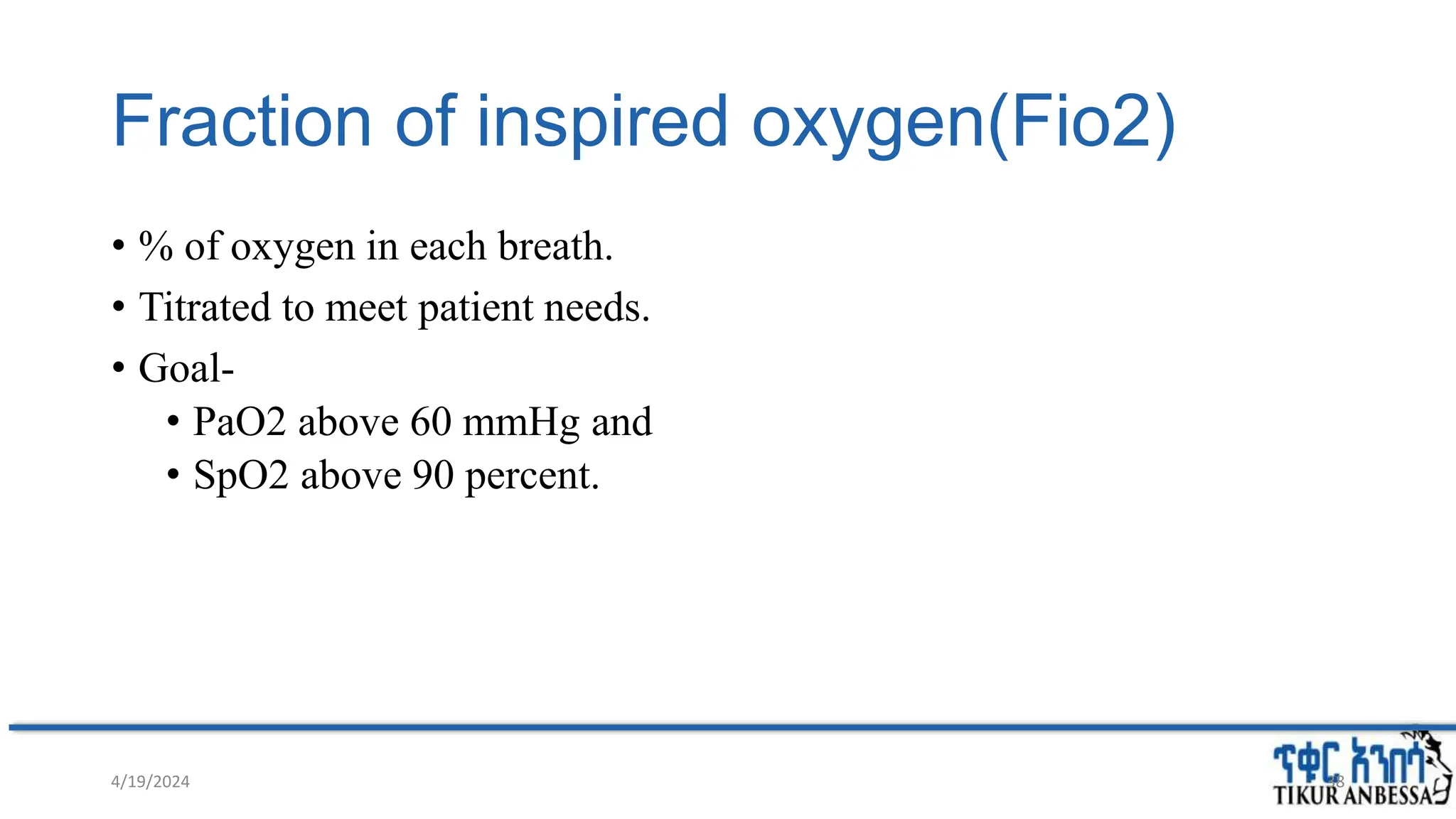

Fraction of inspired oxygen(Fio2) • % of oxygen in each breath. • Titrated to meet patient needs. • Goal- • PaO2 above 60 mmHg and • SpO2 above 90 percent. 4/19/2024 38
Inspiratory time • Set as: • % of respiratory cycle • I:E ratio • Indirectly, by setting flow • Expiratory time not set • Remaining time after inspiration before next breath 4/19/2024 39

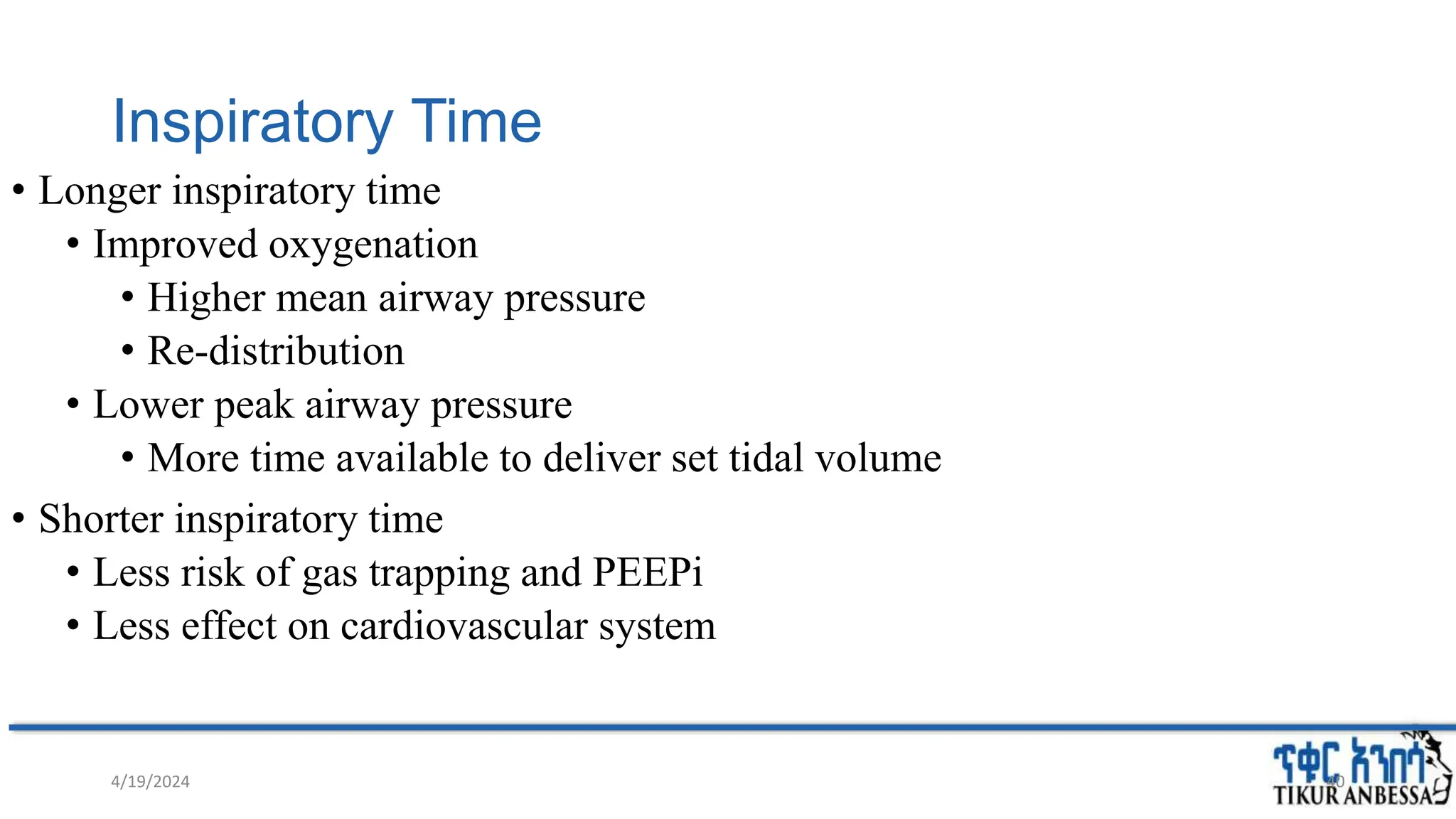

Inspiratory Time • Longer inspiratory time • Improved oxygenation • Higher mean airway pressure • Re-distribution • Lower peak airway pressure • More time available to deliver set tidal volume • Shorter inspiratory time • Less risk of gas trapping and PEEPi • Less effect on cardiovascular system 4/19/2024 40

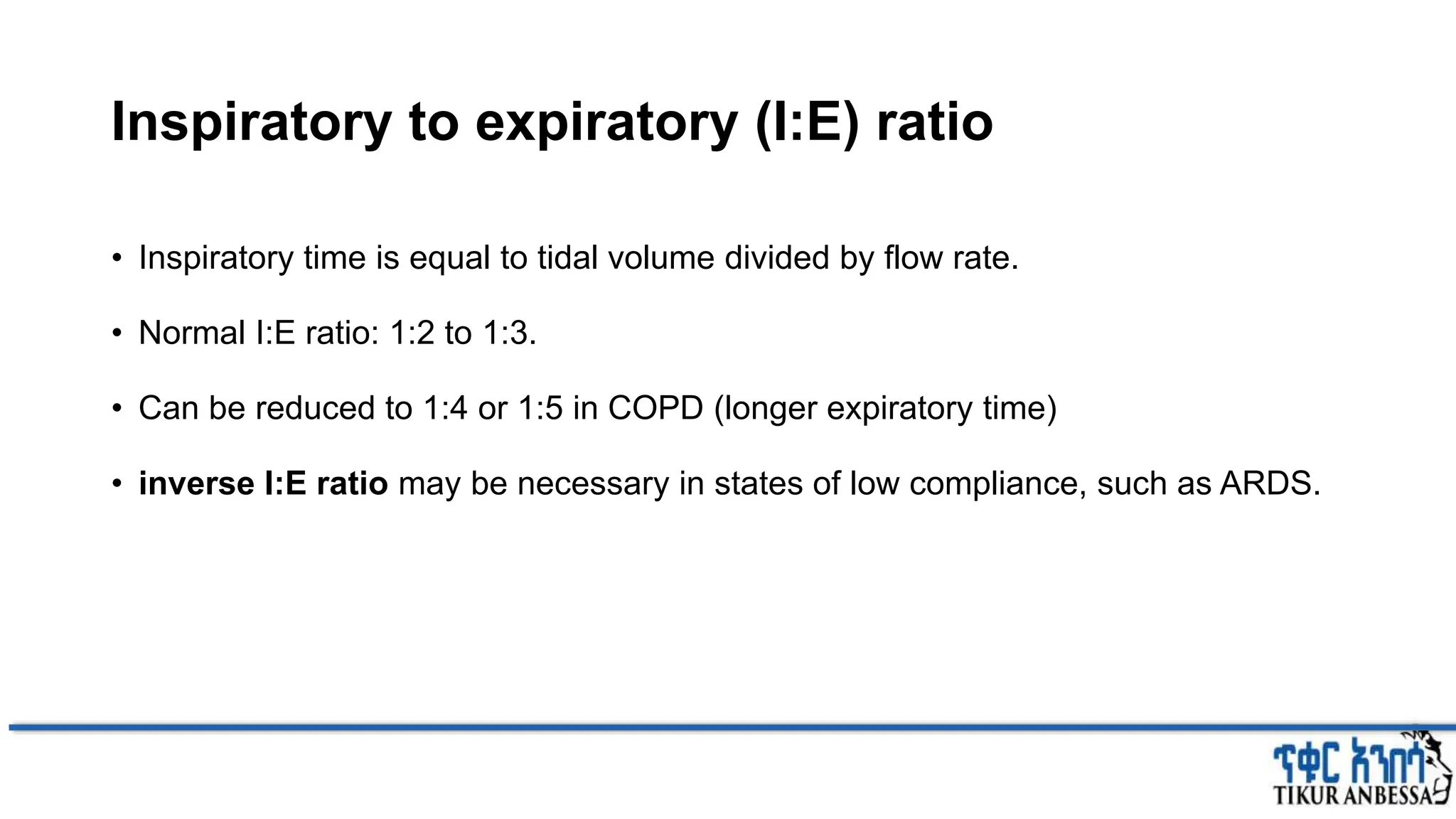

Inspiratory to expiratory (I:E) ratio • Inspiratory time is equal to tidal volume divided by flow rate. • Normal I:E ratio: 1:2 to 1:3. • Can be reduced to 1:4 or 1:5 in COPD (longer expiratory time) • inverse I:E ratio may be necessary in states of low compliance, such as ARDS.
Flow rate • The peak flow rate is the maximum flow delivered by the ventilator during inspiration. • Peak flow rates of 60 L per minute may be sufficient, although higher rates are frequently necessary. • Increased peak flow rates – increase the peak airway pressure. decreased inspiratory time lowers the mean airway pressure, which can decrease oxygenation. 4/19/2024 42

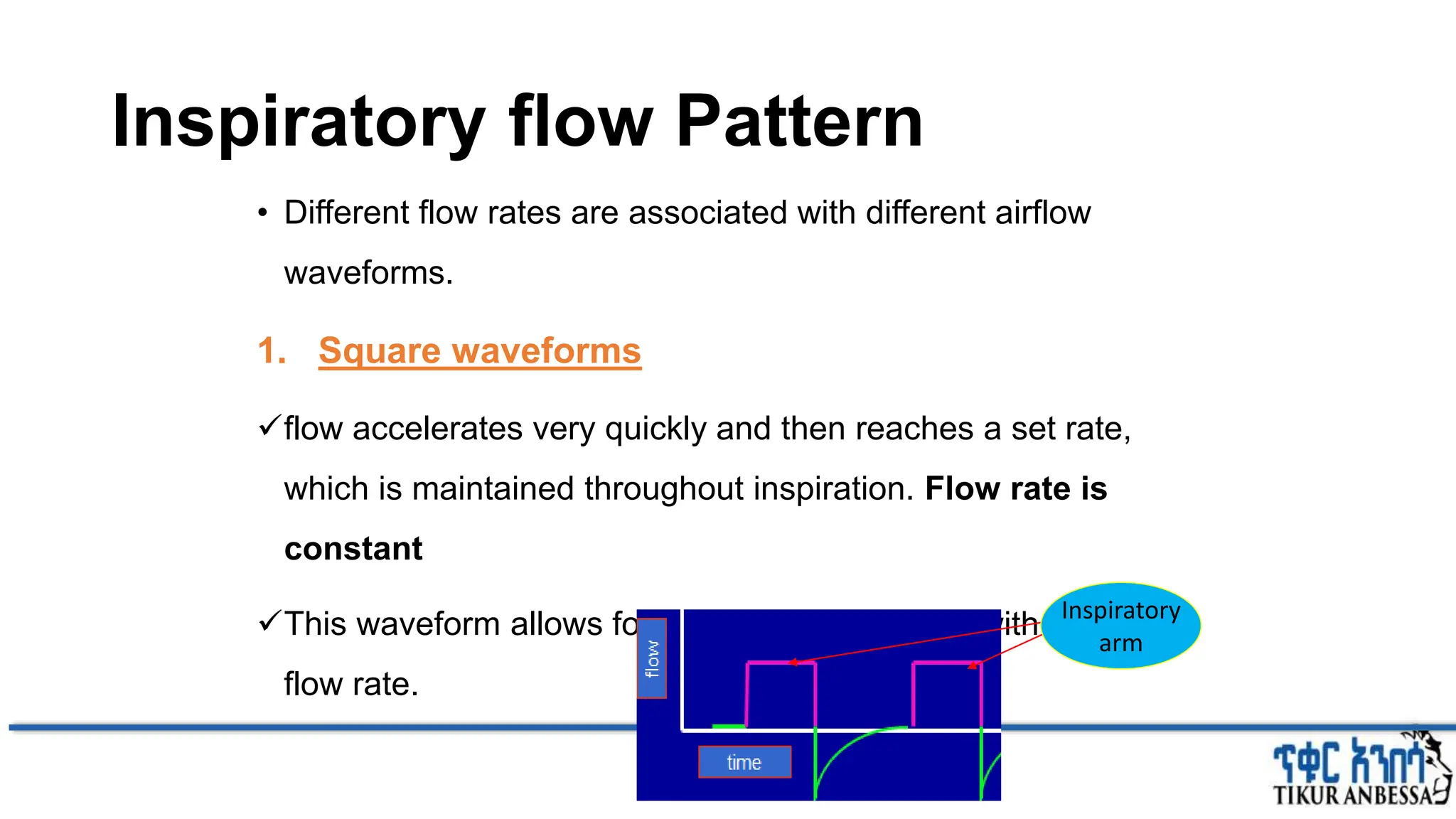

Inspiratory flow Pattern • Different flow rates are associated with different airflow waveforms. 1. Square waveforms flow accelerates very quickly and then reaches a set rate, which is maintained throughout inspiration. Flow rate is constant This waveform allows for an adequate I:E ratio with a normal flow rate. Inspiratory arm

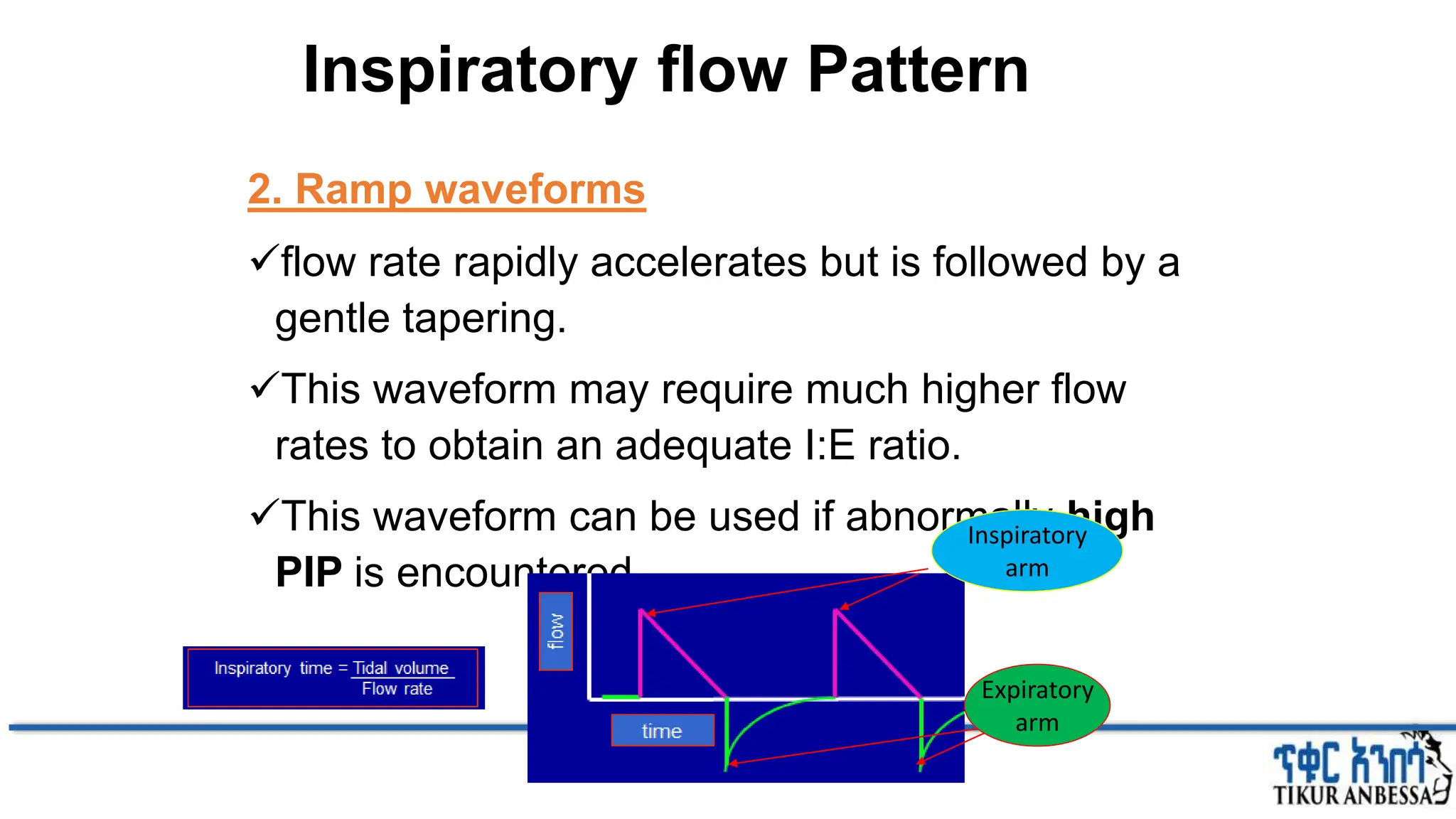

Inspiratory flow Pattern 2. Ramp waveforms flow rate rapidly accelerates but is followed by a gentle tapering. This waveform may require much higher flow rates to obtain an adequate I:E ratio. This waveform can be used if abnormally high PIP is encountered. Inspiratory arm Expiratory arm

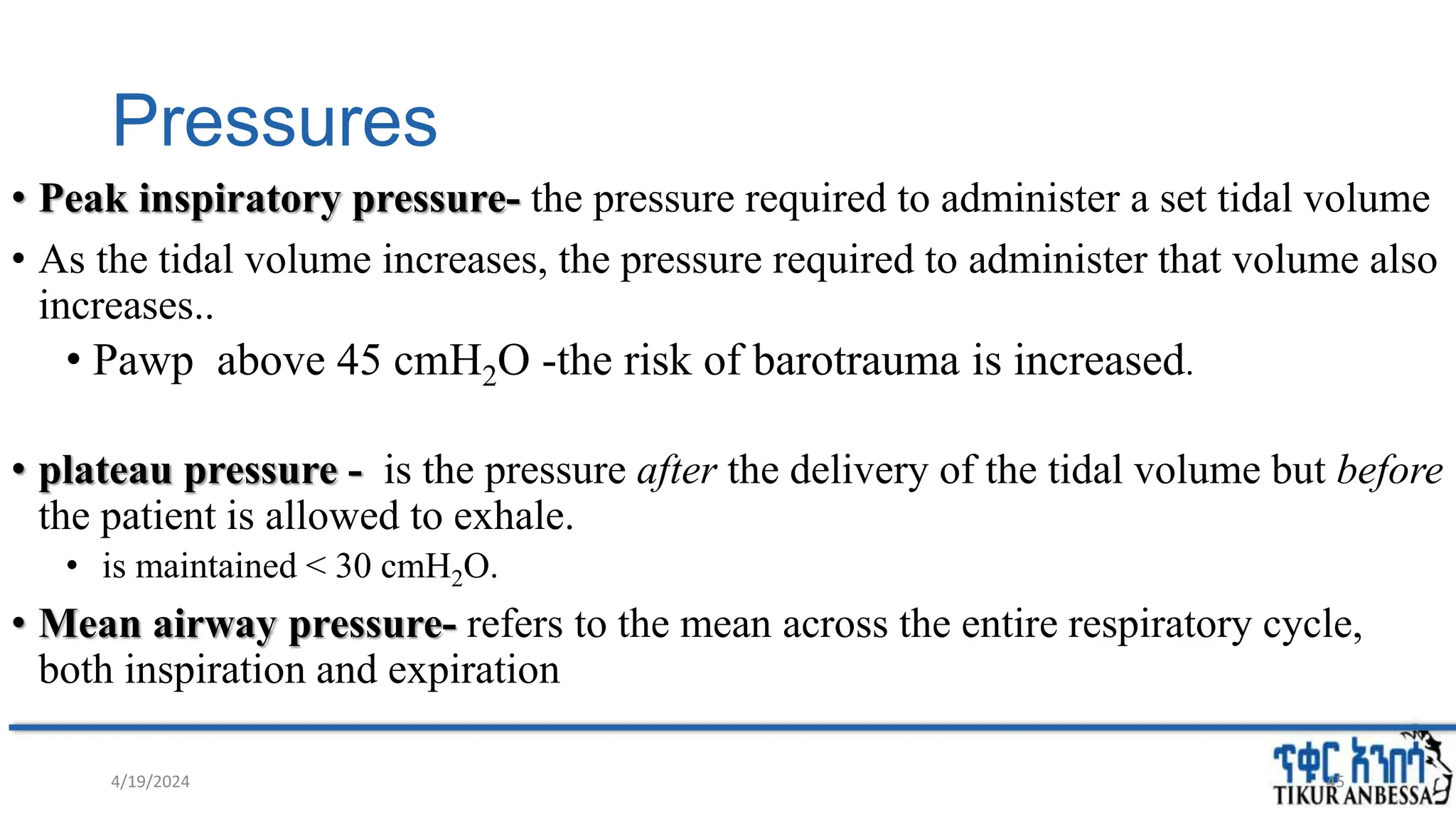

Pressures • Peak inspiratory pressure- the pressure required to administer a set tidal volume • As the tidal volume increases, the pressure required to administer that volume also increases.. • Pawp above 45 cmH2O -the risk of barotrauma is increased. • plateau pressure - is the pressure after the delivery of the tidal volume but before the patient is allowed to exhale. • is maintained < 30 cmH2O. • Mean airway pressure- refers to the mean across the entire respiratory cycle, both inspiration and expiration 4/19/2024 45

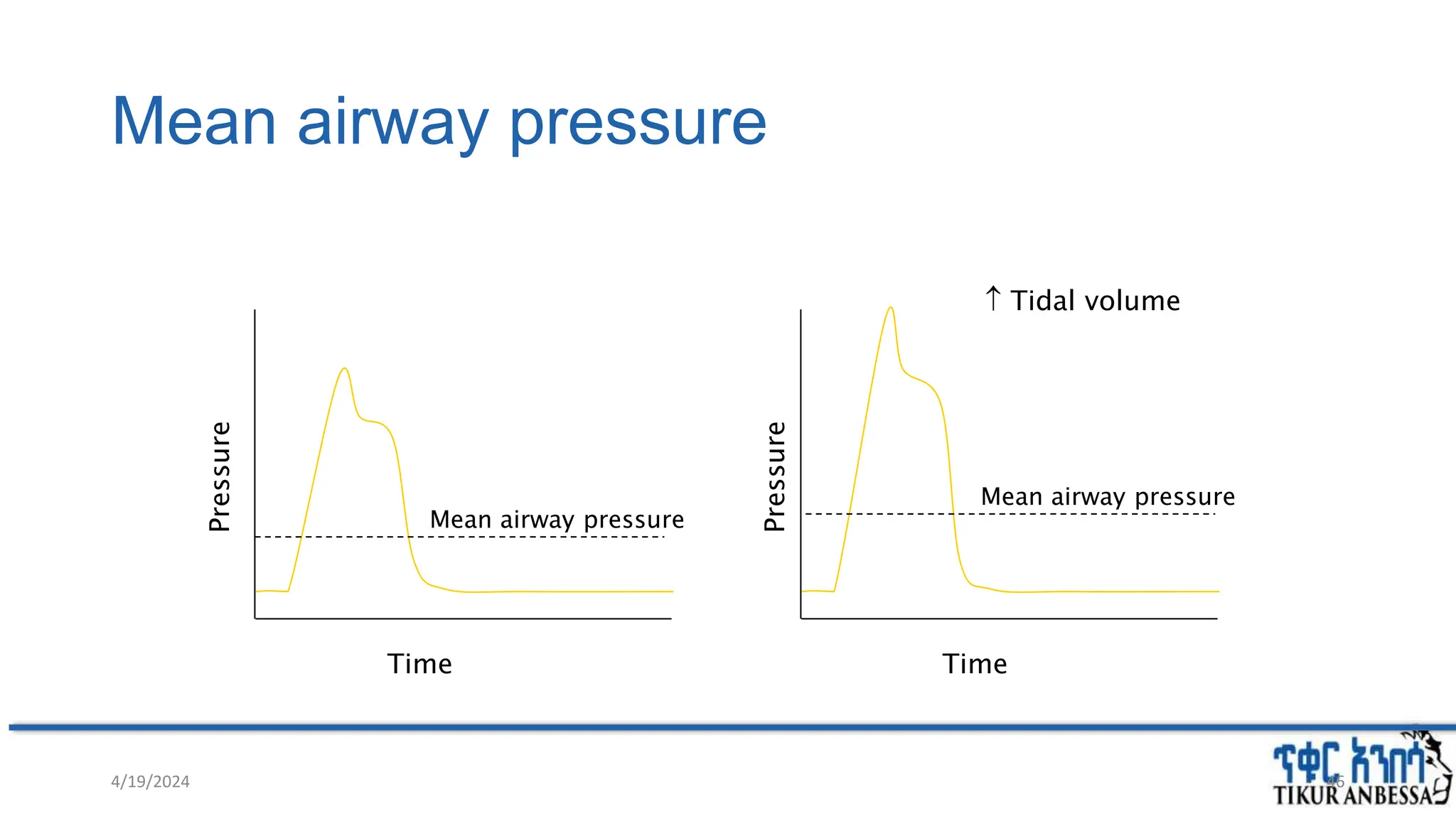

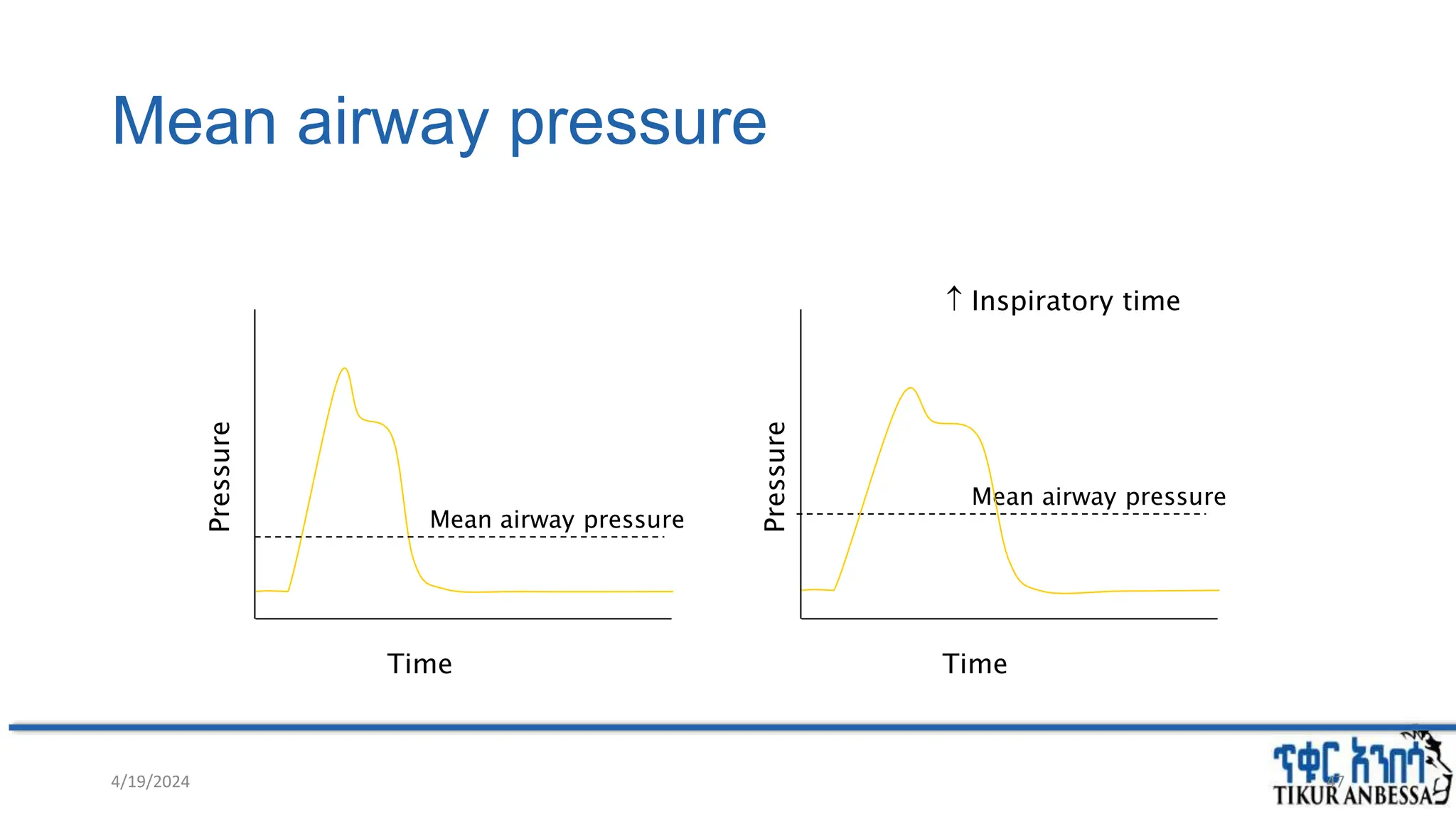

Mean airway pressure Mean airway pressure Mean airway pressure Time Pressure Time Pressure  Tidal volume 4/19/2024 46
Mean airway pressure Mean airway pressure Mean airway pressure Time Pressure Time Pressure  Inspiratory time 4/19/2024 47

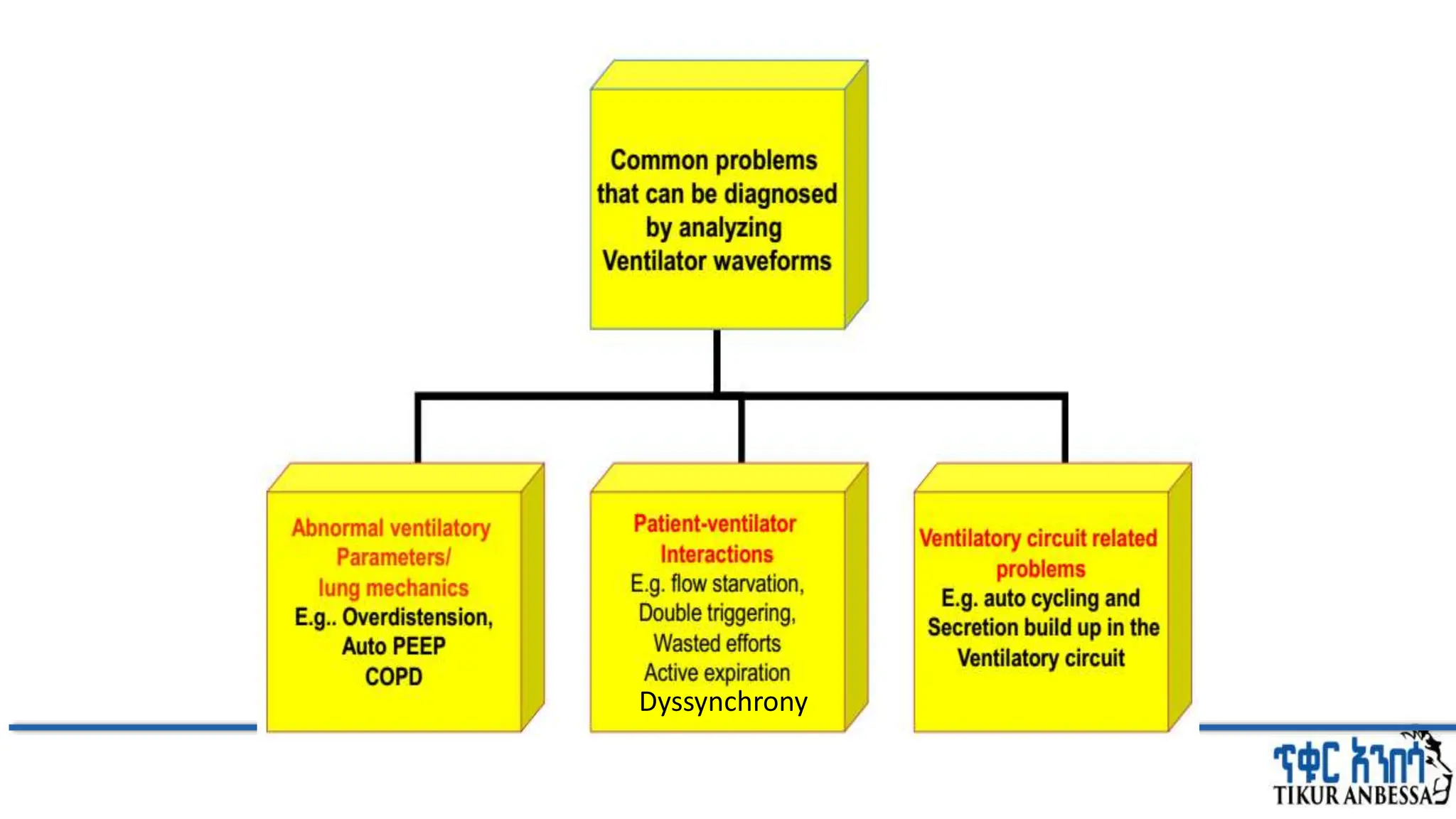

Dyssynchrony
4/19/2024 49

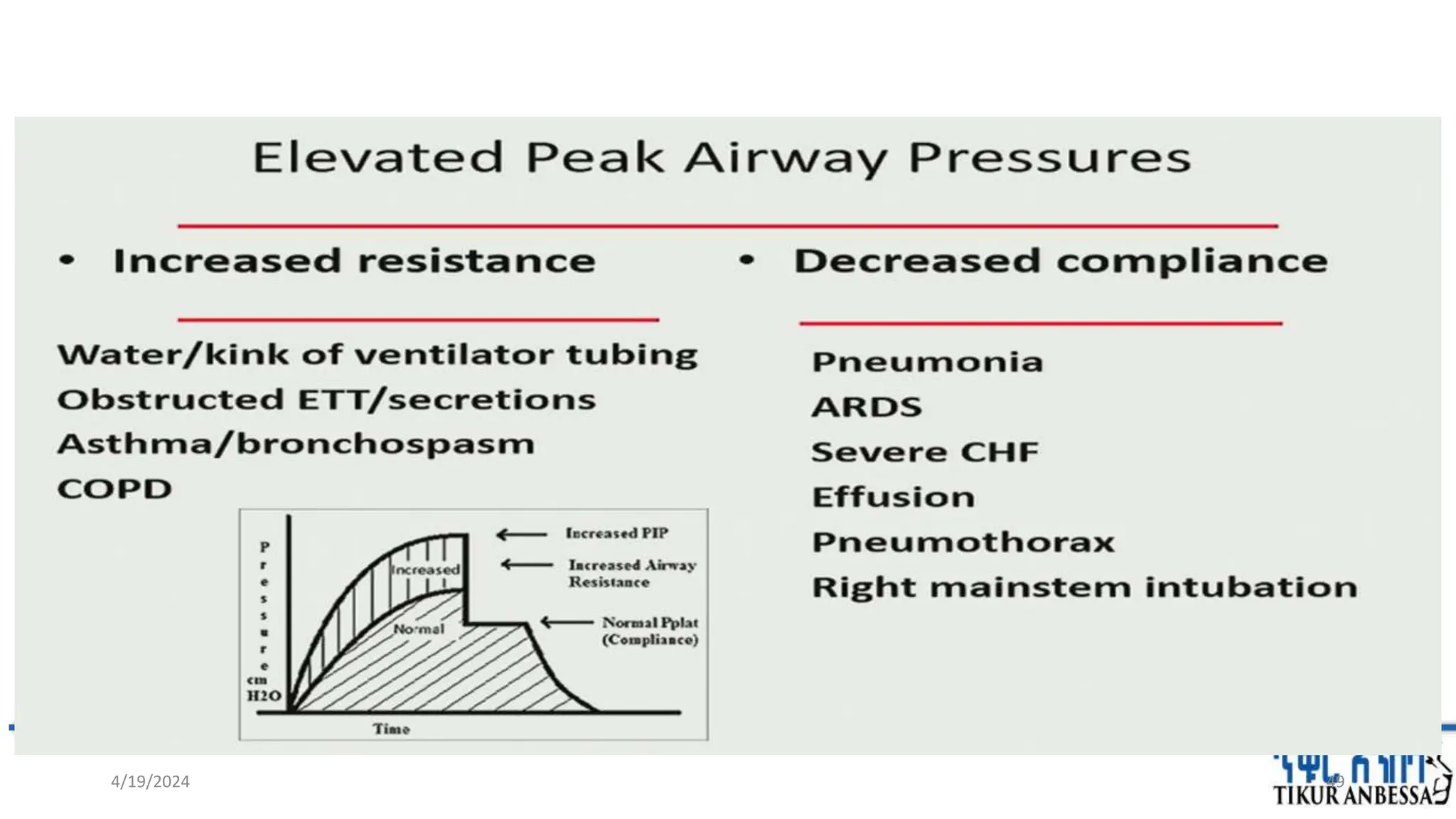

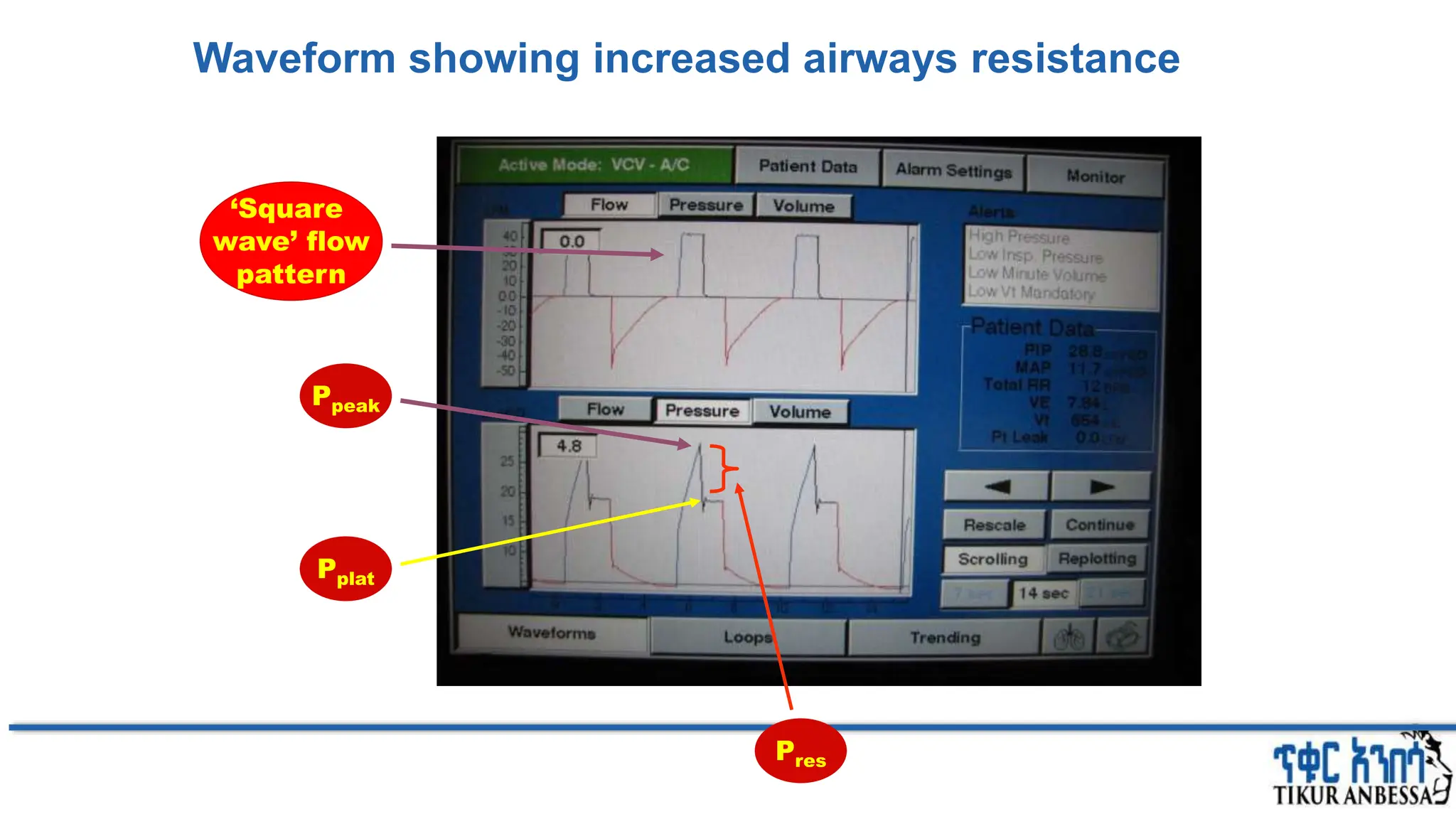

Waveform showing increased airways resistance Ppeak Pplat Pres ‘Square wave’ flow pattern

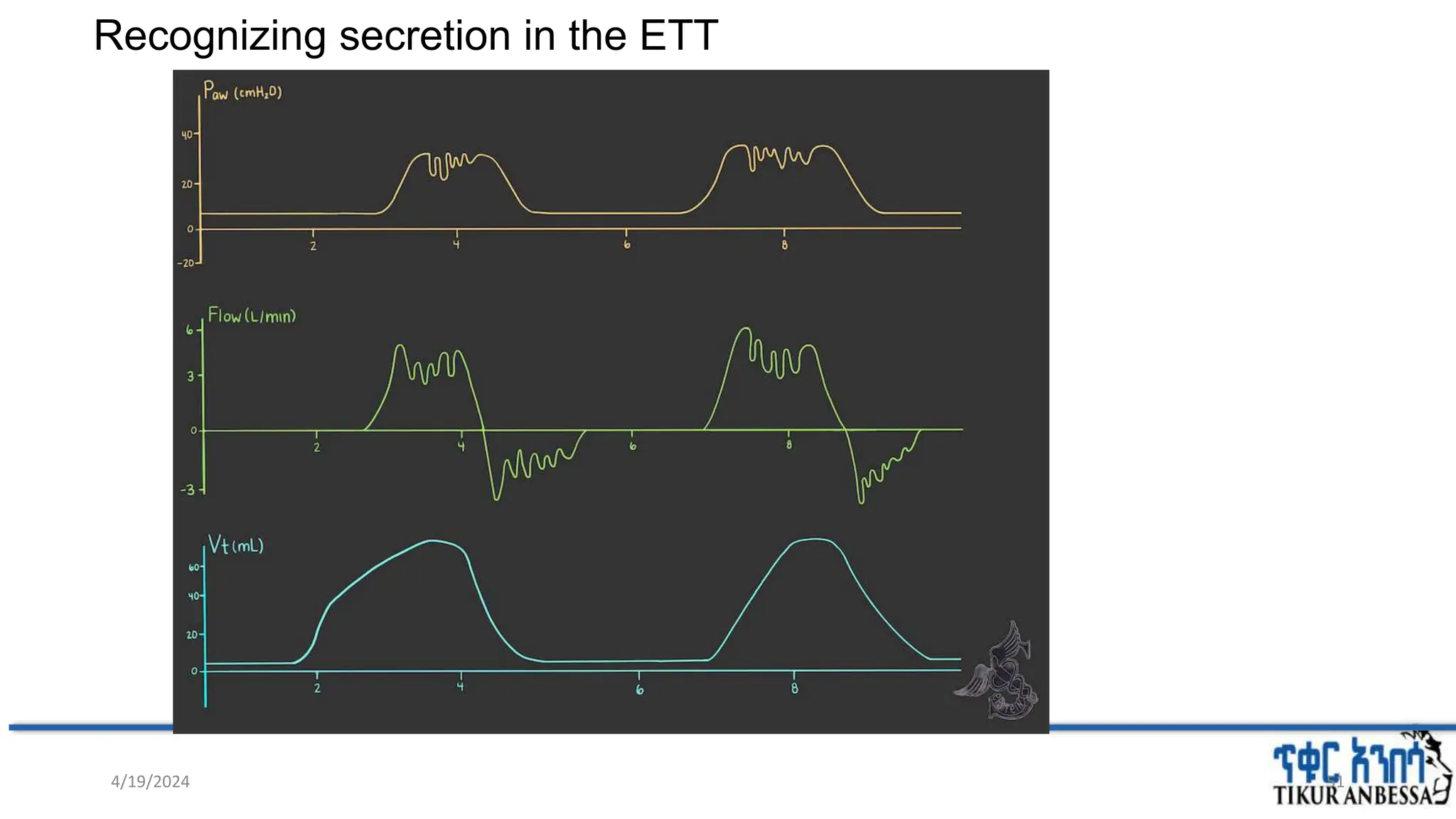

Recognizing secretion in the ETT 51 4/19/2024

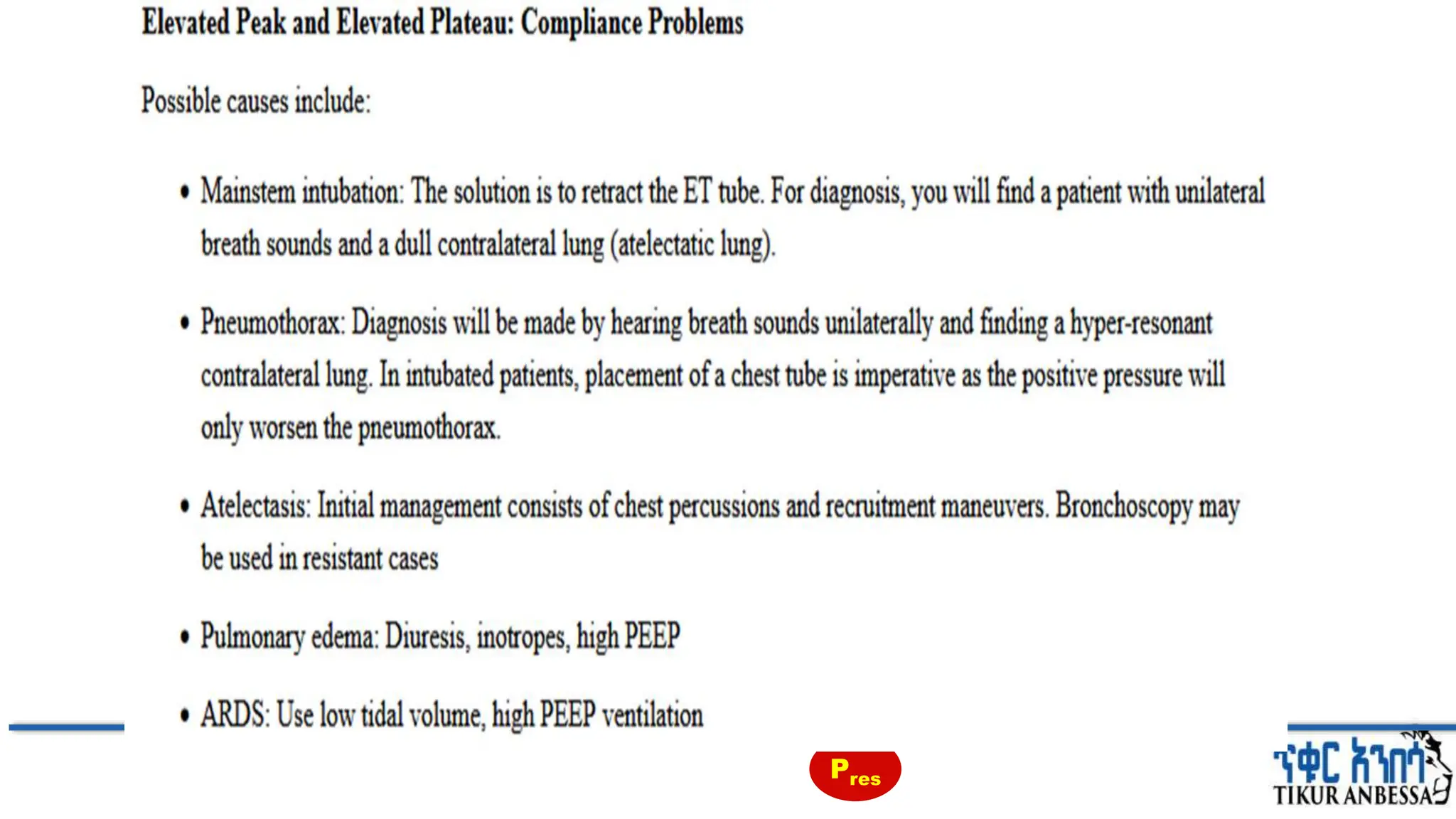

Waveform showing decreased lung compliance Ppeak Pplat Pres ‘Square wave’ flow pattern

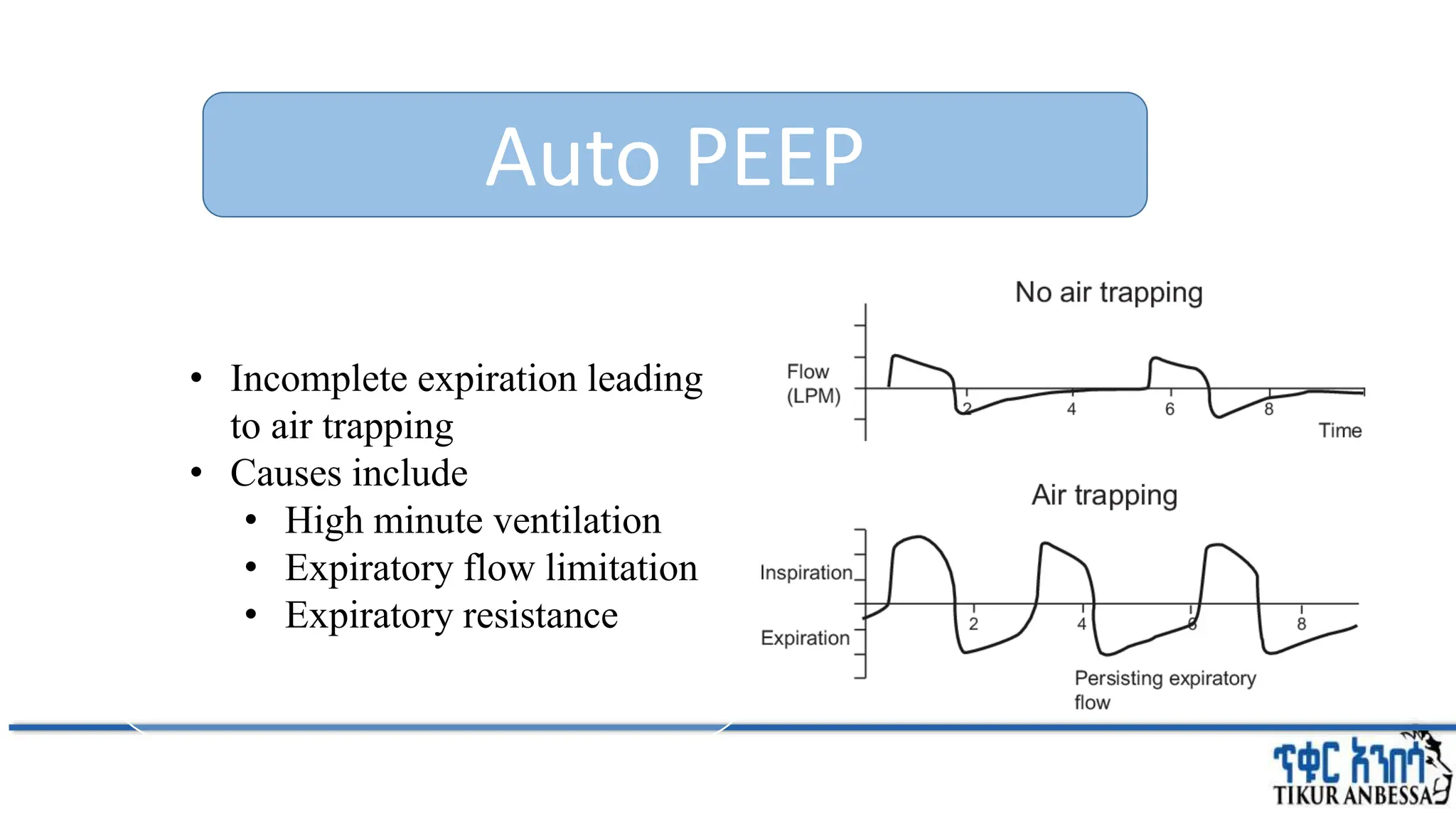

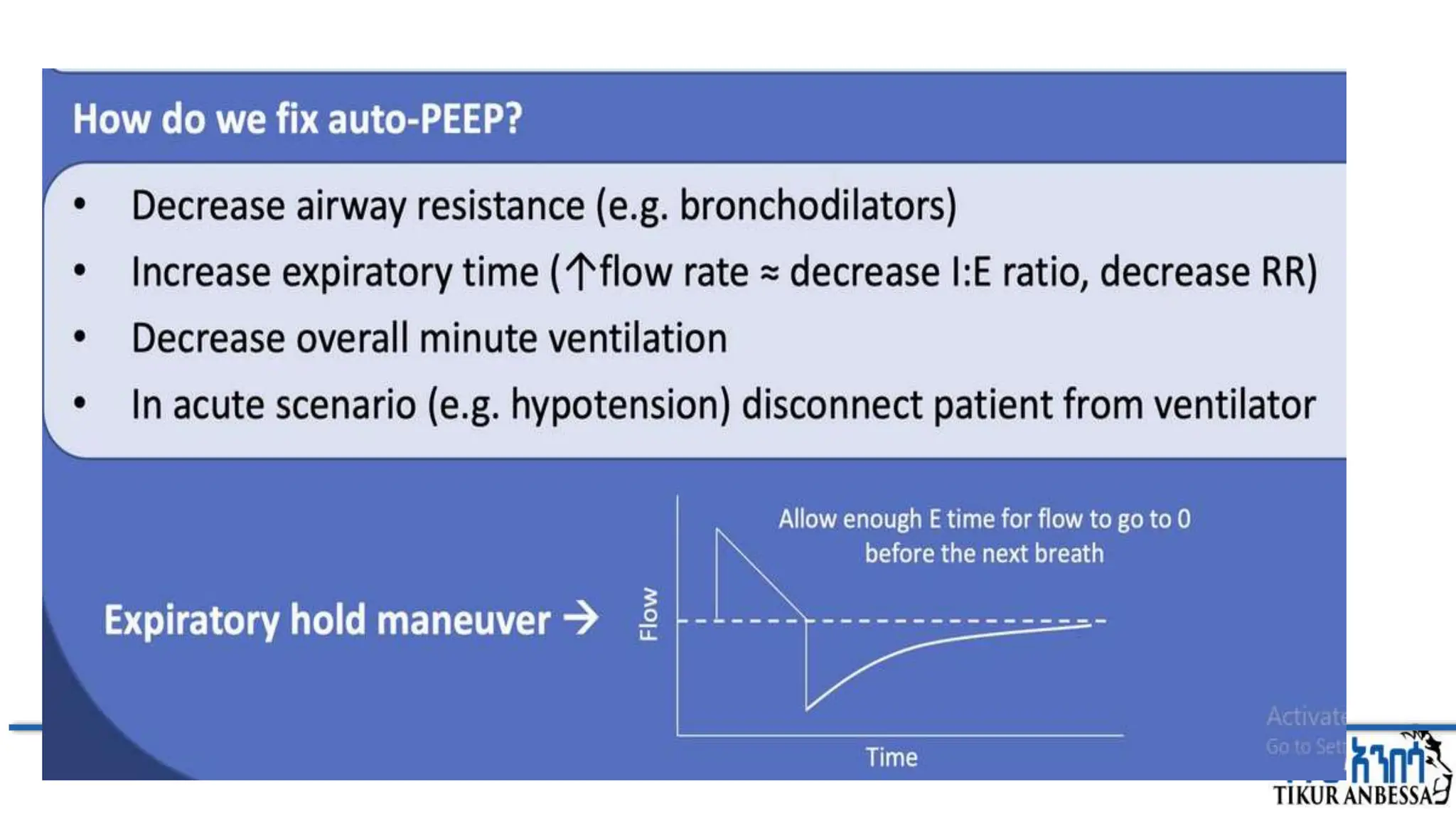

• Incomplete expiration leading to air trapping • Causes include • High minute ventilation • Expiratory flow limitation • Expiratory resistance Auto PEEP

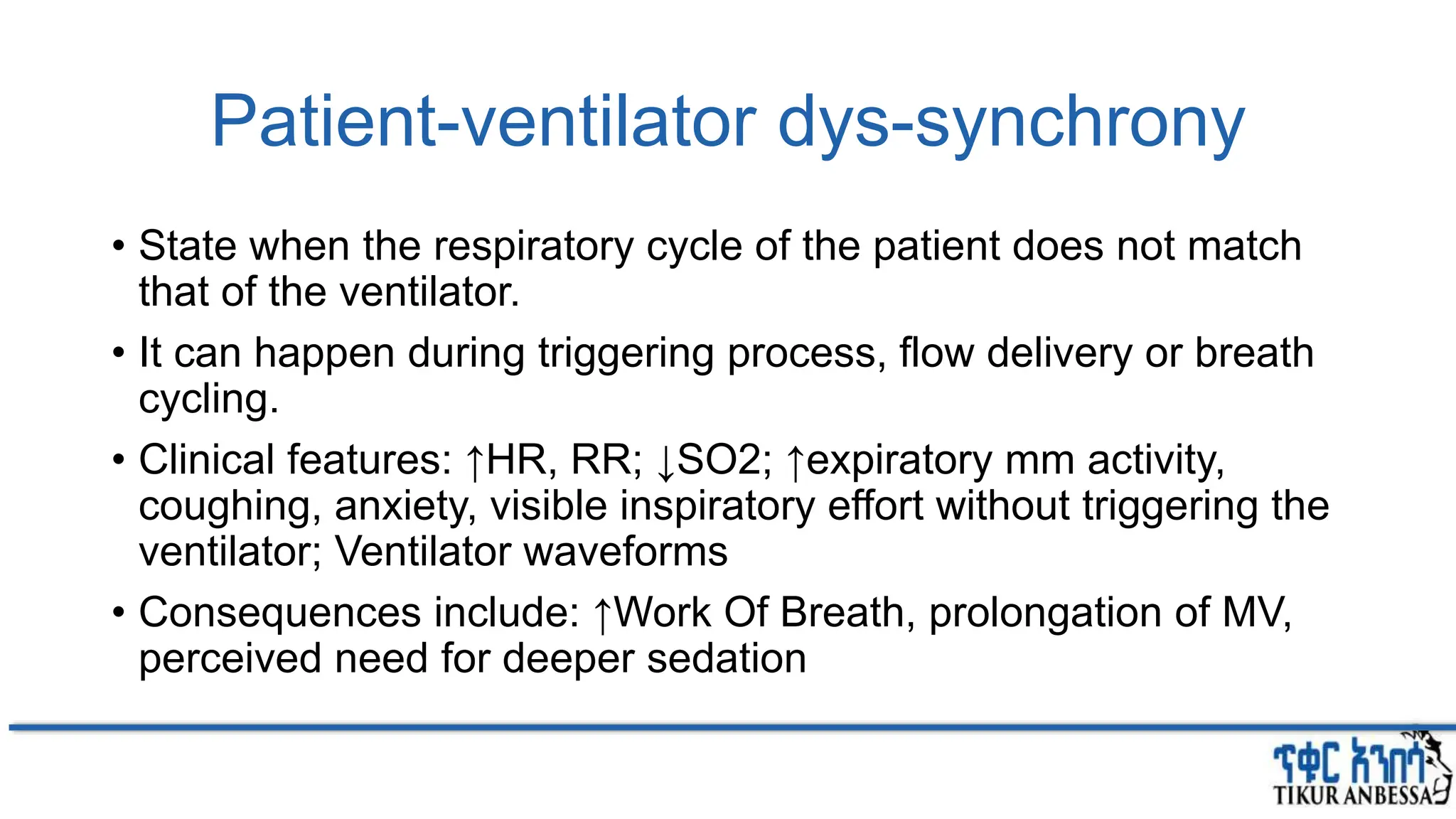

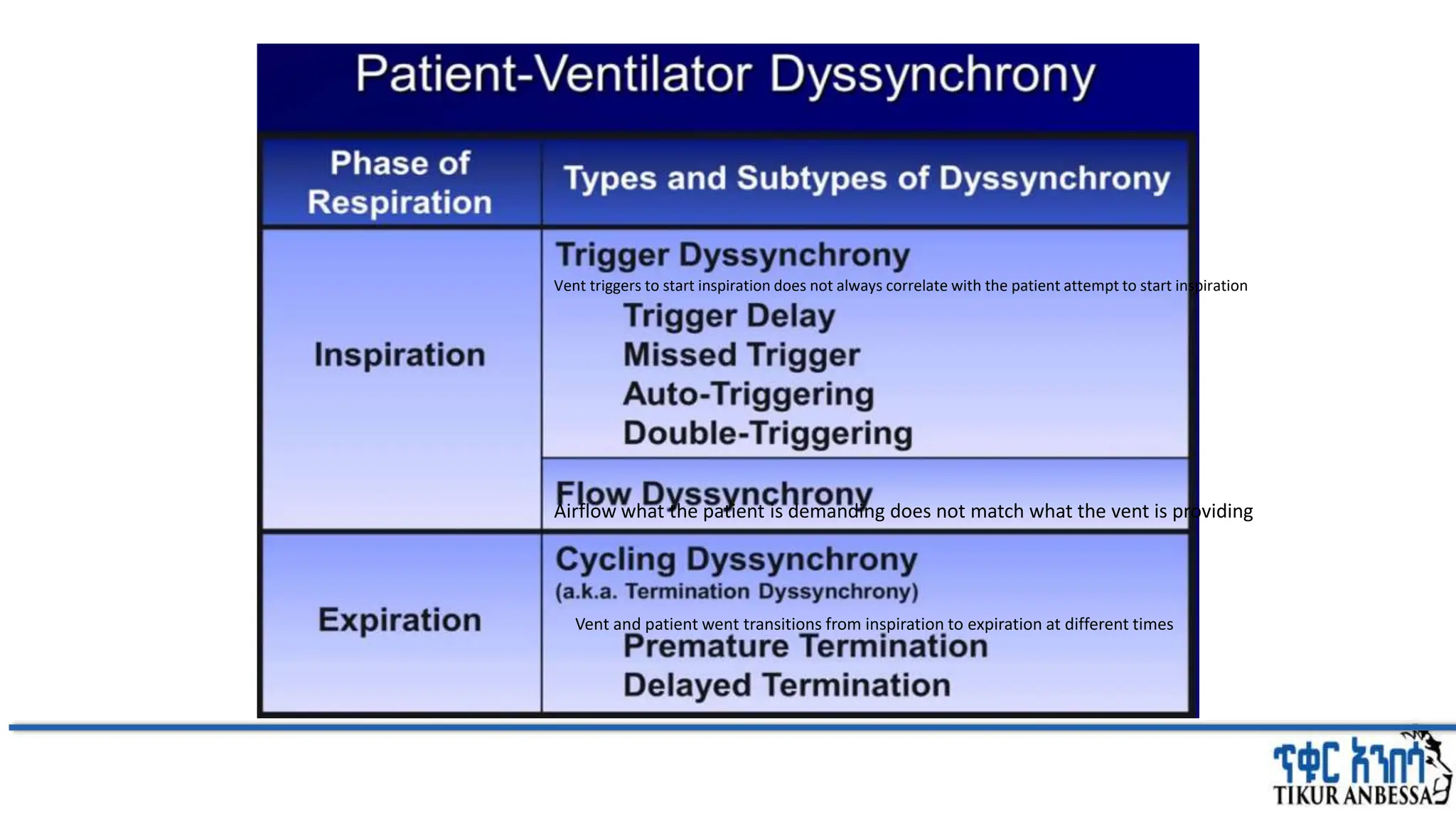

Patient-ventilator dys-synchrony • State when the respiratory cycle of the patient does not match that of the ventilator. • It can happen during triggering process, flow delivery or breath cycling. • Clinical features: ↑HR, RR; ↓SO2; ↑expiratory mm activity, coughing, anxiety, visible inspiratory effort without triggering the ventilator; Ventilator waveforms • Consequences include: ↑Work Of Breath, prolongation of MV, perceived need for deeper sedation
Vent triggers to start inspiration does not always correlate with the patient attempt to start inspiration Airflow what the patient is demanding does not match what the vent is providing Vent and patient went transitions from inspiration to expiration at different times

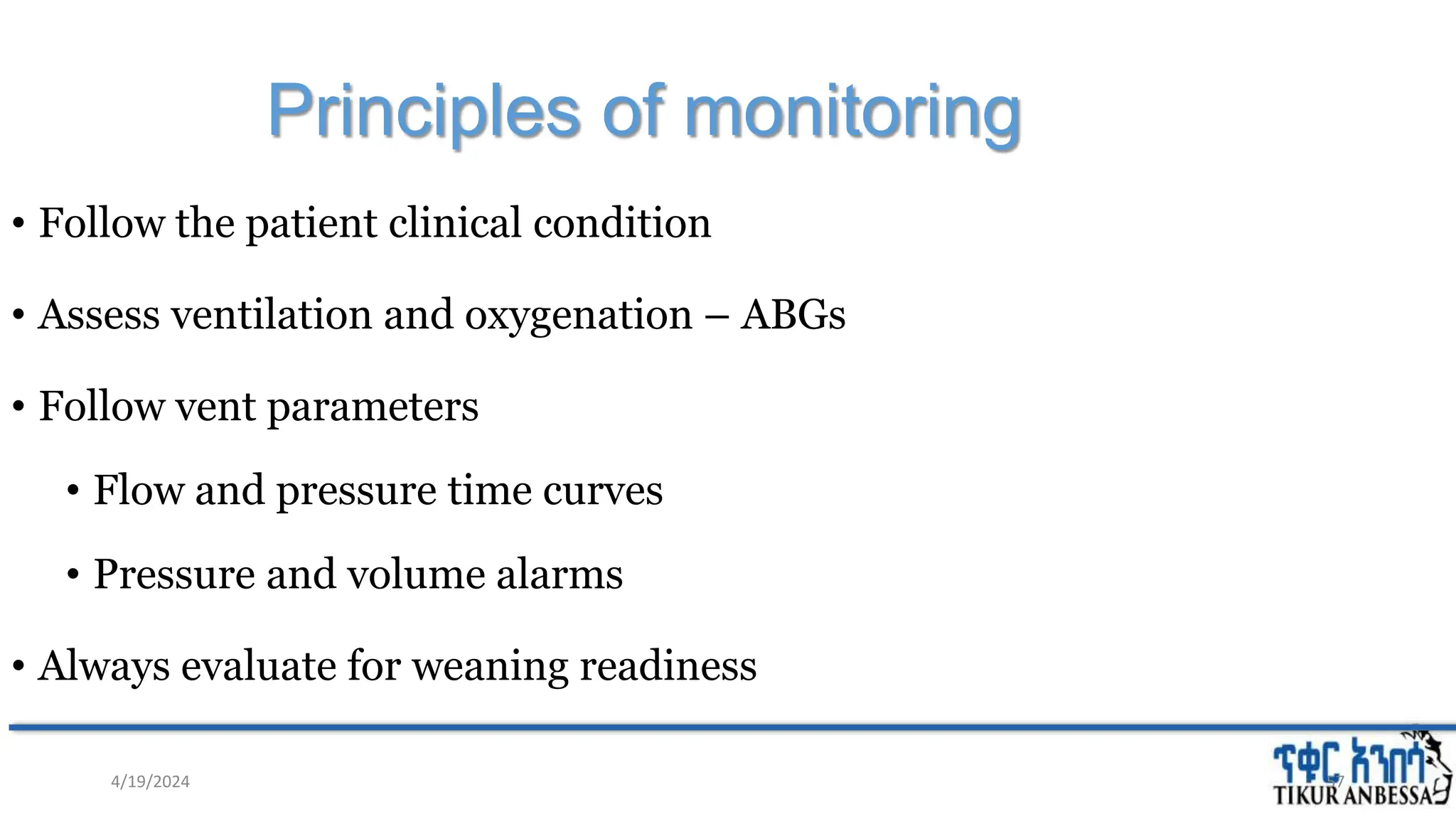

Principles of monitoring • Follow the patient clinical condition • Assess ventilation and oxygenation – ABGs • Follow vent parameters • Flow and pressure time curves • Pressure and volume alarms • Always evaluate for weaning readiness 57 4/19/2024

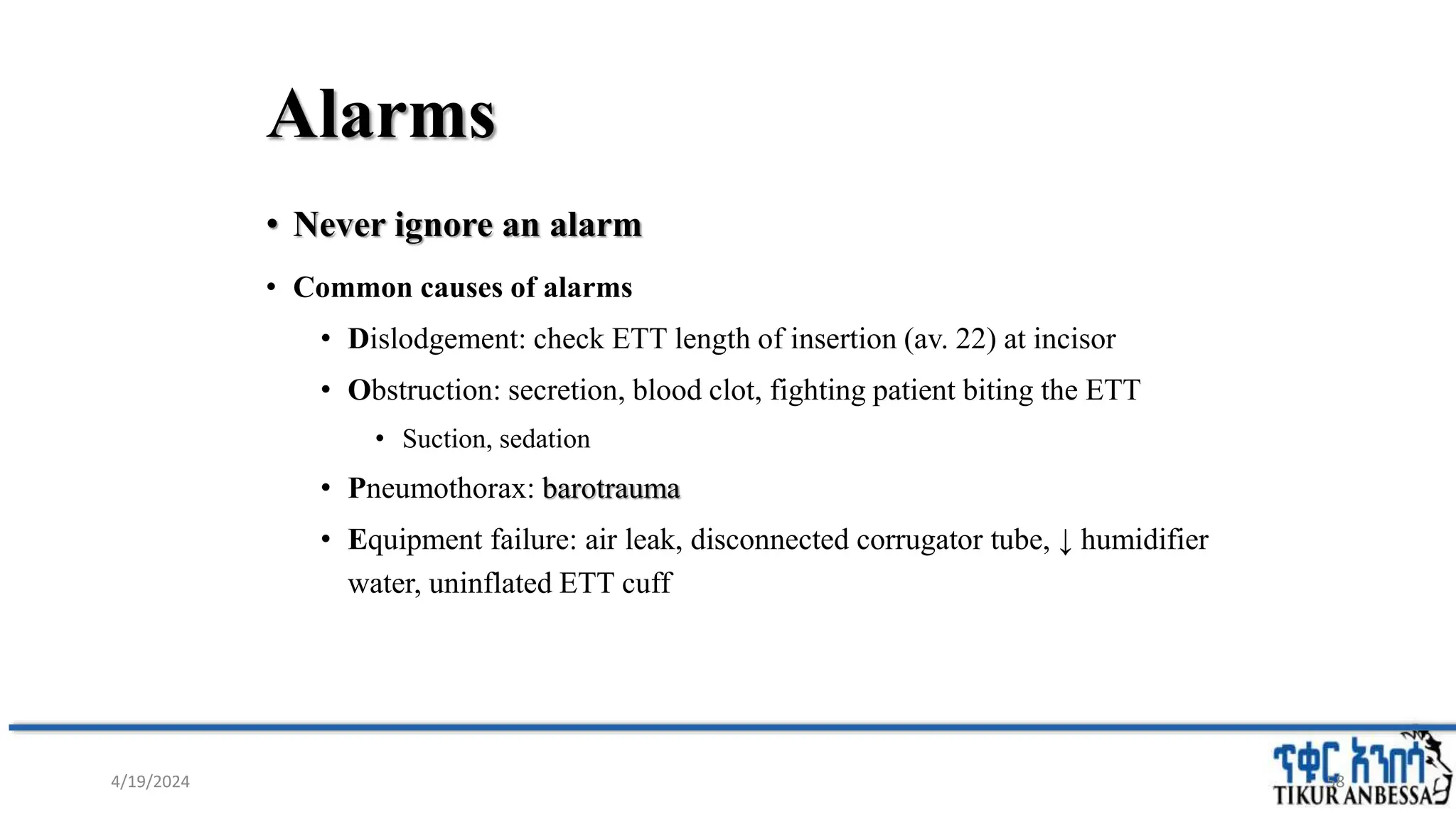

Alarms • Never ignore an alarm • Common causes of alarms • Dislodgement: check ETT length of insertion (av. 22) at incisor • Obstruction: secretion, blood clot, fighting patient biting the ETT • Suction, sedation • Pneumothorax: barotrauma • Equipment failure: air leak, disconnected corrugator tube, ↓ humidifier water, uninflated ETT cuff 58 4/19/2024

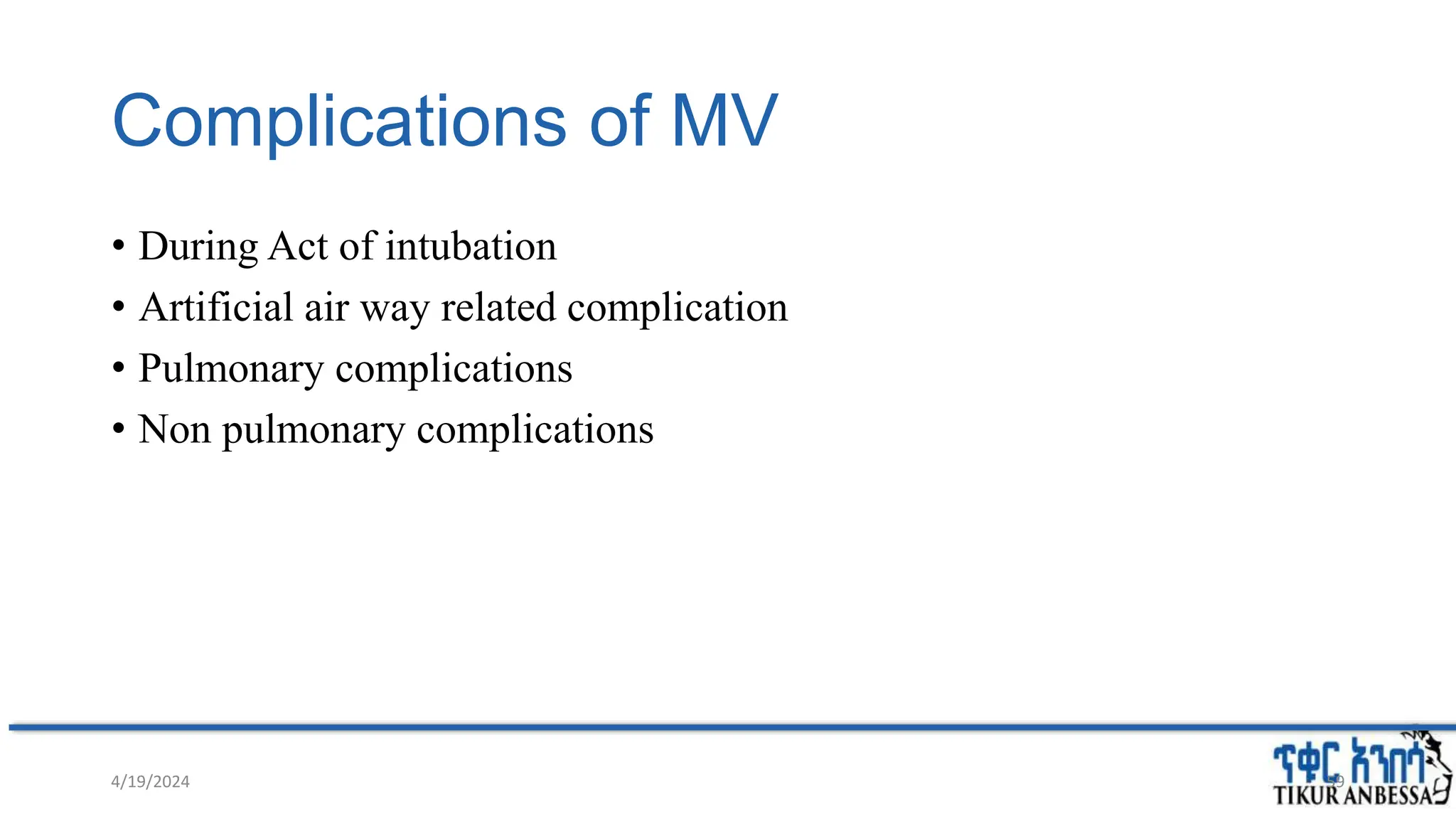

Complications of MV • During Act of intubation • Artificial air way related complication • Pulmonary complications • Non pulmonary complications 4/19/2024 59

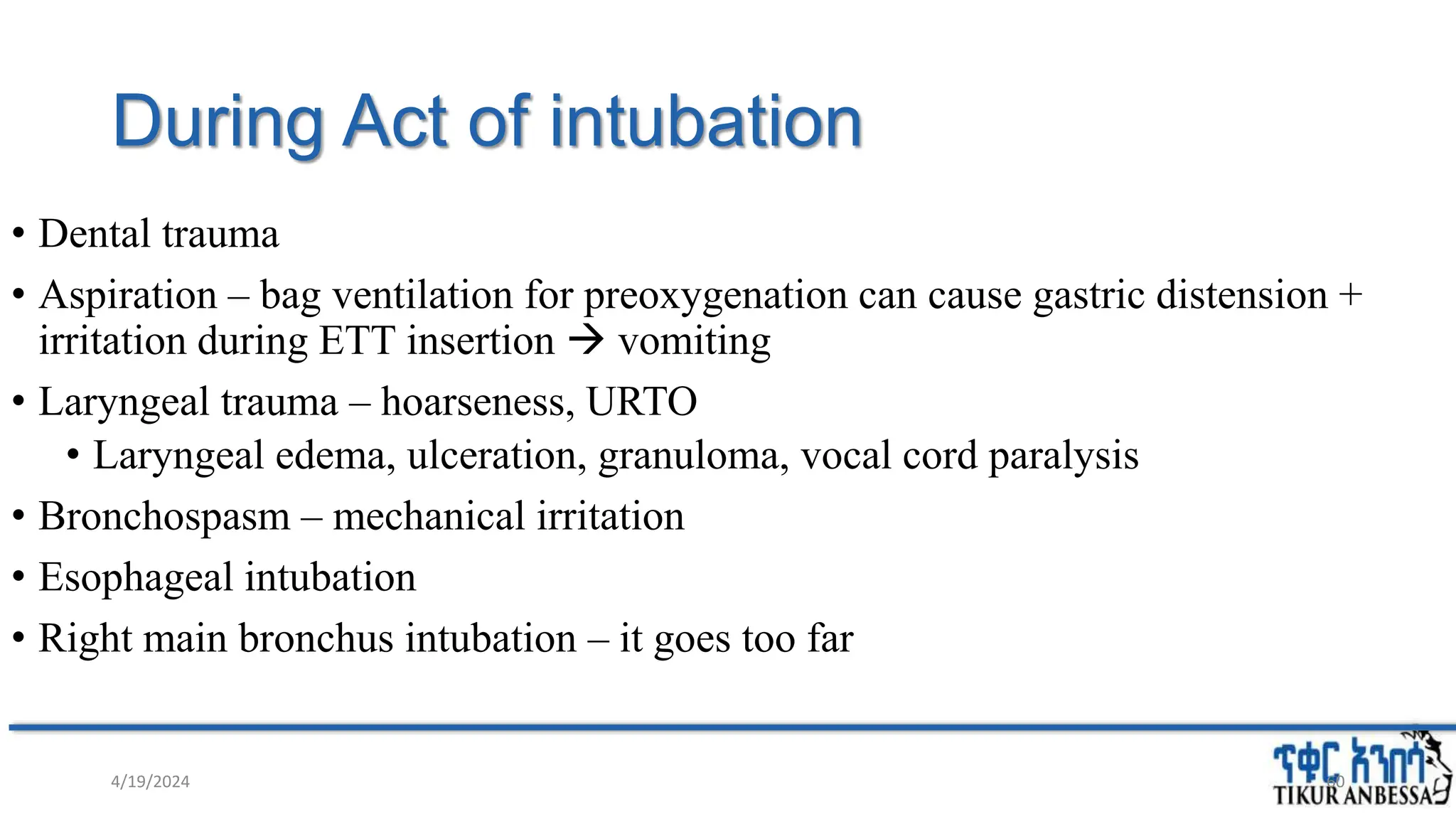

During Act of intubation • Dental trauma • Aspiration – bag ventilation for preoxygenation can cause gastric distension + irritation during ETT insertion  vomiting • Laryngeal trauma – hoarseness, URTO • Laryngeal edema, ulceration, granuloma, vocal cord paralysis • Bronchospasm – mechanical irritation • Esophageal intubation • Right main bronchus intubation – it goes too far 4/19/2024 60
Artificial air way related complication • Failure of alarms or ventilator, Alarm “turned off” • Disconnection, circuit leaks • Obstruction by secretions • Inadequate nebulization or humidification • Overheated inspired air, resulting in hyperthermia • Dyssynchronous breathing pattern • Tube kinked, plugged • Cuff failure • Migration – ETT migrates with suctioning, coughing, movement • Tracheal stenosis – pressure necrosis  ulceration, scarring 4/19/2024 61

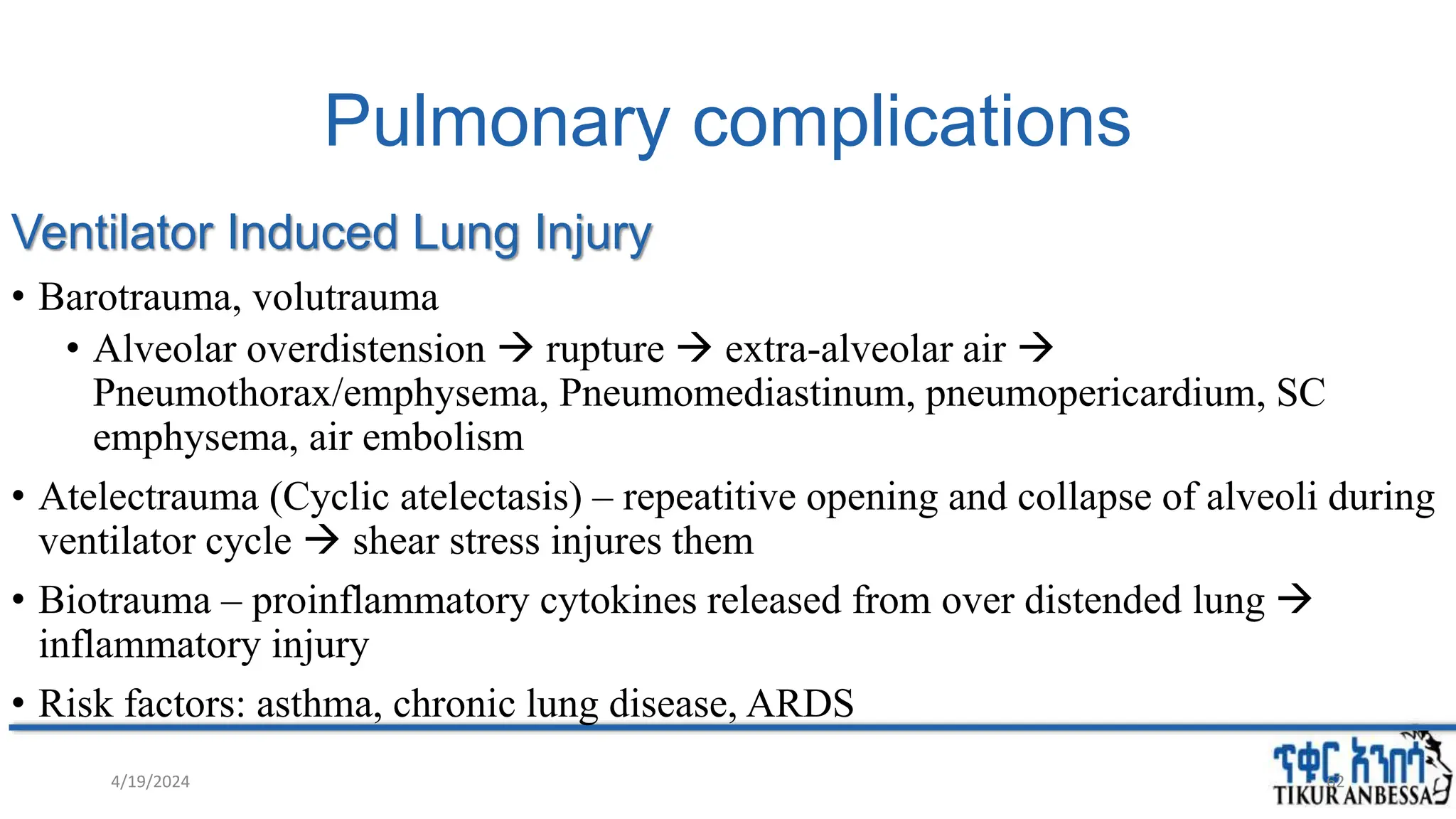

Pulmonary complications Ventilator Induced Lung Injury • Barotrauma, volutrauma • Alveolar overdistension  rupture  extra-alveolar air  Pneumothorax/emphysema, Pneumomediastinum, pneumopericardium, SC emphysema, air embolism • Atelectrauma (Cyclic atelectasis) – repeatitive opening and collapse of alveoli during ventilator cycle  shear stress injures them • Biotrauma – proinflammatory cytokines released from over distended lung  inflammatory injury • Risk factors: asthma, chronic lung disease, ARDS 4/19/2024 62

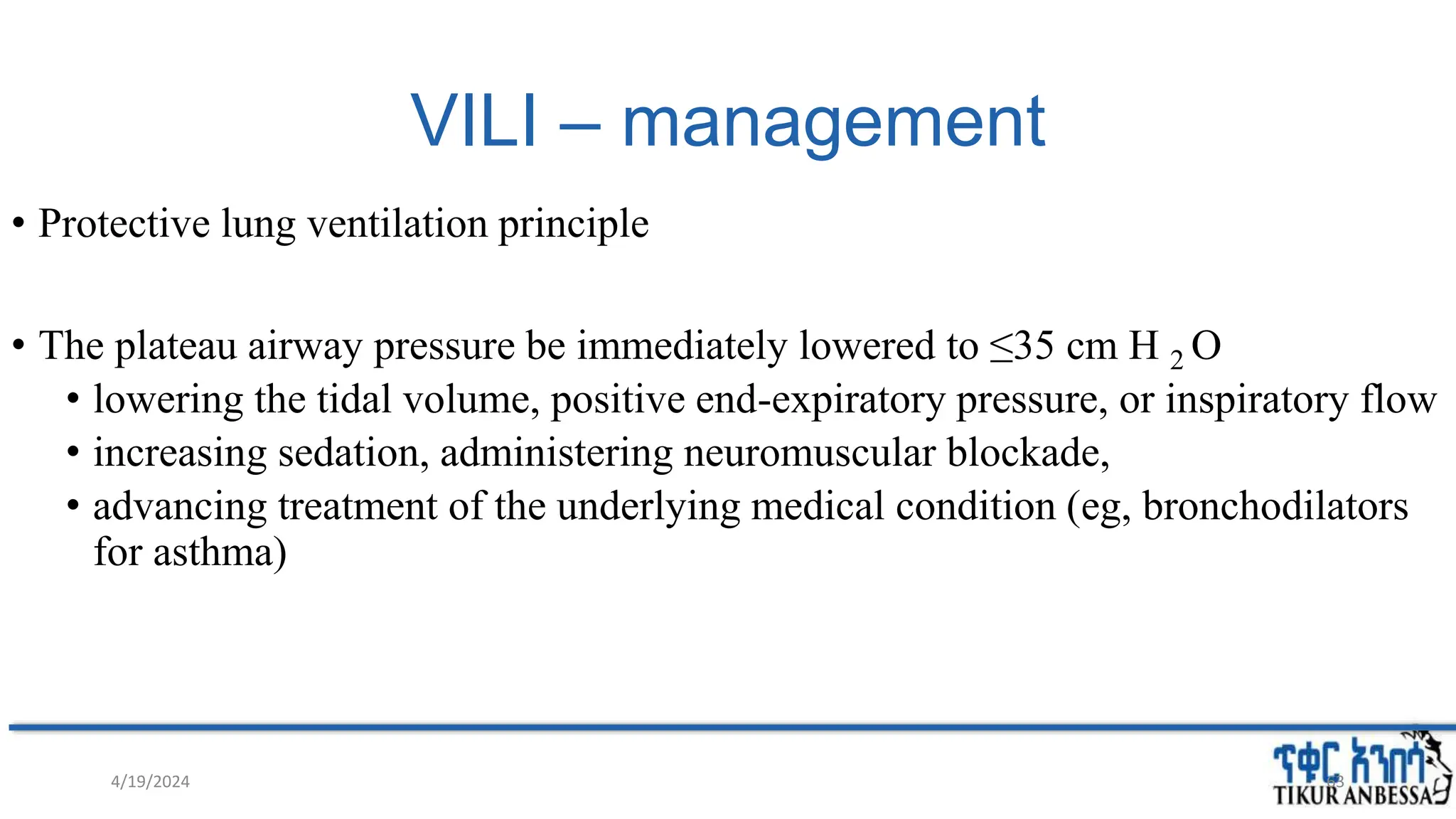

VILI – management • Protective lung ventilation principle • The plateau airway pressure be immediately lowered to ≤35 cm H 2 O • lowering the tidal volume, positive end-expiratory pressure, or inspiratory flow • increasing sedation, administering neuromuscular blockade, • advancing treatment of the underlying medical condition (eg, bronchodilators for asthma) 4/19/2024 63

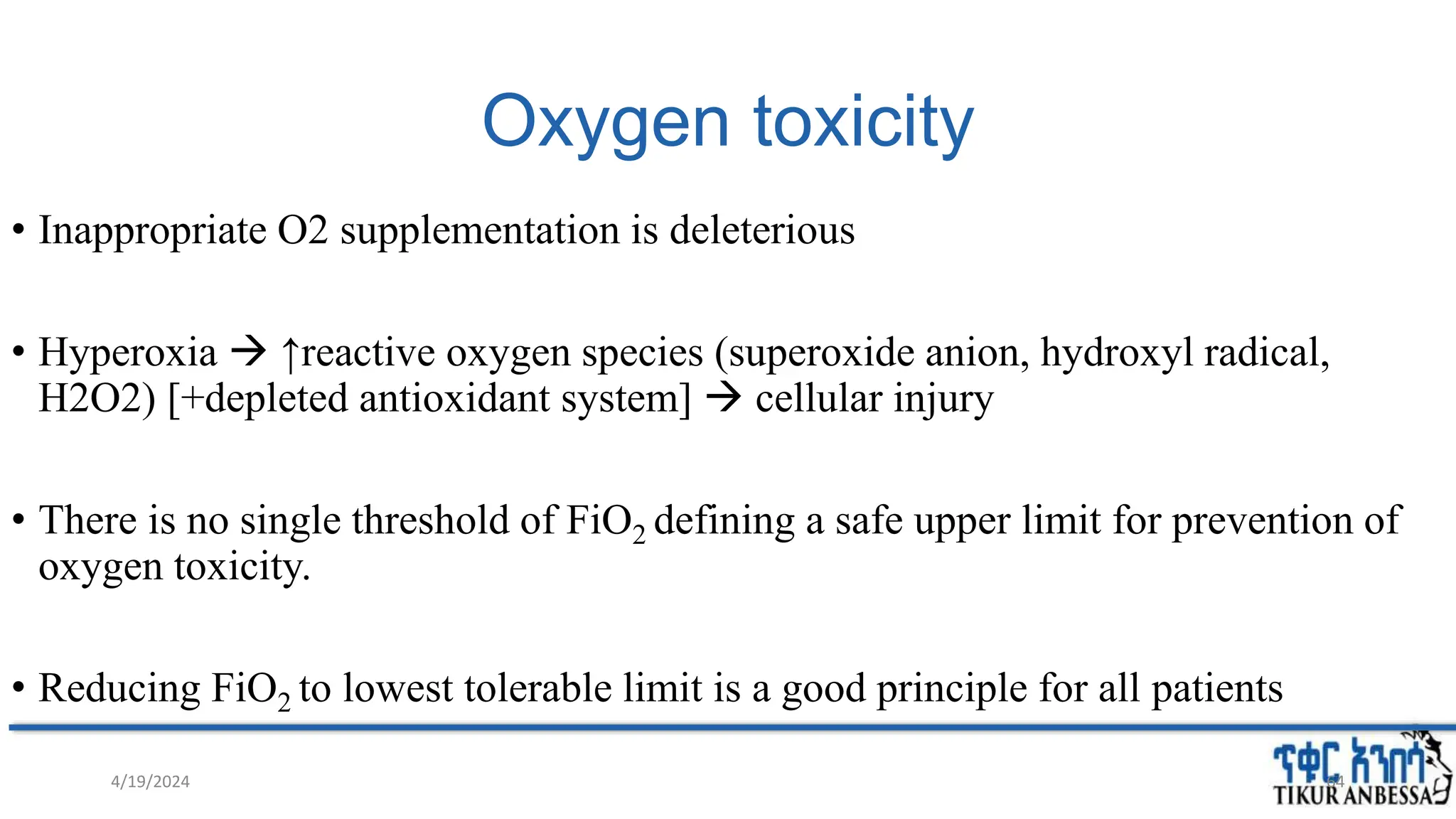

Oxygen toxicity • Inappropriate O2 supplementation is deleterious • Hyperoxia  ↑reactive oxygen species (superoxide anion, hydroxyl radical, H2O2) [+depleted antioxidant system]  cellular injury • There is no single threshold of FiO2 defining a safe upper limit for prevention of oxygen toxicity. • Reducing FiO2 to lowest tolerable limit is a good principle for all patients 4/19/2024 64

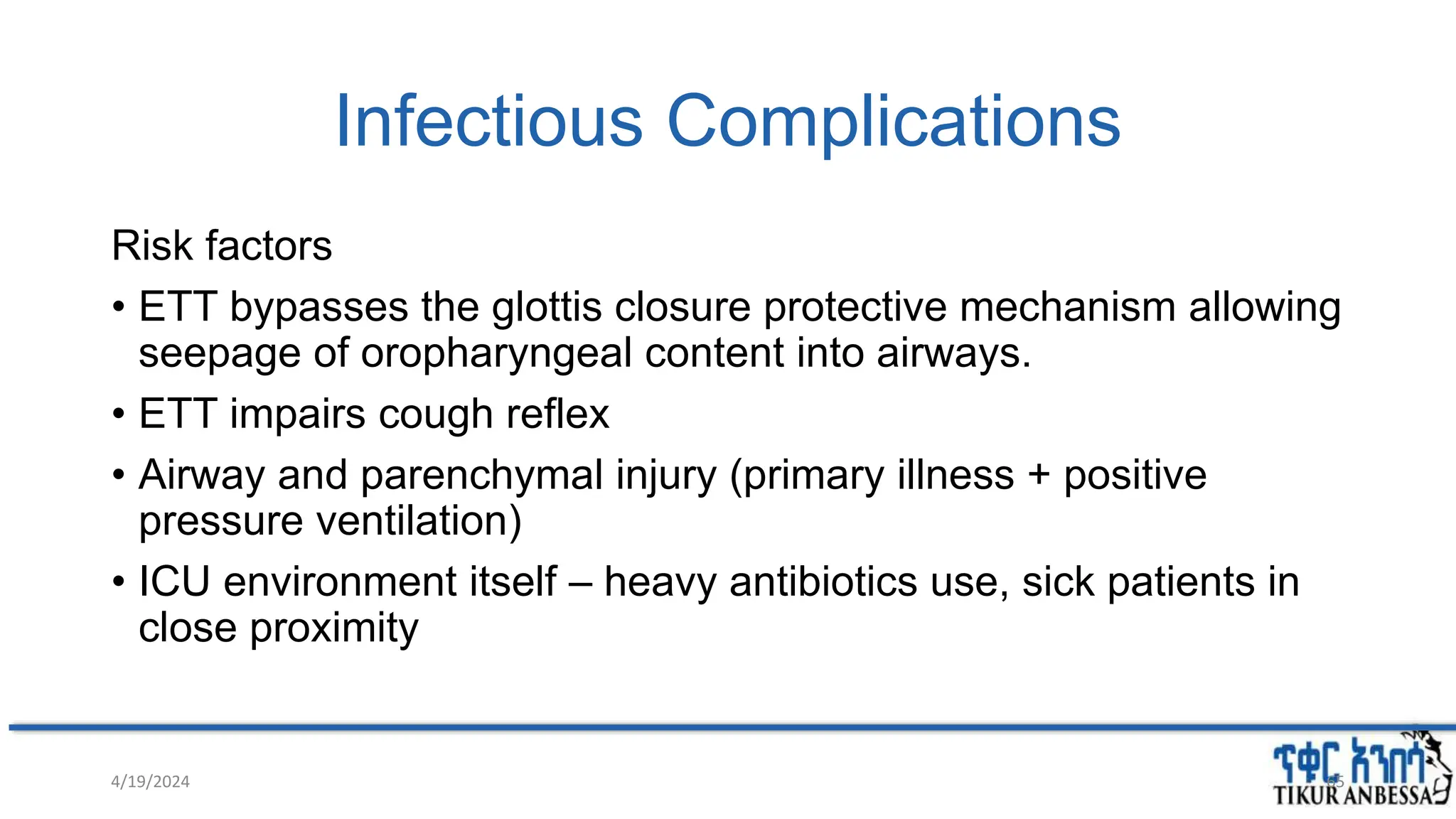

Infectious Complications Risk factors • ETT bypasses the glottis closure protective mechanism allowing seepage of oropharyngeal content into airways. • ETT impairs cough reflex • Airway and parenchymal injury (primary illness + positive pressure ventilation) • ICU environment itself – heavy antibiotics use, sick patients in close proximity 4/19/2024 65

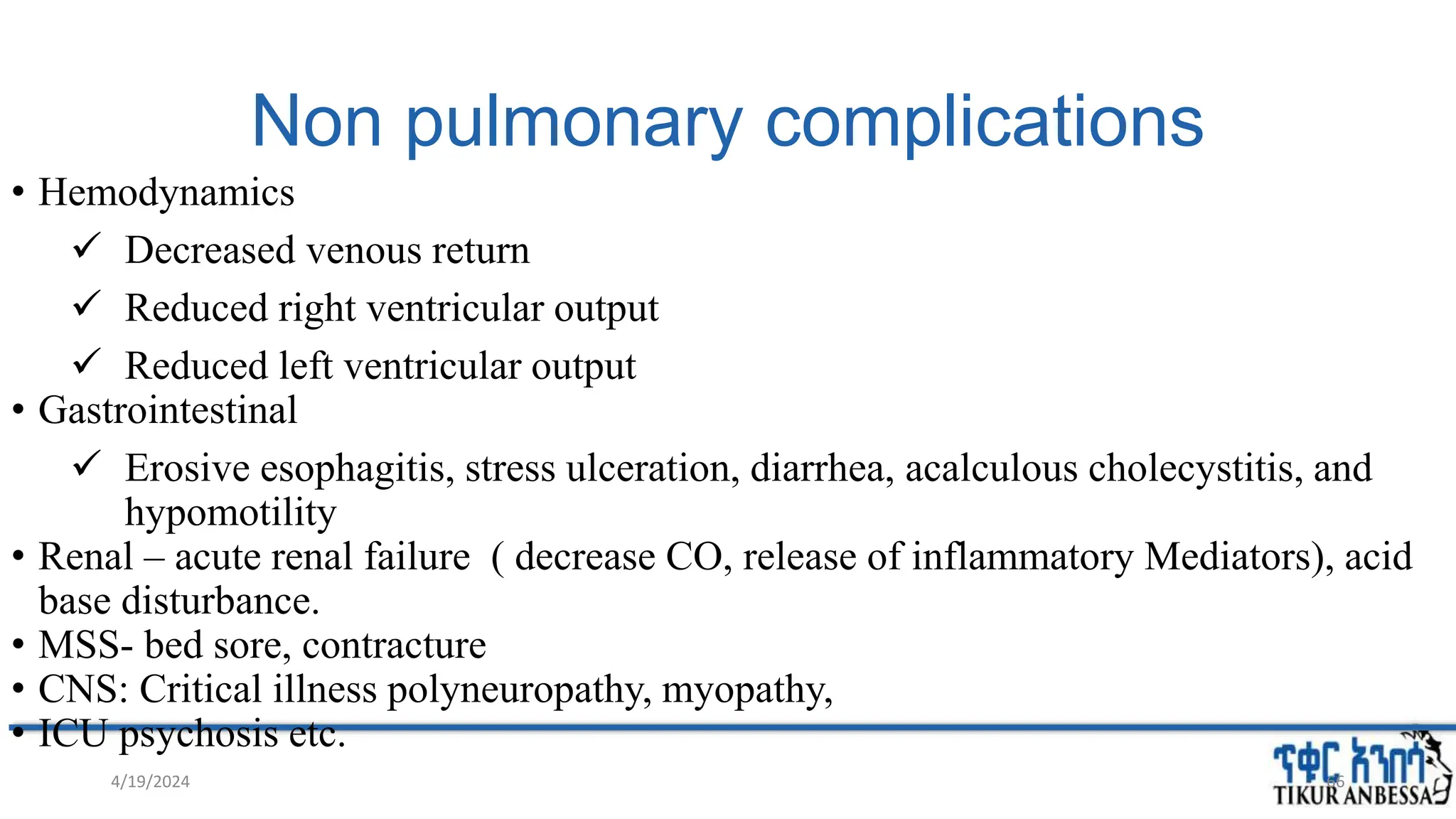

Non pulmonary complications • Hemodynamics  Decreased venous return  Reduced right ventricular output  Reduced left ventricular output • Gastrointestinal  Erosive esophagitis, stress ulceration, diarrhea, acalculous cholecystitis, and hypomotility • Renal – acute renal failure ( decrease CO, release of inflammatory Mediators), acid base disturbance. • MSS- bed sore, contracture • CNS: Critical illness polyneuropathy, myopathy, • ICU psychosis etc. 66 4/19/2024

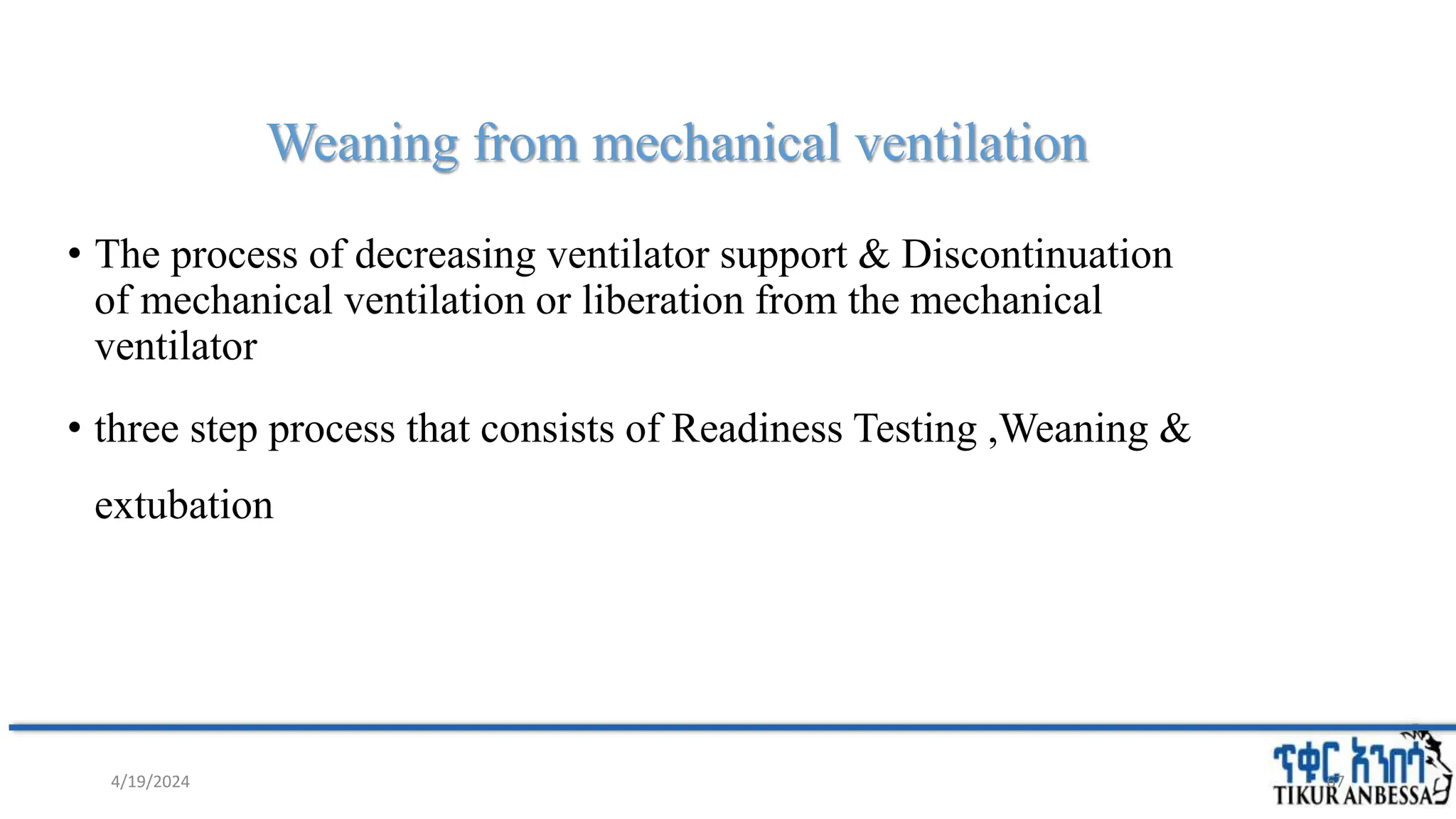

Weaning from mechanical ventilation • The process of decreasing ventilator support & Discontinuation of mechanical ventilation or liberation from the mechanical ventilator • three step process that consists of Readiness Testing ,Weaning & extubation 67 4/19/2024

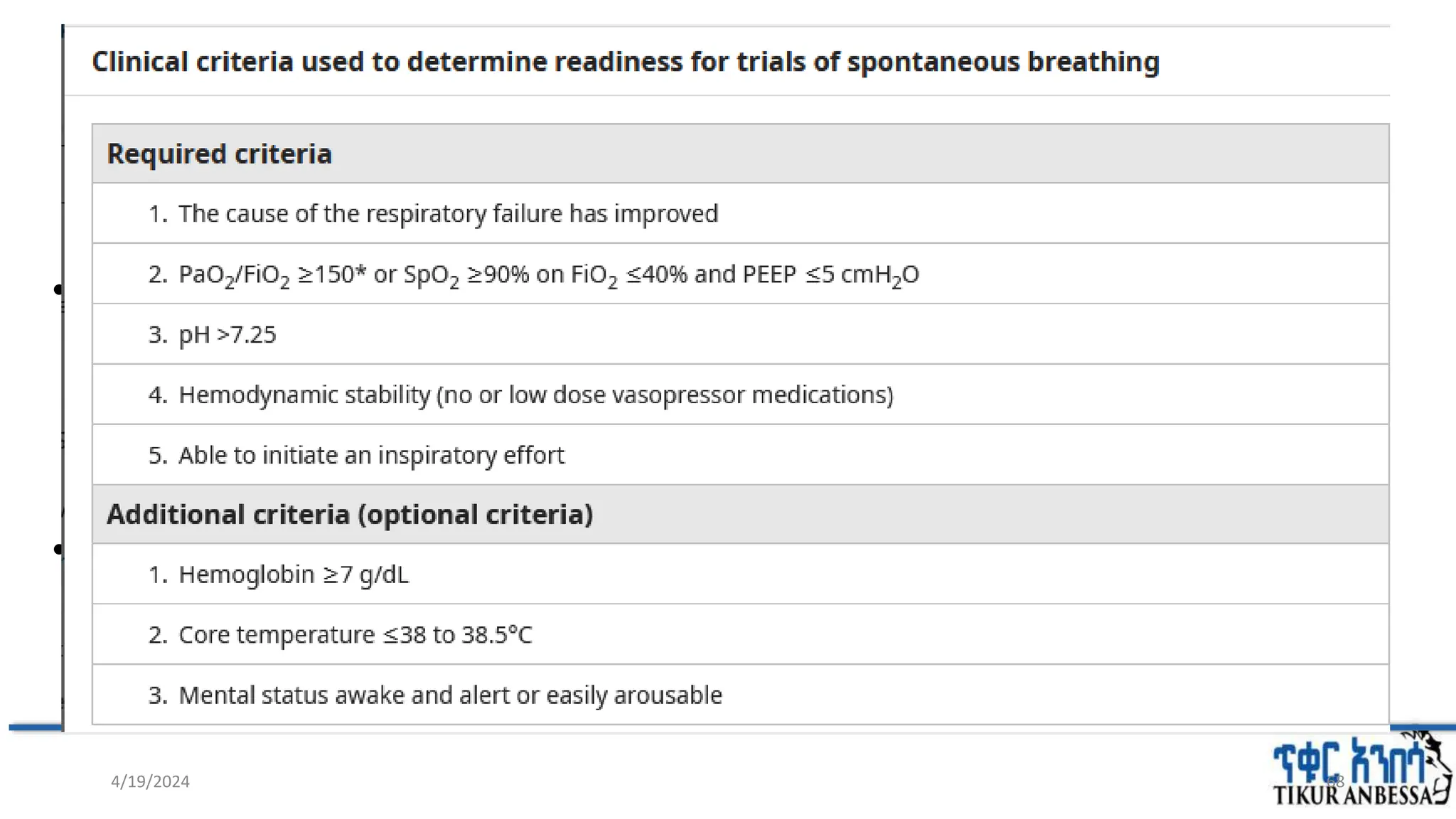

Readiness testing • Readiness Testing – 2 goals • Identify patients who are ready to wean • Protect against premature weaning • Objective clinical criteria and weaning predictors used 68 4/19/2024

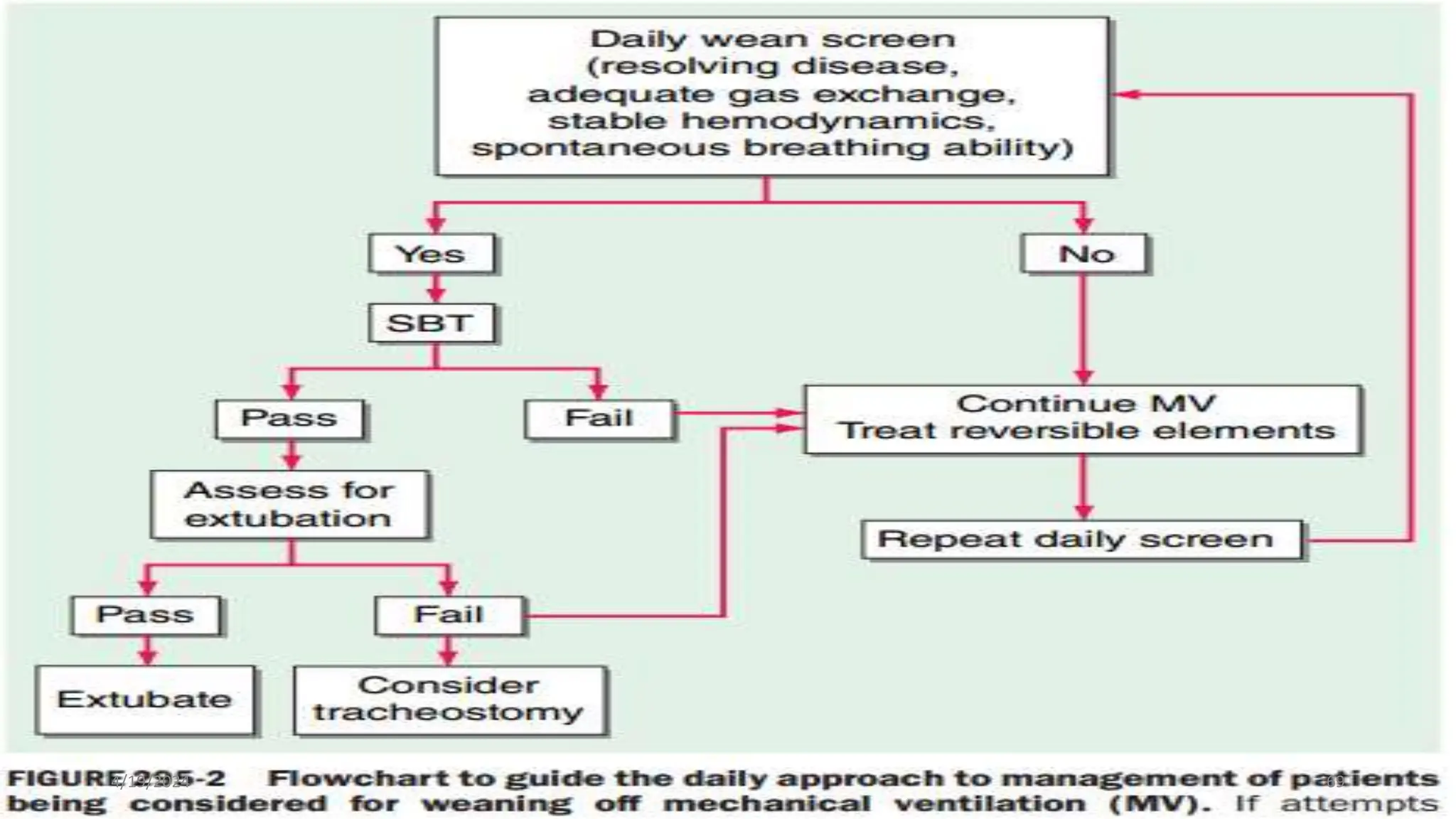

Patients with uncertainty • For patients in whom uncertainty exists as to whether the readiness criteria will predict a successful weaning trial, we sometimes use a weaning predictor to identify potential candidates suitable for weaning or to confirm lack of readiness to wean (eg, patients with borderline readiness criteria or suspected respiratory muscle weakness). • Use of weaning predictors is most pertinent among patients in whom the risk associated with a failed spontaneous trial is significantly elevated (eg, patients with prolonged mechanical ventilation, patients with critical care neuromyopathy). • Among the predictors, the rapid shallow breathing index (RSBI) is our preferred weaning predictor because it is well studied, easy to measure, and no alternative predictor has been shown to be superior. • For patients who have an RSBI <105 breaths/minute/L (measured without ventilatory support), we initiate a weaning trial. • For patients who have an RSBI ≥105 breaths/minute/L (measured without ventilatory support), we maintain full ventilatory support. 4/19/2024 69

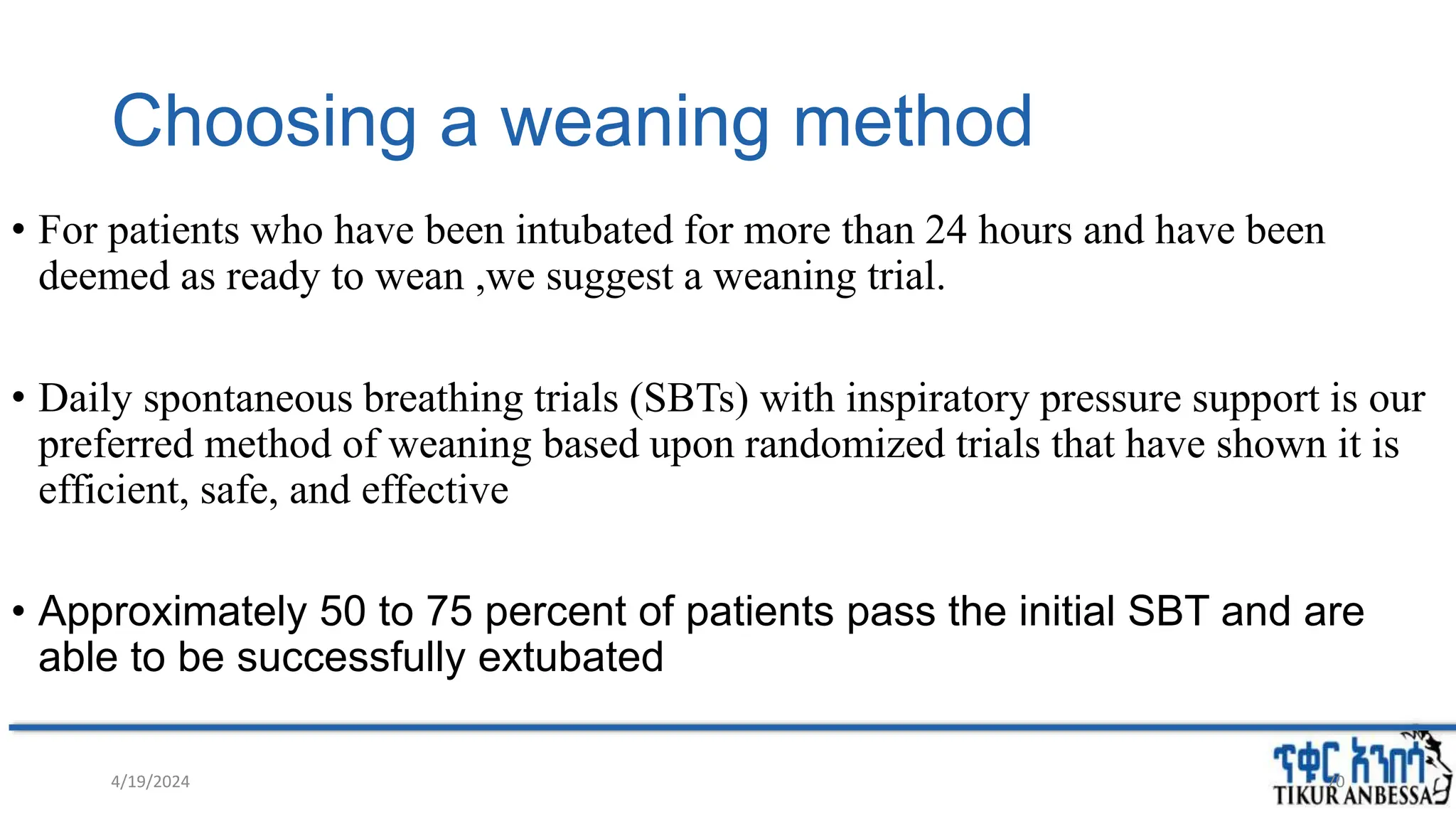

Choosing a weaning method • For patients who have been intubated for more than 24 hours and have been deemed as ready to wean ,we suggest a weaning trial. • Daily spontaneous breathing trials (SBTs) with inspiratory pressure support is our preferred method of weaning based upon randomized trials that have shown it is efficient, safe, and effective • Approximately 50 to 75 percent of patients pass the initial SBT and are able to be successfully extubated 4/19/2024 70

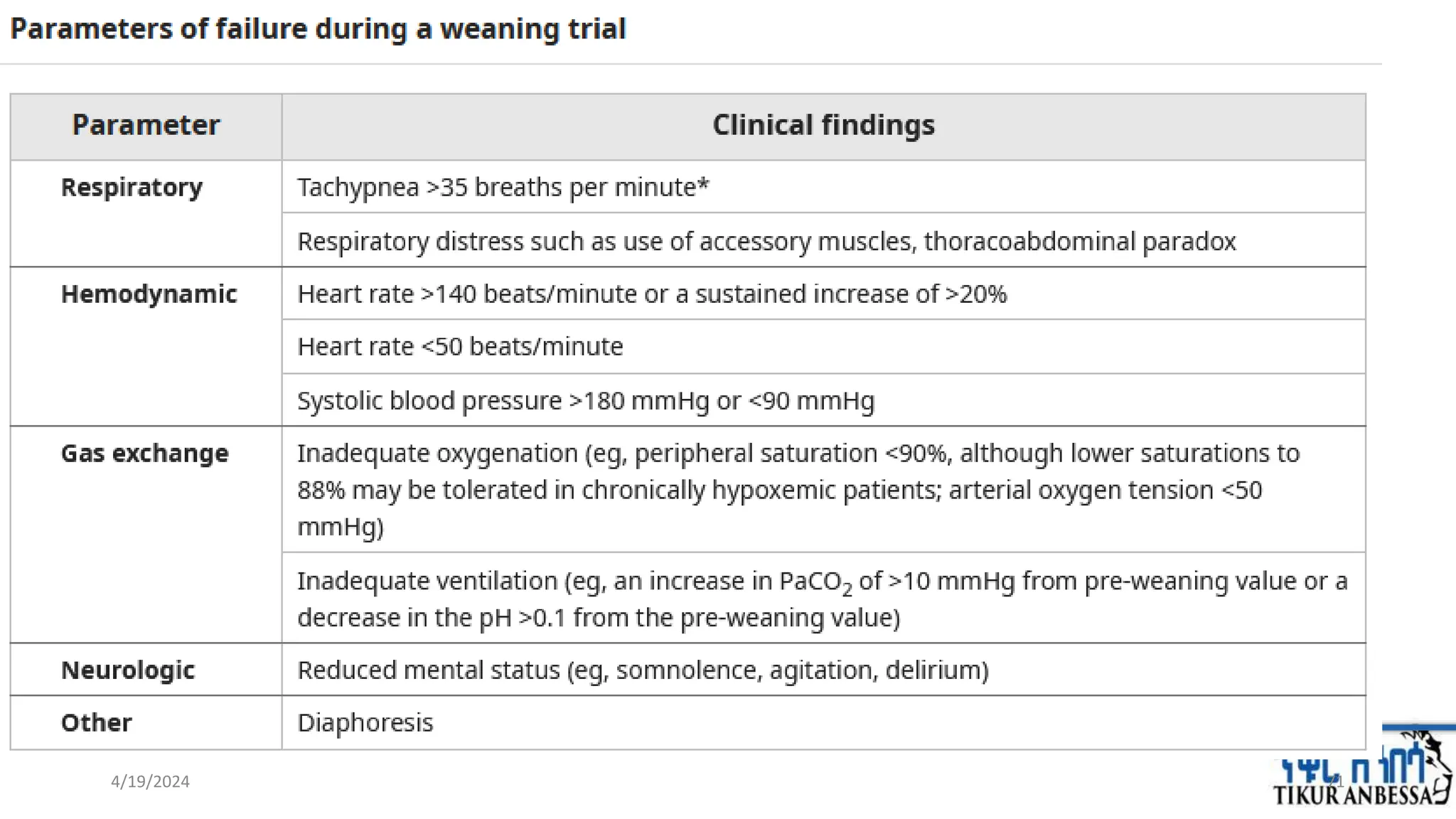

• Spontaneous breathing Trial • with minimal ventilator support a low level of pressure support(5-8mmH2O), or CPAP (5mmH2O) • Breathing through the ETT without any ventilator support (T-piece using 1–5 cmH2O • Duration of a weaning trial • 30 min to 120 min 71 4/19/2024

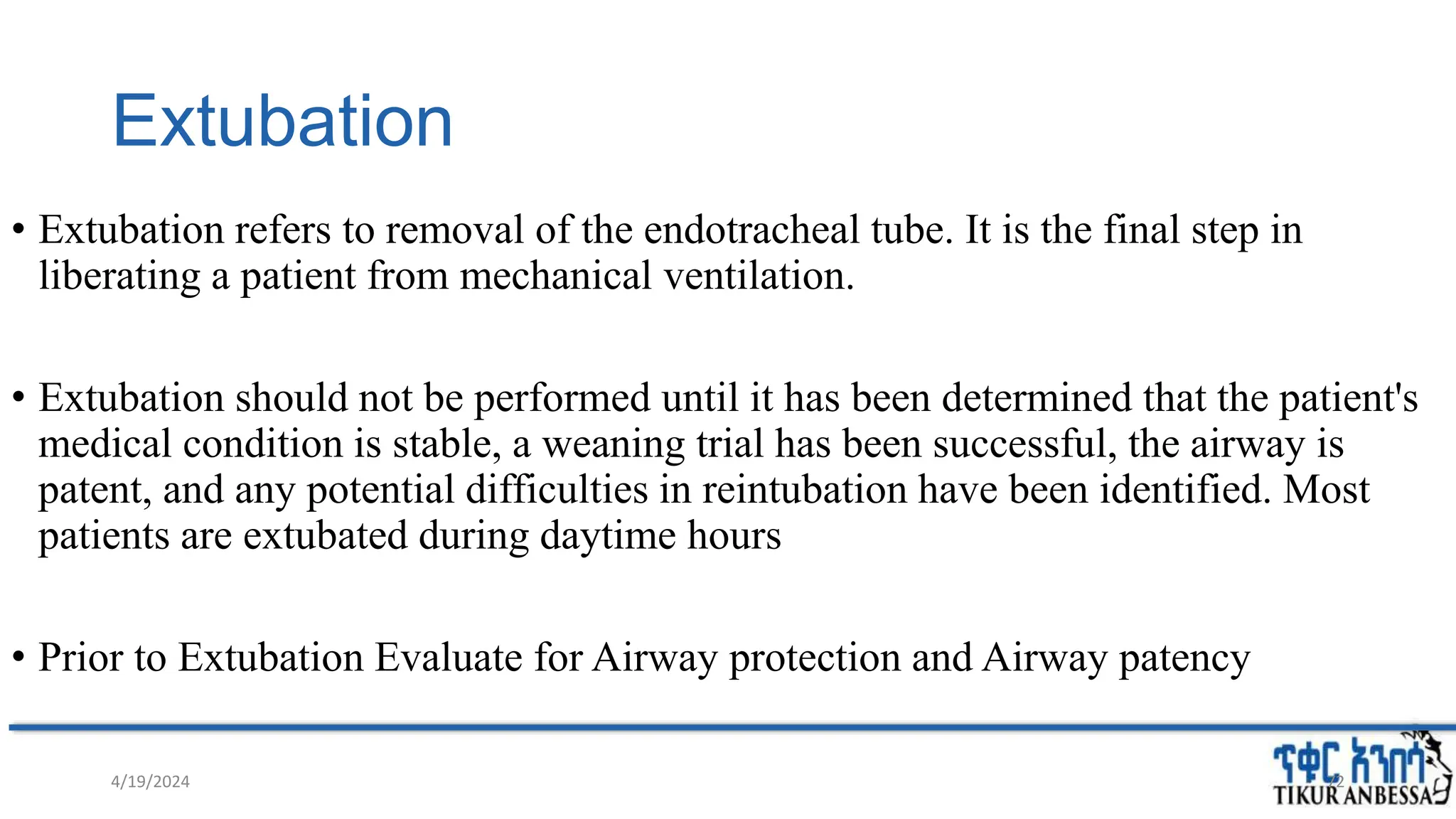

Extubation • Extubation refers to removal of the endotracheal tube. It is the final step in liberating a patient from mechanical ventilation. • Extubation should not be performed until it has been determined that the patient's medical condition is stable, a weaning trial has been successful, the airway is patent, and any potential difficulties in reintubation have been identified. Most patients are extubated during daytime hours • Prior to Extubation Evaluate for Airway protection and Airway patency 4/19/2024 72

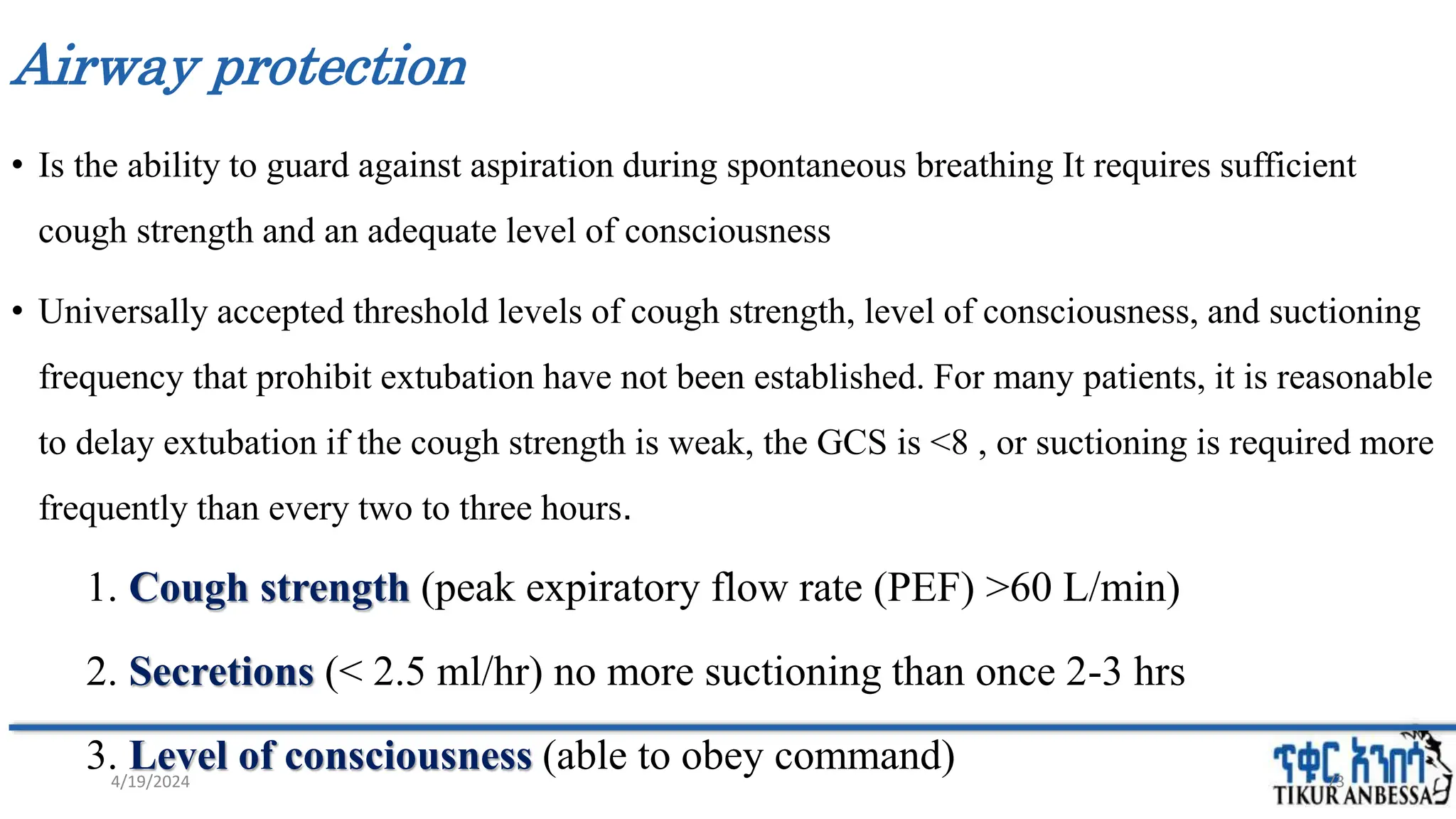

Airway protection • Is the ability to guard against aspiration during spontaneous breathing It requires sufficient cough strength and an adequate level of consciousness • Universally accepted threshold levels of cough strength, level of consciousness, and suctioning frequency that prohibit extubation have not been established. For many patients, it is reasonable to delay extubation if the cough strength is weak, the GCS is <8 , or suctioning is required more frequently than every two to three hours. 1. Cough strength (peak expiratory flow rate (PEF) >60 L/min) 2. Secretions (< 2.5 ml/hr) no more suctioning than once 2-3 hrs 3. Level of consciousness (able to obey command) 73 4/19/2024

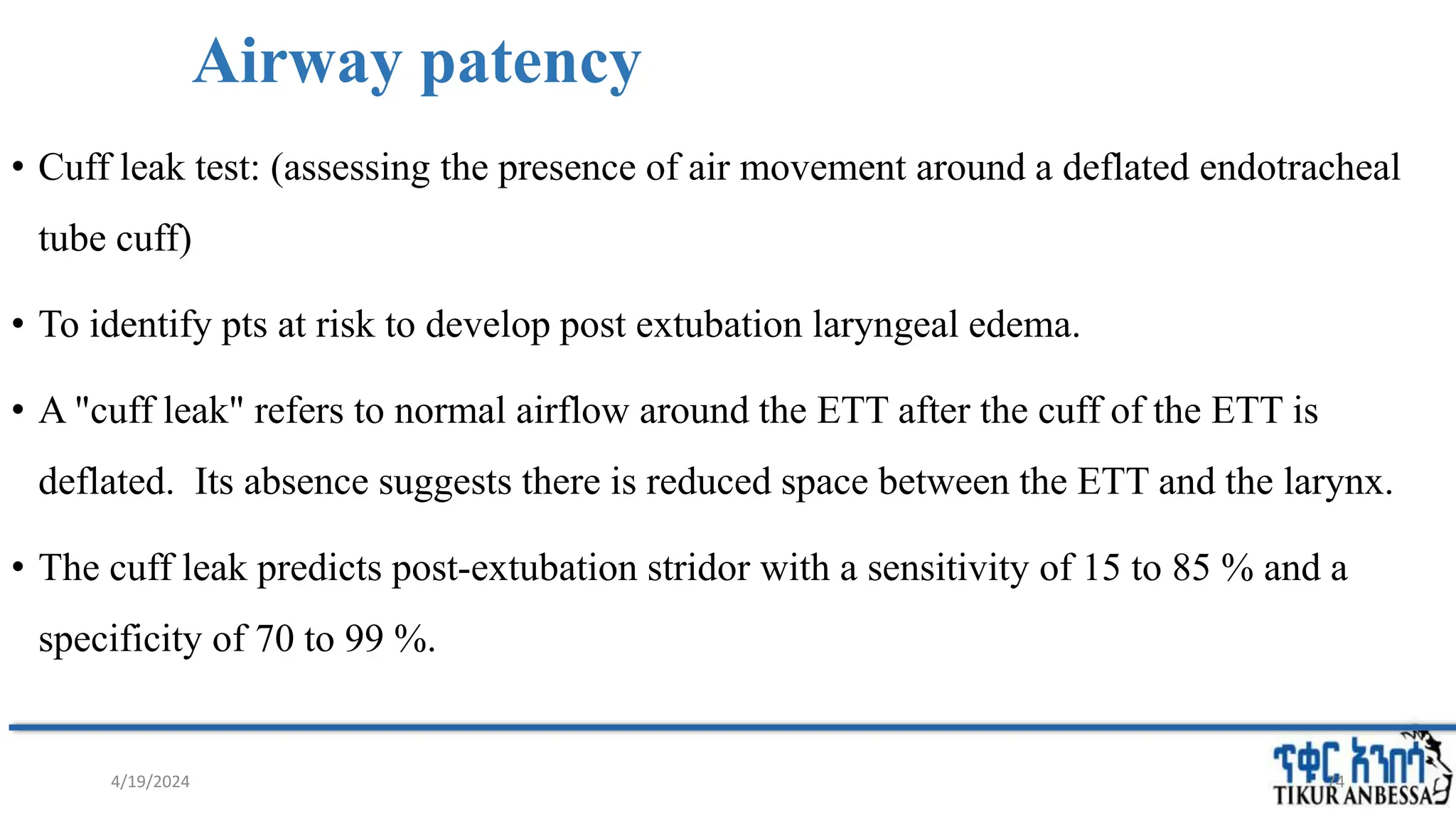

Airway patency • Cuff leak test: (assessing the presence of air movement around a deflated endotracheal tube cuff) • To identify pts at risk to develop post extubation laryngeal edema. • A "cuff leak" refers to normal airflow around the ETT after the cuff of the ETT is deflated. Its absence suggests there is reduced space between the ETT and the larynx. • The cuff leak predicts post-extubation stridor with a sensitivity of 15 to 85 % and a specificity of 70 to 99 %. 74 4/19/2024

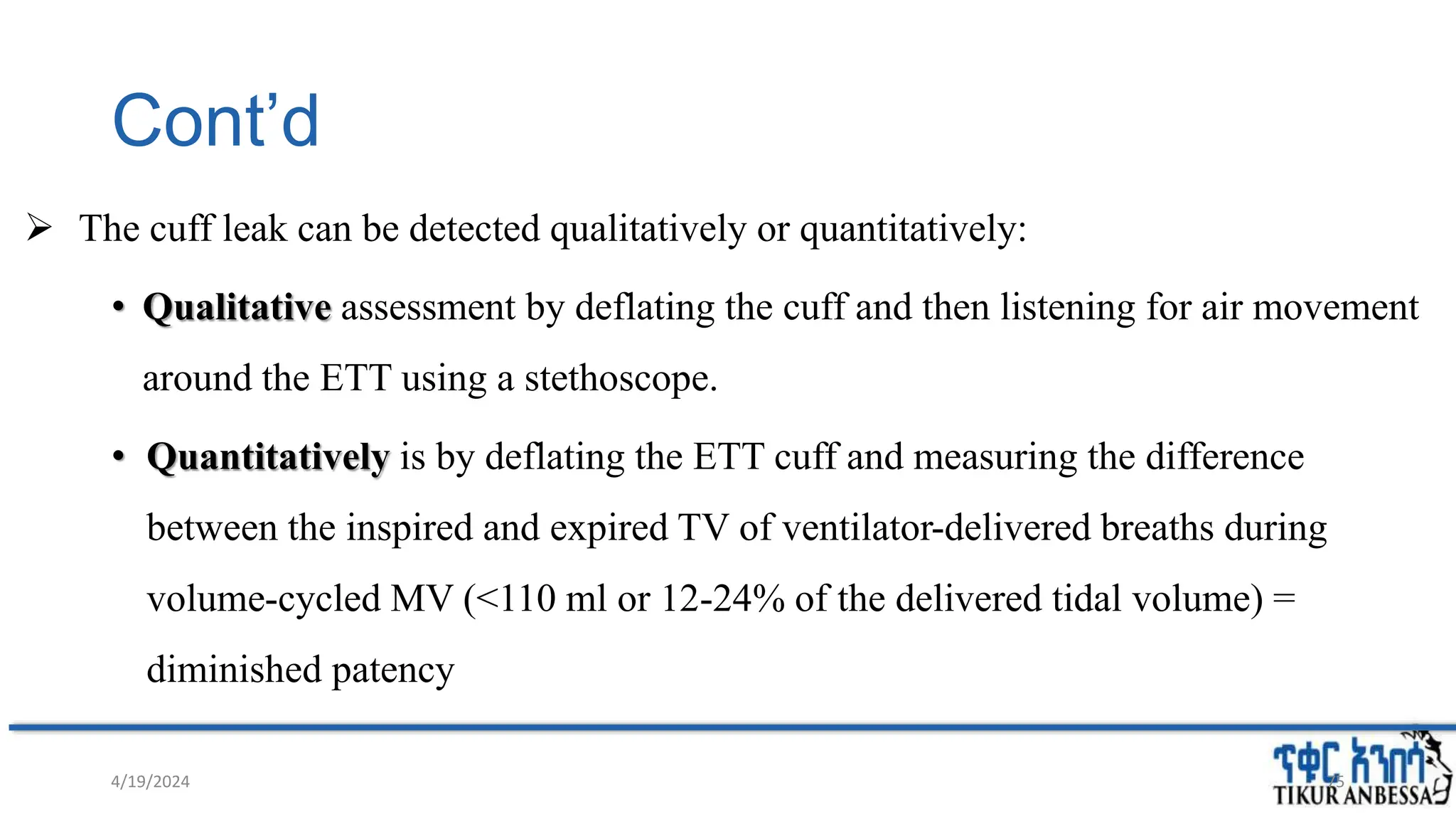

Cont’d  The cuff leak can be detected qualitatively or quantitatively: • Qualitative assessment by deflating the cuff and then listening for air movement around the ETT using a stethoscope. • Quantitatively is by deflating the ETT cuff and measuring the difference between the inspired and expired TV of ventilator-delivered breaths during volume-cycled MV (<110 ml or 12-24% of the delivered tidal volume) = diminished patency 75 4/19/2024

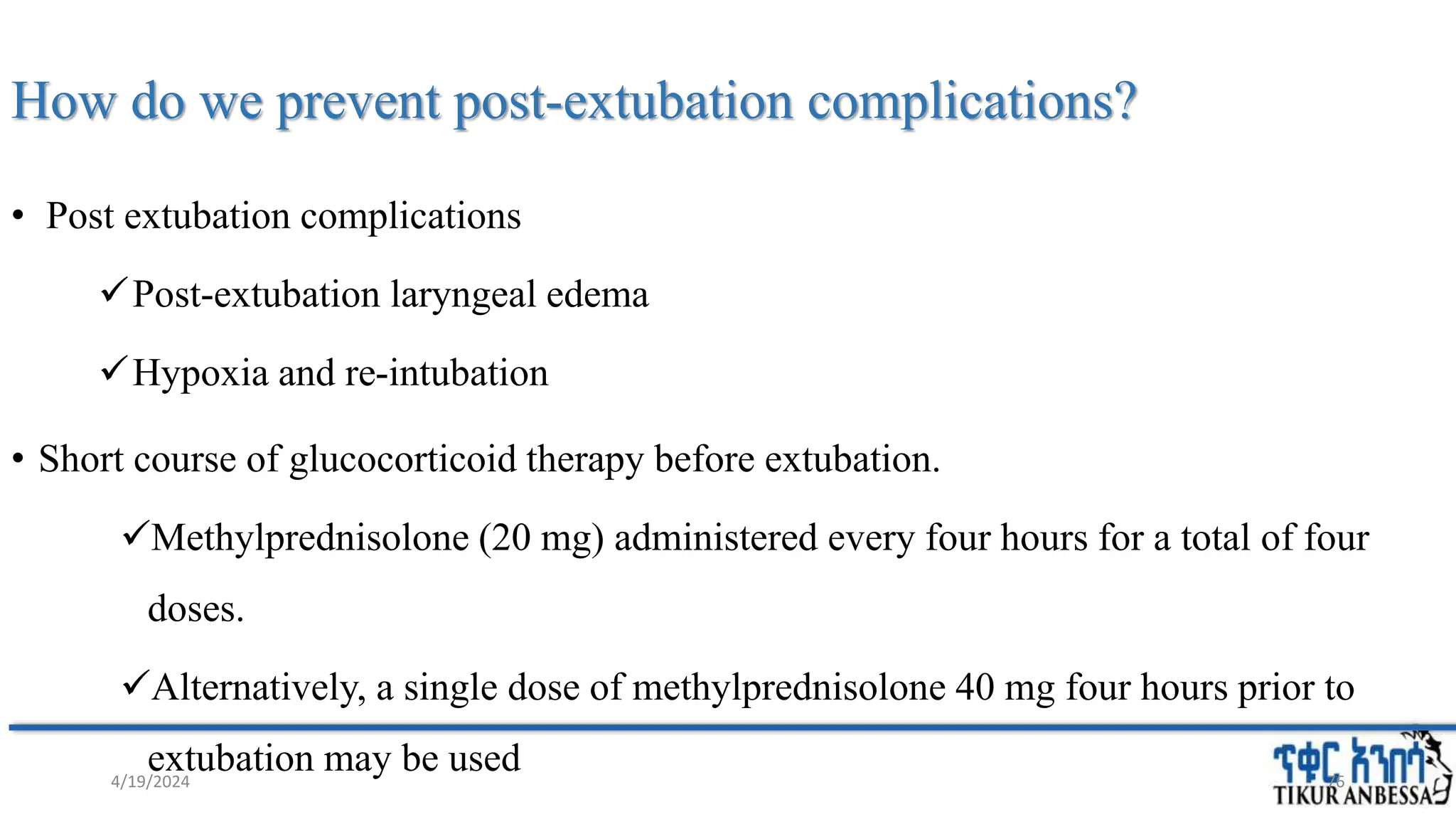

How do we prevent post-extubation complications? • Post extubation complications Post-extubation laryngeal edema Hypoxia and re-intubation • Short course of glucocorticoid therapy before extubation. Methylprednisolone (20 mg) administered every four hours for a total of four doses. Alternatively, a single dose of methylprednisolone 40 mg four hours prior to extubation may be used 76 4/19/2024

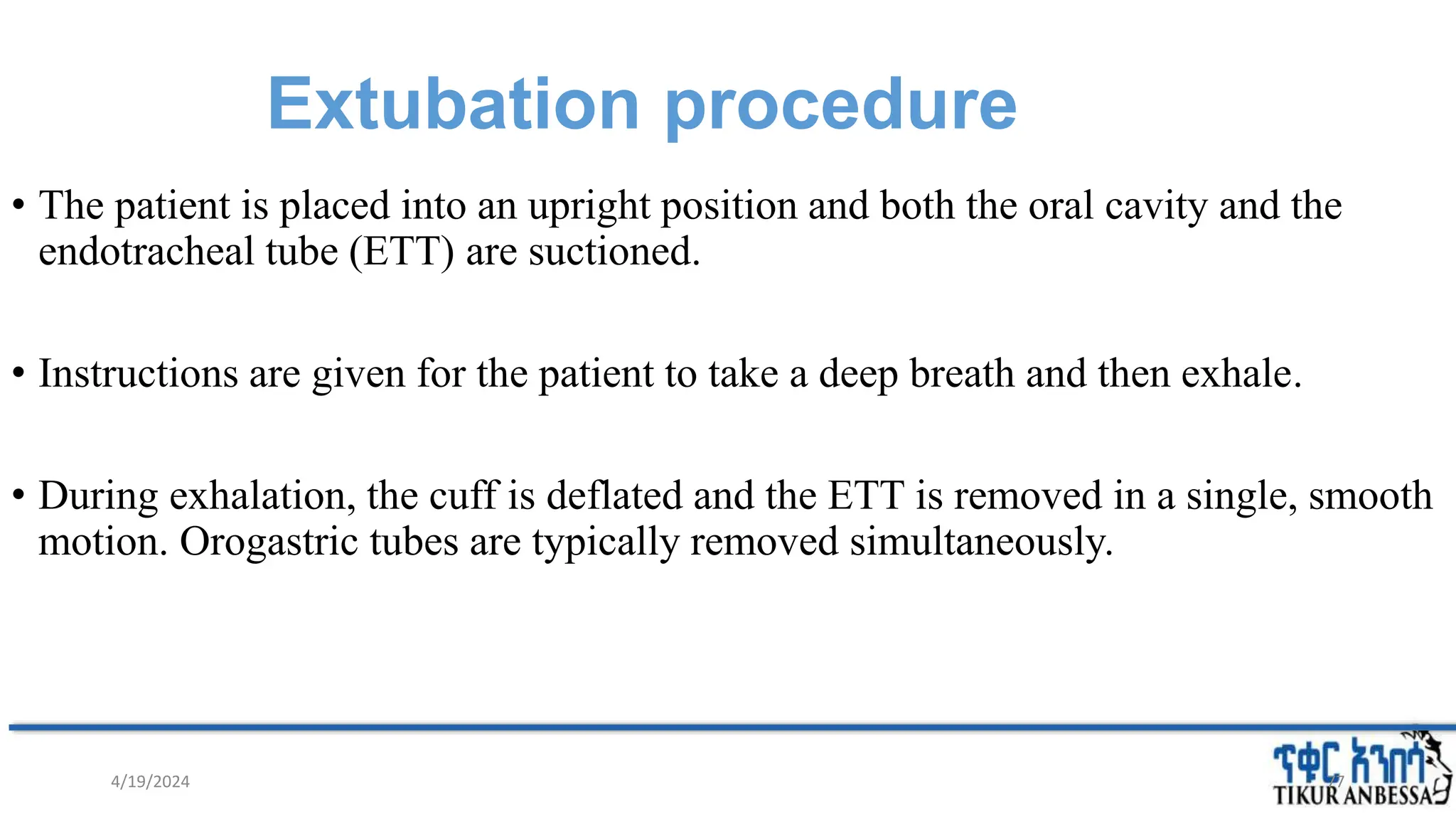

Extubation procedure • The patient is placed into an upright position and both the oral cavity and the endotracheal tube (ETT) are suctioned. • Instructions are given for the patient to take a deep breath and then exhale. • During exhalation, the cuff is deflated and the ETT is removed in a single, smooth motion. Orogastric tubes are typically removed simultaneously. 77 4/19/2024

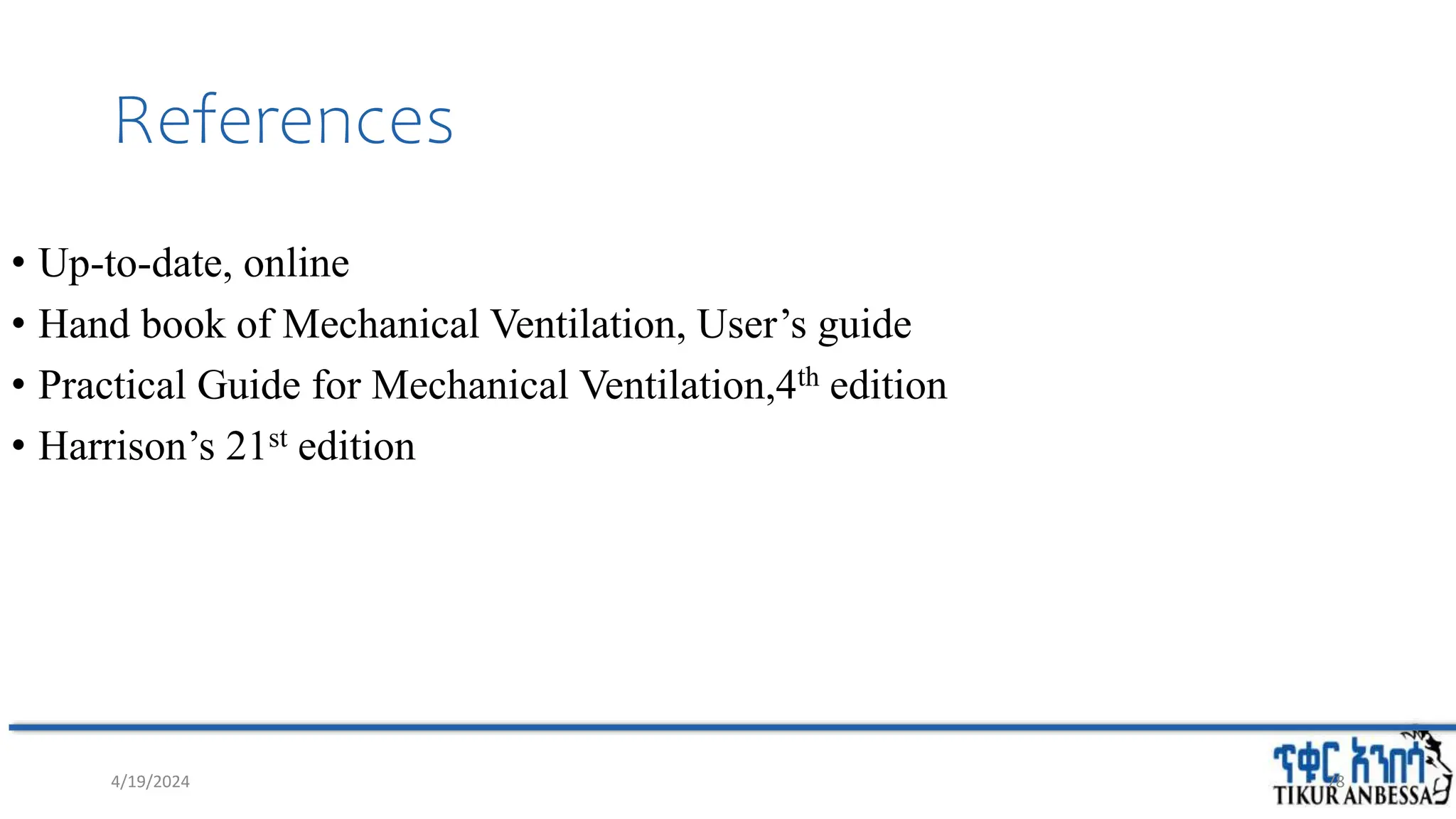

References • Up-to-date, online • Hand book of Mechanical Ventilation, User’s guide • Practical Guide for Mechanical Ventilation,4th edition • Harrison’s 21st edition 4/19/2024 78
