1. SEMANTIC VERSIONING
IMPLEMENTATION
VARIATIONS
DANIEL ROGATCHEVSKY
DevOps Architect @ Cyberbit

2. AUTOMATIC VERSIONING
• When do we need human readable versioning?
• Continuous Deployment (not necessary)
• Continuous Delivery (required)
• CI and workstation
• Software versioning*
• Schemas: sequence, change significance, degree of compatibility,
development stage, date of release
• Package and provider native: Python, Debian, Apple, Windows
*Wikipedia - Software versioning

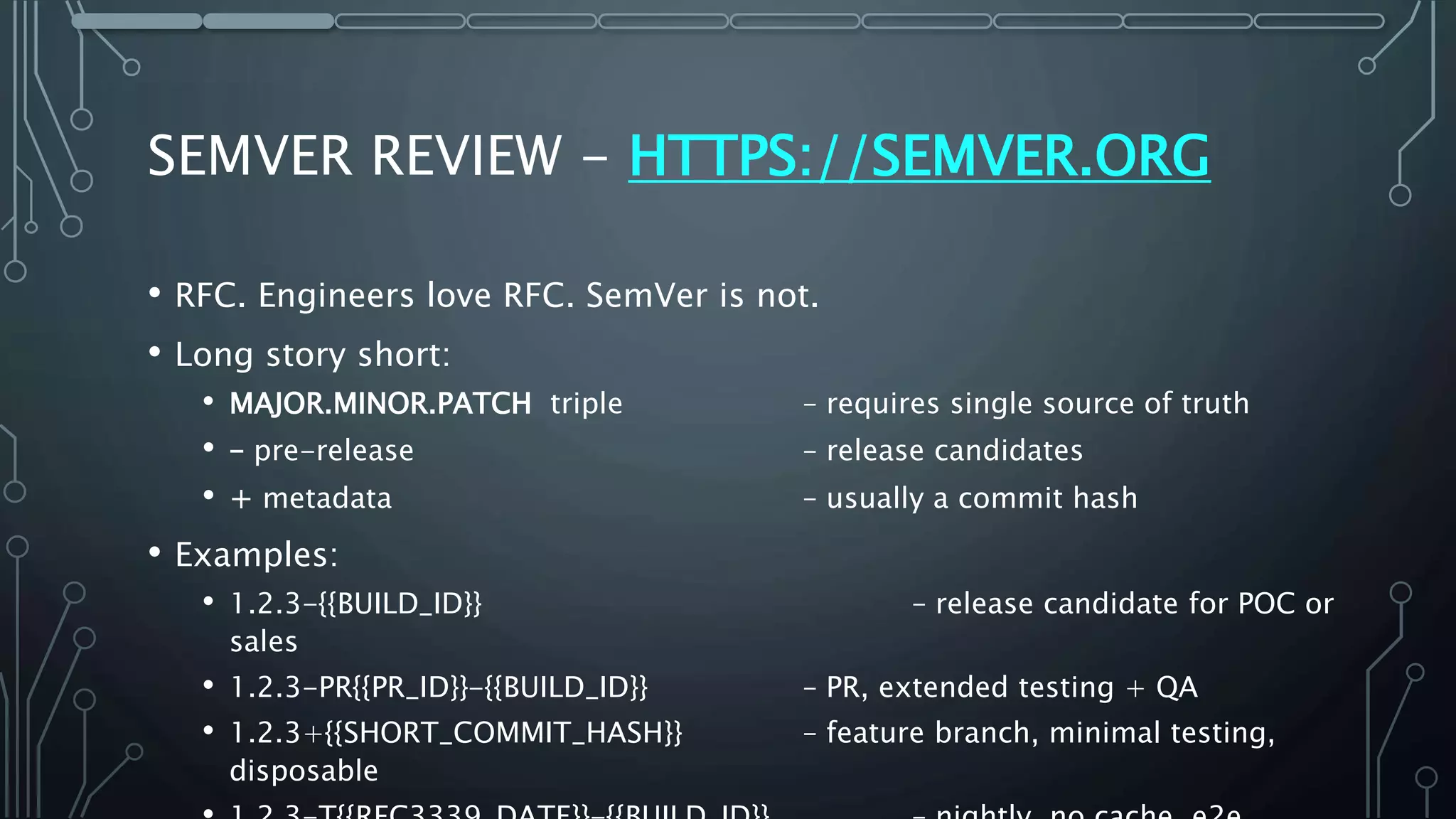

3. SEMVER REVIEW - HTTPS://SEMVER.ORG
• RFC. Engineers love RFC. SemVer is not.
• Long story short:
• MAJOR.MINOR.PATCH triple – requires single source of truth
• – pre-release – release candidates
• + metadata – usually a commit hash
• Examples:
• 1.2.3-{{BUILD_ID}} – release candidate for POC or
sales
• 1.2.3-PR{{PR_ID}}-{{BUILD_ID}} – PR, extended testing + QA
• 1.2.3+{{SHORT_COMMIT_HASH}} – feature branch, minimal testing,
disposable

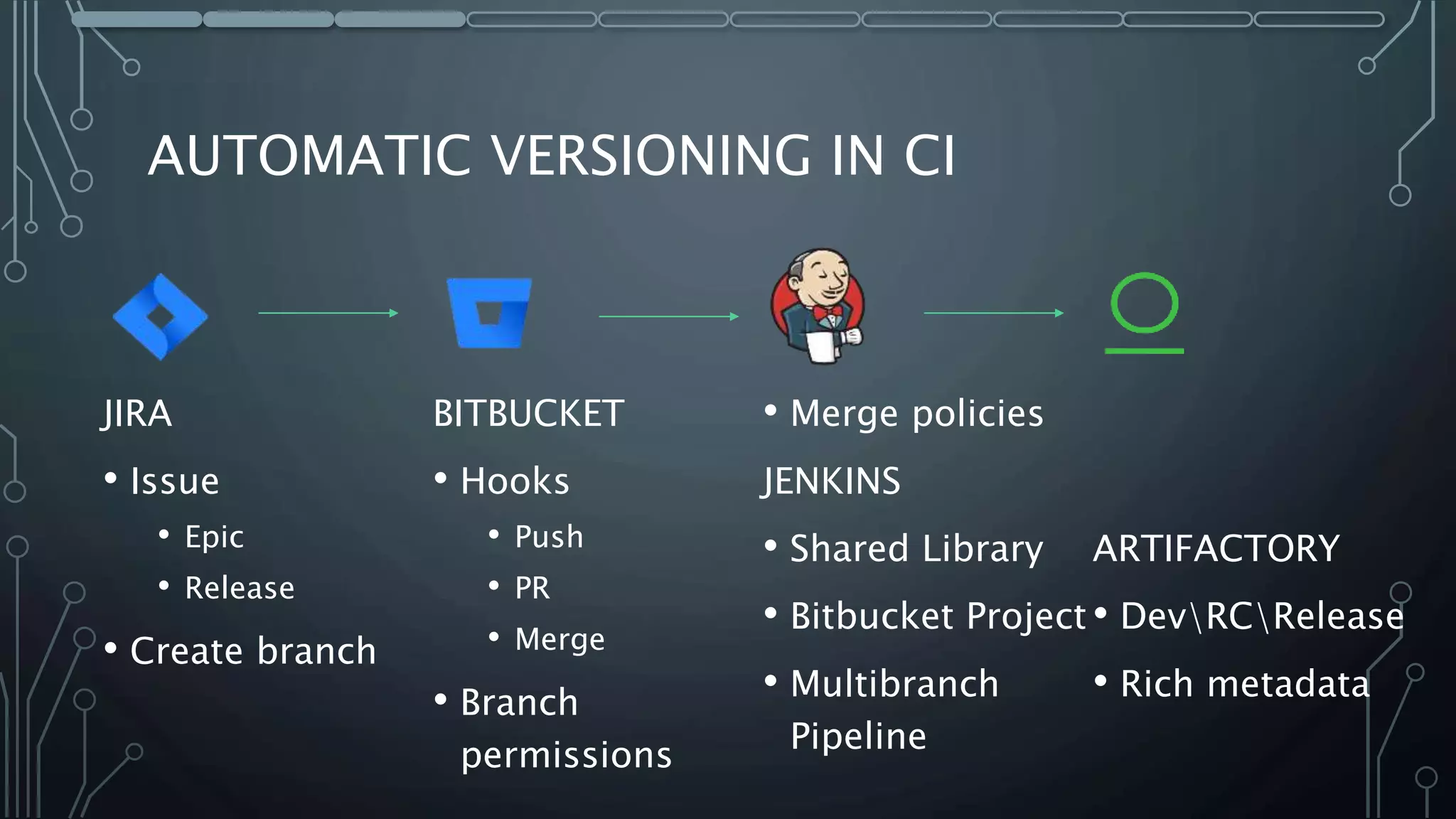

4. AUTOMATIC VERSIONING IN CI
JIRA
• Issue
• Epic
• Release
• Create branch
BITBUCKET
• Hooks
• Push
• PR
• Merge
• Branch
permissions
• Merge policies
JENKINS
• Shared Library
• Bitbucket Project
• Multibranch
Pipeline
ARTIFACTORY
• DevRCRelease
• Rich metadata

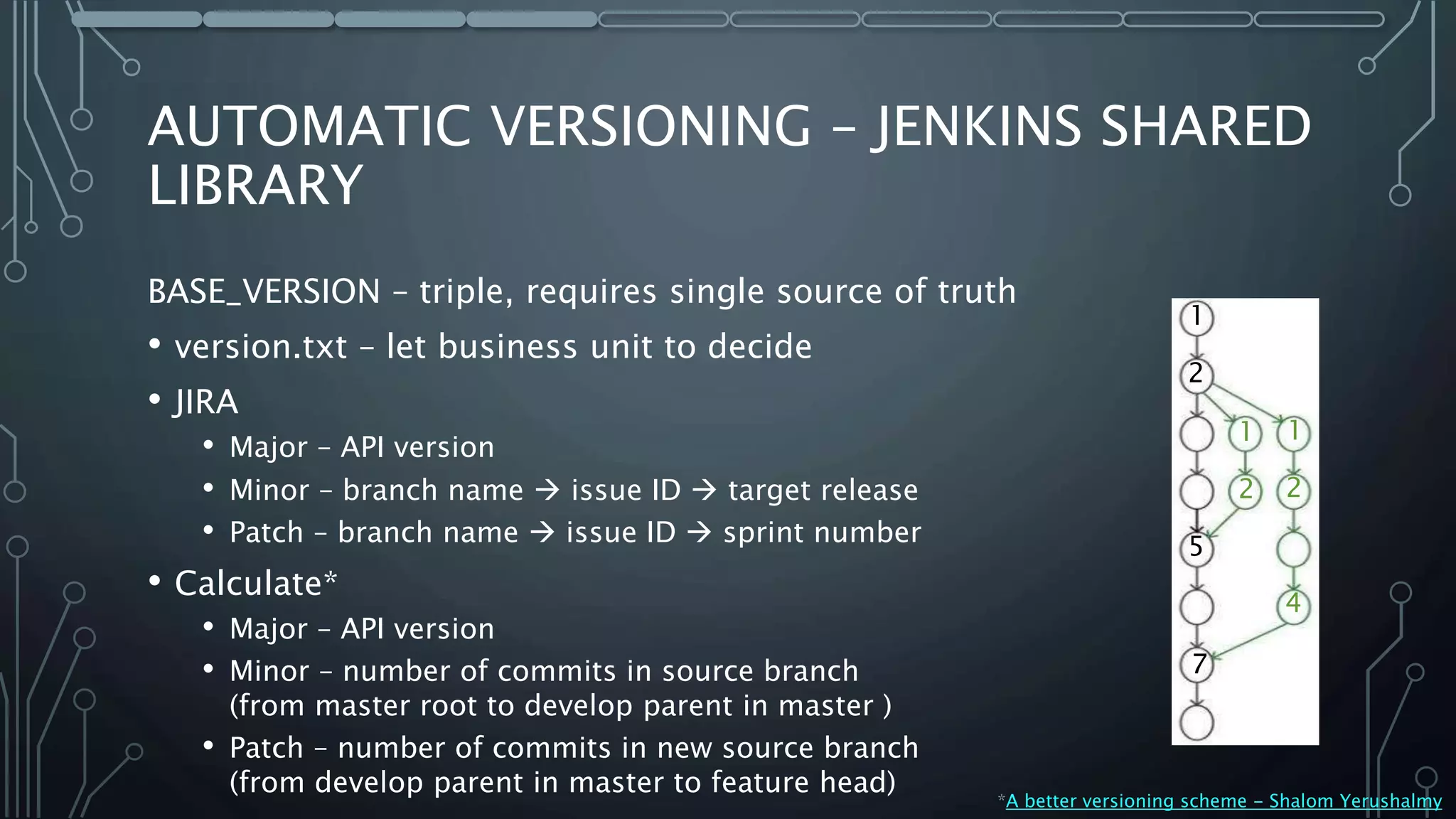

5. AUTOMATIC VERSIONING – JENKINS SHARED
LIBRARY
BASE_VERSION – triple, requires single source of truth
• version.txt – let business unit to decide
• JIRA
• Major – API version
• Minor – branch name  issue ID  target release
• Patch – branch name  issue ID  sprint number
• Calculate*
• Major – API version
• Minor – number of commits in source branch
(from master root to develop parent in master )
• Patch – number of commits in new source branch
(from develop parent in master to feature head)
*A better versioning scheme - Shalom Yerushalmy
1
2
1
2
1
2
4
5
7

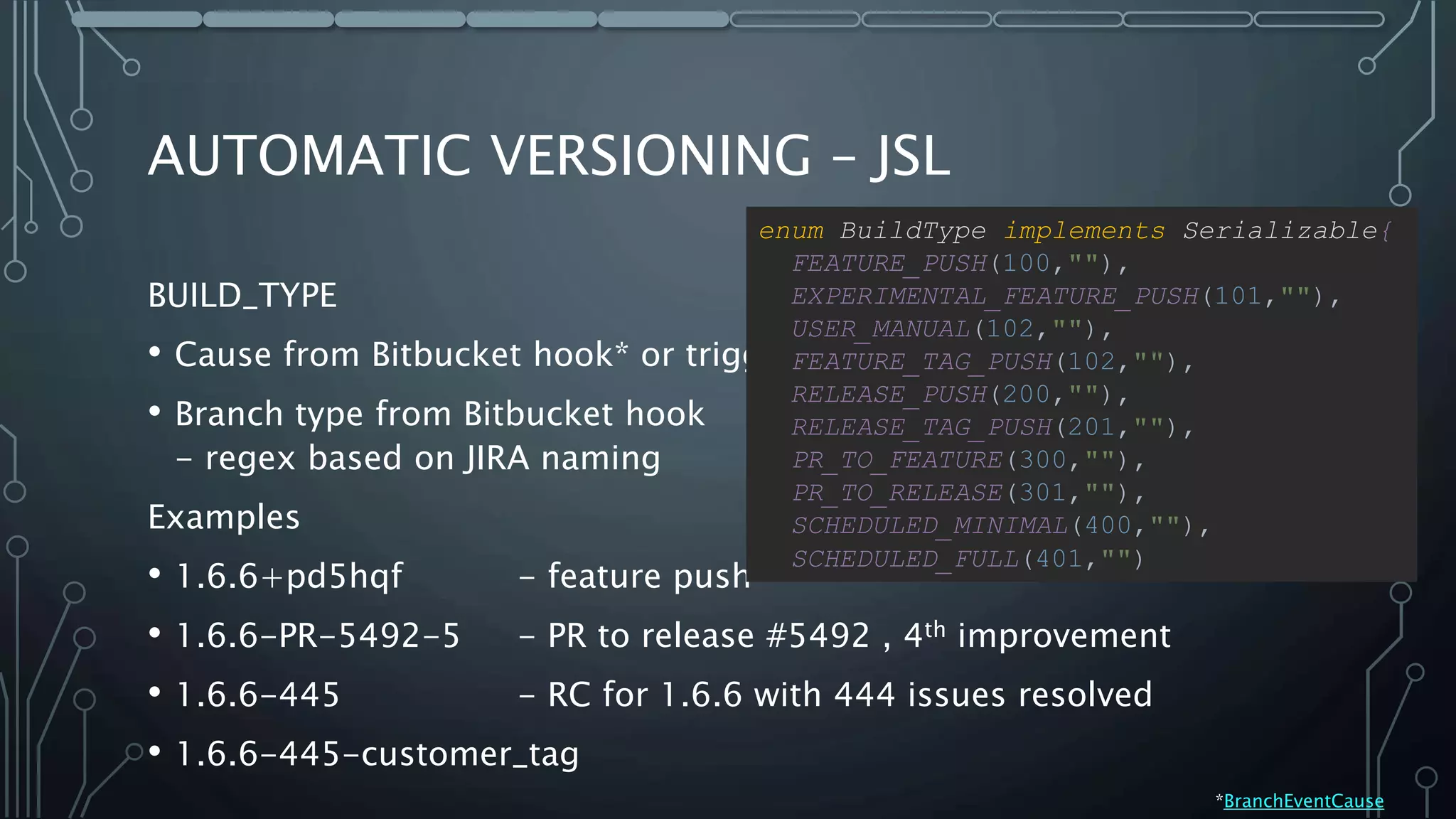

6. AUTOMATIC VERSIONING – JSL
BUILD_TYPE
• Cause from Bitbucket hook* or trigger
• Branch type from Bitbucket hook
- regex based on JIRA naming
Examples
• 1.6.6+pd5hqf - feature push
• 1.6.6-PR-5492-5 - PR to release #5492 , 4th improvement
• 1.6.6-445 - RC for 1.6.6 with 444 issues resolved
• 1.6.6-445-customer_tag
enum BuildType implements Serializable{
FEATURE_PUSH(100,""),
EXPERIMENTAL_FEATURE_PUSH(101,""),
USER_MANUAL(102,""),
FEATURE_TAG_PUSH(102,""),
RELEASE_PUSH(200,""),
RELEASE_TAG_PUSH(201,""),
PR_TO_FEATURE(300,""),
PR_TO_RELEASE(301,""),
SCHEDULED_MINIMAL(400,""),
SCHEDULED_FULL(401,"")
*BranchEventCause

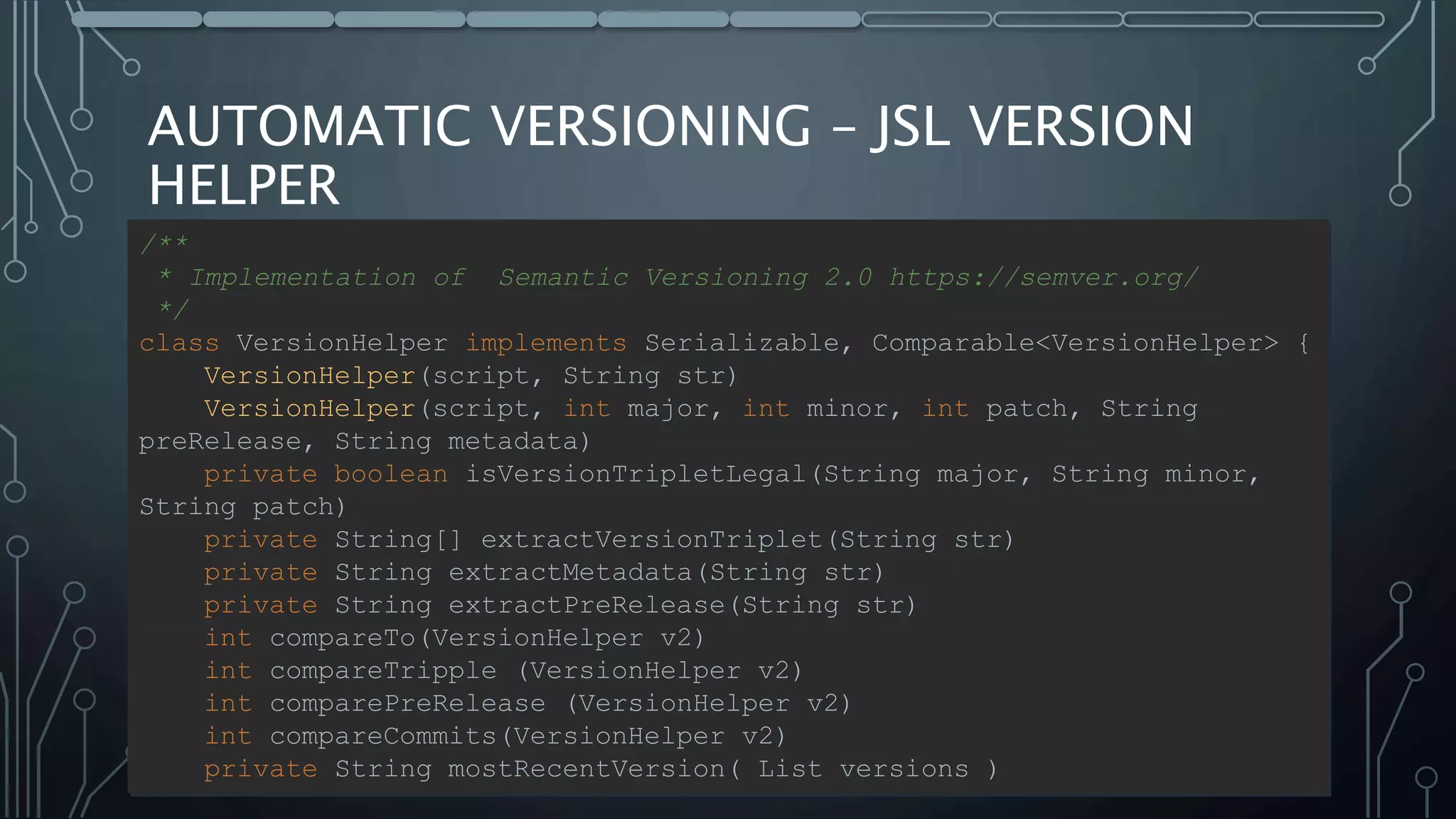

7. AUTOMATIC VERSIONING – JSL VERSION
HELPER
/**
* Implementation of Semantic Versioning 2.0 https://semver.org/
*/
class VersionHelper implements Serializable, Comparable<VersionHelper> {
VersionHelper(script, String str)
VersionHelper(script, int major, int minor, int patch, String
preRelease, String metadata)
private boolean isVersionTripletLegal(String major, String minor,
String patch)
private String[] extractVersionTriplet(String str)
private String extractMetadata(String str)
private String extractPreRelease(String str)
int compareTo(VersionHelper v2)
int compareTripple (VersionHelper v2)
int comparePreRelease (VersionHelper v2)
int compareCommits(VersionHelper v2)
private String mostRecentVersion( List versions )

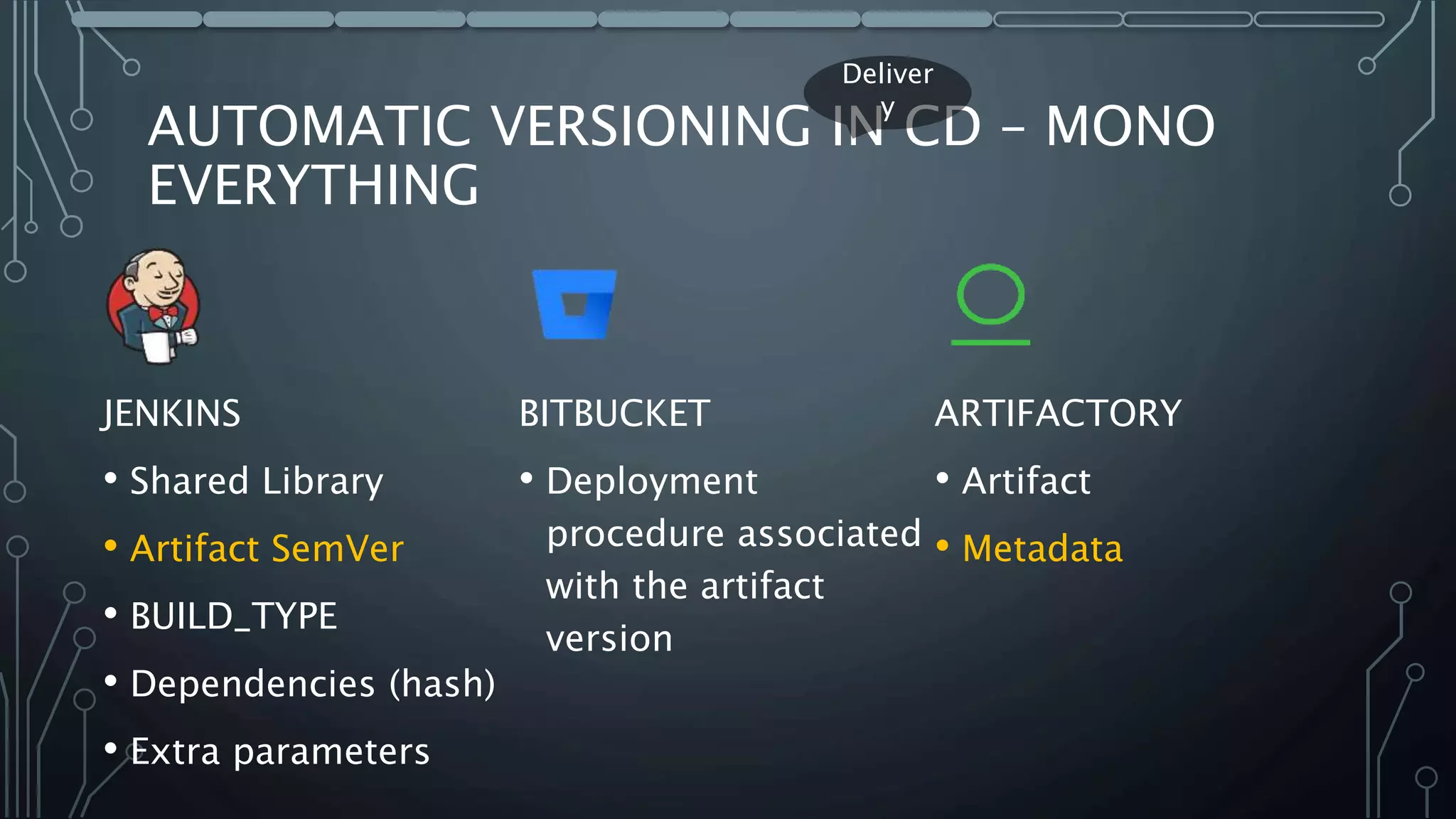

8. AUTOMATIC VERSIONING IN CD – MONO
EVERYTHING
JENKINS
• Shared Library
• Artifact SemVer
• BUILD_TYPE
• Dependencies (hash)
• Extra parameters
BITBUCKET
• Deployment
procedure associated
with the artifact
version
ARTIFACTORY
• Artifact
• Metadata
Deliver
y

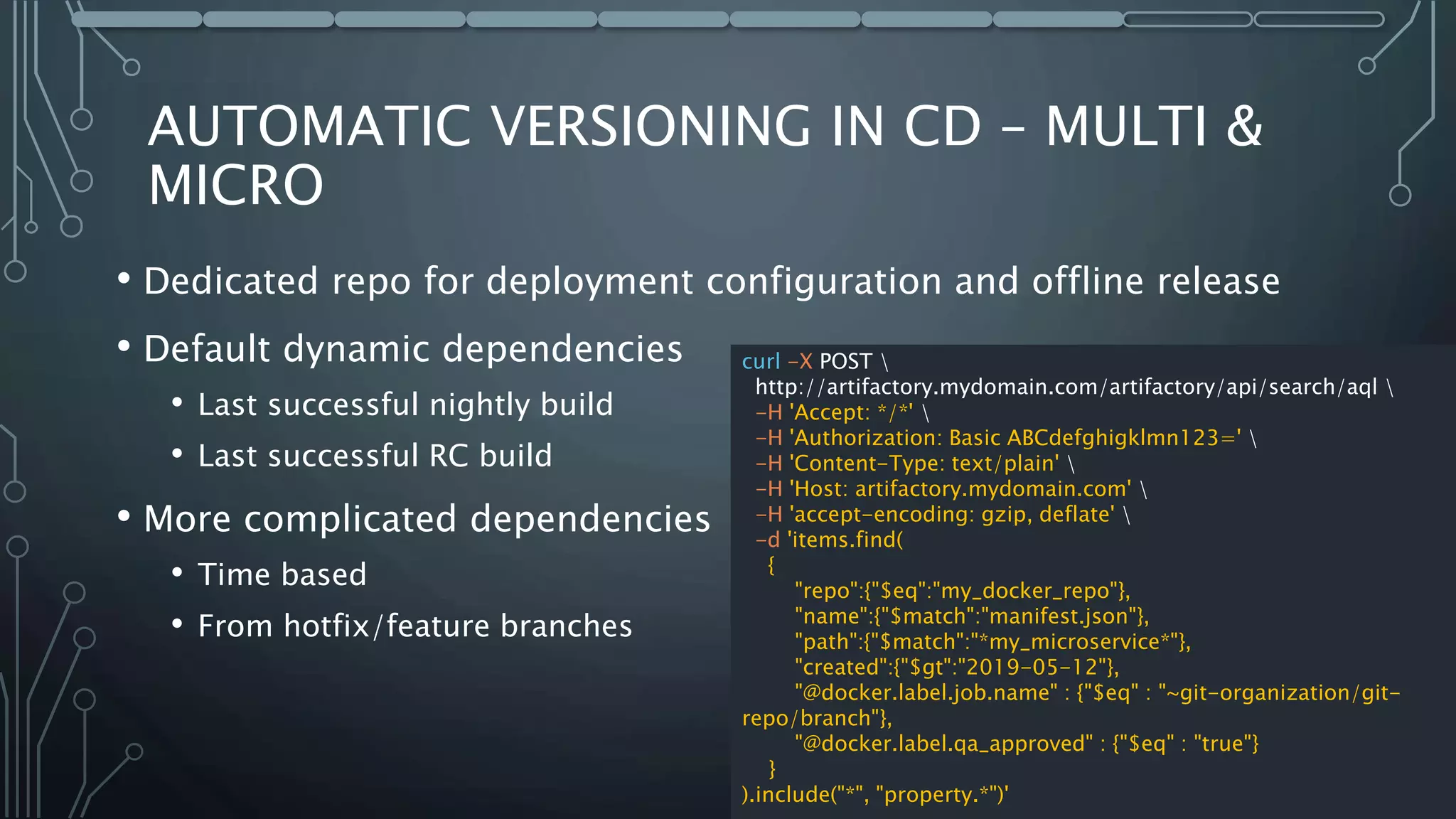

9. AUTOMATIC VERSIONING IN CD – MULTI &
MICRO
• Dedicated repo for deployment configuration and offline release
• Default dynamic dependencies
• Last successful nightly build
• Last successful RC build
• More complicated dependencies
• Time based
• From hotfix/feature branches
curl -X POST
http://artifactory.mydomain.com/artifactory/api/search/aql
-H 'Accept: */*'
-H 'Authorization: Basic ABCdefghigklmn123='
-H 'Content-Type: text/plain'
-H 'Host: artifactory.mydomain.com'
-H 'accept-encoding: gzip, deflate'
-d 'items.find(
{
"repo":{"$eq":"my_docker_repo"},
"name":{"$match":"manifest.json"},
"path":{"$match":"*my_microservice*"},
"created":{"$gt":"2019-05-12"},
"@docker.label.job.name" : {"$eq" : "~git-organization/git-
repo/branch"},
"@docker.label.qa_approved" : {"$eq" : "true"}
}
).include("*", "property.*")'

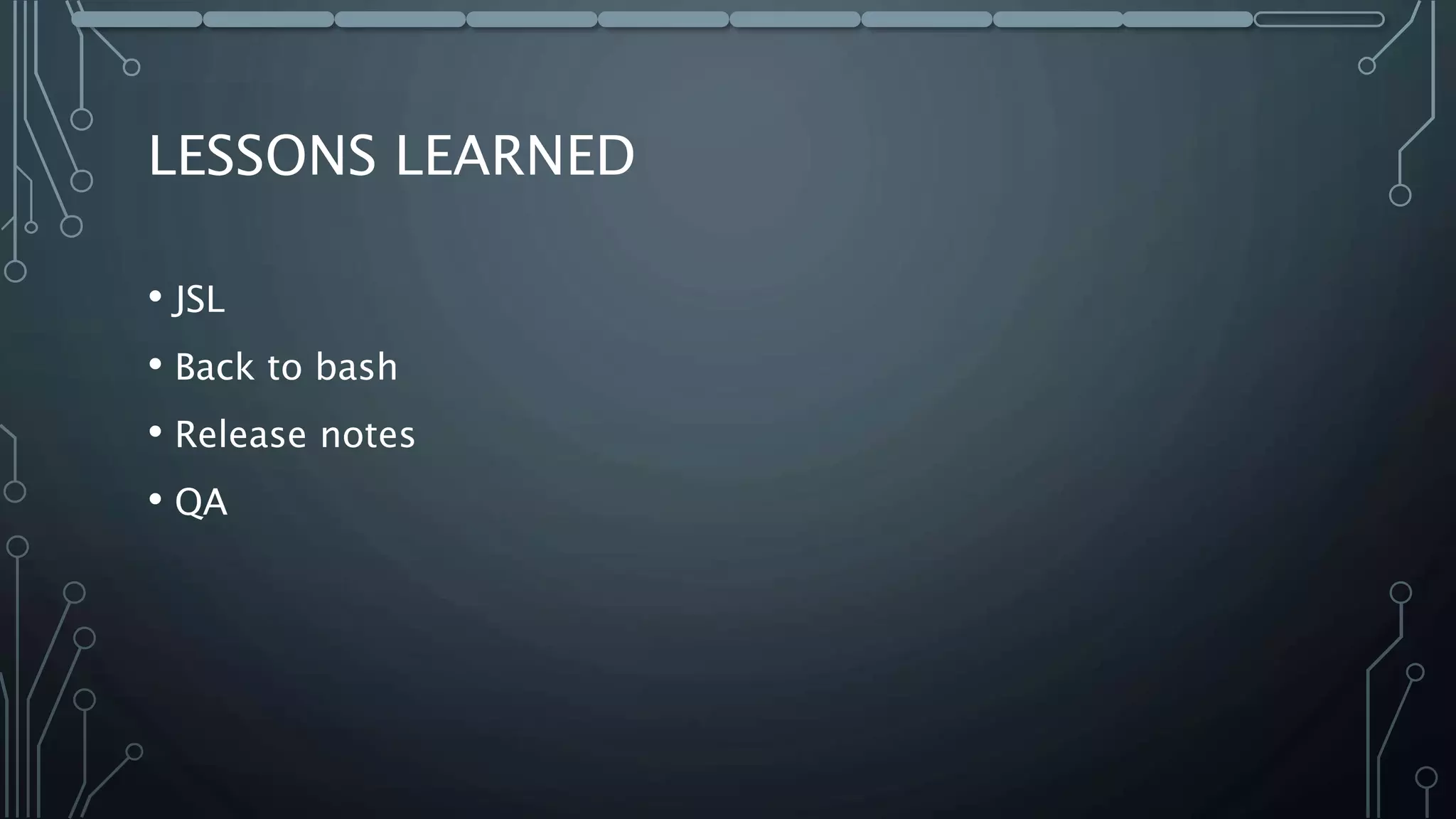

10. LESSONS LEARNED
• JSL
• Back to bash
• Release notes
• QA
