Daden's Securescape provides a 3D immersive environment for managing site security, allowing operators to visualize CCTV coverage and integrate real-time alerts from various sources. The platform enhances situational awareness by displaying information in context and supporting multi-user planning and training sessions. With scalable options based on site size and specific needs, Securescape aims to improve operational efficiency and reduce risks in physical security management.

1. A Virtual World for Your Security
© 2012 www.daden.co.uk

2. About Daden
 Immersive learning and visualisation specialists
 Founded 2004, with immersive technology experience since 1990s
 Times Higher Education Winner 2009
 US Federal Virtual Worlds Challenge winner 2010
 Member of BAE Systems' Investment in Innovation Programme
 Based in Birmingham UK

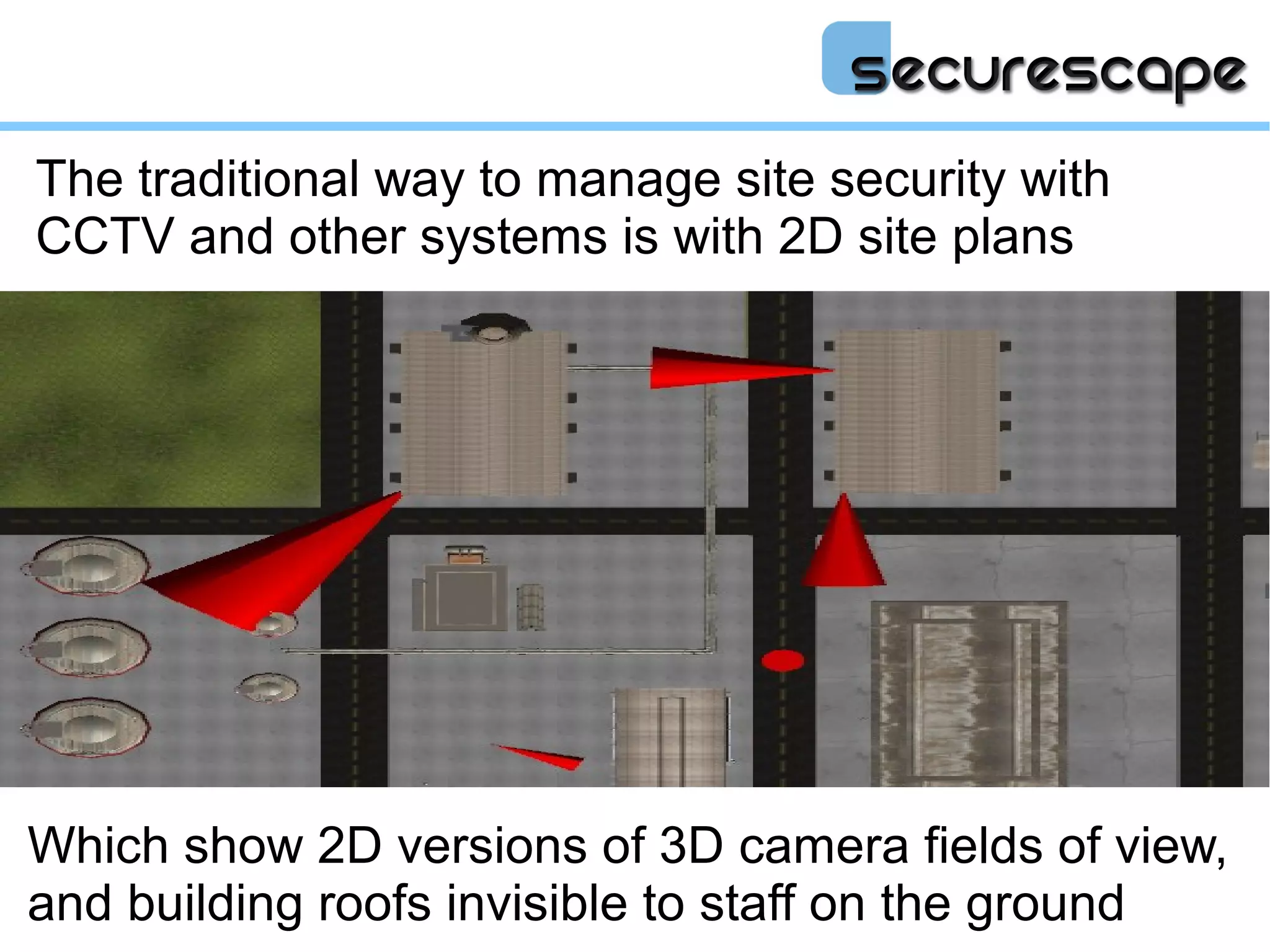

3. The traditional way to manage site security with
CCTV and other systems is with 2D site plans
Which show 2D versions of 3D camera fields of view,
and building roofs invisible to staff on the ground

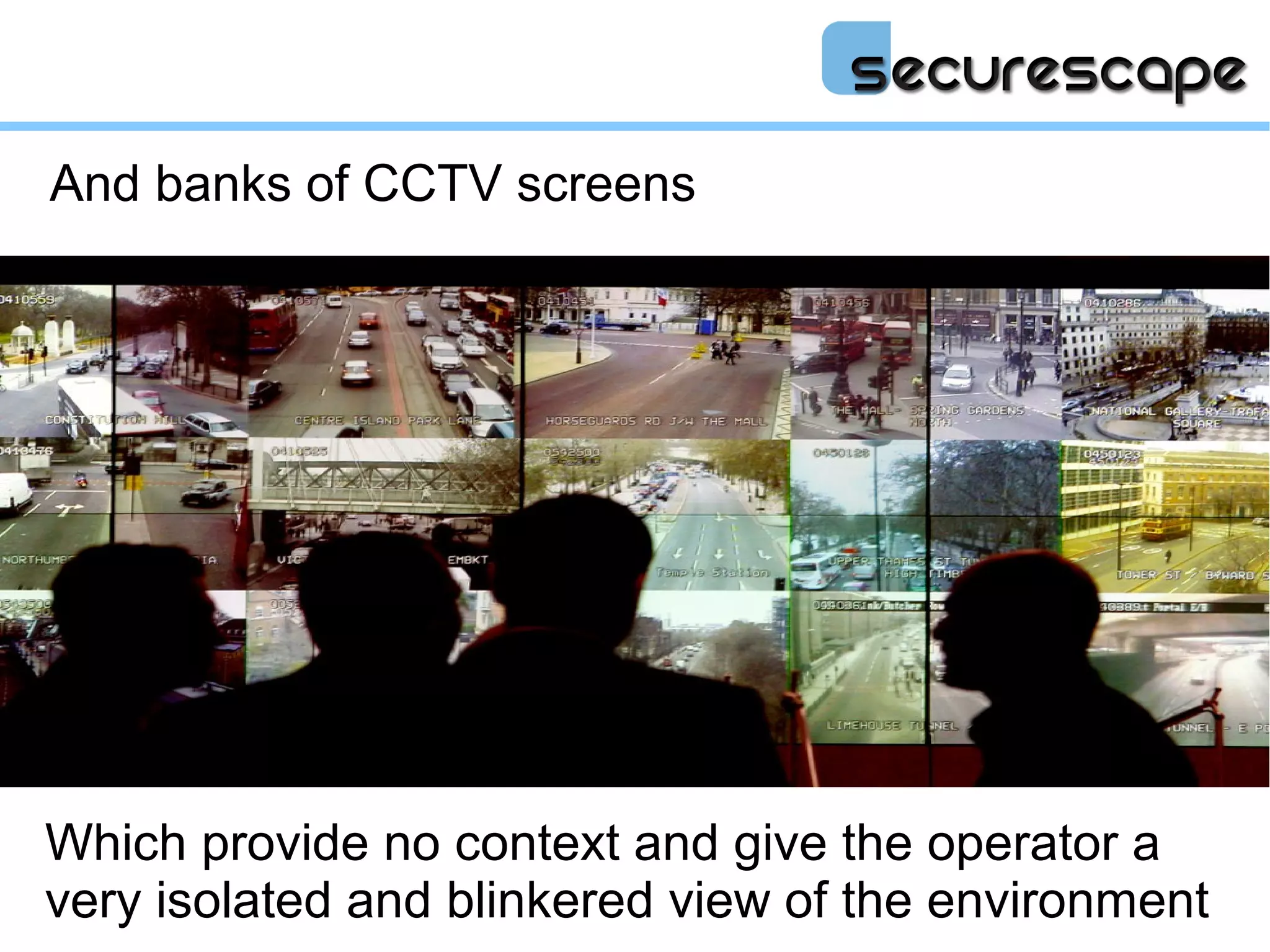

4. And banks of CCTV screens
Which provide no context and give the operator a
very isolated and blinkered view of the environment

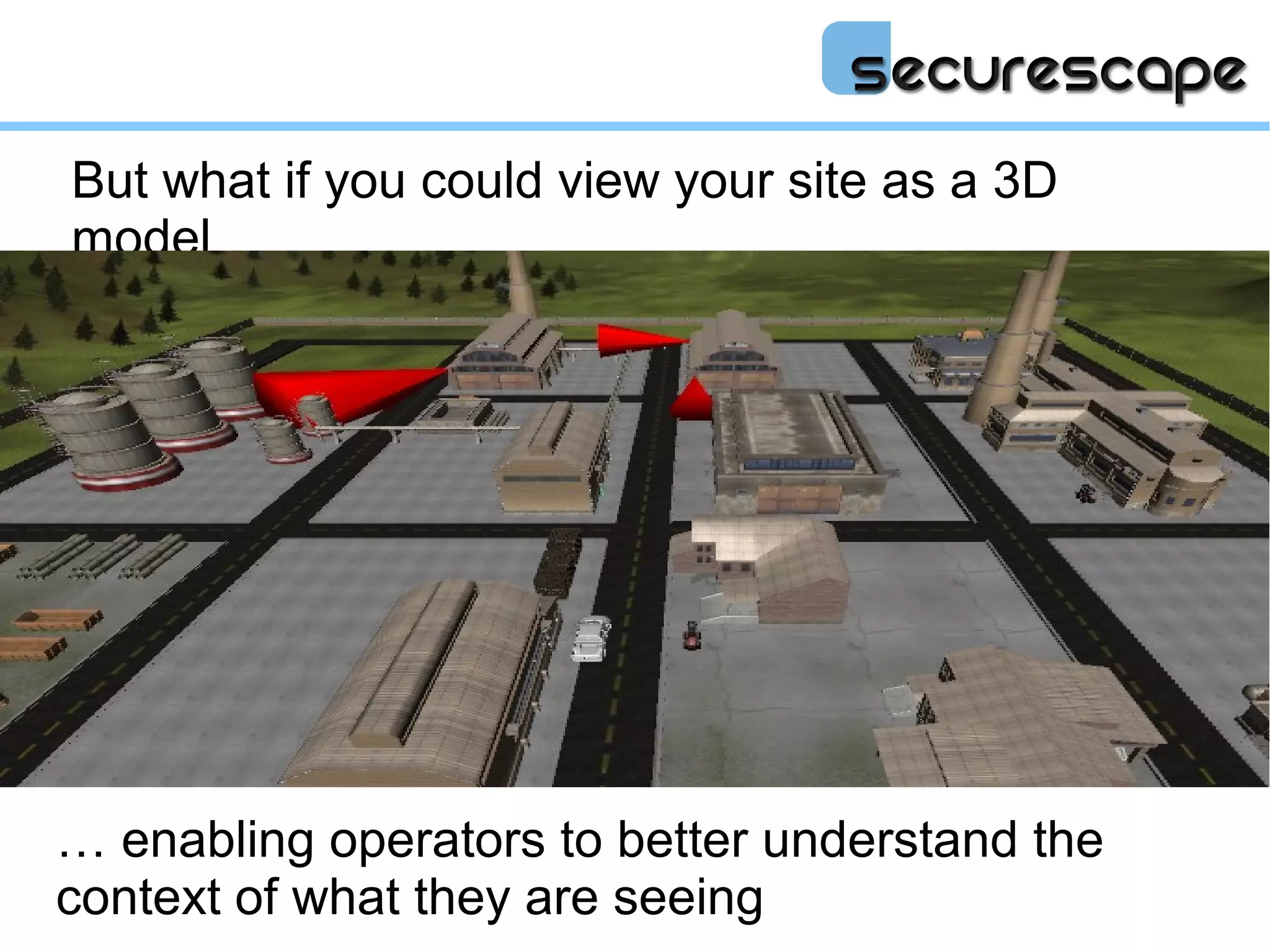

5. But what if you could view your site as a 3D
model
… enabling operators to better understand the
context of what they are seeing

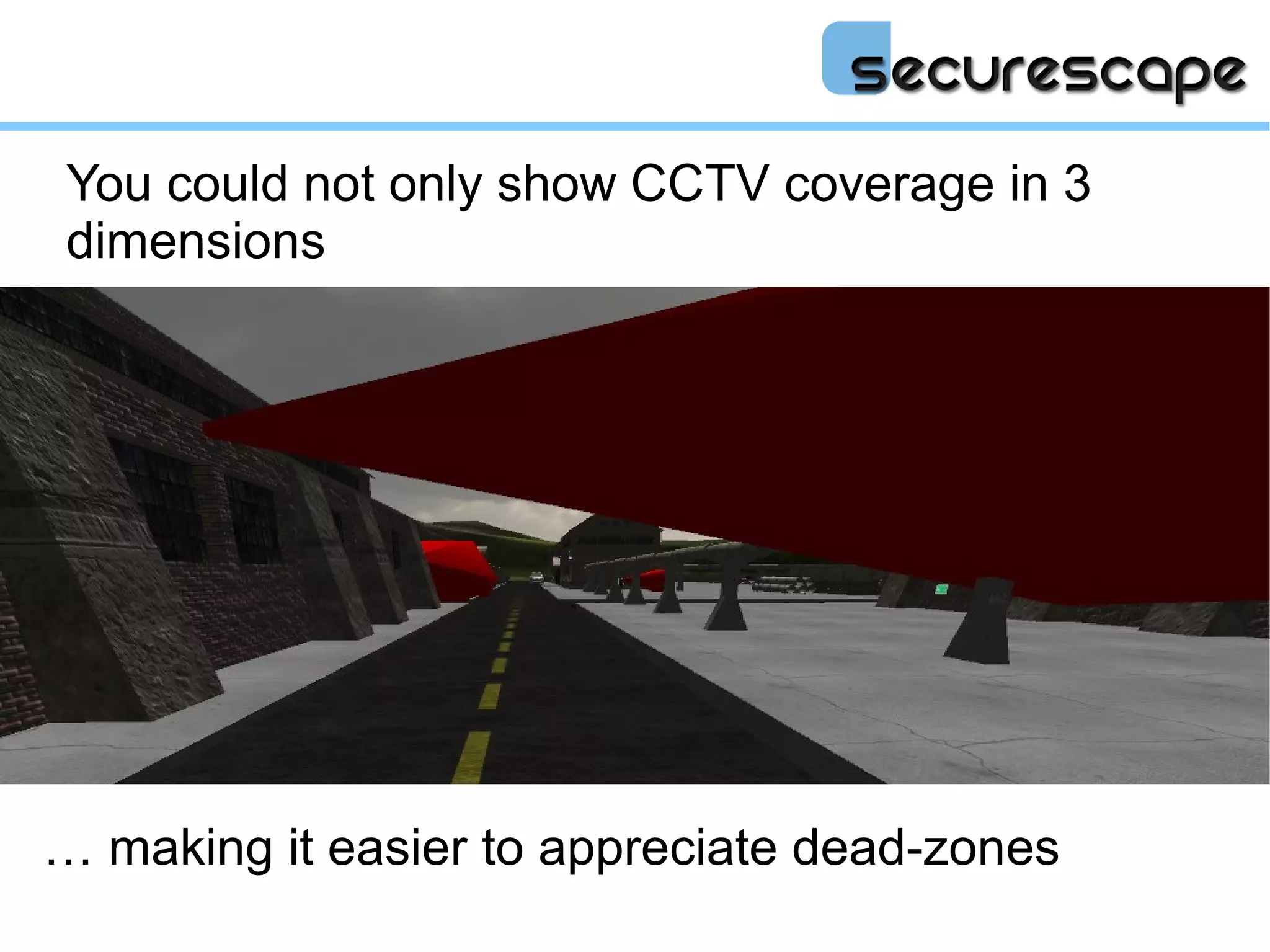

6. You could not only show CCTV coverage in 3
dimensions
… making it easier to appreciate dead-zones

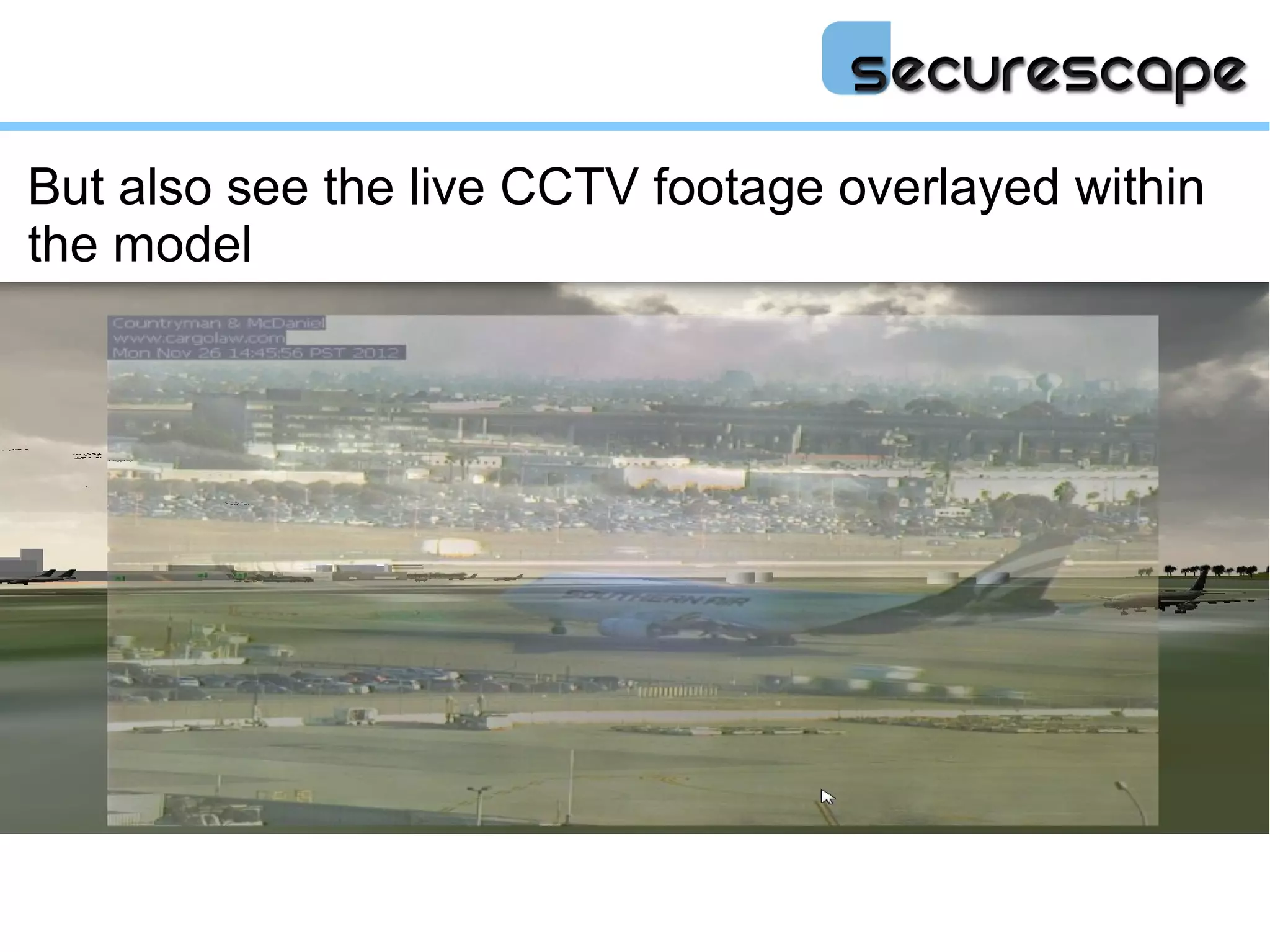

7. But also see the live CCTV footage overlayed within
the model

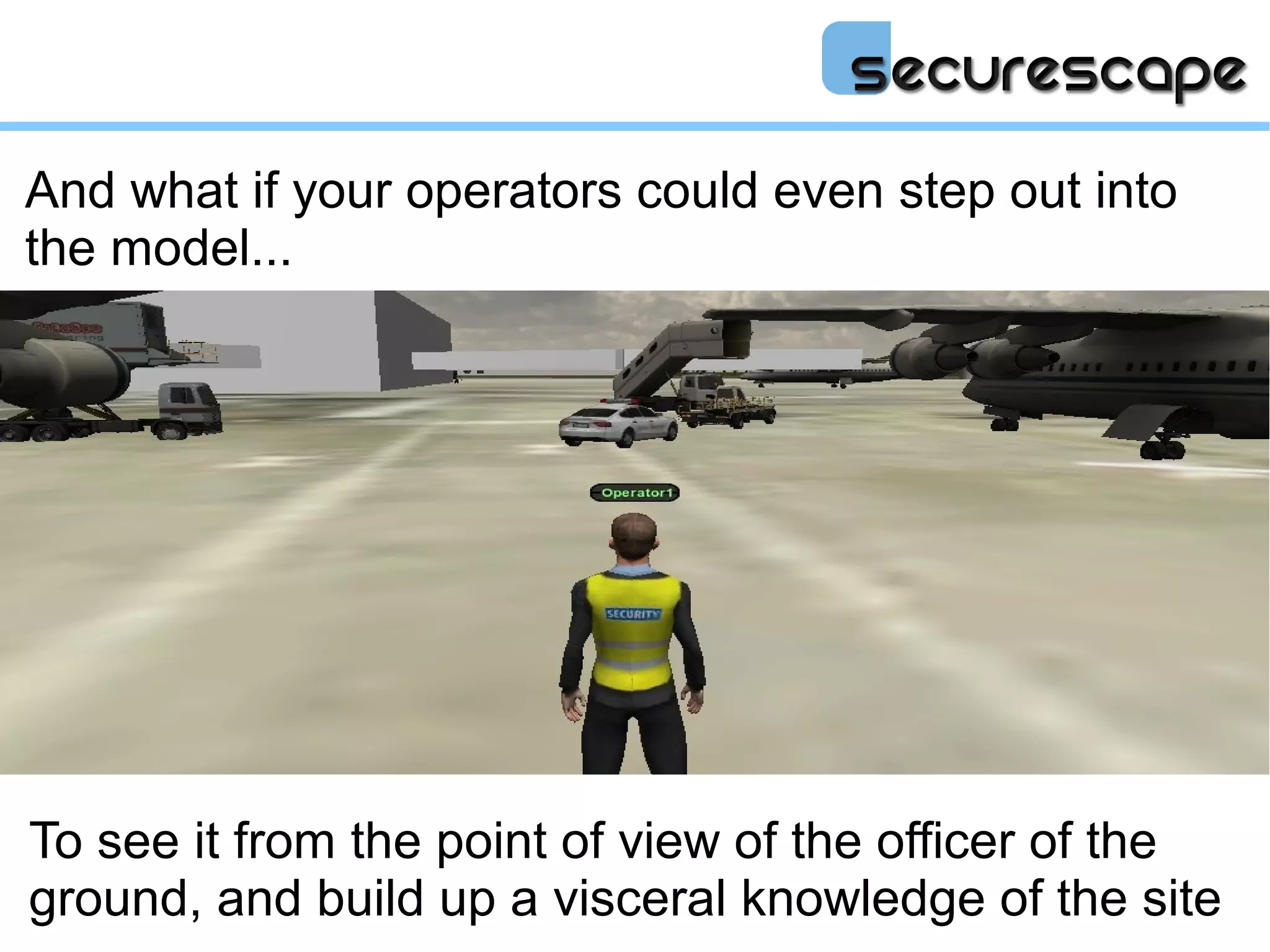

8. And what if your operators could even step out into
the model...
To see it from the point of view of the officer of the
ground, and build up a visceral knowledge of the site

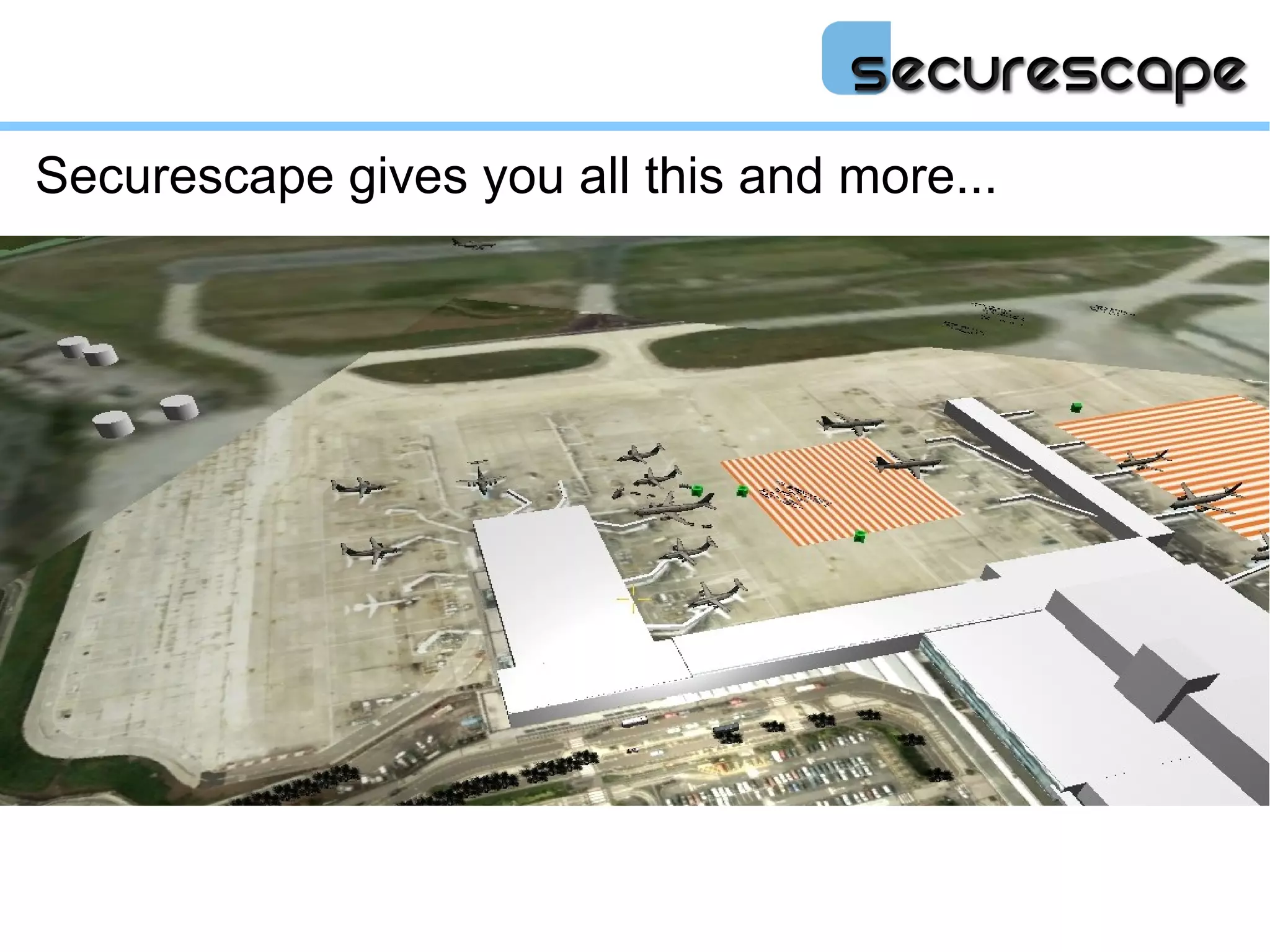

9. Securescape gives you all this and more...

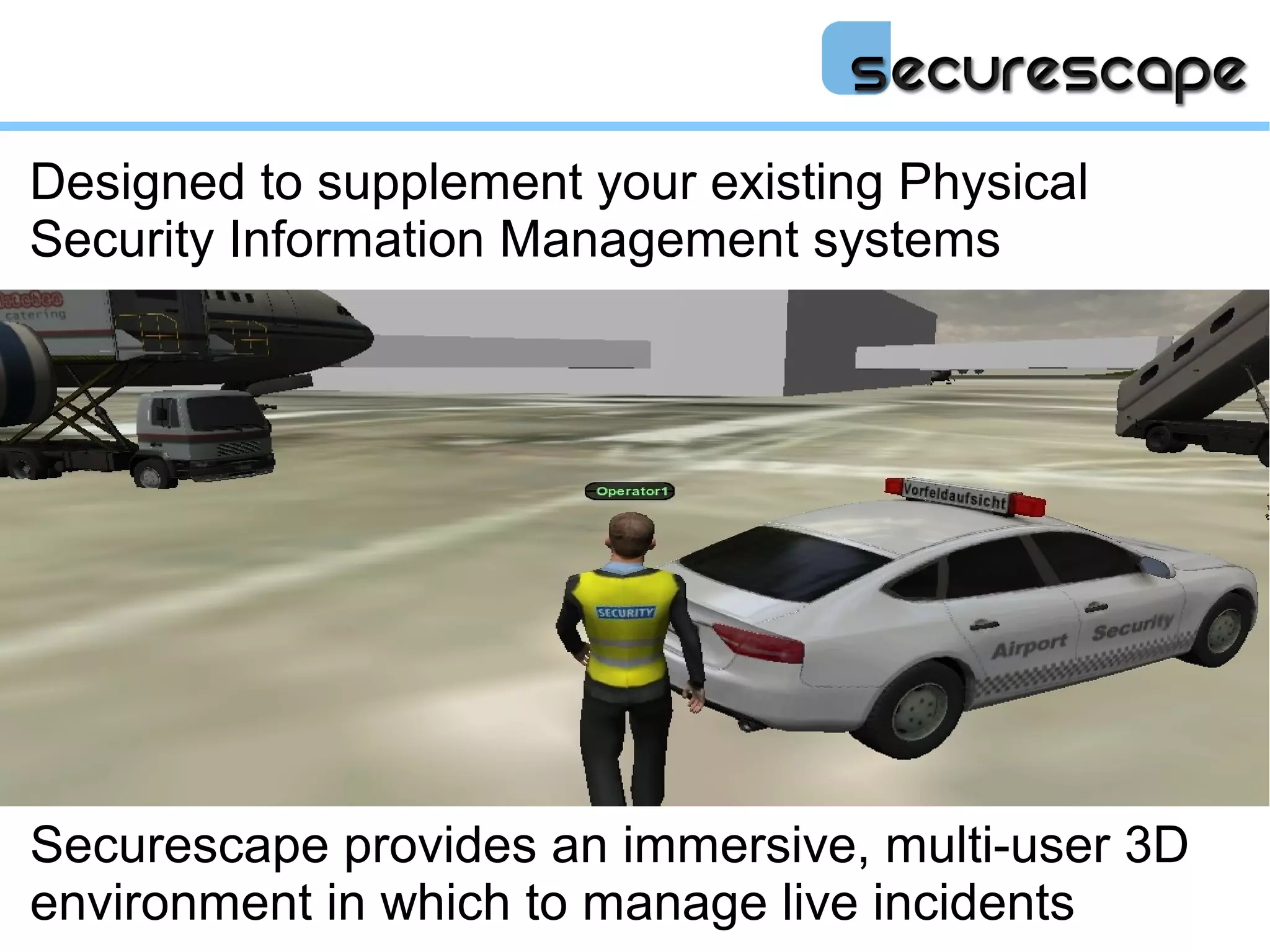

10. Designed to supplement your existing Physical
Security Information Management systems
Securescape provides an immersive, multi-user 3D
environment in which to manage live incidents

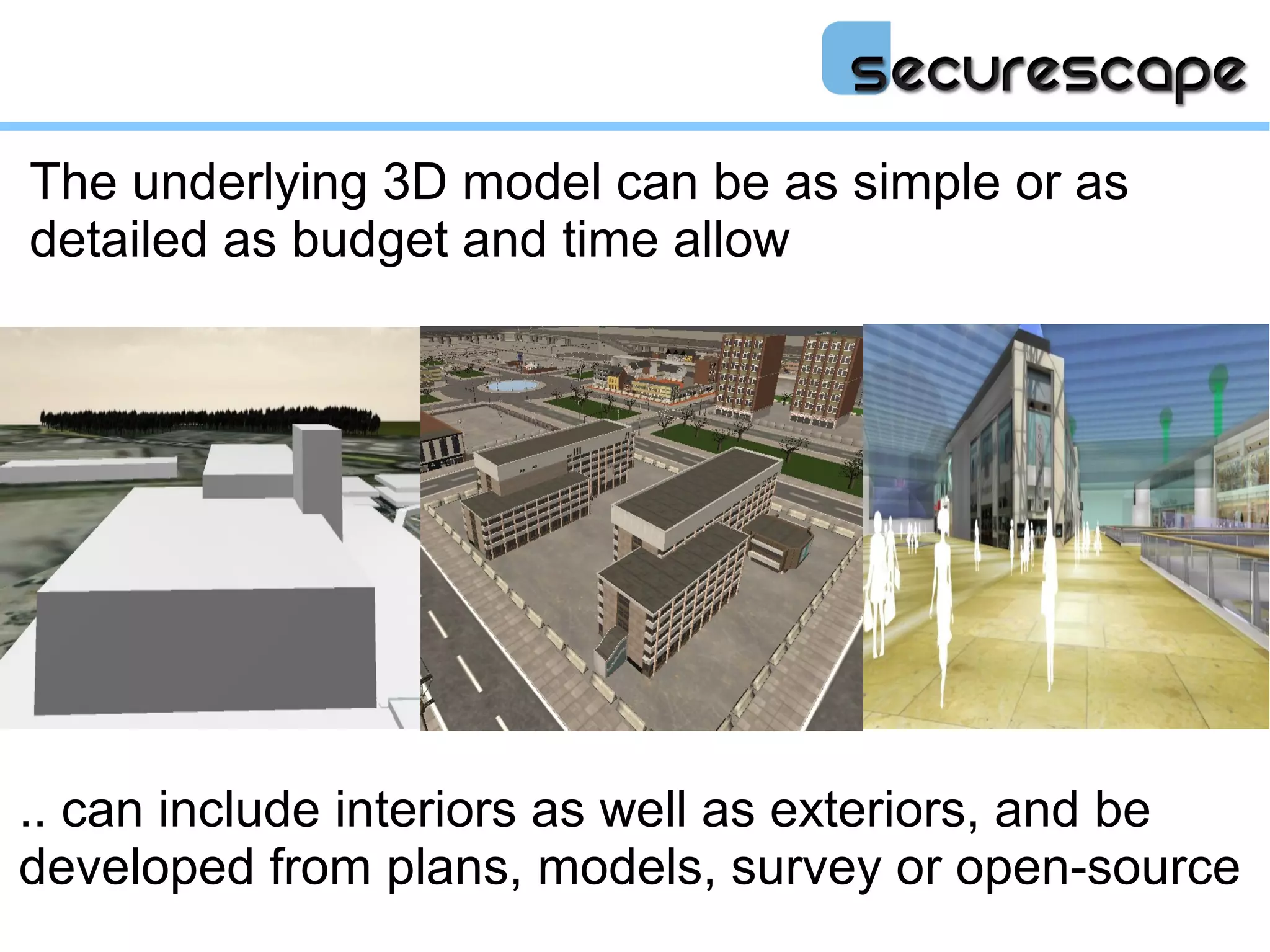

11. The underlying 3D model can be as simple or as
detailed as budget and time allow
.. can include interiors as well as exteriors, and be
developed from plans, models, survey or open-source

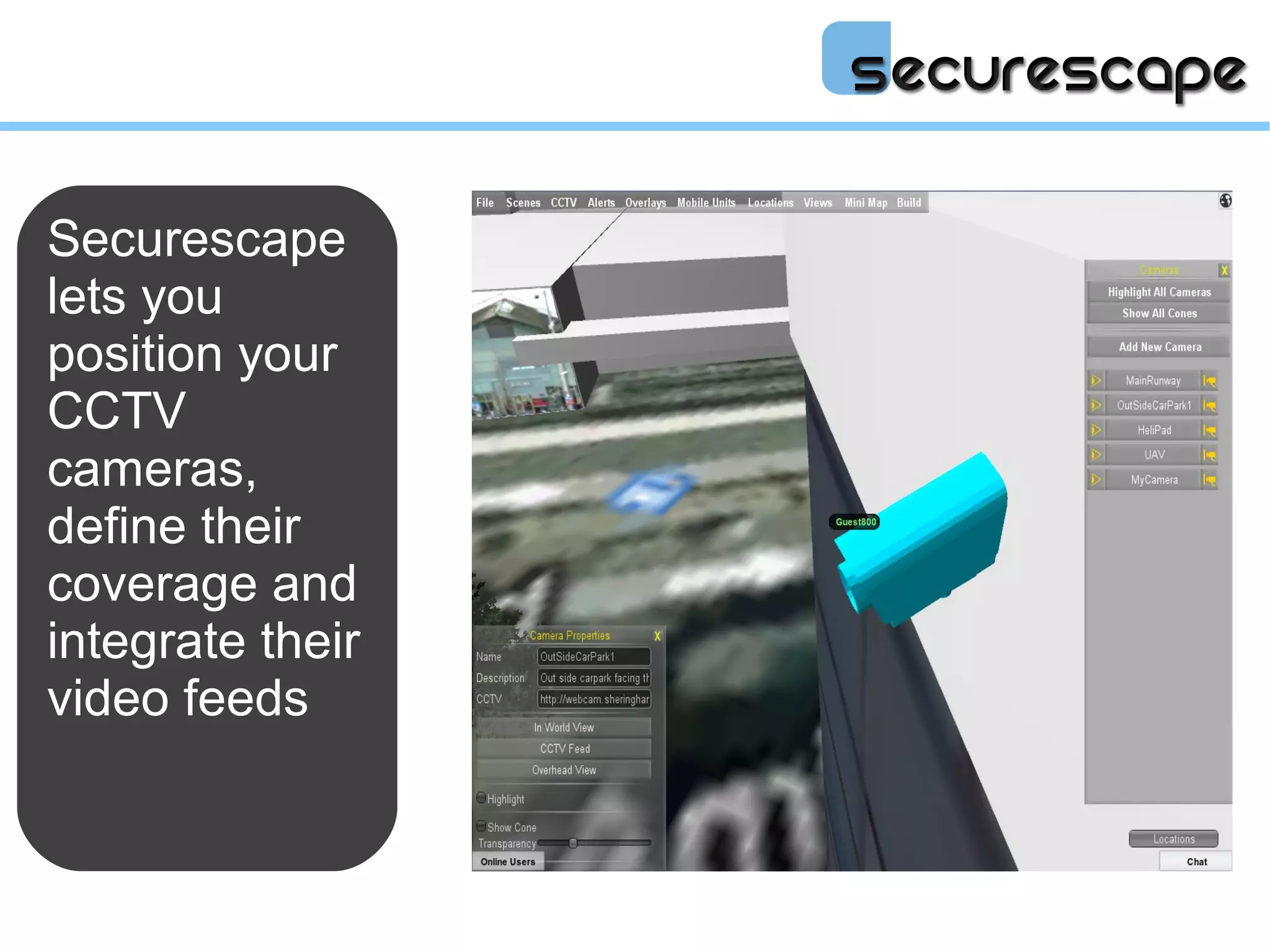

12. Securescape
lets you
position your
CCTV
cameras,
define their
coverage and
integrate their
video feeds

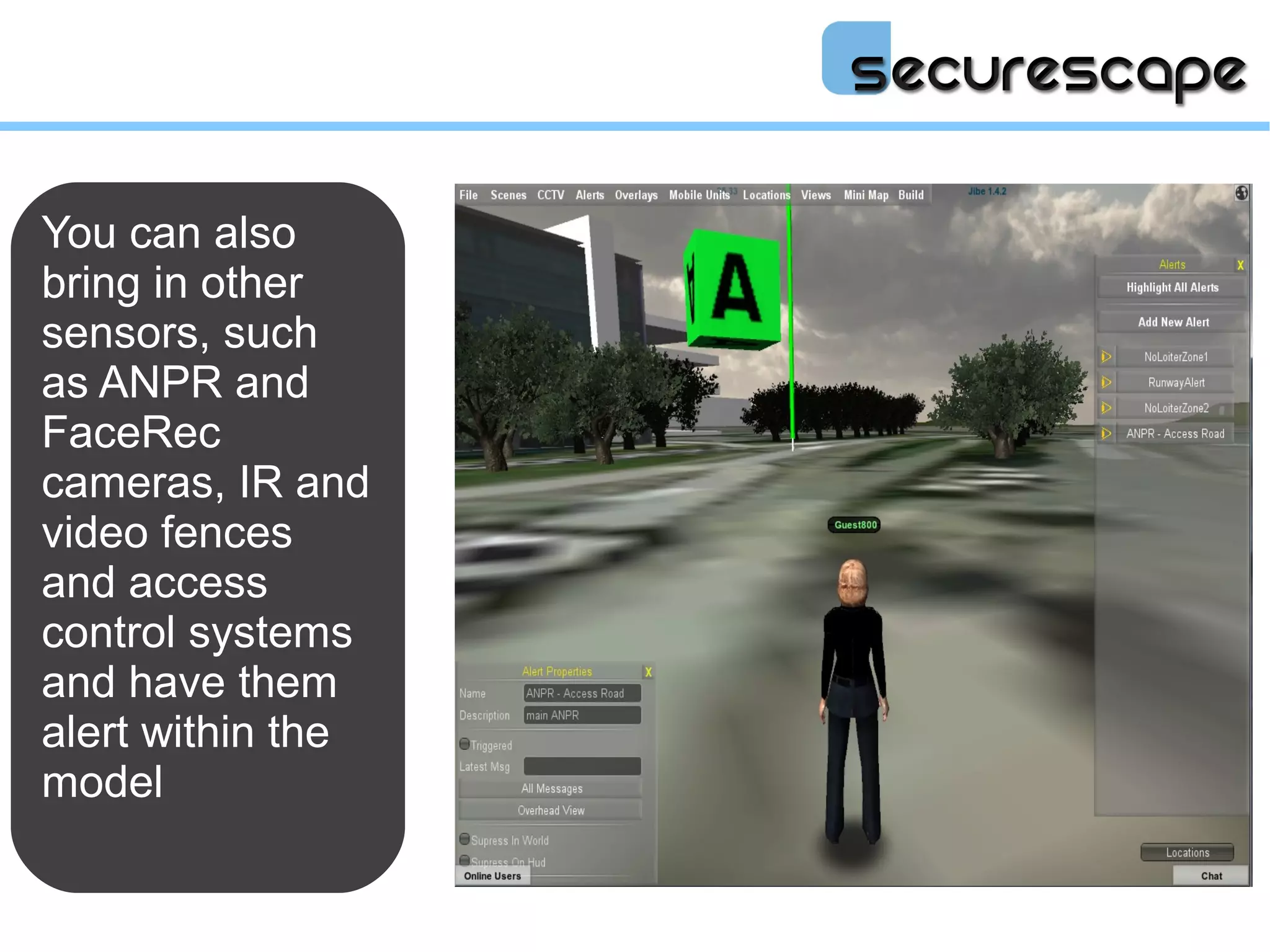

13. You can also
bring in other
sensors, such
as ANPR and
FaceRec
cameras, IR and
video fences
and access
control systems
and have them
alert within the
model

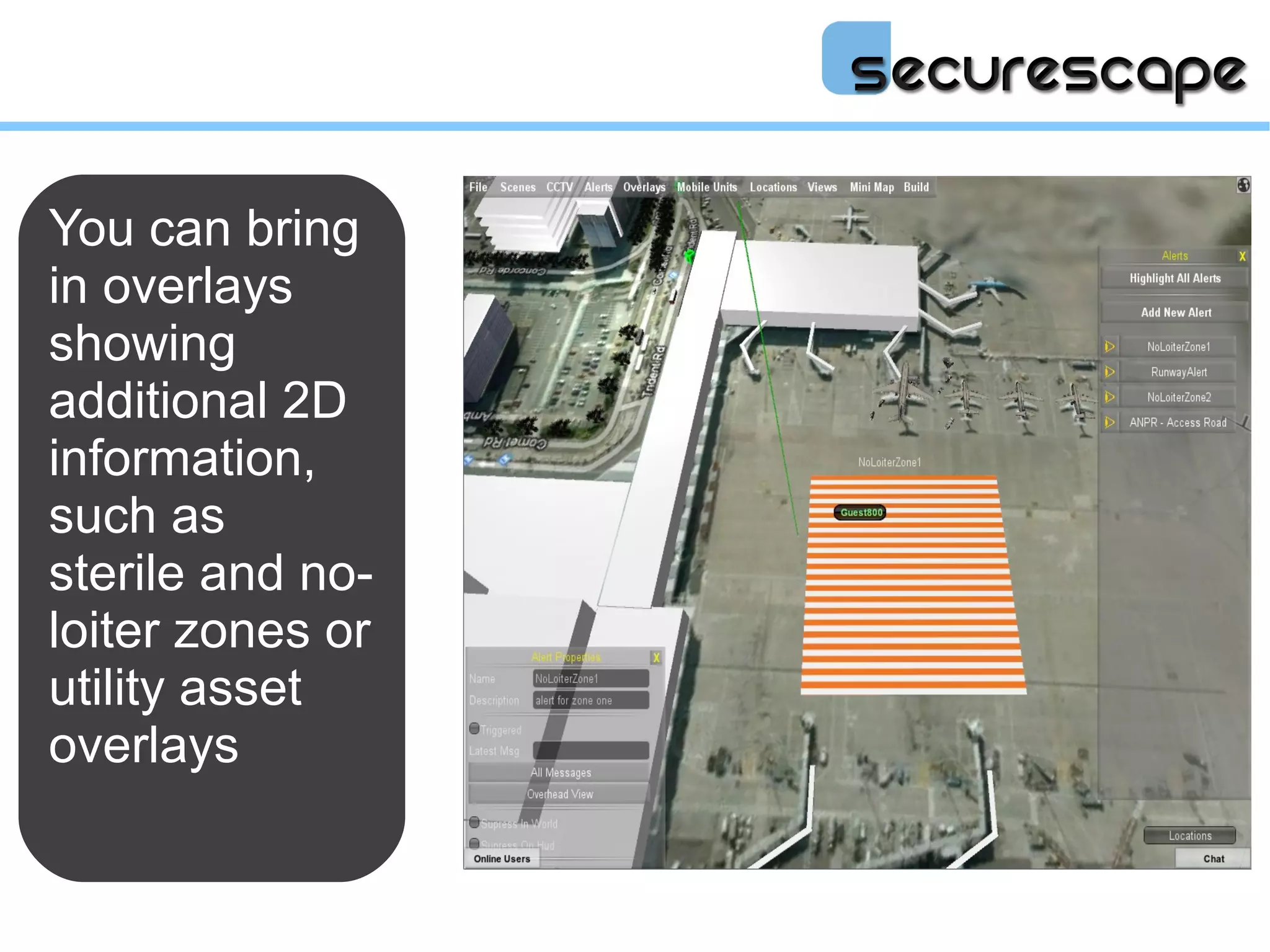

14. You can bring
in overlays
showing
additional 2D
information,
such as
sterile and no-
loiter zones or
utility asset
overlays

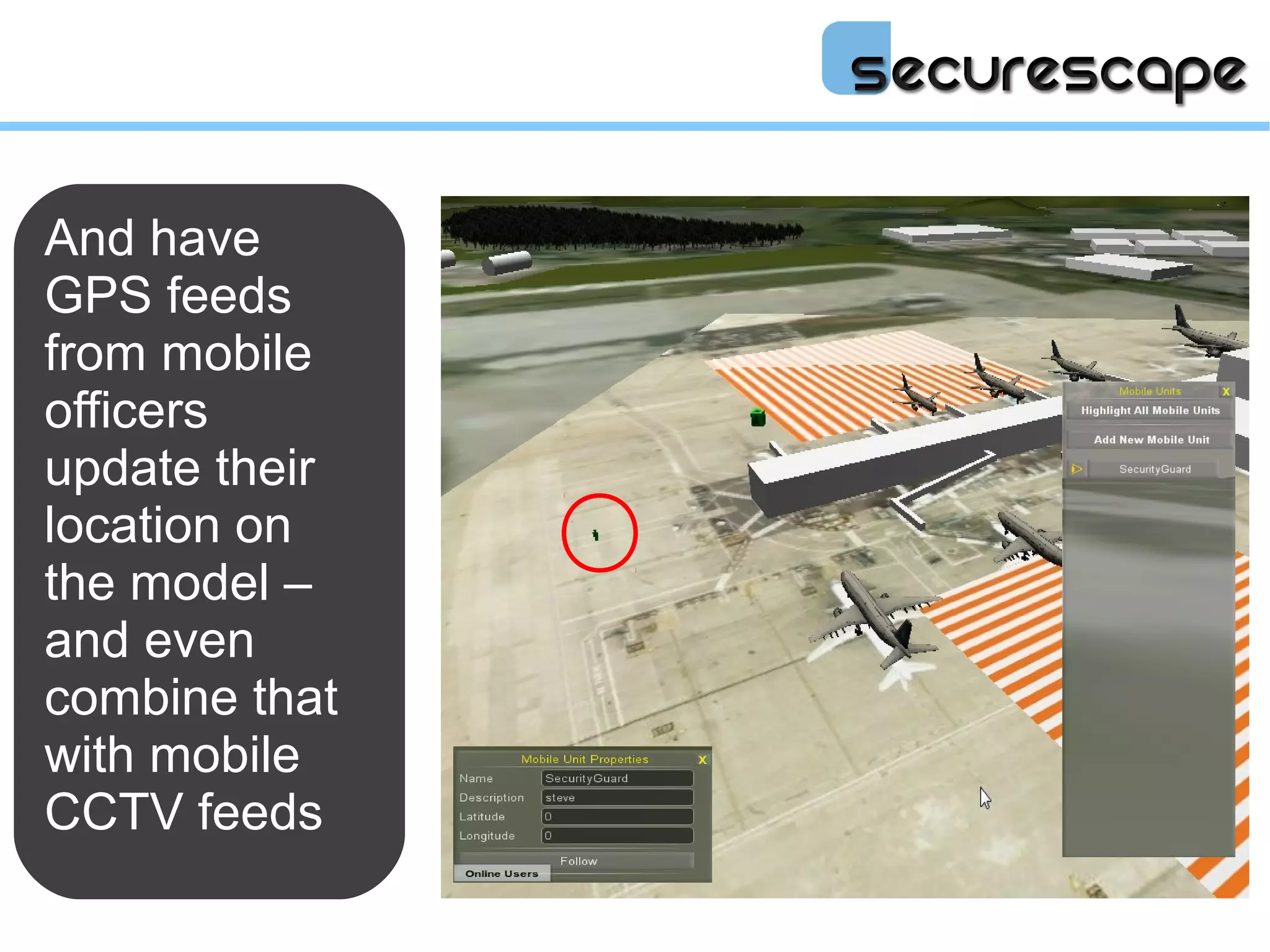

15. And have
GPS feeds
from mobile
officers
update their
location on
the model –
and even
combine that
with mobile
CCTV feeds

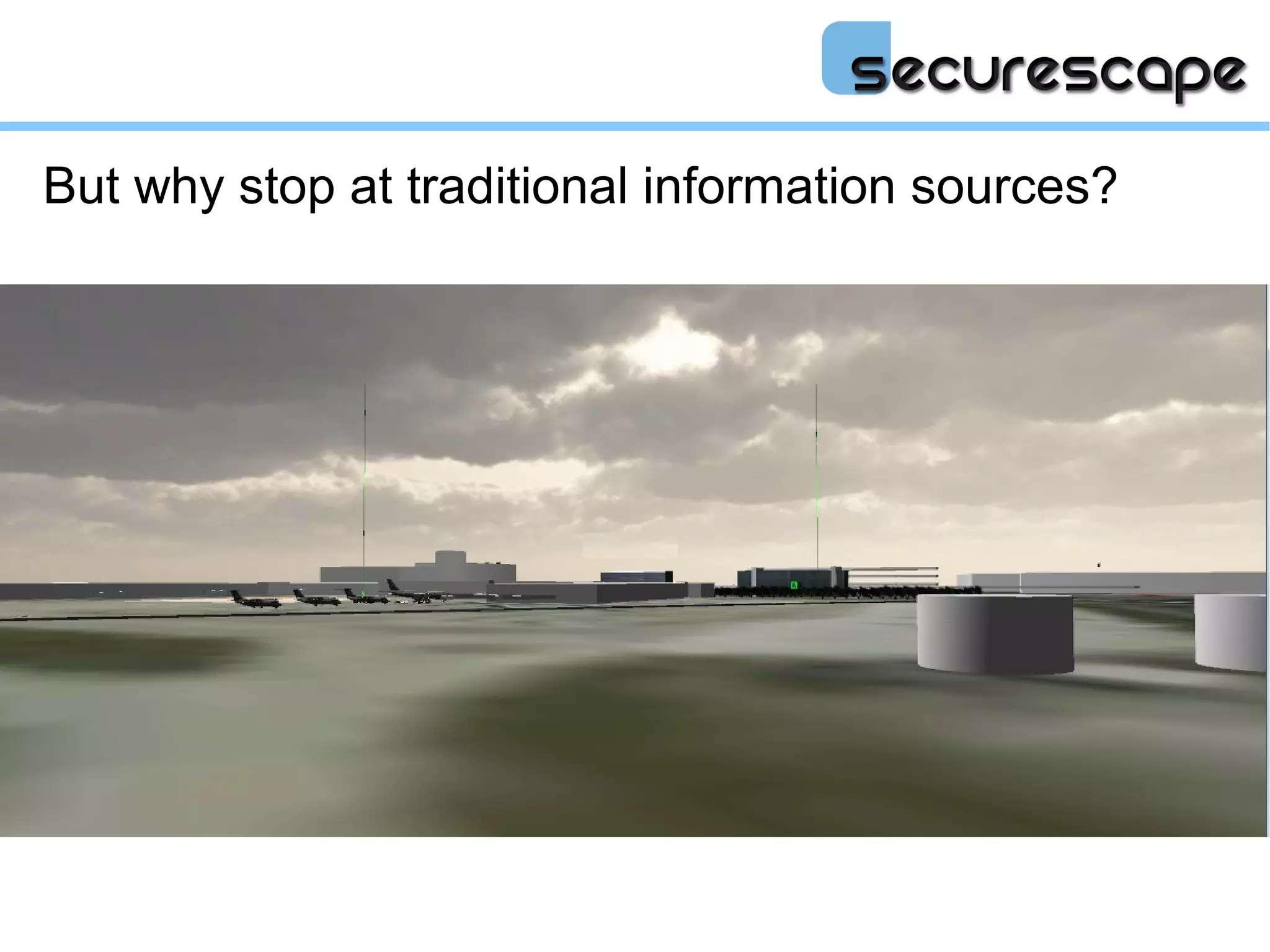

16. But why stop at traditional information sources?

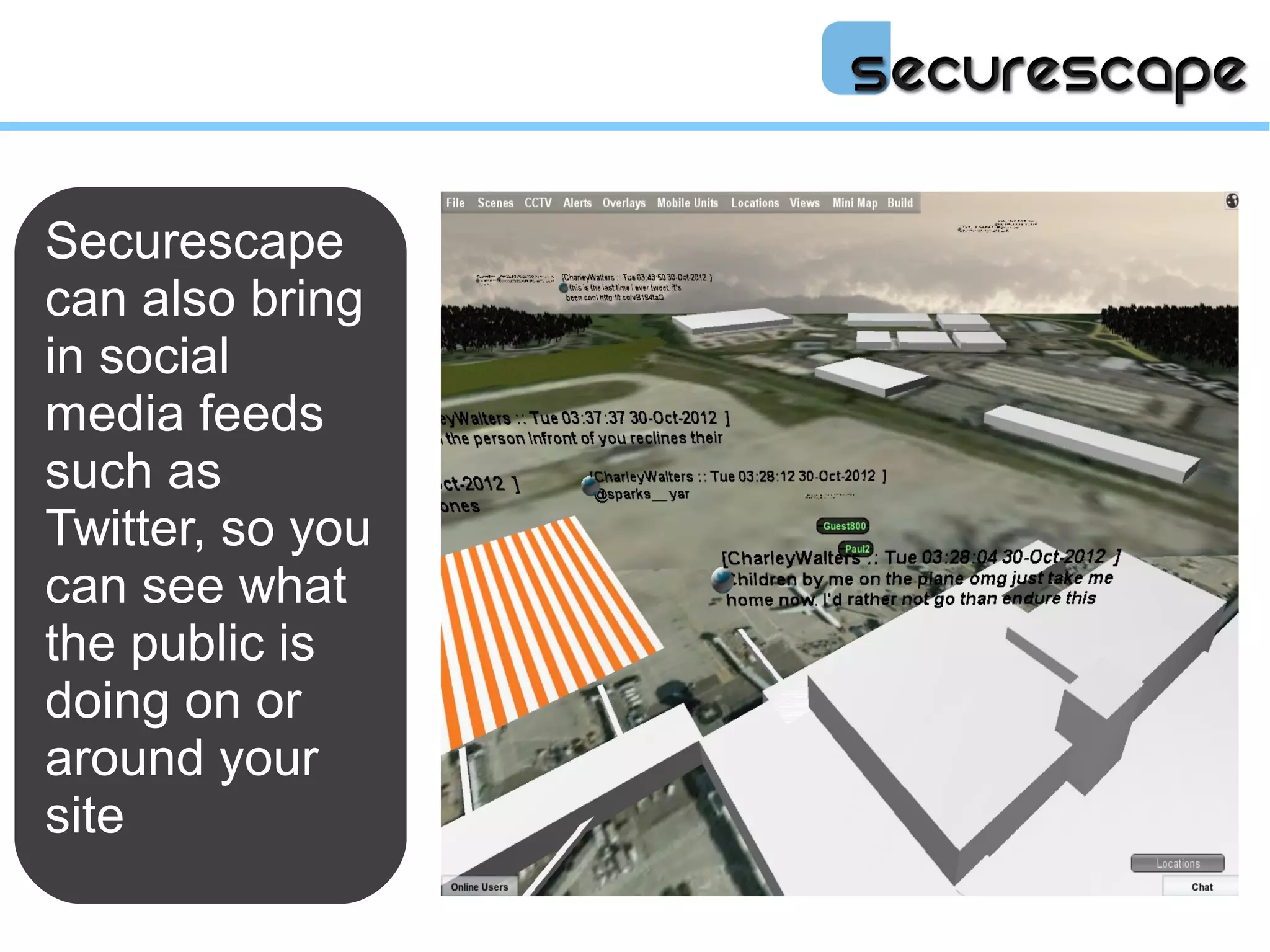

17. Securescape
can also bring
in social
media feeds
such as
Twitter, so you
can see what
the public is
doing on or
around your
site

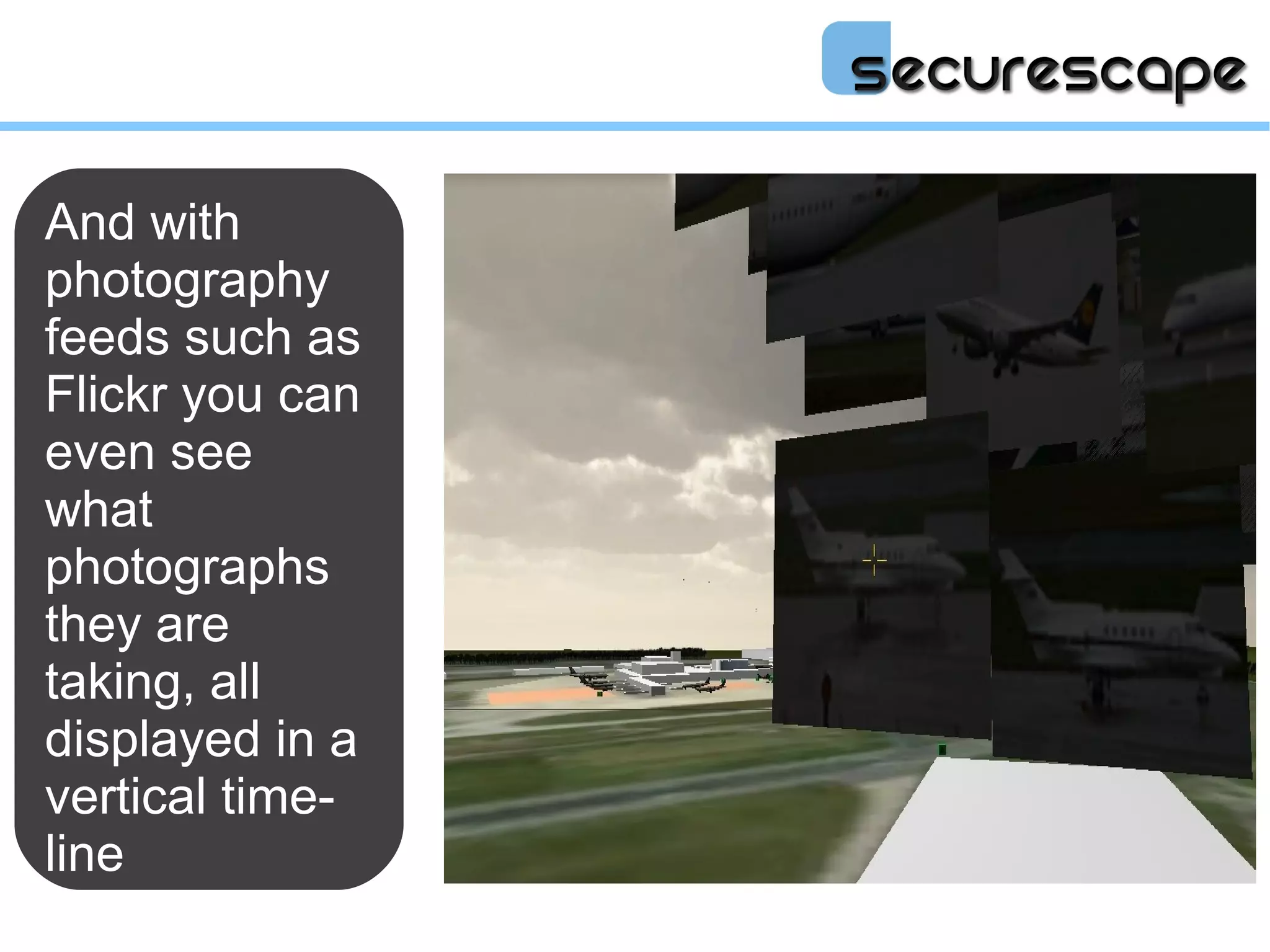

18. And with
photography
feeds such as
Flickr you can
even see
what
photographs
they are
taking, all
displayed in a
vertical time-
line

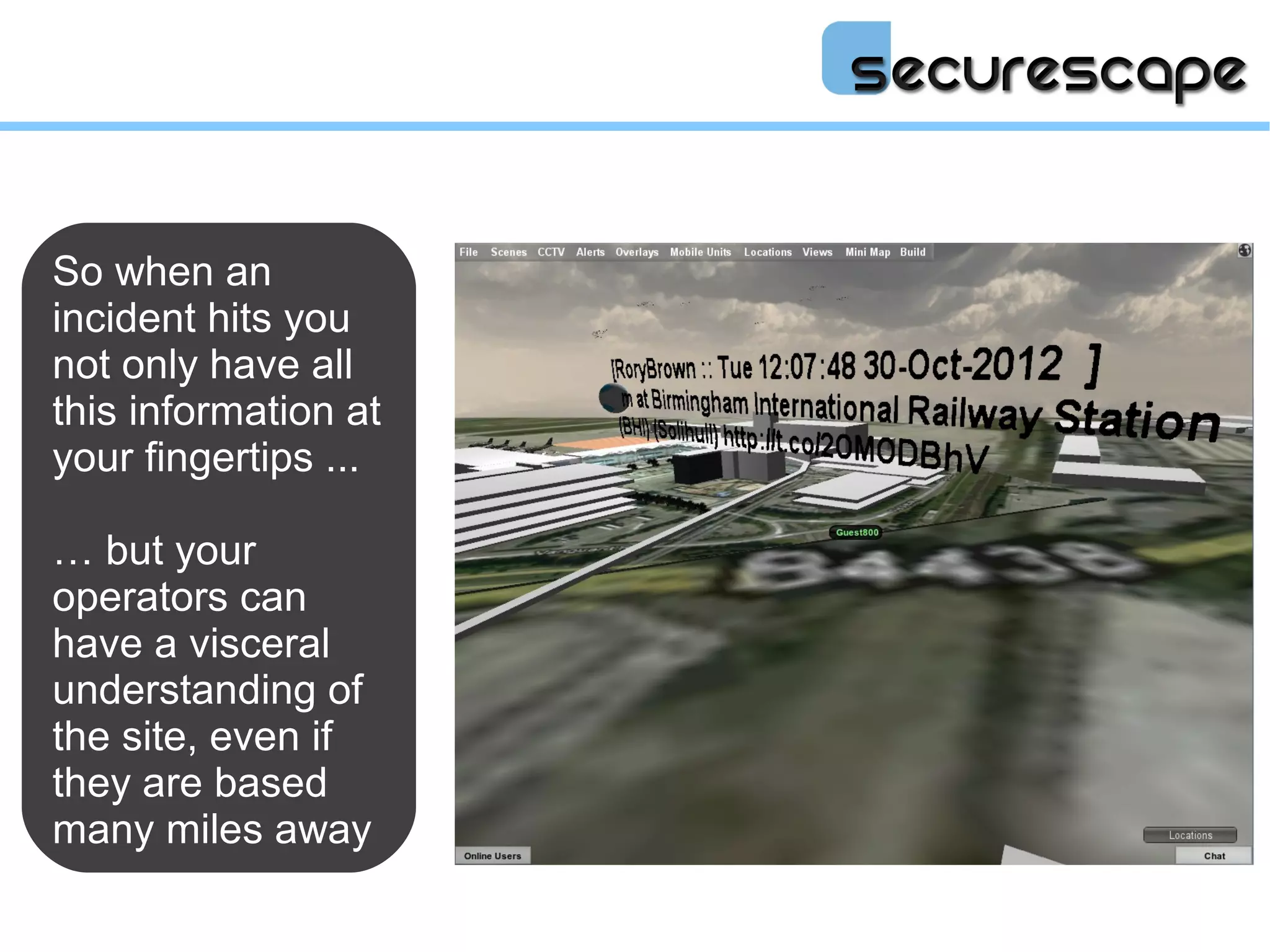

19. So when an
incident hits you
not only have all
this information at
your fingertips ...
… but your
operators can
have a visceral
understanding of
the site, even if
they are based
many miles away

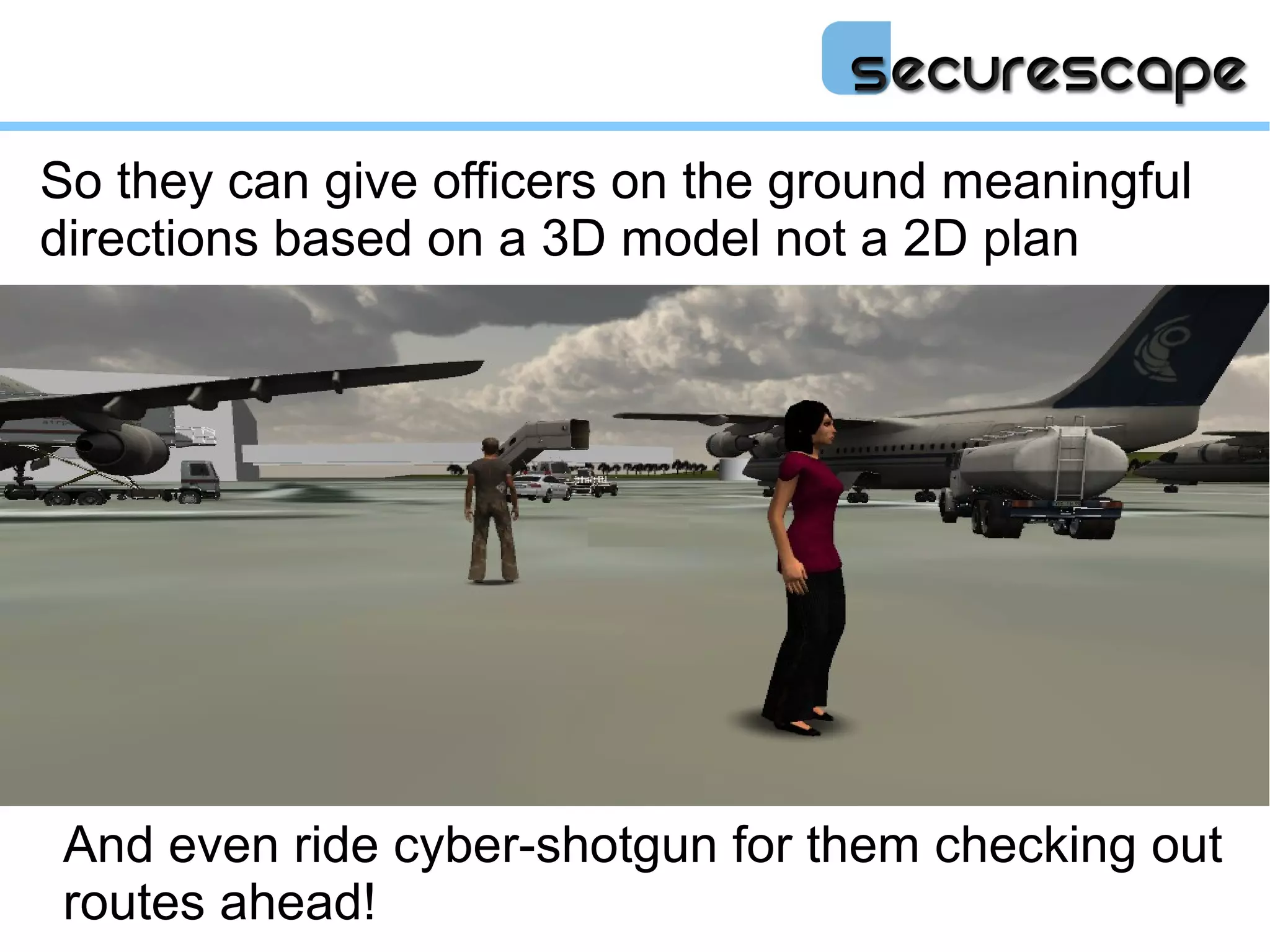

20. So they can give officers on the ground meaningful
directions based on a 3D model not a 2D plan
And even ride cyber-shotgun for them checking out
routes ahead!

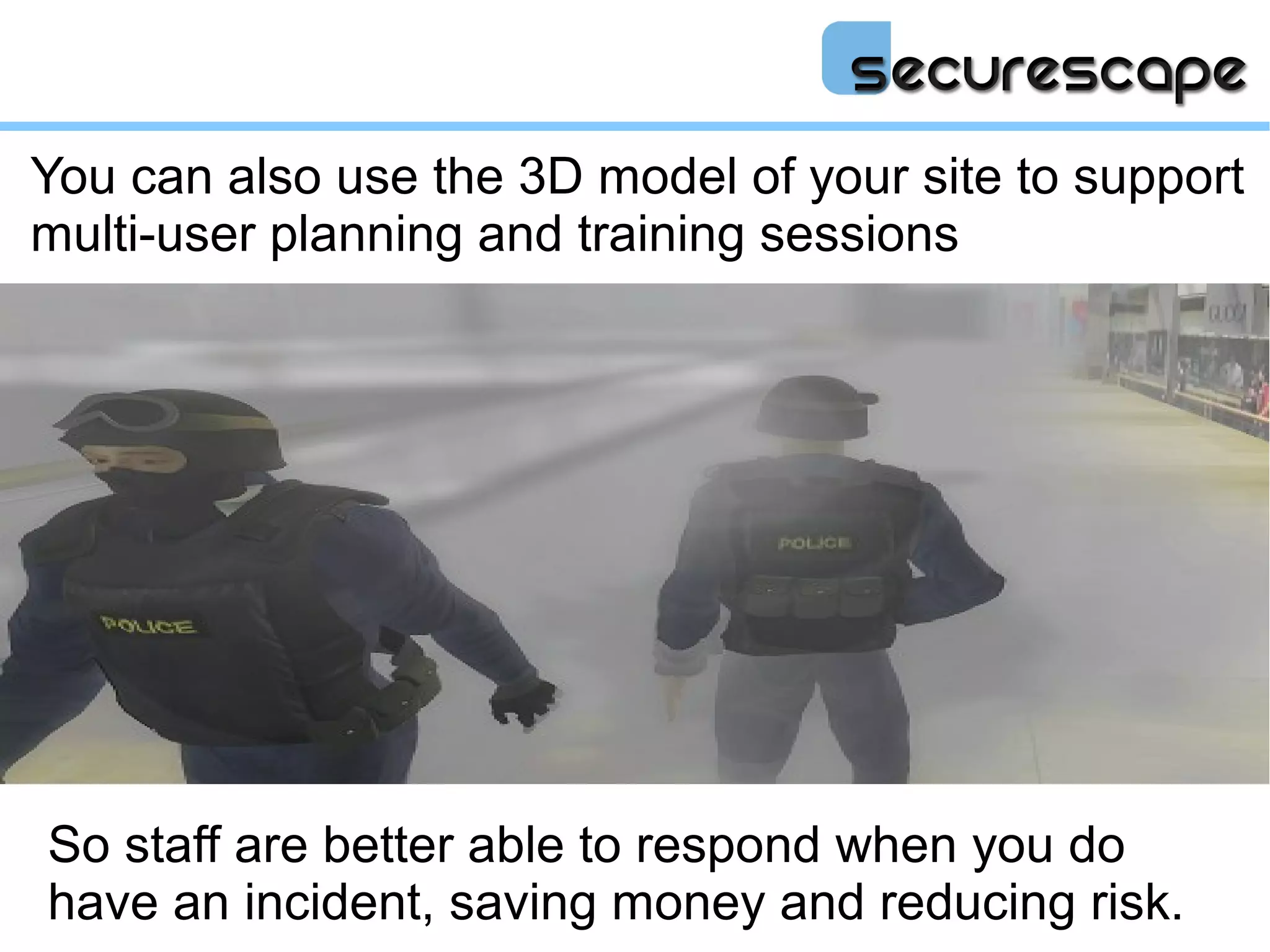

21. You can also use the 3D model of your site to support
multi-user planning and training sessions
So staff are better able to respond when you do
have an incident, saving money and reducing risk.

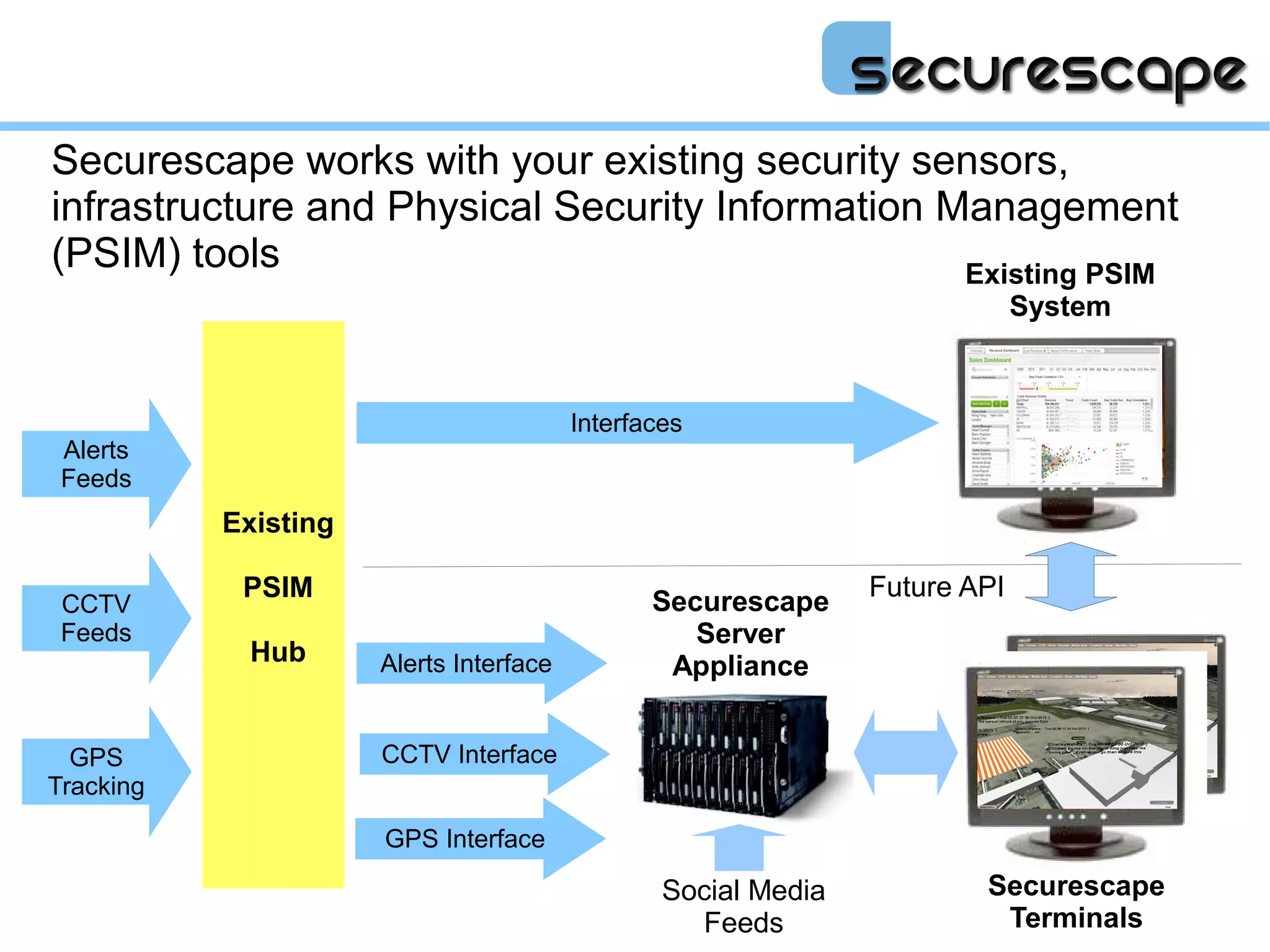

22. Securescape works with your existing security sensors,
infrastructure and Physical Security Information Management
(PSIM) tools Existing PSIM
System
Interfaces
Alerts
Feeds
Existing
PSIM Future API
CCTV Securescape
Feeds Server
Hub Alerts Interface Appliance
GPS CCTV Interface
Tracking
GPS Interface
Social Media Securescape
Feeds Terminals

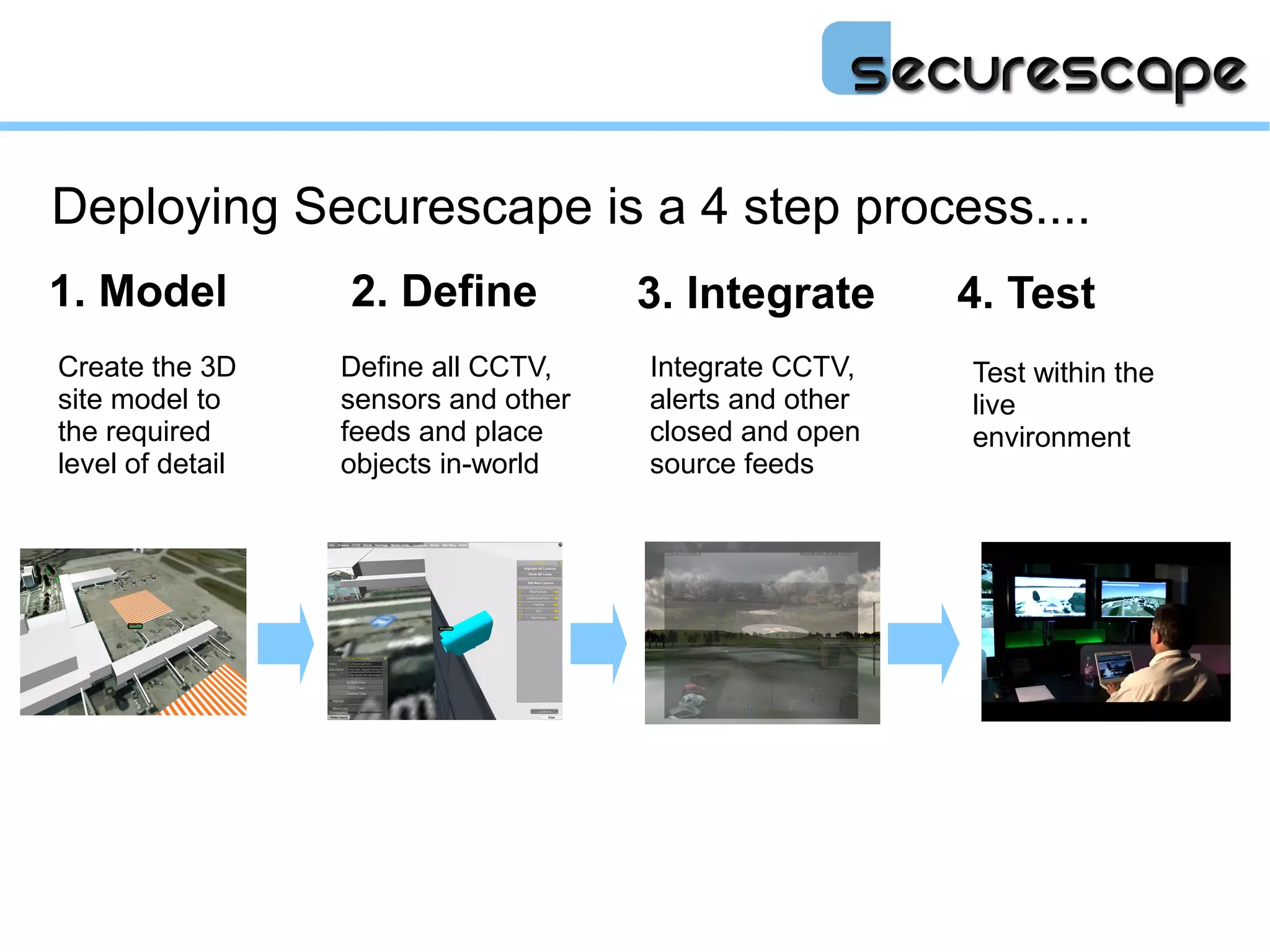

23. Deploying Securescape is a 4 step process....
1. Model 2. Define 3. Integrate 4. Test
Create the 3D Define all CCTV, Integrate CCTV, Test within the
site model to sensors and other alerts and other live
the required feeds and place closed and open environment
level of detail objects in-world source feeds

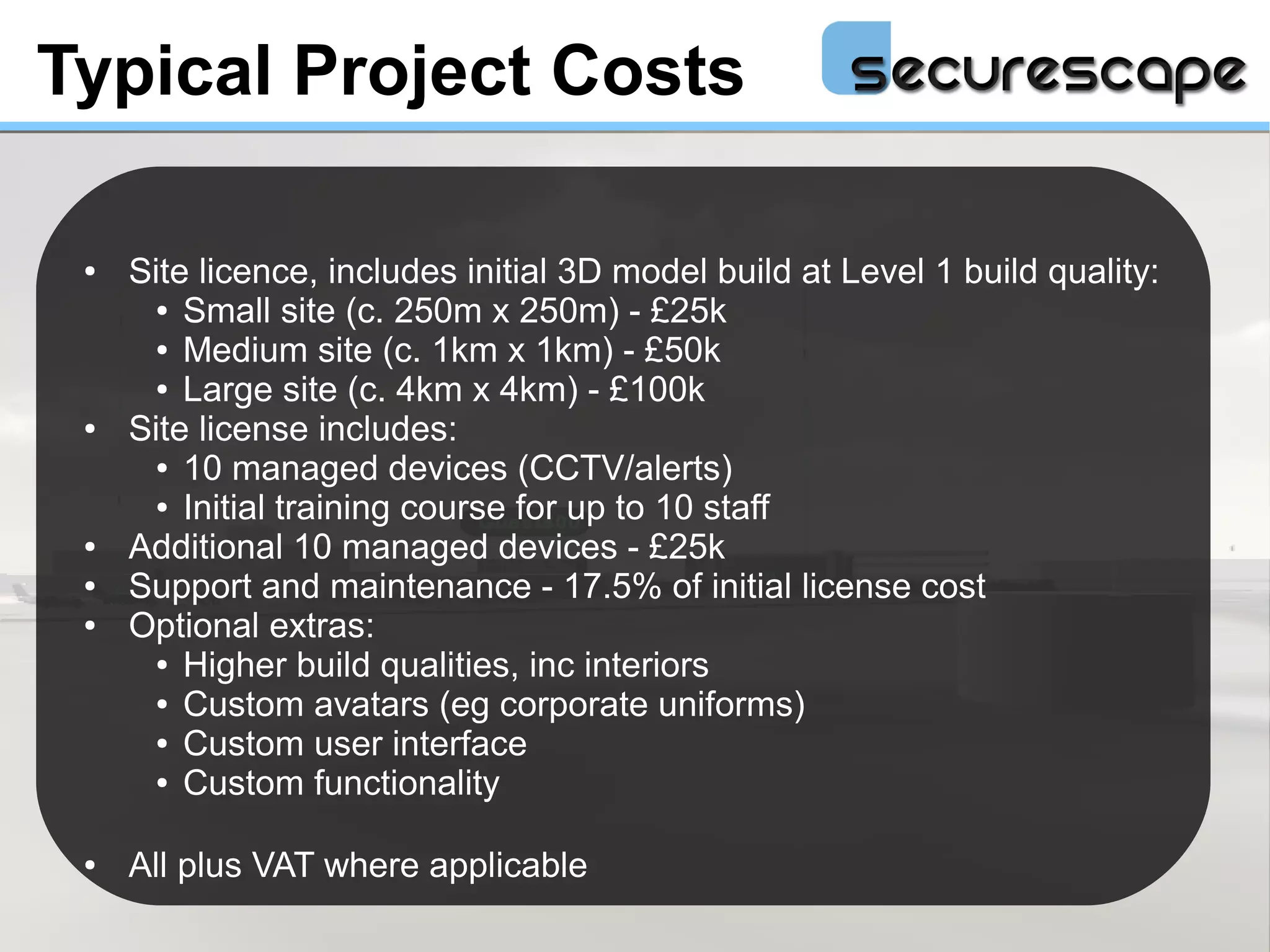

24. Typical Project Costs
● Site licence, includes initial 3D model build at Level 1 build quality:
● Small site (c. 250m x 250m) - £25k
● Medium site (c. 1km x 1km) - £50k
● Large site (c. 4km x 4km) - £100k
● Site license includes:
● 10 managed devices (CCTV/alerts)
● Initial training course for up to 10 staff
● Additional 10 managed devices - £25k
● Support and maintenance - 17.5% of initial license cost
● Optional extras:
● Higher build qualities, inc interiors
● Custom avatars (eg corporate uniforms)
● Custom user interface
● Custom functionality
● All plus VAT where applicable

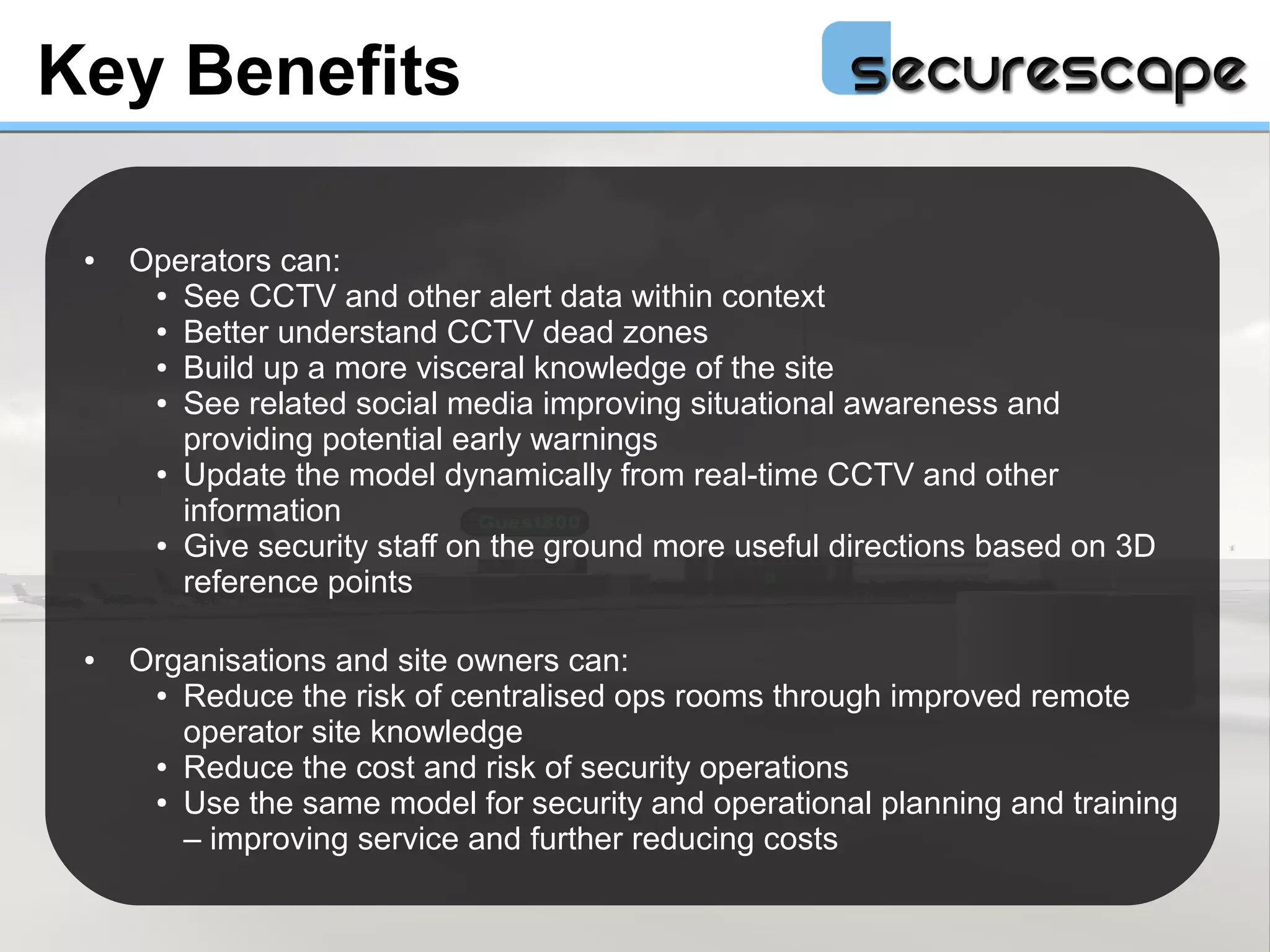

25. Key Benefits
● Operators can:
● See CCTV and other alert data within context
● Better understand CCTV dead zones
● Build up a more visceral knowledge of the site
● See related social media improving situational awareness and
providing potential early warnings
● Update the model dynamically from real-time CCTV and other
information
● Give security staff on the ground more useful directions based on 3D
reference points
● Organisations and site owners can:
● Reduce the risk of centralised ops rooms through improved remote
operator site knowledge
● Reduce the cost and risk of security operations
● Use the same model for security and operational planning and training
– improving service and further reducing costs

26. For more information contact:
securescape@daden.co.uk
www.daden.co.uk/securescape
+44 (0)121 250 5678 © 2012 www.daden.co.uk
