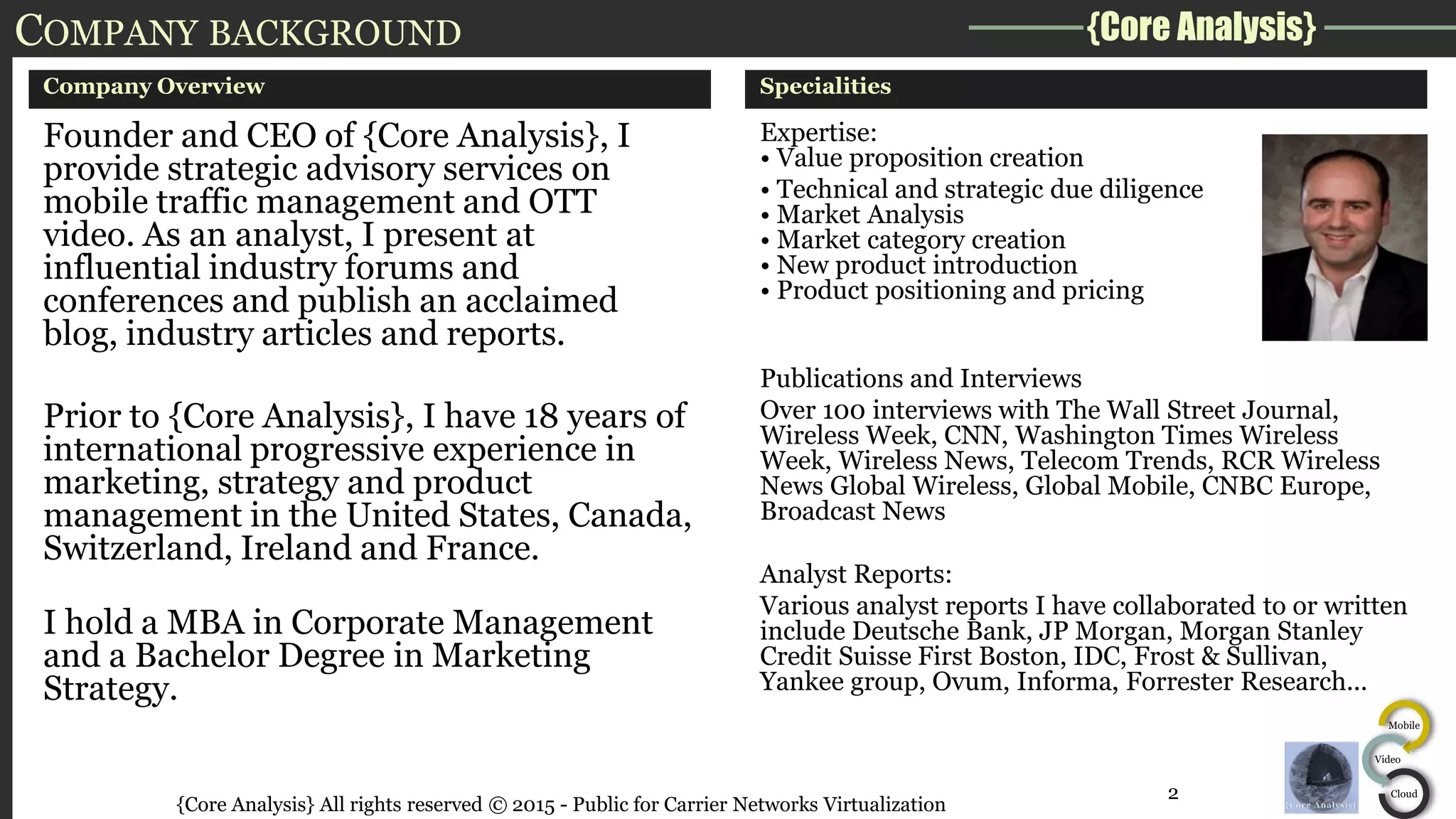

COMPANY BACKGROUND
Company Overview
Founder and CEO of {Core Analysis}, I
provide strategic advisory services on
mobile traffic management and OTT
video. As an analyst, I present at
influential industry forums and
conferences and publish an acclaimed
blog, industry articles and reports.
Prior to {Core Analysis}, I have 18 years of
international progressive experience in
marketing, strategy and product
management in the United States, Canada,
Switzerland, Ireland and France.
I hold a MBA in Corporate Management
and a Bachelor Degree in Marketing
Strategy.
Specialities
Expertise:
• Value proposition creation
• Technical and strategic due diligence
• Market Analysis
• Market category creation
• New product introduction
• Product positioning and pricing
Publications and Interviews
Over 100 interviews with The Wall Street Journal,
Wireless Week, CNN, Washington Times Wireless
Week, Wireless News, Telecom Trends, RCR Wireless
News Global Wireless, Global Mobile, CNBC Europe,
Broadcast News
Analyst Reports:
Various analyst reports I have collaborated to or written
include Deutsche Bank, JP Morgan, Morgan Stanley
Credit Suisse First Boston, IDC, Frost & Sullivan,
Yankee group, Ovum, Informa, Forrester Research...
{Core Analysis} All rights reserved © 2015 - Public for Carrier Networks Virtualization
2

{Core Analysis}
Mobile
Video
Cloud

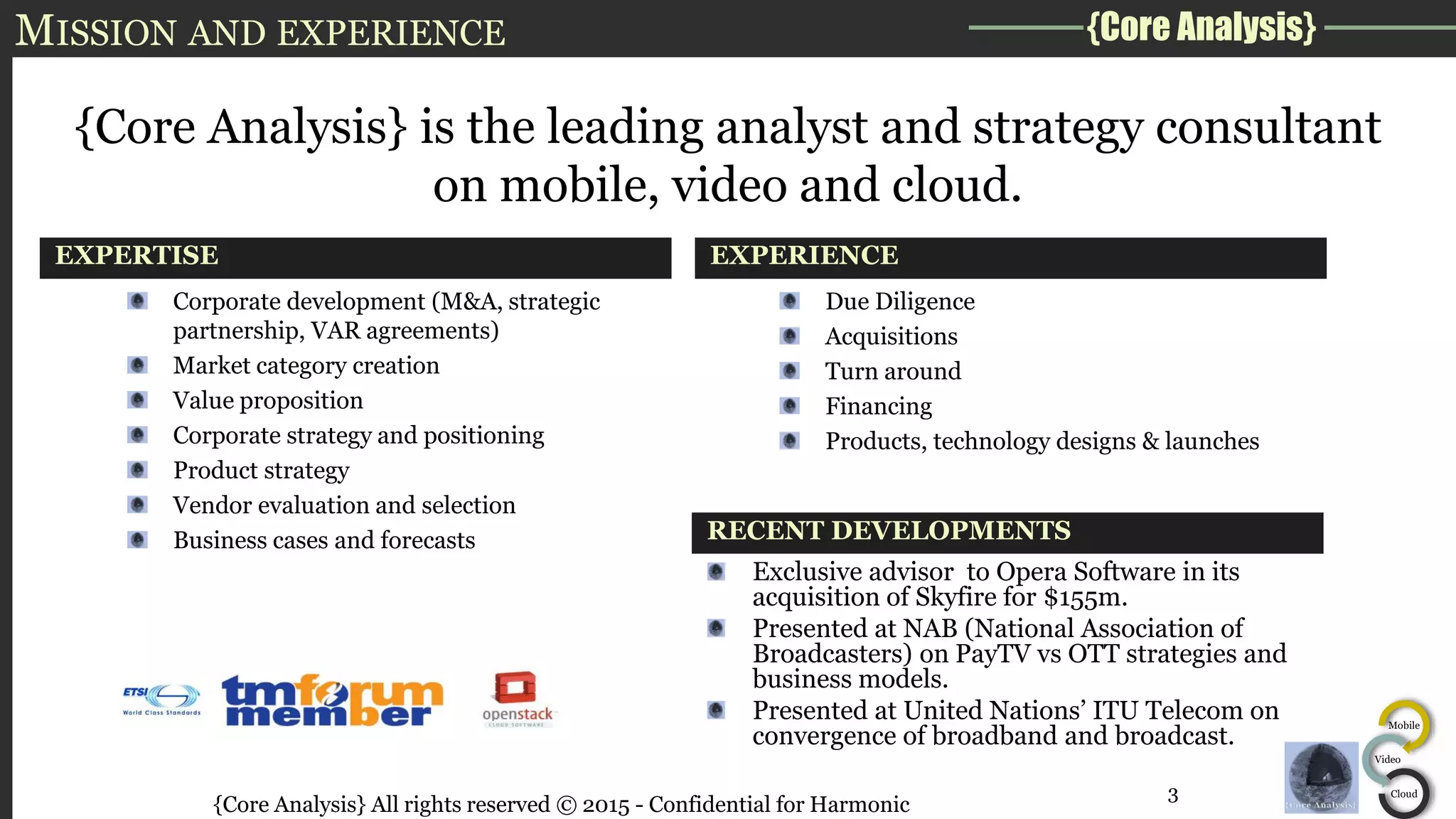

MISSION AND EXPERIENCE
EXPERTISE
{Core Analysis} is the leading analyst and strategy consultant
on mobile, video and cloud.
EXPERIENCE
Corporate development (M&A, strategic
partnership, VAR agreements)
Market category creation
Value proposition
Corporate strategy and positioning
Product strategy
Vendor evaluation and selection
Business cases and forecasts RECENT DEVELOPMENTS
Due Diligence
Acquisitions
Turn around
Financing
Products, technology designs & launches
{Core Analysis} All rights reserved © 2015 - Confidential for Harmonic
Exclusive advisor to Opera Software in its
acquisition of Skyfire for $155m.
Presented at NAB (National Association of
Broadcasters) on PayTV vs OTT strategies and
business models.
Presented at United Nations’ ITU Telecom on
convergence of broadband and broadcast.
3

Mobile
Video
Cloud
STANDARDS AND OPEN SOURCE
{Core Analysis} All rights reserved © 2015 - Public for Carrier
Networks Virtualization
4

{Core Analysis}
Mobile
Video
Cloud5

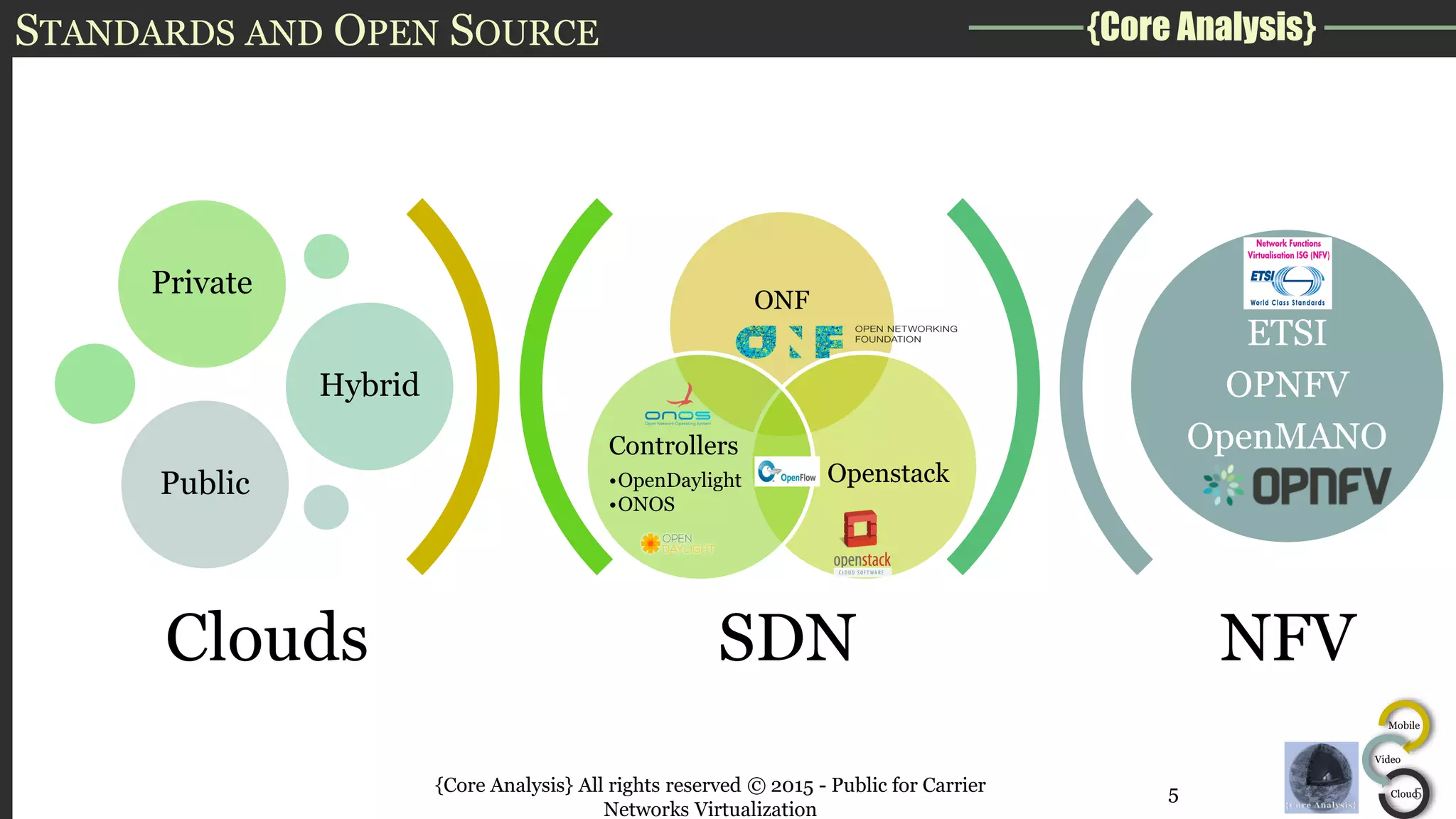

STANDARDS AND OPEN SOURCE
SDN NFV
ONF
Openstack
Controllers
•OpenDaylight
•ONOS
Private
Hybrid
Public
ETSI
OPNFV
OpenMANO
Clouds
5

{Core Analysis}
Mobile
Video
Cloud

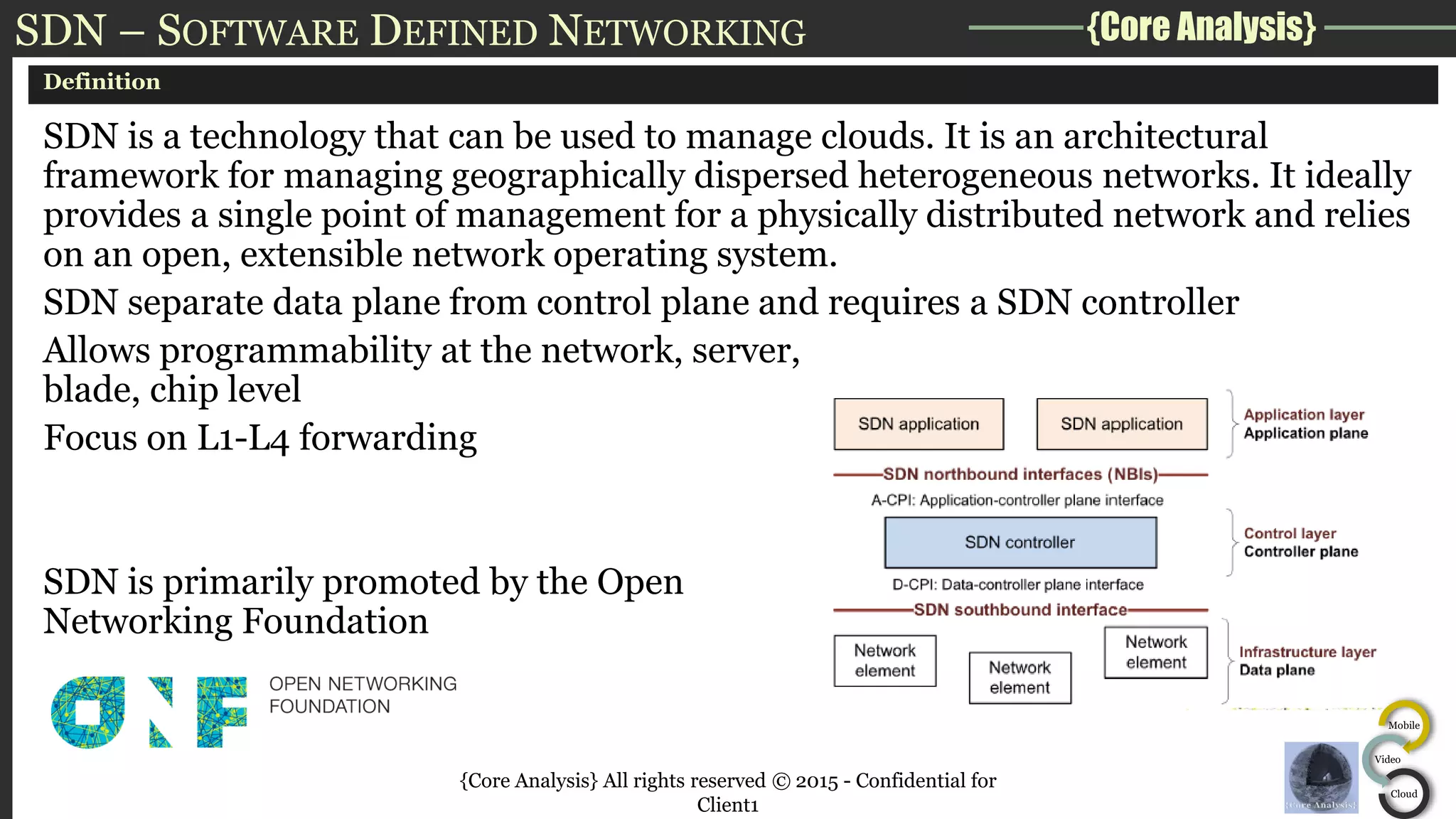

SDN – SOFTWARE DEFINED NETWORKING
Definition
SDN is a technology that can be used to manage clouds. It is an architectural
framework for managing geographically dispersed heterogeneous networks. It ideally
provides a single point of management for a physically distributed network and relies
on an open, extensible network operating system.
SDN separate data plane from control plane and requires a SDN controller
Allows programmability at the network, server,
blade, chip level
Focus on L1-L4 forwarding
SDN is primarily promoted by the Open
Networking Foundation
{Core Analysis} All rights reserved © 2015 - Confidential for
Client1

{Core Analysis}
Mobile
Video
Cloud

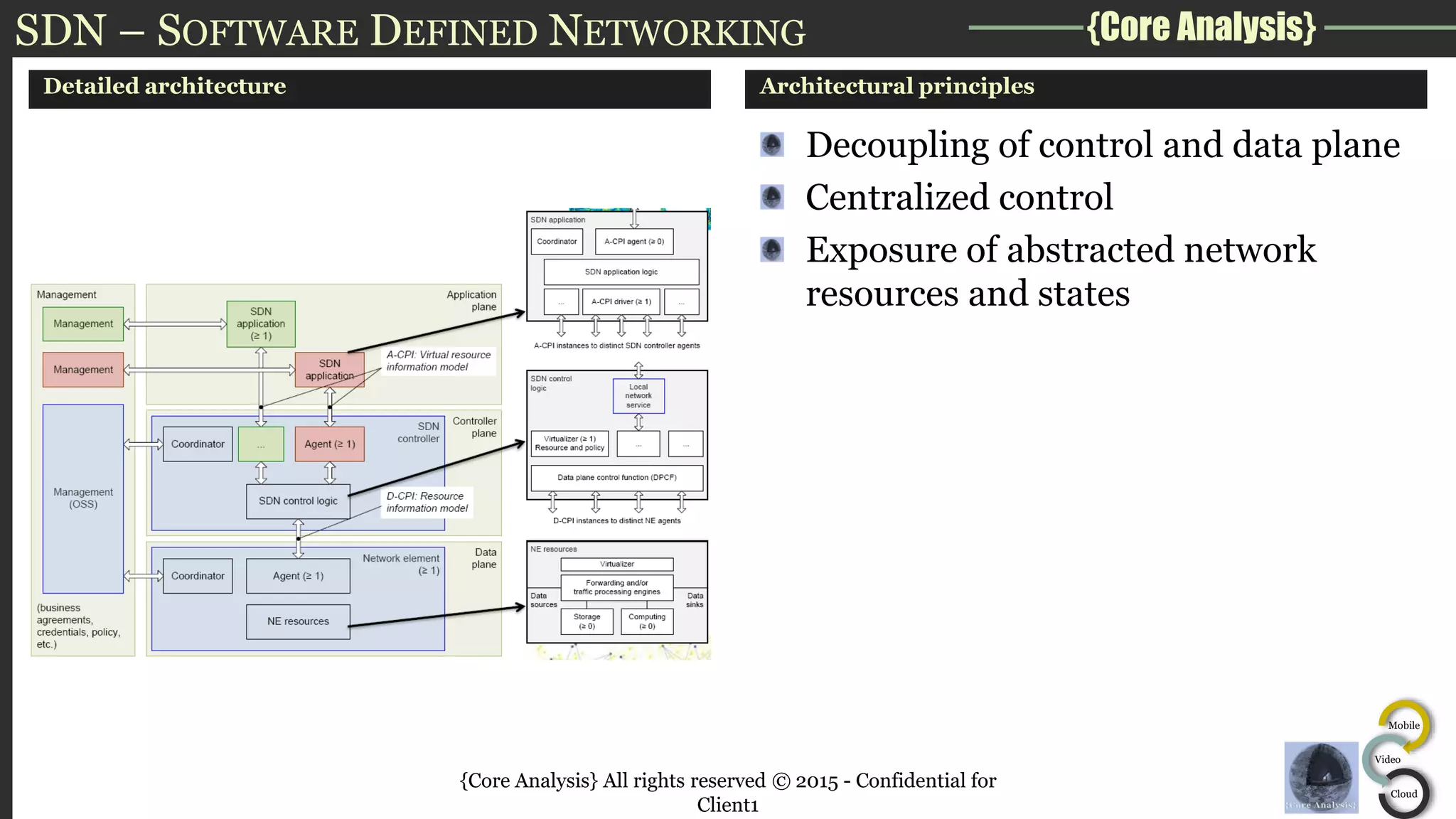

SDN – SOFTWARE DEFINED NETWORKING
Detailed architecture Architectural principles
Decoupling of control and data plane
Centralized control
Exposure of abstracted network
resources and states
Client1

{Core Analysis}
Mobile
Video
Cloud

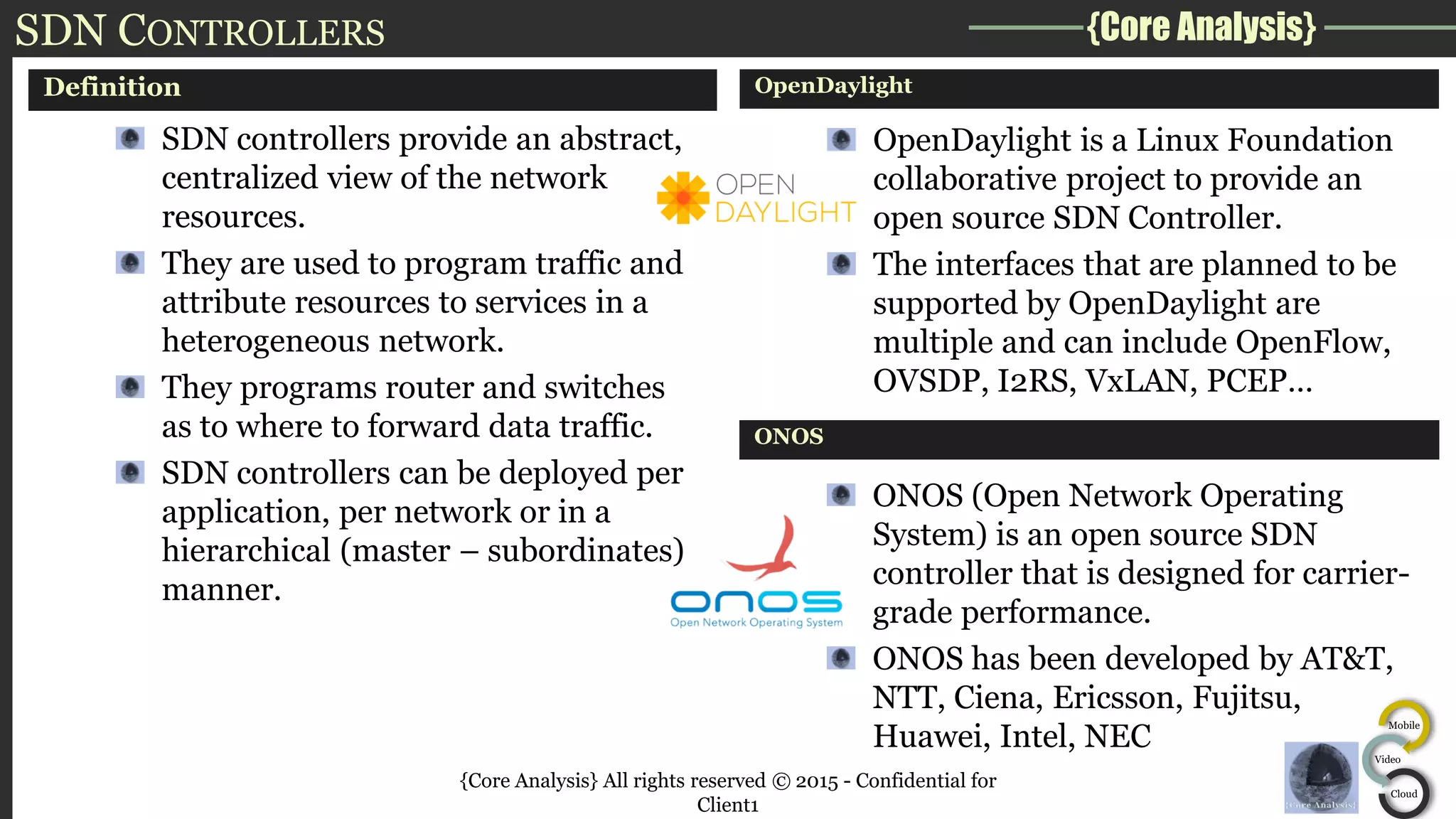

SDN CONTROLLERS
Definition
SDN controllers provide an abstract,
centralized view of the network
resources.
They are used to program traffic and
attribute resources to services in a
heterogeneous network.
They programs router and switches
as to where to forward data traffic.
SDN controllers can be deployed per
application, per network or in a
hierarchical (master – subordinates)
manner.
OpenDaylight
OpenDaylight is a Linux Foundation
collaborative project to provide an
open source SDN Controller.
The interfaces that are planned to be
supported by OpenDaylight are
multiple and can include OpenFlow,
OVSDP, I2RS, VxLAN, PCEP…
ONOS
ONOS (Open Network Operating
System) is an open source SDN
controller that is designed for carrier-
grade performance.
ONOS has been developed by AT&T,
NTT, Ciena, Ericsson, Fujitsu,
Huawei, Intel, NEC
Client1

{Core Analysis}
Mobile
Video
Cloud

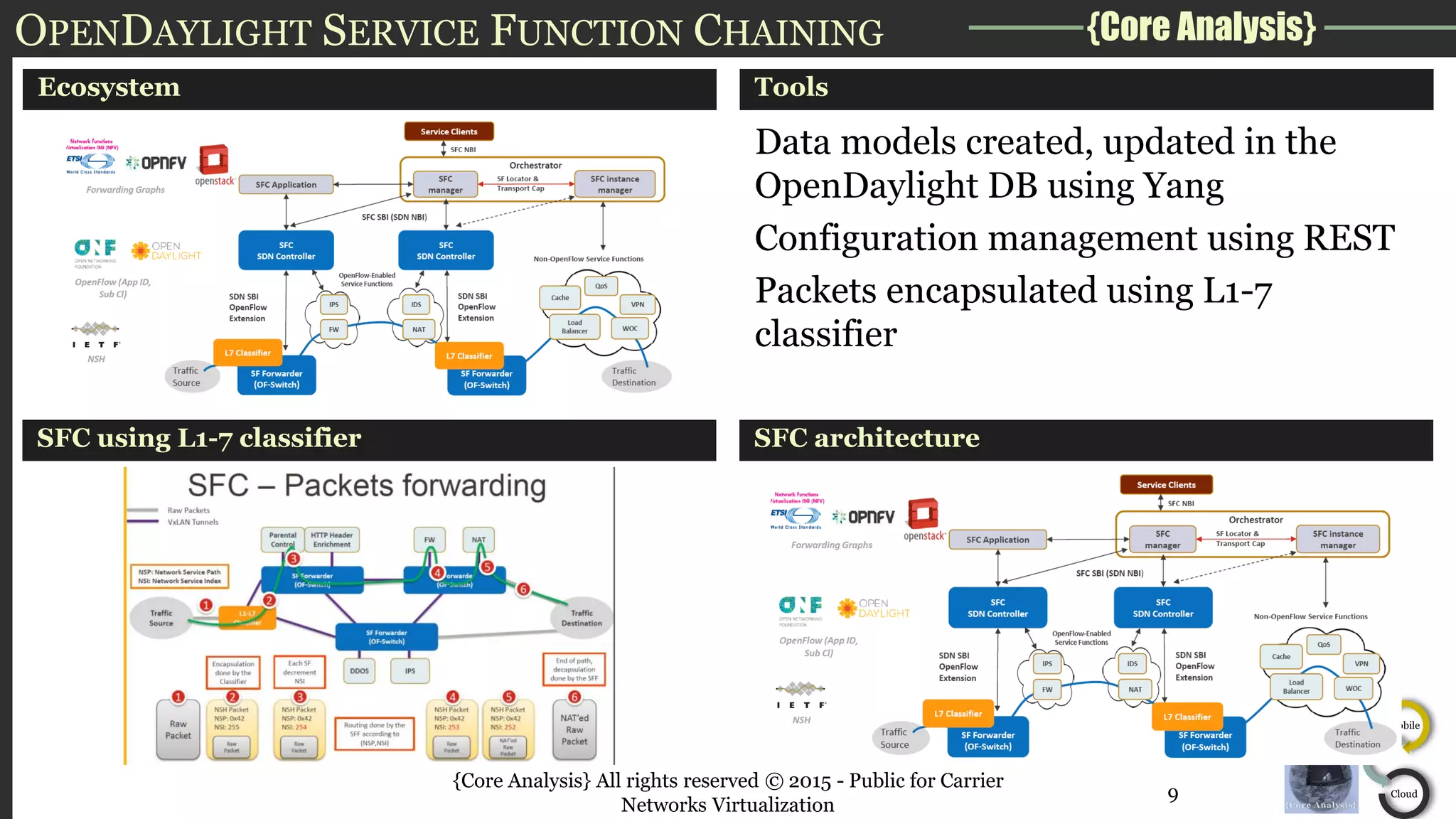

OPENDAYLIGHT SERVICE FUNCTION CHAINING
Ecosystem
SFC using L1-7 classifier
Tools
Data models created, updated in the
OpenDaylight DB using Yang
Configuration management using REST
Packets encapsulated using L1-7
classifier
SFC architecture
9

{Core Analysis}
Mobile
Video
Cloud

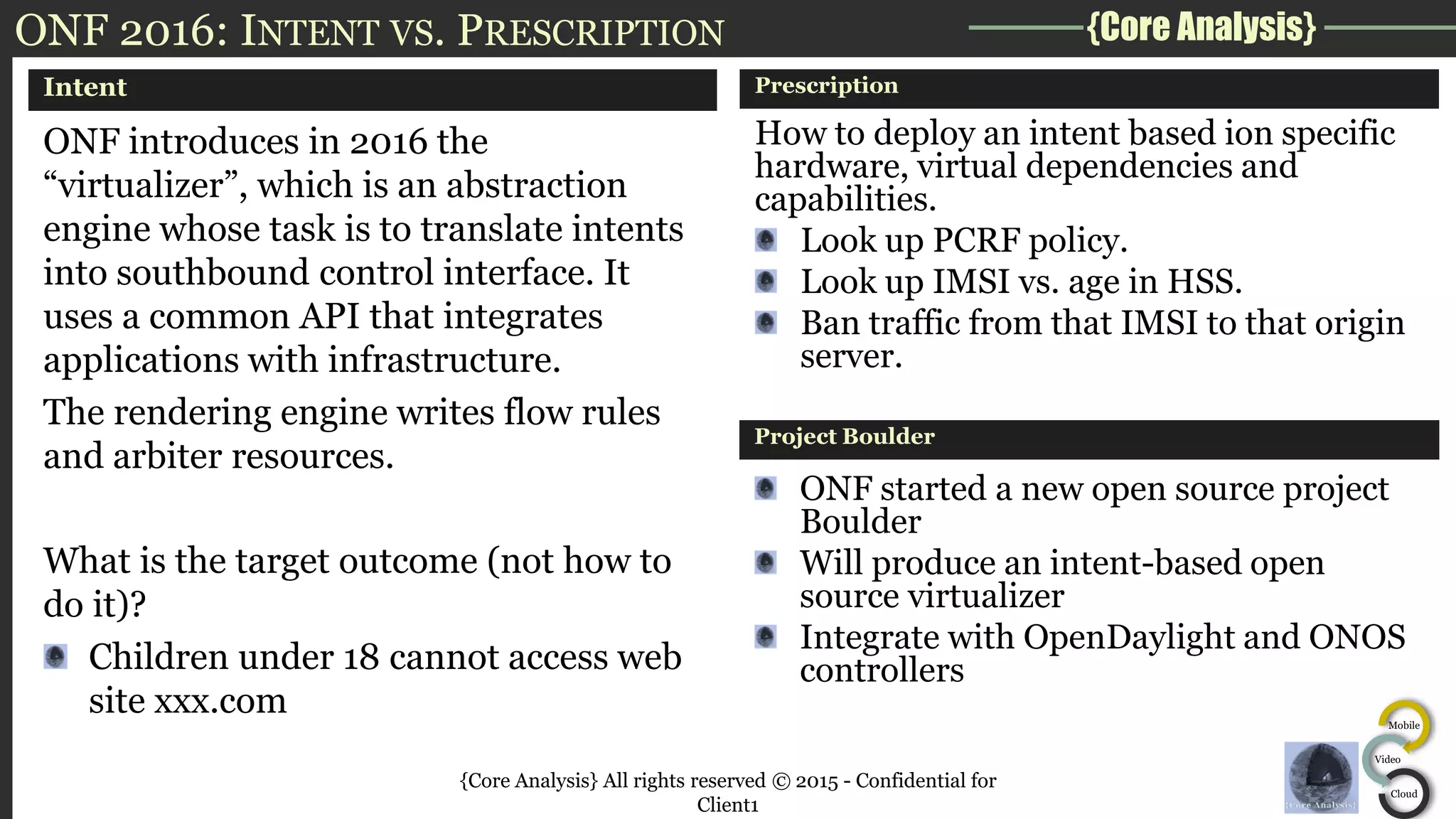

ONF 2016: INTENT VS. PRESCRIPTION
Intent
ONF introduces in 2016 the
“virtualizer”, which is an abstraction
engine whose task is to translate intents
into southbound control interface. It
uses a common API that integrates
applications with infrastructure.
The rendering engine writes flow rules
and arbiter resources.
What is the target outcome (not how to
do it)?
Children under 18 cannot access web
site xxx.com
Prescription
How to deploy an intent based ion specific
hardware, virtual dependencies and
capabilities.
Look up PCRF policy.
Look up IMSI vs. age in HSS.
Ban traffic from that IMSI to that origin
server.
Project Boulder
ONF started a new open source project
Boulder
Will produce an intent-based open
source virtualizer
Integrate with OpenDaylight and ONOS
controllers
Client1

{Core Analysis}
Mobile
Video
Cloud

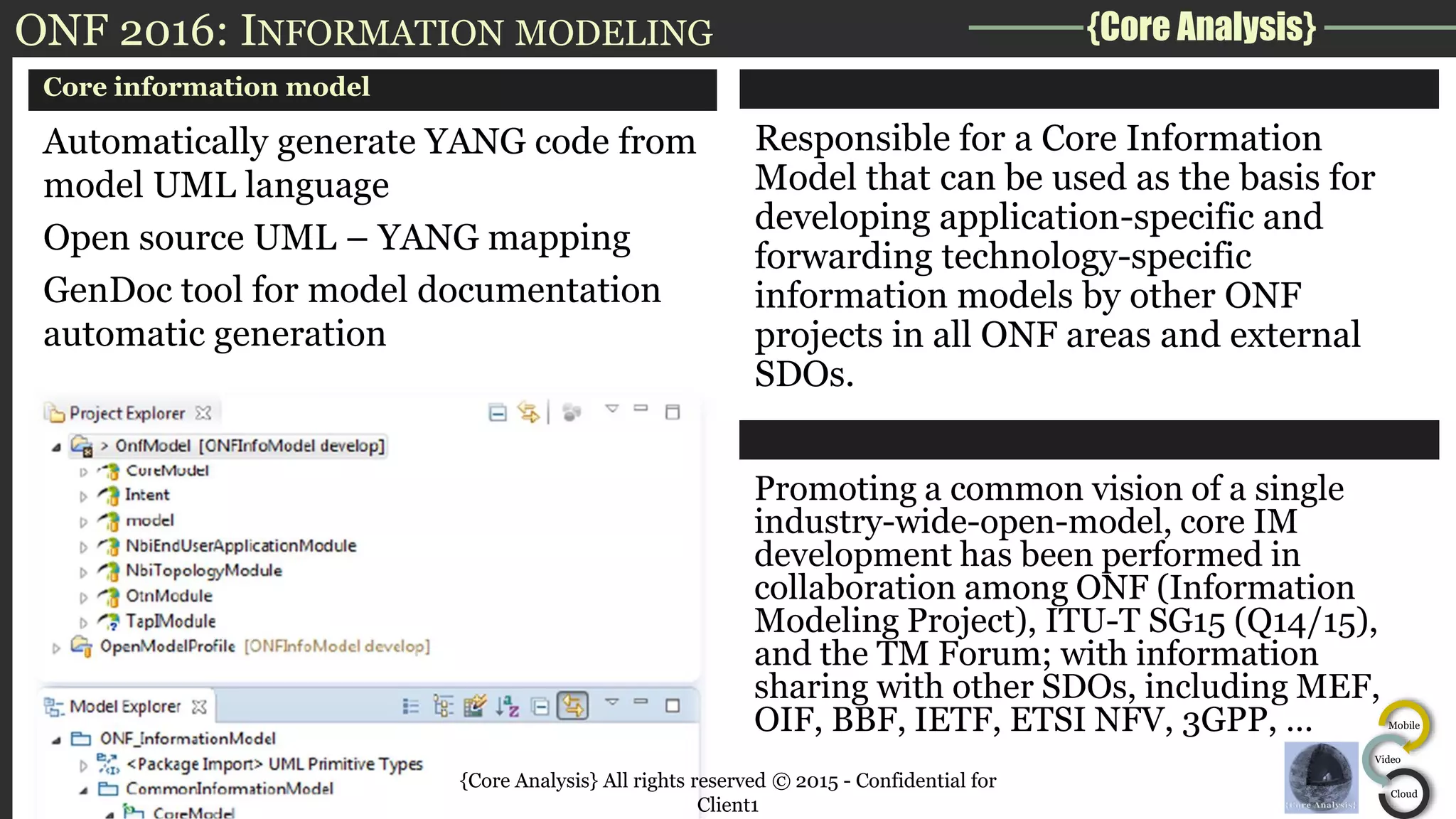

ONF 2016: INFORMATION MODELING
Core information model
Automatically generate YANG code from
model UML language
Open source UML – YANG mapping
GenDoc tool for model documentation
automatic generation
Responsible for a Core Information
Model that can be used as the basis for
developing application-specific and
forwarding technology-specific
information models by other ONF
projects in all ONF areas and external
SDOs.
Promoting a common vision of a single
industry-wide-open-model, core IM
development has been performed in
collaboration among ONF (Information
Modeling Project), ITU-T SG15 (Q14/15),
and the TM Forum; with information
sharing with other SDOs, including MEF,
OIF, BBF, IETF, ETSI NFV, 3GPP, …
Client1

{Core Analysis}
Mobile
Video
Cloud

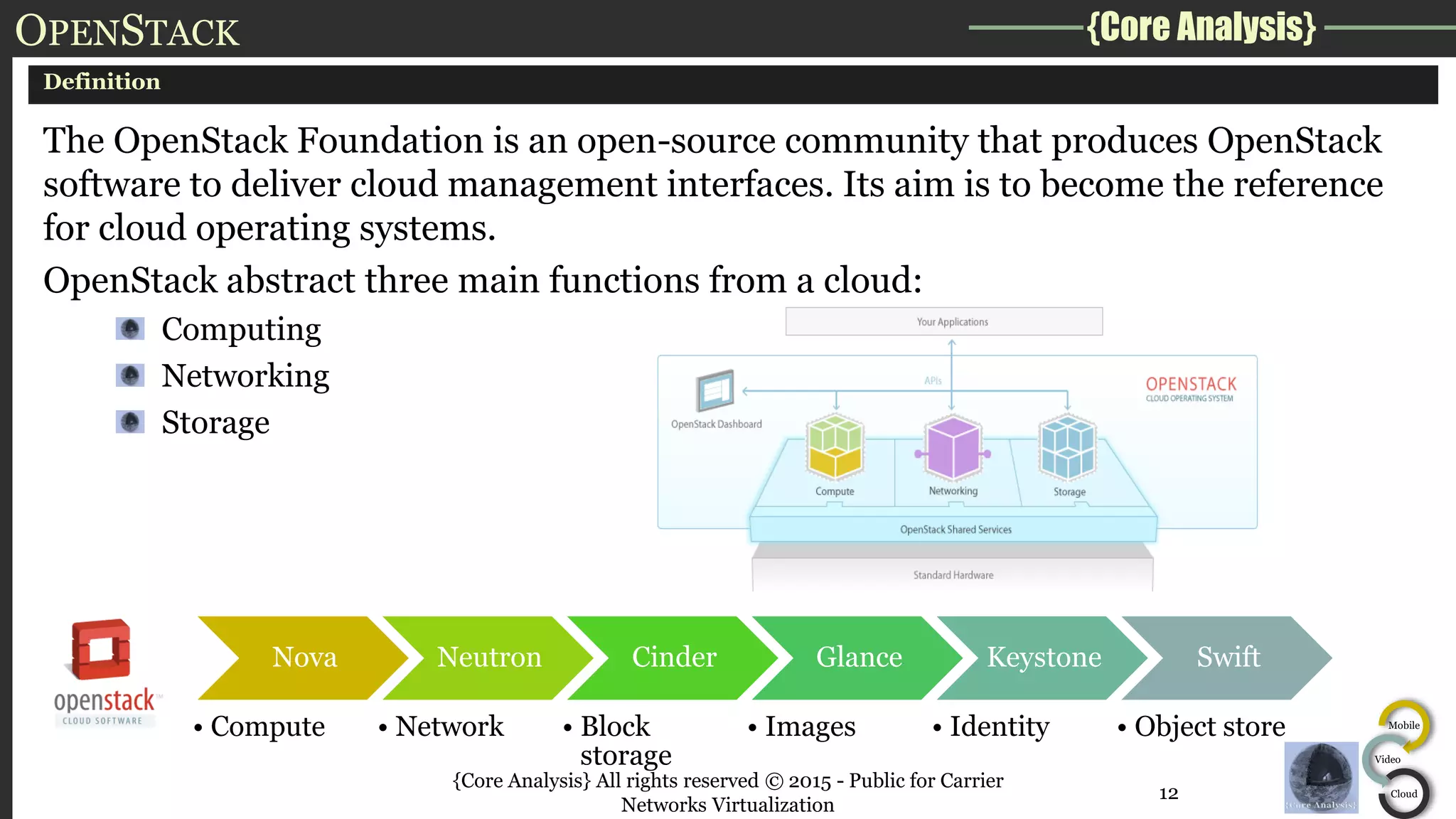

OPENSTACK
Definition
The OpenStack Foundation is an open-source community that produces OpenStack
software to deliver cloud management interfaces. Its aim is to become the reference
for cloud operating systems.
OpenStack abstract three main functions from a cloud:
Computing
Networking
Storage
Nova
• Compute
Neutron
• Network
Cinder
• Block
storage
Glance
• Images
Keystone
• Identity
Swift
• Object store
12

{Core Analysis}
Mobile
Video
Cloud

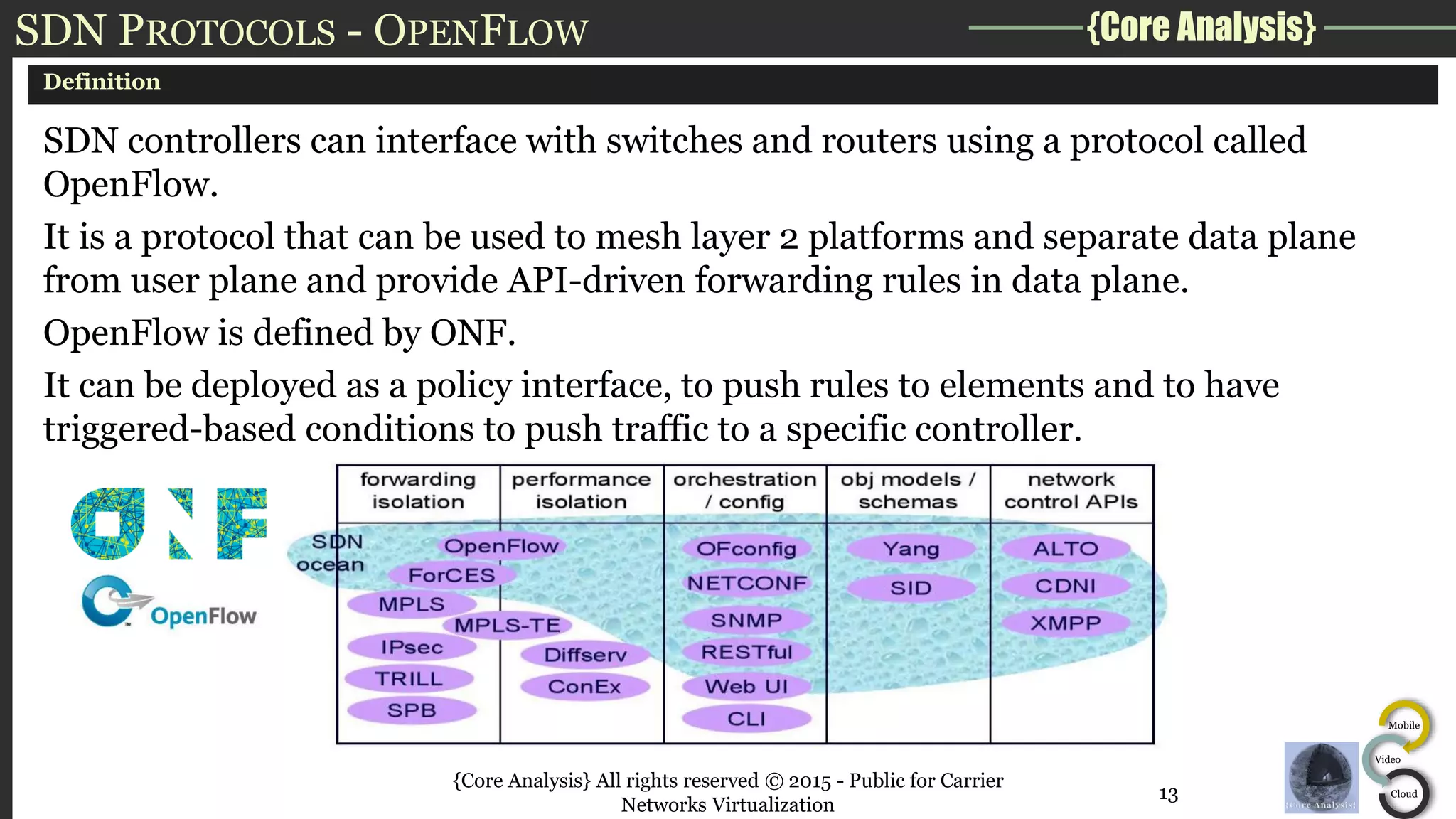

SDN PROTOCOLS - OPENFLOW
Definition
SDN controllers can interface with switches and routers using a protocol called
OpenFlow.
It is a protocol that can be used to mesh layer 2 platforms and separate data plane
from user plane and provide API-driven forwarding rules in data plane.
OpenFlow is defined by ONF.
It can be deployed as a policy interface, to push rules to elements and to have
triggered-based conditions to push traffic to a specific controller.
13

{Core Analysis}
Mobile
Video
Cloud

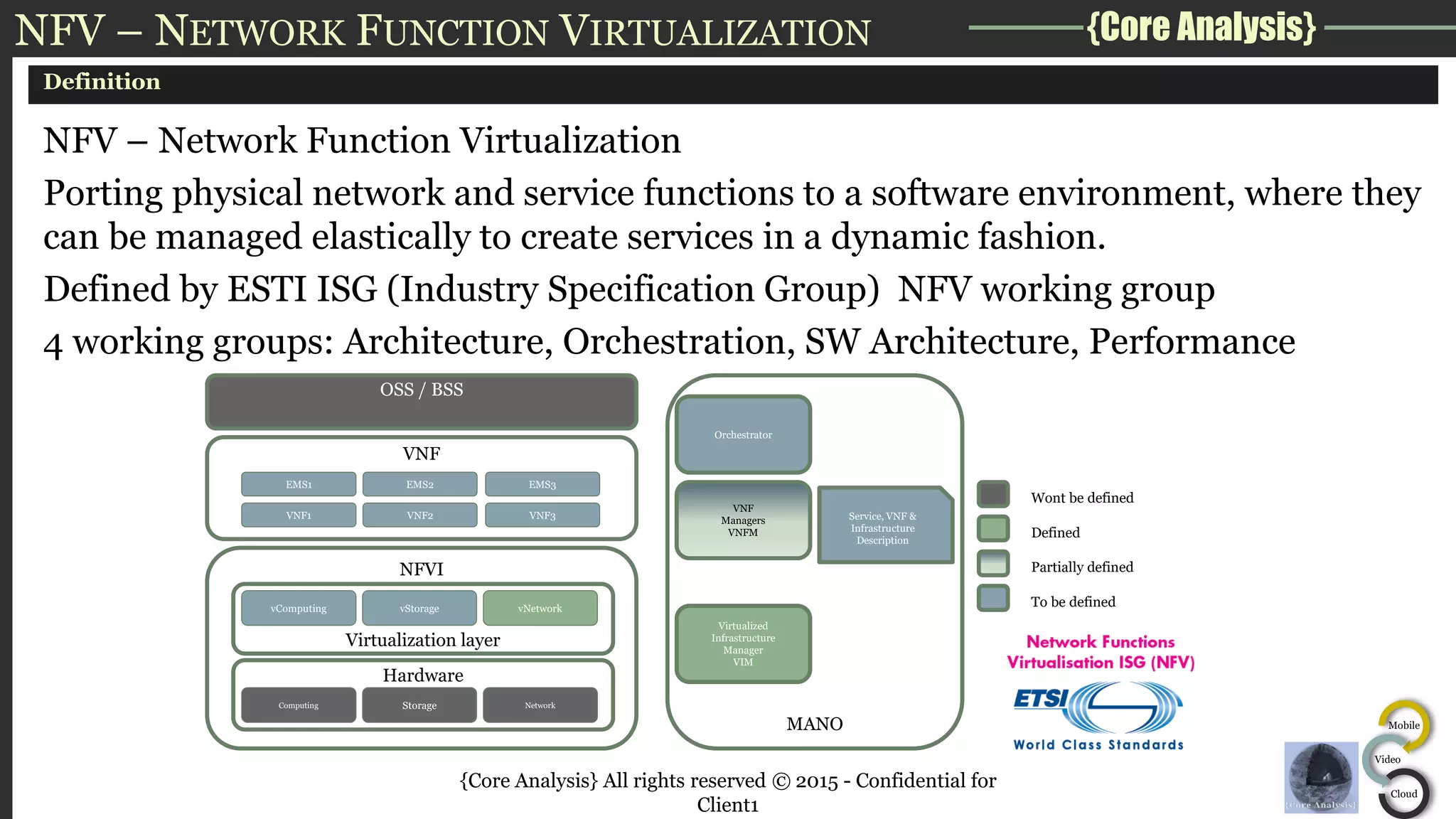

NFV – NETWORK FUNCTION VIRTUALIZATION
Definition
NFV – Network Function Virtualization
Porting physical network and service functions to a software environment, where they
can be managed elastically to create services in a dynamic fashion.
Defined by ESTI ISG (Industry Specification Group) NFV working group
4 working groups: Architecture, Orchestration, SW Architecture, Performance
Client1
NFVI
Hardware
Computing Storage Network
Virtualization layer
vComputing vStorage vNetwork
VNF
VNF1 VNF2 VNF3
EMS1 EMS2 EMS3
MANO
Virtualized
Infrastructure
Manager
VIM
VNF
Managers
VNFM
Orchestrator
OSS / BSS
Service, VNF &
Infrastructure
Description
Wont be defined
Defined
Partially defined
To be defined

{Core Analysis}
Mobile
Video
Cloud

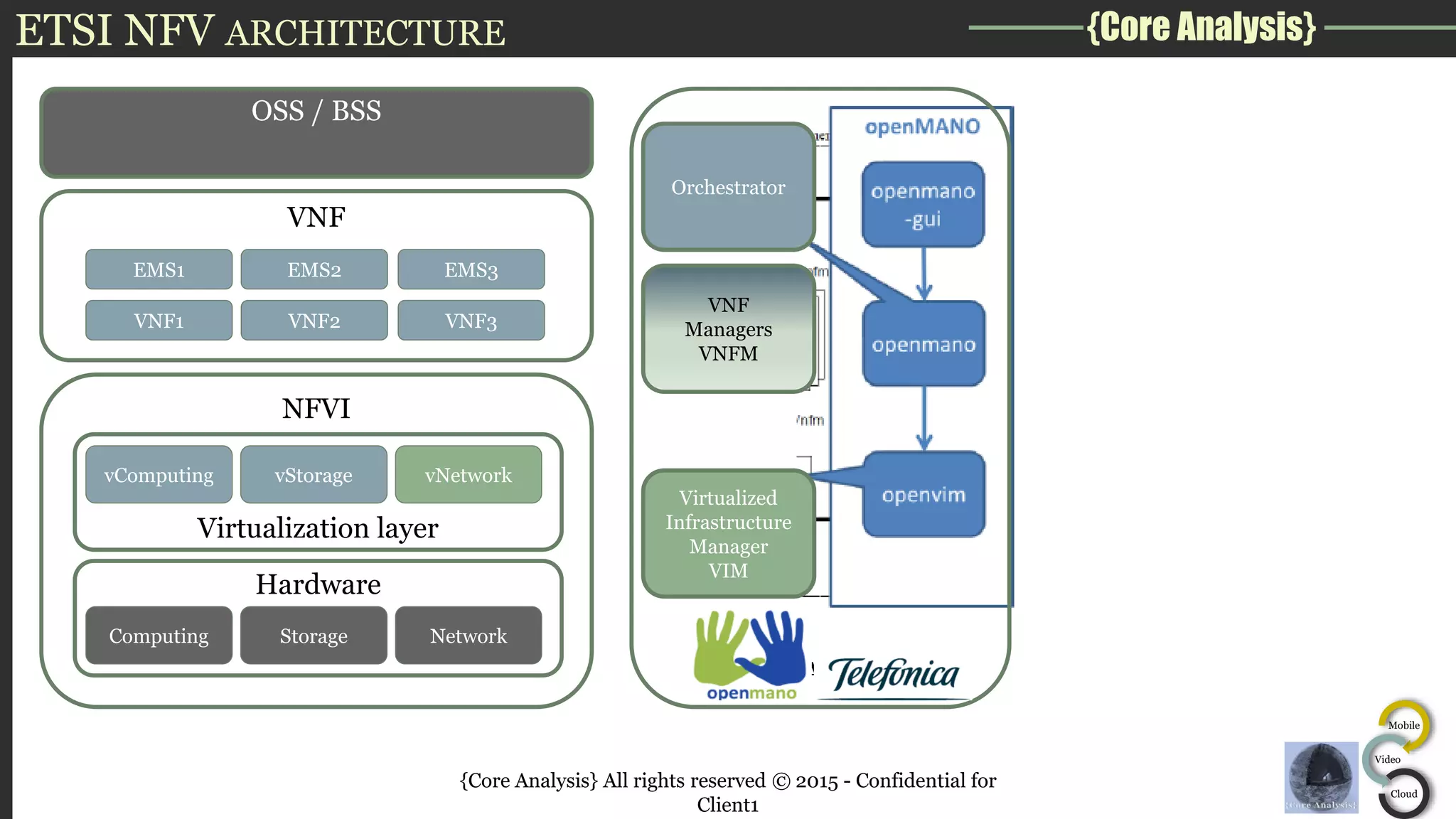

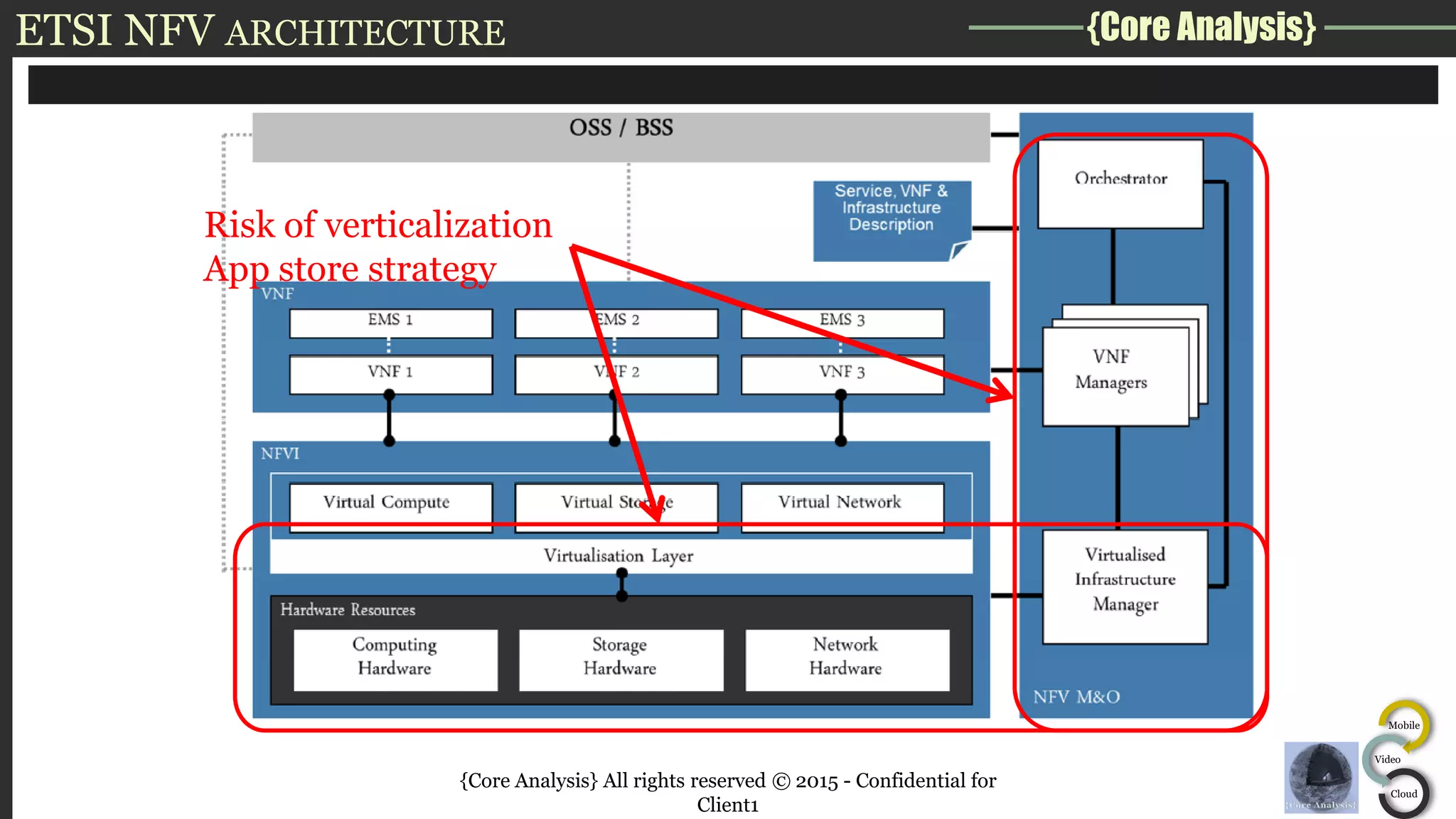

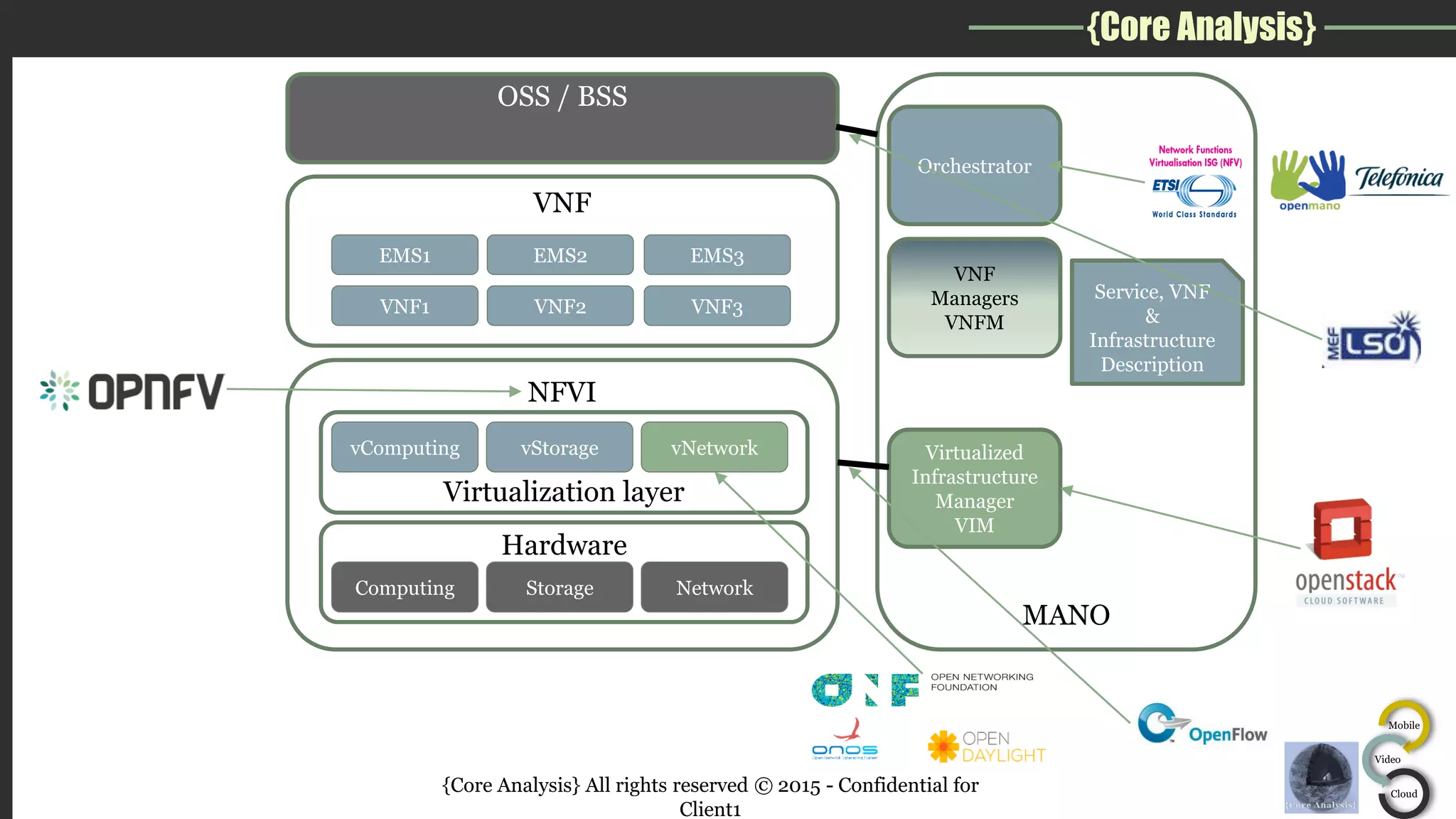

ETSI NFV ARCHITECTURE
Client1
Risk of verticalization
App store strategy

{Core Analysis}
Mobile
Video
Cloud
Service, VNF
&
Infrastructure
Description
ETSI NFV ARCHITECTURE
Client1
NFVI
Hardware
VNF
VNF1 VNF2 VNF3
EMS1 EMS2 EMS3
MANO
Virtualized
Infrastructure
Manager
VIM
VNF
Managers
VNFM
Orchestrator
OSS / BSS

{Core Analysis}
Mobile
Video
Cloud

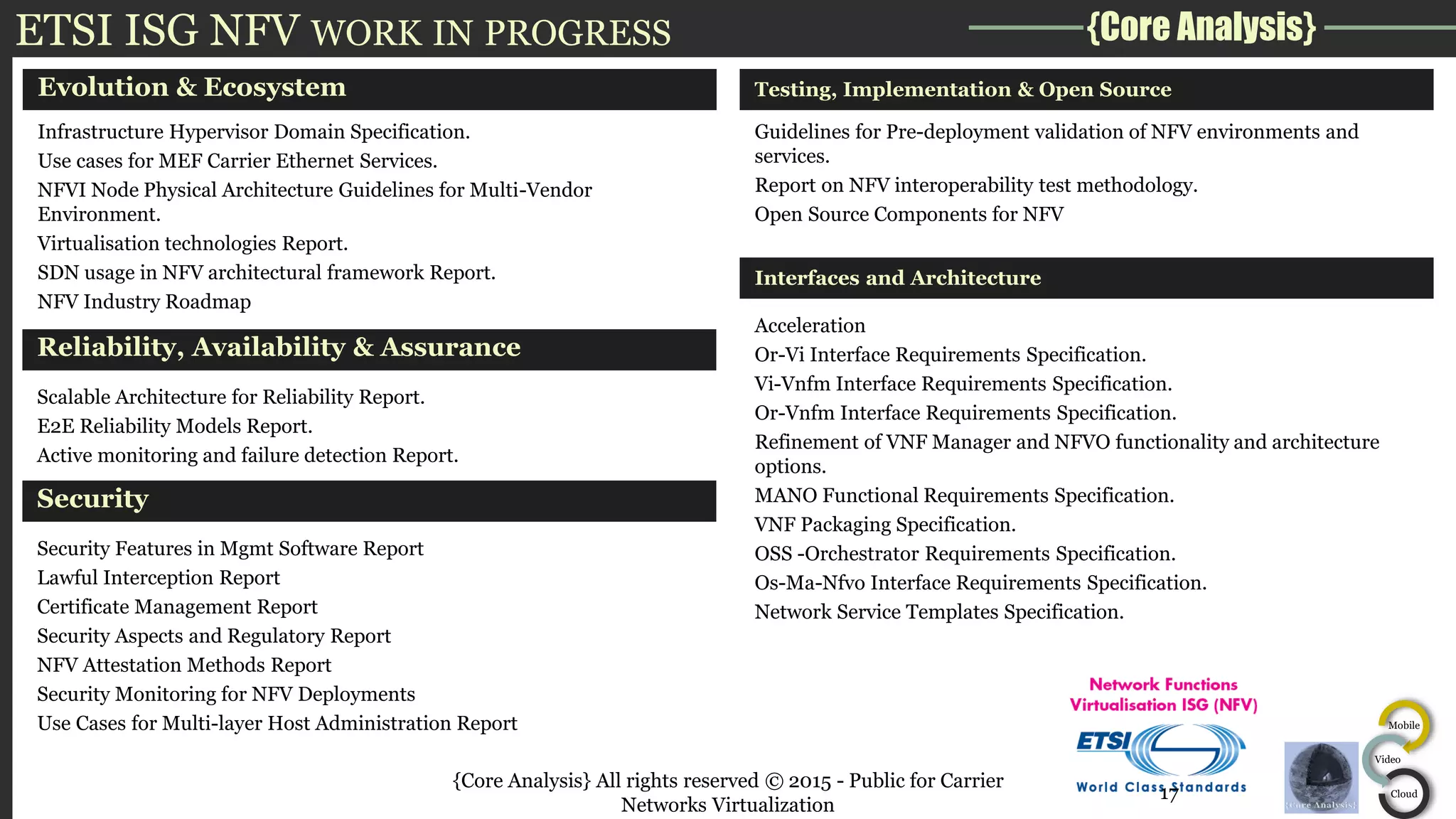

ETSI ISG NFV WORK IN PROGRESS
Evolution & Ecosystem
Infrastructure Hypervisor Domain Specification.
Use cases for MEF Carrier Ethernet Services.
NFVI Node Physical Architecture Guidelines for Multi-Vendor
Environment.
Virtualisation technologies Report.
SDN usage in NFV architectural framework Report.
NFV Industry Roadmap
Reliability, Availability & Assurance
Scalable Architecture for Reliability Report.
E2E Reliability Models Report.
Active monitoring and failure detection Report.
Testing, Implementation & Open Source
Guidelines for Pre-deployment validation of NFV environments and
services.
Report on NFV interoperability test methodology.
Open Source Components for NFV
Interfaces and Architecture
Acceleration
Or-Vi Interface Requirements Specification.
Vi-Vnfm Interface Requirements Specification.
Or-Vnfm Interface Requirements Specification.
Refinement of VNF Manager and NFVO functionality and architecture
options.
MANO Functional Requirements Specification.
VNF Packaging Specification.
OSS -Orchestrator Requirements Specification.
Os-Ma-Nfvo Interface Requirements Specification.
Network Service Templates Specification.
Security
Security Features in Mgmt Software Report
Lawful Interception Report
Certificate Management Report
Security Aspects and Regulatory Report
NFV Attestation Methods Report
Security Monitoring for NFV Deployments
Use Cases for Multi-layer Host Administration Report
17

{Core Analysis}
Mobile
Video
Cloud

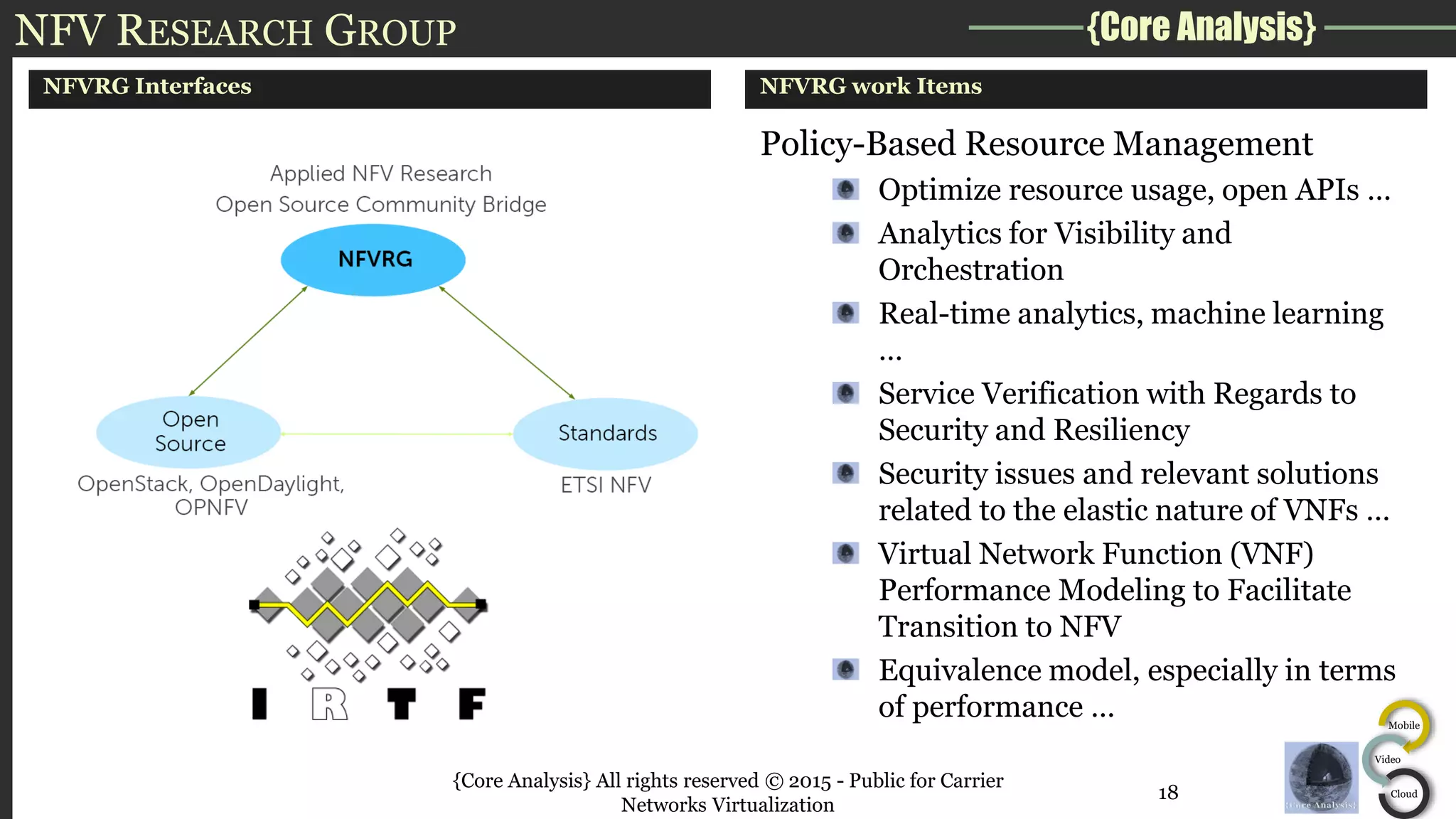

NFV RESEARCH GROUP
NFVRG Interfaces NFVRG work Items
Policy-Based Resource Management
Optimize resource usage, open APIs …
Analytics for Visibility and
Orchestration
Real-time analytics, machine learning
…
Service Verification with Regards to
Security and Resiliency
Security issues and relevant solutions
related to the elastic nature of VNFs …
Virtual Network Function (VNF)
Performance Modeling to Facilitate
Transition to NFV
Equivalence model, especially in terms
of performance …
18

{Core Analysis}
Mobile
Video
Cloud

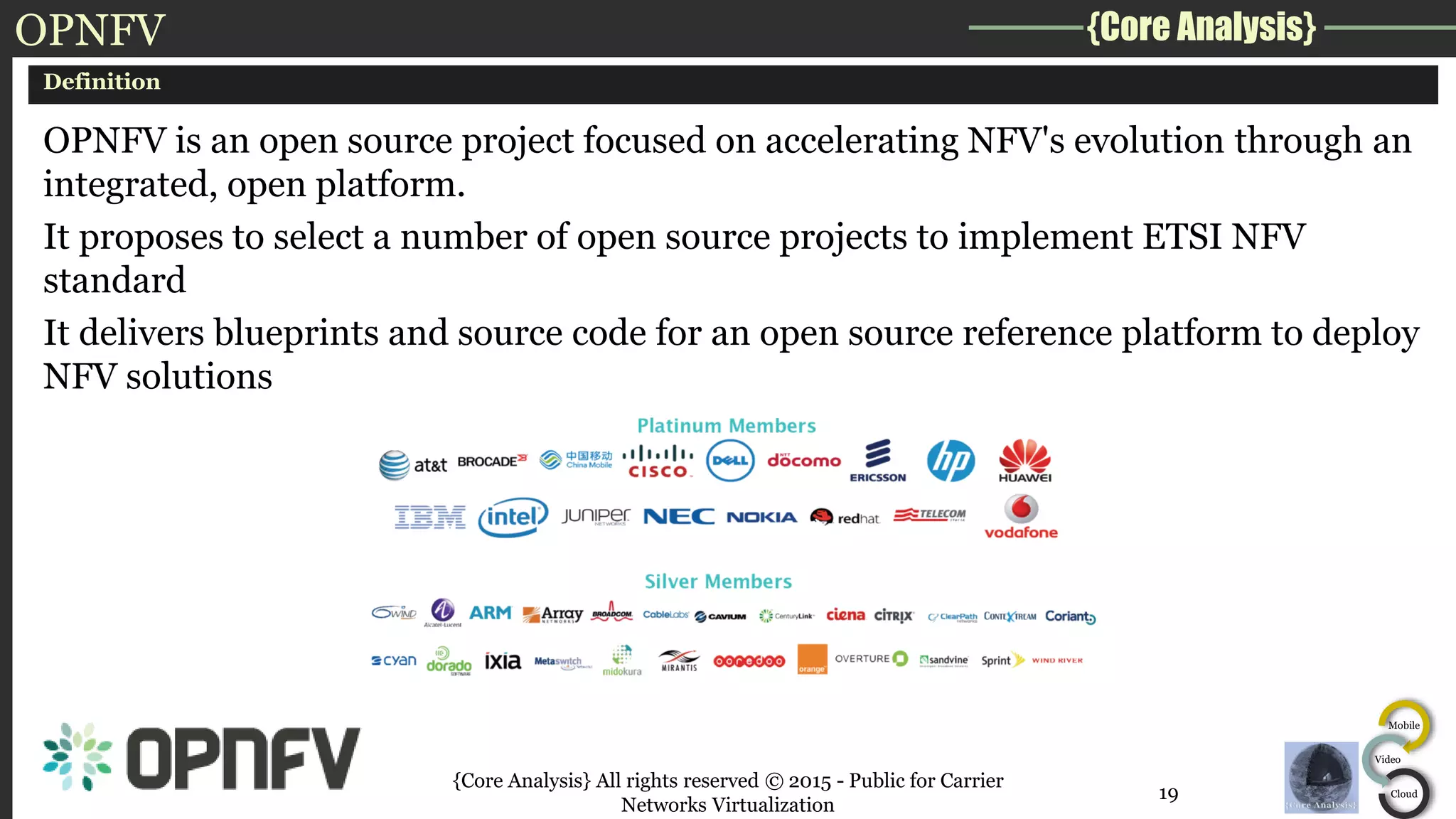

OPNFV
Definition
OPNFV is an open source project focused on accelerating NFV's evolution through an
integrated, open platform.
It proposes to select a number of open source projects to implement ETSI NFV
standard
It delivers blueprints and source code for an open source reference platform to deploy
NFV solutions
19

{Core Analysis}
Mobile
Video
Cloud

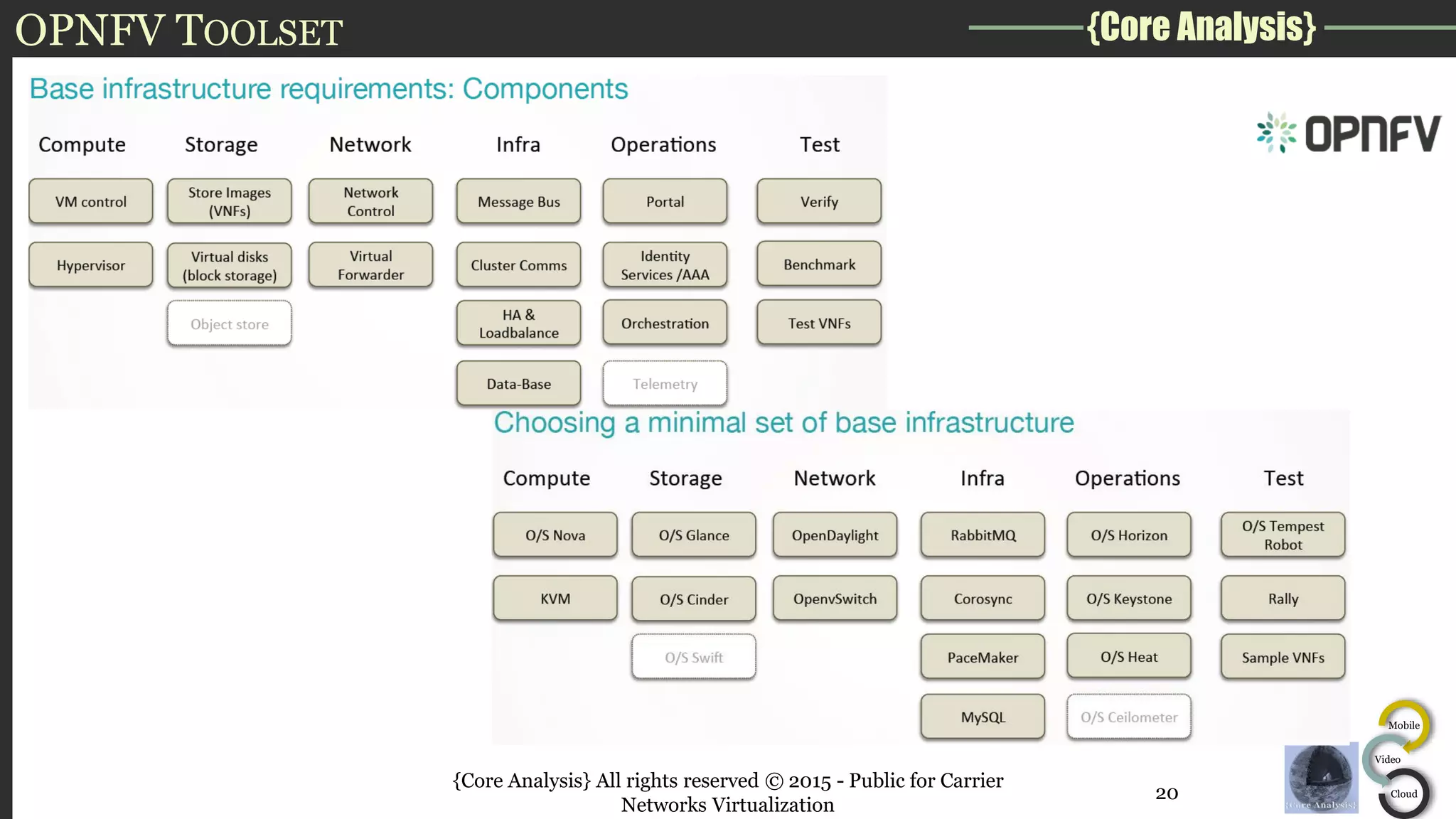

OPNFV TOOLSET
20

{Core Analysis}
Mobile
Video
Cloud

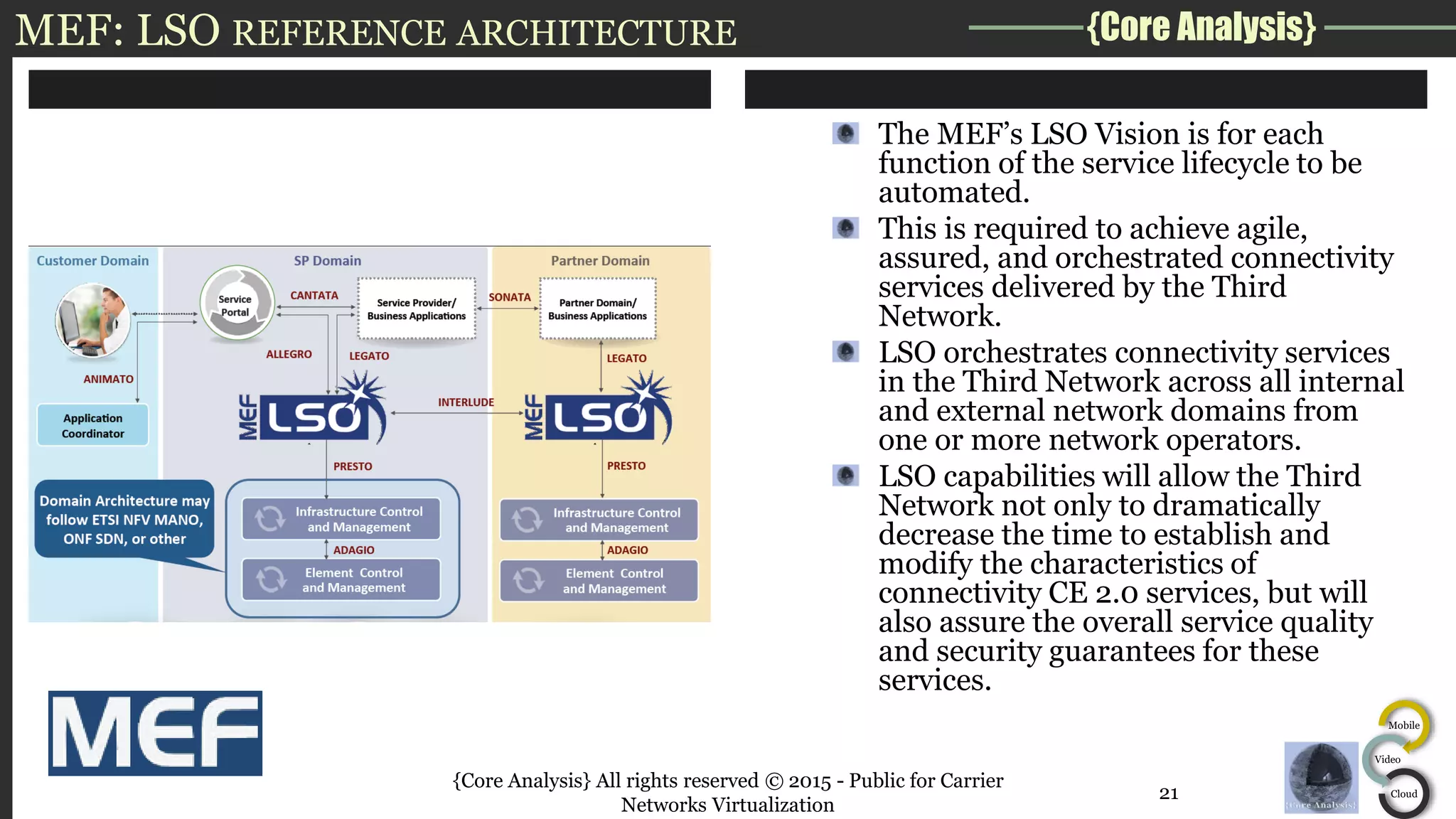

MEF: LSO REFERENCE ARCHITECTURE
The MEF’s LSO Vision is for each
function of the service lifecycle to be
automated.
This is required to achieve agile,
assured, and orchestrated connectivity
services delivered by the Third
Network.
LSO orchestrates connectivity services
in the Third Network across all internal
and external network domains from
one or more network operators.
LSO capabilities will allow the Third
Network not only to dramatically
decrease the time to establish and
modify the characteristics of
connectivity CE 2.0 services, but will
also assure the overall service quality
and security guarantees for these
services.
21

{Core Analysis}
Mobile
Video
Cloud
Client1
Service, VNF
&
Infrastructure
Description
NFVI
Hardware
VNF
VNF1 VNF2 VNF3
EMS1 EMS2 EMS3
MANO
Virtualized
Infrastructure
Manager
VIM
VNF
Managers
VNFM
Orchestrator
OSS / BSS

Mobile
Video
Cloud
OPERATORS REVIEW
23

{Core Analysis}
Mobile
Video
Cloud

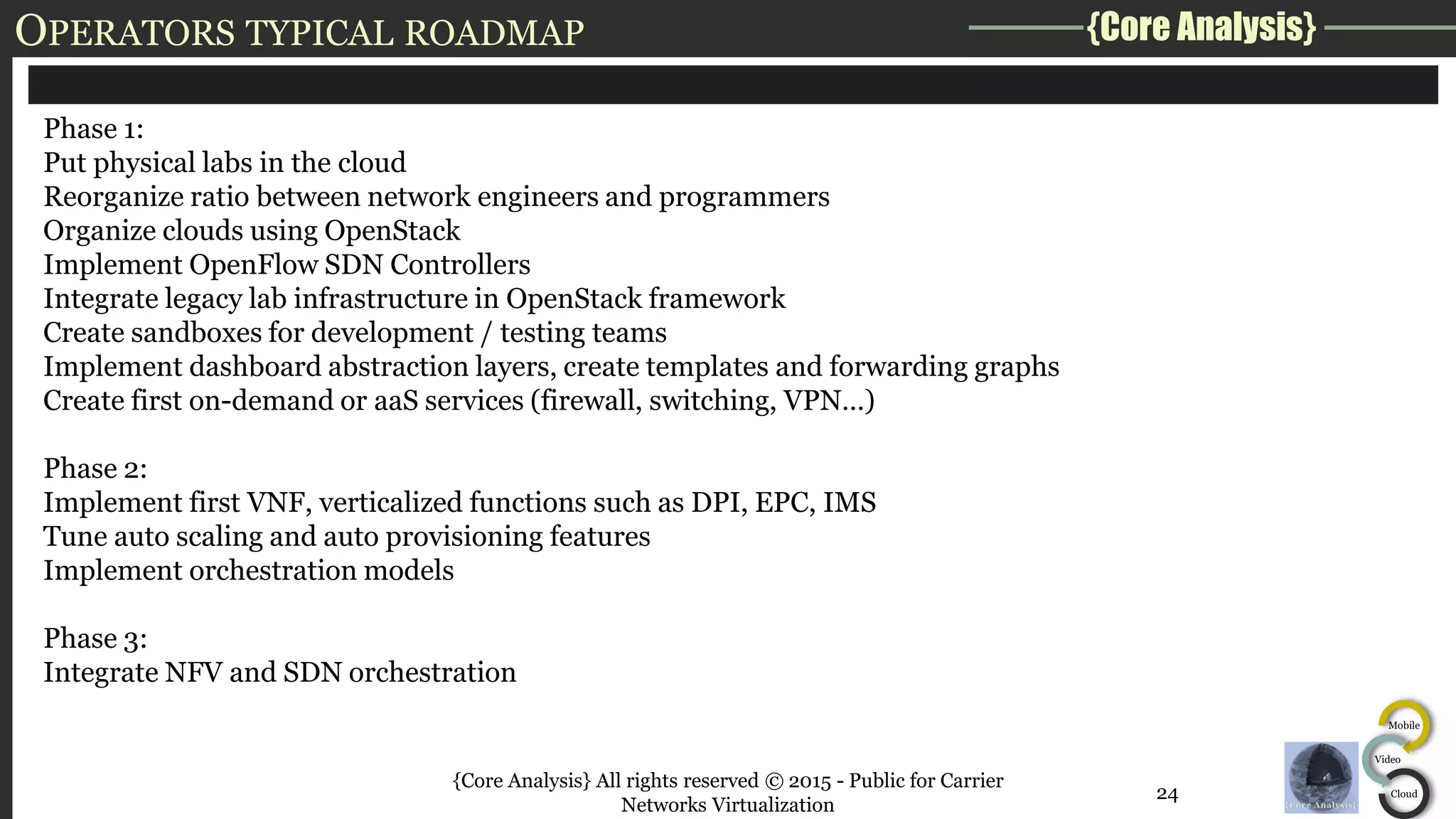

OPERATORS TYPICAL ROADMAP
Phase 1:
Put physical labs in the cloud
Reorganize ratio between network engineers and programmers
Organize clouds using OpenStack
Implement OpenFlow SDN Controllers
Integrate legacy lab infrastructure in OpenStack framework
Create sandboxes for development / testing teams
Implement dashboard abstraction layers, create templates and forwarding graphs
Create first on-demand or aaS services (firewall, switching, VPN…)
Phase 2:
Implement first VNF, verticalized functions such as DPI, EPC, IMS
Tune auto scaling and auto provisioning features
Implement orchestration models
Phase 3:
Integrate NFV and SDN orchestration
24

{Core Analysis}
Mobile
Video
Cloud

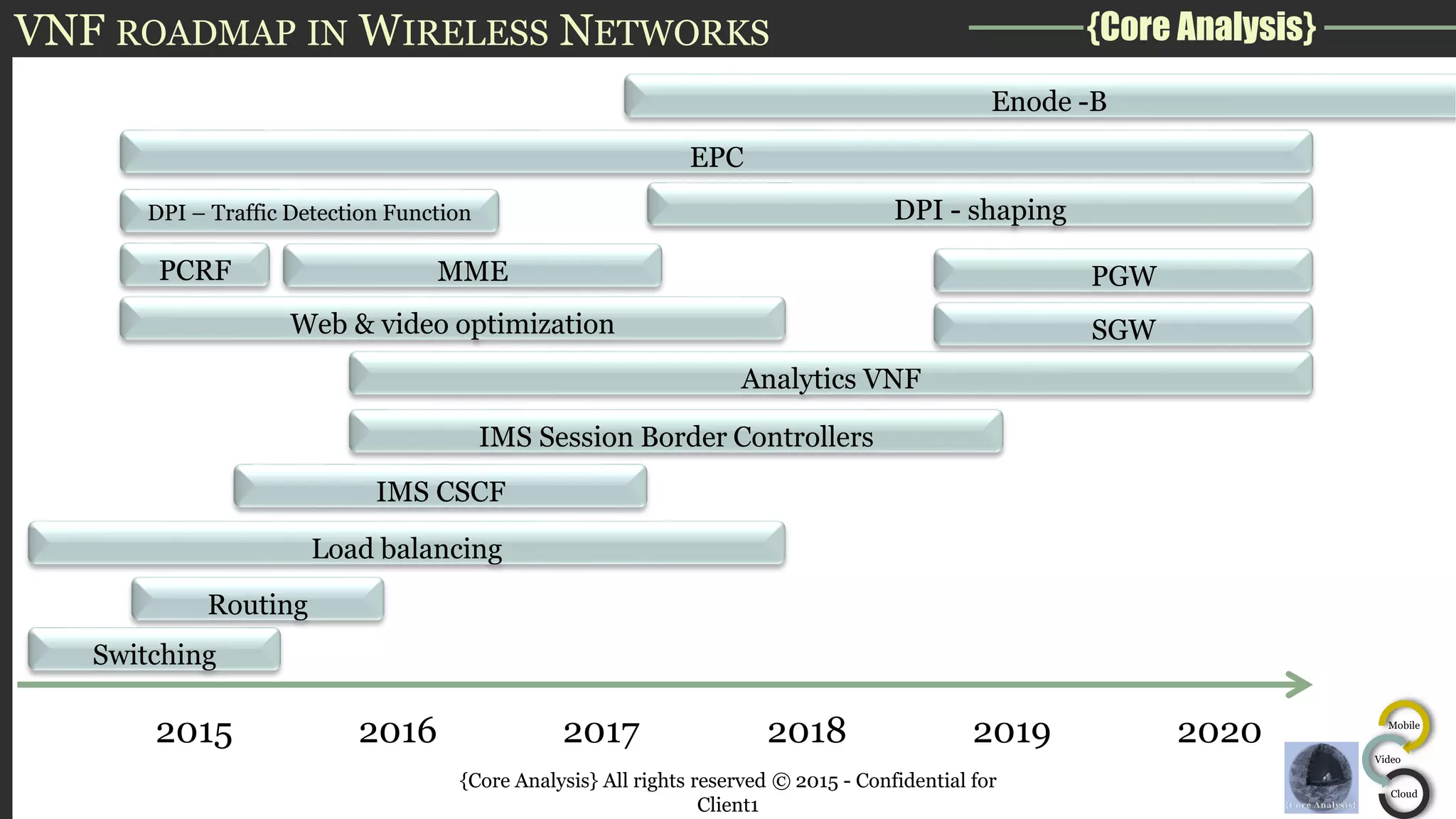

VNF ROADMAP IN WIRELESS NETWORKS
Client1
IMS Session Border Controllers
IMS CSCF
Analytics VNF
Enode -B
2015 2016 2017 2018 2019 2020
DPI - shaping
EPC
Switching
Routing
Load balancing
DPI – Traffic Detection Function
Web & video optimization
MME PGWPCRF
SGW

{Core Analysis}
Mobile
Video
Cloud

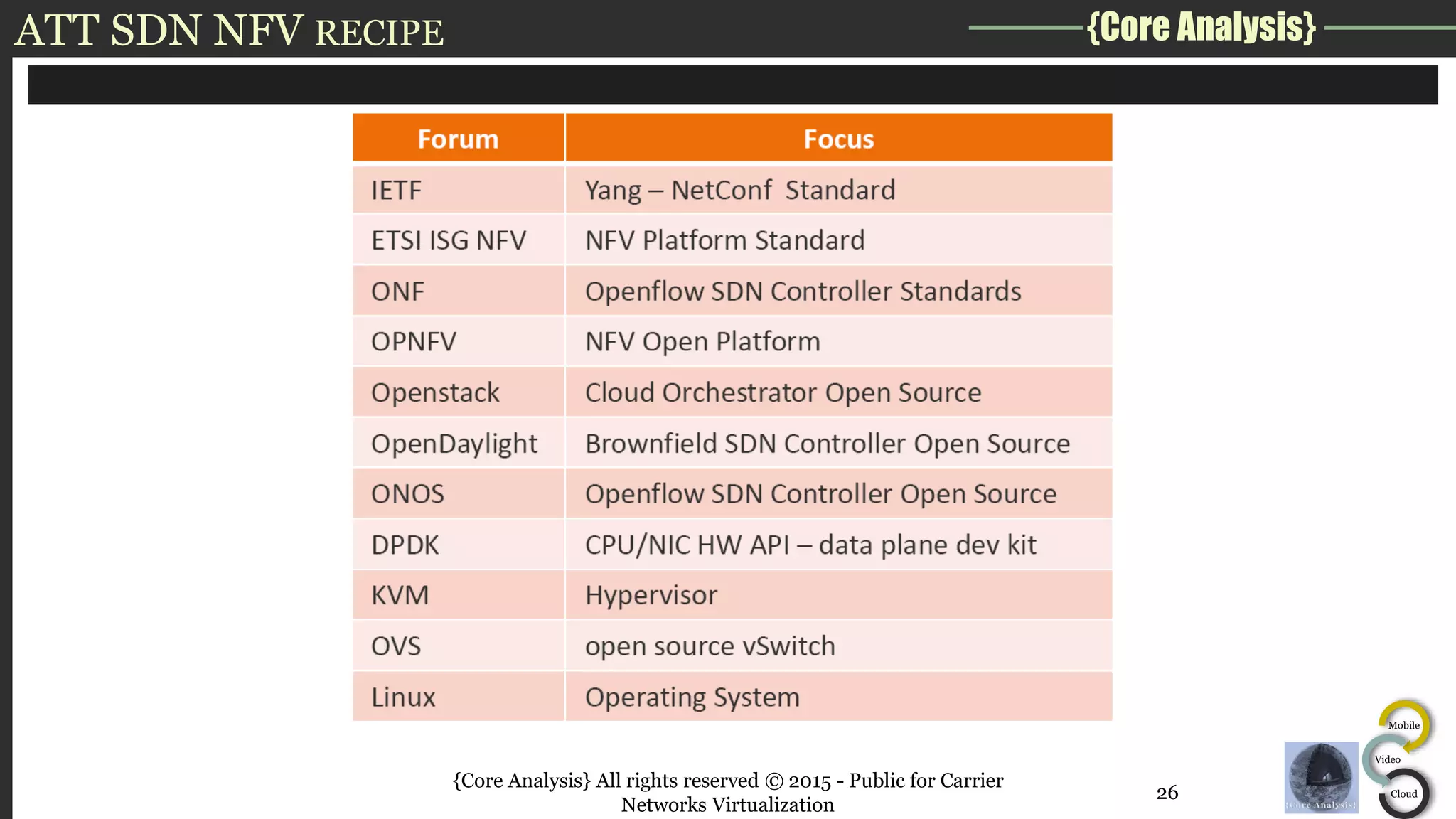

ATT SDN NFV RECIPE
26

{Core Analysis}
Mobile
Video
Cloud

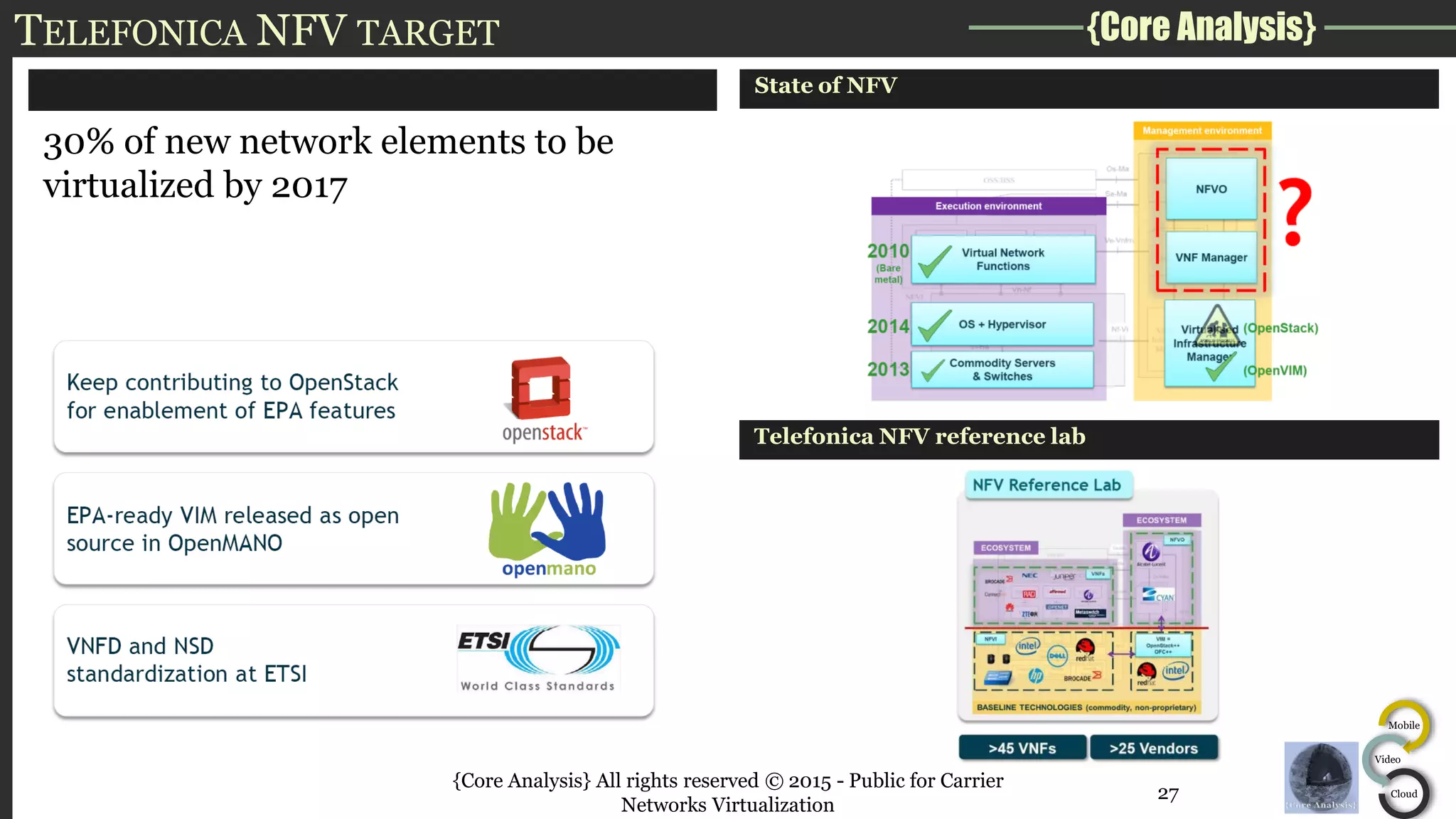

TELEFONICA NFV TARGET
30% of new network elements to be
virtualized by 2017
State of NFV
Telefonica NFV reference lab
27

{Core Analysis}
Mobile
Video
Cloud
CONTACTS
28

SDN / NFV opensource and standards in wireless networks 2015 for cnv

More Related Content

What's hot

Similar to SDN / NFV opensource and standards in wireless networks 2015 for cnv

More from Patrick Lopez

Recently uploaded

SDN / NFV opensource and standards in wireless networks 2015 for cnv
