The True Cost of NoSQL DBaaS Options
The document discusses the importance of choosing the right NoSQL Database as a Service (DBaaS) and the total cost of ownership (TCO) when migrating to cloud-based solutions. It emphasizes features such as zero downtime, high availability, scalability, and cost-effectiveness, while comparing various DBaaS options, including Scylla Cloud and DynamoDB. Additionally, it provides insights on migration best practices and the varying costs associated with different database types and structures.
More Related Content
Similar to The True Cost of NoSQL DBaaS Options
The True Cost of NoSQL DBaaS Options
- 1. The True Costof NoSQL DBaaS Options Eyal Gutkind — VP of Solutions
- 2. 2 Presenter Eyal Gutkind Eyal Gutkindis VP of Solutions at ScyllaDB. Prior to joining ScyllaDB, Eyal held product management roles at Mirantis and DataStax, and spent 12 years with Mellanox Technologies in various engineering management and product marketing roles.
- 3. Agenda 3 o Selecting theRight NoSQL DBaaS o TCO o Migration
- 4.

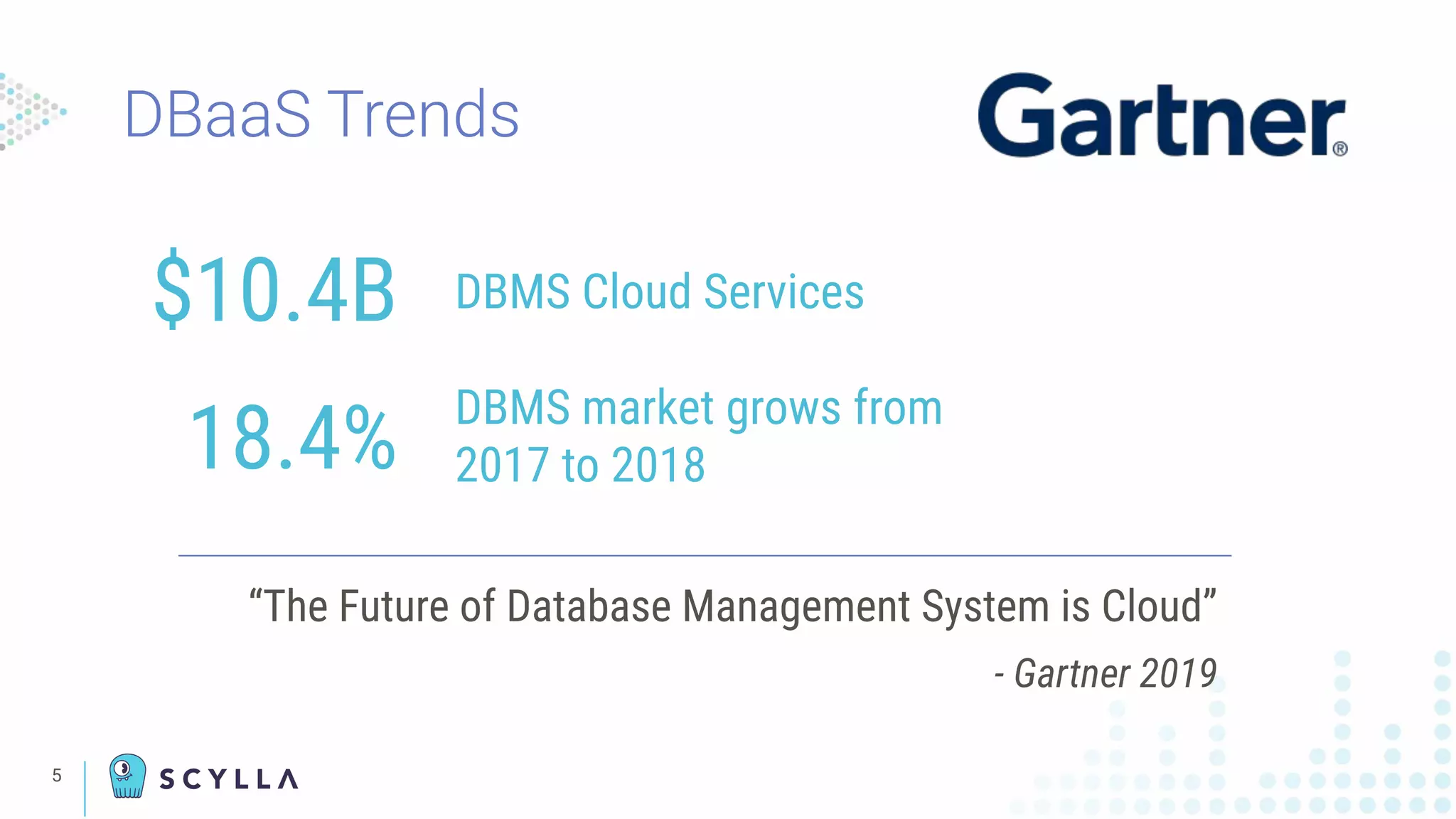

- 5. DBaaS Trends “The Futureof Database Management System is Cloud” - Gartner 2019 5 $10.4B DBMS Cloud Services 18.4% DBMS market grows from 2017 to 2018

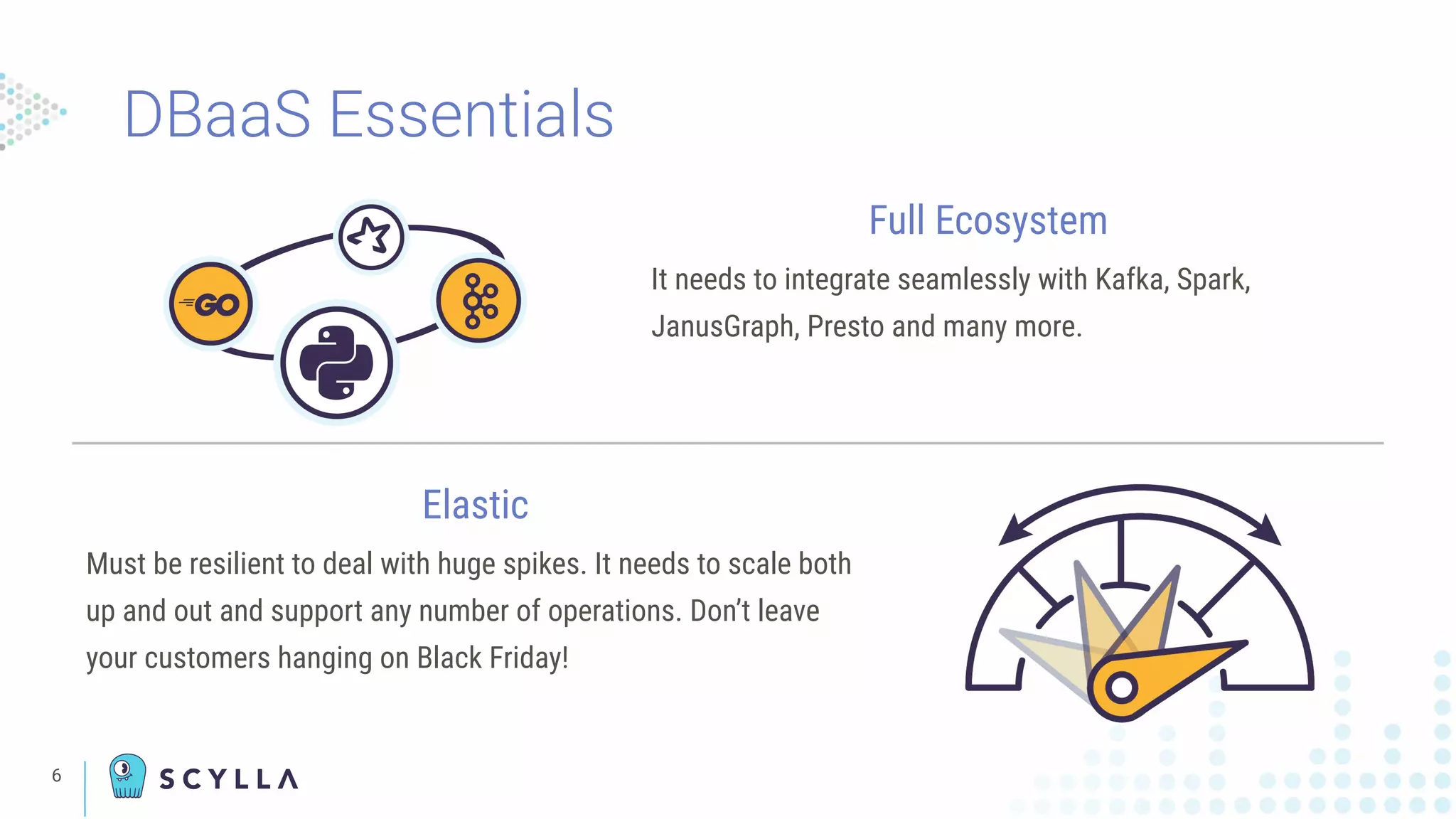

- 6. DBaaS Essentials 6 Full Ecosystem Itneeds to integrate seamlessly with Kafka, Spark, JanusGraph, Presto and many more. Elastic Must be resilient to deal with huge spikes. It needs to scale both up and out and support any number of operations. Don’t leave your customers hanging on Black Friday!
- 7. 7 Zero Downtime Only databaseswith masterless architecture can guarantee no outages. Pick a DBaaS that’s purpose-built for HA/DR. Real-time All the Time Latency spikes can lead to poor user experience, missed SLAs and customer abandonment. Your DBaaS needs to reliably deliver low-single-digit milliseconds latencies. DBaaS Essentials

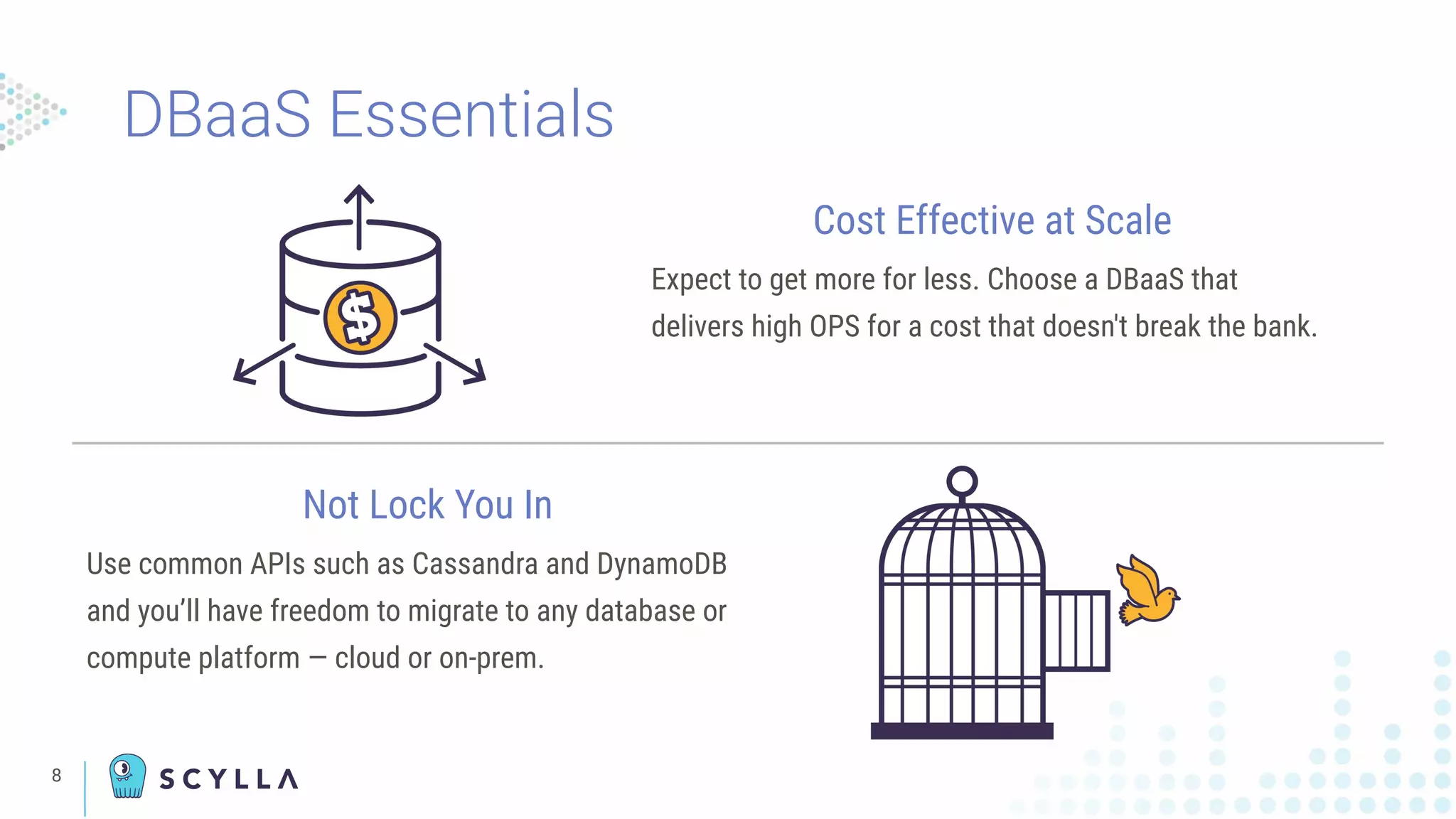

- 8. DBaaS Essentials 8 Cost Effectiveat Scale Expect to get more for less. Choose a DBaaS that delivers high OPS for a cost that doesn't break the bank. Not Lock You In Use common APIs such as Cassandra and DynamoDB and you’ll have freedom to migrate to any database or compute platform — cloud or on-prem.
- 9. DBaaS Essentials 9 No Limits! Gotlarge partitions? Wide rows? Huge payloads? Multi-terabyte or petabytes of data? No problem! Observability and Auto-tuning Plus an intuitive dashboarding UI for cluster monitoring with 360 visibility and insight into critical DB metrics.

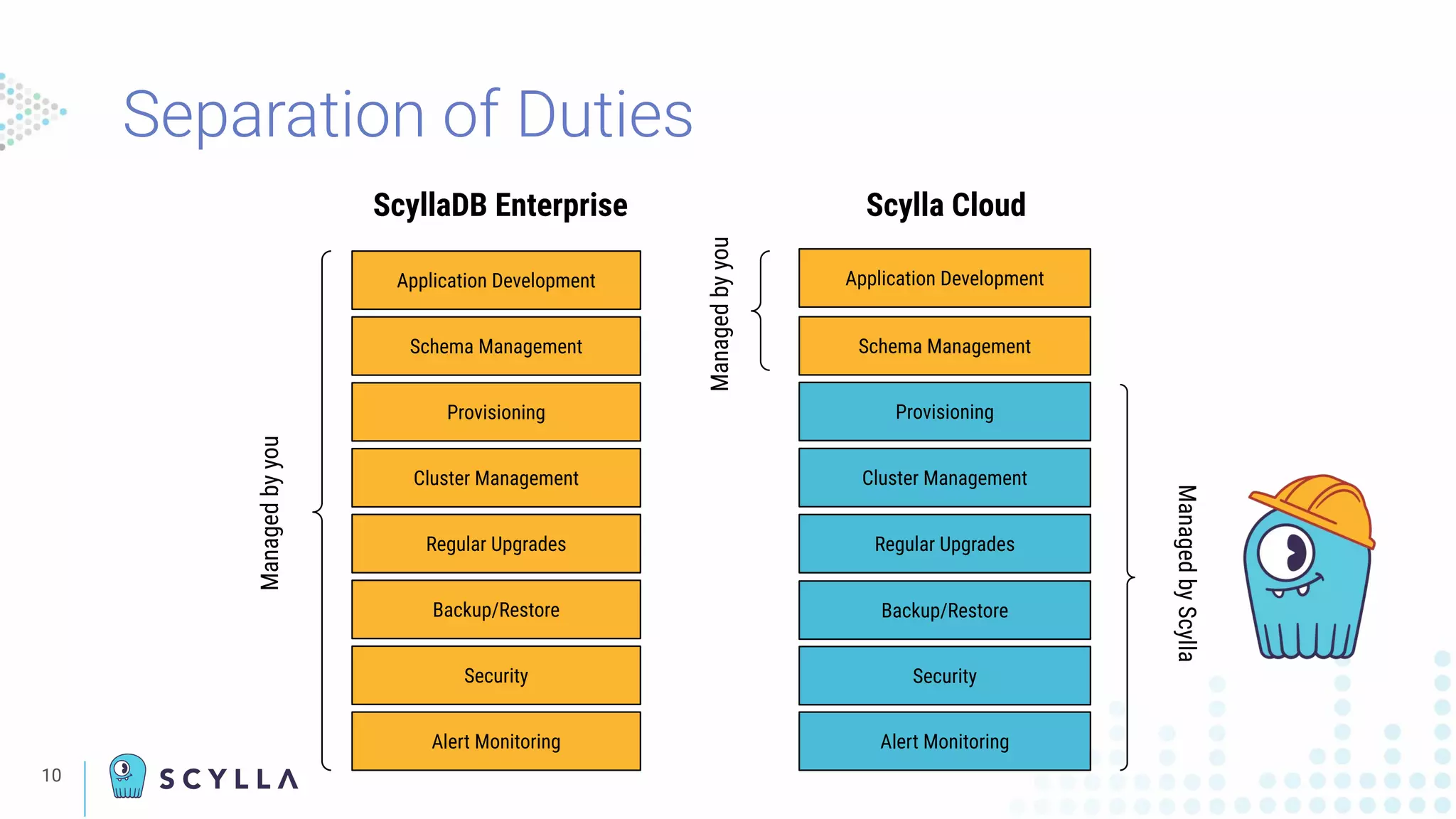

- 10. 10 Separation of Duties ClusterManagement Provisioning Regular Upgrades Backup/Restore Security Alert Monitoring Schema Management Application Development Cluster Management Provisioning Regular Upgrades Backup/Restore Security Alert Monitoring Schema Management Application Development ScyllaDB Enterprise Scylla Cloud Managedbyyou ManagedbyScylla Managedbyyou
- 11. The True Costof Ownership 11

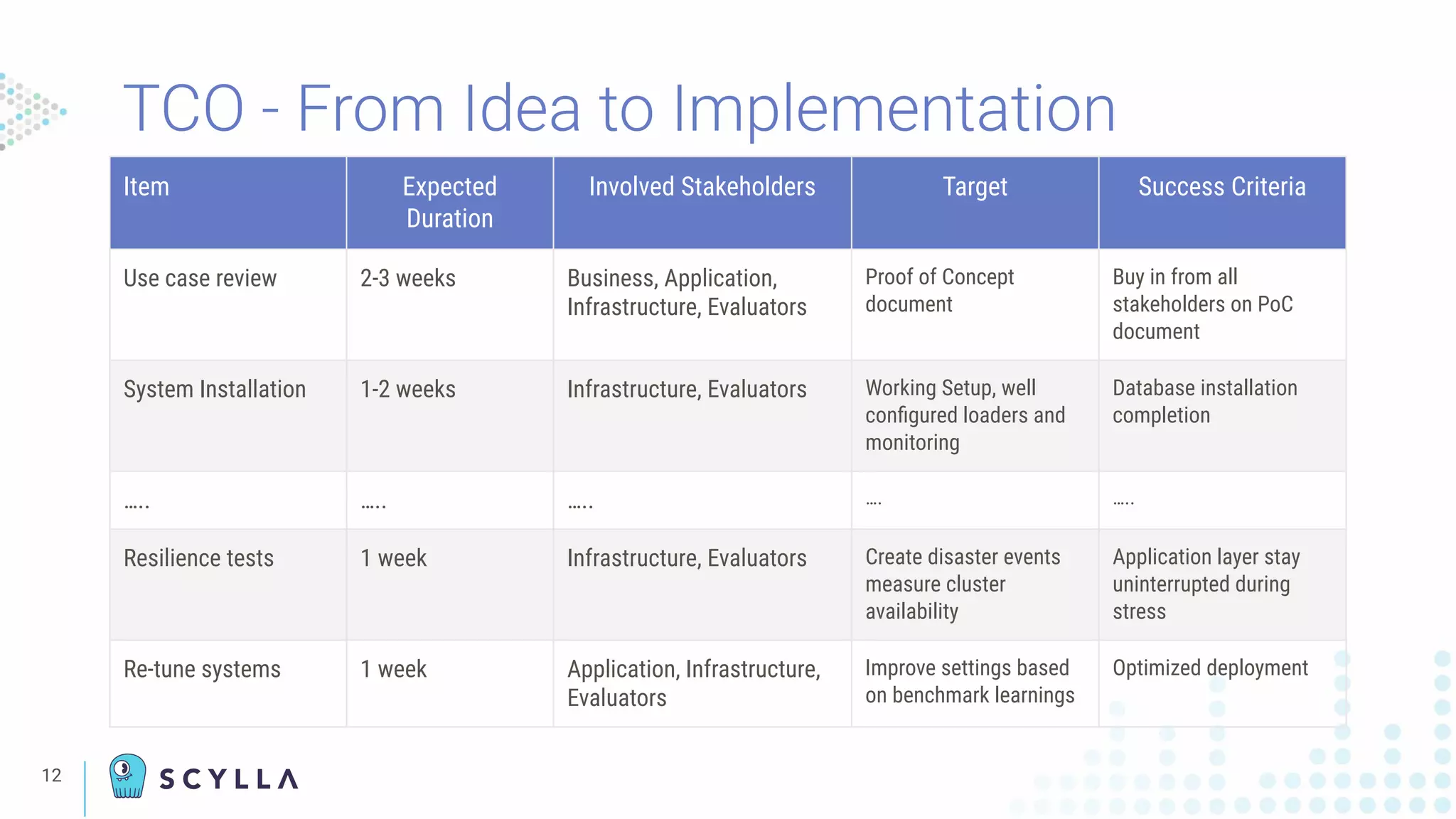

- 12. TCO - FromIdea to Implementation 12 Item Expected Duration Involved Stakeholders Target Success Criteria Use case review 2-3 weeks Business, Application, Infrastructure, Evaluators Proof of Concept document Buy in from all stakeholders on PoC document System Installation 1-2 weeks Infrastructure, Evaluators Working Setup, well configured loaders and monitoring Database installation completion ….. ….. ….. …. ….. Resilience tests 1 week Infrastructure, Evaluators Create disaster events measure cluster availability Application layer stay uninterrupted during stress Re-tune systems 1 week Application, Infrastructure, Evaluators Improve settings based on benchmark learnings Optimized deployment

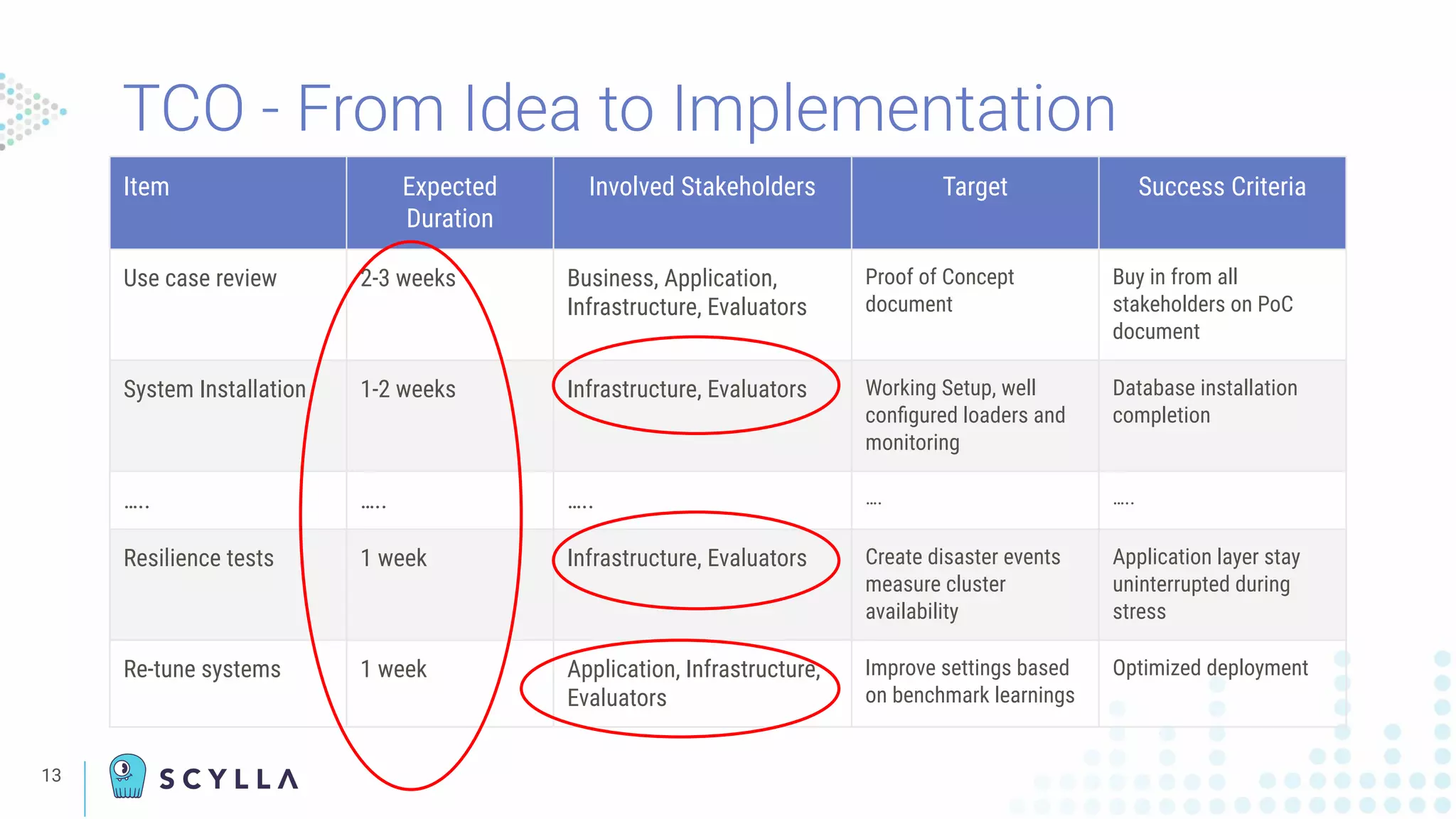

- 13. TCO - FromIdea to Implementation 13 Item Expected Duration Involved Stakeholders Target Success Criteria Use case review 2-3 weeks Business, Application, Infrastructure, Evaluators Proof of Concept document Buy in from all stakeholders on PoC document System Installation 1-2 weeks Infrastructure, Evaluators Working Setup, well configured loaders and monitoring Database installation completion ….. ….. ….. …. ….. Resilience tests 1 week Infrastructure, Evaluators Create disaster events measure cluster availability Application layer stay uninterrupted during stress Re-tune systems 1 week Application, Infrastructure, Evaluators Improve settings based on benchmark learnings Optimized deployment
- 14. + Infrastructure vendorselection leaves buying power in your hands + Multiple and Adjustable workload, versatile deployment 14 TCO - Who Controls the System?

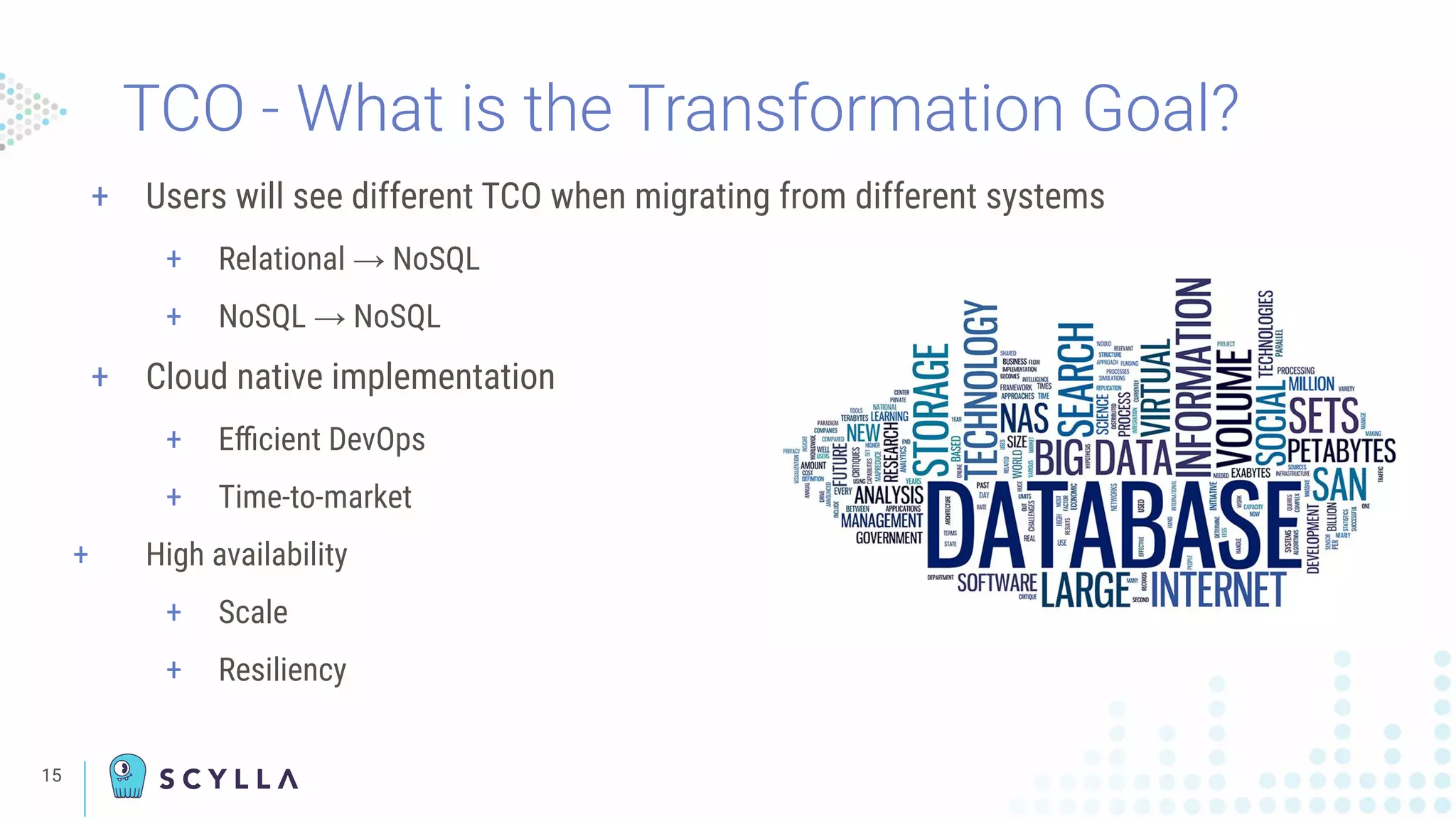

- 15. TCO - Whatis the Transformation Goal? + Users will see different TCO when migrating from different systems + Relational → NoSQL + NoSQL → NoSQL + Cloud native implementation + Efficient DevOps + Time-to-market + High availability + Scale + Resiliency 15
- 16. TCO - Hiddenor Obvious Costs!? 16 Storage, Operations/Sec, traffic Additional indexes Changes in payload Latency budget High Availability - Multi-Datacenter, Multi Cloud Scaling

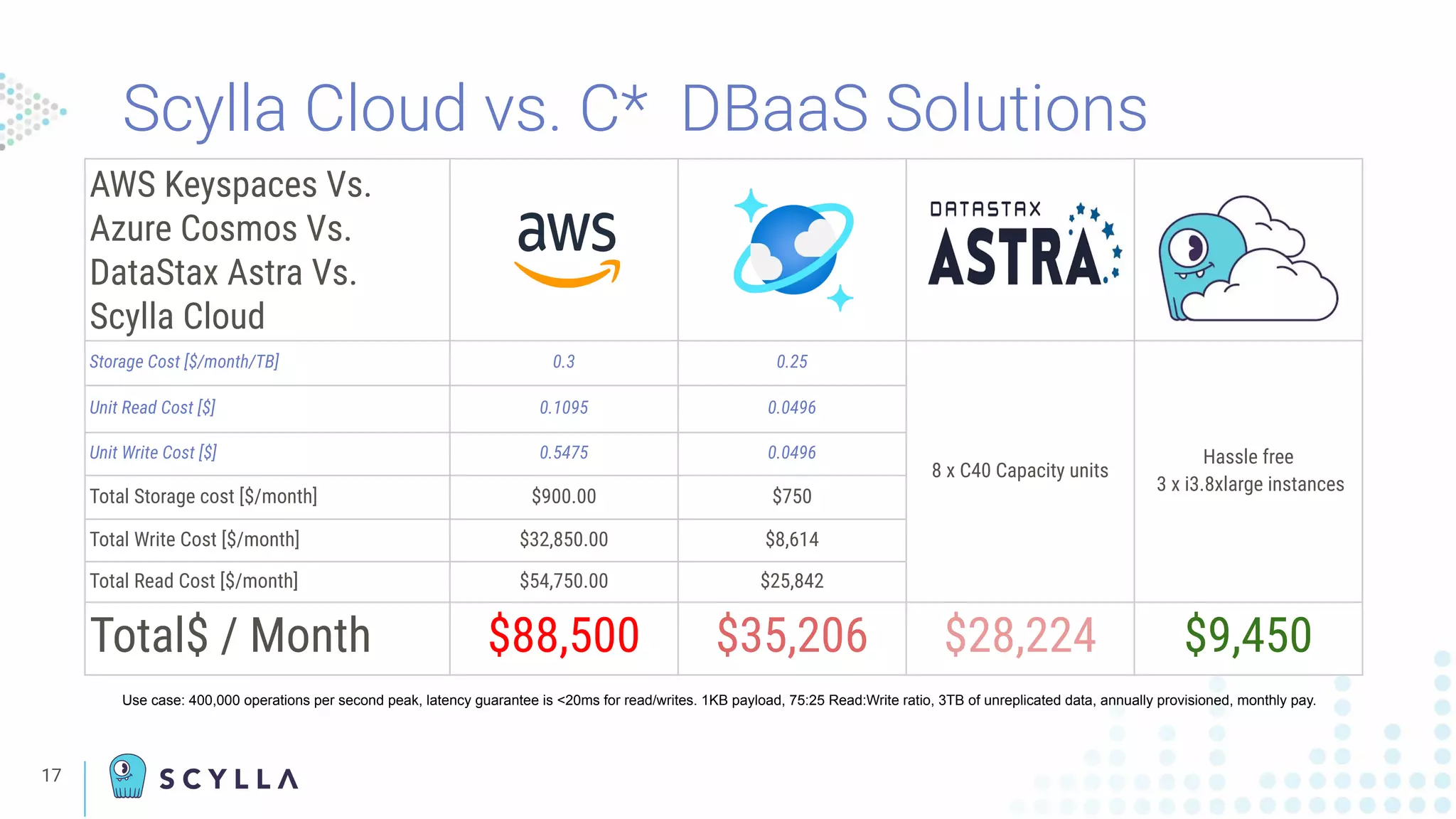

- 17. Scylla Cloud vs.C* DBaaS Solutions 17 AWS Keyspaces Vs. Azure Cosmos Vs. DataStax Astra Vs. Scylla Cloud Storage Cost [$/month/TB] 0.3 0.25 8 x C40 Capacity units Hassle free 3 x i3.8xlarge instances Unit Read Cost [$] 0.1095 0.0496 Unit Write Cost [$] 0.5475 0.0496 Total Storage cost [$/month] $900.00 $750 Total Write Cost [$/month] $32,850.00 $8,614 Total Read Cost [$/month] $54,750.00 $25,842 Total$ / Month $88,500 $35,206 $28,224 $9,450 Use case: 400,000 operations per second peak, latency guarantee is <20ms for read/writes. 1KB payload, 75:25 Read:Write ratio, 3TB of unreplicated data, annually provisioned, monthly pay.

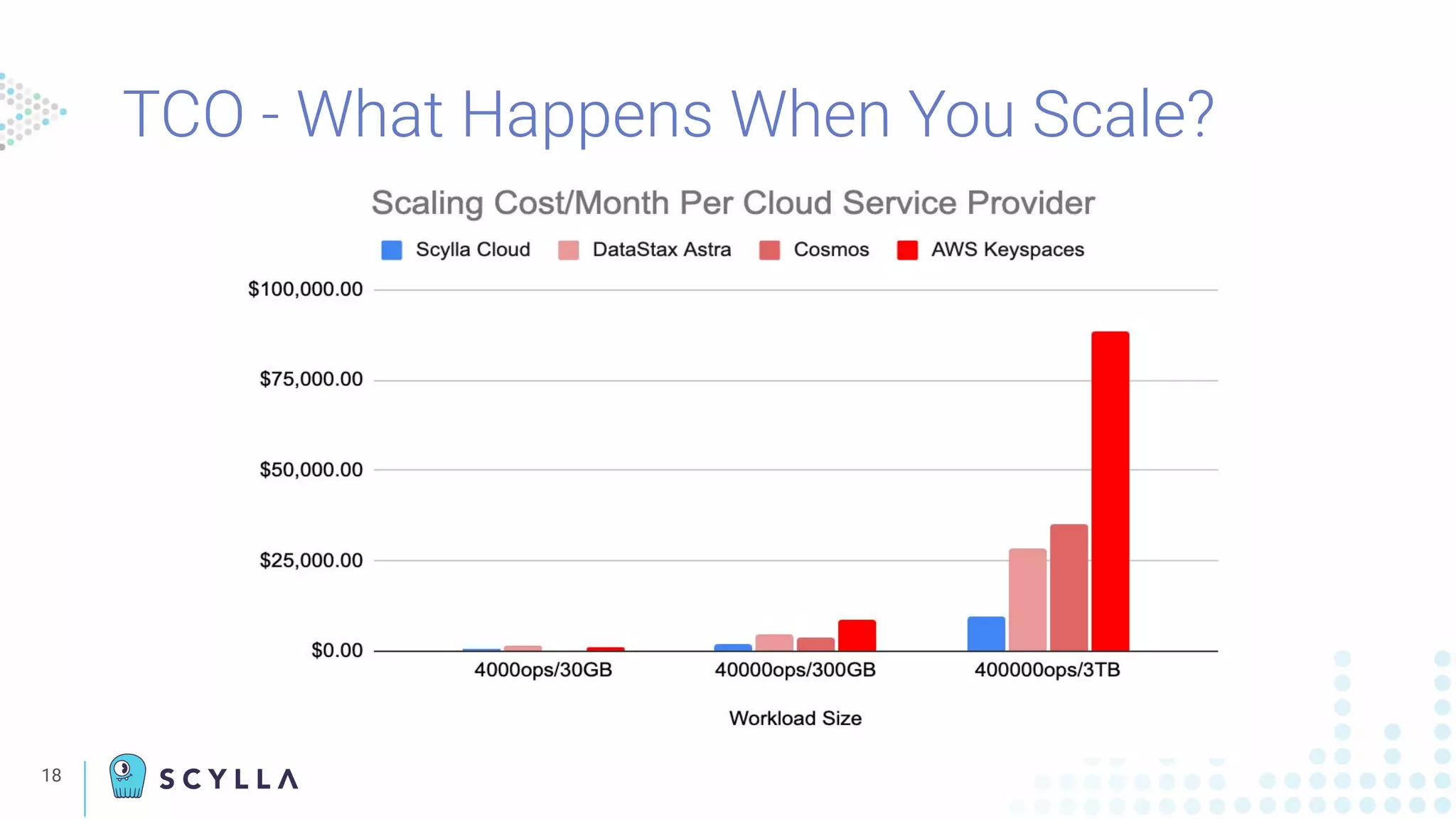

- 18. 18 TCO - WhatHappens When You Scale?

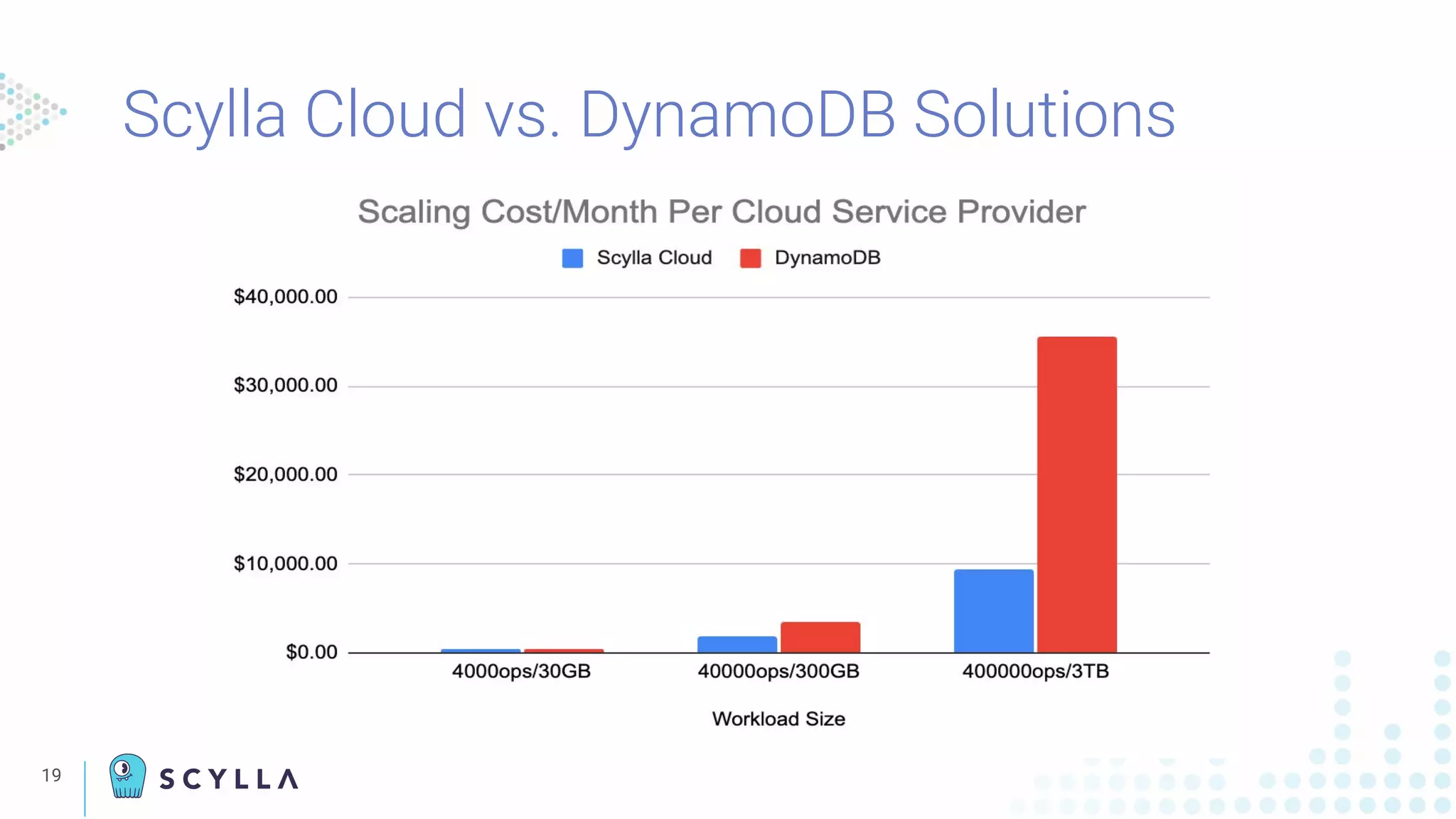

- 19. 19 Scylla Cloud vs.DynamoDB Solutions
- 20.
- 21.
- 22.

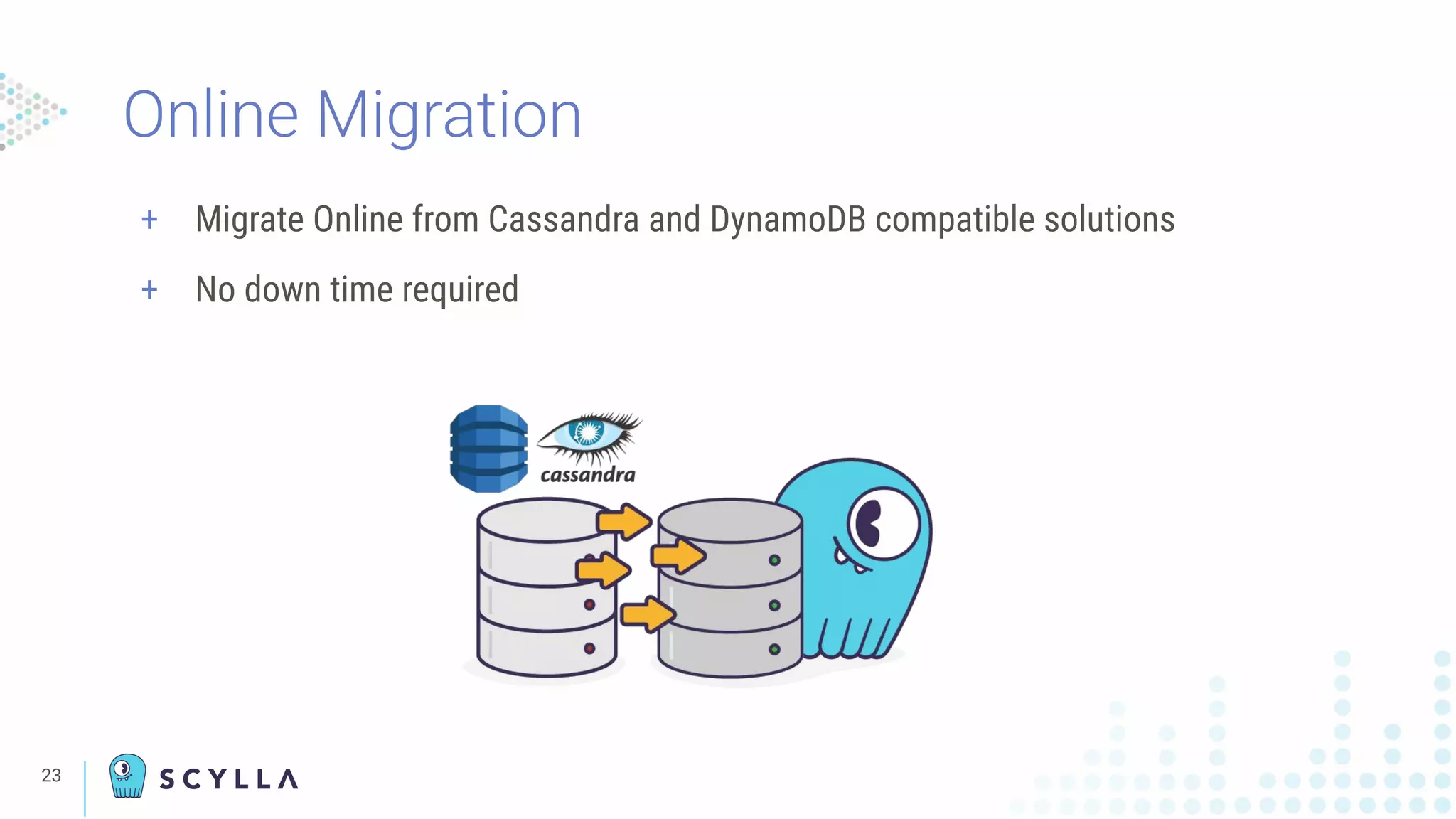

- 23. Online Migration + MigrateOnline from Cassandra and DynamoDB compatible solutions + No down time required 23

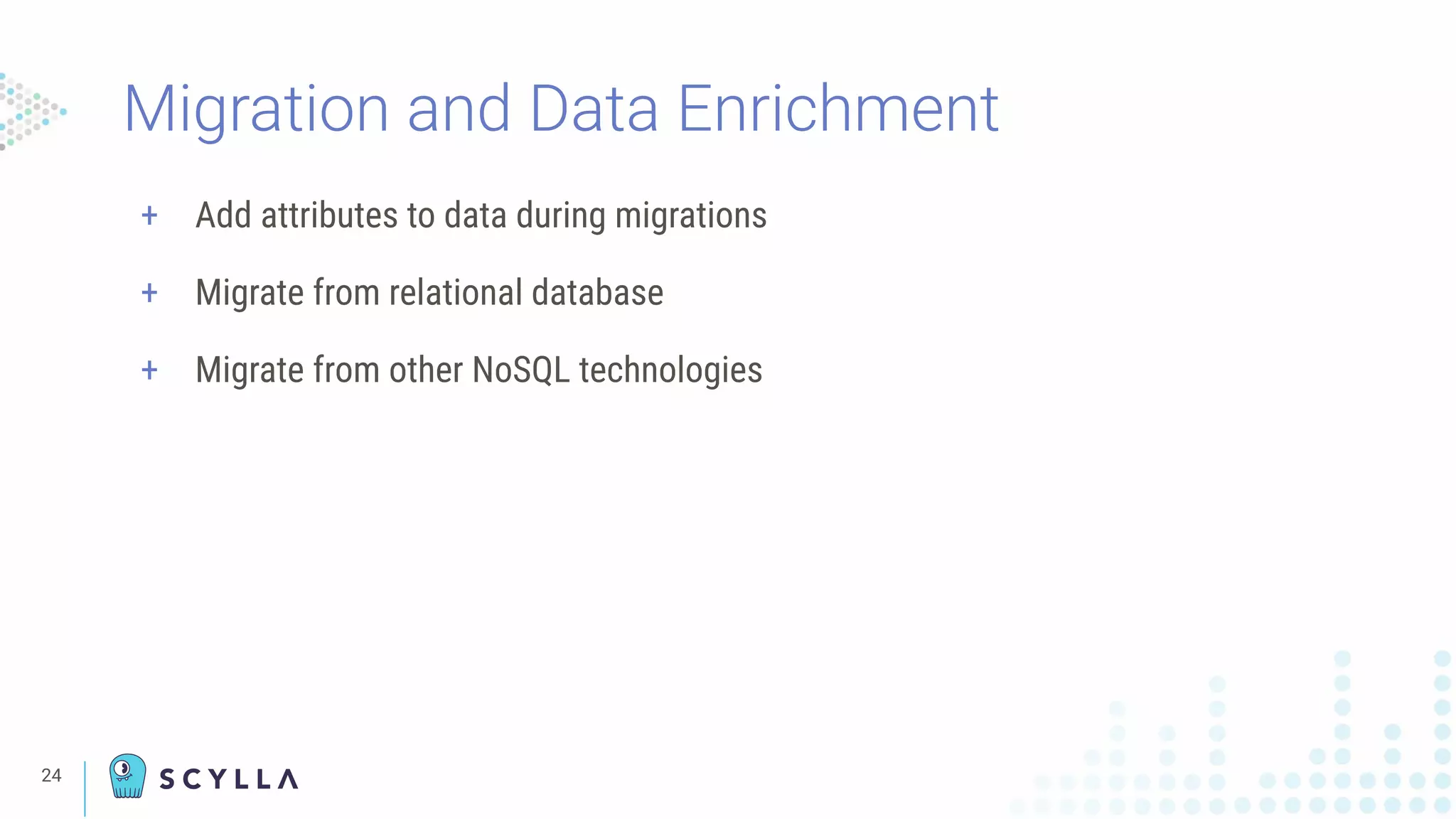

- 24. 24 + Add attributesto data during migrations + Migrate from relational database + Migrate from other NoSQL technologies Migration and Data Enrichment
- 25.
- 26.
- 27.
- 28.
- 29.
- 30.
- 31.
- 32. 32 + Using DBaaSis the way forward + Collect your current and future application needs + Incorporate all metrics into your TCO + Scaling can be costly + Do not give away your buying power + Migration with zero down time is possible + Migration from one NoSQL/RDBMS to NoSQL is possible , use case dependant Summary
- 33. 33 Explore Scylla Cloudfor Free: https://www.scylladb.com/product/scylla-cloud/ Benchmarks Scylla Cloud vs DynamoDB: https://www.scylladb.com/product/benchmarks/dynamodb-benchmark/ Resources
- 34.
- 35. United States 2445 FaberSt, Suite #200 Palo Alto, CA USA 94303 Israel Maskit 4 Herzliya, Israel 4673304 www.scylladb.com @scylladb Thank You!
- 36. United States 2445 FaberSt, Suite #200 Palo Alto, CA USA 94303 Israel Maskit 4 Herzliya, Israel 4673304 www.scylladb.com @scylladb Thank You!
- 37. United States 2445 FaberSt, Suite #200 Palo Alto, CA USA 94303 Israel Maskit 4 Herzliya, Israel 4673304 www.scylladb.com @scylladb Thank You!
- 38. United States 2445 FaberSt, Suite #200 Palo Alto, CA USA 94303 Israel Maskit 4 Herzliya, Israel 4673304 www.scylladb.com @scylladb Thank You!
- 39. United States 2445 FaberSt, Suite #200 Palo Alto, CA USA 94303 Israel Maskit 4 Herzliya, Israel 4673304 www.scylladb.com @scylladb Thank You!
- 40. United States 2445 FaberSt, Suite #200 Palo Alto, CA USA 94303 Israel Maskit 4 Herzliya, Israel 4673304 www.scylladb.com @scylladb Thank You!
- 41. United States 2445 FaberSt, Suite #200 Palo Alto, CA USA 94303 Israel Maskit 4 Herzliya, Israel 4673304 www.scylladb.com @scylladb Thank You!

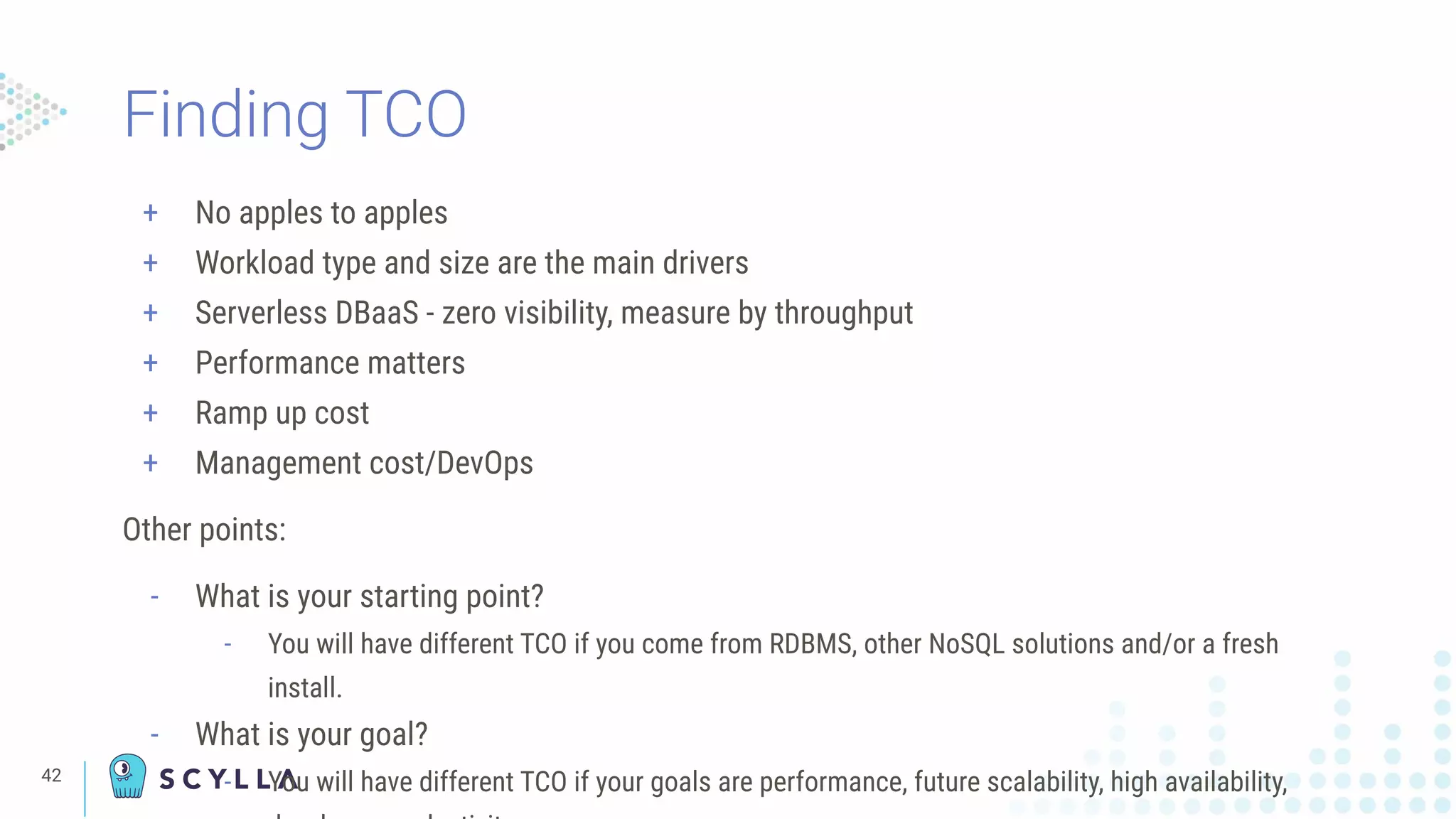

- 42. Finding TCO + Noapples to apples + Workload type and size are the main drivers + Serverless DBaaS - zero visibility, measure by throughput + Performance matters + Ramp up cost + Management cost/DevOps Other points: - What is your starting point? - You will have different TCO if you come from RDBMS, other NoSQL solutions and/or a fresh install. - What is your goal? - You will have different TCO if your goals are performance, future scalability, high availability,42

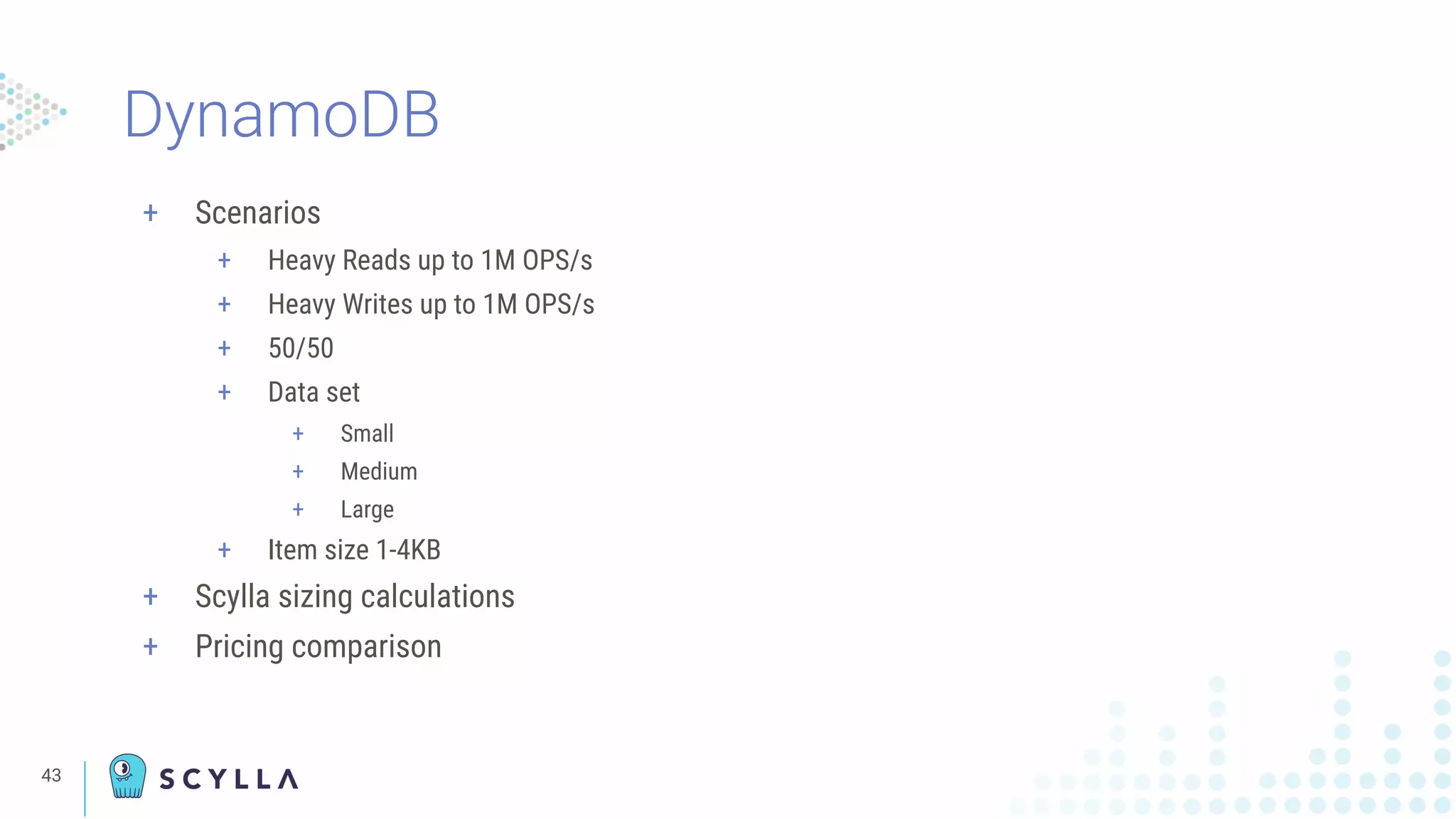

- 43. 43 + Scenarios + HeavyReads up to 1M OPS/s + Heavy Writes up to 1M OPS/s + 50/50 + Data set + Small + Medium + Large + Item size 1-4KB + Scylla sizing calculations + Pricing comparison DynamoDB
- 44. 44 + Scenarios + HeavyReads up to 1M OPS/s + Heavy Writes up to 1M OPS/s + 50/50 + Data set + Small + Medium + Large + Item size 1-4KB + Scylla sizing calculations + Pricing comparison Keyspaces

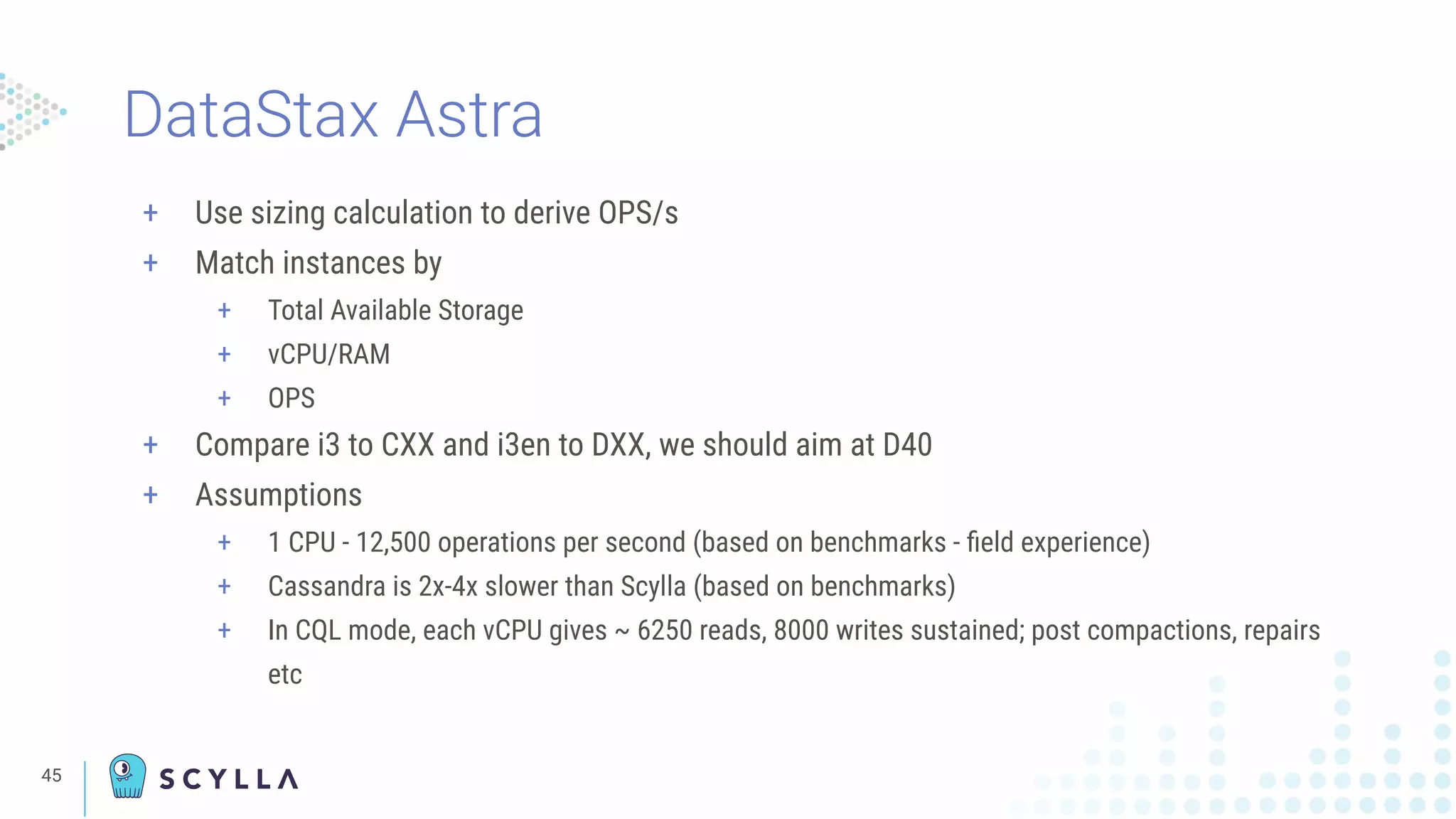

- 45. 45 + Use sizingcalculation to derive OPS/s + Match instances by + Total Available Storage + vCPU/RAM + OPS + Compare i3 to CXX and i3en to DXX, we should aim at D40 + Assumptions + 1 CPU - 12,500 operations per second (based on benchmarks - field experience) + Cassandra is 2x-4x slower than Scylla (based on benchmarks) + In CQL mode, each vCPU gives ~ 6250 reads, 8000 writes sustained; post compactions, repairs etc DataStax Astra

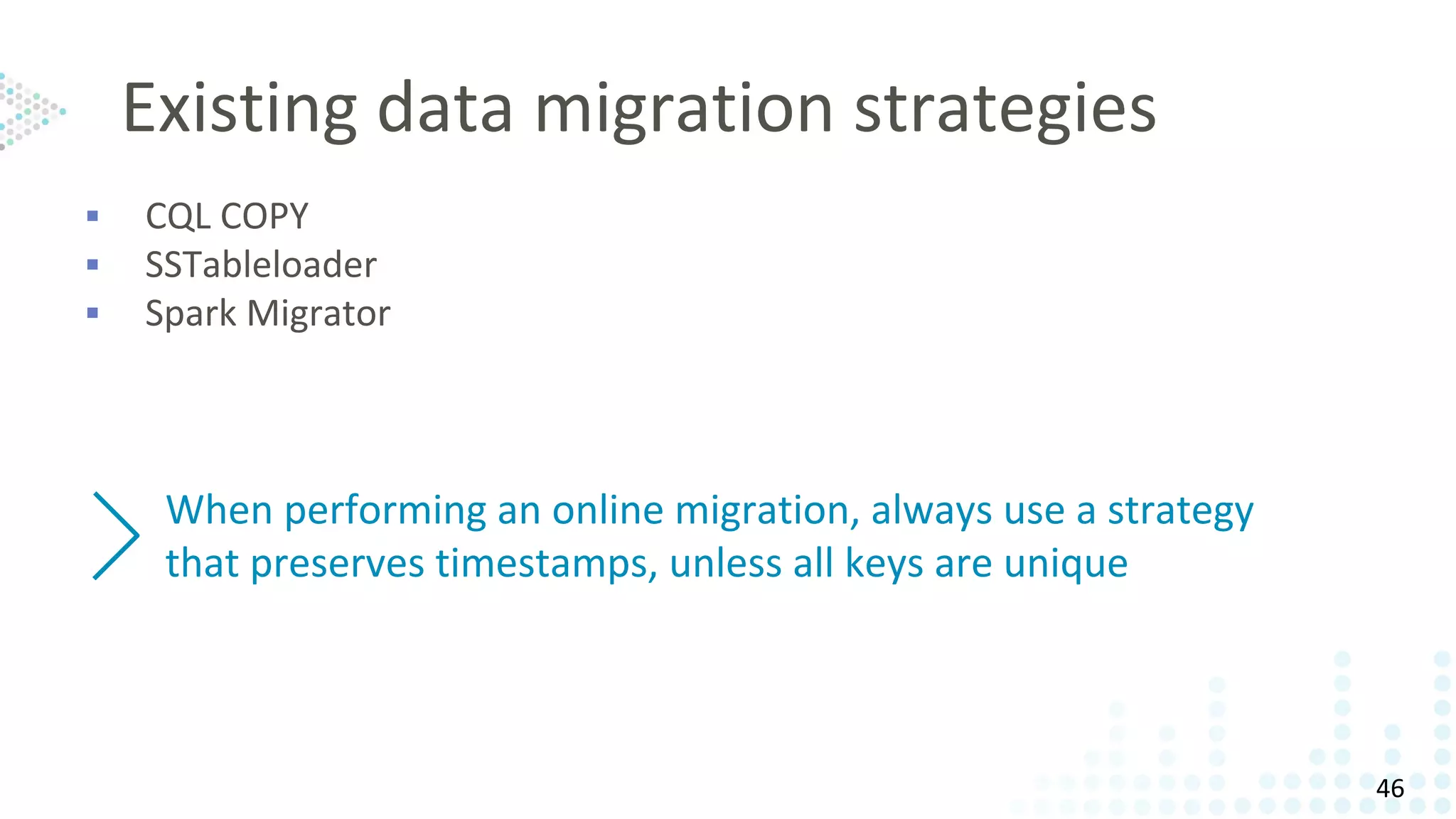

- 46. Existing data migrationstrategies ▪ CQL COPY ▪ SSTableloader ▪ Spark Migrator When performing an online migration, always use a strategy that preserves timestamps, unless all keys are unique 46

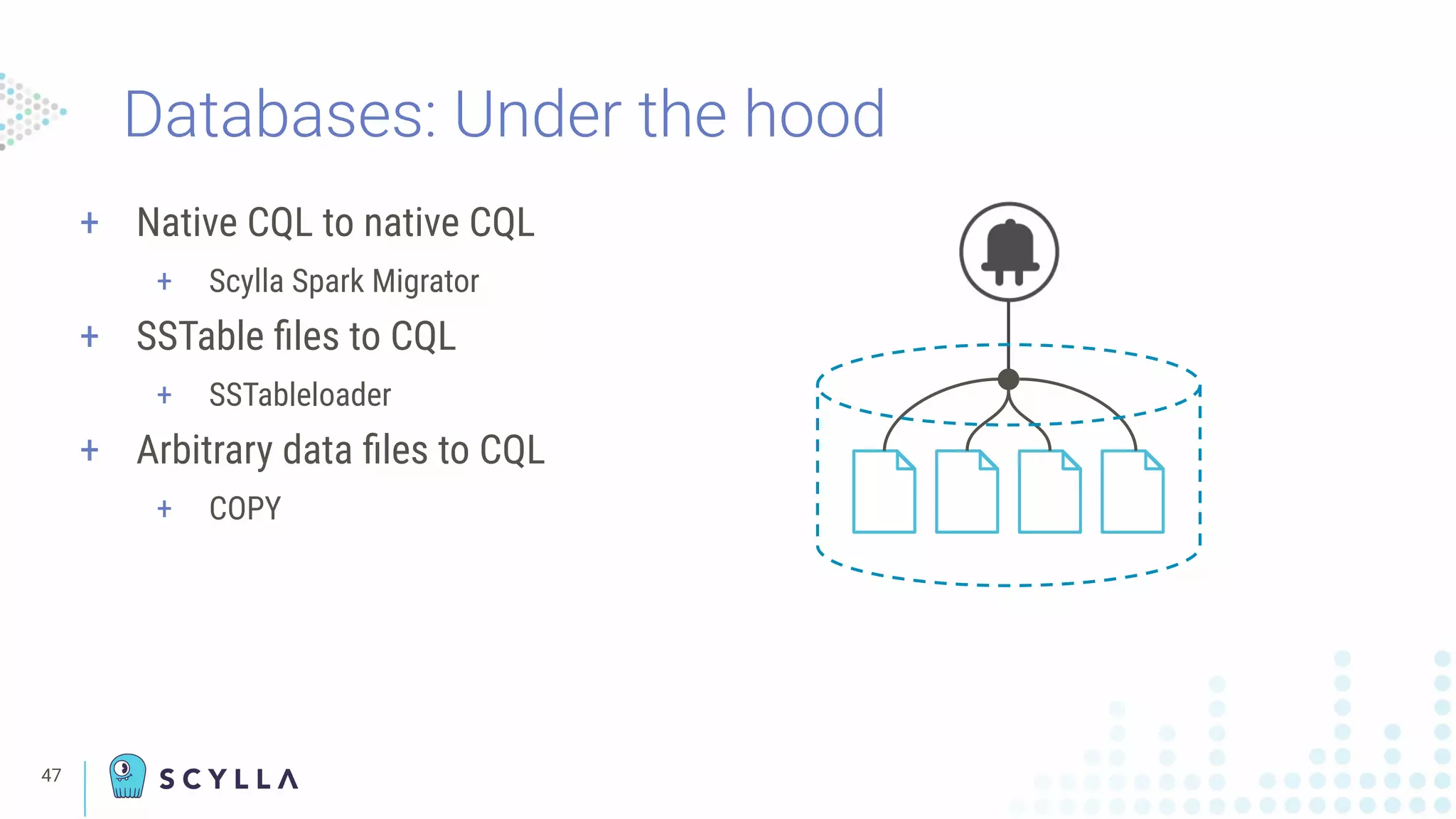

- 47. Databases: Under thehood + Native CQL to native CQL + Scylla Spark Migrator + SSTable files to CQL + SSTableloader + Arbitrary data files to CQL + COPY 47
- 48. Highly volatile datawith low TTL ▪ Establish dual writes ▪ Keep running until last record in the old DB is expired ▪ Turn off dual writes ▪ Phase out old DB SQL NoSQL 48
- 49.

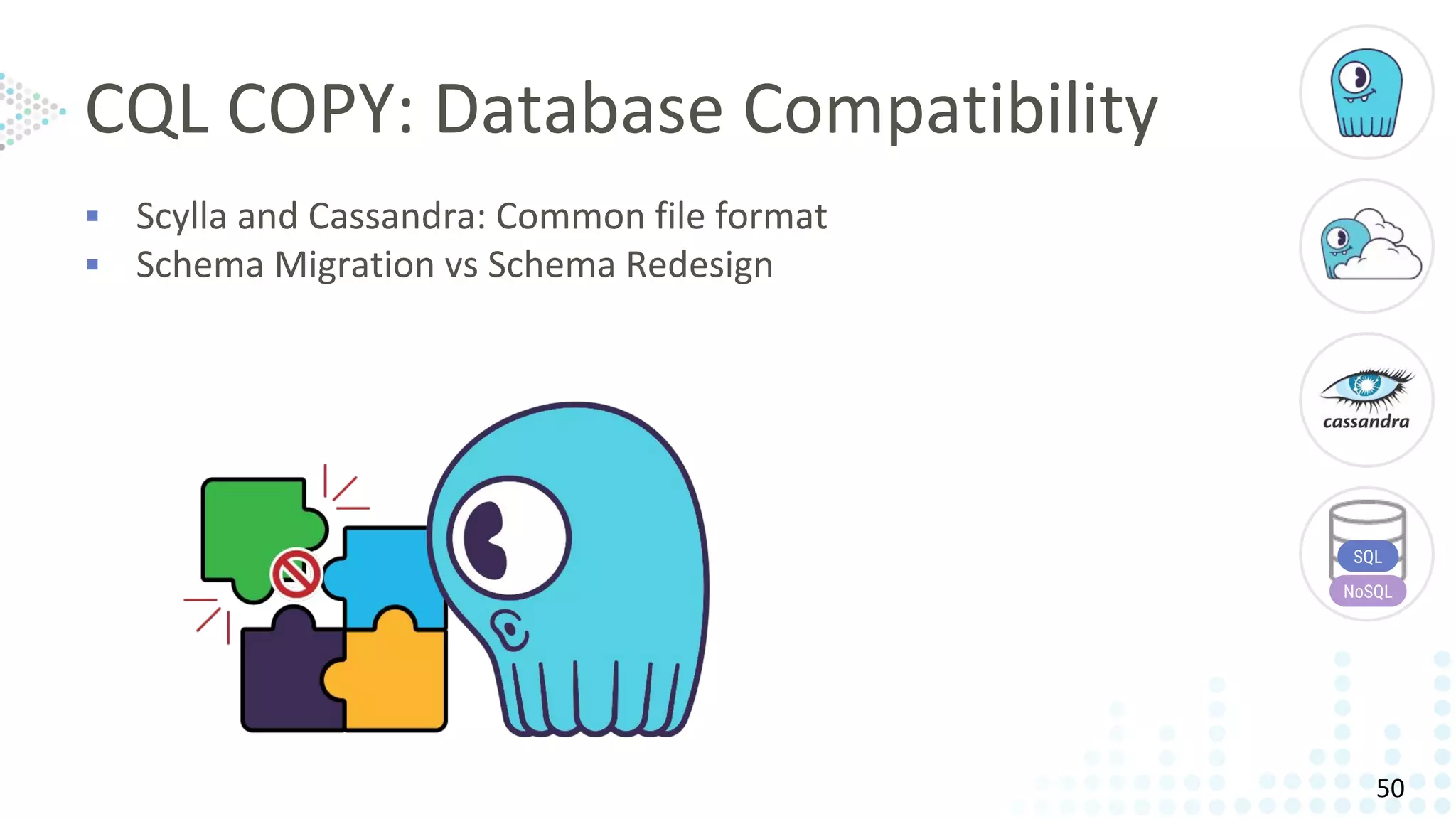

- 50. CQL COPY: DatabaseCompatibility ▪ Scylla and Cassandra: Common file format ▪ Schema Migration vs Schema Redesign SQL NoSQL 50

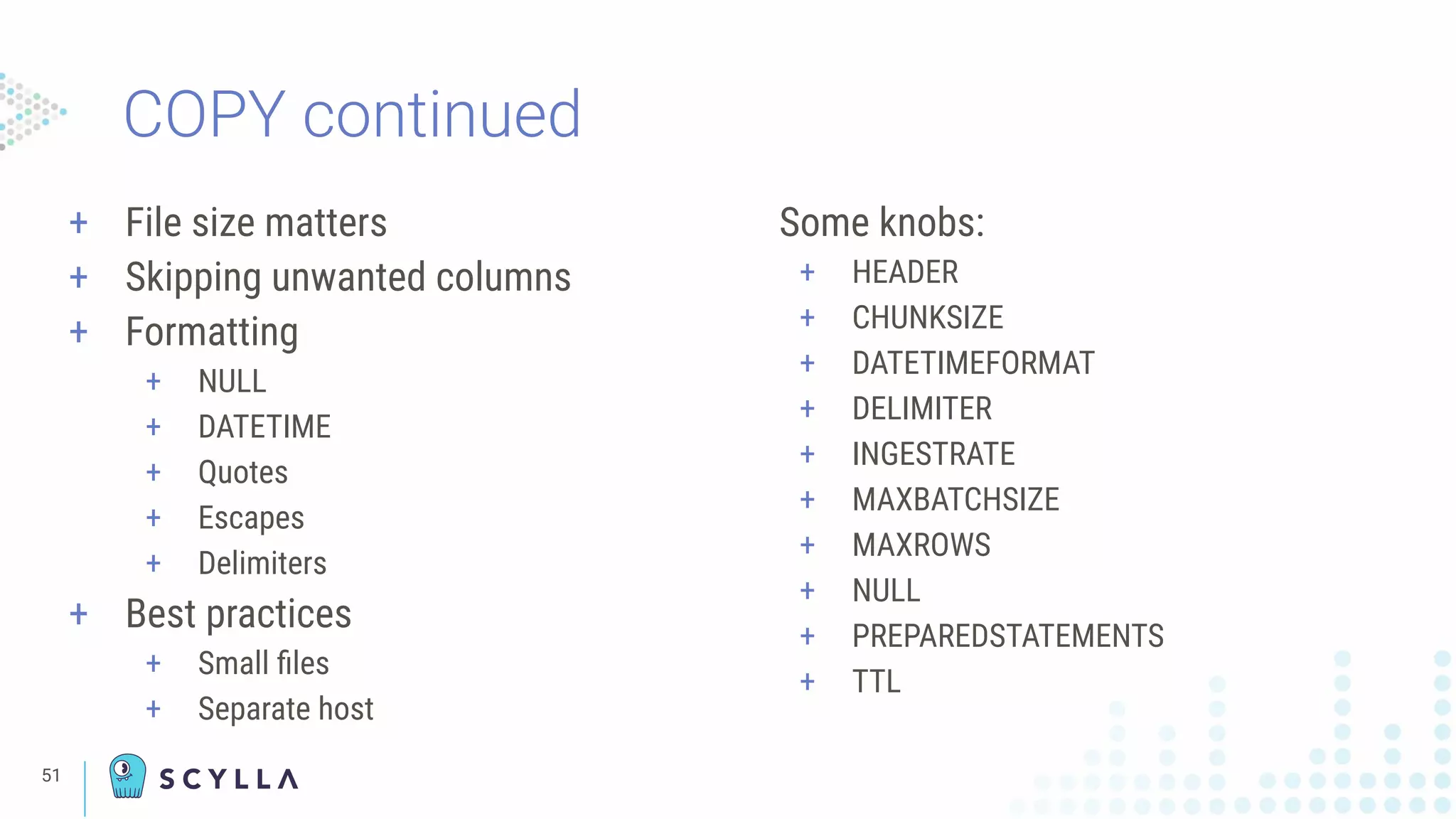

- 51. COPY continued Some knobs: +HEADER + CHUNKSIZE + DATETIMEFORMAT + DELIMITER + INGESTRATE + MAXBATCHSIZE + MAXROWS + NULL + PREPAREDSTATEMENTS + TTL + File size matters + Skipping unwanted columns + Formatting + NULL + DATETIME + Quotes + Escapes + Delimiters + Best practices + Small files + Separate host 51

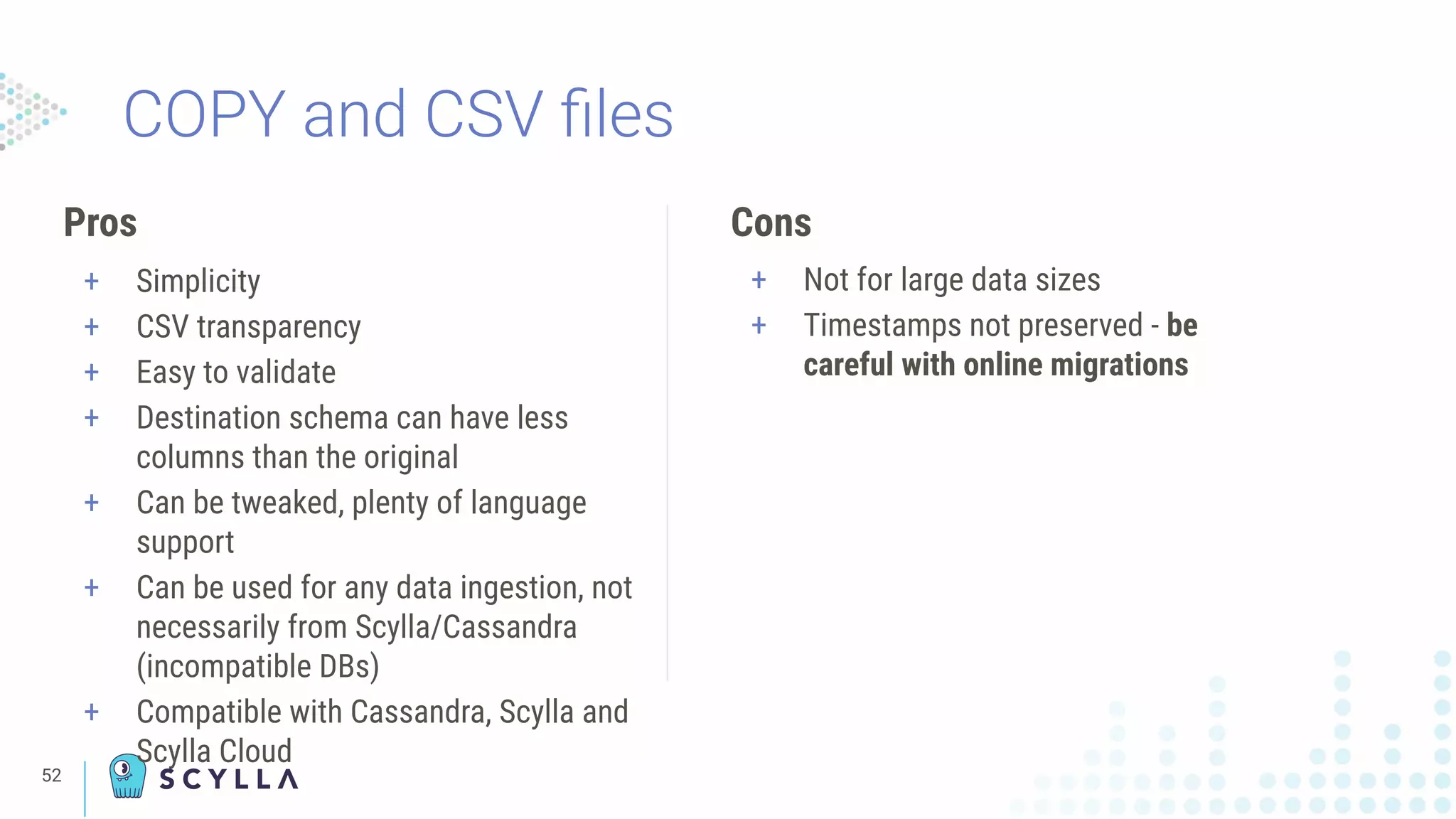

- 52. COPY and CSVfiles Pros + Simplicity + CSV transparency + Easy to validate + Destination schema can have less columns than the original + Can be tweaked, plenty of language support + Can be used for any data ingestion, not necessarily from Scylla/Cassandra (incompatible DBs) + Compatible with Cassandra, Scylla and Scylla Cloud Cons + Not for large data sizes + Timestamps not preserved - be careful with online migrations 52
- 53.

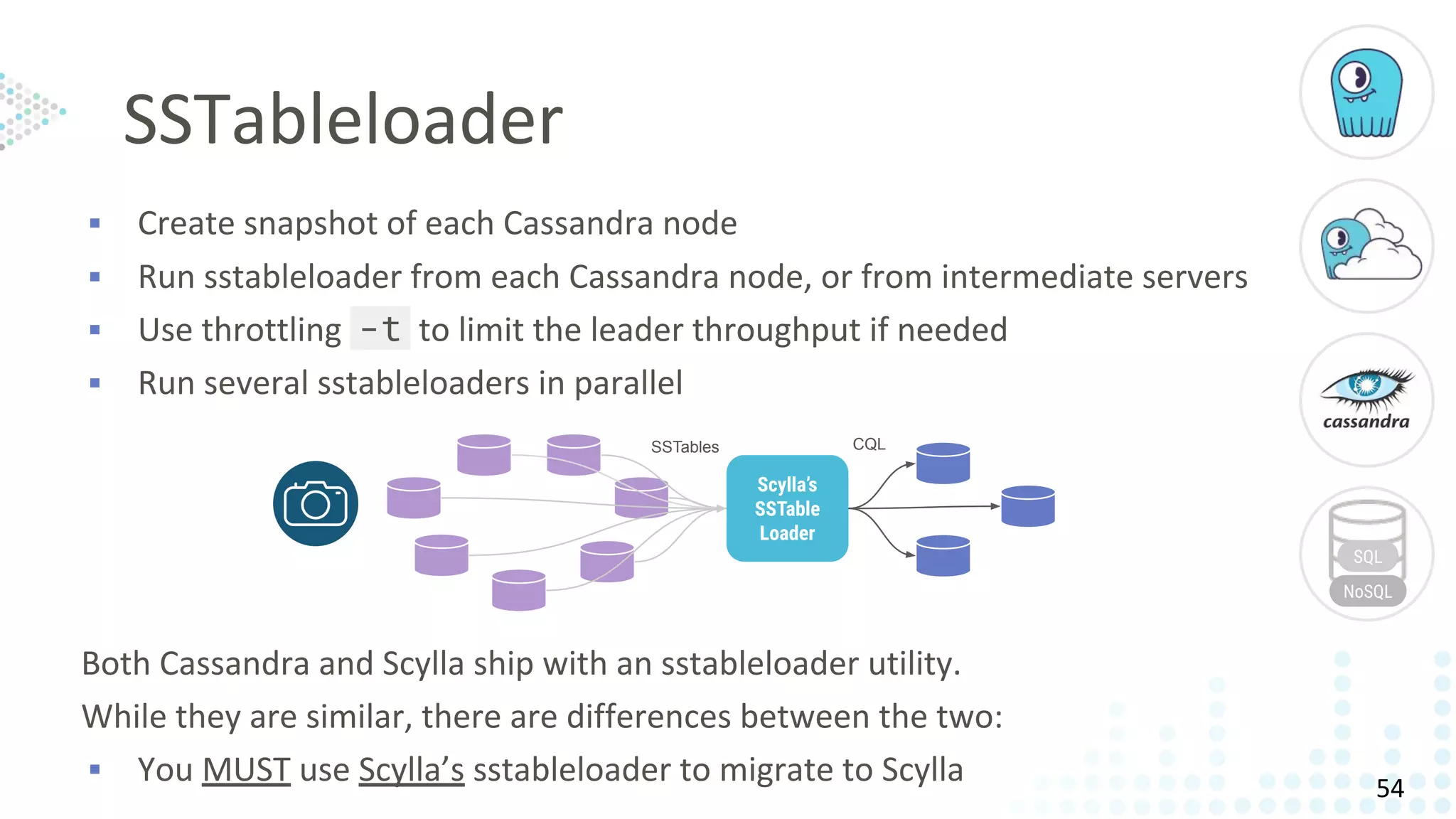

- 54. ▪ Create snapshotof each Cassandra node ▪ Run sstableloader from each Cassandra node, or from intermediate servers ▪ Use throttling -t to limit the leader throughput if needed ▪ Run several sstableloaders in parallel Both Cassandra and Scylla ship with an sstableloader utility. While they are similar, there are differences between the two: ▪ You MUST use Scylla’s sstableloader to migrate to Scylla SSTableloader Scylla’s SSTable Loader SSTables CQL SQL NoSQL 54

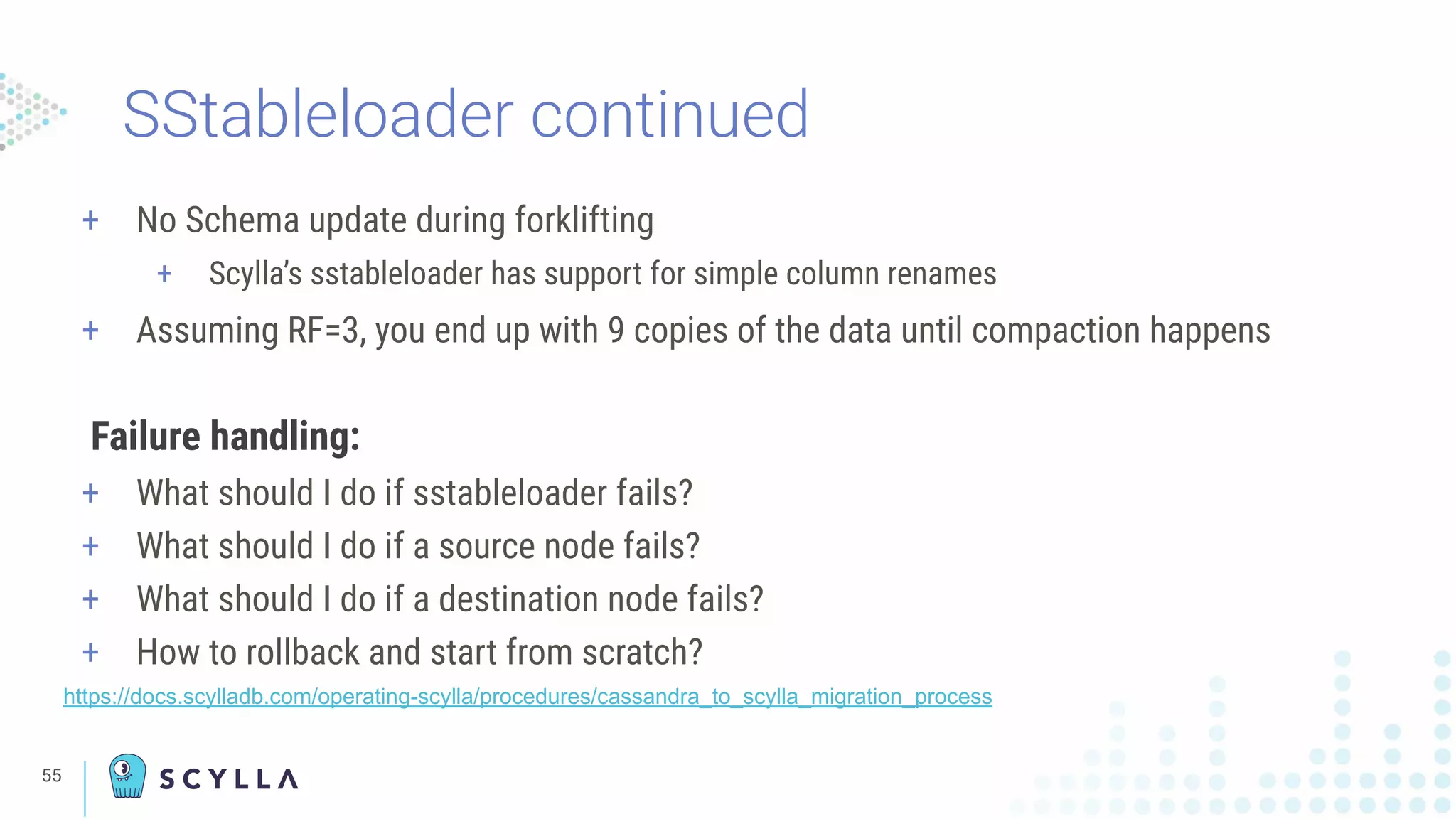

- 55. SStableloader continued + NoSchema update during forklifting + Scylla’s sstableloader has support for simple column renames + Assuming RF=3, you end up with 9 copies of the data until compaction happens Failure handling: + What should I do if sstableloader fails? + What should I do if a source node fails? + What should I do if a destination node fails? + How to rollback and start from scratch? https://docs.scylladb.com/operating-scylla/procedures/cassandra_to_scylla_migration_process 55
- 56.

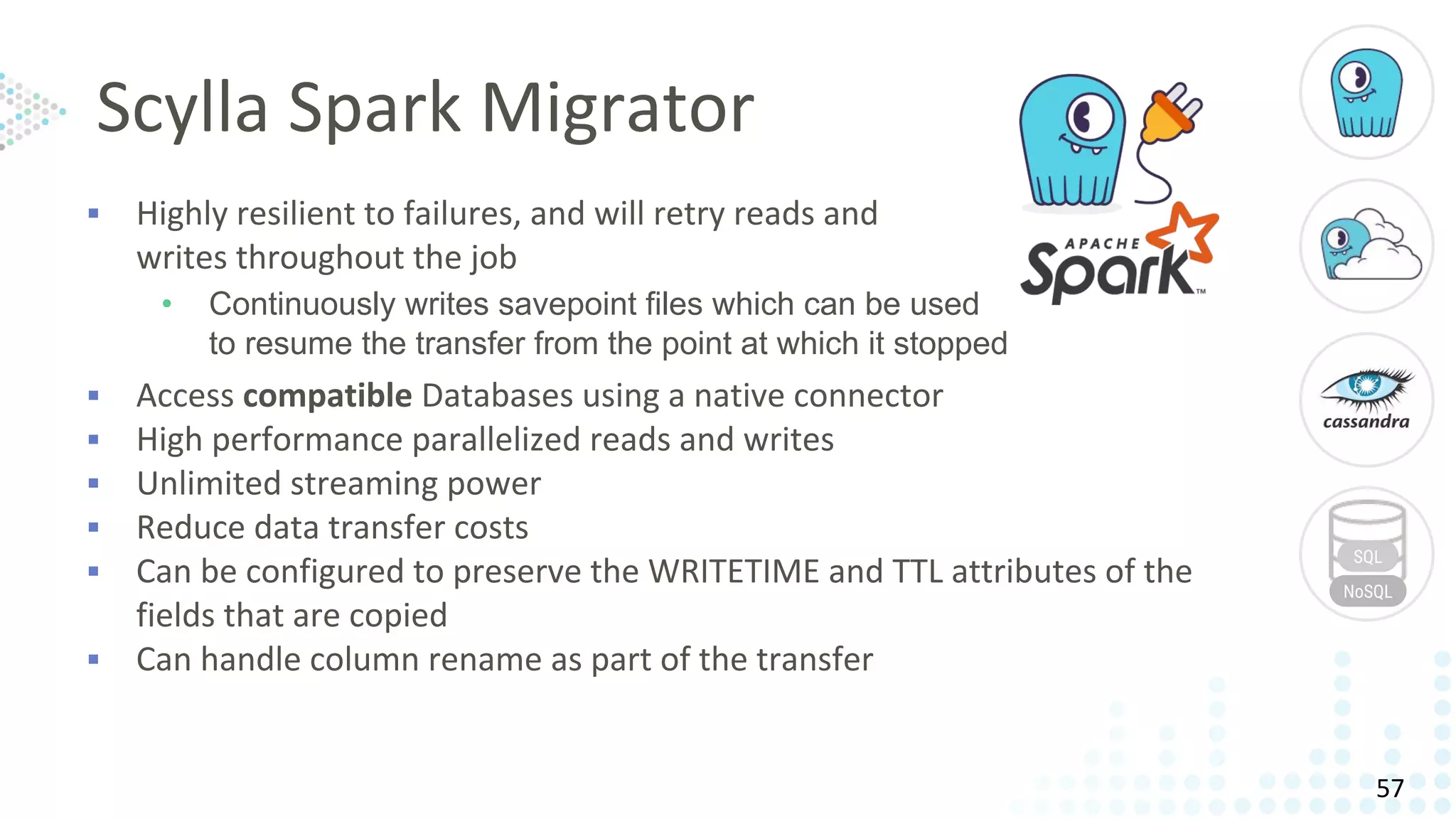

- 57. ▪ Highly resilientto failures, and will retry reads and writes throughout the job • Continuously writes savepoint files which can be used to resume the transfer from the point at which it stopped ▪ Access compatible Databases using a native connector ▪ High performance parallelized reads and writes ▪ Unlimited streaming power ▪ Reduce data transfer costs ▪ Can be configured to preserve the WRITETIME and TTL attributes of the fields that are copied ▪ Can handle column rename as part of the transfer SQL NoSQL Scylla Spark Migrator 57

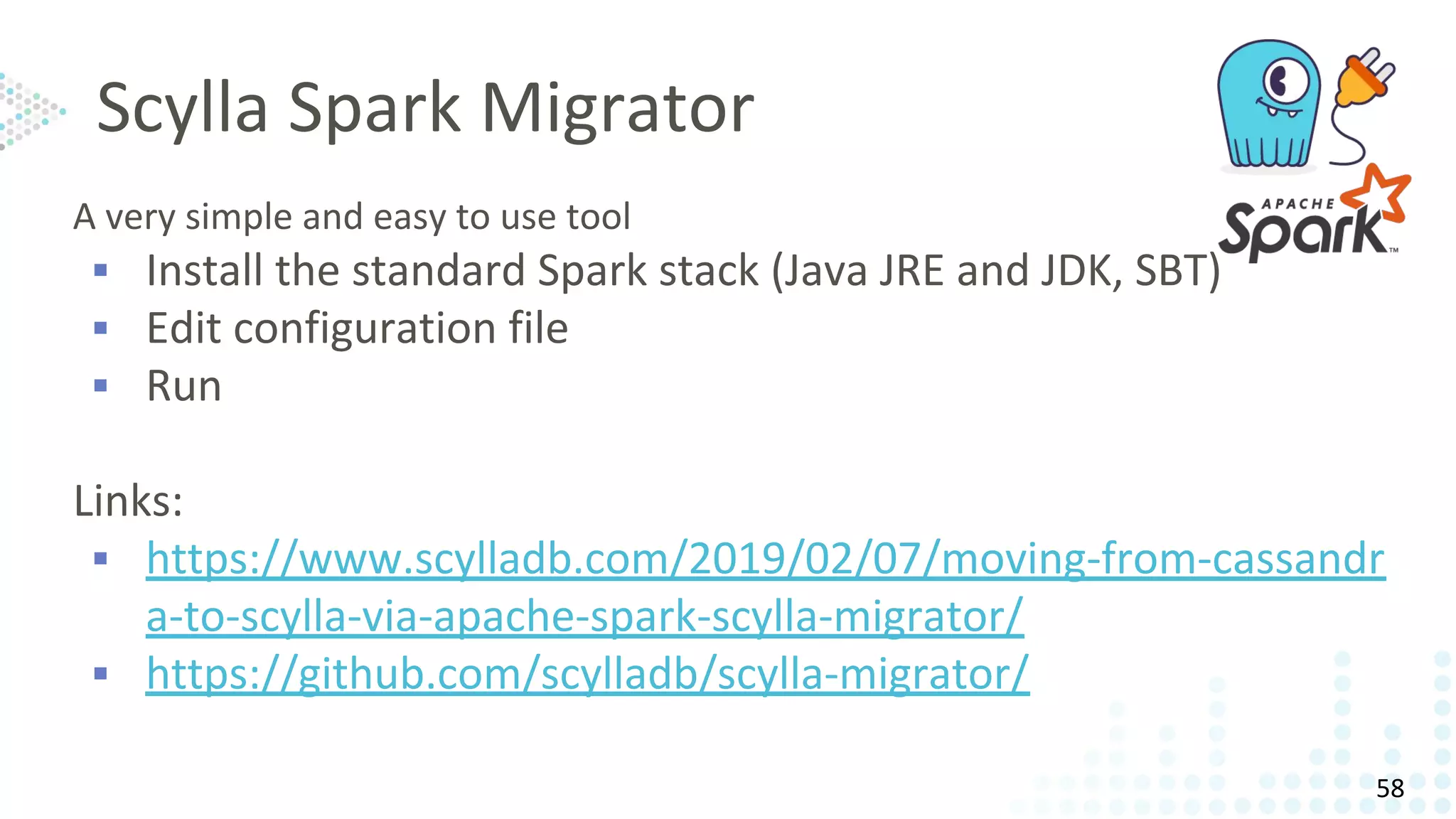

- 58. Scylla Spark Migrator Avery simple and easy to use tool ▪ Install the standard Spark stack (Java JRE and JDK, SBT) ▪ Edit configuration file ▪ Run Links: ▪ https://www.scylladb.com/2019/02/07/moving-from-cassandr a-to-scylla-via-apache-spark-scylla-migrator/ ▪ https://github.com/scylladb/scylla-migrator/ 58

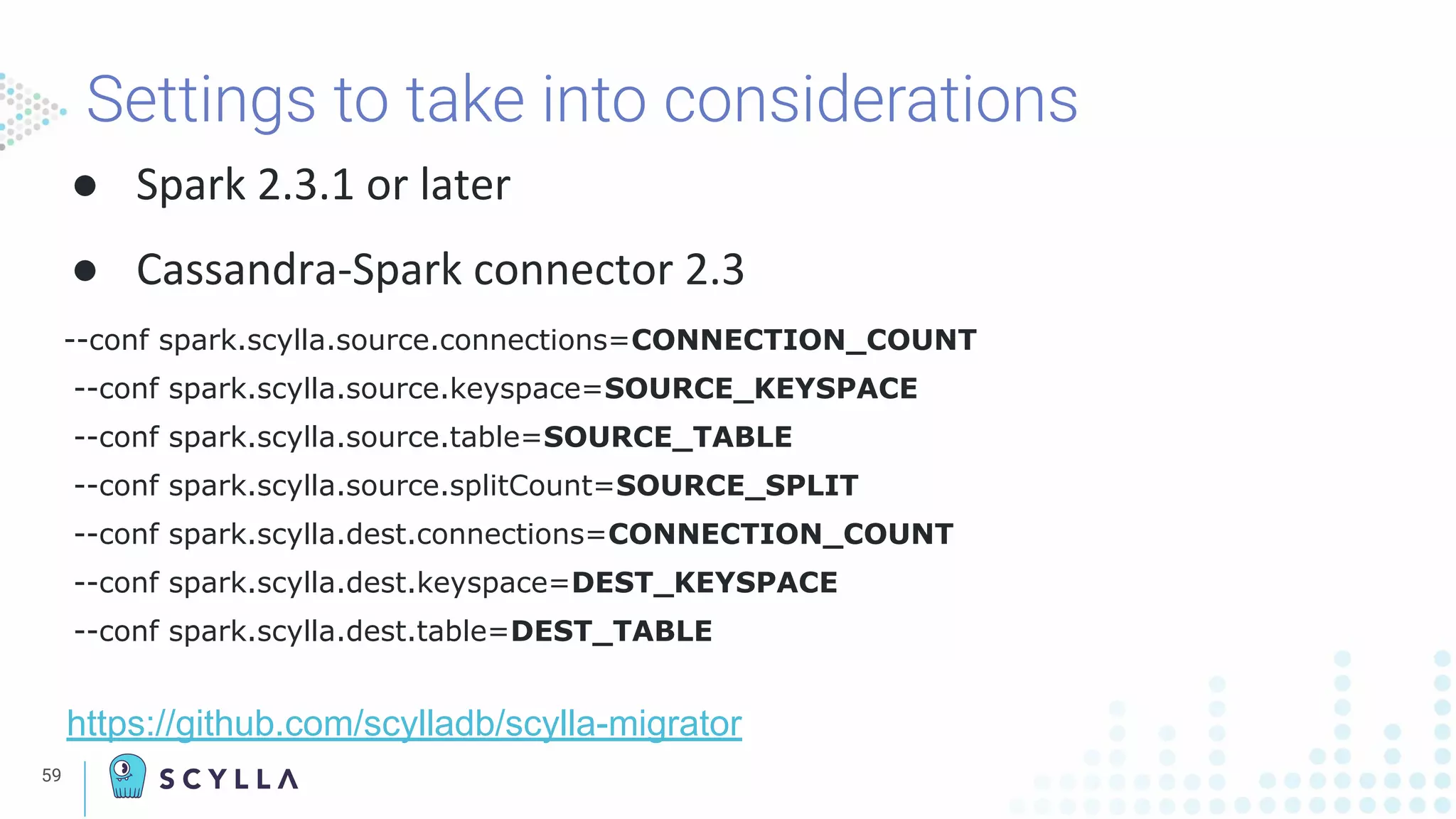

- 59. Settings to takeinto considerations ● Spark 2.3.1 or later ● Cassandra-Spark connector 2.3 --conf spark.scylla.source.connections=CONNECTION_COUNT --conf spark.scylla.source.keyspace=SOURCE_KEYSPACE --conf spark.scylla.source.table=SOURCE_TABLE --conf spark.scylla.source.splitCount=SOURCE_SPLIT --conf spark.scylla.dest.connections=CONNECTION_COUNT --conf spark.scylla.dest.keyspace=DEST_KEYSPACE --conf spark.scylla.dest.table=DEST_TABLE https://github.com/scylladb/scylla-migrator 59

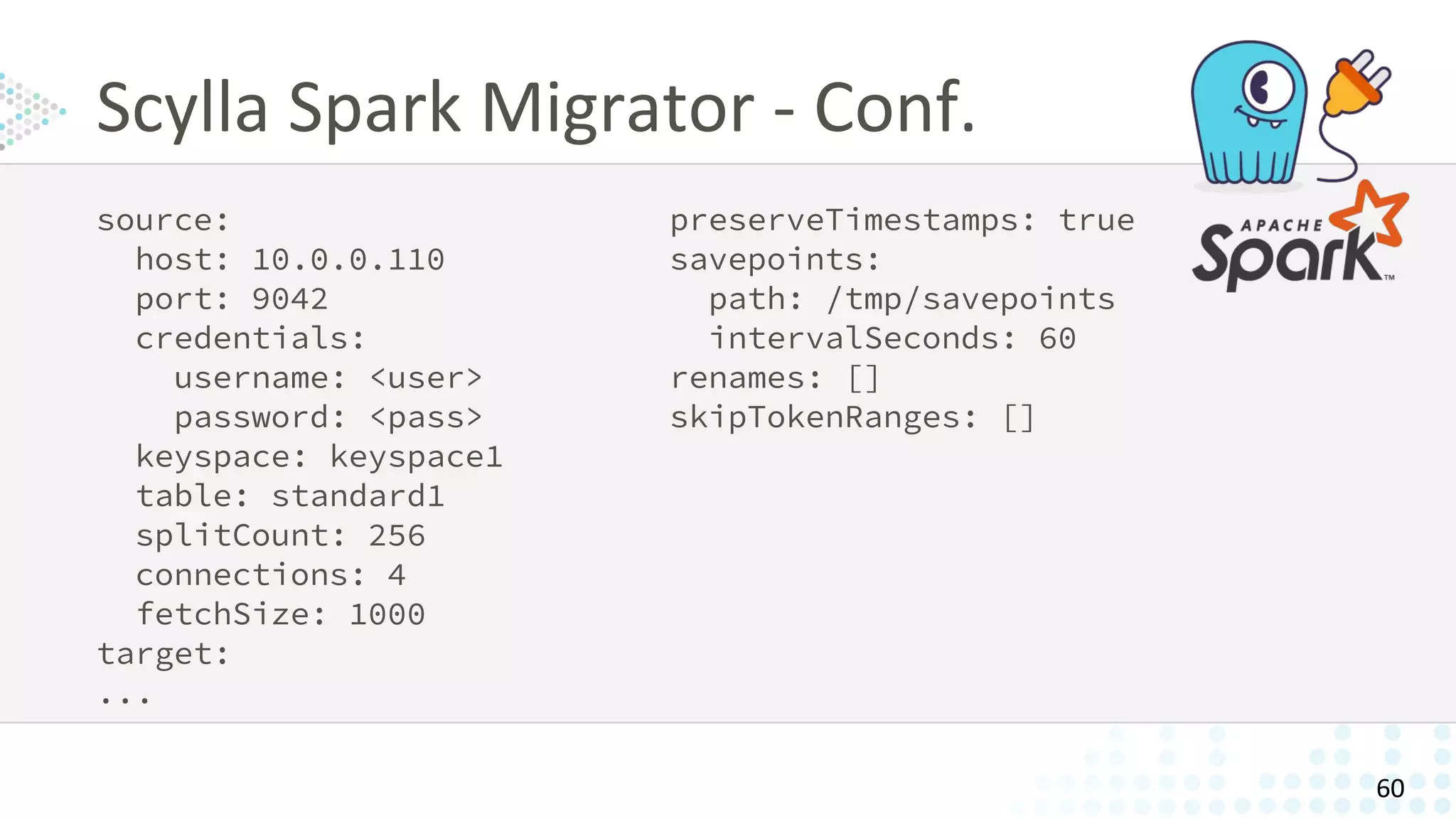

- 60. source: host: 10.0.0.110 port: 9042 credentials: username:<user> password: <pass> keyspace: keyspace1 table: standard1 splitCount: 256 connections: 4 fetchSize: 1000 target: ... preserveTimestamps: true savepoints: path: /tmp/savepoints intervalSeconds: 60 renames: [] skipTokenRanges: [] Scylla Spark Migrator - Conf. 60

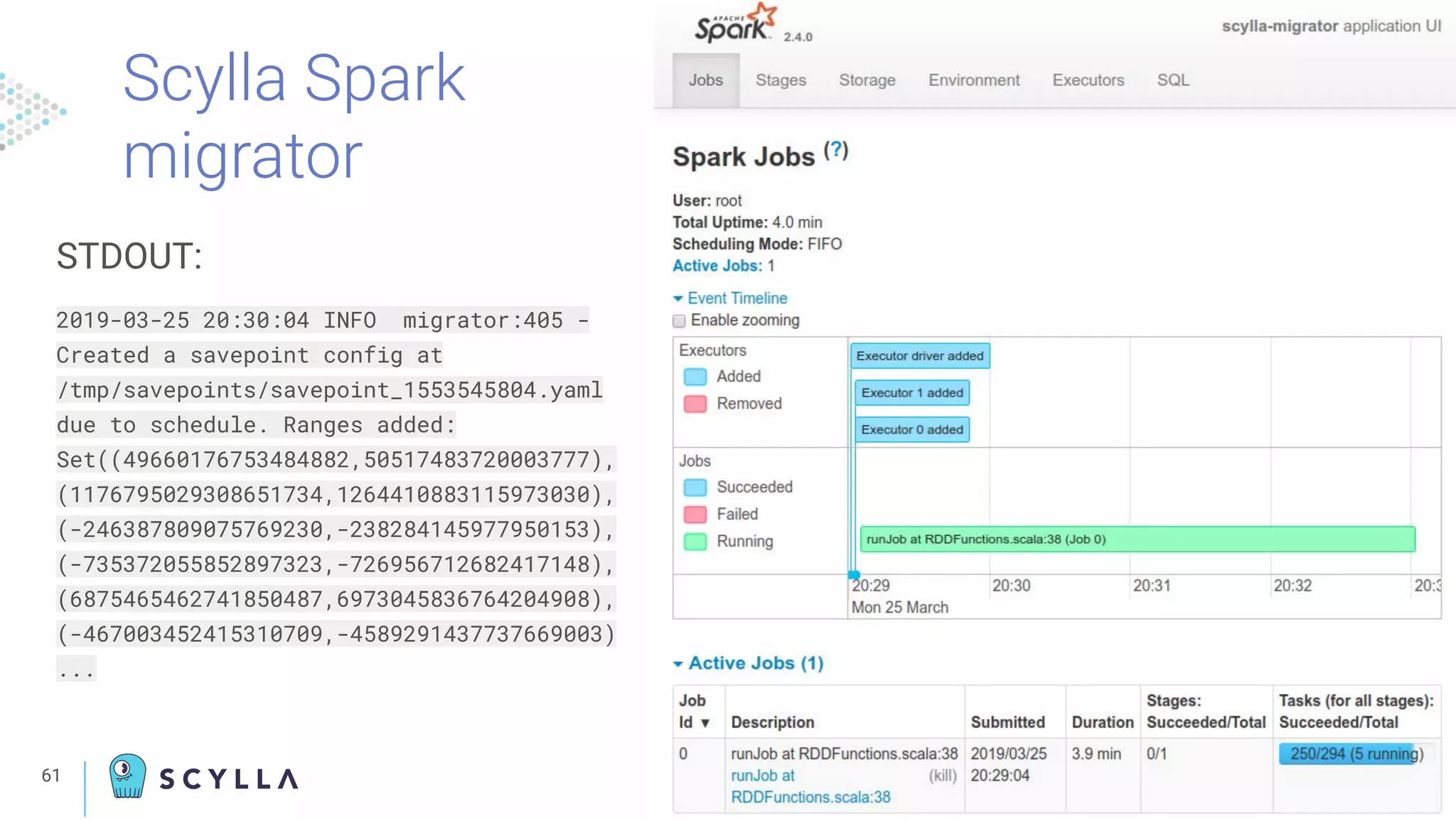

- 61. STDOUT: 2019-03-25 20:30:04 INFOmigrator:405 - Created a savepoint config at /tmp/savepoints/savepoint_1553545804.yaml due to schedule. Ranges added: Set((49660176753484882,50517483720003777), (1176795029308651734,1264410883115973030), (-246387809075769230,-238284145977950153), (-735372055852897323,-726956712682417148), (6875465462741850487,6973045836764204908), (-467003452415310709,-4589291437737669003) ... Scylla Spark migrator 61

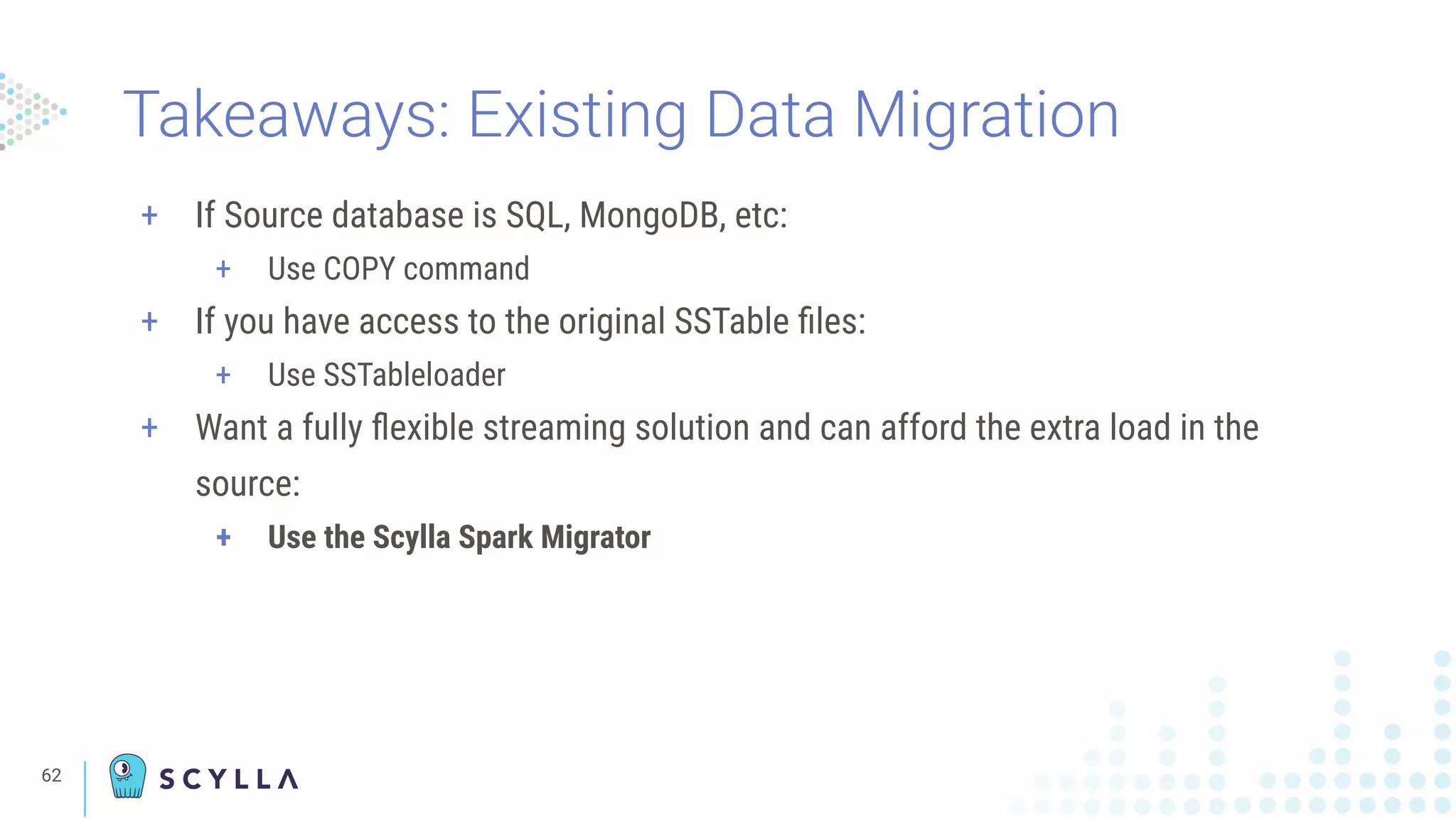

- 62. Takeaways: Existing DataMigration + If Source database is SQL, MongoDB, etc: + Use COPY command + If you have access to the original SSTable files: + Use SSTableloader + Want a fully flexible streaming solution and can afford the extra load in the source: + Use the Scylla Spark Migrator 62
- 63. 63 Style Defaults TEXT/BACKGROUND ACCENT LogoColors Text, Header and Bullet Used in charts and shapes R 58 G 46 B 84 R 179 G 150 B 208 R 83 G 83 B 74 R 101 G 123 B 197 R 101 G 123 B 197 R 179 G 150 B 208 R 86 G 204 B 138 R 252 G 182 B 48 R 75 G 188 B 215 R 0 G 140 B 186 OBJECT DEFAULTS This is a Default Text Box Style Roboto Condensed Regular 13.5pt. R 231 G 230 B 230
- 64. United States 2445 FaberSt, Suite #200 Palo Alto, CA USA 94303 Israel Maskit 4 Herzliya, Israel 4673304 www.scylladb.com @scylladb Thank You!
