Food Sample processing
Vinu Varghese
Asst Professor
Dept of Applied Biotechnology
St Mary’s College Thrissur
Sample processing
 Method to separate the analyte from the interferent or removing the interferent for
getting better result
Common methods for sample processing
 Solvent extraction method
 Organic matter decomposing method
 Dry ashing
 Wet digestion
 Distillation method
 Salting out method
Solvent extraction method
 The principle is to separate the analyte from the Interfernence properties of the
interferent
 Once the analyte is extracted ,undergo HPLC to separate ,identify and quantify the
analyte
 Eg For the determination of Bacillus toxin, alphatoxin is extracted with a common
organic solvent and then by HPLC
Organic matter decomposition method
 The principle is to use high temperature treatment to oxidize an decompose the
organic matter in the sample .
 Carbon, Hydrogen and Oxygen will escape along with carbon dioxide and water
 Metal elements and other compounds are released for further determination
 Specific methods are dry ashing and wet digestion
Dry ashing
 Place the sample in crucible
 Carbonize under low temperature and low heat
 Ash the sample at a high temperature ( 500oC – 600oC) in a high temperature
furnace ( Muffle Furance)
 for easy ashing sample is melted using nitric acid
 Ashing promoters like ammonium nitrate and sodium nitrate can also be used
Muffle Furnace
Wet digestion
 Decompose the organic matter in the sample using oxidizing agents like sulphuric
acid ,nitric acid and hydrogen peroxide
 Metal left in the soln will be in an ionic state and the soln is cooled
Distillation method
 In this method the difference in volatility of each component in the substance to be
tested is used for separation
 Interferent can be removed and the component to be tested can distilled off
 The distillate is then collected for futher analysis
 Ex kjeldahi method
Salting Out Method
 Adding a certain inorganic salt to the solution ,the solubility of the solute in the
original solvent is greatly reduced and precipitated

Chemical separation methods
 Sulfonation & Saponification
 Masking Method
 Clarification & Decolorization Method
 Contration
Sulfonation and saponification
 Sulfonation is used to treat oil or fat containing samples
 Oil is sulphonated by sulphuric acid
 Ex :analysis of the presence of pesticide in a sample
or
Saponified by alkali
Masking method
 Interferent component is converted into noninterfering component using a
masking agent
 Eliminate the interference effect without separating interferent from the analyte
 Common method used in food analysis
Clarification and Decolorization
 Clarification is used to separate the turbid material from the sample to eliminate its
effect in the analytical determination by a clarifying agent
 Decolorization is a method of removing coloured substance in a sample that easily
interfere with the measurement by using decolorization agents

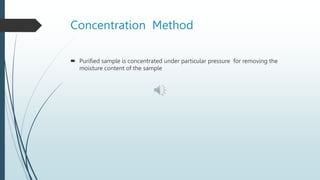

Concentration Method
 Purified sample is concentrated under particular pressure for removing the
moisture content of the sample
