1. Sacred Hearts
School, Kalyan.
Sem IV
Roll no. 71-83

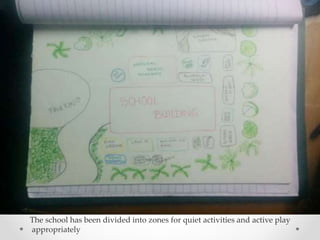

3. The school has been divided into zones for quiet activities and active play
appropriately

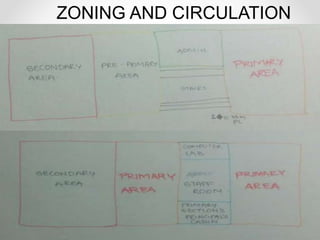

4. ZONING AND CIRCULATION

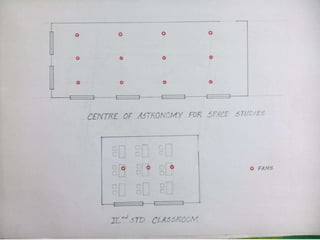

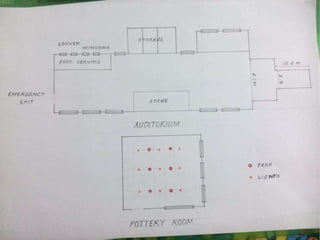

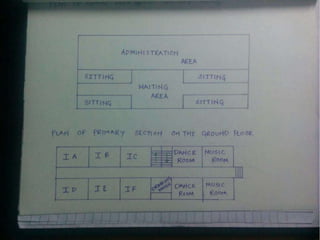

6. Plan of primary section on second floor

9. ZONING AND CIRCULATION

10. • Address: Sacred Heart School, Kalyan-Murbad Rd,
Varap, Post Varap Pin 421103, Varap Kalyan,
Maharashtra 421103
• Methods to reach
Car from Kalyan Station = 16mins (6km)

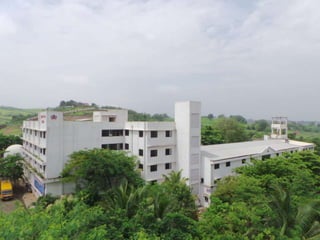

12. • Total area = 10 ½ acers
• The huge plot is surrounded by residential complexes on
the north and unused barren land on al the other sides.

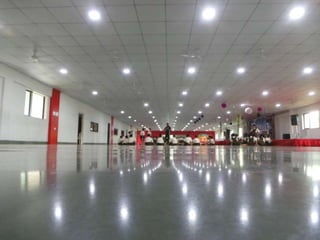

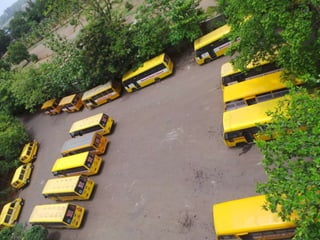

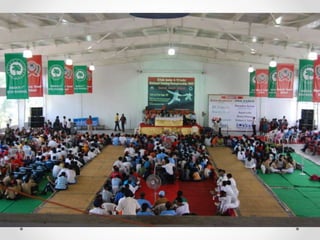

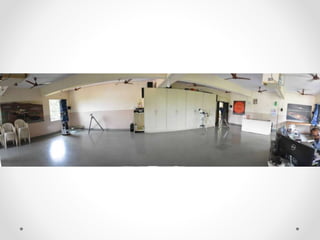

19. Multipurpose Hall
• Entrance = 2400mm x 2200mm
• Hall size = 47000mm x 15600mm
• Passage width = 610mm
• Distance between 2 fans = 2800mm

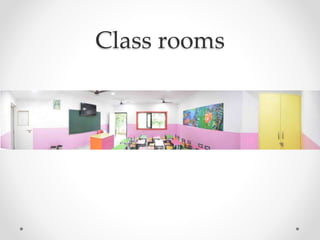

21. Class rooms

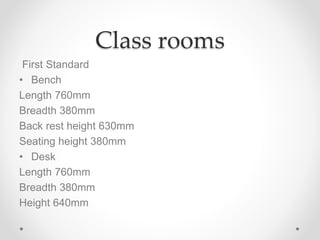

22. Class rooms
First Standard
• Bench
Length 760mm
Breadth 380mm
Back rest height 630mm
Seating height 380mm
• Desk
Length 760mm
Breadth 380mm
Height 640mm

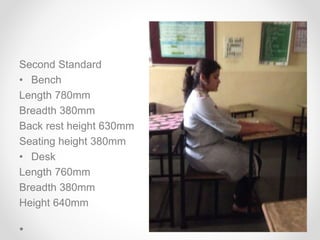

23. Second Standard
• Bench
Length 780mm
Breadth 380mm
Back rest height 630mm
Seating height 380mm
• Desk
Length 760mm
Breadth 380mm
Height 640mm

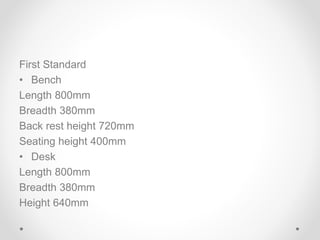

24. First Standard
• Bench
Length 800mm
Breadth 380mm
Back rest height 720mm
Seating height 400mm
• Desk
Length 800mm
Breadth 380mm
Height 640mm

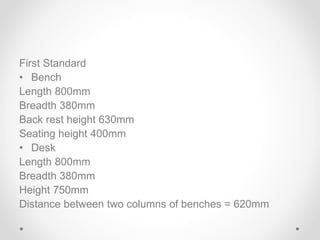

25. First Standard
• Bench
Length 800mm
Breadth 380mm
Back rest height 630mm
Seating height 400mm
• Desk
Length 800mm
Breadth 380mm
Height 750mm
Distance between two columns of benches = 620mm

28. • Span = 20m

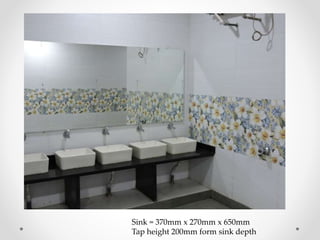

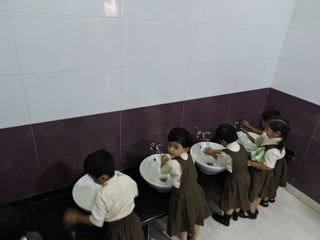

31. Sink = 370mm x 270mm x 650mm
Tap height 200mm form sink depth

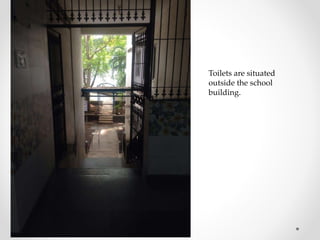

33. Toilets are situated
outside the school
building.

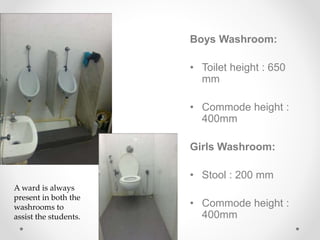

34. Boys Washroom:
• Toilet height : 650
mm
• Commode height :
400mm
Girls Washroom:
• Stool : 200 mm
• Commode height :
400mm
A ward is always
present in both the
washrooms to
assist the students.

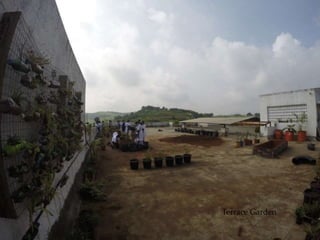

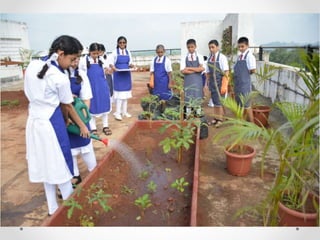

36. Terrace Garden

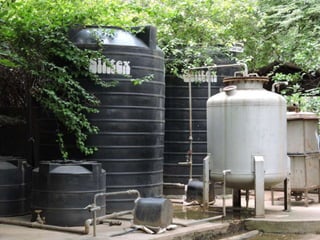

37. Bio gas plant

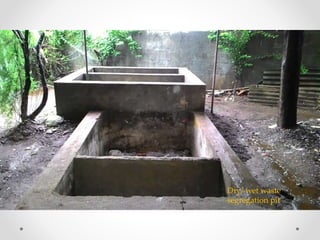

38. Dry/ wet waste
segregation pit

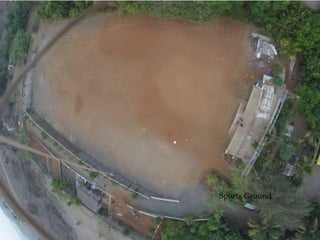

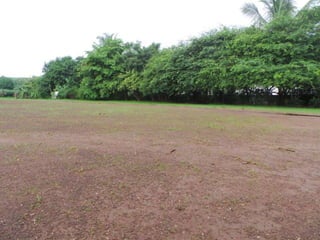

40. Sports Ground
