- 1. Running a productionJenkins instance Harpreet Singh, Senior Director, Product Management Kohsuke Kawaguchi Jenkins founder ©2012 CloudBees, Inc. All Rights Reserved

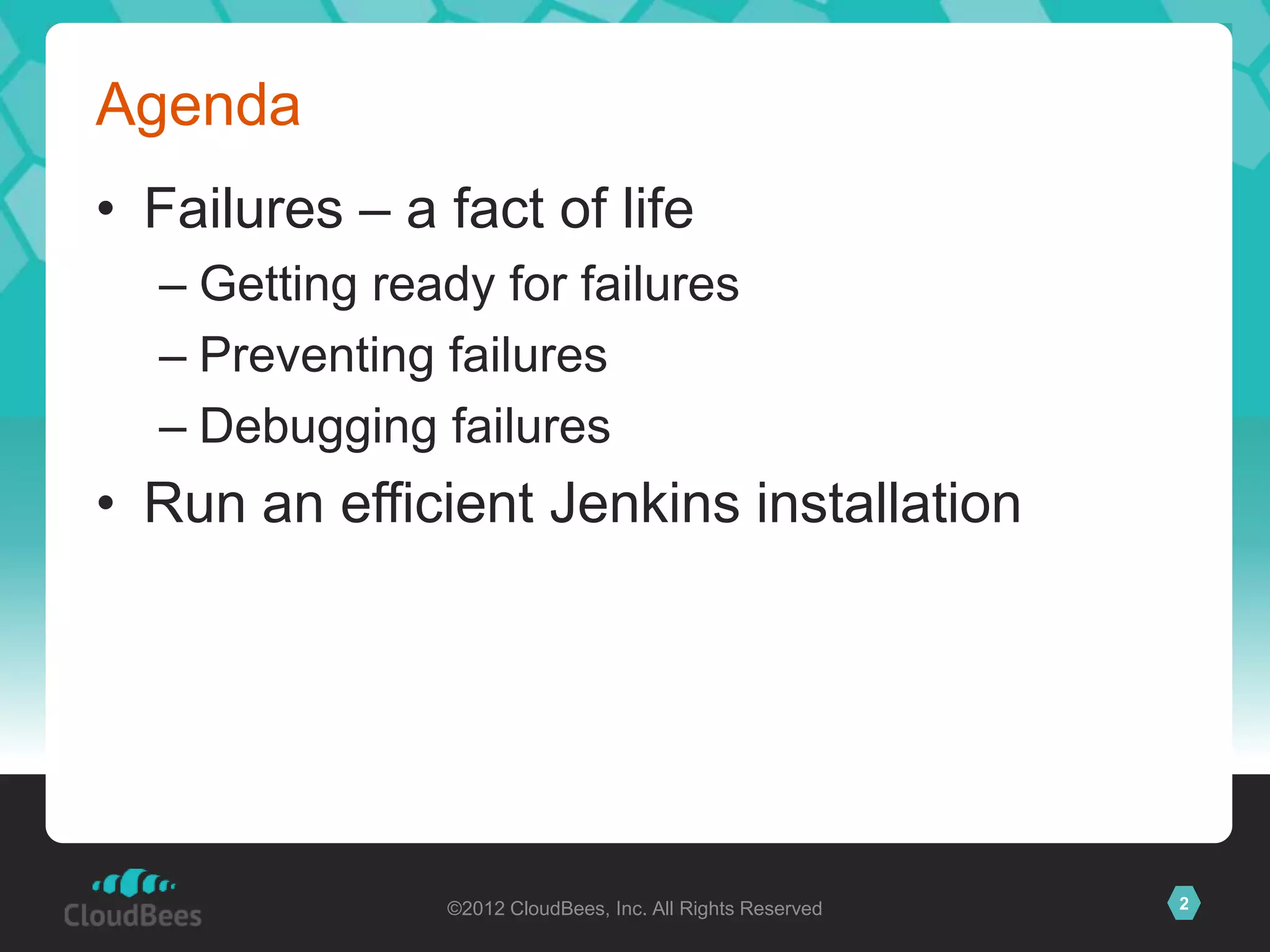

- 2. Agenda • Failures –a fact of life – Getting ready for failures – Preventing failures – Debugging failures • Run an efficient Jenkins installation ©2012 CloudBees, Inc. All Rights Reserved 2
- 3. Day: A periodof 24 hours, mostly misspent… ©2011 CloudBees, Inc. All Rights 3 Reserved
- 4. ©2011 CloudBees, Inc.All Rights 4 Reserved

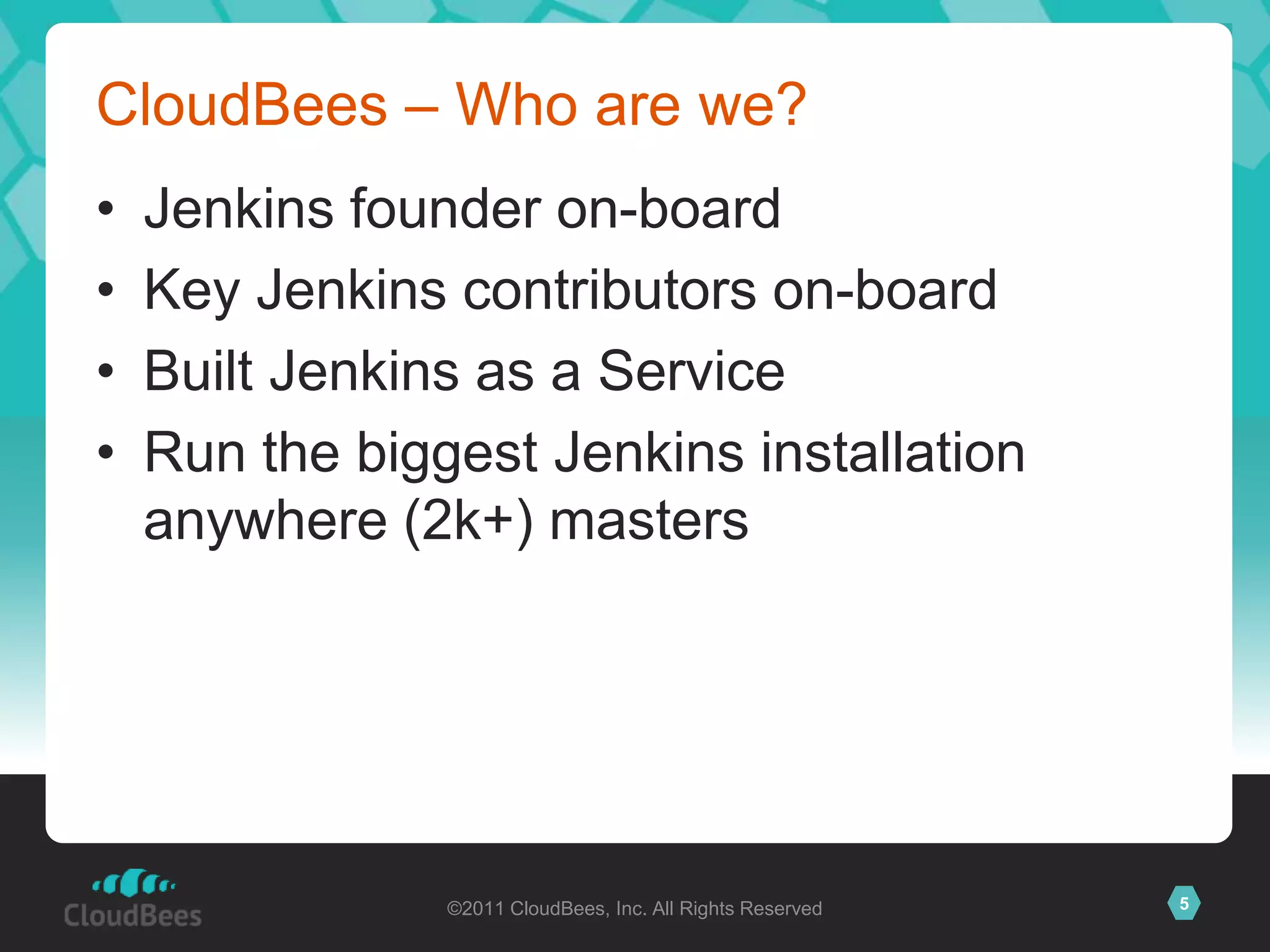

- 5. CloudBees – Whoare we? • Jenkins founder on-board • Key Jenkins contributors on-board • Built Jenkins as a Service • Run the biggest Jenkins installation anywhere (2k+) masters ©2011 CloudBees, Inc. All Rights Reserved 5

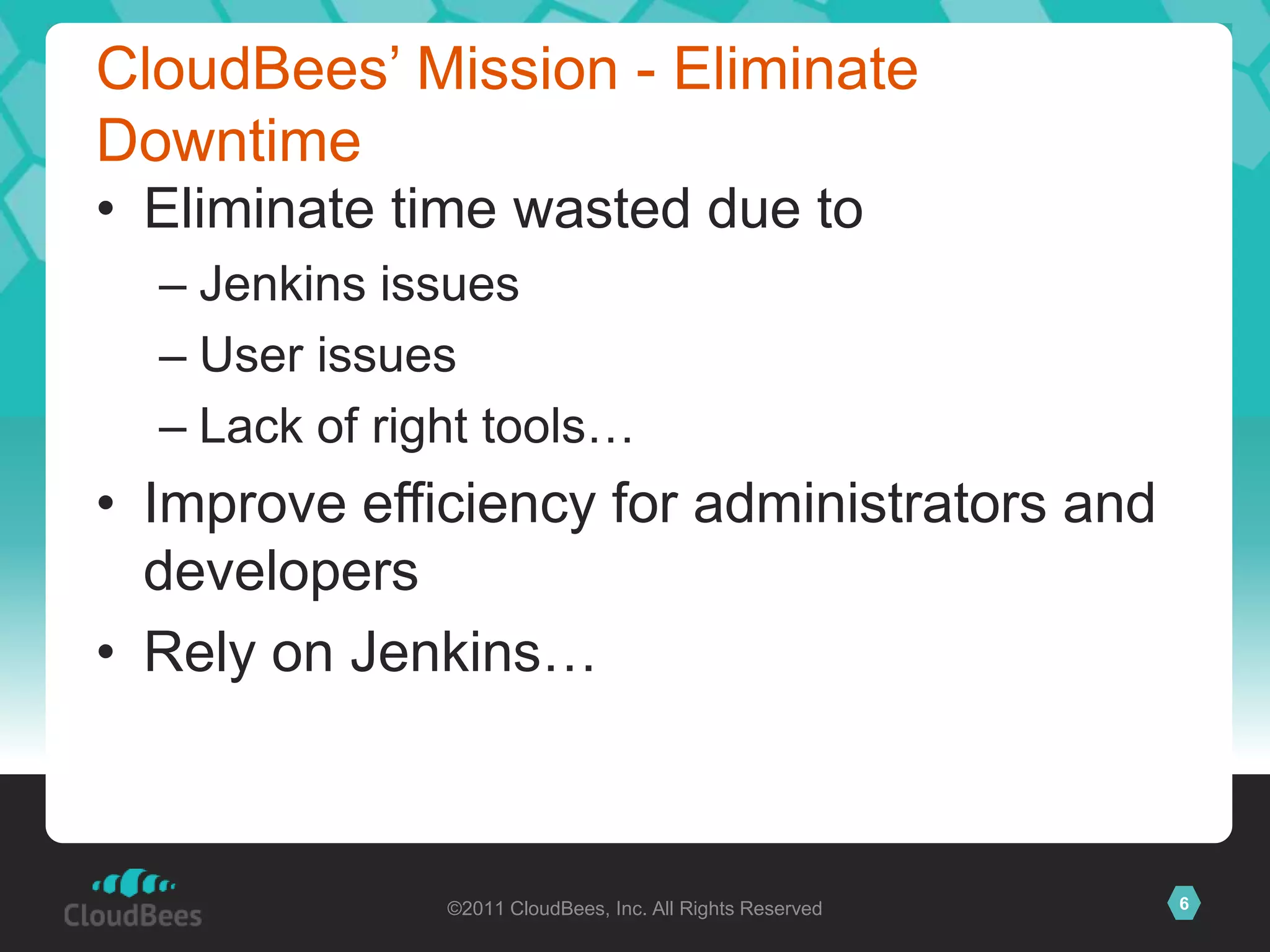

- 6. CloudBees’ Mission -Eliminate Downtime • Eliminate time wasted due to – Jenkins issues – User issues – Lack of right tools… • Improve efficiency for administrators and developers • Rely on Jenkins… ©2011 CloudBees, Inc. All Rights Reserved 6

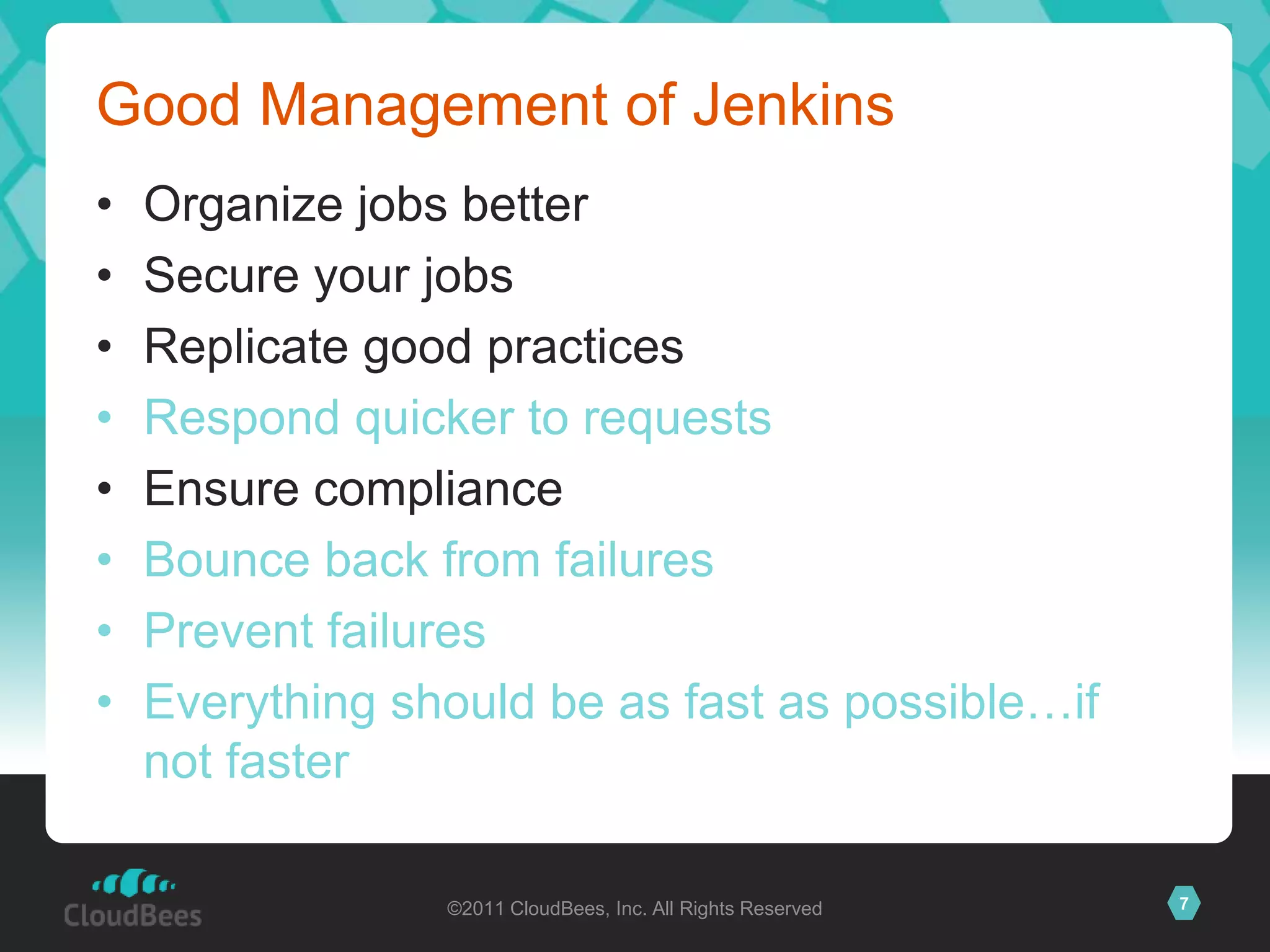

- 7. Good Management ofJenkins • Organize jobs better • Secure your jobs • Replicate good practices • Respond quicker to requests • Ensure compliance • Bounce back from failures • Prevent failures • Everything should be as fast as possible…if not faster ©2011 CloudBees, Inc. All Rights Reserved 7

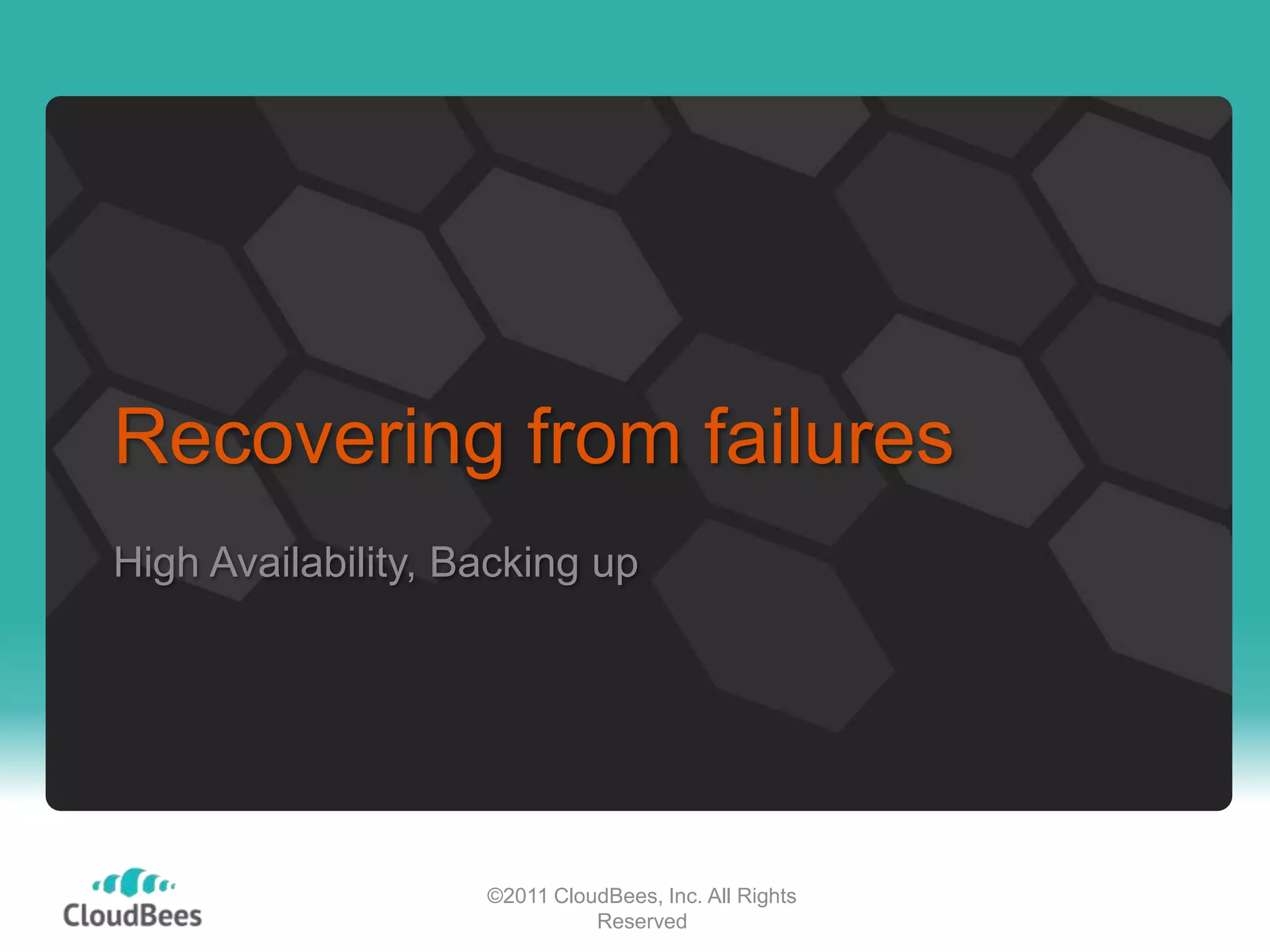

- 8. Recovering from failures HighAvailability, Backing up ©2011 CloudBees, Inc. All Rights Reserved

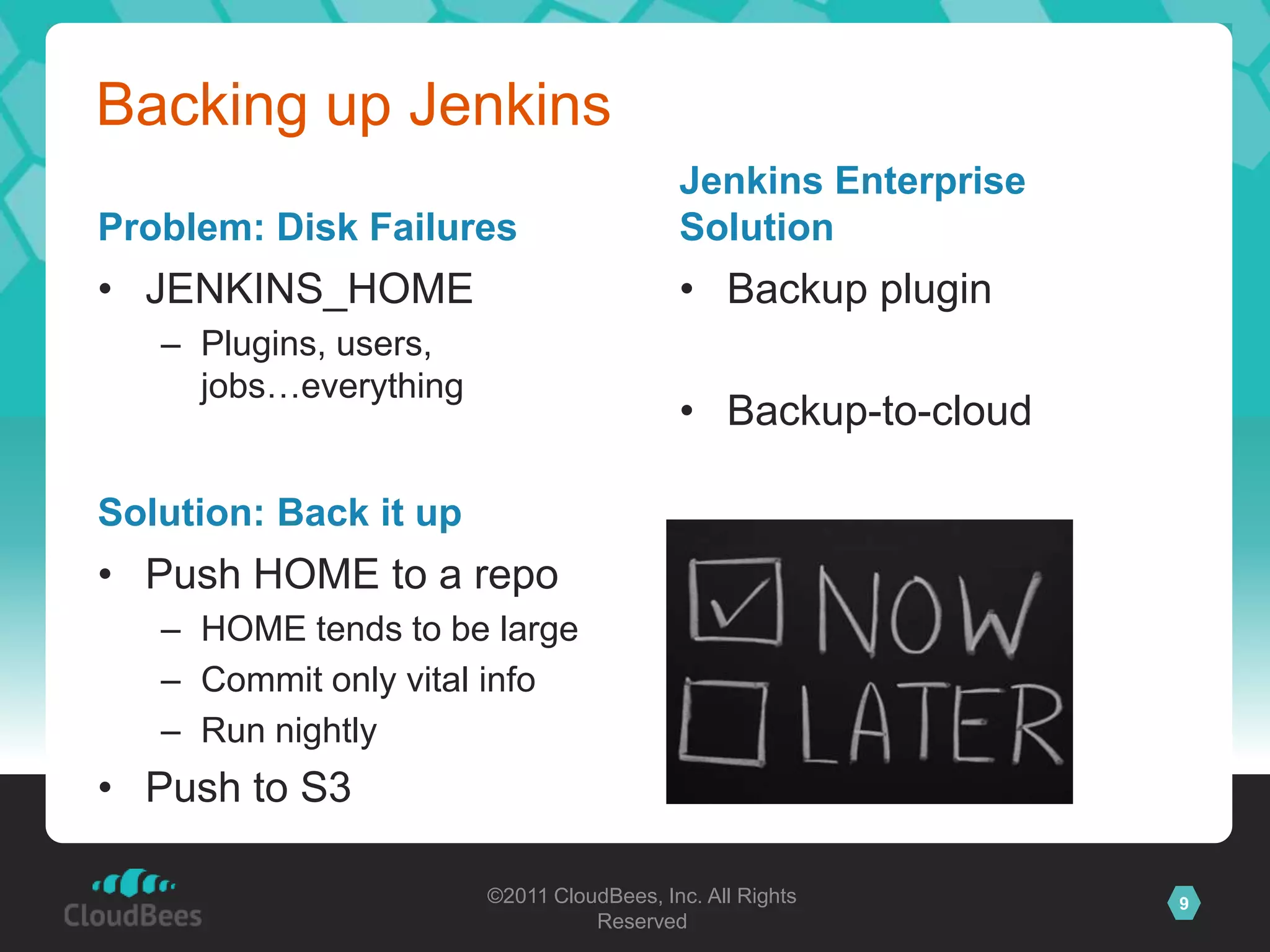

- 9. Backing up Jenkins Jenkins Enterprise Problem: Disk Failures Solution • JENKINS_HOME • Backup plugin – Plugins, users, jobs…everything • Backup-to-cloud Solution: Back it up • Push HOME to a repo – HOME tends to be large – Commit only vital info – Run nightly • Push to S3 ©2011 CloudBees, Inc. All Rights 9 Reserved

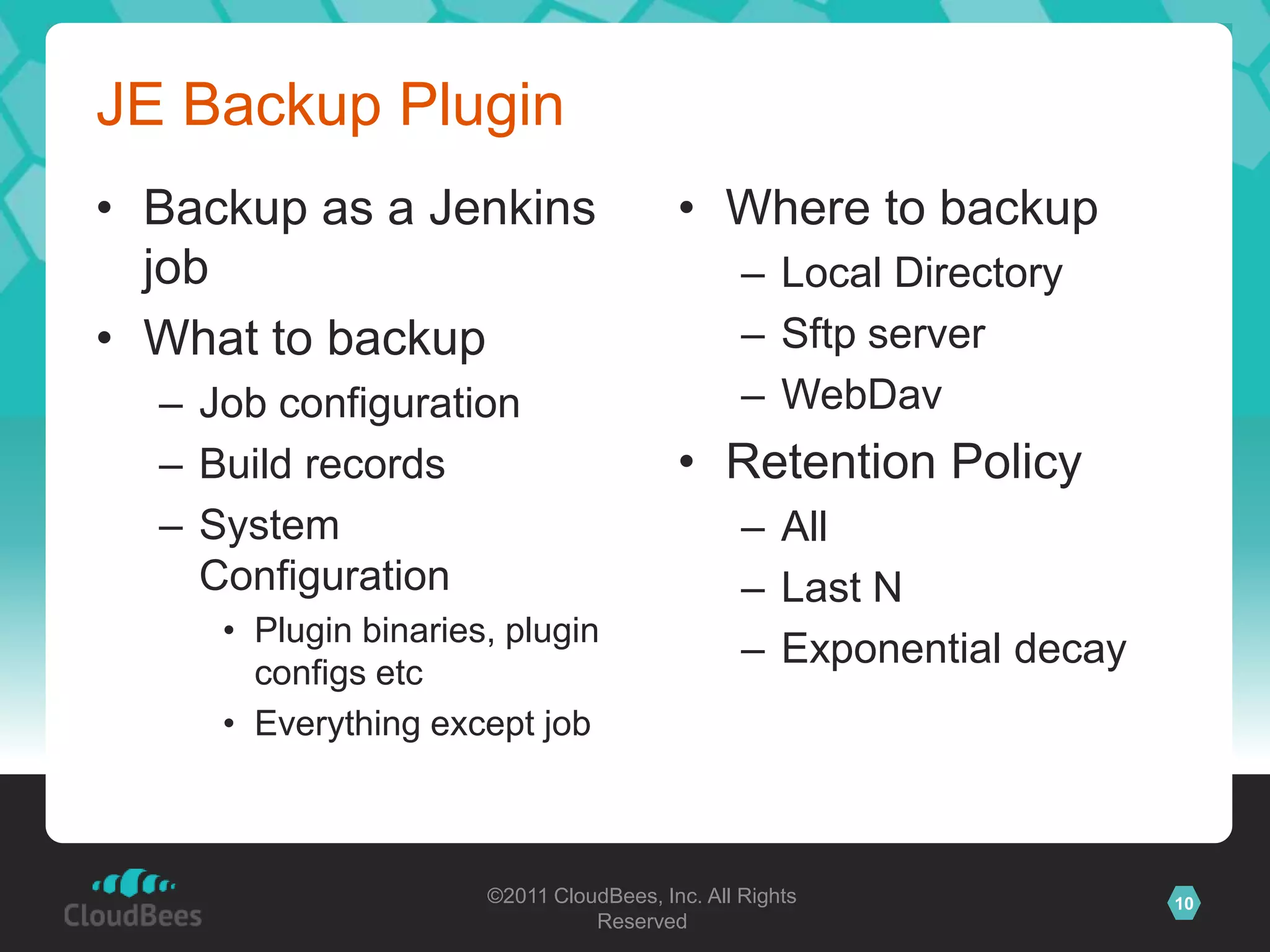

- 10. JE Backup Plugin •Backup as a Jenkins • Where to backup job – Local Directory • What to backup – Sftp server – Job configuration – WebDav – Build records • Retention Policy – System – All Configuration – Last N • Plugin binaries, plugin – Exponential decay configs etc • Everything except job ©2011 CloudBees, Inc. All Rights 10 Reserved
- 11. Demo ©2011 CloudBees, Inc. All Rights 11 Reserved

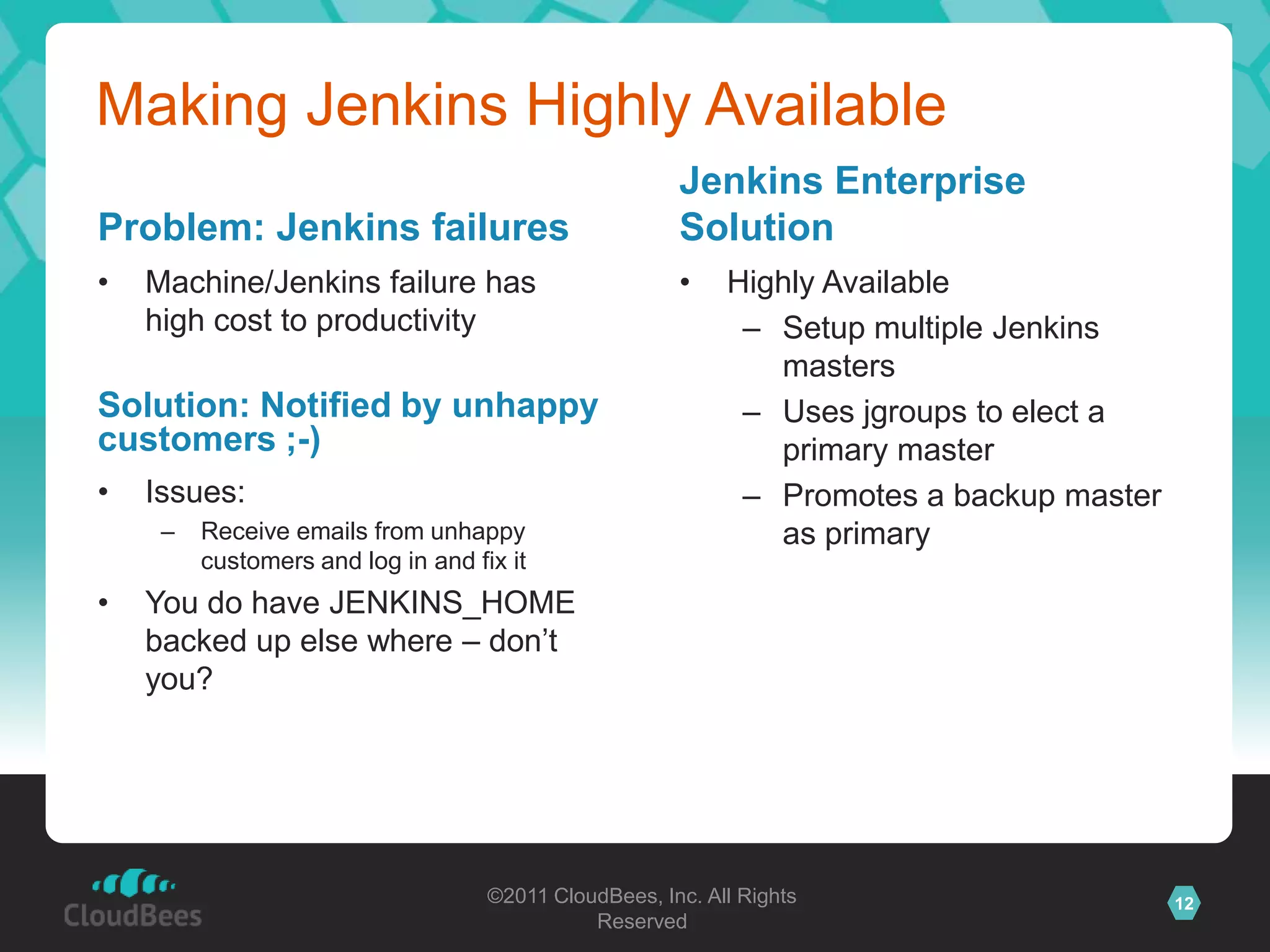

- 12. Making Jenkins HighlyAvailable Jenkins Enterprise Problem: Jenkins failures Solution • Machine/Jenkins failure has • Highly Available high cost to productivity – Setup multiple Jenkins masters Solution: Notified by unhappy – Uses jgroups to elect a customers ;-) primary master • Issues: – Promotes a backup master – Receive emails from unhappy as primary customers and log in and fix it • You do have JENKINS_HOME backed up else where – don’t you? ©2011 CloudBees, Inc. All Rights 12 Reserved

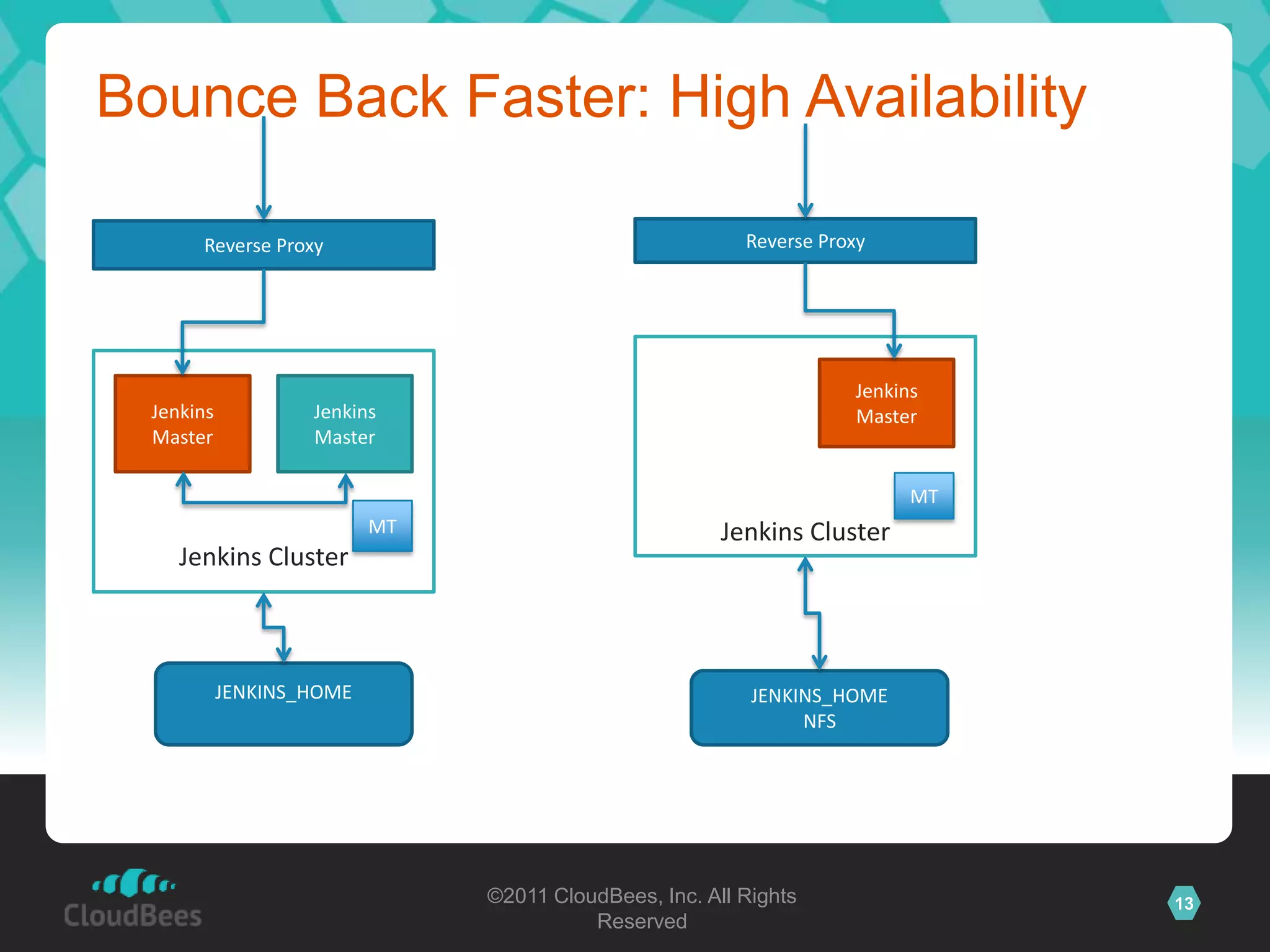

- 13. Bounce Back Faster:High Availability Reverse Proxy Reverse Proxy Jenkins Jenkins Jenkins Master Master Master MT MT Jenkins Cluster Jenkins Cluster JENKINS_HOME JENKINS_HOME NFS ©2011 CloudBees, Inc. All Rights 13 Reserved
- 14. Demo ©2011 CloudBees, Inc. All Rights 14 Reserved

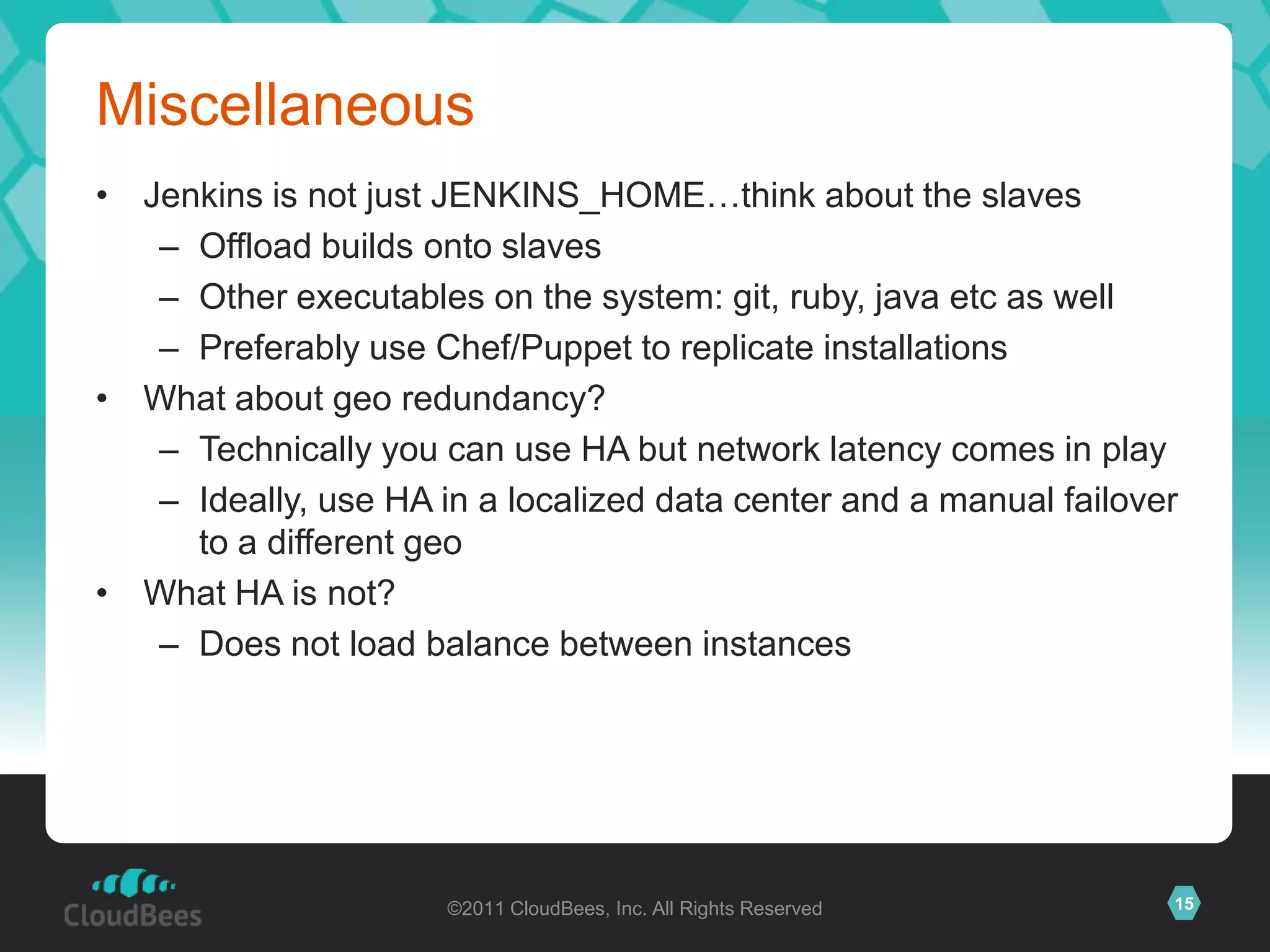

- 15. Miscellaneous • Jenkins isnot just JENKINS_HOME…think about the slaves – Offload builds onto slaves – Other executables on the system: git, ruby, java etc as well – Preferably use Chef/Puppet to replicate installations • What about geo redundancy? – Technically you can use HA but network latency comes in play – Ideally, use HA in a localized data center and a manual failover to a different geo • What HA is not? – Does not load balance between instances ©2011 CloudBees, Inc. All Rights Reserved 15

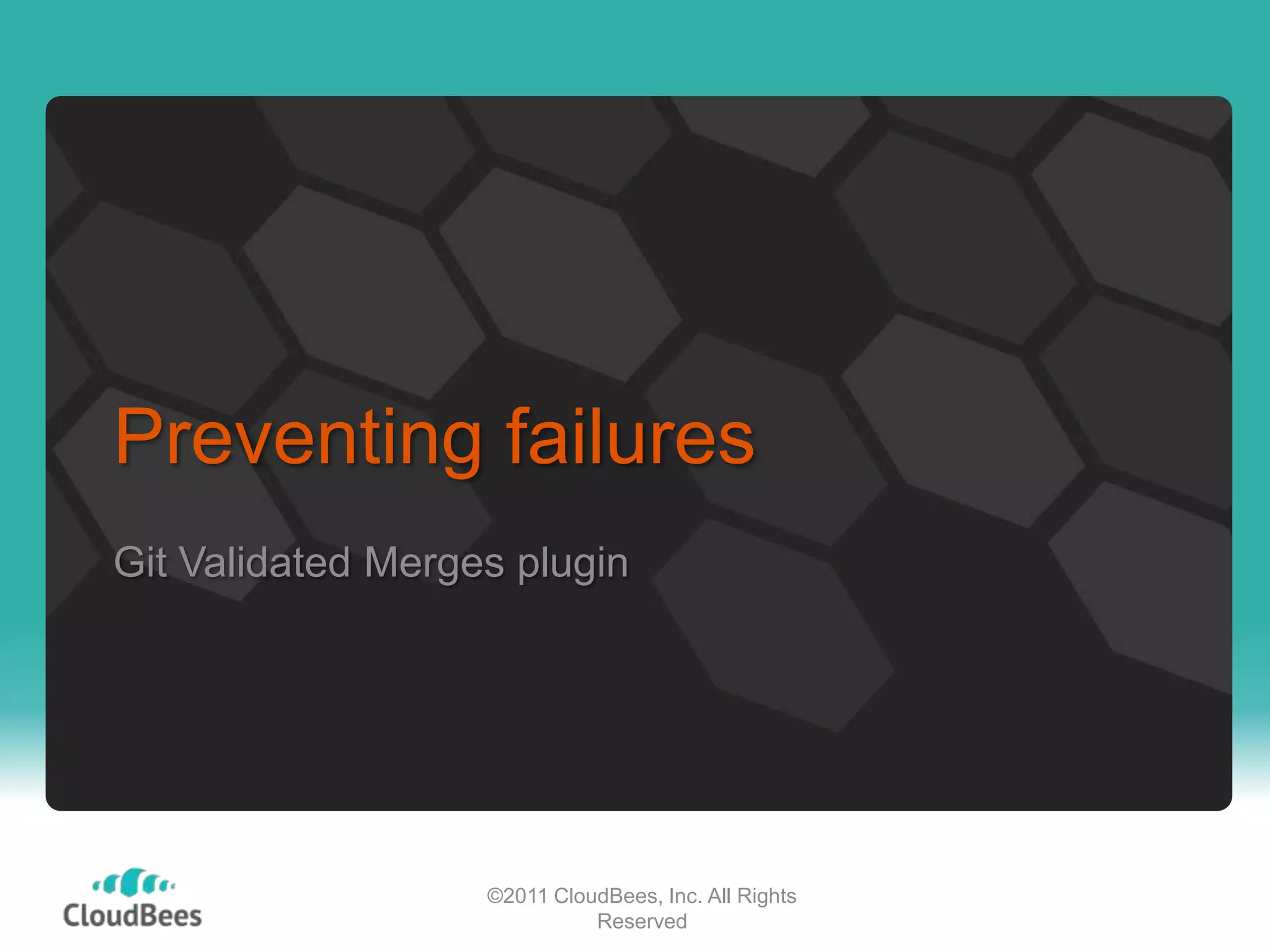

- 16. Preventing failures Git ValidatedMerges plugin ©2011 CloudBees, Inc. All Rights Reserved

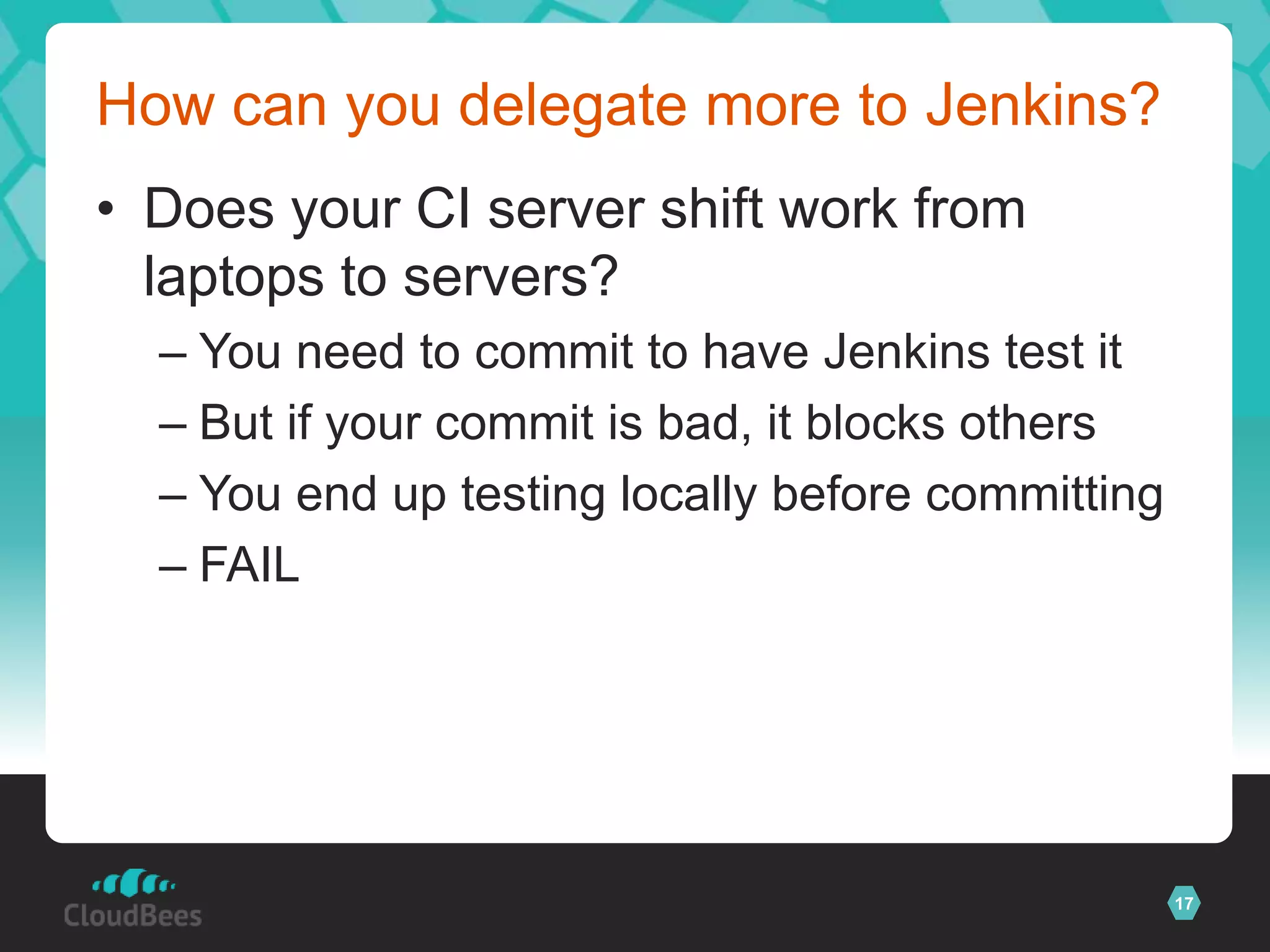

- 17. How can youdelegate more to Jenkins? • Does your CI server shift work from laptops to servers? – You need to commit to have Jenkins test it – But if your commit is bad, it blocks others – You end up testing locally before committing – FAIL 17

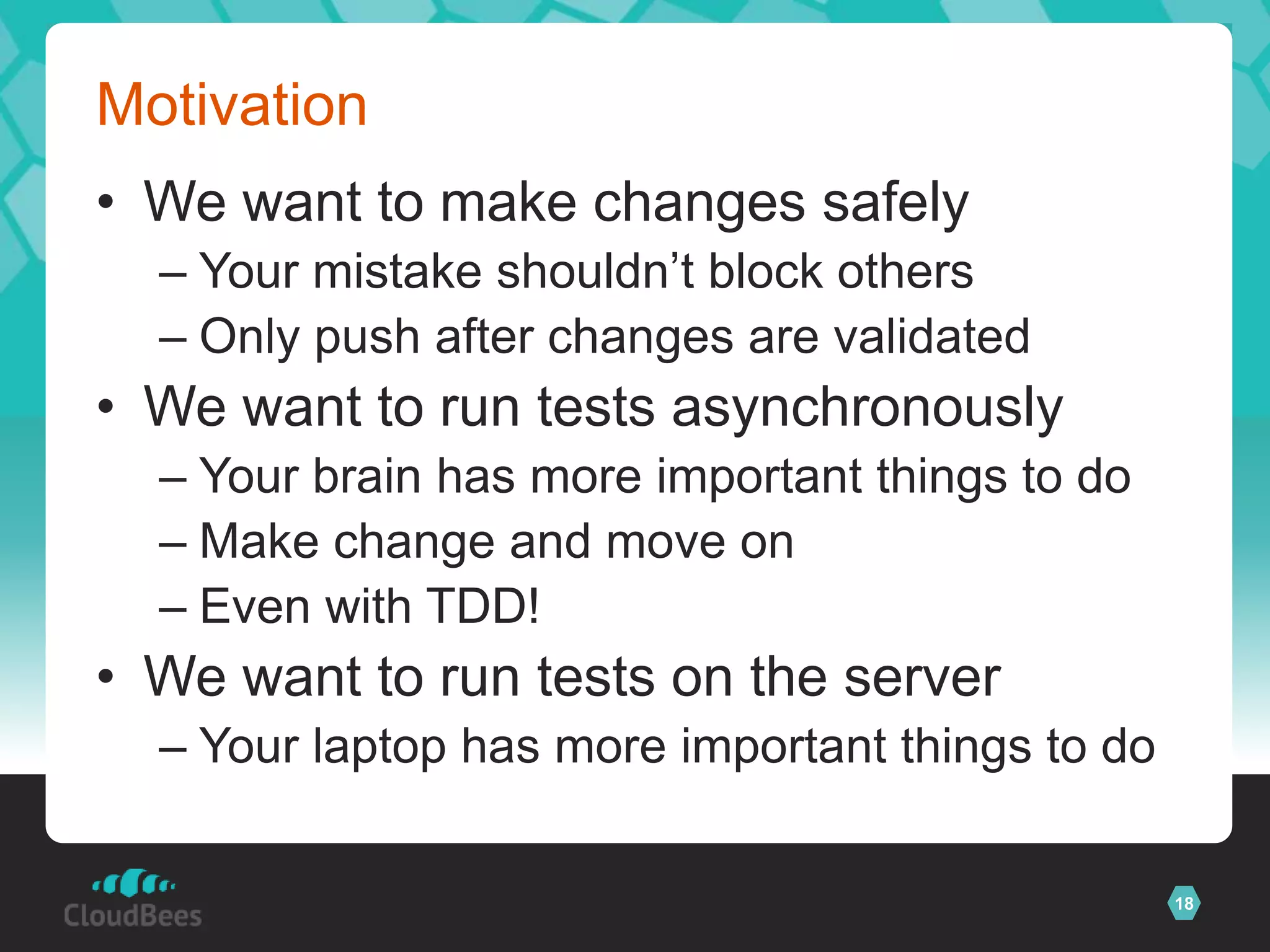

- 18. Motivation • We wantto make changes safely – Your mistake shouldn’t block others – Only push after changes are validated • We want to run tests asynchronously – Your brain has more important things to do – Make change and move on – Even with TDD! • We want to run tests on the server – Your laptop has more important things to do 18

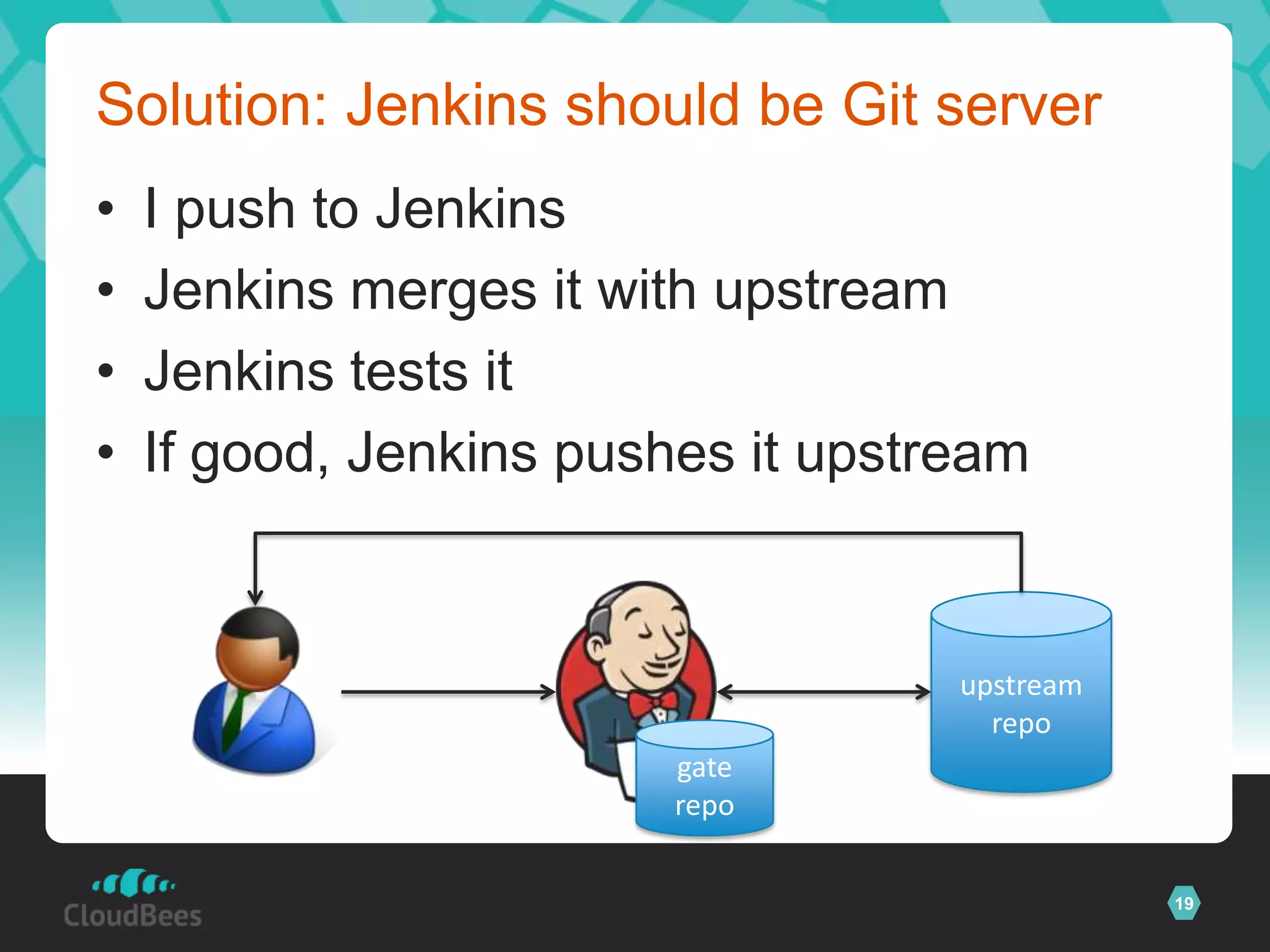

- 19. Solution: Jenkins shouldbe Git server • I push to Jenkins • Jenkins merges it with upstream • Jenkins tests it • If good, Jenkins pushes it upstream upstream repo gate repo 19

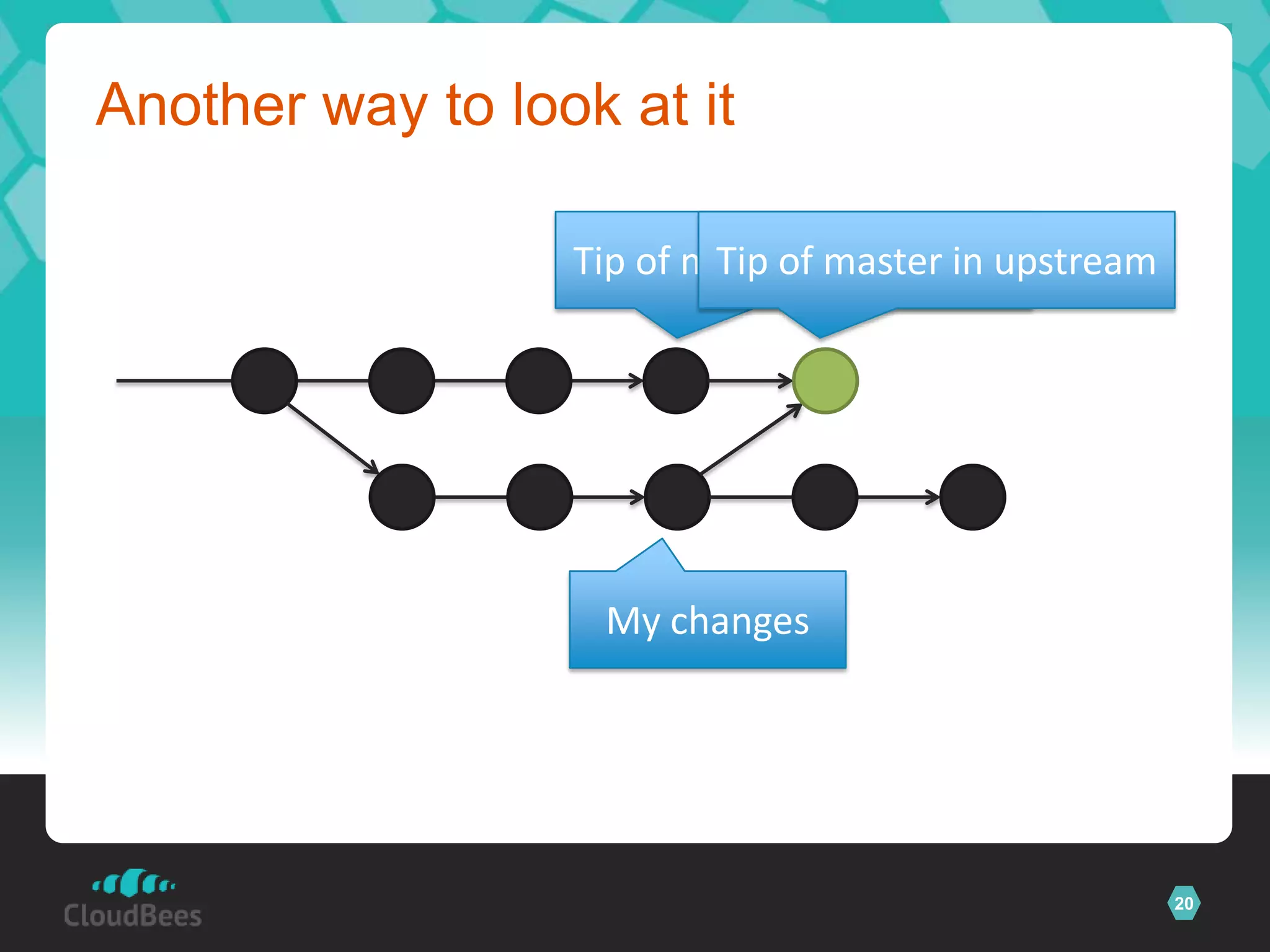

- 20. Another way tolook at it Tip of master in upstream Tip of master in upstream My changes 20

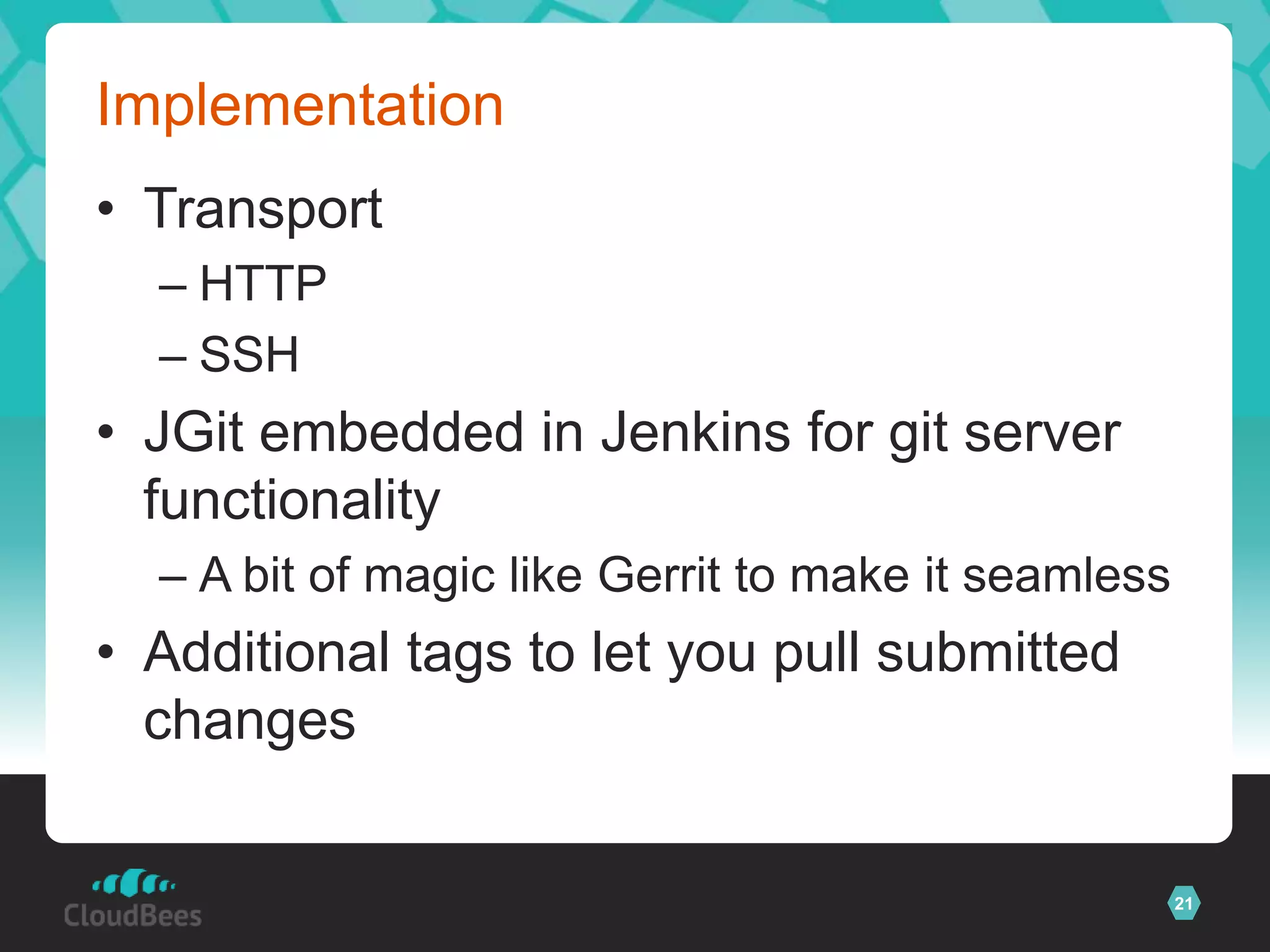

- 21. Implementation • Transport – HTTP – SSH • JGit embedded in Jenkins for git server functionality – A bit of magic like Gerrit to make it seamless • Additional tags to let you pull submitted changes 21
- 22. Demo ©2011 CloudBees, Inc. All Rights 22 Reserved

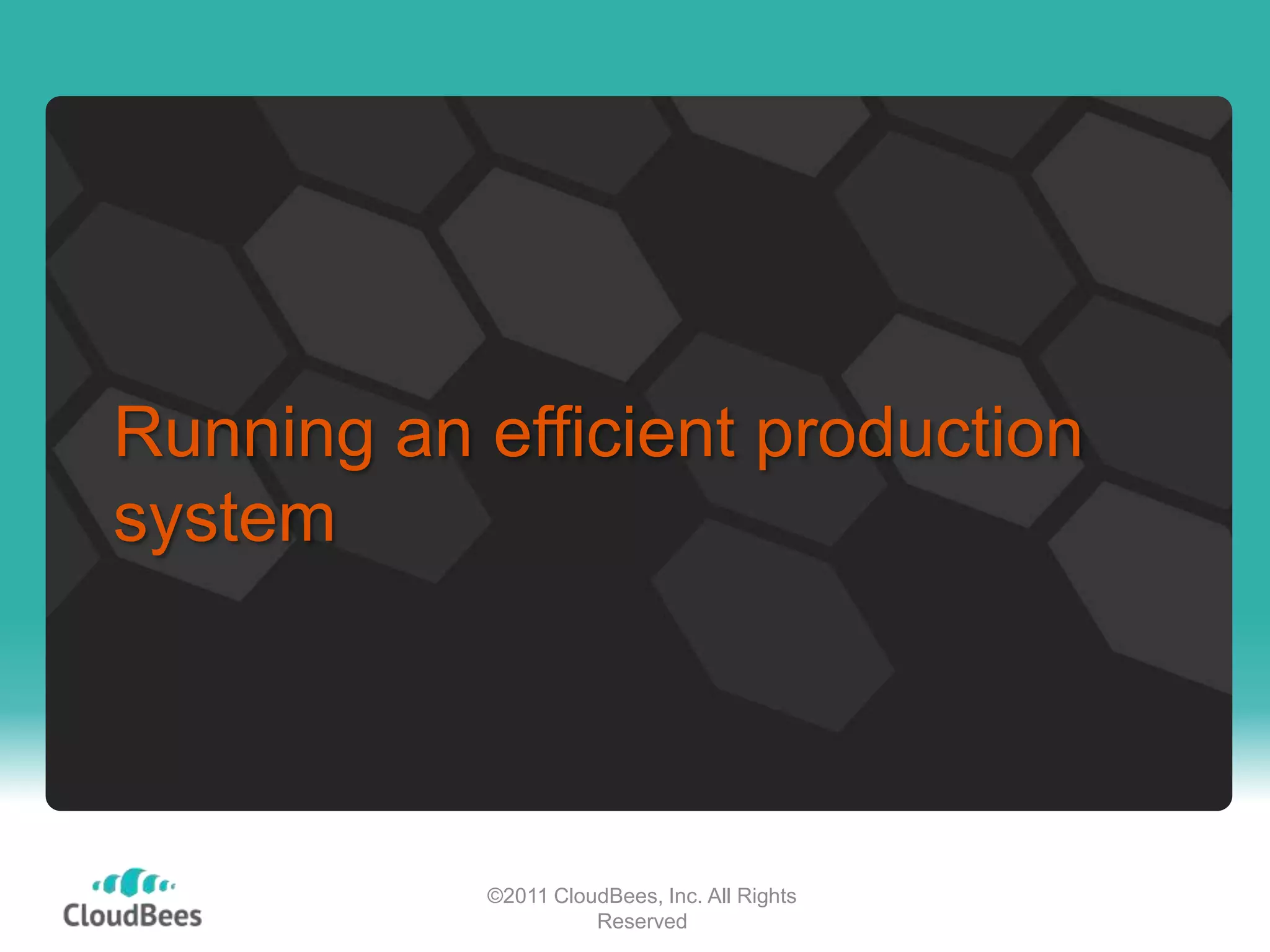

- 23. Running an efficientproduction system ©2011 CloudBees, Inc. All Rights Reserved

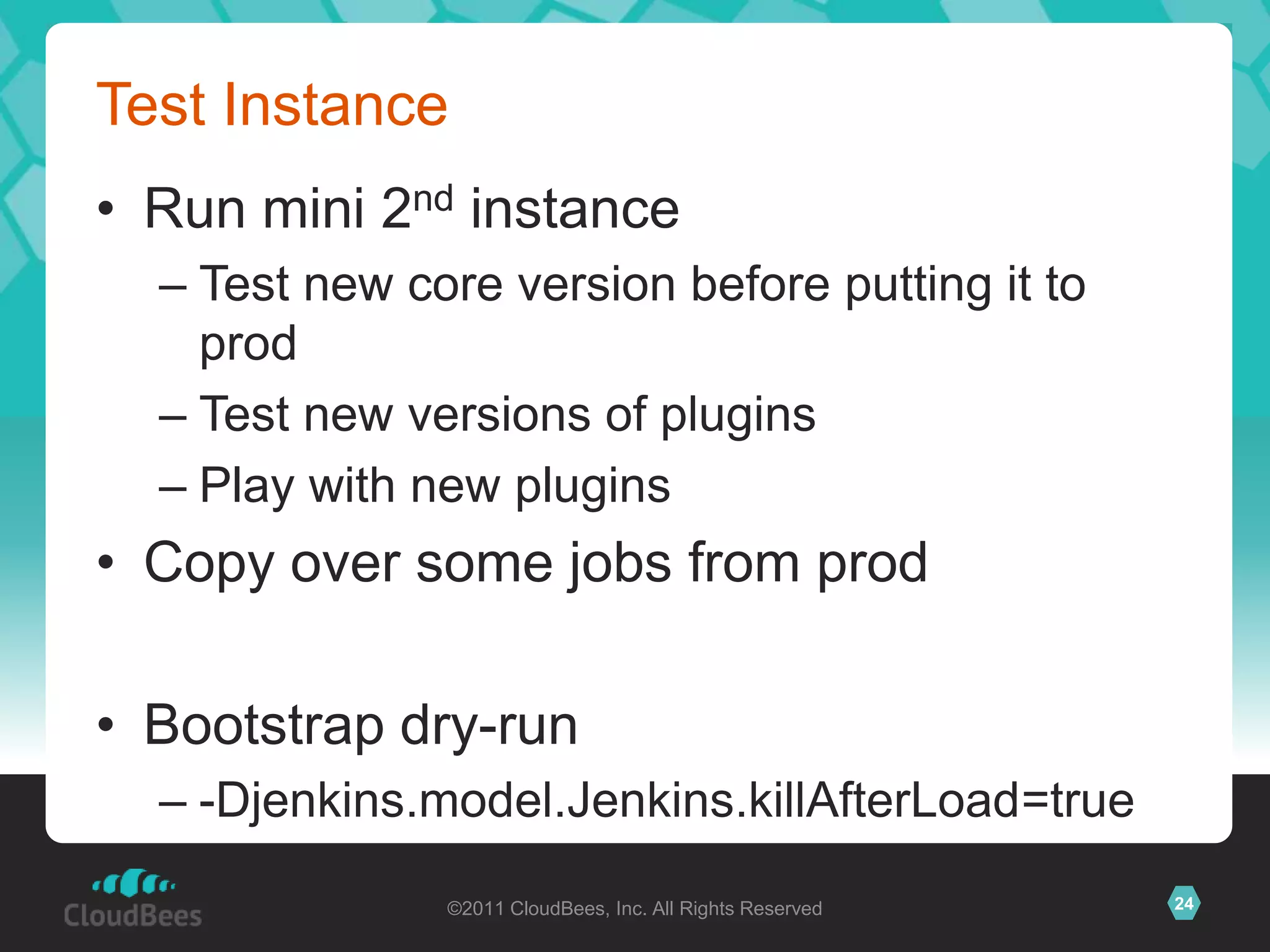

- 24. Test Instance • Runmini 2nd instance – Test new core version before putting it to prod – Test new versions of plugins – Play with new plugins • Copy over some jobs from prod • Bootstrap dry-run – -Djenkins.model.Jenkins.killAfterLoad=true ©2011 CloudBees, Inc. All Rights Reserved 24

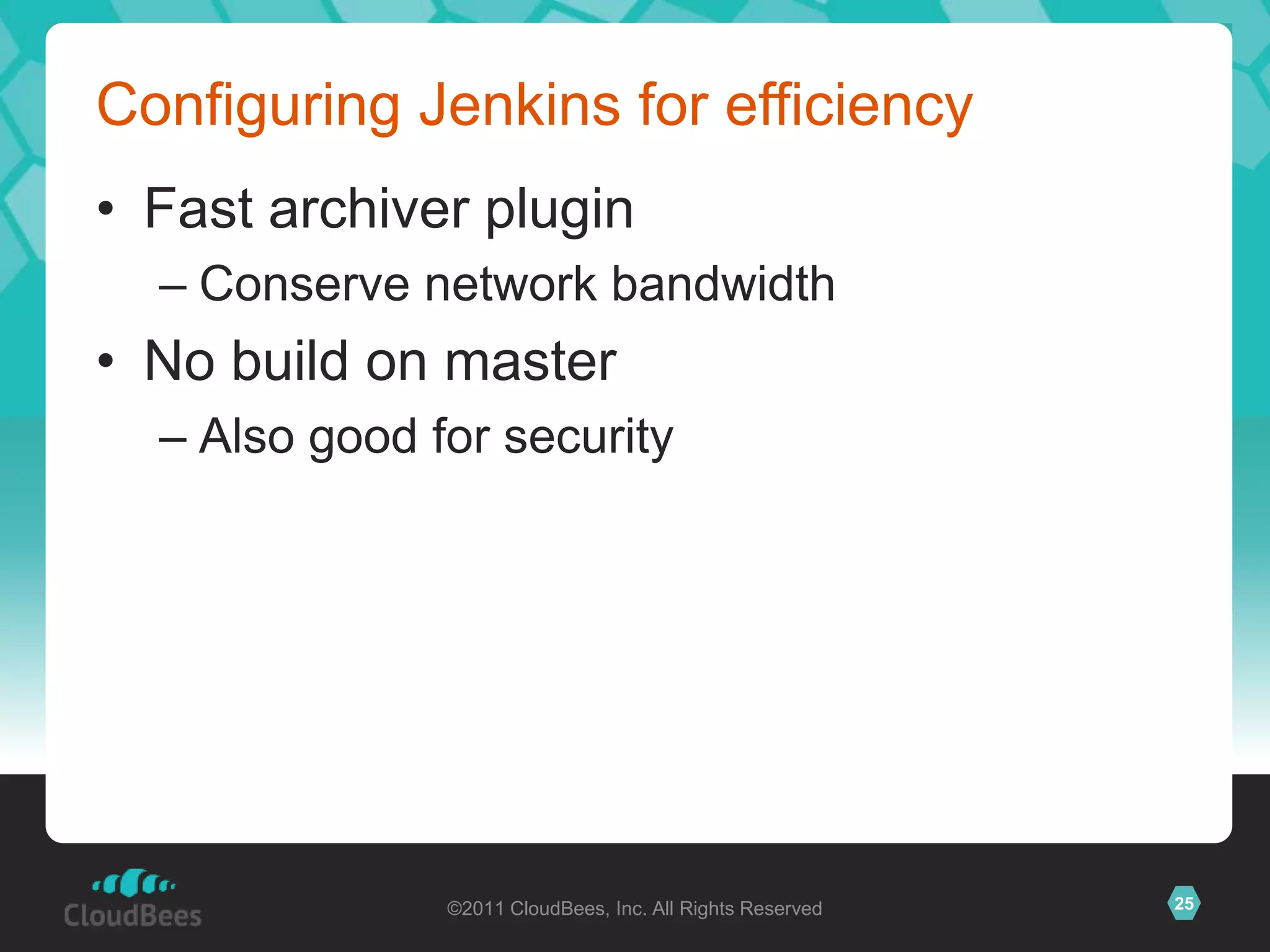

- 25. Configuring Jenkins forefficiency • Fast archiver plugin – Conserve network bandwidth • No build on master – Also good for security ©2011 CloudBees, Inc. All Rights Reserved 25

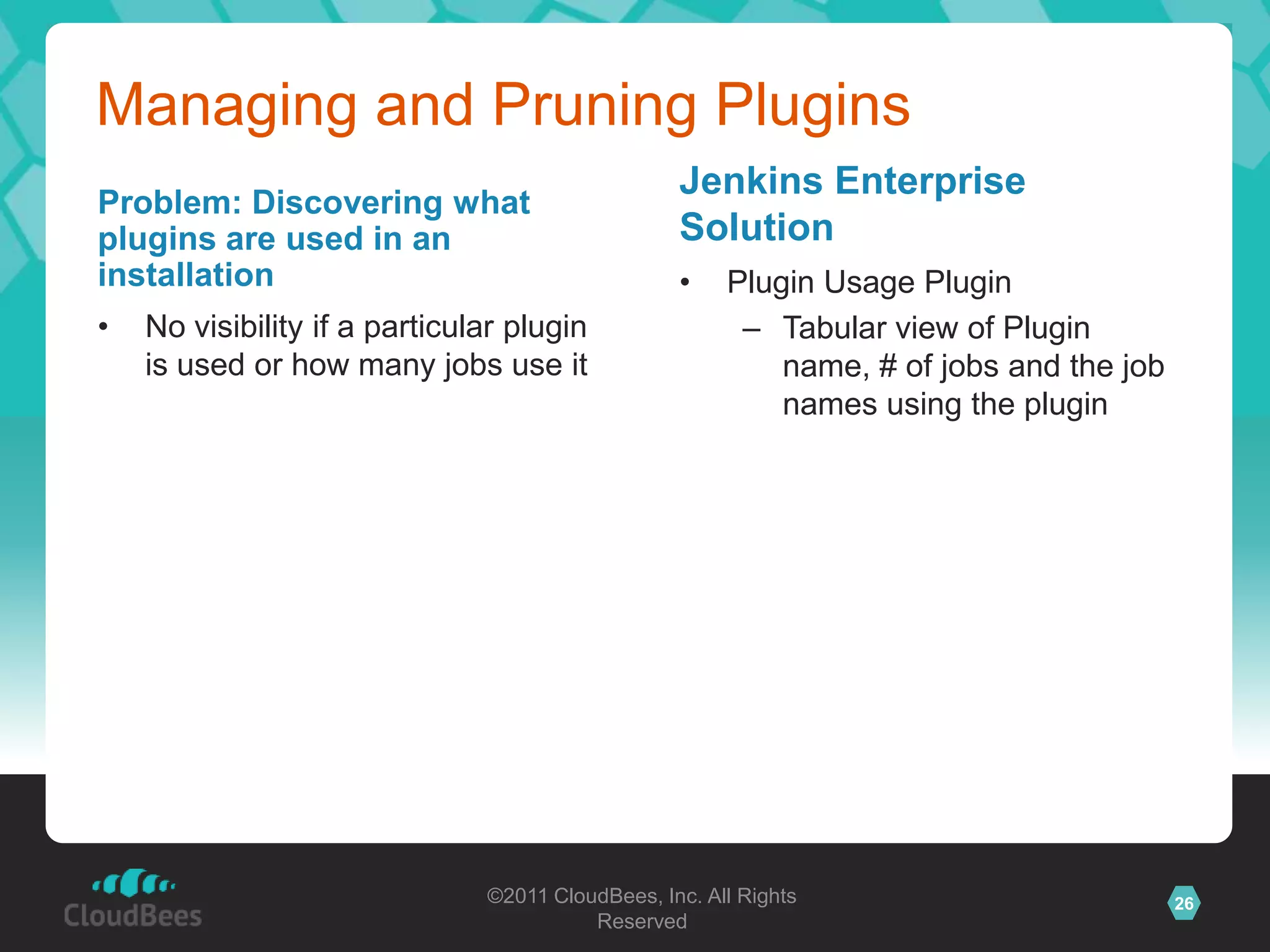

- 26. Managing and PruningPlugins Jenkins Enterprise Problem: Discovering what plugins are used in an Solution installation • Plugin Usage Plugin • No visibility if a particular plugin – Tabular view of Plugin is used or how many jobs use it name, # of jobs and the job names using the plugin ©2011 CloudBees, Inc. All Rights 26 Reserved
- 27. Demo ©2011 CloudBees, Inc. All Rights 27 Reserved
- 28. Monitoring Jenkins ©2012 CloudBees, Inc. All Rights Reserved
- 29. Why? ©2011 CloudBees, Inc. All Rights Reserved 29

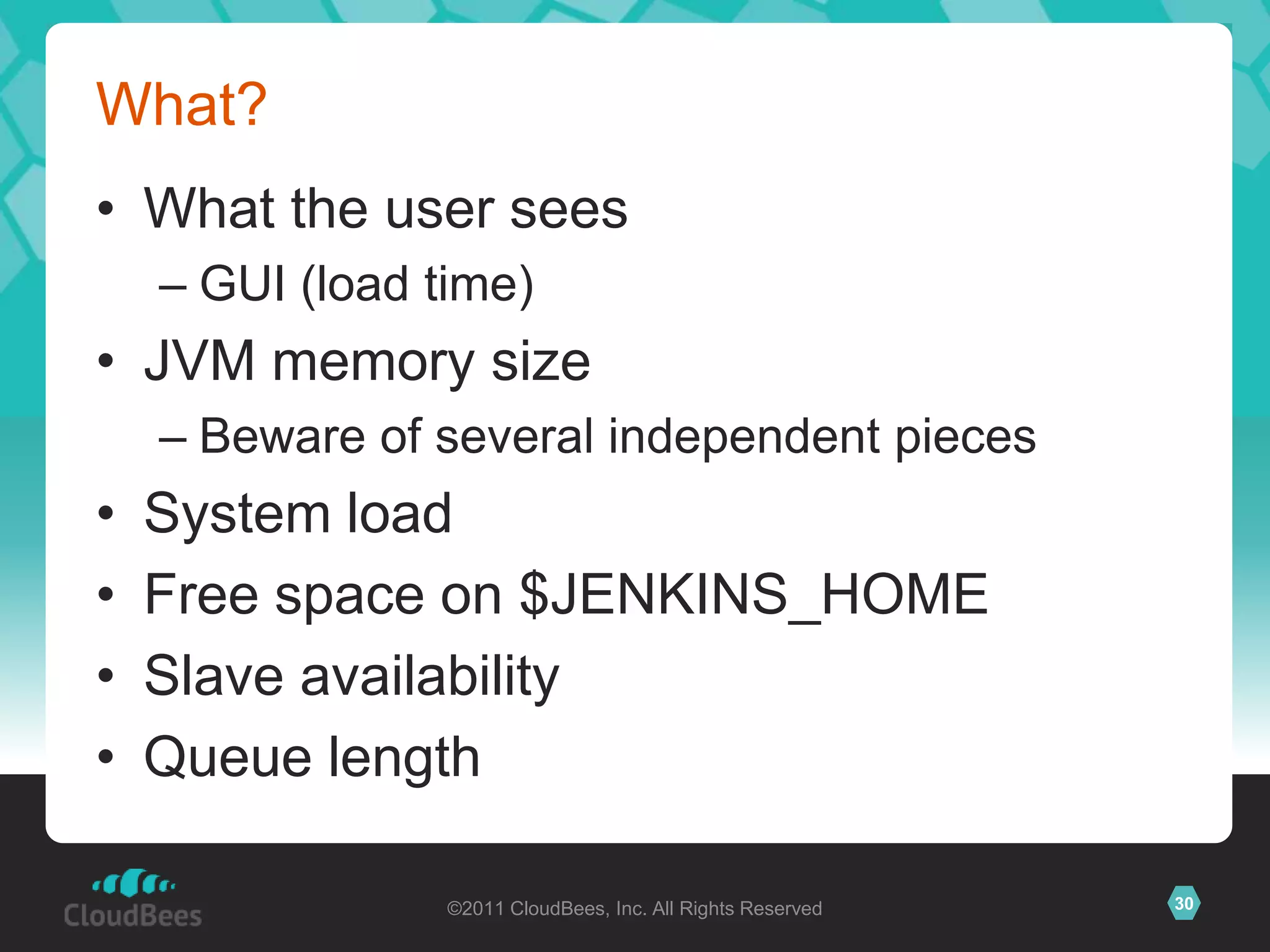

- 30. What? • What theuser sees – GUI (load time) • JVM memory size – Beware of several independent pieces • System load • Free space on $JENKINS_HOME • Slave availability • Queue length ©2011 CloudBees, Inc. All Rights Reserved 30

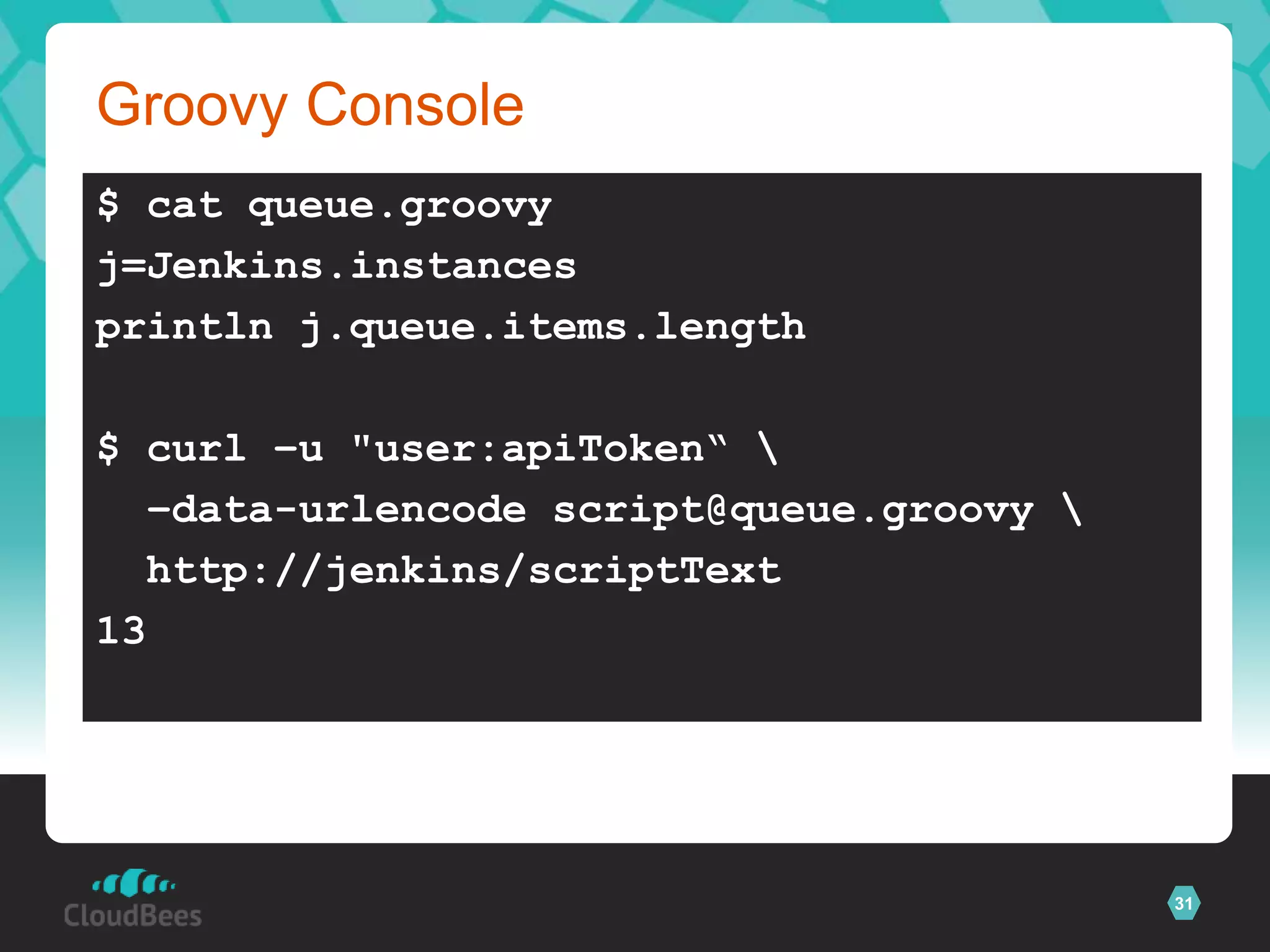

- 31. Groovy Console $ catqueue.groovy j=Jenkins.instances println j.queue.items.length $ curl –u "user:apiToken“ –data-urlencode script@queue.groovy http://jenkins/scriptText 13 31

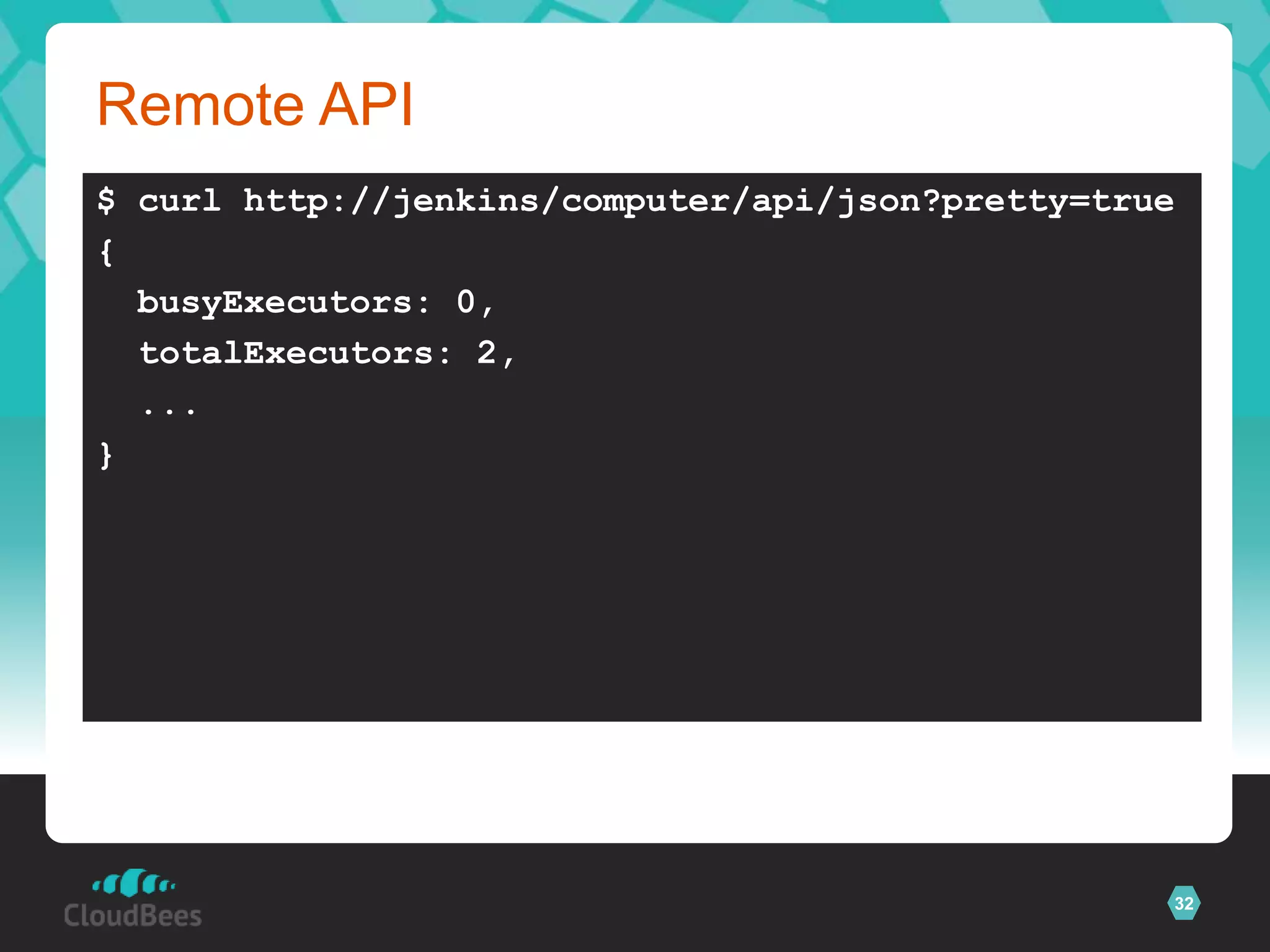

- 32. Remote API $ curlhttp://jenkins/computer/api/json?pretty=true { busyExecutors: 0, totalExecutors: 2, ... } 32

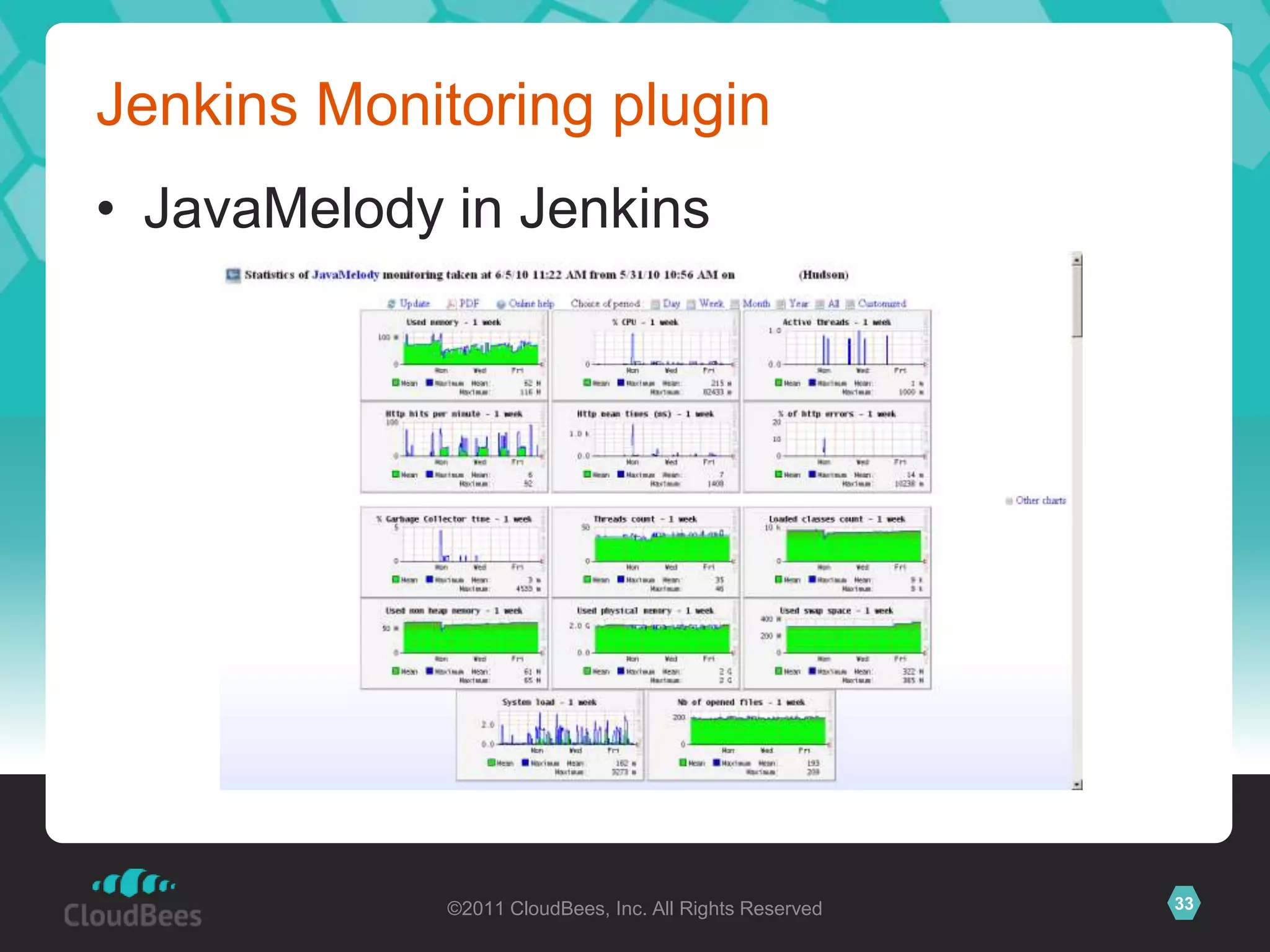

- 33. Jenkins Monitoring plugin •JavaMelody in Jenkins ©2011 CloudBees, Inc. All Rights Reserved 33

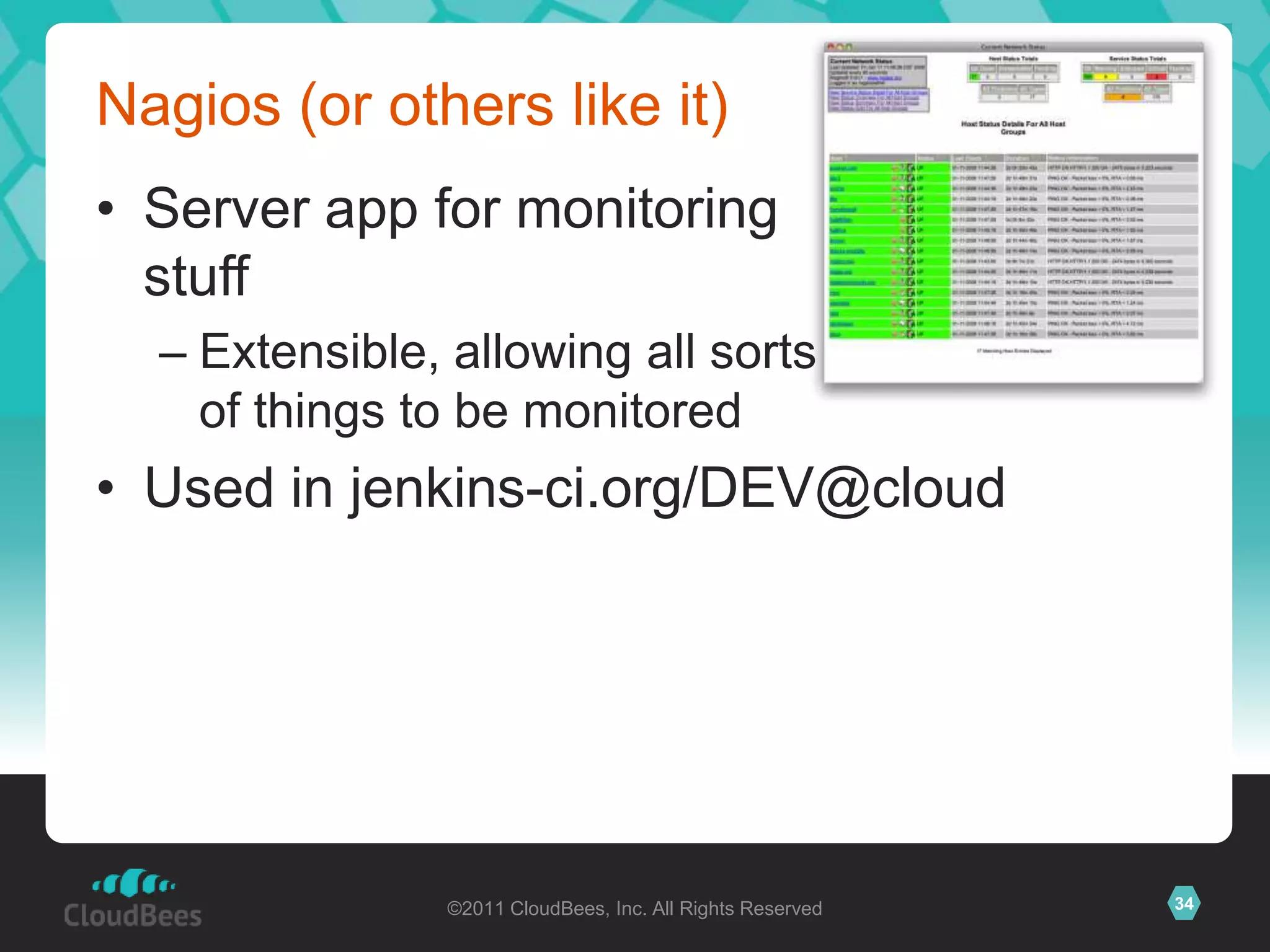

- 34. Nagios (or otherslike it) • Server app for monitoring stuff – Extensible, allowing all sorts of things to be monitored • Used in jenkins-ci.org/DEV@cloud ©2011 CloudBees, Inc. All Rights Reserved 34
- 35. ©2011 CloudBees, Inc.All Rights Reserved 35

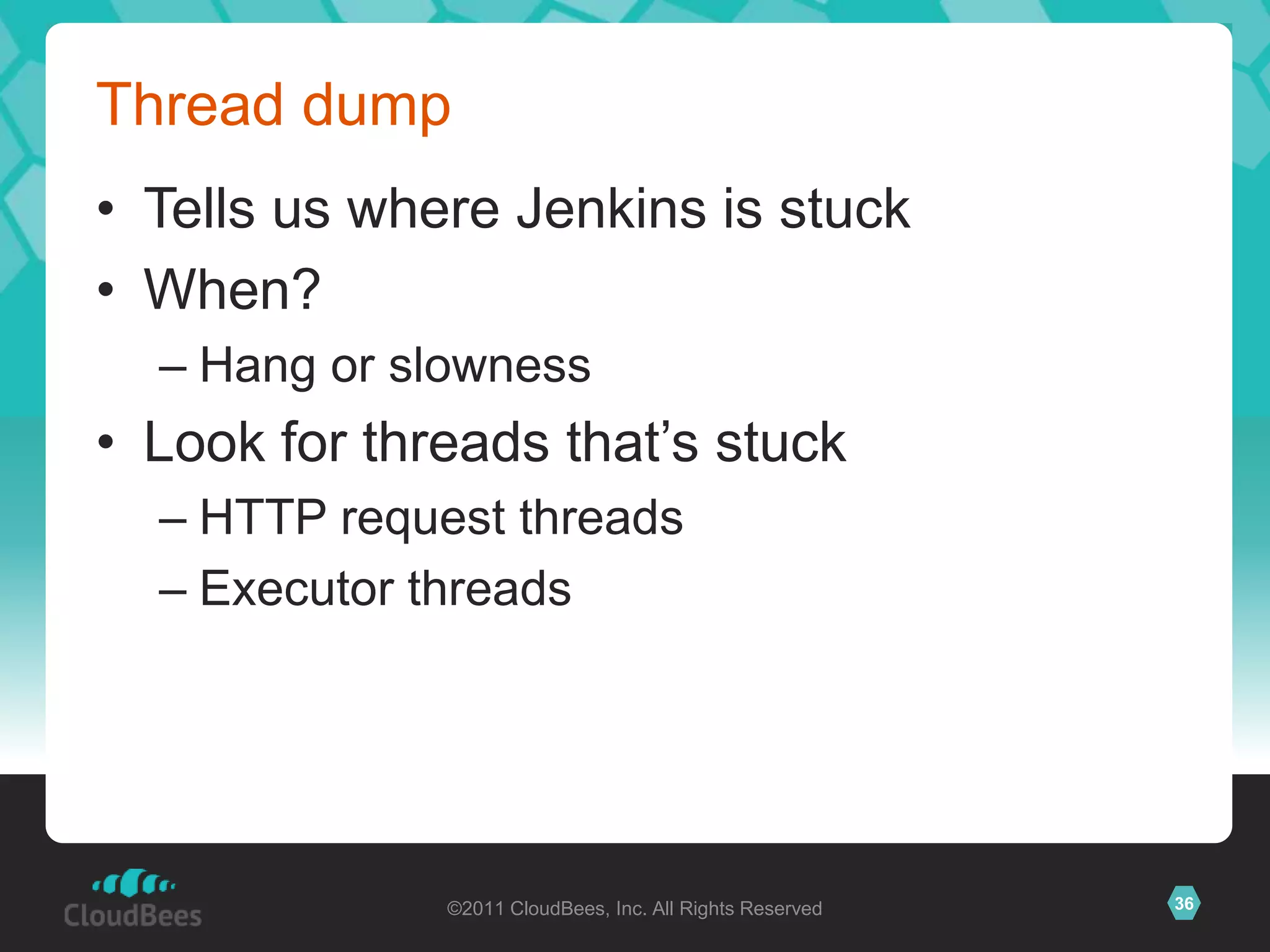

- 36. Thread dump • Tellsus where Jenkins is stuck • When? – Hang or slowness • Look for threads that’s stuck – HTTP request threads – Executor threads ©2011 CloudBees, Inc. All Rights Reserved 36

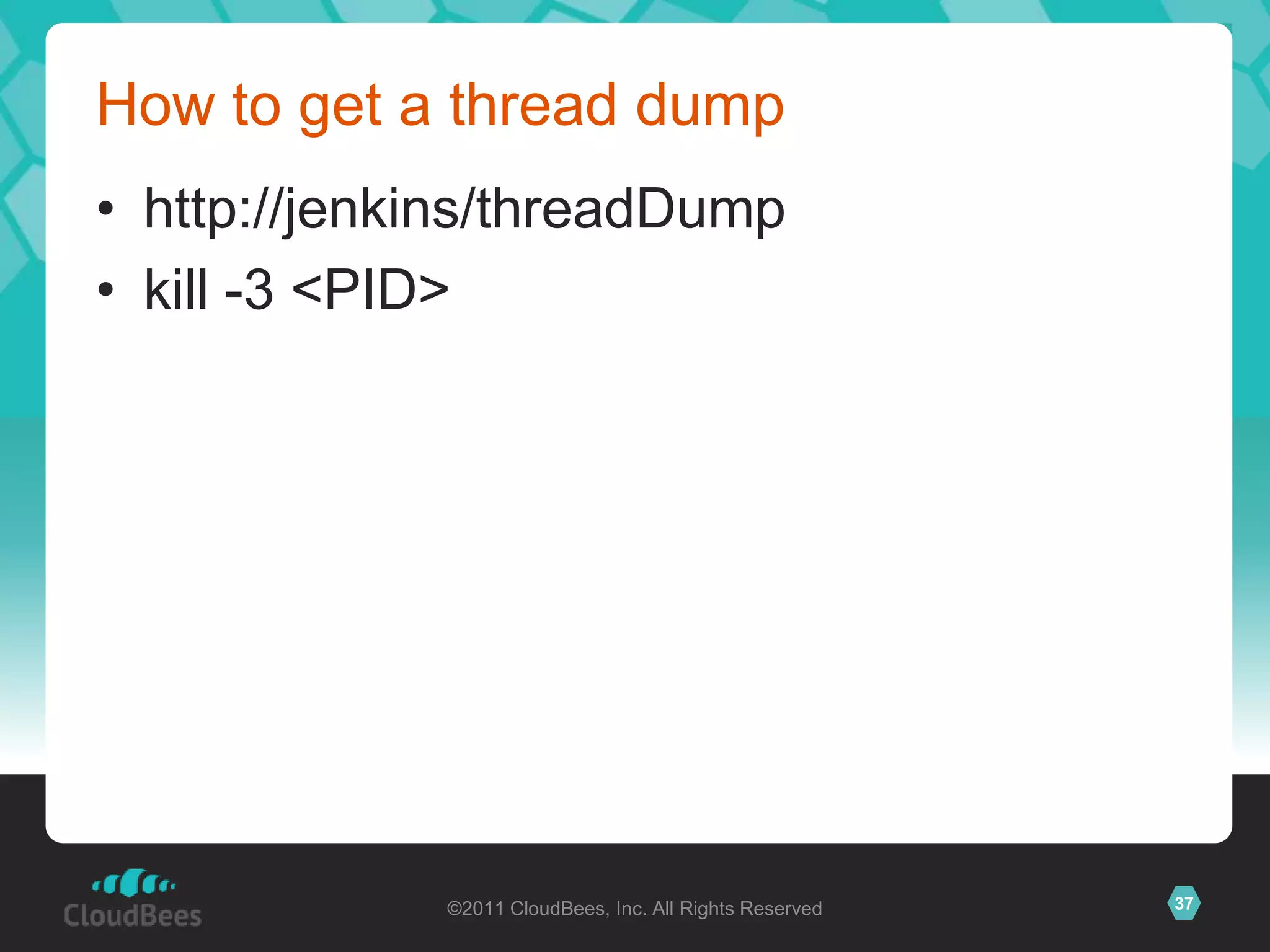

- 37. How to geta thread dump • http://jenkins/threadDump • kill -3 <PID> ©2011 CloudBees, Inc. All Rights Reserved 37

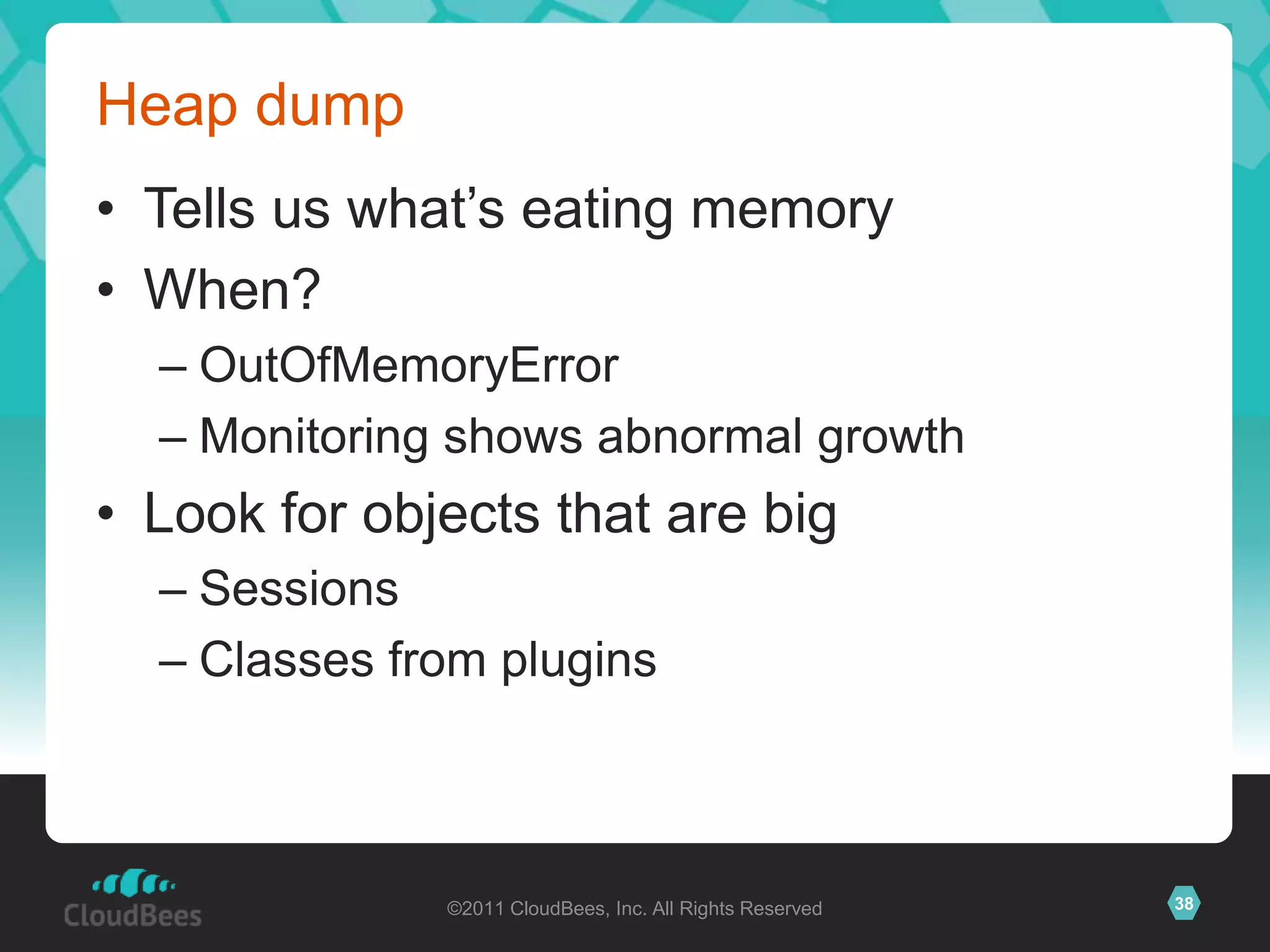

- 38. Heap dump • Tellsus what’s eating memory • When? – OutOfMemoryError – Monitoring shows abnormal growth • Look for objects that are big – Sessions – Classes from plugins ©2011 CloudBees, Inc. All Rights Reserved 38

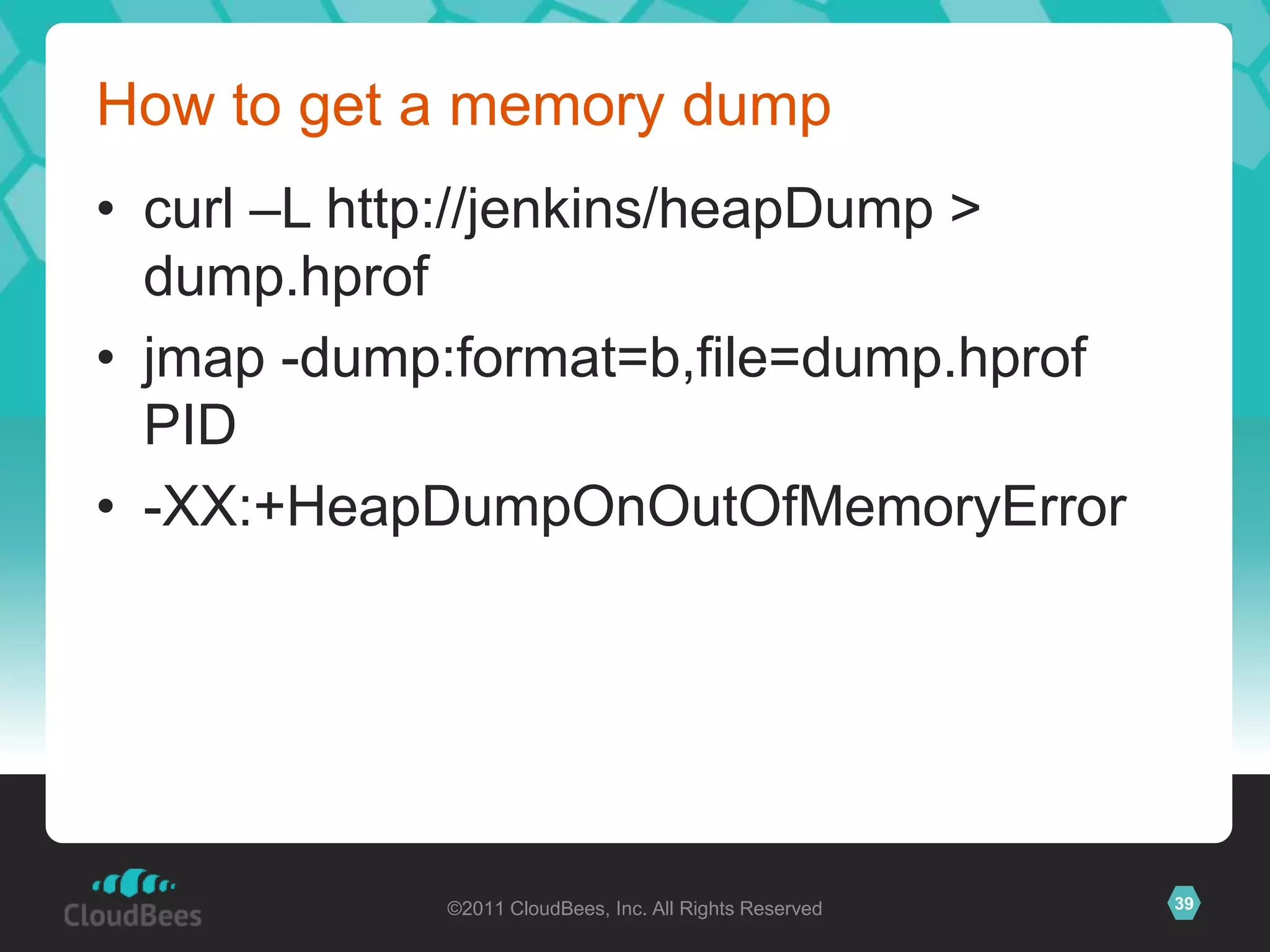

- 39. How to geta memory dump • curl –L http://jenkins/heapDump > dump.hprof • jmap -dump:format=b,file=dump.hprof PID • -XX:+HeapDumpOnOutOfMemoryError ©2011 CloudBees, Inc. All Rights Reserved 39

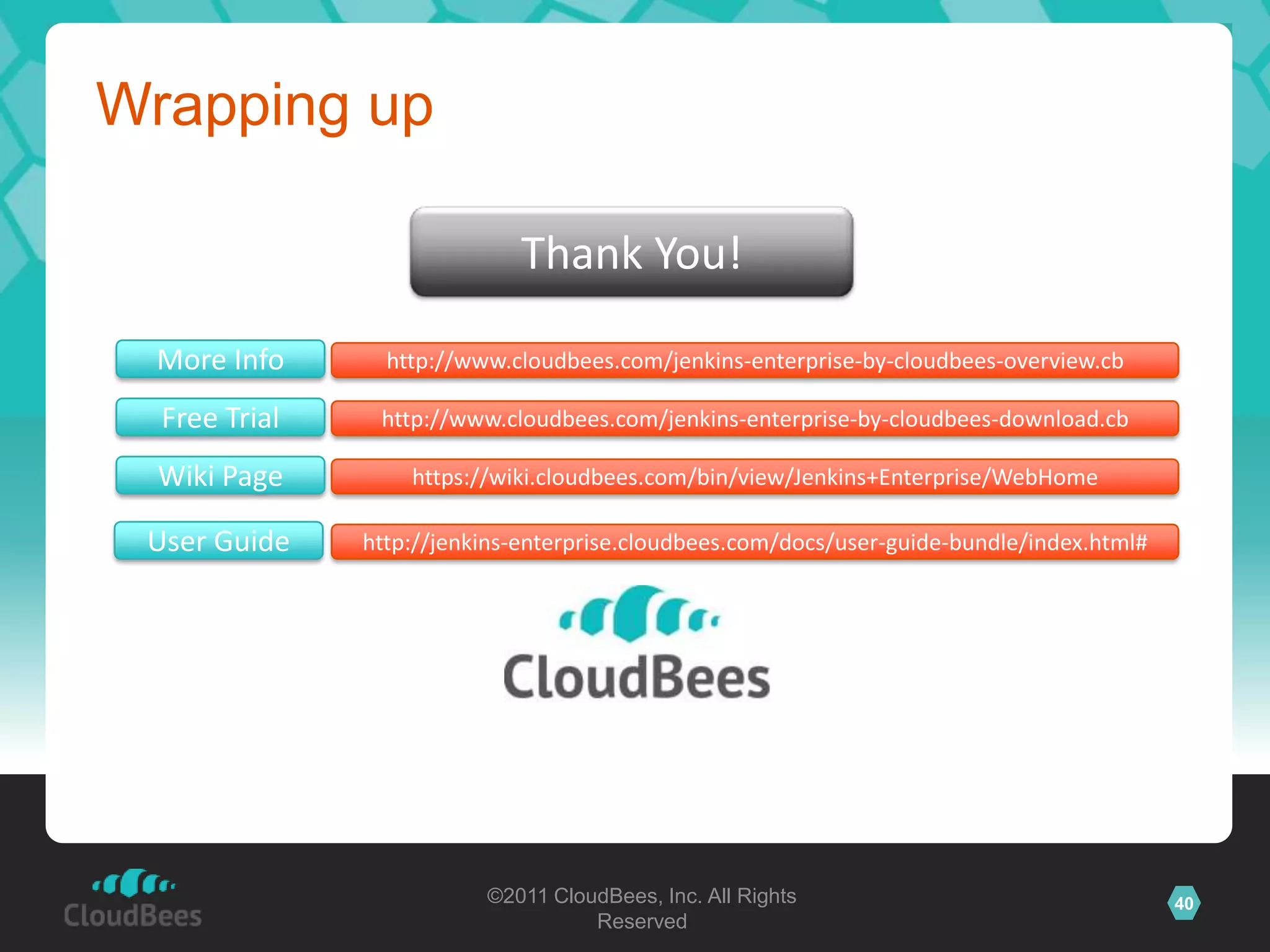

- 40. Wrapping up Thank You! More Info http://www.cloudbees.com/jenkins-enterprise-by-cloudbees-overview.cb Free Trial http://www.cloudbees.com/jenkins-enterprise-by-cloudbees-download.cb Wiki Page https://wiki.cloudbees.com/bin/view/Jenkins+Enterprise/WebHome User Guide http://jenkins-enterprise.cloudbees.com/docs/user-guide-bundle/index.html# ©2011 CloudBees, Inc. All Rights 40 Reserved
- 41. Day: A periodof 24 hours, mostly misspent… ©2011 CloudBees, Inc. All Rights 41 Reserved
- 42. ©2012 CloudBees, Inc.All Rights Reserved
