The Siemens RuggedCom RSG2100/RSG2100P is a utility-grade, fully managed modular Ethernet switch designed for harsh environments and offering up to 32 ports with advanced cyber security features. It is capable of operating in temperatures ranging from -40°C to +85°C and is compliant with various industry standards for reliability and power management. The RSG2100P additionally supports Power over Ethernet (PoE) capabilities, making it suitable for powering devices where local power is not available.

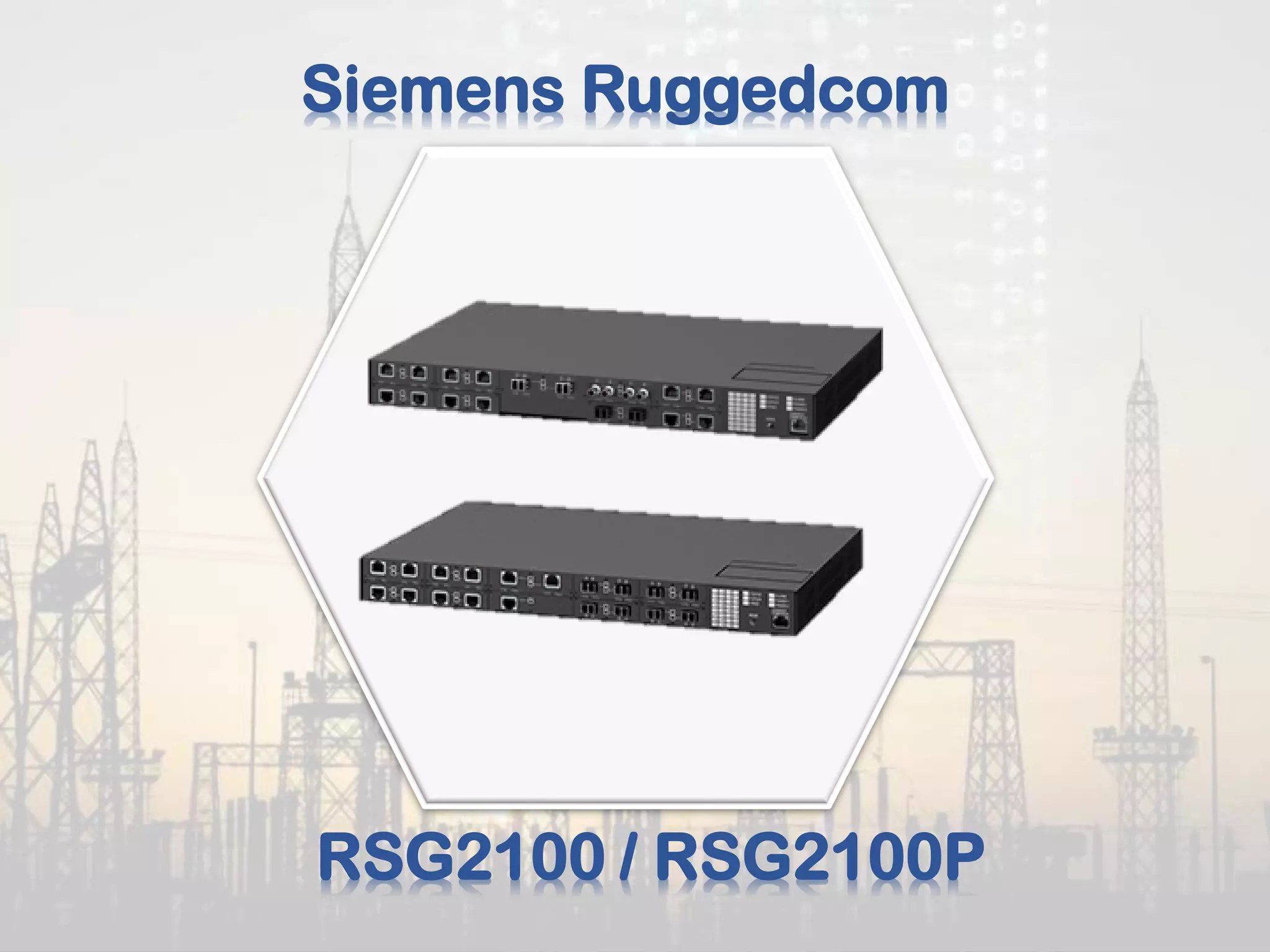

1. Siemens Ruggedcom
RSG2100 / RSG2100P

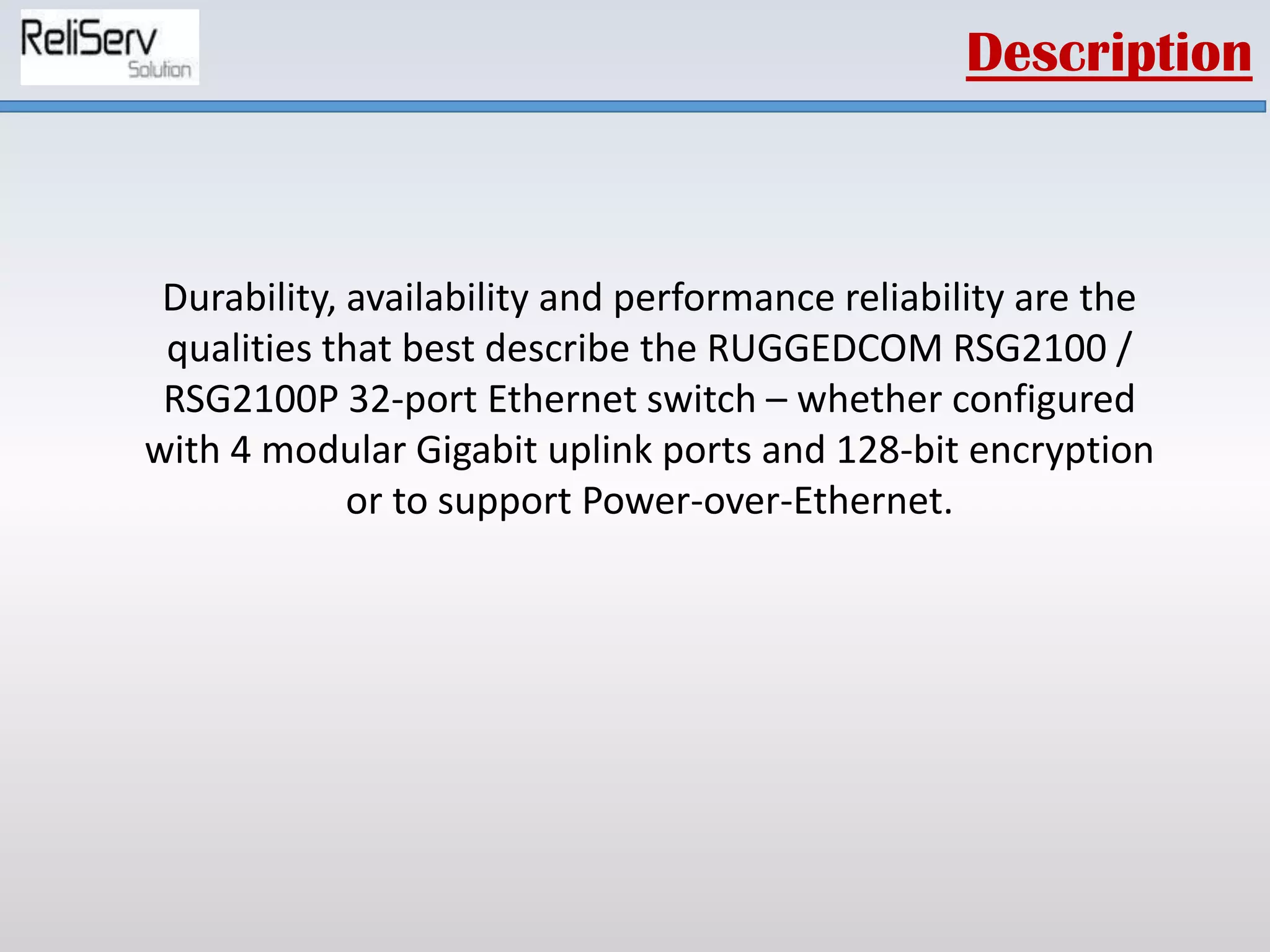

2. Durability, availability and performance reliability are the
qualities that best describe the RUGGEDCOM RSG2100 /
RSG2100P 32-port Ethernet switch – whether configured
with 4 modular Gigabit uplink ports and 128-bit encryption
or to support Power-over-Ethernet.
Description

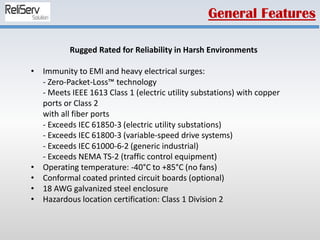

3. Rugged Rated for Reliability in Harsh Environments
• Immunity to EMI and heavy electrical surges:
- Zero-Packet-Loss™ technology
- Meets IEEE 1613 Class 1 (electric utility substations) with copper
ports or Class 2
with all fiber ports
- Exceeds IEC 61850-3 (electric utility substations)
- Exceeds IEC 61800-3 (variable-speed drive systems)
- Exceeds IEC 61000-6-2 (generic industrial)
- Exceeds NEMA TS-2 (traffic control equipment)
• Operating temperature: -40°C to +85°C (no fans)
• Conformal coated printed circuit boards (optional)
• 18 AWG galvanized steel enclosure
• Hazardous location certification: Class 1 Division 2
General Features

4. Cyber Security Features
• Mutilevel user passwords
• SSH/SSL (128-bit encryption)
• Enable/disable ports, MAC-based port security
• Port-based network access control (802.1x)
• VLAN (802.1Q) to segregate and secure network traffic
• RADIUS centralized password management
• SNMPv3 authentication and 56-bit encryption
Management Tools
• Web-based, Telnet, CLI management interfaces
• SNMP v1/v2/v3 (56-bit encryption)
• Remote monitoring (RMON)
• Rich set of diagnostics with logging and alarms
General Features

5. Rugged Operating System (ROS®) Features
• Simple plug and play operation – automatic learning, negotiation and
crossover
detection
• MSTP 802.1Q-2005 (formerly 802.1s)
• RSTP (802.1w) and Enhanced Rapid Spanning Tree (eRSTP™) network
fault
recovery (<5 MS)
• Quality of service (802.1p) for real-time traffic
• VLAN (802.1Q) with double tagging and GVRP support
• Link aggregation
• IGMP snooping for multicast filtering
• Port rate limiting and broadcast storm limiting
• Port configuration, status, statistics, mirroring, security
• SNTP time synchronization (client and server)
• Industrial automation features (e.g. Modbus)
General Features

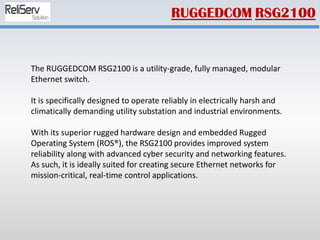

6. The RUGGEDCOM RSG2100 is a utility-grade, fully managed, modular
Ethernet switch.
It is specifically designed to operate reliably in electrically harsh and
climatically demanding utility substation and industrial environments.
With its superior rugged hardware design and embedded Rugged
Operating System (ROS®), the RSG2100 provides improved system
reliability along with advanced cyber security and networking features.
As such, it is ideally suited for creating secure Ethernet networks for
mission-critical, real-time control applications.
RUGGEDCOM RSG2100

7. Ethernet Ports
• Up to 3 gigabit Ethernet ports – copper and/or fiber
• Up to 16 fast Ethernet ports – copper and/or fiber
• 2 port modules for tremendous flexibility
• Non-blocking, store and forward switching
• Supports many types of fiber (multimode, single mode, bidirectional
single strand)
• Long-haul optics allow gigabit distances up to 70 km
• Multiple connector types (ST, MTRJ, LC, SC
Universal Power Supply Options
• Fully integrated, dual-redundant (optional) power supplies
• Universal high-voltage range: 88–300 VDC or 85–264 VAC
• Popular low-voltage ranges: 24 VDC (10–36 VDC), 48 VDC (36–72 VDC)
• Screw or pluggable terminal blocks available
• Terminal blocks for reliable, maintenance-free connection
• CSA/UL 60950 safety approved to +85°C
RUGGEDCOM RSG2100 Features

8. • The RUGGEDCOM RSG2100P is a utility-grade, fully managed,
modular Power-over-Ethernet (PoE) enabled Ethernet switch
specifically designed for reliable operation in electrically harsh and
climatically demanding utility substation and industrial environments.
• The RSG2100P comes standard with 4 10/100BaseTX 802.3af (PoE)
compliant Ethernet ports. It offers modular flexibility for up to 15
additional Ethernet ports, including 10BaseFL / 100BaseFX /
1000BaseX fiber and 10/100/1000BaseTX copper port combinations.
• The highly versatile RSG2100P can support multiple fiber types and
connectors (ST, MTRJ, LC, SC) without loss of port density. It is an ideal
solution to power and connect several Ethernet devices (e.g. IP
phones, video cameras and wireless access points) where AC power is
not available or cost-prohibitive to provide locally.
RUGGEDCOM RSG2100P

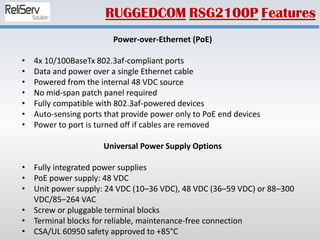

9. Power-over-Ethernet (PoE)
• 4x 10/100BaseTx 802.3af-compliant ports
• Data and power over a single Ethernet cable
• Powered from the internal 48 VDC source
• No mid-span patch panel required
• Fully compatible with 802.3af-powered devices
• Auto-sensing ports that provide power only to PoE end devices
• Power to port is turned off if cables are removed
Universal Power Supply Options
• Fully integrated power supplies
• PoE power supply: 48 VDC
• Unit power supply: 24 VDC (10–36 VDC), 48 VDC (36–59 VDC) or 88–300
VDC/85–264 VAC
• Screw or pluggable terminal blocks
• Terminal blocks for reliable, maintenance-free connection
• CSA/UL 60950 safety approved to +85°C
RUGGEDCOM RSG2100P Features

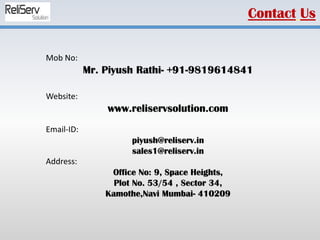

10. Mob No:
