What visually impaired
programmers are thinking
about Ruby?
Takuya Nishimoto @nishimotz
RubyKaigi 2017
2

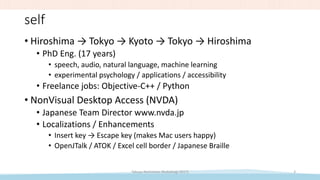

self
• Hiroshima → Tokyo → Kyoto → Tokyo → Hiroshima
• PhD Eng. (17 years)
• speech, audio, natural language, machine learning
• experimental psychology / applications / accessibility
• Freelance jobs: Objective-C++ / Python
• NonVisual Desktop Access (NVDA)
• Japanese Team Director www.nvda.jp
• Localizations / Enhancements
• Insert key → Escape key (makes Mac users happy)
• OpenJTalk / ATOK / Excel cell border / Japanese Braille
Takuya Nishimoto (RubyKaigi 2017) 3
Takuya Nishimoto (RubyKaigi 2017) 4

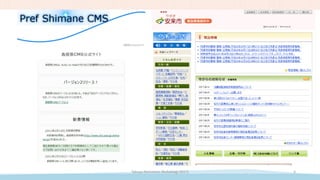

Pref Shimane CMS
Takuya Nishimoto (RubyKaigi 2017) 5

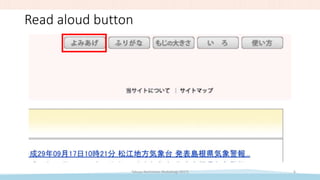

Read aloud button
Takuya Nishimoto (RubyKaigi 2017) 6

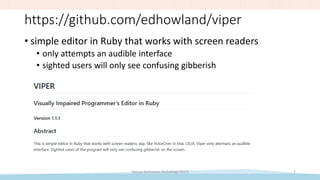

https://github.com/edhowland/viper
• simple editor in Ruby that works with screen readers
• only attempts an audible interface
• sighted users will only see confusing gibberish
Takuya Nishimoto (RubyKaigi 2017) 7
Takuya Nishimoto (RubyKaigi 2017) 8

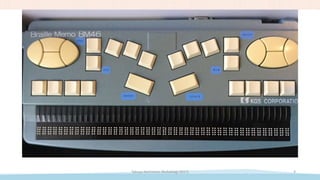

Braille display
Takuya Nishimoto (RubyKaigi 2017) 9

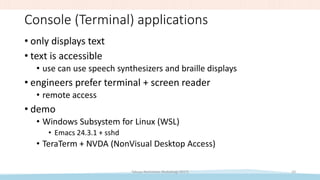

Console (Terminal) applications
• only displays text
• text is accessible
• use can use speech synthesizers and braille displays
• engineers prefer terminal + screen reader
• remote access
• demo
• Windows Subsystem for Linux (WSL)
• Emacs 24.3.1 + sshd
• TeraTerm + NVDA (NonVisual Desktop Access)
Takuya Nishimoto (RubyKaigi 2017) 10
Text + Assistive Technology
• Screen reader
• VoiceOver (iOS/macOS) / TalkBack (Android) / Orca (Linux)
• Narrator, JAWS, NVDA, etc. (Windows)
• Tactile (refreshable Braille display)
• good for verify spelling (type errors)
• device is expensive
• difficult to learn
• Listening (speech synthesizer)
• takes time, difficult to locate information
Takuya Nishimoto (RubyKaigi 2017) 11

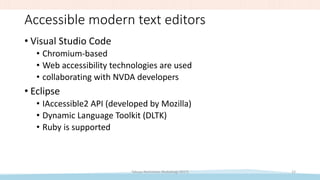

Accessible modern text editors
• Visual Studio Code
• Chromium-based
• Web accessibility technologies are used
• collaborating with NVDA developers
• Eclipse
• IAccessible2 API (developed by Mozilla)
• Dynamic Language Toolkit (DLTK)
• Ruby is supported
Takuya Nishimoto (RubyKaigi 2017) 12

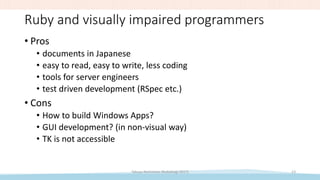

Ruby and visually impaired programmers
• Pros
• documents in Japanese
• easy to read, easy to write, less coding
• tools for server engineers
• test driven development (RSpec etc.)
• Cons
• How to build Windows Apps?
• GUI development? (in non-visual way)
• TK is not accessible
Takuya Nishimoto (RubyKaigi 2017) 13

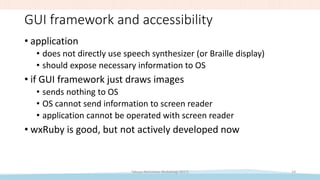

GUI framework and accessibility
• application
• does not directly use speech synthesizer (or Braille display)
• should expose necessary information to OS
• if GUI framework just draws images
• sends nothing to OS
• OS cannot send information to screen reader
• application cannot be operated with screen reader
• wxRuby is good, but not actively developed now
Takuya Nishimoto (RubyKaigi 2017) 14

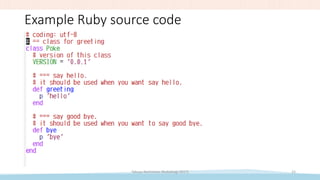

Example Ruby source code
Takuya Nishimoto (RubyKaigi 2017) 15
Documentation tools
• Ruby source code to HTML
• rdoc
• yard
• demo
• Ruby 2.4.1 (Windows Subsystem for Linux)
• Windows 10 + NVDA + Firefox
Takuya Nishimoto (RubyKaigi 2017) 16

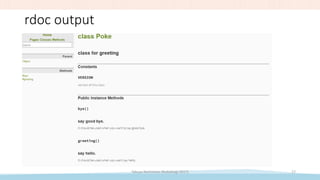

rdoc output
Takuya Nishimoto (RubyKaigi 2017) 17
Landmarks
• efficient way of move
• main role = class Poke
• navigation
• search
• content info
• operations
• d : next landmark
• shift+d : previous landmark
Takuya Nishimoto (RubyKaigi 2017) 18

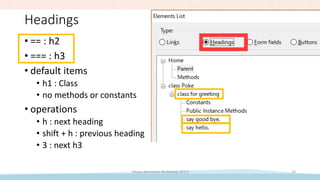

Headings
• == : h2
• === : h3
• default items
• h1 : Class
• no methods or constants
• operations
• h : next heading
• shift + h : previous heading
• 3 : next h3
Takuya Nishimoto (RubyKaigi 2017) 19

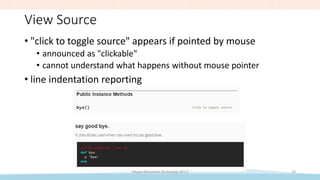

View Source
• "click to toggle source" appears if pointed by mouse
• announced as "clickable"
• cannot understand what happens without mouse pointer
• line indentation reporting
Takuya Nishimoto (RubyKaigi 2017) 20
Yard output (no landmarks)
Takuya Nishimoto (RubyKaigi 2017) 21
Headings
Takuya Nishimoto (RubyKaigi 2017) 22
• == : h2
• === : h3
• default items
• h1 : Class
• h3 : Instance Method Details
• no constants
• Summary and Details
• "collapse" in item name

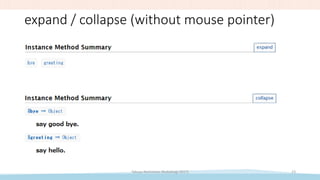

expand / collapse (without mouse pointer)
Takuya Nishimoto (RubyKaigi 2017) 23

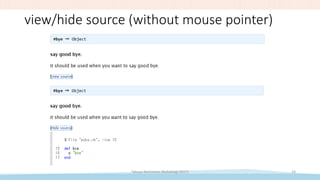

view/hide source (without mouse pointer)
Takuya Nishimoto (RubyKaigi 2017) 24

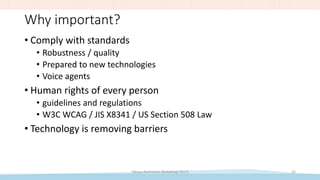

Why important?
• Comply with standards
• Robustness / quality
• Prepared to new technologies
• Voice agents
• Human rights of every person
• guidelines and regulations
• W3C WCAG / JIS X8341 / US Section 508 Law
• Technology is removing barriers
Takuya Nishimoto (RubyKaigi 2017) 25

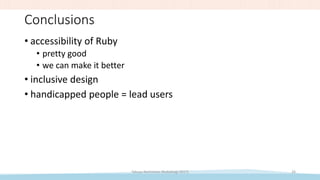

Conclusions
• accessibility of Ruby
• pretty good
• we can make it better
• inclusive design
• handicapped people = lead users
Takuya Nishimoto (RubyKaigi 2017) 26
