RubyConf 2012: Custom Reverse Proxies
- 1. Abstracting Features Into Custom Reverse Proxies Or: Making Better Lemonade From Chaos Photo by Lori Greig http://www.flickr.com/photos/lori_greig/4906180111 Nick Muerdter • RubyConf 2012 • November 1, 2012
- 2. Photo by Brian Lane Winfield Moore http://www.flickr.com/photos/doctabu/342220423

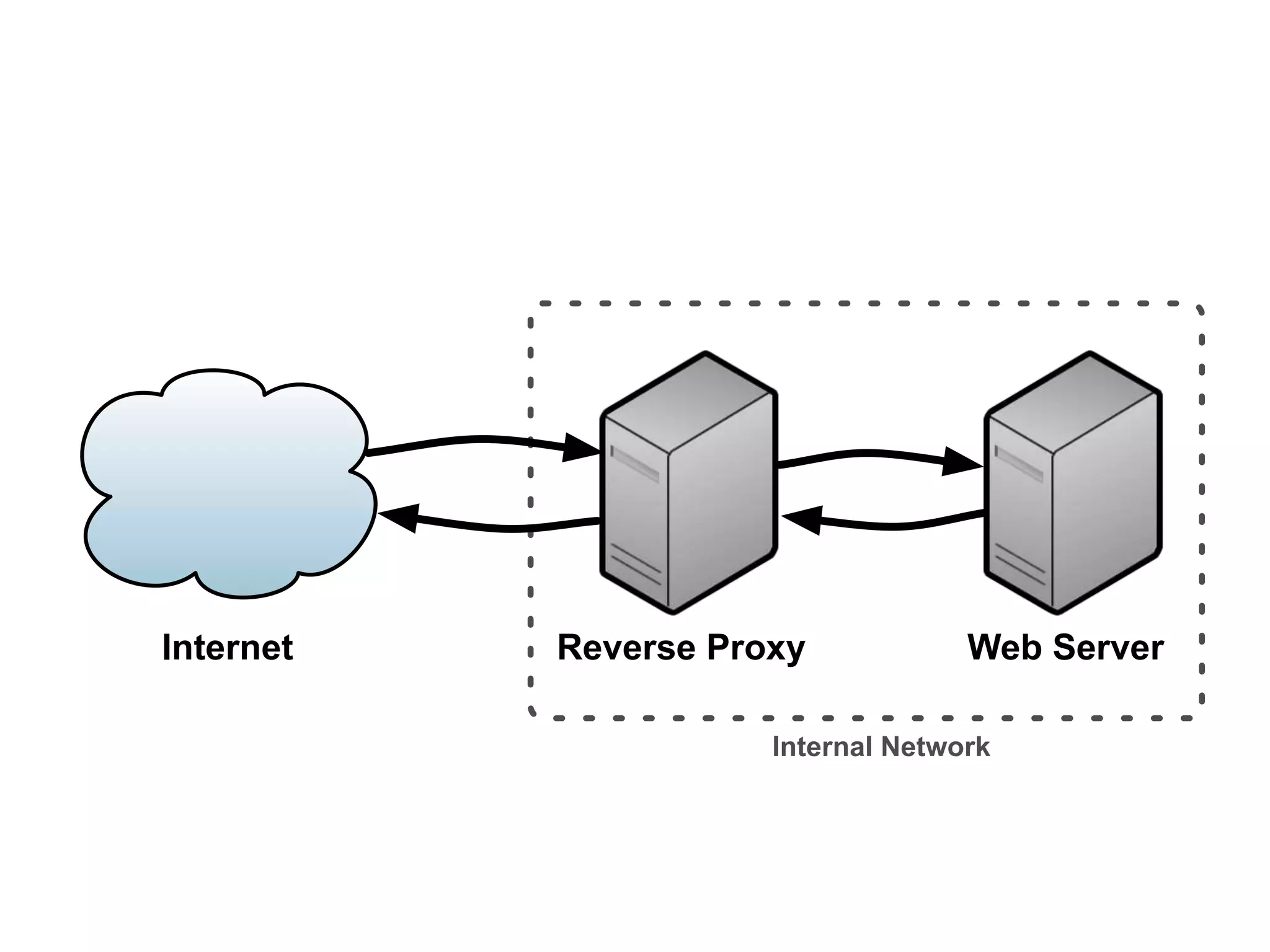

- 3. Internet Reverse Proxy Web Server Internal Network

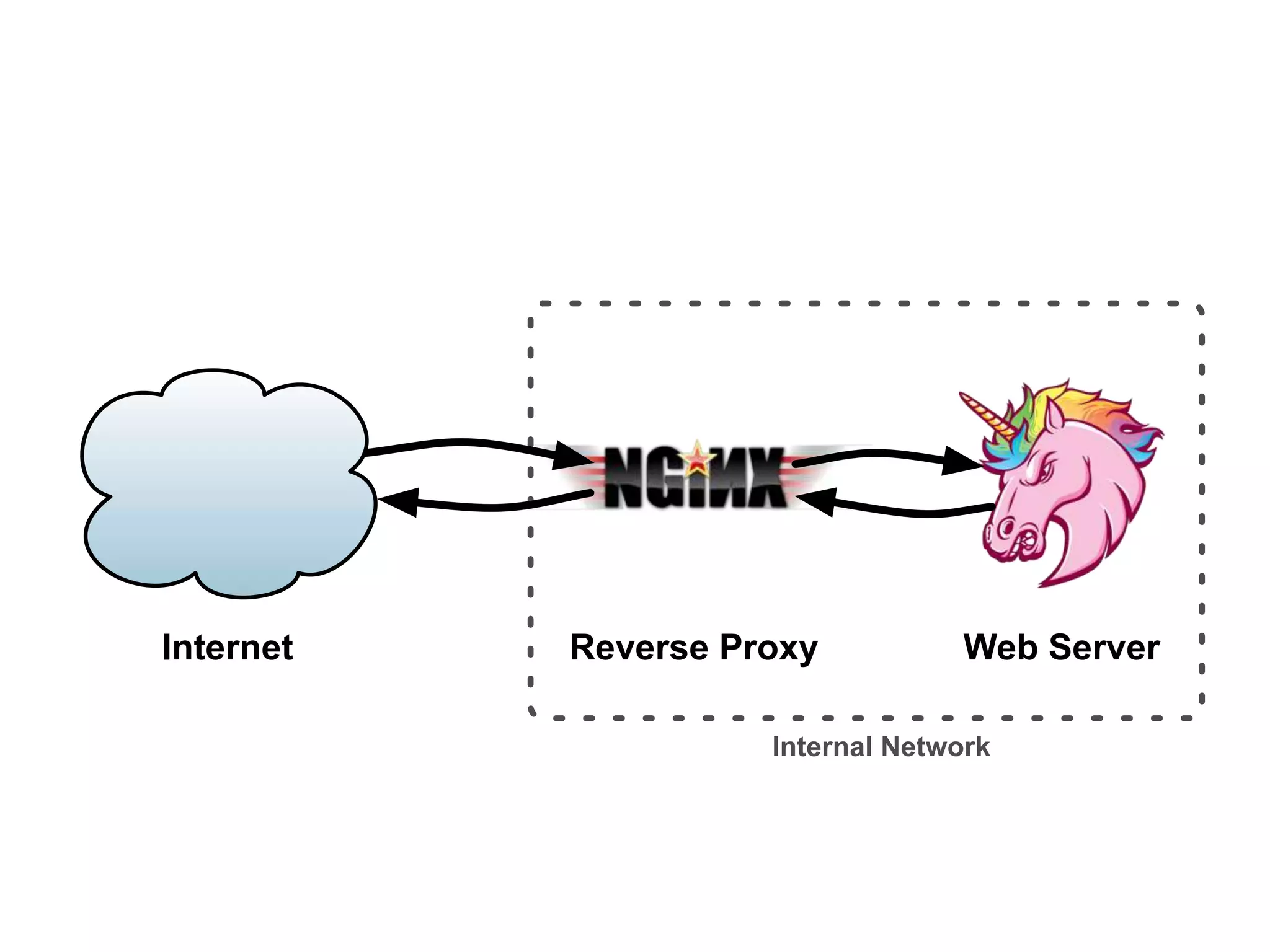

- 4. Internet Reverse Proxy Web Server Internal Network

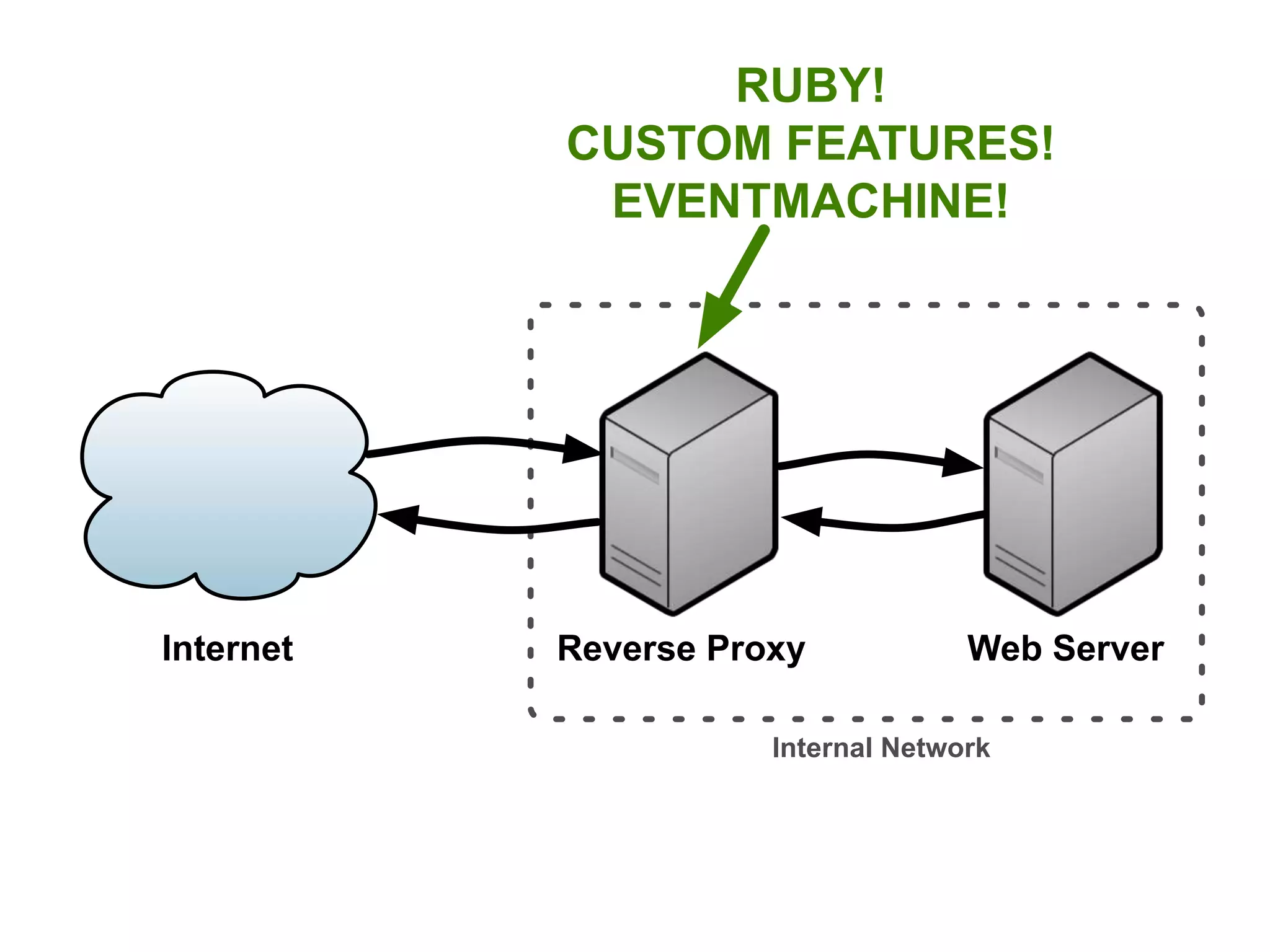

- 5. RUBY! CUSTOM FEATURES! EVENTMACHINE! Internet Reverse Proxy Web Server Internal Network
- 6. OKAY, BUT…
- 7. Photo by Brian Lane Winfield Moore http://www.flickr.com/photos/doctabu/342220423
- 8. WHY & HOW
- 9. A Story… Photo by Elgin County Archives http://www.flickr.com/photos/elgincountyarchives/678920411

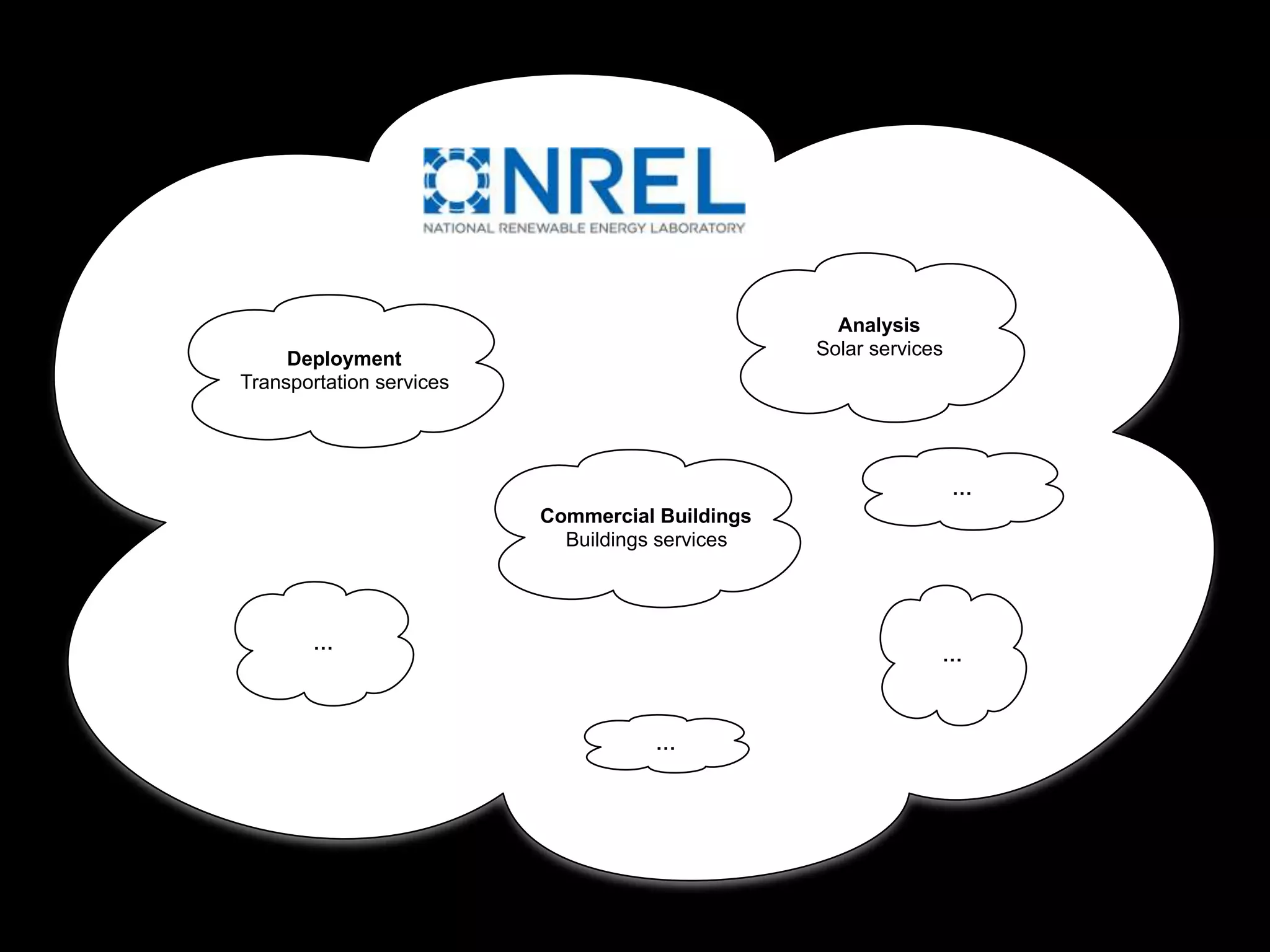

- 12. Analysis Solar services Deployment Transportation services … Commercial Buildings Buildings services … … …
- 14. Users Don’t Care Photo from National Media Museum http://www.flickr.com/photos/nationalmediamuseum/3589381656

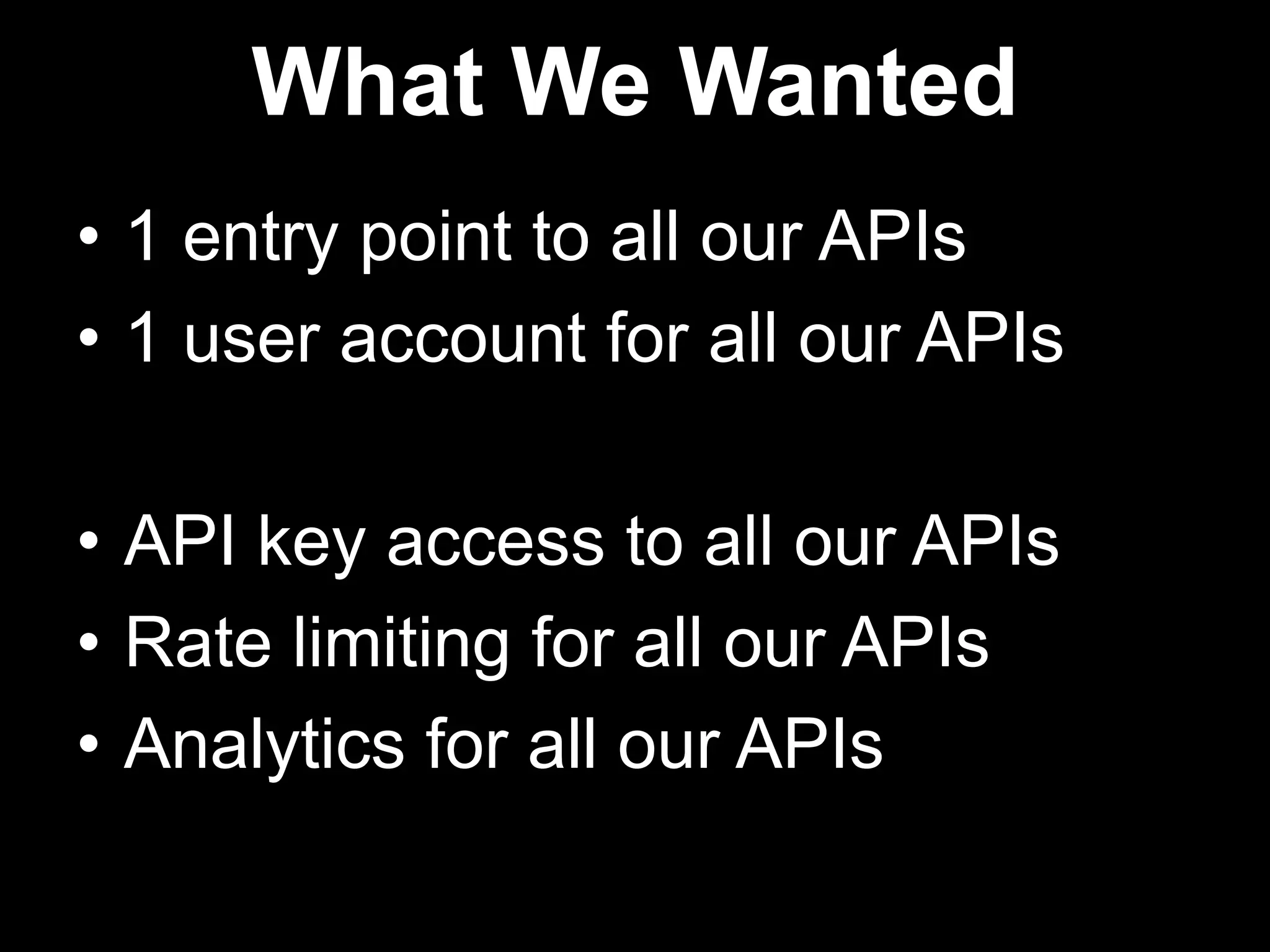

- 15. What We Wanted • 1 entry point to all our APIs • 1 user account for all our APIs • API key access to all our APIs • Rate limiting for all our APIs • Analytics for all our APIs

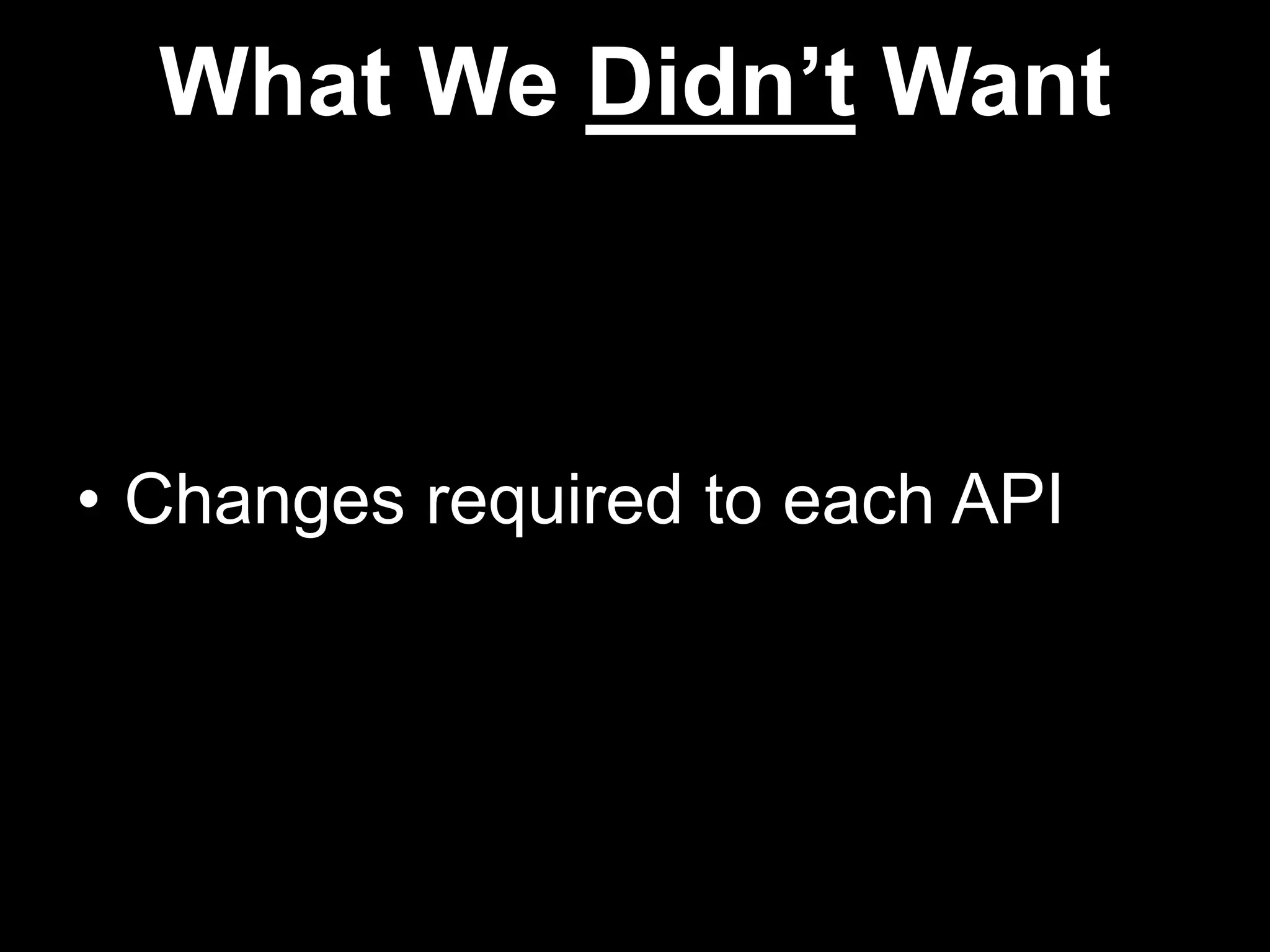

- 16. What We Didn’t Want • Changes required to each API

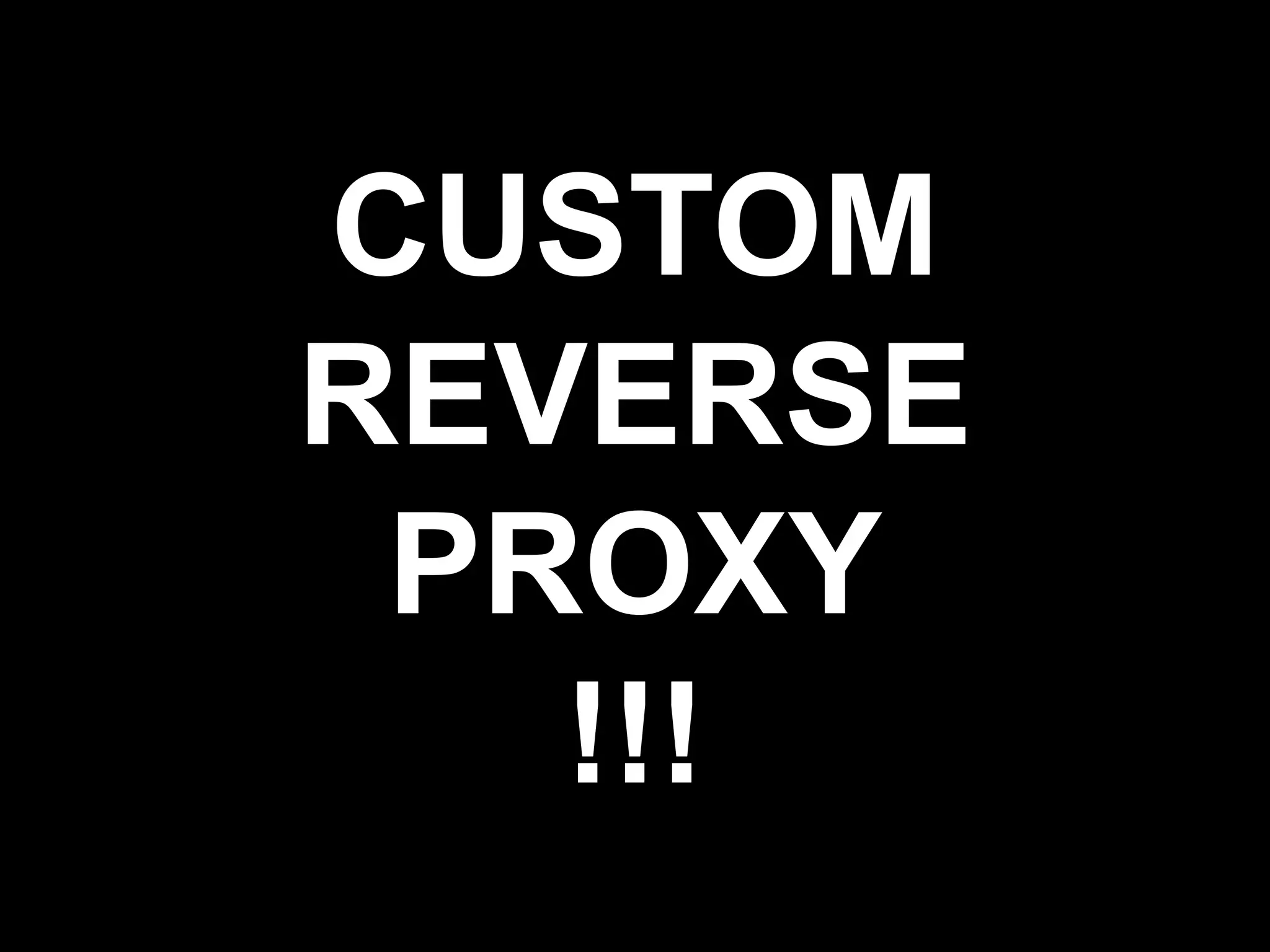

- 17. CUSTOM REVERSE PROXY !!!

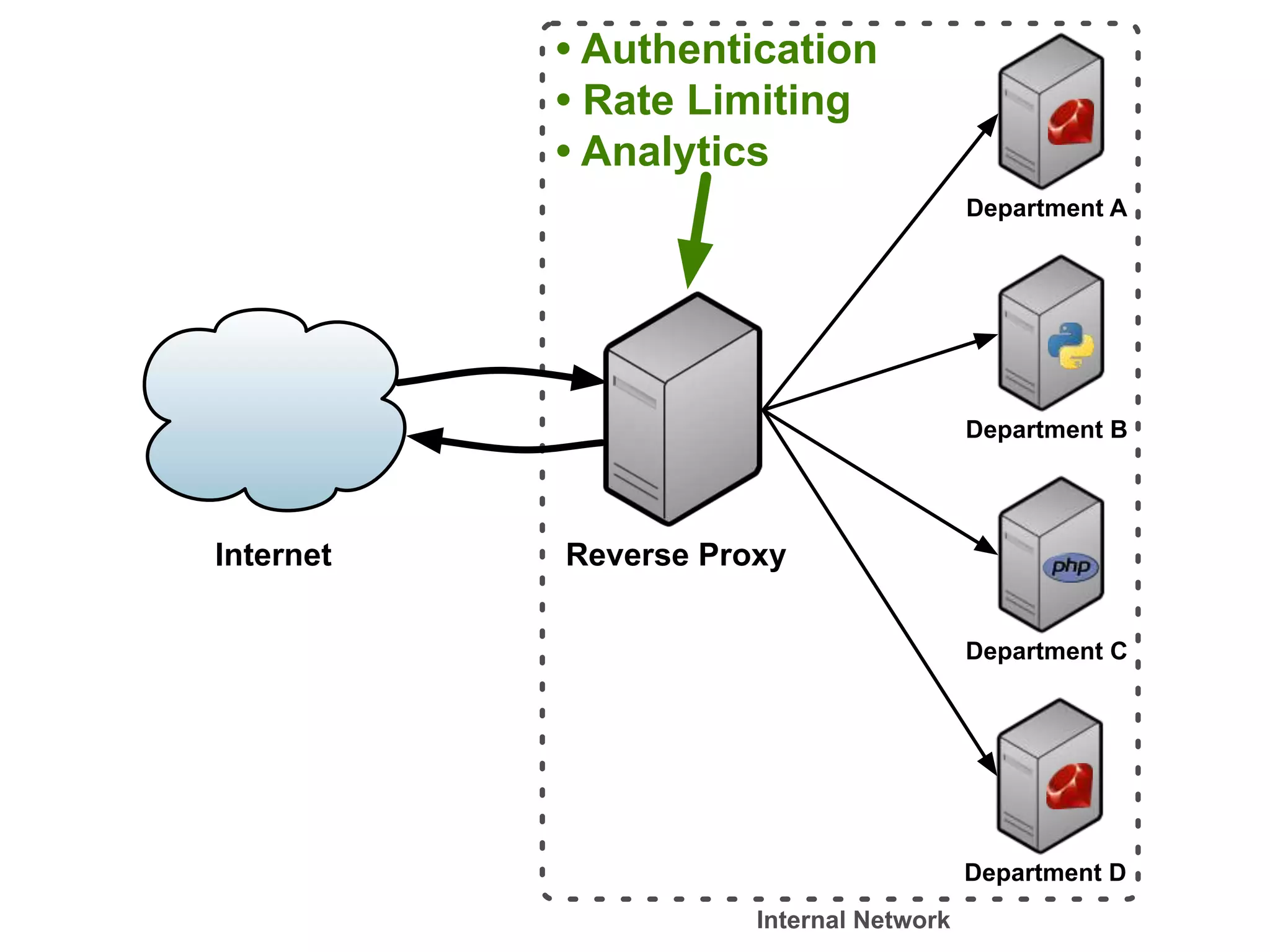

- 18. • Authentication • Rate Limiting • Analytics Department A Department B Internet Reverse Proxy Department C Department D Internal Network
- 19. Better Lemonade? Photo by Lara604 http://www.flickr.com/photos/lara604/4563803829

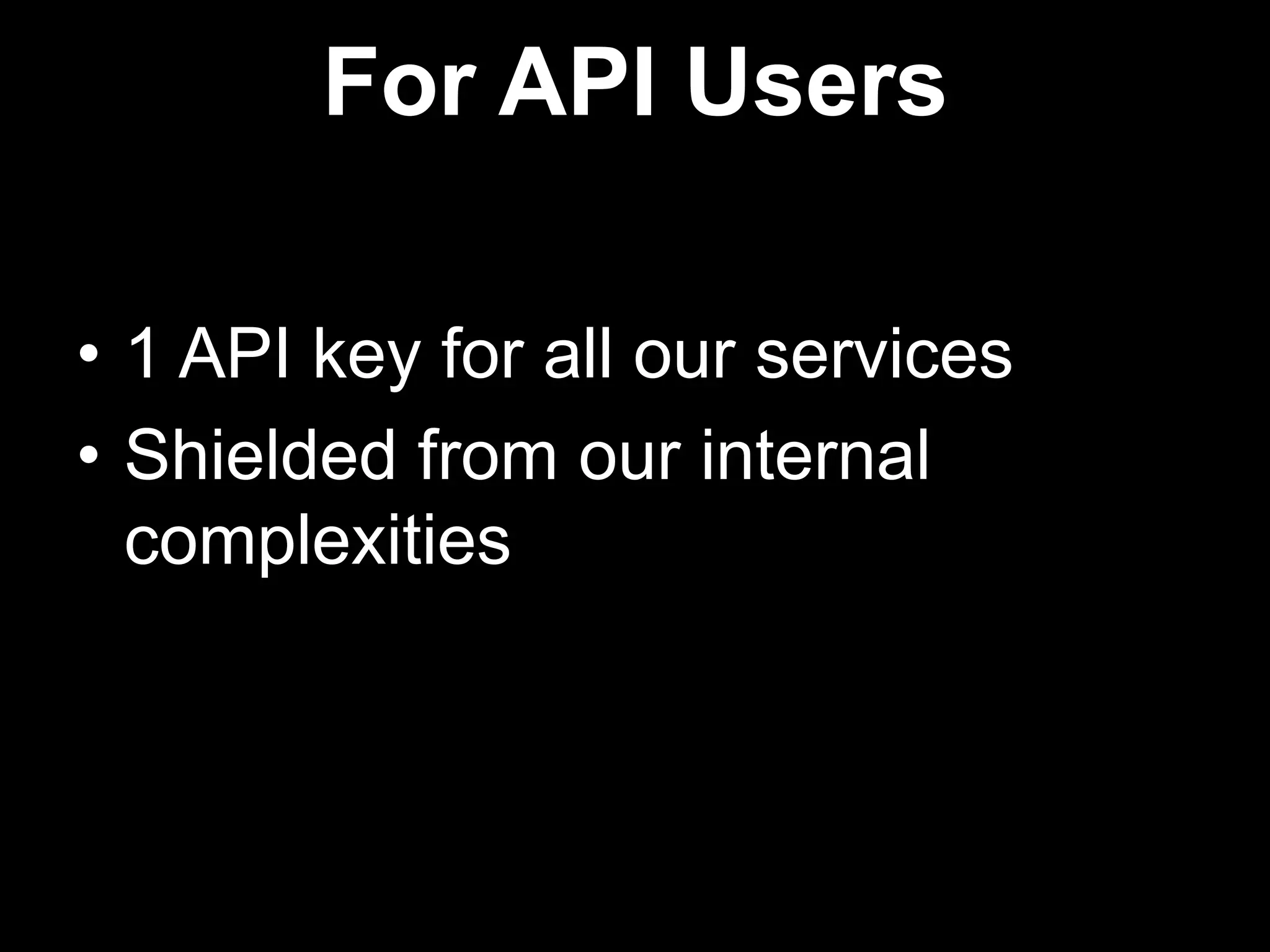

- 20. For API Users • 1 API key for all our services • Shielded from our internal complexities

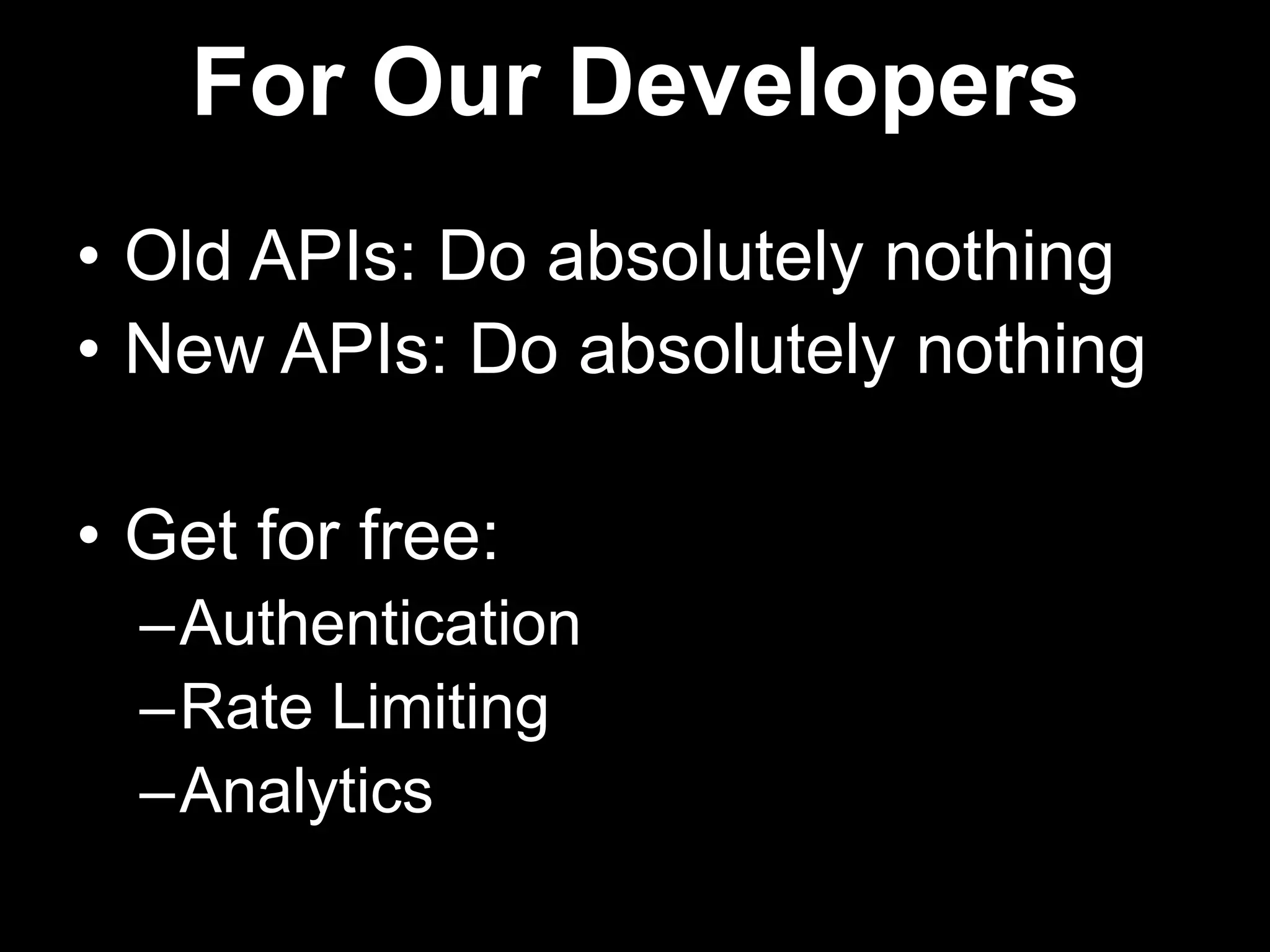

- 21. For Our Developers • Old APIs: Do absolutely nothing • New APIs: Do absolutely nothing • Get for free: –Authentication –Rate Limiting –Analytics

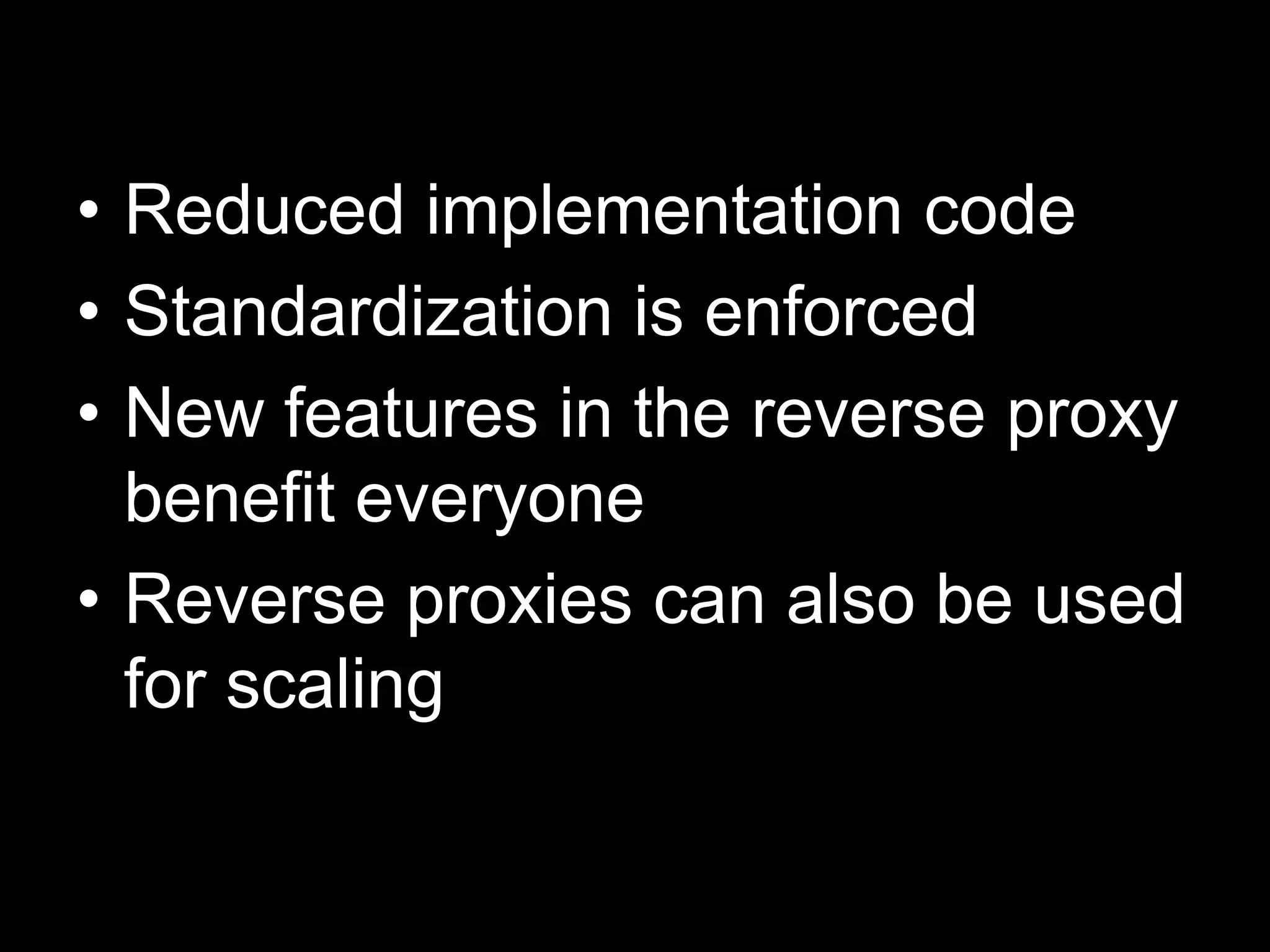

- 22. • Reduced implementation code • Standardization is enforced • New features in the reverse proxy benefit everyone • Reverse proxies can also be used for scaling
- 23. Building these things… Photo from The Library of Congress http://www.flickr.com/photos/library_of_congress/217984968

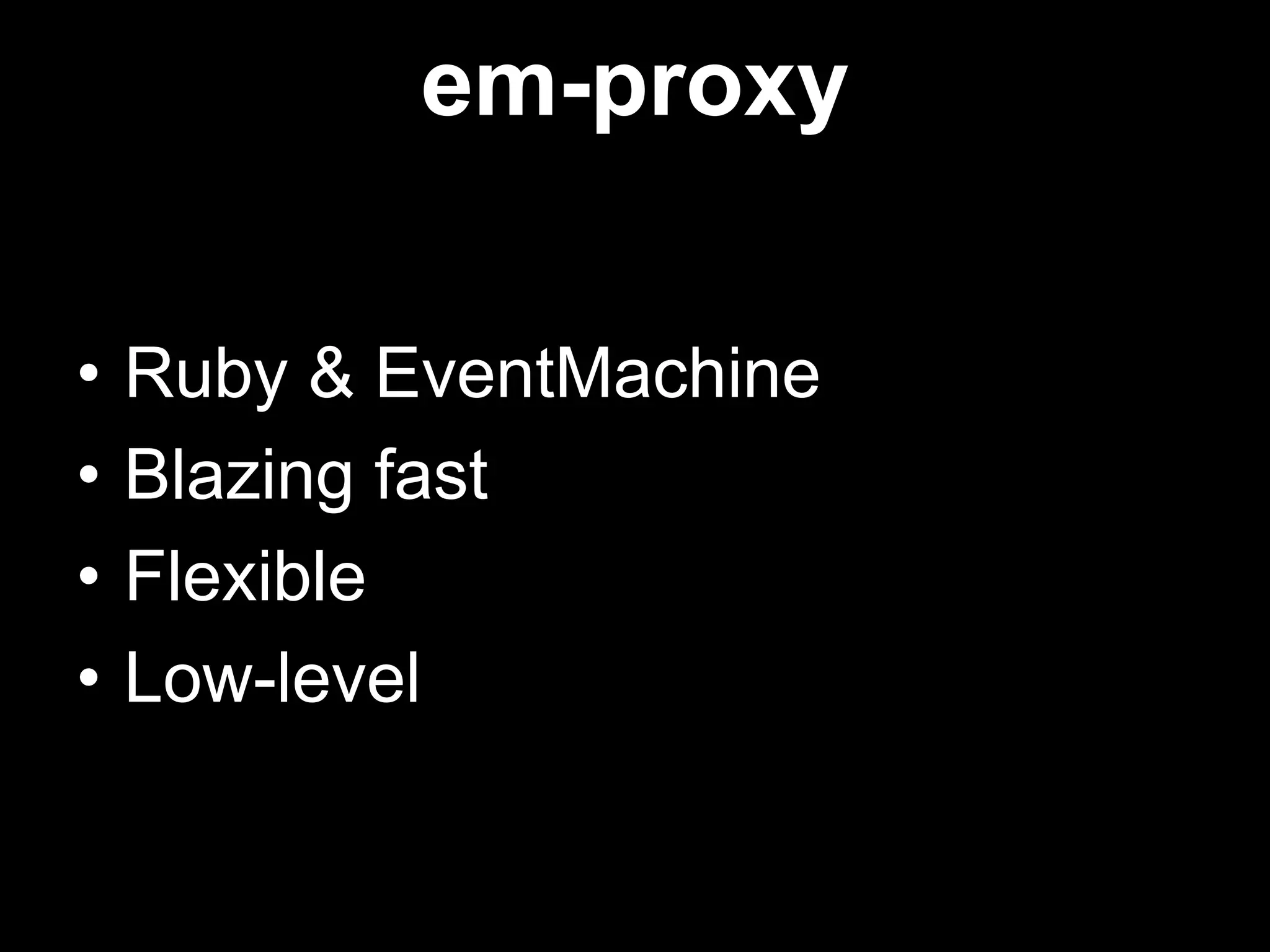

- 24. em-proxy • Ruby & EventMachine • Blazing fast • Flexible • Low-level

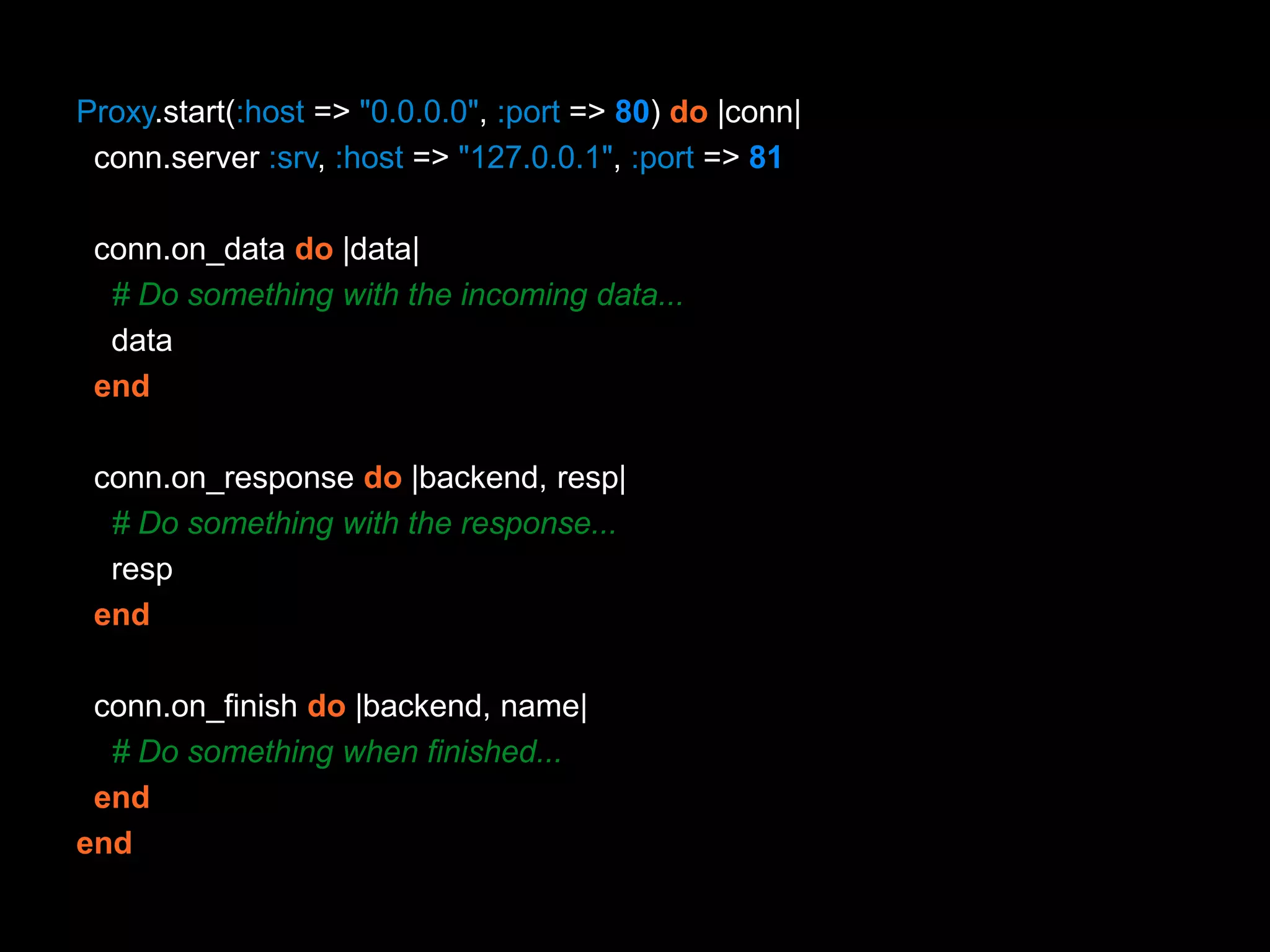

- 25. Proxy.start(:host => "0.0.0.0", :port => 80) do |conn| conn.server :srv, :host => "127.0.0.1", :port => 81 conn.on_data do |data| # Do something with the incoming data... data end conn.on_response do |backend, resp| # Do something with the response... resp end conn.on_finish do |backend, name| # Do something when finished... end end

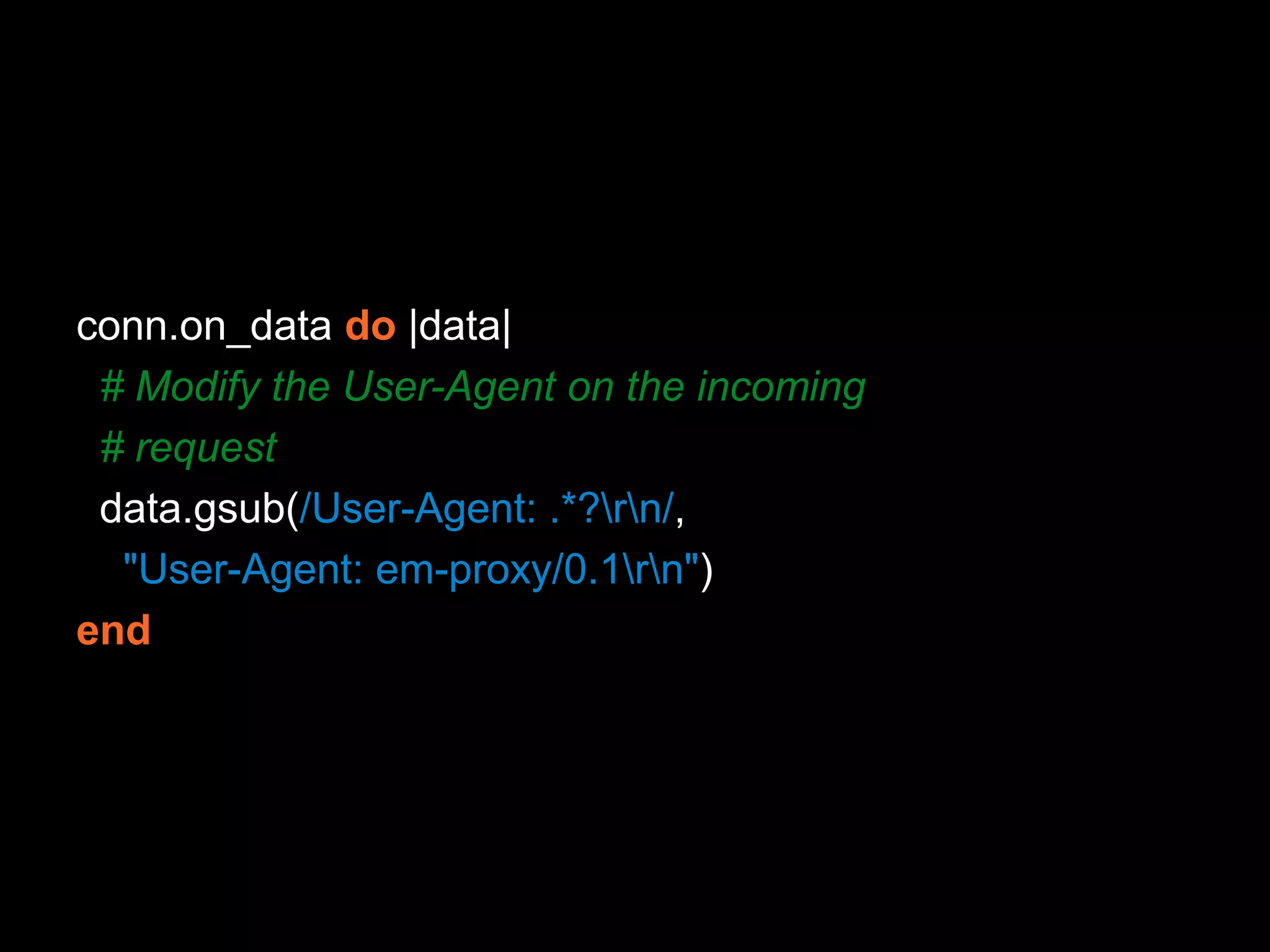

- 26. conn.on_data do |data| # Modify the User-Agent on the incoming # request data.gsub(/User-Agent: .*?rn/, "User-Agent: em-proxy/0.1rn") end

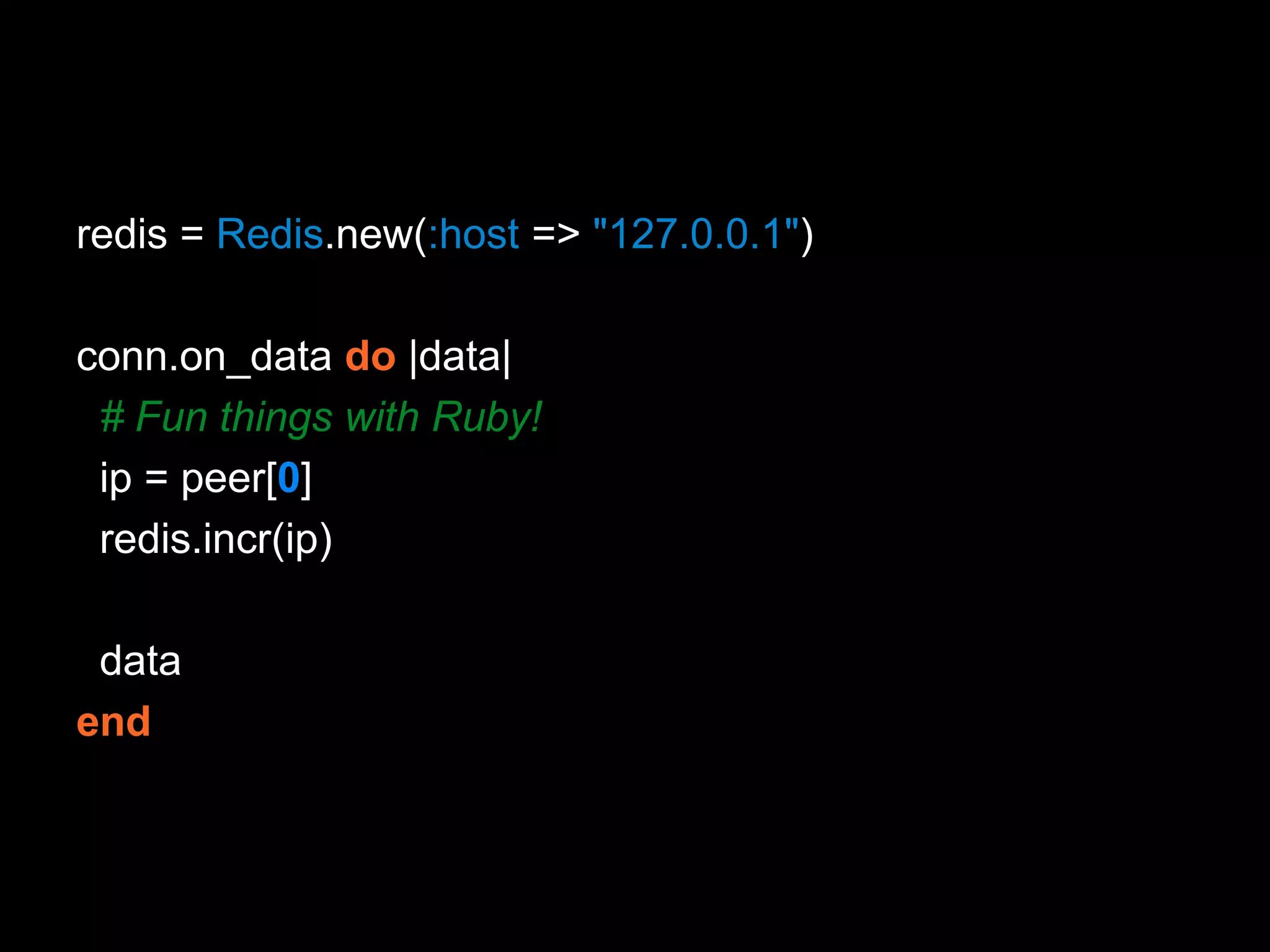

- 27. redis = Redis.new(:host => "127.0.0.1") conn.on_data do |data| # Fun things with Ruby! ip = peer[0] redis.incr(ip) data end

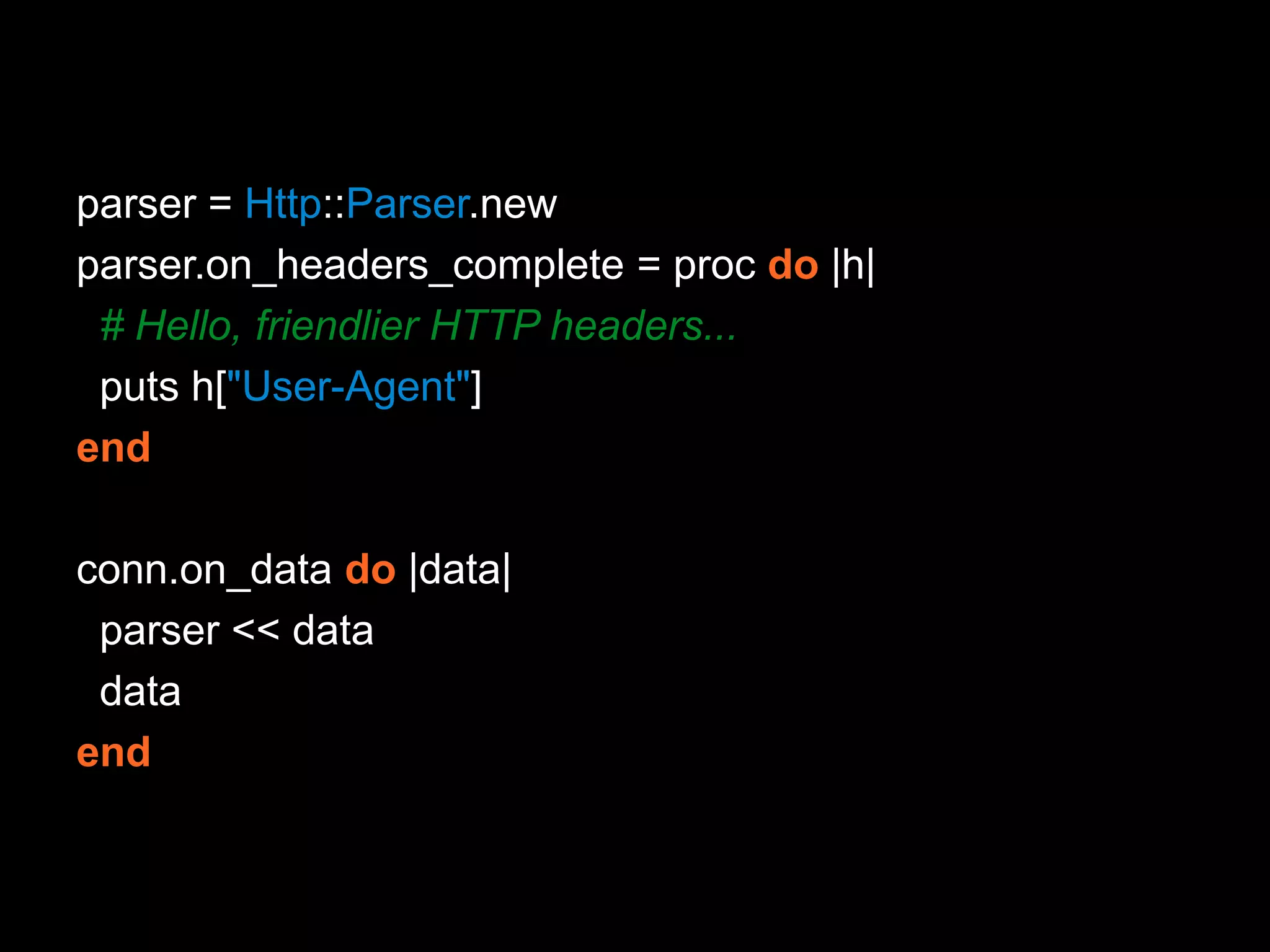

- 28. parser = Http::Parser.new parser.on_headers_complete = proc do |h| # Hello, friendlier HTTP headers... puts h["User-Agent"] end conn.on_data do |data| parser << data data end
- 29. Photo by Madison Guy http://www.flickr.com/photos/madison_guy/338691904
- 30. Transparency Photo by Brett Jordan http://www.flickr.com/photos/x1brett/6126873518
- 31. Speed & Efficiency Photo by jamesjustin http://www.flickr.com/photos/jamesjustin/3629097108

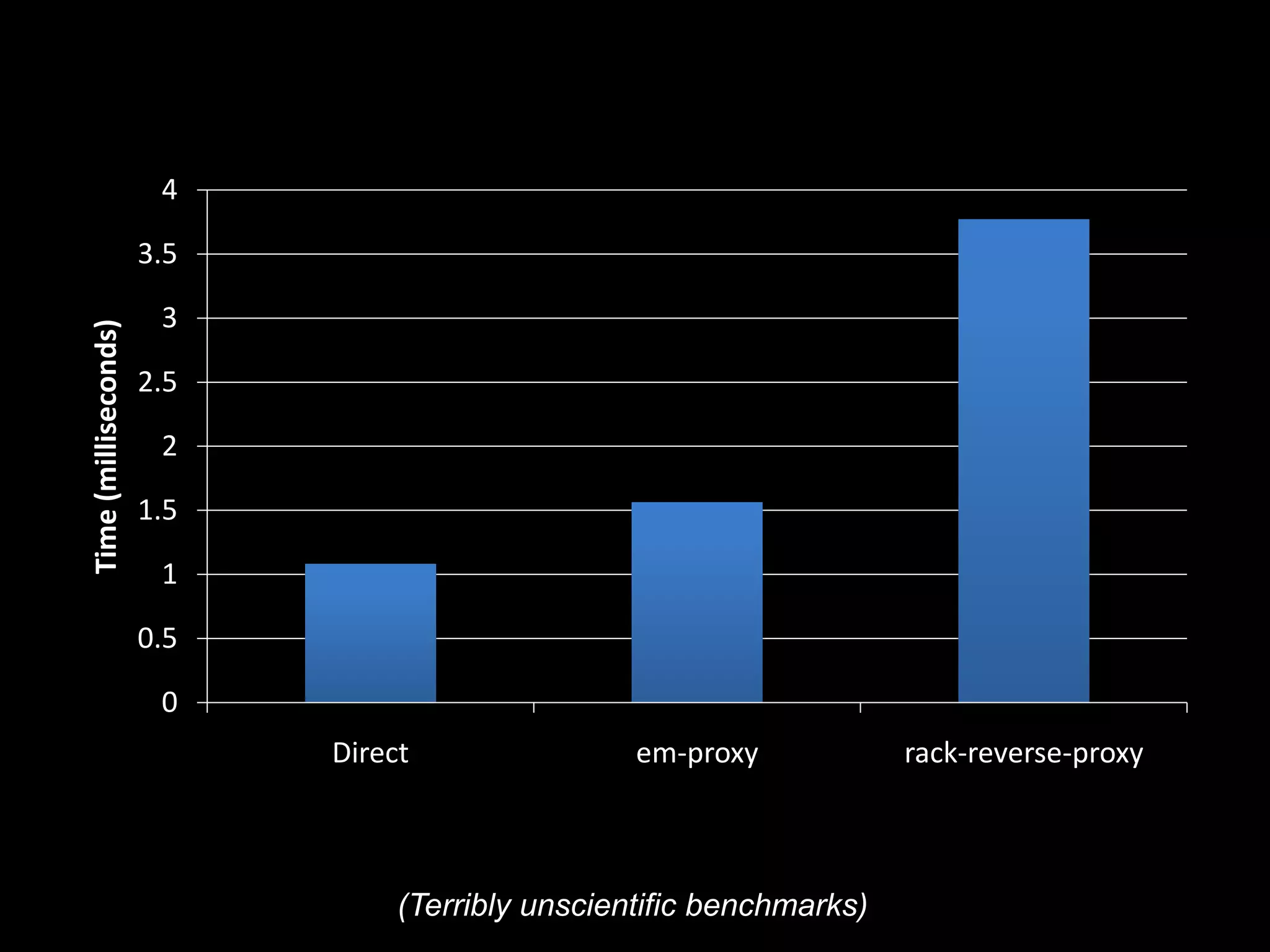

- 32. 4 3.5 3 Time (milliseconds) 2.5 2 1.5 1 0.5 0 Direct em-proxy rack-reverse-proxy (Terribly unscientific benchmarks)

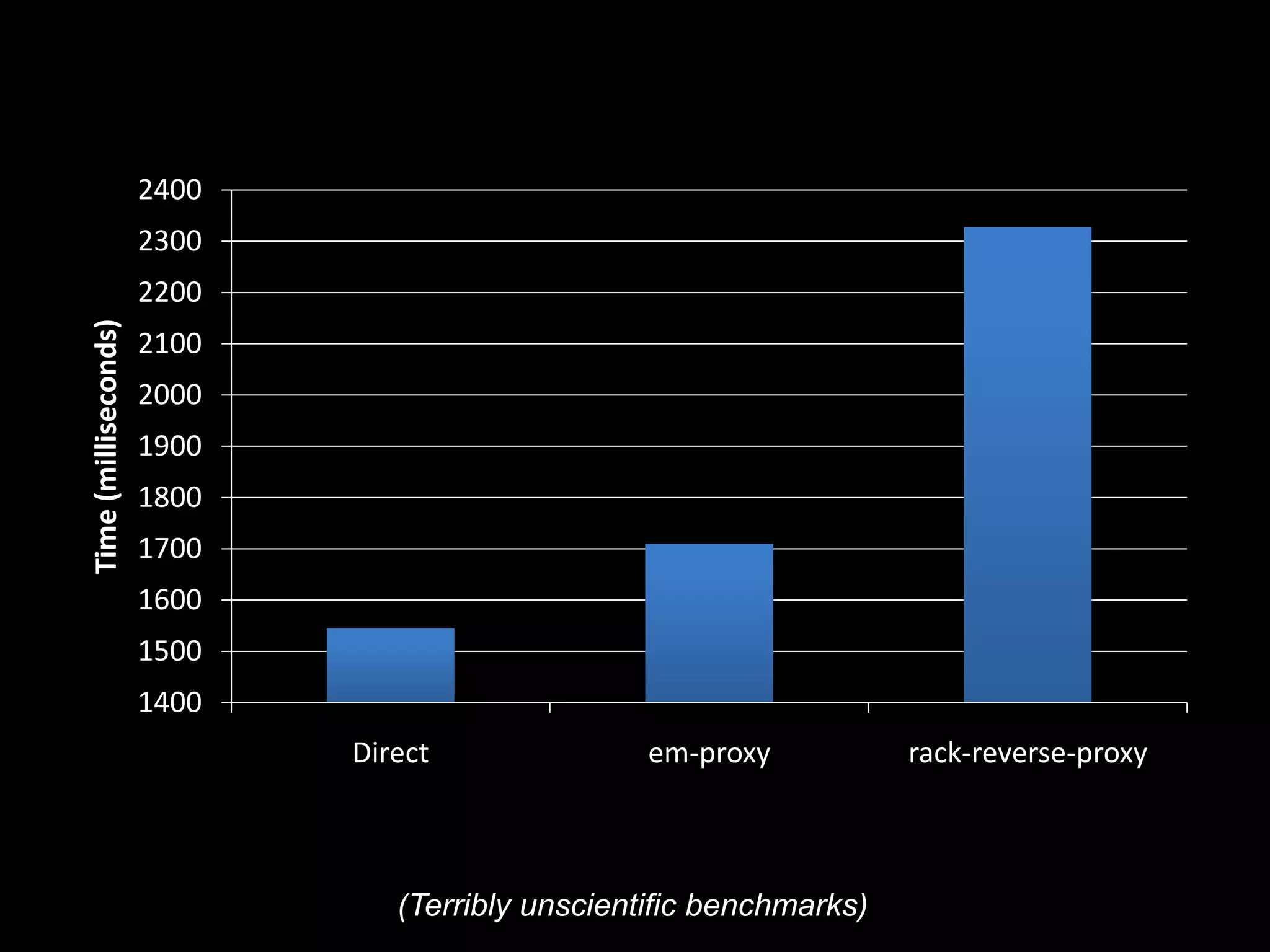

- 33. 2400 2300 2200 Time (milliseconds) 2100 2000 1900 1800 1700 1600 1500 1400 Direct em-proxy rack-reverse-proxy (Terribly unscientific benchmarks)
- 34. Flexibility Photo from The Library of Congress http://www.flickr.com/photos/library_of_congress/217904751
- 35. What Else Can You Do? Photo by paul-simpson.org http://www.flickr.com/photos/paulsimpson1976/4039170901

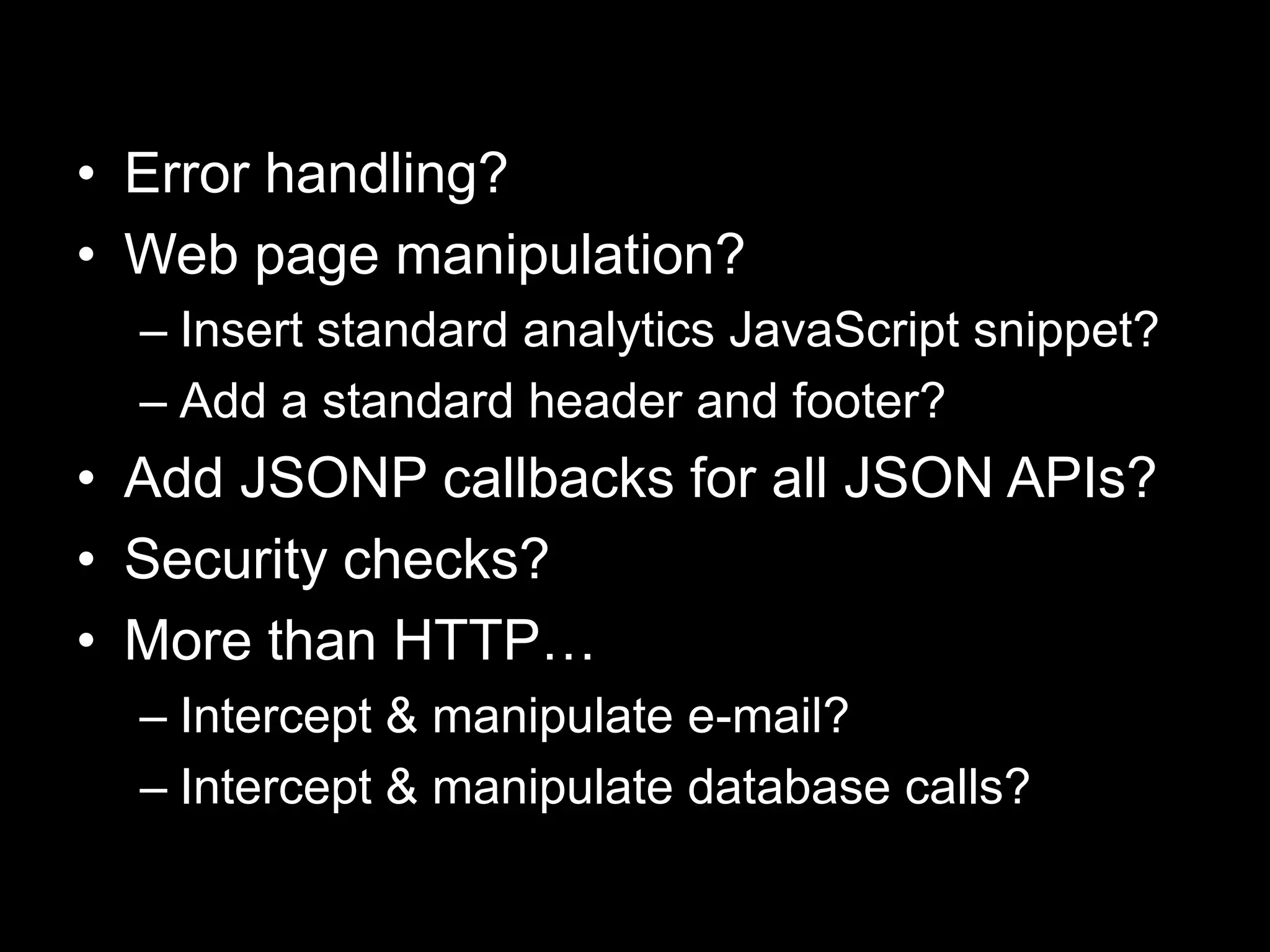

- 36. • Error handling? • Web page manipulation? – Insert standard analytics JavaScript snippet? – Add a standard header and footer? • Add JSONP callbacks for all JSON APIs? • Security checks? • More than HTTP… – Intercept & manipulate e-mail? – Intercept & manipulate database calls?
- 37. Photo by Keoki Seu http://www.flickr.com/photos/keokiseu/497331463
- 38. Buffering Photo from The Library of Congress http://www.flickr.com/photos/library_of_congress/3159321339
- 39. Content-Length Photo by Sterlic http://www.flickr.com/photos/sterlic/4299633060
- 40. gzip Photo by Kaptain Kobold http://www.flickr.com/photos/kaptainkobold/6930870617
- 41. Want Bigger? Photo by elviskennedy http://www.flickr.com/photos/elviskennedy/546541995

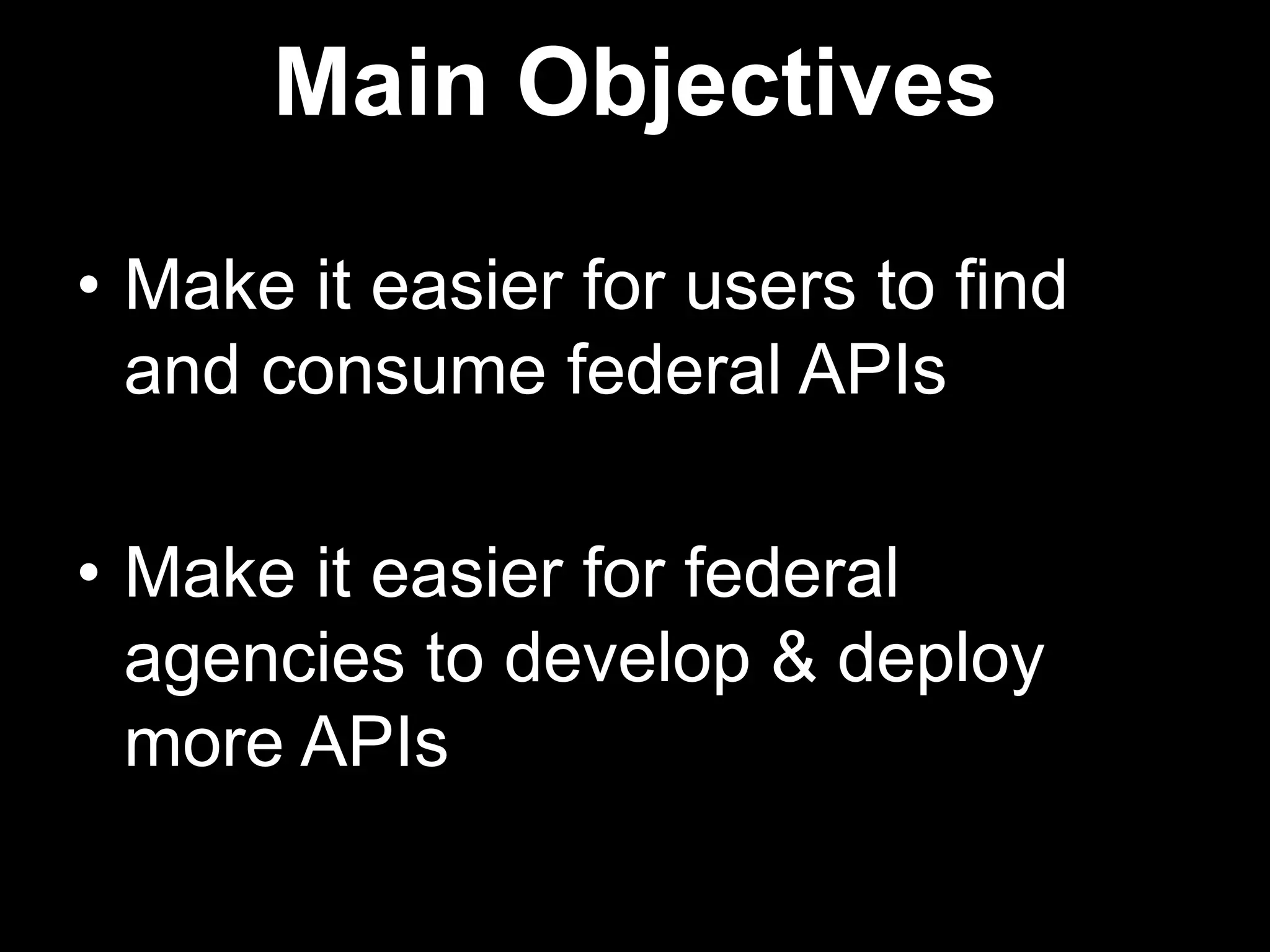

- 44. Main Objectives • Make it easier for users to find and consume federal APIs • Make it easier for federal agencies to develop & deploy more APIs
- 45. Same Problem Photo by alandberning http://www.flickr.com/photos/14617207@N00/487211147

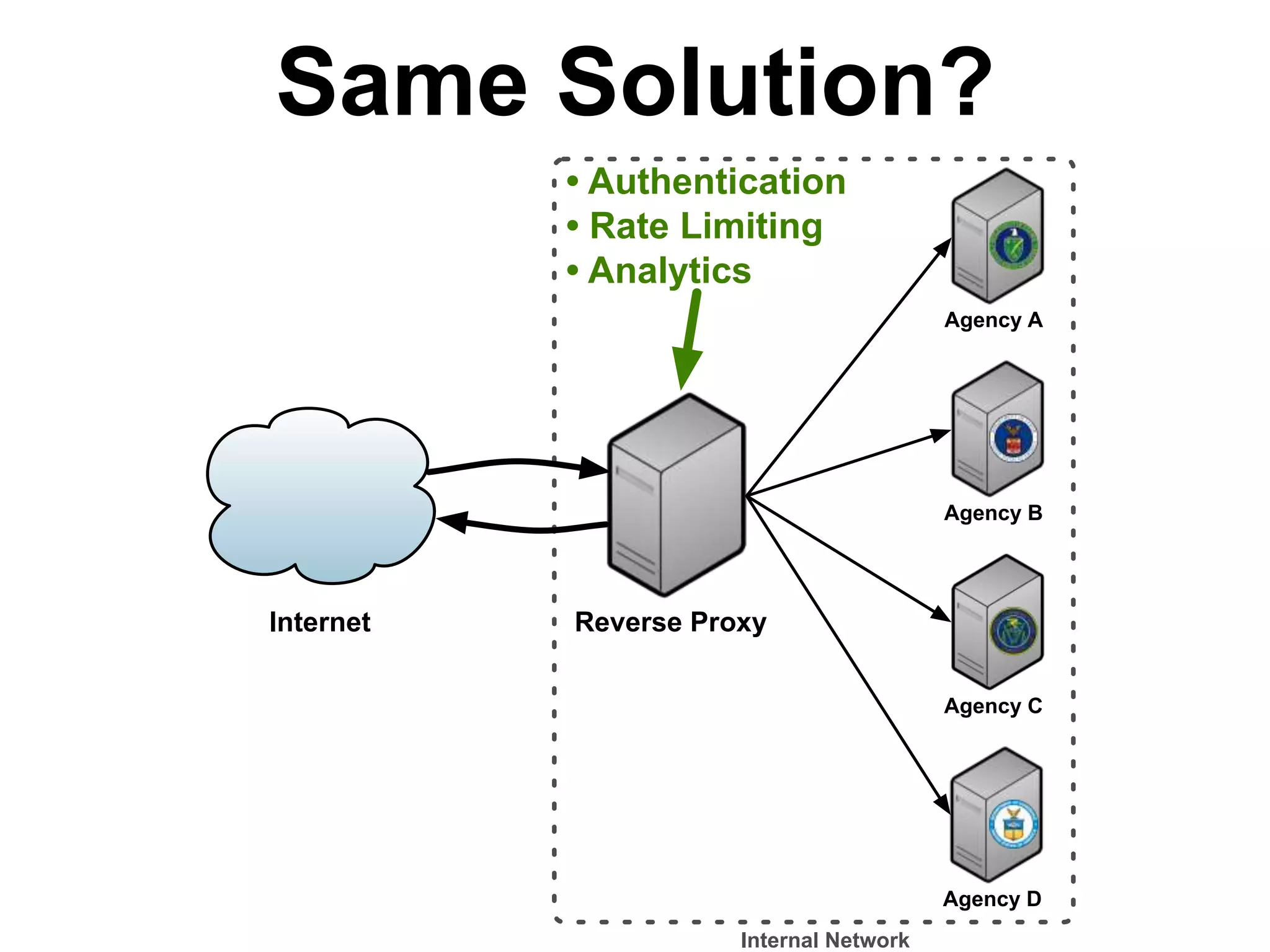

- 46. Same Solution? • Authentication • Rate Limiting • Analytics Agency A Agency B Internet Reverse Proxy Agency C Agency D Internal Network
- 47. Stay Tuned… Photo by Lord Jerome http://www.flickr.com/photos/lordjerome/127381557
- 48. SO………

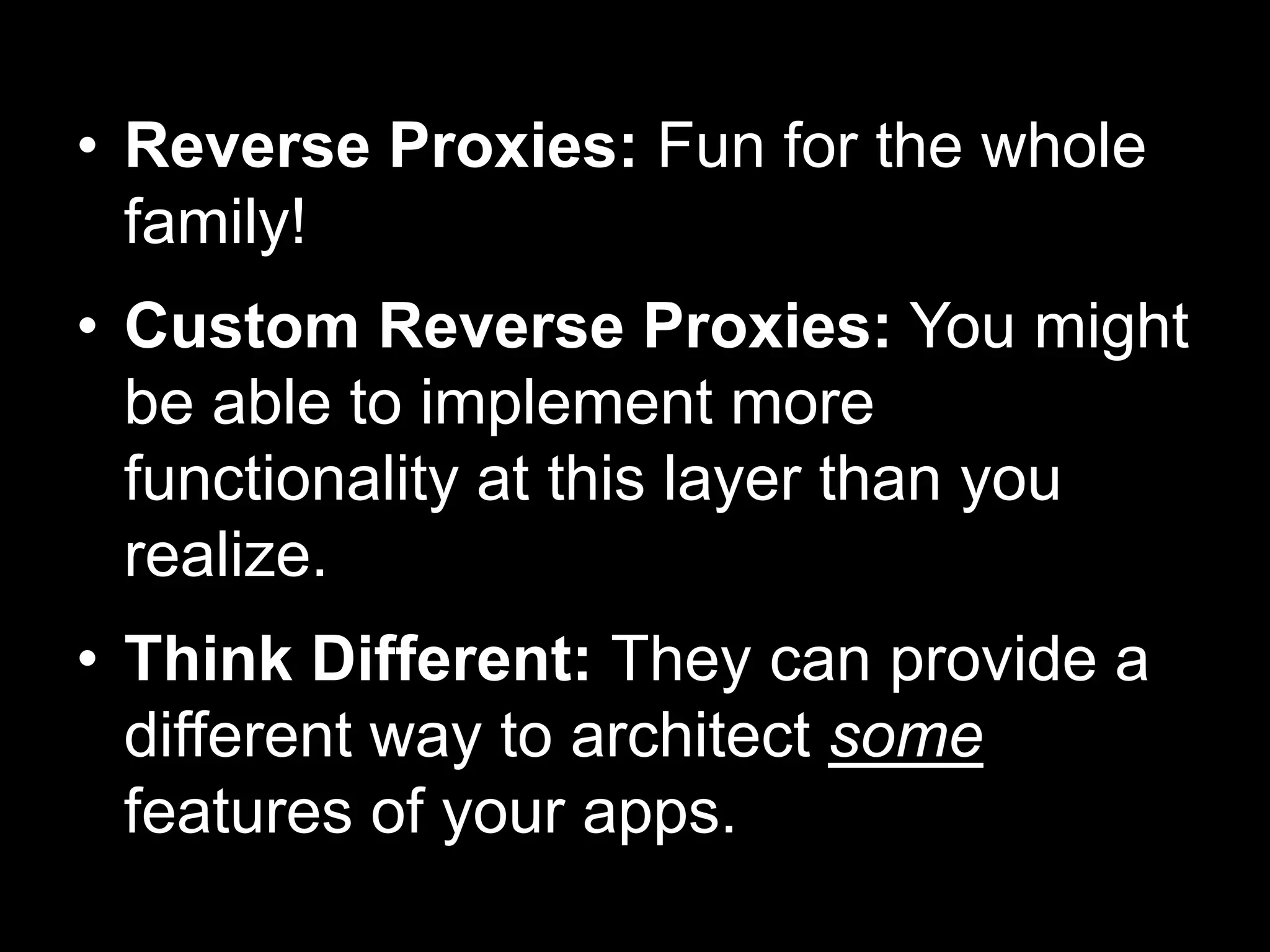

- 50. • Reverse Proxies: Fun for the whole family! • Custom Reverse Proxies: You might be able to implement more functionality at this layer than you realize. • Think Different: They can provide a different way to architect some features of your apps.
- 51. Resources & Support Photo by Musée McCord Museum http://www.flickr.com/photos/museemccordmuseum/5348751435

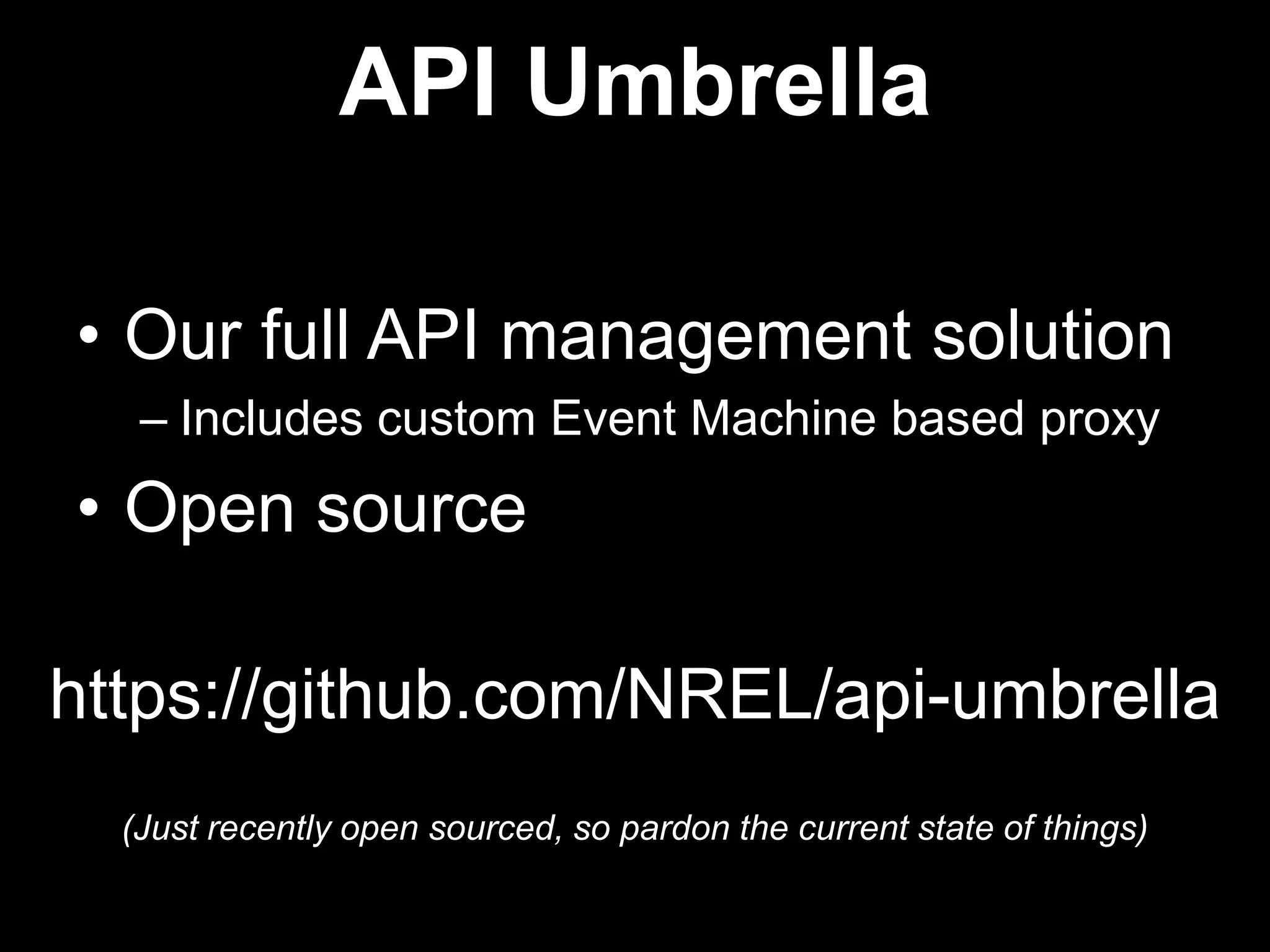

- 52. API Umbrella • Our full API management solution – Includes custom Event Machine based proxy • Open source https://github.com/NREL/api-umbrella (Just recently open sourced, so pardon the current state of things)

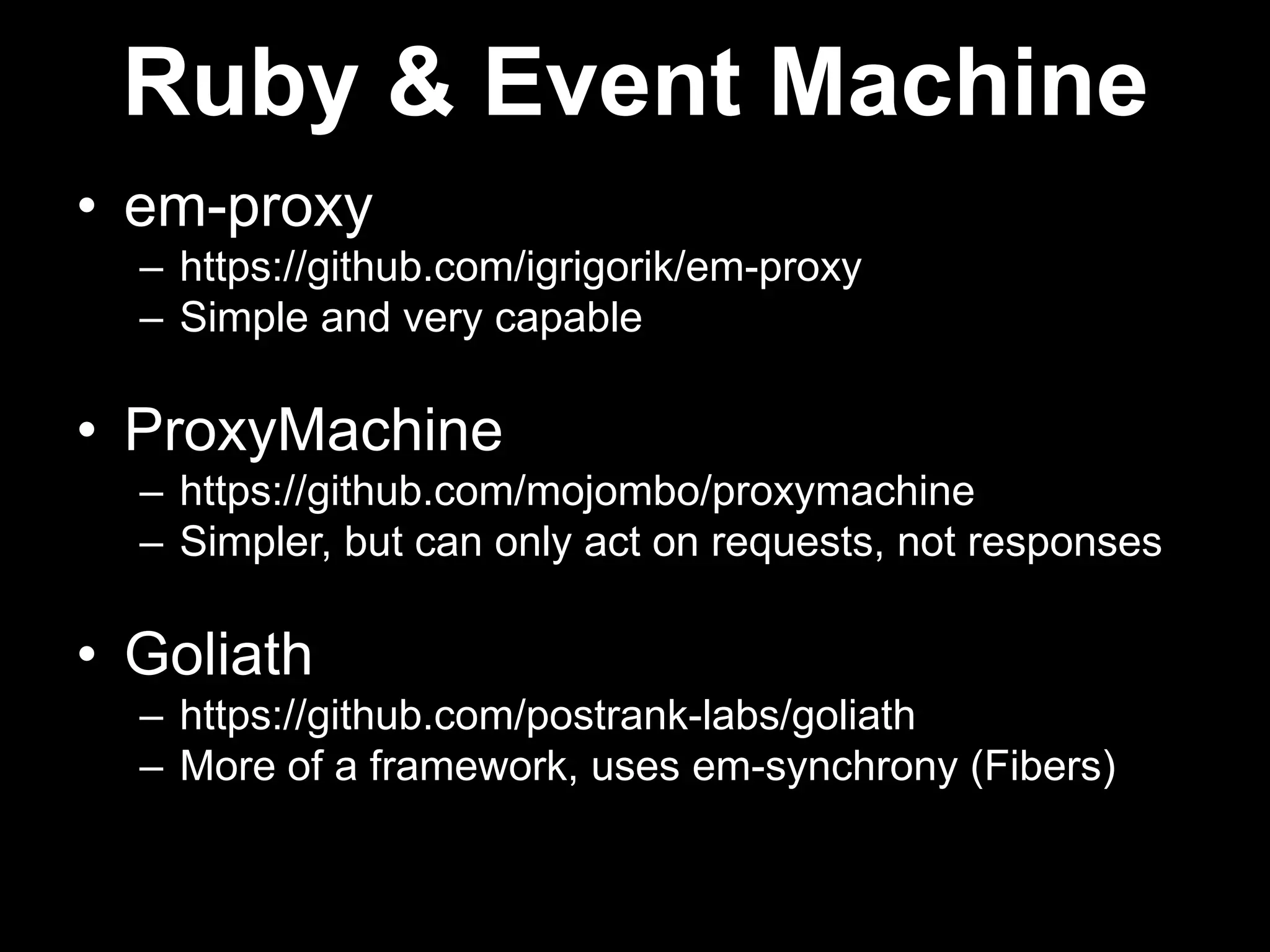

- 53. Ruby & Event Machine • em-proxy – https://github.com/igrigorik/em-proxy – Simple and very capable • ProxyMachine – https://github.com/mojombo/proxymachine – Simpler, but can only act on requests, not responses • Goliath – https://github.com/postrank-labs/goliath – More of a framework, uses em-synchrony (Fibers)

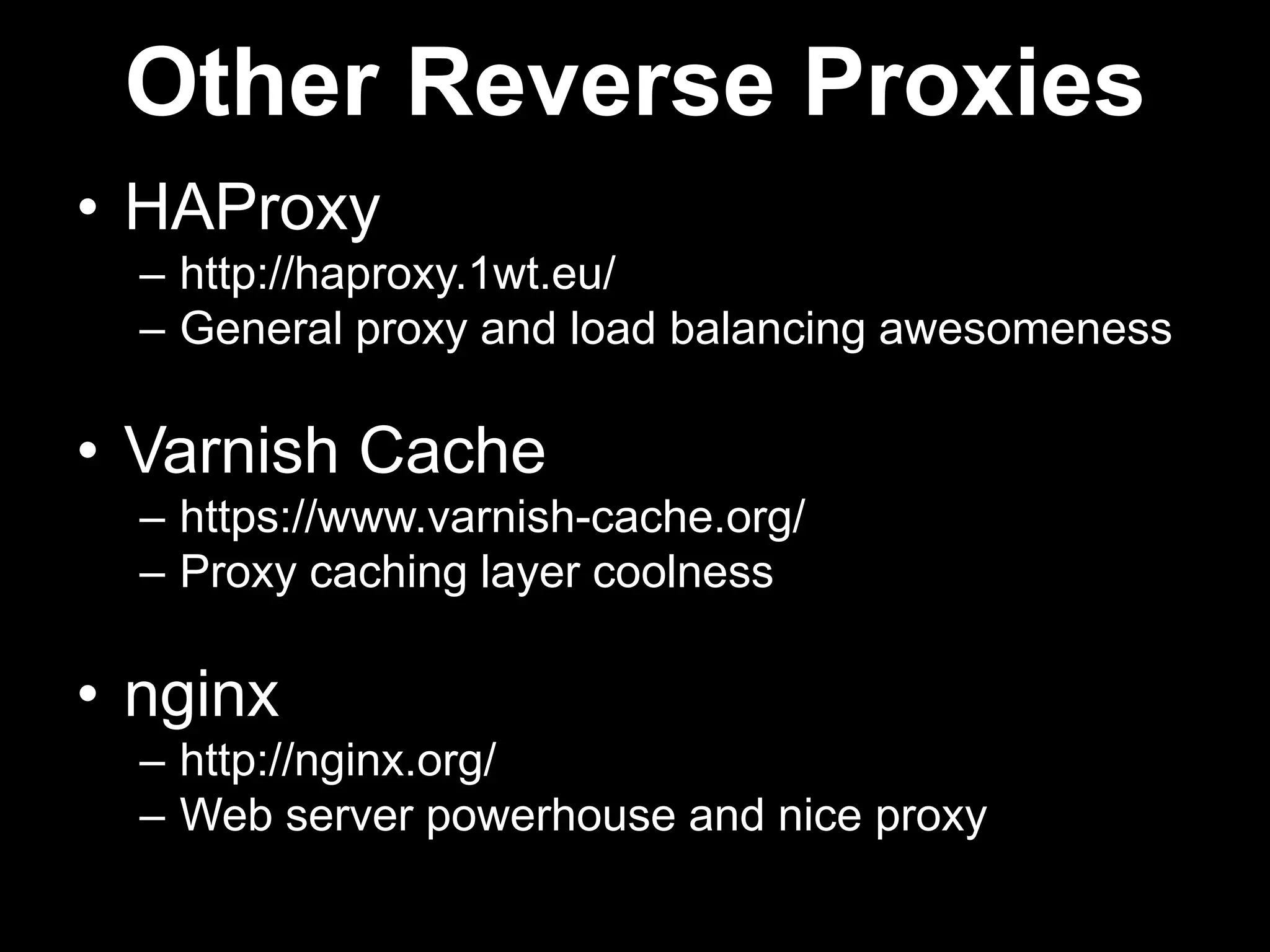

- 54. Other Reverse Proxies • HAProxy – http://haproxy.1wt.eu/ – General proxy and load balancing awesomeness • Varnish Cache – https://www.varnish-cache.org/ – Proxy caching layer coolness • nginx – http://nginx.org/ – Web server powerhouse and nice proxy

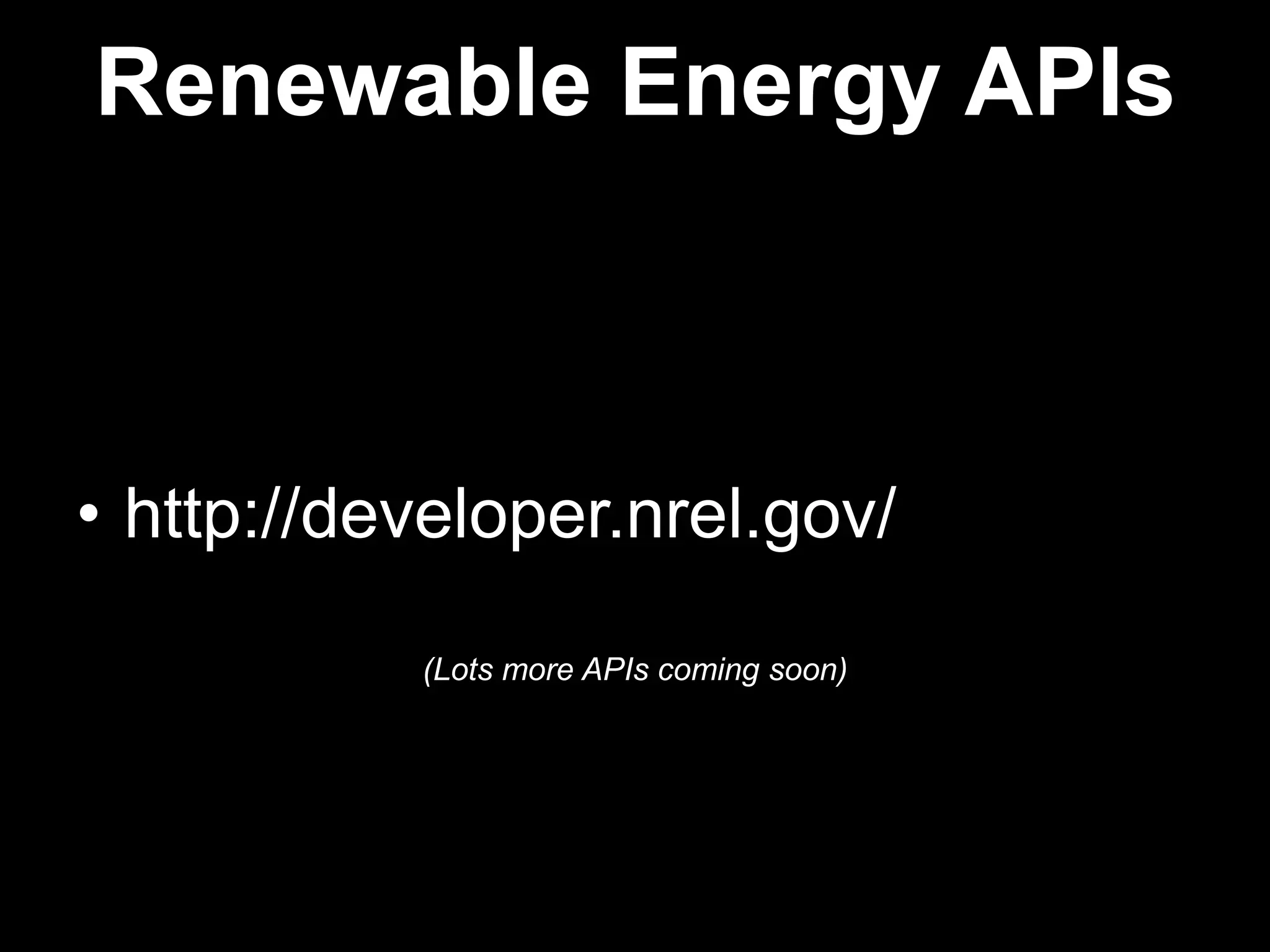

- 55. Renewable Energy APIs • http://developer.nrel.gov/ (Lots more APIs coming soon)
- 57. nick.muerdter@nrel.gov @nickblah Enjoyed this presentation? Enjoyed this ‘stache? Enjoy charity? http://bit.ly/rubystache
Editor's Notes
- Sits in front of your serverDoes stuff, but is transparent to the user
- Common usage in Ruby communityNginx’s role:Serve static filesDeal with slow clients
- You can implement your own reverse proxyWrite it in Ruby and implement your own features
- Why we’re using custom reverse proxiesWhy you might find them usefulThe basics of building one
- About web servicesWanted to expose them to the world
- About silosNot agriculture, organizationalAlso systematic (legacy apps, etc)
- NREL~2000 employeesDifferent development teams scattered across lab

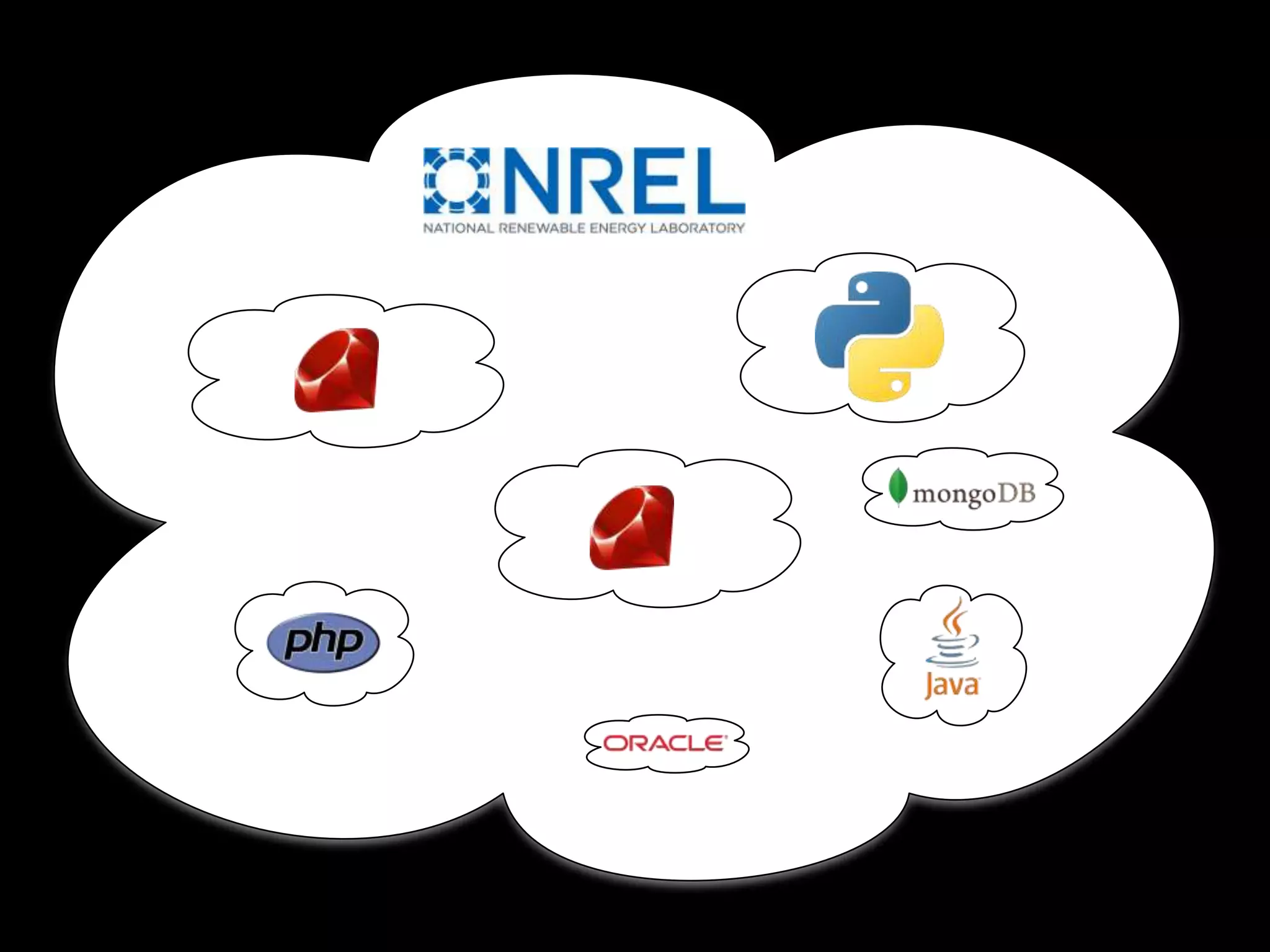

- Another way to look at the segmentationDifferent groups have expertise in different languagesEven in smaller business, you might deal with segmentation
- Trying to force all groups to make changes is a huge uphill battleAlso time consuming
- Custom reverse proxy slips between the internet and our existing API serversProxy deals with common functionalityExisting APIs don’t changeExisting APIs can now just assume that those things are taken care of.Proxy is agnostic to backend technology
- All our APIs are in one place and can be accessed in the same way.Users don’t need to understand our internal group structure to know where to find APIs.
- Our API developers don’t need to worry about any of the high level functionalityAPIs simply need to exist for them to be put behind the proxy
- Lot’s of other ways to achieve some of these goals, but nice benefits to the reverse proxy:Reduced code: Individual APIs don’t have to implement any code. With other solutions, even if you simplified and abstracted the code, having to do nothing wins.Enforced standardization: Individual apps can’t mess up things like authentication with a faulty implementation.New features: Everyone benefits. Example: Adding caching layer.Scaling: Load balancing between multiple backends.
- - Basicem-proxy example
- Doing something as data is receivedNote:You’re operating at a raw HTTP level here.You’re dealing with chunks of data, so you can’t assume you have the full request body.
- It’s Ruby!This is the real power: access any arbitrary Ruby library and do custom things.
- Remember you’re operating at a TCP level hereIf you want to deal with HTTP in an easy way, you’ll need to handle that manually.Other libraries to deal with HTTP.
- Why do things at this low level when we’re used to nice high level frameworks like Rails and Sinatra?
- Low level proxy makes it much easier to pass along the original request in it’s complete, unaltered format (headers, HTTP method, body, etc).With higher level frameworks, the raw HTTP request has already been parsed and processed by a web server by the time it hits your app.More difficult and error prone trying to recreate the original request.
- EventMachine is fast.Evented systems very suitable for proxies
- em-proxy adds 0.5msrack-reverse-proxy adds nearly 3msComparatively a lot, but is 3ms really worth it?
- Larger requests, the problem is compounded.em-proxy adds 150msrack-reverse-proxy adds nearly 800msWhy?Rack deals with complete request and complete response.Must buffer complete request and response in memory before transferring them.Memory balloons with large file uploads and downloads.em-proxy deals with chunks of data.Streams requests and response as fast as it receives them.Memory use much lower for large file uploads and downloads, since only a single chunk is in memory at a time.
- Low level by default, up to you to implement more.You make decisions like whether to buffer requests and responsesCan be used for non-HTTP things (websockets, any other TCP thing)
- - Aside from authentication, rate limiting, and analytics
- Imagine a 1GB file upload and 5GB data downloadIf your proxy layer buffers, there will be delays. Streaming to the server and to the client won’t be possible.Buffering is sometimes desirable (Unicorn & nginx).Other times not. Our API use case means we want the proxy to be as transparent as possible, since we don’t know what all the APIs will want to do.
- If you want to modify the response body, it can be a little tricky.Be sure to update the Content-Length header appropriately.
- If you want to modify the response body, and the backend returns a gzipped response.You must buffer the responseDecompress after fully received, then modify the body, then re-gzip.Be sure to update the Content-Length header too.
- Digital Strategy for the Federal GovernmentInvolved in the API portion of things.
- Heavy push for web servicesExpect to see a lot more federal agencies exposing their data and services as web APIs.
- With more APIs, we need better organization.We also need to make it easier for agencies.
- APIs spread across agencies.Just a bigger version of our internal issues.
- Agencies like this model and want something like itCurrently evaluating using our API Umbrella platform, or other platforms that are variations on the same idea.Involved in getting something up and running within 6 months.
- Lots of web service action in the federal government over the next year.
- Not appropriate for everythingCan be useful for applying global features that can easily be layered
- Custom reverse proxy does fun thingsRedis used for rate limitingMongDB for authentication and analytics
