Roll To Roll Sublimation Printing Machine
The document describes a roll-to-roll sublimation printing machine designed for large products, achieving a printing speed of 2.5-3 meters per minute at a size of 380x1700mm. It highlights features such as an imported DuPont blanket, precision-engineered components for temperature control, and an automatic separation of the blanket to extend its life. The machine also includes a conveyor belt for enhanced efficiency in the heat transfer process.
More Related Content
Similar to Roll To Roll Sublimation Printing Machine
More from Fei Yue Paper Industrial Co.,Ltd.
Roll To Roll Sublimation Printing Machine
- 1.
- 2. Roll to RollSublimation Printing Machine special design for those large but roll products, such as fabric, textile, curtain,mouse pad, etc sublimation by oil roller drum heating, roller drum and fabrics should be same speed. our this size 380x1700mm printing speed can reach 2.5-3 meter per minute.

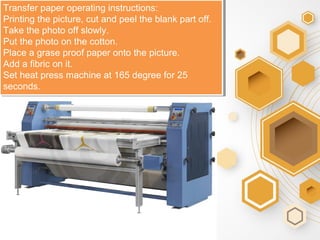

- 3. Transfer paper operatinginstructions: Printing the picture, cut and peel the blank part off. Take the photo off slowly. Put the photo on the cotton. Place a grase proof paper onto the picture. Add a fibric on it. Set heat press machine at 165 degree for 25 seconds.

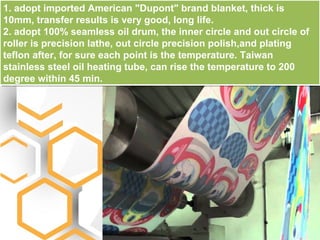

- 4. 1. adopt importedAmerican "Dupont" brand blanket, thick is 10mm, transfer results is very good, long life. 2. adopt 100% seamless oil drum, the inner circle and out circle of roller is precision lathe, out circle precision polish,and plating teflon after, for sure each point is the temperature. Taiwan stainless steel oil heating tube, can rise the temperature to 200 degree within 45 min.

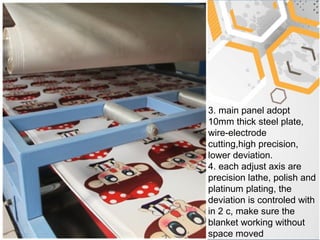

- 5. 3. main paneladopt 10mm thick steel plate, wire-electrode cutting,high precision, lower deviation. 4. each adjust axis are precision lathe, polish and platinum plating, the deviation is controled with in 2 c, make sure the blanket working without space moved
- 6. 5. electric control:high quality temperature and time digital display, more accuraty.
- 7. 6. imported speed controlfrequency conversion motor, can adjust the speed according to different material. 7. carbon brush conductive heating, conductive performace is more stable and safty.. 8. blanket automatic separation: when power cut or shut down, blanket automatically separted with roller, which can much more protect the blanket, extend its life.
- 8. 9. conveyor belttransmission function: after the product been heat transfer, through the conveyor belt to the behind the working plane, much more save labor, high working efficiency.
