The xl1700 electric laminator is a versatile cold and hot laminator with a maximum width of 1700mm and material thickness of up to 30mm, capable of reaching temperatures up to 120°C. It features a user-friendly design with a take-up system, footswitch feeding for hands-free operation, and safety measures like a photocell sensor and emergency shutdown button. This efficient machine enhances the quality of graphics with improved saturation and color performance while ensuring no creases or bubbles during lamination at speeds of up to 8m/min.

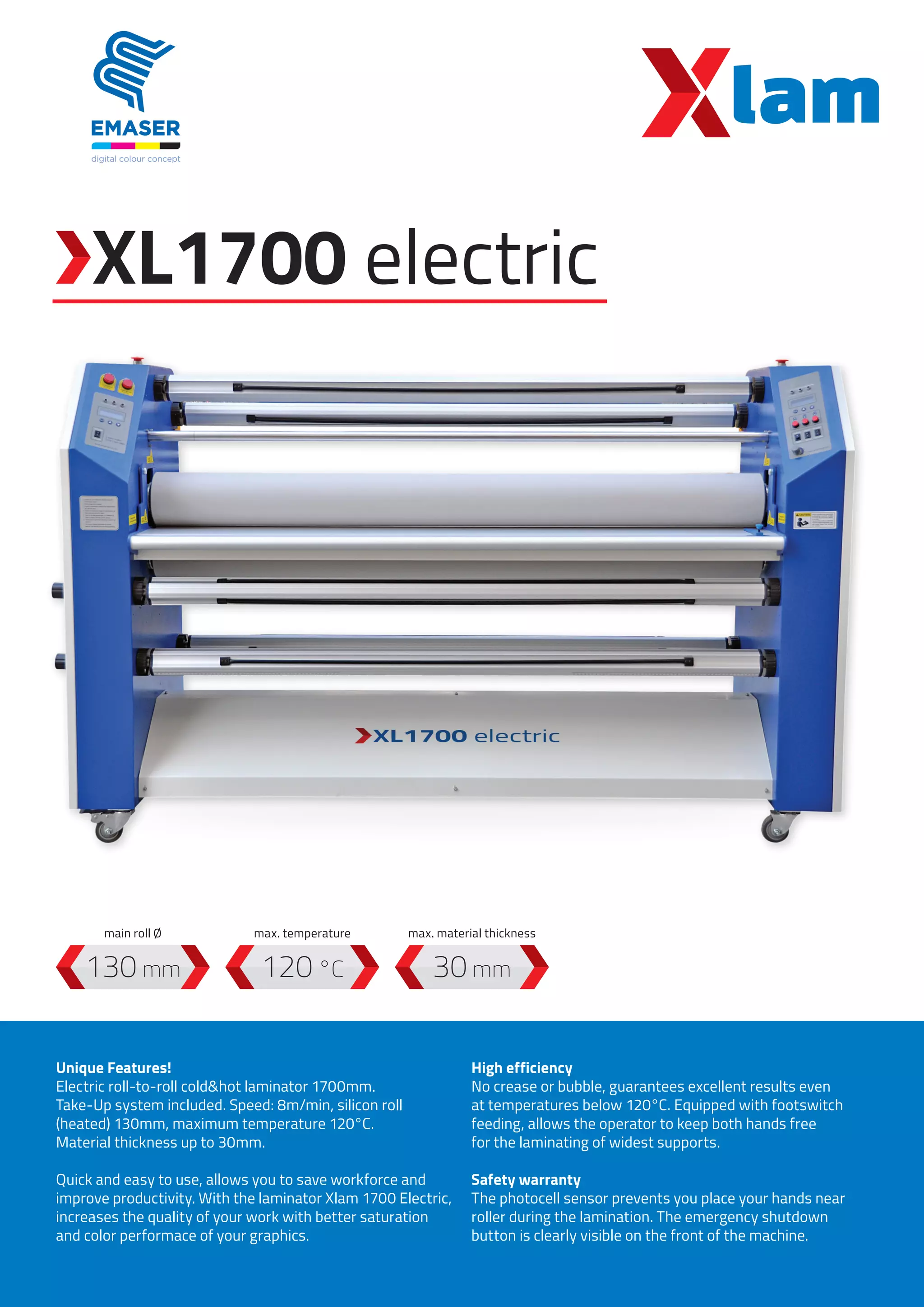

1. XL1700 electric
120 °C130 mm 30 mm
Unique Features!
Electric roll-to-roll cold&hot laminator 1700mm.
Take-Up system included. Speed: 8m/min, silicon roll
(heated) 130mm, maximum temperature 120°C.
Material thickness up to 30mm.
Quick and easy to use, allows you to save workforce and
improve productivity. With the laminator Xlam 1700 Electric,
increases the quality of your work with better saturation
and color performace of your graphics.
High efficiency
No crease or bubble, guarantees excellent results even
at temperatures below 120°C. Equipped with footswitch
feeding, allows the operator to keep both hands free
for the laminating of widest supports.
Safety warranty
The photocell sensor prevents you place your hands near
roller during the lamination. The emergency shutdown
button is clearly visible on the front of the machine.
max. temperaturemain roll Ø max. material thickness

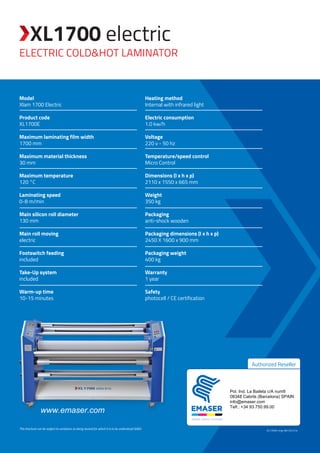

2. Electric cold&hot laminator
XL1700 electric
XL1700E-eng-AB-031214
www.emaser.com
Authorized Reseller
This brochure can be subject to variations as being revised for which it is to be understood SE&O.
Model
Xlam 1700 Electric
Product code
XL1700E
Maximum laminating film width
1700 mm
Maximum material thickness
30 mm
Maximum temperature
120 °C
Laminating speed
0-8 m/min
Main silicon roll diameter
130 mm
Main roll moving
electric
Footswitch feeding
included
Take-Up system
included
Warm-up time
10-15 minutes
Heating method
Internal with infrared light
Electric consumption
1.0 kw/h
Voltage
220 v - 50 hz
Temperature/speed control
Micro Control
Dimensions (l x h x p)
2110 x 1550 x 665 mm
Weight
350 kg
Packaging
anti-shock wooden
Packaging dimensions (l x h x p)
2450 X 1600 x 900 mm
Packaging weight
400 kg
Warranty
1 year
Safety
photocell / CE certification
Pol. Ind. La Baileta c/A num9
08348 Cabrils (Barcelona) SPAIN
info@emaser.com
Telf.: +34 93.750.99.00
