1. Welcome to
The session will start shortly…
Presenter: Richard Chin

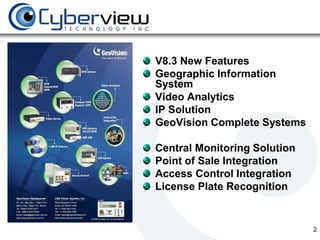

2. V8.3 New Features
Geographic Information
System
Video Analytics
IP Solution
GeoVision Complete Systems
Central Monitoring Solution
Point of Sale Integration
Access Control Integration
License Plate Recognition
2

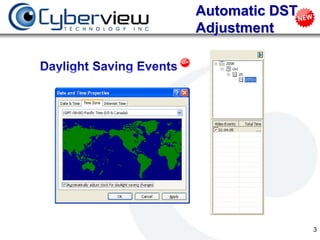

3. Automatic DST
Adjustment
3

4. 32 Video/Audio
Channels
4

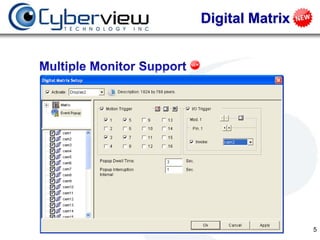

5. Digital Matrix
5

6. Viewlog
6

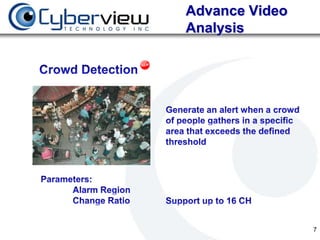

7. Advance Video
Analysis
7

8. Advance Video
Analysis
8

9. PTZ Camera
9

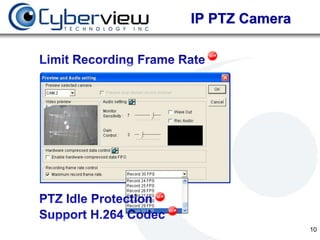

10. IP PTZ Camera
10

11. I/O
11

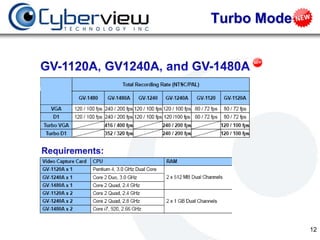

12. Turbo Mode
12

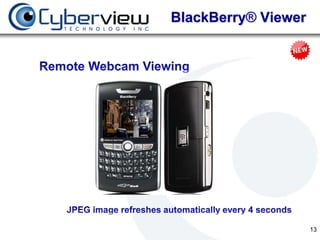

13. BlackBerry® Viewer
13

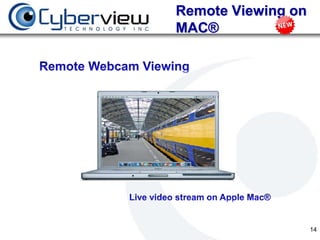

14. Remote Viewing on
MAC®
14

15. GIS
Geographic Information System
15

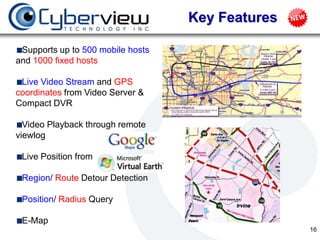

16. Key Features
Supports up to 500 mobile hosts
and 1000 fixed hosts
Live Video Stream and GPS
coordinates from Video Server &
Compact DVR
Video Playback through remote
viewlog
Live Position from
Region/ Route Detour Detection
Position/ Radius Query
E-Map
16

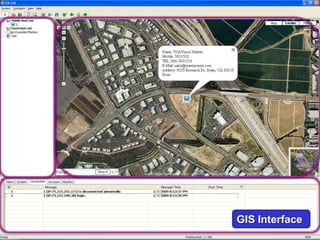

17. GIS Interface
17

18. Custom Markers
18

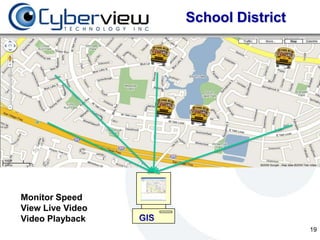

19. School District
Monitor Speed
View Live Video
Video Playback
19

20. Live View & Playback
20

21. Trucking Company
Live Vehicle
Tracking
Route Detour
Detection 21

22. Live Vehicle Tracking
22

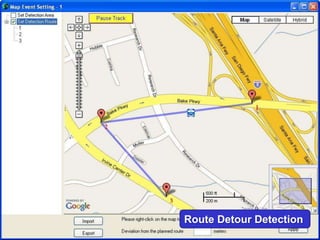

23. Route Detour Detection
23

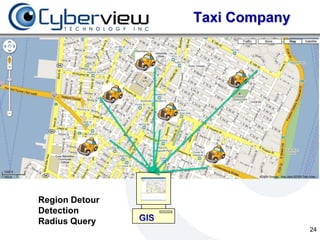

24. Taxi Company
Region Detour
Detection
Radius Query
24

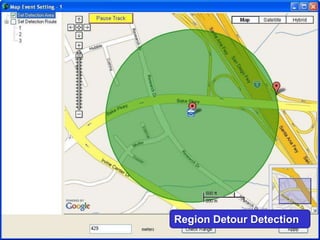

25. Region Detour Detection
25

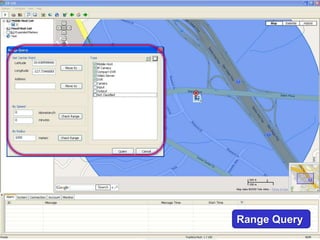

26. Range Query
26

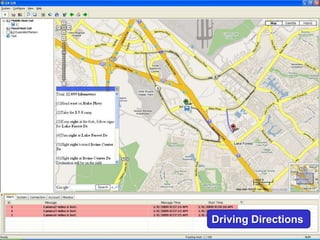

27. Driving Directions
27

28. Architecture
UMTS/3G Wireless Adapter
Transmit global position data and video
streaming to GIS
GIS
Video Server/ Monitor and track multiple vehicles
Compact DVR Live view video, speed and position
GPS Receiver
Transmit and receive global position
data from satellite
28

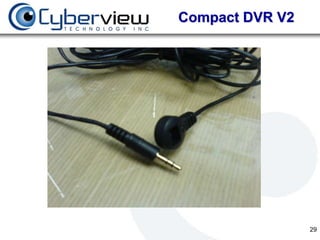

29. Compact DVR V2
29

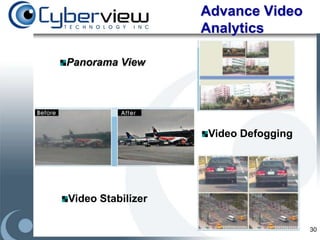

30. Advance Video
Analytics
Panorama View
Video Defogging
Video Stabilizer
30

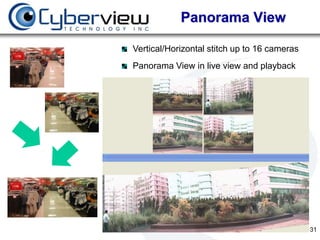

31. Panorama View
Vertical/Horizontal stitch up to 16 cameras
Panorama View in live view and playback
31

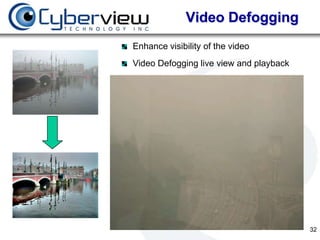

32. Video Defogging
Enhance visibility of the video
Video Defogging live view and playback
32

33. Video Stabilizer
Reduce camera shake
Video Stabilization live view and playback
33

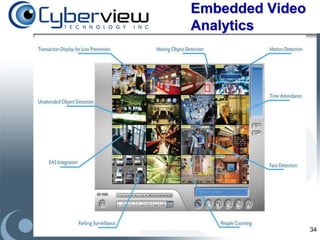

34. Embedded Video
Analytics
Picture in Picture Object Counting
Picture n Picture Privacy Mask
Advanced Motion
Object Index Detection
Face Detection Visual Automation
Scene Change Detection E-Map Monitoring
Intruder Detection
34

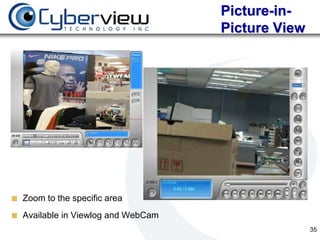

35. Picture-in-
Picture View
Zoom to the specific area
Available in Viewlog and WebCam
35

36. Picture-and-
Picture View
Split up to 7 sub screens
Available in Viewlog and WebCam
36

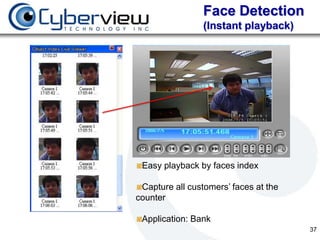

37. Face Detection
(Instant playback)
Easy playback by faces index
Capture all customers’ faces at the
counter
Application: Bank
37

38. 38

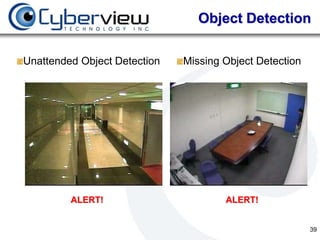

39. Object Detection
Unattended Object Detection Missing Object Detection
ALERT! ALERT!
39

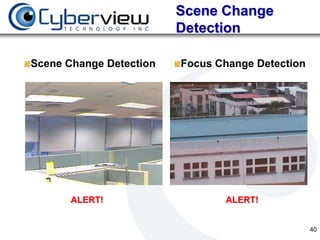

40. Scene Change
Detection
Scene Change Detection Focus Change Detection
ALERT! ALERT!
40

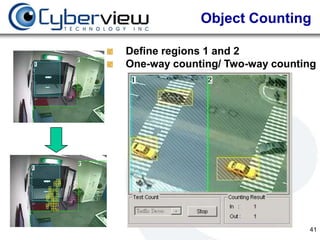

41. Object Counting
Define regions 1 and 2
One-way counting/ Two-way counting
41

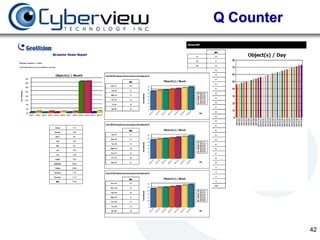

42. Q Counter
42

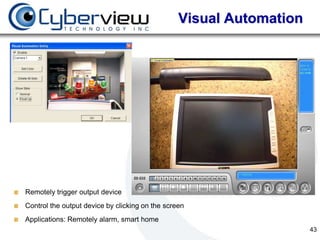

43. Visual Automation
Remotely trigger output device
Control the output device by clicking on the screen
Applications: Remotely alarm, smart home
43

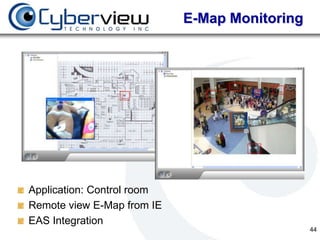

44. E-Map Monitoring
Application: Control room
Remote view E-Map from IE
EAS Integration
44

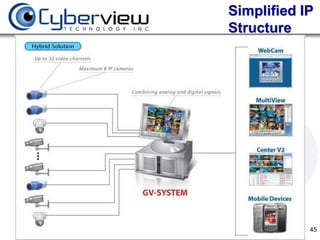

45. Simplified IP
Structure
X unlimited IP cameras
X unlimited NVR servers
Central 45

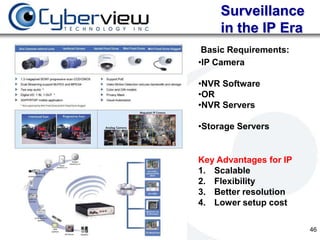

46. Surveillance
in the IP Era
Basic Requirements:
•IP Camera
•NVR Software
•OR
•NVR Servers
•Storage Servers
Key Advantages for IP
1. Scalable
2. Flexibility
3. Better resolution
4. Lower setup cost
46

47. GeoVision IP Camera
More Box Cam New 3rd 1.3M Varifocal Cam added
GV-IP 1.3M
than 40 GV-IP Party IP cameras
GV-IP 1.3M Dome Cam
47

48. New Mini
Dome!
1.3 Mega-pixel CMOS
Support progressive scan
Video Compression：MPEG-4 / Motion JPEG
Video Streaming：
Dual stream
Frame Rate :
Motion JPEG 15fps@1280x960
MPEG-4 30fps@VGA
Support : Two way Audio and one I/O
Supporting PIP & PAP view on Web Interface
Integrate with DVR、NVR、Control Center and
Center V2
48

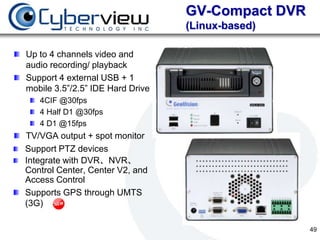

49. GV-Compact DVR
(Linux-based)
Up to 4 channels video and
audio recording/ playback
Support 4 external USB + 1
mobile 3.5”/2.5” IDE Hard Drive
4CIF @30fps
4 Half D1 @30fps
4 D1 @15fps
TV/VGA output + spot monitor
Support PTZ devices
Integrate with DVR、NVR、
Control Center, Center V2, and
Access Control
Supports GPS through UMTS
(3G)
49

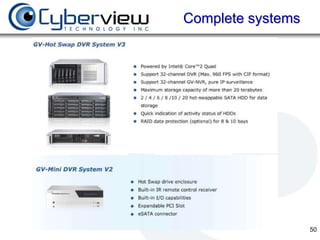

50. Complete systems
50

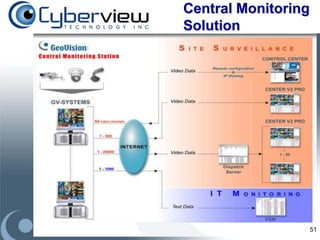

51. Central Monitoring
Solution
51

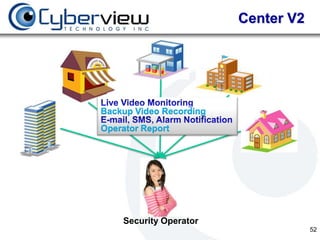

52. Center V2
Backup Video Recording
Operator Report
Security Operator
52

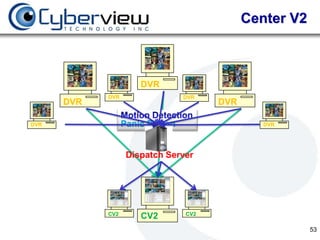

53. Center V2
DVR
DVR DVR
DVR DVR
DVR Panic Button DVR
Dispatch Server
CV2 CV2
CV2
53

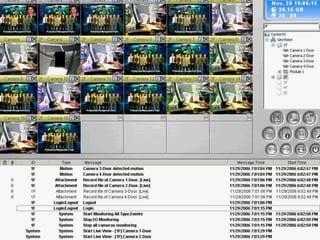

54. Center V2
54

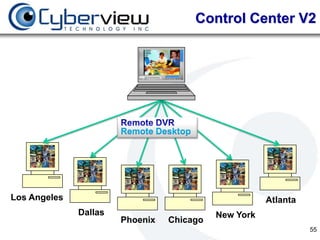

55. Control Center V2
Remote Desktop
Los Angeles Atlanta
Dallas New York
Phoenix Chicago
55

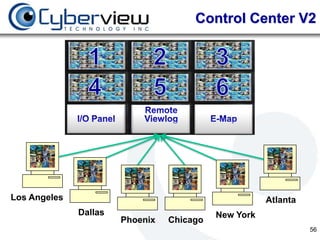

56. Control Center V2
Los Angeles Atlanta
Dallas New York
Phoenix Chicago
56

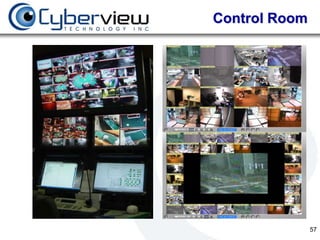

57. Control Room
57

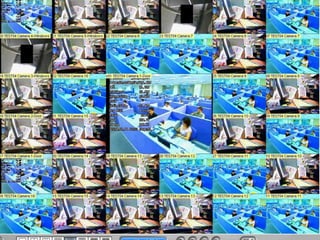

58. Control Center
58

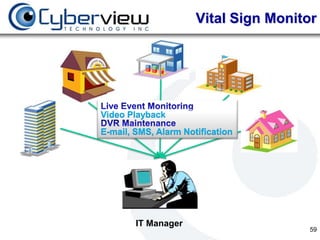

59. Vital Sign Monitor
Video Playback
E-mail, SMS, Alarm Notification
IT Manager
59

60. Vital Sign Monitor
60

61. 61

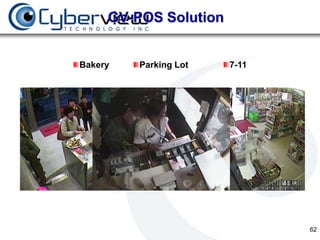

62. GV-POS Solution
Bakery Parking Lot 7-11
62

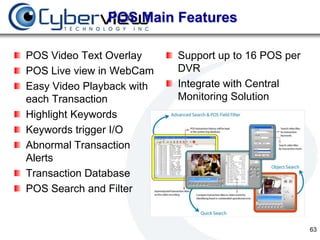

63. POS Main Features
POS Video Text Overlay Support up to 16 POS per
POS Live view in WebCam DVR
Easy Video Playback with Integrate with Central
each Transaction Monitoring Solution
Highlight Keywords
Keywords trigger I/O
Abnormal Transaction
Alerts
Transaction Database
POS Search and Filter
63

64. POS Keywords Highlight
64

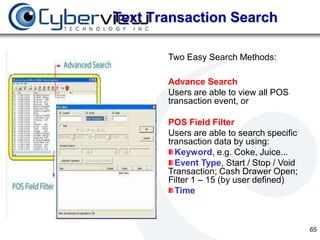

65. Text Transaction Search
Two Easy Search Methods:
Advance Search
Users are able to view all POS
transaction event, or
POS Field Filter
Users are able to search specific
transaction data by using:
Keyword, e.g. Coke, Juice...
Event Type, Start / Stop / Void
Transaction; Cash Drawer Open;
Filter 1 – 15 (by user defined)
Time
65

66. Traditional POS Structure
Before..
Serial (RS-232)
Parallel
After…
RS-232 Data RS-232
Capture
Parallel Box Parallel
RS-232 / RS-485 / Ethernet
GV-DVR
66

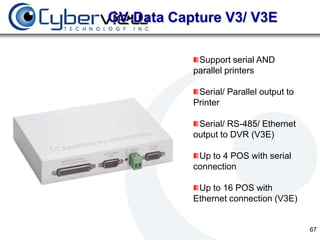

67. GV-Data Capture V3/ V3E
Support serial AND
parallel printers
Serial/ Parallel output to
Printer
Serial/ RS-485/ Ethernet
output to DVR (V3E)
Up to 4 POS with serial
connection
Up to 16 POS with
Ethernet connection (V3E)
67

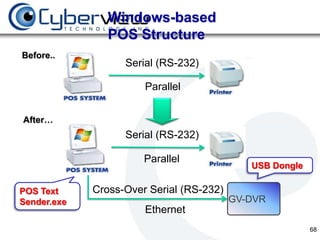

68. Windows-based
POS Structure
Before..
Serial (RS-232)
Parallel
After…
Serial (RS-232)
Parallel
USB Dongle
POS Text Cross-Over Serial (RS-232)
Sender.exe GV-DVR
Ethernet
68

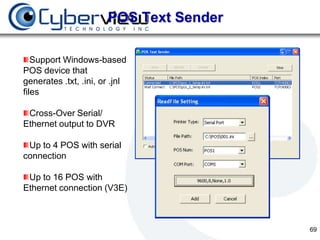

69. POS Text Sender
Support Windows-based
POS device that
generates .txt, .ini, or .jnl
files
Cross-Over Serial/
Ethernet output to DVR
Up to 4 POS with serial
connection
Up to 16 POS with
Ethernet connection (V3E)
69

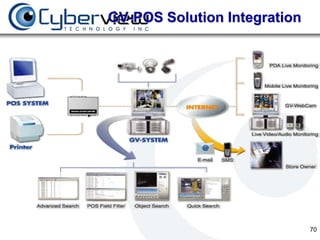

70. GV-POS Solution Integration
70

71. 71

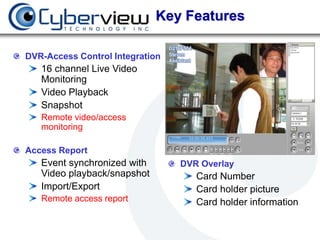

72. Key Features
DVR-Access Control Integration
16 channel Live Video
Monitoring
Video Playback
Snapshot
Remote video/access
monitoring
Access Report
Event synchronized with DVR Overlay
Video playback/snapshot Card Number
Import/Export Card holder picture
Remote access report Card holder information

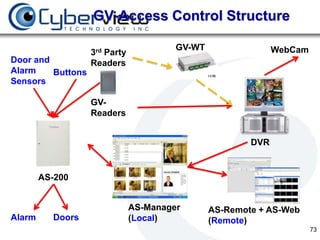

73. GV-Access Control Structure
GV-WT WebCam
3rd Party
Door and Readers
Alarm Buttons
Sensors
GV-
Readers
DVR
AS-200
AS-Manager AS-Remote + AS-Web
Alarm Doors (Local) (Remote)
73

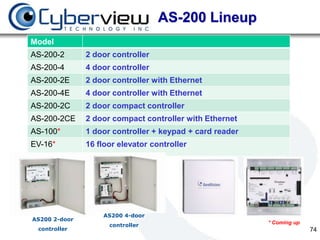

74. AS-200 Lineup
Model
AS-200-2 2 door controller
AS-200-4 4 door controller
AS-200-2E 2 door controller with Ethernet
AS-200-4E 4 door controller with Ethernet
AS-200-2C 2 door compact controller
AS-200-2CE 2 door compact controller with Ethernet
AS-100* 1 door controller + keypad + card reader
EV-16* 16 floor elevator controller
AS200 4-door
AS200 2-door
* Coming up
controller
controller 74

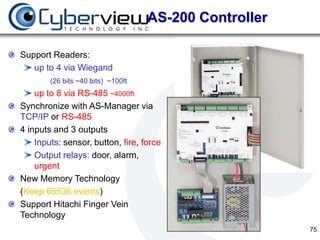

75. AS-200 Controller
Support Readers:
up to 4 via Wiegand
(26 bits ~40 bits) ~100ft
up to 8 via RS-485 ~4000ft
Synchronize with AS-Manager via
TCP/IP or RS-485
4 inputs and 3 outputs
Inputs: sensor, button, fire, force
Output relays: door, alarm,
urgent
New Memory Technology
(Keep 65536 events)
Support Hitachi Finger Vein
Technology
75

76. Accessories
GV-Reader1251：
Proximity card
125 KHz
GV-Reader1352 (ISO14443A)：
Mifare Smart card GV-Card
13.56 MHz
AS-Keypad：
Local Time
GV-Reader
AS-200 ID GV-Tag
Work Mode
GV-Reader ID
Password Change
Display
Door’s Control/Event
Memory State
Controller ID & IP Address
Version
AS-Keypad Optional Battery: AS-Battery
6 hours Max
76

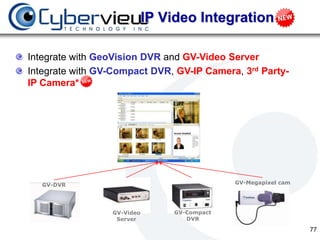

77. IP Video Integration
Integrate with GeoVision DVR and GV-Video Server
Integrate with GV-Compact DVR, GV-IP Camera, 3rd Party-
IP Camera*
GV-DVR GV-Megapixel cam
GV-Video GV-Compact
Server DVR
77

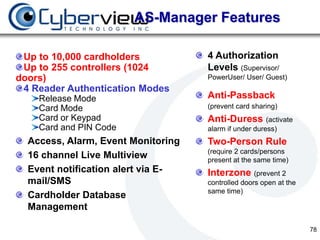

78. AS-Manager Features
Up to 10,000 cardholders 4 Authorization
Up to 255 controllers (1024 Levels (Supervisor/
doors) PowerUser/ User/ Guest)
4 Reader Authentication Modes
Release Mode Anti-Passback
Card Mode (prevent card sharing)
Card or Keypad Anti-Duress (activate
Card and PIN Code alarm if under duress)
Access, Alarm, Event Monitoring Two-Person Rule
(require 2 cards/persons
16 channel Live Multiview present at the same time)
Event notification alert via E- Interzone (prevent 2
mail/SMS controlled doors open at the
same time)
Cardholder Database
Management
78

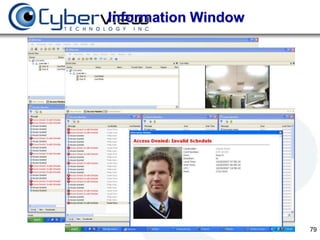

79. Information Window
79

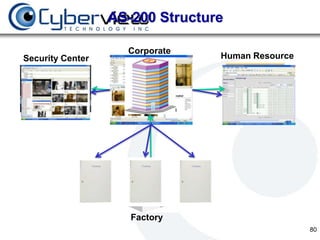

80. AS-200 Structure
Corporate
Security Center Human Resource
Factory
80

81. 81

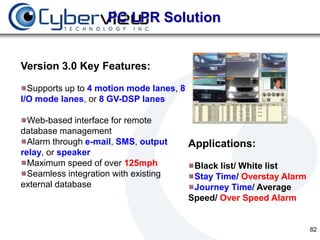

82. PC LPR Solution
Version 3.0 Key Features:
Supports up to 4 motion mode lanes, 8
I/O mode lanes, or 8 GV-DSP lanes
Web-based interface for remote
database management
Alarm through e-mail, SMS, output Applications:
relay, or speaker
Maximum speed of over 125mph Black list/ White list
Seamless integration with existing Stay Time/ Overstay Alarm
external database Journey Time/ Average
Speed/ Over Speed Alarm
82

83. 83

84. LPR DSP
Linux-based solution for 1 port
traffic or mobile license plate
recognition
SD card storage
Auto offline backup to save
valuable license plate data
Web interface for setup, live
viewing and firmware upgrade
Recognition triggered by
motion detection or I/O device
84

85. LPR Center
Supports up to 255 GV-LPR
or LPR DSP clients
Centralized database with
GV-LPR clients
16 channels live view on 255
pages
Live event list, recognition
results and images
Web-based interface for
database search, database
editing, and client distribution
Remote desktop over LPR
clients
85

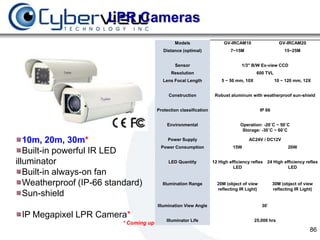

86. LPR Cameras
Models GV-IRCAM10 GV-IRCAM20
Distance (optimal) 7~15M 15~25M
Sensor 1/3" B/W Ex-view CCD
Resolution 600 TVL
Lens Focal Length 5 ~ 50 mm, 10X 10 ~ 120 mm, 12X
Construction Robust aluminum with weatherproof sun-shield
Protection classification IP 66
Environmental Operation: -20˚C ~ 50˚C
Storage: -30˚C ~ 60˚C
10m, 20m, 30m* Power Supply AC24V / DC12V
Power Consumption 15W 20W
Built-in powerful IR LED
illuminator LED Quantity 12 High efficiency reflex 24 High efficiency reflex
LED LED
Built-in always-on fan
Weatherproof (IP-66 standard) Illumination Range 20M (object of view 30M (object of view
reflecting IR Light) reflecting IR Light)
Sun-shield
Illumination View Angle 30˚
IP Megapixel LPR Camera* Illuminator Life 25,000 hrs
* Coming up
86

87. Q&A
Thank You. 
87
