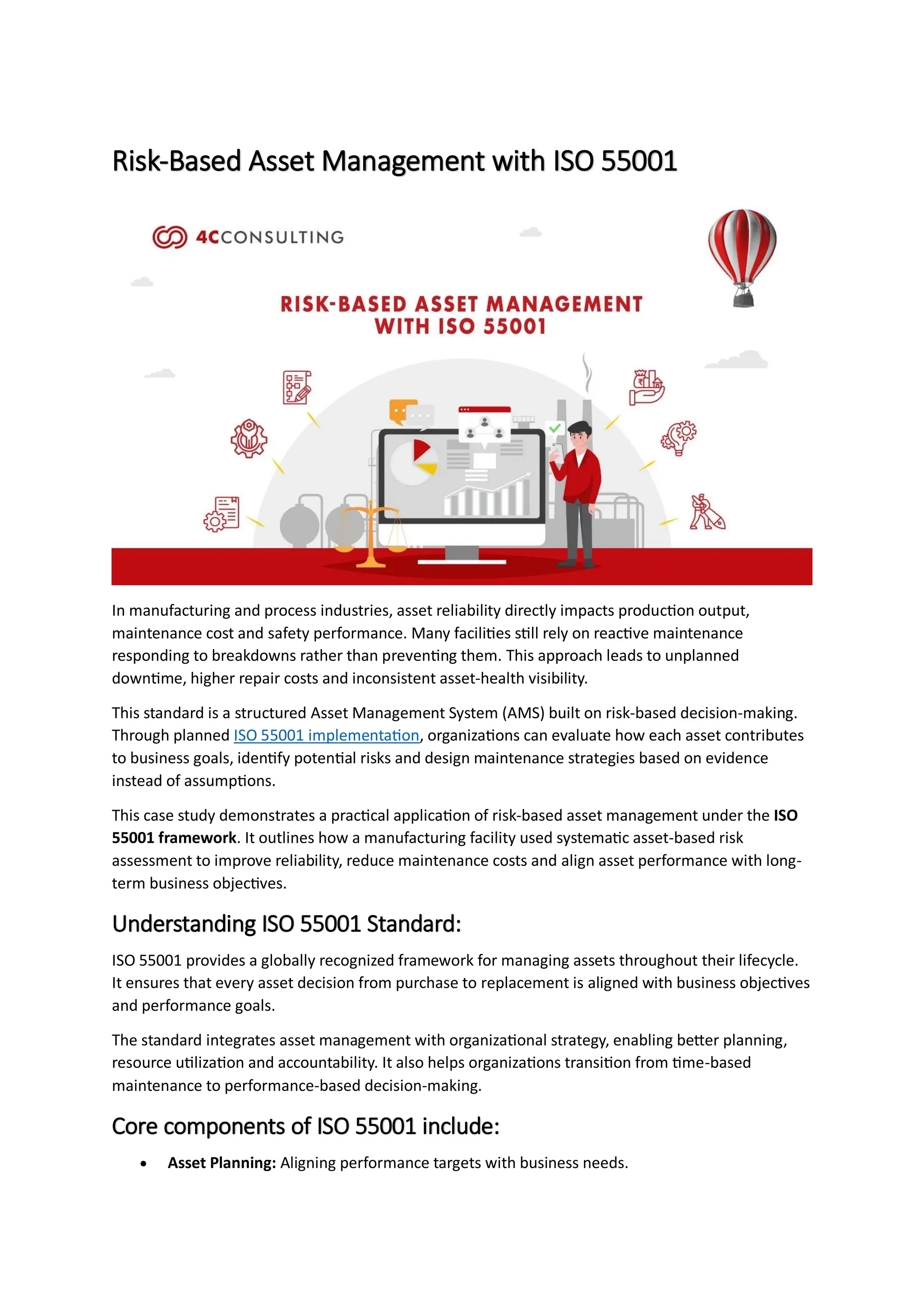

1. Risk-Based Asset Management with ISO 55001
In manufacturing and process industries, asset reliability directly impacts production output,
maintenance cost and safety performance. Many facilities still rely on reactive maintenance
responding to breakdowns rather than preventing them. This approach leads to unplanned
downtime, higher repair costs and inconsistent asset-health visibility.
This standard is a structured Asset Management System (AMS) built on risk-based decision-making.
Through planned ISO 55001 implementation, organizations can evaluate how each asset contributes
to business goals, identify potential risks and design maintenance strategies based on evidence
instead of assumptions.
This case study demonstrates a practical application of risk-based asset management under the ISO
55001 framework. It outlines how a manufacturing facility used systematic asset-based risk
assessment to improve reliability, reduce maintenance costs and align asset performance with long-
term business objectives.
Understanding ISO 55001 Standard:
ISO 55001 provides a globally recognized framework for managing assets throughout their lifecycle.
It ensures that every asset decision from purchase to replacement is aligned with business objectives
and performance goals.
The standard integrates asset management with organizational strategy, enabling better planning,
resource utilization and accountability. It also helps organizations transition from time-based
maintenance to performance-based decision-making.
Core components of ISO 55001 include:
 Asset Planning: Aligning performance targets with business needs.

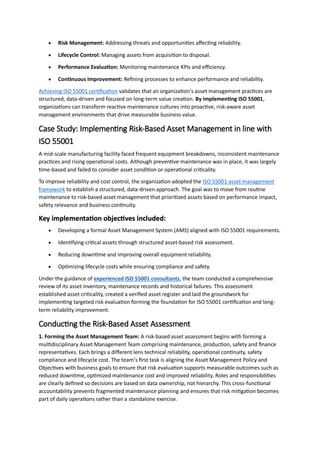

2.  Risk Management: Addressing threats and opportunities affecting reliability.
 Lifecycle Control: Managing assets from acquisition to disposal.
 Performance Evaluation: Monitoring maintenance KPIs and efficiency.
 Continuous Improvement: Refining processes to enhance performance and reliability.
Achieving ISO 55001 certification validates that an organization’s asset management practices are
structured, data-driven and focused on long-term value creation. By implementing ISO 55001,
organizations can transform reactive maintenance cultures into proactive, risk-aware asset
management environments that drive measurable business value.
Case Study: Implementing Risk-Based Asset Management in line with
ISO 55001
A mid-scale manufacturing facility faced frequent equipment breakdowns, inconsistent maintenance
practices and rising operational costs. Although preventive maintenance was in place, it was largely
time-based and failed to consider asset condition or operational criticality.
To improve reliability and cost control, the organization adopted the ISO 55001 asset management
framework to establish a structured, data-driven approach. The goal was to move from routine
maintenance to risk-based asset management that prioritized assets based on performance impact,
safety relevance and business continuity.
Key implementation objectives included:
 Developing a formal Asset Management System (AMS) aligned with ISO 55001 requirements.
 Identifying critical assets through structured asset-based risk assessment.
 Reducing downtime and improving overall equipment reliability.
 Optimizing lifecycle costs while ensuring compliance and safety.
Under the guidance of experienced ISO 55001 consultants, the team conducted a comprehensive
review of its asset inventory, maintenance records and historical failures. This assessment
established asset criticality, created a verified asset register and laid the groundwork for
implementing targeted risk evaluation forming the foundation for ISO 55001 certification and long-
term reliability improvement.
Conducting the Risk-Based Asset Assessment
1. Forming the Asset Management Team: A risk-based asset assessment begins with forming a
multidisciplinary Asset Management Team comprising maintenance, production, safety and finance
representatives. Each brings a different lens technical reliability, operational continuity, safety
compliance and lifecycle cost. The team’s first task is aligning the Asset Management Policy and
Objectives with business goals to ensure that risk evaluation supports measurable outcomes such as
reduced downtime, optimized maintenance cost and improved reliability. Roles and responsibilities
are clearly defined so decisions are based on data ownership, not hierarchy. This cross-functional
accountability prevents fragmented maintenance planning and ensures that risk mitigation becomes
part of daily operations rather than a standalone exercise.

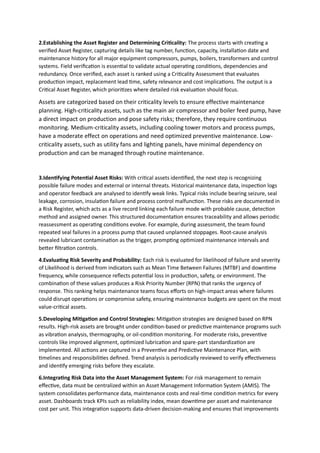

3. 2.Establishing the Asset Register and Determining Criticality: The process starts with creating a
verified Asset Register, capturing details like tag number, function, capacity, installation date and
maintenance history for all major equipment compressors, pumps, boilers, transformers and control
systems. Field verification is essential to validate actual operating conditions, dependencies and
redundancy. Once verified, each asset is ranked using a Criticality Assessment that evaluates
production impact, replacement lead time, safety relevance and cost implications. The output is a
Critical Asset Register, which prioritizes where detailed risk evaluation should focus.
Assets are categorized based on their criticality levels to ensure effective maintenance
planning. High-criticality assets, such as the main air compressor and boiler feed pump, have
a direct impact on production and pose safety risks; therefore, they require continuous
monitoring. Medium-criticality assets, including cooling tower motors and process pumps,
have a moderate effect on operations and need optimized preventive maintenance. Low-
criticality assets, such as utility fans and lighting panels, have minimal dependency on
production and can be managed through routine maintenance.
3.Identifying Potential Asset Risks: With critical assets identified, the next step is recognizing
possible failure modes and external or internal threats. Historical maintenance data, inspection logs
and operator feedback are analysed to identify weak links. Typical risks include bearing seizure, seal
leakage, corrosion, insulation failure and process control malfunction. These risks are documented in
a Risk Register, which acts as a live record linking each failure mode with probable cause, detection
method and assigned owner. This structured documentation ensures traceability and allows periodic
reassessment as operating conditions evolve. For example, during assessment, the team found
repeated seal failures in a process pump that caused unplanned stoppages. Root-cause analysis
revealed lubricant contamination as the trigger, prompting optimized maintenance intervals and
better filtration controls.
4.Evaluating Risk Severity and Probability: Each risk is evaluated for likelihood of failure and severity
of Likelihood is derived from indicators such as Mean Time Between Failures (MTBF) and downtime
frequency, while consequence reflects potential loss in production, safety, or environment. The
combination of these values produces a Risk Priority Number (RPN) that ranks the urgency of
response. This ranking helps maintenance teams focus efforts on high-impact areas where failures
could disrupt operations or compromise safety, ensuring maintenance budgets are spent on the most
value-critical assets.
5.Developing Mitigation and Control Strategies: Mitigation strategies are designed based on RPN
results. High-risk assets are brought under condition-based or predictive maintenance programs such
as vibration analysis, thermography, or oil-condition monitoring. For moderate risks, preventive
controls like improved alignment, optimized lubrication and spare-part standardization are
implemented. All actions are captured in a Preventive and Predictive Maintenance Plan, with
timelines and responsibilities defined. Trend analysis is periodically reviewed to verify effectiveness
and identify emerging risks before they escalate.
6.Integrating Risk Data into the Asset Management System: For risk management to remain
effective, data must be centralized within an Asset Management Information System (AMIS). The
system consolidates performance data, maintenance costs and real-time condition metrics for every
asset. Dashboards track KPIs such as reliability index, mean downtime per asset and maintenance
cost per unit. This integration supports data-driven decision-making and ensures that improvements

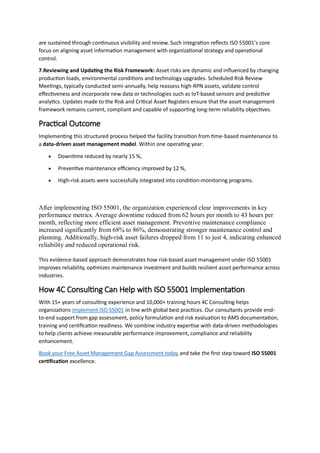

4. are sustained through continuous visibility and review. Such integration reflects ISO 55001’s core
focus on aligning asset information management with organizational strategy and operational
control.
7.Reviewing and Updating the Risk Framework: Asset risks are dynamic and influenced by changing
production loads, environmental conditions and technology upgrades. Scheduled Risk Review
Meetings, typically conducted semi-annually, help reassess high-RPN assets, validate control
effectiveness and incorporate new data or technologies such as IoT-based sensors and predictive
analytics. Updates made to the Risk and Critical Asset Registers ensure that the asset management
framework remains current, compliant and capable of supporting long-term reliability objectives.
Practical Outcome
Implementing this structured process helped the facility transition from time-based maintenance to
a data-driven asset management model. Within one operating year:
 Downtime reduced by nearly 15 %,
 Preventive maintenance efficiency improved by 12 %,
 High-risk assets were successfully integrated into condition-monitoring programs.
After implementing ISO 55001, the organization experienced clear improvements in key
performance metrics. Average downtime reduced from 62 hours per month to 43 hours per
month, reflecting more efficient asset management. Preventive maintenance compliance
increased significantly from 68% to 86%, demonstrating stronger maintenance control and
planning. Additionally, high-risk asset failures dropped from 11 to just 4, indicating enhanced
reliability and reduced operational risk.
This evidence-based approach demonstrates how risk-based asset management under ISO 55001
improves reliability, optimizes maintenance investment and builds resilient asset performance across
industries.
