This document describes several models of programmable transducers: RISH CON V, RISH CON I, RISH CON Hz, and RISH CON P. The transducers can be programmed on-site to measure various electrical parameters including current, voltage, frequency, and power. They provide isolated current or voltage output and feature accuracy class of 0.2, optional LCD display, RS485 communication, and wide auxiliary supply range of 40-300V AC/DC.

1. Programmable Transducers

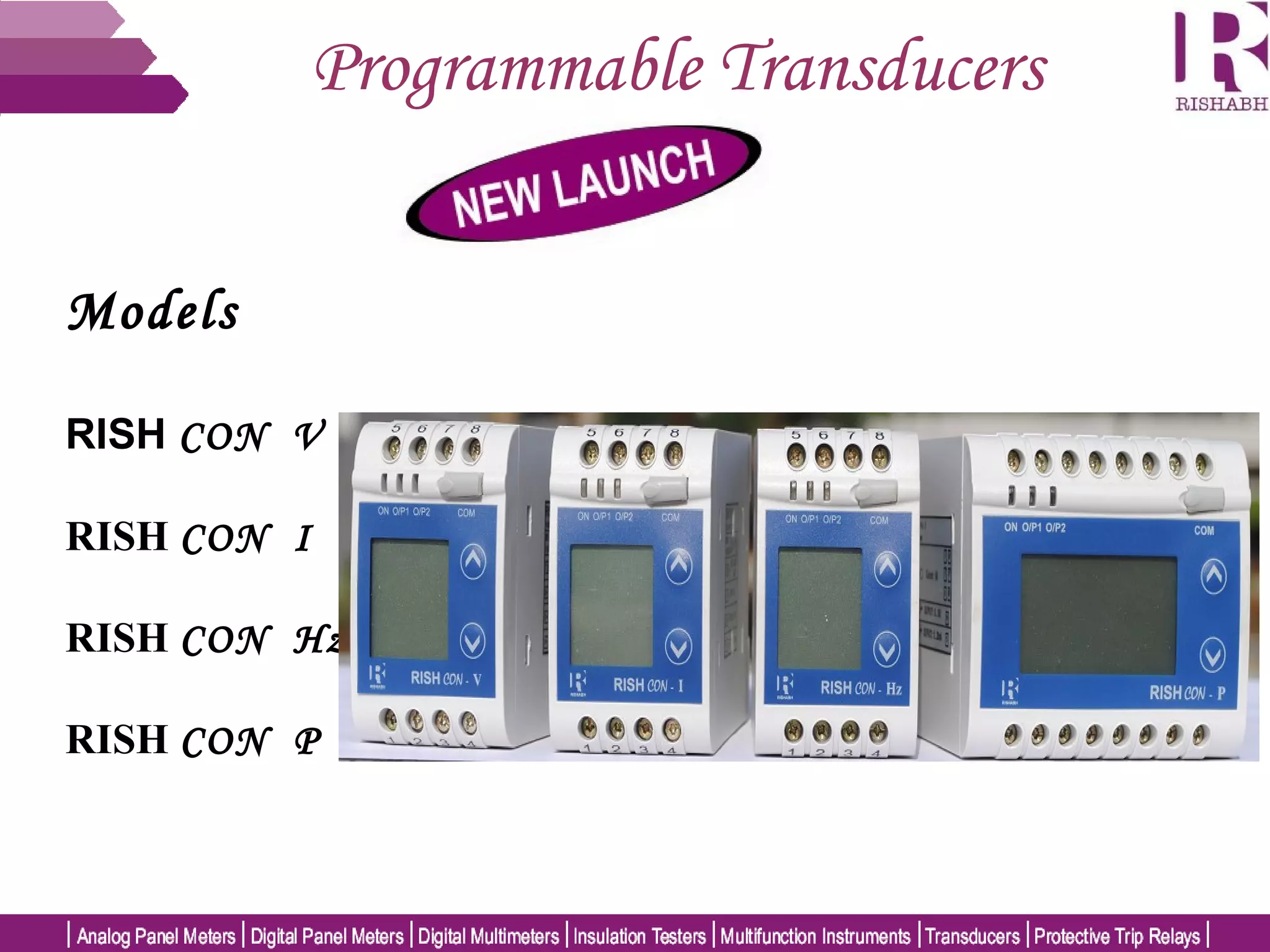

Models
RISH CON V
RISH CON I
RISH CON Hz
RISH CON P

2. Salient Features
☺True RMS Measurement
☺On site Programmable Input & Output
☺Available in Single or Dual output type
☺Optional Seven Segment LCD Display with backlit
☺Wide Auxiliary Supply 40V….300V AC/DC
☺Accuracy class 0.2

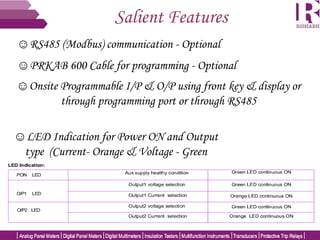

3. Salient Features
☺RS485 (Modbus) communication - Optional
☺Onsite Programmable I/P & O/P using front key & display or
through programming port or through RS485
☺LED Indication for Power ON and Output
type (Current- Orange & Voltage - Green
☺PRKAB 600 Cable for programming - Optional

4. RISH CON I
☺Fully onsite programmable Input
current Range from 1A to 5A (CT Sec)
☺CT Primary Range 1A to 9999A
☺0…20mA/4…20mA or 0…10V
onsite selection through DIP switch
or programming
☺Load Independent DC Voltage or
DC Current output
☺Nominal frequency 50Hz or 60Hz

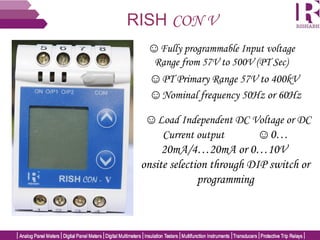

5. RISH CON V
☺Fully programmable Input voltage
Range from 57V to 500V (PT Sec)
☺PT Primary Range 57V to 400kV
☺Load Independent DC Voltage or DC
Current output ☺0…
20mA/4…20mA or 0…10V
onsite selection through DIP switch or
programming
☺Nominal frequency 50Hz or 60Hz

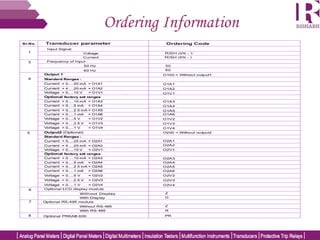

6. Ordering Information

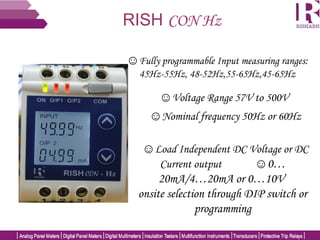

7. RISH CON Hz
☺Fully programmable Input measuring ranges:
45Hz-55Hz, 48-52Hz,55-65Hz,45-65Hz
☺Voltage Range 57V to 500V
☺Load Independent DC Voltage or DC
Current output ☺0…
20mA/4…20mA or 0…10V
onsite selection through DIP switch or
programming
☺Nominal frequency 50Hz or 60Hz

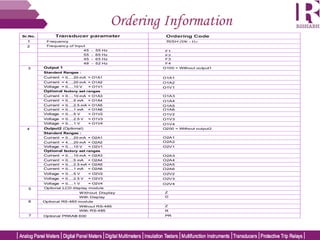

8. Ordering Information

9. Feasible Characteristics

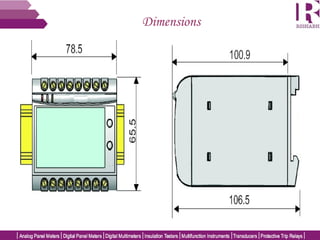

10. Dimensions

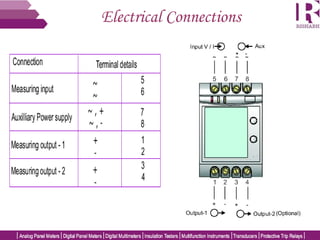

11. Electrical Connections

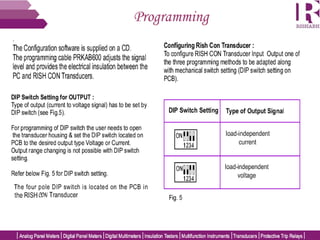

12. Programming

13. Programming

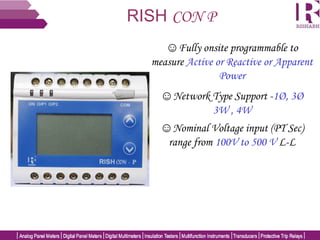

14. RISH CON P
☺Fully onsite programmable to
measure Active or Reactive or Apparent
Power
☺Network Type Support -1Ø, 3Ø
3W , 4W
☺Nominal Voltage input (PT Sec)
range from 100V to 500 V L-L

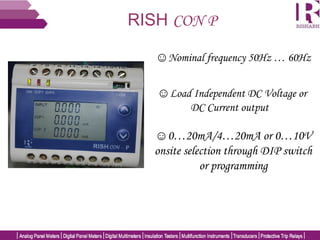

15. RISH CON P
☺0…20mA/4…20mA or 0…10V
onsite selection through DIP switch
or programming
☺Load Independent DC Voltage or
DC Current output
☺Nominal frequency 50Hz … 60Hz

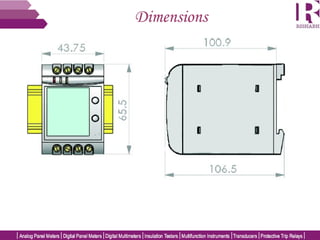

16. Dimensions

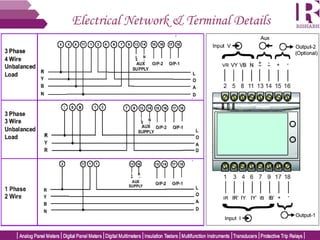

17. Electrical Network & Terminal Details
