RFID Employee Tracking - RFID Solutions.PDF
The document describes an RFID employee tracking system, detailing its major components: RFID tags, readers, and antennas. It highlights features such as real-time tracking, automated alerts, and productivity analysis, while comparing passive and active RFID technologies. It also outlines project implementation steps, emphasizing the importance of proper planning and site assessment for effective deployment.
RFID Employee Tracking - RFID Solutions.PDF
- 1.
- 2. RFID & MAJORCOMPONENTS RFID RFID refers to a technology whereby digital data encoded in RFID tags or smart labels are captured by a reader via radio waves COMPONENTS RFID systems consist of three components: an RFID tag or smart label, an RFID reader, and an antenna RFID READER An RFID READER is the brain of the RFID system, are devices that transmit and receive radio waves in order to communicate with RFID tags. ANTENNA R F I D A N T E N N A a r e n e c e s s a r y elements in an RFID system because they convert the RFID reader’s signal into RF waves that can be picked up by RFID tags. RFID TAG RFID tags are a type of tracking system that uses radio frequency to search, identify, track, and communicate with items and people APPLICATION RFID APPLICATION help in in managing the RFID Data, showing various reports & trends 01 02 03 04 05 06

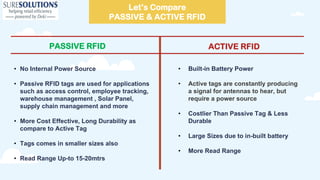

- 3. Let’s Compare PASSIVE &ACTIVE RFID PASSIVE RFID ACTIVE RFID • No Internal Power Source • Passive RFID tags are used for applications such as access control, employee tracking, warehouse management , Solar Panel, supply chain management and more • More Cost Effective, Long Durability as compare to Active Tag • Tags comes in smaller sizes also • Read Range Up-to 15-20mtrs • Built-in Battery Power • Active tags are constantly producing a signal for antennas to hear, but require a power source • Costlier Than Passive Tag & Less Durable • Large Sizes due to in-built battery • More Read Range
- 4.
- 5. FEATURES OF SureSolutions EMPLOYEE TRACKING SYSTEM •Locate employees/visitors without presenting ID Cards which avoids the long queue. • Provide real-time RFID Worker Tracking location information. • Alert workers and managers if workers enter a hazardous area. • Setup automated alerts, notifications and Track dwelling hours. • Tracking Work-in-Process Monitoring in the sites. • Automated in-time and out-time of employees in the sites. • Allocate a specific zone or multiple zones and monitor it. • Automatically collect and analyze employee movements. • Track movements in real-time and analyze the productivity. • Find working employees and non-working employees easier.
- 6. FOR EMPLOYEE TRACKING SYSTEM MAJORRFID COMPENENTS
- 7. RFID FIXED READER-PASSIVE UHF FIXED READER WILL BE FIXED AT Entry & Exist Points ● No Manual Intervention ● A d mi n G e t A l e r t f o r U n a u t h o r i z e d Movement ● Total hour of work ● Real time Monitoring The entire process is completed in milliseconds, allowing infrastructure and construction companies to know the precise location of their employees, their allocated zones, their total dwelling hours in unallocated areas, and their productivity and non-productivity hours. TAG TAG TAG TAG TAG TAG TAG TAG TAG
- 8. RFID TAG RFID TAGcomes with diferent shapes & sizes • RFID HARD TAG- Container Tags, Hard Tags, Pallet Tags IT ASSET TAG, Magnetic Tag, Fixed Asset Tag • RFID LABELS- Solar Panel Labels, On-metal Labels Depending on the use case & feasibility we need to choose the right kind of TAG RFID LABELS
- 9. APPLICATION- EMPLOYEE TRACKING SYSTEM You canmonitor employees in the real time, analyze their movement and ensure their safety & get personalized report through POXO Application

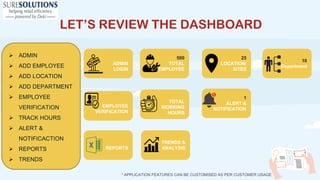

- 10. LET’S REVIEW THEDASHBOARD Ø ADMIN Ø ADD EMPLOYEE Ø ADD LOCATION Ø ADD DEPARTMENT Ø EMPLOYEE VERIFICATION Ø TRACK HOURS Ø ALERT & NOTIFICACTION Ø REPORTS Ø TRENDS ADMIN LOGIN 500 TOTAL EMPLOYEE 25 LOCATION/ SITES 10 Department EMPLOYEE VERIFICATION TOTAL WORKING HOURS 1 ALERT & NOTIFICATION REPORTS TRENDS & ANALYSIS * APPLICATION FEATURES CAN BE CUSTOMISED AS PER CUSTOMER USAGE
- 11.

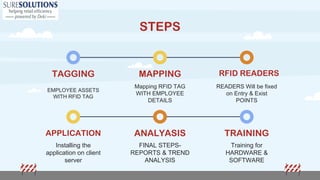

- 12. READERS Will befixed on Entry & Exist POINTS Training for HARDWARE & SOFTWARE RFID READERS TRAINING STEPS TAGGING EMPLOYEE ASSETS WITH RFID TAG MAPPING Mapping RFID TAG WITH EMPLOYEE DETAILS APPLICATION Installing the application on client server ANALYASIS FINAL STEPS- REPORTS & TREND ANALYSIS
- 13. To deploy sucha system, it’s critical to plan and develop the required technological infrastructure. EXECUTION STRATEGY

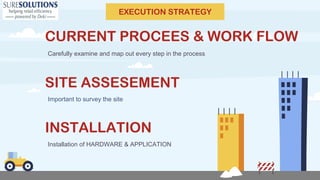

- 14. CURRENT PROCEES &WORK FLOW Carefully examine and map out every step in the process SITE ASSESEMENT Important to survey the site Installation of HARDWARE & APPLICATION INSTALLATION EXECUTION STRATEGY
- 15.
- 16. CREDITS: This presentationtemplate was created by Slidesgo, including icons by Flaticon and infographics & images by Freepik THANK YOU
