REST overview
The document discusses RESTful web services and compares them to other types of web services. RESTful services use HTTP and embrace principles like making everything a resource, using clean and descriptive URIs, and representing state through representations. They avoid bandwidth overhead and leverage existing web protocols and infrastructure. Other types of web services, like WS-*, focus more on tooling and standards but ignore aspects of HTTP and can be more complex.
![Vibe Coding vs. Spec-Driven Development [Free Meetup]](https://cdn.slidesharecdn.com/ss_thumbnails/vibecodingvsspecdrivendevelopment-251209105622-43f455e7-thumbnail.jpg?width=640&height=640&fit=bounds)
REST overview

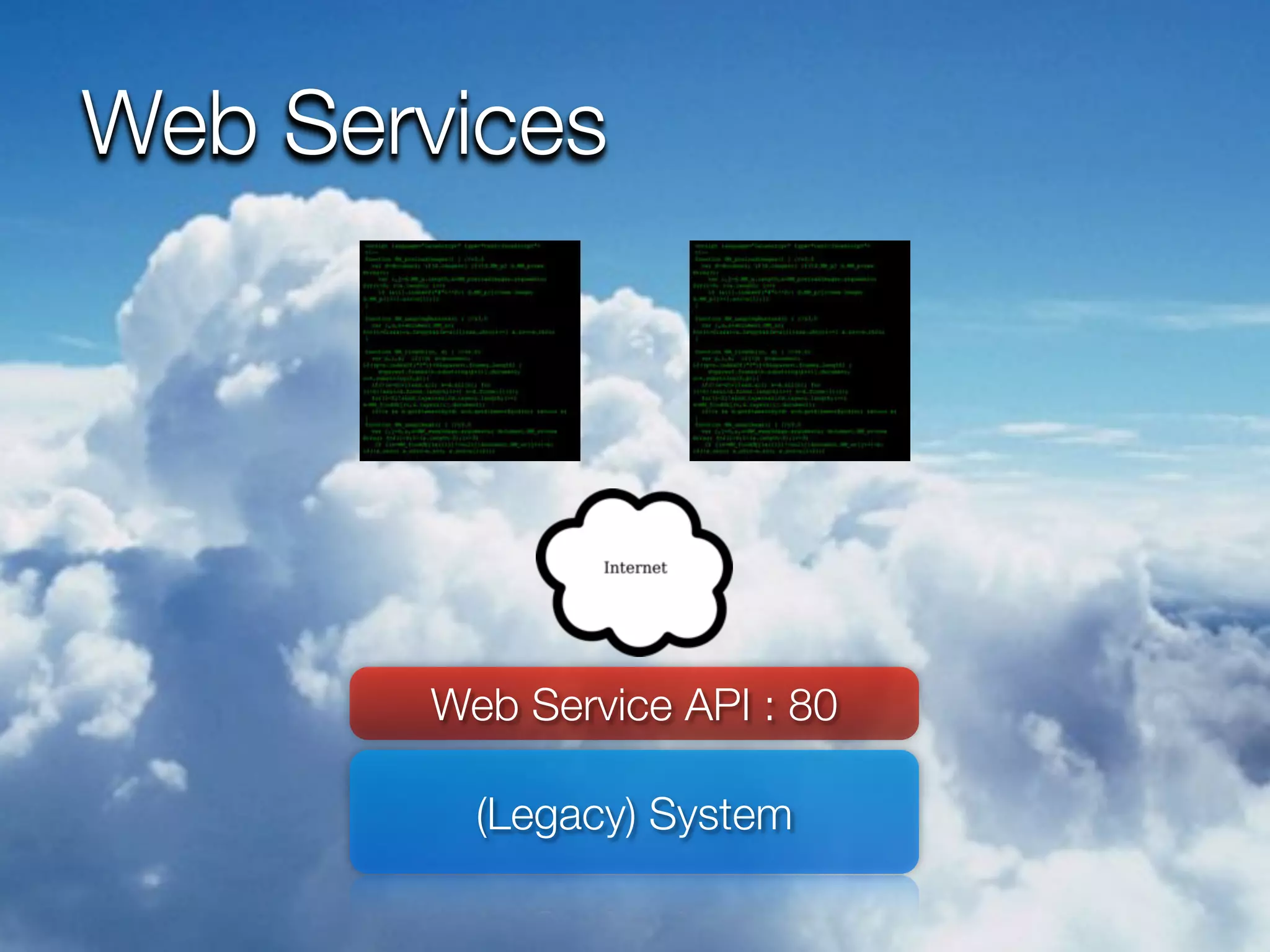

- 2. Web Services Web Service API : 80 (Legacy) System

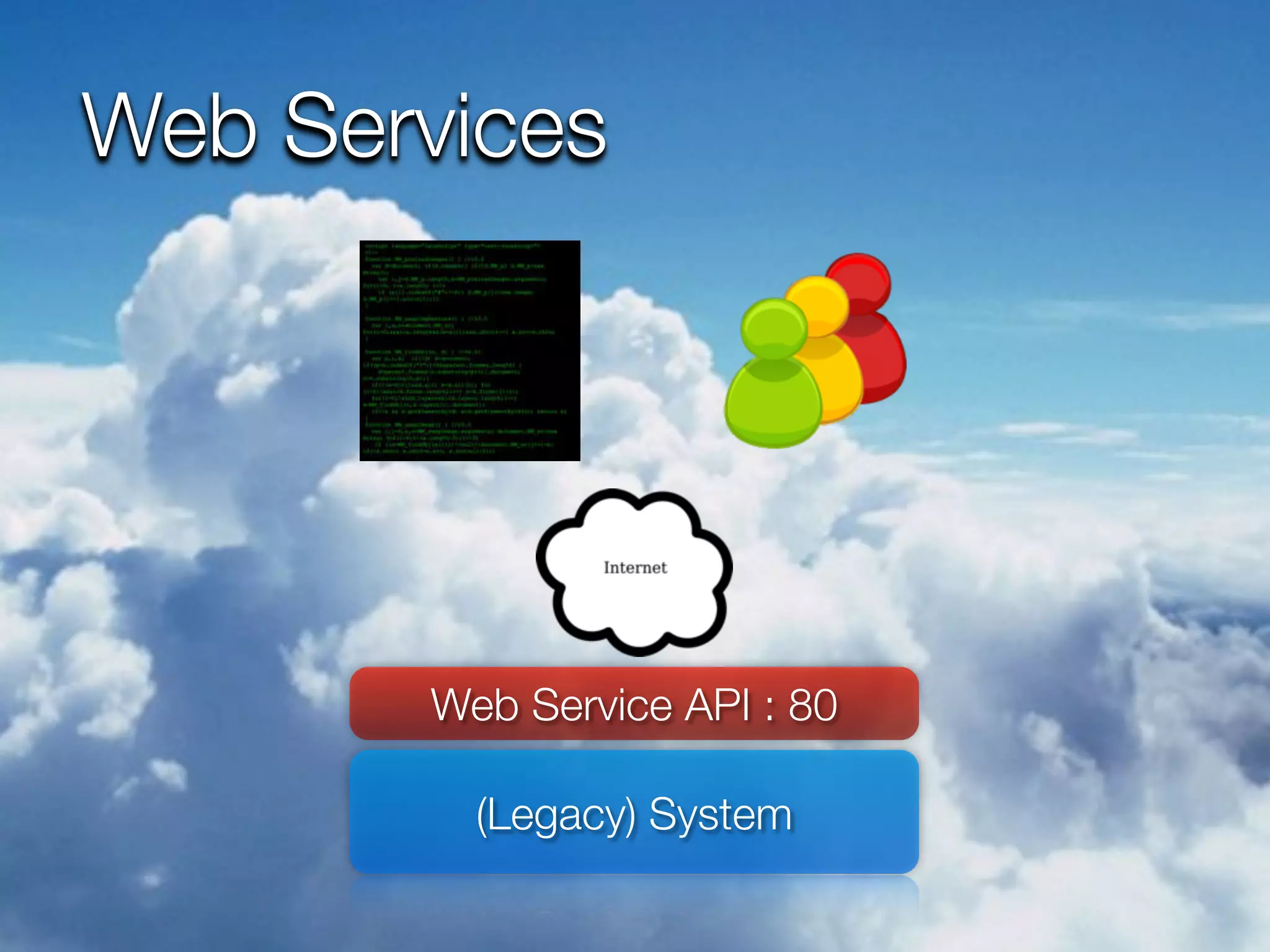

- 3. Web Services Web Service API : 80 (Legacy) System

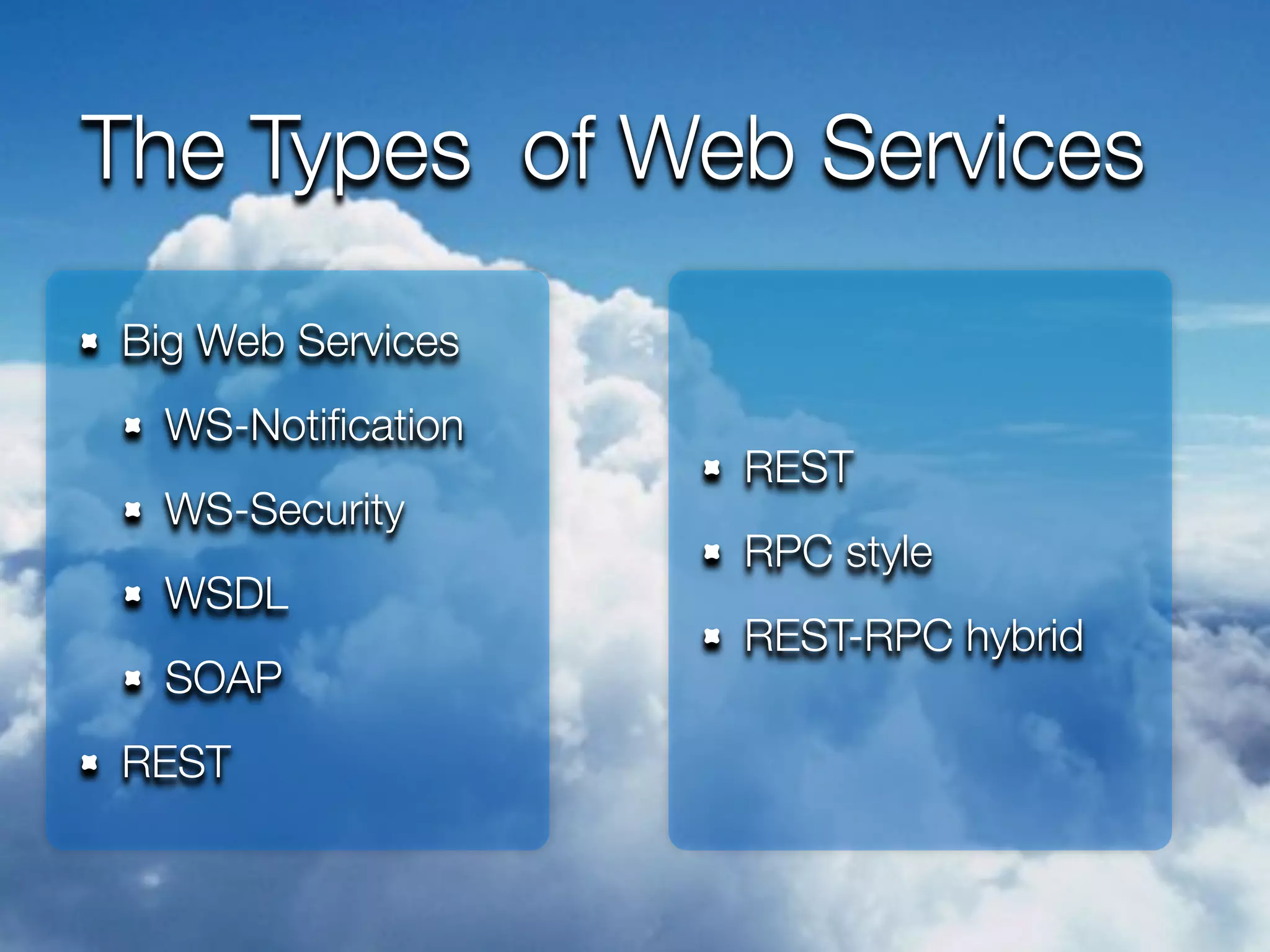

- 4. The Types ofWeb Services Big Web Services WS-Notification REST WS-Security RPC style WSDL REST-RPC hybrid SOAP REST
- 5.

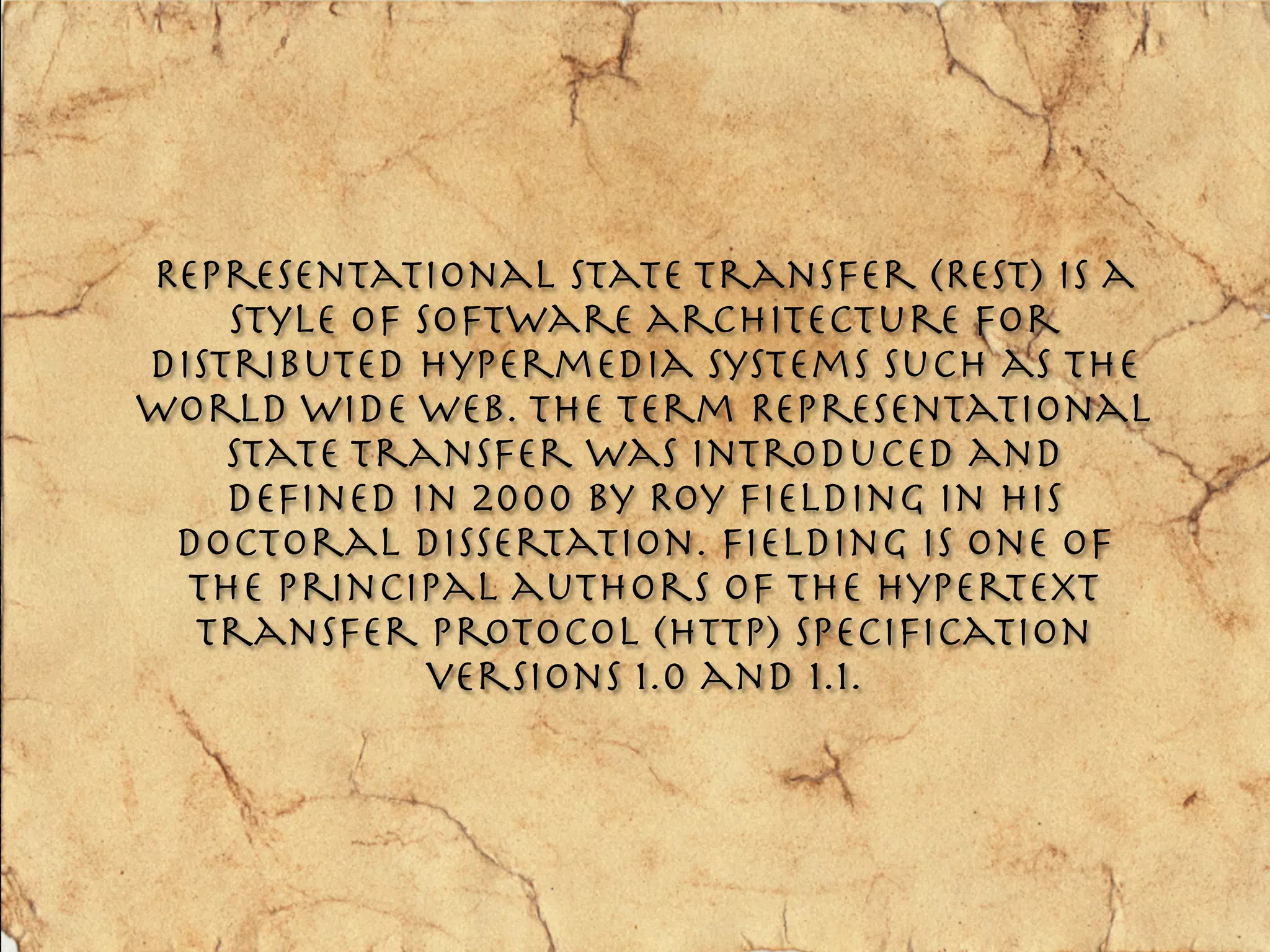

- 6. Representational State Transfer(REST) is a style of software architecture for distributed hypermedia systems such as the World Wide Web. The term Representational State Transfer was introduced and defined in 2000 by Roy Fielding in his doctoral dissertation. Fielding is one of the principal authors of the Hypertext Transfer Protocol (HTTP) specification versions 1.0 and 1.1.

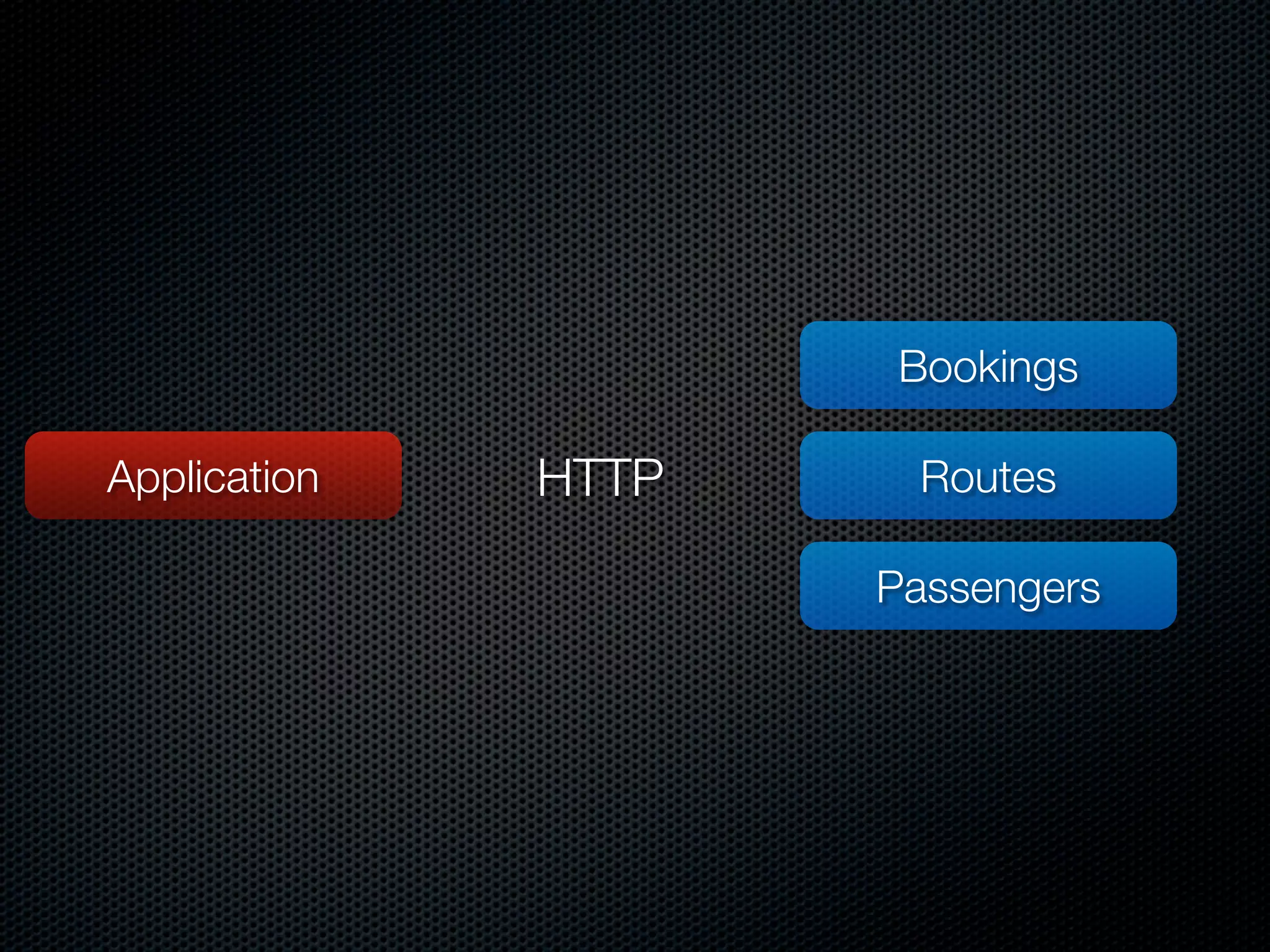

- 7. Bookings Application HTTP Routes Passengers

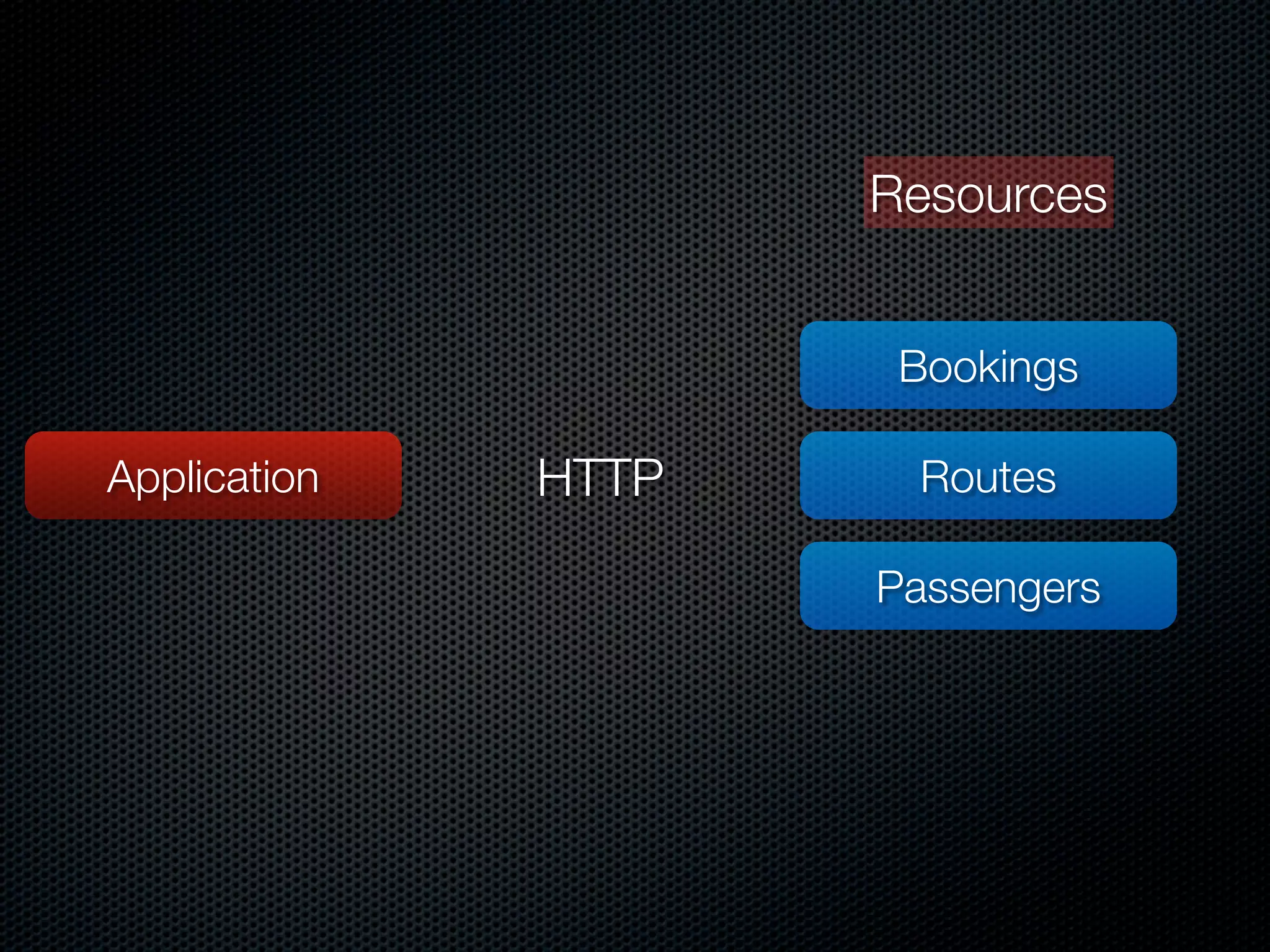

- 8. Resources Bookings Application HTTP Routes Passengers

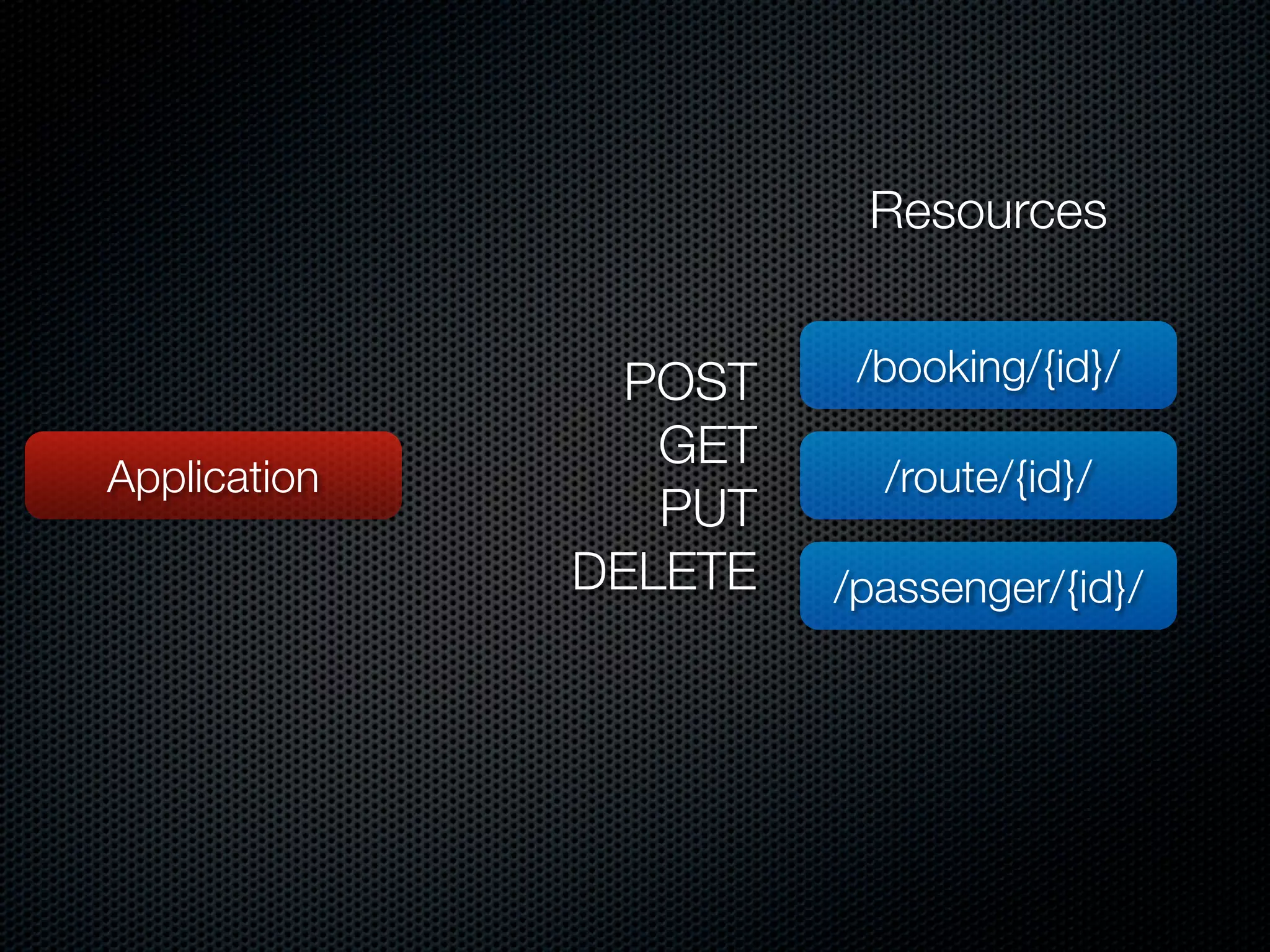

- 9. Resources POST /booking/{id}/ GET Application /route/{id}/ PUT DELETE /passenger/{id}/

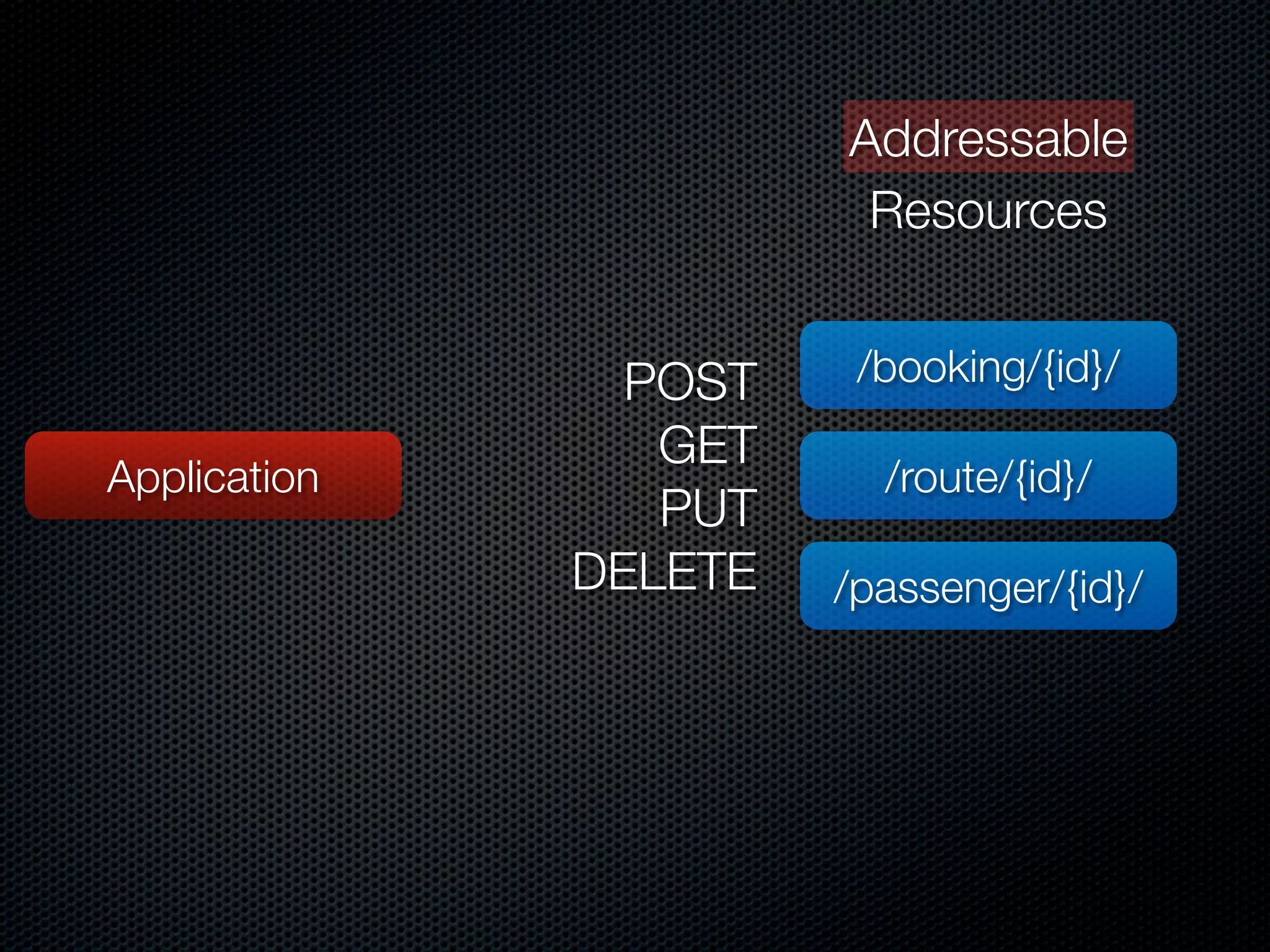

- 10. Addressable Resources POST /booking/{id}/ GET Application /route/{id}/ PUT DELETE /passenger/{id}/

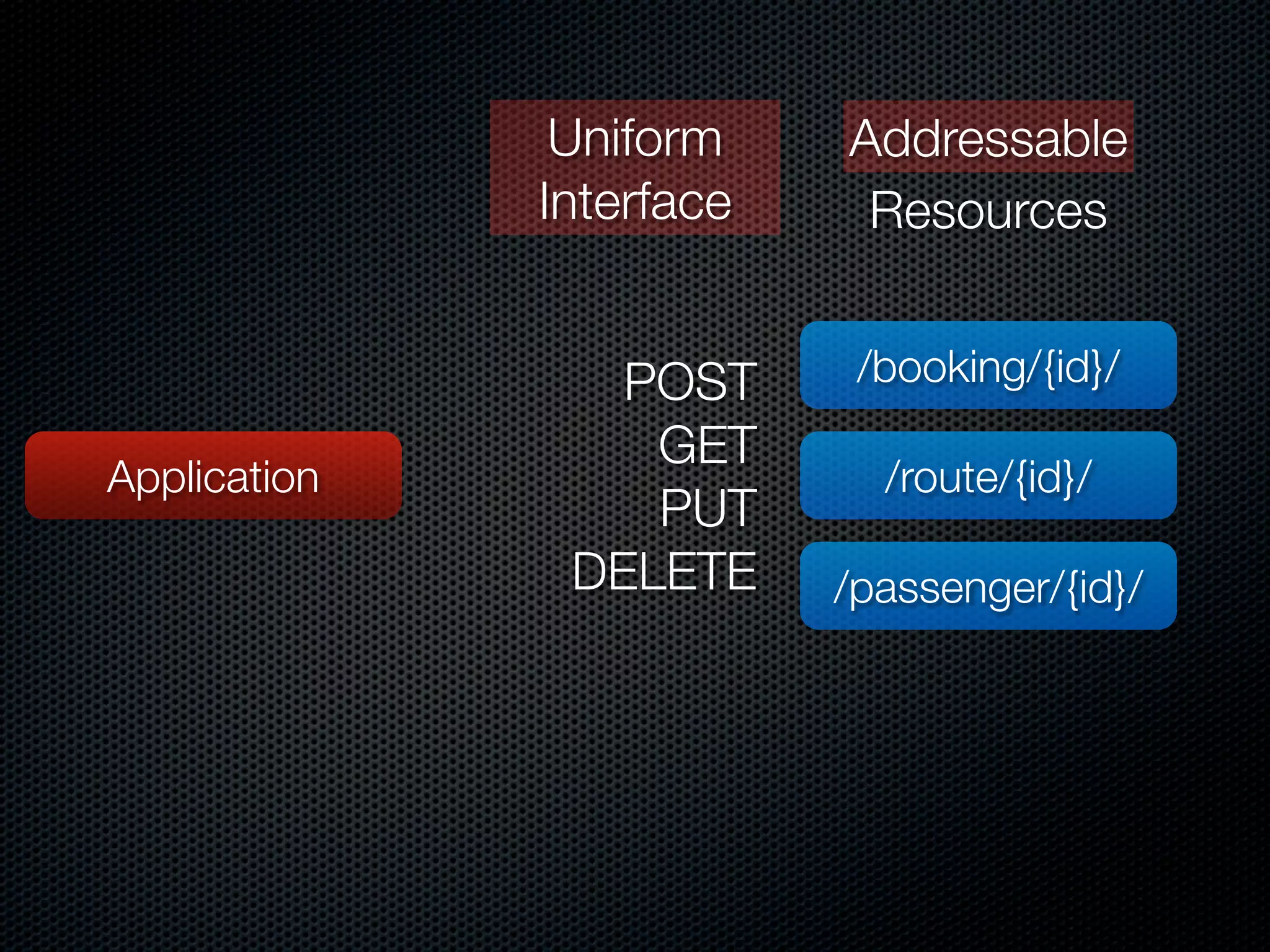

- 11. Uniform Addressable Interface Resources POST /booking/{id}/ GET Application /route/{id}/ PUT DELETE /passenger/{id}/

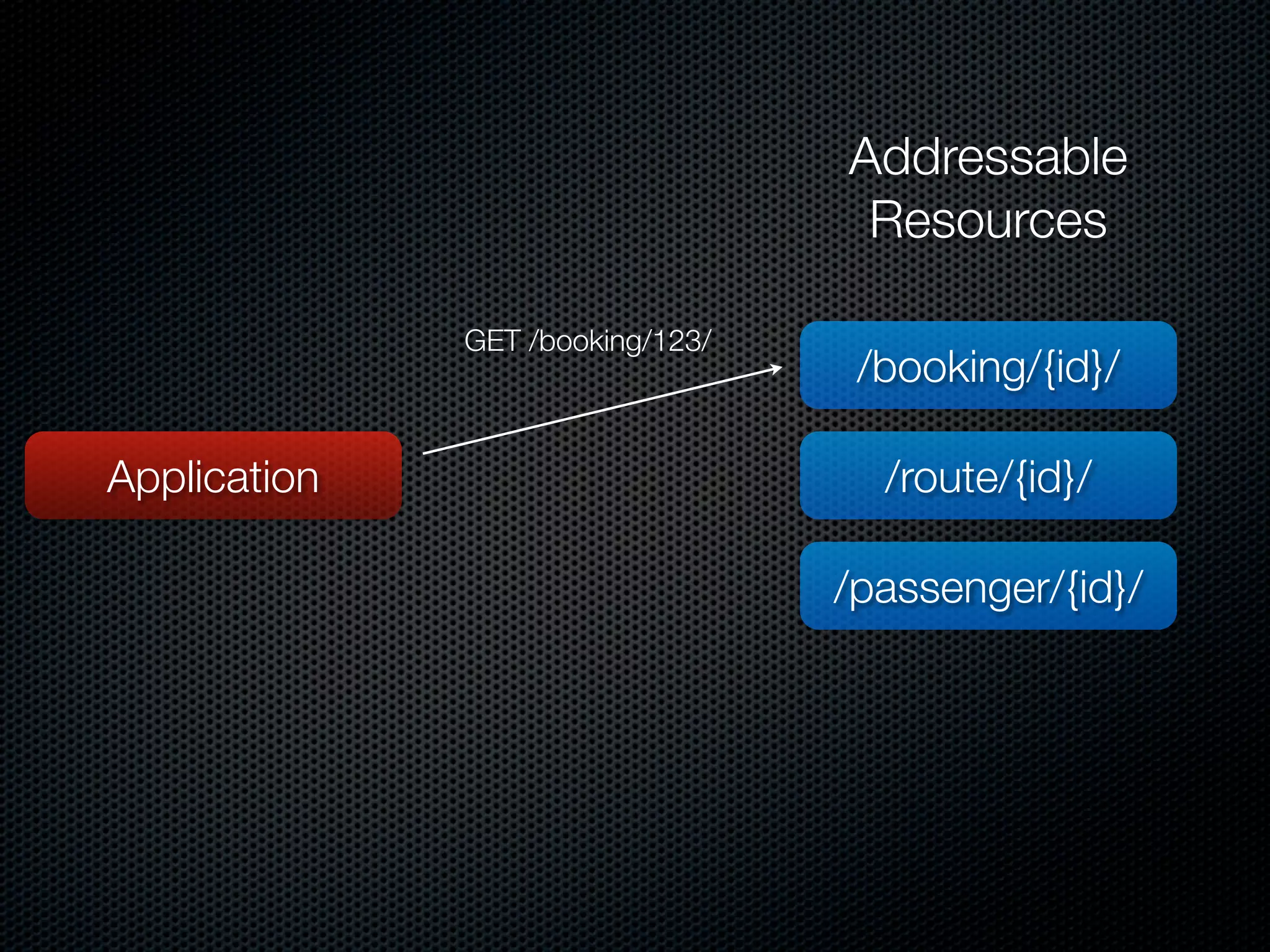

- 12. Addressable Resources GET /booking/123/ /booking/{id}/ Application /route/{id}/ /passenger/{id}/

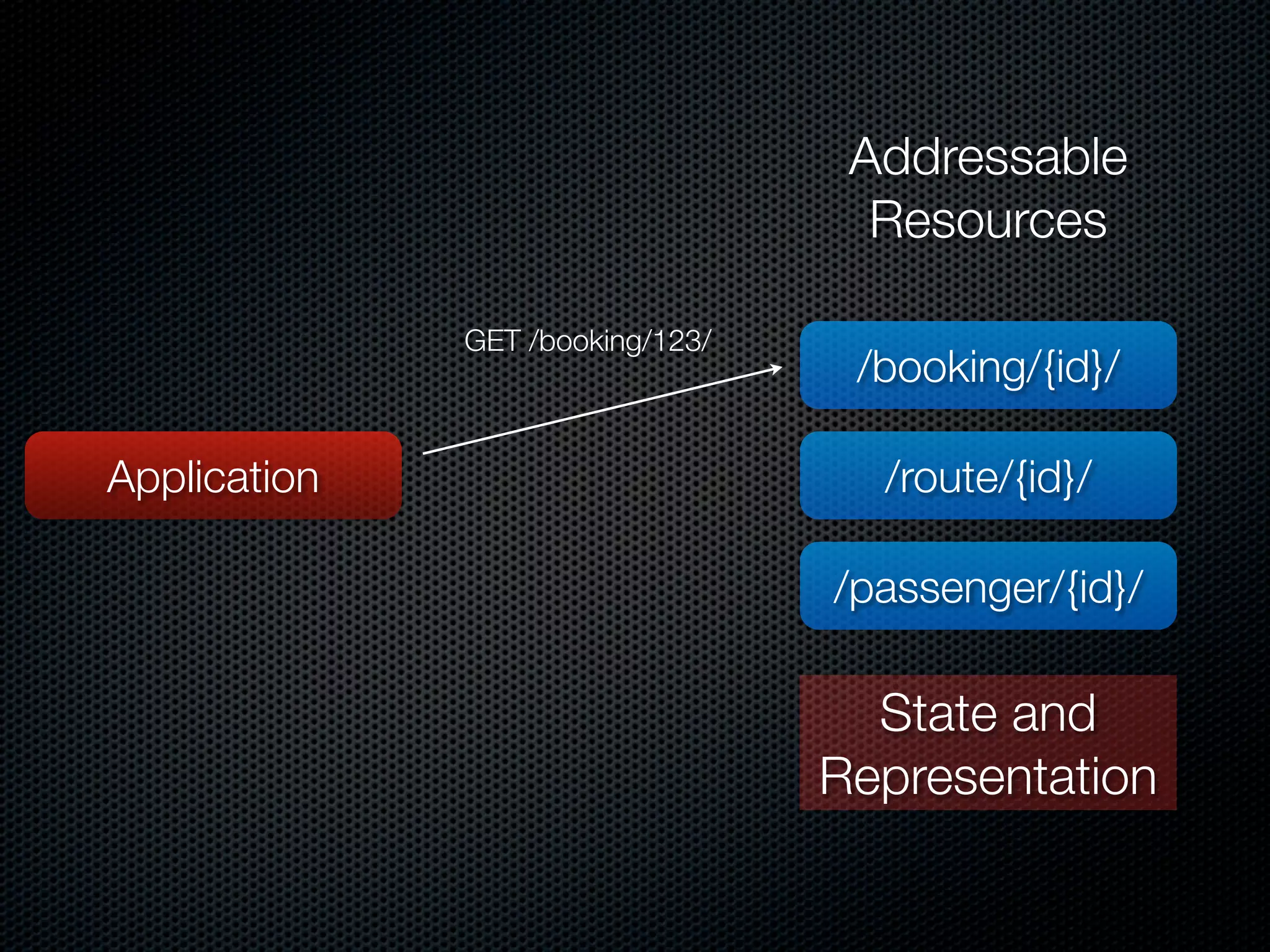

- 13. Addressable Resources GET /booking/123/ /booking/{id}/ Application /route/{id}/ /passenger/{id}/ State and Representation

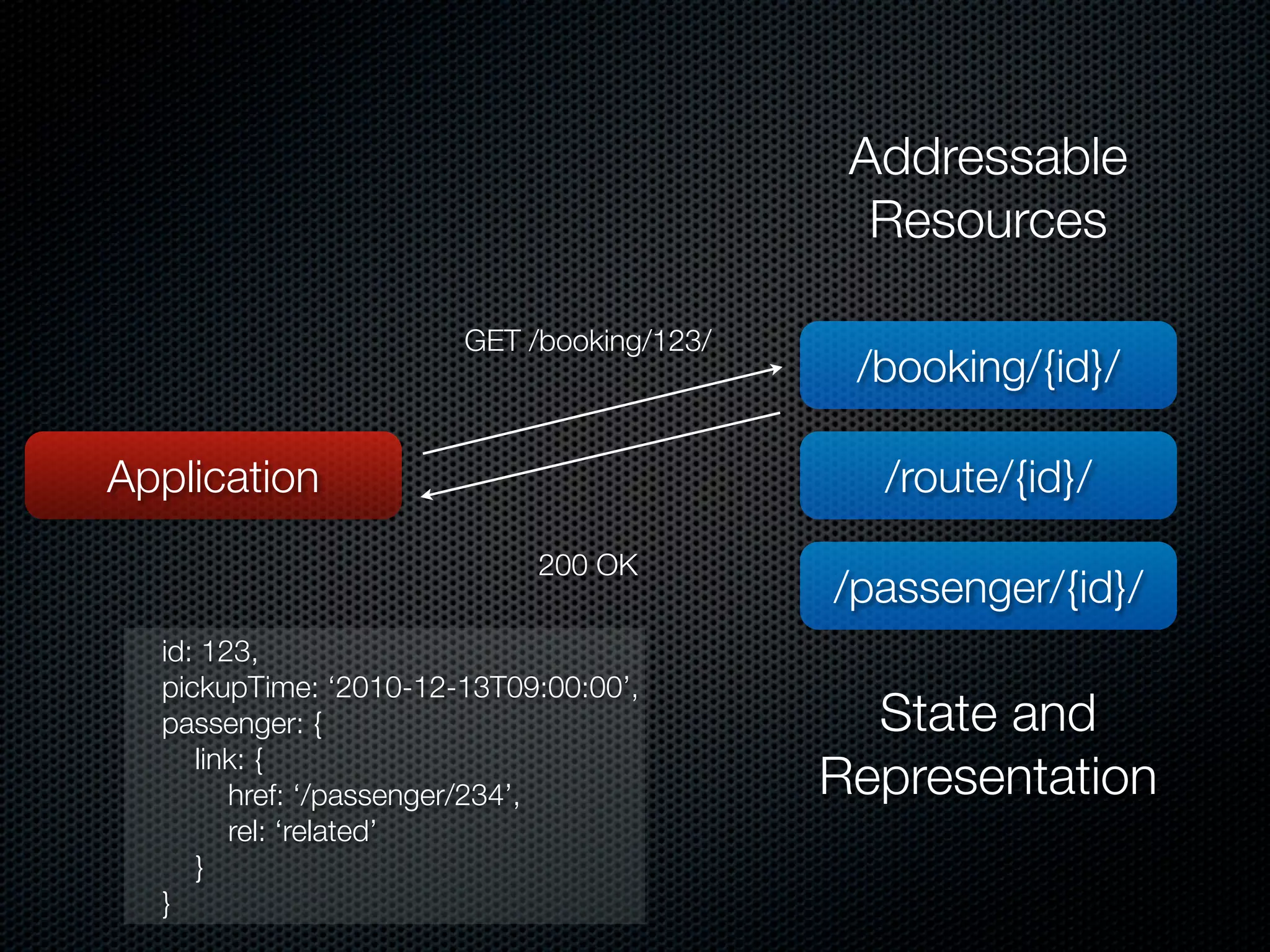

- 14. Addressable Resources GET /booking/123/ /booking/{id}/ Application /route/{id}/ 200 OK /passenger/{id}/ id: 123, pickupTime: ‘2010-12-13T09:00:00’, passenger: { State and link: { href: ‘/passenger/234’, Representation rel: ‘related’ } }

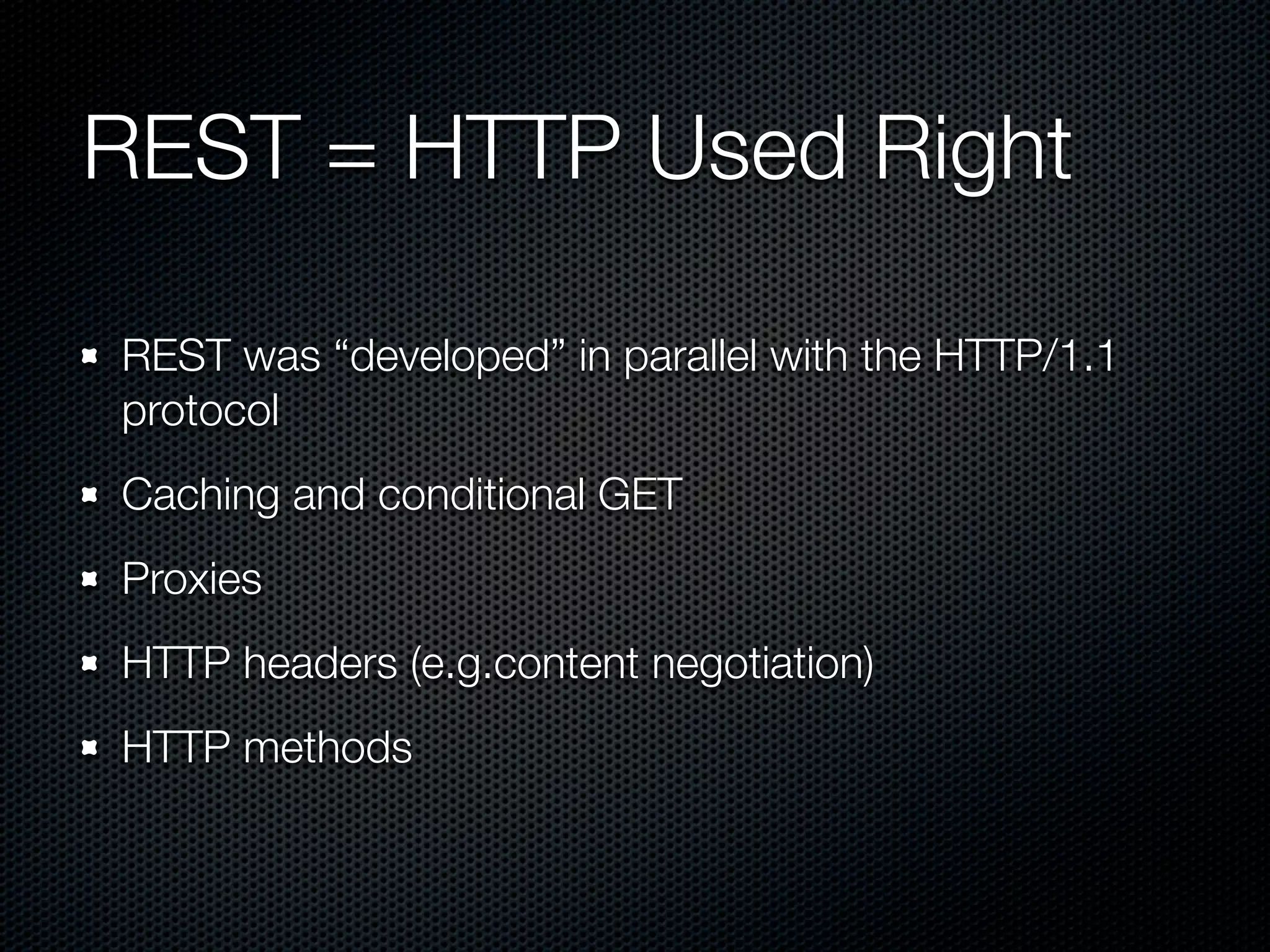

- 15. REST = HTTPUsed Right REST was “developed” in parallel with the HTTP/1.1 protocol Caching and conditional GET Proxies HTTP headers (e.g.content negotiation) HTTP methods
- 16. Everything Is aResource There shall be nothing else
- 17. Everything Is aResource ROA There shall be nothing else
- 18. Everything Is aResource •Version 1.0.3 of the software release •The latest version of the software release •Search results for the word ‘Galactica’ •The next prime number after 1024 •The relationship between Alice and Bob •A list of open bugs in the bug database There shall be nothing else
- 19.

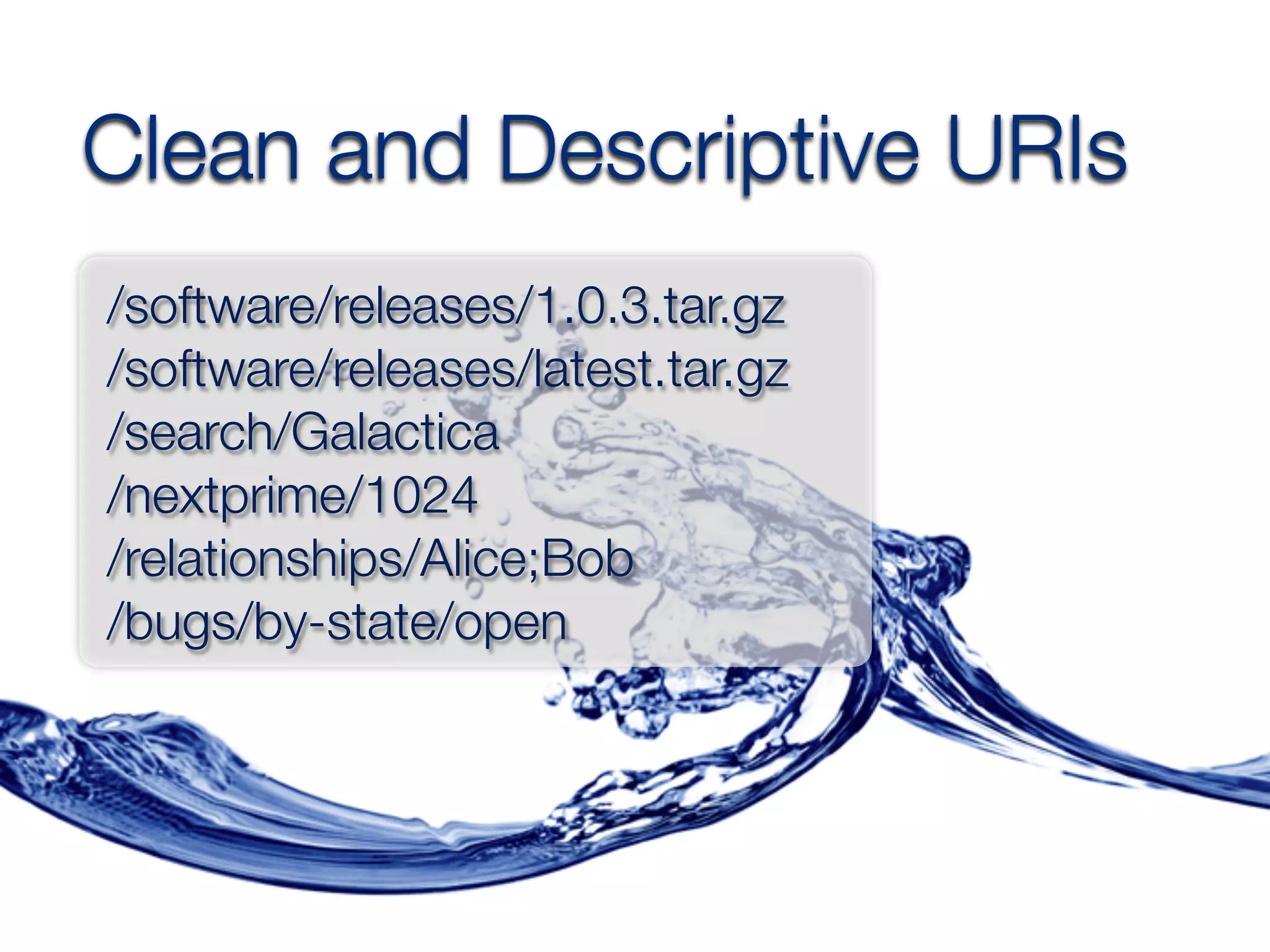

- 20. Clean and DescriptiveURIs /software/releases/1.0.3.tar.gz /software/releases/latest.tar.gz /search/Galactica /nextprime/1024 /relationships/Alice;Bob /bugs/by-state/open
- 21.
- 22.
- 23. The Uniform Interface GET - safe, idempotent PUT - idempotent DELETE - idempotent POST - “complex”

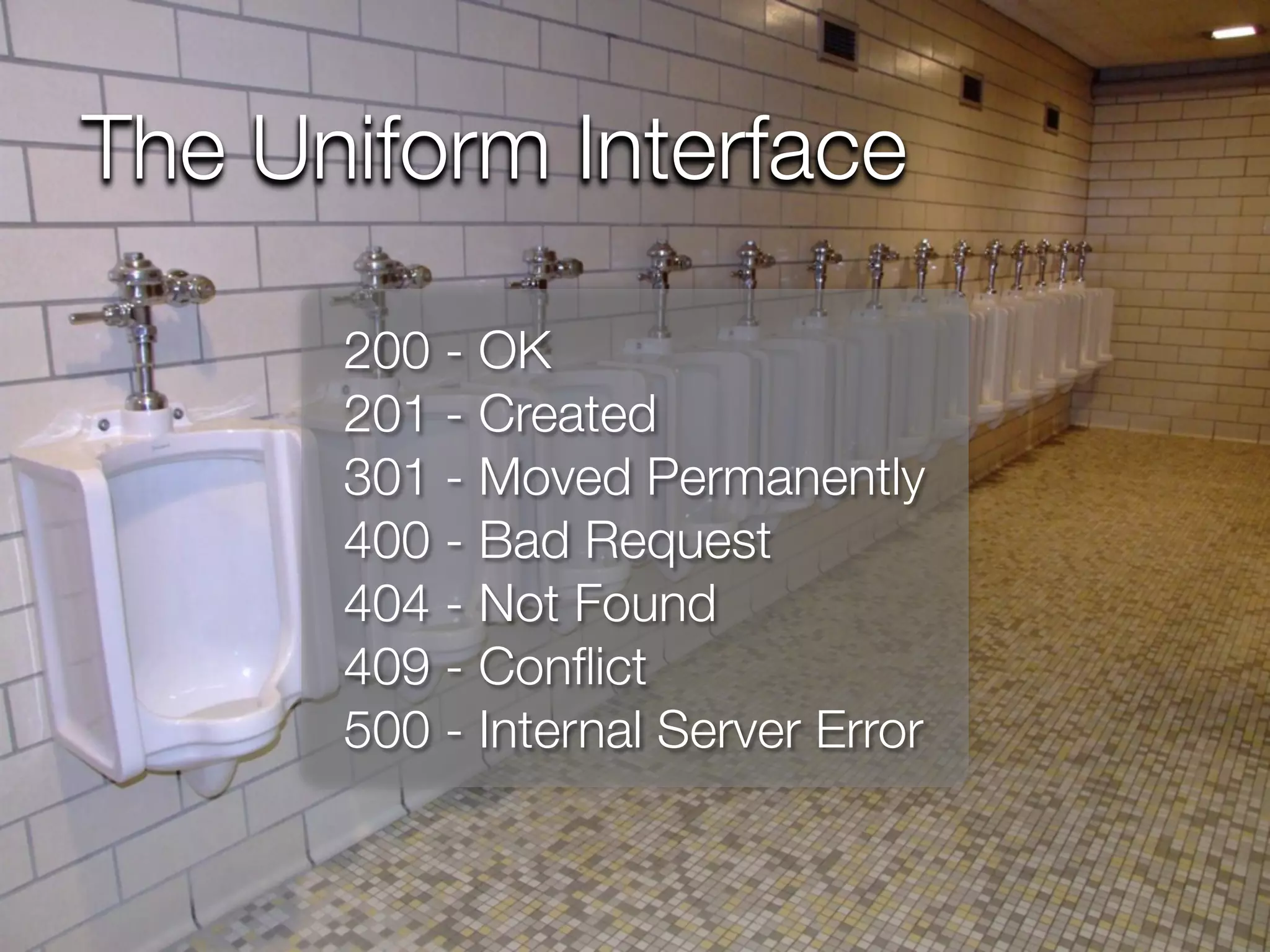

- 24. The Uniform Interface 200 - OK 201 - Created 301 - Moved Permanently 400 - Bad Request 404 - Not Found 409 - Conflict 500 - Internal Server Error

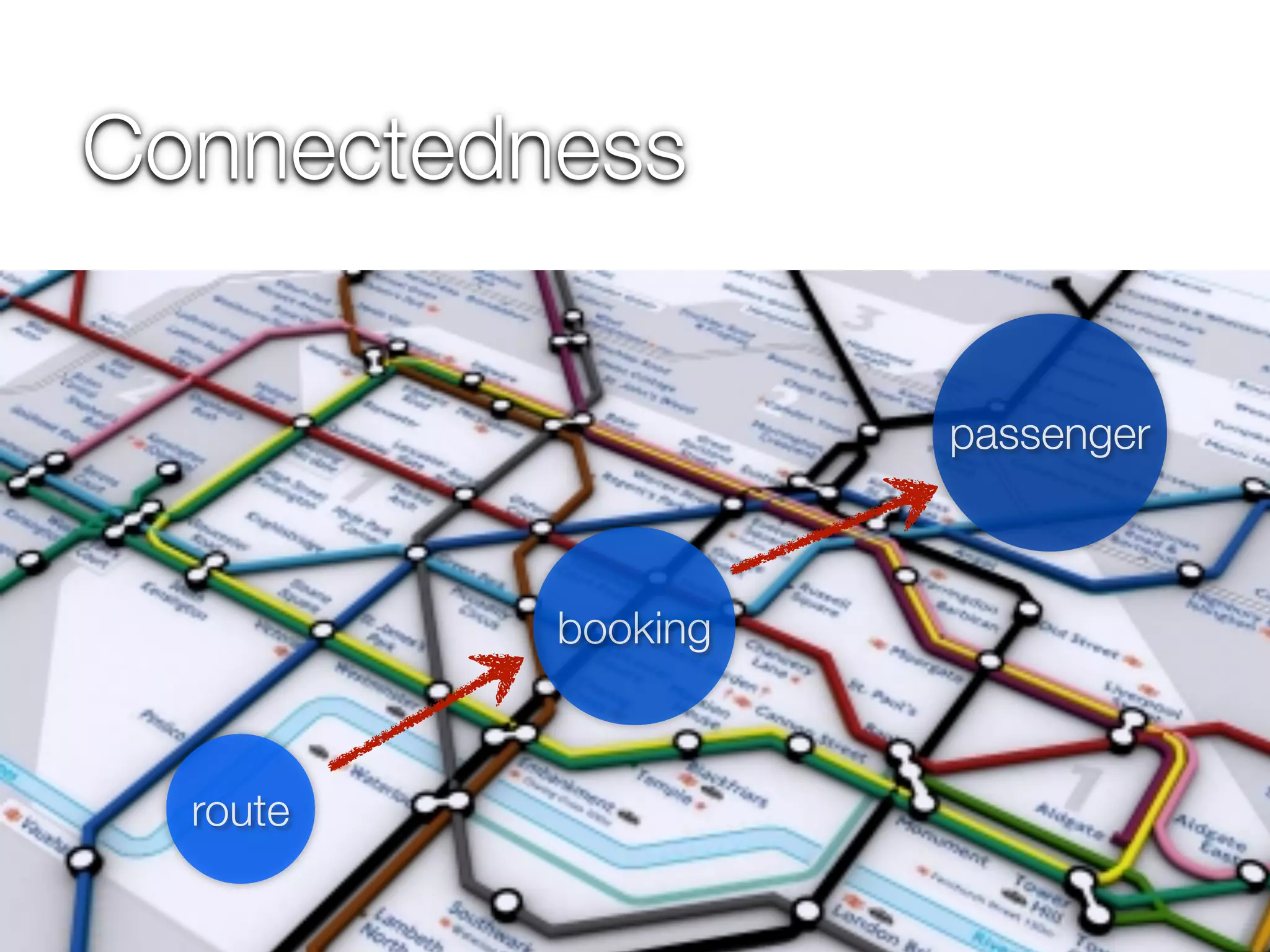

- 25. Connectedness passenger booking route

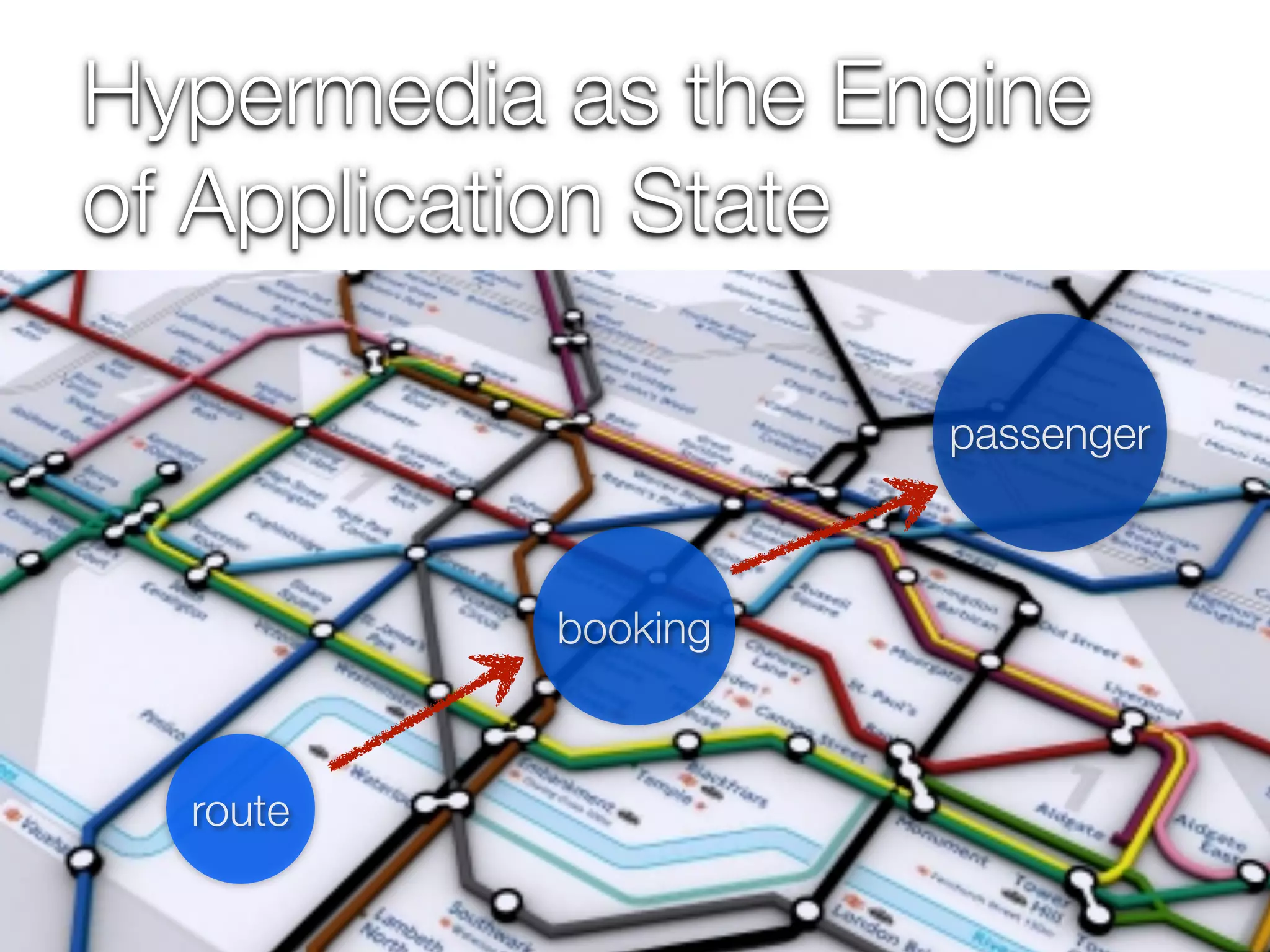

- 26. Hypermedia as theEngine of Application State passenger booking route
- 27. Problems? Transactions Asynchronous tasks Batch jobs Relationshipsbetween resources Partial updates Partial representations

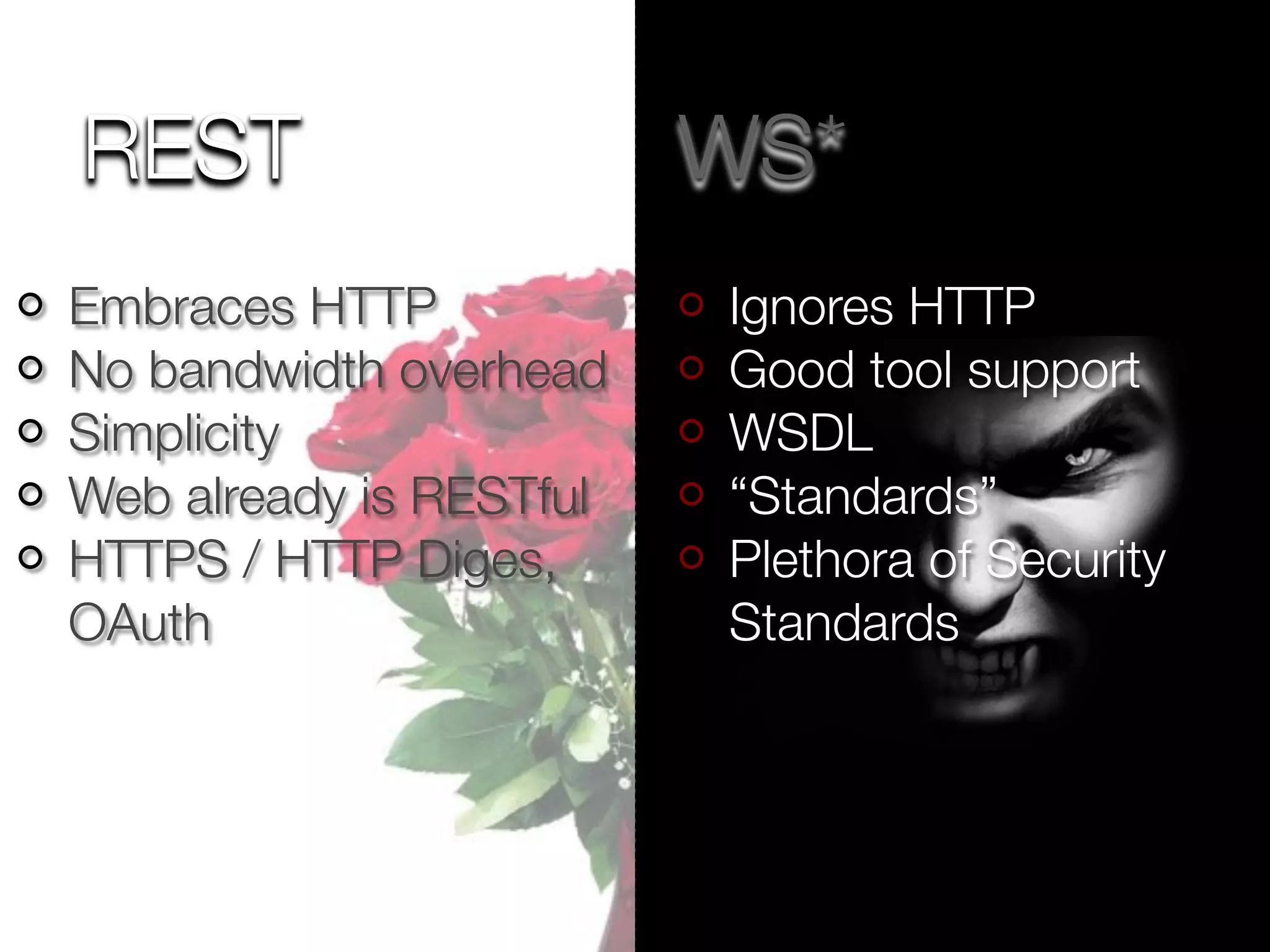

- 28. REST WS* Embraces HTTP Ignores HTTP No bandwidth overhead Good tool support Simplicity WSDL Web already is RESTful “Standards” HTTPS / HTTP Diges, Plethora of Security OAuth Standards
- 29.
