ResponseCard NXT offers features similar to other RF clickers, including cell-phone style text entry and a self-paced test mode for individual assessments. It is lightweight with a durable design, an LCD display for response confirmation, and supports multiple input types, allowing for various testing formats and real-time monitoring by instructors. The device can manage up to 74 sessions simultaneously and has a long battery life, making it suitable for educational environments.

1. ResponseCard NXT offers the same response features as other RF clickers,
with advanced capabilities such as cell-phone style text entry for short
answer and essay questions. The main feature that the NXT provides is its
self-paced test mode for individual assessment. The unit also contains an
LCD display that indicates responses have been received.

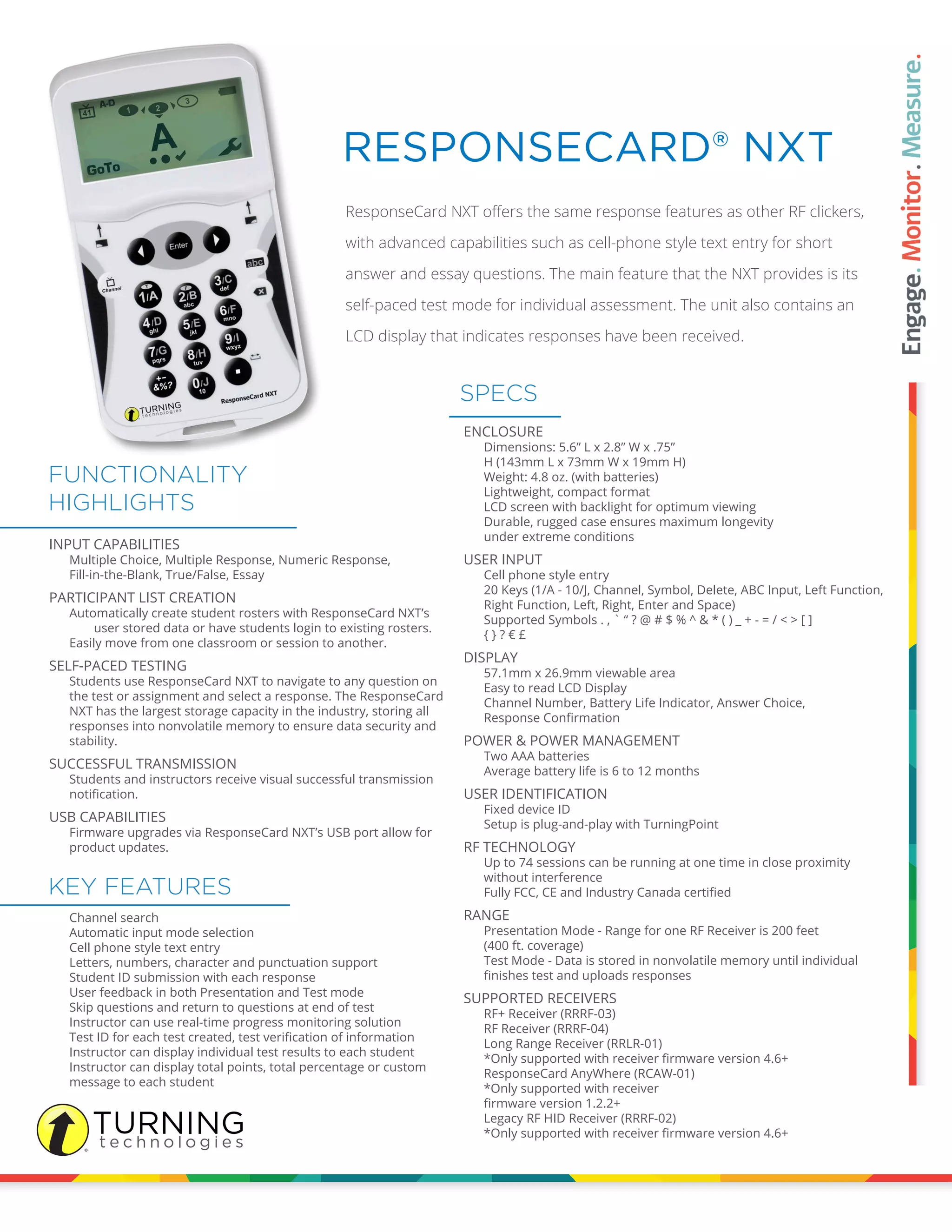

RESPONSECARD® NXT
ENCLOSURE
Dimensions: 5.6” L x 2.8” W x .75”
H (143mm L x 73mm W x 19mm H)
Weight: 4.8 oz. (with batteries)
Lightweight, compact format
LCD screen with backlight for optimum viewing
Durable, rugged case ensures maximum longevity
under extreme conditions
USER INPUT
Cell phone style entry
20 Keys (1/A - 10/J, Channel, Symbol, Delete, ABC Input, Left Function,
Right Function, Left, Right, Enter and Space)
Supported Symbols . , ` “ ? @ # $ % ^ & * ( ) _ + - = / < > [ ]
{ } ? € £
DISPLAY
57.1mm x 26.9mm viewable area
Easy to read LCD Display
Channel Number, Battery Life Indicator, Answer Choice,
Response Confirmation
POWER & POWER MANAGEMENT
Two AAA batteries
Average battery life is 6 to 12 months
USER IDENTIFICATION
Fixed device ID
Setup is plug-and-play with TurningPoint
RF TECHNOLOGY
Up to 74 sessions can be running at one time in close proximity
without interference
Fully FCC, CE and Industry Canada certified
RANGE
Presentation Mode - Range for one RF Receiver is 200 feet
(400 ft. coverage)
Test Mode - Data is stored in nonvolatile memory until individual
finishes test and uploads responses
SUPPORTED RECEIVERS
RF+ Receiver (RRRF-03)
RF Receiver (RRRF-04)
Long Range Receiver (RRLR-01)
*Only supported with receiver firmware version 4.6+
ResponseCard AnyWhere (RCAW-01)
*Only supported with receiver
firmware version 1.2.2+
Legacy RF HID Receiver (RRRF-02)
*Only supported with receiver firmware version 4.6+
Channel search
Automatic input mode selection
Cell phone style text entry
Letters, numbers, character and punctuation support
Student ID submission with each response
User feedback in both Presentation and Test mode
Skip questions and return to questions at end of test
Instructor can use real-time progress monitoring solution
Test ID for each test created, test verification of information
Instructor can display individual test results to each student
Instructor can display total points, total percentage or custom
message to each student
SPECS
KEY FEATURES
INPUT CAPABILITIES
Multiple Choice, Multiple Response, Numeric Response,
Fill-in-the-Blank, True/False, Essay
PARTICIPANT LIST CREATION
Automatically create student rosters with ResponseCard NXT’s
user stored data or have students login to existing rosters.
Easily move from one classroom or session to another.
SELF-PACED TESTING
Students use ResponseCard NXT to navigate to any question on
the test or assignment and select a response. The ResponseCard
NXT has the largest storage capacity in the industry, storing all
responses into nonvolatile memory to ensure data security and
stability.
SUCCESSFUL TRANSMISSION
Students and instructors receive visual successful transmission
notification.
USB CAPABILITIES
Firmware upgrades via ResponseCard NXT’s USB port allow for
product updates.
FUNCTIONALITY
HIGHLIGHTS
