1. Relations and Operations
Prepared by: MARIELA A. CAMBA

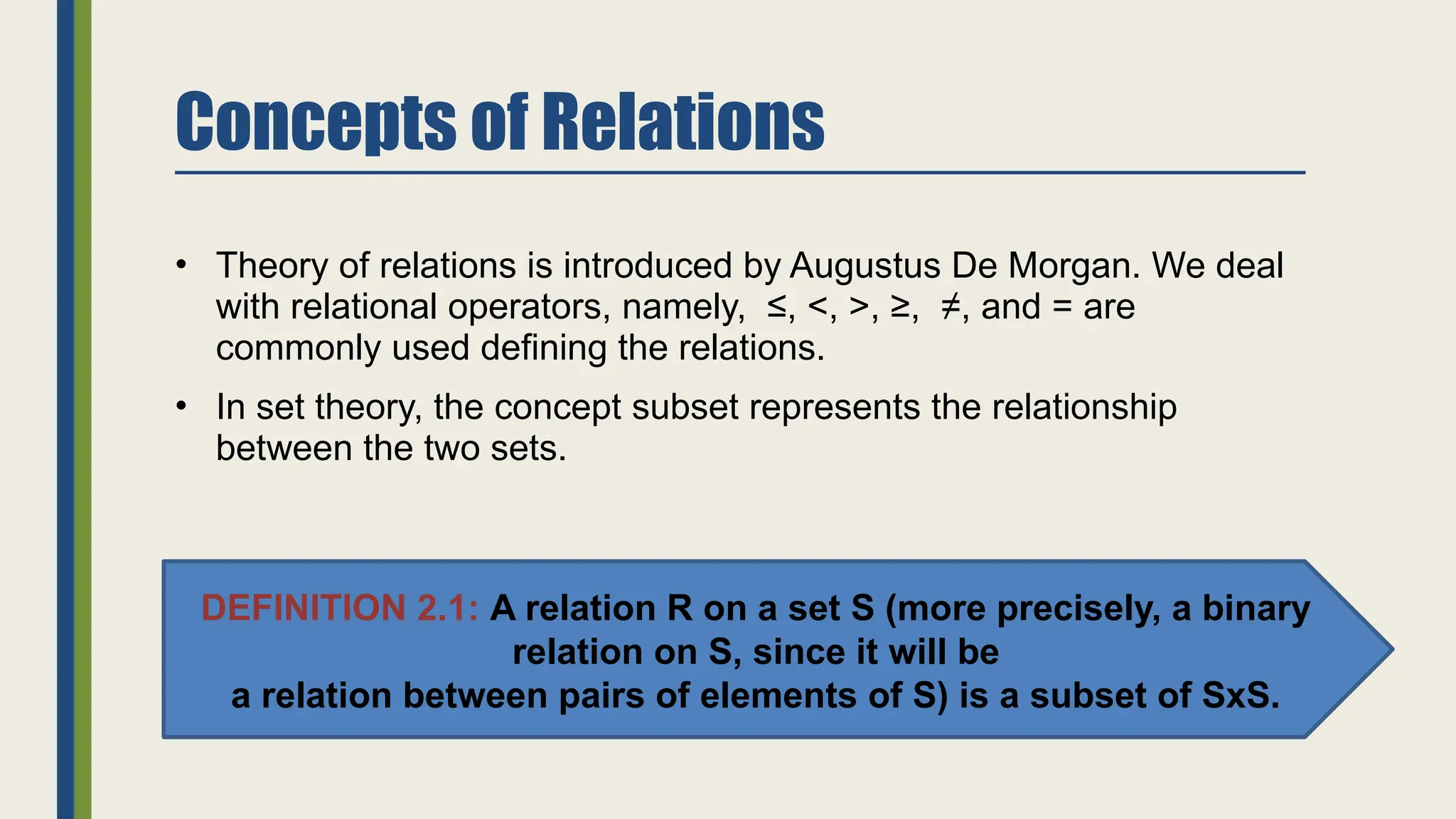

2. Concepts of Relations
• Theory of relations is introduced by Augustus De Morgan. We deal
with relational operators, namely, ≤, <, >, ≥, ≠, and = are
commonly used defining the relations.
• In set theory, the concept subset represents the relationship
between the two sets.
DEFINITION 2.1: A relation R on a set S (more precisely, a binary
relation on S, since it will be
a relation between pairs of elements of S) is a subset of SxS.

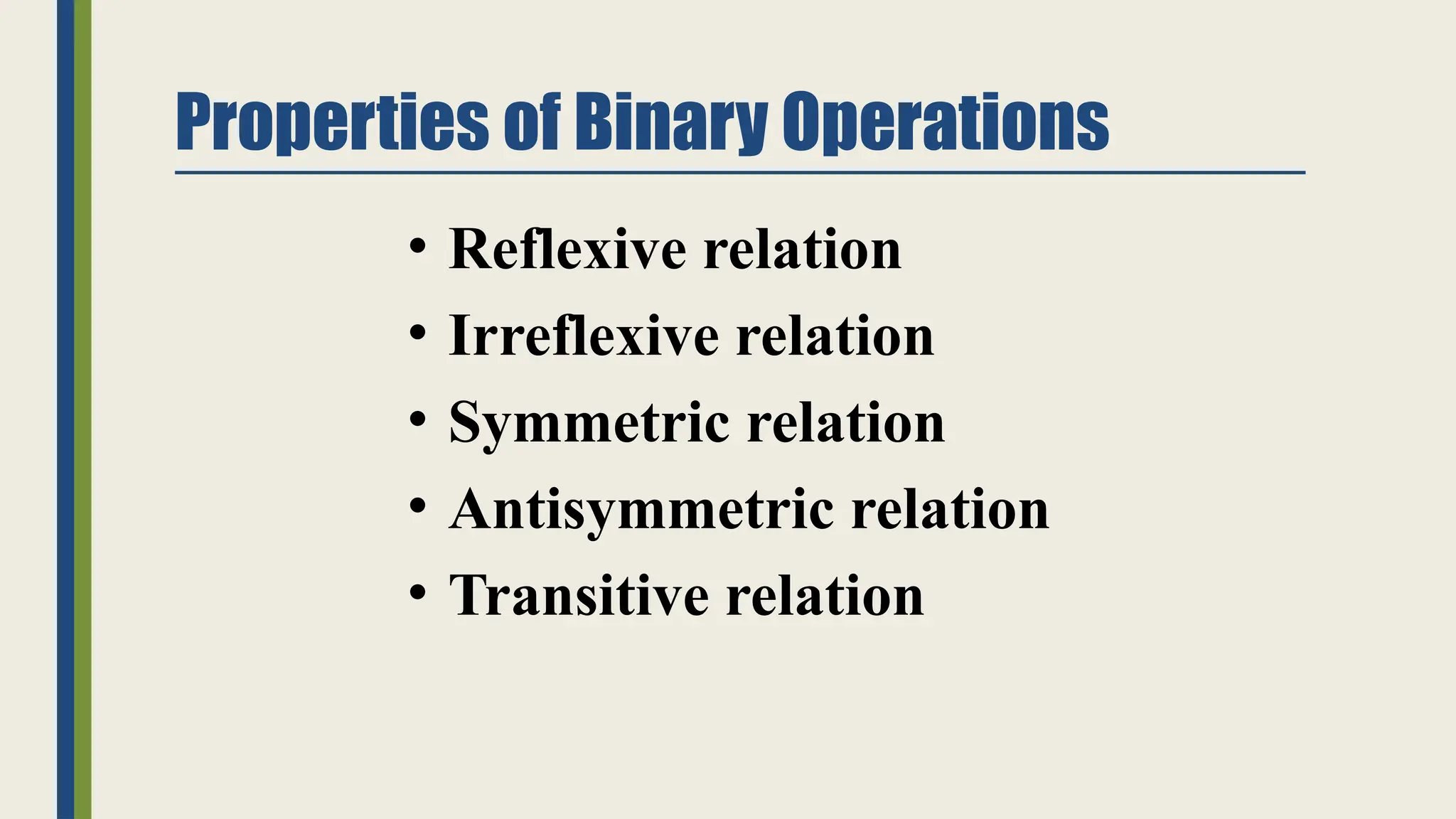

3. Properties of Binary Operations
• Reflexive relation
• Irreflexive relation
• Symmetric relation
• Antisymmetric relation
• Transitive relation

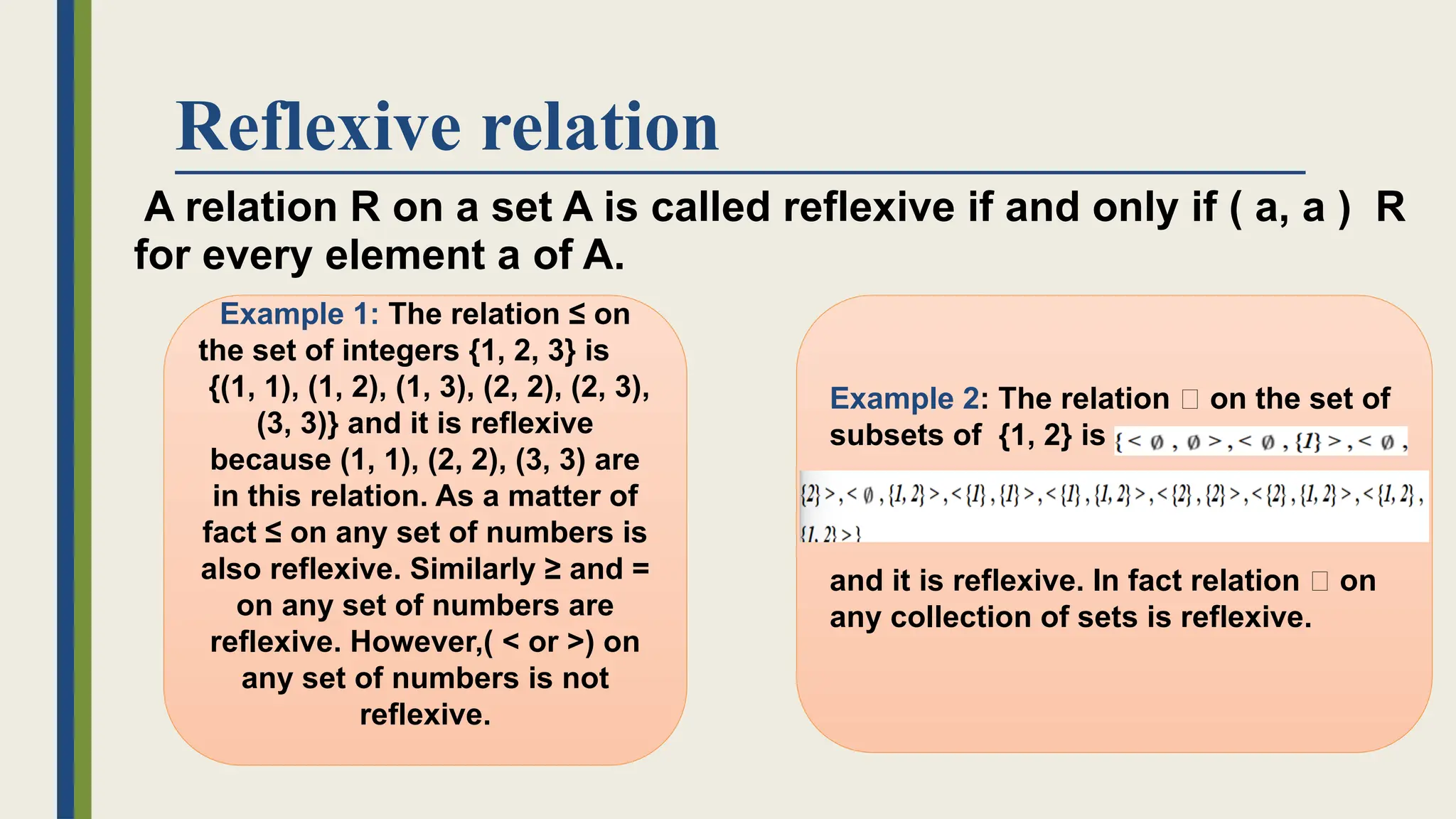

4. Reflexive relation
A relation R on a set A is called reflexive if and only if ( a, a ) R
for every element a of A.
Example 1: The relation ≤ on
the set of integers {1, 2, 3} is
{(1, 1), (1, 2), (1, 3), (2, 2), (2, 3),
(3, 3)} and it is reflexive
because (1, 1), (2, 2), (3, 3) are
in this relation. As a matter of
fact ≤ on any set of numbers is
also reflexive. Similarly ≥ and =
on any set of numbers are
reflexive. However,( < or >) on
any set of numbers is not
reflexive.
Example 2: The relation ⃀ on the set of
subsets of {1, 2} is
and it is reflexive. In fact relation ⃀ on
any collection of sets is reflexive.

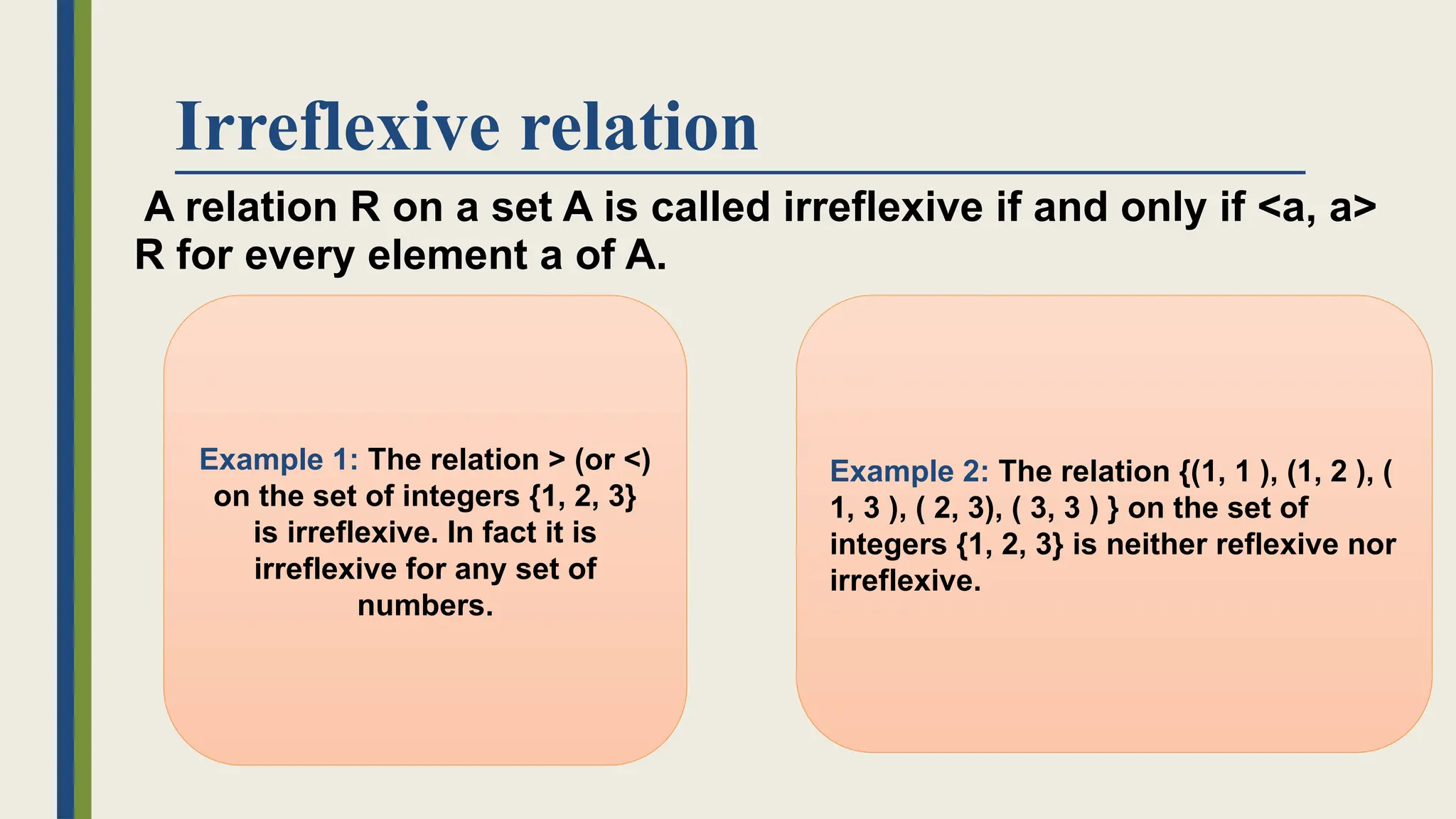

5. Irreflexive relation
A relation R on a set A is called irreflexive if and only if <a, a>
R for every element a of A.
Example 1: The relation > (or <)
on the set of integers {1, 2, 3}
is irreflexive. In fact it is
irreflexive for any set of
numbers.
Example 2: The relation {(1, 1 ), (1, 2 ), (
1, 3 ), ( 2, 3), ( 3, 3 ) } on the set of
integers {1, 2, 3} is neither reflexive nor
irreflexive.

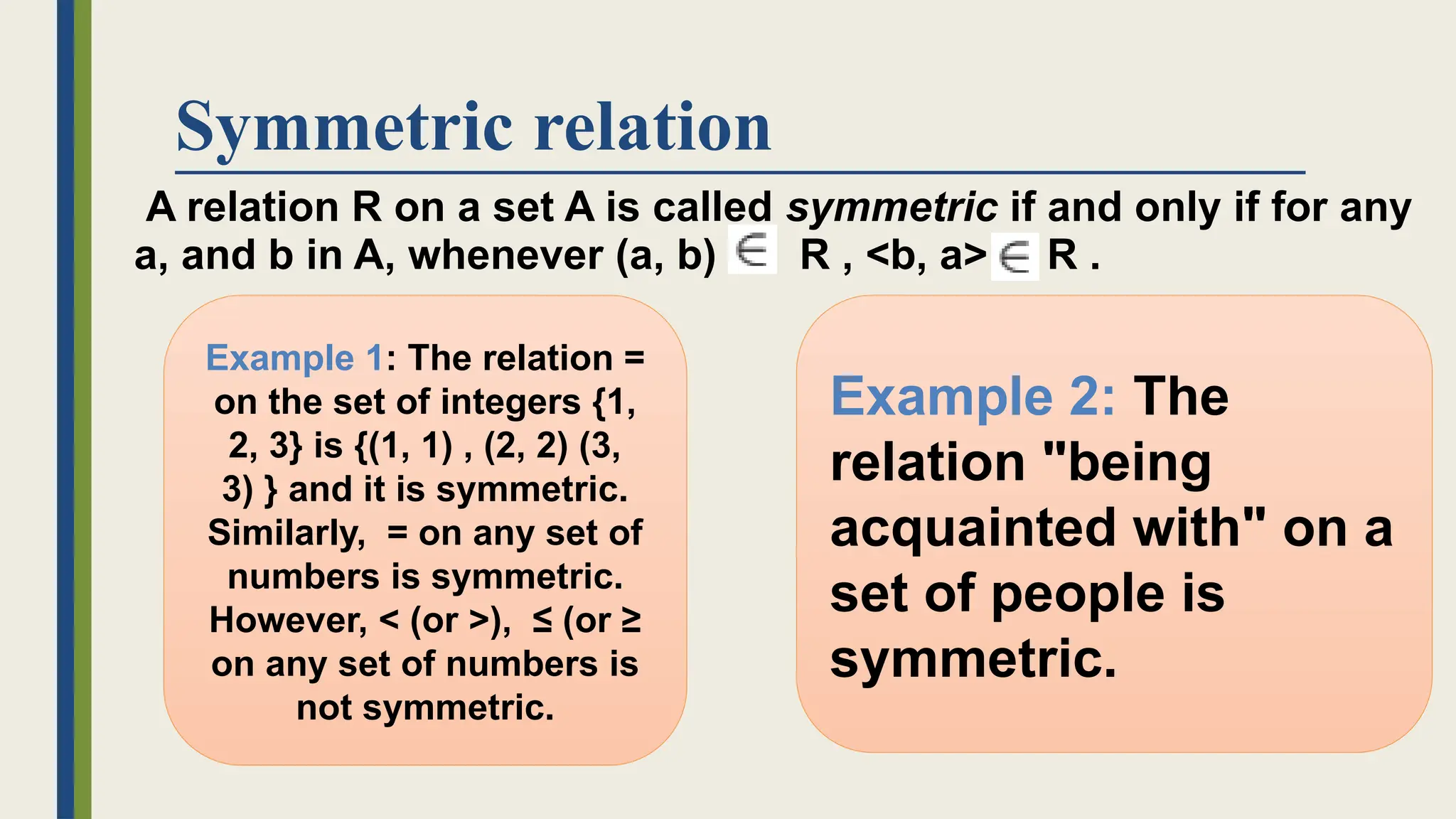

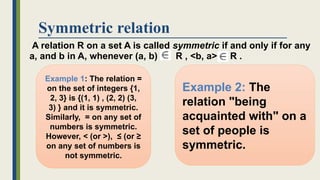

6. Symmetric relation
A relation R on a set A is called symmetric if and only if for any
a, and b in A, whenever (a, b) R , <b, a> R .
Example 1: The relation =
on the set of integers {1,
2, 3} is {(1, 1) , (2, 2) (3,
3) } and it is symmetric.
Similarly, = on any set of
numbers is symmetric.
However, < (or >), ≤ (or ≥
on any set of numbers is
not symmetric.
Example 2: The
relation "being
acquainted with" on a
set of people is
symmetric.

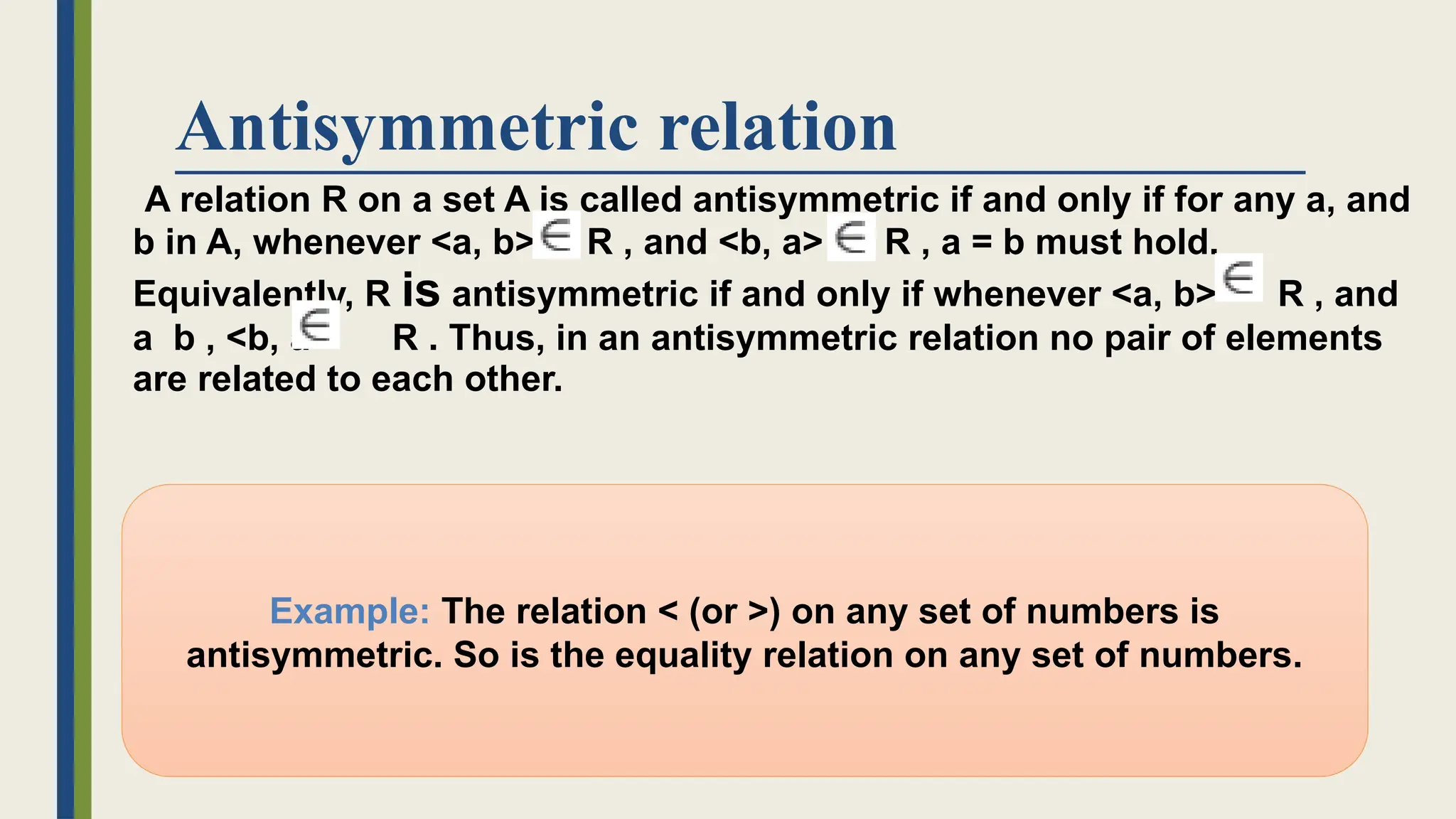

7. Antisymmetric relation
A relation R on a set A is called antisymmetric if and only if for any a, and
b in A, whenever <a, b> R , and <b, a> R , a = b must hold.
Equivalently, R is antisymmetric if and only if whenever <a, b> R , and
a b , <b, a> R . Thus, in an antisymmetric relation no pair of elements
are related to each other.
Example: The relation < (or >) on any set of numbers is
antisymmetric. So is the equality relation on any set of numbers.

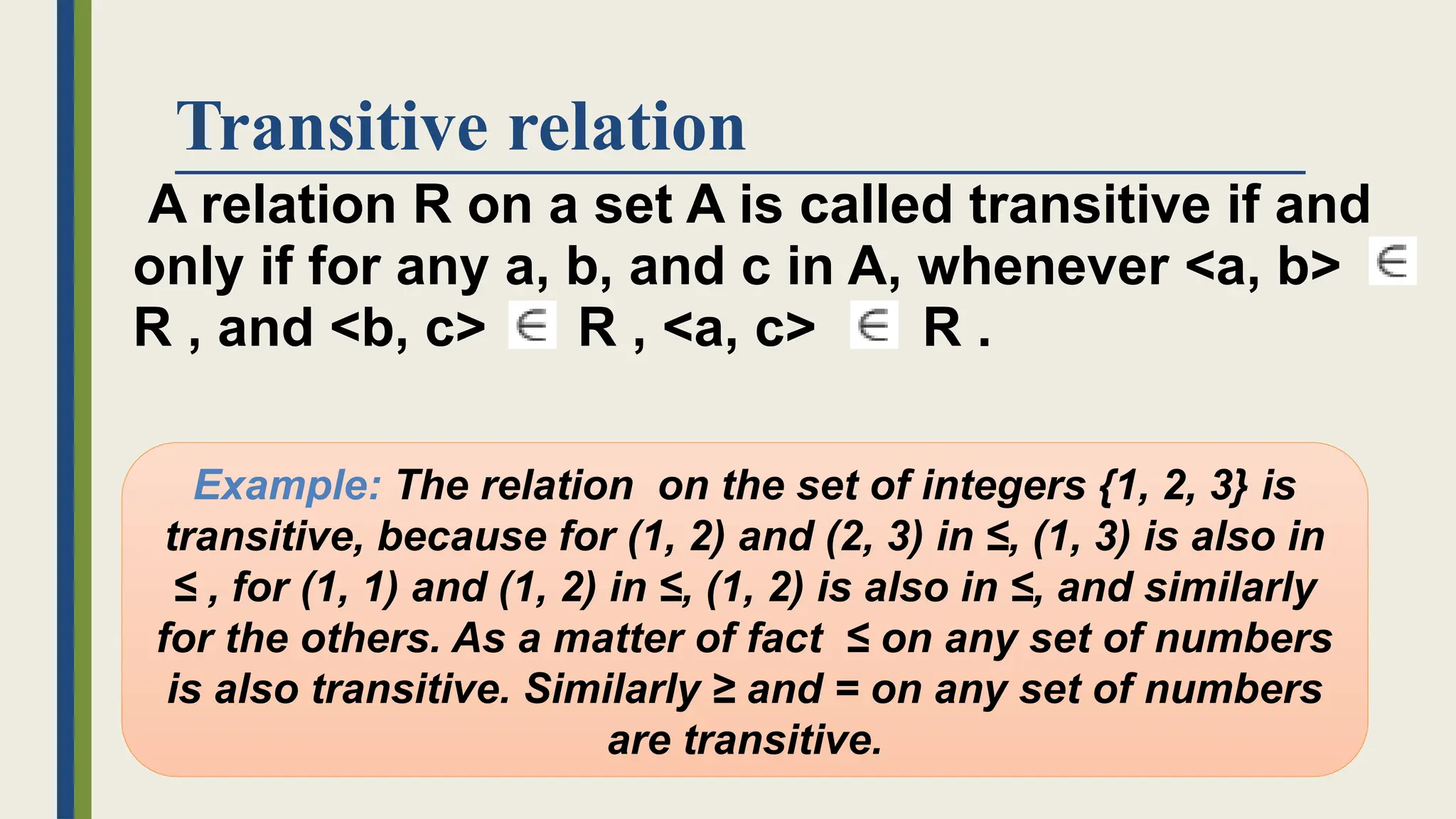

8. Transitive relation
A relation R on a set A is called transitive if and
only if for any a, b, and c in A, whenever <a, b>
R , and <b, c> R , <a, c> R .
Example: The relation on the set of integers {1, 2, 3} is
transitive, because for (1, 2) and (2, 3) in ≤, (1, 3) is also in
≤ , for (1, 1) and (1, 2) in ≤, (1, 2) is also in ≤, and similarly
for the others. As a matter of fact ≤ on any set of numbers
is also transitive. Similarly ≥ and = on any set of numbers
are transitive.

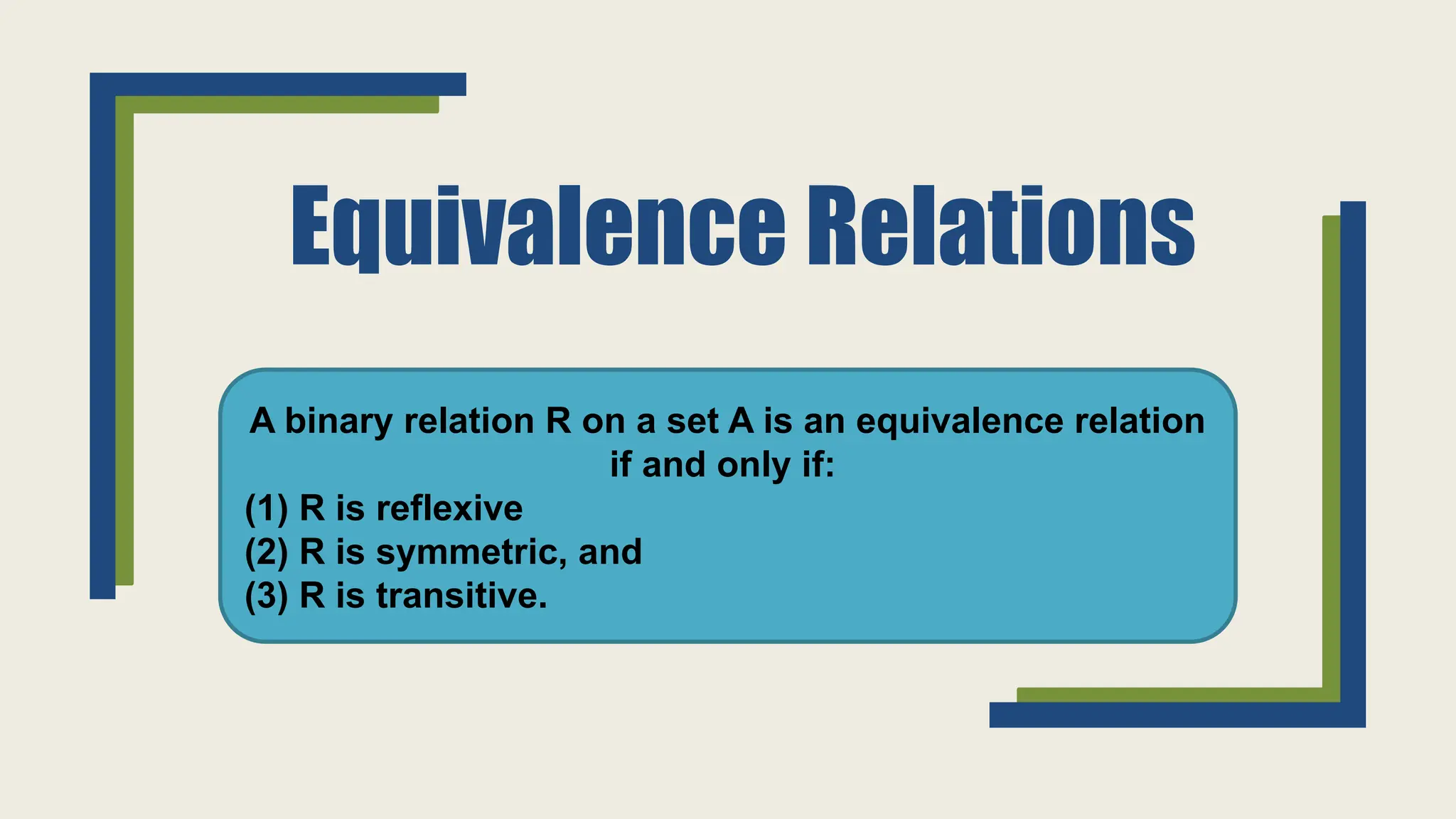

9. Equivalence Relations
A binary relation R on a set A is an equivalence relation
if and only if:
(1) R is reflexive
(2) R is symmetric, and
(3) R is transitive.

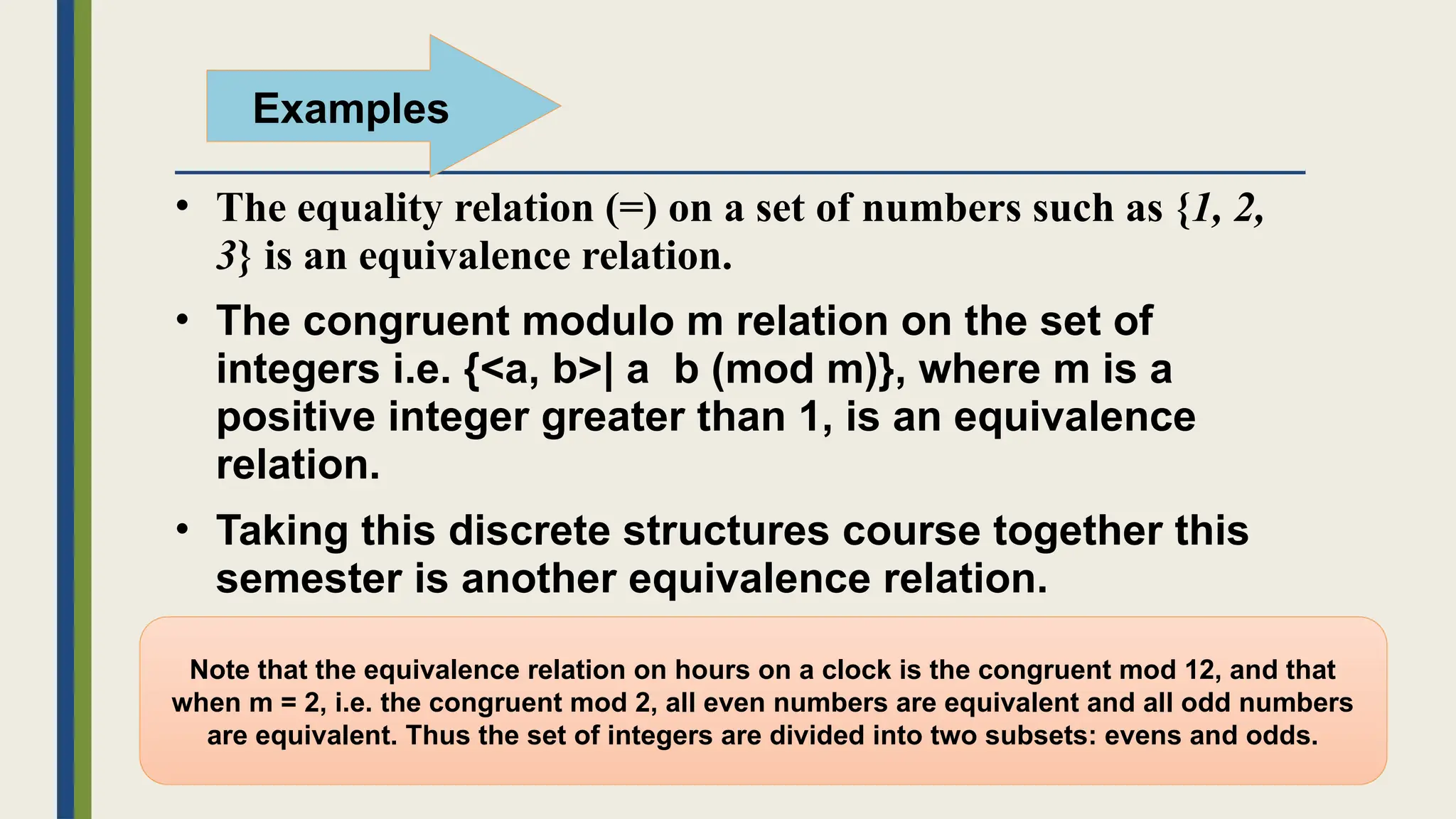

10. • The equality relation (=) on a set of numbers such as {1, 2,
3} is an equivalence relation.
• The congruent modulo m relation on the set of
integers i.e. {<a, b>| a b (mod m)}, where m is a
positive integer greater than 1, is an equivalence
relation.
• Taking this discrete structures course together this
semester is another equivalence relation.
Examples
Note that the equivalence relation on hours on a clock is the congruent mod 12, and that
when m = 2, i.e. the congruent mod 2, all even numbers are equivalent and all odd numbers
are equivalent. Thus the set of integers are divided into two subsets: evens and odds.

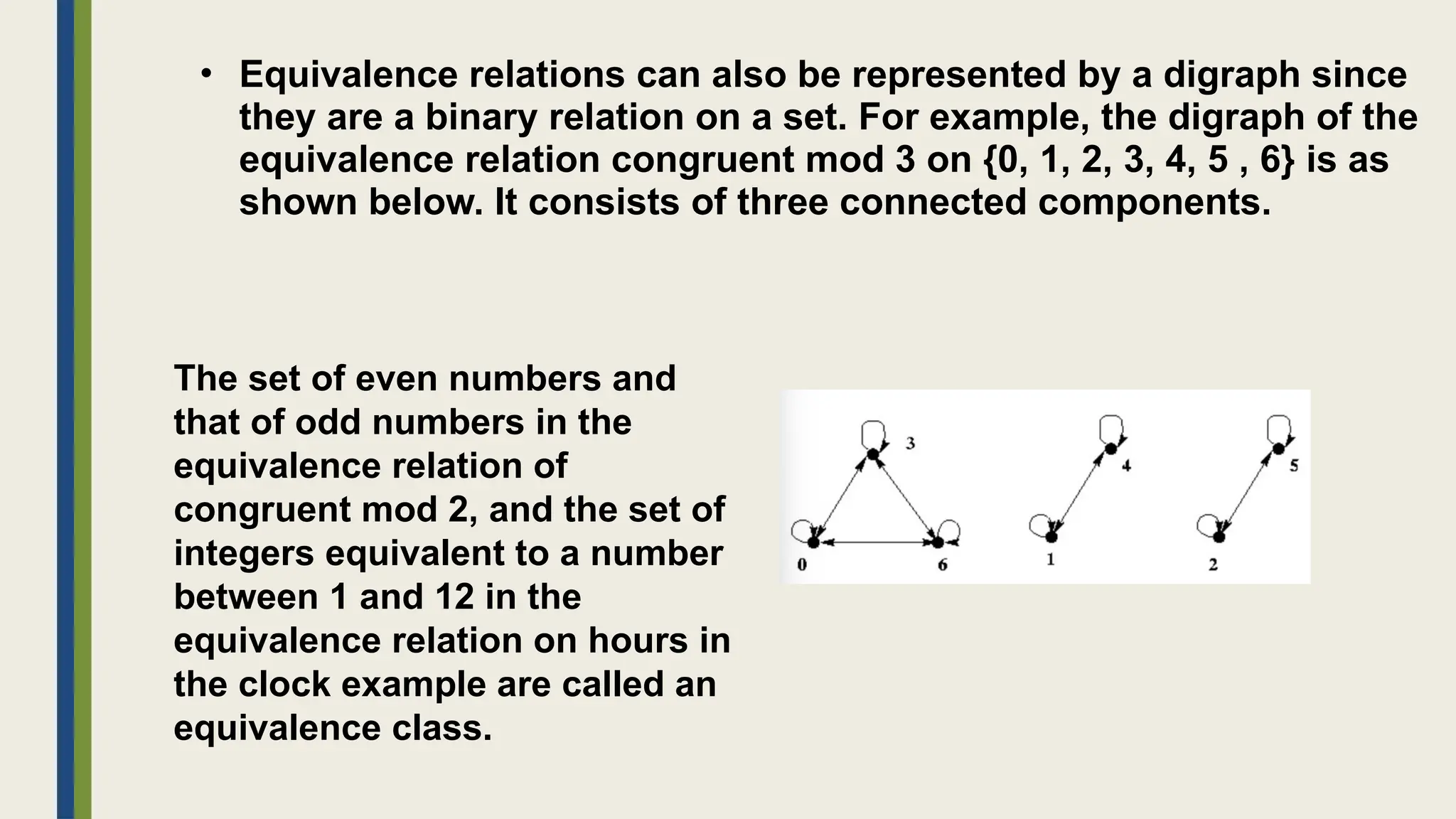

11. • Equivalence relations can also be represented by a digraph since
they are a binary relation on a set. For example, the digraph of the
equivalence relation congruent mod 3 on {0, 1, 2, 3, 4, 5 , 6} is as
shown below. It consists of three connected components.
The set of even numbers and
that of odd numbers in the
equivalence relation of
congruent mod 2, and the set of
integers equivalent to a number
between 1 and 12 in the
equivalence relation on hours in
the clock example are called an
equivalence class.

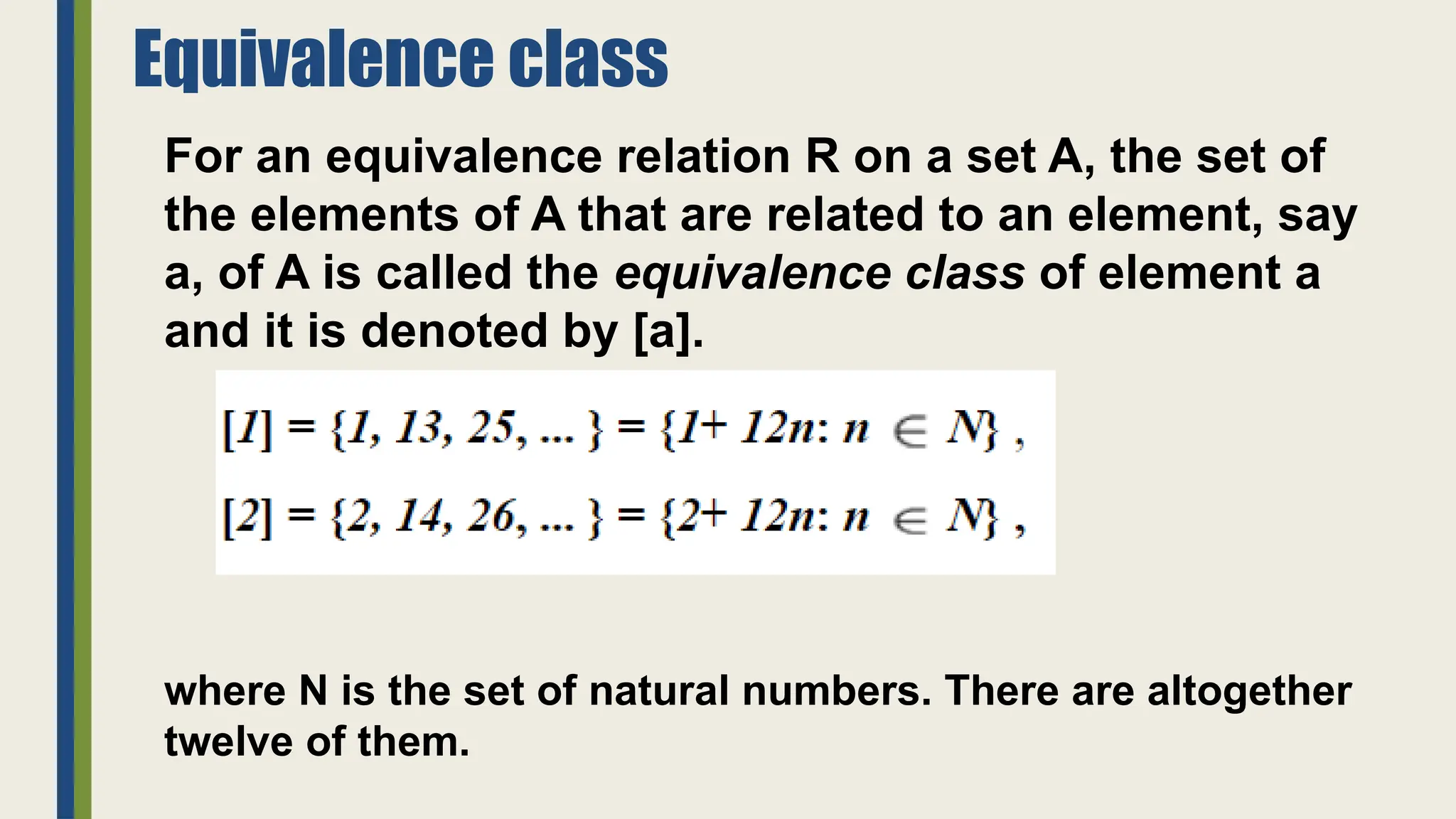

12. Equivalence class
For an equivalence relation R on a set A, the set of
the elements of A that are related to an element, say
a, of A is called the equivalence class of element a
and it is denoted by [a].
where N is the set of natural numbers. There are altogether
twelve of them.

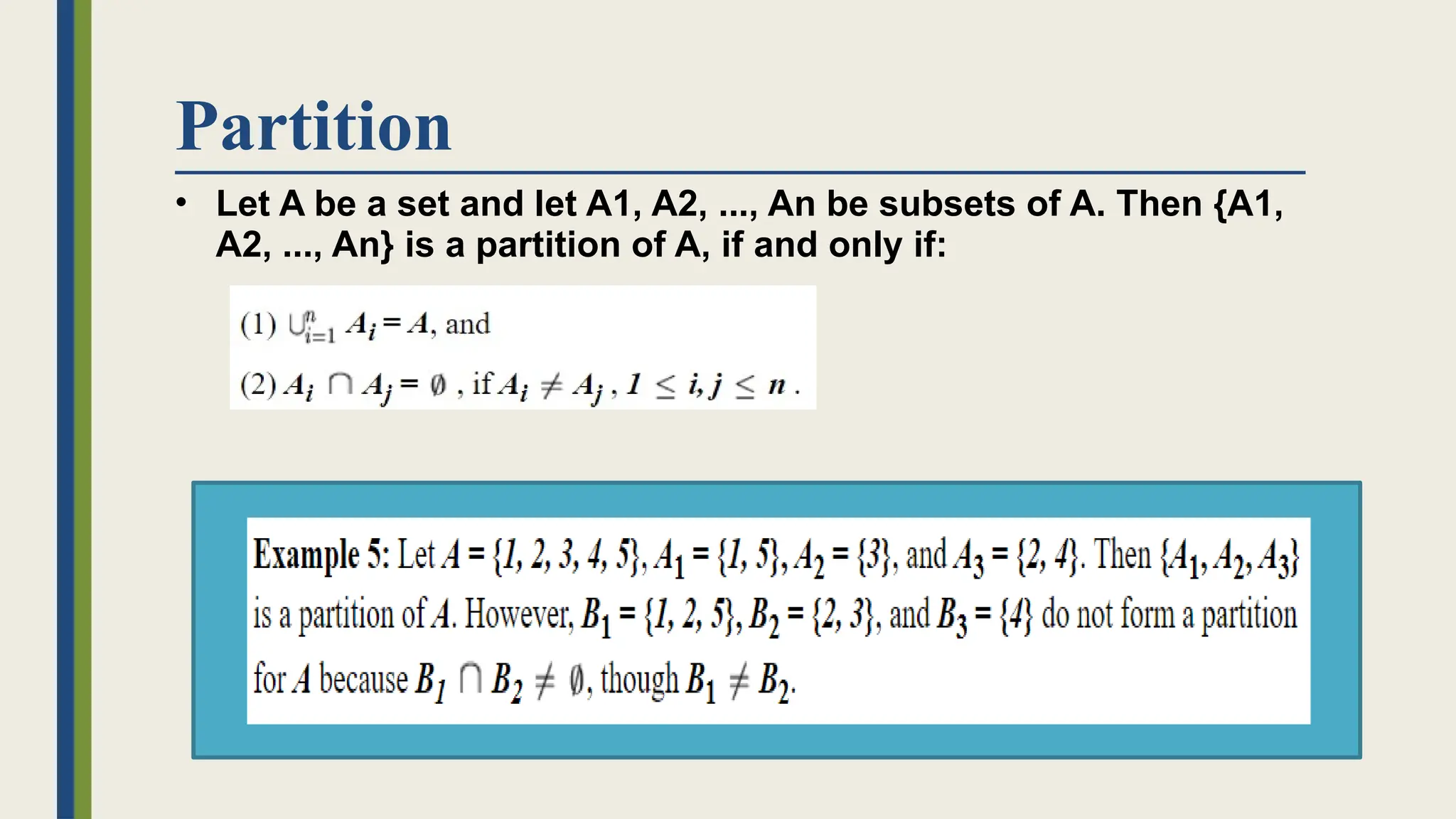

13. Partition
• Let A be a set and let A1, A2, ..., An be subsets of A. Then {A1,
A2, ..., An} is a partition of A, if and only if:

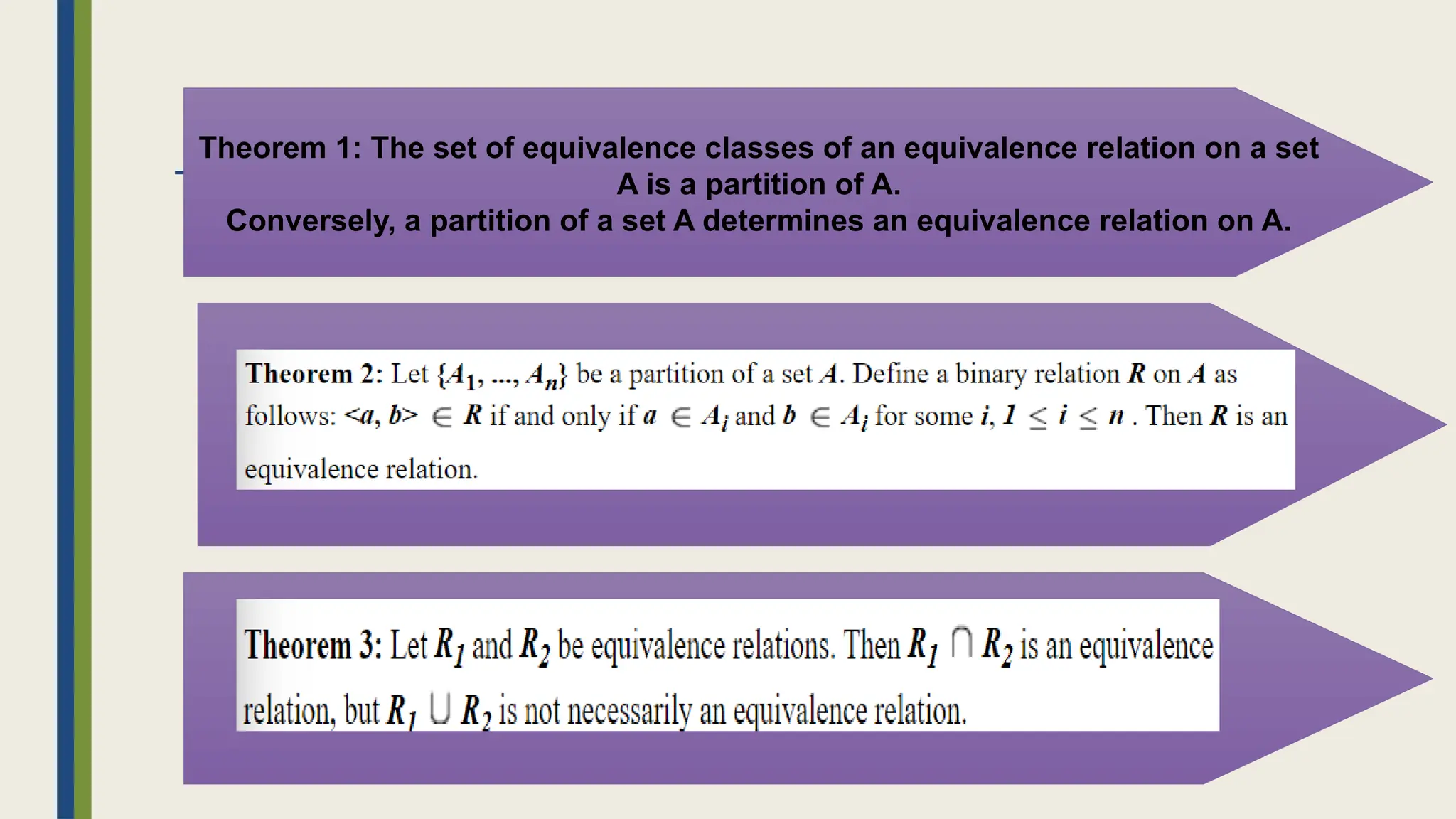

14. Theorem 1: The set of equivalence classes of an equivalence relation on a set
A is a partition of A.
Conversely, a partition of a set A determines an equivalence relation on A.

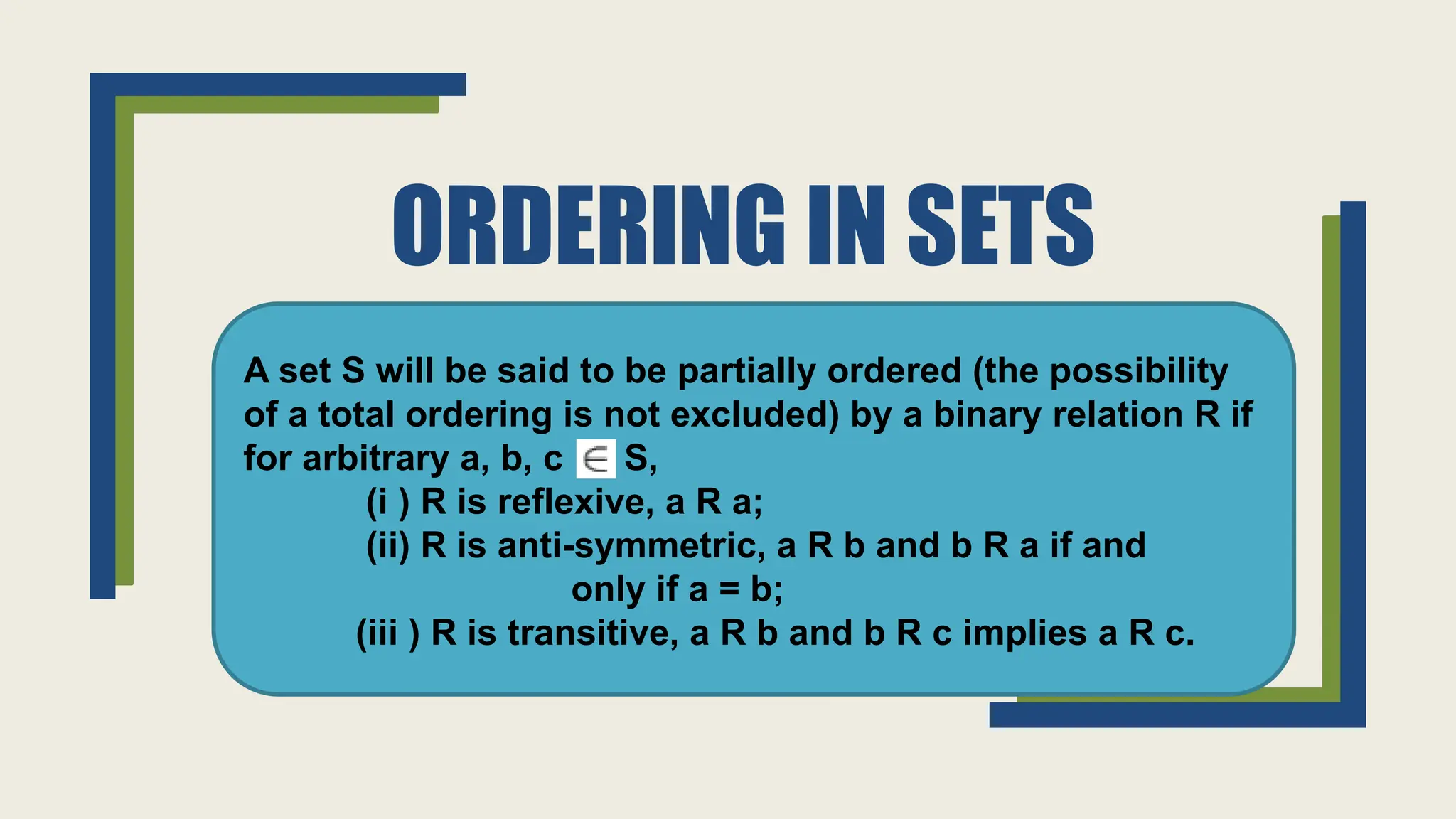

15. ORDERING IN SETS
A set S will be said to be partially ordered (the possibility
of a total ordering is not excluded) by a binary relation R if
for arbitrary a, b, c S,
(i ) R is reflexive, a R a;
(ii) R is anti-symmetric, a R b and b R a if and
only if a = b;
(iii ) R is transitive, a R b and b R c implies a R c.

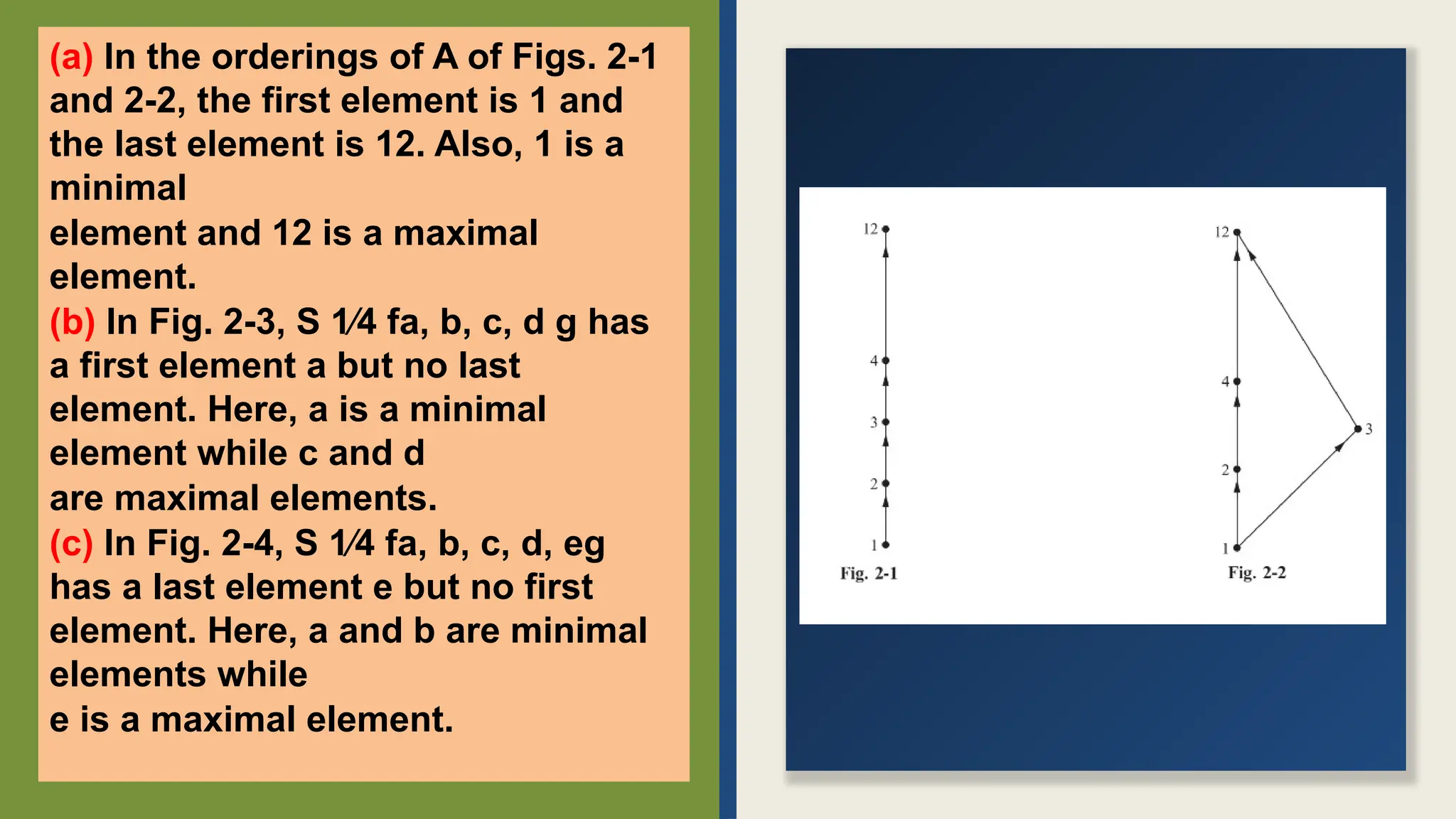

16. (a) In the orderings of A of Figs. 2-1
and 2-2, the first element is 1 and
the last element is 12. Also, 1 is a
minimal
element and 12 is a maximal
element.
(b) In Fig. 2-3, S 1⁄4 fa, b, c, d g has
a first element a but no last
element. Here, a is a minimal
element while c and d
are maximal elements.
(c) In Fig. 2-4, S 1⁄4 fa, b, c, d, eg
has a last element e but no first
element. Here, a and b are minimal
elements while
e is a maximal element.

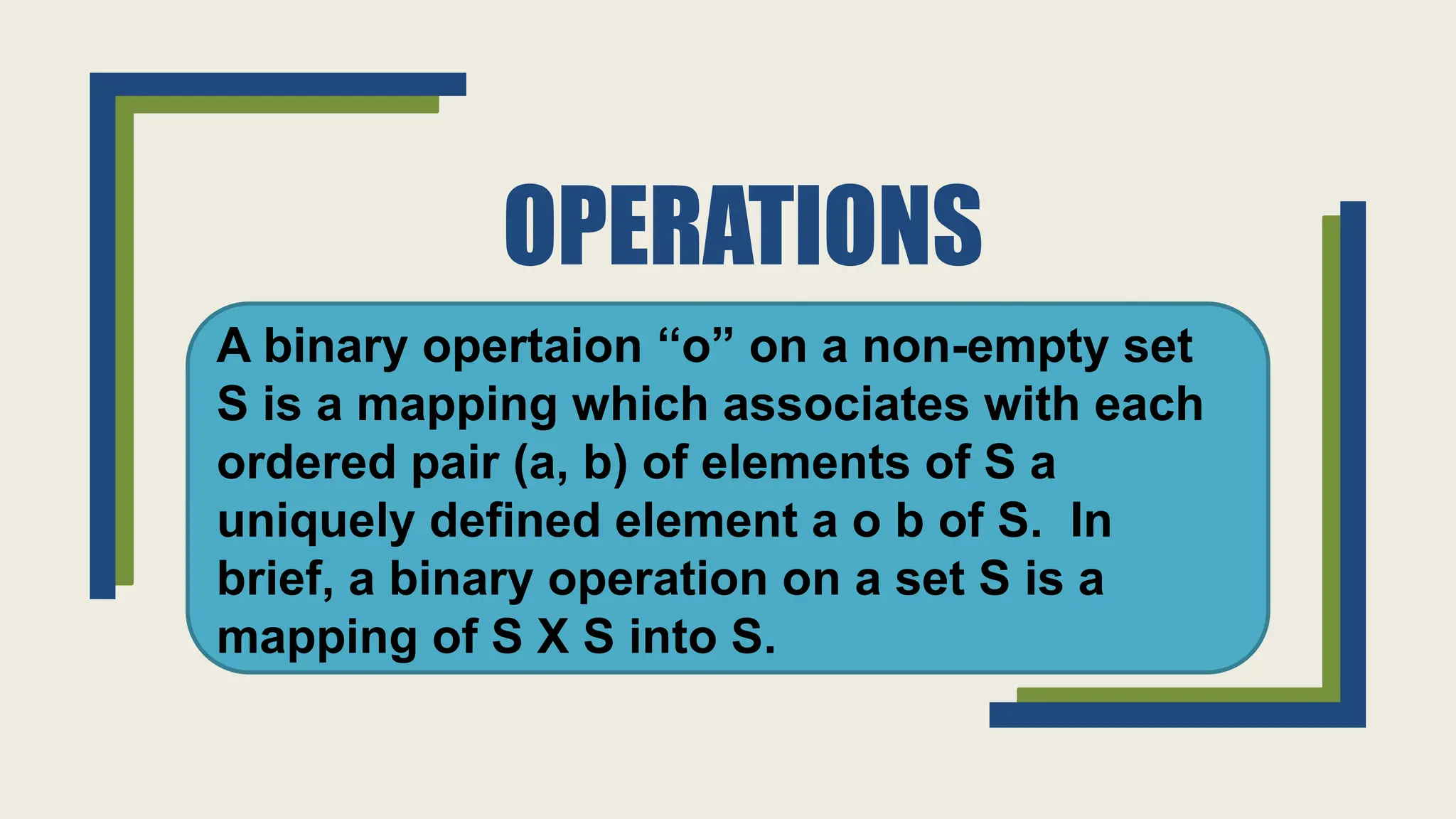

17. OPERATIONS
A binary opertaion ‘‘o” on a non-empty set
S is a mapping which associates with each
ordered pair (a, b) of elements of S a
uniquely defined element a o b of S. In
brief, a binary operation on a set S is a
mapping of S X S into S.

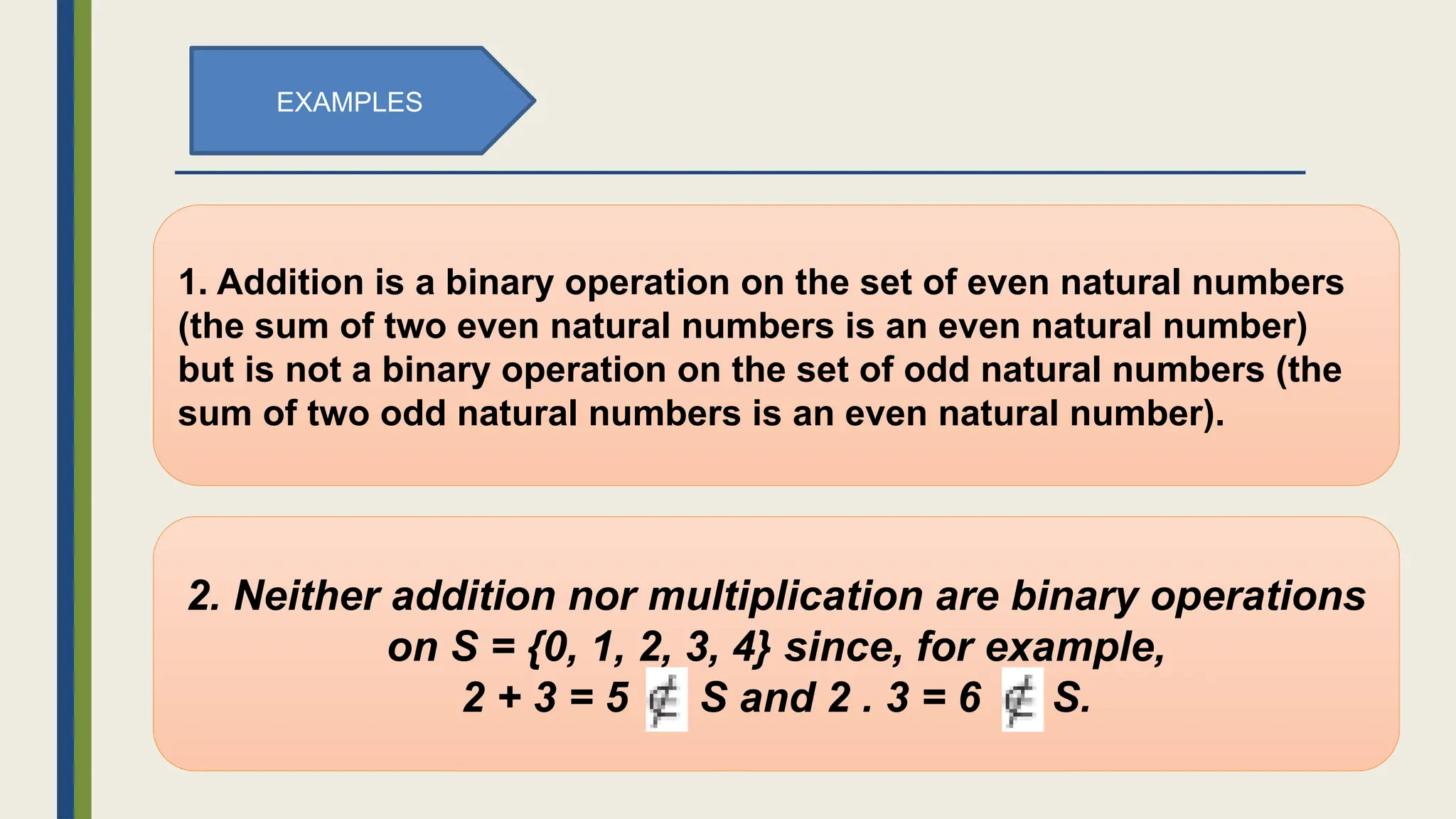

18. 1. Addition is a binary operation on the set of even natural numbers
(the sum of two even natural numbers is an even natural number)
but is not a binary operation on the set of odd natural numbers (the
sum of two odd natural numbers is an even natural number).
EXAMPLES
2. Neither addition nor multiplication are binary operations
on S = {0, 1, 2, 3, 4} since, for example,
2 + 3 = 5 S and 2 . 3 = 6 S.

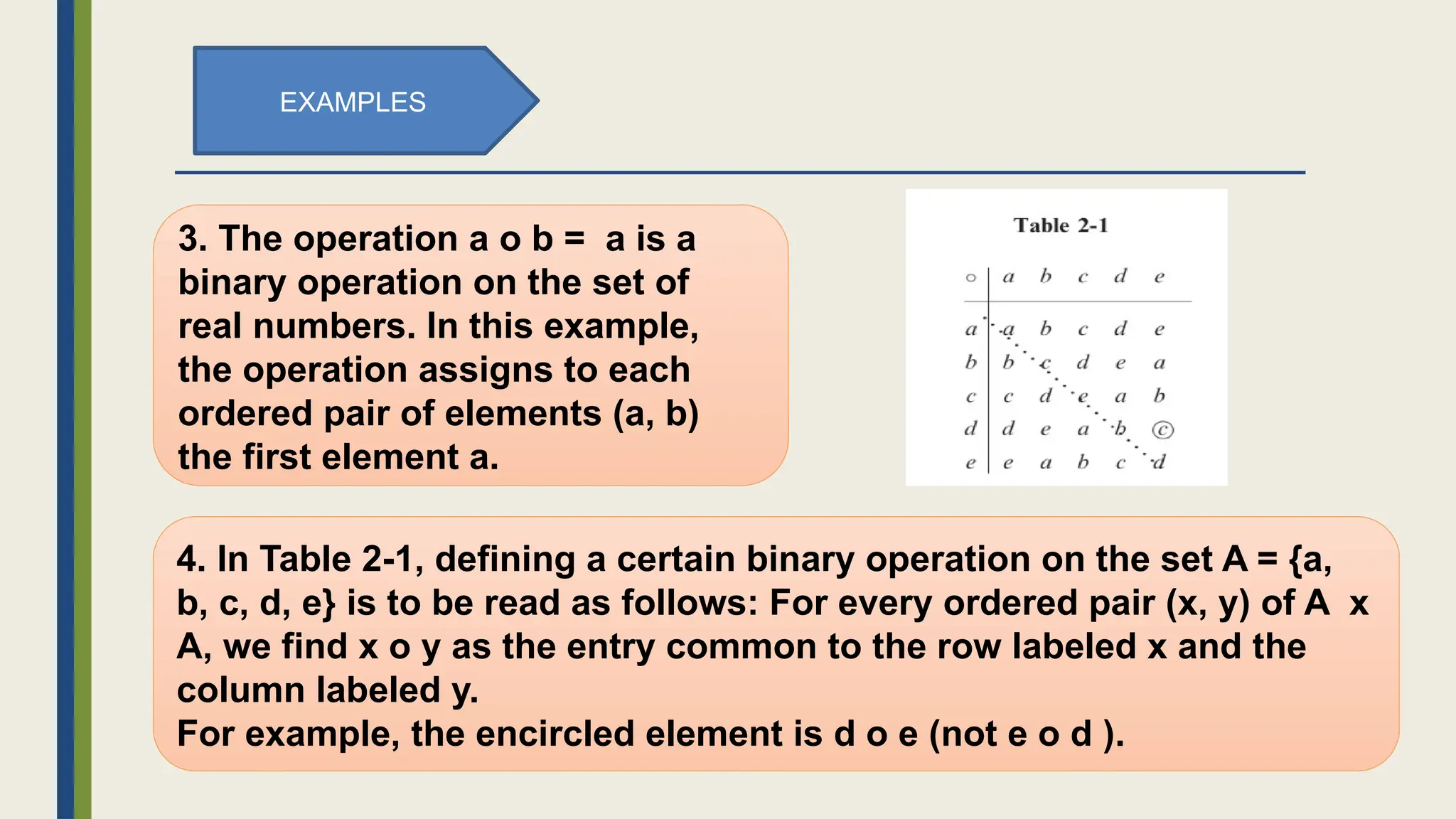

19. 3. The operation a o b = a is a
binary operation on the set of
real numbers. In this example,
the operation assigns to each
ordered pair of elements (a, b)
the first element a.
EXAMPLES
4. In Table 2-1, defining a certain binary operation on the set A = {a,
b, c, d, e} is to be read as follows: For every ordered pair (x, y) of A x
A, we find x o y as the entry common to the row labeled x and the
column labeled y.
For example, the encircled element is d o e (not e o d ).

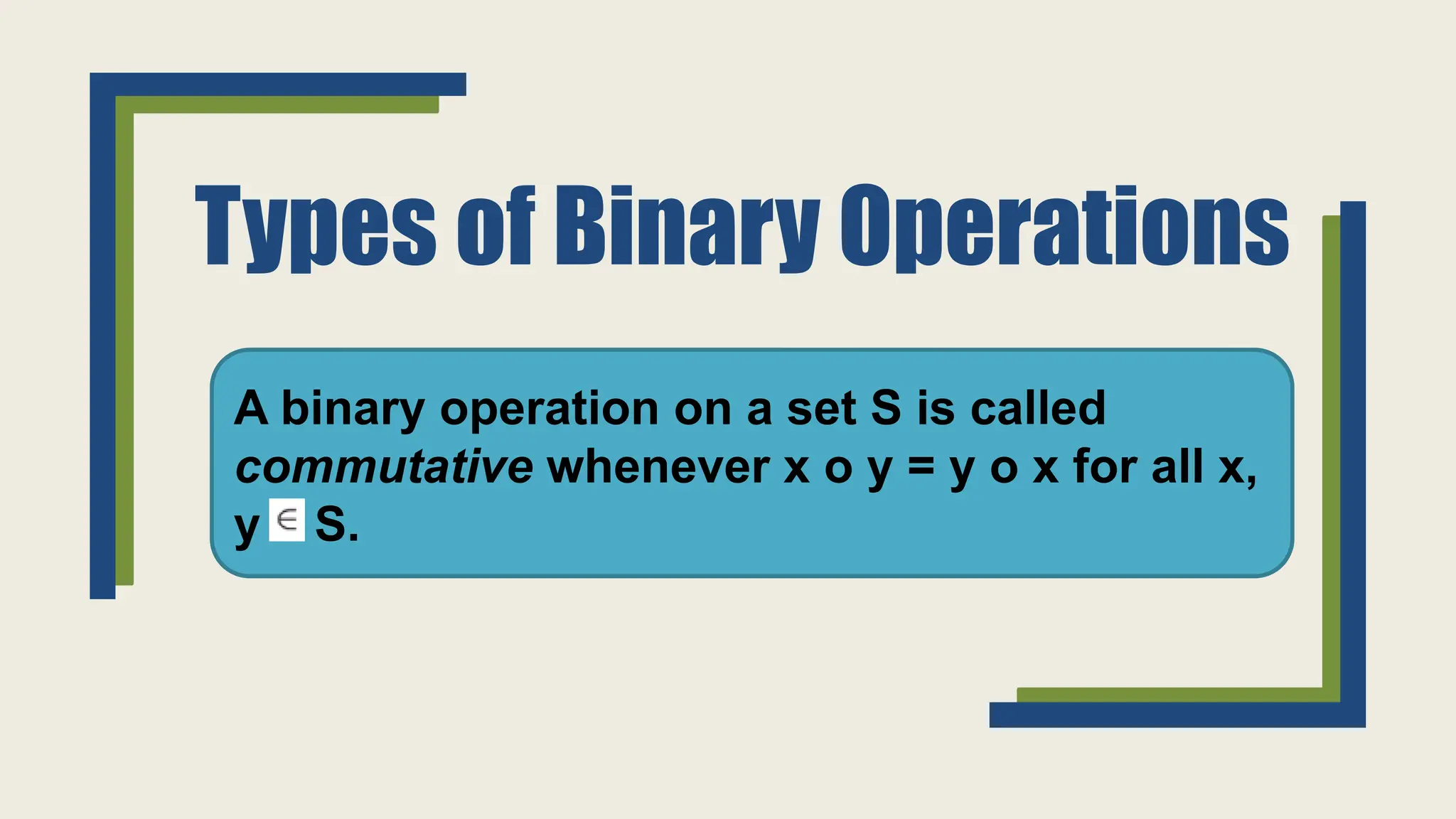

20. Types of Binary Operations
A binary operation on a set S is called
commutative whenever x o y = y o x for all x,
y S.

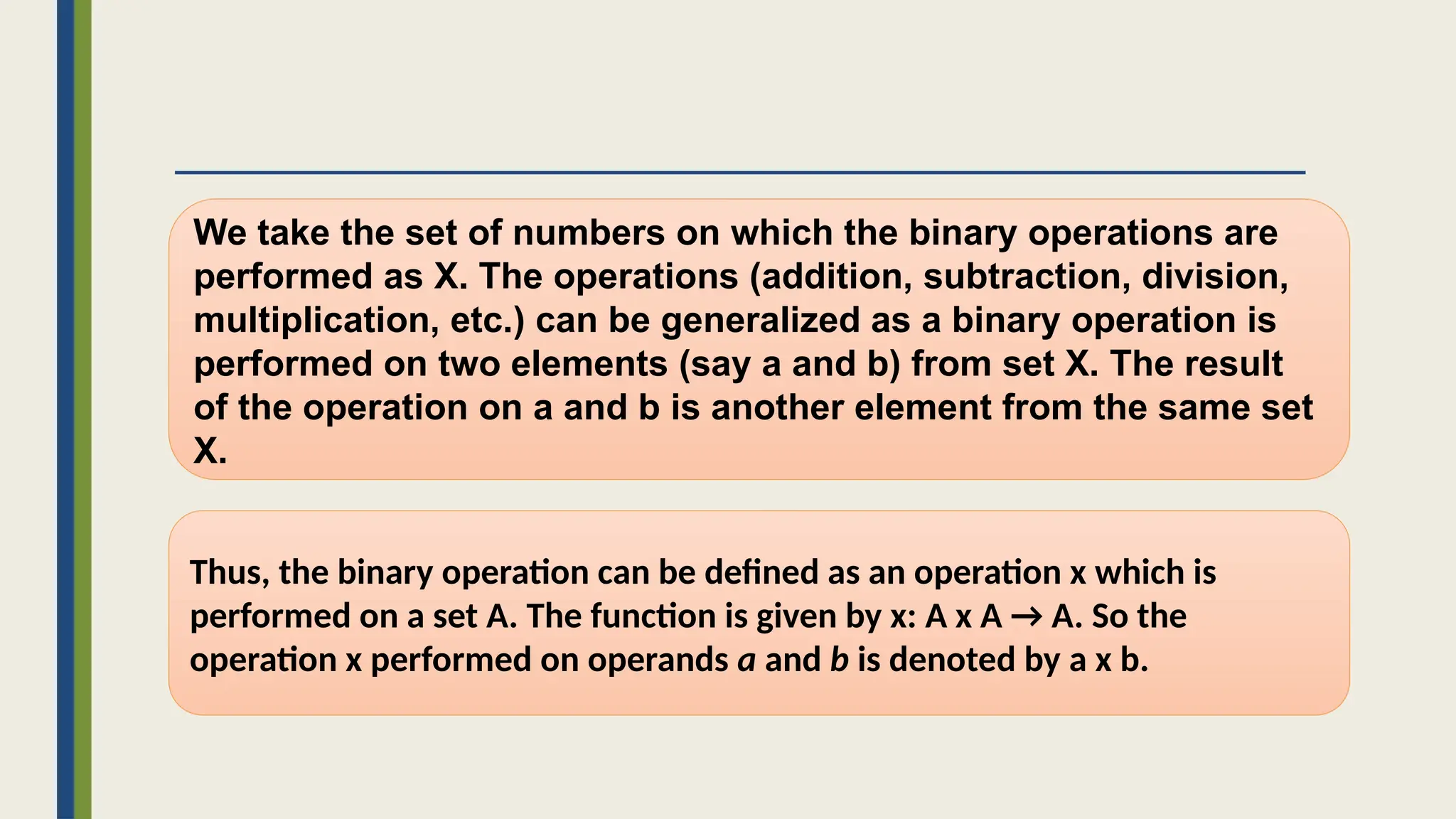

21. We take the set of numbers on which the binary operations are
performed as X. The operations (addition, subtraction, division,
multiplication, etc.) can be generalized as a binary operation is
performed on two elements (say a and b) from set X. The result
of the operation on a and b is another element from the same set
X.
Thus, the binary operation can be defined as an operation x which is
performed on a set A. The function is given by x: A x A → A. So the
operation x performed on operands a and b is denoted by a x b.

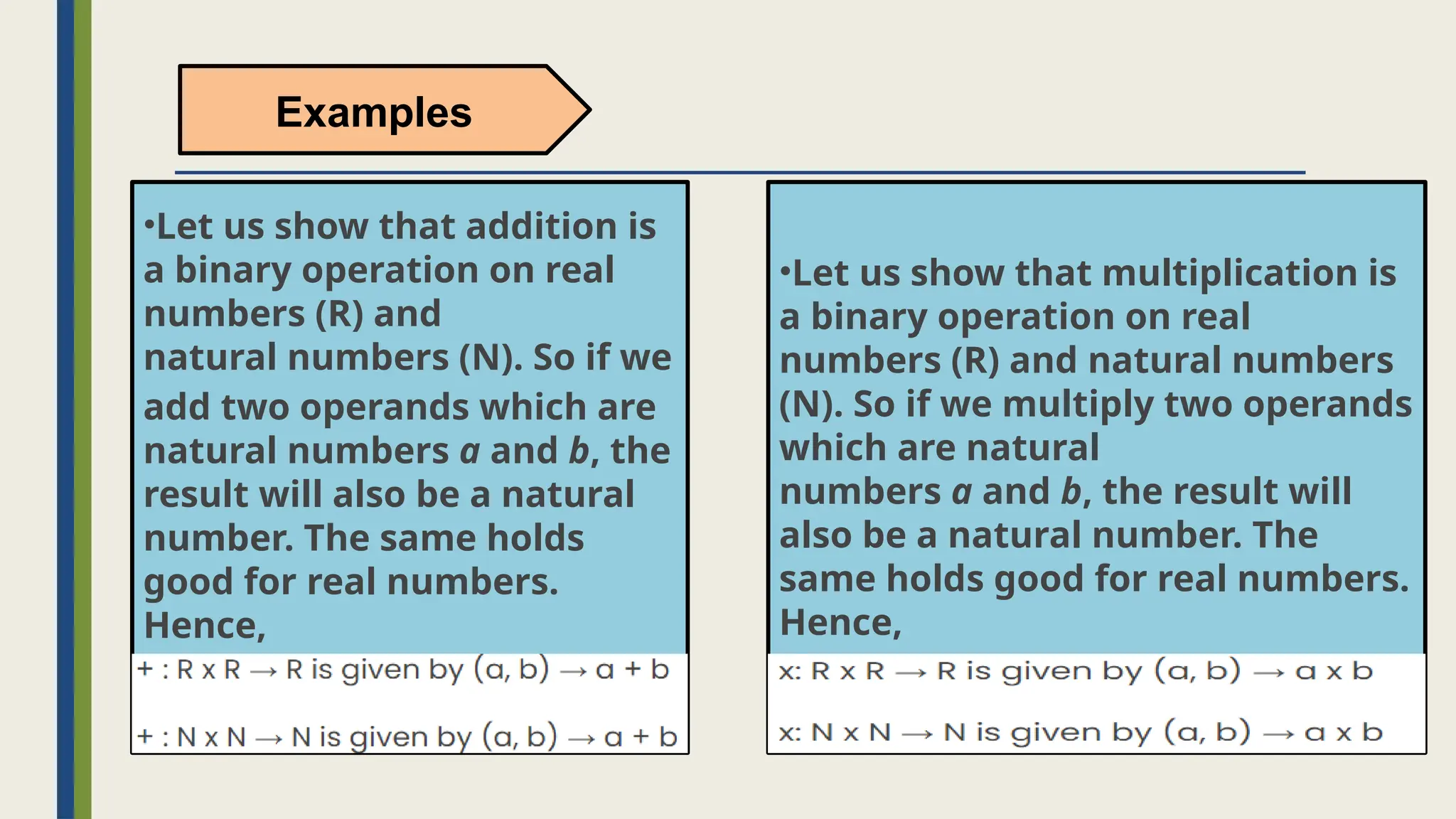

22. •Let us show that addition is
a binary operation on real
numbers (R) and
natural numbers (N). So if we
add two operands which are
natural numbers a and b, the
result will also be a natural
number. The same holds
good for real numbers.
Hence,
•Let us show that multiplication is
a binary operation on real
numbers (R) and natural numbers
(N). So if we multiply two operands
which are natural
numbers a and b, the result will
also be a natural number. The
same holds good for real numbers.
Hence,
Examples

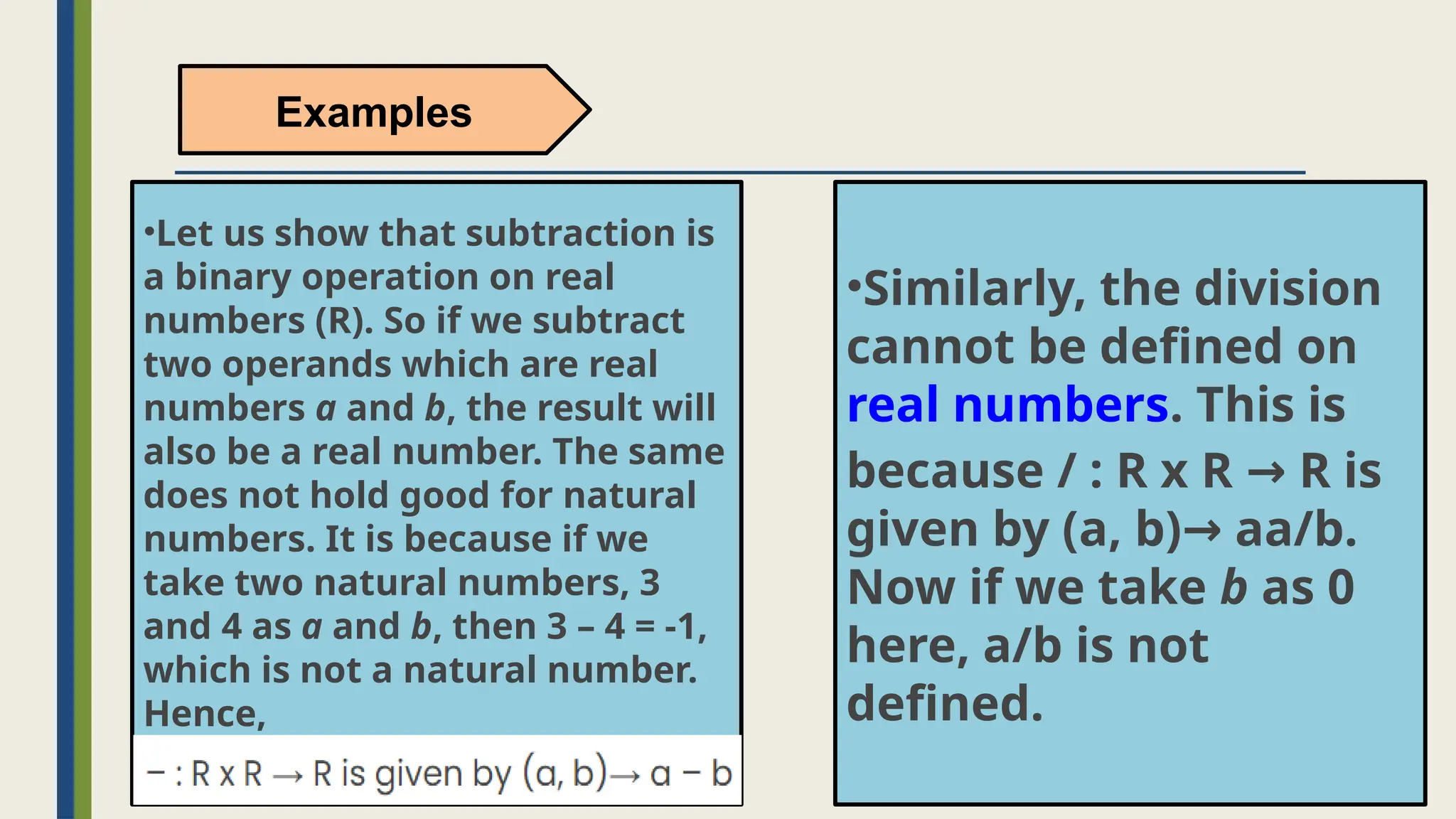

23. •Let us show that subtraction is
a binary operation on real
numbers (R). So if we subtract
two operands which are real
numbers a and b, the result will
also be a real number. The same
does not hold good for natural
numbers. It is because if we
take two natural numbers, 3
and 4 as a and b, then 3 – 4 = -1,
which is not a natural number.
Hence,
•Similarly, the division
cannot be defined on
real numbers. This is
because / : R x R R is
→
given by (a, b) aa/b.
→
Now if we take b as 0
here, a/b is not
defined.
Examples
