Uploaded byEberhard Wolff
Redis - The Universal NoSQL Tool
Redis is a fast, in-memory key-value store that can be used as a cache, message broker, and centralized locking system. It stores data in memory for high performance, but can also asynchronously write data to disk for persistence. Redis supports data types like strings, lists, sets and sorted sets. It enables high availability through master-slave replication and horizontal scaling through sharding of data across multiple nodes.
More Related Content
Similar to Redis - The Universal NoSQL Tool
Redis - The Universal NoSQL Tool
- 1. Redis: The UniversalNoSQL- Tool Eberhard Wolff Architecture and Technology Manager adesso AG

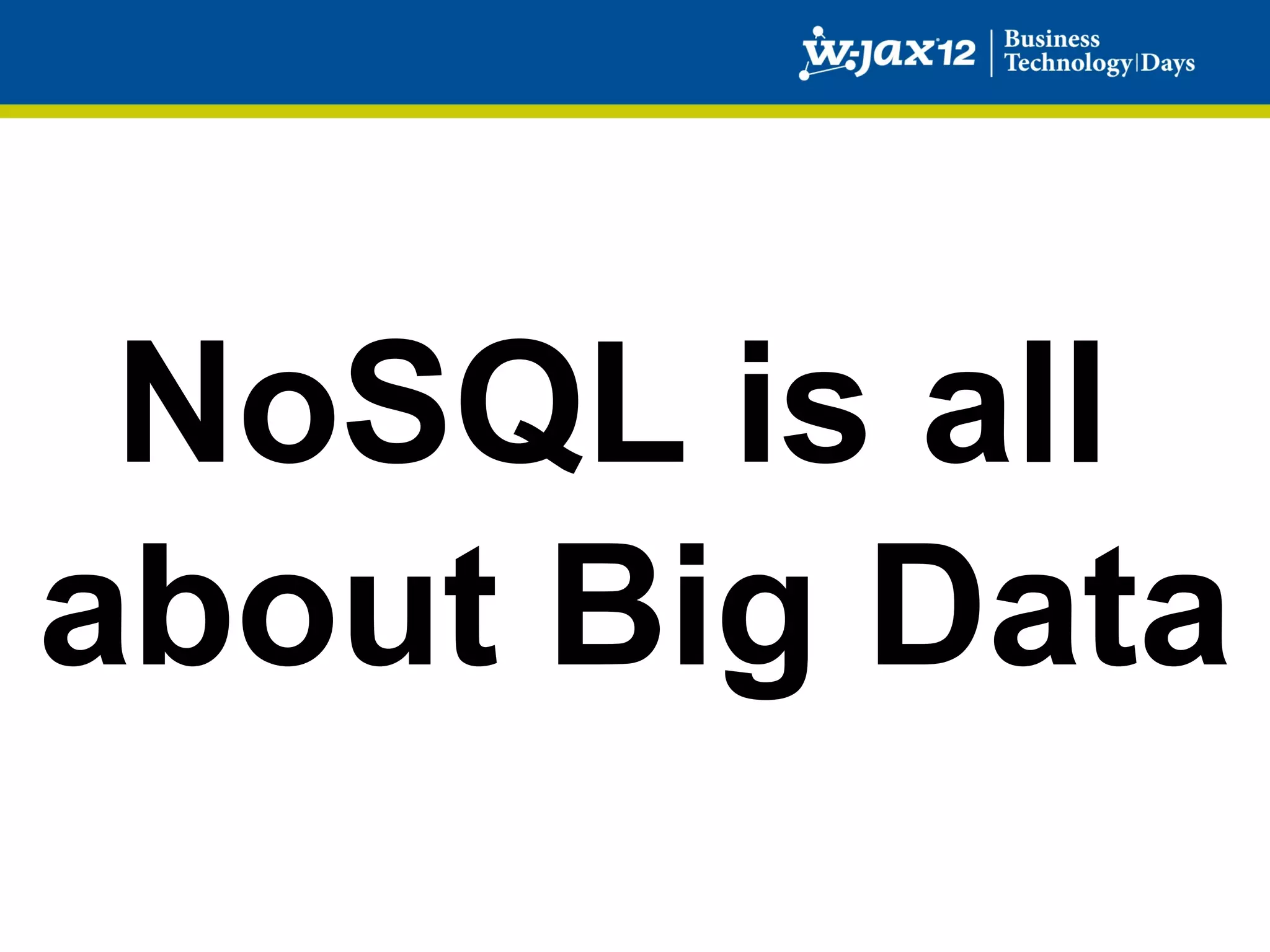

- 2. NoSQL is all aboutBig Data
- 3. NoSQL is all aboutBig Data

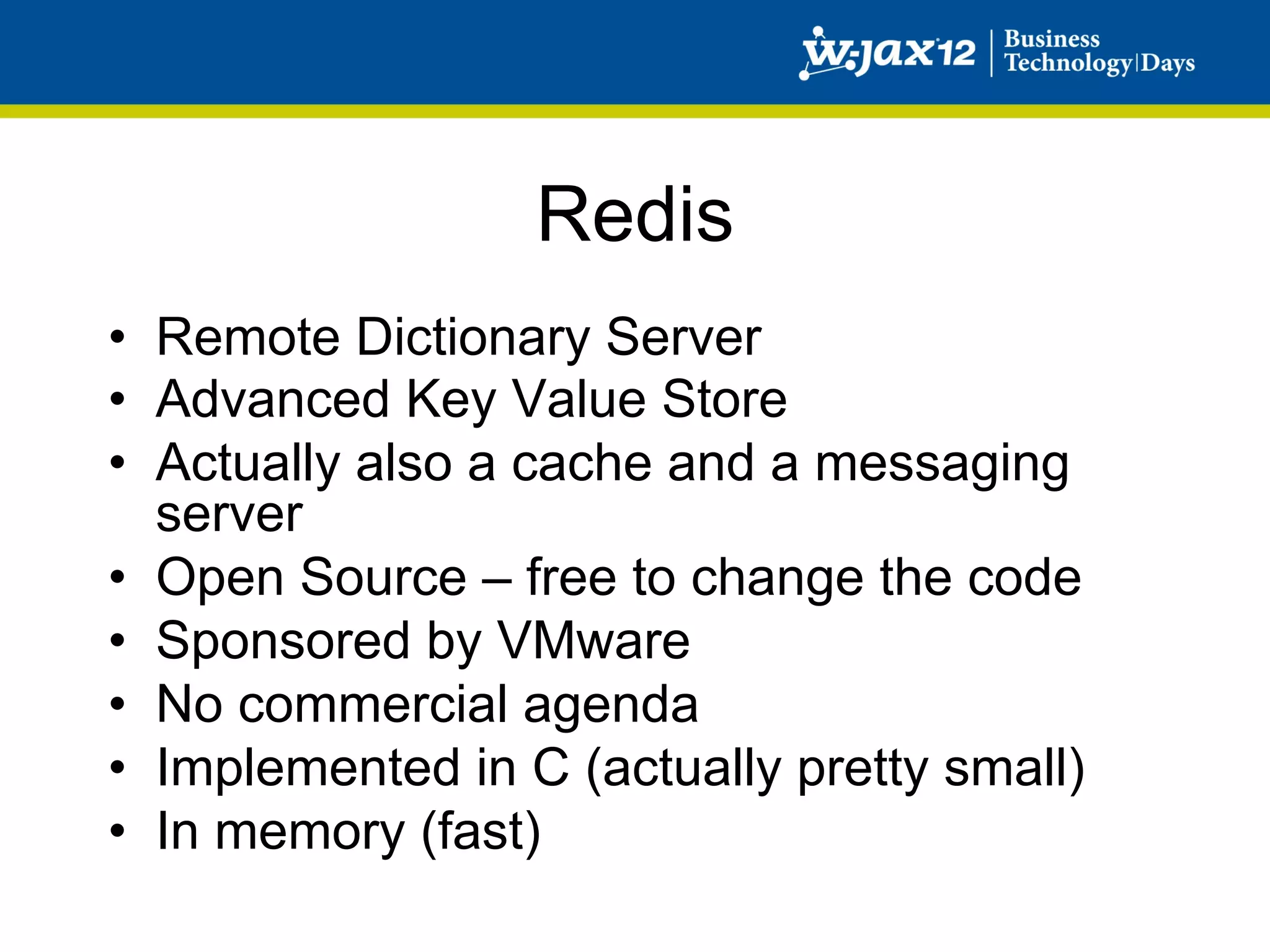

- 4. Redis • Remote DictionaryServer • Advanced Key Value Store • Actually also a cache and a messaging server • Open Source – free to change the code • Sponsored by VMware • No commercial agenda • Implemented in C (actually pretty small) • In memory (fast)

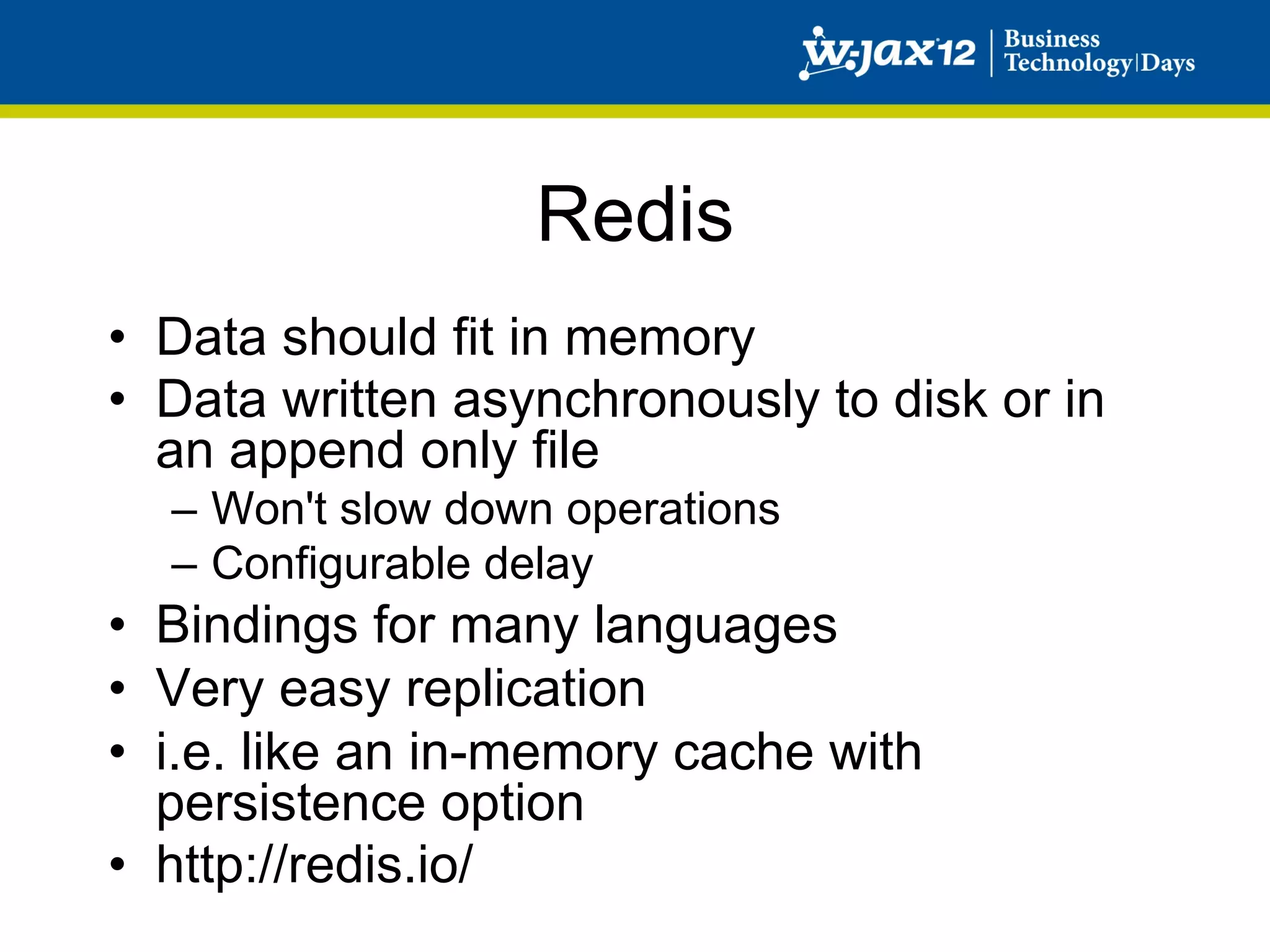

- 5. Redis • Data shouldfit in memory • Data written asynchronously to disk or in an append only file – Won't slow down operations – Configurable delay • Bindings for many languages • Very easy replication • i.e. like an in-memory cache with persistence option • http://redis.io/

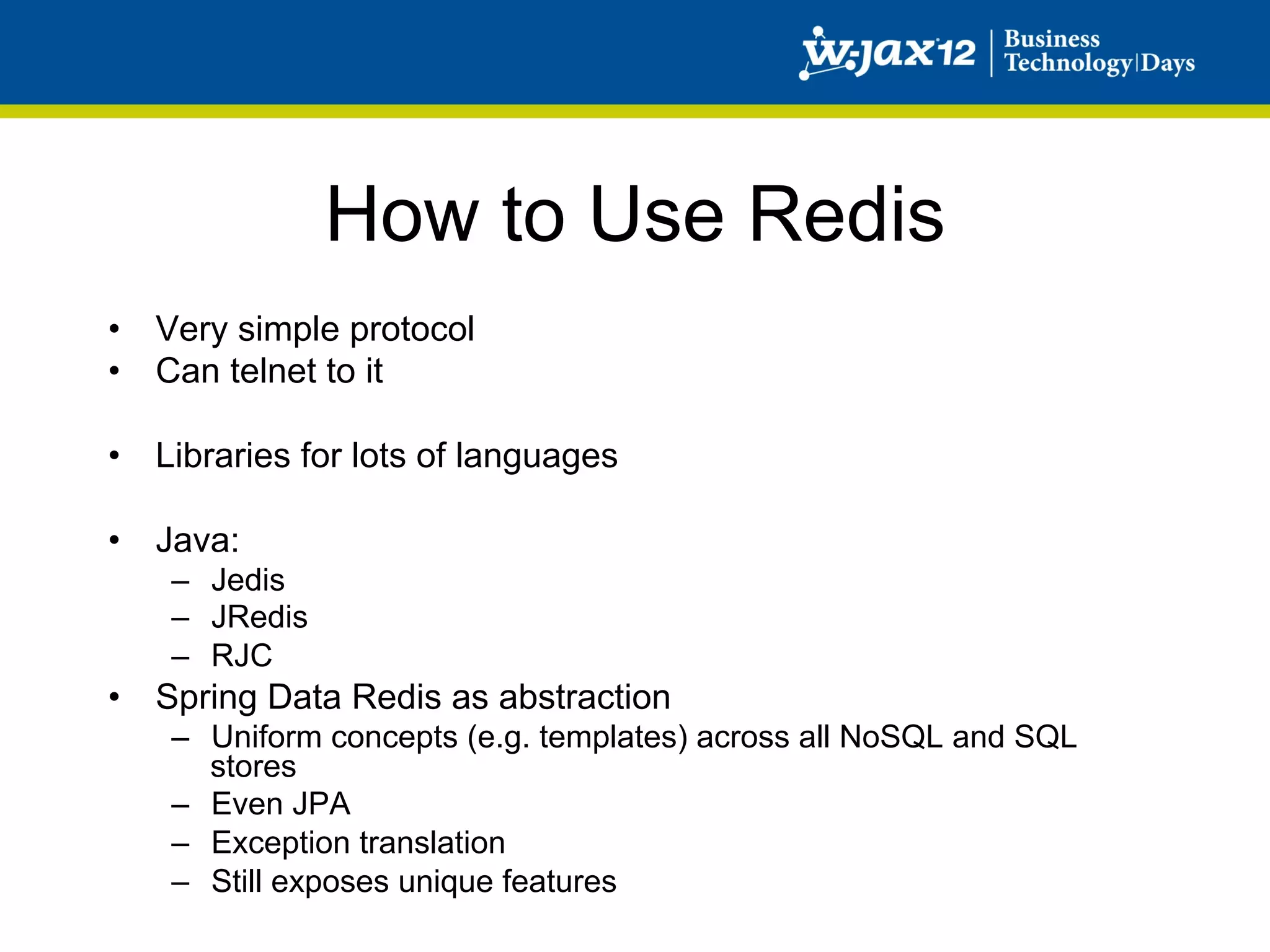

- 7. How to UseRedis • Very simple protocol • Can telnet to it • Libraries for lots of languages • Java: – Jedis – JRedis – RJC • Spring Data Redis as abstraction – Uniform concepts (e.g. templates) across all NoSQL and SQL stores – Even JPA – Exception translation – Still exposes unique features

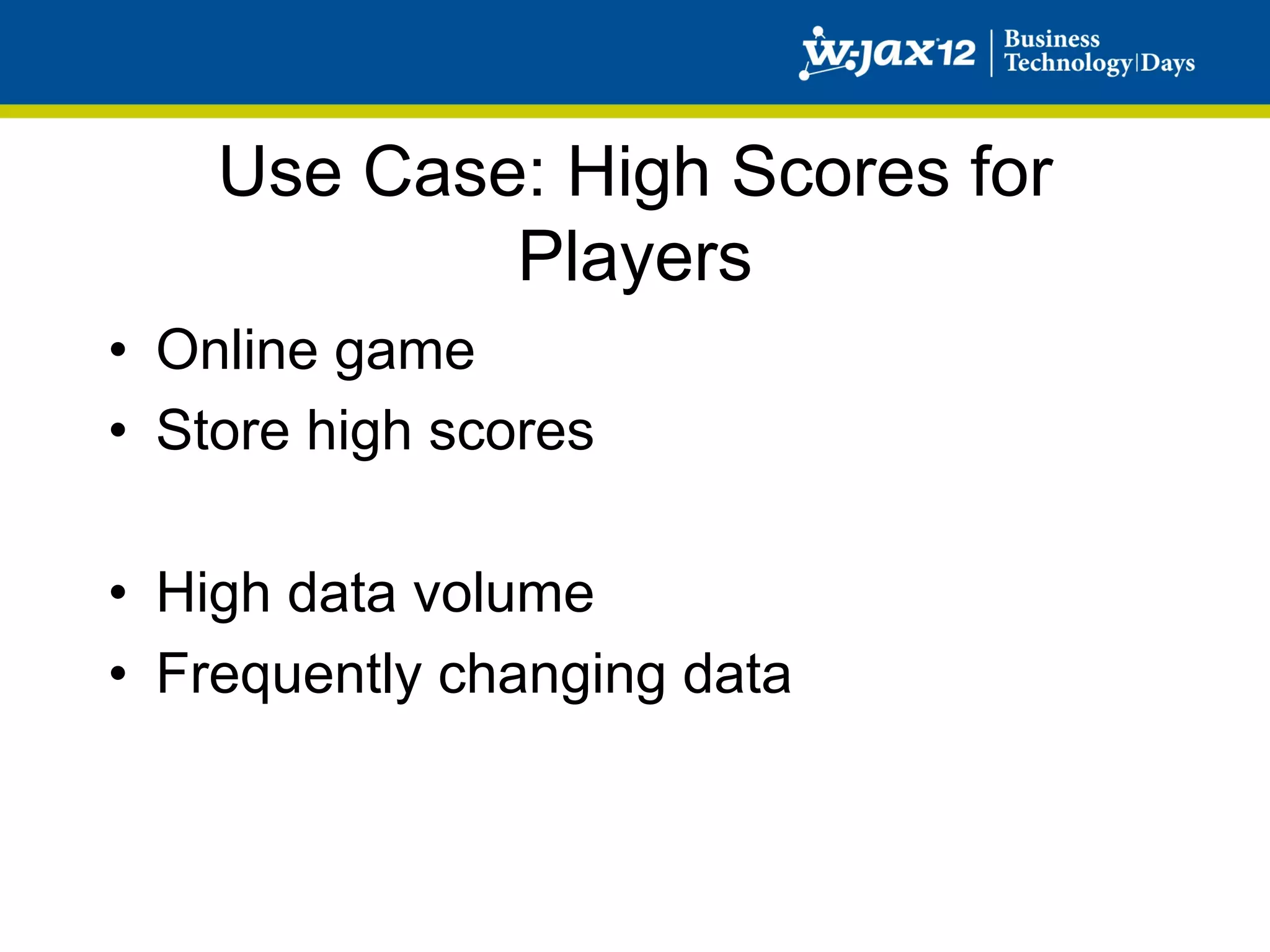

- 8. Use Case: HighScores for Players • Online game • Store high scores • High data volume • Frequently changing data

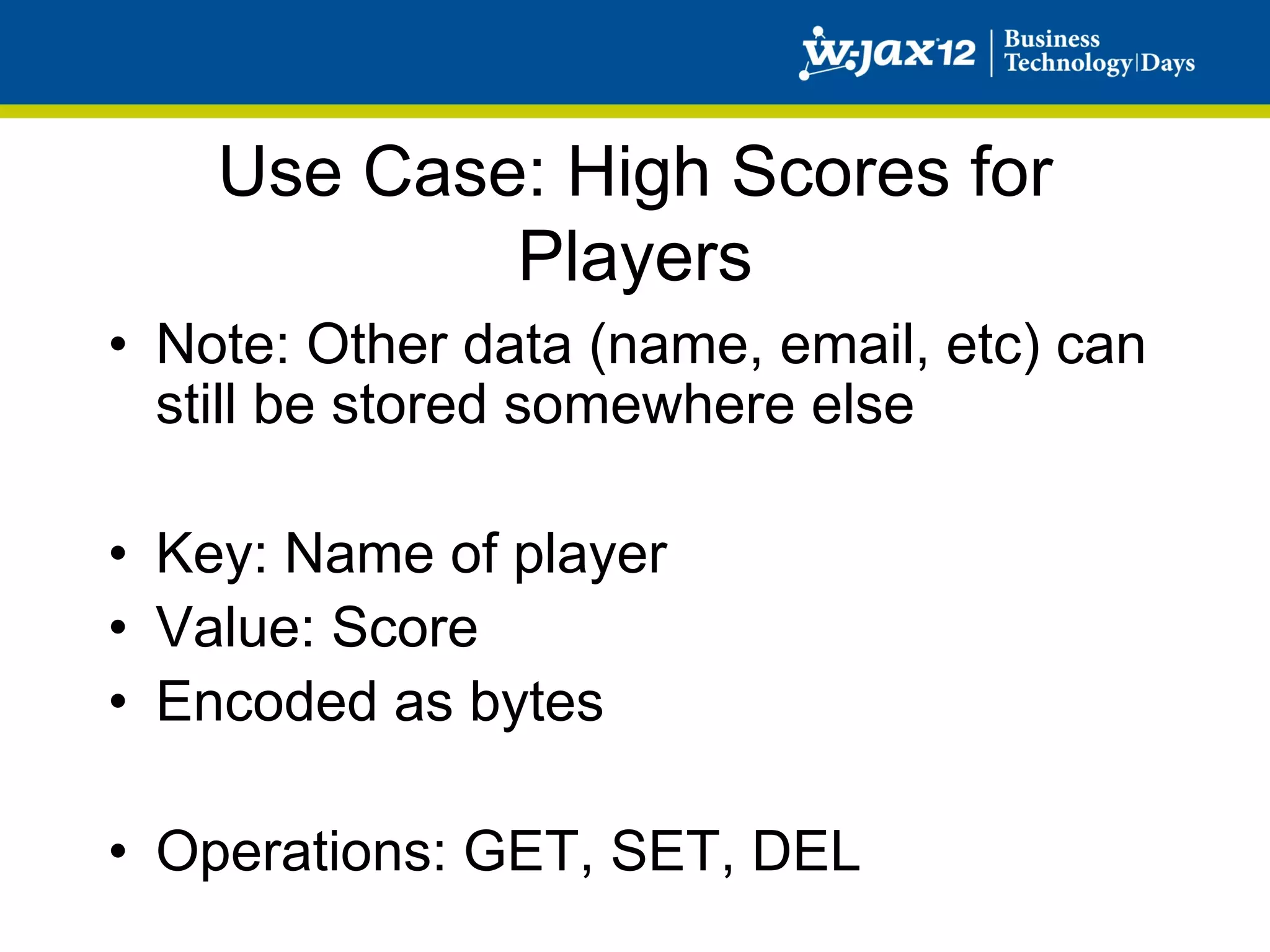

- 9. Use Case: HighScores for Players • Note: Other data (name, email, etc) can still be stored somewhere else • Key: Name of player • Value: Score • Encoded as bytes • Operations: GET, SET, DEL

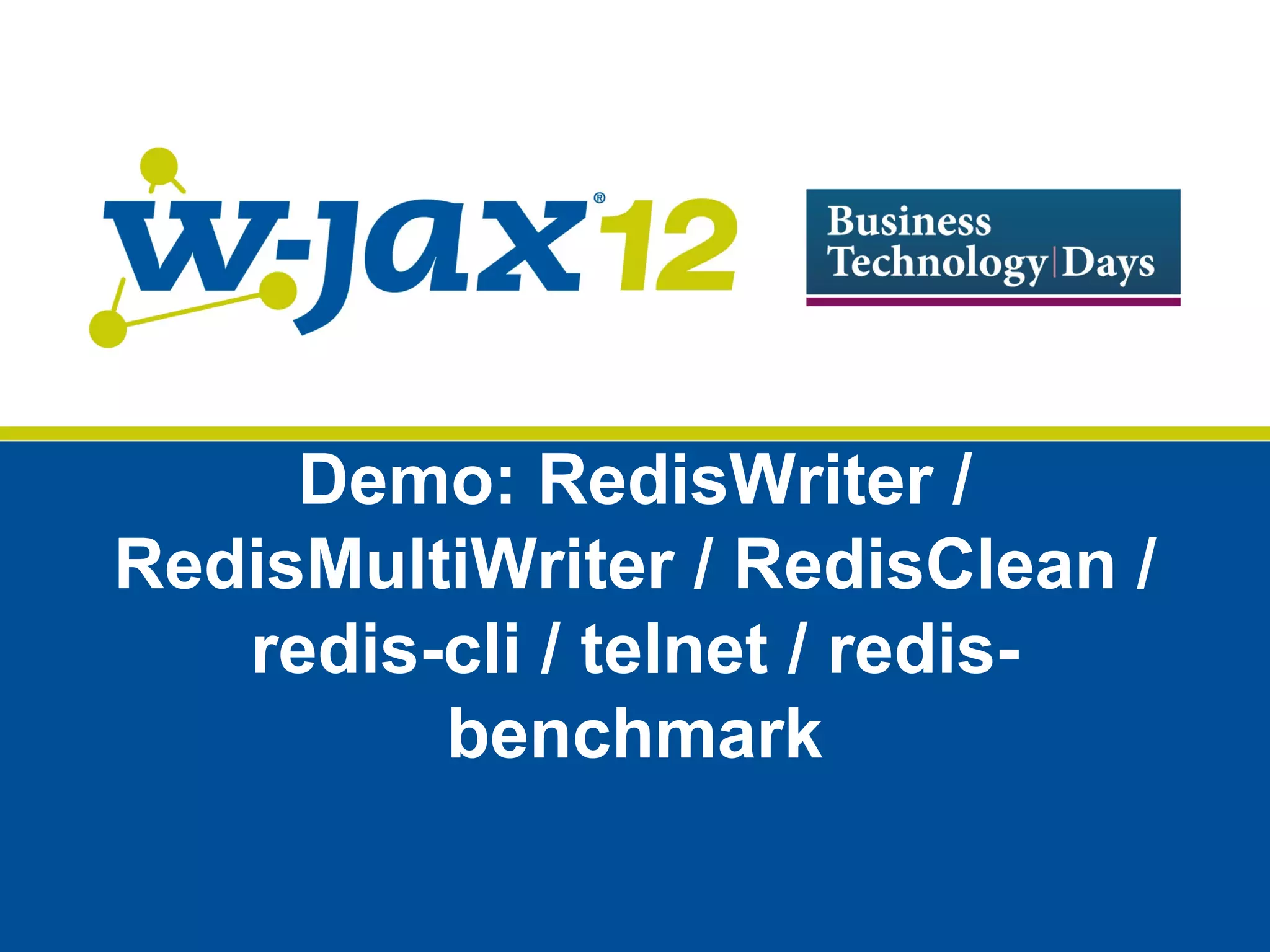

- 10. Demo: RedisWriter / RedisMultiWriter/ RedisClean / redis-cli / telnet / redis- benchmark

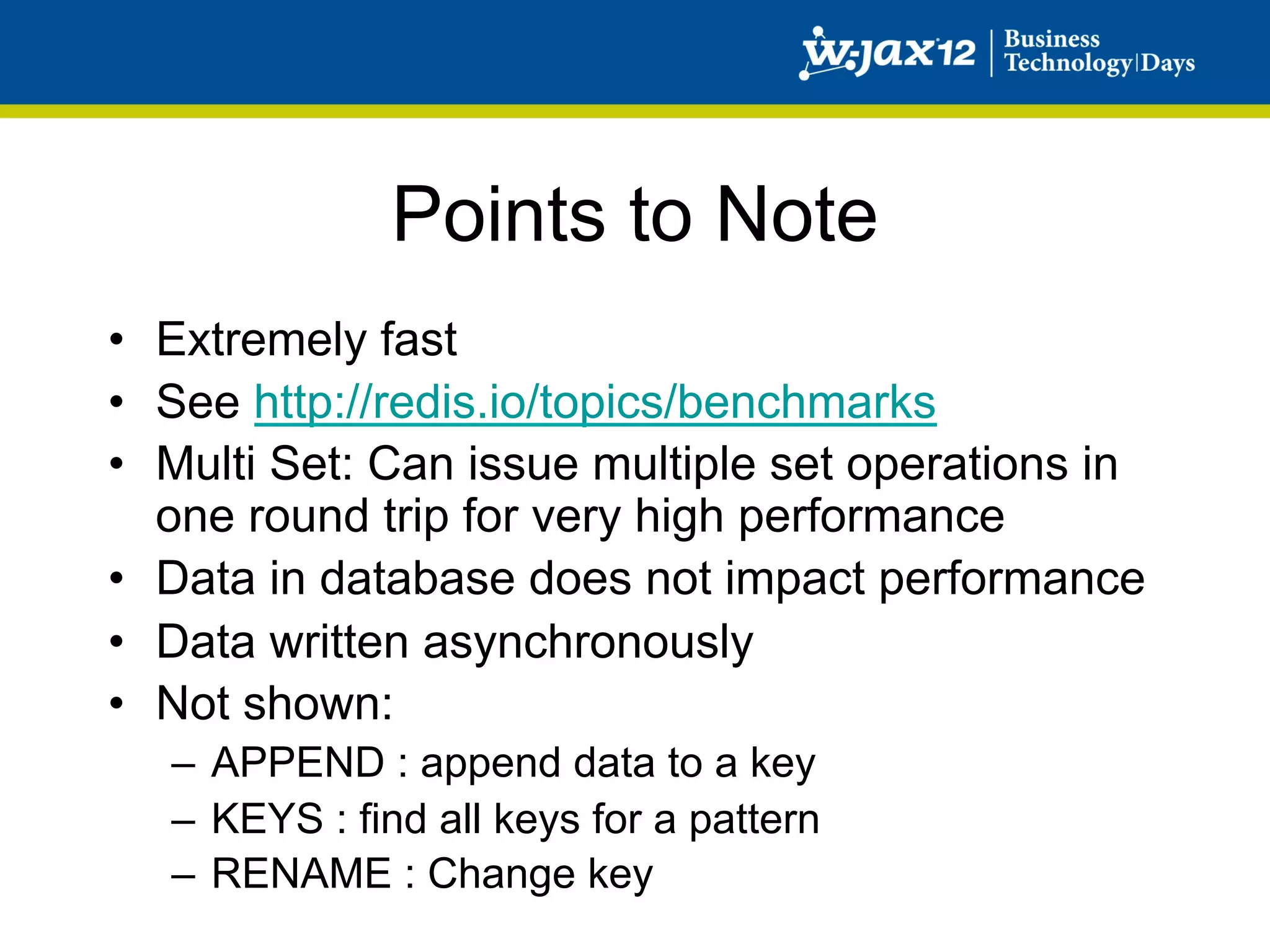

- 11. Points to Note • Extremely fast • See http://redis.io/topics/benchmarks • Multi Set: Can issue multiple set operations in one round trip for very high performance • Data in database does not impact performance • Data written asynchronously • Not shown: – APPEND : append data to a key – KEYS : find all keys for a pattern – RENAME : Change key

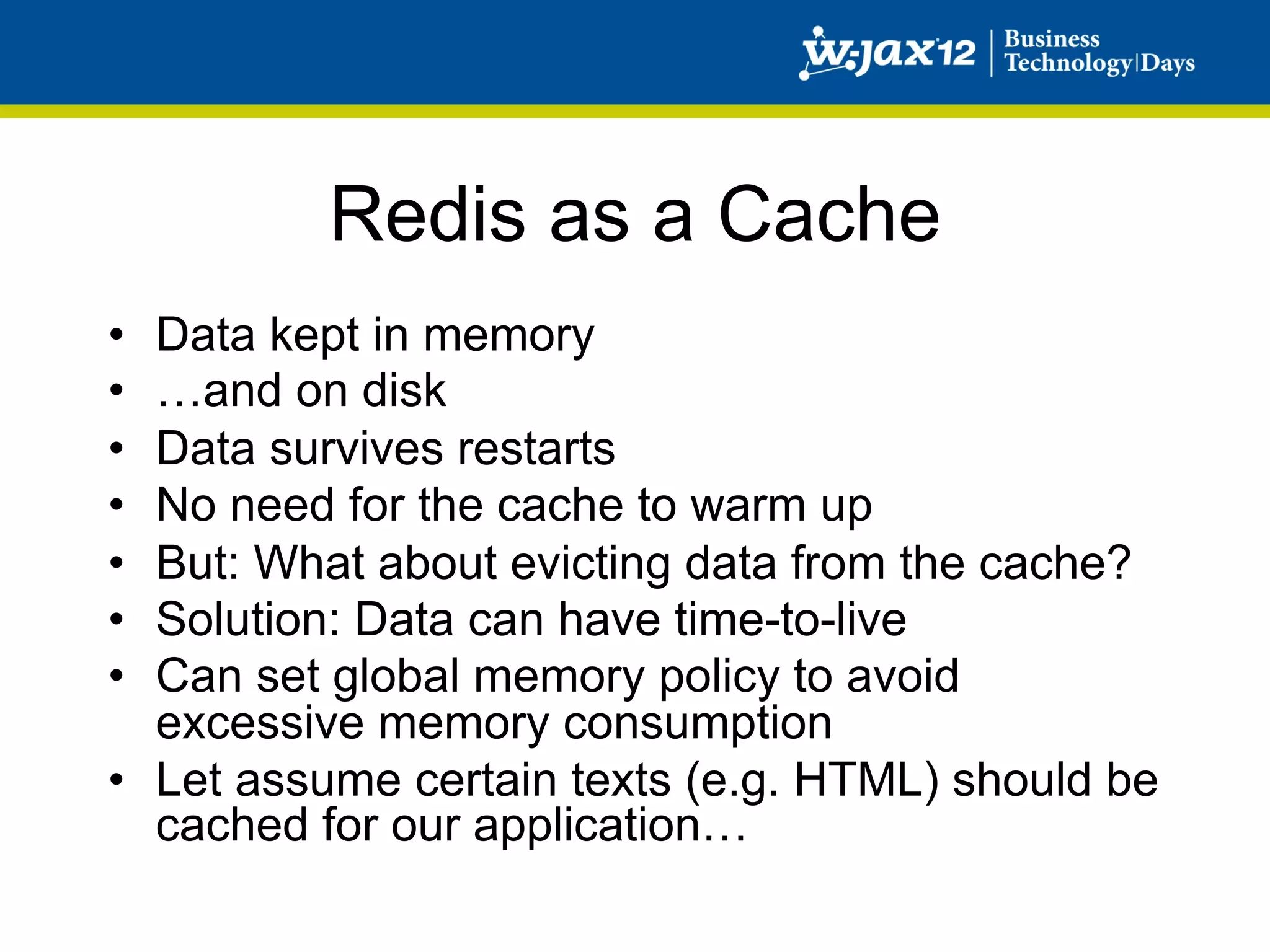

- 12. Redis as aCache • Data kept in memory • …and on disk • Data survives restarts • No need for the cache to warm up • But: What about evicting data from the cache? • Solution: Data can have time-to-live • Can set global memory policy to avoid excessive memory consumption • Let assume certain texts (e.g. HTML) should be cached for our application…
- 13.

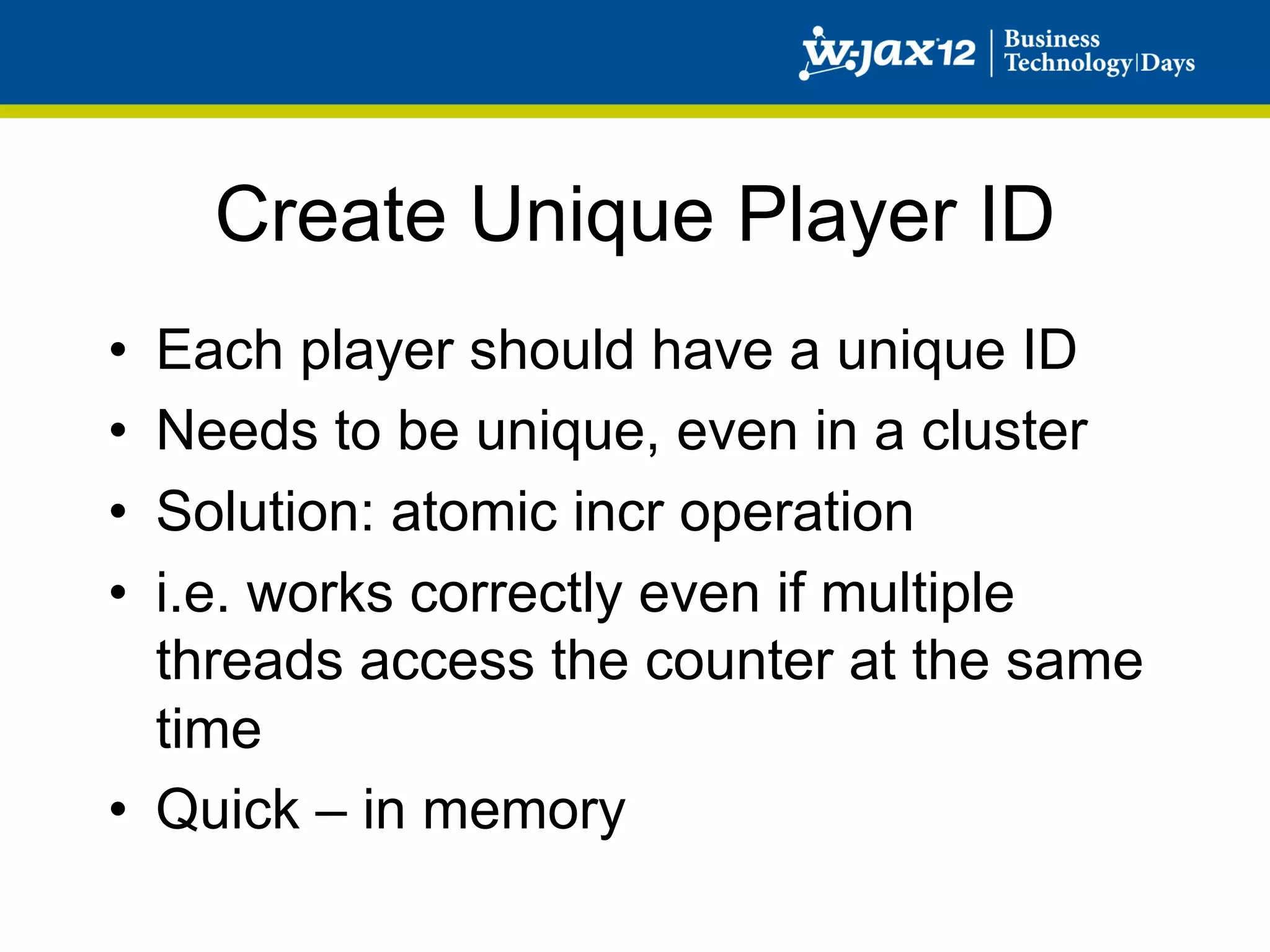

- 14. Create Unique PlayerID • Each player should have a unique ID • Needs to be unique, even in a cluster • Solution: atomic incr operation • i.e. works correctly even if multiple threads access the counter at the same time • Quick – in memory

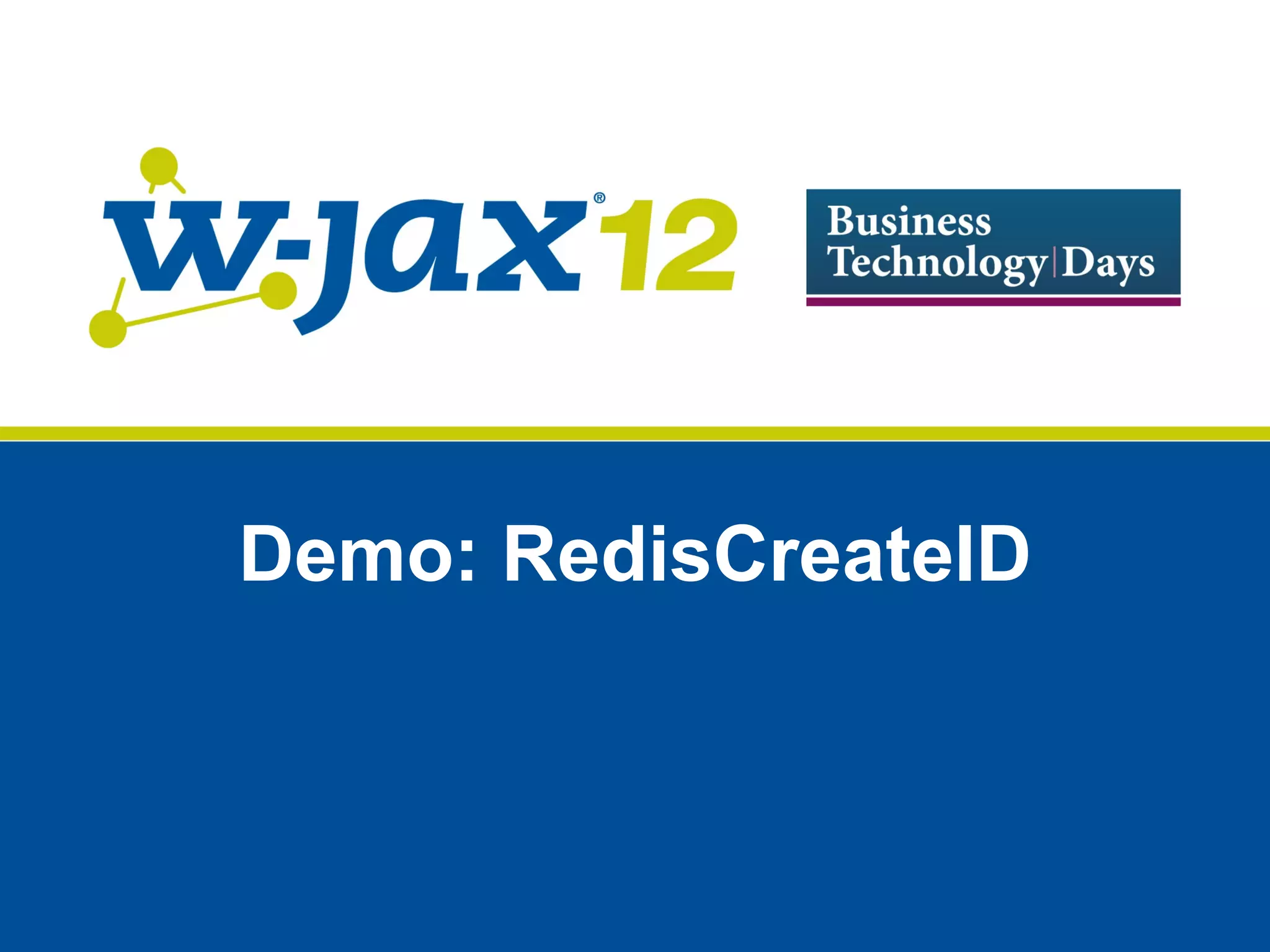

- 15.

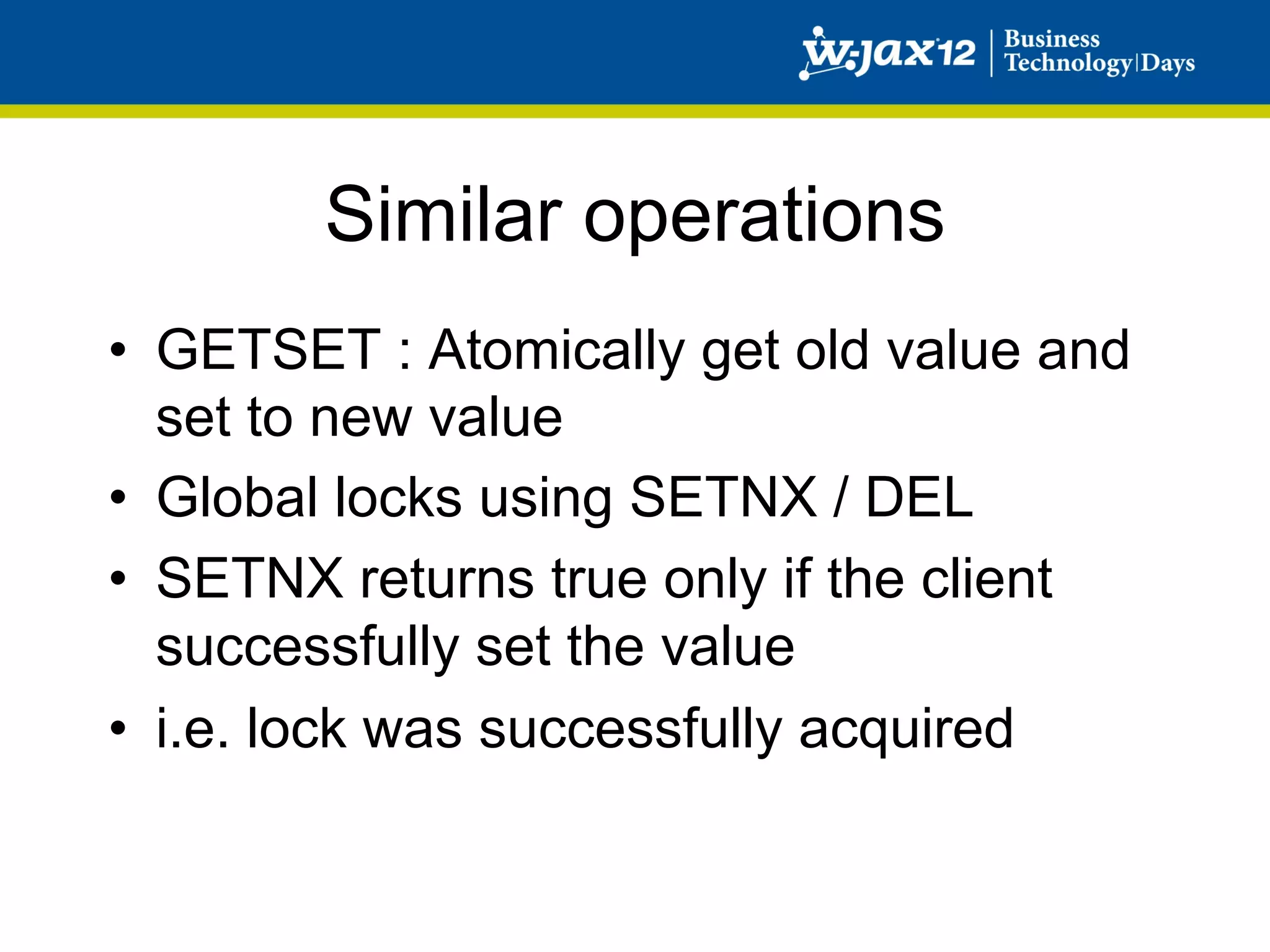

- 16. Similar operations • GETSET: Atomically get old value and set to new value • Global locks using SETNX / DEL • SETNX returns true only if the client successfully set the value • i.e. lock was successfully acquired

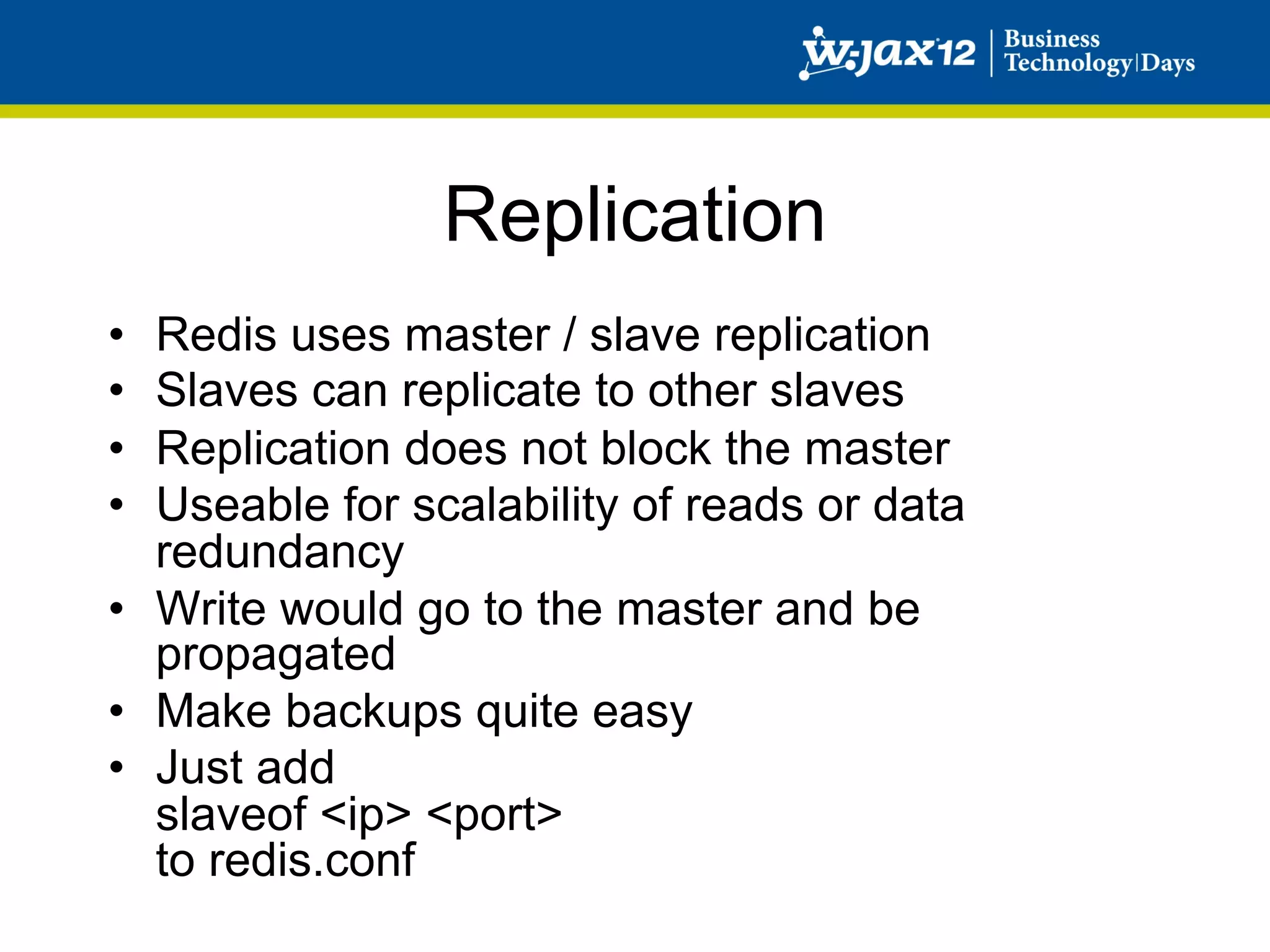

- 17. Replication • Redis usesmaster / slave replication • Slaves can replicate to other slaves • Replication does not block the master • Useable for scalability of reads or data redundancy • Write would go to the master and be propagated • Make backups quite easy • Just add slaveof <ip> <port> to redis.conf

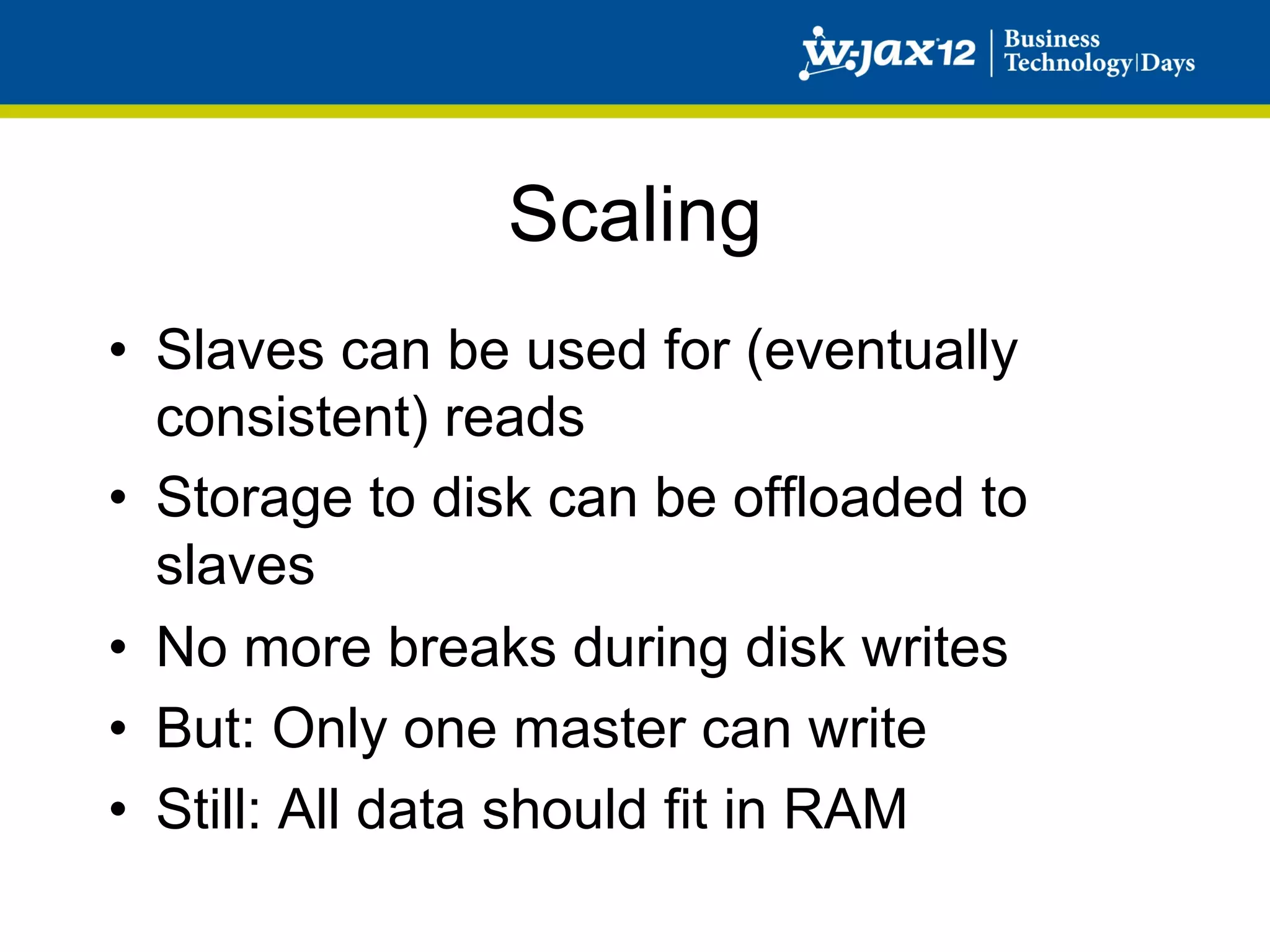

- 18. Scaling • Slaves canbe used for (eventually consistent) reads • Storage to disk can be offloaded to slaves • No more breaks during disk writes • But: Only one master can write • Still: All data should fit in RAM

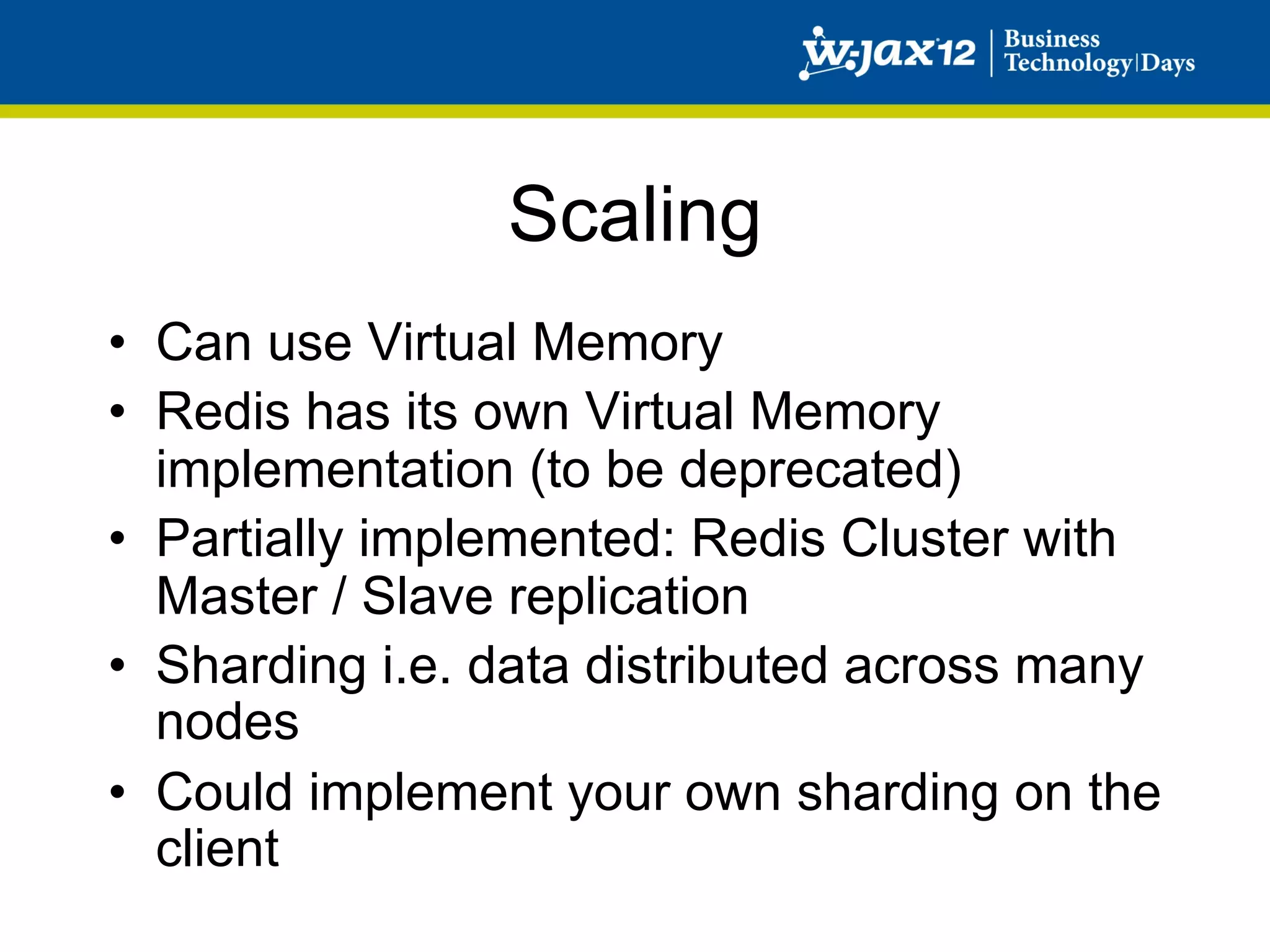

- 19. Scaling • Can useVirtual Memory • Redis has its own Virtual Memory implementation (to be deprecated) • Partially implemented: Redis Cluster with Master / Slave replication • Sharding i.e. data distributed across many nodes • Could implement your own sharding on the client

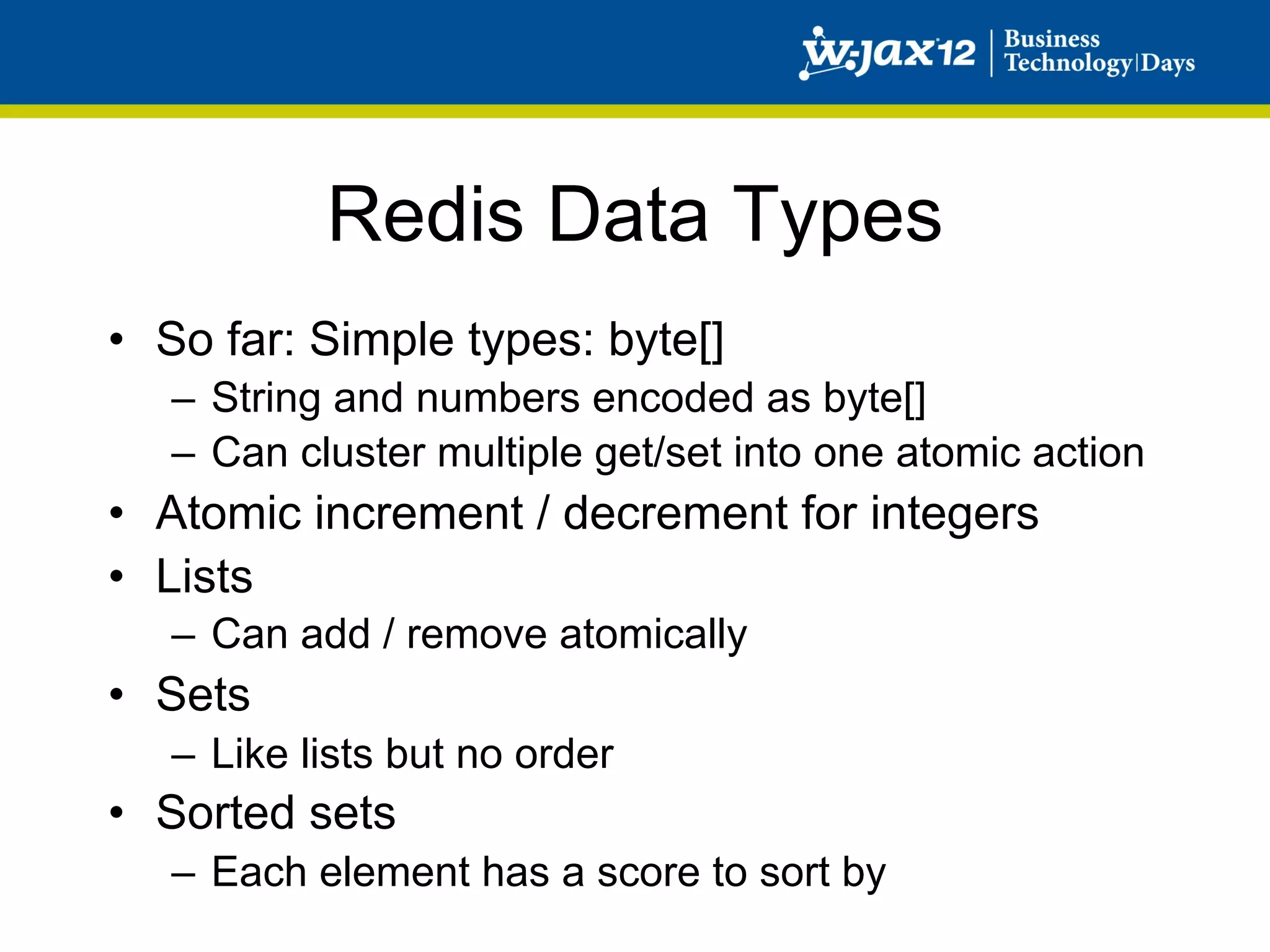

- 20. Redis Data Types • So far: Simple types: byte[] – String and numbers encoded as byte[] – Can cluster multiple get/set into one atomic action • Atomic increment / decrement for integers • Lists – Can add / remove atomically • Sets – Like lists but no order • Sorted sets – Each element has a score to sort by

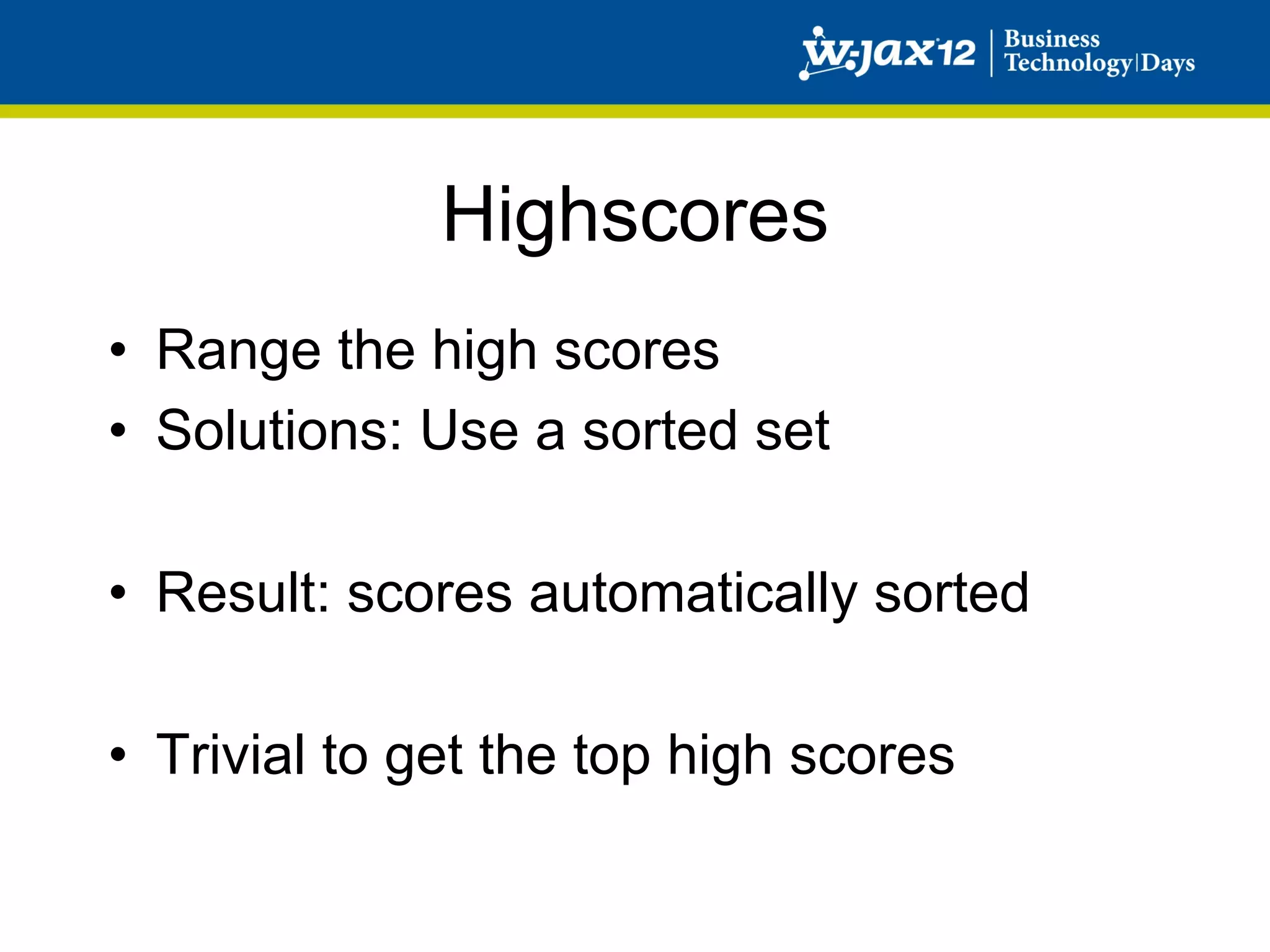

- 21. Highscores • Range thehigh scores • Solutions: Use a sorted set • Result: scores automatically sorted • Trivial to get the top high scores

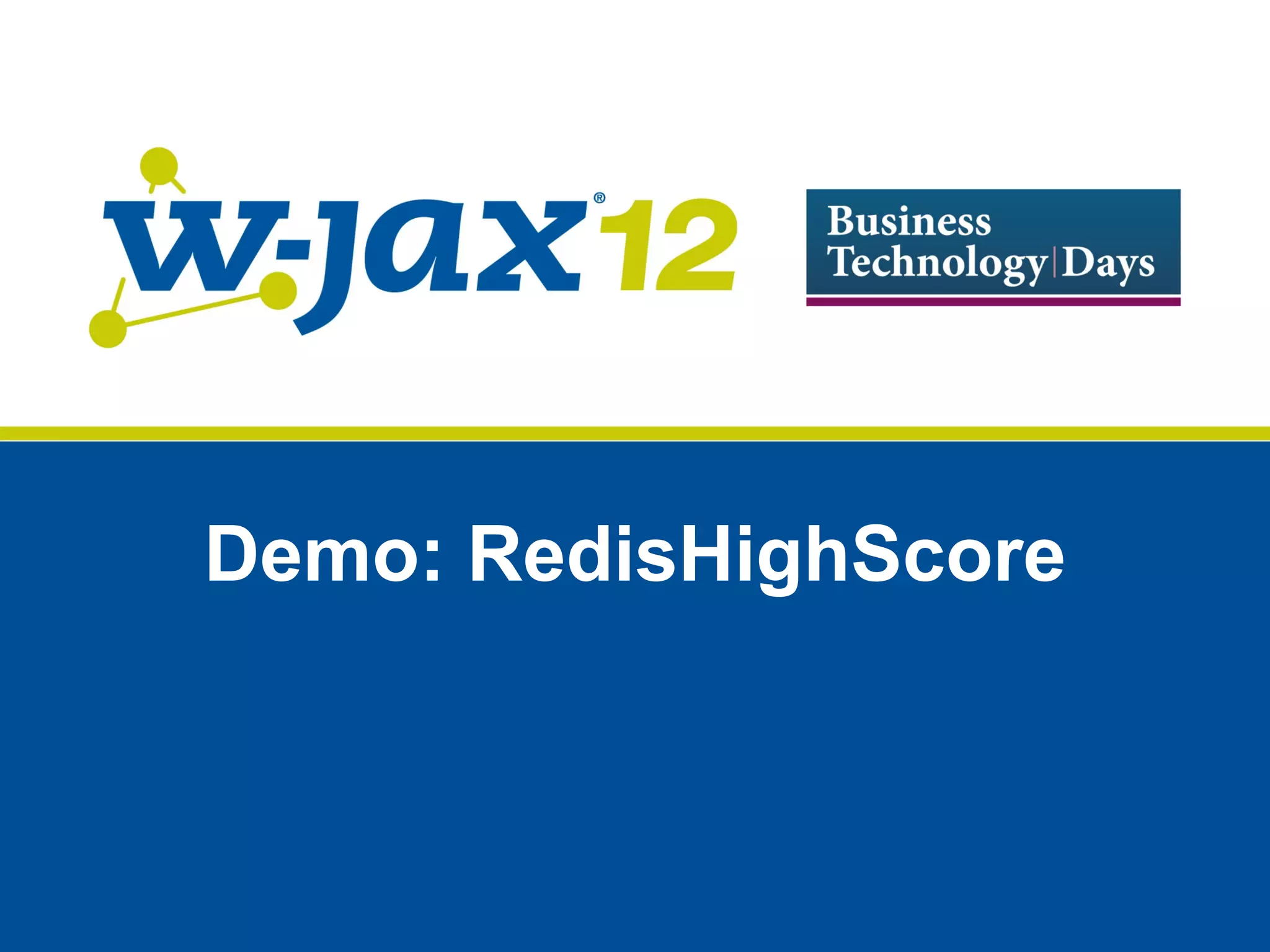

- 22.

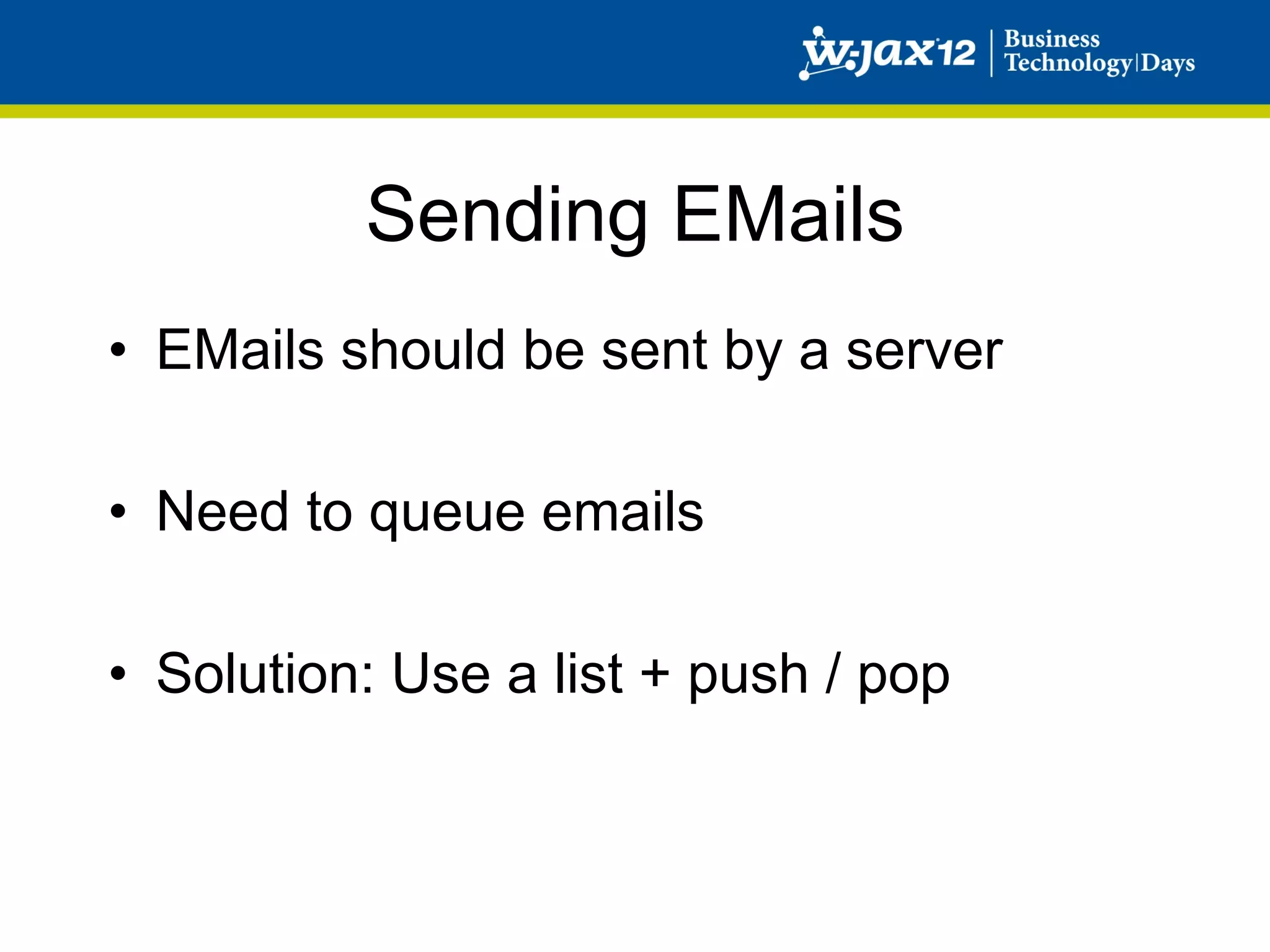

- 23. Sending EMails • EMailsshould be sent by a server • Need to queue emails • Solution: Use a list + push / pop

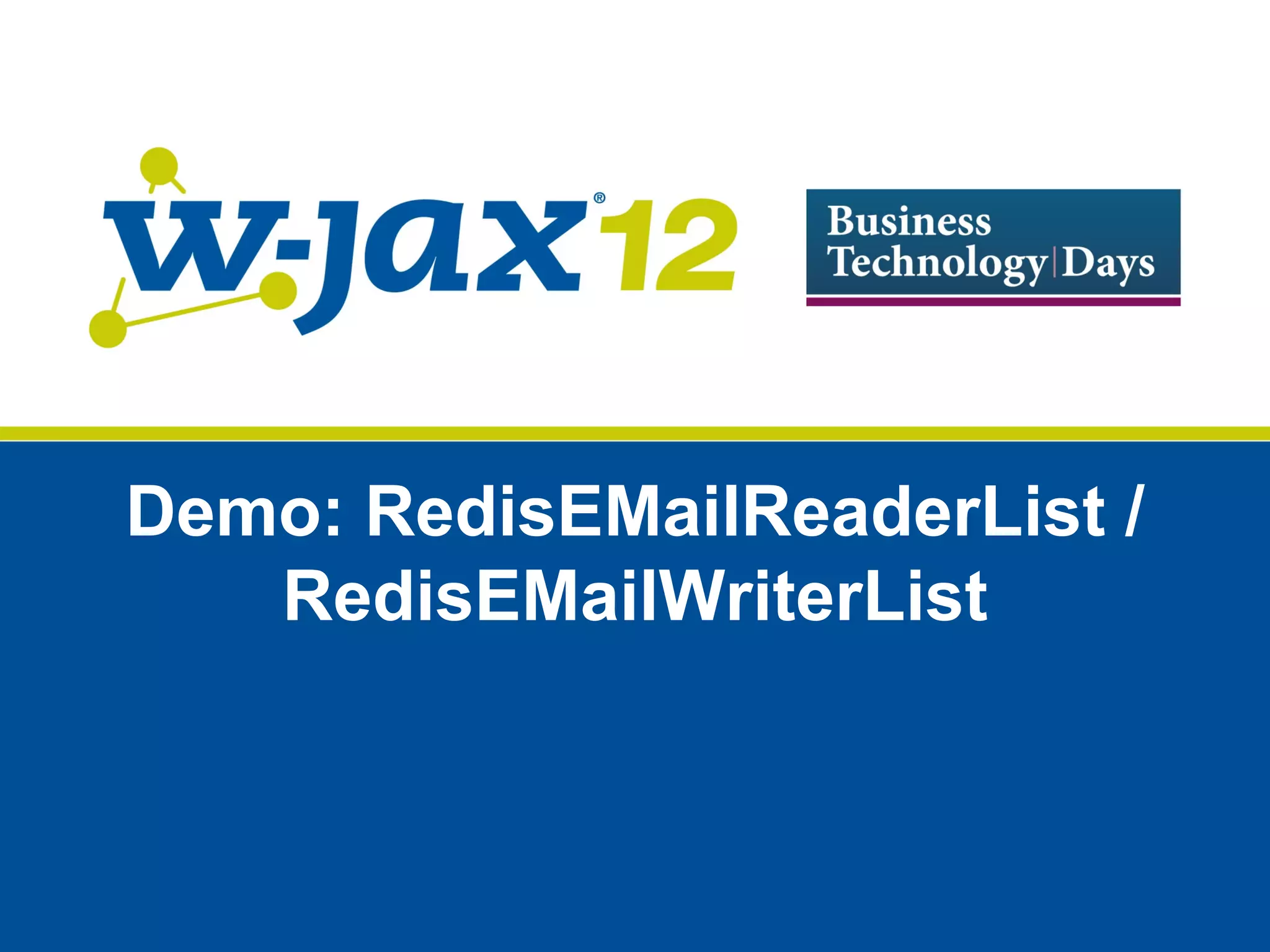

- 24. Demo: RedisEMailReaderList / RedisEMailWriterList

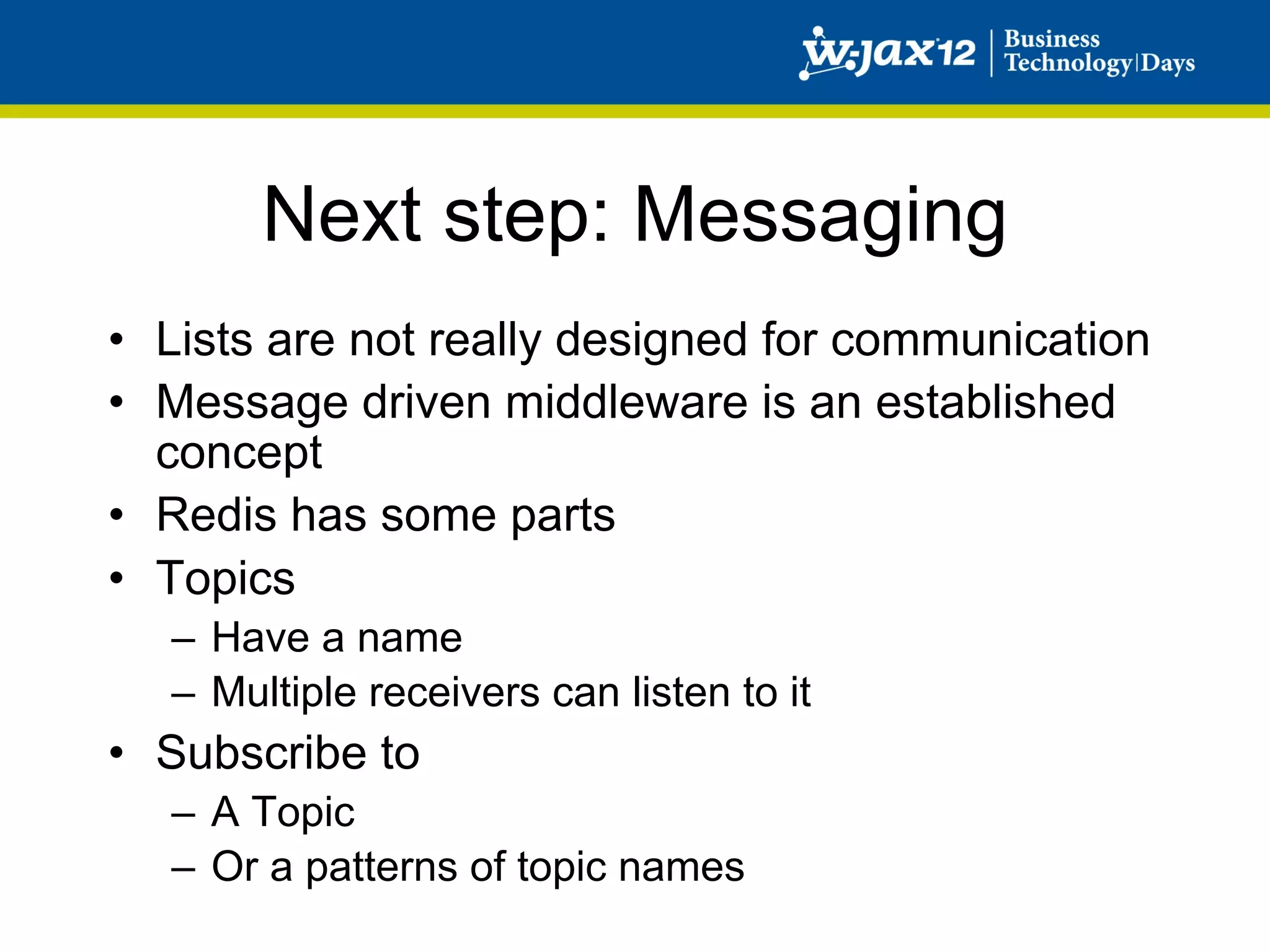

- 25. Next step: Messaging • Lists are not really designed for communication • Message driven middleware is an established concept • Redis has some parts • Topics – Have a name – Multiple receivers can listen to it • Subscribe to – A Topic – Or a patterns of topic names
- 26.

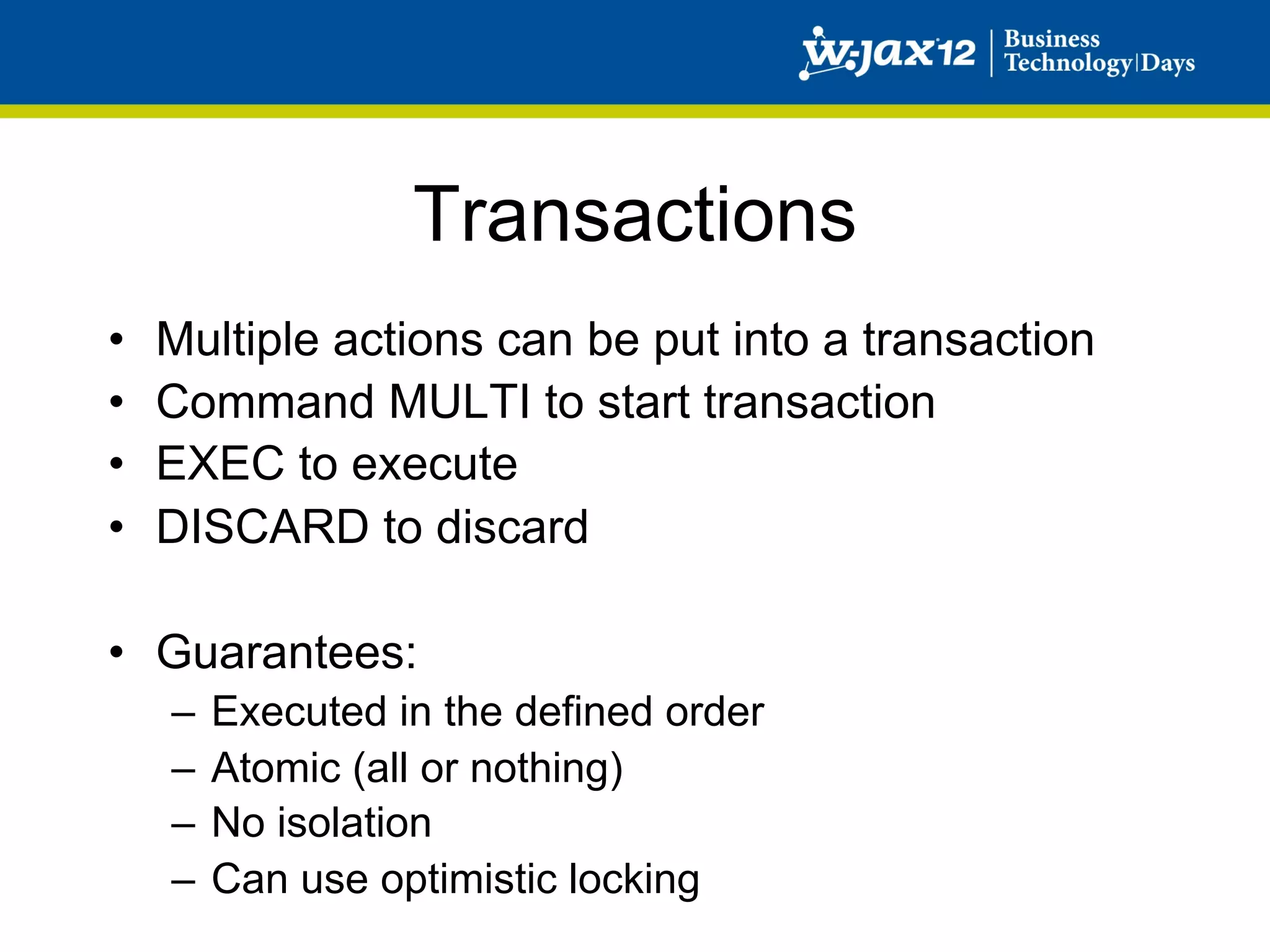

- 27. Transactions • Multiple actions can be put into a transaction • Command MULTI to start transaction • EXEC to execute • DISCARD to discard • Guarantees: – Executed in the defined order – Atomic (all or nothing) – No isolation – Can use optimistic locking

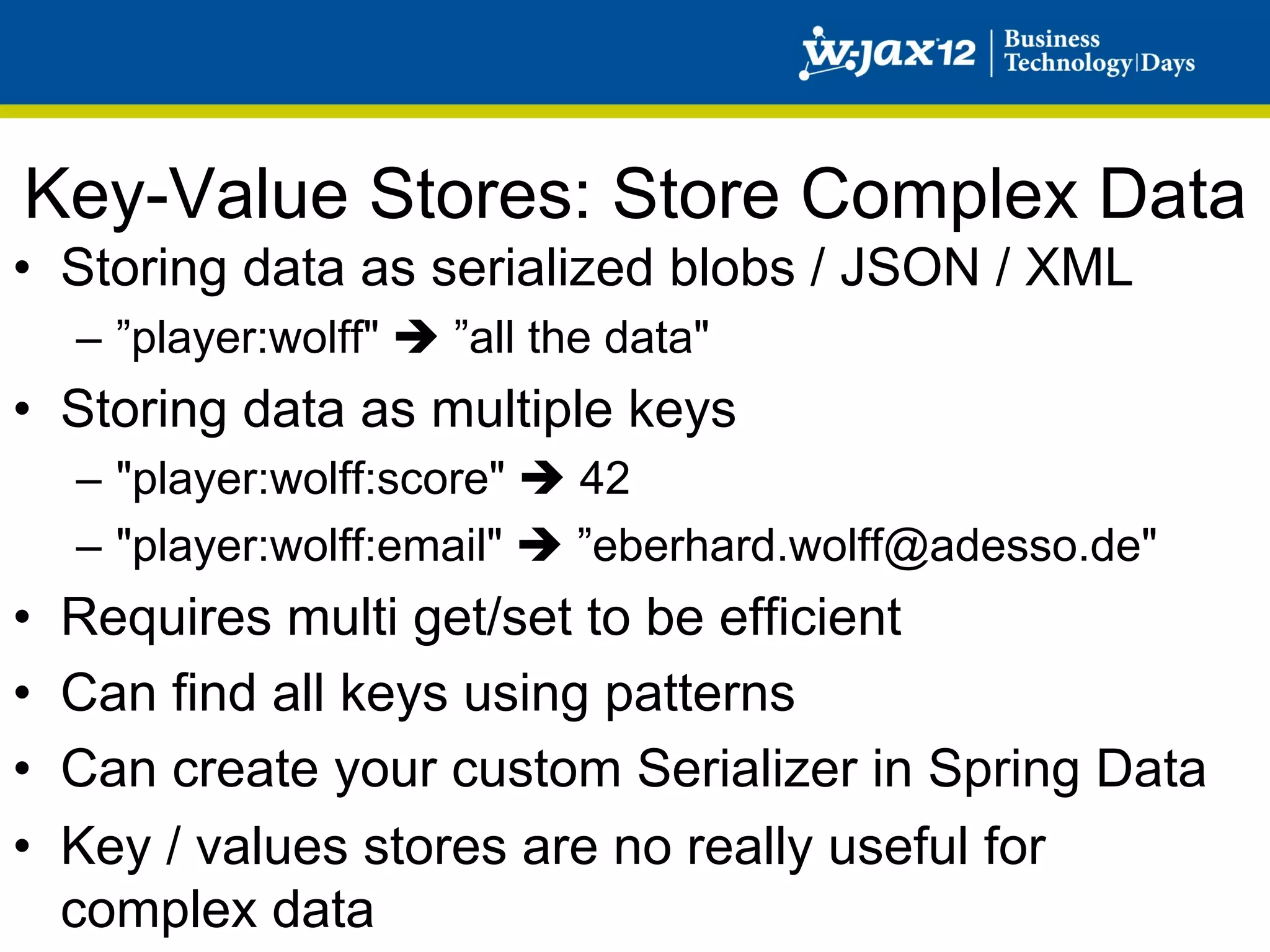

- 28. Key-Value Stores: StoreComplex Data • Storing data as serialized blobs / JSON / XML – ”player:wolff" è ”all the data" • Storing data as multiple keys – "player:wolff:score" è 42 – "player:wolff:email" è ”eberhard.wolff@adesso.de" • Requires multi get/set to be efficient • Can find all keys using patterns • Can create your custom Serializer in Spring Data • Key / values stores are no really useful for complex data

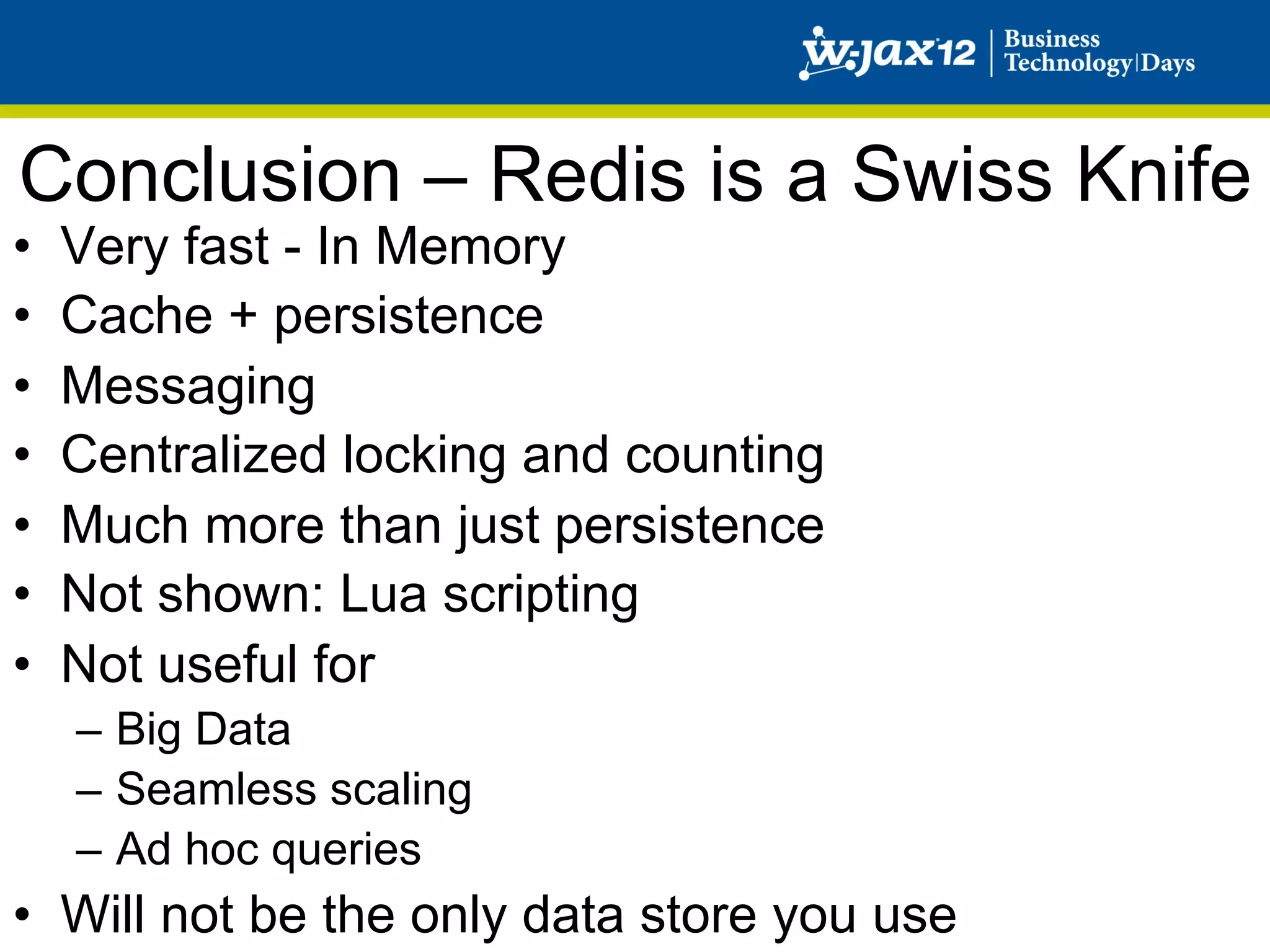

- 29. Conclusion – Redisis a Swiss Knife • Very fast - In Memory • Cache + persistence • Messaging • Centralized locking and counting • Much more than just persistence • Not shown: Lua scripting • Not useful for – Big Data – Seamless scaling – Ad hoc queries • Will not be the only data store you use

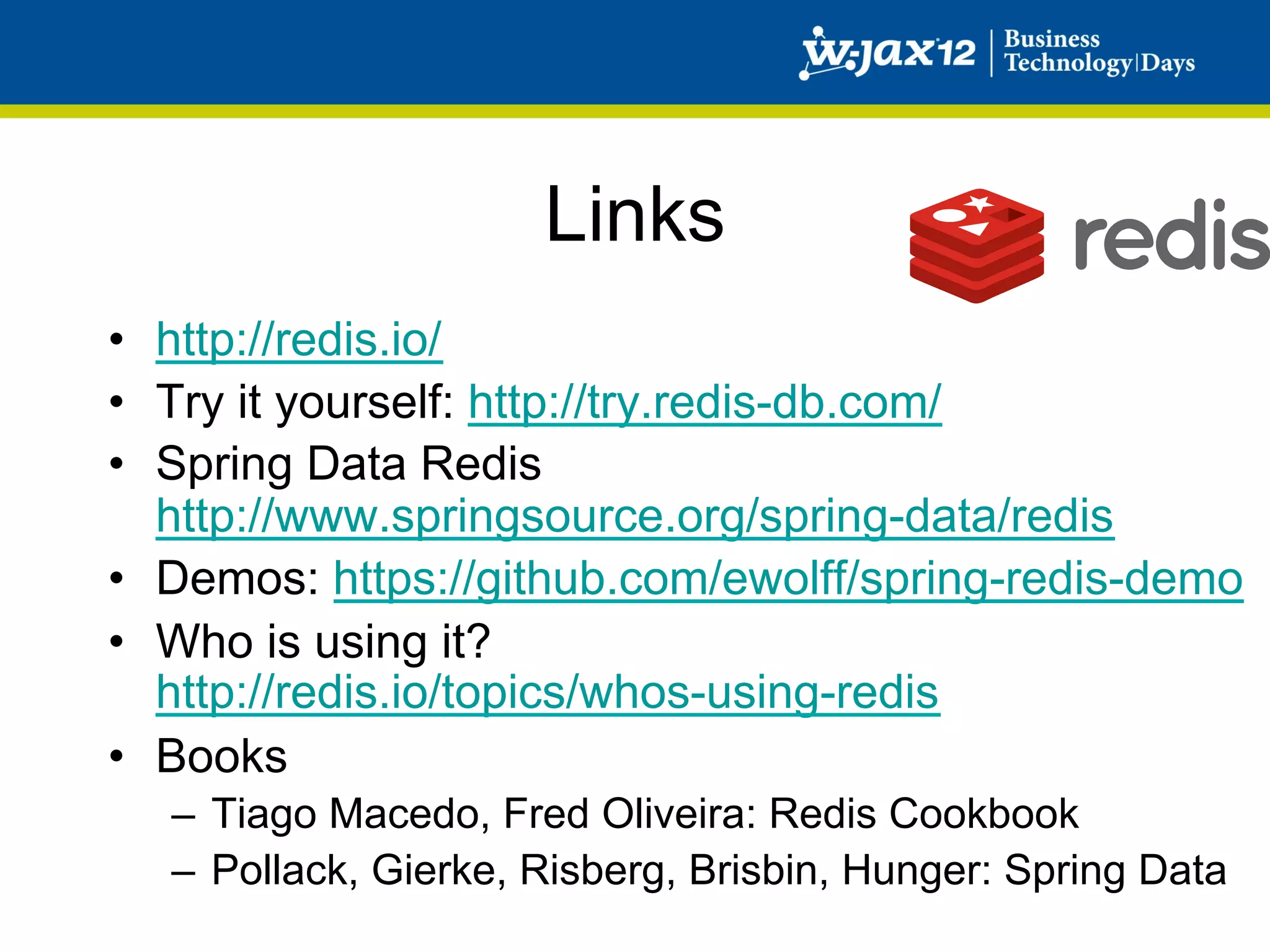

- 30. Links • http://redis.io/ • Tryit yourself: http://try.redis-db.com/ • Spring Data Redis http://www.springsource.org/spring-data/redis • Demos: https://github.com/ewolff/spring-redis-demo • Who is using it? http://redis.io/topics/whos-using-redis • Books – Tiago Macedo, Fred Oliveira: Redis Cookbook – Pollack, Gierke, Risberg, Brisbin, Hunger: Spring Data
