Redesign of map.geo.admin.ch
15th UX Romandie
Fribourg

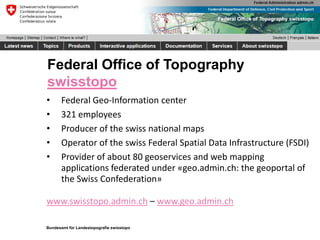

2. Bundesamt für Landestopografie swisstopo
Federal Office of Topography
swisstopo
• Federal Geo-Information center
• 321 employees
• Producer of the swiss national maps
• Operator of the swiss Federal Spatial Data Infrastructure (FSDI)
• Provider of about 80 geoservices and web mapping
applications federated under «geo.admin.ch: the geoportal of
the Swiss Confederation»
www.swisstopo.admin.ch – www.geo.admin.ch

3. Bundesamt für Landestopografie swisstopo

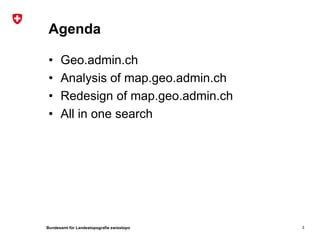

Agenda
• Geo.admin.ch
• Analysis of map.geo.admin.ch
• Redesign of map.geo.admin.ch
• All in one search
3

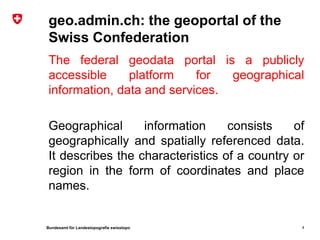

4. Bundesamt für Landestopografie swisstopo
geo.admin.ch: the geoportal of the
Swiss Confederation
The federal geodata portal is a publicly
accessible platform for geographical
information, data and services.
Geographical information consists of
geographically and spatially referenced data.
It describes the characteristics of a country or
region in the form of coordinates and place
names.
4

5. Bundesamt für Landestopografie swisstopo

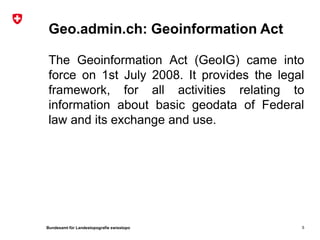

Geo.admin.ch: Geoinformation Act
The Geoinformation Act (GeoIG) came into
force on 1st July 2008. It provides the legal
framework, for all activities relating to
information about basic geodata of Federal
law and its exchange and use.
5

6. Bundesamt für Landestopografie swisstopo
Geo.admin.ch: Geoinformation Act

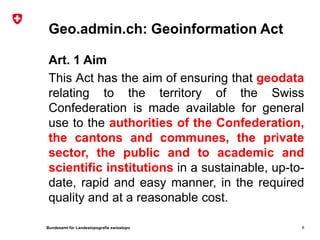

Art. 1 Aim
This Act has the aim of ensuring that geodata
relating to the territory of the Swiss
Confederation is made available for general
use to the authorities of the Confederation,
the cantons and communes, the private
sector, the public and to academic and
scientific institutions in a sustainable, up-to-
date, rapid and easy manner, in the required
quality and at a reasonable cost.
6

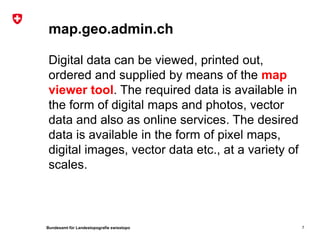

7. Bundesamt für Landestopografie swisstopo
map.geo.admin.ch
Digital data can be viewed, printed out,
ordered and supplied by means of the map
viewer tool. The required data is available in
the form of digital maps and photos, vector
data and also as online services. The desired
data is available in the form of pixel maps,
digital images, vector data etc., at a variety of
scales.
7

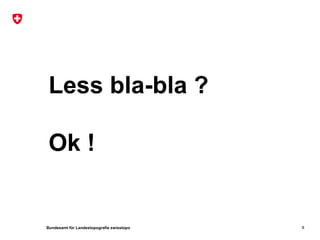

8. Bundesamt für Landestopografie swisstopo
Less bla-bla ?
Ok !
8

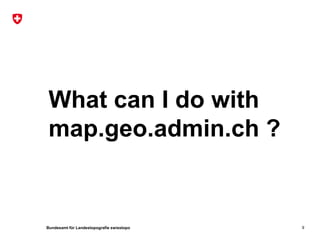

9. Bundesamt für Landestopografie swisstopo
What can I do with
map.geo.admin.ch ?
9

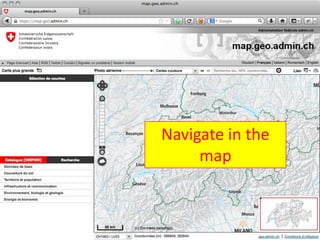

10. Bundesamt für Landestopografie swisstopo 10
Navigate in the
map

11. Bundesamt für Landestopografie swisstopo 11
Add layers

12. Bundesamt für Landestopografie swisstopo

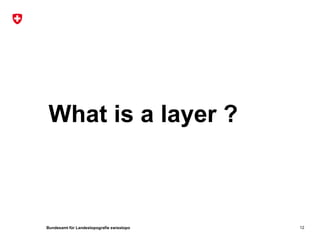

What is a layer ?
12

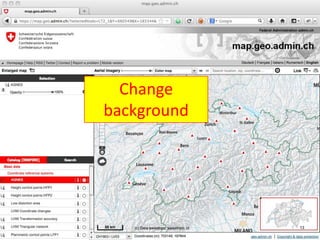

13. Bundesamt für Landestopografie swisstopo 13
Change
background

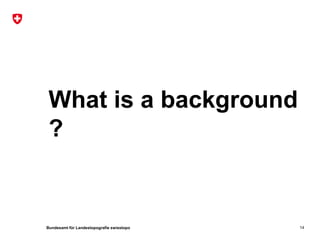

14. Bundesamt für Landestopografie swisstopo
What is a background
?
14

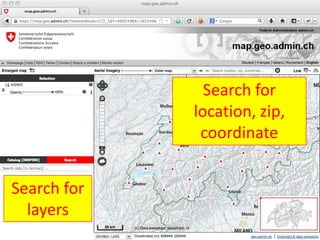

15. Bundesamt für Landestopografie swisstopo
Search for
layers
Search for
location, zip,
coordinate

16. Bundesamt für Landestopografie swisstopo
How many search
functions do you see
?
16

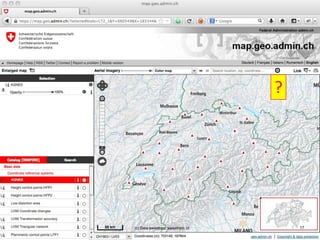

17. Bundesamt für Landestopografie swisstopo 17
?

18. Bundesamt für Landestopografie swisstopo

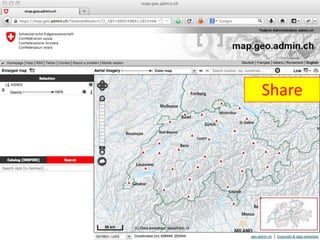

Share

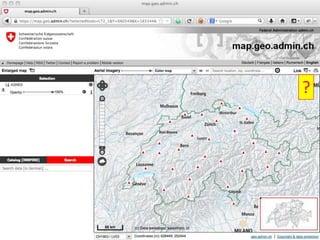

19. Bundesamt für Landestopografie swisstopo
?

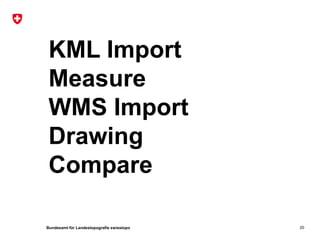

20. Bundesamt für Landestopografie swisstopo
KML Import
Measure
WMS Import
Drawing
Compare
20

21. Bundesamt für Landestopografie swisstopo
Print

22. Bundesamt für Landestopografie swisstopo

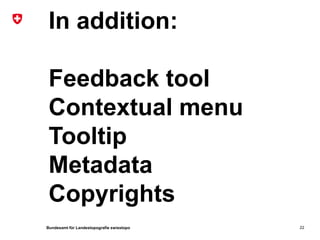

In addition:
Feedback tool
Contextual menu
Tooltip
Metadata
Copyrights
22

23. Bundesamt für Landestopografie swisstopo
All in one app
7 parts

24. Bundesamt für Landestopografie swisstopo
Lessons learned
Map navigation:
ok
All other functions:
Not discovered (User survey)
Not understood (User feedback)
24

25. Bundesamt für Landestopografie swisstopo
FAQ
Where is the print function ?
Can I create a permalink ?
How can I draw in the map ?
How can I add this data ?
Why is the map so small ?
Etc……
… but all these functions exist….
25

26. Bundesamt für Landestopografie swisstopo

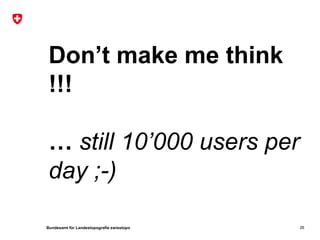

Don’t make me think
!!!
… still 10’000 users per
day ;-)
26

27. Bundesamt für Landestopografie swisstopo

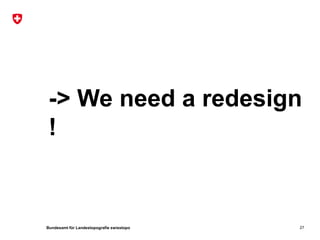

-> We need a redesign
!
27

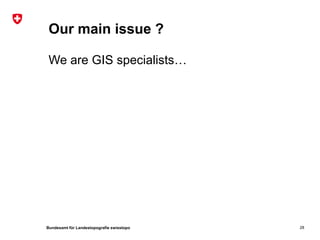

28. Bundesamt für Landestopografie swisstopo
Our main issue ?
We are GIS specialists…
28

29. Bundesamt für Landestopografie swisstopo
Who are the users ?
Authorities of the Confederation, the cantons
and communes, the private sector, the public
and to academic and scientific institutions
-> Oups, in other words, everyone
29

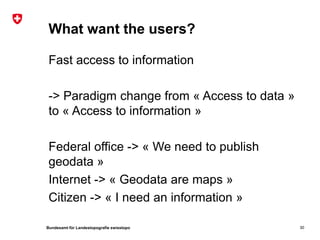

30. Bundesamt für Landestopografie swisstopo
What want the users?
Fast access to information
-> Paradigm change from « Access to data »
to « Access to information »
Federal office -> « We need to publish
geodata »
Internet -> « Geodata are maps »
Citizen -> « I need an information »
30

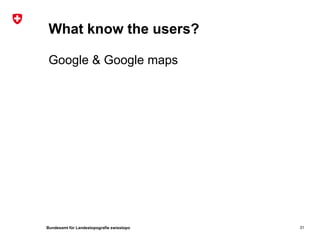

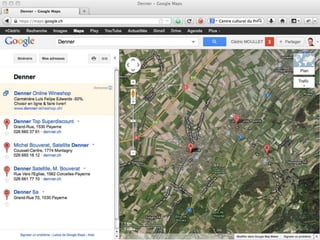

31. Bundesamt für Landestopografie swisstopo
What know the users?
Google & Google maps
31

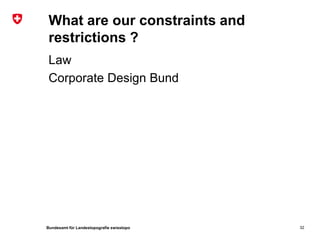

32. Bundesamt für Landestopografie swisstopo
What are our constraints and
restrictions ?
Law
Corporate Design Bund
32

33. Bundesamt für Landestopografie swisstopo 33

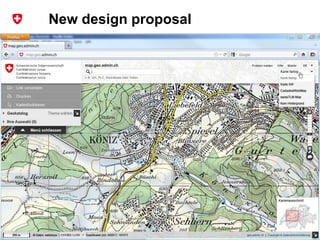

New design proposal

34. Bundesamt für Landestopografie swisstopo 34

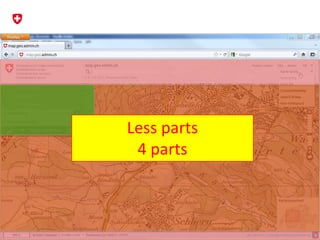

Less parts
4 parts

35. Bundesamt für Landestopografie swisstopo 35
More map
More map

36. Bundesamt für Landestopografie swisstopo 36

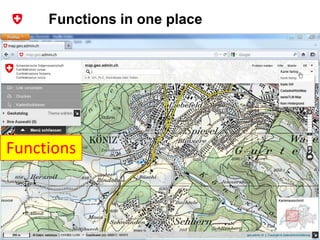

Functions
Functions in one place

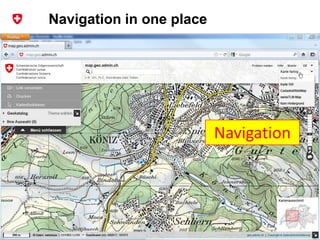

37. Bundesamt für Landestopografie swisstopo 37
Navigation
Navigation in one place

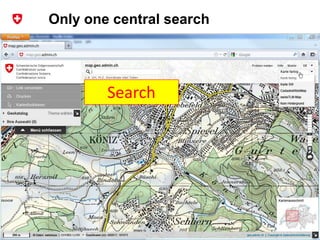

38. Bundesamt für Landestopografie swisstopo 38
Search
Only one central search

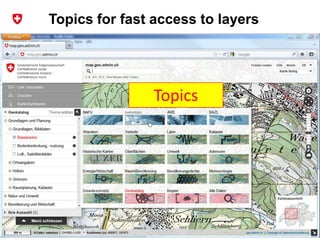

39. Bundesamt für Landestopografie swisstopo
Topics
Topics for fast access to layers

40. Bundesamt für Landestopografie swisstopo

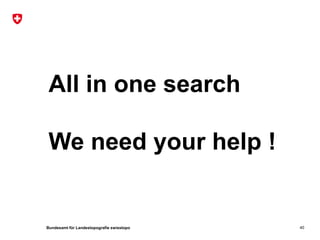

All in one search
We need your help !
40

41. Bundesamt für Landestopografie swisstopo

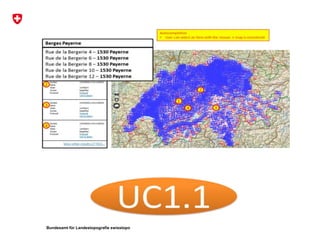

42. Bundesamt für Landestopografie swisstopo 42

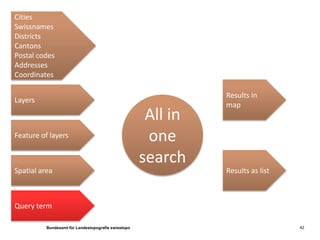

All in
one
search
Layers
Cities
Swissnames
Districts
Cantons
Postal codes
Addresses
Coordinates
Feature of layers
Spatial area
Results in
map
Query term
Results as list

43. Bundesamt für Landestopografie swisstopo

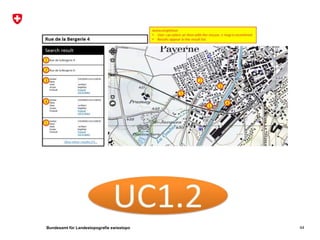

44. Bundesamt für Landestopografie swisstopo 44

45. Bundesamt für Landestopografie swisstopo

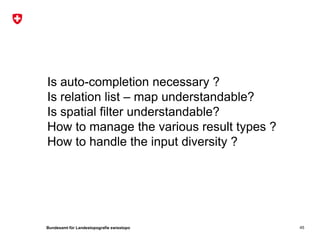

Is auto-completion necessary ?
Is relation list – map understandable?
Is spatial filter understandable?
How to manage the various result types ?
How to handle the input diversity ?
45

46. Bundesamt für Landestopografie swisstopo
www.geo.admin.ch
map.geo.admin.ch
api.geo.admin.ch
info@geo.admin.ch
Twitter: @swiss_geoportal
THANK YOU
