1. AI for Robotics
Recursive State Estimation
AI for Robotics
Recursive State Estimation
DR. ABHISHEK SARKAR
MECHANICAL ENGG.
BITS-PILANI, HYDERABAD

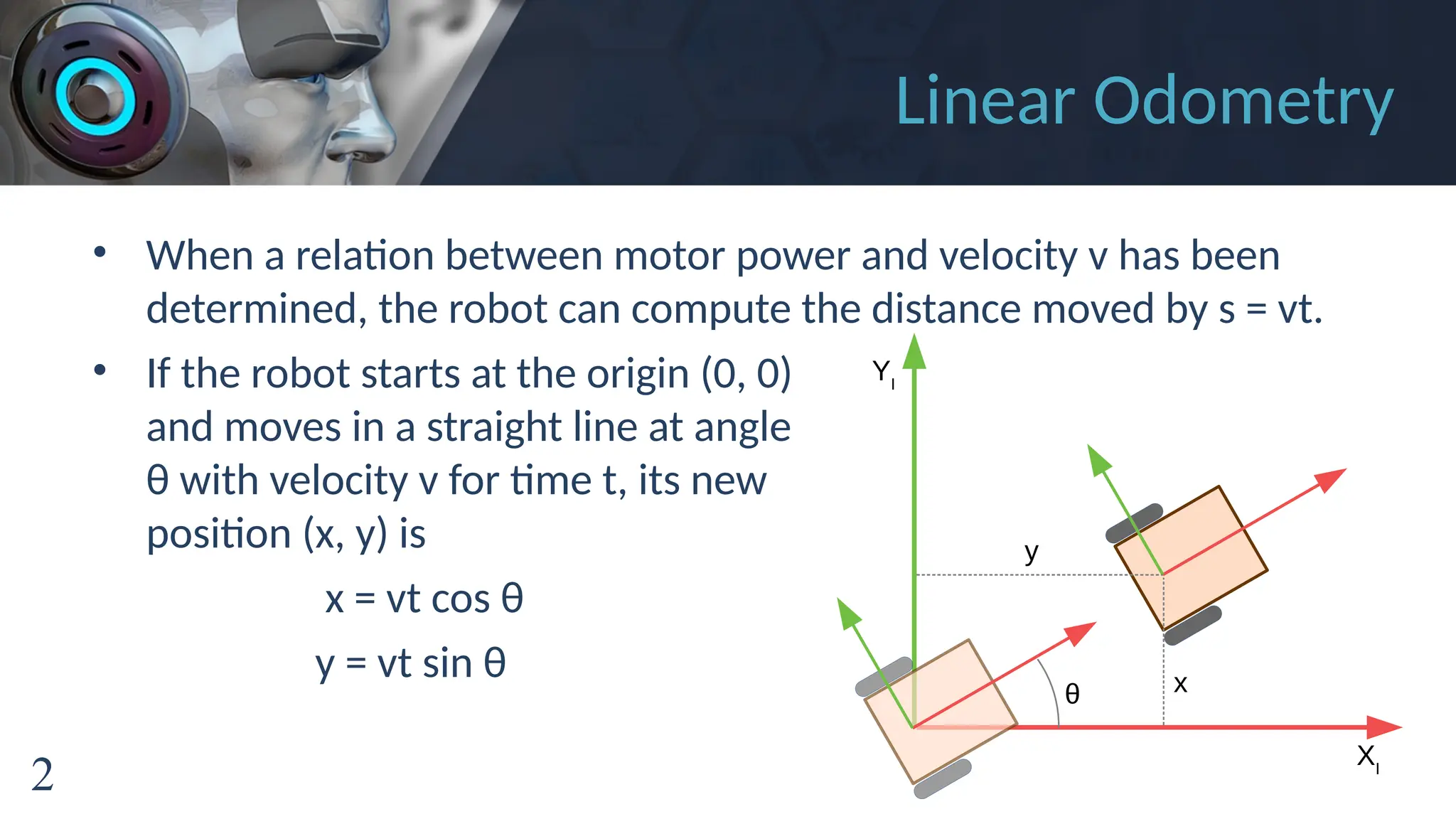

2. Linear Odometry
• When a relation between motor power and velocity v has been
determined, the robot can compute the distance moved by s = vt.
• If the robot starts at the origin (0, 0)
and moves in a straight line at angle
θ with velocity v for time t, its new
position (x, y) is
x = vt cos θ
y = vt sin θ
2
YI
XI
θ x
y

3. Odometry with Turns
• We can measure dl and dr, the distances moved by the two wheels
with the encoder and wheel diameter.
• After t seconds the wheel has moved
si = π d ωit, where i = 1,2
• The distances s1 and s2 are obtained from the
rotations of the wheels
θr1 = s1, θr2 = s2
subtracting and finding the value of θ
θ = (s2 − s1)/(r2 − r1) = (s2 − s1)/l
3
θ
s1
s2
ri

4. Odometry with Turns
• The center is halfway between the wheels
rc = (r1 + r2)/2
• So the distance travelled is
sc = θrc
= θ(r1 + r2)/2
= (s1 + s2)/2
4
θ
rc
sc

5. An error model for
Odometric position estimation
• For a differential-drive robot the position can be estimated
starting from a known position by integrating the movement
(summing the incremental travel distances).
• For a discrete system with a fixed sampling interval ∆t the
incremental travel distances are
∆x = ∆s cos(θ + ∆θ/2)
∆y = ∆s sin(θ + ∆θ/2)
∆θ = (∆s2 - ∆s1)/l
∆s = (∆s1 + ∆s2)/2
5

6. An error model for
Odometric position estimation
• Thus we get the updated position p’:
• By using the equations of ∆θ and ∆s we further obtain the basic
equation for odometric position update.
• Owing to integration errors of the uncertainties of p and the
motion errors during the incremental motion (∆s2, ∆s1) the
position error based on odometry integration grows with time.
6
p'=
[
x '
y'
θ' ]=p+
[
Δ scos(θ+∆θ/2)
Δ ssin(θ+∆θ/2)
∆θ ]

7. Recursive State Estimation
• as
●
Introduction
●
Probability
●
Environment Interaction
●
Probabilistic Generative Laws
●
Belief Distributions
●
The Bayes Filter Algorithm
●
Markov Assumption
7

8. Introduction
• State estimation addresses the problem of estimating quantities
from sensor data that are not directly observable, but that can be
inferred.
• Determining what to do is relatively easy if one only knew certain
quantities.
• Sensors carry only partial information about those quantities, and
their measurements are corrupted by noise.
8

9. Concepts in Probability
• Let X denote a random variable and x denote a specific value that
X might assume.
• A standard example of a random variable is a coin flip, where X
can take on the values heads or tails.
• If the space of all values that X can take on is discrete
p(X = x)
to denote the probability that the random variable X has value x.
• Discrete probabilities sum to one
9
∑
x
p( X=x)=1

10. Probability Density Function
• Continuous spaces are characterized by random variables that can
take on a continuum of values.
• A common density function is that of the one-dimensional normal
distribution with mean μ and variance σ2.
●
The PDF of a normal distribution is given by the following
Gaussian function:
●
We will frequently abbreviate them as N (x; μ, σ2
), which specifies
the random variable, its mean, and its variance.
10
p(x)=(2πσ2
)−1/2
exp{−
1
2
(x−μ)2
σ2 }

11. Multivariate distributions
• Normal distributions over vectors are called multivariate.
• Multivariate normal distributions are characterized by density
functions of the following form:
• Here μ is the mean vector, Σ a positive semidefinite and symmetric
matrix called the covariance matrix.
• A PDF always integrates to 1
11
p(x)=det(2π Σ)−1/2
exp{−
1
2
(x−μ)T
Σ−1
(x−μ)}
∫p(x)dx=1

12. Joint Distribution
• The joint distribution of two random variables X and Y is given by
• If X and Y are independent, we have
p(x, y) = p(x) p(y)
12

13. Conditional Probability
• Suppose we already know that Y ’s value is y, and we would like to
know the probability that X’s value is x conditioned on that fact.
• Such a probability will be denoted
• If p(y) > 0, then the conditional probability is defined as
• If X and Y are independent,
13

14. Theorem of Total Probability
• If p(x | y) or p(y) are zero, we define the product p(x | y) p(y) to be
zero, regardless of the value of the remaining factor.
14

15. Bayes Rule
• Bayes rule relates a conditional of the type p(x | y) to its “inverse,”
p(y | x)
• Useful for assessing diagnostic probability from causal probability:
15

16. Sample Space
• In probability theory, the set of all possible worlds is called the
sample space.
• If we are about to roll two (distinguishable) dice, there are 36
possible worlds to consider: (1,1), (1,2), . . ., (6,6).
• A fully specified probability model associates a numerical
probability P(ω) with each possible world.
• The total probability of the set of possible worlds is 1
16

17. Events / Propositions
• We might be interested in the cases where the two dice add up to
11, the cases where doubles are rolled, and so on.
• In probability theory, these sets are called events and in AI, the sets
are always described by propositions.
• The probability associated with a proposition φ,
• What is the probability of two dice add up to 11?
17

18. Unconditional or
Prior Probabilities
• We refer to degrees of belief in propositions in the absence of any
other information.
• Most of the time, however, we have some information, usually
called evidence, that has already been revealed.
• For example, the first die may already be showing a 5 …
… and we are waiting for the other one!
• Now, we are interested in the conditional or posterior probability
of rolling doubles given that the first die is a 5.
18

19. Conditional or
Posterior Probabilities
• This probability is written as P(doubles | Die1
= 5)
• Mathematically, conditional probabilities are defined in terms of
unconditional probabilities as follows: for any propositions a and b,
we have
which holds whenever P (b) > 0.
• For example,
• The product rule: P(a b) = P(a | b)P(b)
∧
19

20. Domain
• Every random variable has a domain—the set of possible values it
can take on.
• A Boolean random variable has the domain {true, false}
• The domain of Total for two dice is the set {2, . . . , 12}
• Variables can have infinite domains, too—either discrete (like the
integers) or continuous (like the reals).
20

21. Environment Interaction
• The robot can influence the state of its environment through its
actuators, and it can gather information about the state through its
sensors.
• Perception is the process by which the robot uses its sensors to
obtain information about the state of its environment.
• Typically, sensor measurements arrive with some delay. Hence they
provide information about the state a few moments ago.
• Control actions change the state of the world by actively asserting
forces on the robot’s environment.
26

22. Environment Interaction
• Environment measurement data provides information about a
momentary state of the environment.
zt1:t2
= zt1
, zt1+1
, zt1+2
, . . . , zt2
denotes the set of all measurements acquired from time t1
to time
t2
, for t1
≤ t2
.
• Control data carry information about the change of state in the
environment.
• The variable ut
will always correspond to the change of state in the
time interval (t − 1; t].
27

23. Environment Interaction
• Sequences of control data denoted by
ut1:t2
= ut1
, ut1+1
, ut1+2
, . . . , ut2
• Since the environment may change even if a robot does not execute
a specific control action, the fact that time passed by constitutes
control information.
• Therefore we assume that there is exactly one control data item per
time step t, and “do-nothing” is accounted as legal action.
28

24. Probabilistic Generative Laws
• The evolution of state and measurements is governed by
probabilistic laws.
• The state xt
is generated stochastically from the state xt−1
.
• The emergence of state xt
might be conditioned on all past states,
measurements, and controls
p(xt
| x0:t−1
, z1:t−1
, u1:t
).
• We assume here that the robot executes a control action u1
first,
and then takes a measurement z1
.
29

25. Probabilistic Generative Laws
• If the state x is complete then it is a sufficient summary of all that
happened in previous time steps.
• In particular, xt−1
is a sufficient statistic of all previous controls and
measurements up to this point in time, that is, u1:t−1
and z1:t−1
.
• From all the variables in the expression above, only the control ut
matters if we know the state xt−1
p(xt
| x0:t−1
, z1:t−1
, u1:t
) = p(xt
| xt−1
, ut
)
• [State transition probability]
30

26. Probabilistic Generative Laws
• Again, if xt
is complete, we have an important conditional
independence:
p(zt
| x0:t
, z1:t−1
, u1:t
) = p(zt
| xt
)
[Measurement probability]
• The state xt
is sufficient to predict the (potentially noisy)
measurement zt
.
• Knowledge of any other variable, such as past measurements
controls, or even past states, is irrelevant if xt
is complete.
31

27. Probabilistic Generative Laws
• The state transition probability
and the measurement
probability together
describe the dynamical
stochastic system of the
robot and its environment.
• The state at time t is stochastically
dependent on the state at time t − 1 and the control ut
.
• The measurement zt
depends stochastically on the state at time t.
32
xt-1
zt-1
ut-1
zt
xt
ut
zt+1
xt+1
ut+1

28. Belief Distributions
• A belief reflects the robot’s internal knowledge about the state of
the environment.
• Robot’s state cannot be measured directly.
• For example, a robot’s pose might be xt = <14.12, 12.7, 45°> in some
global coordinate system, but it usually cannot know its pose, since
poses are not measurable directly (not even with GPS!).
• We therefore distinguish the true state from its internal belief with
regards to that state.
33

29. Belief Distributions
• Belief distributions are posterior probabilities over state variables
conditioned on the available data.
• We denote belief over a state variable xt
by
bel(xt
) = p(xt
| z1:t
, u1:t
)
• This posterior is the probability distribution over the state xt
at time
t, conditioned on all past measurements z1:t
and all past controls u1:t
.
• Occasionally, it will prove useful to calculate a posterior before
incorporating zt
, just after executing the control ut
.
34

30. Belief Distributions
• Such a posterior will be denoted as follows
bel(xt
) = p(xt
| z1:t−1
, u1:t
)
• This probability distribution is often referred to as prediction in the
context of probabilistic filtering.
• bel(xt
) predicts the state at time t based on the previous state
posterior, before incorporating the measurement at time t.
• Calculating bel(xt
) from bel(xt
) is called correction or the
measurement update.
35

31. Bayes Filter Algorithm
1: Algorithm Bayes_filter(bel(xt−1
), ut
, zt
):
2: for all xt
do
3: bel(xt
) = ∫p(xt
| ut
, xt−1
) bel(xt−1
) dxt−1
4: bel(xt
) = η p(zt
| xt
) bel(xt
)
5: endfor
6: return bel(xt
)
36

32. Example
• Let us assume that the door
can be in one of two possible
states, open or closed, and
that only the robot can change
the state of the door.
• Also, the robot does not know
the state of the door initially.
37

33. Example
• Robot assigns equal prior probability to the two possible door
states:
bel(X0
= open) = 0.5 bel(X0
= closed) = 0.5
• Sensor noise is characterized by the conditional probabilities:
p(Zt
= sense_open | Xt
= is_open) = 0.6
p(Zt
= sense_closed | Xt
= is_open) = 0.4
p(Zt
= sense_open | Xt
= is_closed) = 0.2
p(Zt
= sense_closed | Xt
= is_closed) = 0.8
38https://people.eecs.berkeley.edu/~pabbeel/cs287-fa13/slides/bayes-filters.pdf

34. Example
• Robot uses its manipulator to push the door open.
• If the door is already open, it will remain open.
• If it is closed, the robot has a 0.8 chance that it will be open
afterwards:
p(Xt
= is_open | Ut
= push, Xt_1
= is_open) = 1
p(Xt
= is_closed | Ut
= push, Xt_1
= is_open) = 0
p(Xt
= is_open | Ut
= push, Xt_1
= is_closed) = 0.8
p(Xt
= is_closed | Ut
= push, Xt_1
= is_closed) = 0.2
39 http://stefanosnikolaidis.net/course-files/CS545/Lecture6.pdf

35. Example
• It can also choose not to use its manipulator, in which case the state
of the world does not change.
p(Xt
= is_open | Ut
= do_nothing, Xt_1
= is_open) = 1
p(Xt
= is_closed | Ut
= do_nothing, Xt_1
= is_open) = 0
p(Xt
= is_open | Ut
= do_nothing, Xt_1
= is_closed) = 0
p(Xt
= is_closed | Ut
= do_nothing, Xt_1
= is_closed) = 1
40

36. Example
• Suppose at time t = 1, the robot takes no control action but it senses
an open door.
• Since the state space is finite,
bel(x1
) = ∫p(x1
| u1
, x0
) bel(x0
) dx0
= Σx0
p(x1
| u1
, x0
) bel(x0
)
= p(x1
| U1
= do_nothing, X0
= is_open) bel(X0
= is_open)
+ p(x1
| U1
= do_nothing, X0
= is_closed) bel(X0
= is_closed)
41

37. Example
• For the hypothesis X1
= is_open, we obtain
bel(X1
= is_open) = 1 x 0.5 + 0 x 0.5 = 0.5
• Likewise, for X1
= is_closed we get
bel(X1
= is_closed) = 0 x 0.5 + 1 x 0.5 = 0.5
• The fact that the belief bel(x1
) equals our prior belief bel(x0
) should
not surprise, as the action do_nothing does not affect the state of
the world; neither does the world change over time by itself in our
example
42

38. Example
• Incorporating the measurement, however, changes the belief.
bel(x1
) = η p(Z1
= sense_open | x1
) bel(x1
)
• So, bel(X1
= is_open)
= η p(Z1
= sense_open | X1
= is_open) bel(X1
= is_open)
= η 0.6 · 0.5 = η 0.3
• and bel(X1
= is_closed)
= η p(Z1
= sense_open | X1
= is_closed) bel(X1
= is_closed)
= η 0.2 · 0.5 = η 0.1
43

39. Example
• The normalizer η is now easily calculated:
η = (0.3 + 0.1)−1
= 2.5
• Hence, we have
bel(X1
= is_open) = 0.75
bel(X1
= is_closed) = 0.25
• This calculation is now easily iterated for the next time step.
• Let u2
= push and z2
= sense_open we get ...
44
