Rancher Rodeo
3 0 S E P T E M BRE 2022
Benoit Loriot
benoit.loriot@suse.com Sales
Engineer
Julien Niedergang
julien.niedergang@suse.com

Date Sujet
Vendredi18 Novembre NeuVector Rodeo
Voici la fin:
Contenu Lien
L'affaire CentOS https://youtu.be/DlSJWxa3mKc
Usine Logicielle https://youtu.be/_vItD1_DyRE
Présentation Neuvector https://youtu.be/UgfTuK8K-yk
Démo Neuvector https://youtu.be/b96yQCZ-I_Q

Objectives for the day
5
1. Explain Docker and Kubernetes concepts
2. Provision HobbyFarm user accounts
3. Install and Demo Rancher Server
4. Deploy a Kubernetes cluster
5. Deploy a hello-world application into the cluster
6. Deploy WordPress into the cluster

— This Rodeo Presentation is designed for those that are new to Kubernetes and Rancher
— We will cover some slightly advanced techniques (if we have time)
— What is presented in here is not necessarily how you should run something in
production, but should help give you a basis to put together the right tools to be able
to run production workloads
6
Forewarning

— Up-to-date browser
– Google Chrome
– Mozilla Firefox
– Other Chromium based browsers
7
Prerequisites

Talk to the team by:
— Using the Questions option in your GTM client
8
Have comments or questions?

The Basics
Containers &
Kubernetes
9

Copyright © SUSE 2021 11

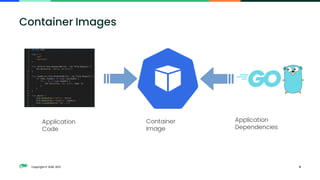

Container Images
Application
Code
Application
Dependencies
Container

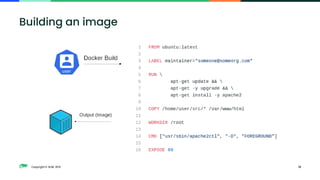

Building an image

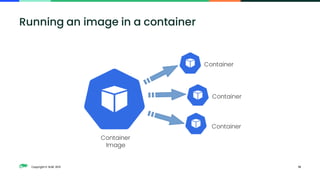

Running an image in a container
Container
Container
Container
Container

— A running instance of an image
— Portable - You build your application once, and you run it
anywhere.
— You have a clean, isolated runtime environment for your
application.
— You can scale your application horizontally by spawning
more containers. Each container is guaranteed to be
identical.
14

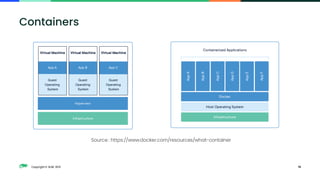

Containers

Containers
Source : https://www.docker.com/resources/what-container

Distributing a Container Image

— Central place to store images
– Public
– Private
– On-prem / Cloud
— Examples:
– Amazon Elastic Container Registry
– Azure Container Registry
– Docker Hub
– Harbor
— Some are extended with other capabilities:
– Vulnerability scanning
– LDAP / AD Support
– Auditing
– Replication
– …
17
Container Registries

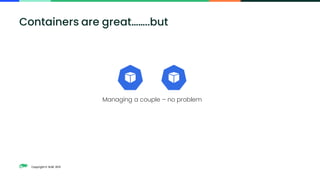

Managing a couple – no problem
Containers are great……..but

Containers are great……..but
How about managing many? How do we address:
• Networking,
• Security
• Scheduling
• Automation
• etc.

Kubernetes is a powerful open-source platform
for managing containerized workloads and services

Declarative Configuration
21

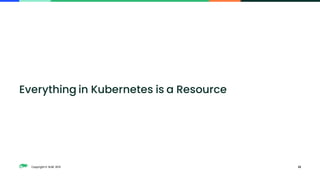

Everything in Kubernetes is a Resource
22

You can create/retrieve/update/delete resources
23

⚫ Smallest unit of deployment
⚫ Similar to what a VM is in the hypervisor world
⚫ Can contain one or more containers
⚫ Has its own resources:
⚫ Storage (i.e., shared volumes)
⚫ Networking
⚫ Scheduled on to a Worker node
Pods

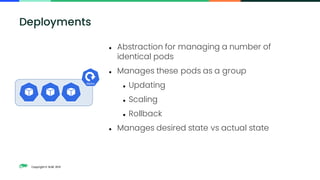

⚫ Abstraction for managing a number of
identical pods
⚫ Manages these pods as a group
⚫ Updating
⚫ Scaling
⚫ Rollback
⚫ Manages desired state vs actual state

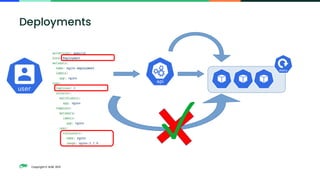

Deployments

✓
Deployments

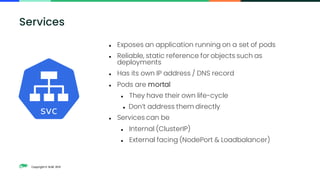

⚫ Exposes an application running on a set of pods
⚫ Reliable, static reference for objects such as
deployments
⚫ Has its own IP address / DNS record
⚫ Pods are mortal
⚫ They have their own life-cycle
⚫ Don’t address them directly
⚫ Services can be
⚫ Internal (ClusterIP)
⚫ External facing (NodePort & Loadbalancer)
Services

10.42.0.4 10.42.0.5 10.42.0.6
Endpoints:
10.42.0.4
10.42.0.5
10.42.0.6
Type : LoadBalancer
10.42.0.7
Endpoints:
10.42.0.4
10.42.0.5
10.42.0.7
Services

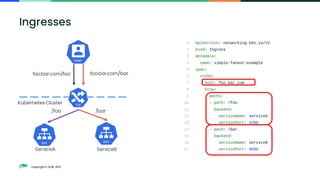

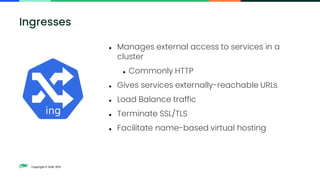

⚫ Manages external access to services in a
cluster
⚫ Commonly HTTP
⚫ Gives services externally-reachable URLs
⚫ Load Balance traffic
⚫ Terminate SSL/TLS
⚫ Facilitate name-based virtual hosting
Ingresses

Kubernetes Cluster
/bar
/foo
ServiceA ServiceB
foo.bar.com/bar
foo.bar.com/foo
Ingresses

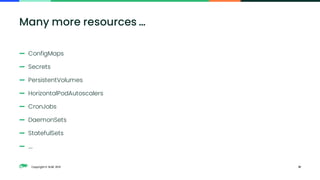

— ConfigMaps
— Secrets
— PersistentVolumes
— HorizontalPodAutoscalers
— CronJobs
— DaemonSets
— StatefulSets
— ….
Many more resources …
31

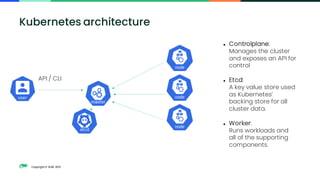

Kubernetes architecture
⚫ Controlplane:
Manages the cluster
and exposes an API for
control
⚫ Etcd:
A key value store used
as Kubernetes’
backing store for all
cluster data.
⚫ Worker:
Runs workloads and
all of the supporting
components.
API / CLI

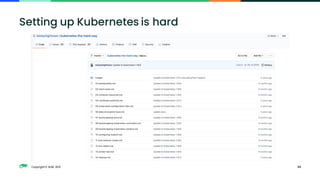

Setting up Kubernetes is hard
33

You don’t compile Linux from scratch,
you use a distribution
34

Rancher
Kubernetes
Engine
• 100% Upstream Kubernetes
• CNCF certified
• Easy installation
• Zero-downtime upgrades
• Backup & Disaster Recovery
• Air gapped installation support
36

RKE included
add-ons
• Etcd
• CNI Plugin
• CoreDNS
• Containerd (RKE2)
• Ingress Controller
• Metrics-server
37

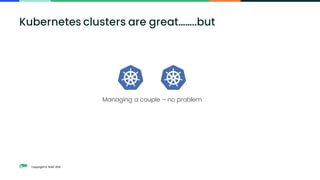

Managing a couple – no problem

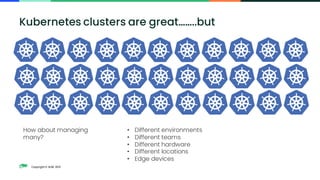

Kubernetes clusters are great……..but

Kubernetes clusters are great……..but
How about managing
many?
• Different environments
• Different teams
• Different hardware
• Different locations
• Edge devices

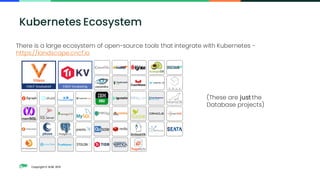

There is a large ecosystem of open-source tools that integrate with Kubernetes -
https://landscape.cncf.io
(These are just the
Database projects)
Kubernetes Ecosystem

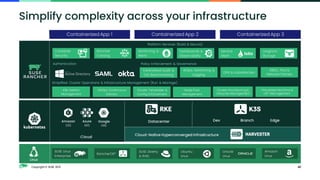

Simplify complexity across your infrastructure
Containerized App 1 Containerized App 3
Containerized App 2
Authentication Policy Enforcement & Governance
Simplified Cluster Operations & Infrastructure Management (Run & Manage)
Platform Services (Build & Secure)
Amazon
EKS
Azure
AKS
Google
GKE
Cloud
Datacenter Edge
Branch
Dev
K8s Version
Management
GitOps Continuous
Delivery
Cluster Templates &
Config Enforcement
Node Pool
Management
Cluster Provisioning &
Lifecycle Management
Centralized Audit &
CIS Benchmarking
AIOps, Monitoring &
Logging
OPA & KubeWarden
RBAC, Pod &
Network Policies
Rancher
Catalog
Monitoring &
Alerts
Dashboards &
Observability
Service
Mesh
Longhorn
Storage
Cloud-Native Hyperconverged Infrastructure
Virtualized Machine &
OS* Management
Amazon
Linux
SUSE Linux
Enterprise
RancherOS*
SUSE Liberty
& RHEL
Ubuntu
Linux
Oracle
Linux
Container
Security
Linux

Services
Repos - Packages
packages for OS
Registry
A construire? En place?
NTP
Repos - Code
Gitlab, Github…
Load Balancer
2 VIPs
Shared Storage
Type de stockage
DNS
1 x FQDN Mgmt
1 x FQDN (wildcard) vers workers Downstream
Accès
Liste des ouvertures réseau nécessaires
Proxy
Container Network Infrastructure
Provider réseau
Compute
Downstream Cluster(s)
Rancher Management Server
CSP LAN Network
Somewhere in the Cloud…
… an instance.
2 vCPU
16GB RAM
40GB vDisk
rancher01
Master (cp, etcd), Worker
1 x
… another instance.
2 vCPU
16GB RAM
40GB vDisk
cluster01
1 x

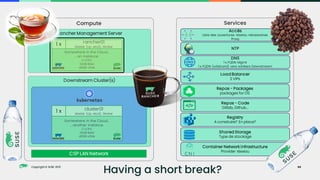

Having a short break? 44

Let’s try it out
45

Services
Repos - Packages
packages for OS
Registry
NTP
Repos - Code
Gitlab, Github…
Load Balancer
2 VIPs
Shared Storage
Type de stockage
DNS
1 x FQDN Mgmt
1 x FQDN (wildcard?) vers workers Downstream
Accès
Proxy
Provider réseau
Compute
CSP LAN Network
… an instance.
2 vCPU
4GB RAM
20GB vDisk
rancher01
1 x
2 vCPU
4GB RAM
20GB vDisk
cluster01
1 x
46
Architecture

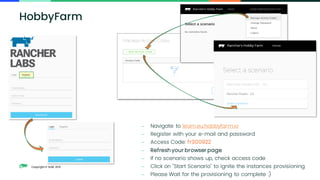

− Navigate to learn.eu.hobbyfarm.io
− Register with your e-mail and password
− Access Code: fr300922
− Refresh your browser page
− If no scenario shows up, check access code
− Click on "Start Scenario" to ignite the instances provisioning
− Please Wait for the provisioning to complete :)
HobbyFarm

After you click on "start scenario"
learn.eu.hobbyfarm.io
Please be patient while the
instances are being deployed
Access Code: fr300922

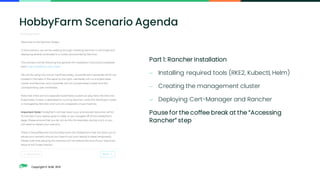

Part 1: Rancher Installation
− Installing required tools (RKE2, Kubectl, Helm)
− Creating the management cluster
− Deploying Cert-Manager and Rancher
Pause for the coffee break at the “Accessing
Rancher” step
HobbyFarm Scenario Agenda

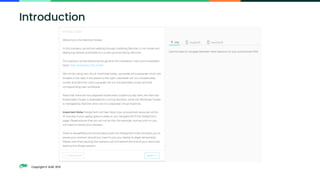

Introduction

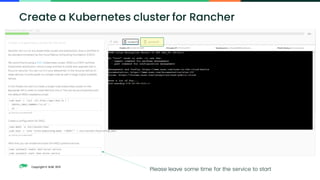

Create a Kubernetes cluster for Rancher
Please leave some time for the service to start

Testing your cluster

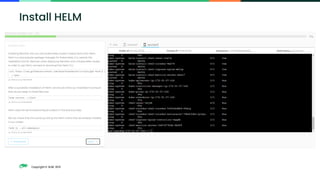

Install HELM

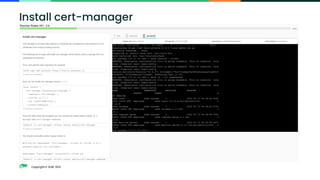

Install cert-manager

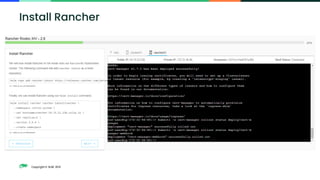

Install Rancher

Verify Rancher is Ready to Access
Coffee break while we wait!

Waiting for deployment
Rancher
57

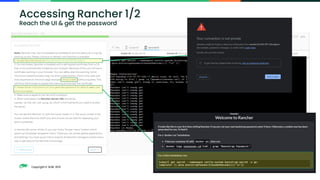

Accessing Rancher 1/2
Reach the UI & get the password

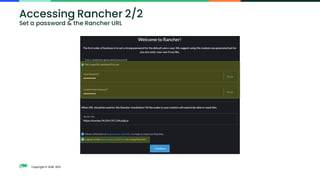

Accessing Rancher 2/2
Set a password & the Rancher URL

Services
Repos - Packages
packages for OS
Registry
NTP
Repos - Code
Gitlab, Github…
Load Balancer
2 VIPs
Shared Storage
Type de stockage
DNS
1 x FQDN Mgmt
1 x FQDN (wildcard) vers workers Downstream
Accès
Proxy
Provider réseau
Compute
CSP LAN Network
… an instance.
2 vCPU
4GB RAM
20GB vDisk
rancher01
1 x
2 vCPU
4GB RAM
20GB vDisk
cluster01
1 x
60
Architecture

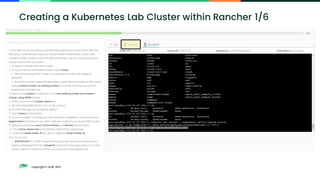

Creating a Kubernetes Lab Cluster within Rancher 1/6

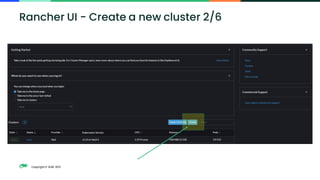

Rancher UI - Create a new cluster 2/6

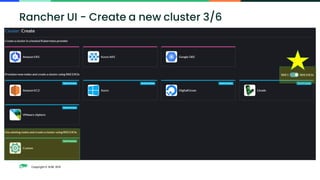

Rancher UI - Create a new cluster 3/6

Rancher UI - Setup the new cluster 4/6
Please stick with 1.21.x

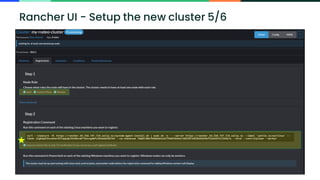

Rancher UI - Setup the new cluster 5/6

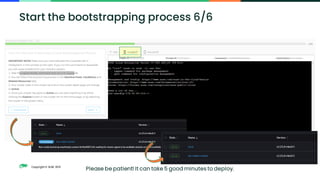

Start the bootstrapping process 6/6
Please be patient! It can take 5 good minutes to deploy.

Monitoring
First basic app + connectivity
Interacting with
your Cluster
67

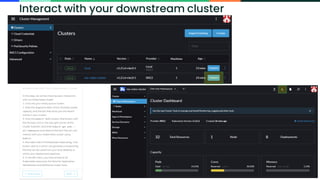

Interact with your downstream cluster

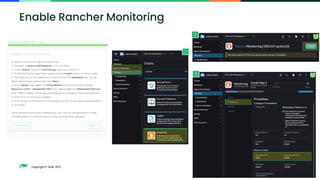

Enable Rancher Monitoring
1
2
3

Working with Rancher Monitoring

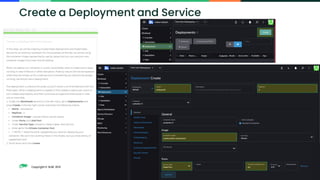

Create a Deployment and Service

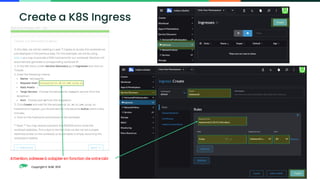

Create a K8S Ingress
Attention, adresse à adapter en fonction de votre lab!

Stateless
Testing an
Application
73

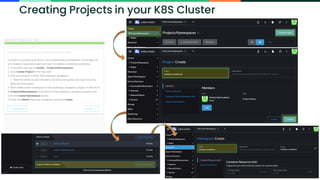

Creating Projects in your K8S Cluster

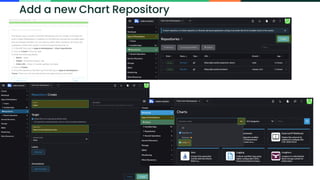

Add a new Chart Repository

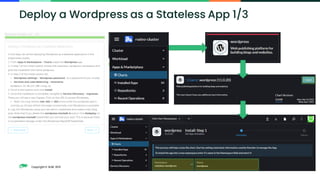

Deploy a Wordpress as a Stateless App 1/3

Stateful
Testing an
Application
79

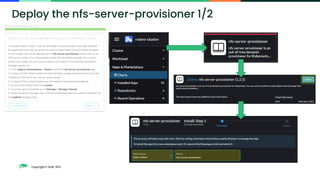

Deploy the nfs-server-provisioner 1/2

Deploy the nfs-server-provisioner 2/2

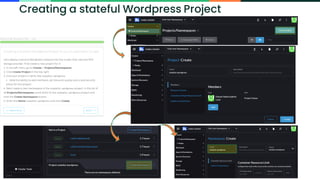

Creating a stateful Wordpress Project

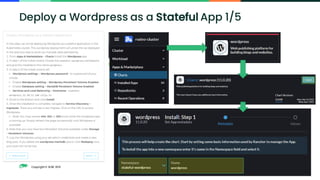

Deploy a Wordpress as a Stateful App 1/5

Upgrading your K8S Cluster

Date Sujet
Vendredi18 Novembre NeuVector Rodeo
Nos félicitations
Contenu Lien
L'affaire CentOS https://youtu.be/DlSJWxa3mKc
Usine Logicielle https://youtu.be/_vItD1_DyRE
Présentation Neuvector https://youtu.be/UgfTuK8K-yk
Démo Neuvector https://youtu.be/b96yQCZ-I_Q
