Radiofrequency (RF) body contouring uses electromagnetic energy to heat tissue deep beneath the skin's surface for fat reduction and skin tightening. RF energy causes oscillation of molecules which generates heat between 3-6 electrodes, heating superficial and deep layers up to 20mm below the skin. This heat causes fat cells to release fatty acids and shrink, reducing fat and circumference while renewing collagen for skin tightening. Proper treatment raises the skin temperature to 40-42°C and monitors patient tolerance to achieve these effects safely and with minimal side effects.

1. Radio Frequency Body
Contouring

2.  Radiofrequency (RF) has been used safely and
effectively in medicine for over 75 years
 RF technology has been used for:
 Skin tightening & wrinkle reduction
 Fat reduction & body sculpting
 RF energy heats skin tissue deep from within, while
protecting the epidermis.
Avante Laser Training Institute 2

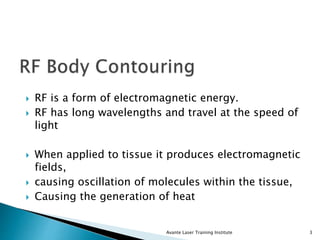

3.  RF is a form of electromagnetic energy.
 RF has long wavelengths and travel at the speed of
light
 When applied to tissue it produces electromagnetic
fields,
 causing oscillation of molecules within the tissue,
 Causing the generation of heat
Avante Laser Training Institute 3

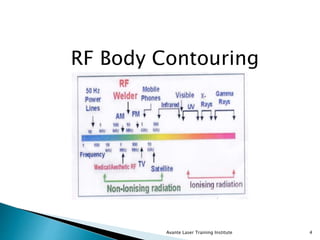

4. RF Body Contouring
Avante Laser Training Institute 4

5. Existing Technology
Mono-Polar
Bi-Polar (using 2 or 4 electrodes)
Tri-Polar (using 3 or 6 electrodes)
Avante Laser Training Institute 5

6.  RF energy flows between 3 or 6
electrodes
 Penetration depth is controlled
and limited to treatment area
only
 Heats superficial (dermal) and
deep (hypodermal) layers- up to
20mm below the skin’s surface.
Avante Laser Training Institute 6

7.  RF Body Contouring RF energy:
◦ Is focused under the electrodes for
effective treatments
◦ Has high power density for immediate
results visible from 1st treatment and
proven long-lasting results.
Avante Laser Training Institute 7

8.  RF Body Contouring RF energy:
◦ Has low power consumption leading to patients
reporting a very pleasant treatment experience
◦ Uses 1 MHz frequency: safe and effective for
collagen remodeling
◦ Has patient controlled manual switch to ensure
maximum safety
Avante Laser Training Institute 8

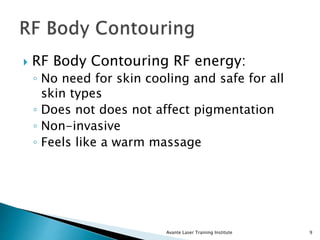

9.  RF Body Contouring RF energy:
◦ No need for skin cooling and safe for all
skin types
◦ Does not does not affect pigmentation
◦ Non-invasive
◦ Feels like a warm massage
Avante Laser Training Institute 9

10.  Accumulation of Fat
◦ Enlarged fat cells in the hypodermis push
the dermis and epidermis layers against
the fibrous connective tissue, creating
cellulite condition.
Avante Laser Training Institute 10

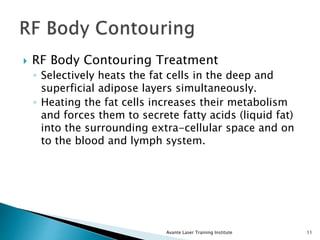

11.  RF Body Contouring Treatment
◦ Selectively heats the fat cells in the deep and
superficial adipose layers simultaneously.
◦ Heating the fat cells increases their metabolism
and forces them to secrete fatty acids (liquid fat)
into the surrounding extra-cellular space and on
to the blood and lymph system.
Avante Laser Training Institute 11

12.  RF Body Contouring Treatment
Results:
◦ Fat cells release the liquid fat (fatty acids)
and shrink resulting in:
 Fat and circumference reduction
 Cellulite reduction
 Collagen renewal and skin tightening
Avante Laser Training Institute 12

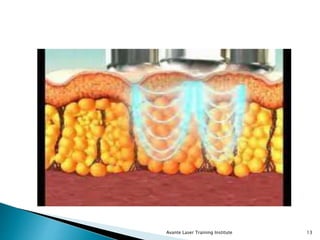

13. Avante Laser Training Institute 13

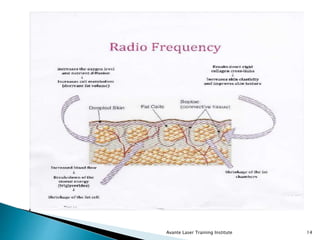

14. Avante Laser Training Institute 14

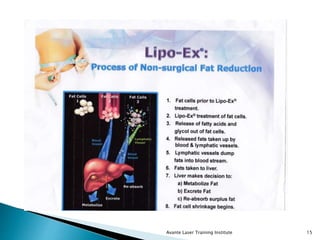

15. Avante Laser Training Institute 15

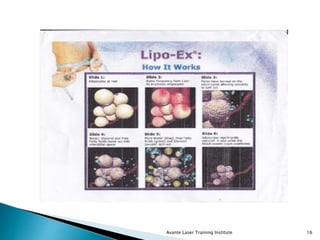

16. Avante Laser Training Institute 16

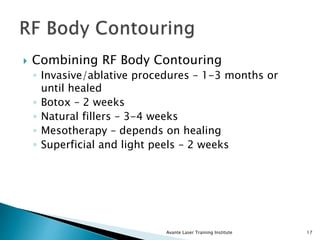

17.  Combining RF Body Contouring
◦ Invasive/ablative procedures – 1-3 months or
until healed
◦ Botox – 2 weeks
◦ Natural fillers – 3-4 weeks
◦ Mesotherapy – depends on healing
◦ Superficial and light peels – 2 weeks
Avante Laser Training Institute 17

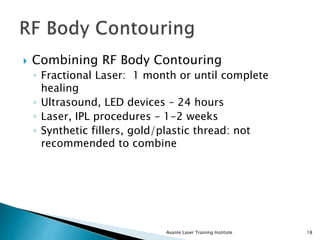

18.  Combining RF Body Contouring
◦ Fractional Laser: 1 month or until complete
healing
◦ Ultrasound, LED devices – 24 hours
◦ Laser, IPL procedures – 1-2 weeks
◦ Synthetic fillers, gold/plastic thread: not
recommended to combine
Avante Laser Training Institute 18

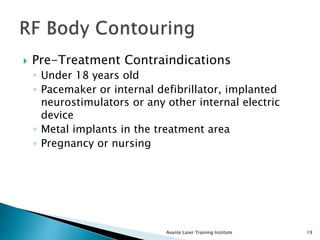

19.  Pre-Treatment Contraindications
◦ Under 18 years old
◦ Pacemaker or internal defibrillator, implanted
neurostimulators or any other internal electric
device
◦ Metal implants in the treatment area
◦ Pregnancy or nursing
Avante Laser Training Institute 19

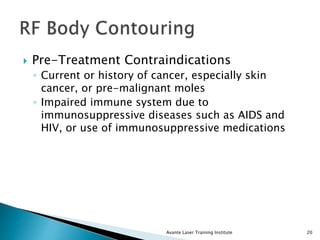

20.  Pre-Treatment Contraindications
◦ Current or history of cancer, especially skin
cancer, or pre-malignant moles
◦ Impaired immune system due to
immunosuppressive diseases such as AIDS and
HIV, or use of immunosuppressive medications
Avante Laser Training Institute 20

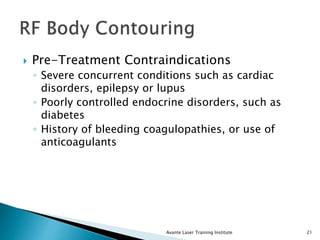

21.  Pre-Treatment Contraindications
◦ Severe concurrent conditions such as cardiac
disorders, epilepsy or lupus
◦ Poorly controlled endocrine disorders, such as
diabetes
◦ History of bleeding coagulopathies, or use of
anticoagulants
Avante Laser Training Institute 21

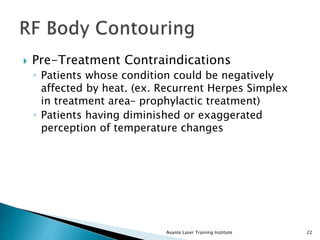

22.  Pre-Treatment Contraindications
◦ Patients whose condition could be negatively
affected by heat. (ex. Recurrent Herpes Simplex
in treatment area– prophylactic treatment)
◦ Patients having diminished or exaggerated
perception of temperature changes
Avante Laser Training Institute 22

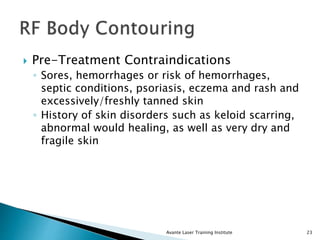

23.  Pre-Treatment Contraindications
◦ Sores, hemorrhages or risk of hemorrhages,
septic conditions, psoriasis, eczema and rash and
excessively/freshly tanned skin
◦ History of skin disorders such as keloid scarring,
abnormal would healing, as well as very dry and
fragile skin
Avante Laser Training Institute 23

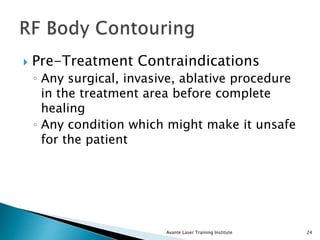

24.  Pre-Treatment Contraindications
◦ Any surgical, invasive, ablative procedure
in the treatment area before complete
healing
◦ Any condition which might make it unsafe
for the patient
Avante Laser Training Institute 24

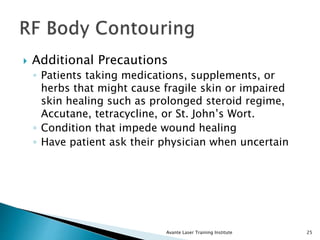

25.  Additional Precautions
◦ Patients taking medications, supplements, or
herbs that might cause fragile skin or impaired
skin healing such as prolonged steroid regime,
Accutane, tetracycline, or St. John’s Wort.
◦ Condition that impede wound healing
◦ Have patient ask their physician when uncertain
Avante Laser Training Institute 25

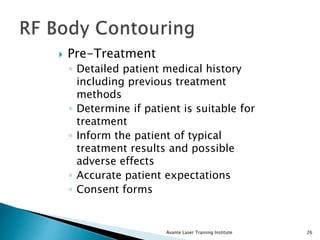

26.  Pre-Treatment
◦ Detailed patient medical history
including previous treatment
methods
◦ Determine if patient is suitable for
treatment
◦ Inform the patient of typical
treatment results and possible
adverse effects
◦ Accurate patient expectations
◦ Consent forms
Avante Laser Training Institute 26

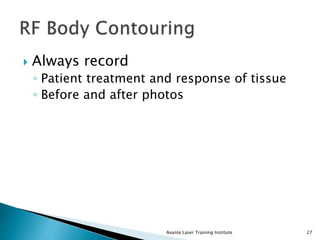

27.  Always record
◦ Patient treatment and response of tissue
◦ Before and after photos
Avante Laser Training Institute 27

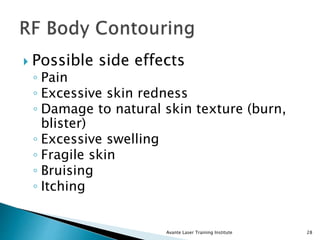

28.  Possible side effects
◦ Pain
◦ Excessive skin redness
◦ Damage to natural skin texture (burn,
blister)
◦ Excessive swelling
◦ Fragile skin
◦ Bruising
◦ Itching
Avante Laser Training Institute 28

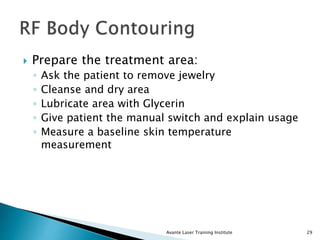

29.  Prepare the treatment area:
◦ Ask the patient to remove jewelry
◦ Cleanse and dry area
◦ Lubricate area with Glycerin
◦ Give patient the manual switch and explain usage
◦ Measure a baseline skin temperature
measurement
Avante Laser Training Institute 29

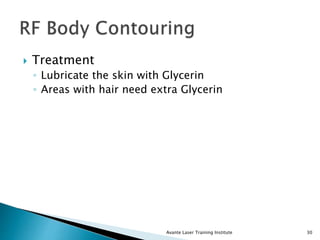

30.  Treatment
◦ Lubricate the skin with Glycerin
◦ Areas with hair need extra Glycerin
Avante Laser Training Institute 30

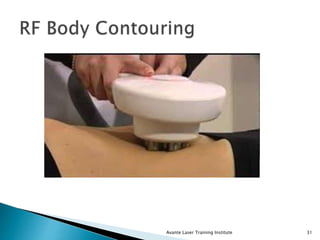

31. Avante Laser Training Institute 31

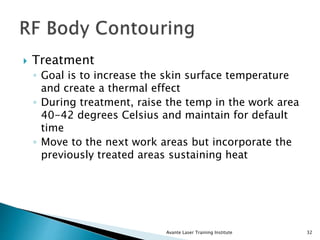

32.  Treatment
◦ Goal is to increase the skin surface temperature
and create a thermal effect
◦ During treatment, raise the temp in the work area
40-42 degrees Celsius and maintain for default
time
◦ Move to the next work areas but incorporate the
previously treated areas sustaining heat
Avante Laser Training Institute 32

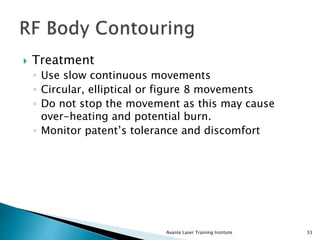

33.  Treatment
◦ Use slow continuous movements
◦ Circular, elliptical or figure 8 movements
◦ Do not stop the movement as this may cause
over-heating and potential burn.
◦ Monitor patent’s tolerance and discomfort
Avante Laser Training Institute 33

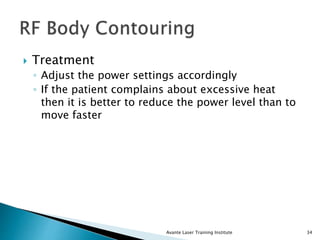

34.  Treatment
◦ Adjust the power settings accordingly
◦ If the patient complains about excessive heat
then it is better to reduce the power level than to
move faster
Avante Laser Training Institute 34

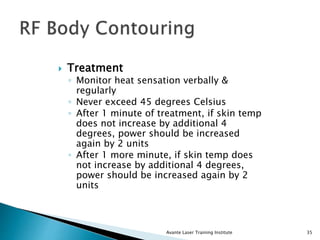

35.  Treatment
◦ Monitor heat sensation verbally &
regularly
◦ Never exceed 45 degrees Celsius
◦ After 1 minute of treatment, if skin temp
does not increase by additional 4
degrees, power should be increased
again by 2 units
◦ After 1 more minute, if skin temp does
not increase by additional 4 degrees,
power should be increased again by 2
units
Avante Laser Training Institute 35

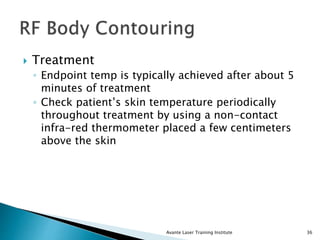

36.  Treatment
◦ Endpoint temp is typically achieved after about 5
minutes of treatment
◦ Check patient’s skin temperature periodically
throughout treatment by using a non-contact
infra-red thermometer placed a few centimeters
above the skin
Avante Laser Training Institute 36

37.  After Treatment
◦ Clean applicators with alcohol.
Have Patient Drink a lot of water
Patient should exercise in the two
hours following treatment
High protien and low carb and low
sugar diet is best
Avante Laser Training Institute 37

38. Avante Laser Training Institute 38

39. Avante Laser Training Institute 39

40. Avante Laser Training Institute 40

41. Avante Laser Training Institute 41

42. Avante Laser Training Institute 42
