1. OMG model transformation standard in Eclipse
2 similar experiences : QVT-R and MTL ...
Jonathan Musset jonathan.musset@obeo.fr
quentin.glineur@obeo.fr
Obeo
France
© Copyright 2008 Obeo.; made available under the EPL v1.0 | March 20, 2008

2. Obeo
 8 Eclipse commiters
 Eclipse Modeling Project
 M2M
 Declarative QVT
 ATL industrialization
 M2T : MTL
 EMF : EMF Compare
 Eclipse STP – SCA
 OW2 Consortium - Acceleo
© Copyright 2008 Obeo.; made available under the EPL v1.0 | March 20, 2008

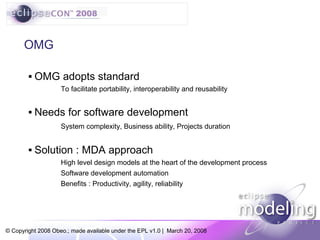

3. OMG
OMG adopts standard

To facilitate portability, interoperability and reusability
Needs for software development

System complexity, Business ability, Projects duration
Solution : MDA approach

High level design models at the heart of the development process
Software development automation
Benefits : Productivity, agility, reliability
© Copyright 2008 Obeo.; made available under the EPL v1.0 | March 20, 2008

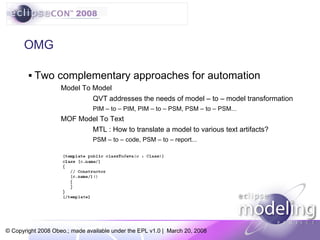

4. OMG
Two complementary approaches for automation

Model To Model
QVT addresses the needs of model – to – model transformation
PIM – to – PIM, PIM – to – PSM, PSM – to – PSM...
MOF Model To Text
MTL : How to translate a model to various text artifacts?
PSM – to – code, PSM – to – report...
© Copyright 2008 Obeo.; made available under the EPL v1.0 | March 20, 2008

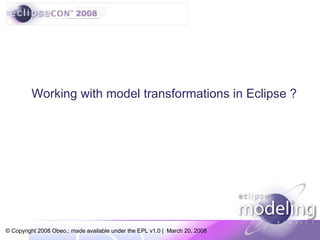

5. Working with model transformations in Eclipse ?
© Copyright 2008 Obeo.; made available under the EPL v1.0 | March 20, 2008

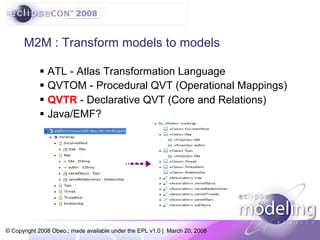

6. M2M : Transform models to models
 ATL - Atlas Transformation Language
 QVTOM - Procedural QVT (Operational Mappings)
 QVTR - Declarative QVT (Core and Relations)
 Java/EMF?
© Copyright 2008 Obeo.; made available under the EPL v1.0 | March 20, 2008

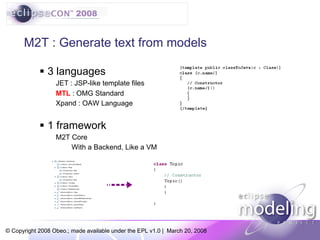

7. M2T : Generate text from models
 3 languages
JET : JSP-like template files
MTL : OMG Standard
Xpand : OAW Language
 1 framework
M2T Core
With a Backend, Like a VM
© Copyright 2008 Obeo.; made available under the EPL v1.0 | March 20, 2008

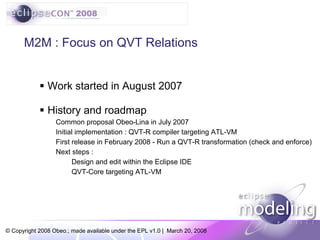

8. M2M : Focus on QVT Relations
 Work started in August 2007
 History and roadmap
Common proposal Obeo-Lina in July 2007
Initial implementation : QVT-R compiler targeting ATL-VM
First release in February 2008 - Run a QVT-R transformation (check and enforce)
Next steps :
Design and edit within the Eclipse IDE
QVT-Core targeting ATL-VM
© Copyright 2008 Obeo.; made available under the EPL v1.0 | March 20, 2008

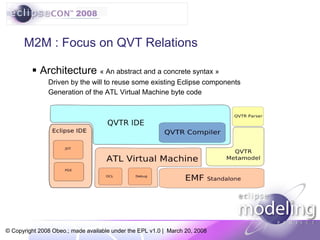

9. M2M : Focus on QVT Relations
 Architecture « An abstract and a concrete syntax »
Driven by the will to reuse some existing Eclipse components
Generation of the ATL Virtual Machine byte code
© Copyright 2008 Obeo.; made available under the EPL v1.0 | March 20, 2008

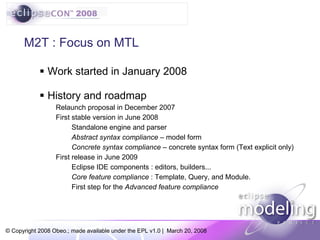

10. M2T : Focus on MTL
 Work started in January 2008
 History and roadmap
Relaunch proposal in December 2007
First stable version in June 2008
Standalone engine and parser
Abstract syntax compliance – model form
Concrete syntax compliance – concrete syntax form (Text explicit only)
First release in June 2009
Eclipse IDE components : editors, builders...
Core feature compliance : Template, Query, and Module.
First step for the Advanced feature compliance
© Copyright 2008 Obeo.; made available under the EPL v1.0 | March 20, 2008

11. M2T : Focus on MTL
 Architecture « An abstract and a concrete syntax »
Driven by the will to reuse some existing Eclipse components : EMF, M2T, OCL
© Copyright 2008 Obeo.; made available under the EPL v1.0 | March 20, 2008

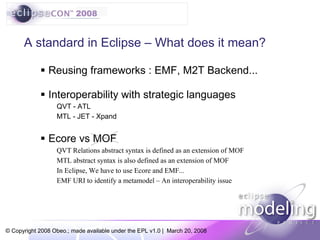

12. A standard in Eclipse – What does it mean?
 Reusing frameworks : EMF, M2T Backend...
 Interoperability with strategic languages
QVT - ATL
MTL - JET - Xpand
 Ecore vs MOF
QVT Relations abstract syntax is defined as an extension of MOF
MTL abstract syntax is also defined as an extension of MOF
In Eclipse, We have to use Ecore and EMF...
EMF URI to identify a metamodel – An interoperability issue
© Copyright 2008 Obeo.; made available under the EPL v1.0 | March 20, 2008

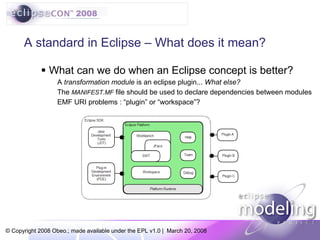

13. A standard in Eclipse – What does it mean?
 What can we do when an Eclipse concept is better?
A transformation module is an eclipse plugin... What else?
The MANIFEST.MF file should be used to declare dependencies between modules
EMF URI problems : “plugin” or “workspace”?
© Copyright 2008 Obeo.; made available under the EPL v1.0 | March 20, 2008

14. Not easy to ensure interoperability with other standard tools (1)
© Copyright 2008 Obeo.; made available under the EPL v1.0 | March 20, 2008

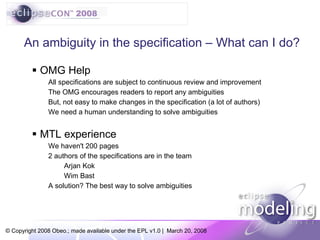

15. An ambiguity in the specification – What can I do?
 OMG Help
All specifications are subject to continuous review and improvement
The OMG encourages readers to report any ambiguities
But, not easy to make changes in the specification (a lot of authors)
We need a human understanding to solve ambiguities
 MTL experience
We haven't 200 pages
2 authors of the specifications are in the team
Arjan Kok
Wim Bast
A solution? The best way to solve ambiguities
© Copyright 2008 Obeo.; made available under the EPL v1.0 | March 20, 2008

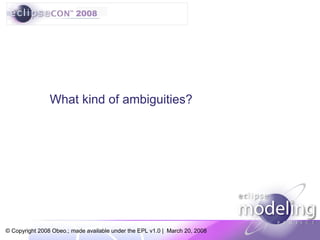

16. What kind of ambiguities?
© Copyright 2008 Obeo.; made available under the EPL v1.0 | March 20, 2008

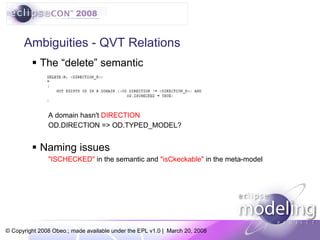

17. Ambiguities - QVT Relations
 The “delete” semantic
A domain hasn't DIRECTION
OD.DIRECTION => OD.TYPED_MODEL?
 Naming issues
quot;ISCHECKEDquot; in the semantic and quot;isCkeckablequot; in the meta-model
© Copyright 2008 Obeo.; made available under the EPL v1.0 | March 20, 2008

18. Ambiguities - QVT Relations

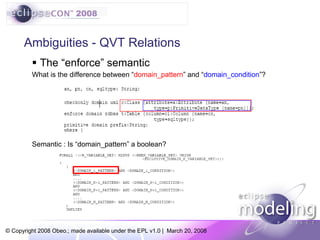

 The “enforce” semantic
What is the difference between “domain_pattern” and “domain_condition”?
Semantic : Is “domain_pattern” a boolean?
© Copyright 2008 Obeo.; made available under the EPL v1.0 | March 20, 2008

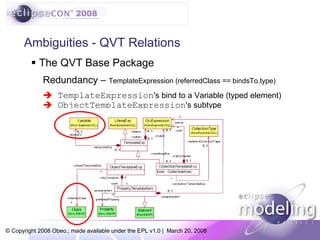

19. Ambiguities - QVT Relations
 The QVT Base Package
Redundancy – TemplateExpression (referredClass == bindsTo.type)
➔ TemplateExpression's bind to a Variable (typed element)
➔ ObjectTemplateExpression's subtype
© Copyright 2008 Obeo.; made available under the EPL v1.0 | March 20, 2008

20. Ambiguities - MTL

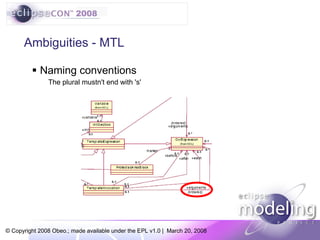

 Naming conventions
The plural mustn't end with 's'
© Copyright 2008 Obeo.; made available under the EPL v1.0 | March 20, 2008

21. Ambiguities - MTL

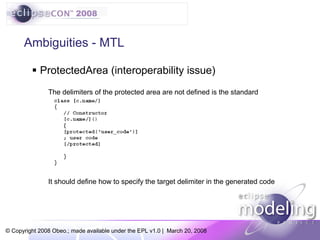

 ProtectedArea (interoperability issue)
The delimiters of the protected area are not defined is the standard
It should define how to specify the target delimiter in the generated code
© Copyright 2008 Obeo.; made available under the EPL v1.0 | March 20, 2008

22. Ambiguities - MTL
 The given meta-model isn't valid
© Copyright 2008 Obeo.; made available under the EPL v1.0 | March 20, 2008

23. Ambiguities – QVT and MTL

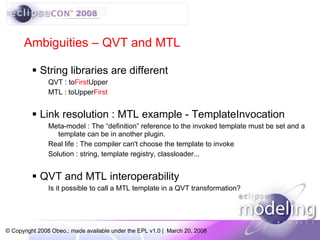

 String libraries are different
QVT : toFirstUpper
MTL : toUpperFirst
 Link resolution : MTL example - TemplateInvocation
Meta-model : The “definition” reference to the invoked template must be set and a
template can be in another plugin.
Real life : The compiler can't choose the template to invoke
Solution : string, template registry, classloader...
 QVT and MTL interoperability
Is it possible to call a MTL template in a QVT transformation?
© Copyright 2008 Obeo.; made available under the EPL v1.0 | March 20, 2008

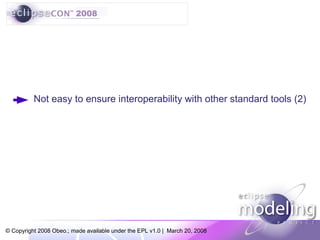

24. Not easy to ensure interoperability with other standard tools (2)
© Copyright 2008 Obeo.; made available under the EPL v1.0 | March 20, 2008

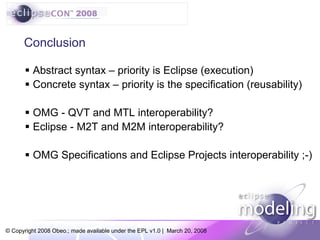

25. Conclusion
 Abstract syntax – priority is Eclipse (execution)
 Concrete syntax – priority is the specification (reusability)
 OMG - QVT and MTL interoperability?
 Eclipse - M2T and M2M interoperability?
 OMG Specifications and Eclipse Projects interoperability ;-)
© Copyright 2008 Obeo.; made available under the EPL v1.0 | March 20, 2008

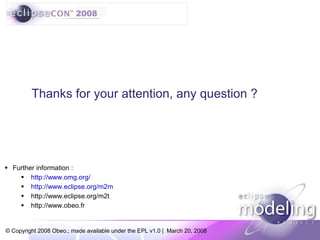

26. Thanks for your attention, any question ?
