1. QUIC
ATS Summit Spring 2017
Masakazu Kitajo maskit@apache.org
Masaori Koshiba masaori@apache.org

2. Goal
Getting ready to start QUIC implementation
First implementation Draft will be out soon!

3. Agenda
• Presentation
• IETF QUIC
• Prototype
• Discussion
• How we implement QUIC

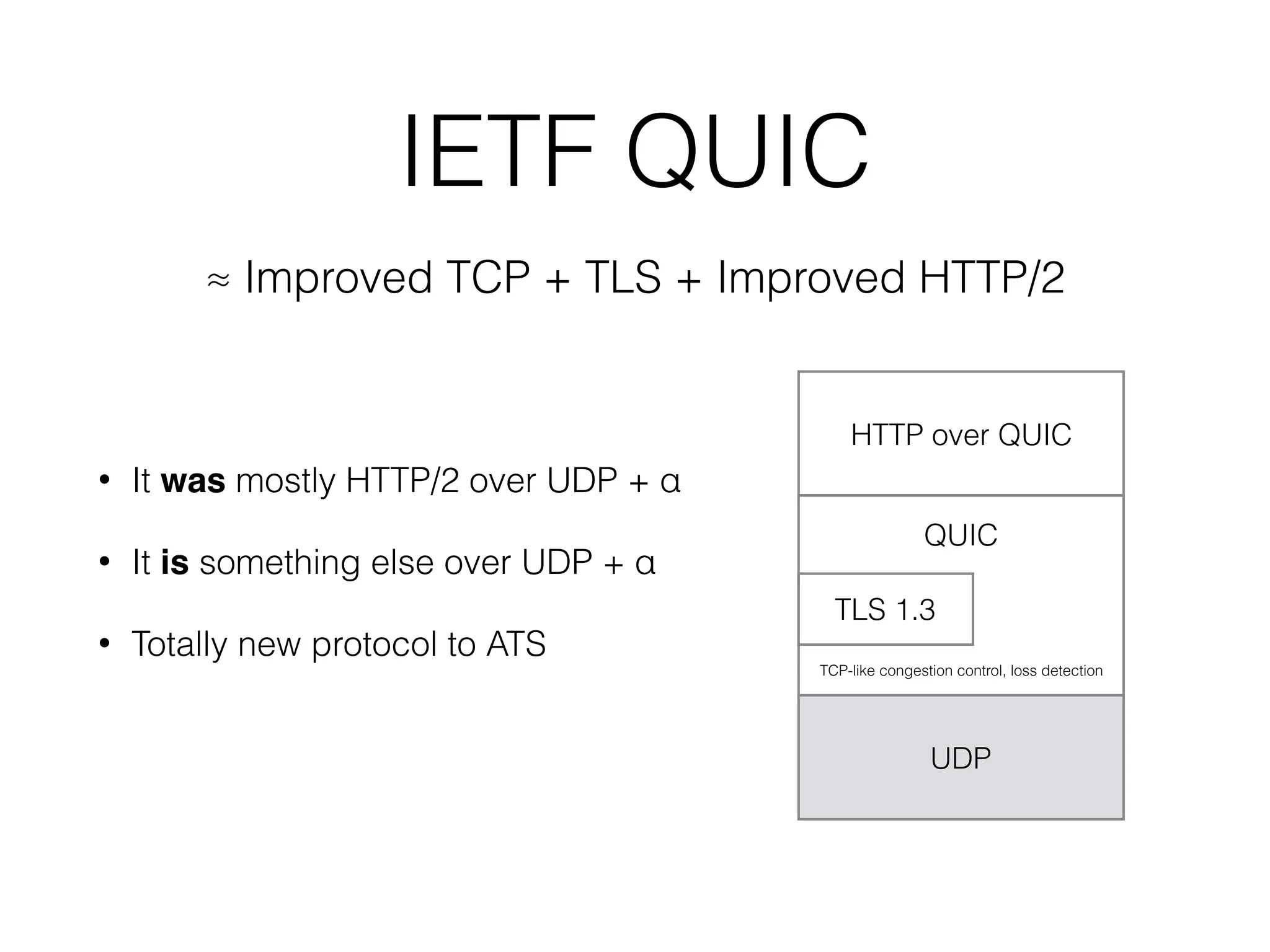

4. IETF QUIC
• It was mostly HTTP/2 over UDP + α
• It is something else over UDP + α
• Totally new protocol to ATS
≈ Improved TCP + TLS + Improved HTTP/2
HTTP over QUIC
UDP
TLS 1.3
QUIC
TCP-like congestion control, loss detection

5. 4 specifications & 2 layers
1.Core Transport Protocol
2.Loss Detection and Congestion Control
3.TLS Mapping
4.HTTP Mapping

6. 4 specifications & 2 layers
1.Core Transport Protocol
HTTP over QUIC (4)
UDP
TLS 1.3
QUIC (1,2,3)
TCP-like congestion control, loss detection
• Implements improved TCP with
modern technologies on UDP, in
userland
• Existing hardware should be
able to transfer QUIC traffic
without any change
• Protocol version is negotiable

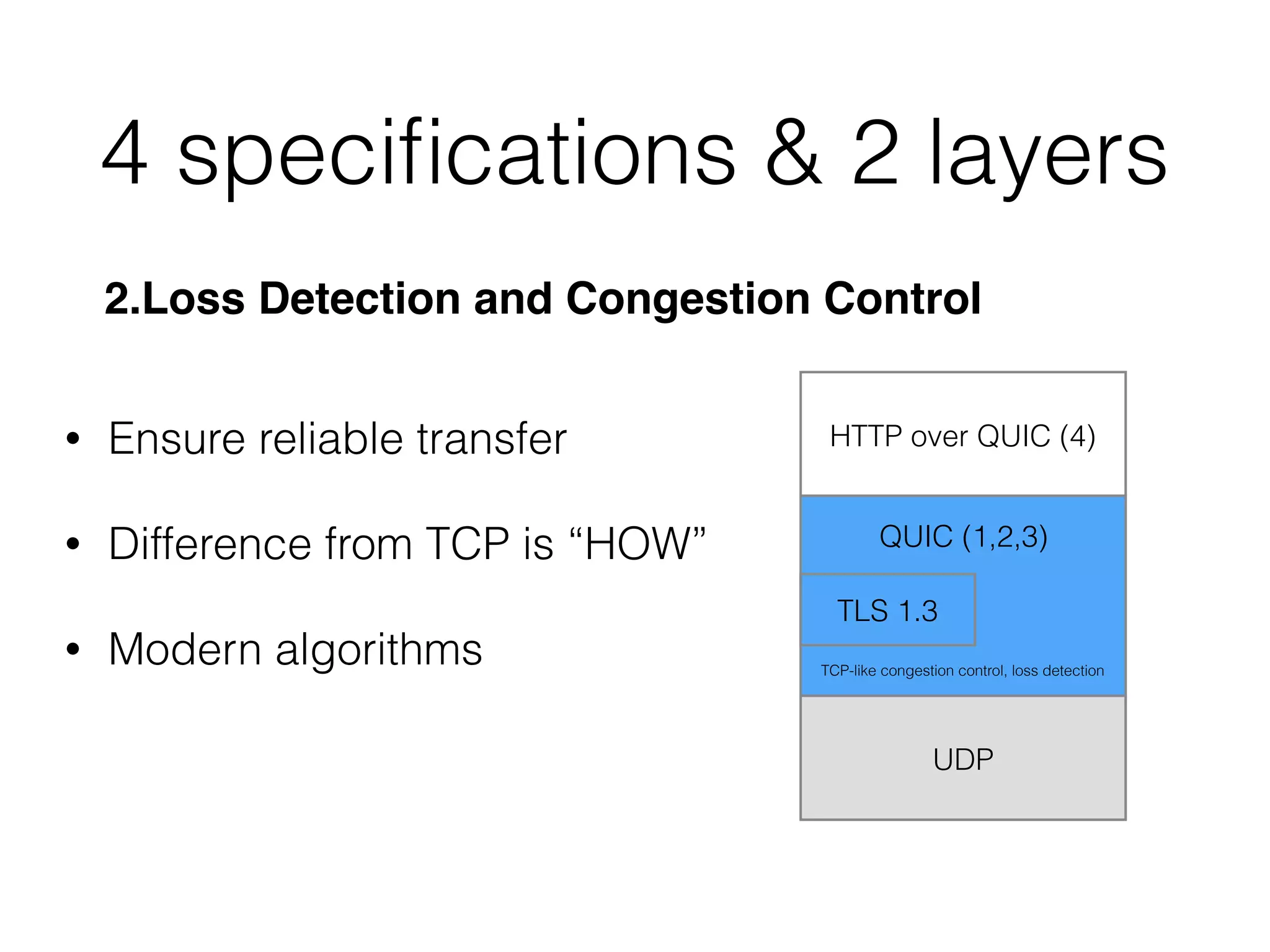

7. 4 specifications & 2 layers
2.Loss Detection and Congestion Control
HTTP over QUIC (4)
UDP
TLS 1.3
QUIC (1,2,3)
TCP-like congestion control, loss detection
• Ensure reliable transfer
• Difference from TCP is “HOW”
• Modern algorithms

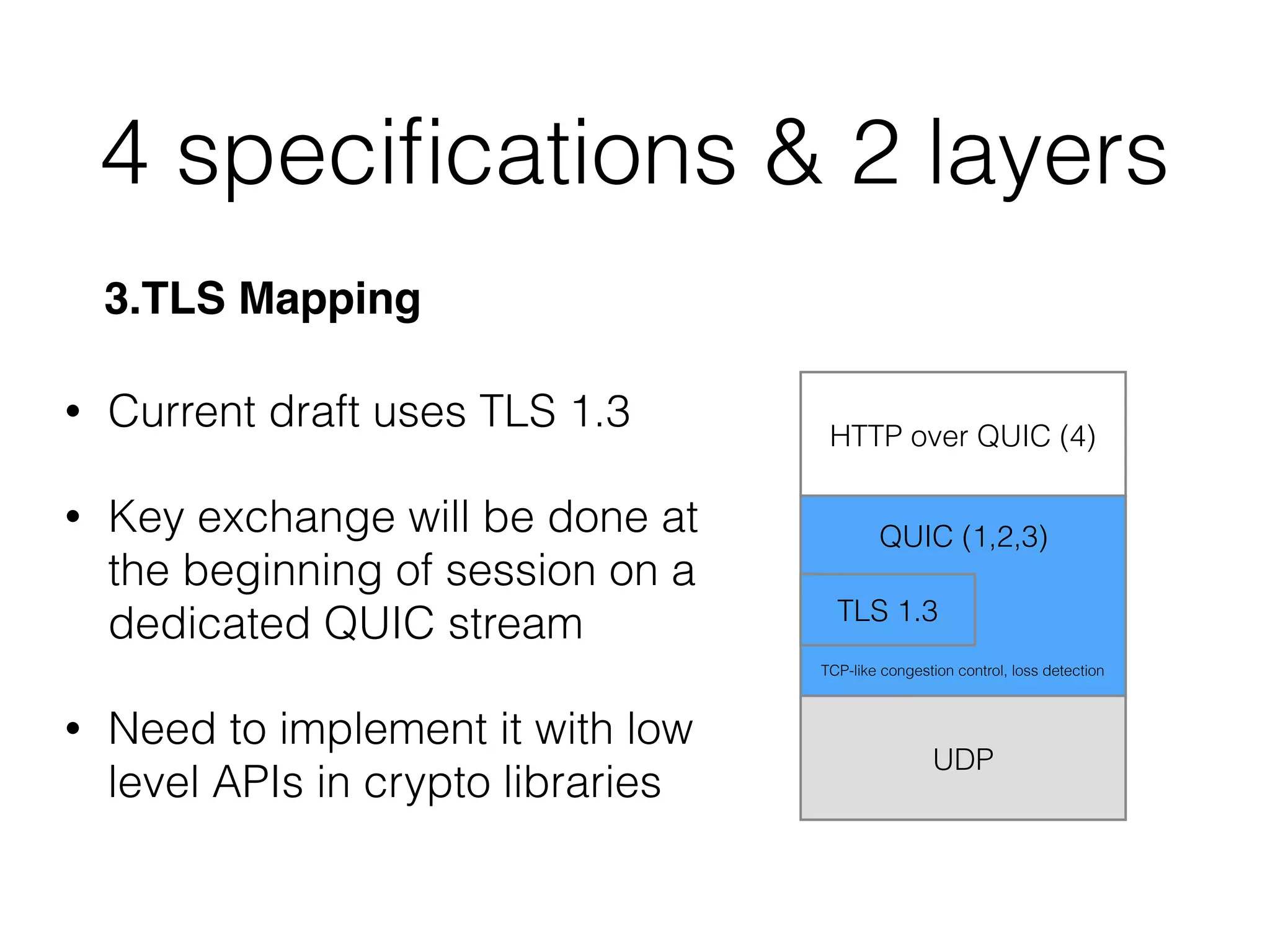

8. 4 specifications & 2 layers
3.TLS Mapping
HTTP over QUIC (4)
UDP
TLS 1.3
QUIC (1,2,3)
TCP-like congestion control, loss detection
• Current draft uses TLS 1.3
• Key exchange will be done at
the beginning of session on a
dedicated QUIC stream
• Need to implement it with low
level APIs in crypto libraries

9. 4 specifications & 2 layers
4.HTTP Mapping
HTTP over QUIC (4)
UDP
TLS 1.3
QUIC (1,2,3)
TCP-like congestion control, loss detection
• Some parts are the same as
HTTP/2
• Many parts of HTTP/2 will be
moved down to QUIC transport
layer
• Frame structure will be changed
• HPACK will be replaced

10. Prototype (1st try)
QUICClientSession
QUICNetVConnection
QUICNetProcessor
UDPNetProcessor
QUICPacketHandler
(NetAccept)
Map
ConnectionID : VConnectionLookup
QUIC Packet
Create
UDP Packet
Needed bug fixes
Can’t accept on this layer
Main
Create
Need to manage streams
QUICClientTransaction
QUIC Frame
Can’t reuse HTTP/2 stuff
Not a byte stream
Can’t use ParentClientSession

11. Issues
• TCP (stream) vs UDP (datagram)
• Code for UDP is not maintained
• Multiplexing is on transport layer
• HTTP over QUIC looks like HTTP/3 (totally different)

12. Current design (2nd try)
Too many things to talk here…
• No QUICNetAccept
• No changes for VIO itself
• ProxyClientSession isn’t
used for now
• Most parts will be into
iocore/quic/

13. Milestones
• 2017 May — Prepare for development
• 2017 Jul — Implement first implementation draft
• ATS Summit 2017 Fall — Report result of interop
• 2018 May — Add experimental support (ATS 8.0)

14. Discussion

15. Goal (again)
Getting ready to start QUIC implementation
Not figuring out the technical issues!
We can do that later.

16. HTTP/2 Nightmare
• Too many flags
• Too many regressions
• Too many missing parts
We should learn from HTTP/2

17. Proposals
• Design docs
• ToDo Management
• QUIC branch
• TDD

18. Why HTTP/2 Nightmare happened?

19. EOP
