Unlike inheritance based partitioning, declarative partitioning introduced in PostgreSQL 10 leaves nothing to infer about how the data is divided into partitions. PostgreSQL 11’s query optimizer is gearing up to take advantage of this “no-inference” representation. While basic partition-wise join has been already committed, patches for various techniques like partition pruning, partition-wise aggregate/grouping and partition-wise ordering are proposed on hackers. Partition-wise join, partition-wise aggregates and partition-wise ordering break a large operation into smaller ones enabling use of smaller hash tables, faster in-memory sorts, per partition indexes, FDW pushdown (in case of foreign partitions) to speed up the large operation. Parallel append technique brings parallel query and partitioning together to improve query performance. We hope that most of those will make it to v11. This talk explains these techniques with performance numbers.

1. © Copyright EnterpriseDB Corporation, 2015. All Rights Reserved. 1
Query Optimizations For Partitioned
Tables
Ashutosh Bapat
@PGCONF INDIA 2018

2. © Copyright EnterpriseDB Corporation, 2018. All Rights Reserved. 2

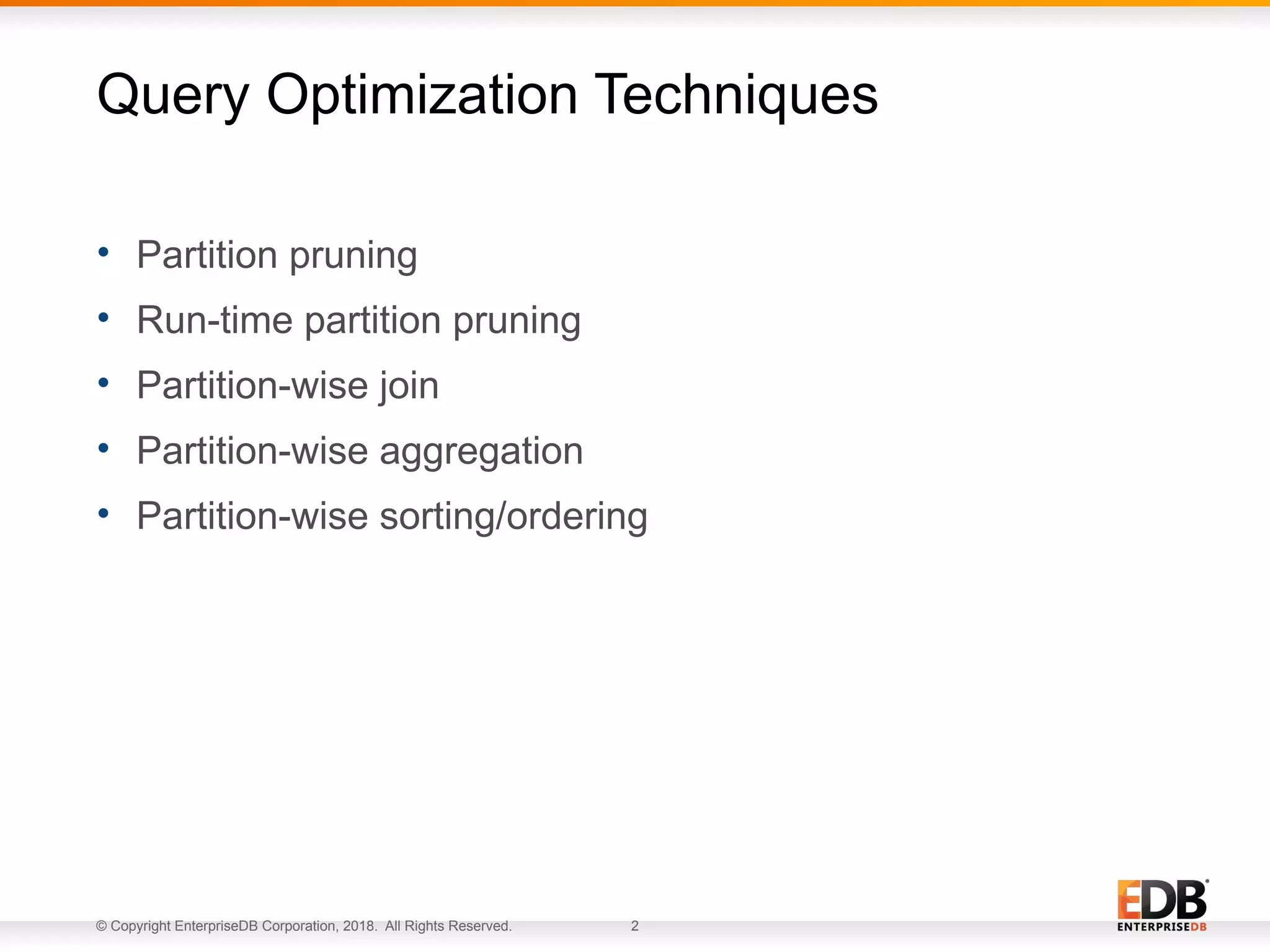

• Partition pruning
• Run-time partition pruning
• Partition-wise join
• Partition-wise aggregation
• Partition-wise sorting/ordering
Query Optimization Techniques

3. © Copyright EnterpriseDB Corporation, 2018. All Rights Reserved. 3
Partitioned Table
Partition 1
FOR VALUES
FROM (0) TO (100)
Partition 4
FOR VALUES
FROM (300) TO (400)
Partition 3
FOR VALUES
FROM (200) TO (300)
Partition 2
FOR VALUES
FROM (100) TO (200)
Unpartitioned table
t1 (c1 int, c2 int, …)
10, …, ...
90, …, ...
80, …, ...
325, …, …,
375, …, …,
Partitioned table
t1 (c1 int, c2 int, …)

4. © Copyright EnterpriseDB Corporation, 2018. All Rights Reserved. 4
Partition Pruning
SELECT * FROM t1 WHERE c1 = 350;
Partition 1
FOR VALUES
FROM (0) TO (100)
Partitioned table
t1 (c1 int, c2 int, …)
Partition 4
FOR VALUES
FROM (300) TO (400)
Partition 3
FOR VALUES
FROM (200) TO (300)
Partition 2
FOR VALUES
FROM (100) TO (200)
SELECT * FROM t1
WHERE c1 BETWEEN 150 AND 250;
Partitionboundsbasedelimination

5. © Copyright EnterpriseDB Corporation, 2018. All Rights Reserved. 5
Run-time Partition Pruning
EXEC scan_t1(350);
Partition 1
FOR VALUES
FROM (0) TO (100)
Partitioned table
t1 (c1 int, c2 int, …)
Partition 4
FOR VALUES
FROM (300) TO (400)
Partition 3
FOR VALUES
FROM (200) TO (300)
Partition 2
FOR VALUES
FROM (100) TO (200)
Partitionboundsbasedelimination
PREPARE scan_t1(int) AS
SELECT * FROM t1 WHERE c1 = $1;

6. © Copyright EnterpriseDB Corporation, 2015. All Rights Reserved. 7
Partition-wise Join

7. © Copyright EnterpriseDB Corporation, 2018. All Rights Reserved. 8

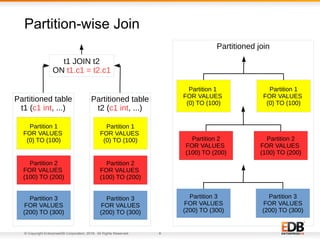

Partition-wise Join
Partition 1
FOR VALUES
(0) TO (100)
Partitioned table
t1 (c1 int, ...)
Partition 3
FOR VALUES
(200) TO (300)
Partition 2
FOR VALUES
(100) TO (200)
Partition 1
FOR VALUES
(0) TO (100)
Partition 3
FOR VALUES
(200) TO (300)
Partition 2
FOR VALUES
(100) TO (200)
Partition 1
FOR VALUES
(0) TO (100)
Partitioned table
t2 (c1 int, ...)
Partition 3
FOR VALUES
(200) TO (300)
Partition 2
FOR VALUES
(100) TO (200)
t1 JOIN t2
ON t1.c1 = t2.c1
Partitioned join
Partition 3
FOR VALUES
(200) TO (300)
Partition 1
FOR VALUES
(0) TO (100)
Partition 3
FOR VALUES
(200) TO (300)
Partition 2
FOR VALUES
(100) TO (200)
Partition 3
FOR VALUES
(200) TO (300)
Partition 1
FOR VALUES
(0) TO (100)
Partition 3
FOR VALUES
(200) TO (300)
Partition 2
FOR VALUES
(100) TO (200)

8. © Copyright EnterpriseDB Corporation, 2018. All Rights Reserved. 10
• Scale 20
• Schema changes
– lineitems PARTITION BY RANGE(l_orderkey)
– orders PARTITION BY RANGE(o_orderkey)
– Each with 17 partitions
• GUCs
– work_mem - 1GB
– effective_cache_size - 8GB
– shared_buffers - 8GB
– enable_partition_wise_join = on
TPCH Vs. Partition-wise Join (Scale 20)

9. © Copyright EnterpriseDB Corporation, 2018. All Rights Reserved. 11

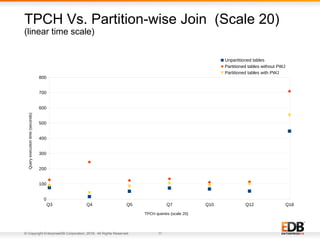

TPCH Vs. Partition-wise Join (Scale 20)
(linear time scale)
Q3 Q4 Q5 Q7 Q10 Q12 Q18
0
100
200
300
400
500
600
700
800
Unpartitioned tables
Partitioned tables without PWJ
Partitioned tables with PWJ
TPCH queries (scale 20)
Queryexecutiontime(seconds)

10. © Copyright EnterpriseDB Corporation, 2018. All Rights Reserved. 12

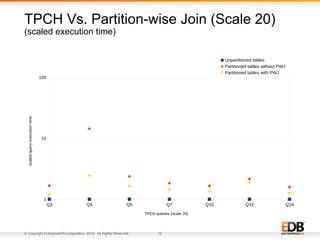

TPCH Vs. Partition-wise Join (Scale 20)
(scaled execution time)
Q3 Q4 Q5 Q7 Q10 Q12 Q18
1
10
100
Unpartitioned tables
Partitioned tables without PWJ
Partitioned tables with PWJ
TPCH queries (scale 20)
scaledqueryexecutiontime

11. © Copyright EnterpriseDB Corporation, 2018. All Rights Reserved. 13
TPCH Vs. partition-wise join: observations
● Join strategy change from join between partitioned
tables to join between partitions
– MergeJoin to HashJoin
● Q3, Q5, Q10, Q12, Q18
– HashJoin to parameterized NestLoop join
● Q4
● Different join strategies for different partition-joins
● Q7
● Change in order of joining partitioned tables
– Q3, Q5, Q10, Q12, Q18, Q7

12. © Copyright EnterpriseDB Corporation, 2018. All Rights Reserved. 14

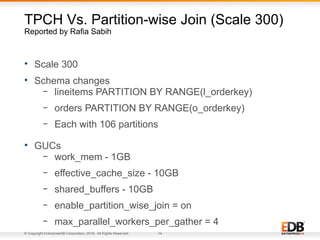

• Scale 300
• Schema changes
– lineitems PARTITION BY RANGE(l_orderkey)
– orders PARTITION BY RANGE(o_orderkey)
– Each with 106 partitions
• GUCs
– work_mem - 1GB
– effective_cache_size - 10GB
– shared_buffers - 10GB
– enable_partition_wise_join = on
– max_parallel_workers_per_gather = 4
TPCH Vs. Partition-wise Join (Scale 300)
Reported by Rafia Sabih

13. © Copyright EnterpriseDB Corporation, 2018. All Rights Reserved. 15
TPCH Vs. Partition-wise Join (Scale 300)
Q3 Q4 Q5 Q10 Q12
0
500
1000
1500
2000
2500
3000
3500
4000
4500
5000
Unpartitioned tables
Partitioned tables without PWJ
Partitioned tables with PWJ
TPCH queries (scale 20)
Queryexecutiontime(seconds)
Partitioning makes queries faster

14. © Copyright EnterpriseDB Corporation, 2018. All Rights Reserved. 16
Partition pruning and Partition-wise Join
Partition 1
FOR VALUES
(0) TO (100)
Partitioned table
t1 (c1 int, ...)
Partition 3
FOR VALUES
(200) TO (300)
Partition 2
FOR VALUES
(100) TO (200)
Partition 1
FOR VALUES
(0) TO (100)
Partitioned table
t2 (c1 int, ...)
Partition 3
FOR VALUES
(200) TO (300)
Partition 2
FOR VALUES
(100) TO (200)
t1 JOIN t2
ON t1.c1 = t2.c1
SELECT … FROM t1 JOIN t2 ON t1.c1 = t2.c1
WHERE t1.c1 > 100 AND t2.c1 < 200

15. © Copyright EnterpriseDB Corporation, 2018. All Rights Reserved. 17
Partition pruning and Partition-wise Join
Partitioned join
Partition 1
FOR VALUES
(0) TO (100)
Partition 3
FOR VALUES
(200) TO (300)
Partition 2
FOR VALUES
(100) TO (200)
Partition 1
FOR VALUES
(0) TO (100)
Partition 3
FOR VALUES
(200) TO (300)
Partition 2
FOR VALUES
(100) TO (200)
Partitioned join
Partition 2
FOR VALUES
(100) TO (200)
Partition 2
FOR VALUES
(100) TO (200)

16. © Copyright EnterpriseDB Corporation, 2015. All Rights Reserved. 18
Partition-wise aggregation and
grouping

17. © Copyright EnterpriseDB Corporation, 2018. All Rights Reserved. 19

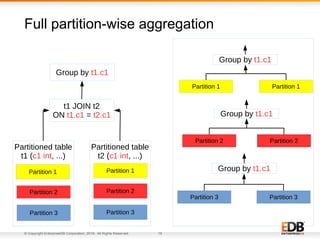

Full partition-wise aggregation
Partitioned table
t1 (c1 int, ...)
Partition 1
Partition 3
Partition 2
Partition 1
Partitioned table
t2 (c1 int, ...)
Partition 3
Partition 2
t1 JOIN t2
ON t1.c1 = t2.c1
Partition 1
Partition 3
Partition 2
Partition 1
Partition 3
Partition 2
Group by t1.c1
Group by t1.c1
Group by t1.c1
Group by t1.c1

18. © Copyright EnterpriseDB Corporation, 2018. All Rights Reserved. 20

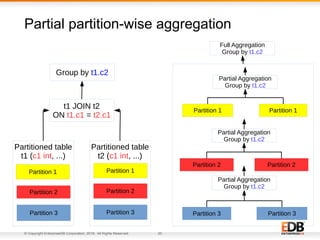

Partial partition-wise aggregation
Partitioned table
t1 (c1 int, ...)
Partition 1
Partition 3
Partition 2
Partition 1
Partitioned table
t2 (c1 int, ...)
Partition 3
Partition 2
t1 JOIN t2
ON t1.c1 = t2.c1
Partition 1
Partition 3
Partition 2
Partition 1
Partition 3
Partition 2
Group by t1.c2
Partial Aggregation
Group by t1.c2
Partial Aggregation
Group by t1.c2
Partial Aggregation
Group by t1.c2
Full Aggregation
Group by t1.c2

19. © Copyright EnterpriseDB Corporation, 2018. All Rights Reserved. 22
Source: Jeevan Chalke's partition-wise aggregate proposal
Query: SELECT a, count(*) FROM plt1 GROUP BY a;
plt1: partitioned table with 3 foreign partitions, each with 1M rows
Query returns 30 rows, 10 rows per partition
enable_partition_wise_agg to false
QUERY PLAN
-------------------------------------
HashAggregate
Group Key: plt1.a
-> Append
-> Foreign Scan on fplt1_p1
-> Foreign Scan on fplt1_p2
-> Foreign Scan on fplt1_p3
Planning time: 0.251 ms
Execution time: 6499.018ms ~ 6.5s
enable_partition_wise_agg to true
QUERY PLAN
-------------------------------------------------------
Append
-> Foreign Scan: Aggregate on (public.fplt1_p1 plt1)
-> Foreign Scan: Aggregate on (public.fplt1_p2 plt1)
-> Foreign Scan: Aggregate on (public.fplt1_p3 plt1)
Planning time: 0.370ms
Execution time: 945.384ms ~ .9s
Example
7x faster

20. © Copyright EnterpriseDB Corporation, 2018. All Rights Reserved. 23
Partition-wise sorting
Partitioned table
t1 (c1 int, ...)
Partition 1
Partition 3
Partition 2
Partition 1
Partitioned table
t2 (c1 int, ...)
Partition 3
Partition 2
t1 JOIN t2
ON t1.c1 = t2.c1
Partition 1
Partition 3
Partition 2
Partition 1
Partition 3
Partition 2
Sort by c1
Sort by c1
Sort by c1
Sort by c1

21. © Copyright EnterpriseDB Corporation, 2015. All Rights Reserved. 24
Parallel Append and Partitioning

22. © Copyright EnterpriseDB Corporation, 2018. All Rights Reserved. 25
Parallel Append and Partitioning
Partition 1 Partition 3Partition 2Partition 1 Partition 3Partition 2
Group by t1.c1 Group by t1.c1 Group by t1.c1
Worker
Backend
1
Worker
Backend
2
Worker
Backend
1
Worker
Backend
3
Leader Backend

23. © Copyright EnterpriseDB Corporation, 2018. All Rights Reserved. 26
TPCH Vs. PWJ + PA
Q3 Q4 Q5 Q7 Q10 Q12 Q18
0
100
200
300
400
500
600
700
800
Unpartitioned tables
Partitioned tables without PWJ
Partitioned tables with PWJ
Partitioned tables with PWJ and
PA
TPCH queries (scale 20)
Queryexecutiontime(seconds)

24. © Copyright EnterpriseDB Corporation, 2018. All Rights Reserved. 27
• Committed patches
– Basic partition-wise join - Ashutosh Bapat (EDB)
– Parallel append – Amit Khandekar (EDB)
• Patches submitted on hackers and being reviewed
– Partition pruning – Amit Langote (NTT)
– Run-time partition pruning – Beena Emerson (EDB)
– Partition-wise aggregation – Jeevan Chalke (EDB)
– Partition-wise sorting/ordering – Ronan Dunklau, Julien
Rouhaud (Dalibo)
●
Benchmarking by Rafia Sabih (EDB)
Query Optimization Techniques - patches
