This document discusses using Qt Quick to recreate the UI of a TV streaming application, including configuring Qt Creator, creating views with ListView and PathView, using models and delegates, embedding QML in C++ applications, dynamically loading QML pages, and implementing a stack to navigate between pages.

1. Qt Quick in Depth
Lorenzo Mancini (lmancini@develer.com)

2. Qt Quick: a case study
 Remake of Vodafone's TVConnect UI
 Developed to demonstrate QQ's:
 Conciseness
 Performance
 Overall toolchain

3. Qt Creator configuration
 New Qt Quick Application
 Integrate with Mercurial
 Test the Application Viewer
 Create a new run configuration
 Projects->Run
 qmlviewer %{CurrentDocument:FilePath}
 We'll use this to test single pages

4. Qt Creator configuration
 Enable QML debugging
 Projects->Build
 Build Steps->Link QML debugging library
 (Rebuild all)
 You only have to do all this once
 This is all saved in .pro.user file

5. The Home menu
 Background image
 No states
 Series of icons following a path

6. QML Views
 List visualization for models
 Models provide homogeneous data
 Each data is represented by delegates
 Interesting properties:
 model
 highlight
 delegate

7. ListView
 Standard QML View
 Lays delegates in a list
 A ListView in practice
 Place it on view
 Add a Model
 Define a Delegate
 E.g. Component / Column / Image + Text

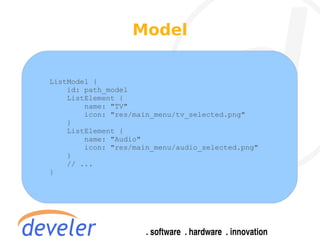

8. Model
ListModel {
id: path_model
ListElement {
name: "TV"
icon: "res/main_menu/tv_selected.png"
}
ListElement {
name: "Audio"
icon: "res/main_menu/audio_selected.png"
}
// ...
}

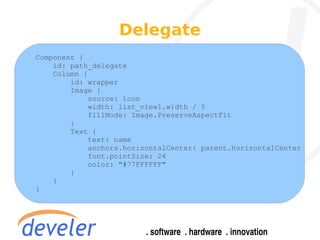

9. Delegate
Component {
id: path_delegate
Column {
id: wrapper
Image {
source: icon
width: list_view1.width / 5
fillMode: Image.PreserveAspectFit
}
Text {
text: name
anchors.horizontalCenter: parent.horizontalCenter
font.pointSize: 24
color: "#77FFFFFF"
}
}
}

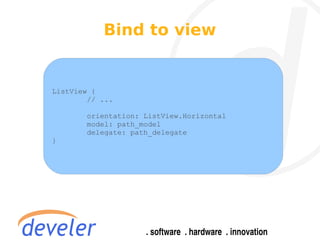

10. Bind to view
ListView {
// ...
orientation: ListView.Horizontal
model: path_model
delegate: path_delegate
}

11. PathView
 Standard QML View
 Defines a path that items follow
 A PathView in practice
 Place it on view
 Add a Model
 Define a Delegate
 Define a Path

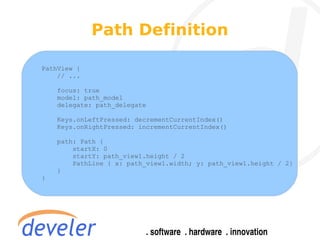

12. Path Definition
PathView {
// ...
focus: true
model: path_model
delegate: path_delegate
Keys.onLeftPressed: decrementCurrentIndex()
Keys.onRightPressed: incrementCurrentIndex()
path: Path {
startX: 0
startY: path_view1.height / 2
PathLine { x: path_view1.width; y: path_view1.height / 2}
}
}

13. A more interesting path
Component {
id: path_delegate
//...
Column {
opacity: PathView.iconOpacity
}
}
path: Path {
startX: 0
startY: path_view1.height / 2
PathAttribute { name: "iconOpacity"; value: 0.5 }
PathLine { x: path_view1.width / 2; y: path_view1.height / 2}
PathAttribute { name: "iconOpacity"; value: 1.0 }
PathLine { x: path_view1.width; y: path_view1.height / 2}
PathAttribute { name: "iconOpacity"; value: 0.5 }
}

14. QML in C++ applications
 Use QDeclarativeView to embed QML
 QGraphicsView subclass, QWidget's as well
 Useful to add QML features on top of
already existing applications
 Keep an eye on startup time and memory
usage
14

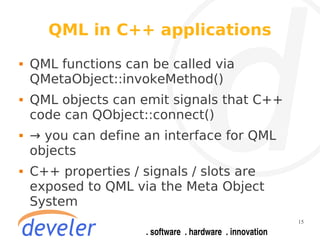

15. QML in C++ applications
 QML functions can be called via
QMetaObject::invokeMethod()
 QML objects can emit signals that C++
code can QObject::connect()
 → you can define an interface for QML
objects
 C++ properties / signals / slots are
exposed to QML via the Meta Object
System
15

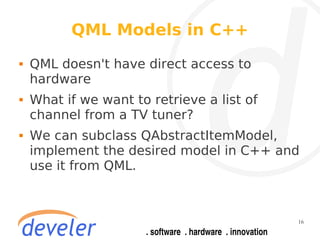

16. QML Models in C++
 QML doesn't have direct access to
hardware
 What if we want to retrieve a list of
channel from a TV tuner?
 We can subclass QAbstractItemModel,
implement the desired model in C++ and
use it from QML.
16

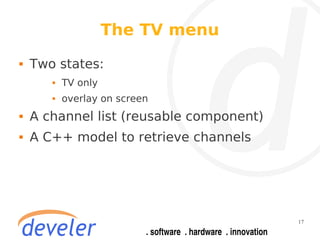

17. The TV menu
 Two states:
 TV only
 overlay on screen
 A channel list (reusable component)
 A C++ model to retrieve channels
17

18. Putting it all together
 Fast forward: we have several QML files,
one for each page
 We would like to “instantiate” and load a
QML file on-the-fly
18

19. Dynamic Object Management
 Dynamic object creation from Javascript
 Qt.createComponent(url) → Component
 Component.createObject(parent) → inst
 The QML file can be fetched over the
network
 Great for implementing live widgets!
 … but the fetch is asynchronous: how do I know
when it's finished?
19

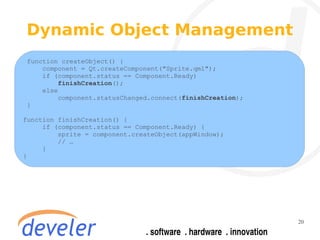

20. Dynamic Object Management
function createObject() {
component = Qt.createComponent("Sprite.qml");
if (component.status == Component.Ready)
finishCreation();
else
component.statusChanged.connect(finishCreation);
}
function finishCreation() {
if (component.status == Component.Ready) {
sprite = component.createObject(appWindow);
// …
}
}
20

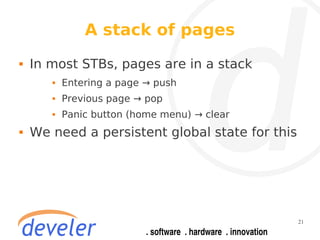

21. A stack of pages
 In most STBs, pages are in a stack
 Entering a page → push
 Previous page → pop
 Panic button (home menu) → clear
 We need a persistent global state for this
21

22. Stack implementation
// Stack.js
var stack = []
// Create a QML object from a given filename and push it on the stack
function openPage(filename) {
var page_c = Qt.createComponent(filename)
var page = page_c.createObject(root_window)
stack.push(page)
return page
}
// Page.qml
Import “stack.js” as Stack
Page {
Keys.onReturnPressed: {
Stack.openPage(“tvmenu.qml”)
}
}
22

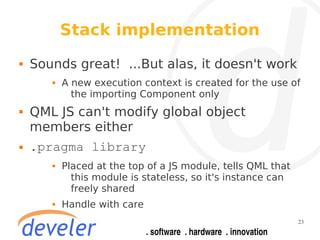

23. Stack implementation
 Sounds great! ...But alas, it doesn't work
 A new execution context is created for the use of
the importing Component only
 QML JS can't modify global object
members either
 .pragma library
 Placed at the top of a JS module, tells QML that
this module is stateless, so it's instance can
freely shared
 Handle with care
23

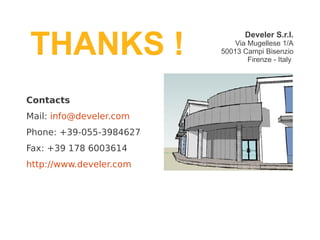

24. THANKS !
