Prepared as part of the IT for Business Intelligence course of MBA @VGSOM, IIT Kharagpur. The tutorial describes how to create an interactive map using the open source software QGIS.
1. QGIS Tutorial
Prepared By:
Niloy Ghosh
Nitin Kumar Rathore
Students of 2nd Year MBA at Vinod Gupta School of Management
(VGSOM), IIT Kharagpur

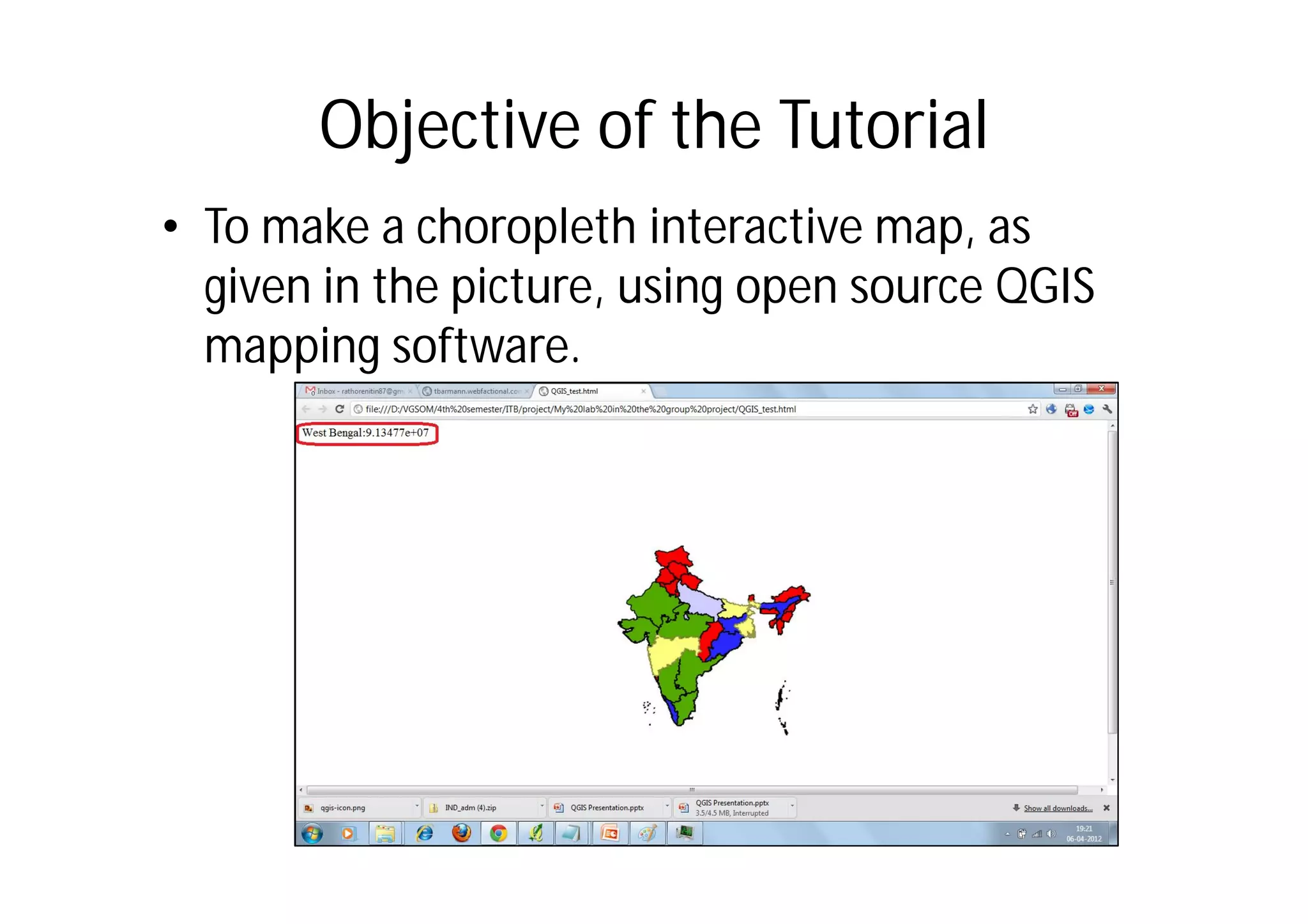

2. Objective of the Tutorial
• To make a choropleth interactive map, as
given in the picture, using open source QGIS
mapping software.

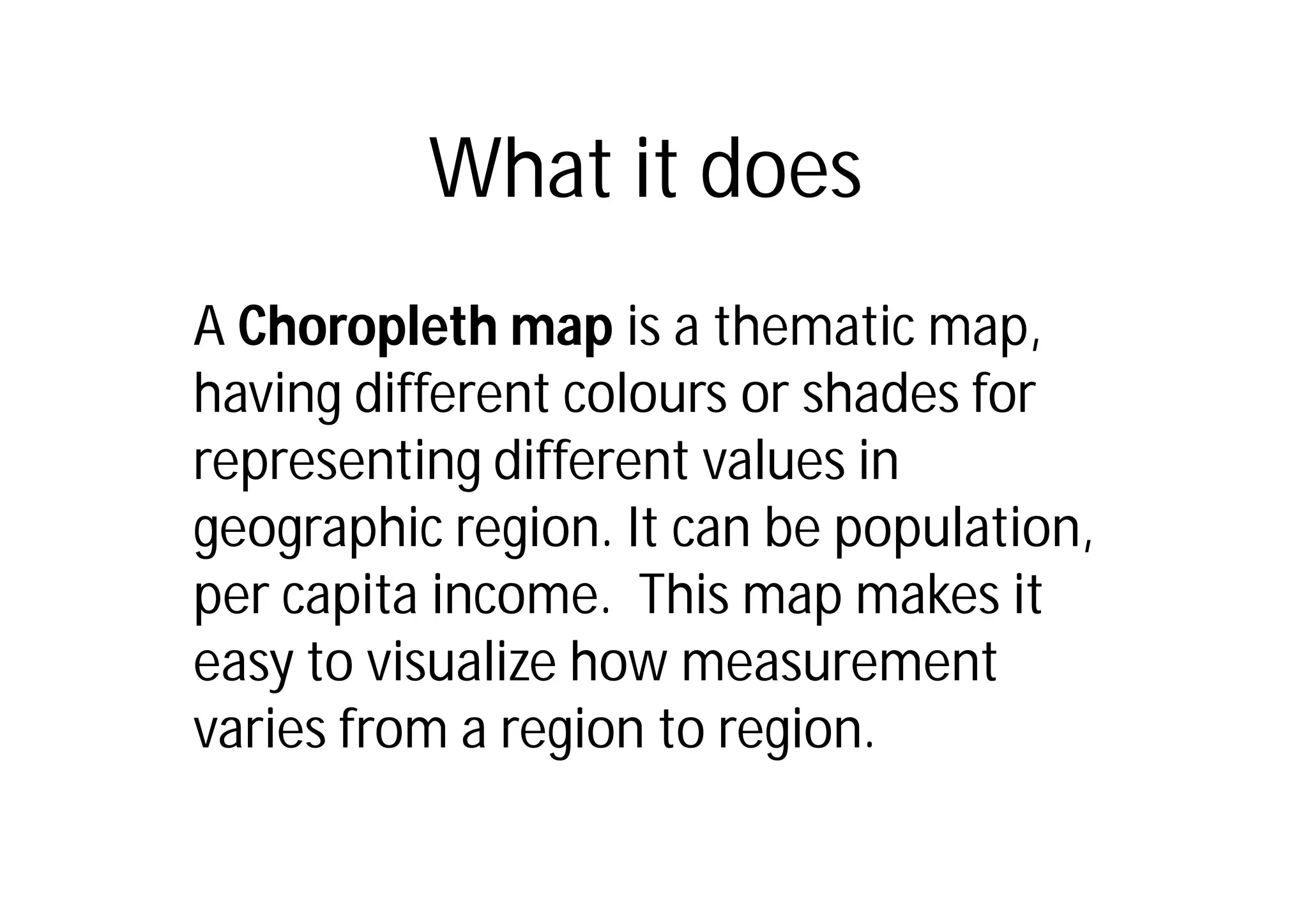

3. What it does
A Choropleth map is a thematic map,
having different colours or shades for
representing different values in
geographic region. It can be population,
per capita income. This map makes it
easy to visualize how measurement
varies from a region to region.

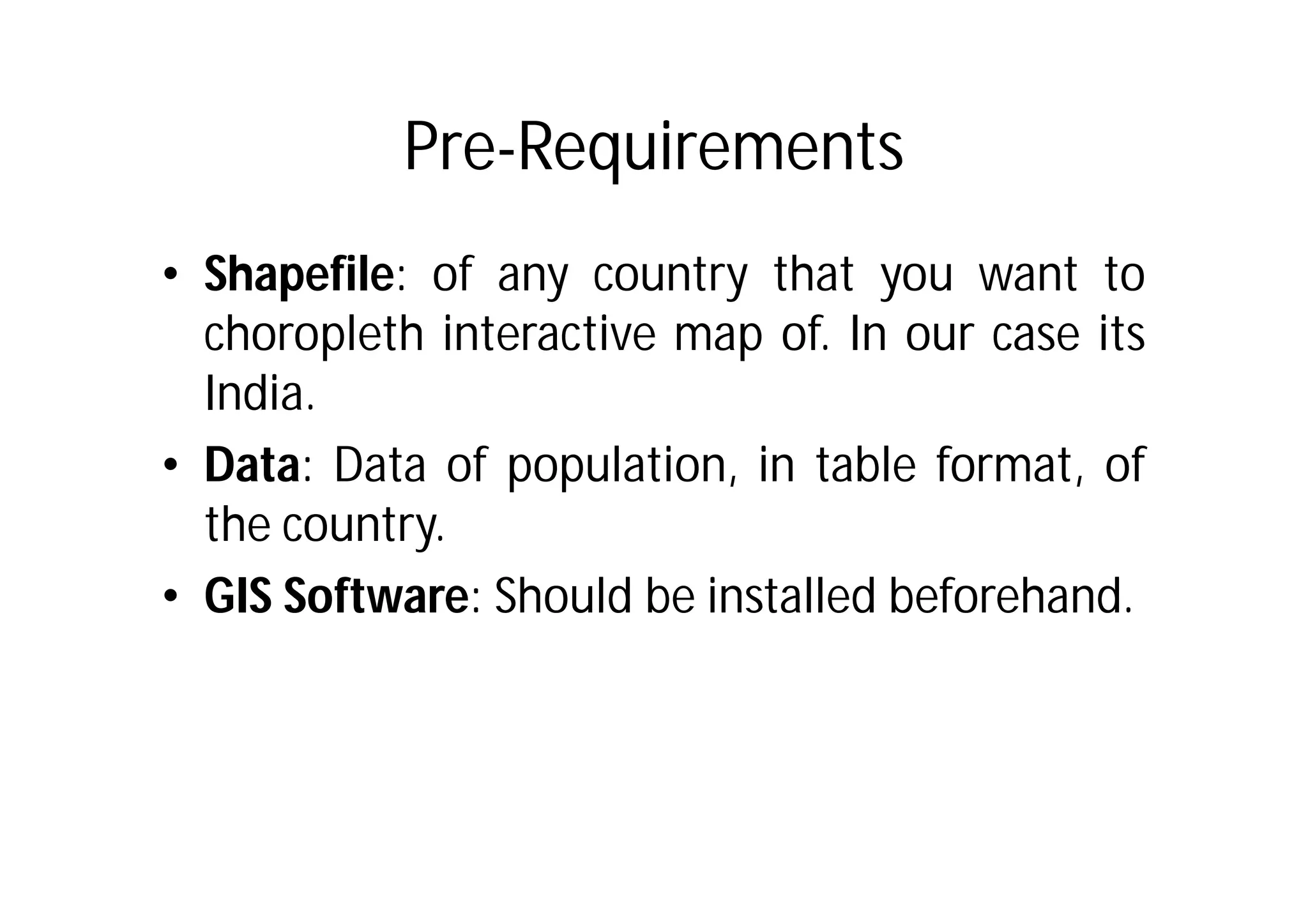

4. Pre-Requirements
• Shapefile: of any country that you want to
choropleth interactive map of. In our case its
India.
• Data: Data of population, in table format, of
the country.
• GIS Software: Should be installed beforehand.

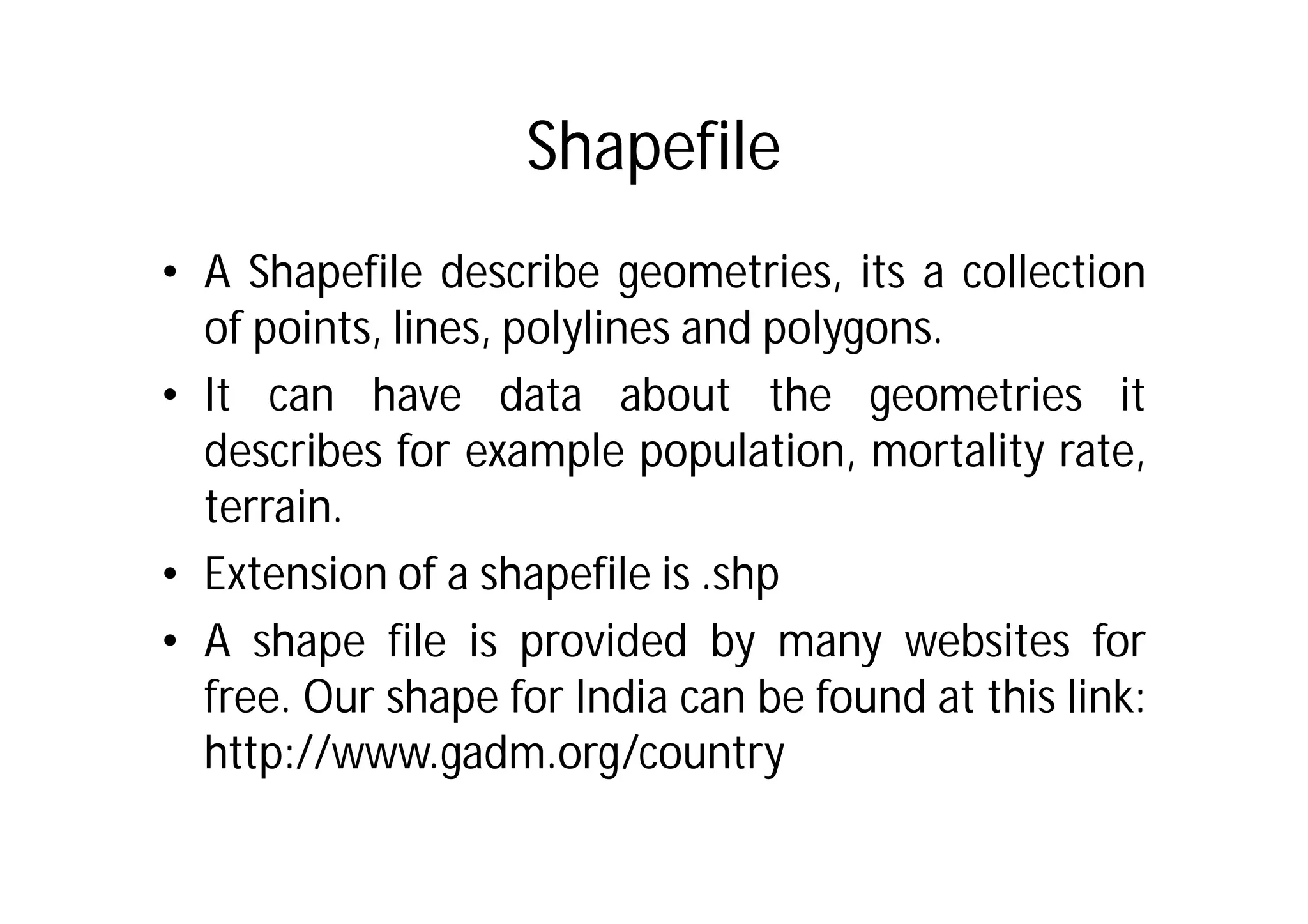

5. Shapefile
• A Shapefile describe geometries, its a collection
of points, lines, polylines and polygons.
• It can have data about the geometries it
describes for example population, mortality rate,
terrain.
• Extension of a shapefile is .shp
• A shape file is provided by many websites for
free. Our shape for India can be found at this link:
http://www.gadm.org/country

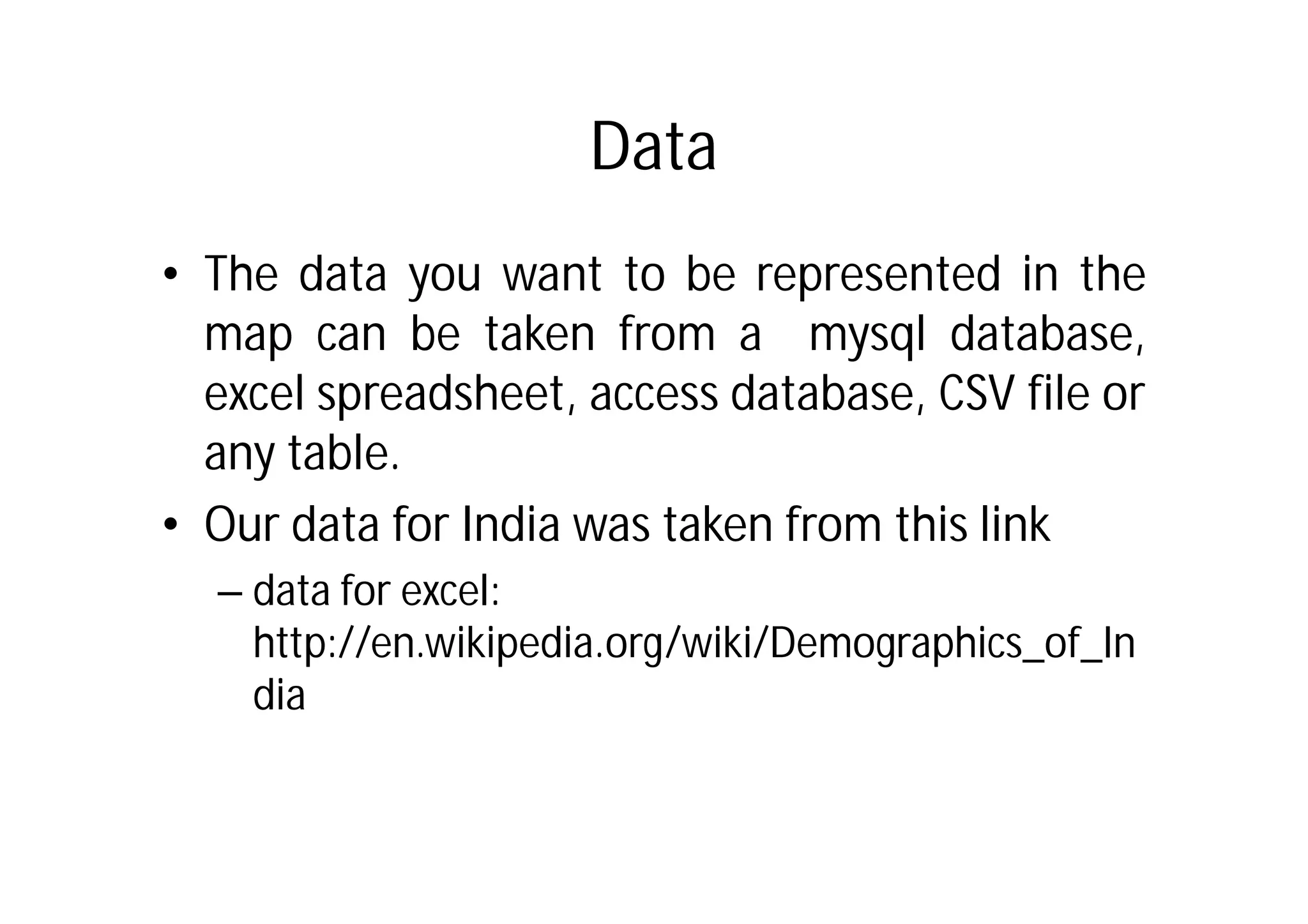

6. Data
• The data you want to be represented in the
map can be taken from a mysql database,
excel spreadsheet, access database, CSV file or
any table.
• Our data for India was taken from this link
– data for excel:
http://en.wikipedia.org/wiki/Demographics_of_In
dia

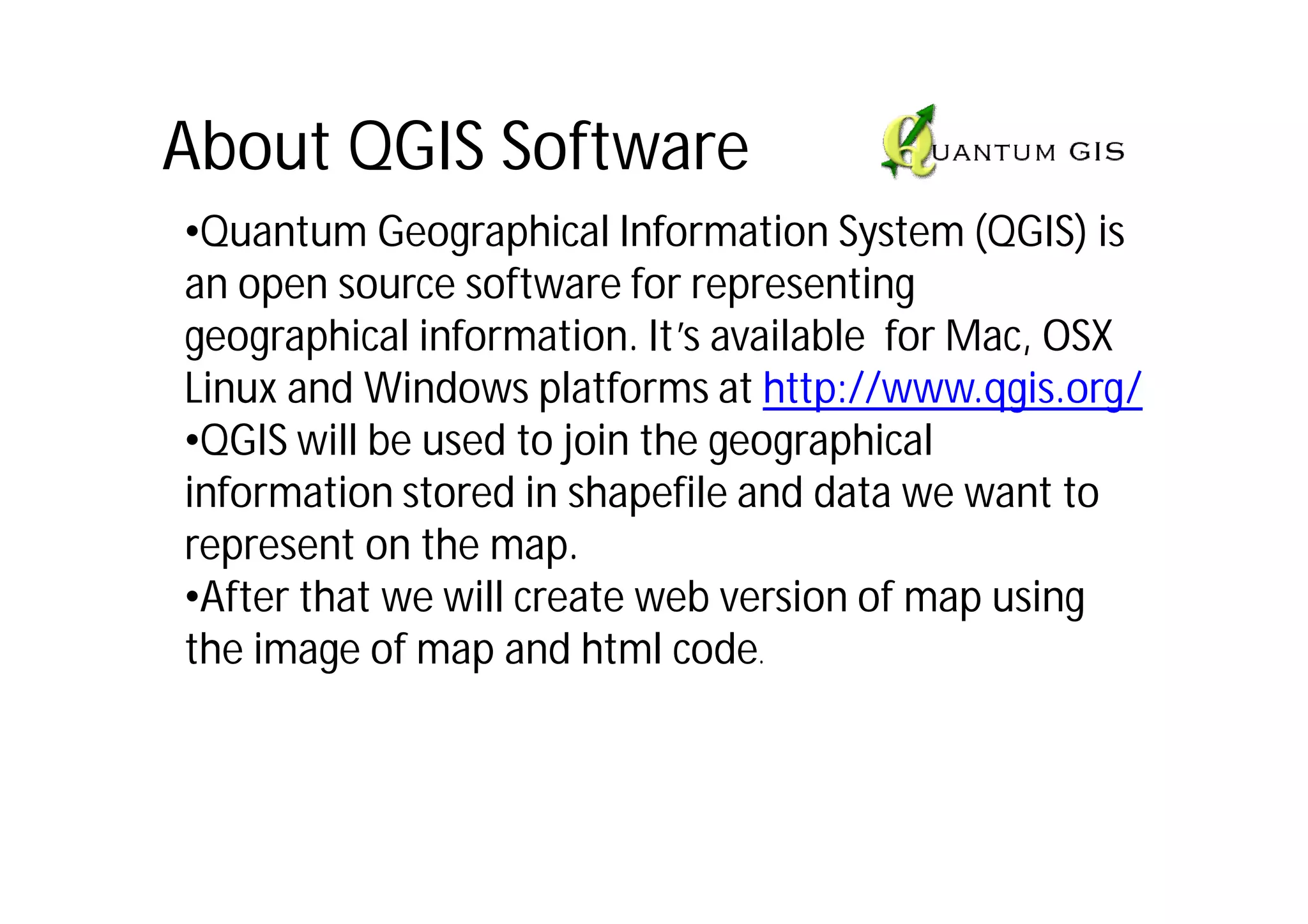

7. About QGIS Software
•Quantum Geographical Information System (QGIS) is
an open source software for representing
geographical information. It’s available for Mac, OSX
Linux and Windows platforms at http://www.qgis.org/
•QGIS will be used to join the geographical
information stored in shapefile and data we want to
represent on the map.
•After that we will create web version of map using
the image of map and html code.

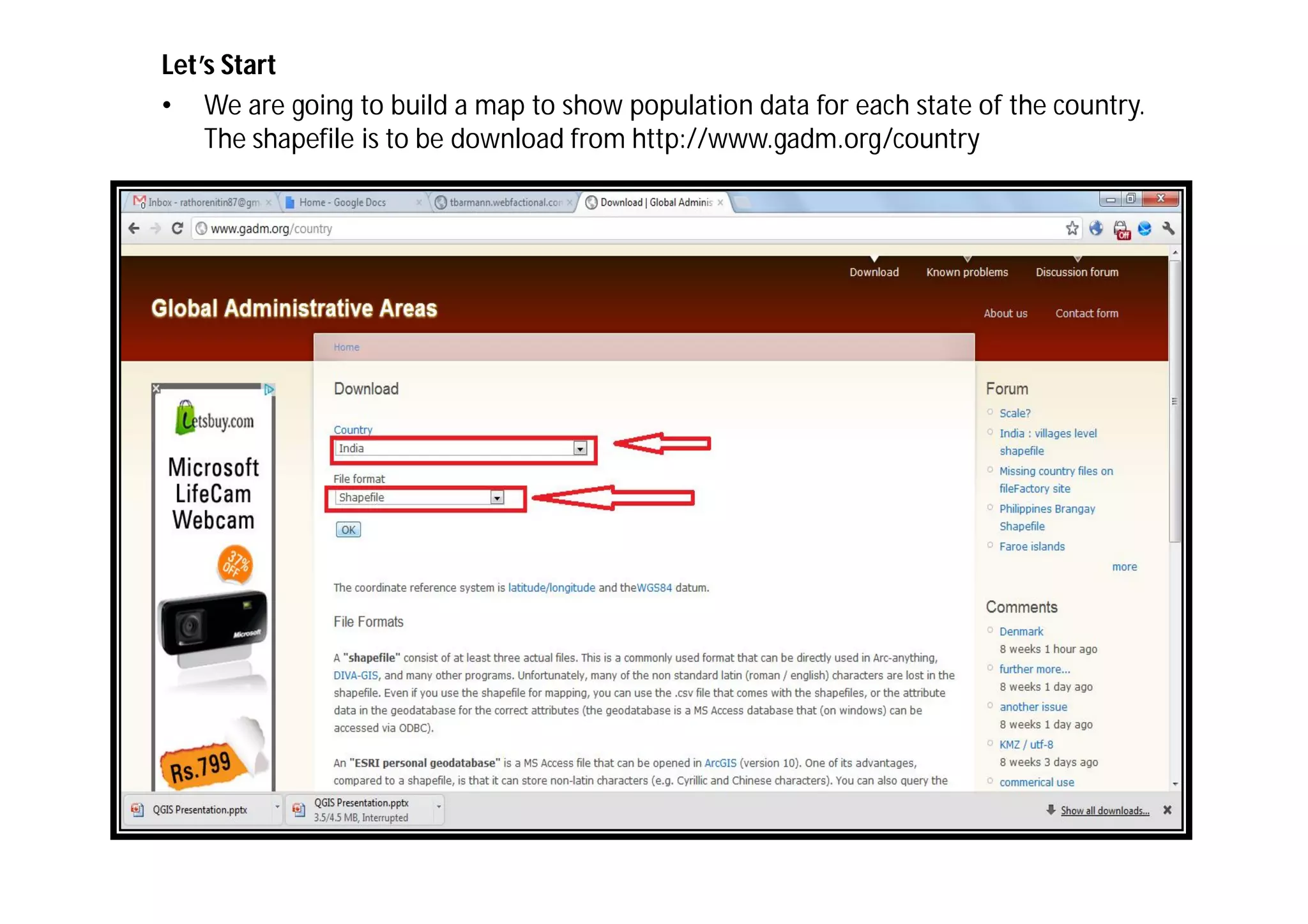

8. Let’s Start
• We are going to build a map to show population data for each state of the country.
The shapefile is to be download from http://www.gadm.org/country

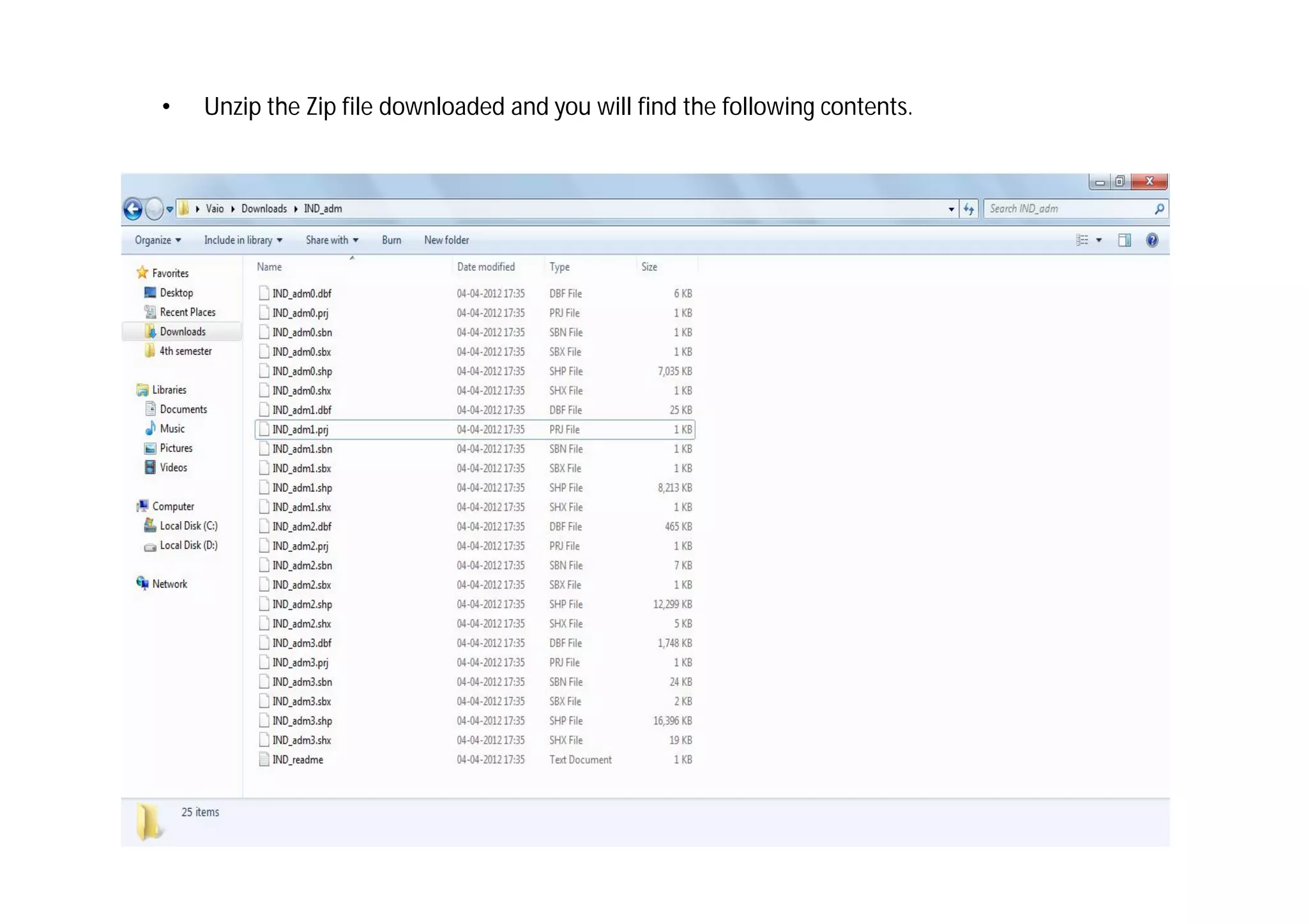

9. • Unzip the Zip file downloaded and you will find the following contents.

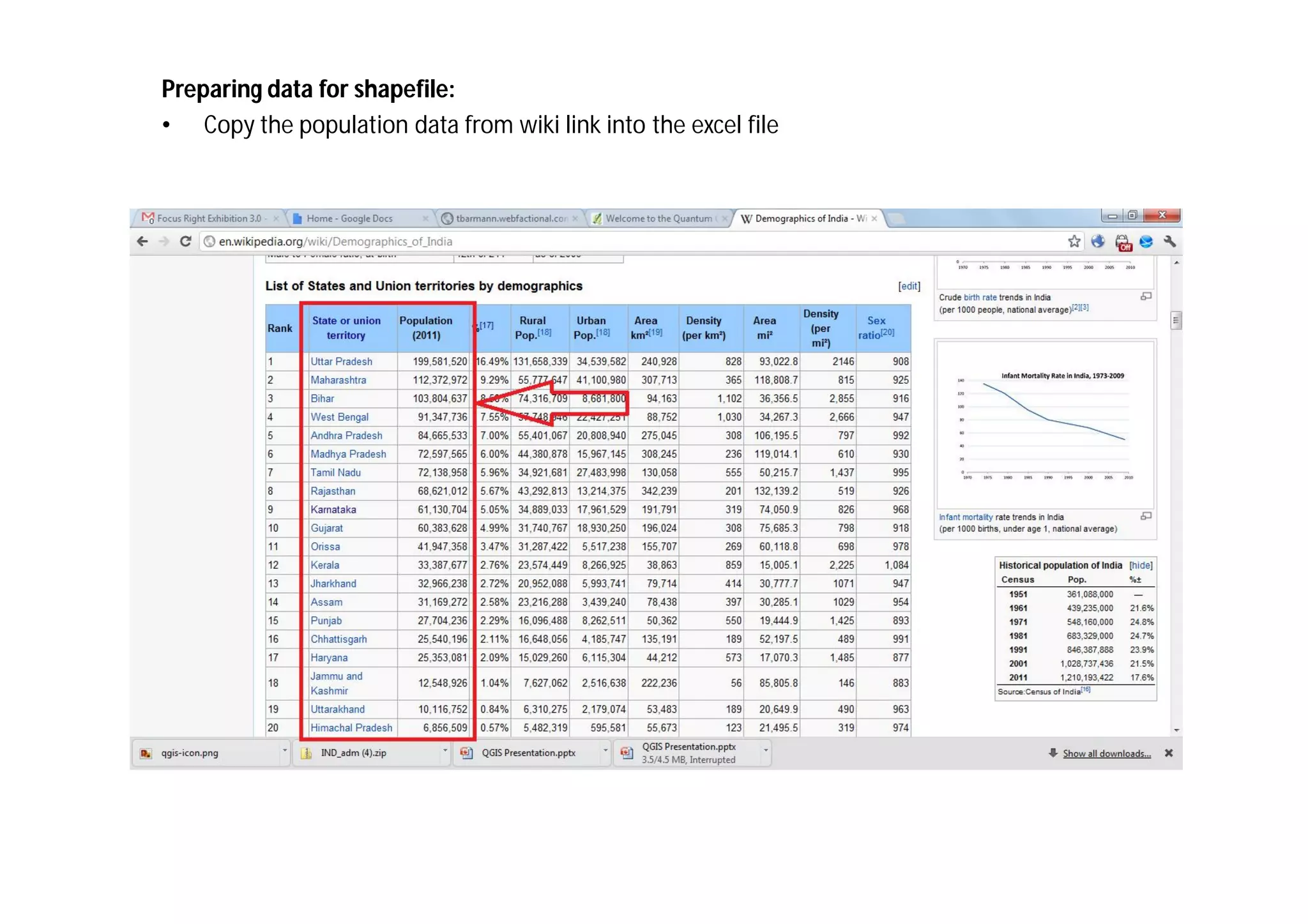

10. Preparing data for shapefile:
• Copy the population data from wiki link into the excel file

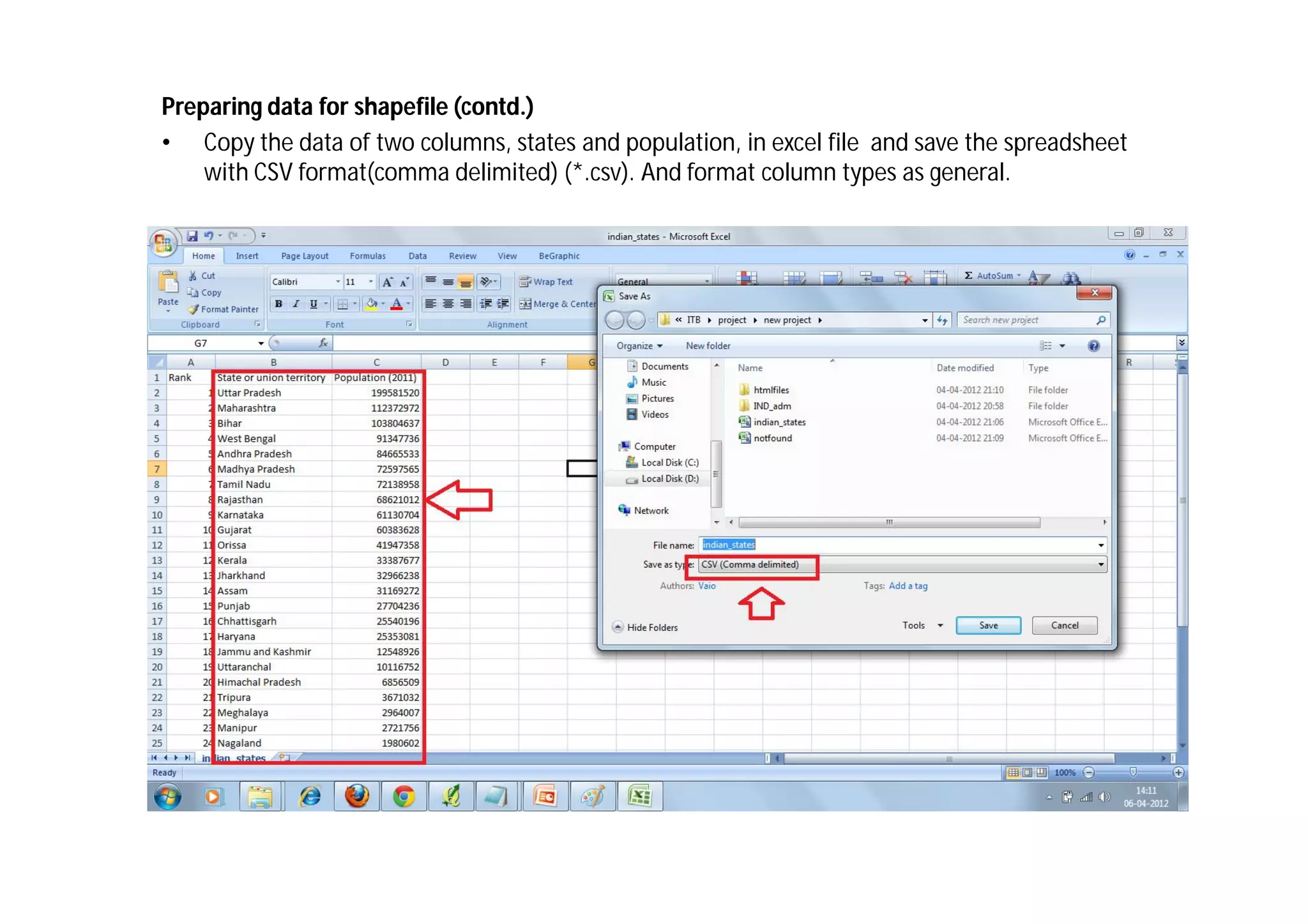

11. Preparing data for shapefile (contd.)
• Copy the data of two columns, states and population, in excel file and save the spreadsheet
with CSV format(comma delimited) (*.csv). And format column types as general.

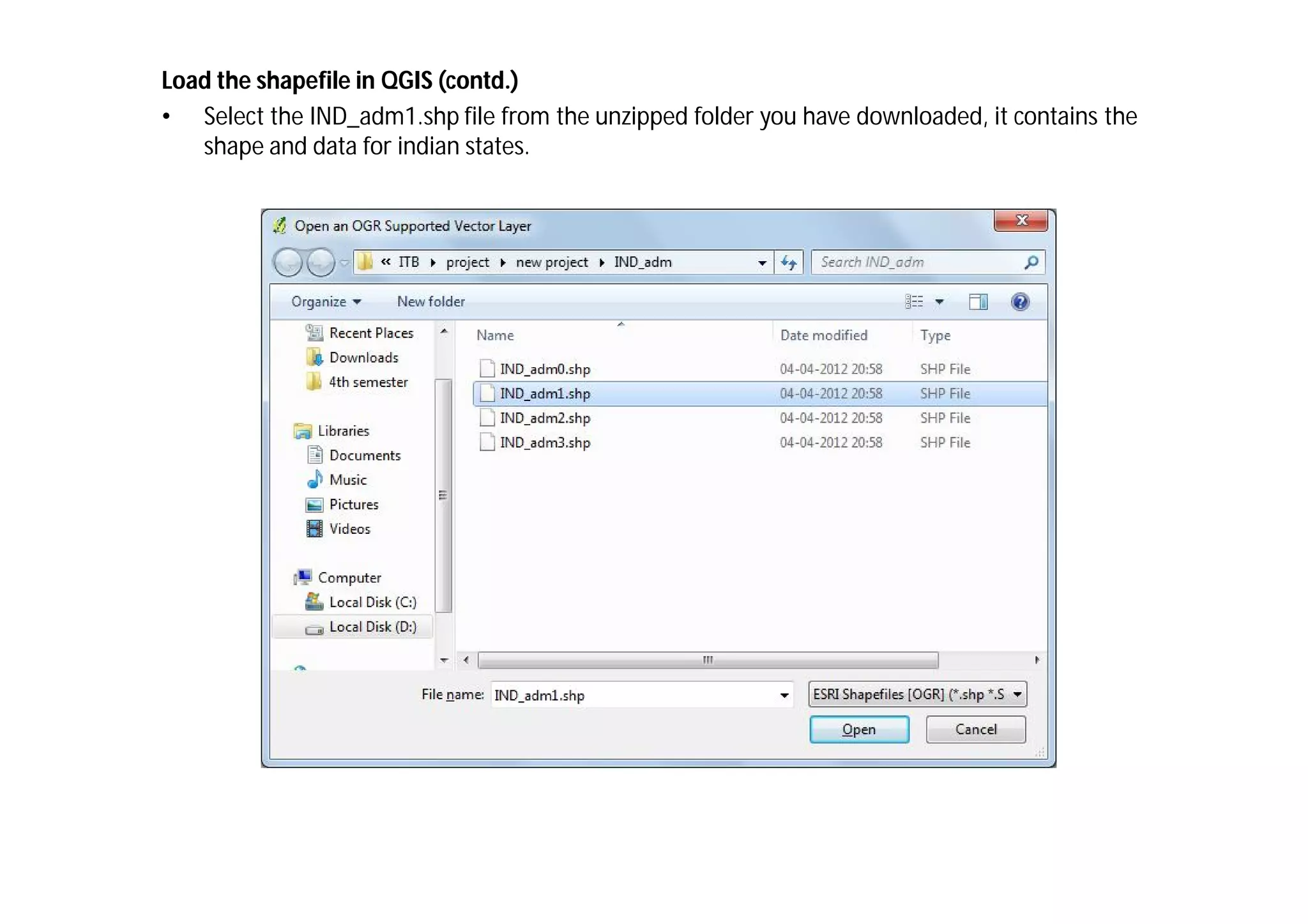

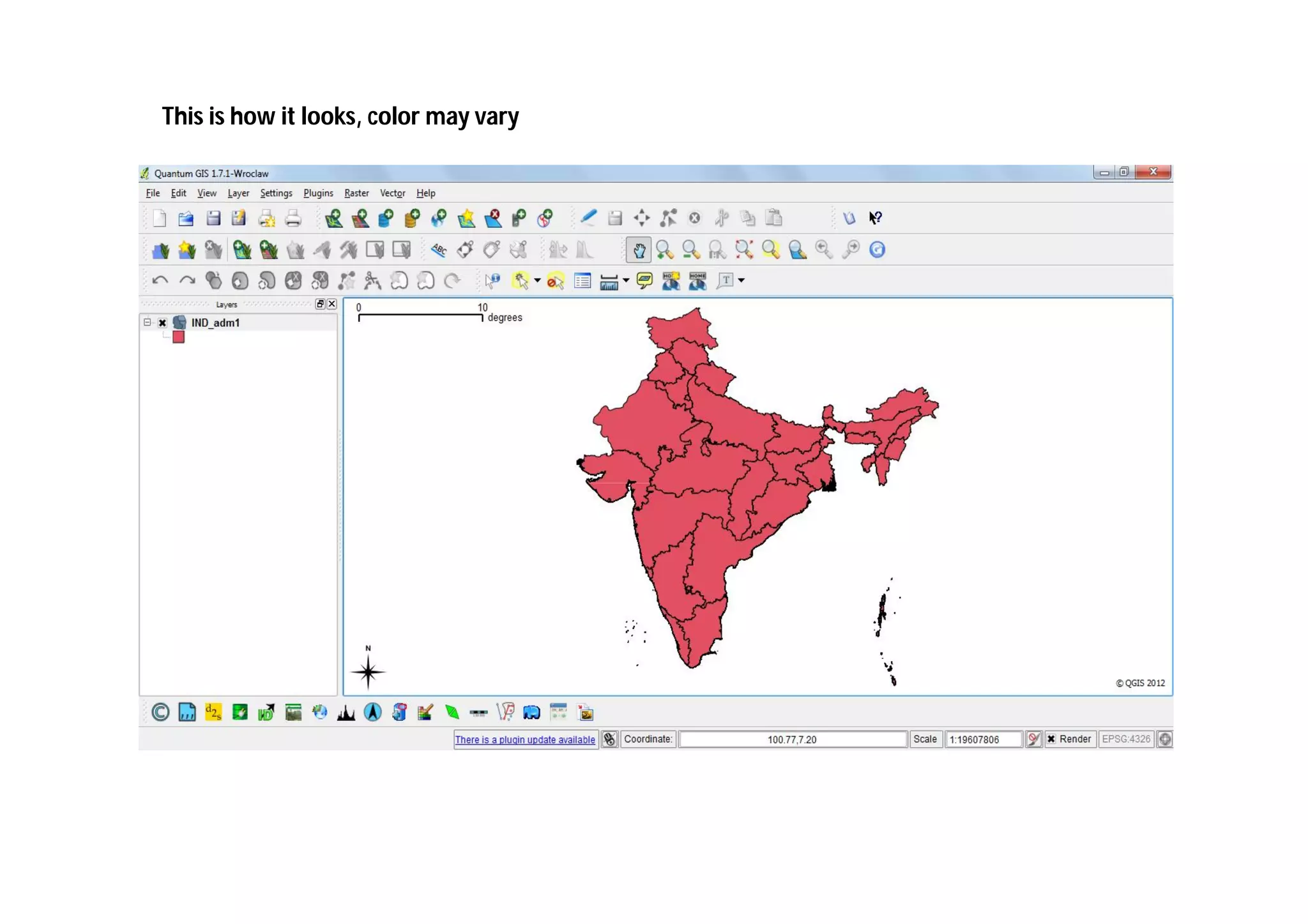

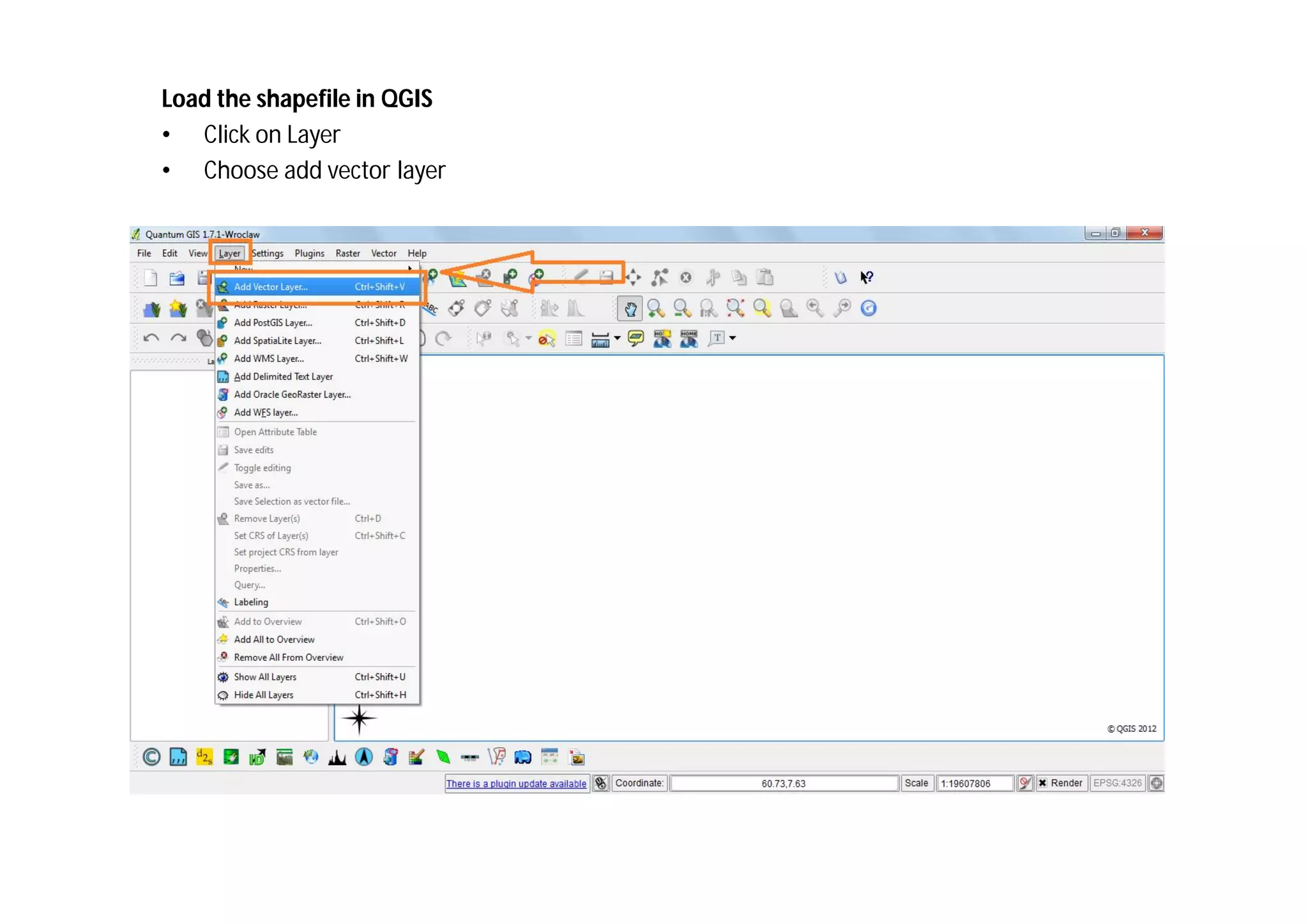

13. Load the shapefile in QGIS (contd.)
• Select the IND_adm1.shp file from the unzipped folder you have downloaded, it contains the
shape and data for indian states.

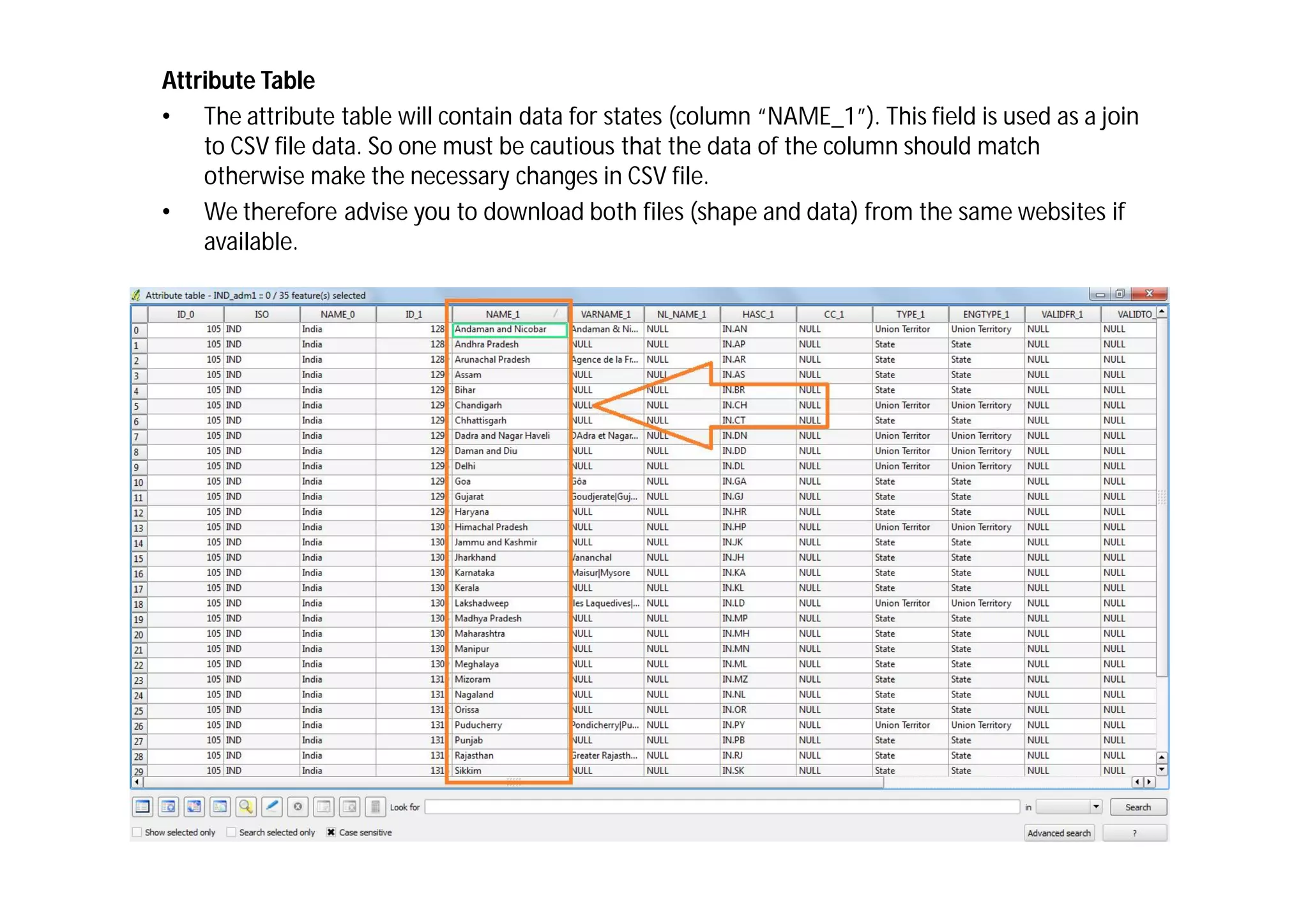

16. Attribute Table
• The attribute table will contain data for states (column “NAME_1”). This field is used as a join
to CSV file data. So one must be cautious that the data of the column should match
otherwise make the necessary changes in CSV file.
• We therefore advise you to download both files (shape and data) from the same websites if
available.

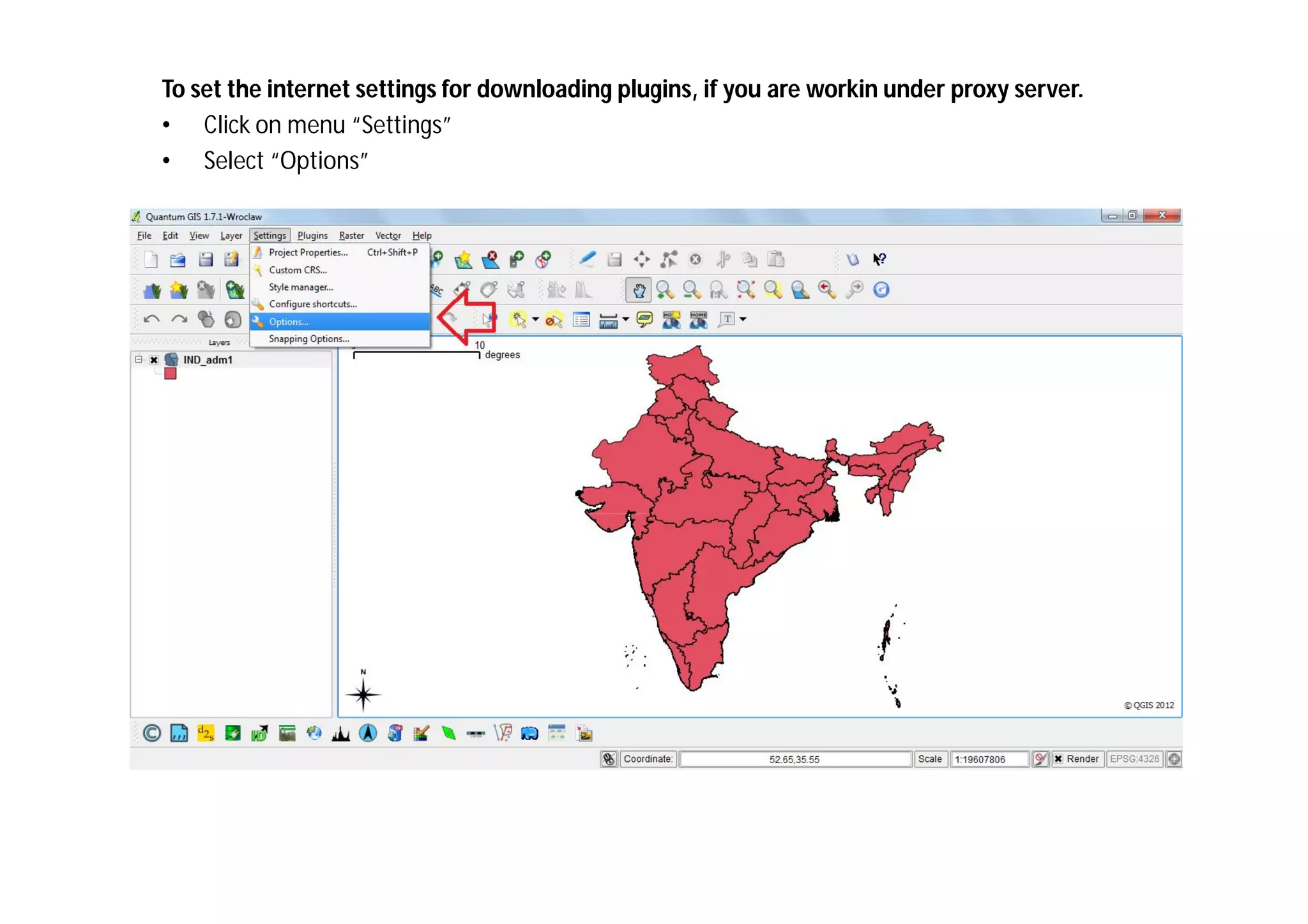

17. To set the internet settings for downloading plugins, if you are workin under proxy server.
• Click on menu “Settings”
• Select “Options”

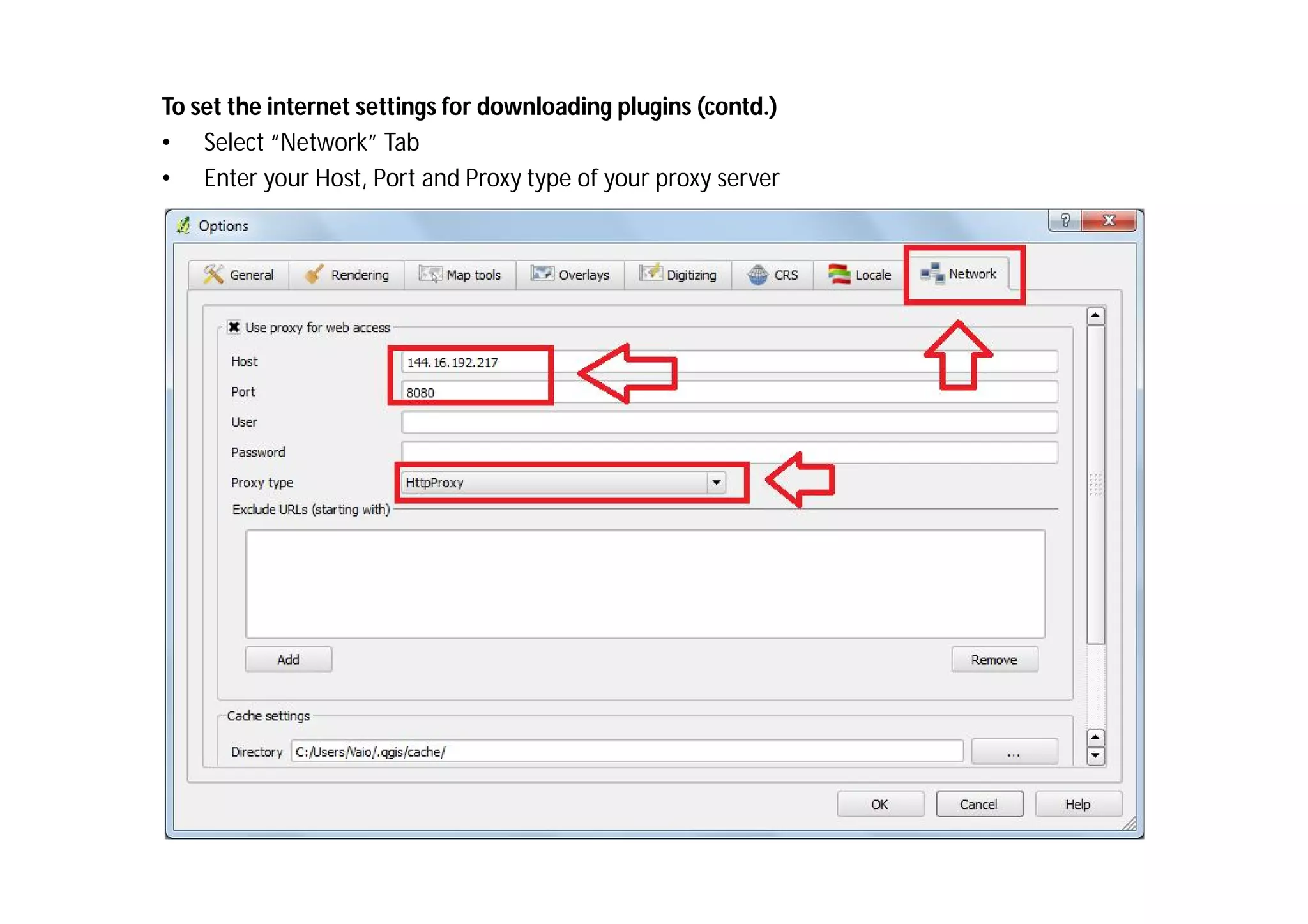

18. To set the internet settings for downloading plugins (contd.)
• Select “Network” Tab
• Enter your Host, Port and Proxy type of your proxy server

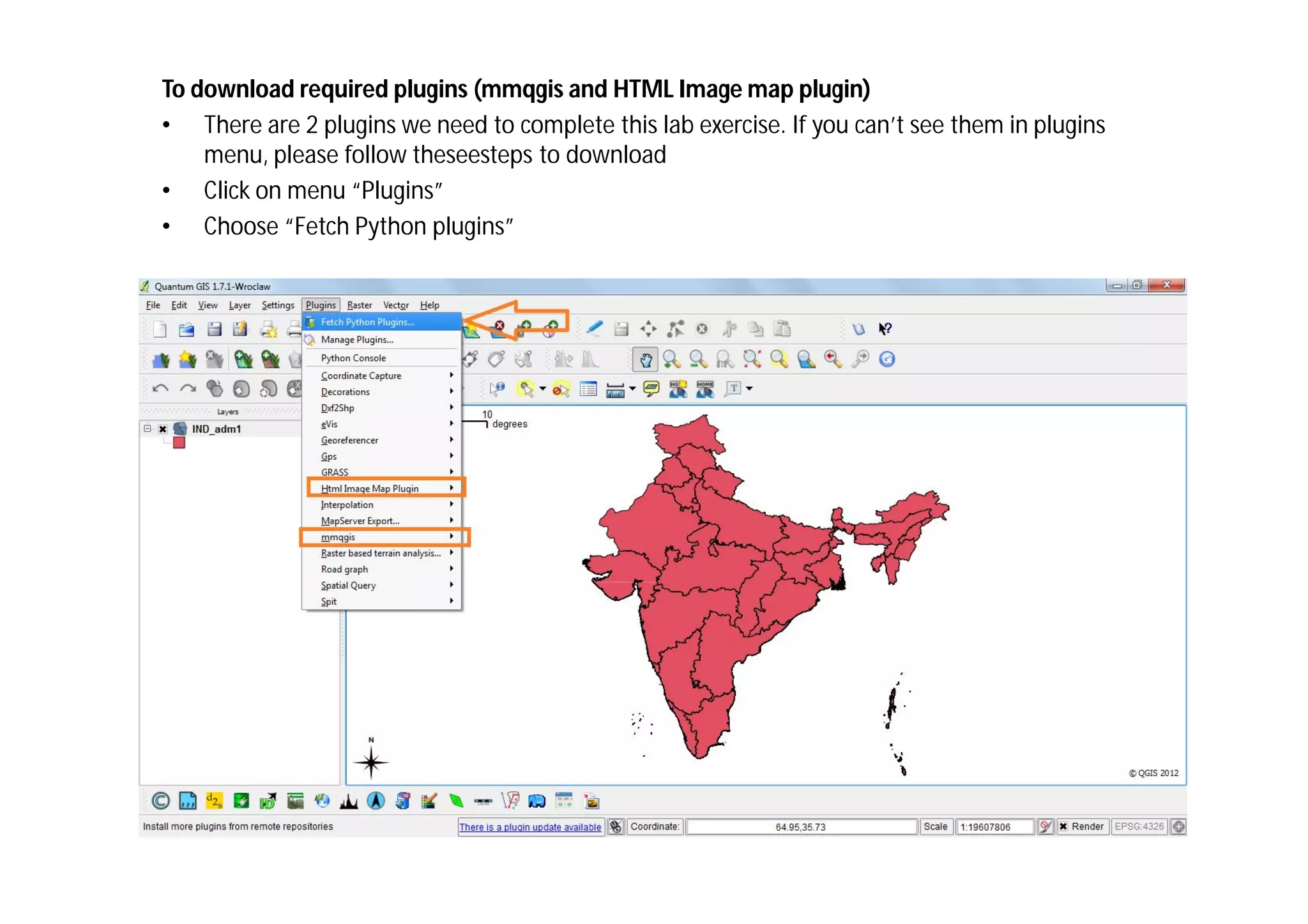

19. To download required plugins (mmqgis and HTML Image map plugin)
• There are 2 plugins we need to complete this lab exercise. If you can’t see them in plugins
menu, please follow theseesteps to download
• Click on menu “Plugins”
• Choose “Fetch Python plugins”

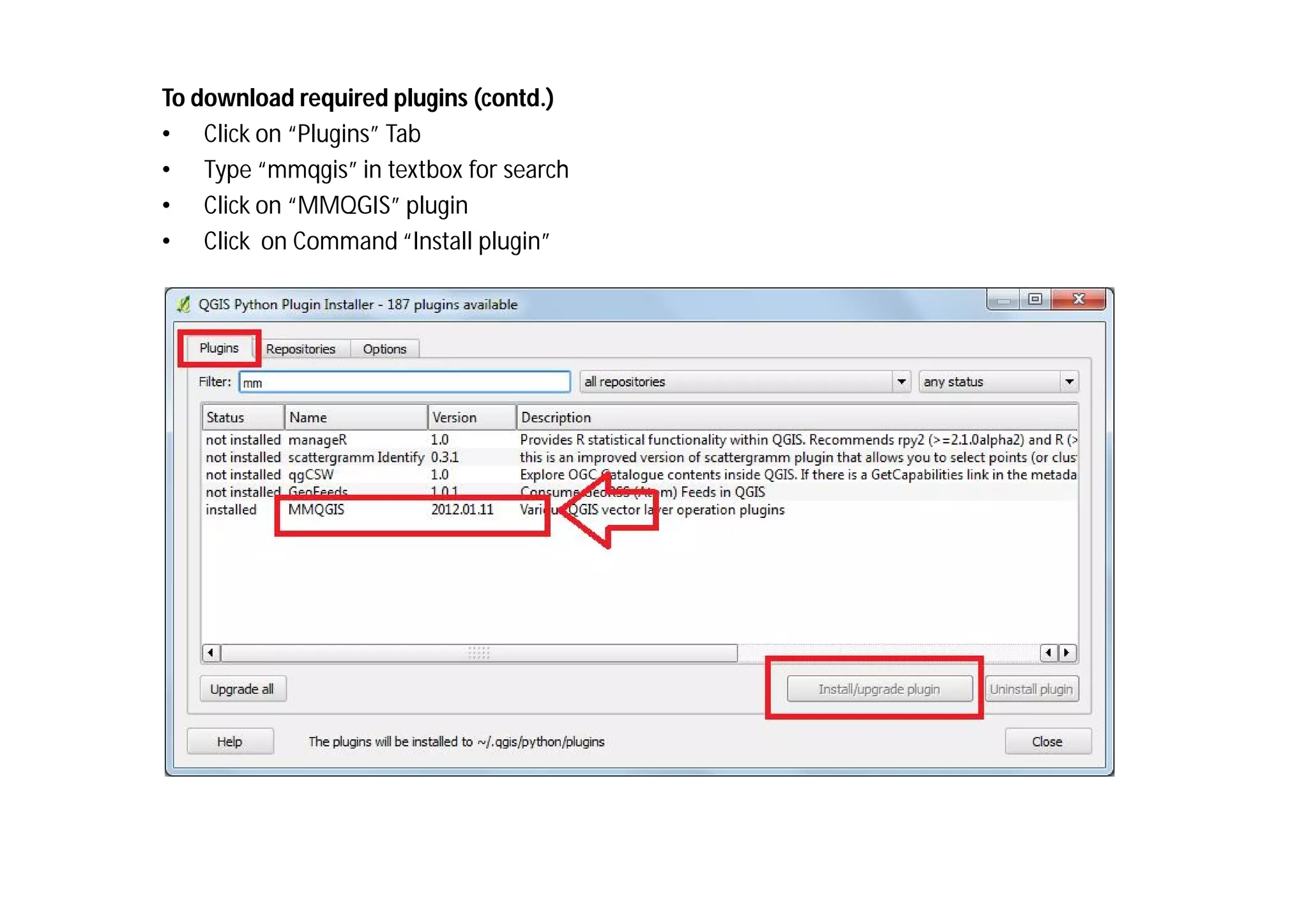

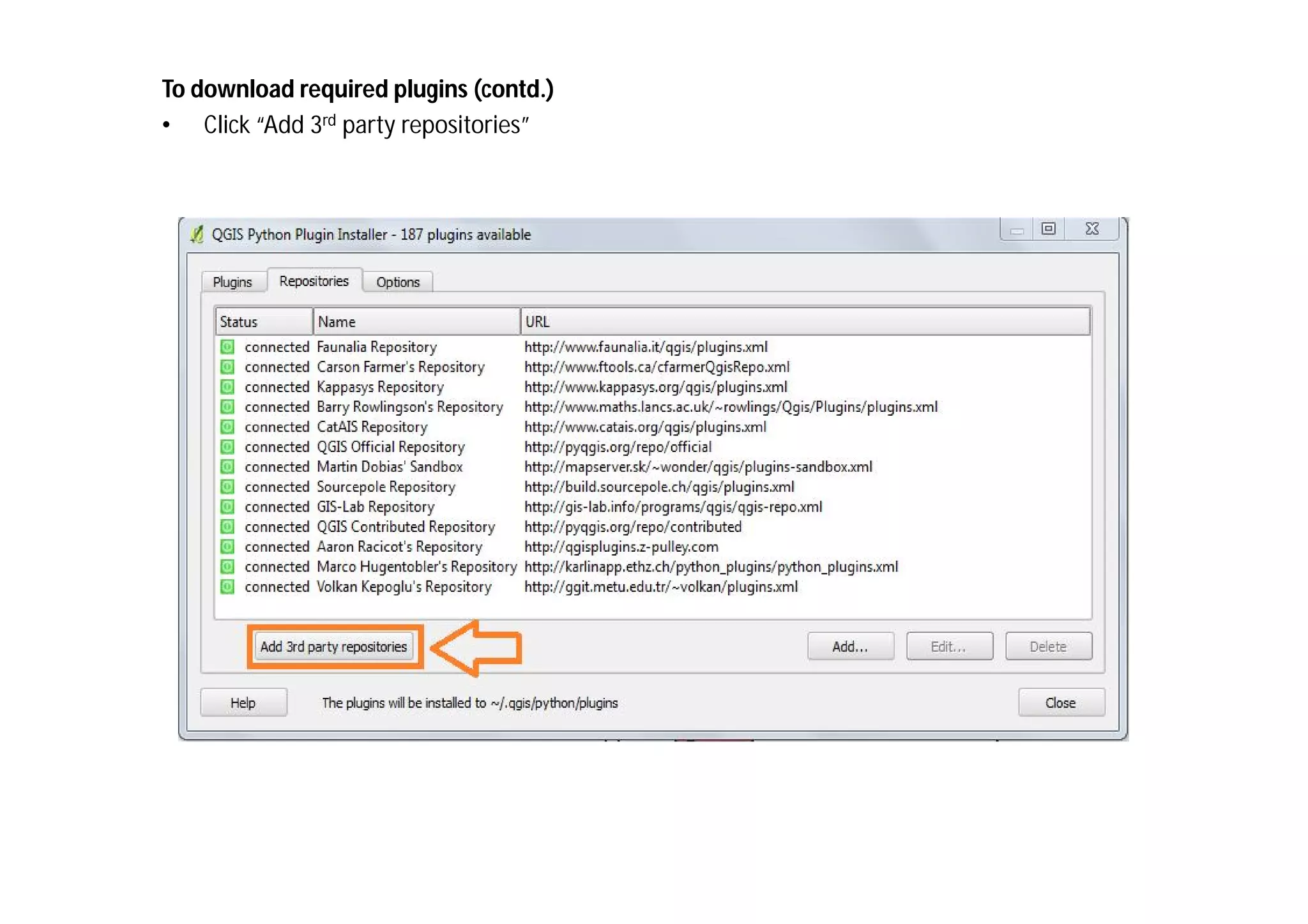

21. To download required plugins (contd.)
• Click on “Plugins” Tab
• Type “mmqgis” in textbox for search
• Click on “MMQGIS” plugin
• Click on Command “Install plugin”

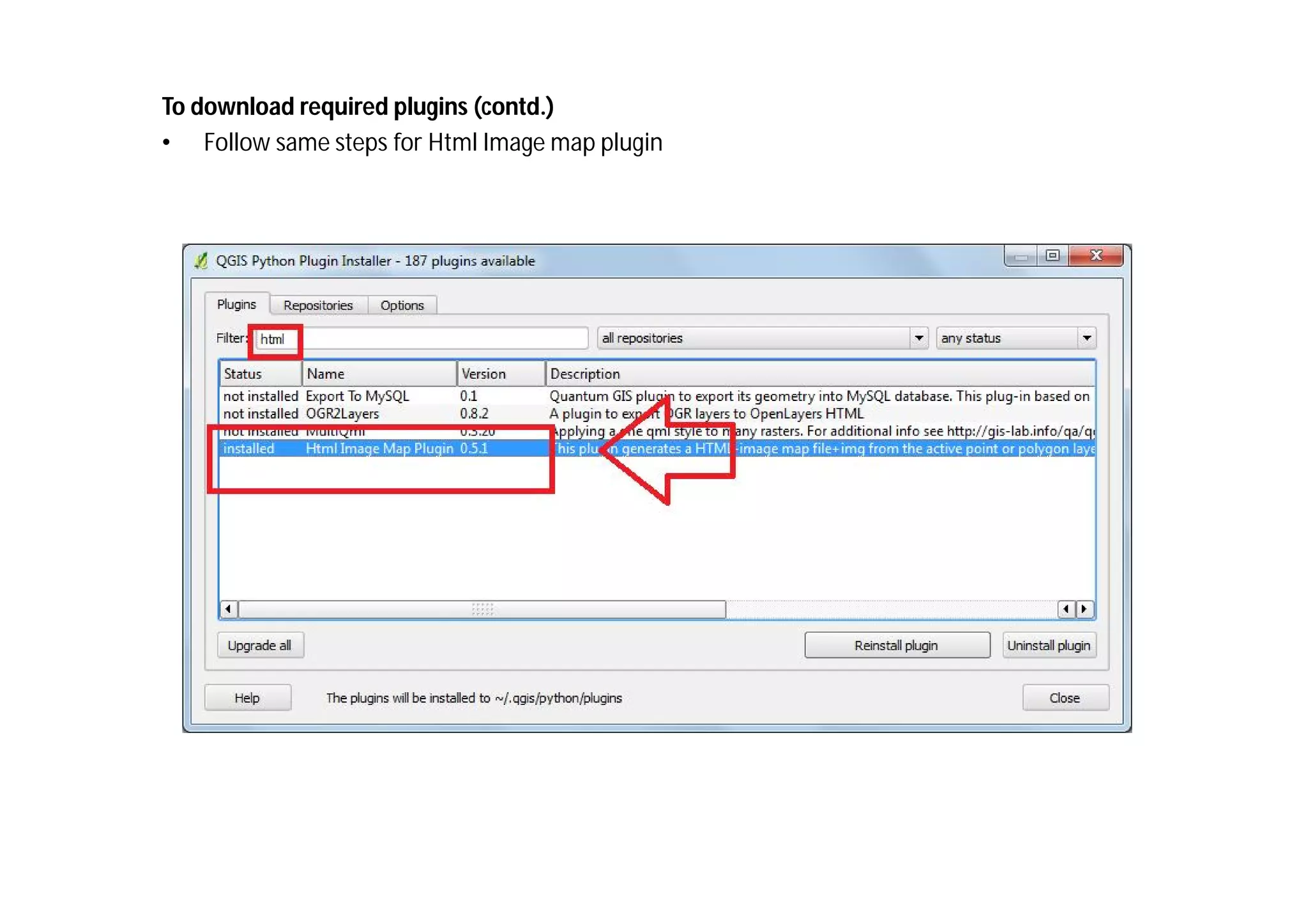

22. To download required plugins (contd.)
• Follow same steps for Html Image map plugin

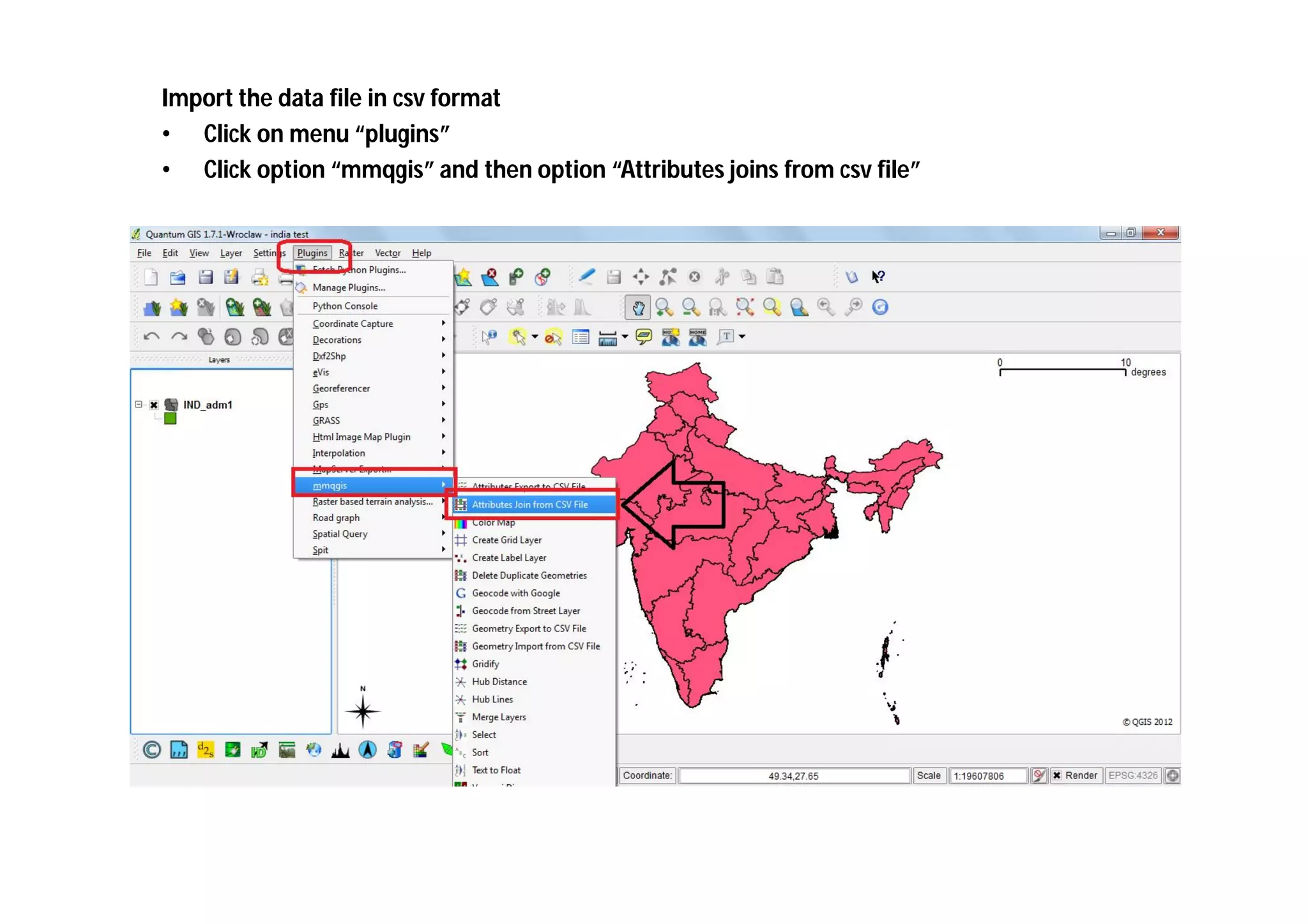

23. Import the data file in csv format
• Click on menu “plugins”
• Click option “mmqgis” and then option “Attributes joins from csv file”

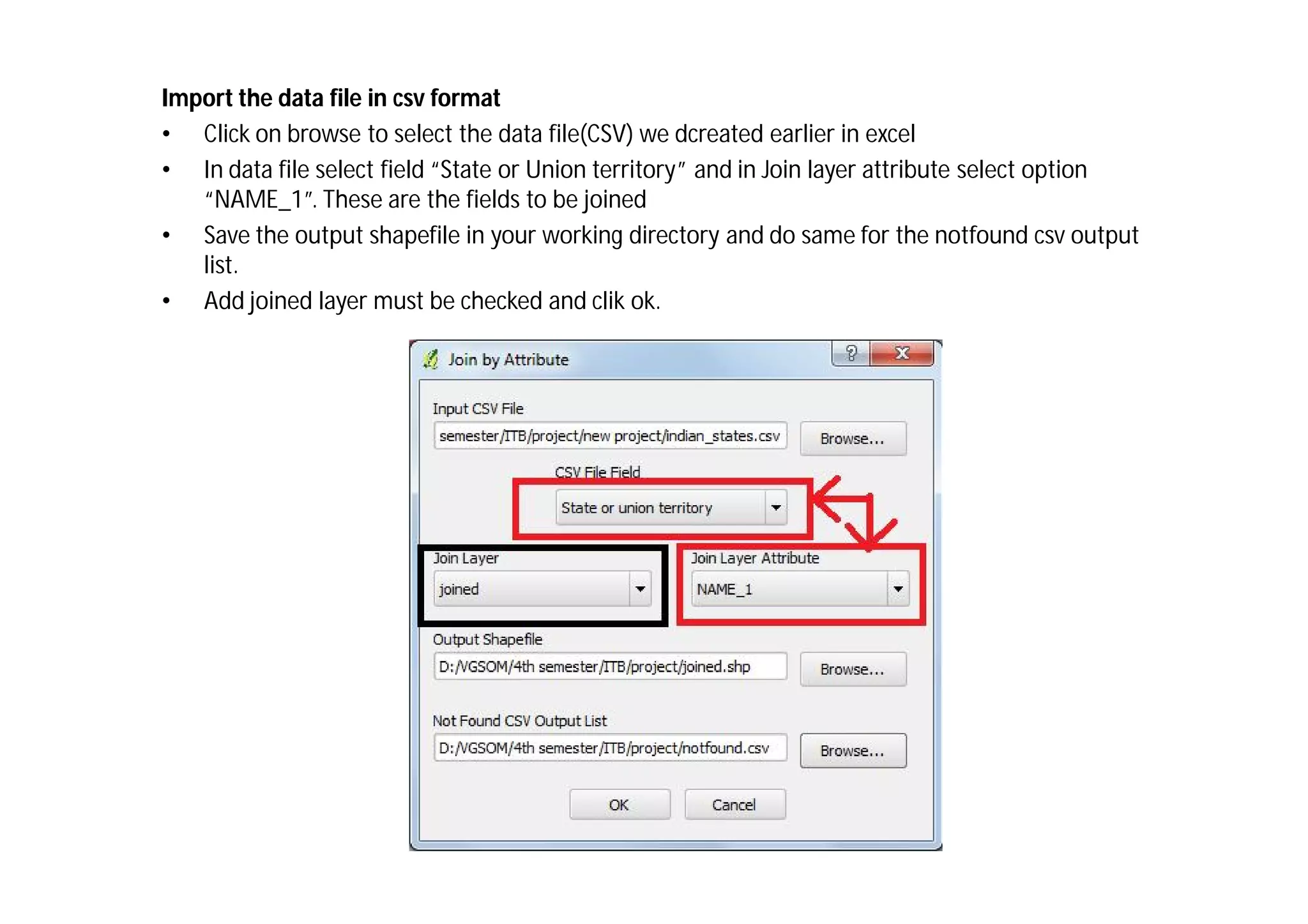

24. Import the data file in csv format
• Click on browse to select the data file(CSV) we dcreated earlier in excel
• In data file select field “State or Union territory” and in Join layer attribute select option
“NAME_1”. These are the fields to be joined
• Save the output shapefile in your working directory and do same for the notfound csv output
list.
• Add joined layer must be checked and clik ok.

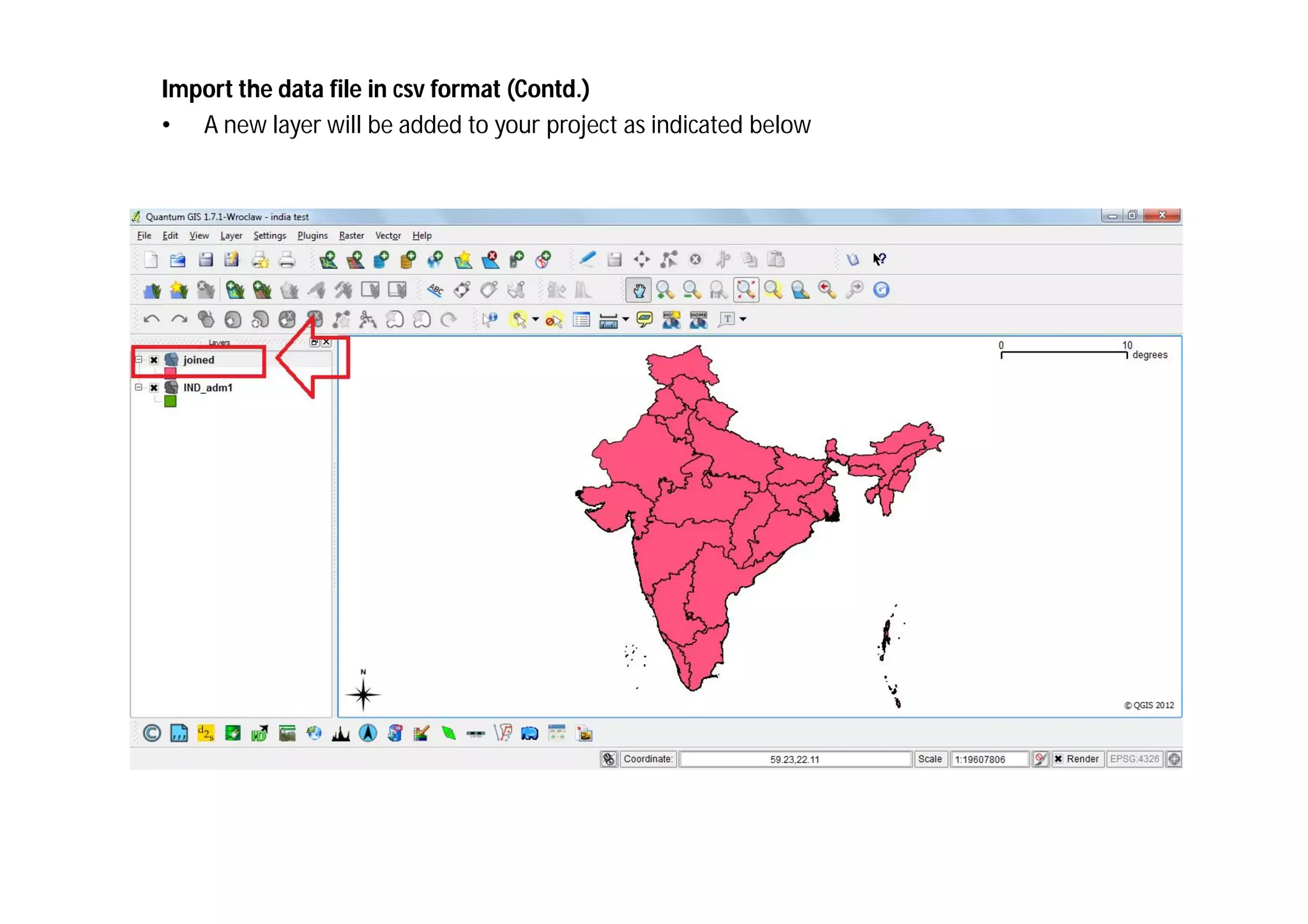

25. Import the data file in csv format (Contd.)
• A new layer will be added to your project as indicated below

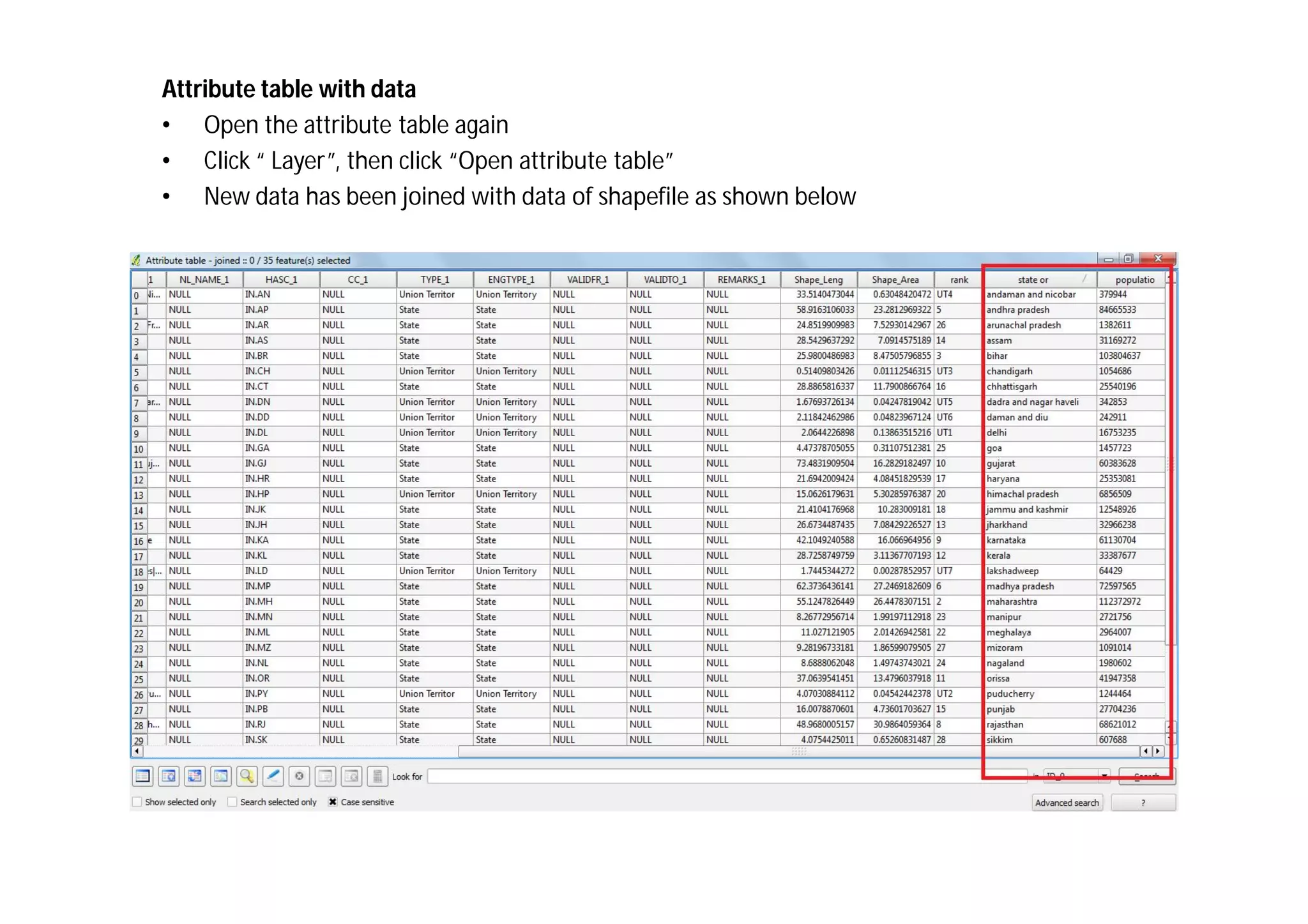

26. Attribute table with data
• Open the attribute table again

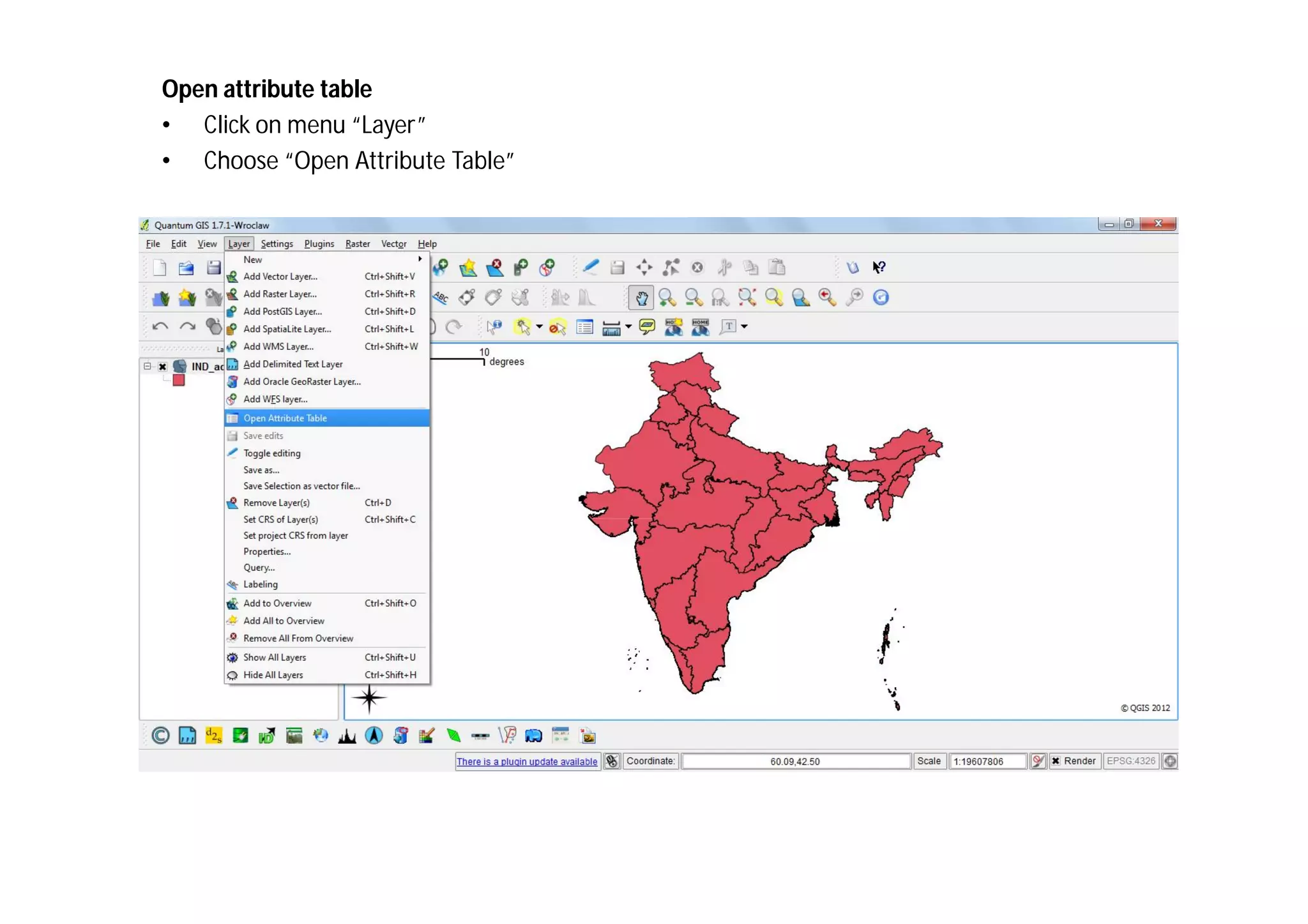

• Click “ Layer”, then click “Open attribute table”
• New data has been joined with data of shapefile as shown below

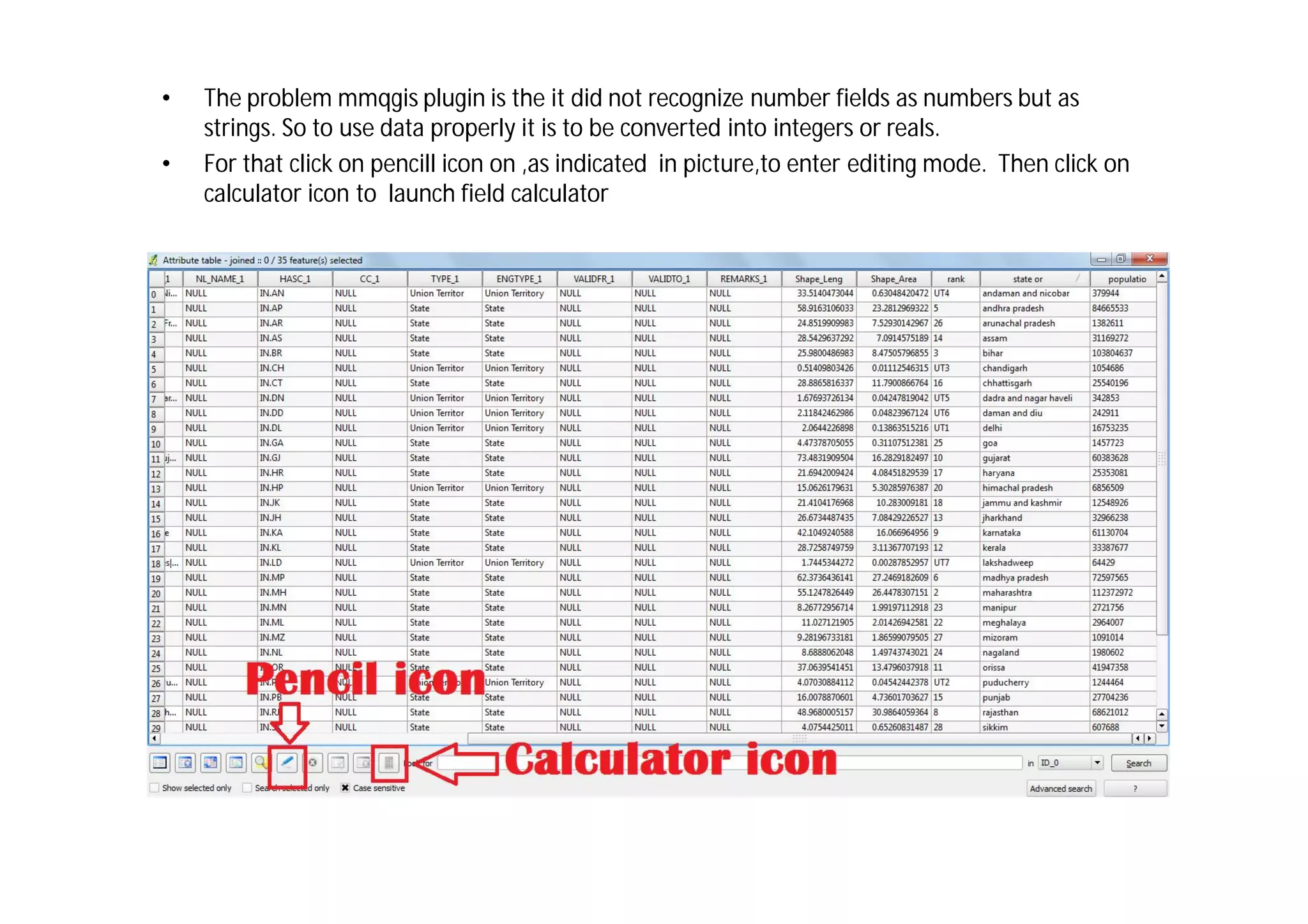

27. • The problem mmqgis plugin is the it did not recognize number fields as numbers but as
strings. So to use data properly it is to be converted into integers or reals.
• For that click on pencill icon on ,as indicated in picture,to enter editing mode. Then click on
calculator icon to launch field calculator

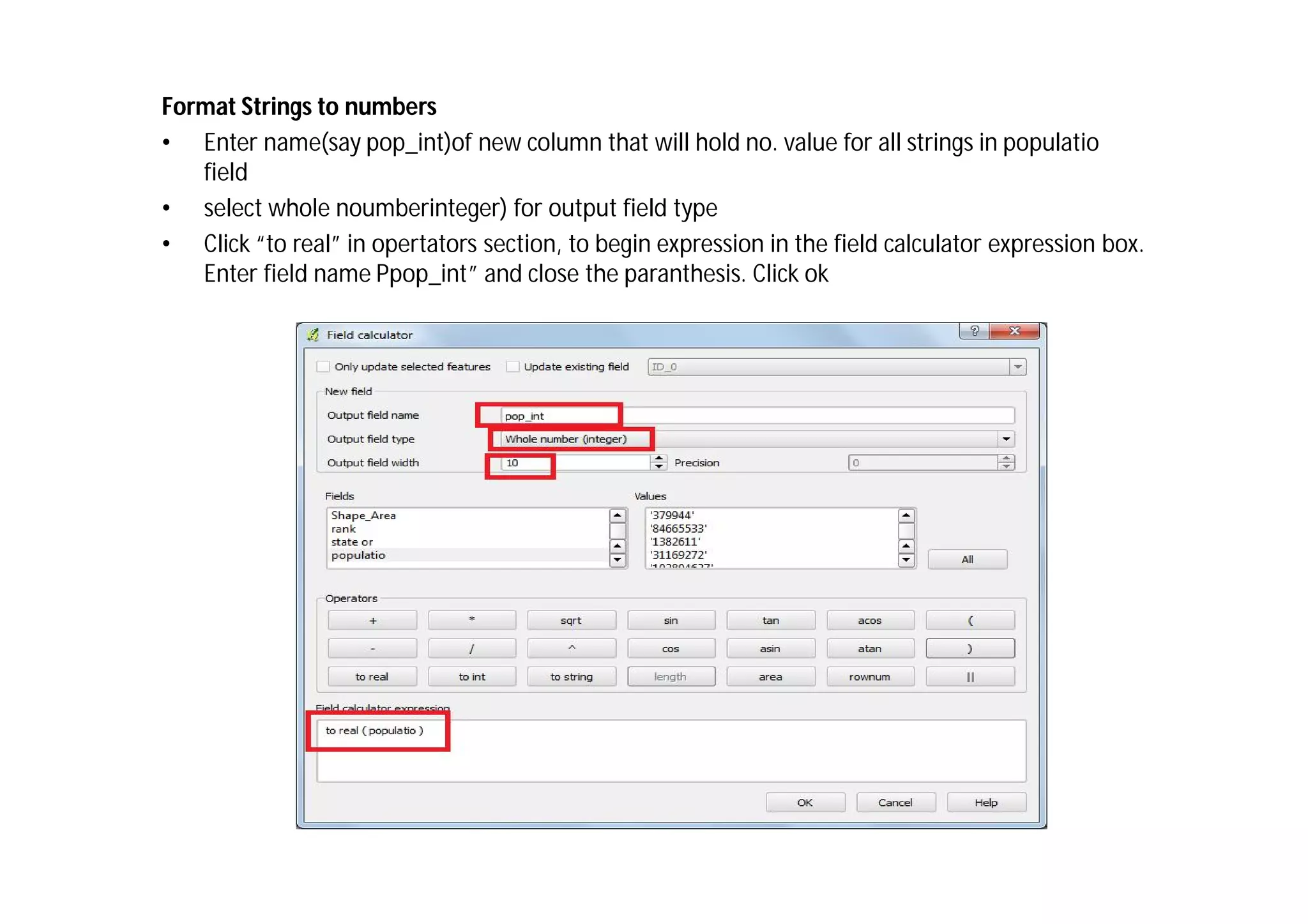

28. Format Strings to numbers
• Enter name(say pop_int)of new column that will hold no. value for all strings in populatio
field
• select whole noumberinteger) for output field type
• Click “to real” in opertators section, to begin expression in the field calculator expression box.
Enter field name Ppop_int” and close the paranthesis. Click ok

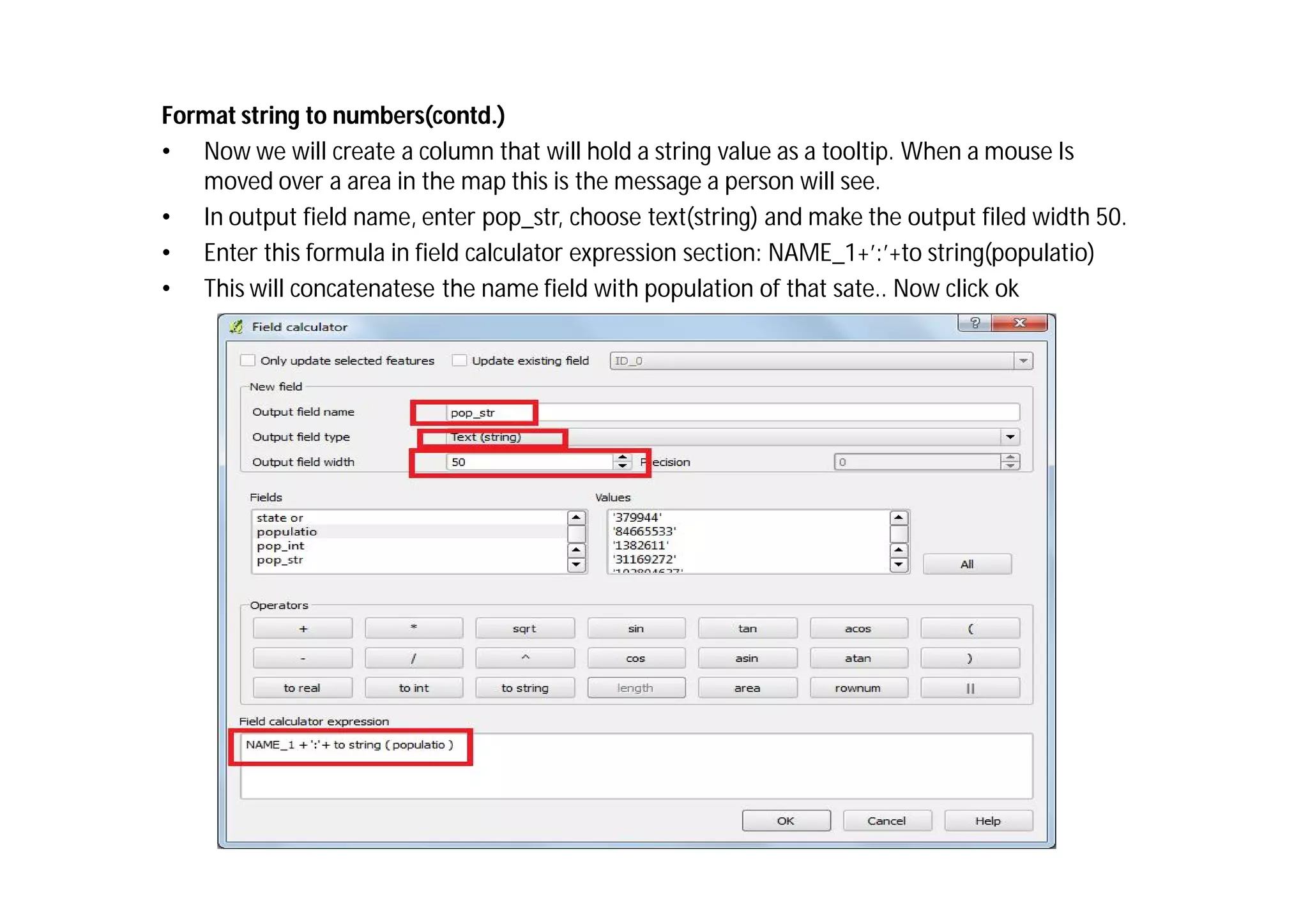

29. Format string to numbers(contd.)
• Now we will create a column that will hold a string value as a tooltip. When a mouse Is
moved over a area in the map this is the message a person will see.
• In output field name, enter pop_str, choose text(string) and make the output filed width 50.
• Enter this formula in field calculator expression section: NAME_1+’:’+to string(populatio)
• This will concatenatese the name field with population of that sate.. Now click ok

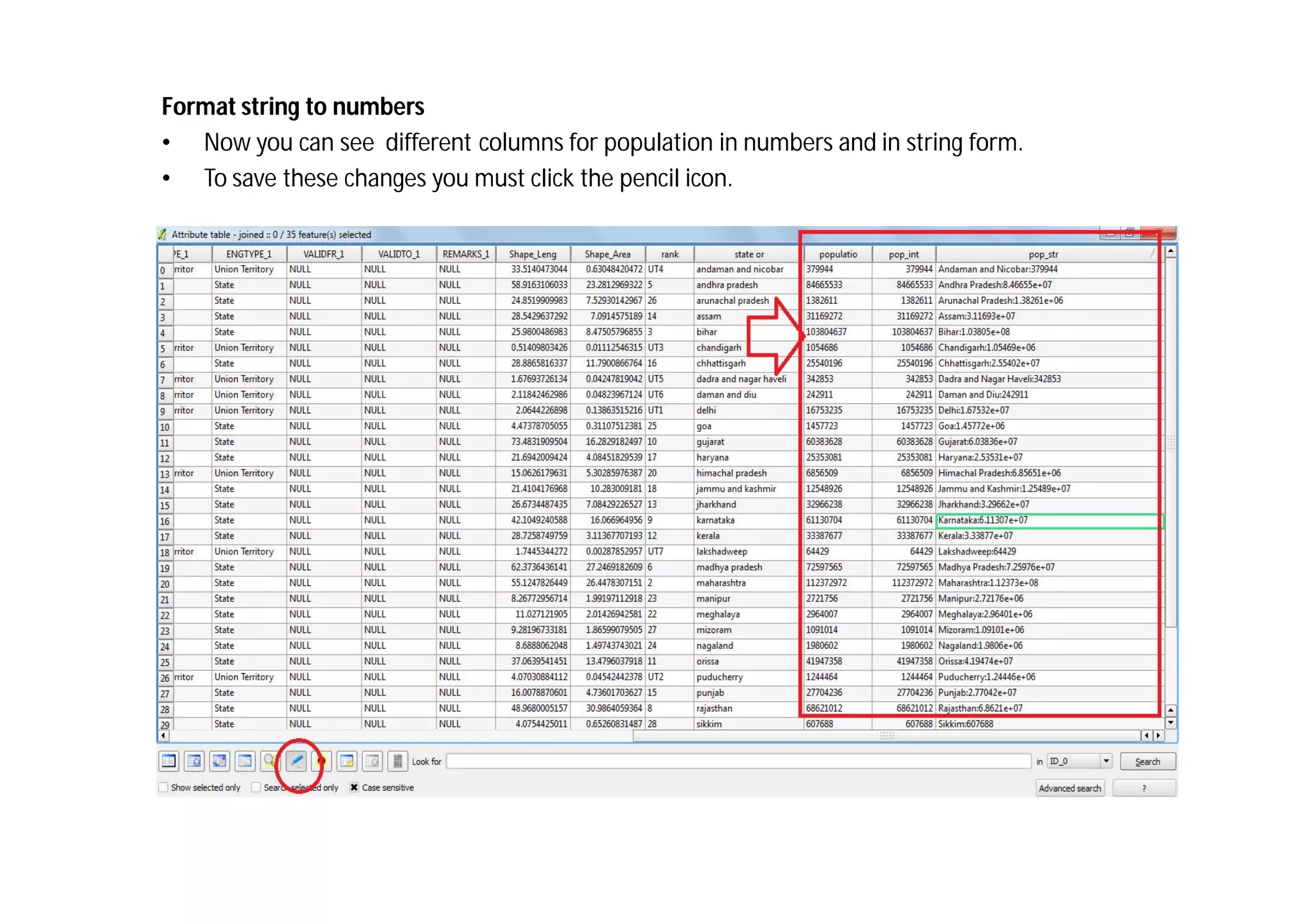

30. Format string to numbers
• Now you can see different columns for population in numbers and in string form.
• To save these changes you must click the pencil icon.

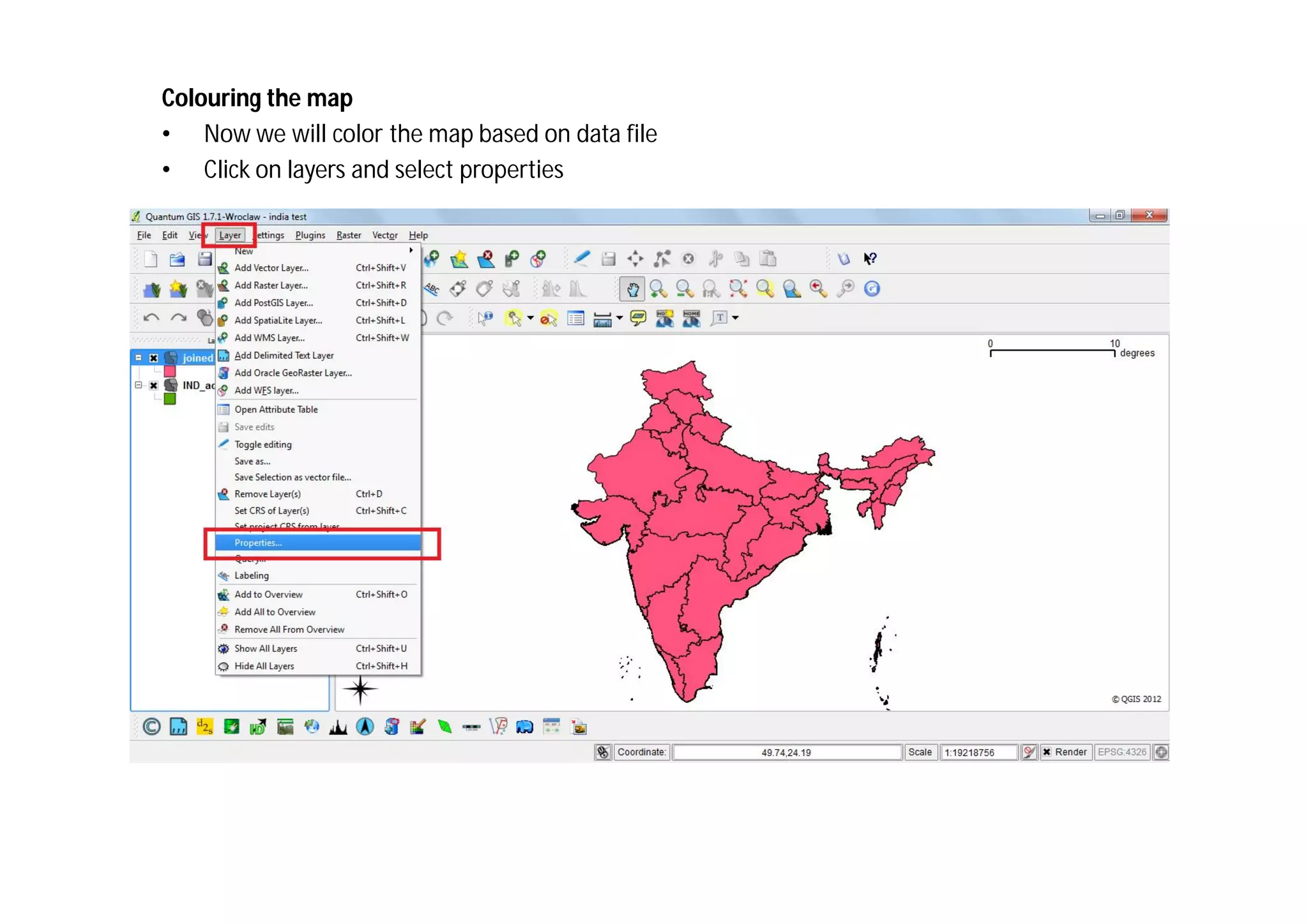

31. Colouring the map
• Now we will color the map based on data file
• Click on layers and select properties

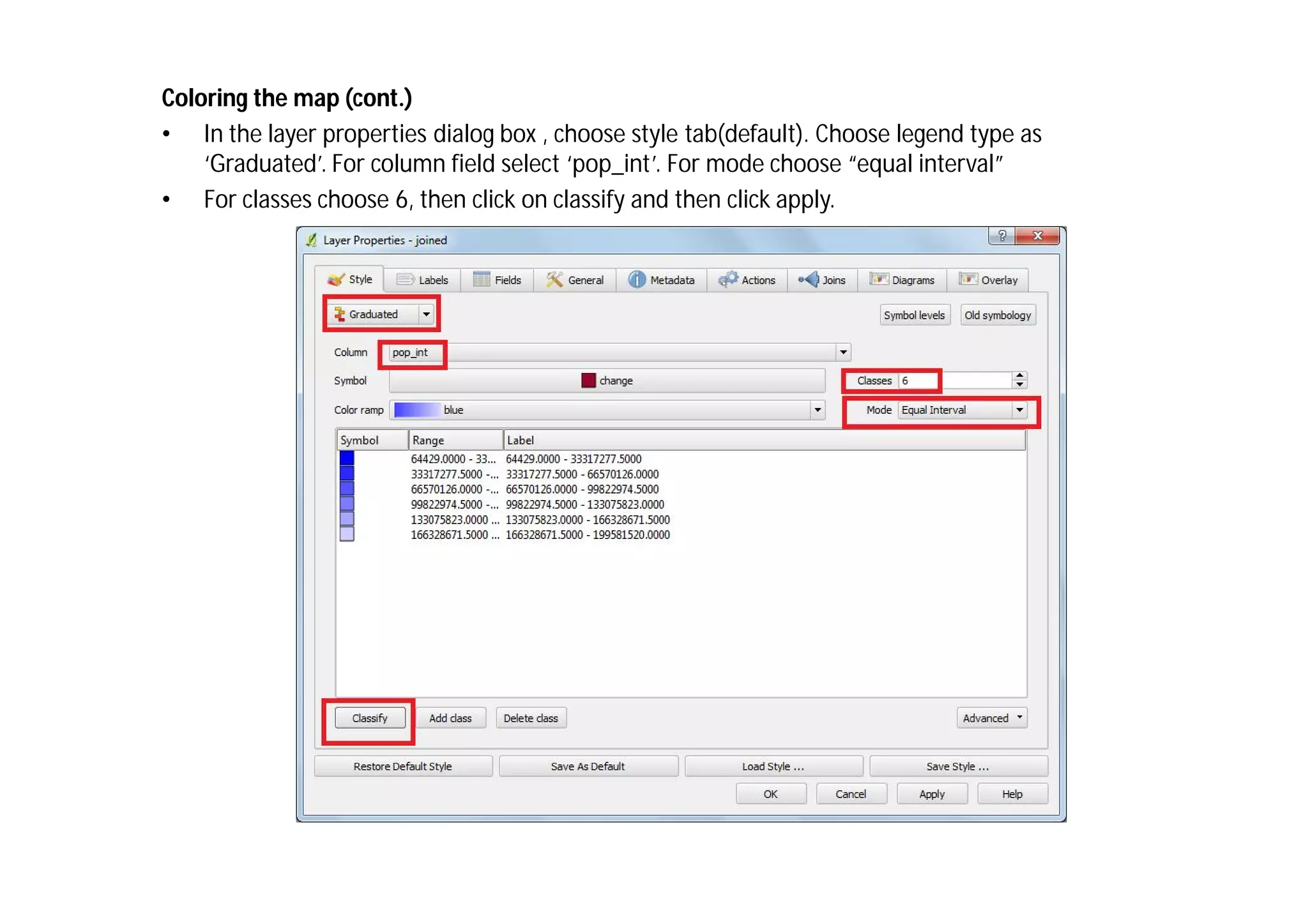

32. Coloring the map (cont.)
• In the layer properties dialog box , choose style tab(default). Choose legend type as
‘Graduated’. For column field select ‘pop_int’. For mode choose “equal interval”
• For classes choose 6, then click on classify and then click apply.

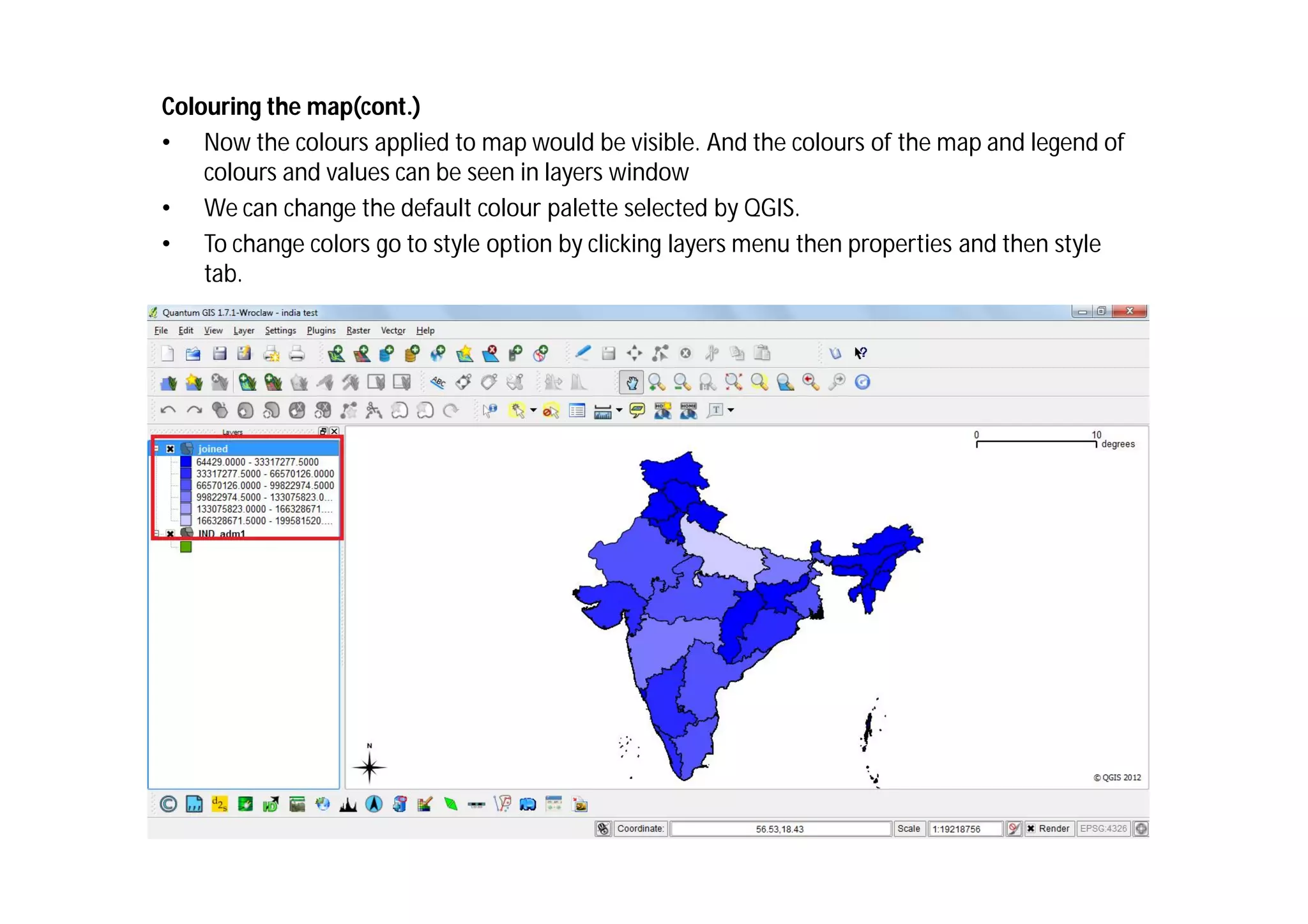

33. Colouring the map(cont.)
• Now the colours applied to map would be visible. And the colours of the map and legend of
colours and values can be seen in layers window
• We can change the default colour palette selected by QGIS.
• To change colors go to style option by clicking layers menu then properties and then style
tab.

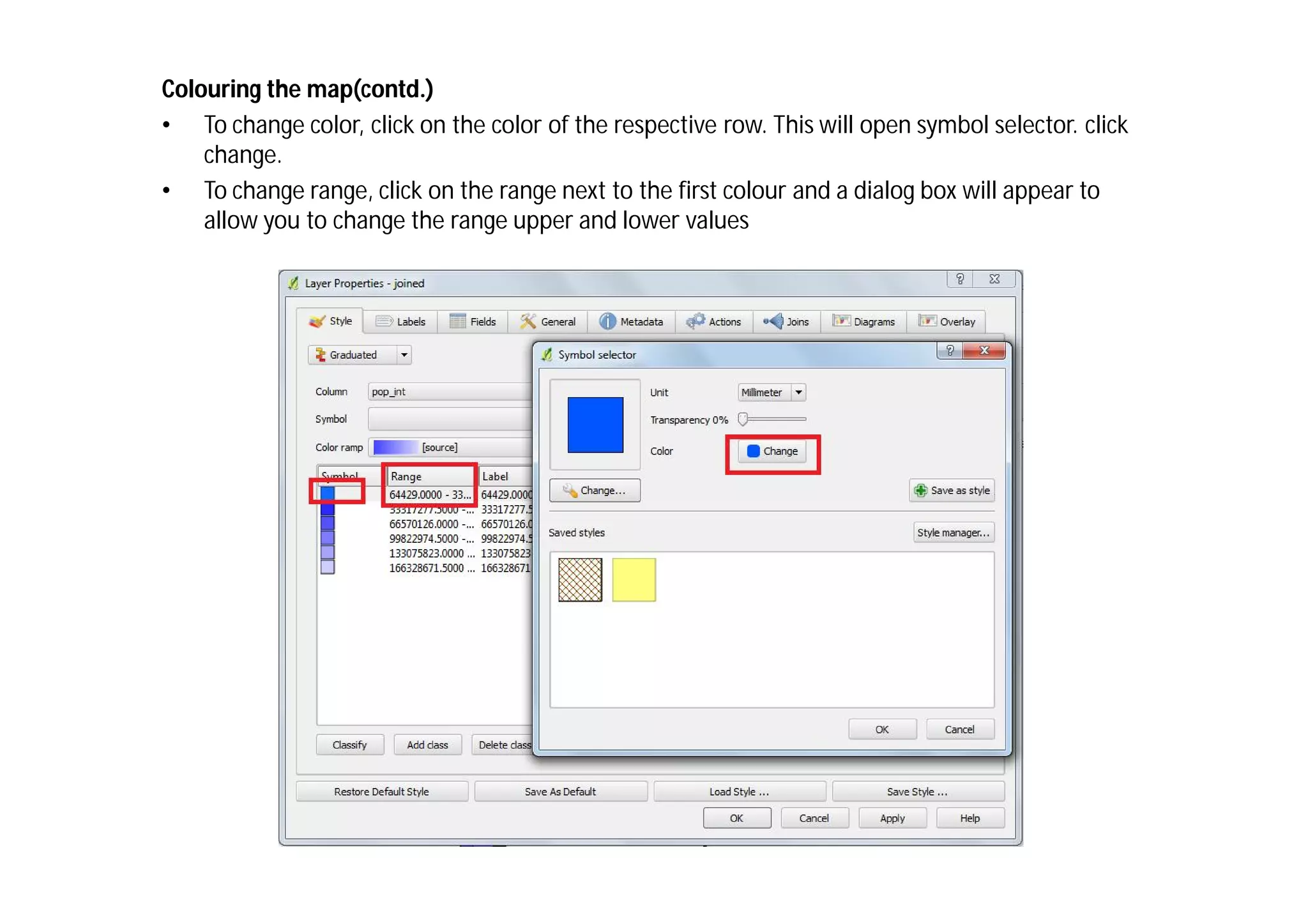

34. Colouring the map(contd.)
• To change color, click on the color of the respective row. This will open symbol selector. click
change.
• To change range, click on the range next to the first colour and a dialog box will appear to
allow you to change the range upper and lower values

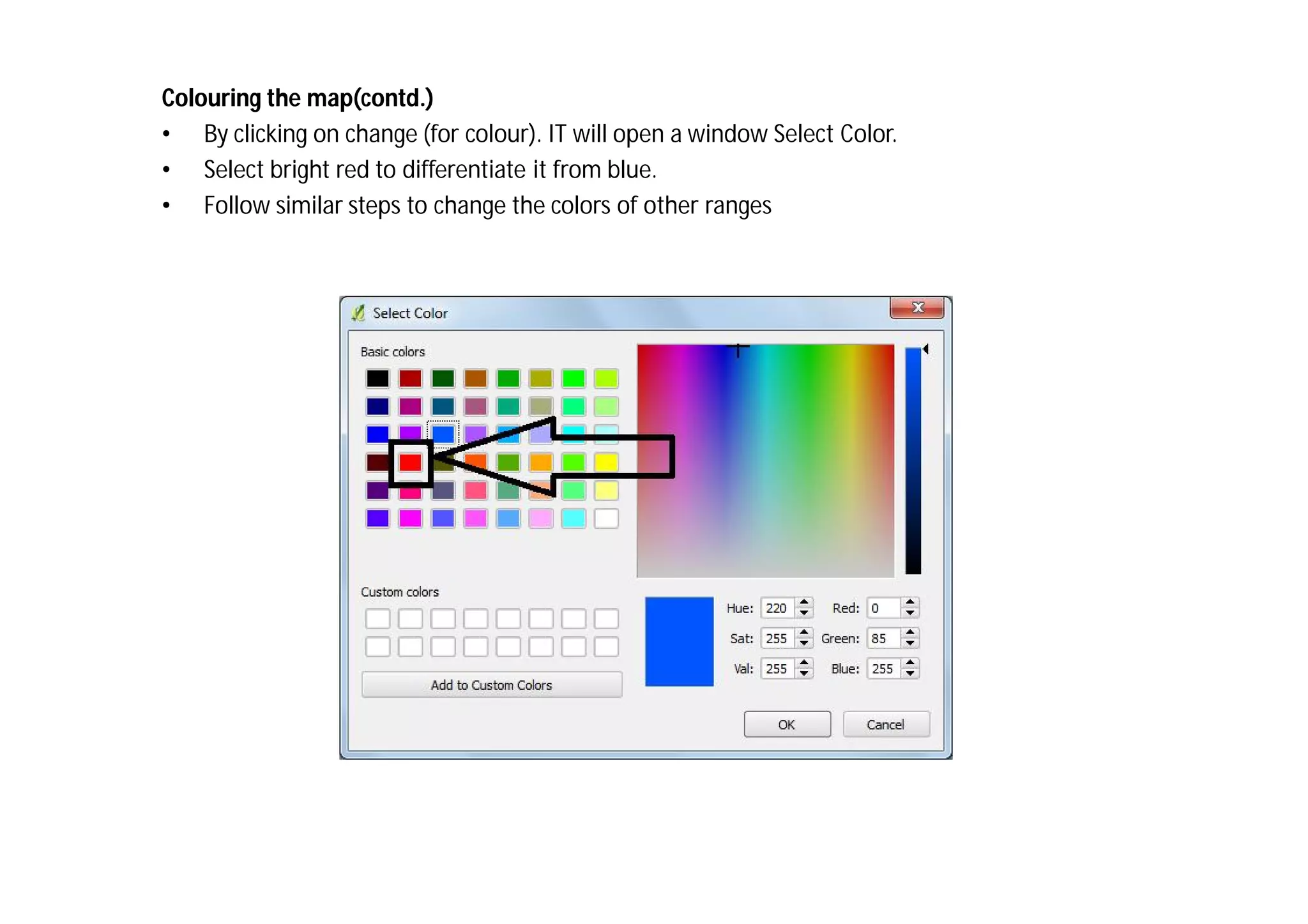

35. Colouring the map(contd.)
• By clicking on change (for colour). IT will open a window Select Color.
• Select bright red to differentiate it from blue.
• Follow similar steps to change the colors of other ranges

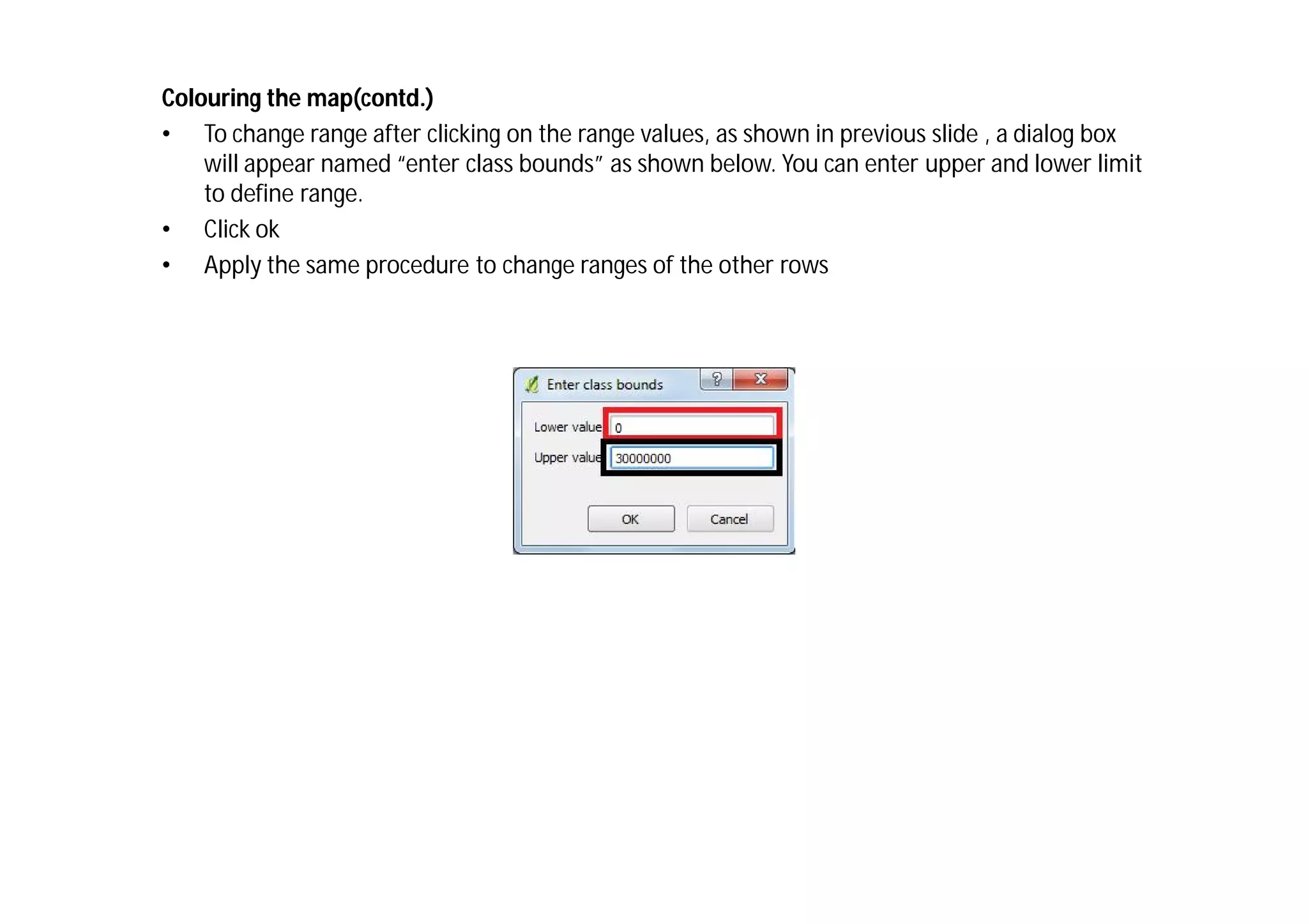

36. Colouring the map(contd.)
• To change range after clicking on the range values, as shown in previous slide , a dialog box
will appear named “enter class bounds” as shown below. You can enter upper and lower limit
to define range.
• Click ok
• Apply the same procedure to change ranges of the other rows

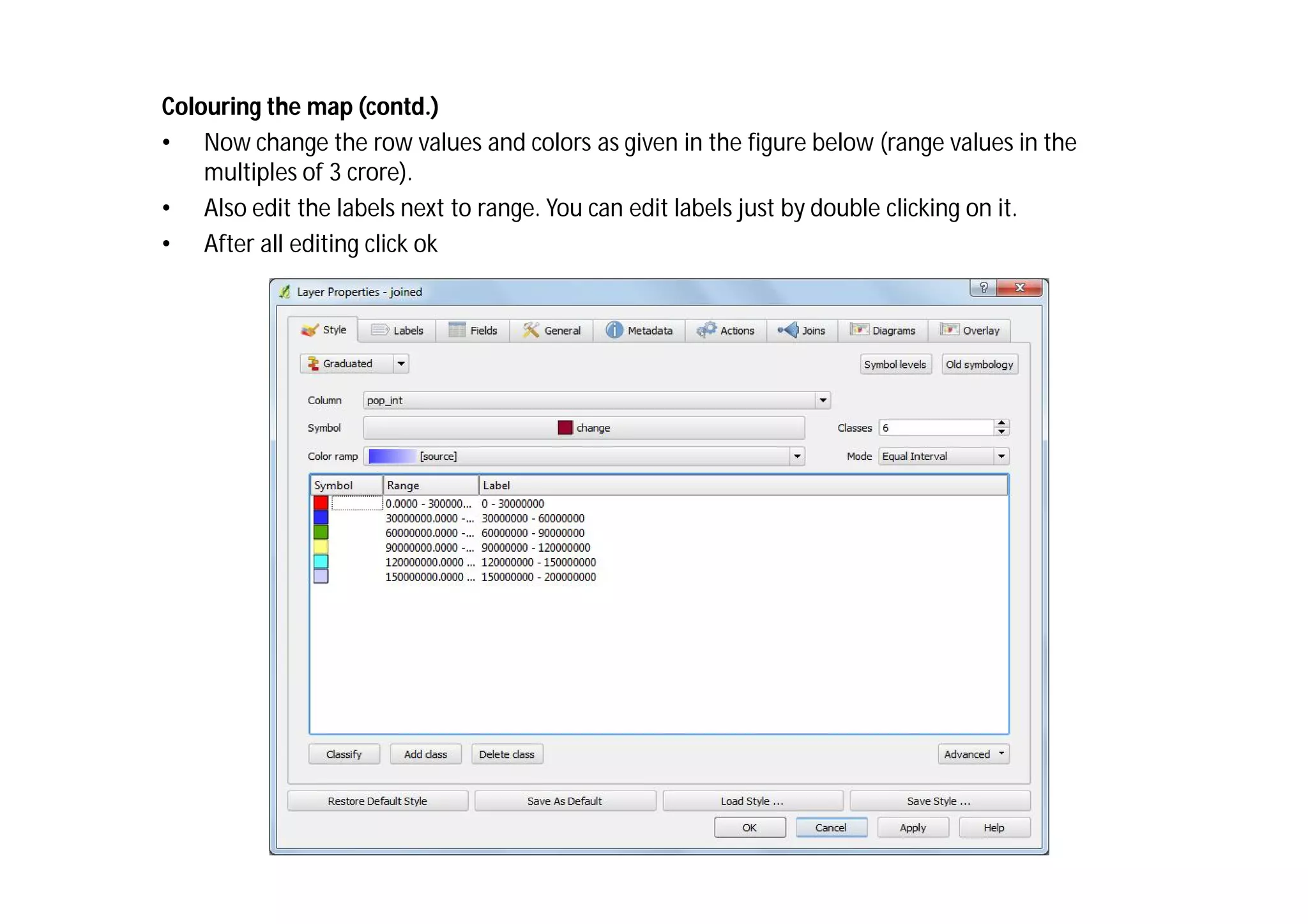

37. Colouring the map (contd.)
• Now change the row values and colors as given in the figure below (range values in the
multiples of 3 crore).
• Also edit the labels next to range. You can edit labels just by double clicking on it.
• After all editing click ok

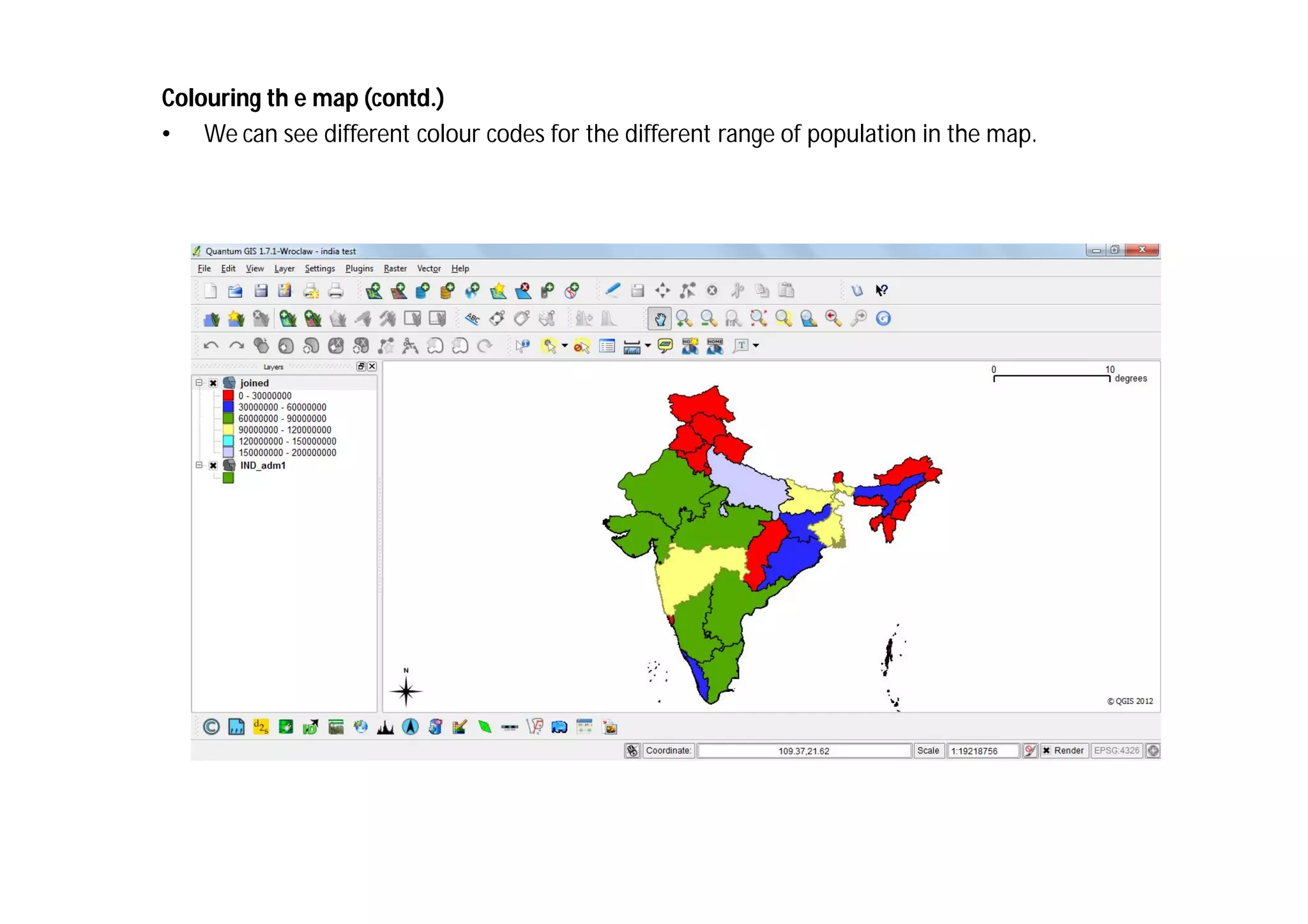

38. Colouring th e map (contd.)
• We can see different colour codes for the different range of population in the map.

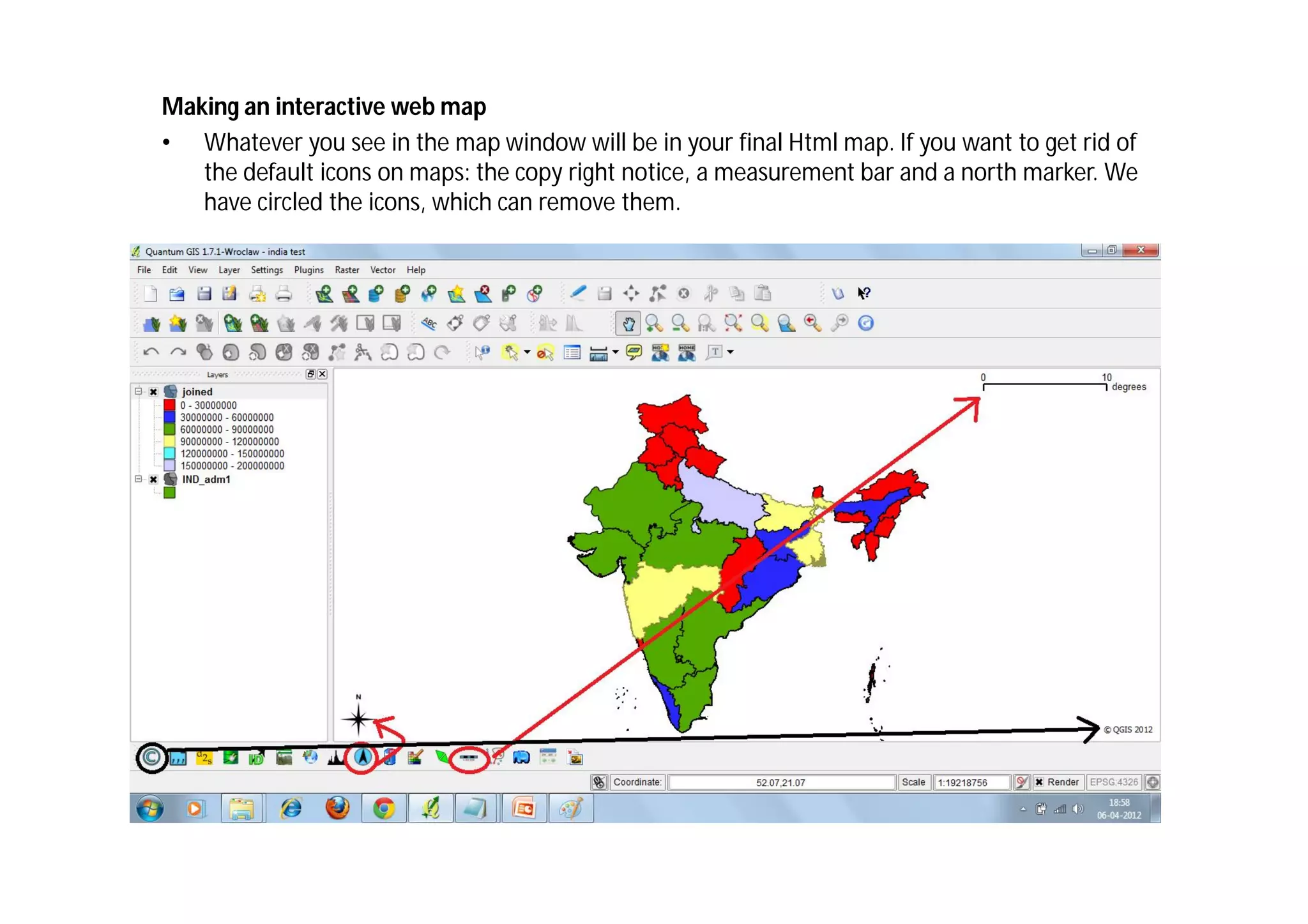

39. Making an interactive web map
• Whatever you see in the map window will be in your final Html map. If you want to get rid of
the default icons on maps: the copy right notice, a measurement bar and a north marker. We
have circled the icons, which can remove them.

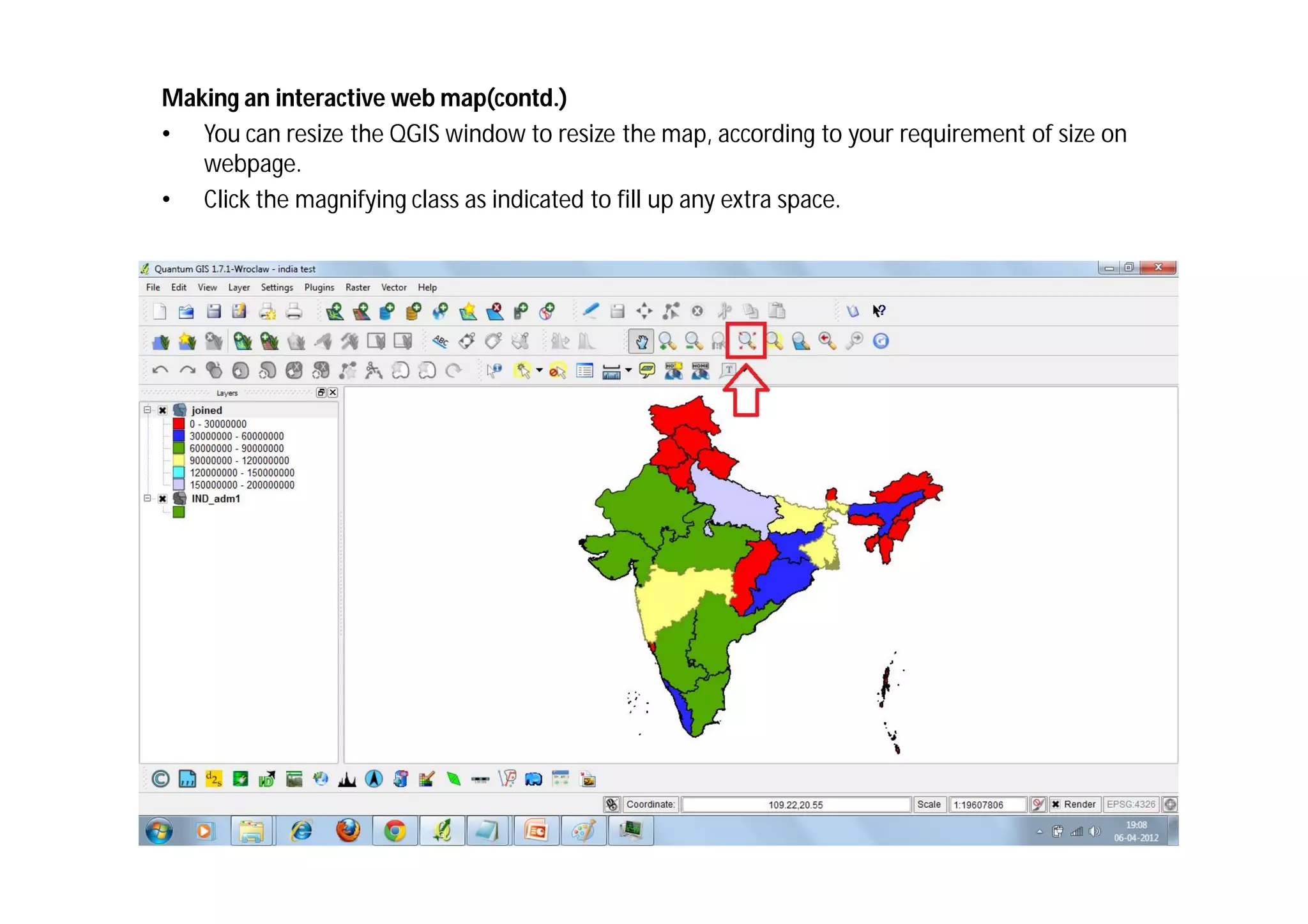

40. Making an interactive web map(contd.)
• You can resize the QGIS window to resize the map, according to your requirement of size on
webpage.
• Click the magnifying class as indicated to fill up any extra space.

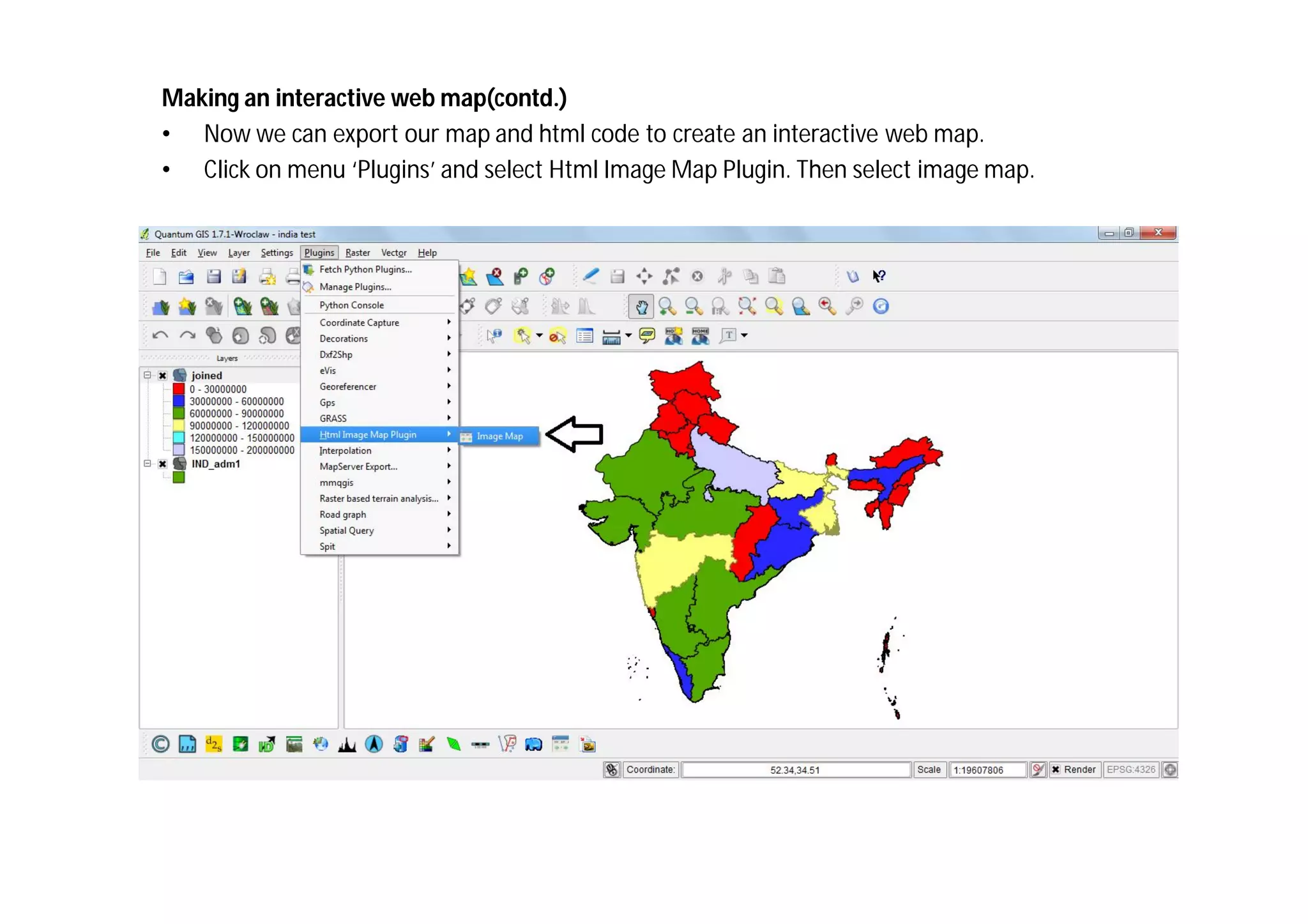

41. Making an interactive web map(contd.)
• Now we can export our map and html code to create an interactive web map.
• Click on menu ‘Plugins’ and select Html Image Map Plugin. Then select image map.

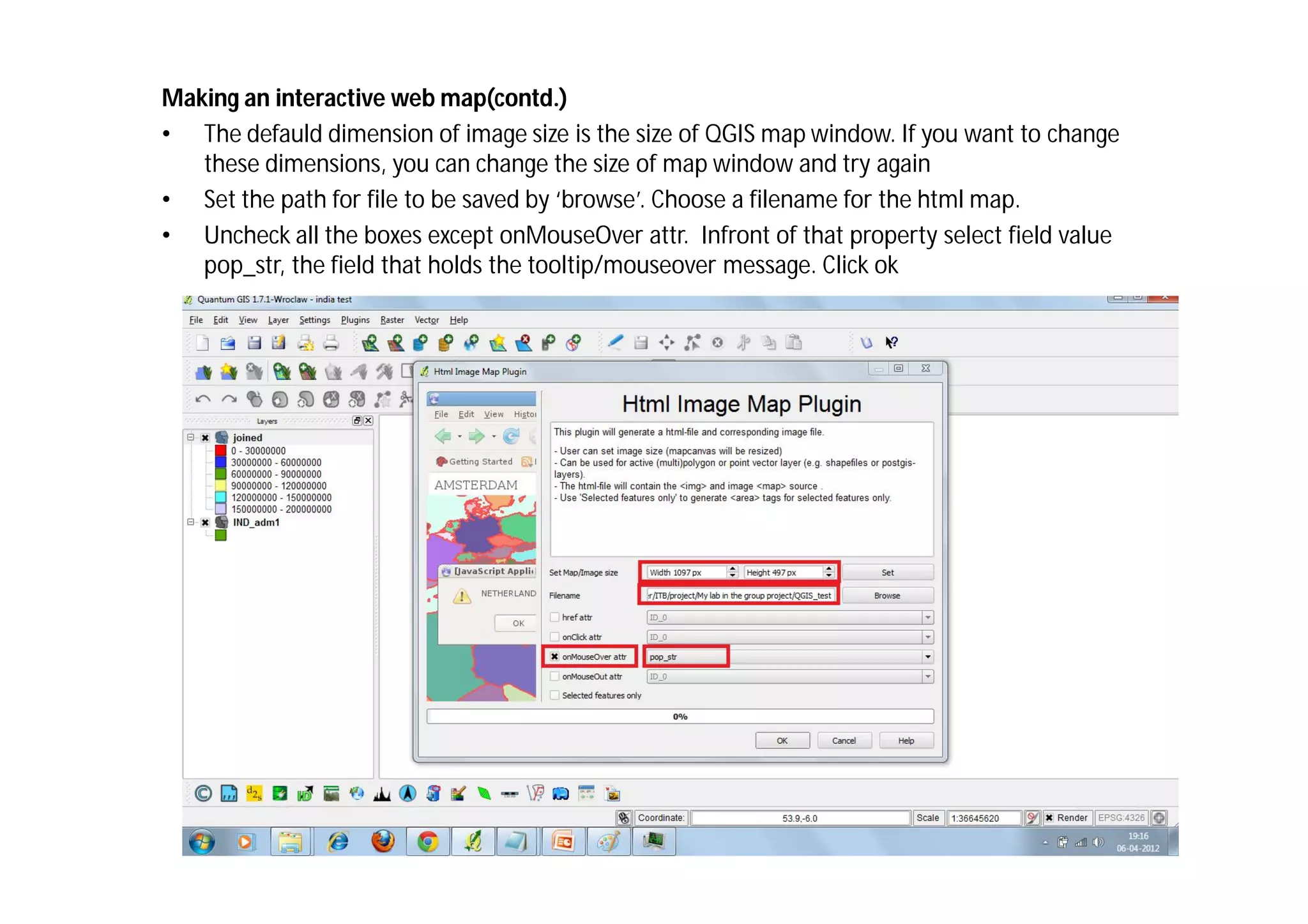

42. Making an interactive web map(contd.)
• The defauld dimension of image size is the size of QGIS map window. If you want to change
these dimensions, you can change the size of map window and try again
• Set the path for file to be saved by ‘browse’. Choose a filename for the html map.
• Uncheck all the boxes except onMouseOver attr. Infront of that property select field value
pop_str, the field that holds the tooltip/mouseover message. Click ok

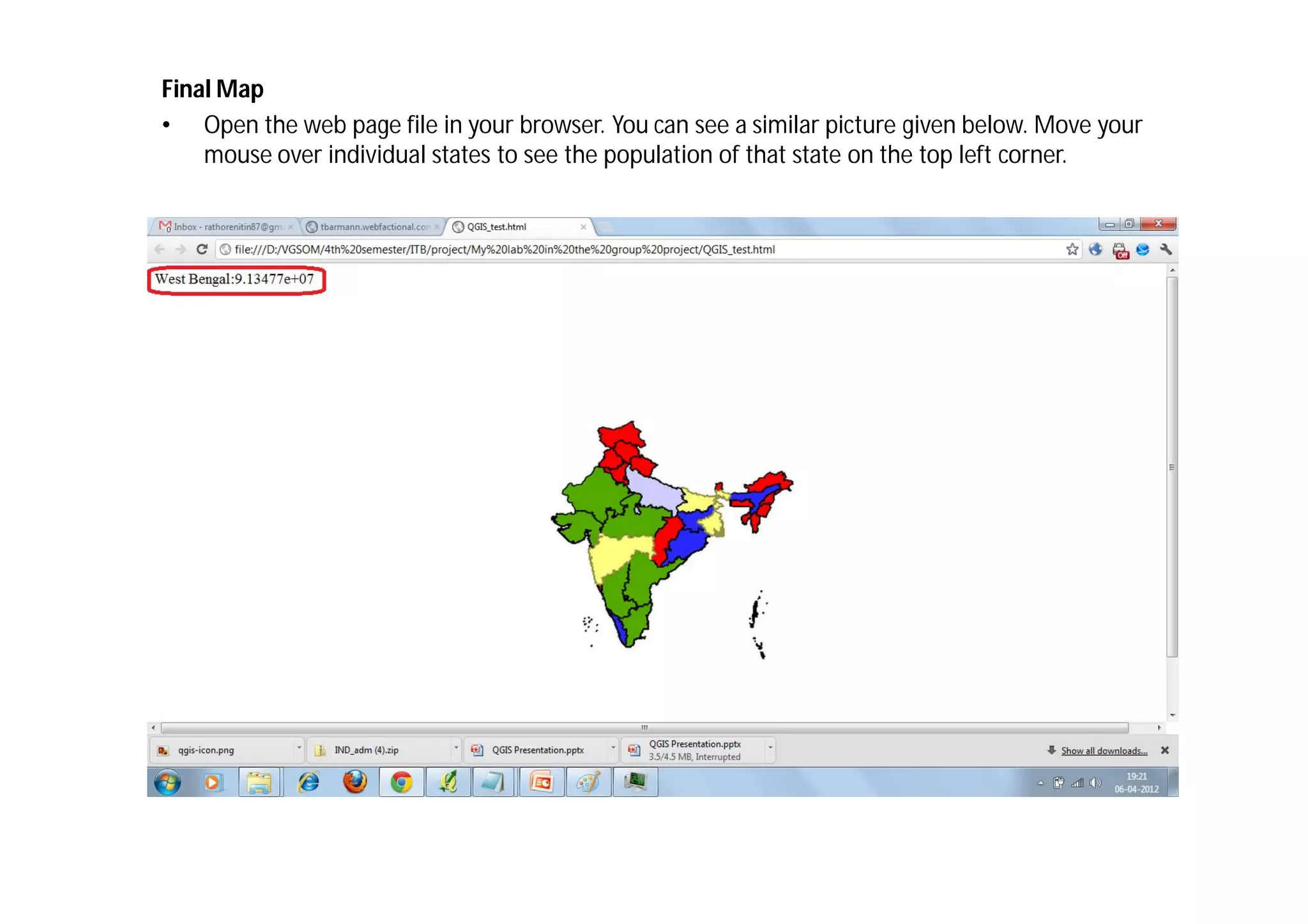

43. Final Map
• Open the web page file in your browser. You can see a similar picture given below. Move your
mouse over individual states to see the population of that state on the top left corner.

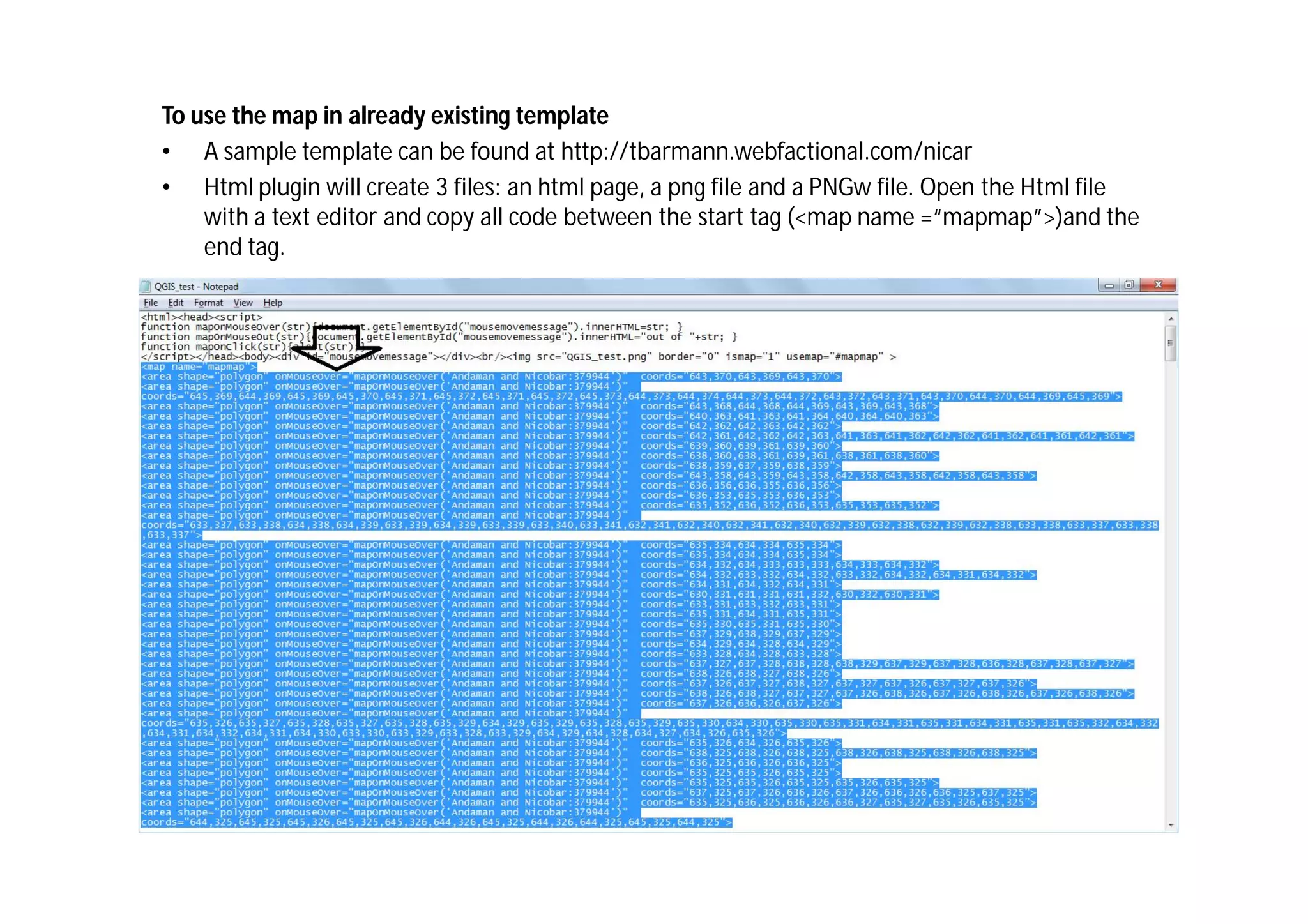

44. To use the map in already existing template
• A sample template can be found at http://tbarmann.webfactional.com/nicar
• Html plugin will create 3 files: an html page, a png file and a PNGw file. Open the Html file
with a text editor and copy all code between the start tag (<map name =“mapmap”>)and the
end tag.

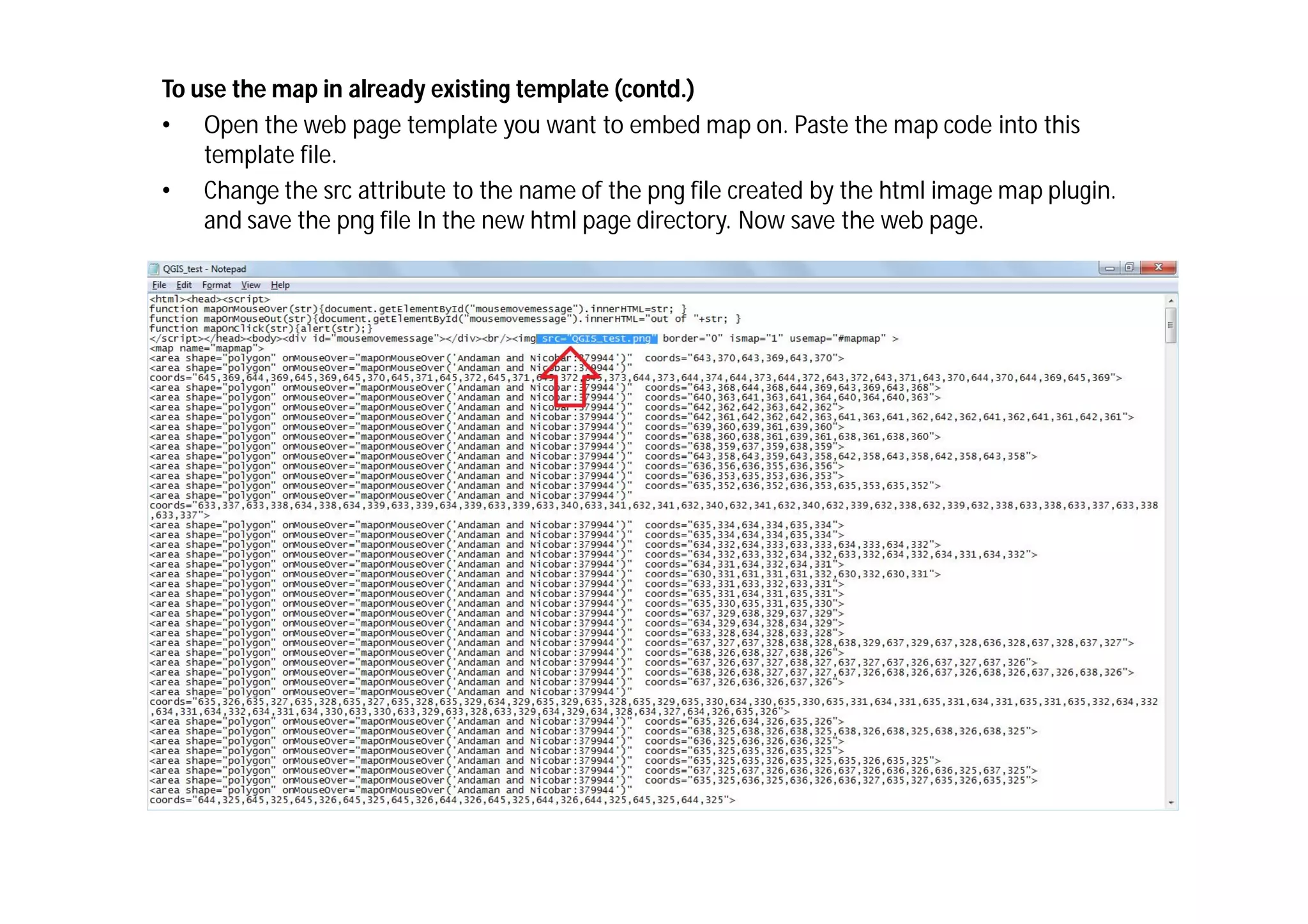

45. To use the map in already existing template (contd.)
• Open the web page template you want to embed map on. Paste the map code into this
template file.
• Change the src attribute to the name of the png file created by the html image map plugin.
and save the png file In the new html page directory. Now save the web page.

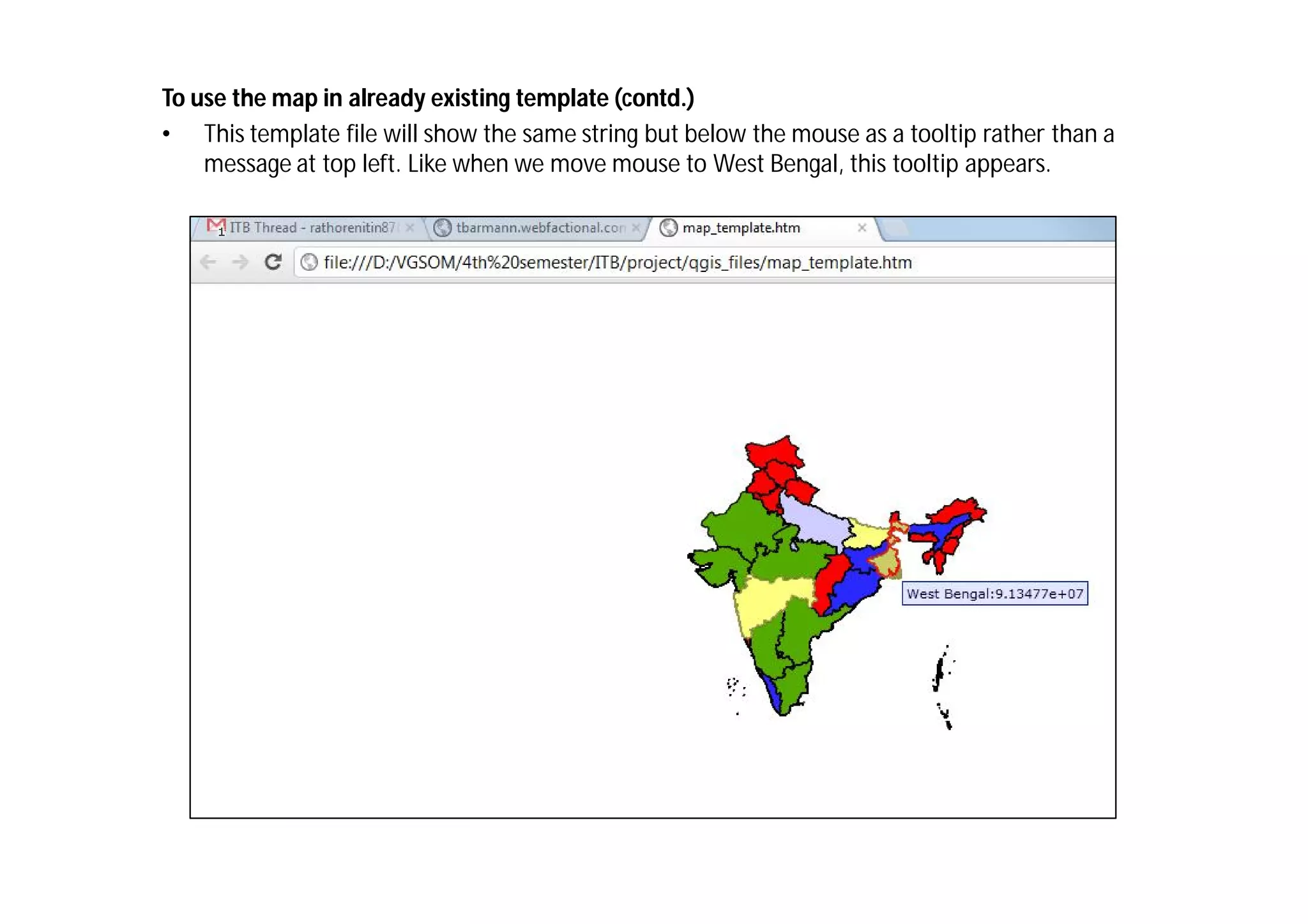

46. To use the map in already existing template (contd.)
• This template file will show the same string but below the mouse as a tooltip rather than a
message at top left. Like when we move mouse to West Bengal, this tooltip appears.
47. Thank You
Please visit our blog
http://gettingstartedwithqgis.blogspot.in/ for more such
tutorials
