1. QEMU - network
0416037 李家安

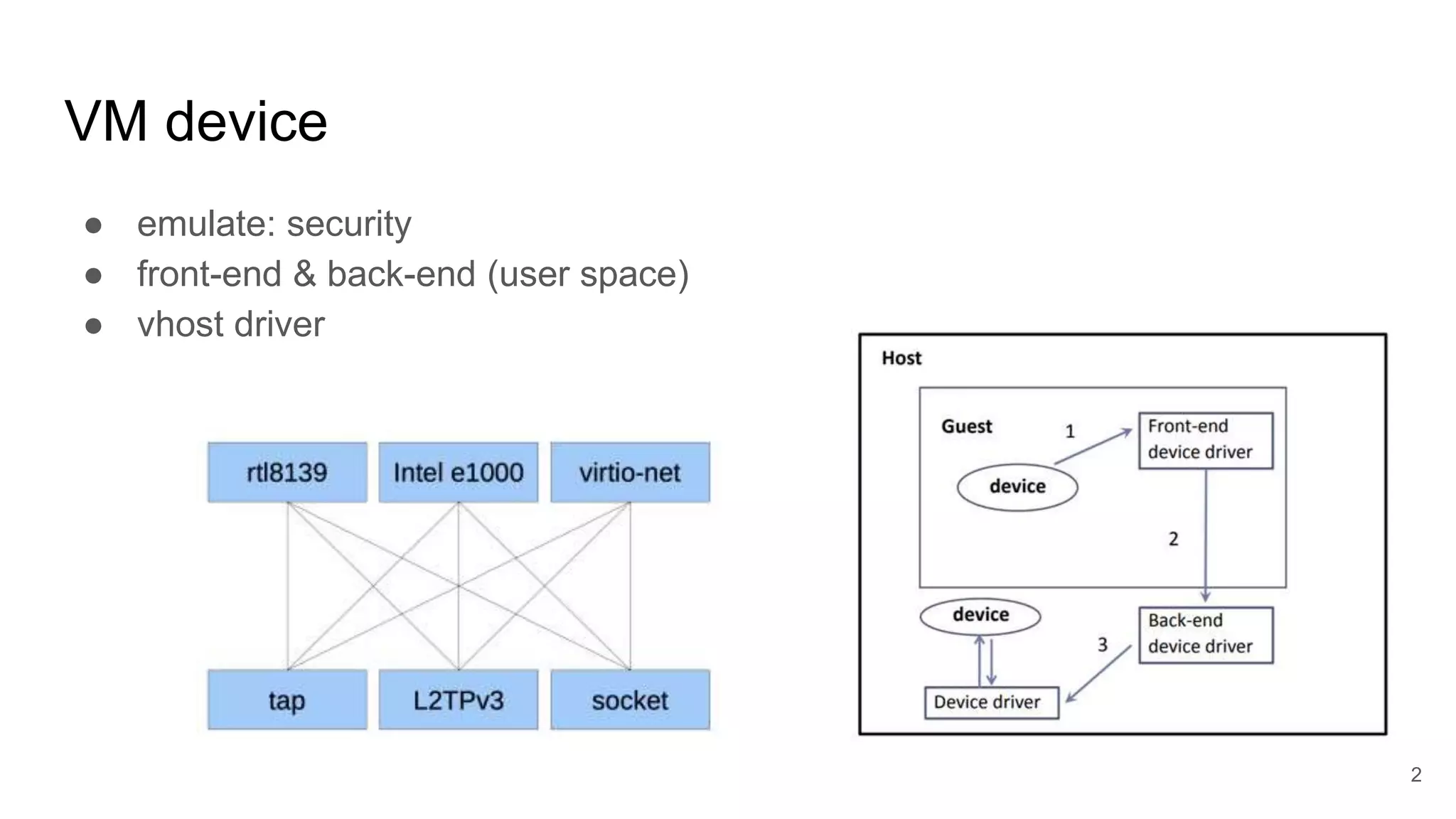

2. VM device
● emulate: security
● front-end & back-end (user space)
● vhost driver
2

3. Back End
● User
○ user mode network stack (SLiRP)
○ no ICMP
● TAP: host TAP network
○ tap (vlan mode)
○ bridge
○ socket
○ ...
● VED
● ...
3

4. Front End
(Virtual network device)
● e1000
● e1000e
● virtio-net-pci
● vmxnet3
● i82550
● ...
4

5. -net
-net nic,model=e1000 -net user -net nic,model=virtio -net tap
● nic: front end
● user: back end
● 802.1q ???
5

6. -netdev
-netdev user,id=n1 -device e1000,netdev=n1 -netdev tap,id=n2 -device virtio-net,netdev=n2
● backend onely, bind to device
6

7. -nic
-nic tap,model=e1000
● easier & shorter
● on-board NIC
● no hub between NIC and backend
7

8. Packet Flow
● tx, rx queue
● eventfd
● ioctl -> /dev/vhost-net device
● register eventfd for the guest
● irqfd
● passing interrupt
8
