1. Pyramid Deployment
and Maintenance
Carlos de la Guardia
Plone Conference 2011

2. So, your application is ready and looking good

3. Time to deploy it and see how it holds up

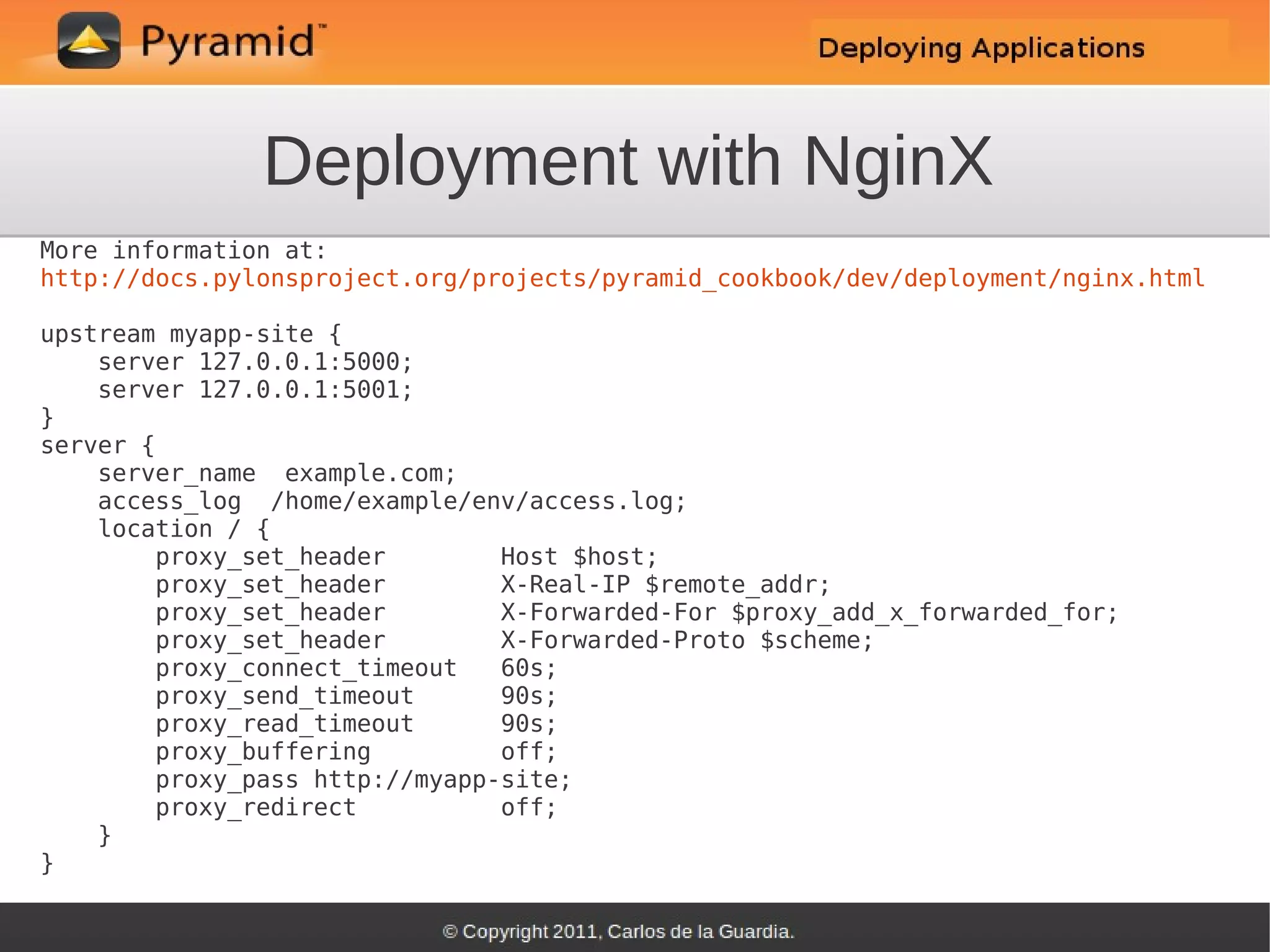

4. Deployment with NginX
More information at:
http://docs.pylonsproject.org/projects/pyramid_cookbook/dev/deployment/nginx.html
upstream myapp-site {
server 127.0.0.1:5000;
server 127.0.0.1:5001;
}
server {
server_name example.com;
access_log /home/example/env/access.log;
location / {
proxy_set_header Host $host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_connect_timeout 60s;
proxy_send_timeout 90s;
proxy_read_timeout 90s;
proxy_buffering off;
proxy_pass http://myapp-site;
proxy_redirect off;
}
}

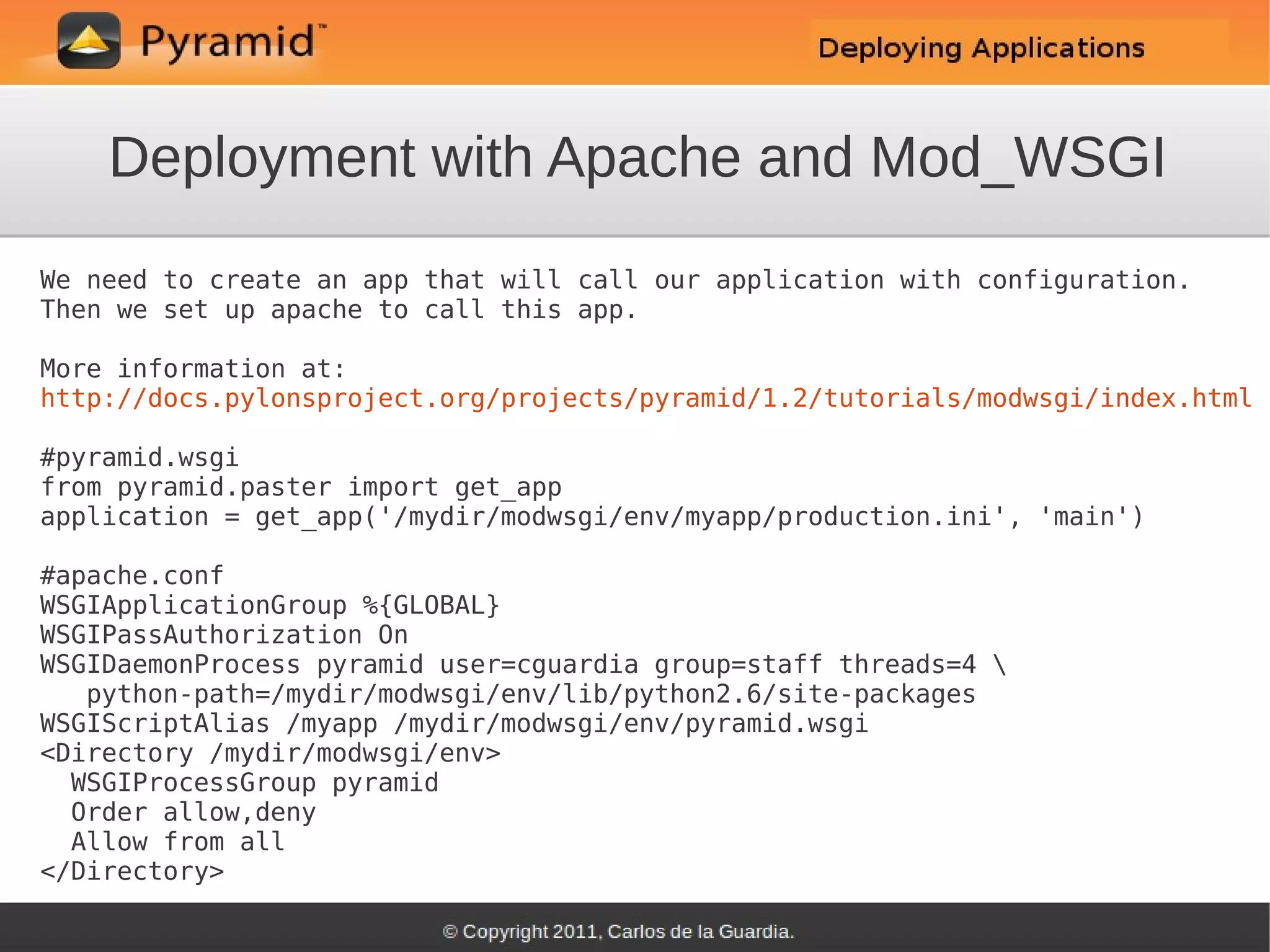

5. Deployment with Apache and Mod_WSGI
We need to create an app that will call our application with configuration.
Then we set up apache to call this app.
More information at:
http://docs.pylonsproject.org/projects/pyramid/1.2/tutorials/modwsgi/index.html
#pyramid.wsgi
from pyramid.paster import get_app
application = get_app('/mydir/modwsgi/env/myapp/production.ini', 'main')
#apache.conf
WSGIApplicationGroup %{GLOBAL}
WSGIPassAuthorization On
WSGIDaemonProcess pyramid user=cguardia group=staff threads=4
python-path=/mydir/modwsgi/env/lib/python2.6/site-packages
WSGIScriptAlias /myapp /mydir/modwsgi/env/pyramid.wsgi
<Directory /mydir/modwsgi/env>
WSGIProcessGroup pyramid
Order allow,deny
Allow from all
</Directory>

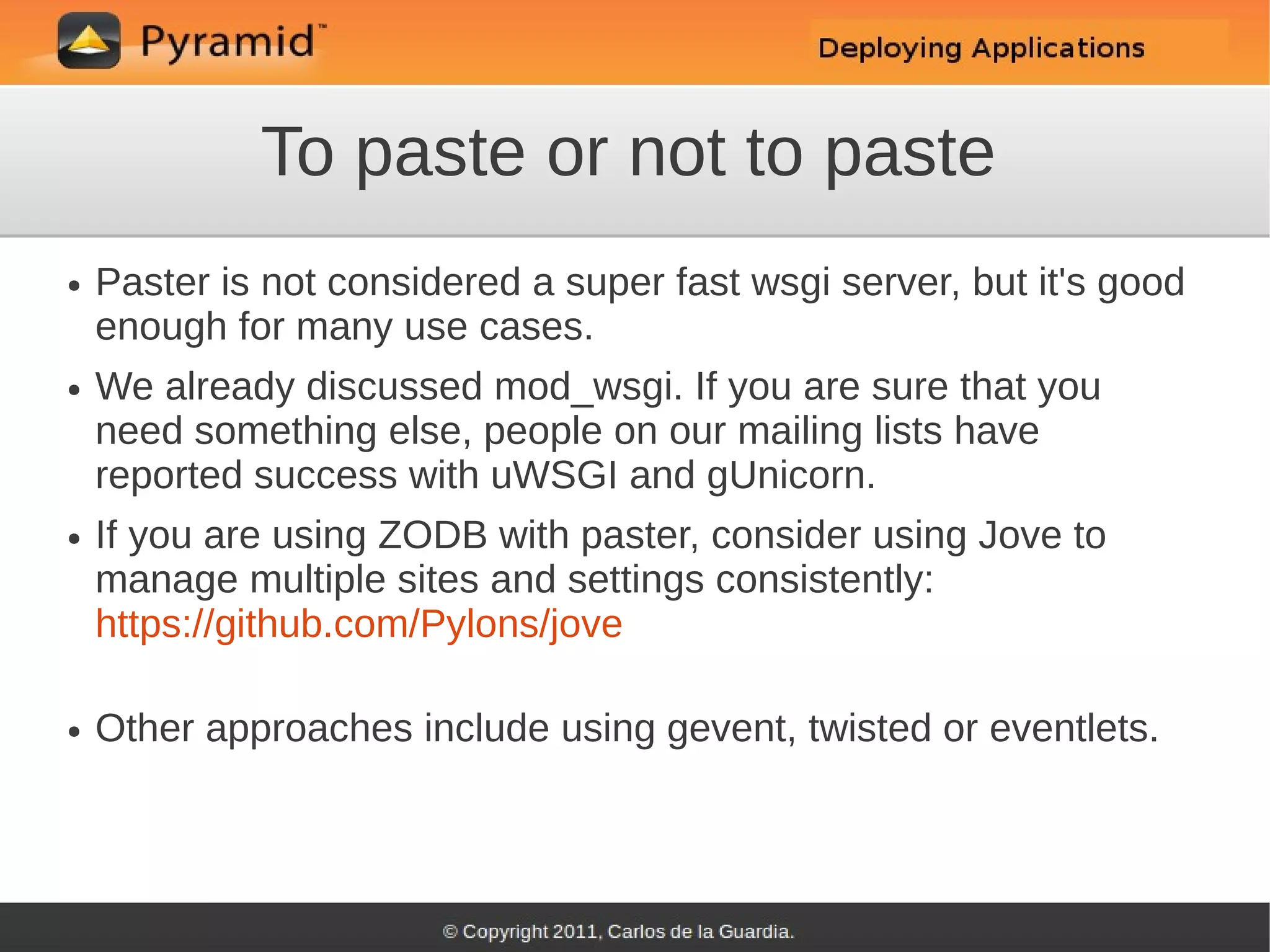

6. To paste or not to paste
● Paster is not considered a super fast wsgi server, but it's good
enough for many use cases.
● We already discussed mod_wsgi. If you are sure that you
need something else, people on our mailing lists have
reported success with uWSGI and gUnicorn.
● If you are using ZODB with paster, consider using Jove to
manage multiple sites and settings consistently:
https://github.com/Pylons/jove
● Other approaches include using gevent, twisted or eventlets.

7. Putting all your eggs in the same basket

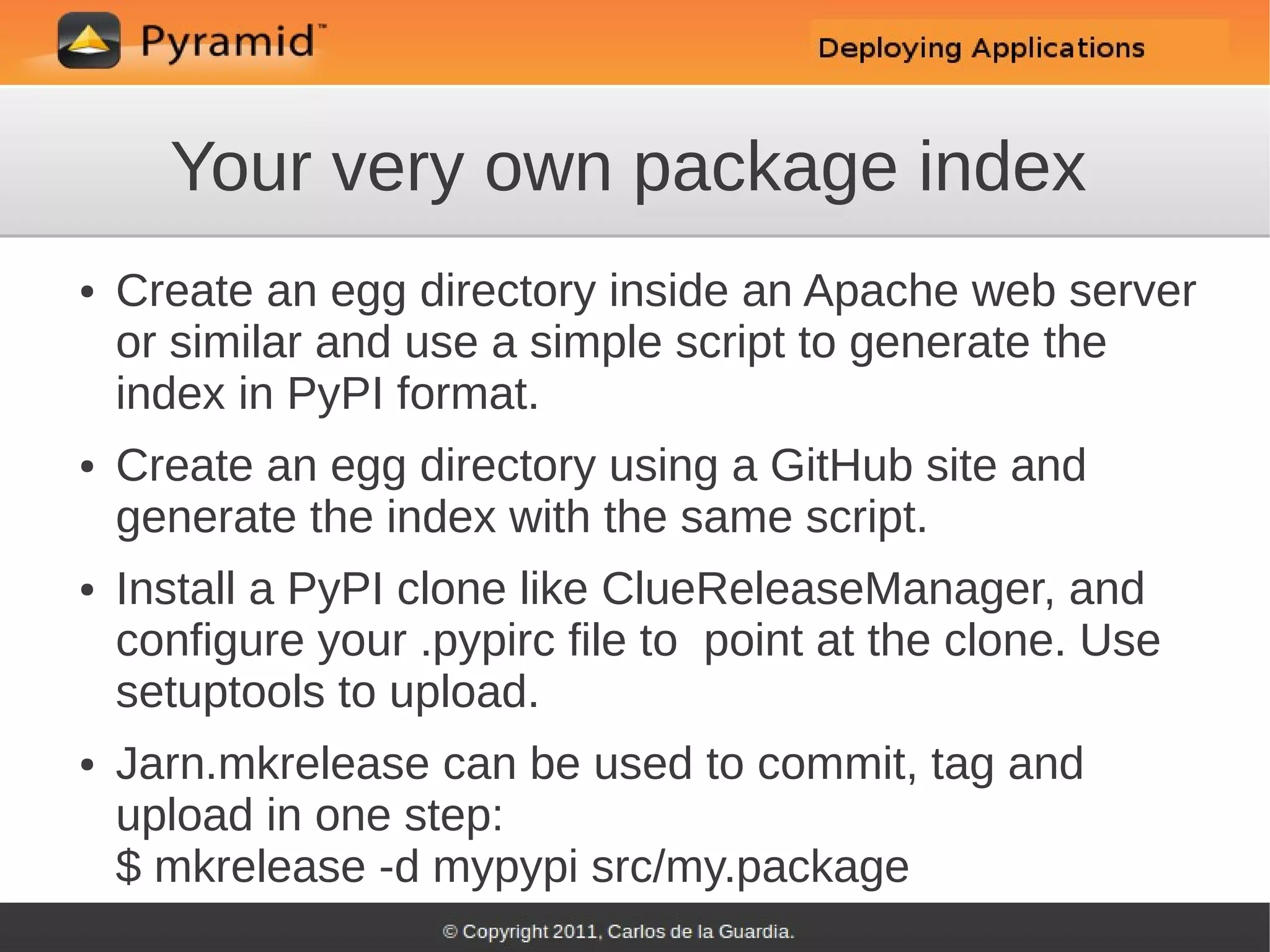

8. Your very own package index
● Create an egg directory inside an Apache web server
or similar and use a simple script to generate the
index in PyPI format.
● Create an egg directory using a GitHub site and
generate the index with the same script.
● Install a PyPI clone like ClueReleaseManager, and
configure your .pypirc file to point at the clone. Use
setuptools to upload.
● Jarn.mkrelease can be used to commit, tag and
upload in one step:
$ mkrelease -d mypypi src/my.package

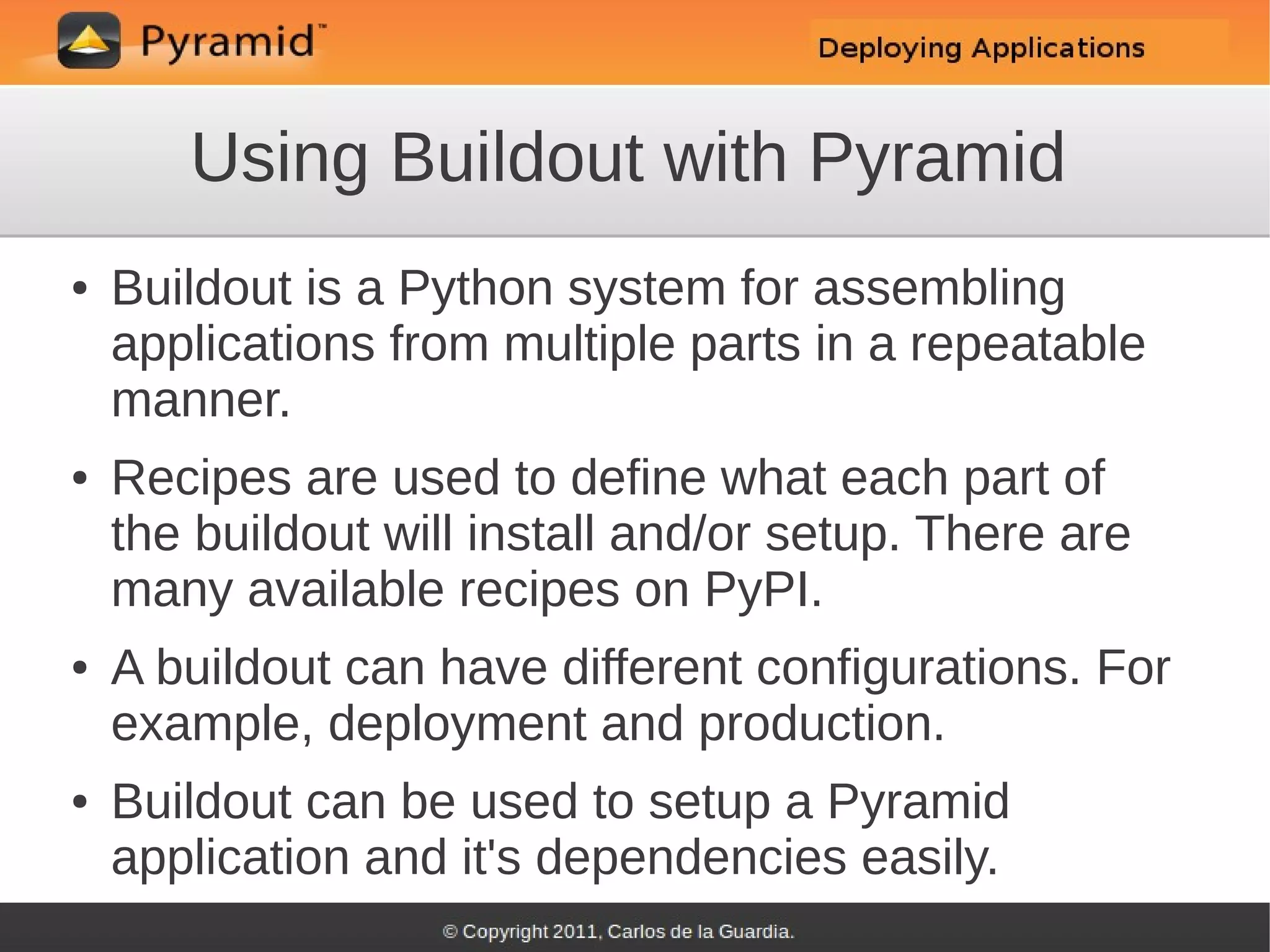

9. Using Buildout with Pyramid
● Buildout is a Python system for assembling
applications from multiple parts in a repeatable
manner.
● Recipes are used to define what each part of
the buildout will install and/or setup. There are
many available recipes on PyPI.
● A buildout can have different configurations. For
example, deployment and production.
● Buildout can be used to setup a Pyramid
application and it's dependencies easily.

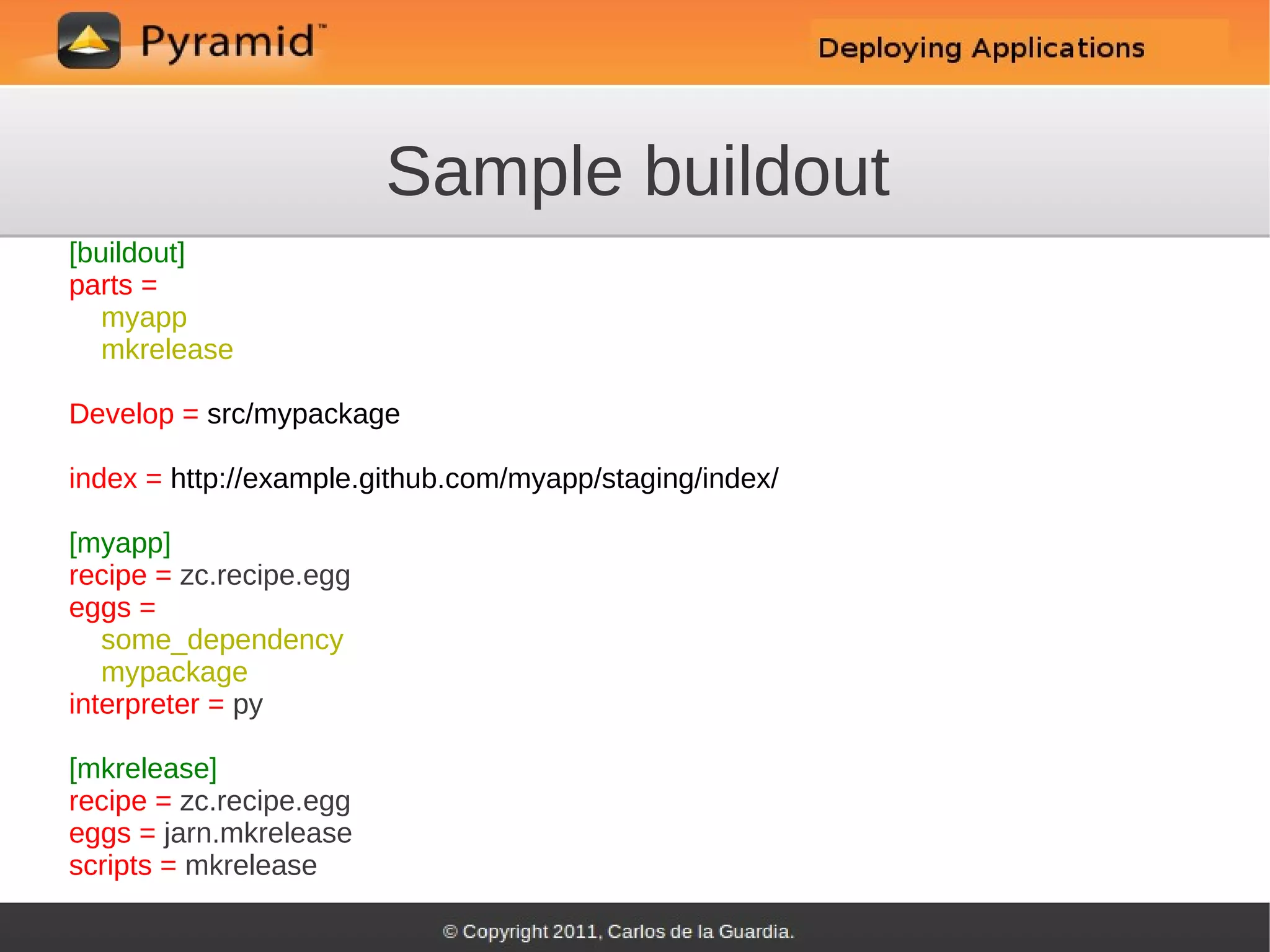

10. Sample buildout
[buildout]
parts =
myapp
mkrelease
Develop = src/mypackage
index = http://example.github.com/myapp/staging/index/
[myapp]
recipe = zc.recipe.egg
eggs =
some_dependency
mypackage
interpreter = py
[mkrelease]
recipe = zc.recipe.egg
eggs = jarn.mkrelease
scripts = mkrelease

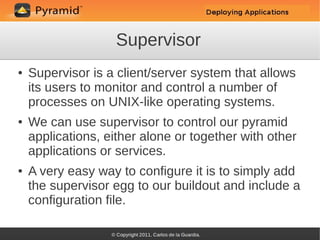

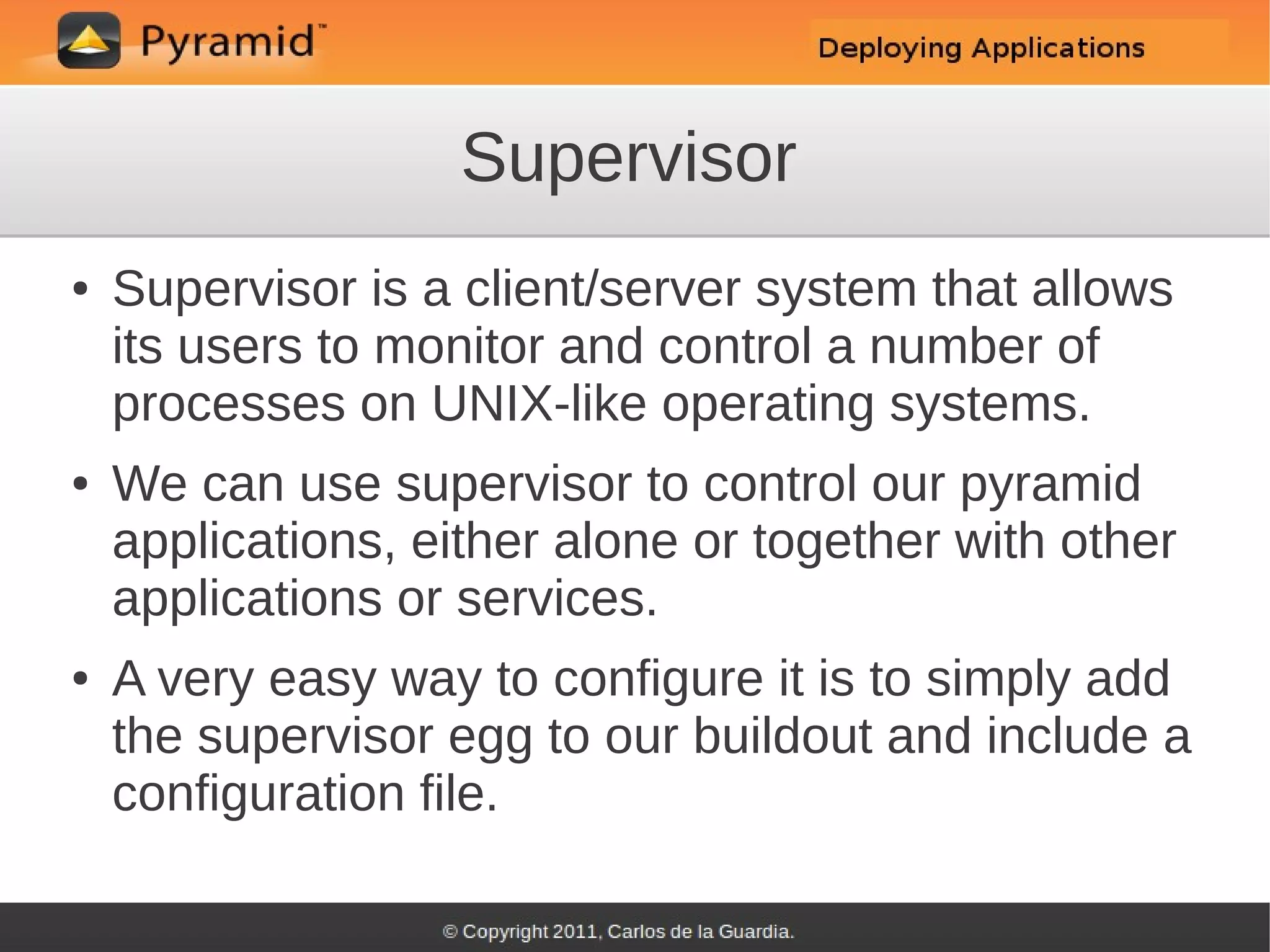

11. Supervisor
● Supervisor is a client/server system that allows
its users to monitor and control a number of
processes on UNIX-like operating systems.
● We can use supervisor to control our pyramid
applications, either alone or together with other
applications or services.
● A very easy way to configure it is to simply add
the supervisor egg to our buildout and include a
configuration file.

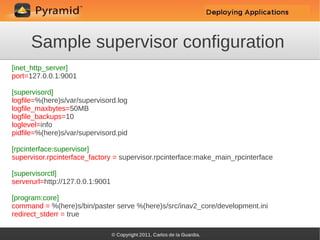

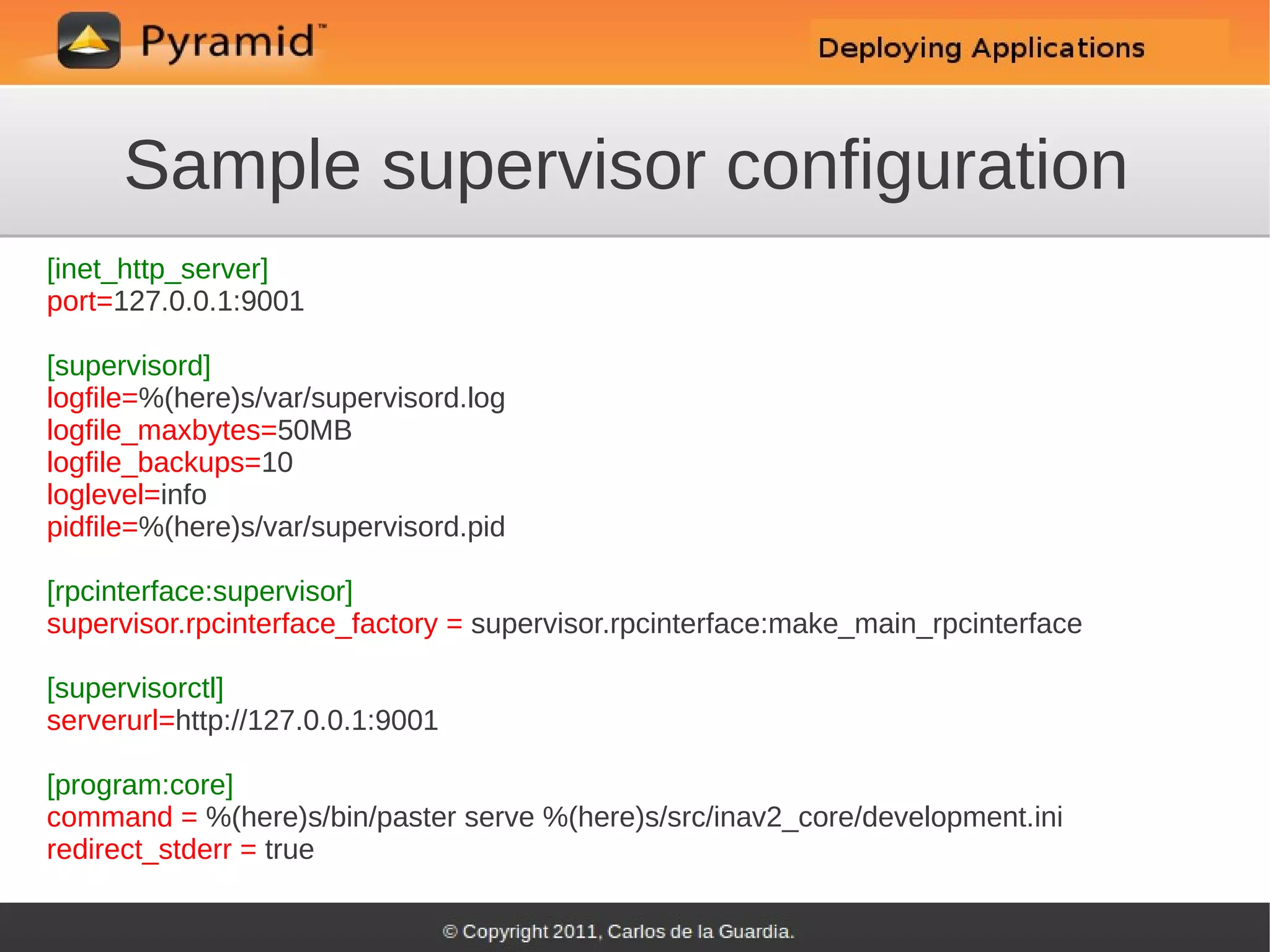

12. Sample supervisor configuration
[inet_http_server]
port=127.0.0.1:9001
[supervisord]
logfile=%(here)s/var/supervisord.log
logfile_maxbytes=50MB
logfile_backups=10
loglevel=info
pidfile=%(here)s/var/supervisord.pid
[rpcinterface:supervisor]
supervisor.rpcinterface_factory = supervisor.rpcinterface:make_main_rpcinterface
[supervisorctl]
serverurl=http://127.0.0.1:9001
[program:core]
command = %(here)s/bin/paster serve %(here)s/src/inav2_core/development.ini
redirect_stderr = true

13. Useful maintenance tools

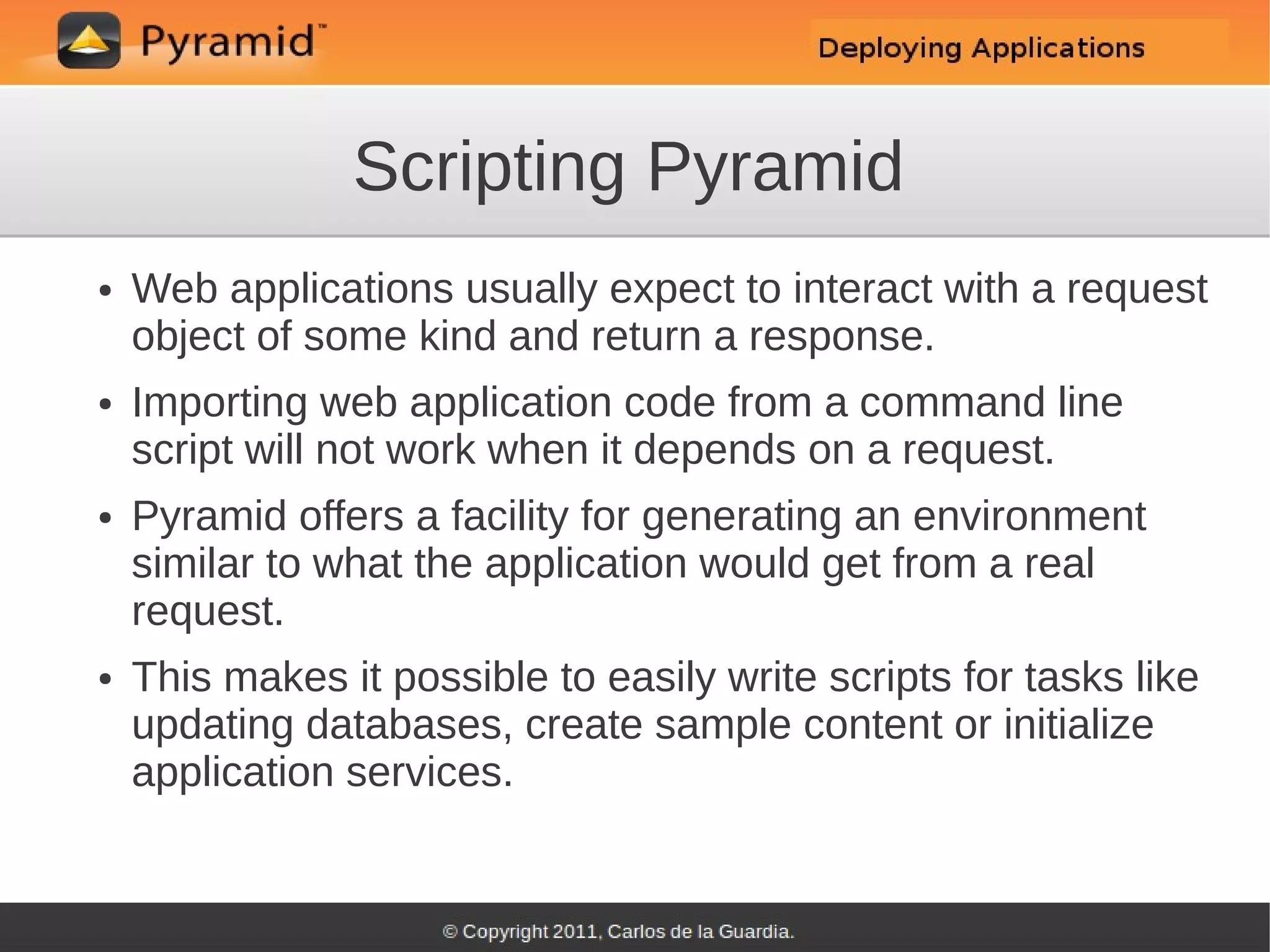

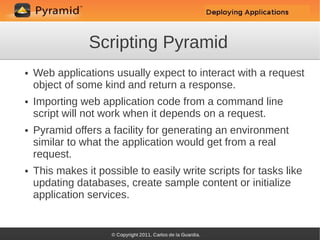

14. Scripting Pyramid
● Web applications usually expect to interact with a request
object of some kind and return a response.
● Importing web application code from a command line
script will not work when it depends on a request.
● Pyramid offers a facility for generating an environment
similar to what the application would get from a real
request.
● This makes it possible to easily write scripts for tasks like
updating databases, create sample content or initialize
application services.

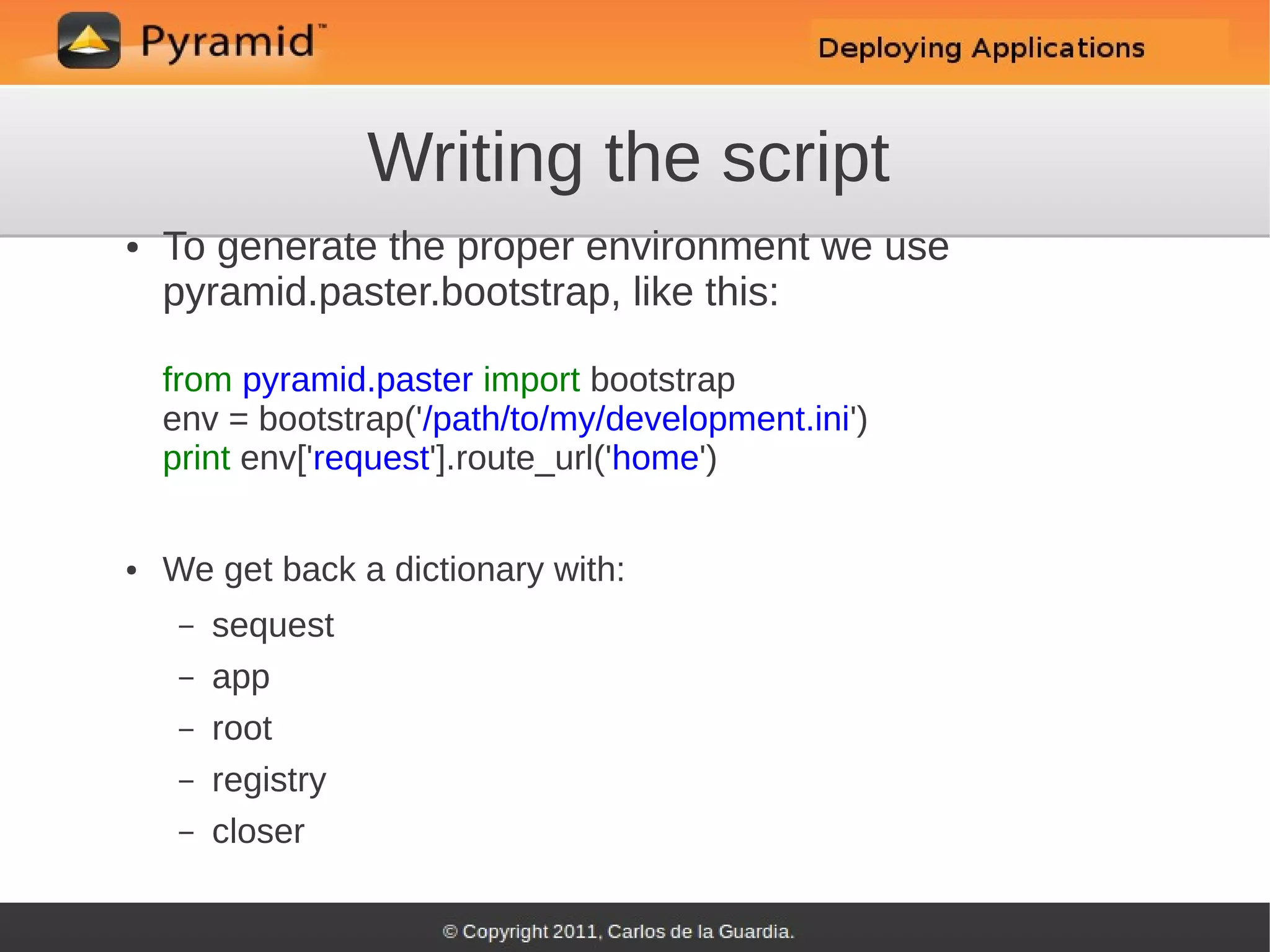

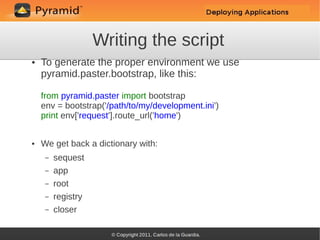

15. Writing the script
● To generate the proper environment we use
pyramid.paster.bootstrap, like this:
from pyramid.paster import bootstrap
env = bootstrap('/path/to/my/development.ini')
print env['request'].route_url('home')
● We get back a dictionary with:
– sequest
– app
– root
– registry
– closer

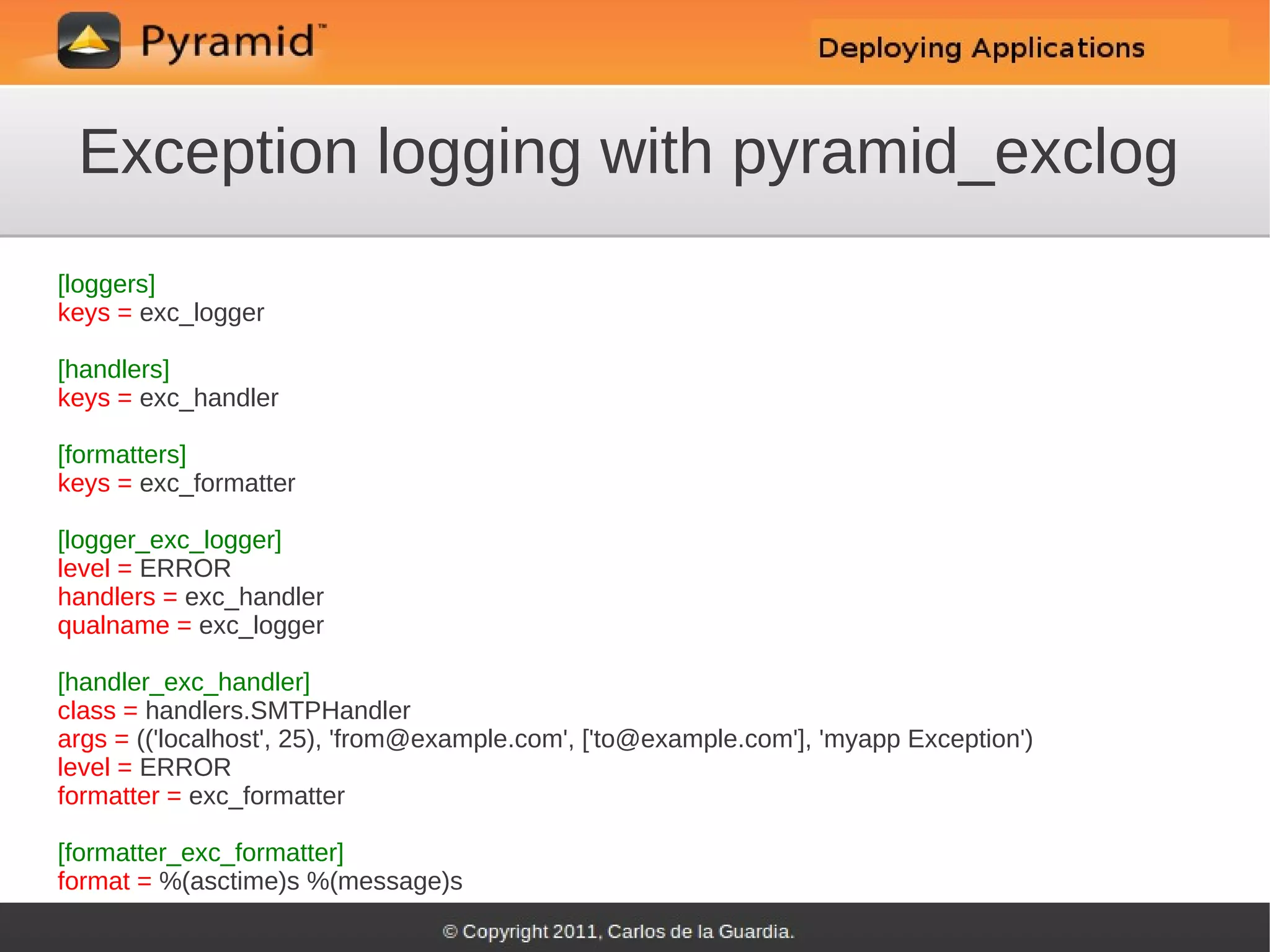

16. Exception logging with pyramid_exclog
[loggers]
keys = exc_logger
[handlers]
keys = exc_handler
[formatters]
keys = exc_formatter
[logger_exc_logger]
level = ERROR
handlers = exc_handler
qualname = exc_logger
[handler_exc_handler]
class = handlers.SMTPHandler
args = (('localhost', 25), 'from@example.com', ['to@example.com'], 'myapp Exception')
level = ERROR
formatter = exc_formatter
[formatter_exc_formatter]
format = %(asctime)s %(message)s

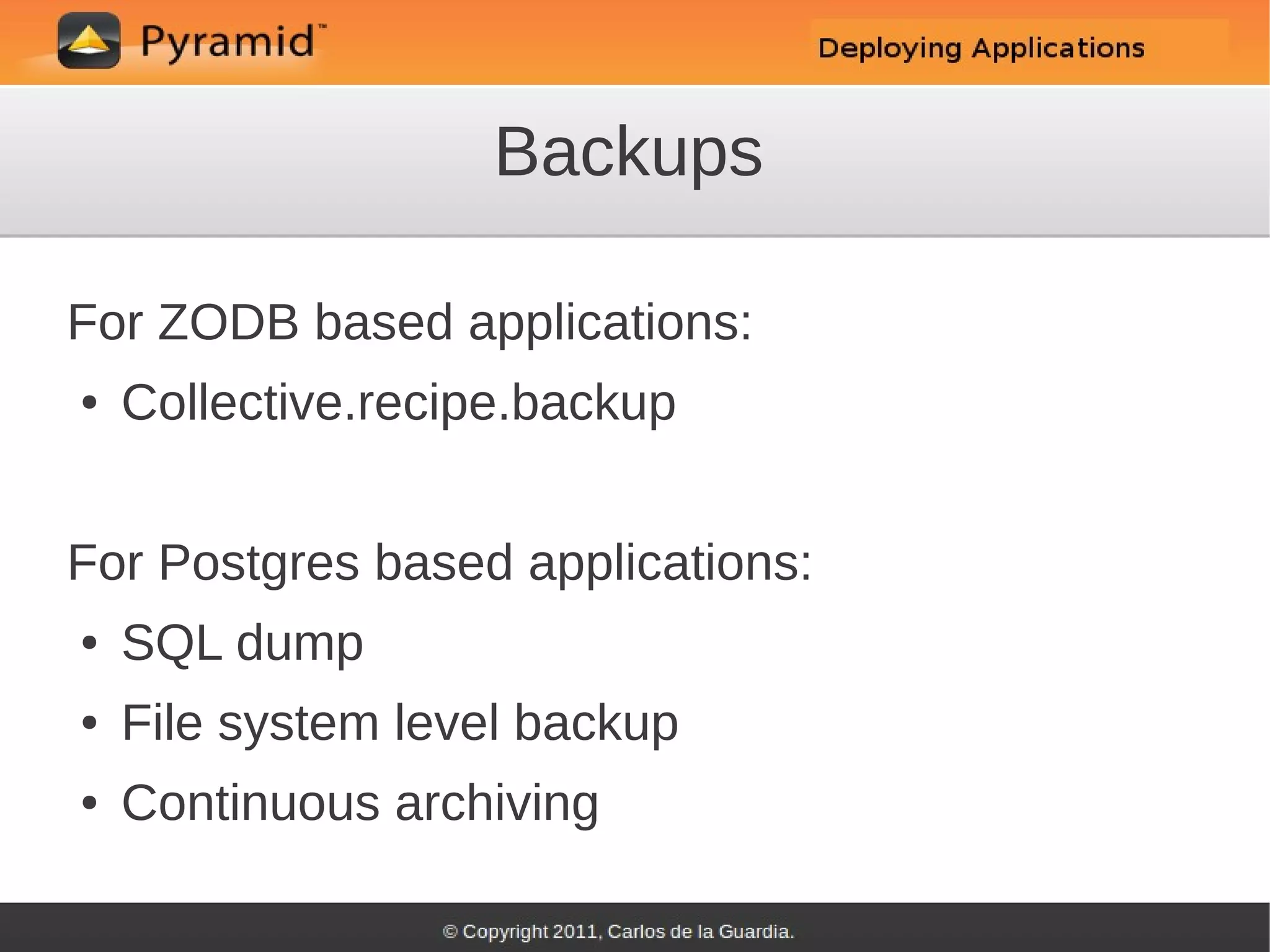

17. Backups
For ZODB based applications:
● Collective.recipe.backup
For Postgres based applications:
● SQL dump
● File system level backup
● Continuous archiving

18. Do not forget about staging

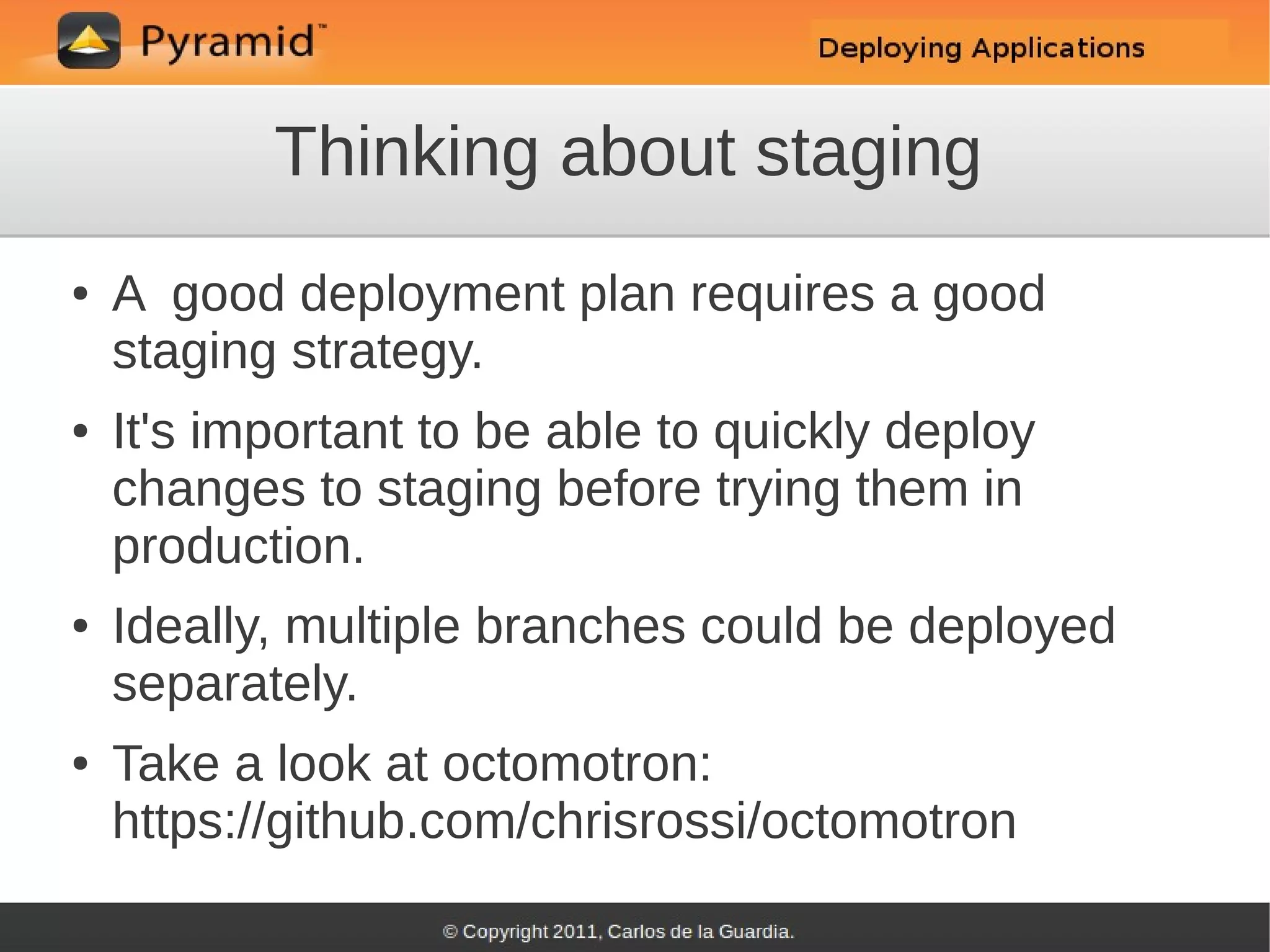

19. Thinking about staging
● A good deployment plan requires a good
staging strategy.
● It's important to be able to quickly deploy
changes to staging before trying them in
production.
● Ideally, multiple branches could be deployed
separately.
● Take a look at octomotron:
https://github.com/chrisrossi/octomotron

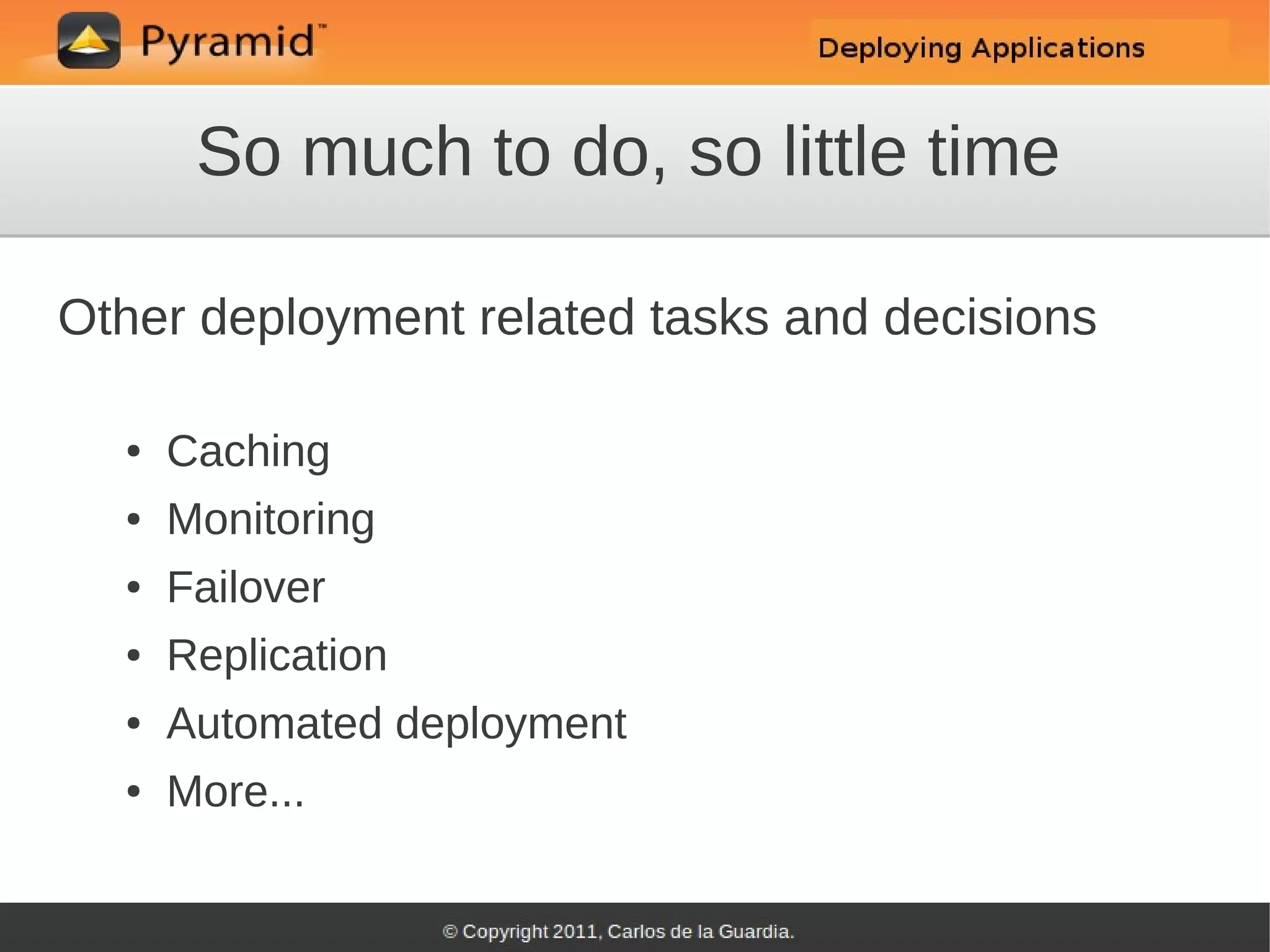

20. So much to do, so little time
Other deployment related tasks and decisions
● Caching
● Monitoring
● Failover
● Replication
● Automated deployment
● More...

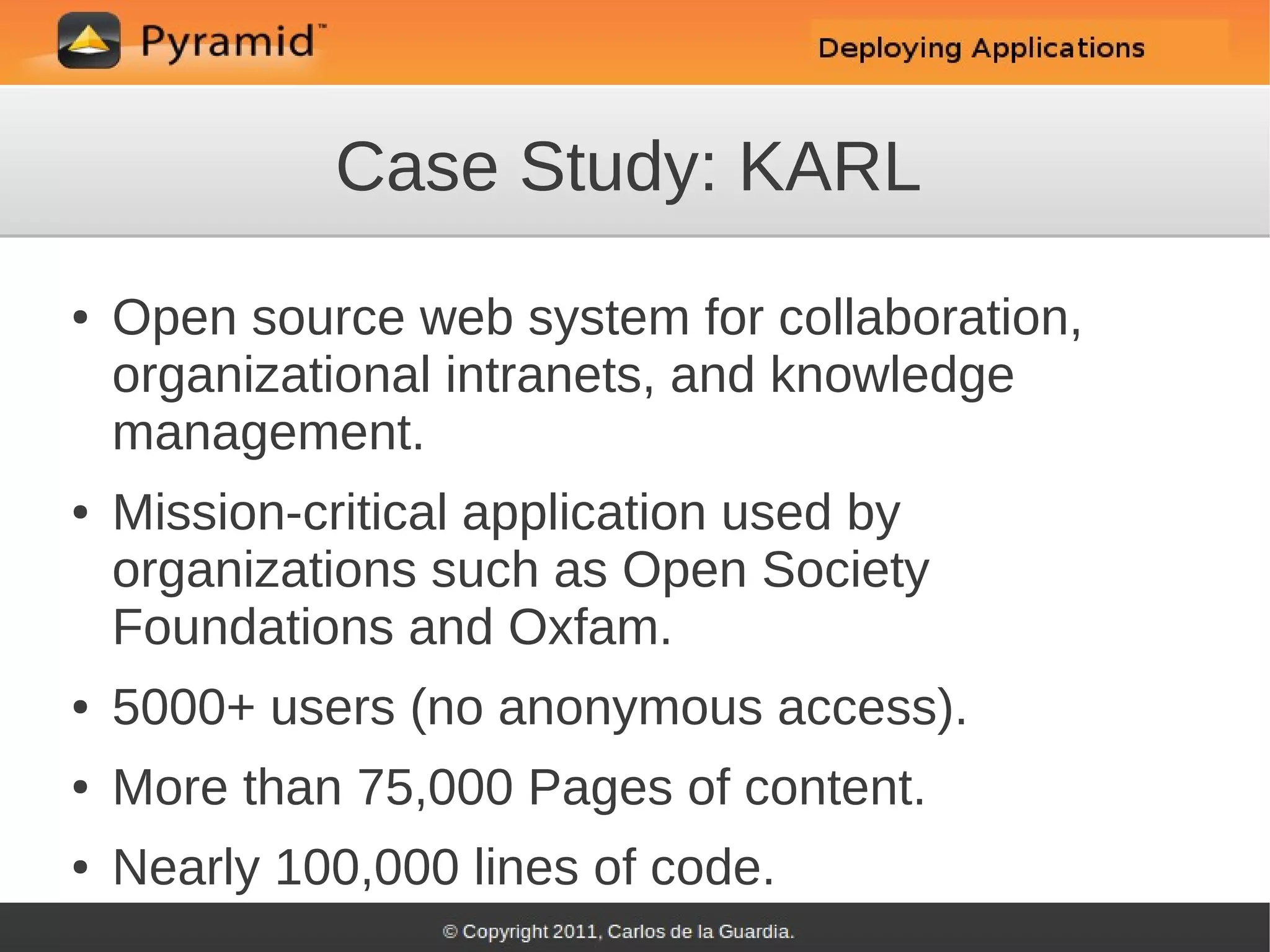

21. Case Study: KARL
● Open source web system for collaboration,
organizational intranets, and knowledge
management.
● Mission-critical application used by
organizations such as Open Society
Foundations and Oxfam.
● 5000+ users (no anonymous access).
● More than 75,000 Pages of content.
● Nearly 100,000 lines of code.

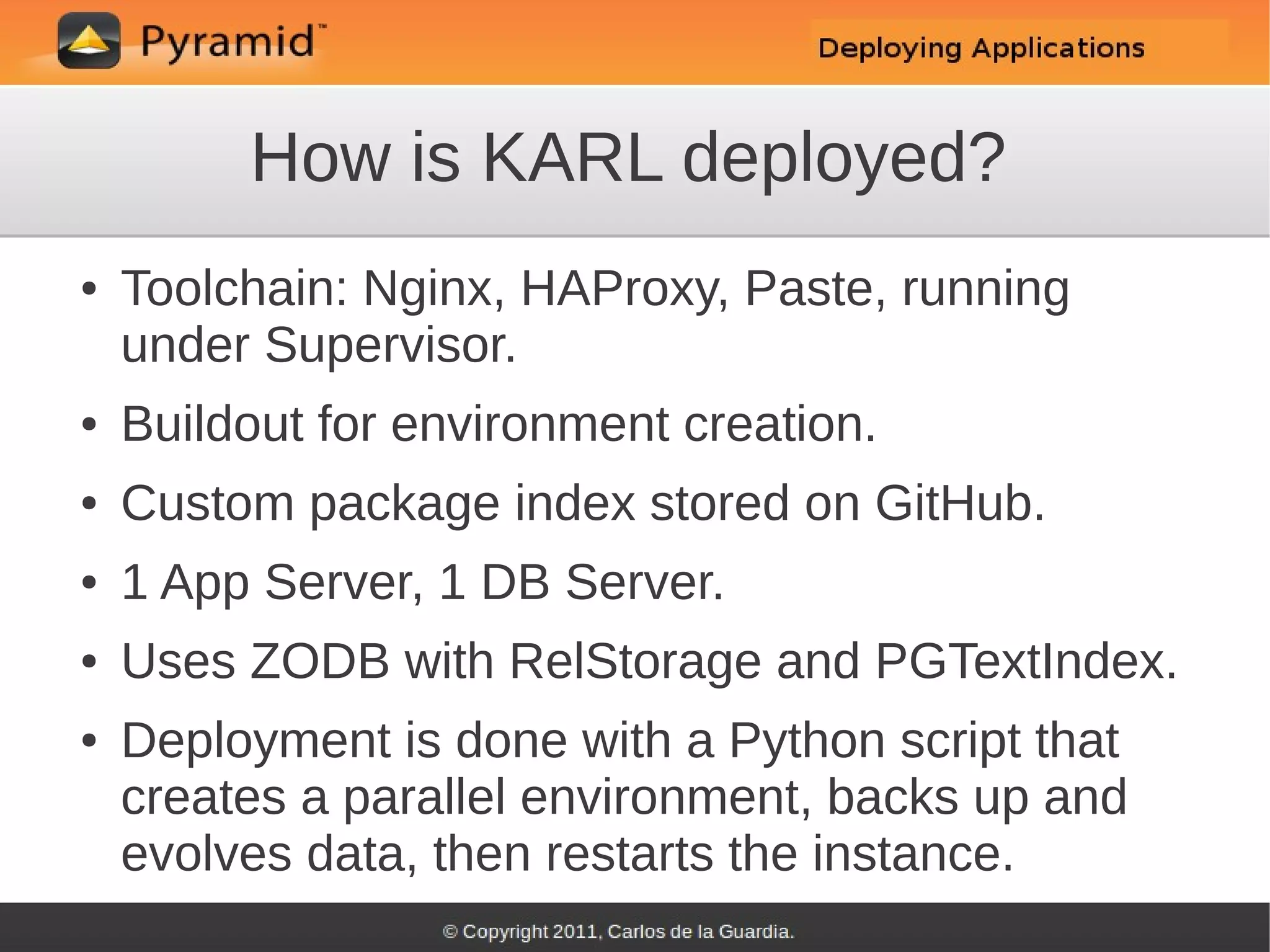

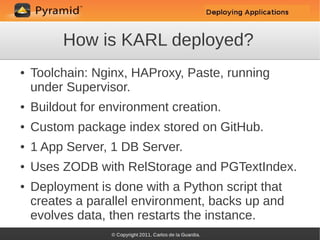

22. How is KARL deployed?
● Toolchain: Nginx, HAProxy, Paste, running
under Supervisor.
● Buildout for environment creation.
● Custom package index stored on GitHub.
● 1 App Server, 1 DB Server.
● Uses ZODB with RelStorage and PGTextIndex.
● Deployment is done with a Python script that
creates a parallel environment, backs up and
evolves data, then restarts the instance.

23. Thank You!
Email: cguardia@yahoo.com
IRC: #pyramid, #pylons
http://groups.google.com/group/pylons-devel

24. Goodbye!
