This document summarizes an analytics presentation about using Apache Spark and Python for personalized email marketing. It introduces MapReduce and Apache Spark frameworks for processing large datasets in parallel. Spark allows processing data faster in memory and supports Python. The use case involves using customer activity data and sections from different categories to select the best N sections for each customer's personalized email. The solution involves running a Spark job to create customer profiles from event data, then applying an optimization algorithm in Python to generate personalized emails. Overall, Spark enables efficiently processing big data to power personalized email marketing at scale.

1. Analytics for the fastest growing companies

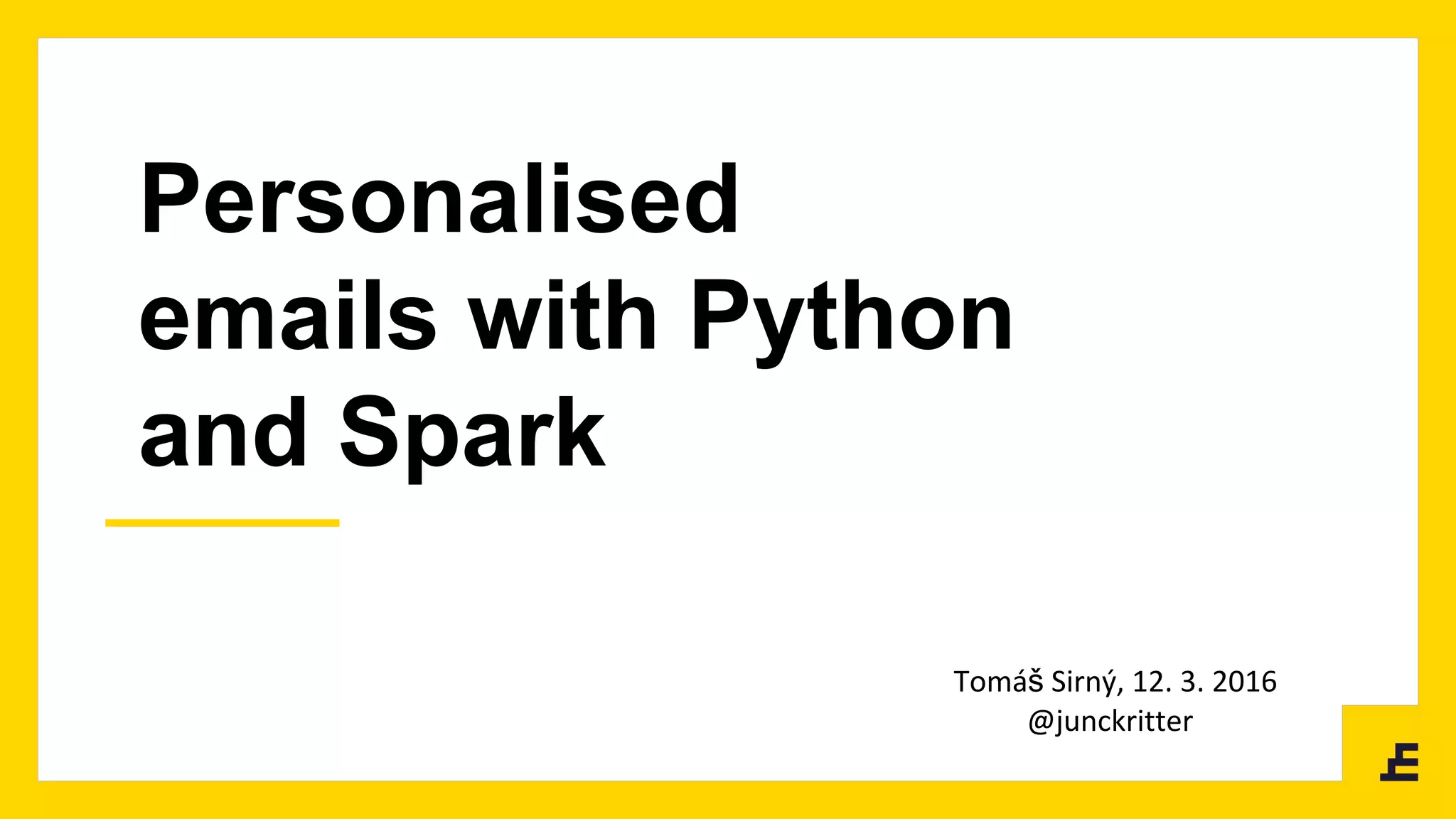

2. Personalised
emails with Python
and Spark
Tomáš Sirný, 12. 3. 2016
@junckritter

3. Agenda
● MapReduce
● Introduction to Apache Spark
● Spark + Python
● Use-case: Personalisation of email newsletters

4. About me
● Python developer
● Web development in Django
● Movie search with Elasticsearch
● Data Science

5. Problem of Big Data
● data are “BIG” and on lot of places
● hard and costly to get it all together at once
● slow to process

6. MapReduce
● MR is programming paradigm that allows for massive scalability
across hundreds or thousands of servers in a cluster
● do something with every small chunk
● choose only wanted ones
● put them together
● collect & save result

7. Hadoop
● Open-source implementation of Google’s BigTable
● Uses MapReduce
● In version 2 introduced YARN (Yet Another Resource Negotiator)
framework for managing resources
● Inputs and results of each phase are saved to files
● Complex configuration of jobs, not easy connection from non-JVM
languages

8. Apache Spark
Apache Spark™ is a fast and general engine for large-scale data
processing
● fast - faster MR than Hadoop, data are in memory
● general engine - multipurpose (data transformation, machine
learning, …)
● large-scale - runs in parallel on large clusters
● processing - filter, transform, save or send

9. RDD Resilient Distributed Dataset
● basic data structure in Spark
● immutable distributed collection of objects
● divided into logical partitions
● computed on different nodes of the cluster
● equivalent of table in SQL database

10. Python shell included
(spark)tomas@Fenchurch:~/personal$ spark-1.5.2-bin-hadoop2.6/bin/pyspark
Python 2.7.10 (default, Oct 23 2015, 18:05:06)
[GCC 4.2.1 Compatible Apple LLVM 7.0.0 (clang-700.0.59.5)] on darwin
Type "help", "copyright", "credits" or "license" for more information.
16/03/11 22:16:12 WARN NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-
java classes where applicable
16/03/11 22:16:16 WARN Utils: Service 'SparkUI' could not bind on port 4040. Attempting port 4041.
16/03/11 22:16:16 WARN MetricsSystem: Using default name DAGScheduler for source because spark.app.id is not set.
Welcome to
____ __
/ __/__ ___ _____/ /__
_ / _ / _ `/ __/ '_/
/__ / .__/_,_/_/ /_/_ version 1.5.2
/_/
Using Python version 2.7.10 (default, Oct 23 2015 18:05:06)
SparkContext available as sc, HiveContext available as sqlContext.
>>> sc
<pyspark.context.SparkContext object at 0x1071bb810>
>>> x = sc.parallelize([1, 2, 3, 4, 5])
>>> x.count()
5
>>> x.sortBy(lambda item: item, ascending=False).collect()
[5, 4, 3, 2, 1]

11. Run from python in virtualenv
os.environ['SPARK_HOME'] = os.path.join(config['spark_home'])
os.environ['PYTHONPATH'] = os.path.join(config['spark_home'], 'python')
os.environ['PYSPARK_PYTHON'] = config['python']
sys.path.insert(
0,
os.path.join(config['spark_home'], "python"
) # pyspark
sys.path.insert(
0,
os.path.join(config[‘spark_home’], 'python/lib/py4j-0.8.2.1-src.zip')
) #py4j

12. IPython/Jupyter notebook

13. IPython/Jupyter notebook

14. Define SparkContext
sc = SparkContext(
appName='GenerateEmails',
master='yarn-client’,
pyFiles='emails.zip'
)
zip -r emails.zip * -x "*.pyc" -x "*.log"

15. Simple example
def get_delivered_rdd(data, date_str, mailing=None):
delivered_rdd_raw = data
.filter(lambda x: x['type'] == 'campaign')
.filter(lambda x: x['properties']['status'] == 'delivered')
.filter(clicked_actual_date(date_str))
if mailing:
delivered_rdd_raw = delivered_rdd_raw
.filter(lambda x: mailing in x['properties']['mailing'])
return delivered_rdd_raw

16. Complex example
def get_updated_customers(
sc, base_path, project_id, dates='*', user_filter=None,
customers=None):
if customers is None:
customers = sc.emptyRDD()
src = os.path.join(base_path, project_id, "update_customer", dates)
updates_raw = sc.textFile(src)
updates = updates_raw
.flatMap(json_to_item)
.sortBy(lambda x: x['timestamp'])
.filter(lambda x: x is not None)
.groupByKey()
.map(filter_manual_customers(user_filter))
.filter(lambda x: x is not None)
.leftOuterJoin(customers)
.map(join_values)
return updates.collectAsMap()

17. General rule: do as much as possible in Spark
● count()
● take(n)
● combineByKey()
● distinct()
● countByKey()
● foreach()
● groupBy()
● union(), intersection()
● join(), leftOuterJoin(),
● reduceByKey()
● sortBy(), sortByKey()

18. Use case:
personalised emails

19. Requirements:
● Set of defined sections in email - items from categories
● Set of customers subscribed to different newsletters
● Choose best N sections for each customer, based on her
activity

20. Infrastructure

21. Event
{
"type": "add_event",
"data": {
"timestamp": 1444043432.0,
"customer_id": "c1",
"type": "campaign",
"company_id": "ffe66a48-f341-11e4-8cbf-b083fedeed2e",
"properties": {
"status": "enqueued",
"sections": {
"s-test1": ["164377", "157663", "165109", "159075", "153851", "161695"],
"s-test2": ["162363", "152249", "162337", "156861", "162109", "165021"],
"s-test3": ["115249", "150349", "148291", "148265", "157581", "159479"]
}
}
}
}

22. Algorithm
S-01 S-02 S-03 S-04 S-05 S-06 S-07 S-08 S-09 S-10
C-01 0.5 0.555 0.23 0.11 0.734 0.93 0.34 0.66 0.85 0.15
C-02 0.4 0.955 0.13 0.76 0.833 0.53 0.74 0.84 0.585 0.45
C-42 0.67 0.555 0.73 0.11 0.234 0.93 0.34 0.66 0.85 0.15
C-43 0.8 0.555 0.33 0.51 0.79 0.43 0.14 0.46 0.55 0.85
C-103 0.9 0.335 0.27 0.11 0.734 0.93 0.34 0.86 0.65 0.15

23. Algorithm
S-01 S-02 S-03 S-04 S-05 S-06 S-07 S-08 S-09 S-10
C-01 0.5 0.555 0.23 0.11 0.734 0.93 0.34 0.66 0.85 0.15
C-02 0.4 0.955 0.13 0.76 0.833 0.53 0.74 0.84 0.585 0.45
C-42 0.67 0.555 0.73 0.11 0.234 0.93 0.34 0.66 0.85 0.15
C-43 0.8 0.555 0.33 0.51 0.79 0.43 0.14 0.46 0.55 0.85
C-103 0.9 0.335 0.27 0.11 0.734 0.93 0.34 0.86 0.65 0.15

24. Spark job
● Load data from JSON files on MapR-FS (distributed file-system)
● Create profile of each customer - email address, subscriptions, history of
actions (clicks, views, purchases, …)
● Filter by attributes (subscription, preferences)
● Create customer-specific parameters for main algorithm (which sections
she clicked, which mails she opened)

25. Python program
● Run Spark job
● Read customer records
● Feed them to main optimisation algorithm
● Generate & send personalised emails

26. Take-aways
● It’s easy to start with Spark through Python
● Few lines of code can process massive data
○ Map-Reduce, SQL, Graphs, Machine Learning
● Quickly becoming standard for data-science
and data-science is a future of web applications

27. Thanks!
