Push notifications allow servers to send messages to mobile apps without the app explicitly requesting them. Notifications are sent from app servers to notification service providers like APNs or GCM, which then deliver notifications to devices even if the app is closed. Notifications are stored briefly if the device is offline and delivered once it reconnects.

1. Push Notifications
11/27/2014

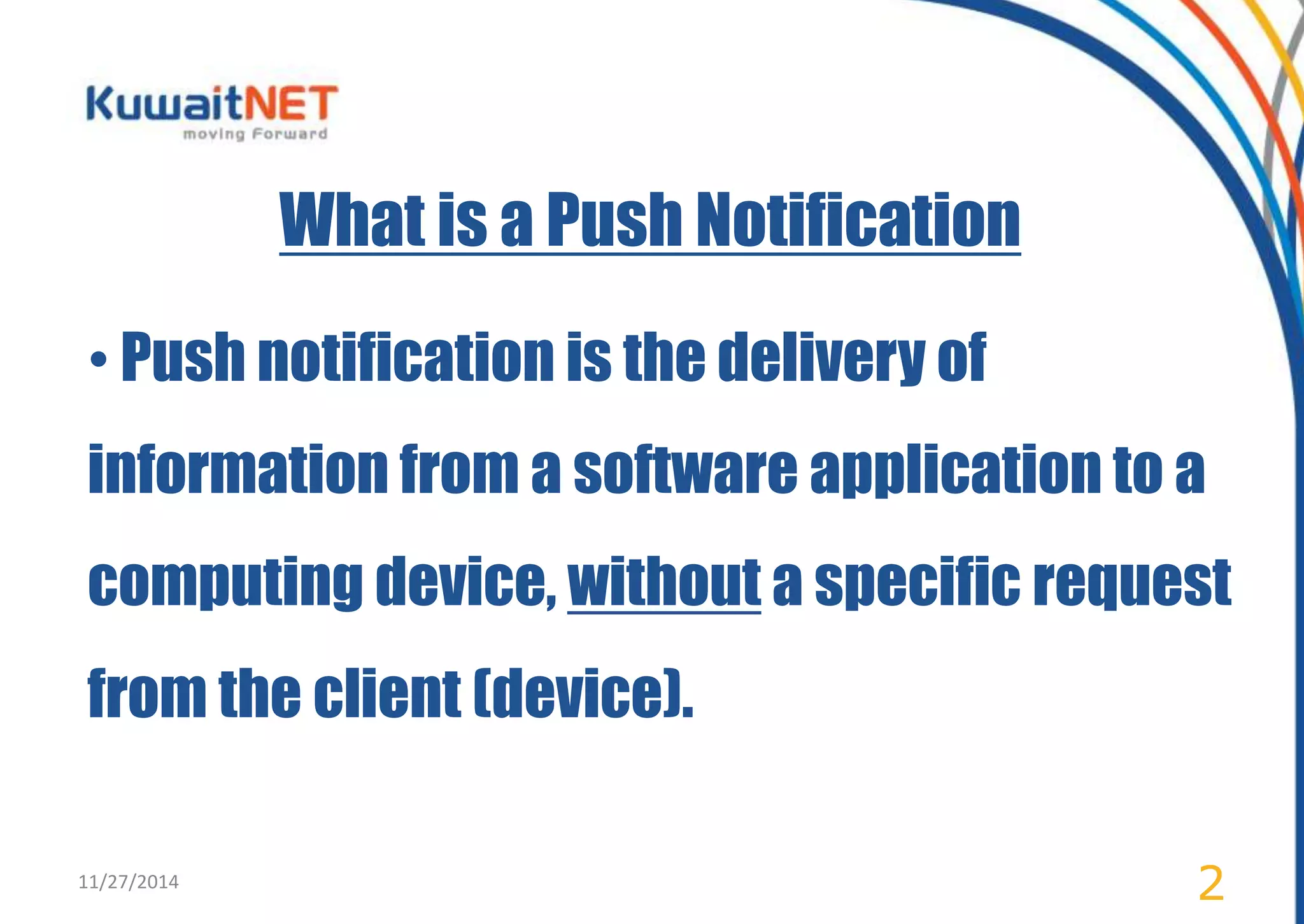

2. What is a Push Notification
• Push notification is the delivery of
information from a software application to a
computing device, without a specific request
from the client (device).
11/27/2014 2

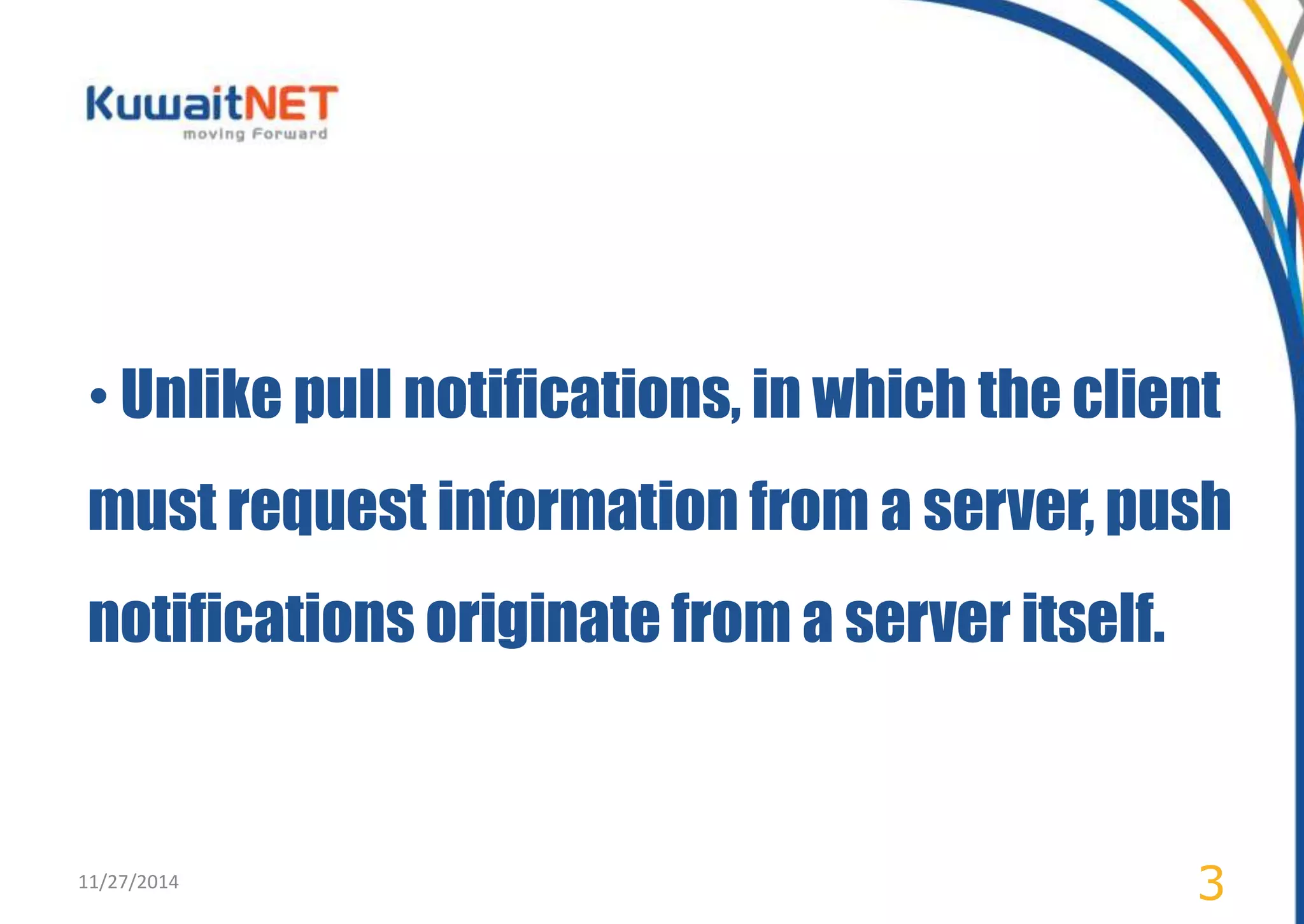

3. • Unlike pull notifications, in which the client
must request information from a server, push
notifications originate from a server itself.
11/27/2014 3

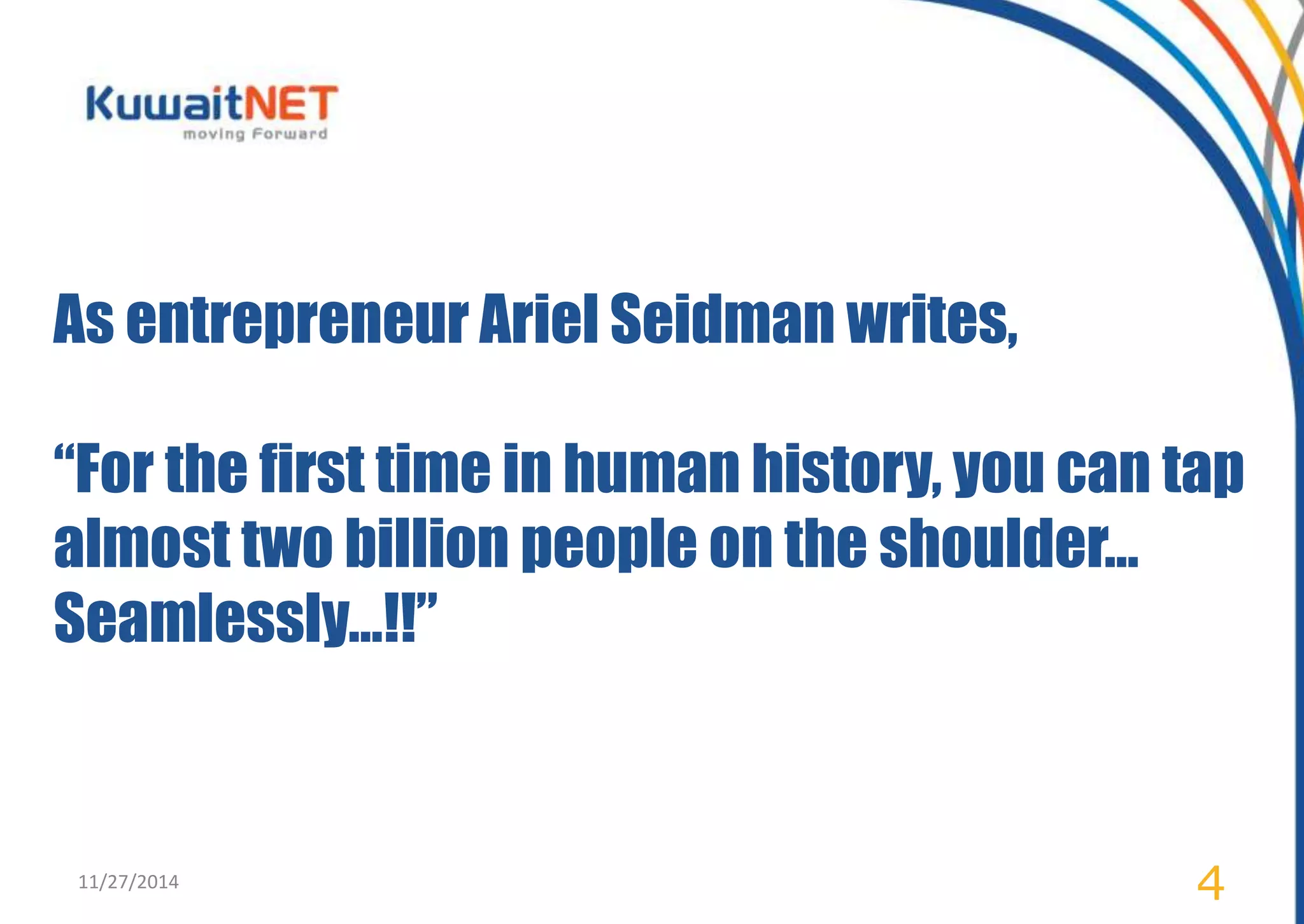

4. As entrepreneur Ariel Seidman writes,
“For the first time in human history, you can tap
almost two billion people on the shoulder…
Seamlessly…!!”
11/27/2014 4

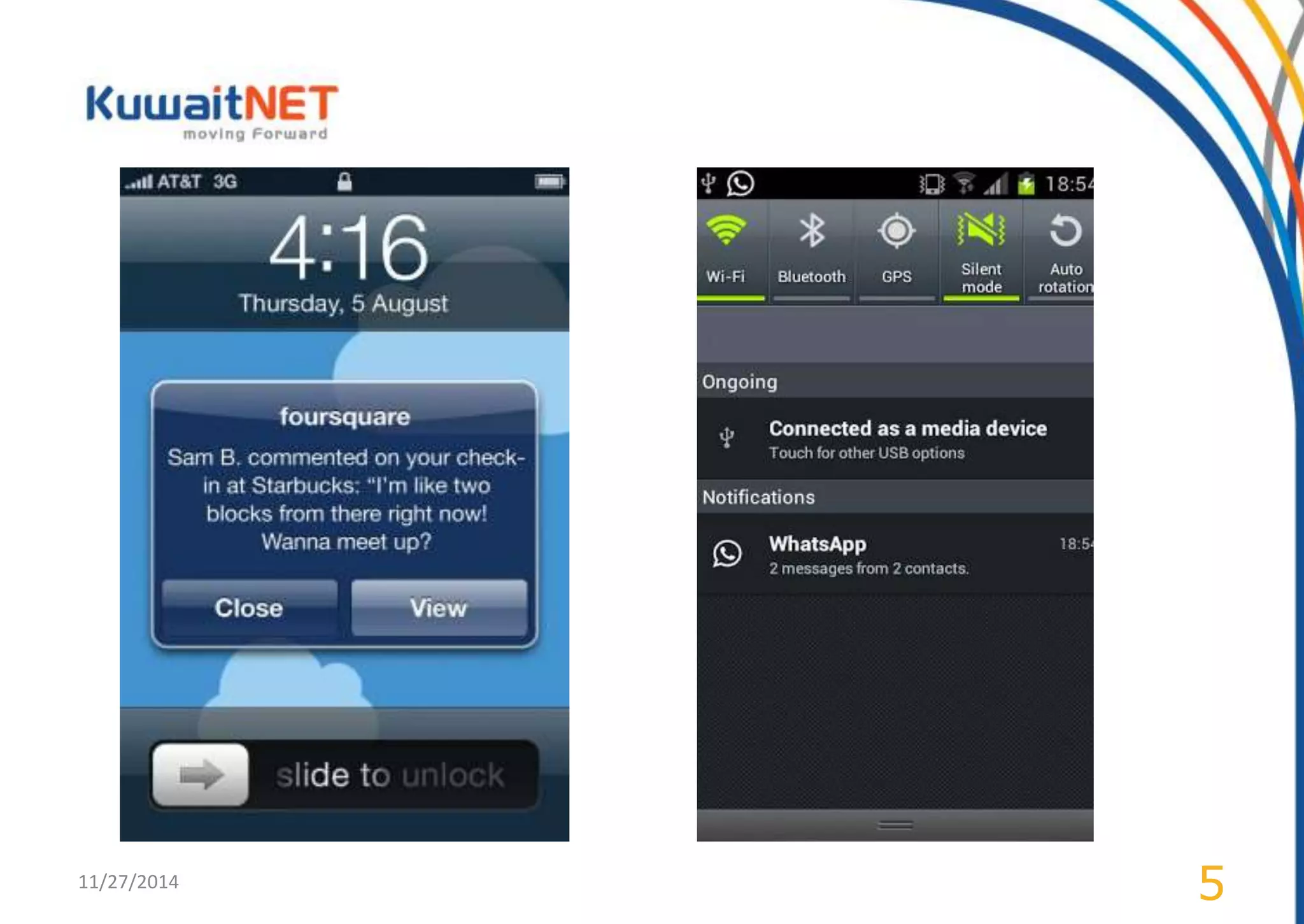

5. 11/27/2014 5

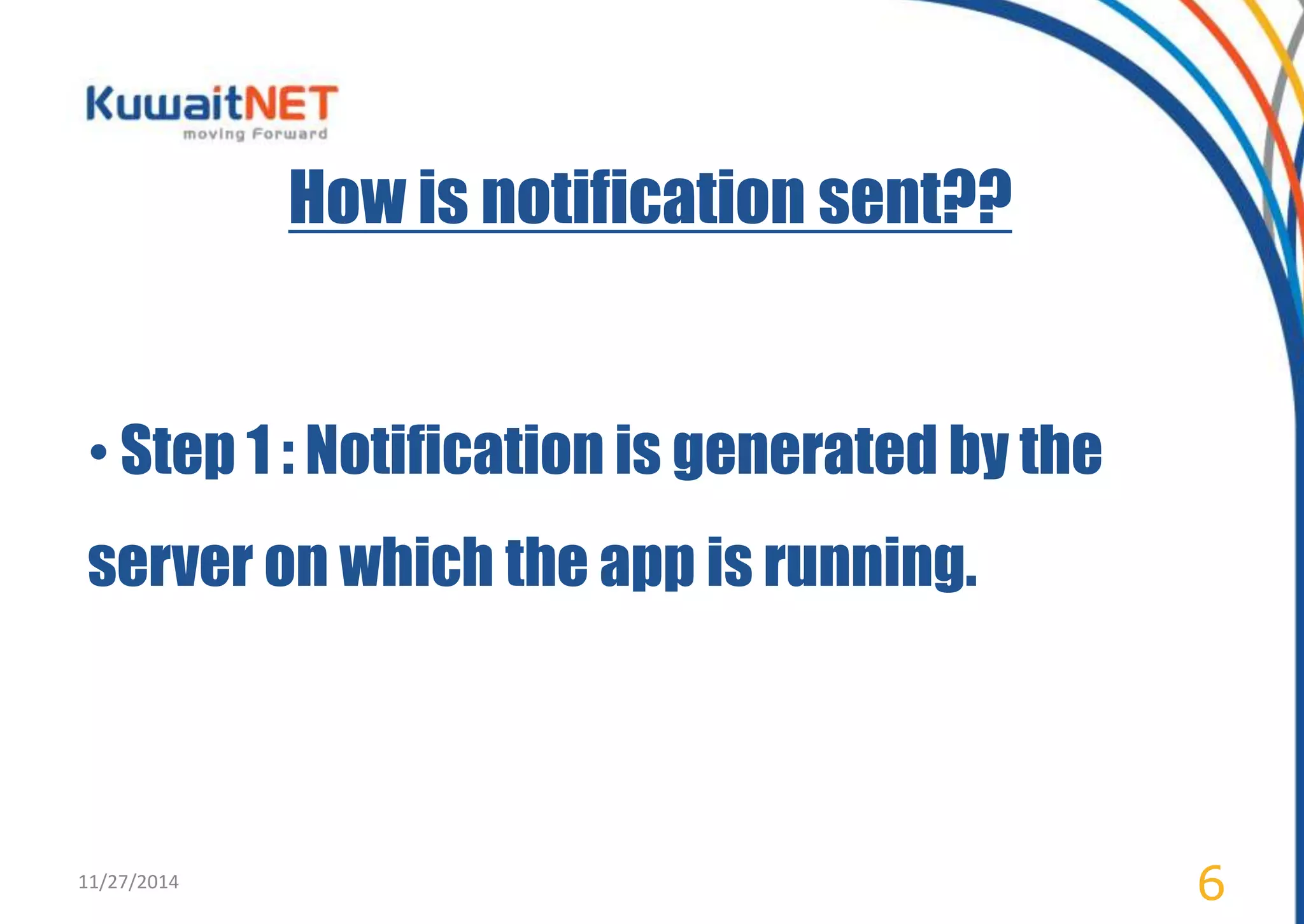

6. How is notification sent??
• Step 1 : Notification is generated by the
server on which the app is running.
11/27/2014 6

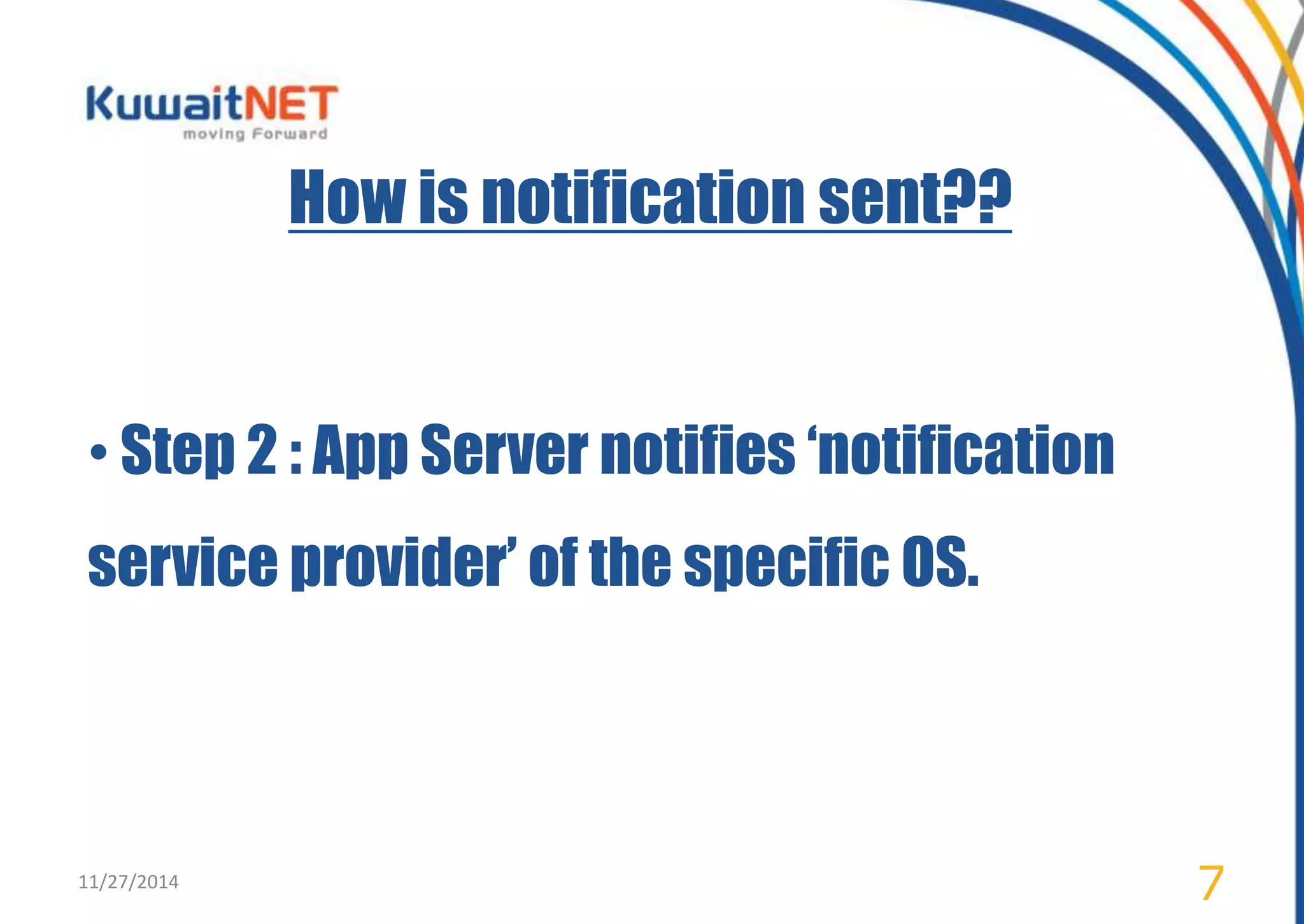

7. How is notification sent??
• Step 2 : App Server notifies ‘notification
service provider’ of the specific OS.
11/27/2014 7

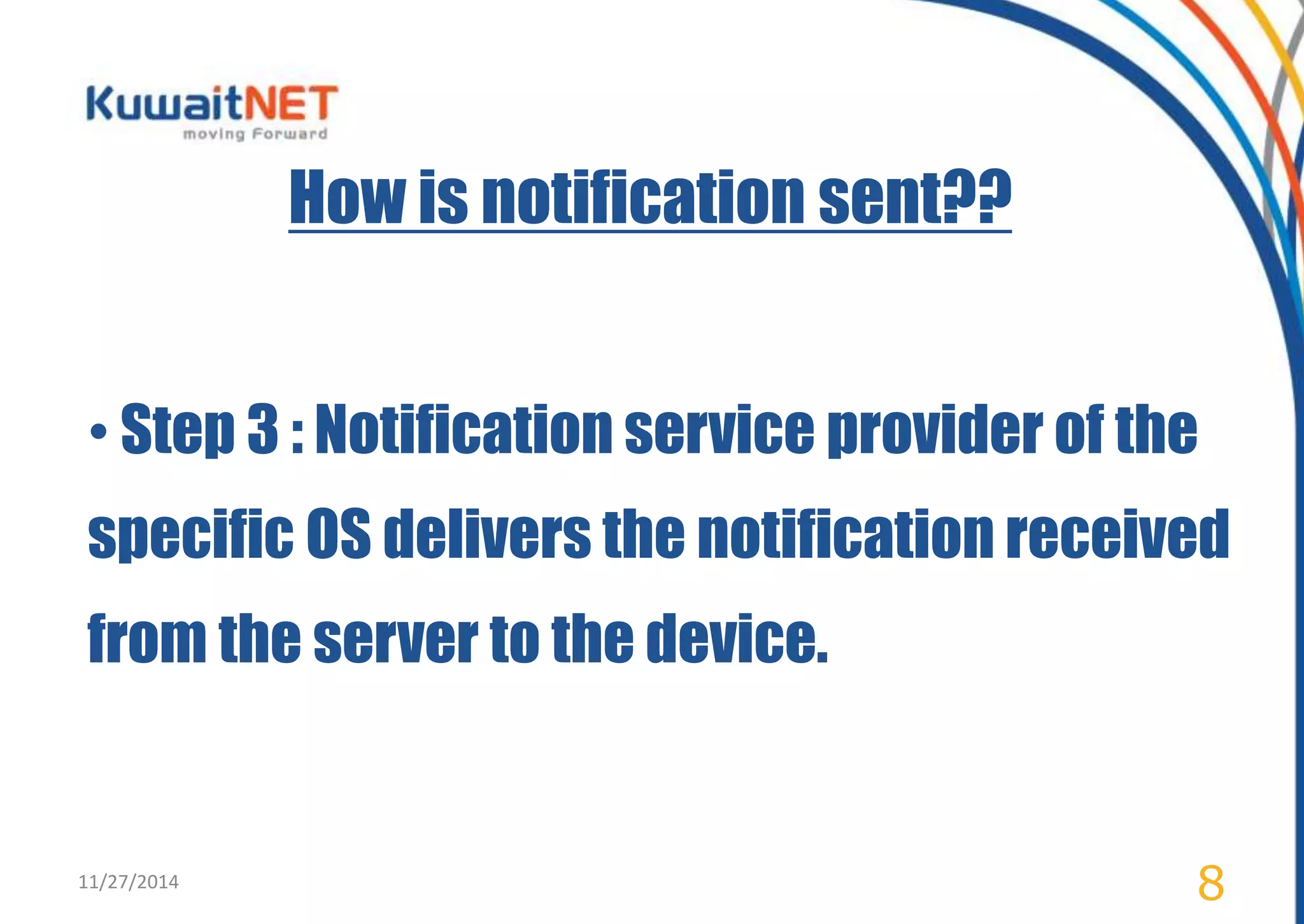

8. How is notification sent??
• Step 3 : Notification service provider of the
specific OS delivers the notification received
from the server to the device.
11/27/2014 8

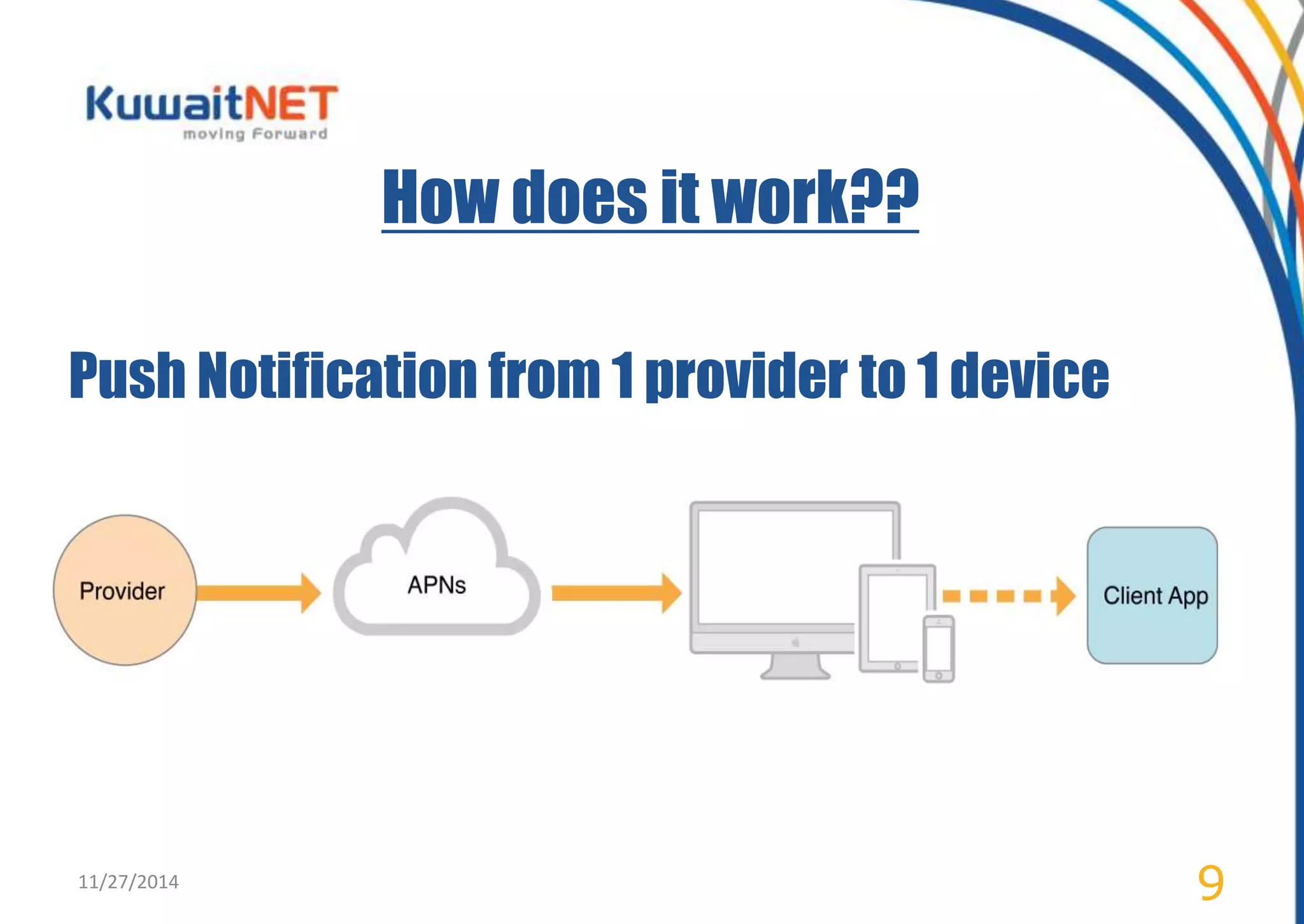

9. How does it work??
Push Notification from 1 provider to 1 device
11/27/2014 9

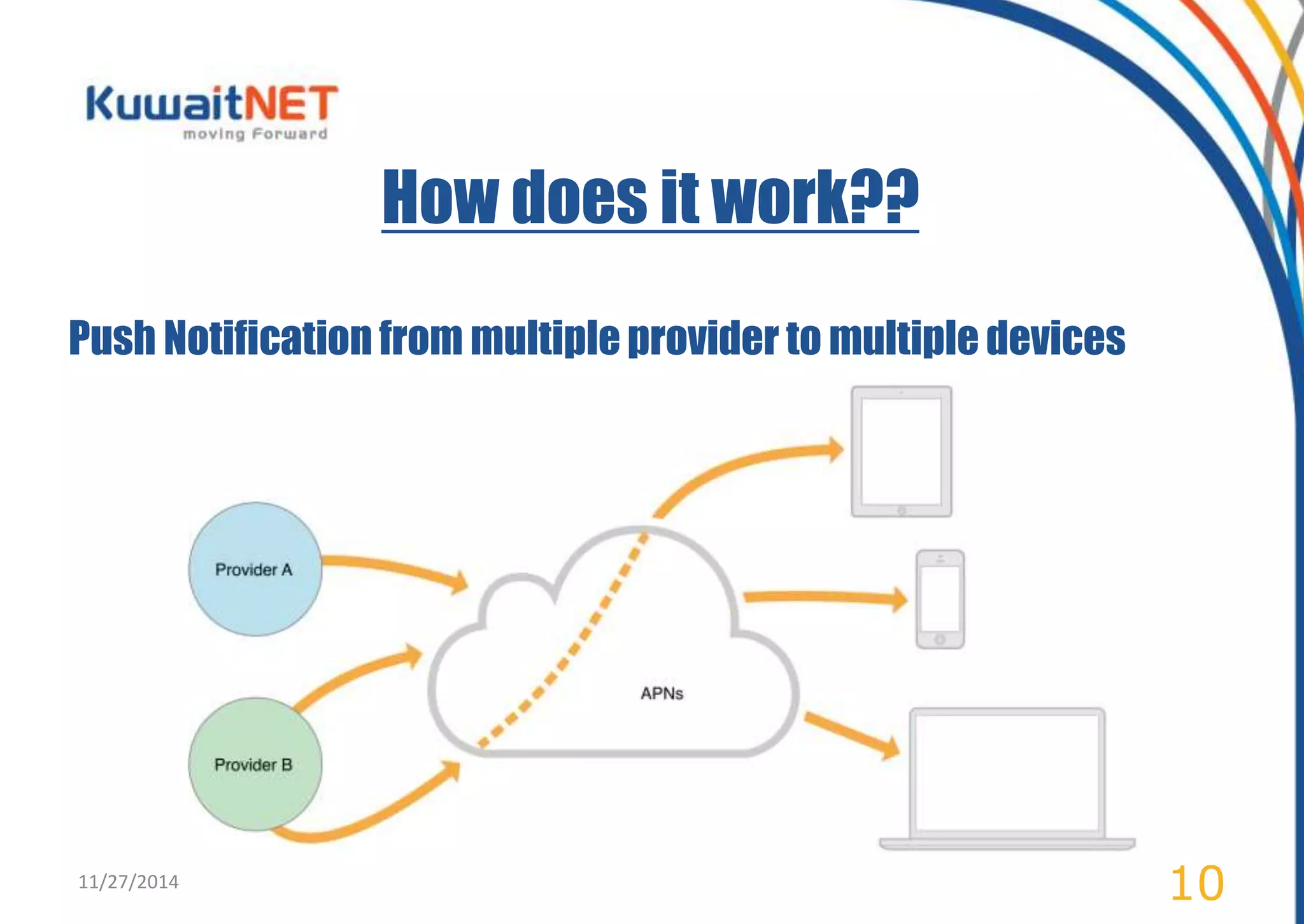

10. How does it work??
Push Notification from multiple provider to multiple devices
11/27/2014 10

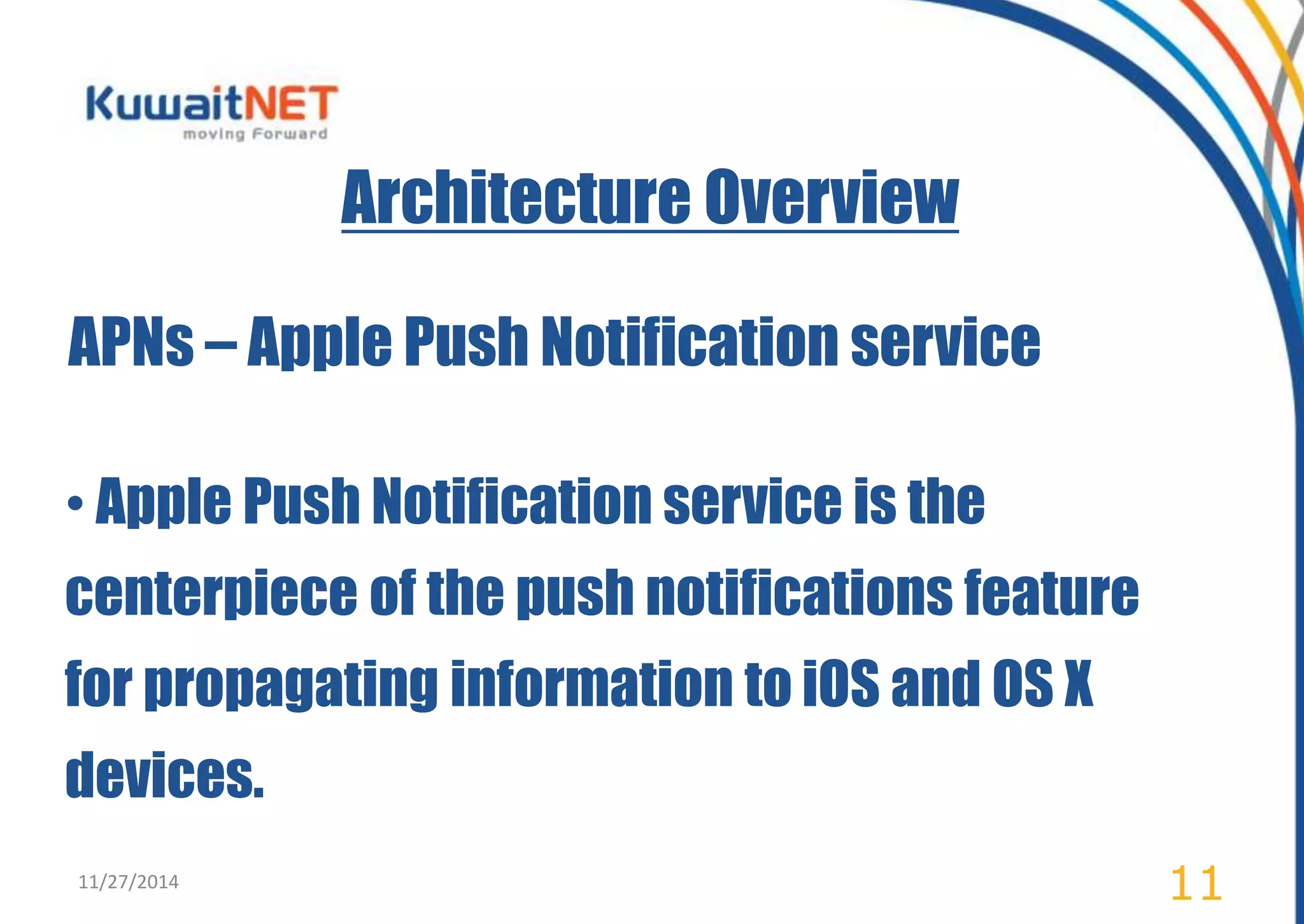

11. Architecture Overview
APNs – Apple Push Notification service
• Apple Push Notification service is the
centerpiece of the push notifications feature
for propagating information to iOS and OS X
devices.
11/27/2014 11

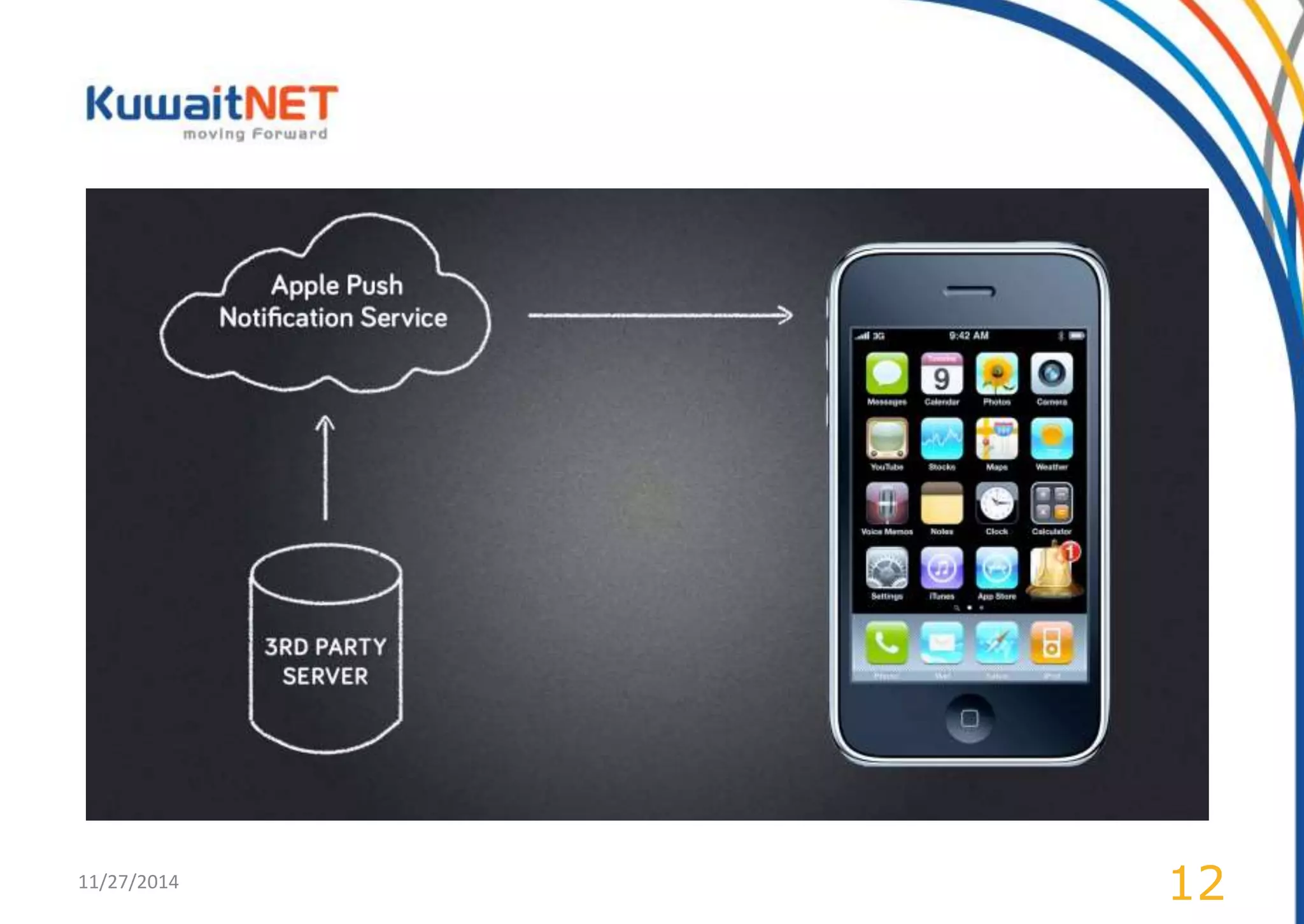

12. 11/27/2014 12

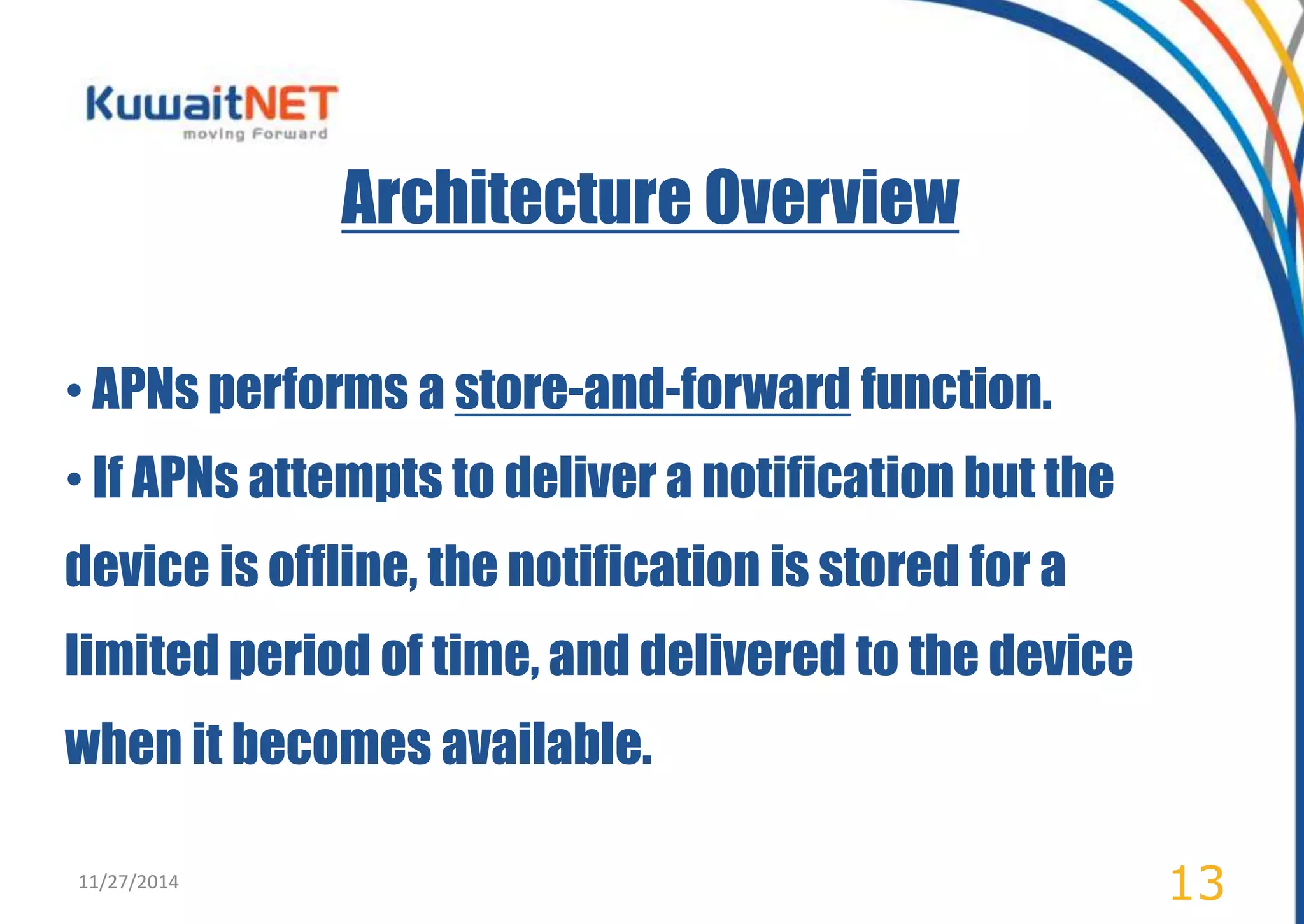

13. Architecture Overview
• APNs performs a store-and-forward function.
• If APNs attempts to deliver a notification but the
device is offline, the notification is stored for a
limited period of time, and delivered to the device
when it becomes available.
11/27/2014 13

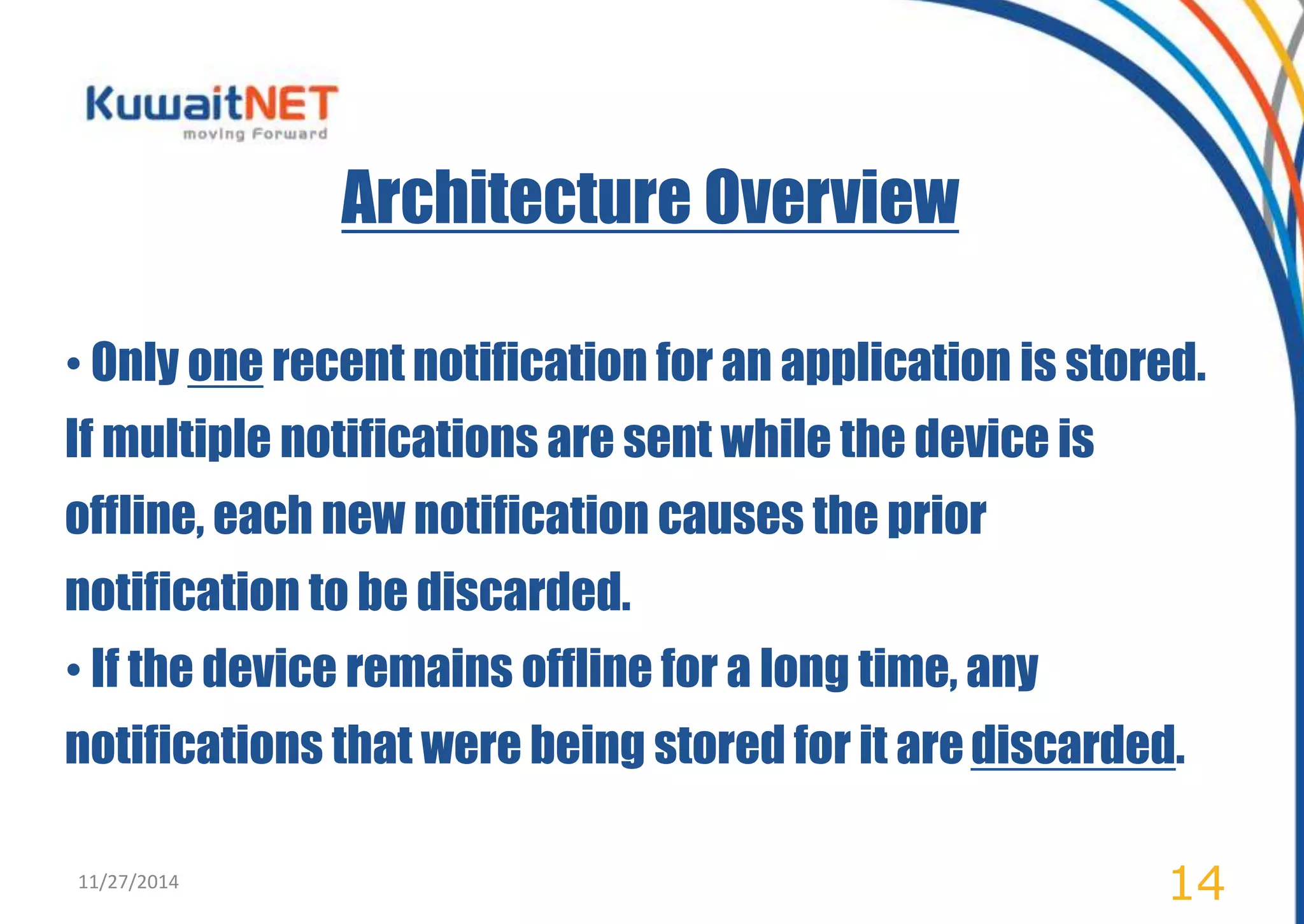

14. Architecture Overview
• Only one recent notification for an application is stored.
If multiple notifications are sent while the device is
offline, each new notification causes the prior
notification to be discarded.
• If the device remains offline for a long time, any
notifications that were being stored for it are discarded.
11/27/2014 14

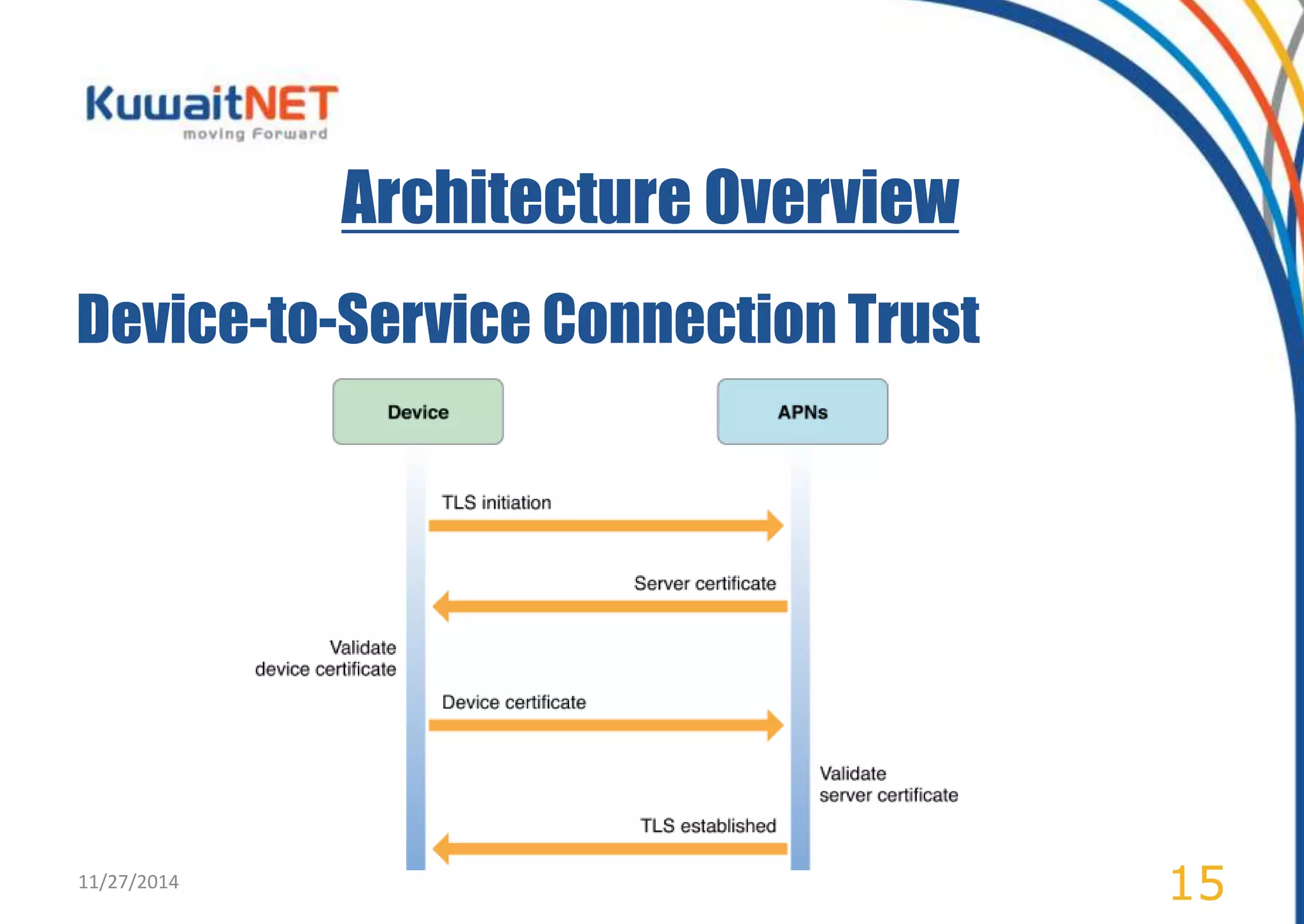

15. Architecture Overview
Device-to-Service Connection Trust
11/27/2014 15

16. Architecture Overview
Provider-to-Service Connection Trust
11/27/2014 16

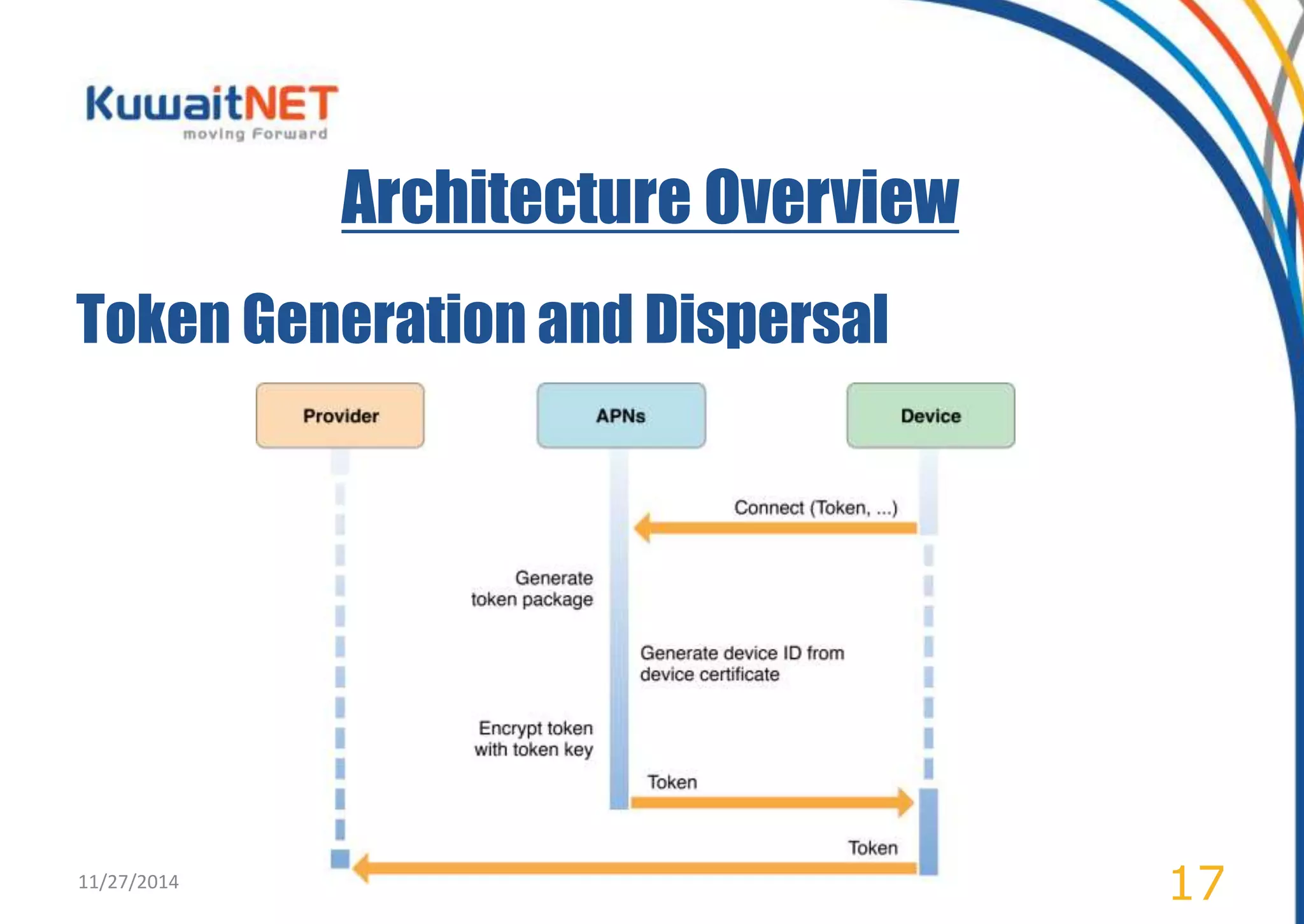

17. Architecture Overview
Token Generation and Dispersal
11/27/2014 17

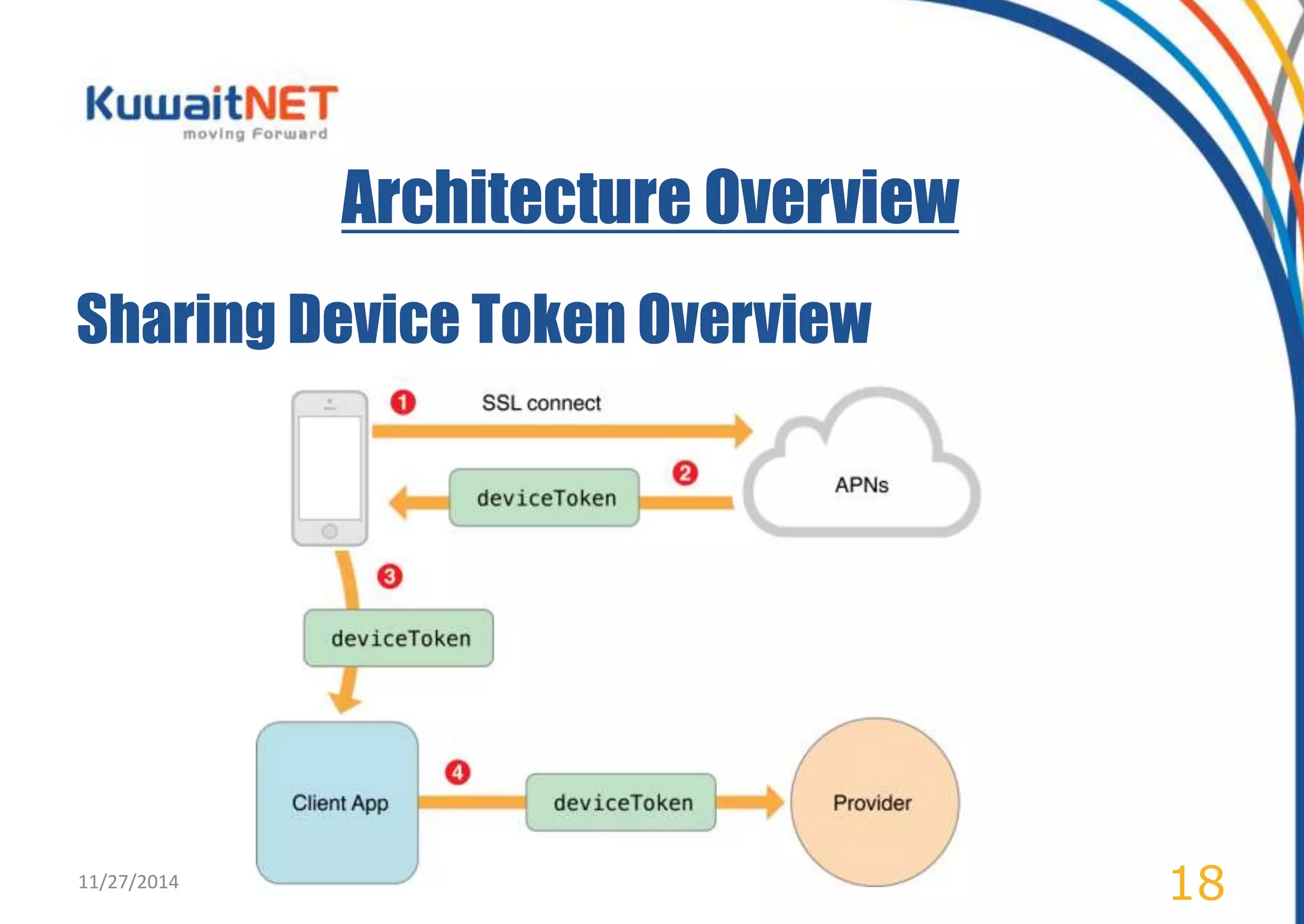

18. Architecture Overview
Sharing Device Token Overview
11/27/2014 18

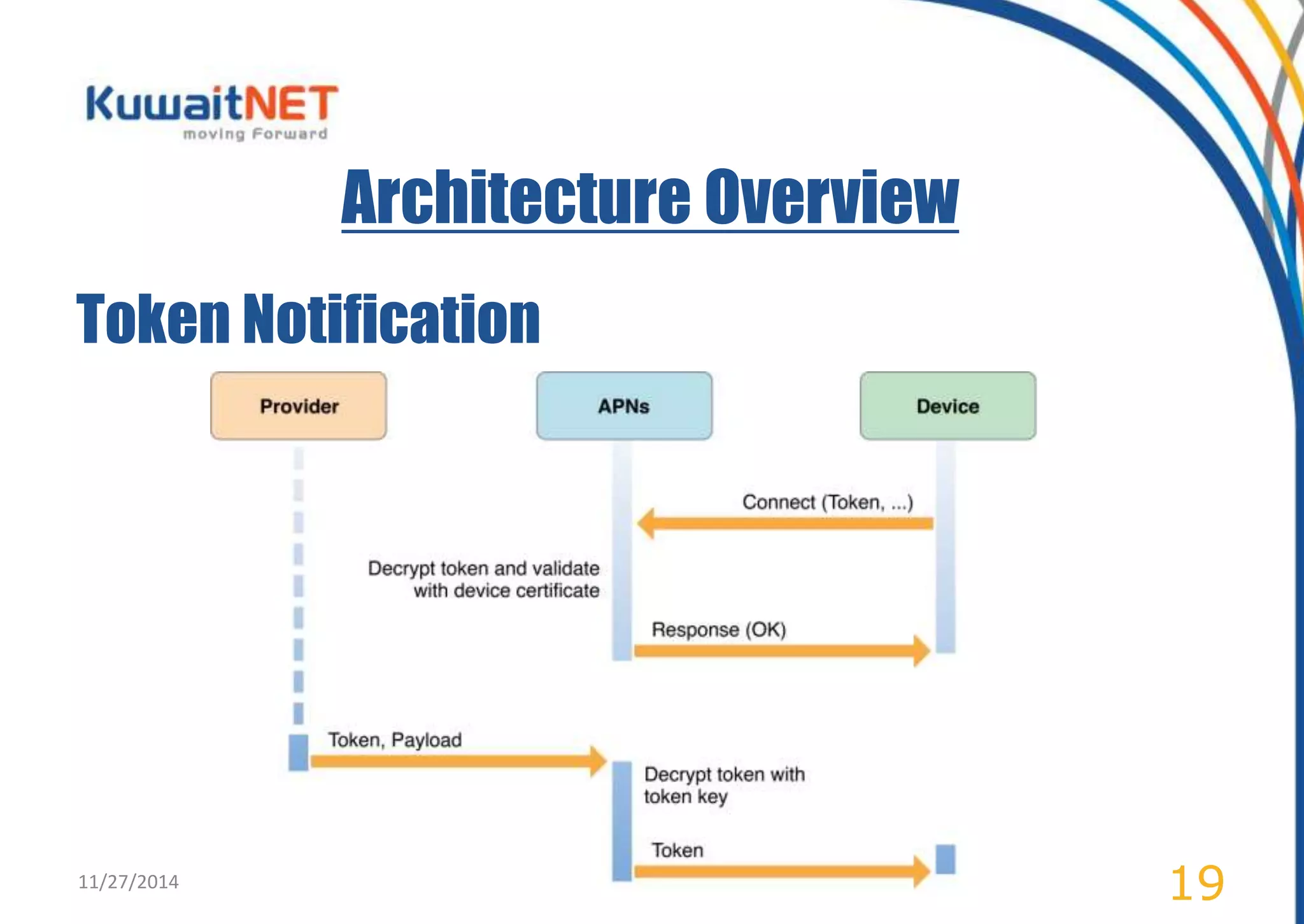

19. Architecture Overview
Token Notification
11/27/2014 19

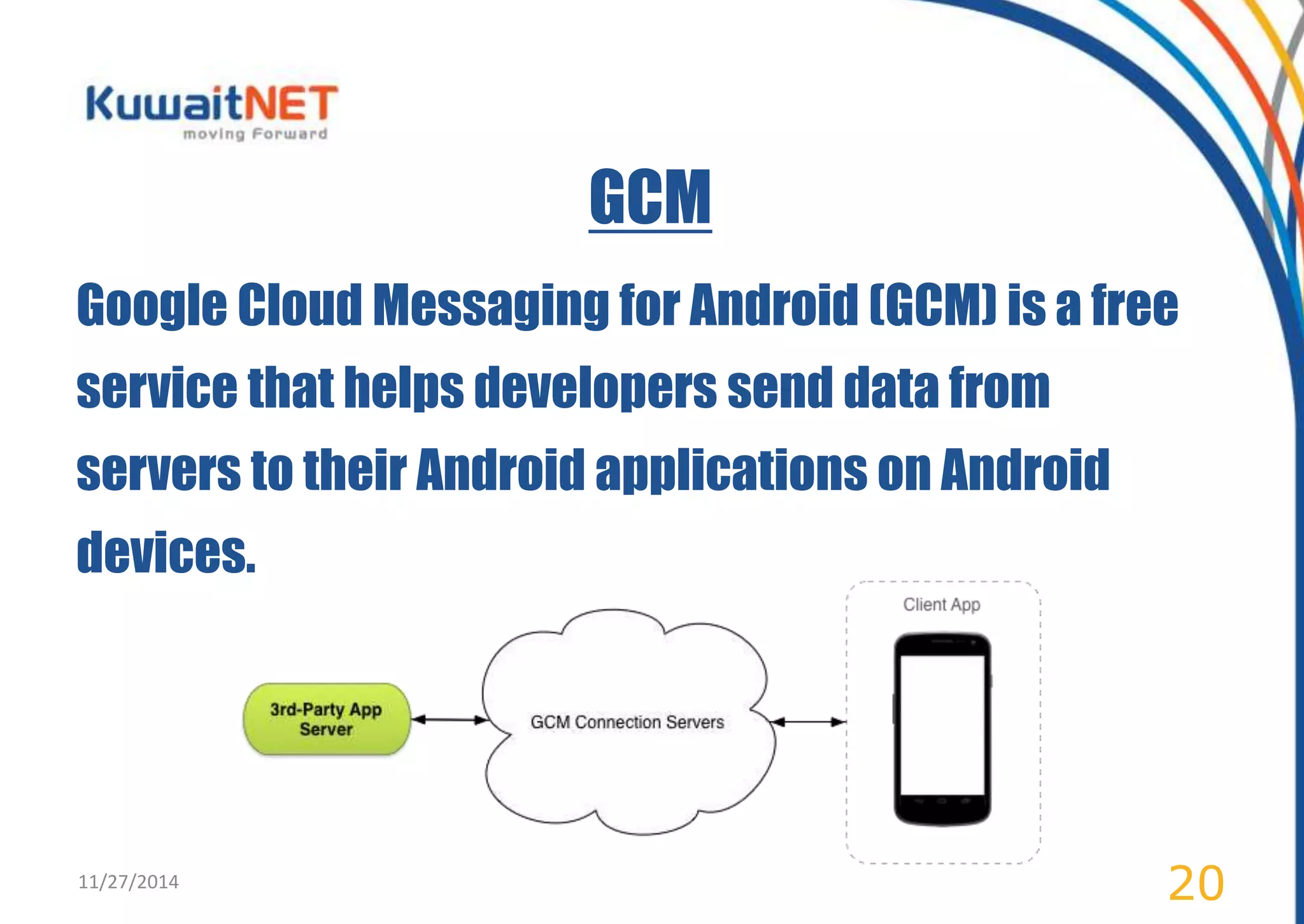

20. GCM
Google Cloud Messaging for Android (GCM) is a free
service that helps developers send data from
servers to their Android applications on Android
devices.
11/27/2014 20

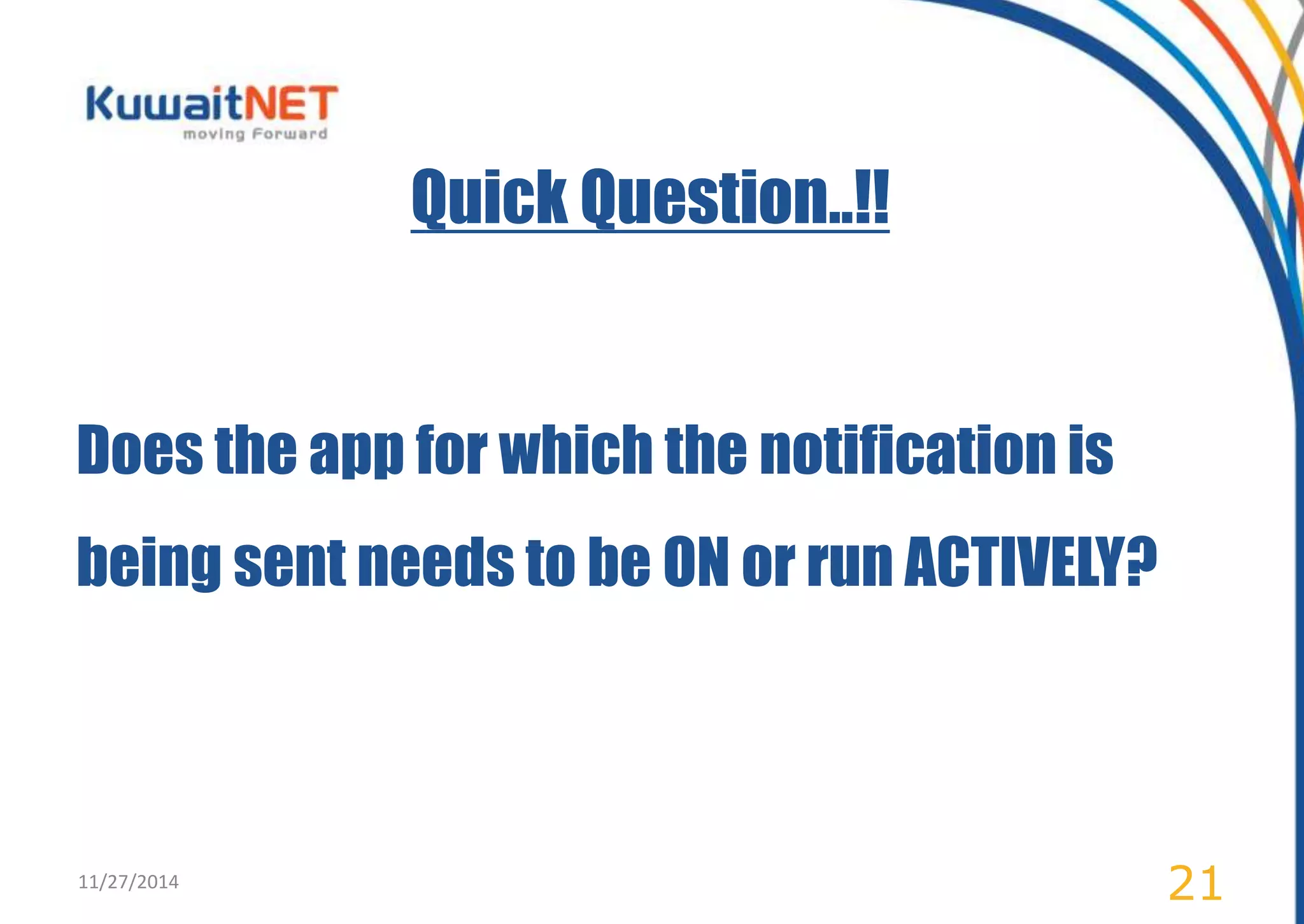

21. Quick Question..!!
Does the app for which the notification is
being sent needs to be ON or run ACTIVELY?
11/27/2014 21
