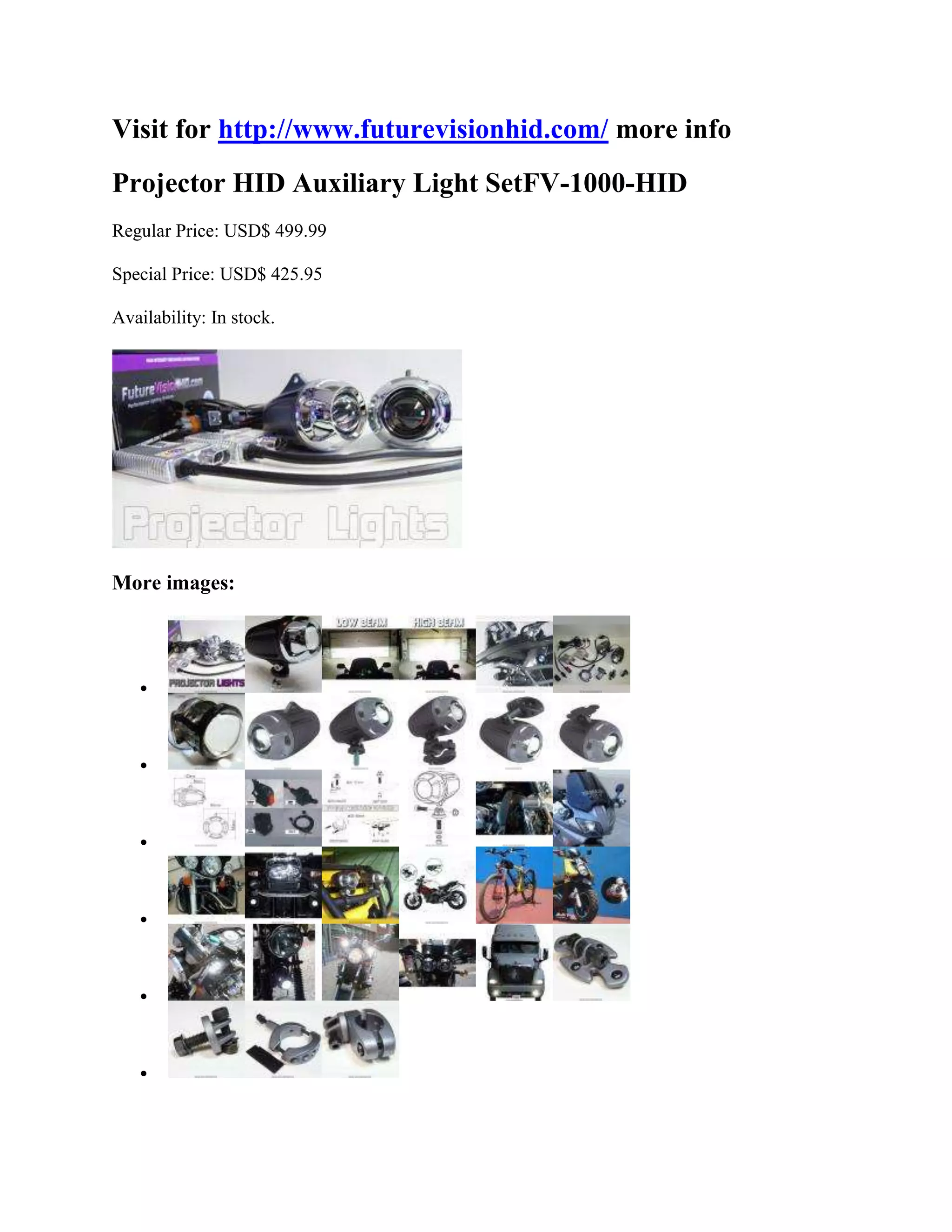

Projector hid auxiliary light set
1. Visit for http://www.futurevisionhid.com/ more info
Projector HID Auxiliary Light SetFV-1000-HID
Regular Price: USD$ 499.99
Special Price: USD$ 425.95
Availability: In stock.
More images:

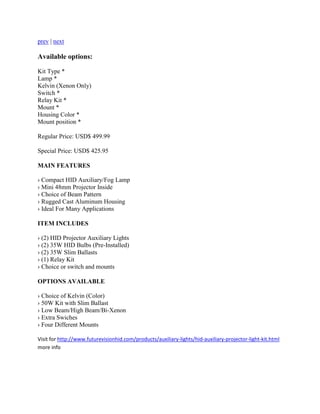

2. prev | next
Available options:
Kit Type *
Lamp *
Kelvin (Xenon Only)
Switch *
Relay Kit *
Mount *
Housing Color *
Mount position *
Regular Price: USD$ 499.99
Special Price: USD$ 425.95
MAIN FEATURES
› Compact HID Auxiliary/Fog Lamp
› Mini 48mm Projector Inside
› Choice of Beam Pattern
› Rugged Cast Aluminum Housing
› Ideal For Many Applications
ITEM INCLUDES
› (2) HID Projector Auxiliary Lights
› (2) 35W HID Bulbs (Pre-Installed)
› (2) 35W Slim Ballasts
› (1) Relay Kit
› Choice or switch and mounts
OPTIONS AVAILABLE
› Choice of Kelvin (Color)
› 50W Kit with Slim Ballast
› Low Beam/High Beam/Bi-Xenon
› Extra Swiches
› Four Different Mounts
Visit for http://www.futurevisionhid.com/products/auxiliary-lights/hid-auxiliary-projector-light-kit.html
more info

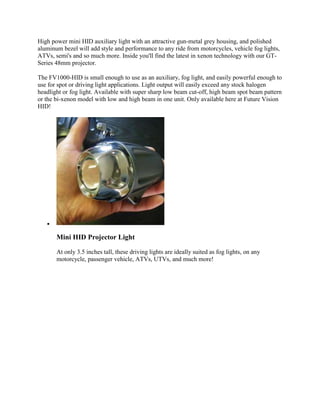

3. High power mini HID auxiliary light with an attractive gun-metal grey housing, and polished
aluminum bezel will add style and performance to any ride from motorcycles, vehicle fog lights,
ATVs, semi's and so much more. Inside you'll find the latest in xenon technology with our GT-
Series 48mm projector.
The FV1000-HID is small enough to use as an auxiliary, fog light, and easily powerful enough to
use for spot or driving light applications. Light output will easily exceed any stock halogen
headlight or fog light. Available with super sharp low beam cut-off, high beam spot beam pattern
or the bi-xenon model with low and high beam in one unit. Only available here at Future Vision
HID!
Mini HID Projector Light
At only 3.5 inches tall, these driving lights are ideally suited as fog lights, on any
motorcycle, passenger vehicle, ATVs, UTVs, and much more!
4.

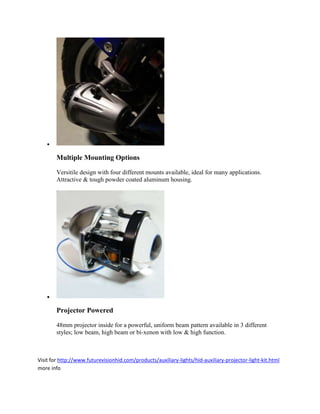

Multiple Mounting Options
Versitile design with four different mounts available, ideal for many applications.
Attractive & tough powder coated aluminum housing.
Projector Powered
48mm projector inside for a powerful, uniform beam pattern available in 3 different
styles; low beam, high beam or bi-xenon with low & high function.
Visit for http://www.futurevisionhid.com/products/auxiliary-lights/hid-auxiliary-projector-light-kit.html
more info

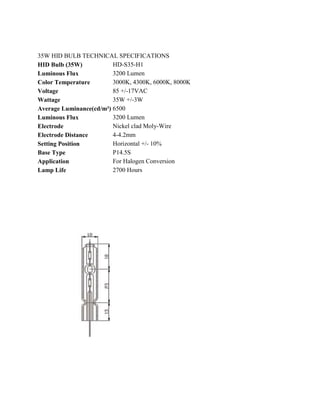

5. 35W HID BULB TECHNICAL SPECIFICATIONS
HID Bulb (35W) HD-S35-H1
Luminous Flux 3200 Lumen
Color Temperature 3000K, 4300K, 6000K, 8000K
Voltage 85 +/-17VAC
Wattage 35W +/-3W
Average Luminance(cd/m²) 6500
Luminous Flux 3200 Lumen
Electrode Nickel clad Moly-Wire
Electrode Distance 4-4.2mm
Setting Position Horizontal +/- 10%
Base Type P14.5S
Application For Halogen Conversion
Lamp Life 2700 Hours

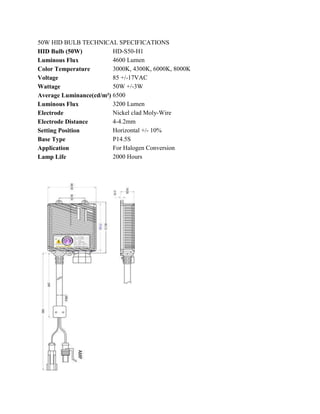

6. 50W HID BULB TECHNICAL SPECIFICATIONS
HID Bulb (50W) HD-S50-H1
Luminous Flux 4600 Lumen
Color Temperature 3000K, 4300K, 6000K, 8000K
Voltage 85 +/-17VAC
Wattage 50W +/-3W
Average Luminance(cd/m²) 6500
Luminous Flux 3200 Lumen
Electrode Nickel clad Moly-Wire
Electrode Distance 4-4.2mm
Setting Position Horizontal +/- 10%
Base Type P14.5S
Application For Halogen Conversion
Lamp Life 2000 Hours
7. 35W SLIM BALLAST TECHNICAL SPECIFICATIONS
Model HD-B35-HID
Input Voltage Range 9-17VDC
Typical Operating Voltage 12.8VDC
Typical Input Current 3.2A
Max. Inrush Current 4.9A
Output Power 33W±2W(Constant Power)
Output Voltage 85VAC±15V (Square Pulse, RMS 70-100V)
Output Frequency 260Hz~285Hz
Efficiency ≥83%,
Ignition Pulse Typical Peak Voltage 23KV, Duration 1S
Cooling Method Natural Cooling
Input Protection 1 Under Voltage Protection at 6V±1V
Input Protection 2 Over Voltage Protection at 34.5V±1V
Input Protection 3 Input connection-reverse protection
Output Protection 1 Short Circuit Protection Between Two Outputs
Output Protection 2 Open Circuit Protection Between Two Outputs
Operating Temperature -30℃~+85℃
Storage Temperature -40℃~+95℃
Cable Length 380mm / 15"
Dimensions(mm) 77.5L x 68.5W x 19.5H(MM)
Weight 0.23KG (0.50LB)
Rated Life 2500+ Hours
Visit for http://www.futurevisionhid.com/products/auxiliary-lights/hid-auxiliary-projector-light-kit.html
more info

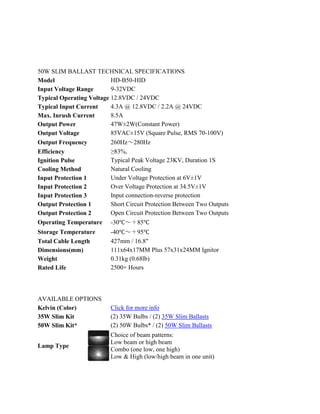

8. 50W SLIM BALLAST TECHNICAL SPECIFICATIONS
Model HD-B50-HID
Input Voltage Range 9-32VDC
Typical Operating Voltage 12.8VDC / 24VDC
Typical Input Current 4.3A @ 12.8VDC / 2.2A @ 24VDC
Max. Inrush Current 8.5A
Output Power 47W±2W(Constant Power)
Output Voltage 85VAC±15V (Square Pulse, RMS 70-100V)
Output Frequency 260Hz~280Hz
Efficiency ≥83%,
Ignition Pulse Typical Peak Voltage 23KV, Duration 1S
Cooling Method Natural Cooling
Input Protection 1 Under Voltage Protection at 6V±1V
Input Protection 2 Over Voltage Protection at 34.5V±1V
Input Protection 3 Input connection-reverse protection
Output Protection 1 Short Circuit Protection Between Two Outputs
Output Protection 2 Open Circuit Protection Between Two Outputs
Operating Temperature -30℃~+85℃
Storage Temperature -40℃~+95℃
Total Cable Length 427mm / 16.8"
Dimensions(mm) 111x64x17MM Plus 57x31x24MM Ignitor
Weight 0.31kg (0.68lb)
Rated Life 2500+ Hours
AVAILABLE OPTIONS
Kelvin (Color) Click for more info
35W Slim Kit (2) 35W Bulbs / (2) 35W Slim Ballasts
50W Slim Kit* (2) 50W Bulbs* / (2) 50W Slim Ballasts
Choice of beam patterns:
Low beam or high beam
Lamp Type
Combo (one low, one high)
Low & High (low/high beam in one unit)

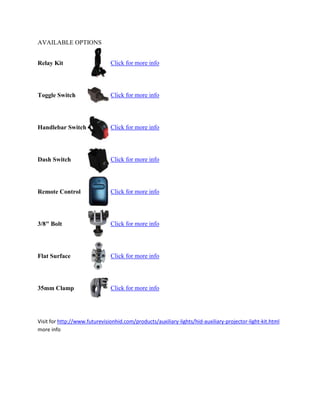

9. AVAILABLE OPTIONS
Relay Kit Click for more info
Toggle Switch Click for more info
Handlebar Switch Click for more info
Dash Switch Click for more info
Remote Control Click for more info
3/8" Bolt Click for more info
Flat Surface Click for more info
35mm Clamp Click for more info
Visit for http://www.futurevisionhid.com/products/auxiliary-lights/hid-auxiliary-projector-light-kit.html
more info
