1. Principles of PHP Package Design
Objectoriented design for packages
Matthias Noback - Noback's Office
DomCode, first monthly meeting - 7/28/2014

2. First monthly meeting of DomCode
2/52

3. Also: congratulations to SweetlakePHP
3/52

4. Matthias Noback
Noback's Office
PHP developer
Writer/speaker
Proud father
·
·
·
4/52

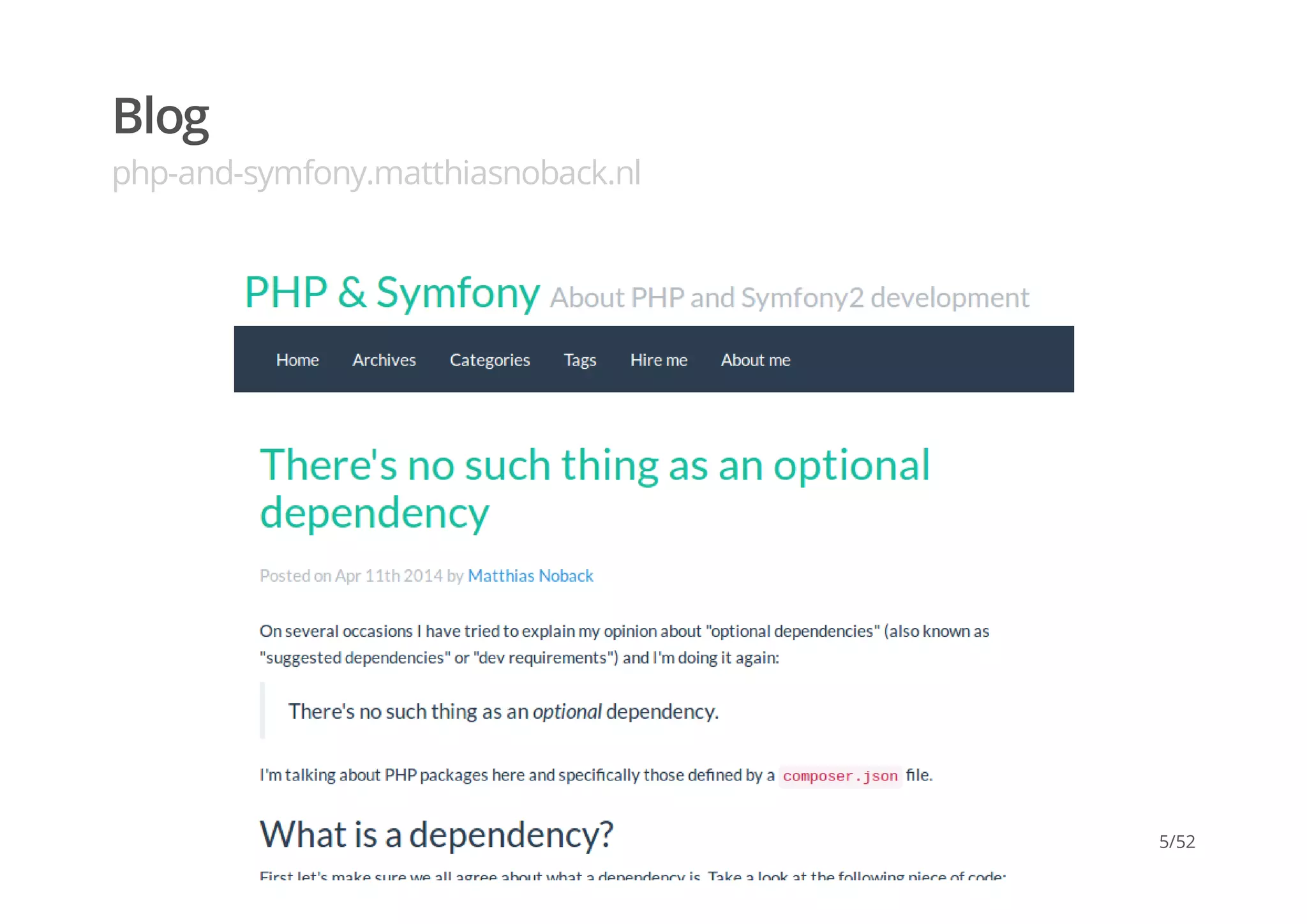

5. Blog
php-and-symfony.matthiasnoback.nl
5/52

6. A Year With Symfony
leanpub.com/a-year-with-symfony
6/52

7. Tight coupling
Coupling to a framework
7/52

8. Code
8/52

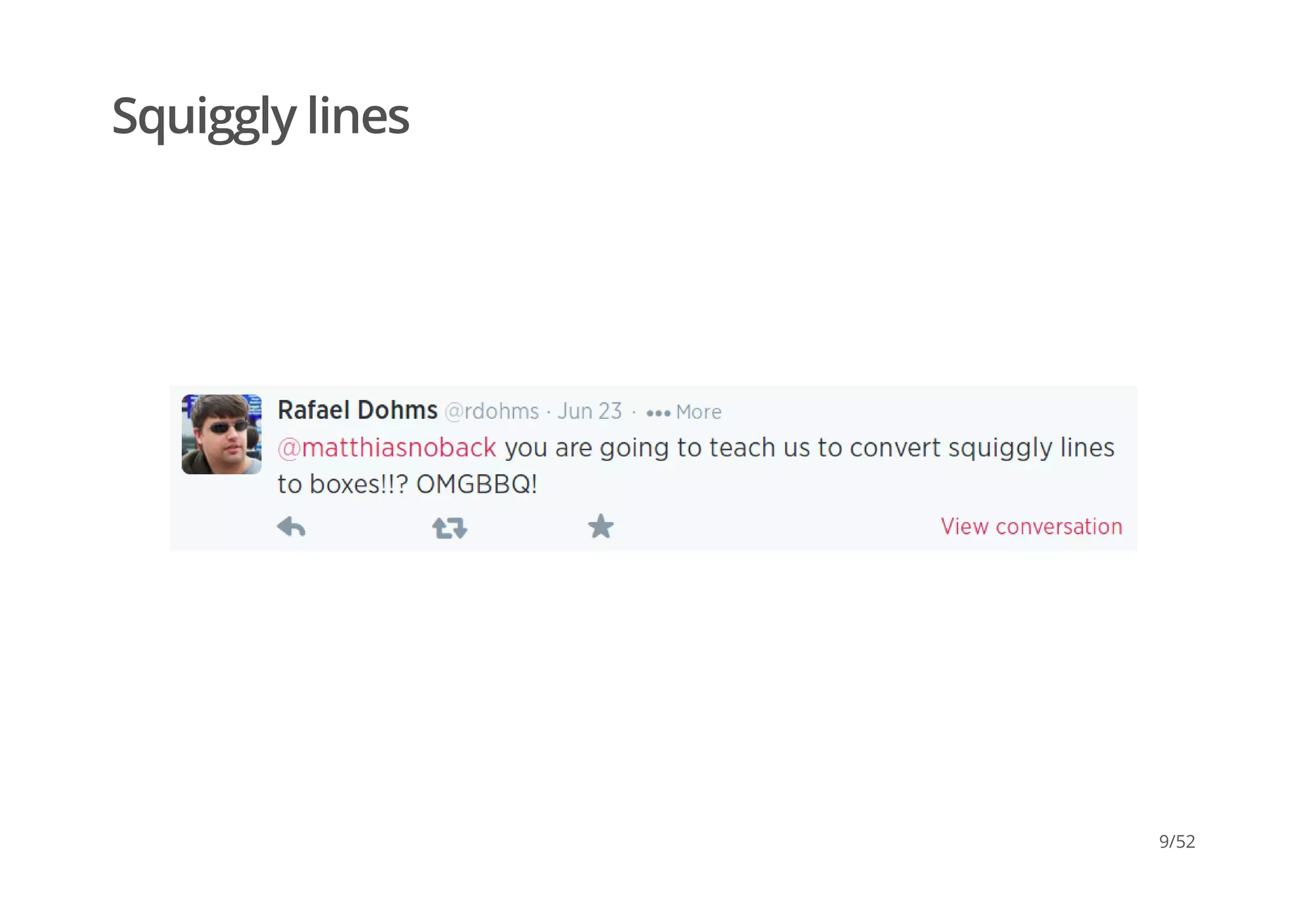

9. Squiggly lines
9/52

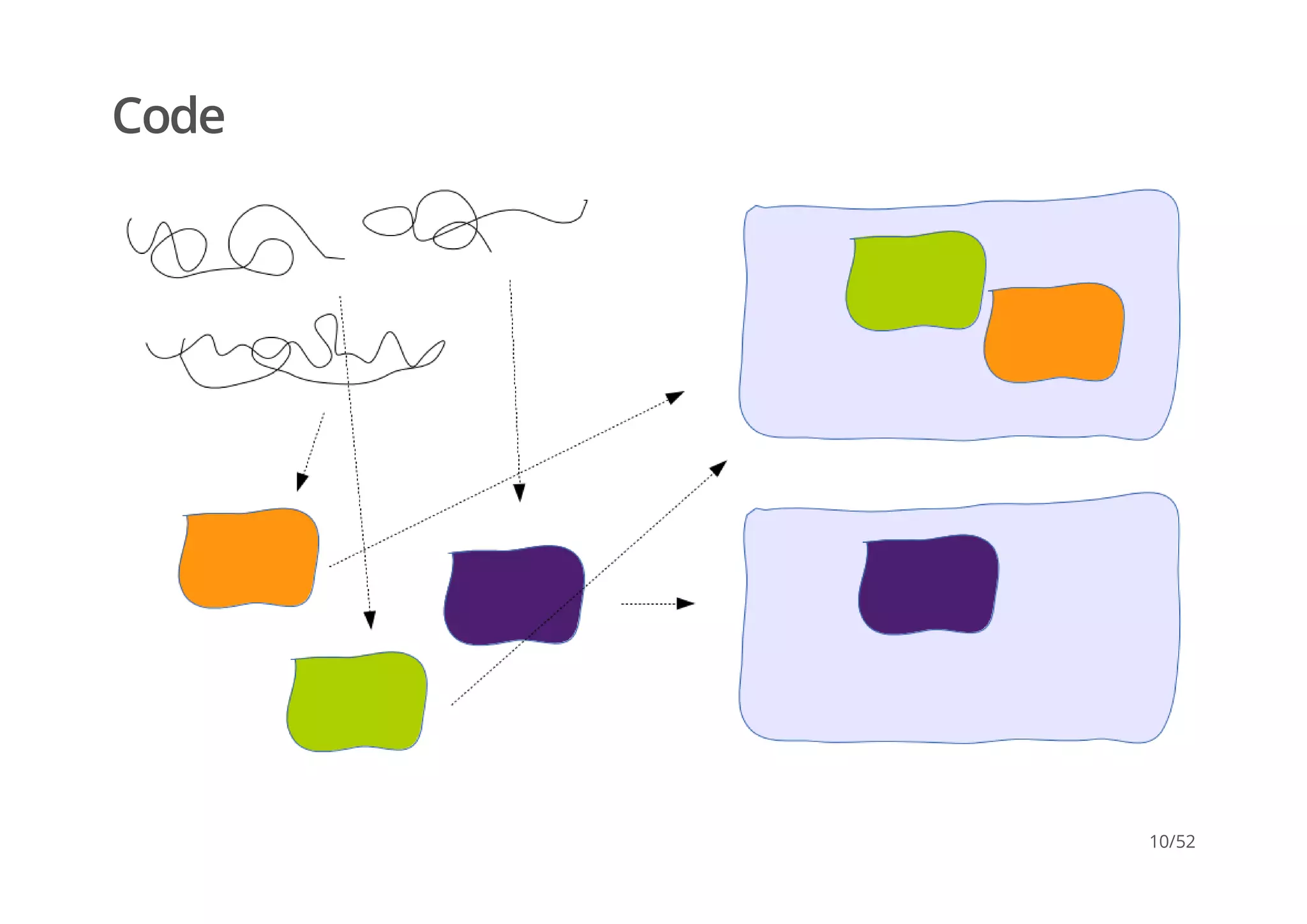

10. Code
10/52

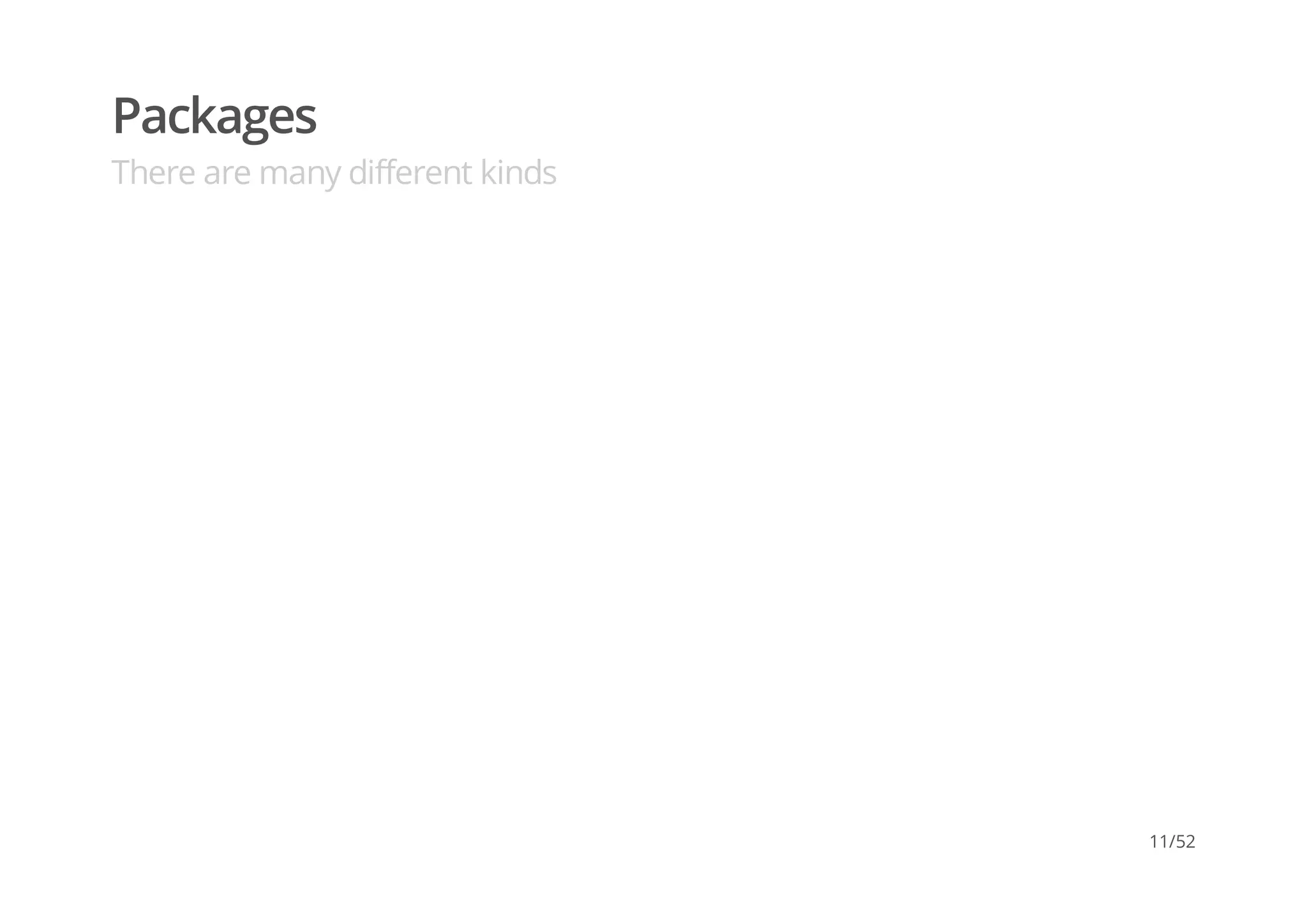

11. Packages
There are many different kinds
11/52

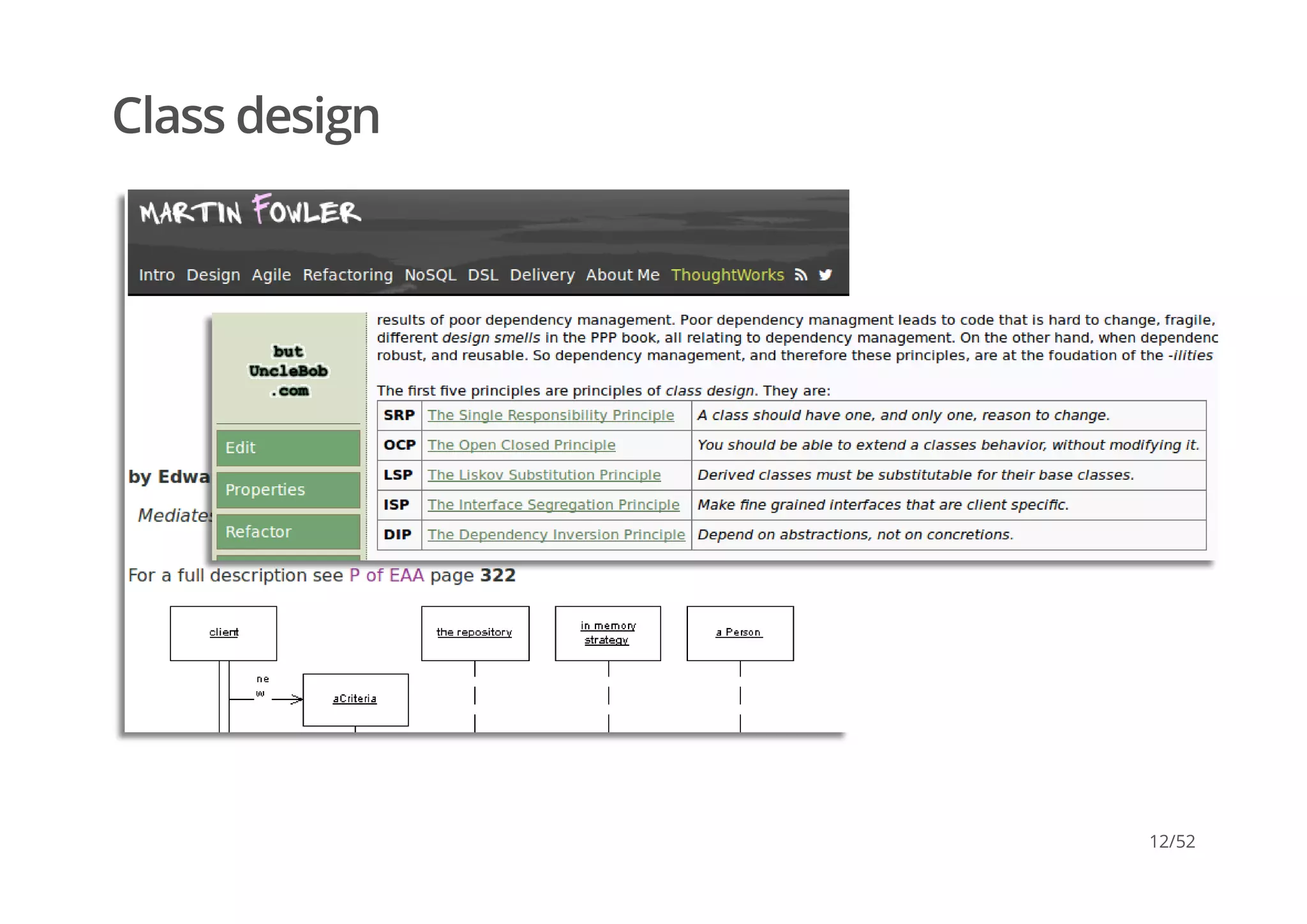

12. Class design
12/52

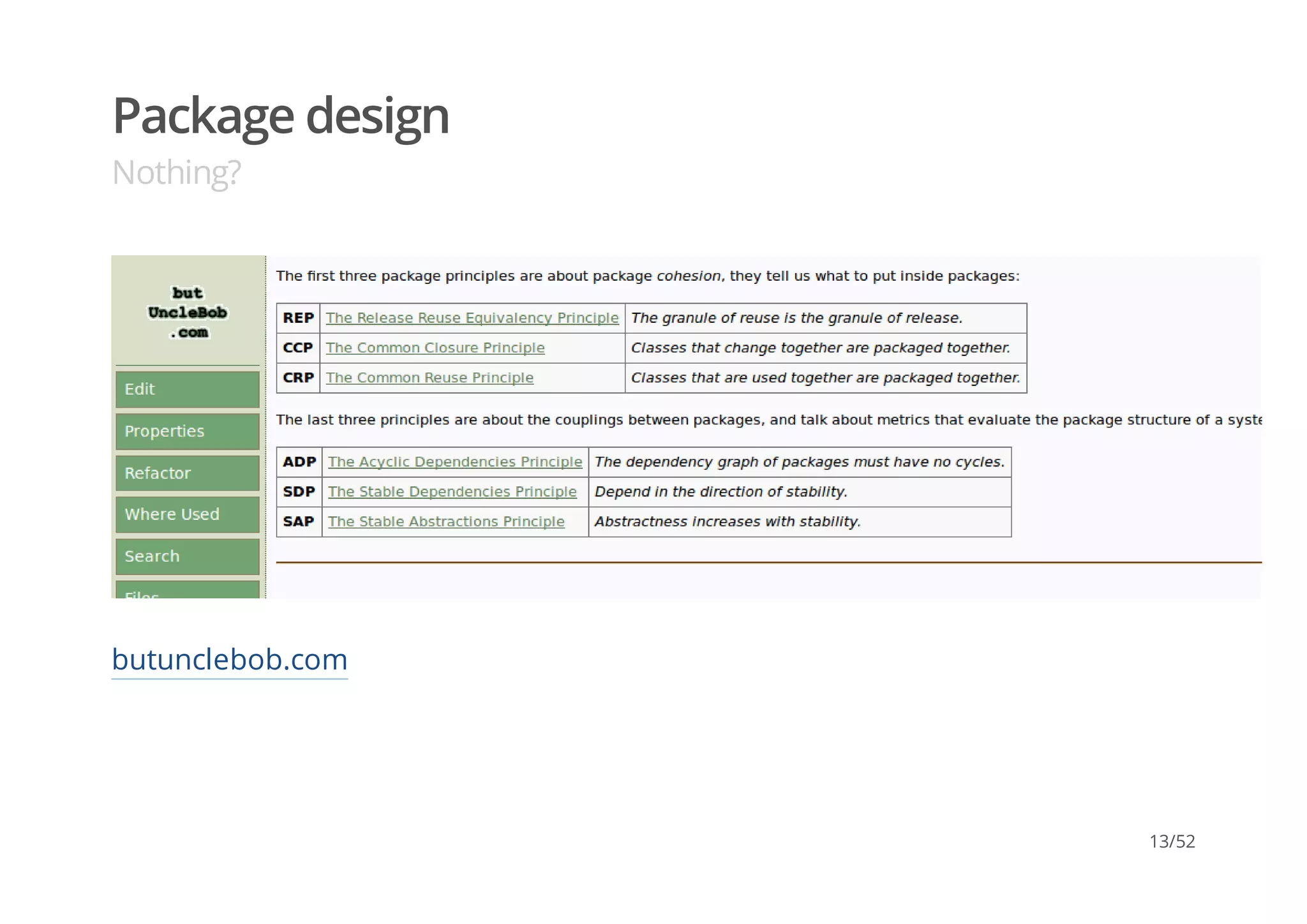

13. Package design
Nothing?
butunclebob.com
13/52

14. Principles of PHP Package Design
leanpub.com/principles-of-php-package-design
14/52

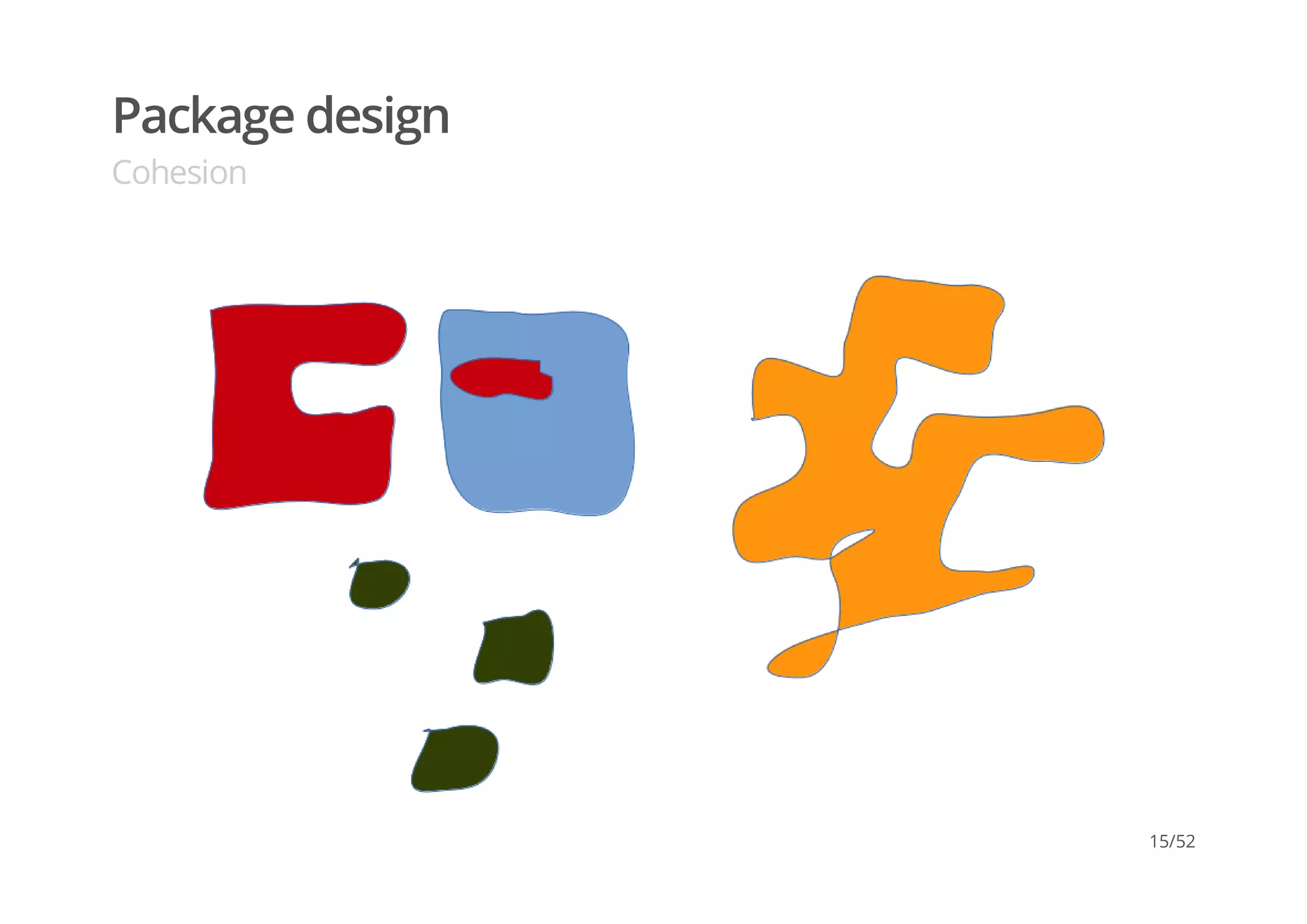

15. Package design
Cohesion
15/52

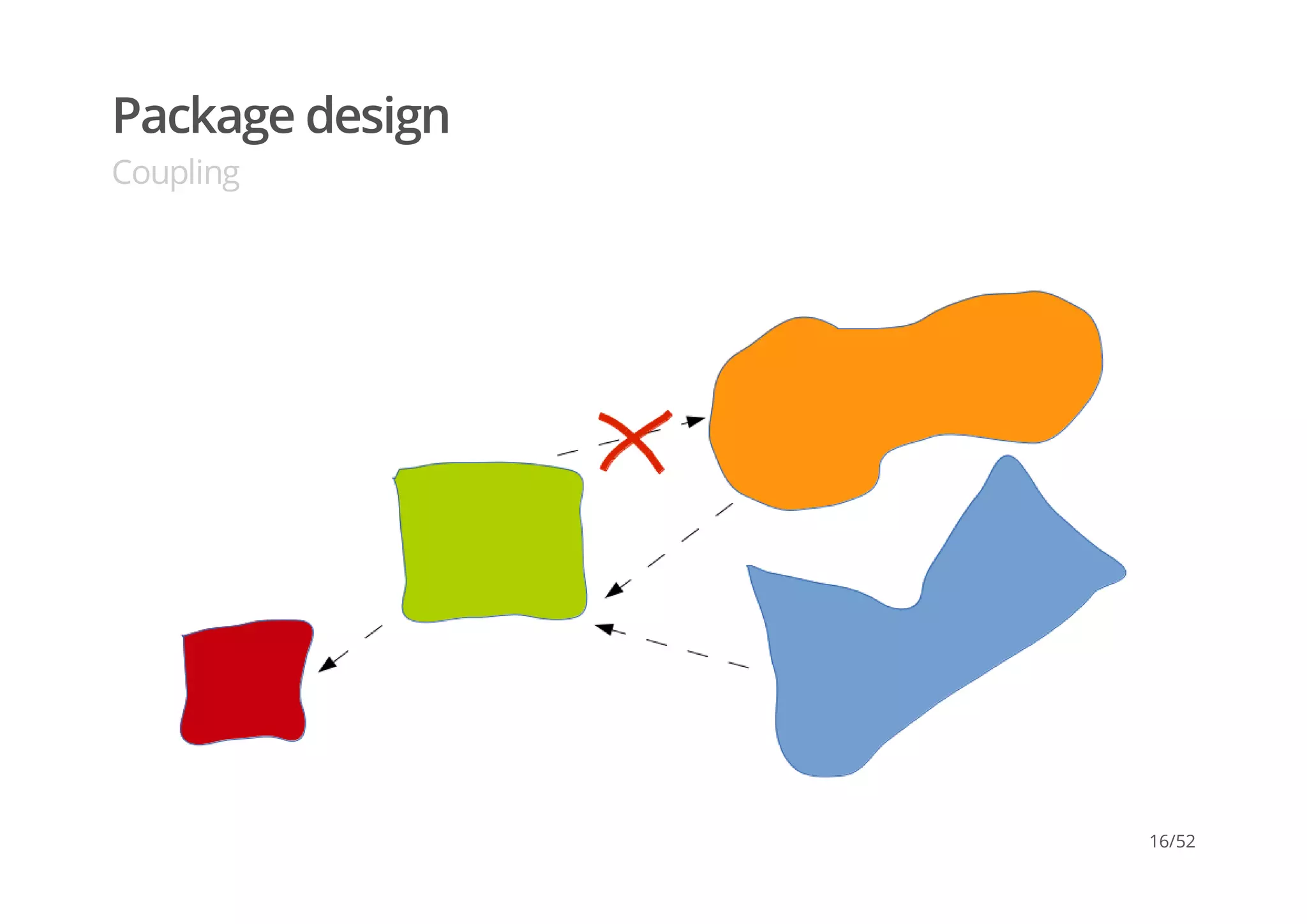

16. Package design
Coupling
16/52

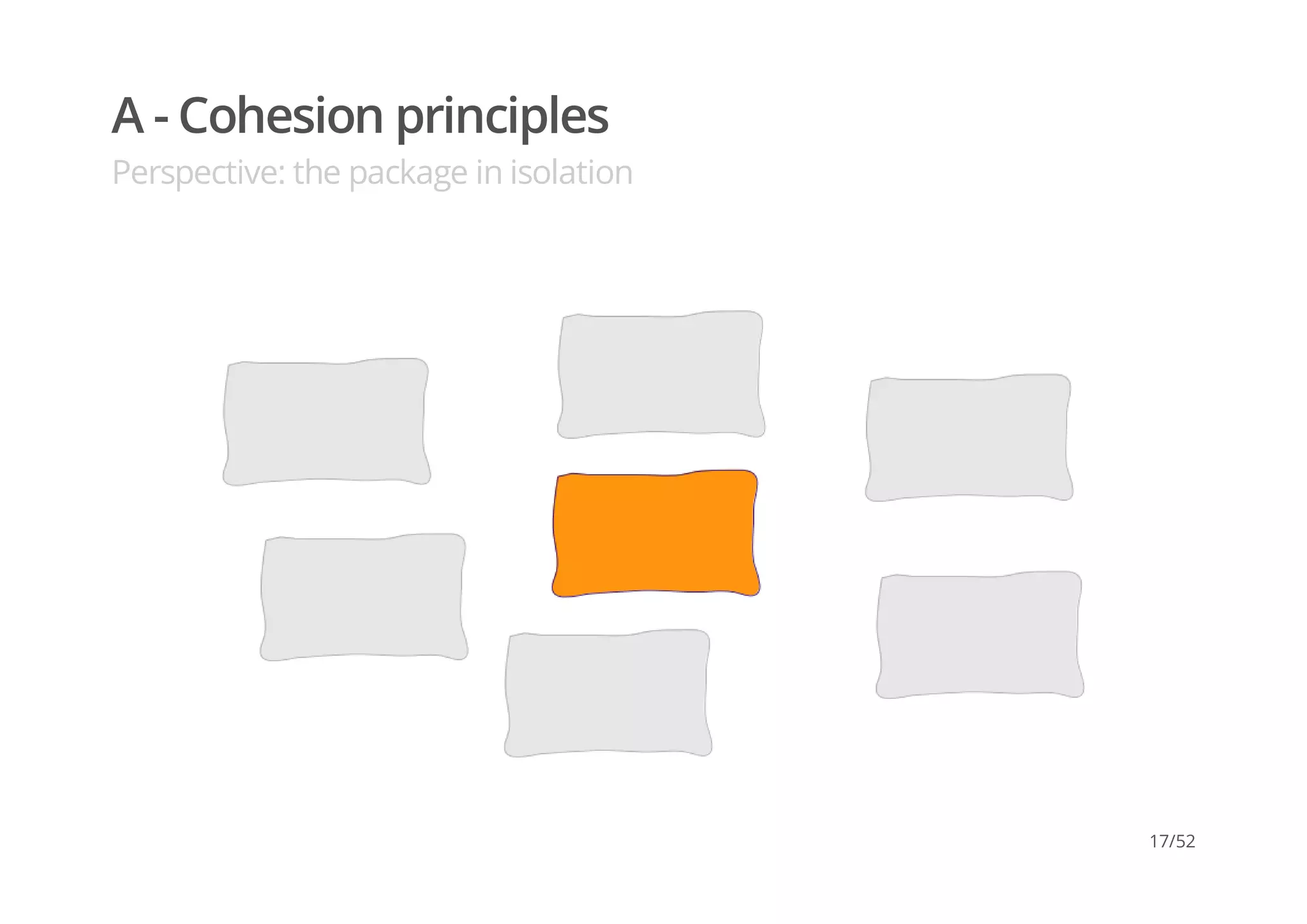

17. A - Cohesion principles
Perspective: the package in isolation
17/52

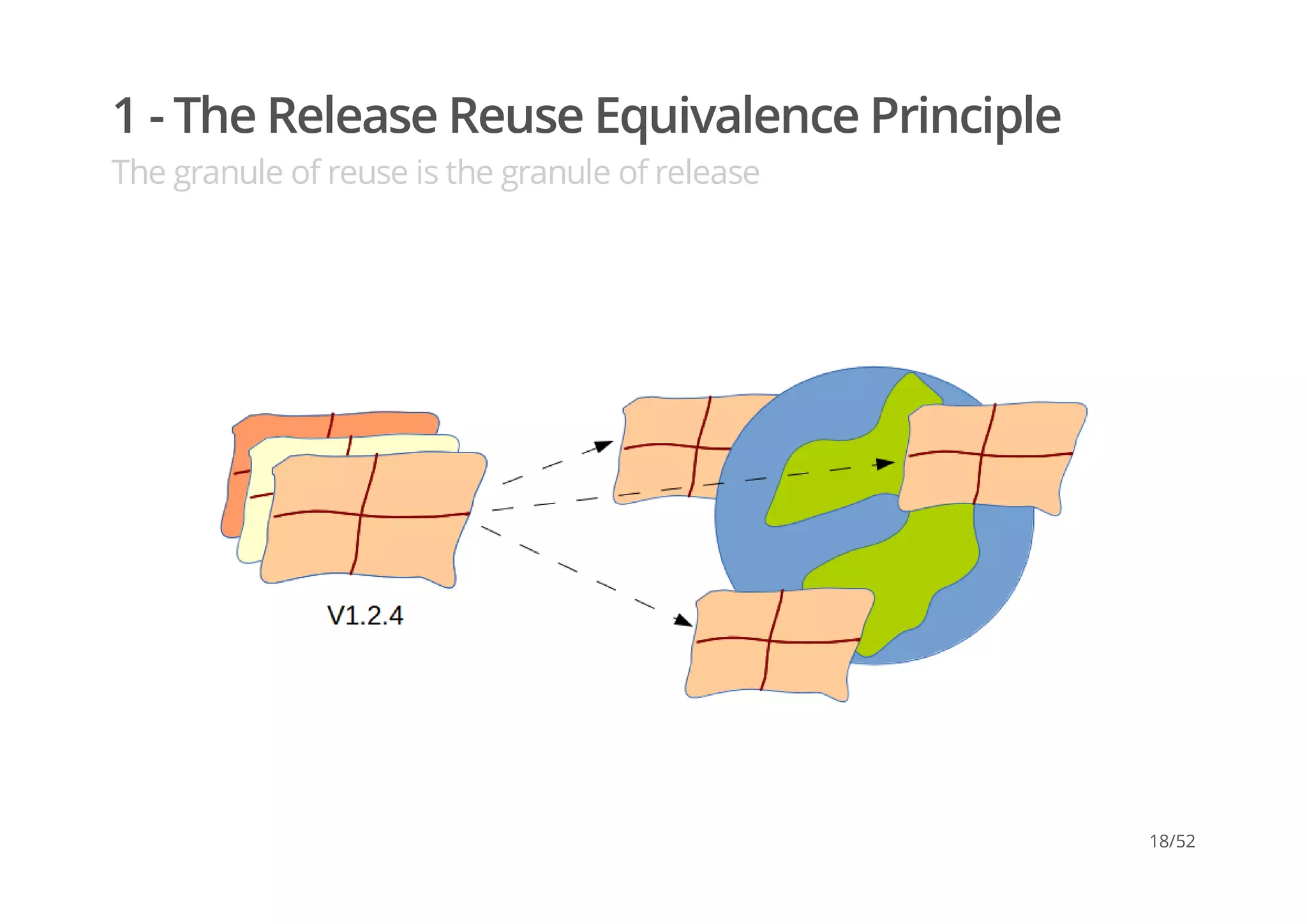

18. 1 - The Release Reuse Equivalence Principle
The granule of reuse is the granule of release
18/52

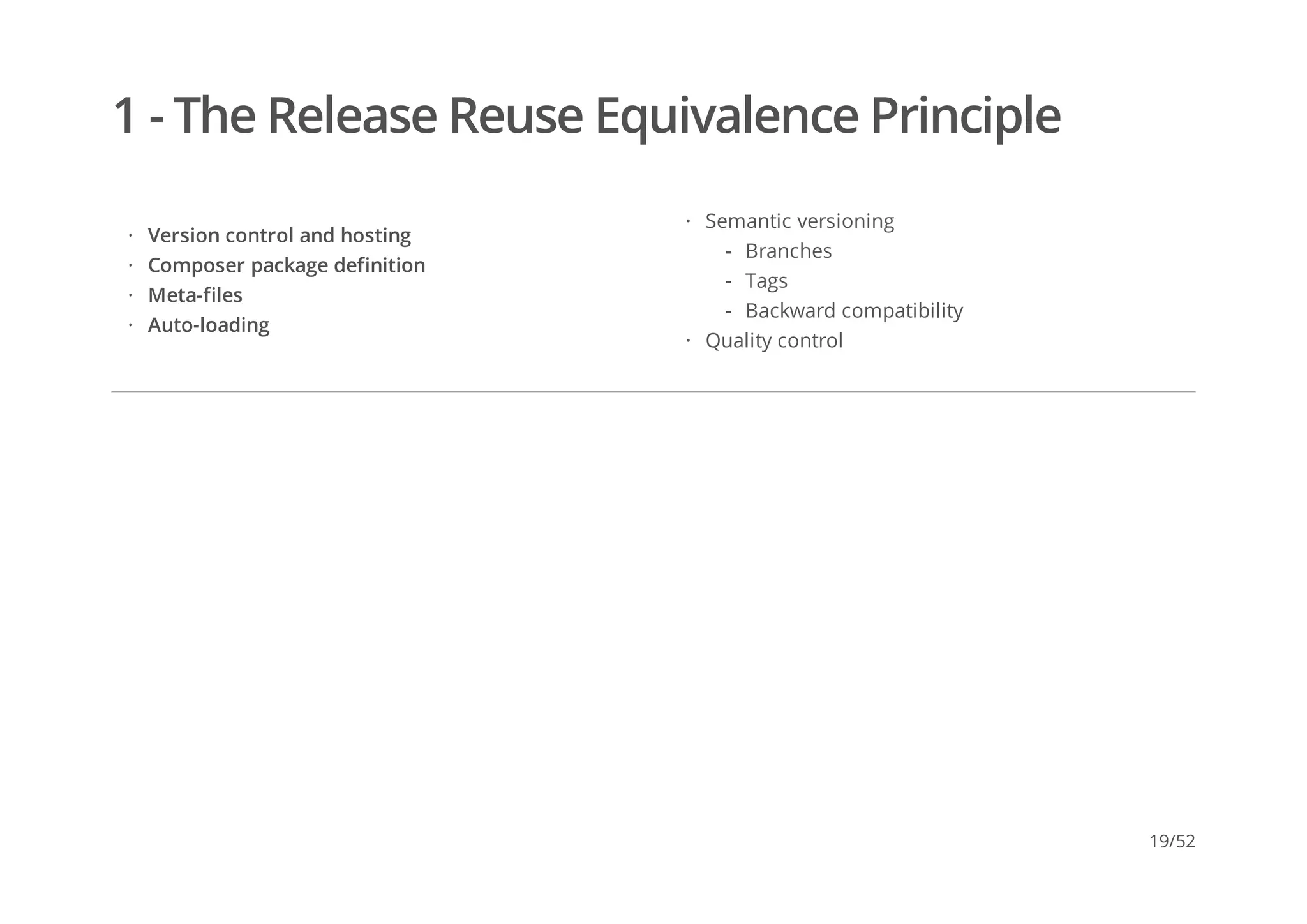

19. 1 - The Release Reuse Equivalence Principle
Version control and hosting
Composer package definition
Meta-files
Auto-loading
·
·
·
·
Semantic versioning
Quality control
·
Branches
Tags
Backward compatibility
-
-
-
·
19/52

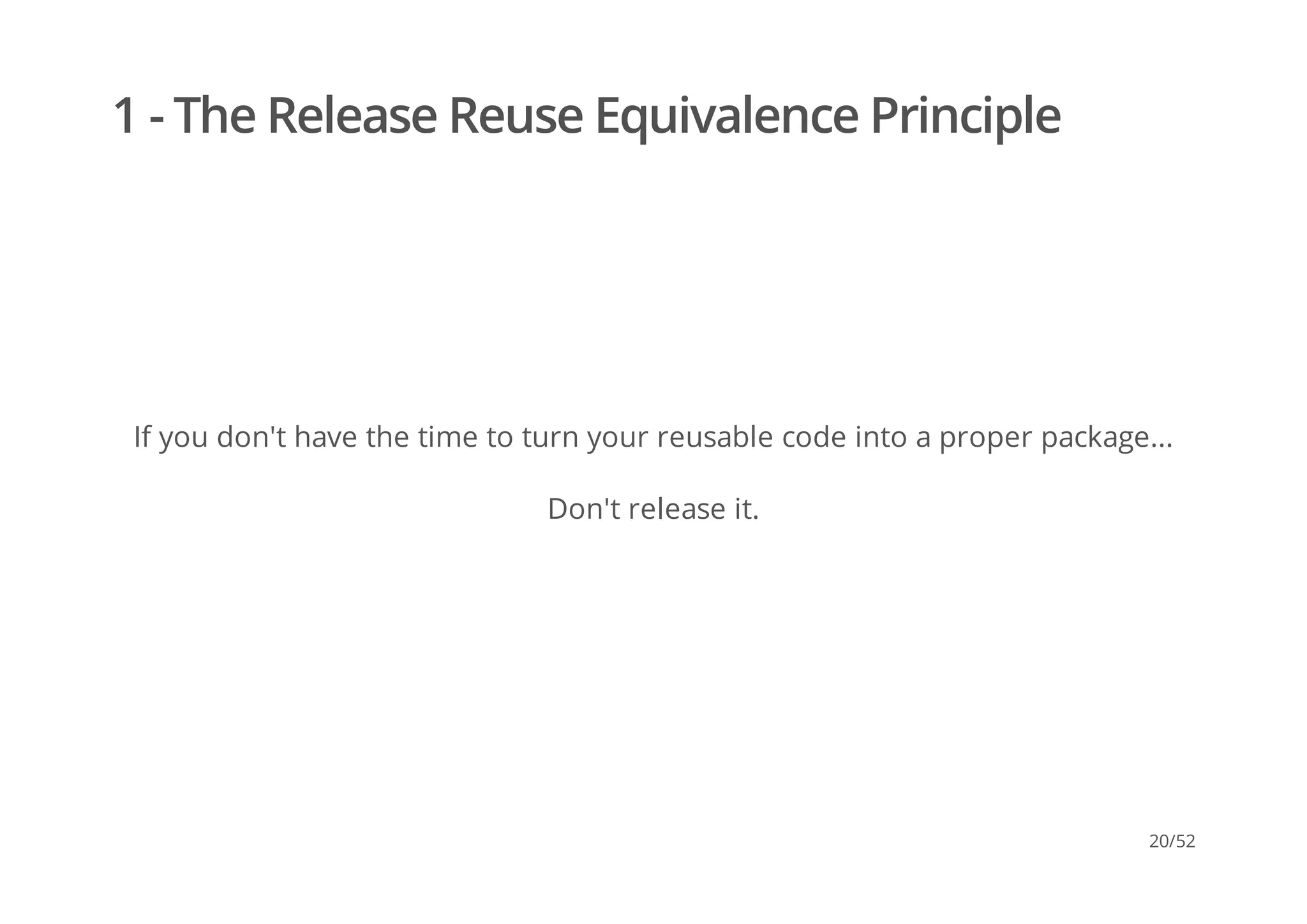

20. 1 - The Release Reuse Equivalence Principle
If you don't have the time to turn your reusable code into a proper package...
Don't release it.
20/52

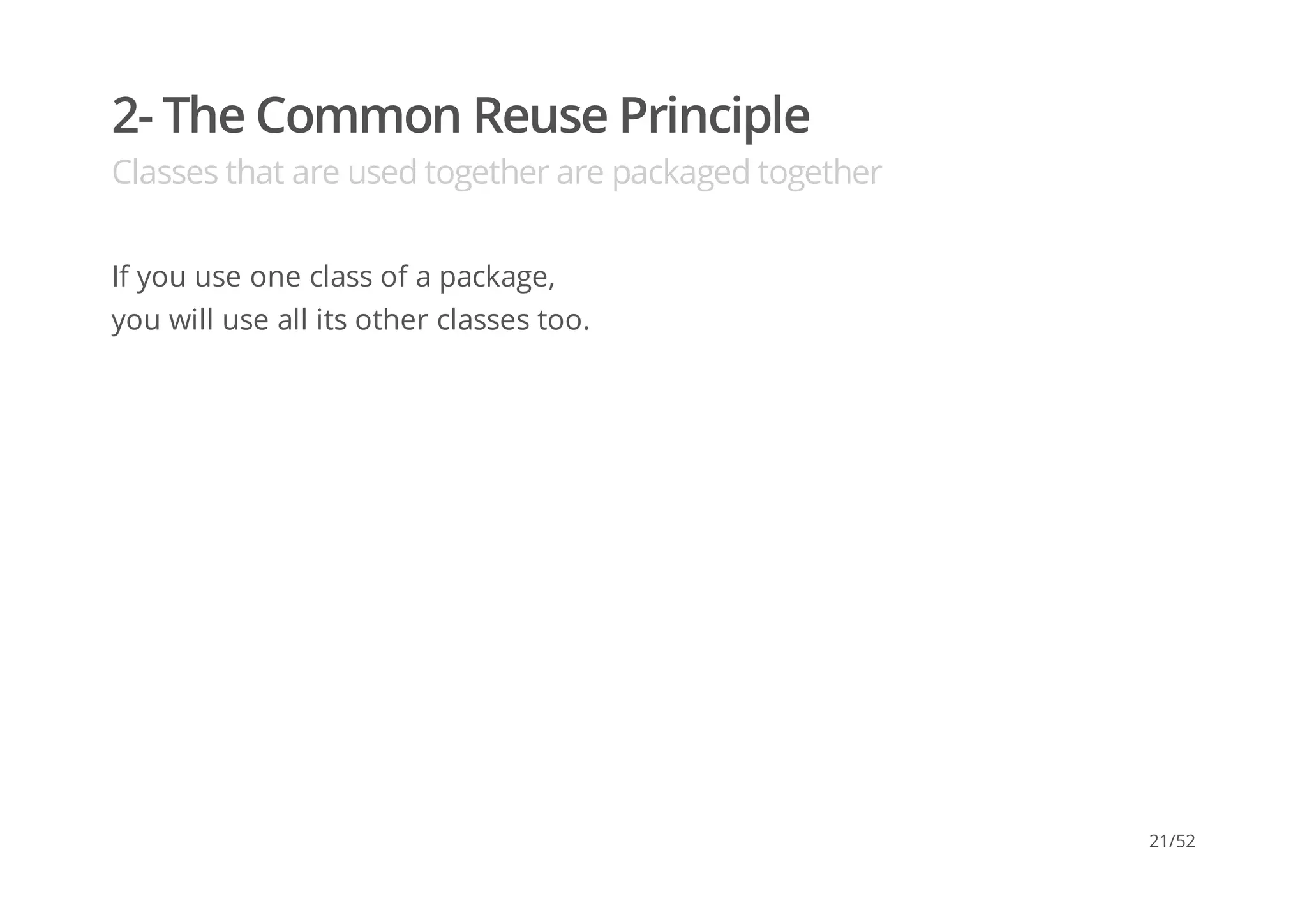

21. 2- The Common Reuse Principle
Classes that are used together are packaged together
If you use one class of a package,
you will use all its other classes too.
21/52

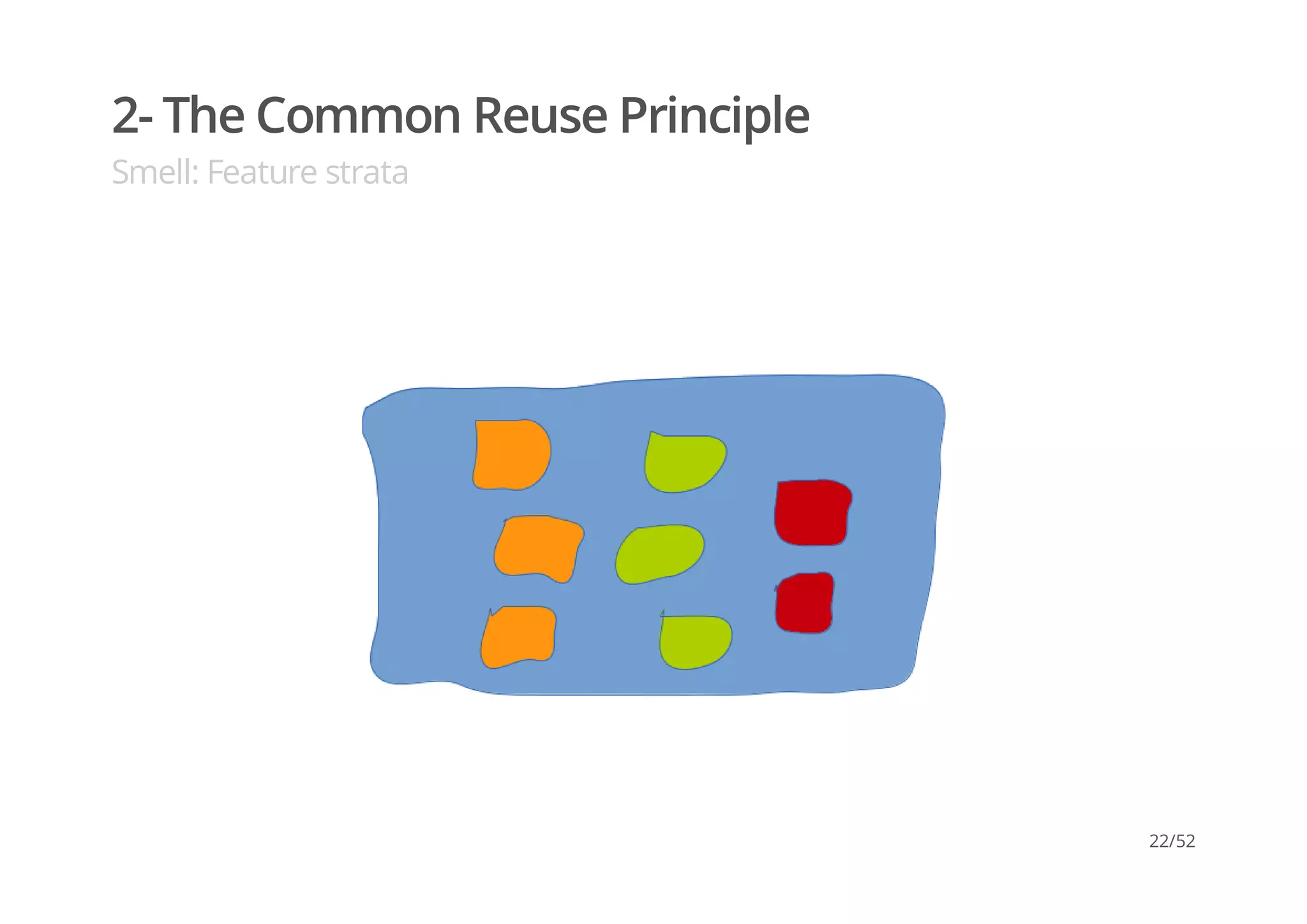

22. 2- The Common Reuse Principle
Smell: Feature strata
22/52

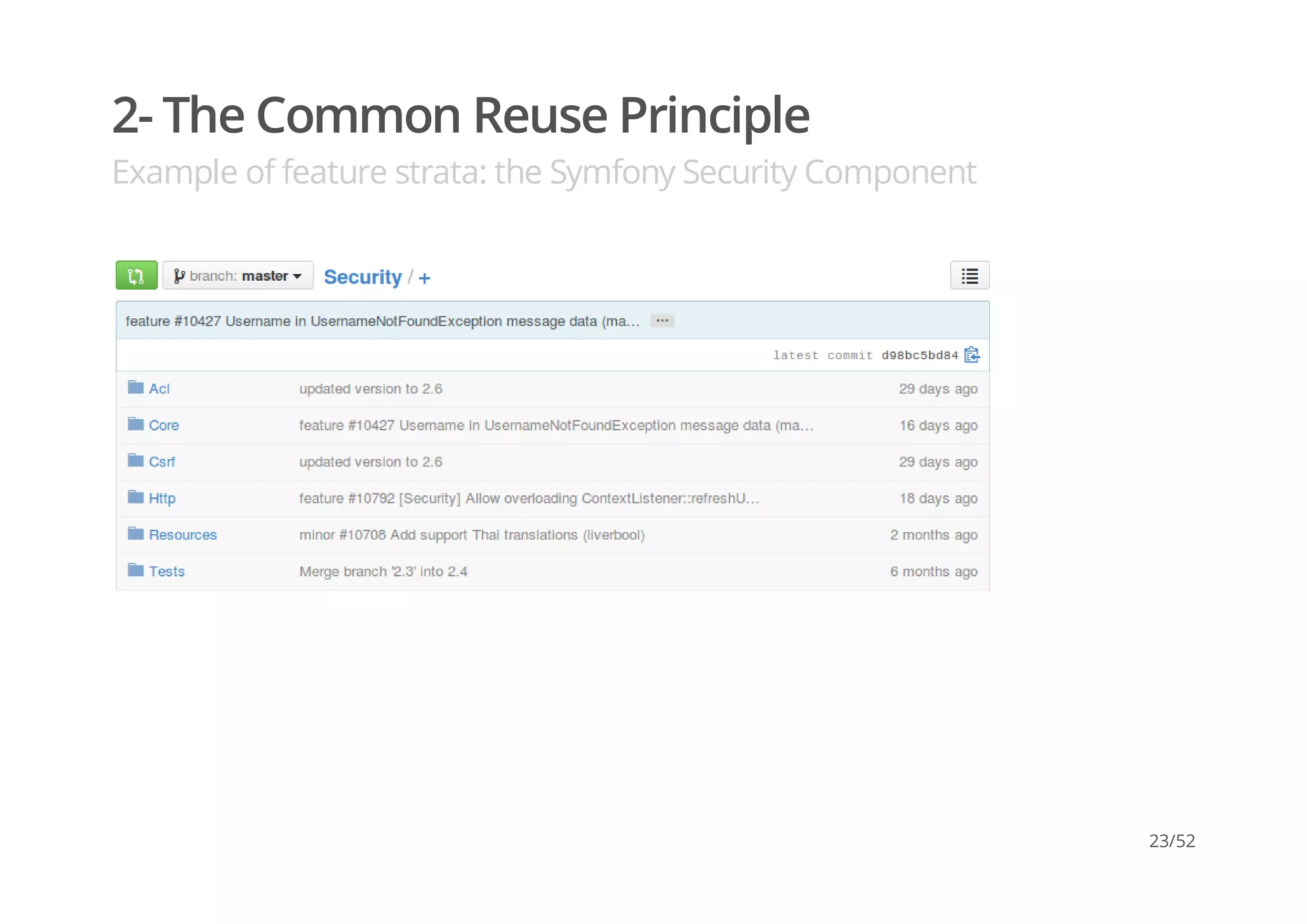

23. 2- The Common Reuse Principle
Example of feature strata: the Symfony Security Component
23/52

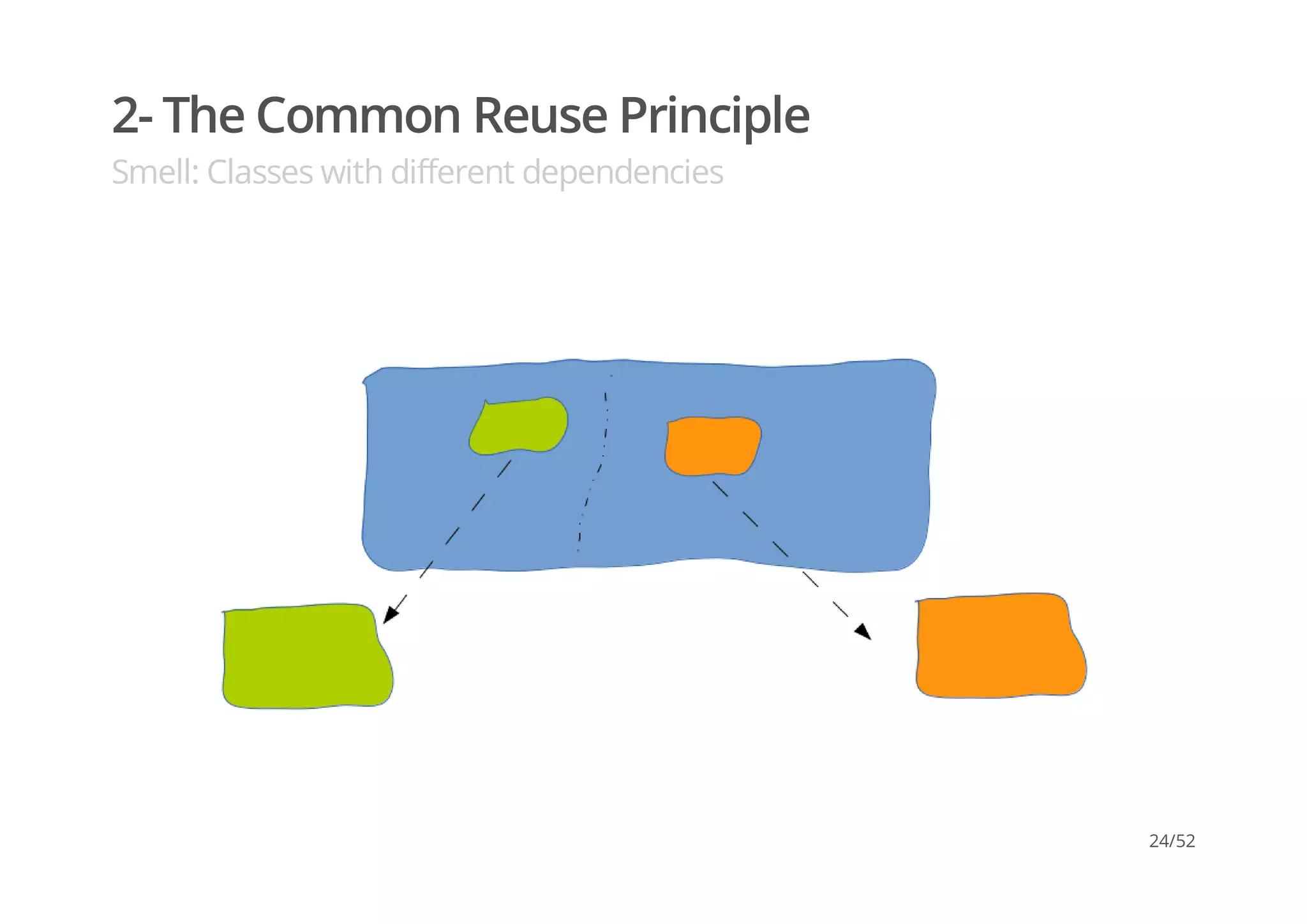

24. 2- The Common Reuse Principle
Smell: Classes with different dependencies
24/52

25. 2- The Common Reuse Principle
Example of different dependencies: Gaufrette
25/52

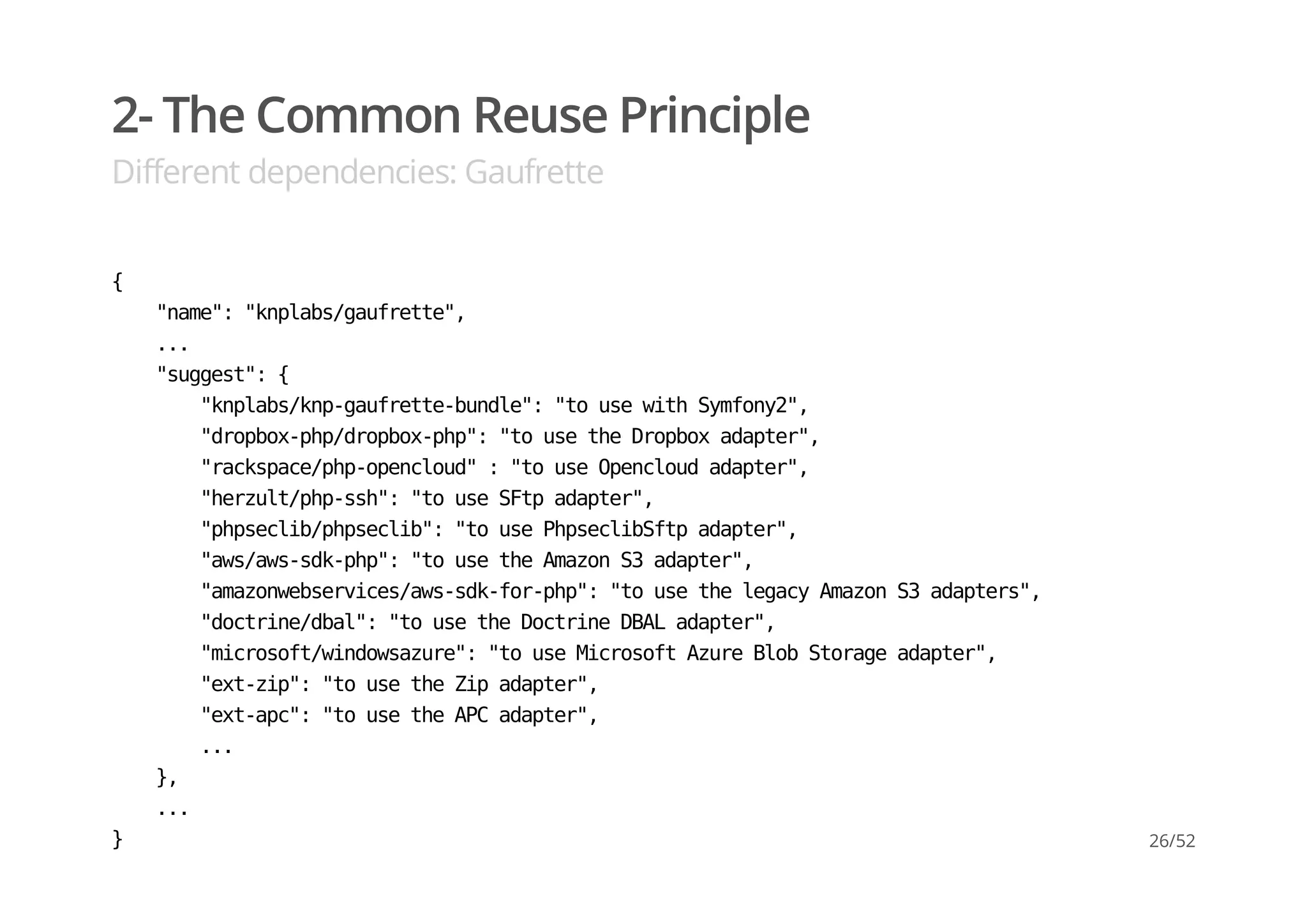

26. 2- The Common Reuse Principle
Different dependencies: Gaufrette
{
"name":"knplabs/gaufrette",
...
"suggest":{
"knplabs/knp-gaufrette-bundle":"tousewithSymfony2",
"dropbox-php/dropbox-php":"tousetheDropboxadapter",
"rackspace/php-opencloud":"touseOpencloudadapter",
"herzult/php-ssh":"touseSFtpadapter",
"phpseclib/phpseclib":"tousePhpseclibSftpadapter",
"aws/aws-sdk-php":"tousetheAmazonS3adapter",
"amazonwebservices/aws-sdk-for-php":"tousethelegacyAmazonS3adapters",
"doctrine/dbal":"tousetheDoctrineDBALadapter",
"microsoft/windowsazure":"touseMicrosoftAzureBlobStorageadapter",
"ext-zip":"tousetheZipadapter",
"ext-apc":"tousetheAPCadapter",
...
},
...
} 26/52

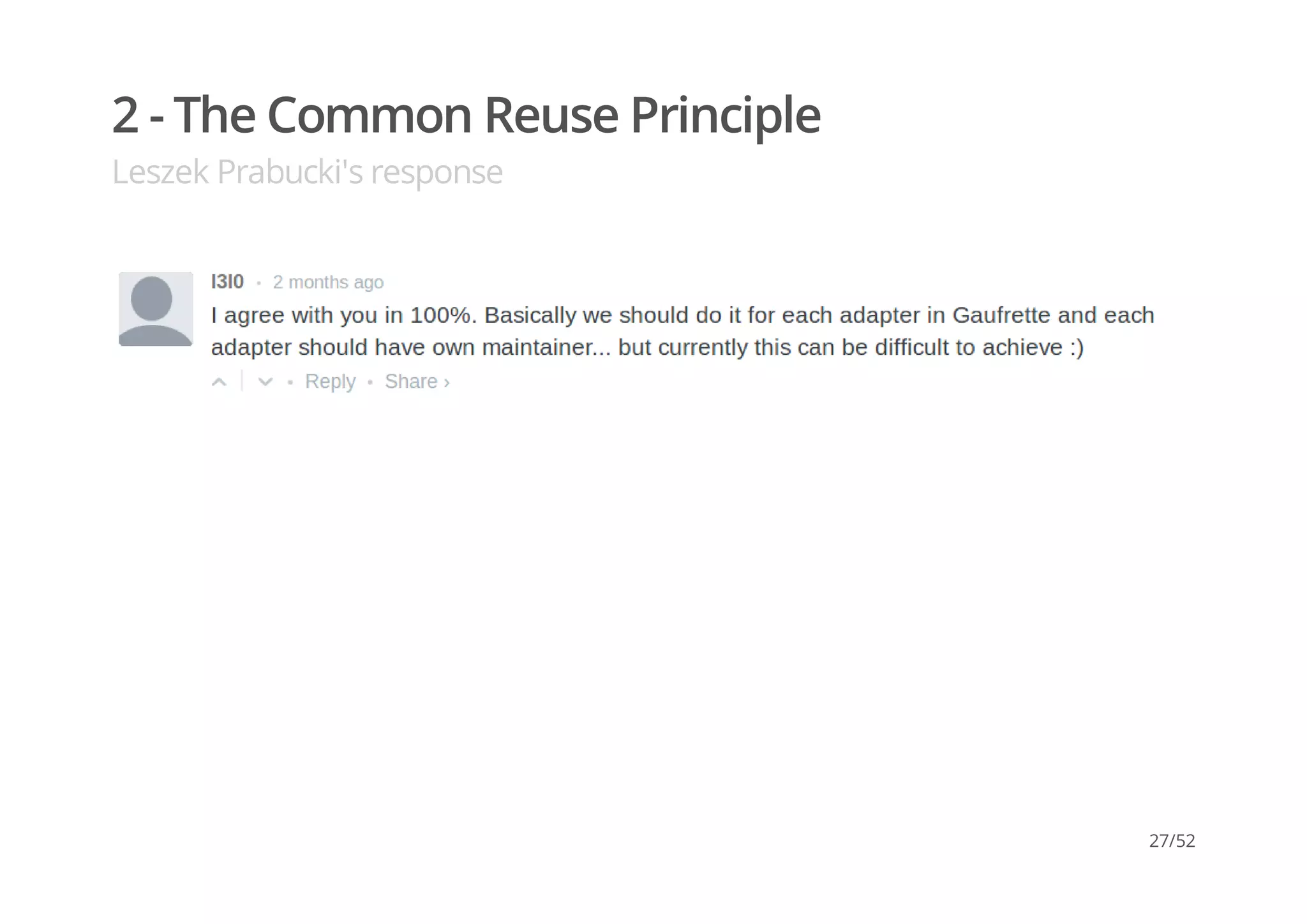

27. 2 - The Common Reuse Principle
Leszek Prabucki's response
27/52

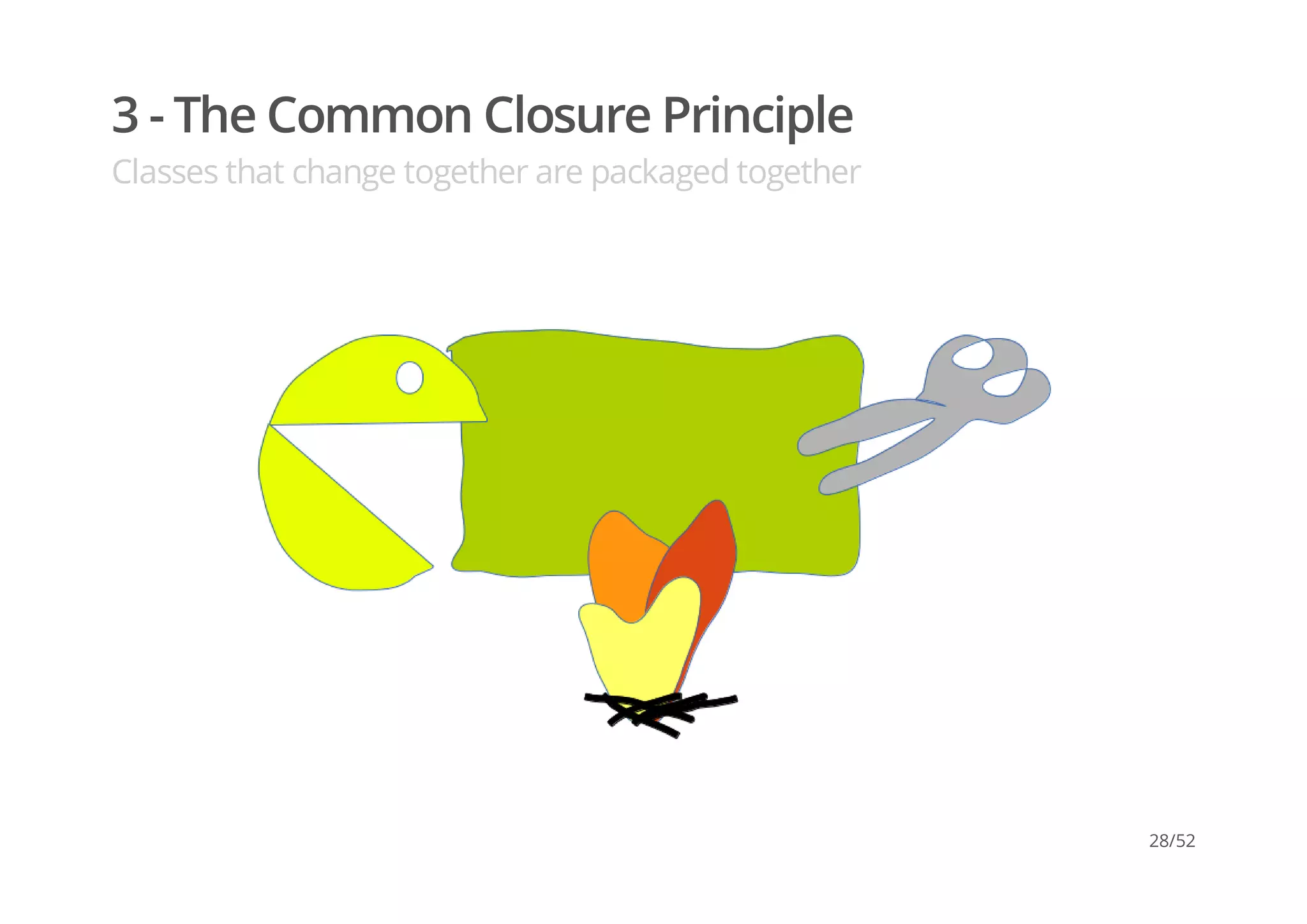

28. 3 - The Common Closure Principle
Classes that change together are packaged together
28/52

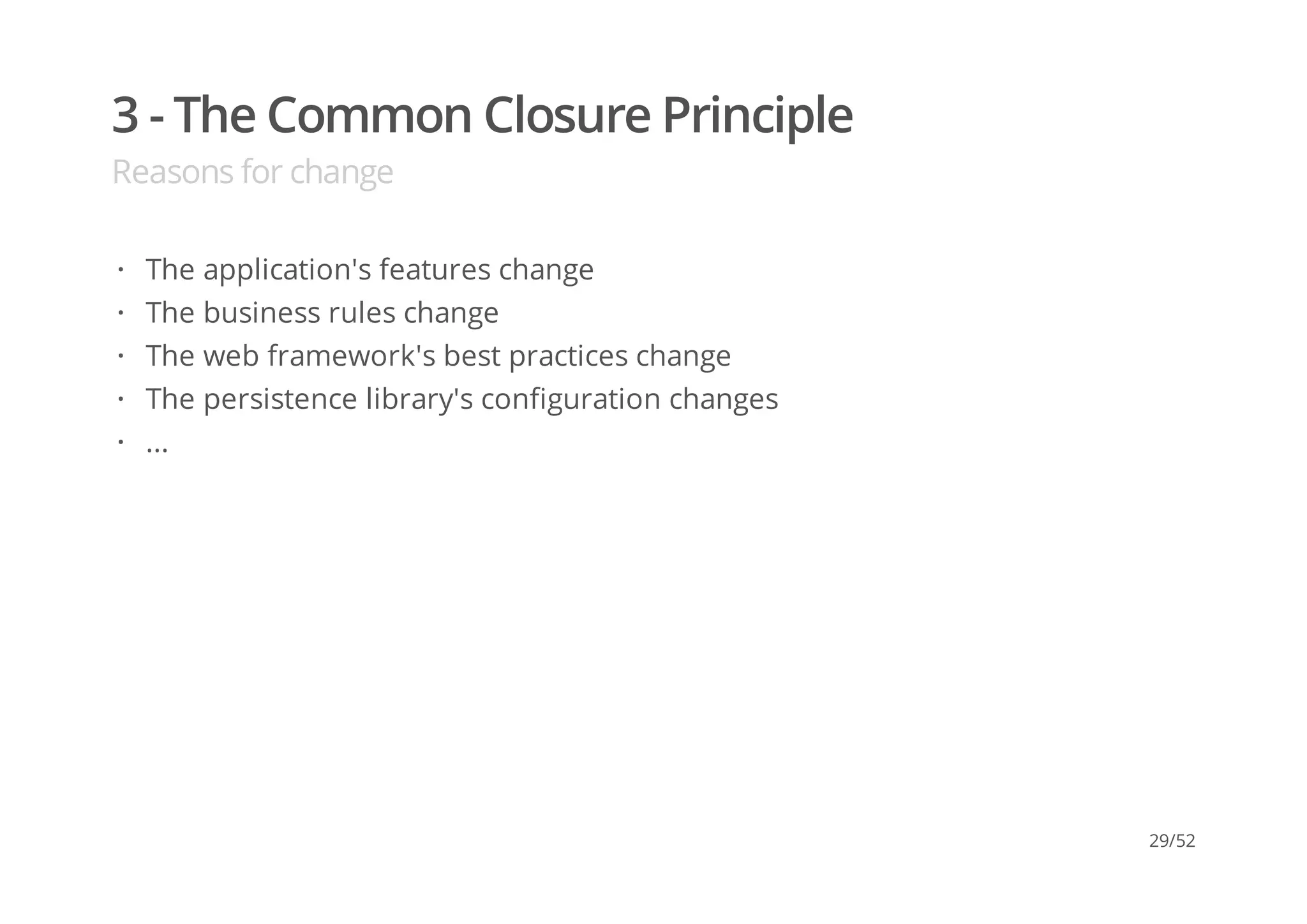

29. 3 - The Common Closure Principle
Reasons for change
The application's features change
The business rules change
The web framework's best practices change
The persistence library's configuration changes
...
·
·
·
·
·
29/52

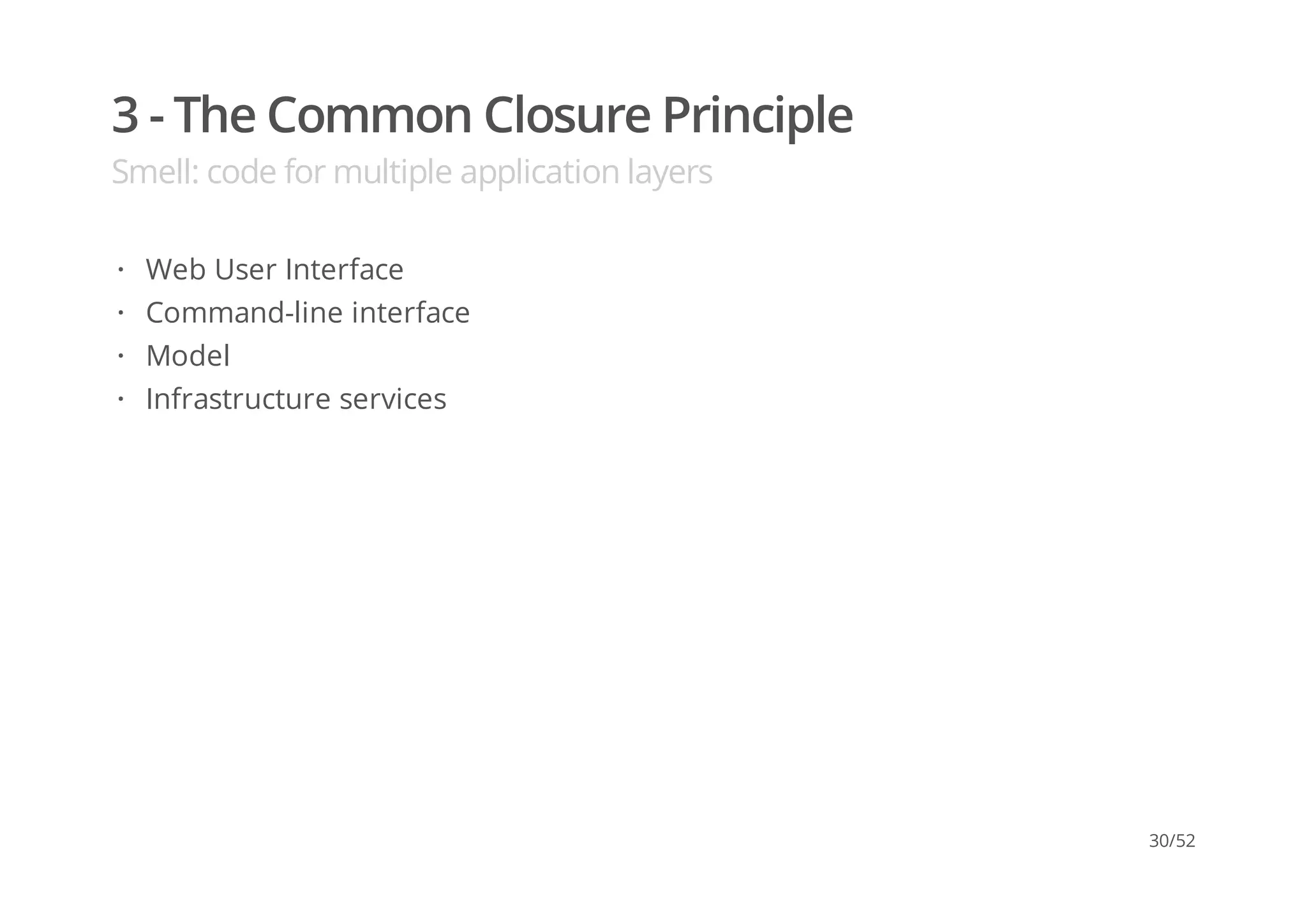

30. 3 - The Common Closure Principle
Smell: code for multiple application layers
Web User Interface
Command-line interface
Model
Infrastructure services
·
·
·
·
30/52

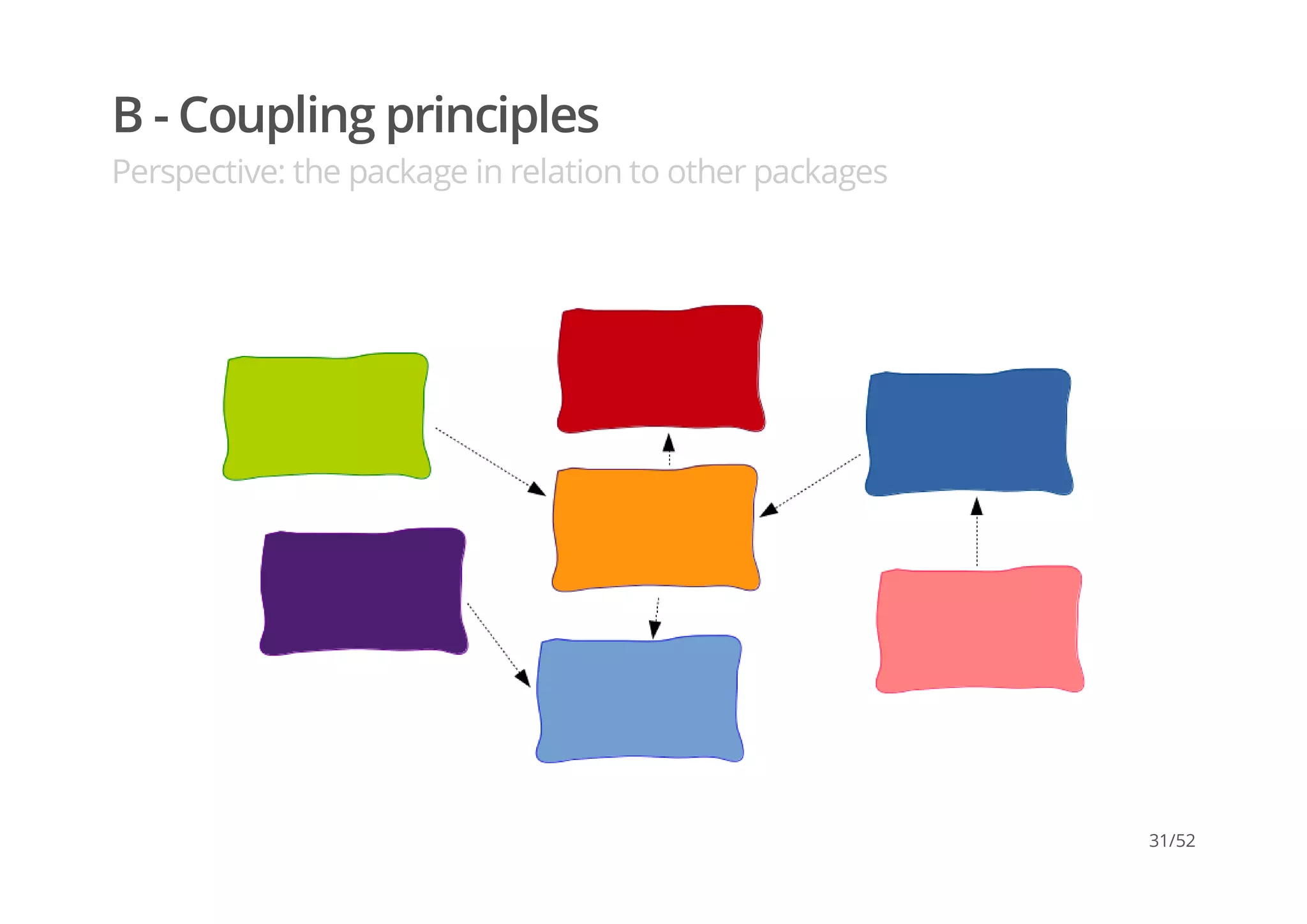

31. B - Coupling principles
Perspective: the package in relation to other packages
31/52

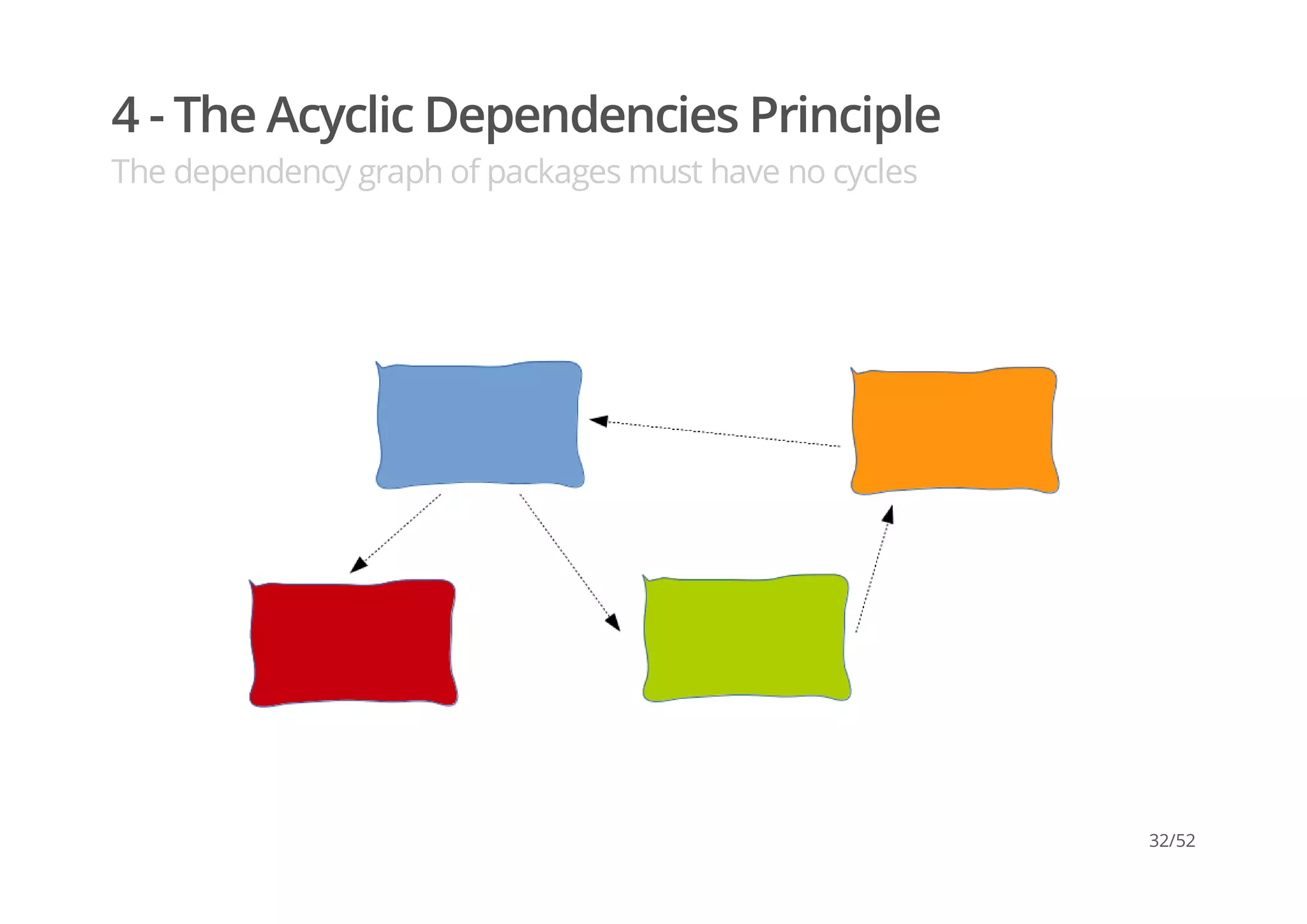

32. 4 - The Acyclic Dependencies Principle
The dependency graph of packages must have no cycles
32/52

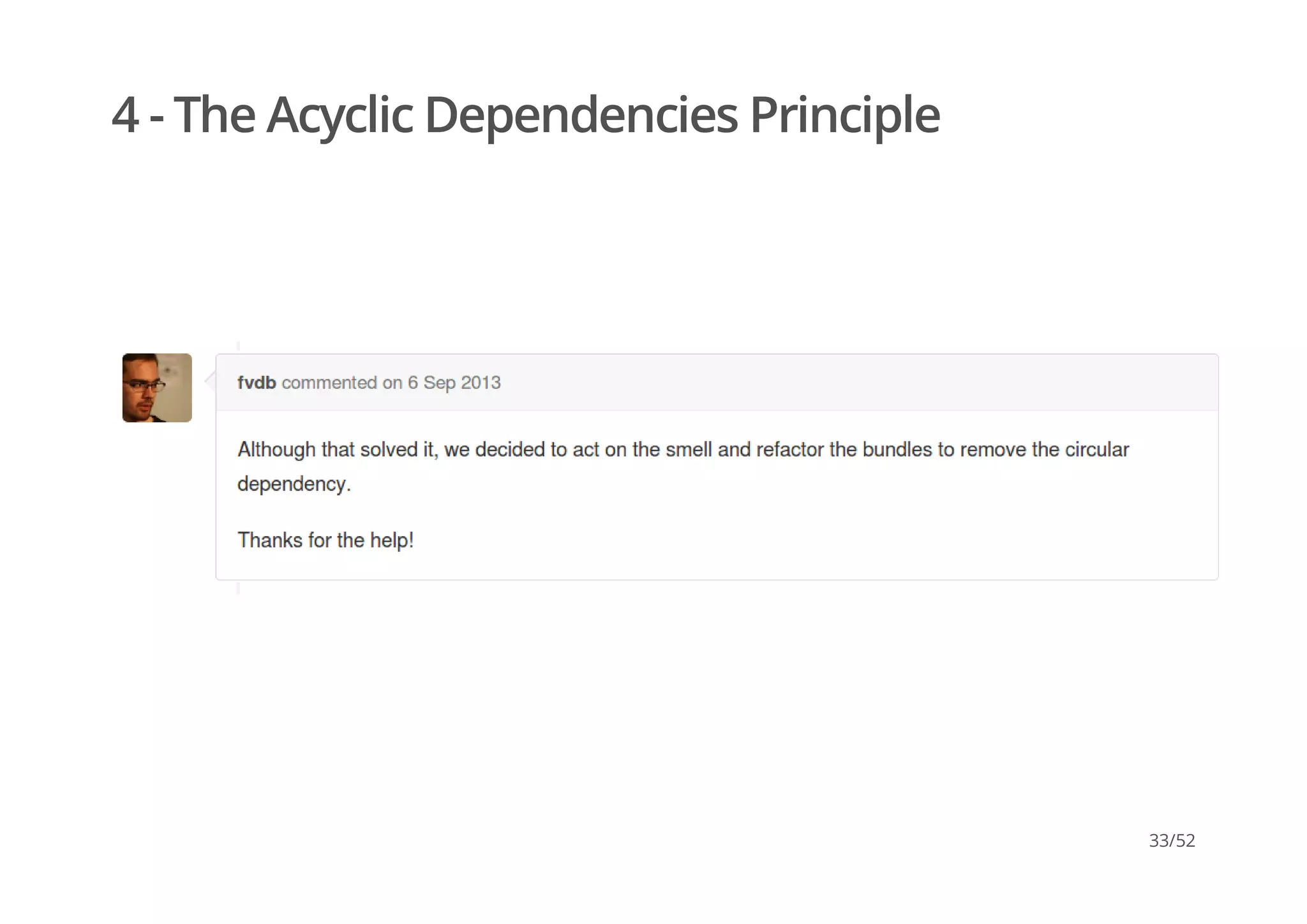

33. 4 - The Acyclic Dependencies Principle
33/52

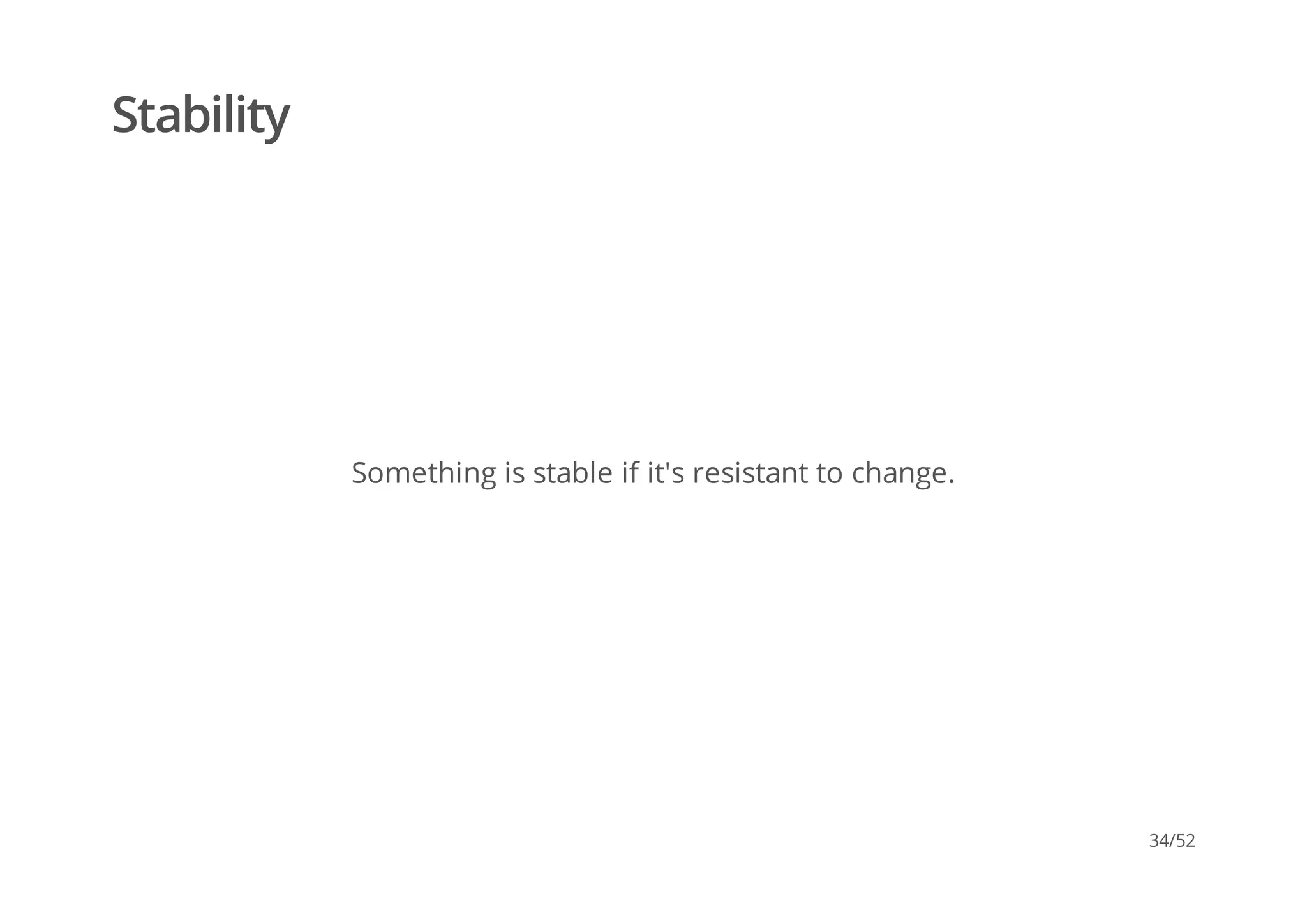

34. Stability
Something is stable if it's resistant to change.
34/52

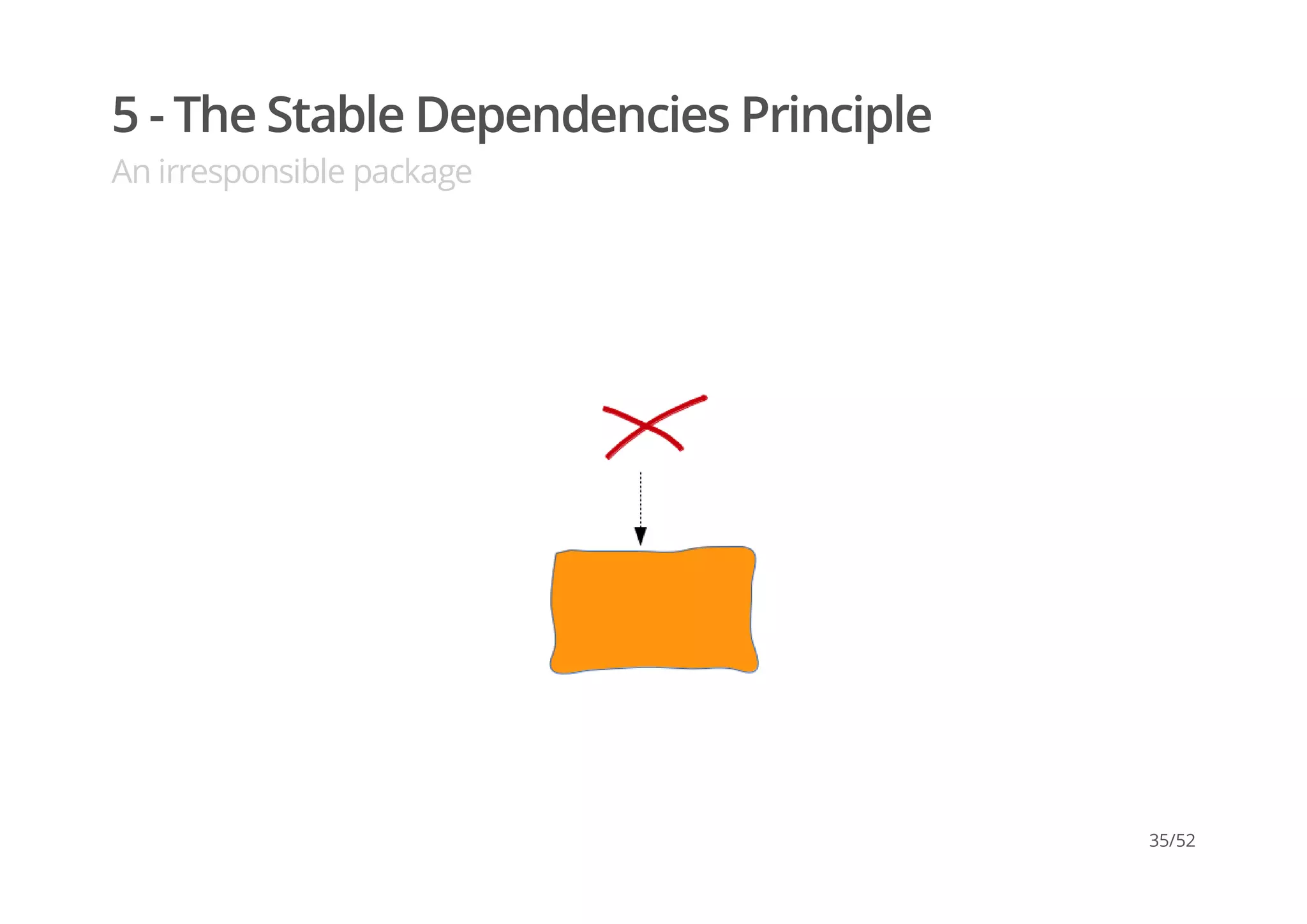

35. 5 - The Stable Dependencies Principle
An irresponsible package
35/52

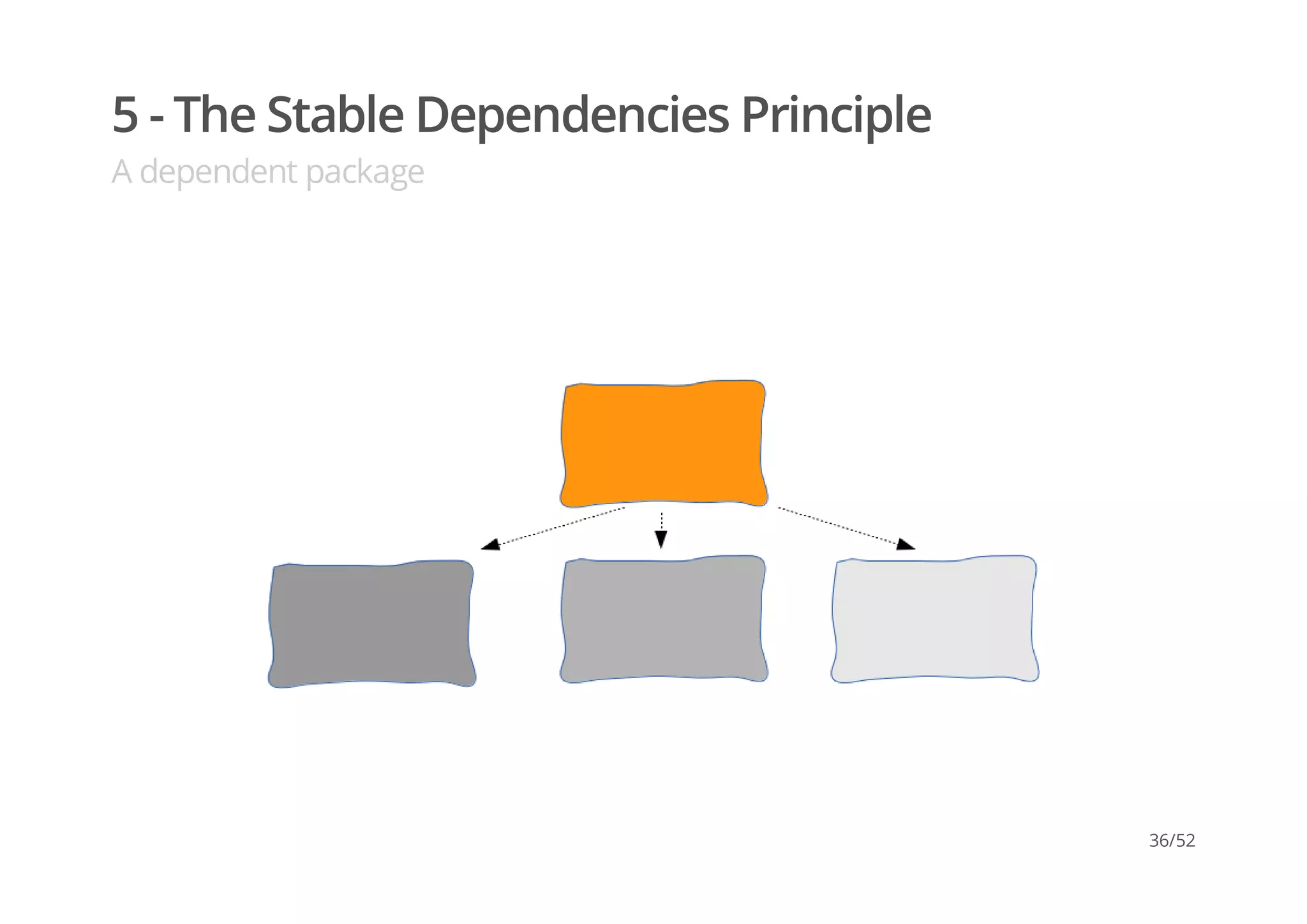

36. 5 - The Stable Dependencies Principle
A dependent package
36/52

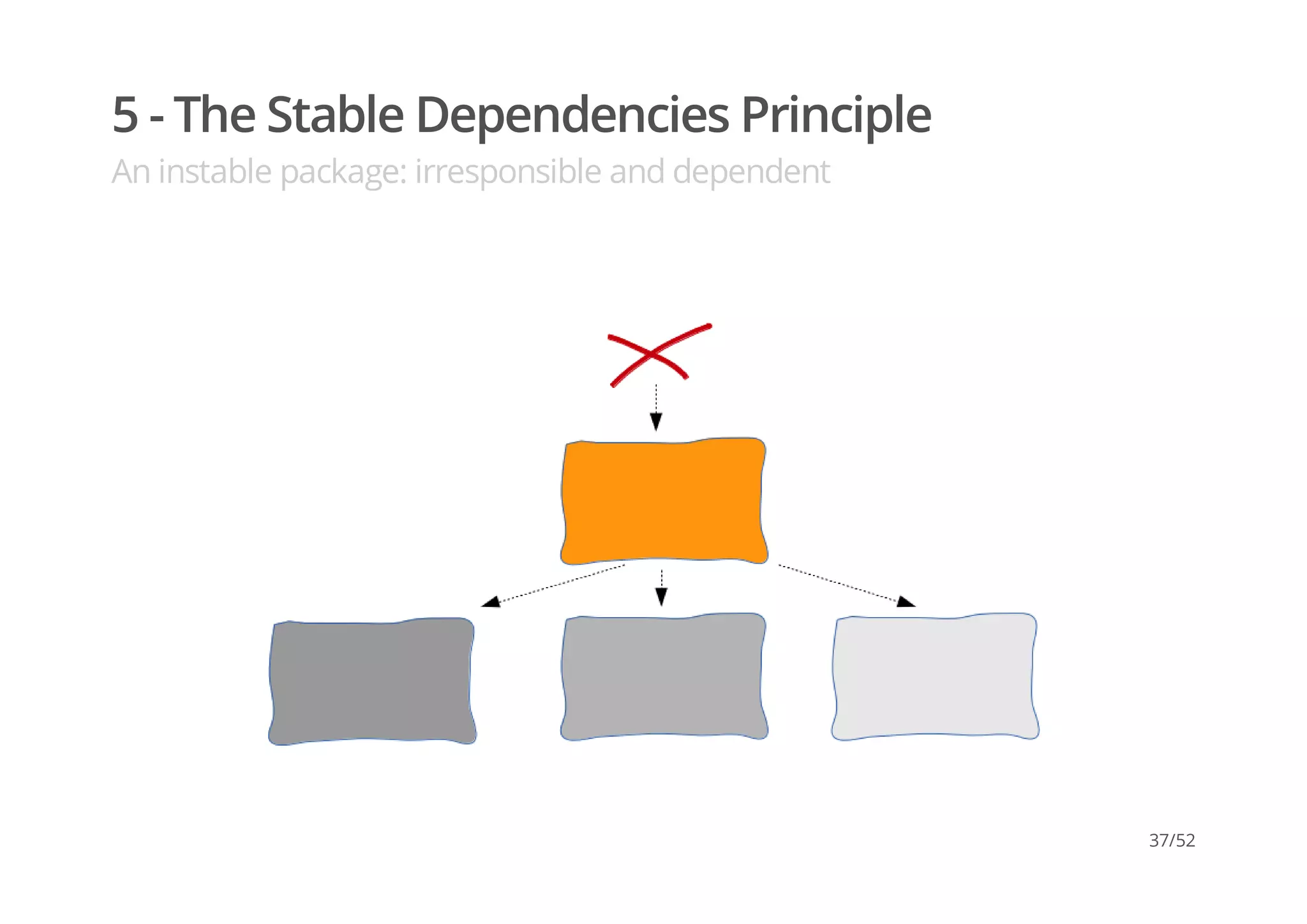

37. 5 - The Stable Dependencies Principle
An instable package: irresponsible and dependent
37/52

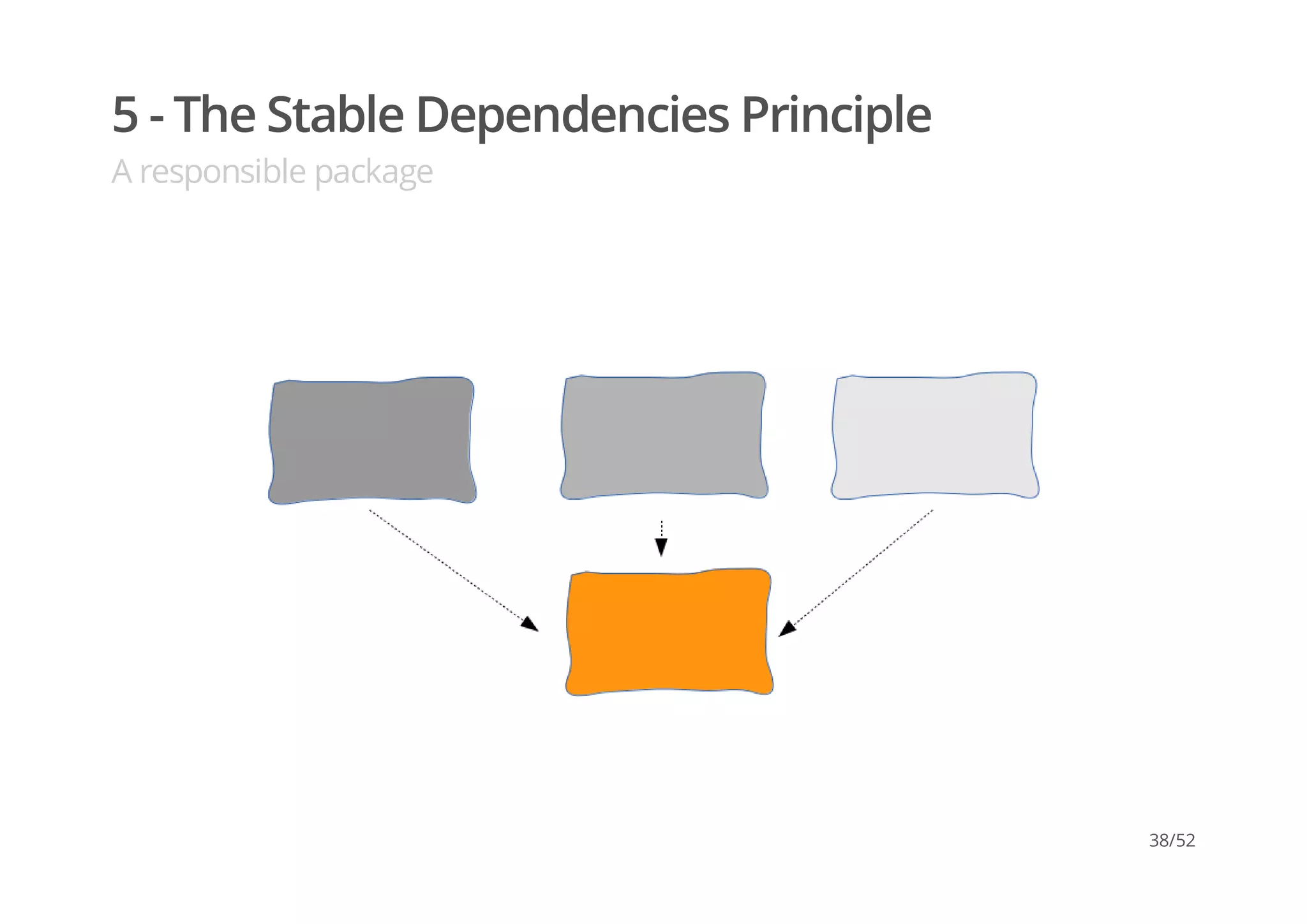

38. 5 - The Stable Dependencies Principle
A responsible package
38/52

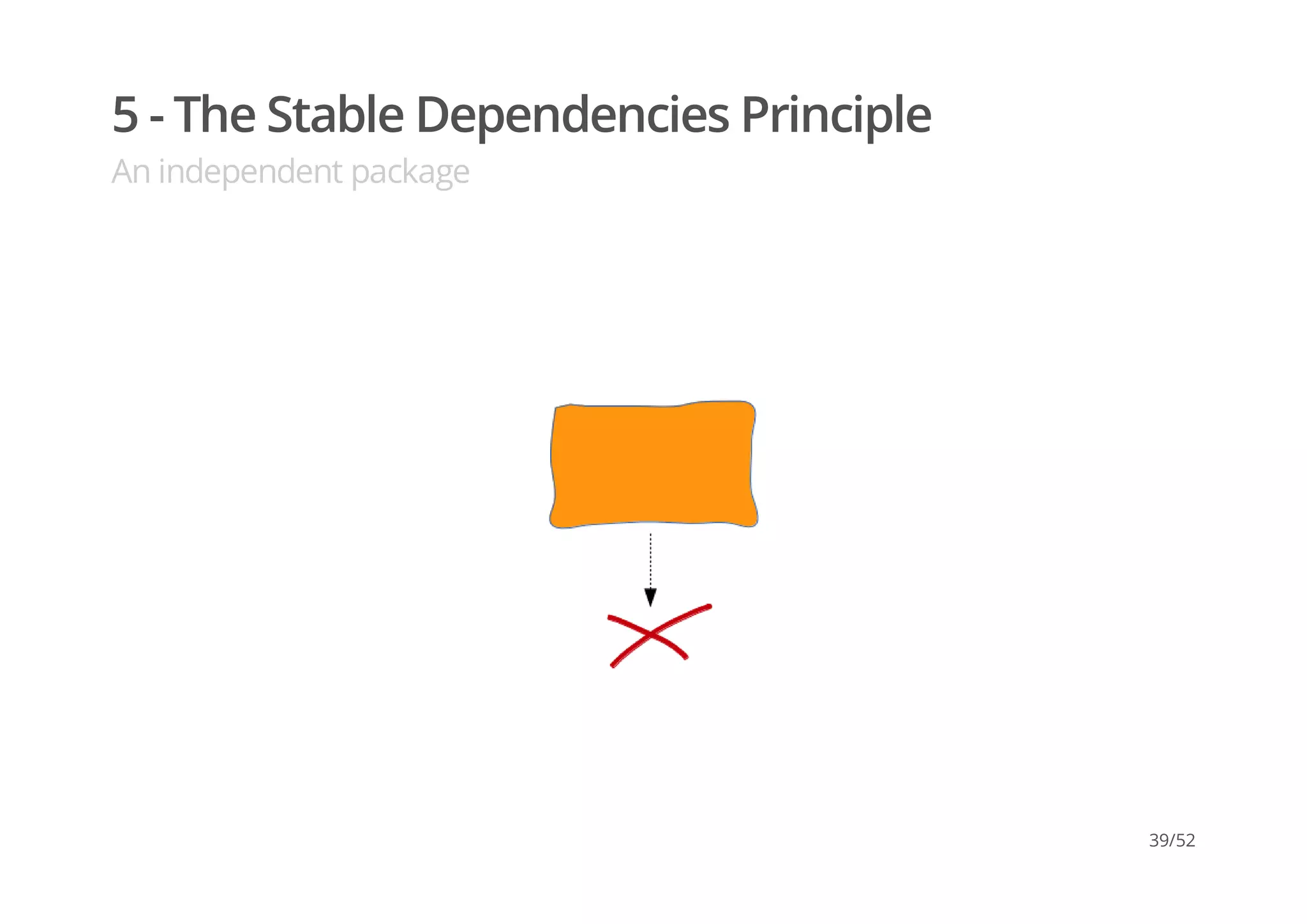

39. 5 - The Stable Dependencies Principle
An independent package
39/52

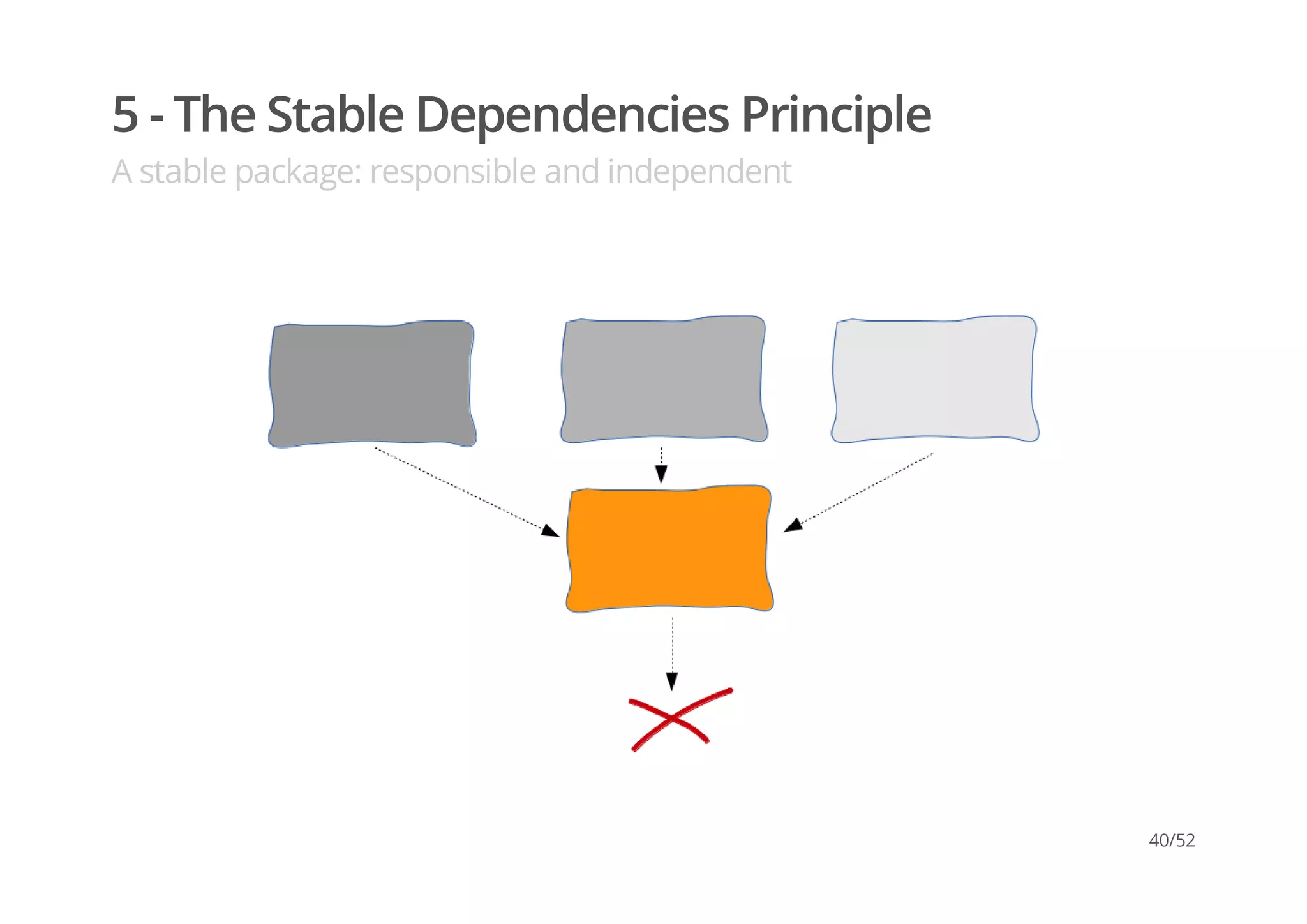

40. 5 - The Stable Dependencies Principle
A stable package: responsible and independent
40/52

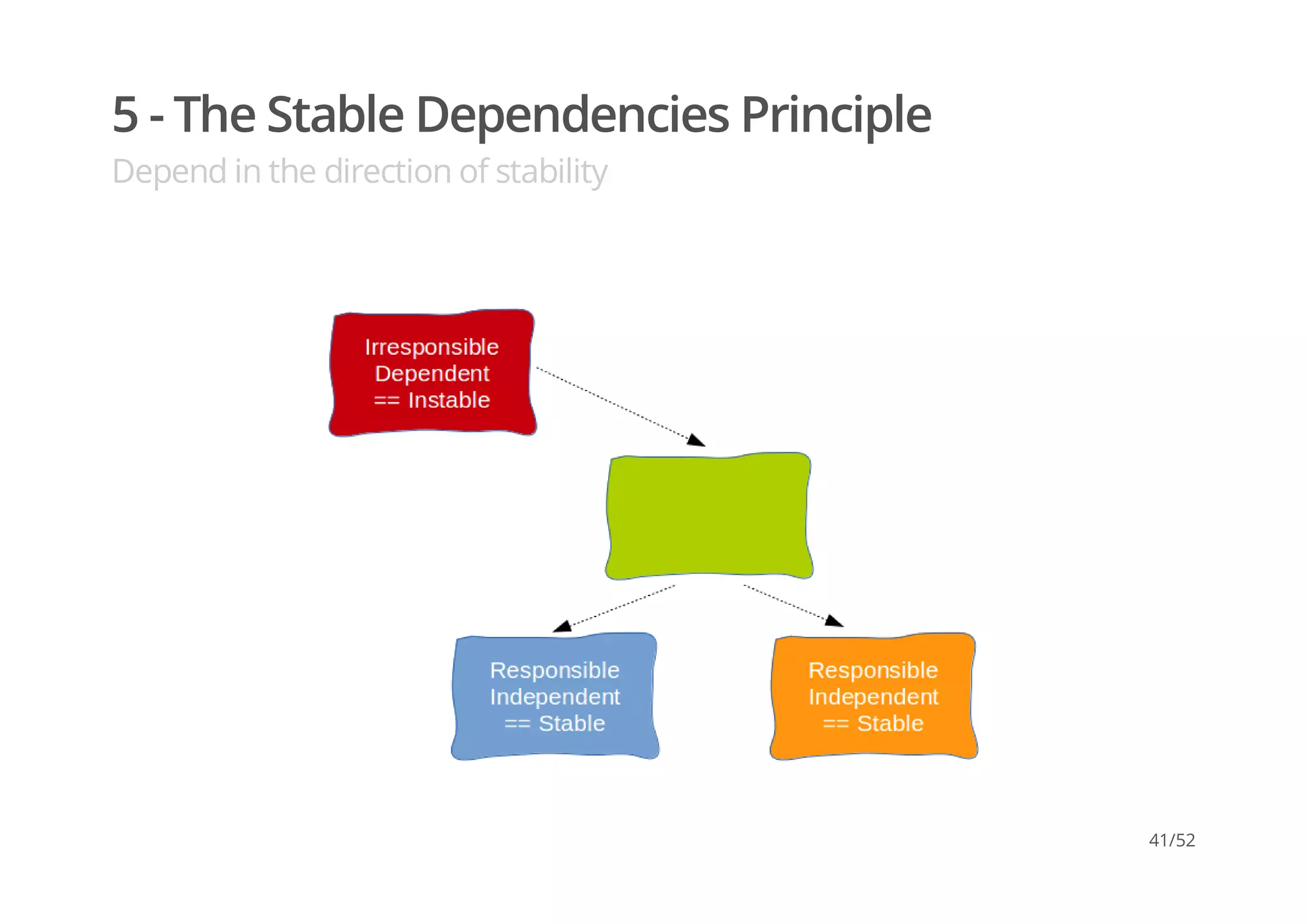

41. 5 - The Stable Dependencies Principle
Depend in the direction of stability
41/52

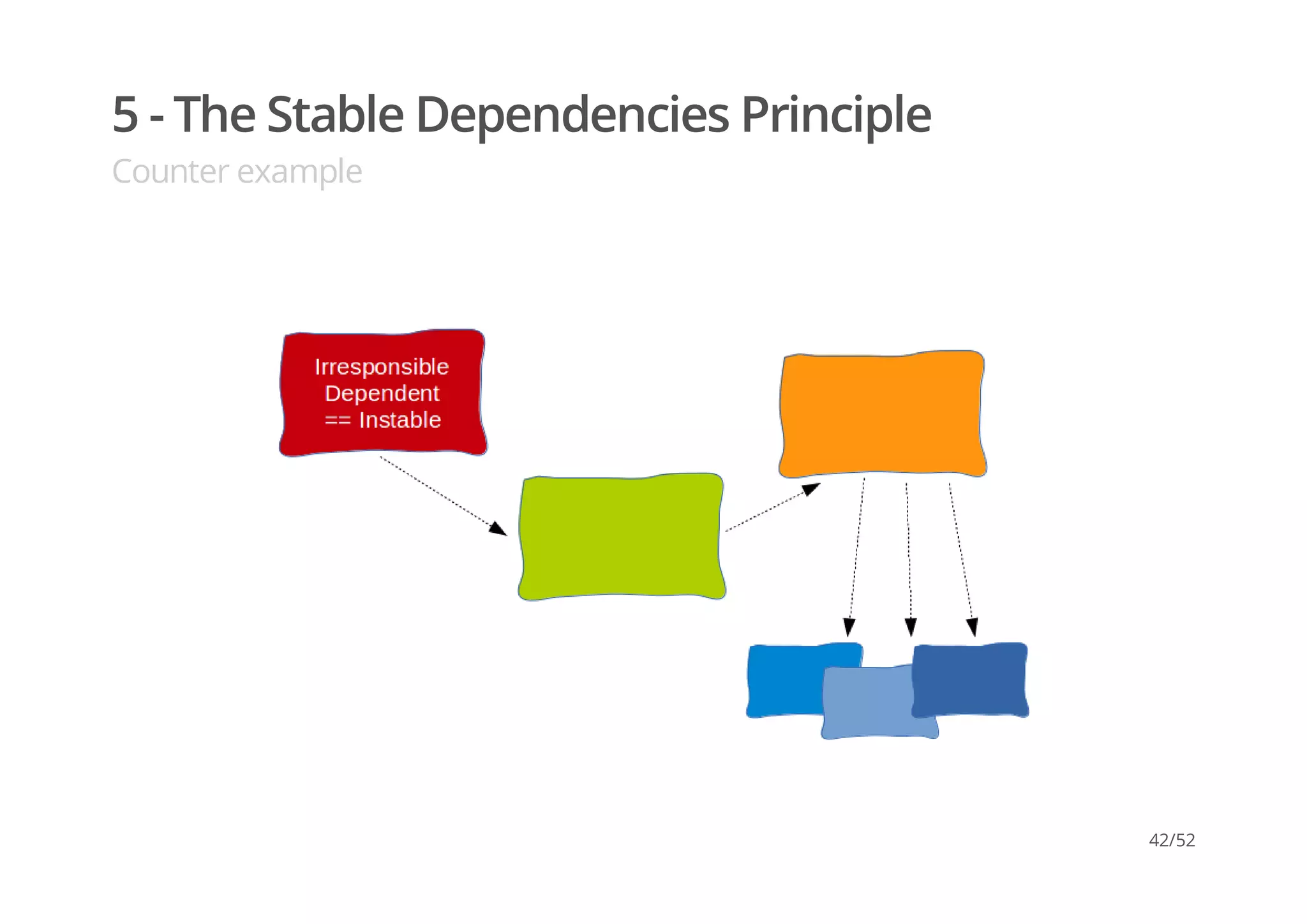

42. 5 - The Stable Dependencies Principle
Counter example
42/52

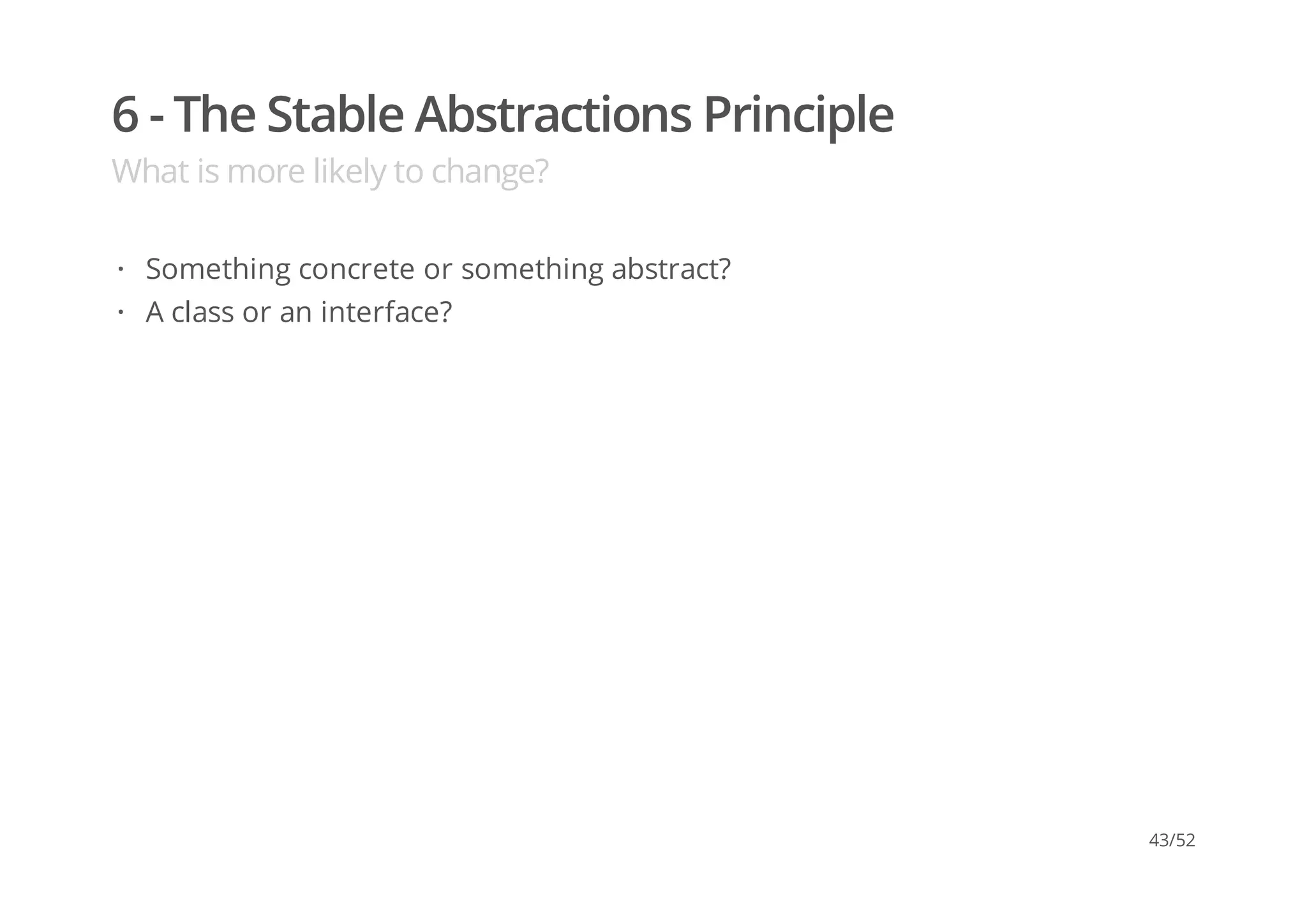

43. 6 - The Stable Abstractions Principle
What is more likely to change?
Something concrete or something abstract?
A class or an interface?
·
·
43/52

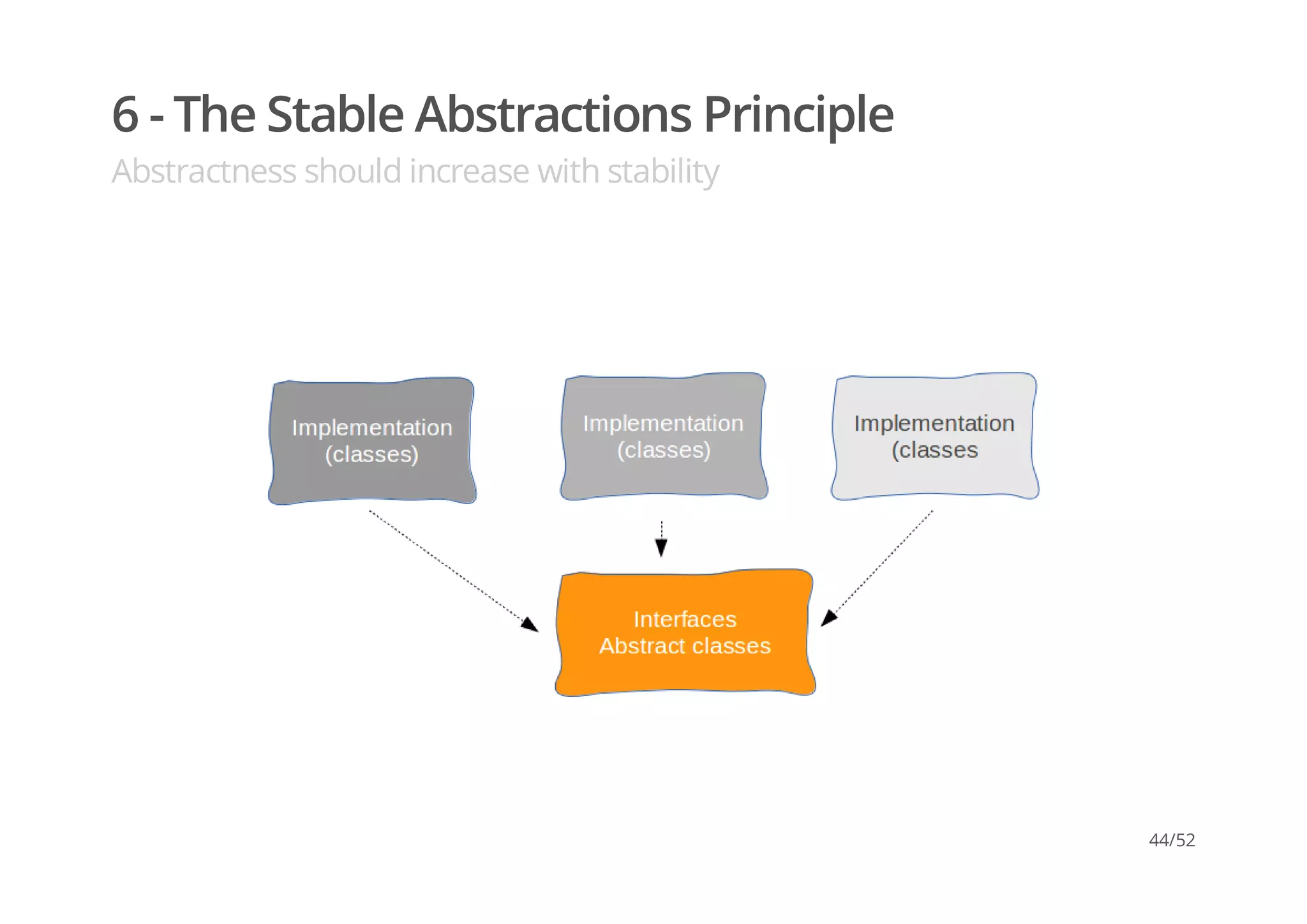

44. 6 - The Stable Abstractions Principle
Abstractness should increase with stability
44/52

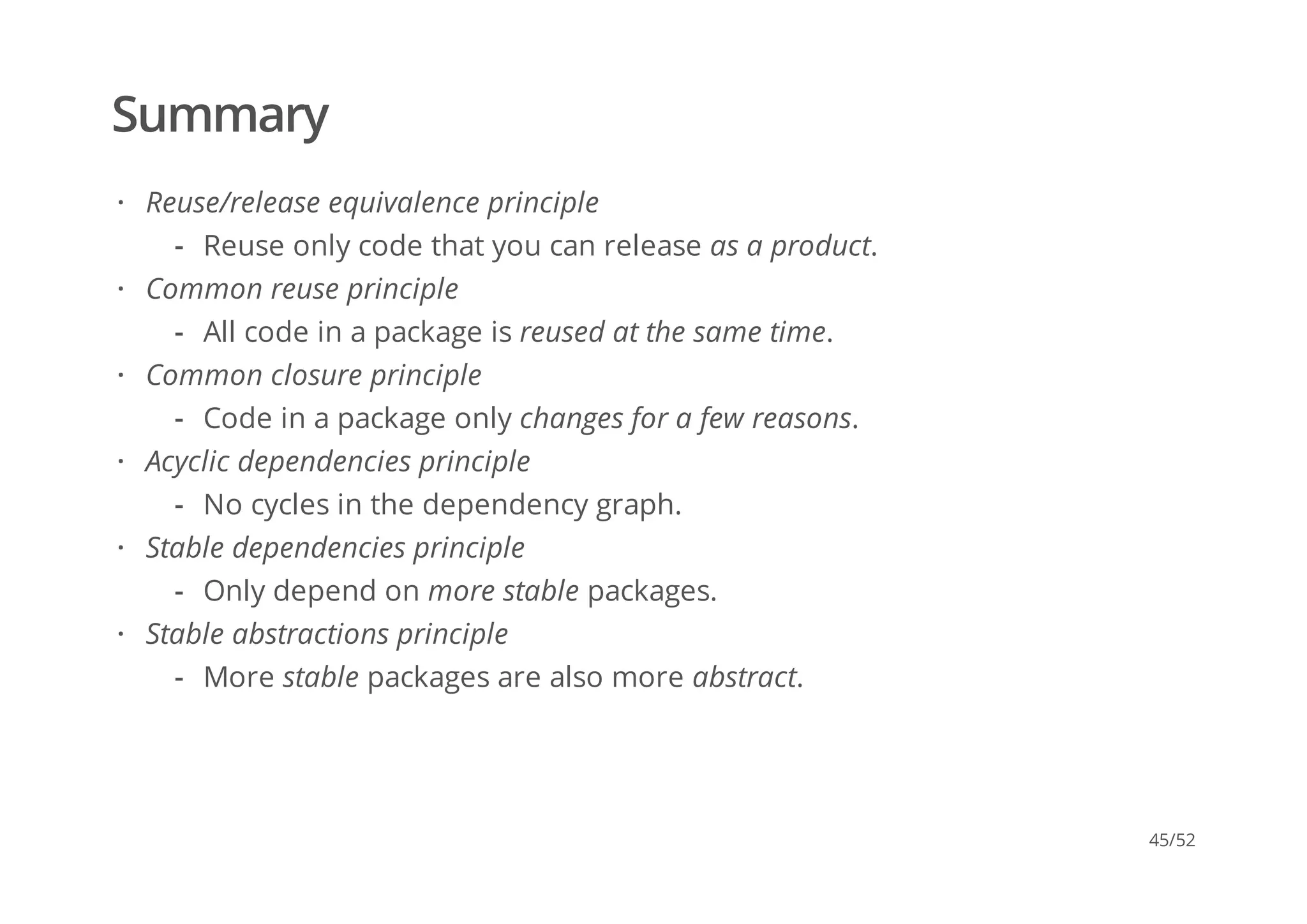

45. Summary
Reuse/release equivalence principle
Common reuse principle
Common closure principle
Acyclic dependencies principle
Stable dependencies principle
Stable abstractions principle
·
Reuse only code that you can release as a product.-
·
All code in a package is reused at the same time.-
·
Code in a package only changes for a few reasons.-
·
No cycles in the dependency graph.-
·
Only depend on more stable packages.-
·
More stable packages are also more abstract.-
45/52

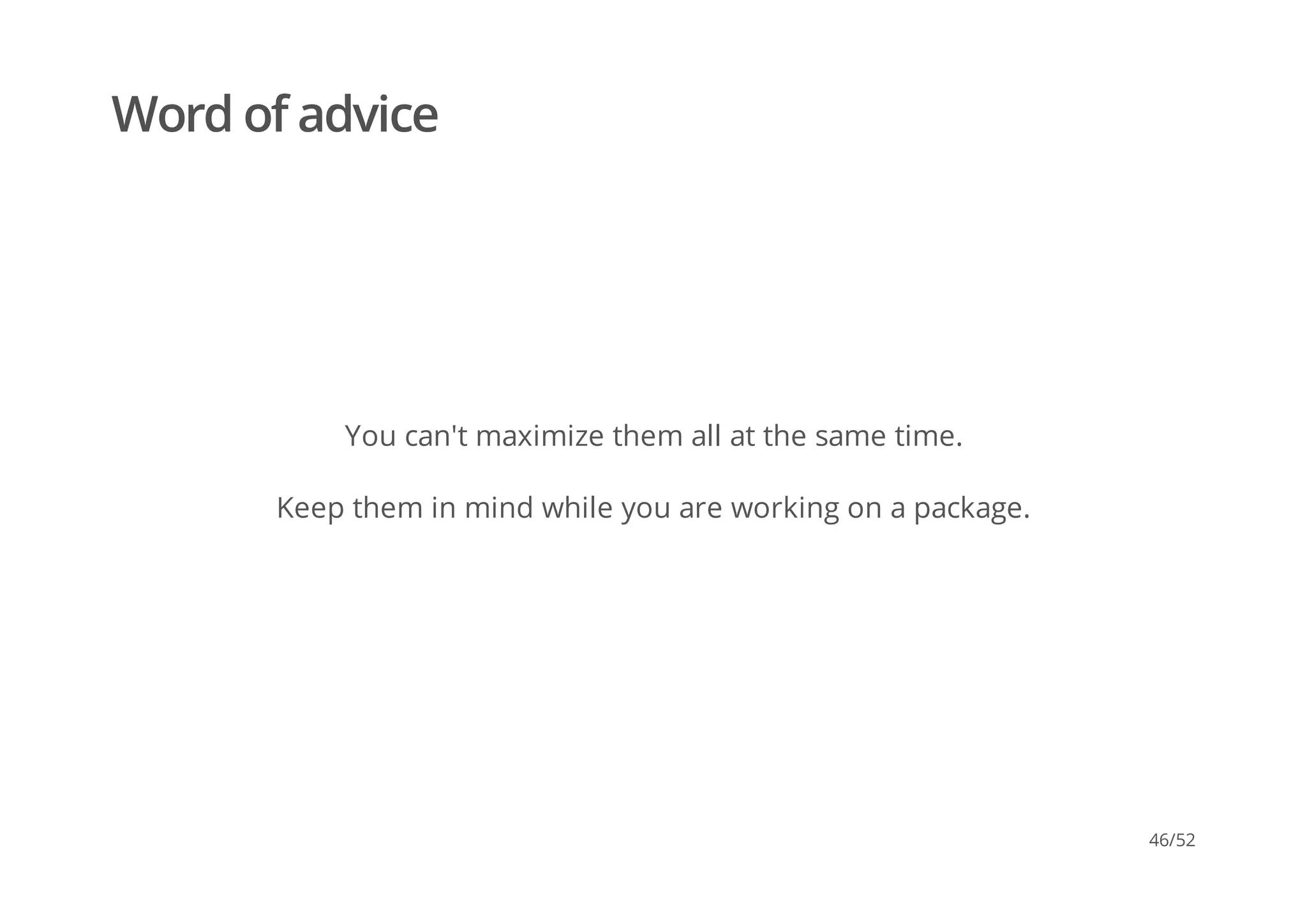

46. Word of advice
You can't maximize them all at the same time.
Keep them in mind while you are working on a package.
46/52

47. Principles of PHP Package Design
leanpub.com/principles-of-php-package-design
I'm impressed. — Robert C. Martin
47/52

48. Principles of PHP Package Design
Get a 10 dollar discount:
http://leanpub.com/principles-of-php-package-design/c/domcode
48/52

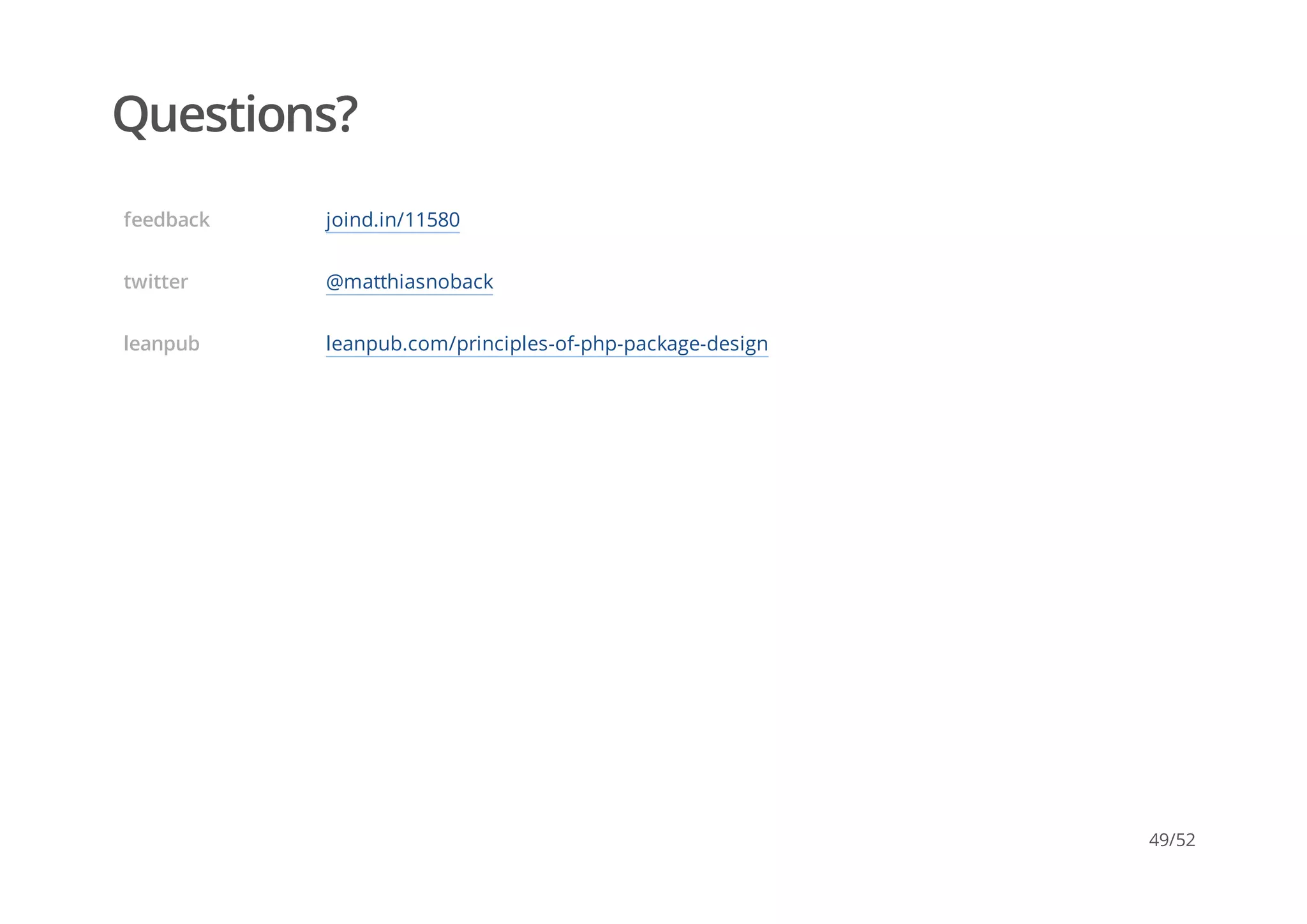

49. Questions?
feedback joind.in/11580
twitter @matthiasnoback
leanpub leanpub.com/principles-of-php-package-design
49/52

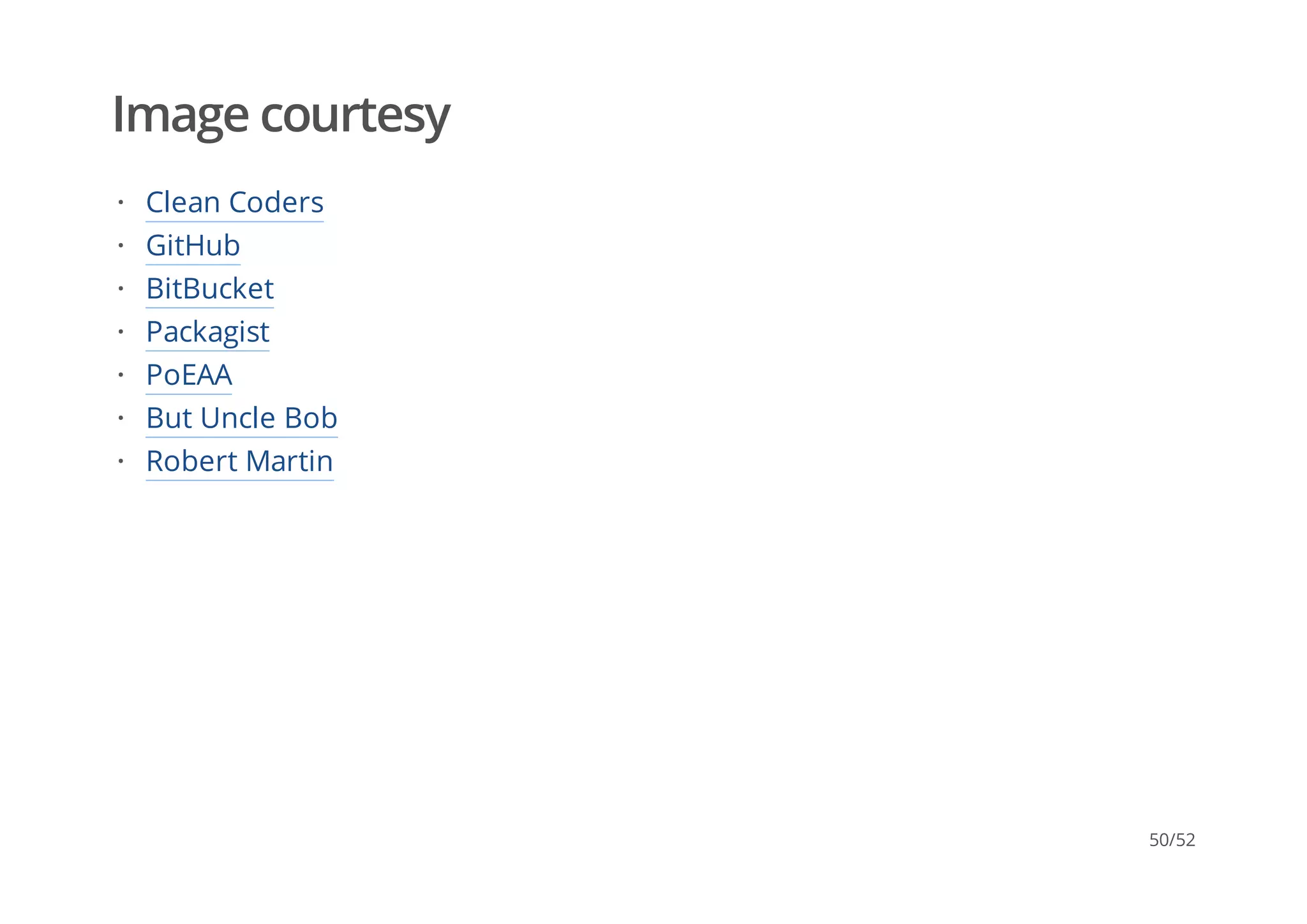

50. Image courtesy
