1. Principles of Package Design
Howtocreatecohesive,stablepackages
Matthias Noback - Noback's Office
FOSDEM - 1 Feb 2015

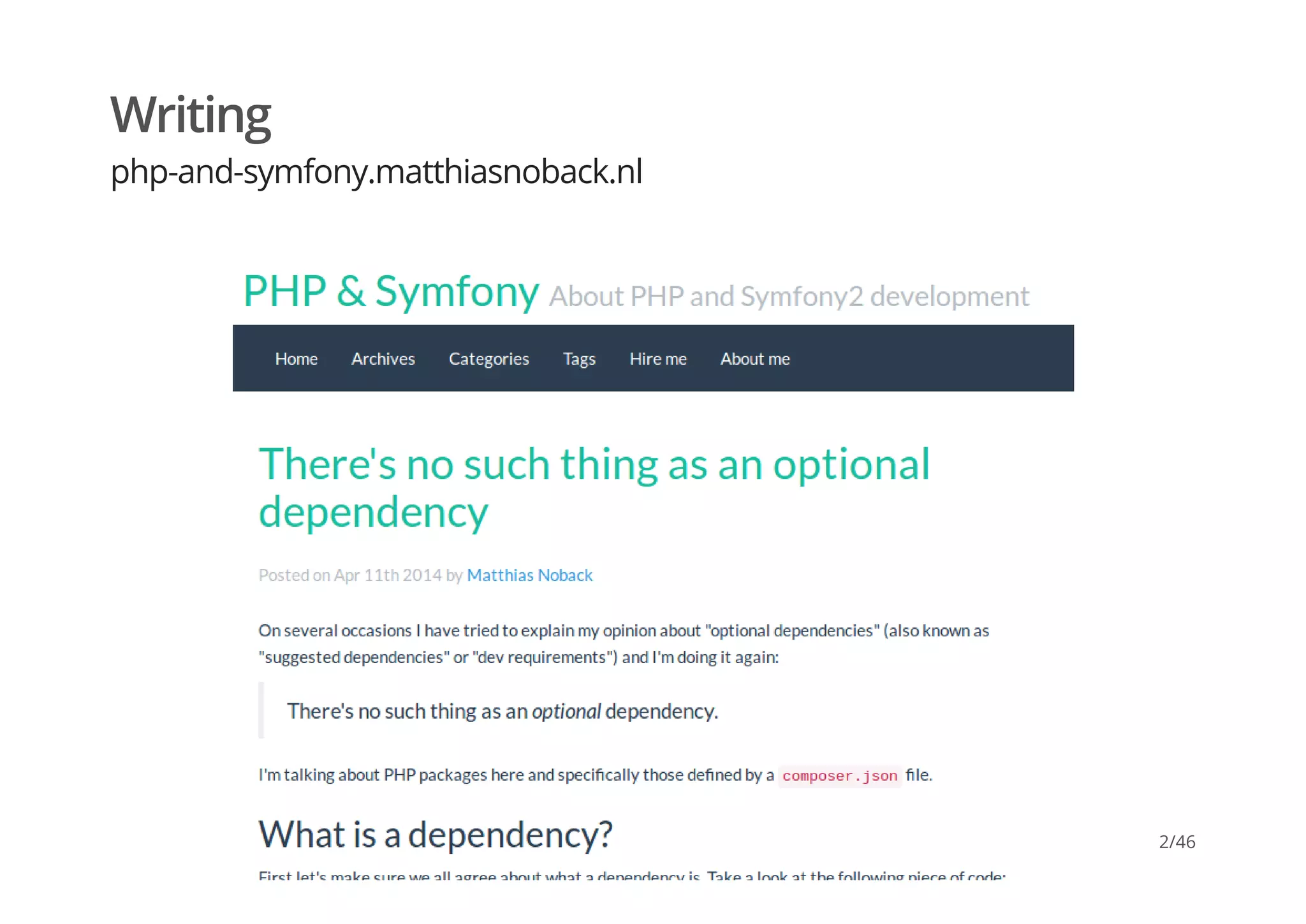

2. Writing
php-and-symfony.matthiasnoback.nl
2/46

3. A Year With Symfony
leanpub.com/a-year-with-symfony
3/46

4. Tight coupling
Coupling to a framework
4/46

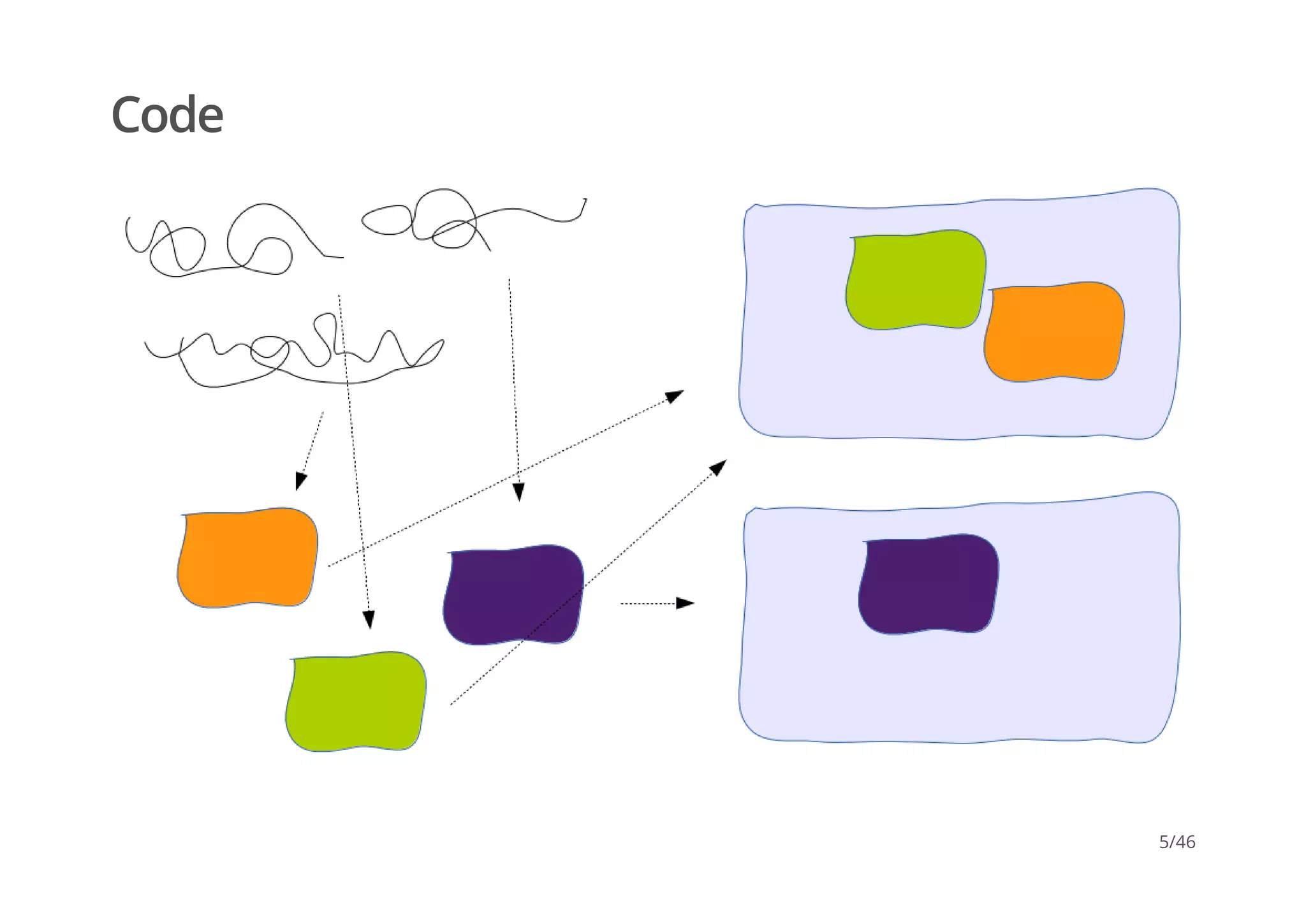

5. Code
5/46

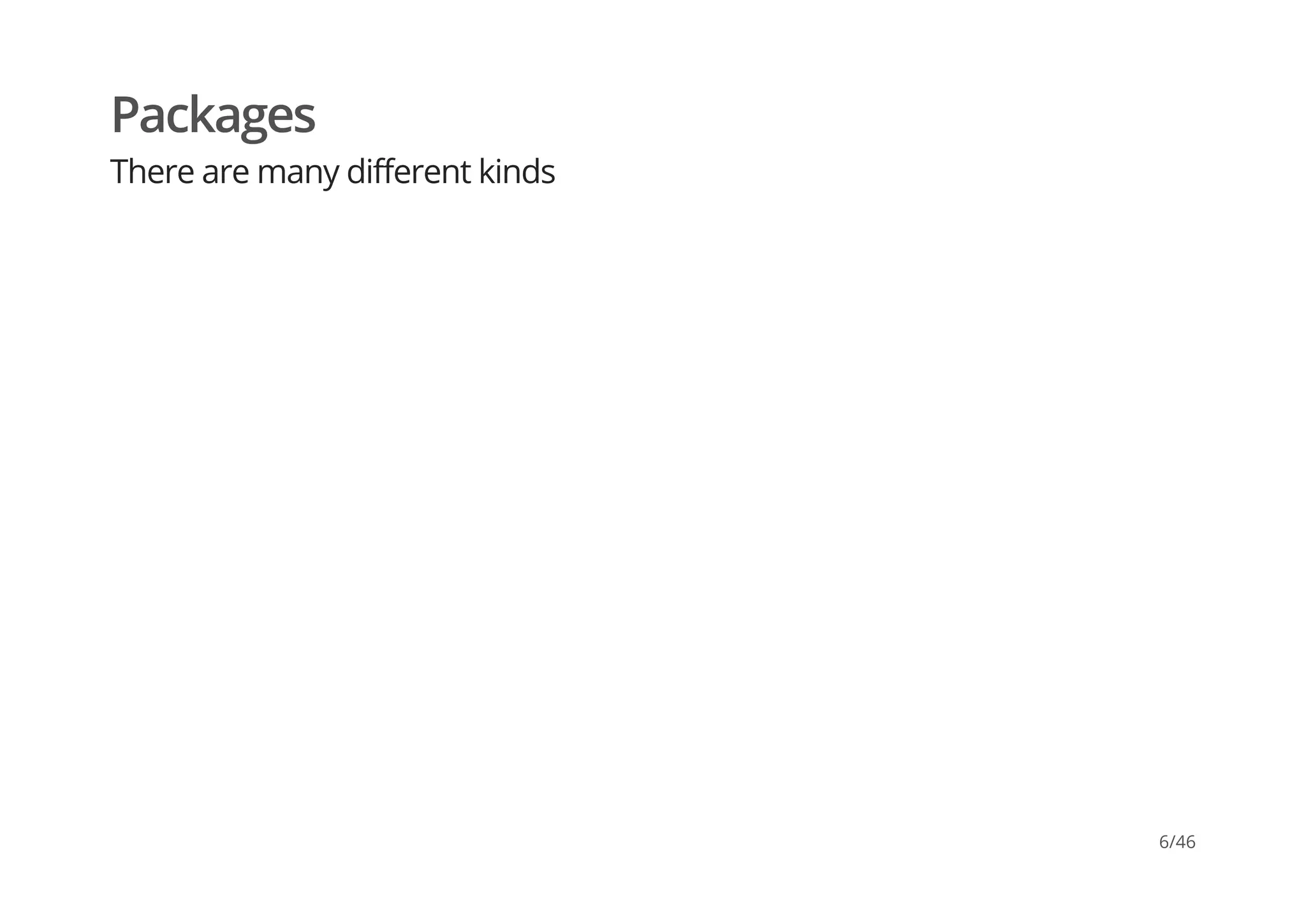

6. Packages
There are many different kinds
6/46

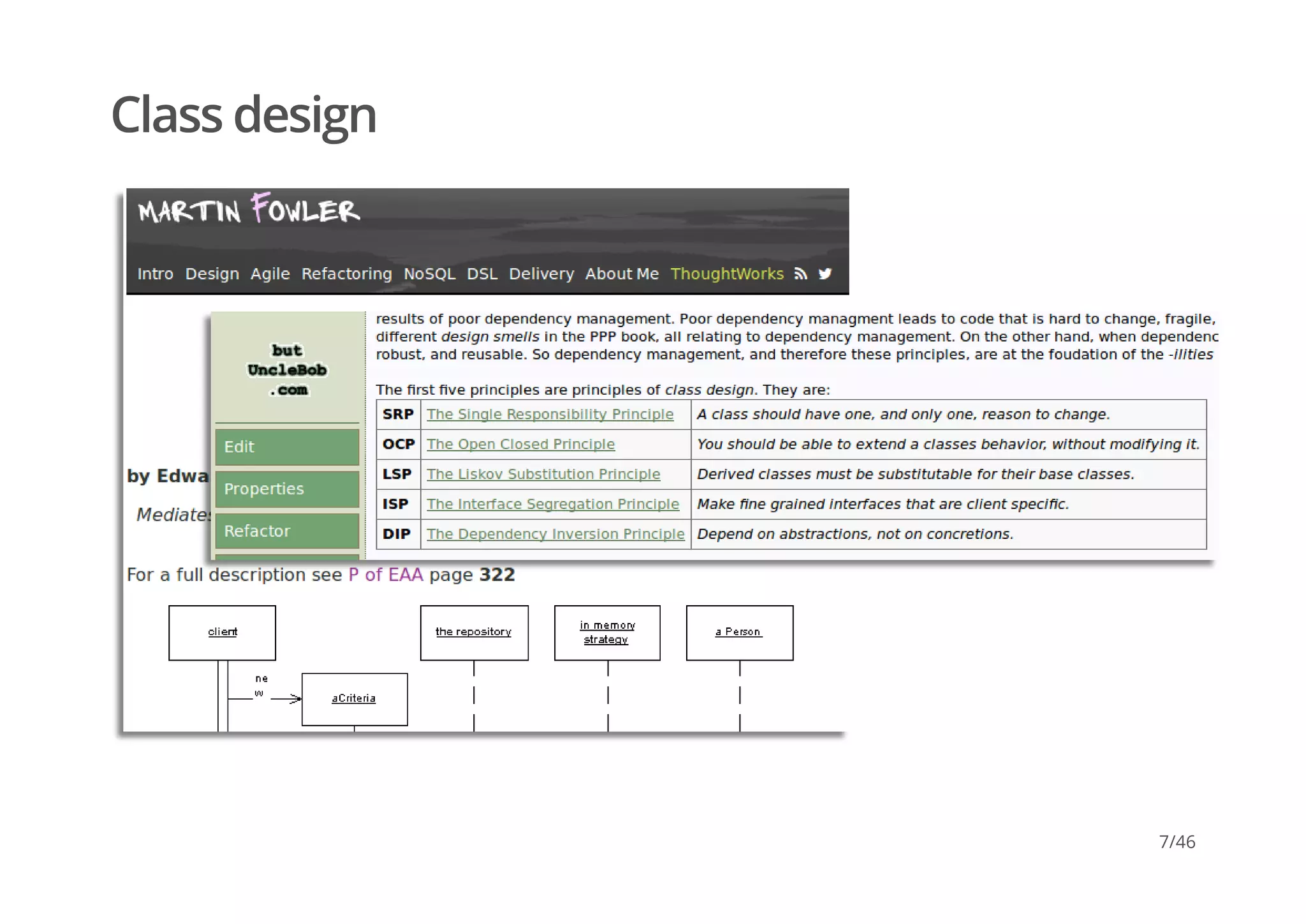

7. Class design
7/46

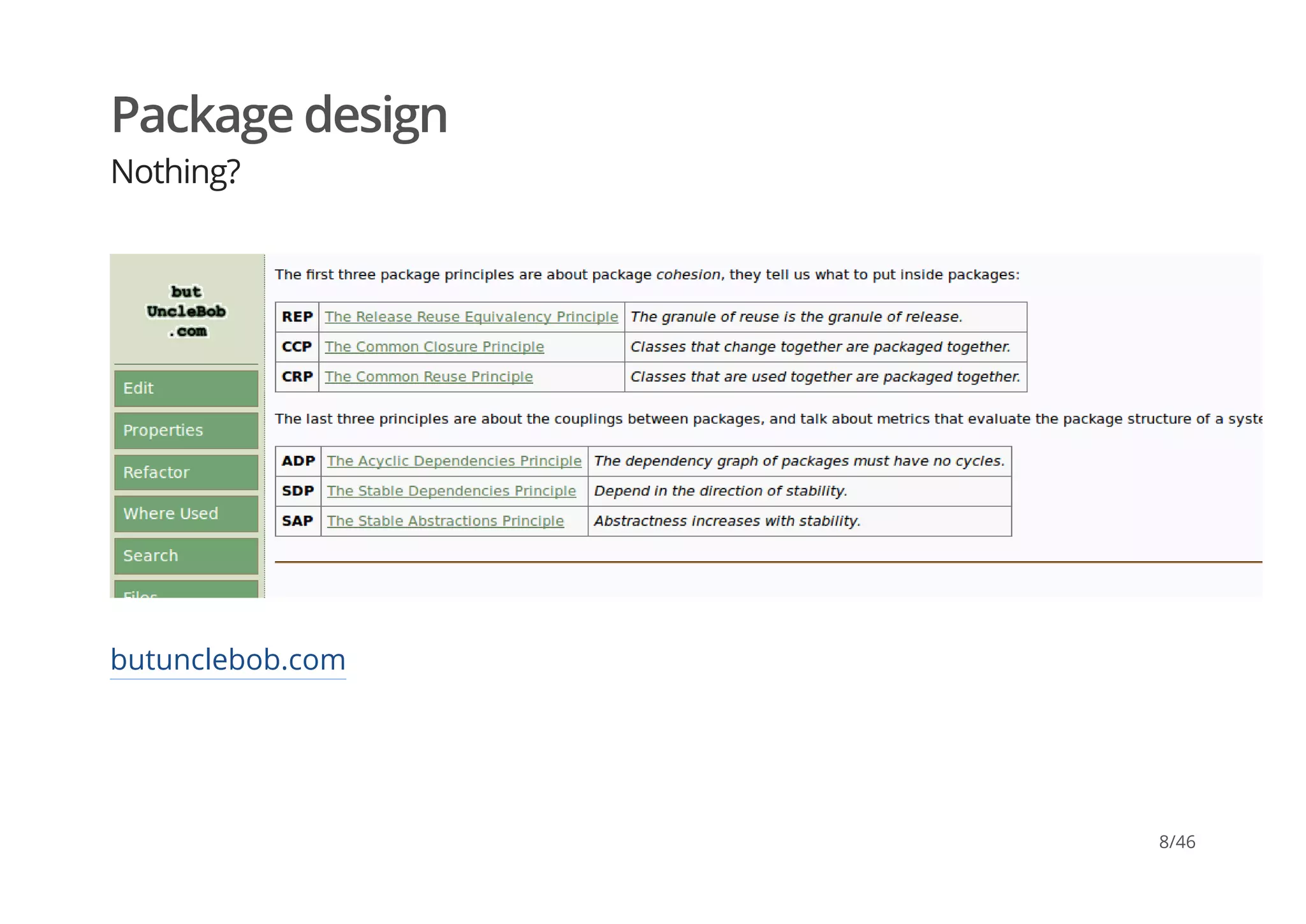

8. Package design
Nothing?
butunclebob.com
8/46

9. Principles of Package Design
leanpub.com/principles-of-package-design
9/46

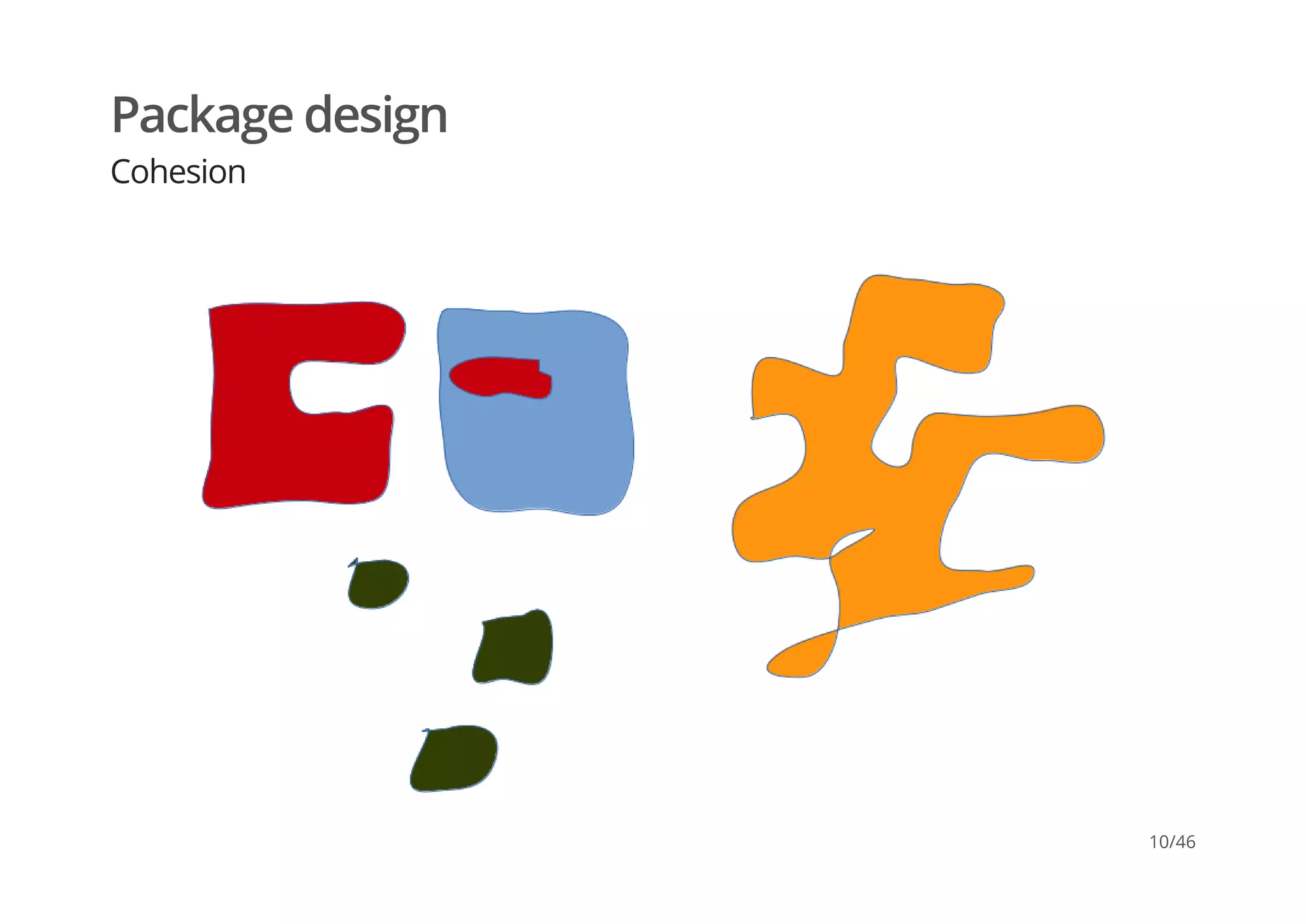

10. Package design
Cohesion
10/46

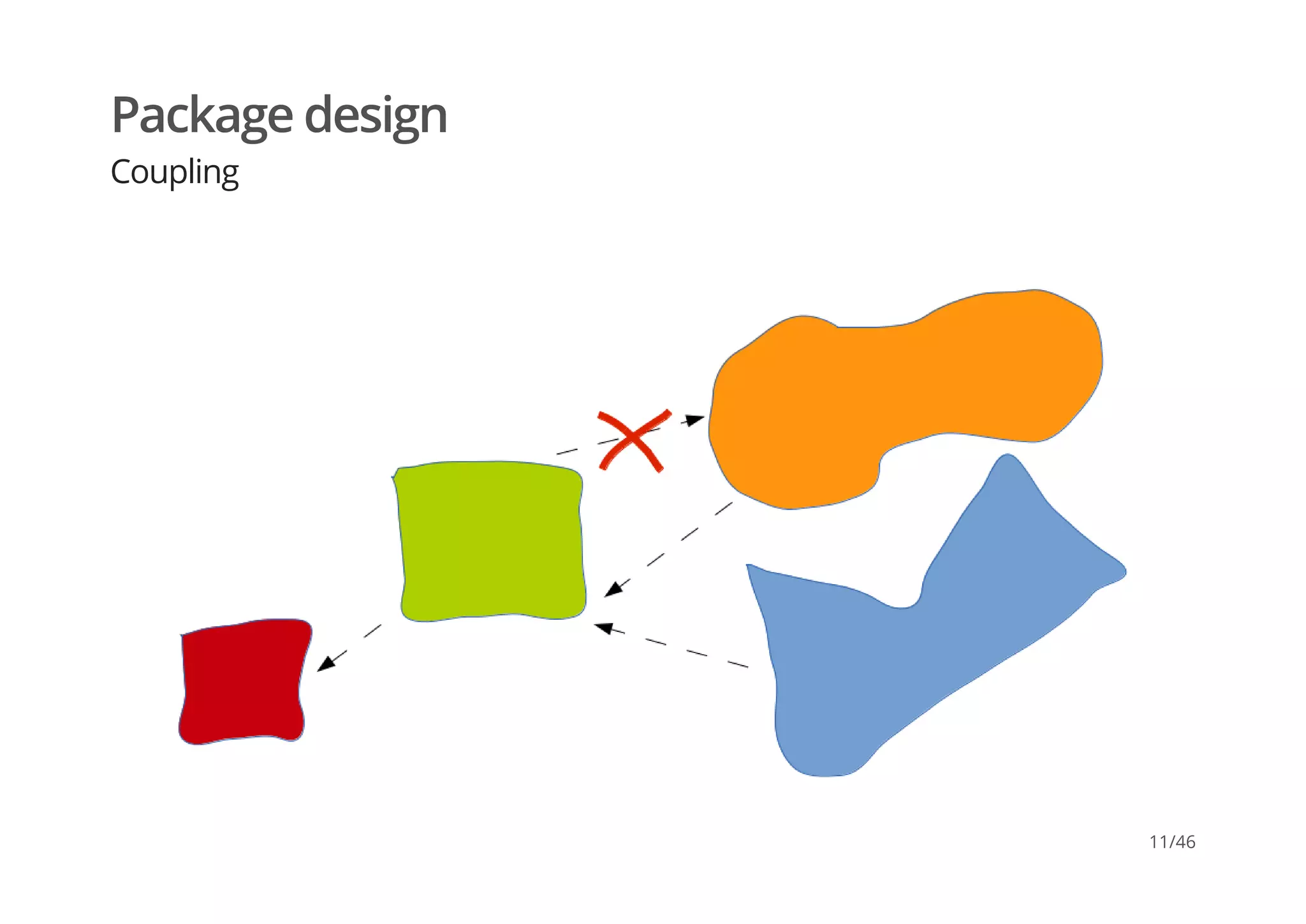

11. Package design
Coupling
11/46

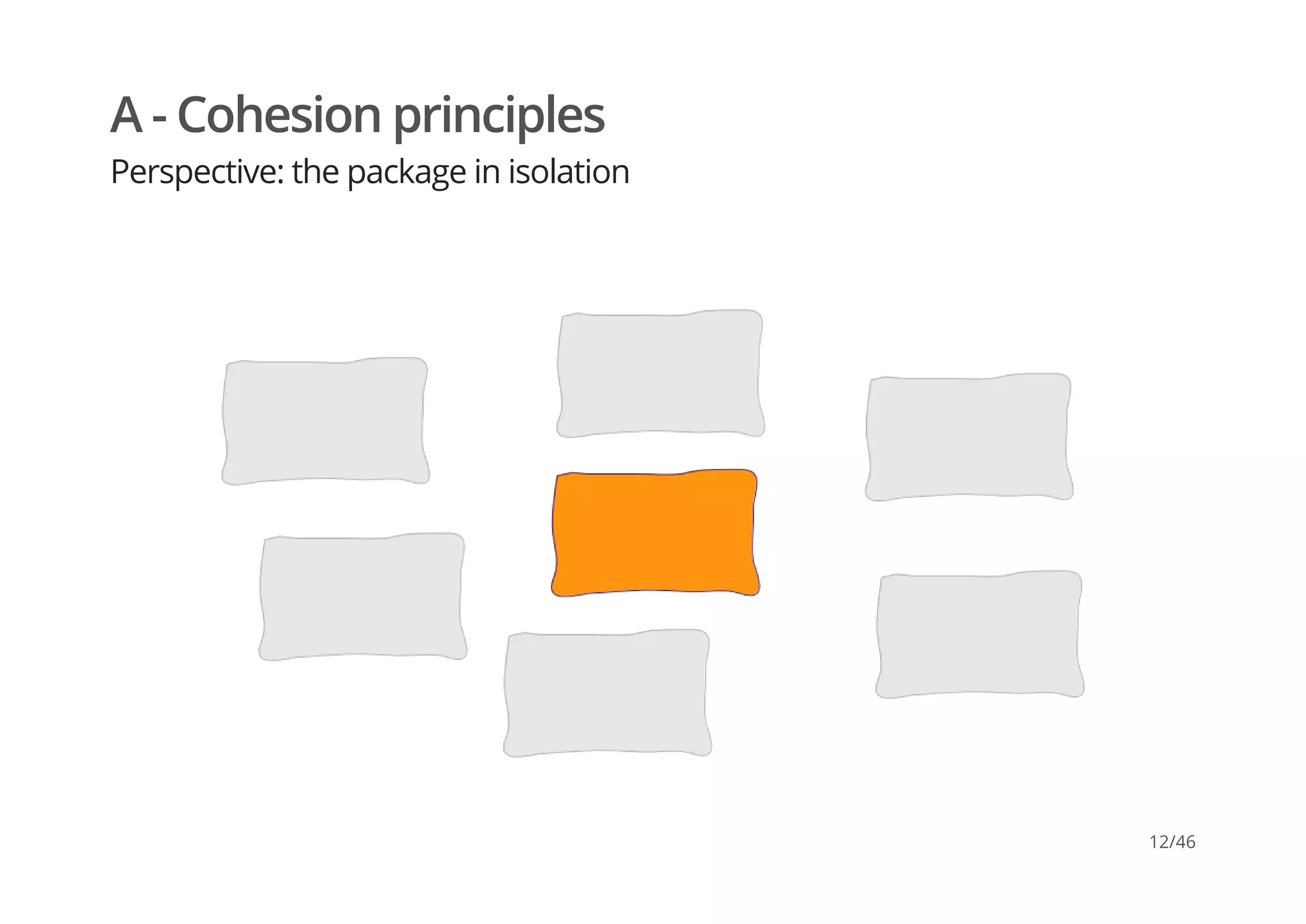

12. A - Cohesion principles
Perspective: the package in isolation
12/46

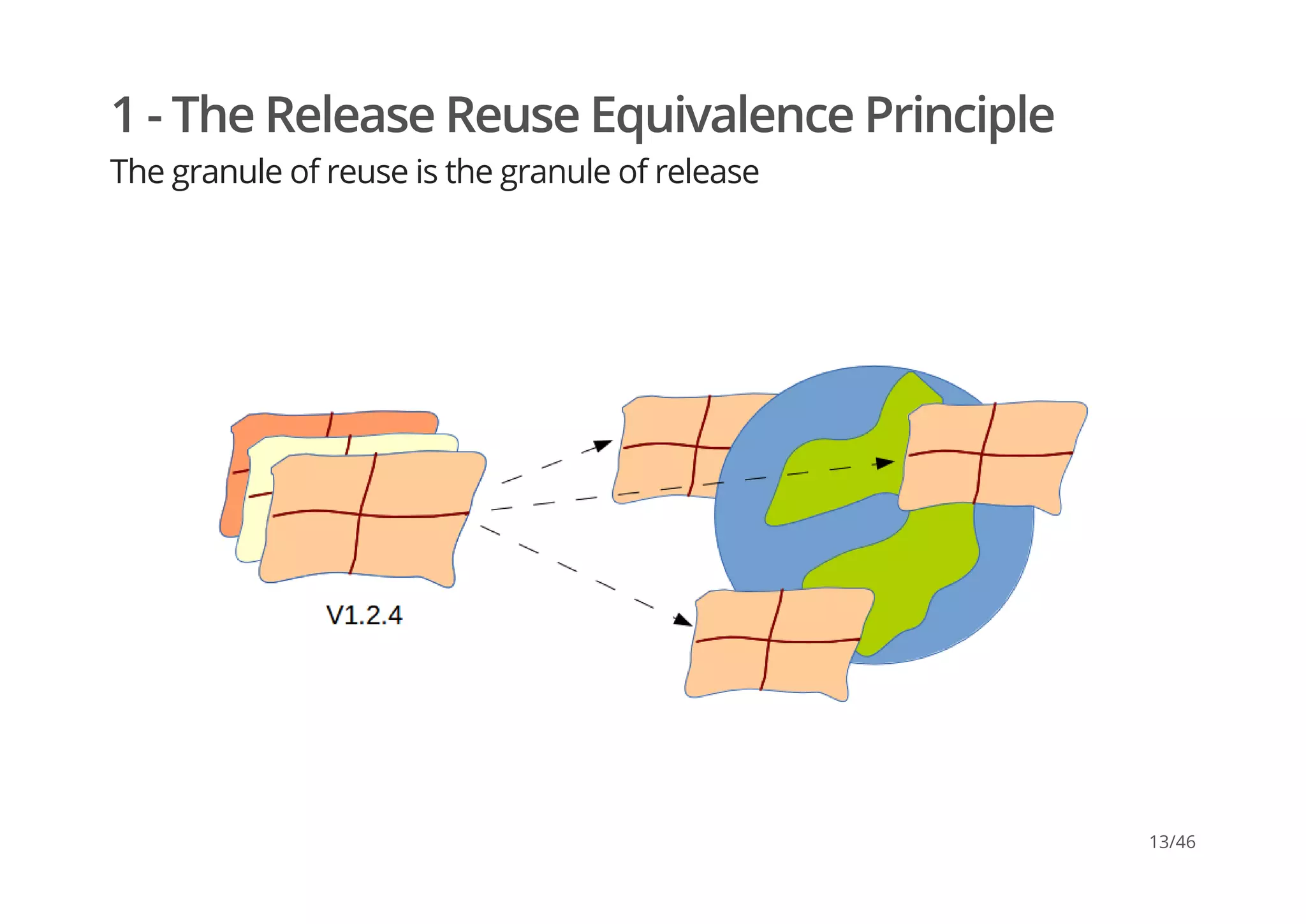

13. 1 - The Release Reuse Equivalence Principle
The granule of reuse is the granule of release
13/46

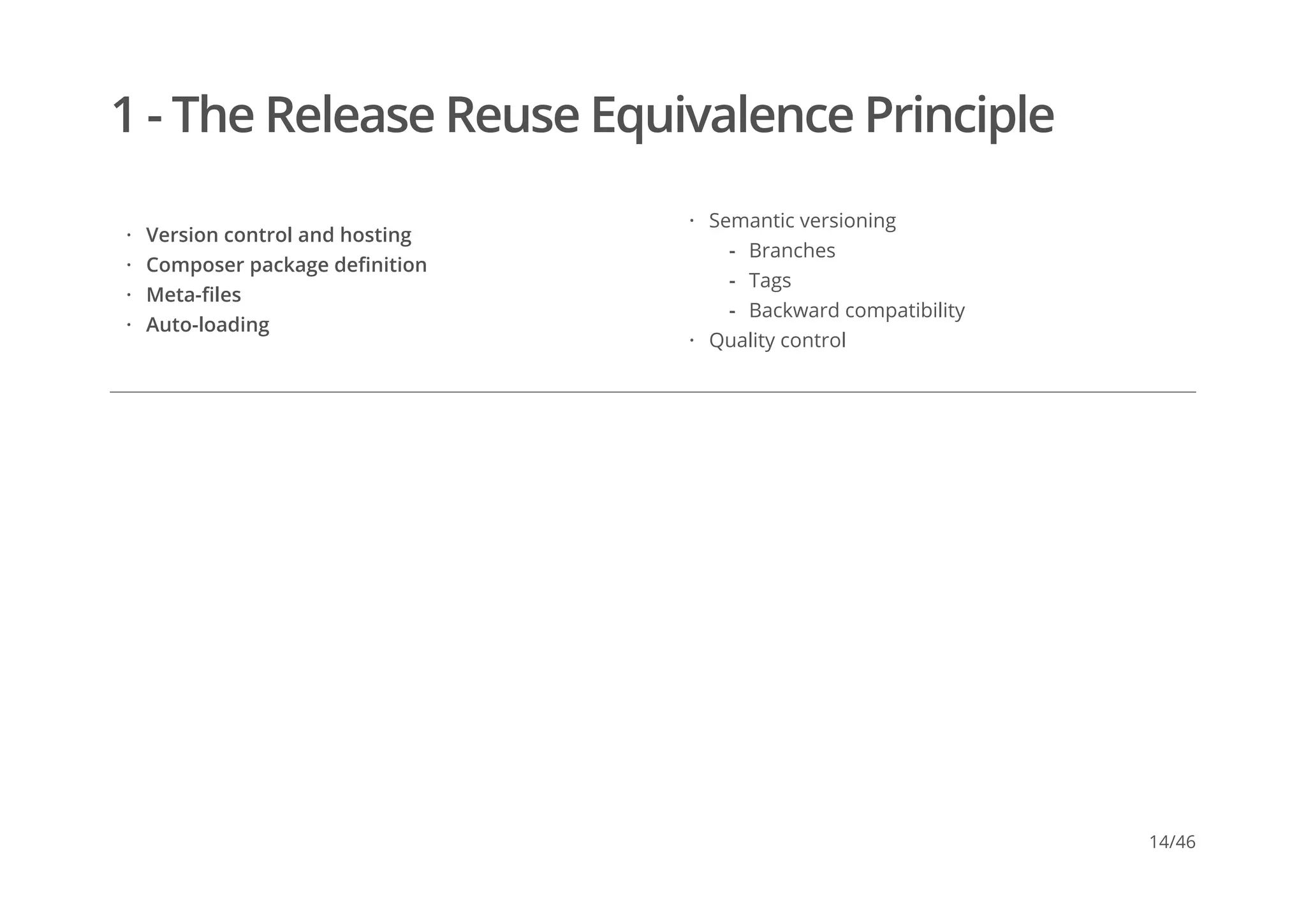

14. 1 - The Release Reuse Equivalence Principle
Version control and hosting
Composer package definition
Meta-files
Auto-loading
·
·
·
·
Semantic versioning
Quality control
·
Branches
Tags
Backward compatibility
-
-
-
·
14/46

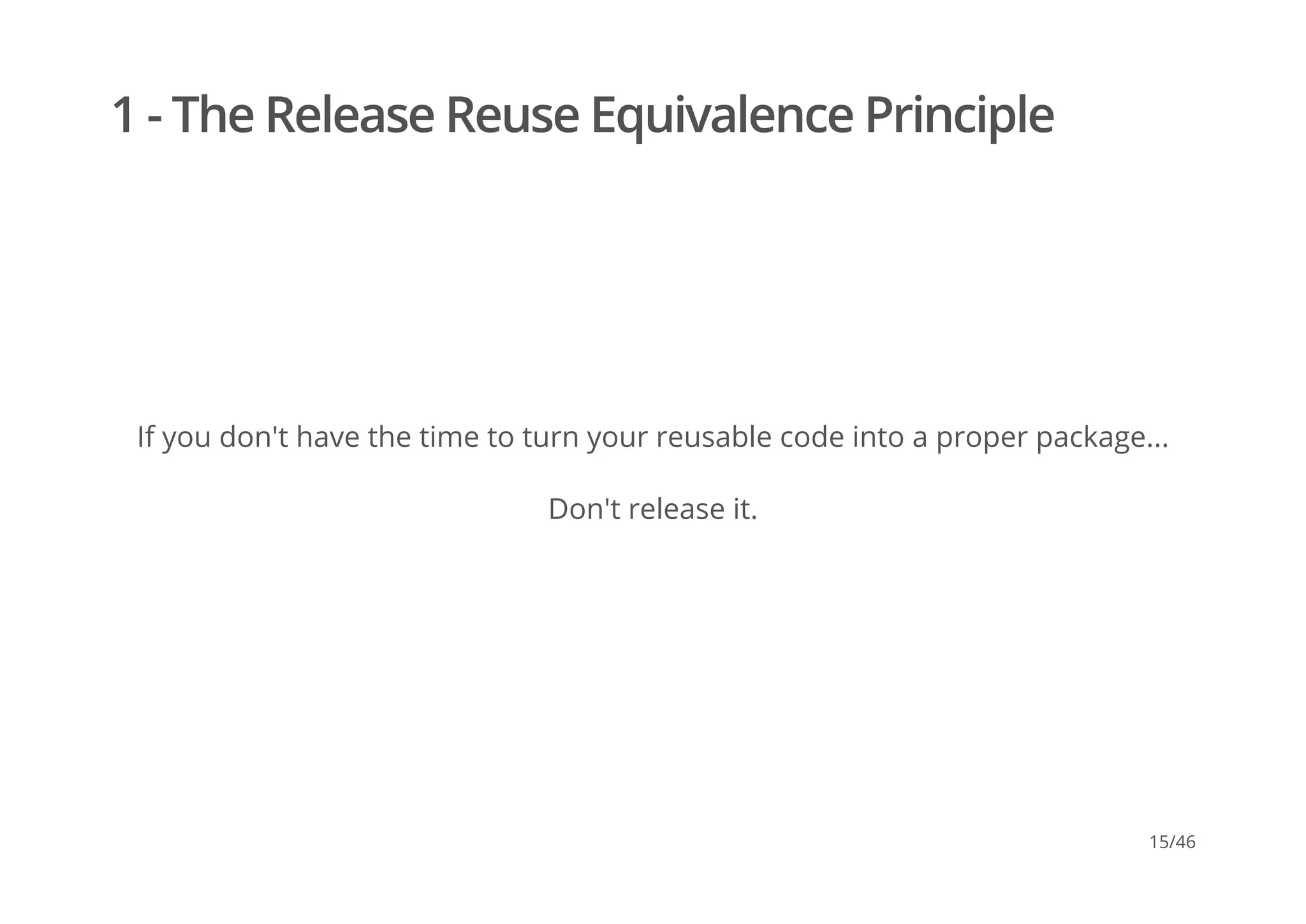

15. 1 - The Release Reuse Equivalence Principle
If you don't have the time to turn your reusable code into a proper package...
Don't release it.
15/46

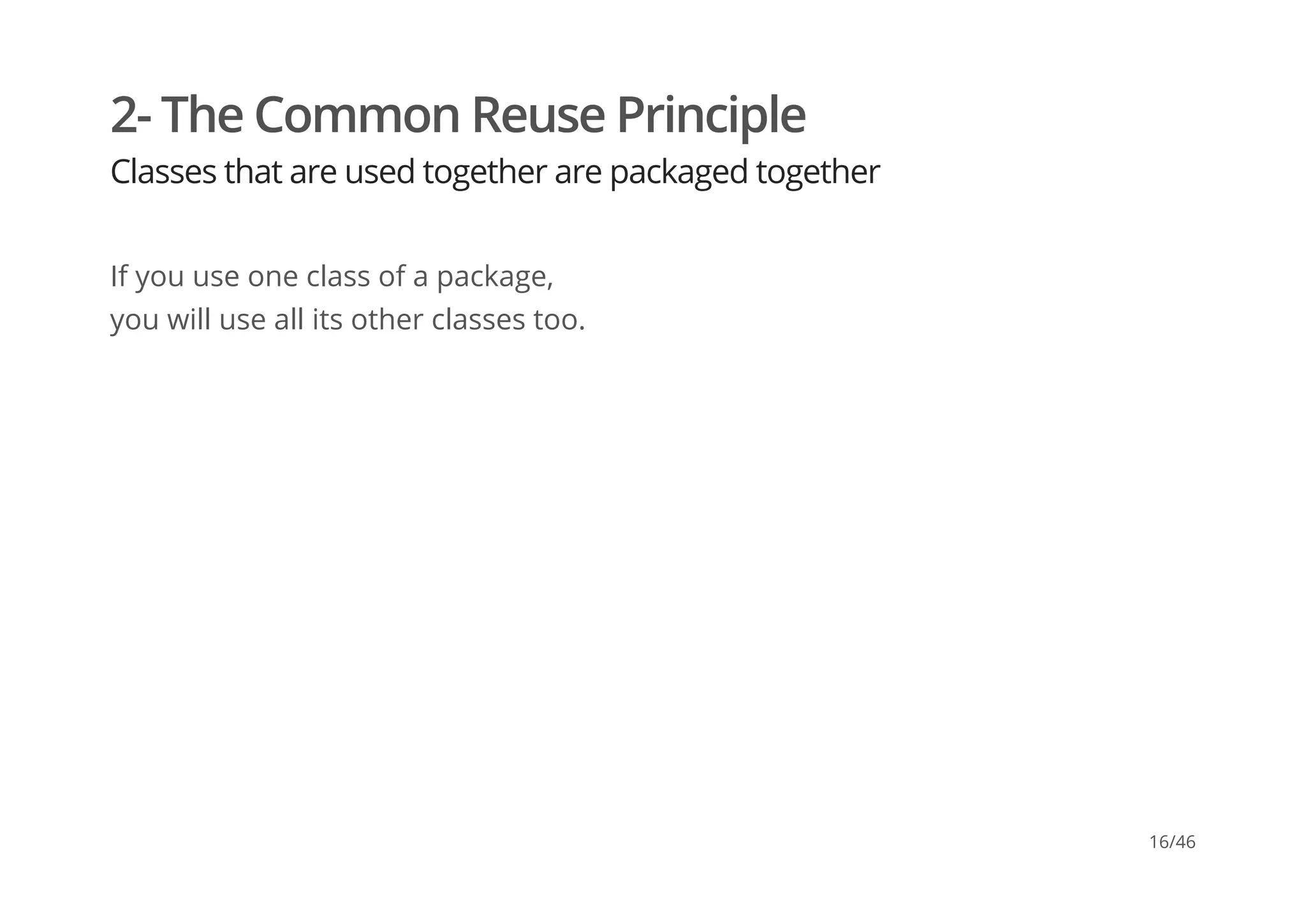

16. 2- The Common Reuse Principle
Classes that are used together are packaged together
If you use one class of a package,
you will use all its other classes too.
16/46

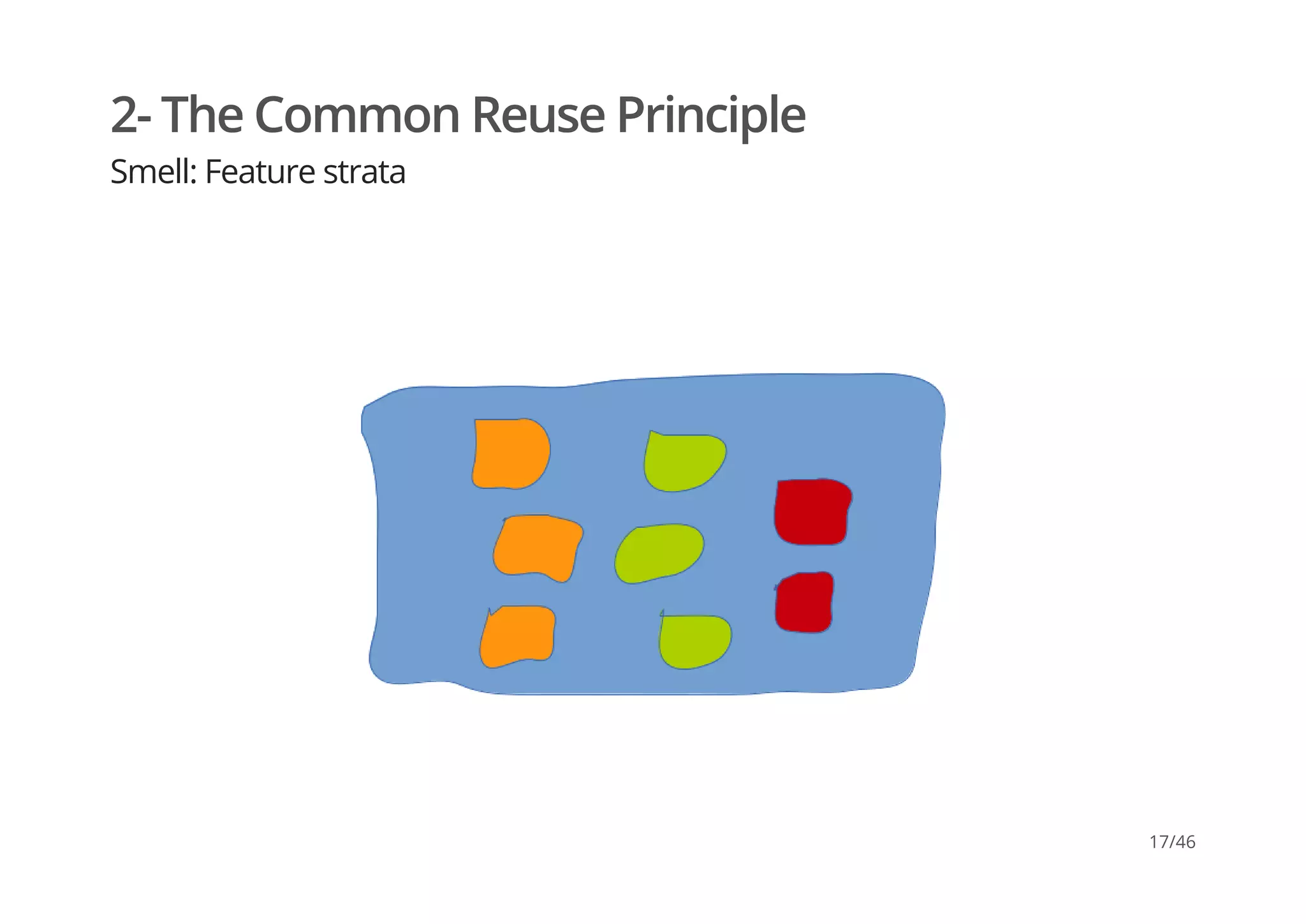

17. 2- The Common Reuse Principle
Smell: Feature strata
17/46

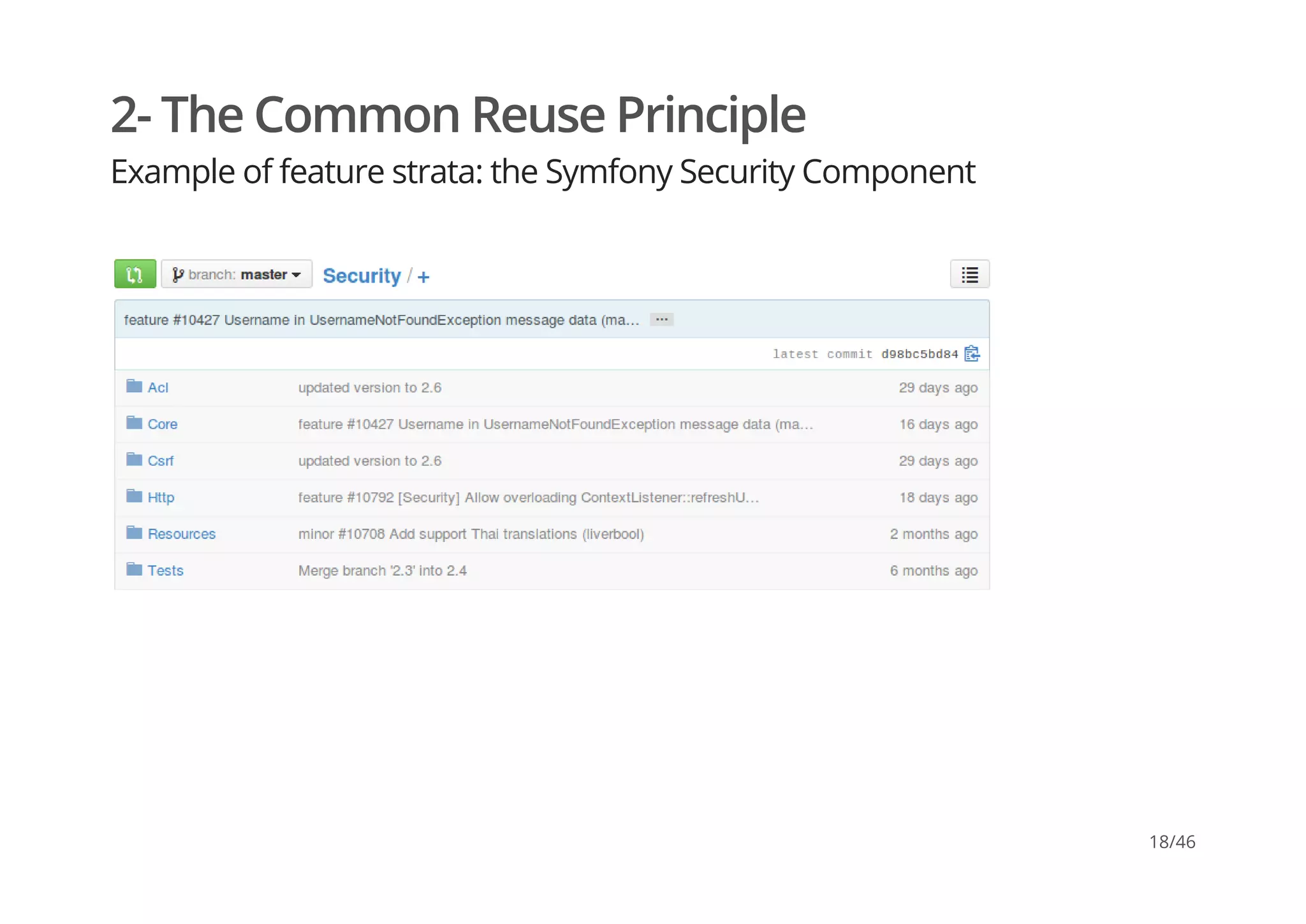

18. 2- The Common Reuse Principle
Example of feature strata: the Symfony Security Component
18/46

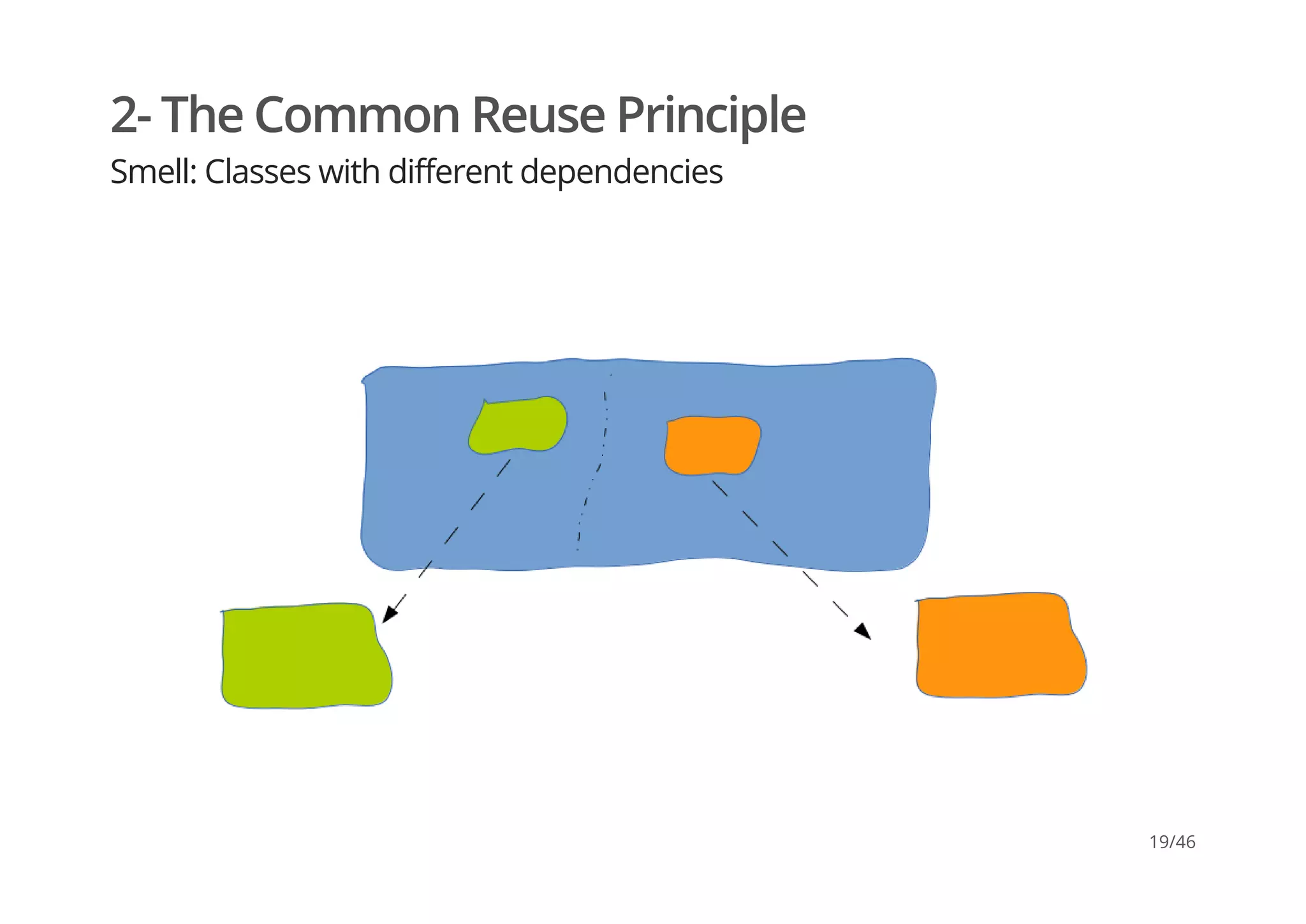

19. 2- The Common Reuse Principle
Smell: Classes with different dependencies
19/46

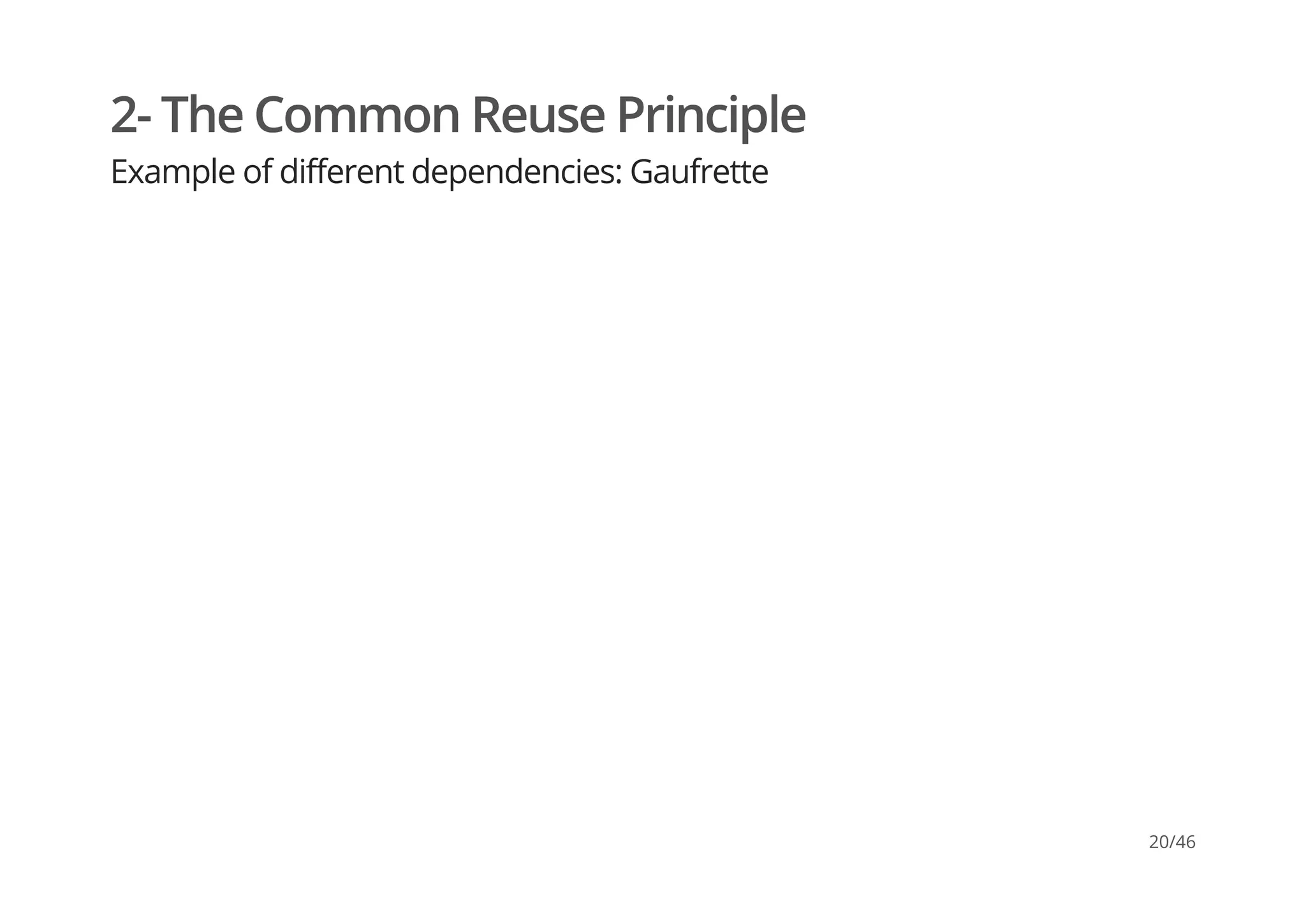

20. 2- The Common Reuse Principle
Example of different dependencies: Gaufrette
20/46

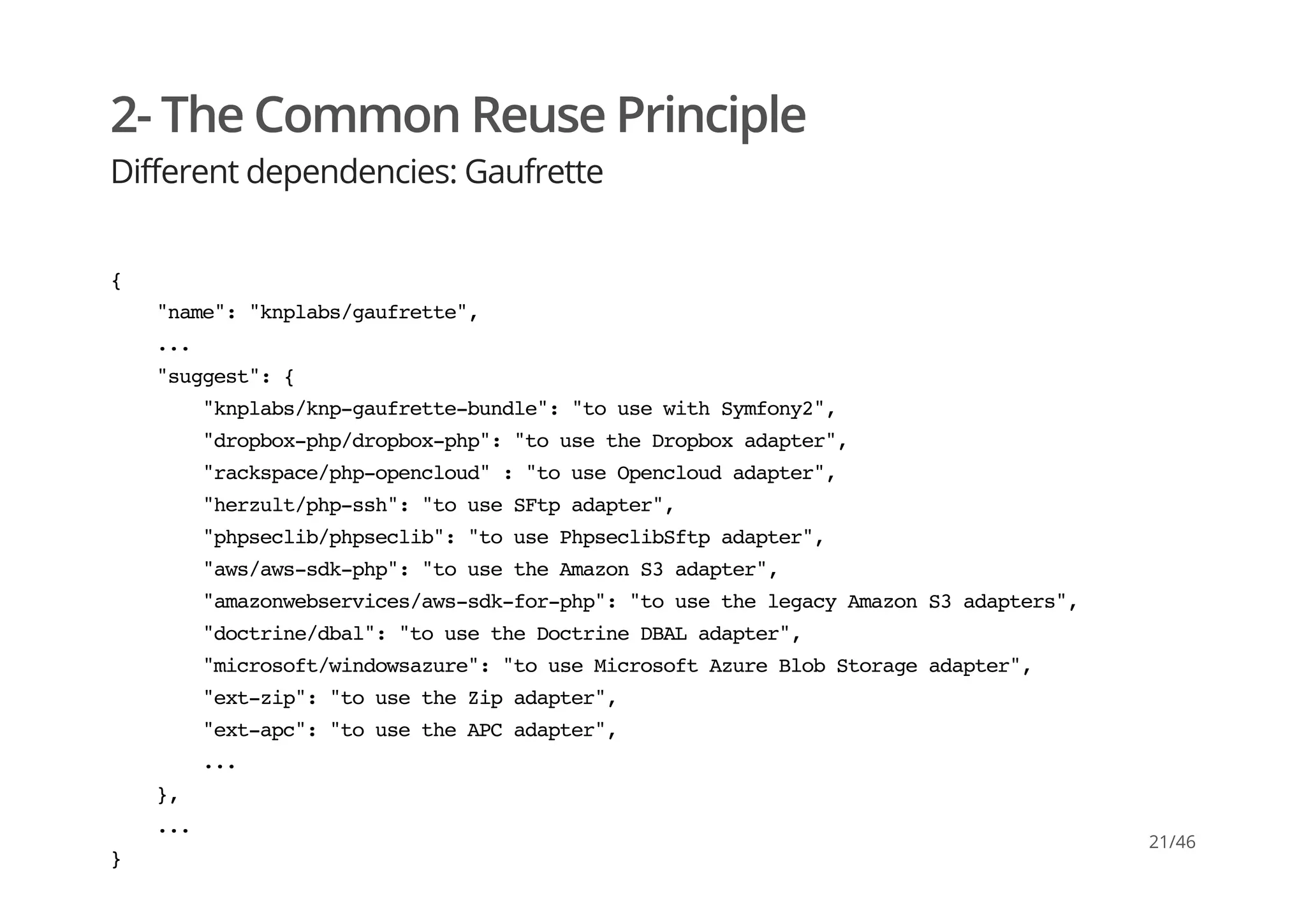

21. 2- The Common Reuse Principle
Different dependencies: Gaufrette
{
"name":"knplabs/gaufrette",
...
"suggest":{
"knplabs/knp-gaufrette-bundle":"tousewithSymfony2",
"dropbox-php/dropbox-php":"tousetheDropboxadapter",
"rackspace/php-opencloud":"touseOpencloudadapter",
"herzult/php-ssh":"touseSFtpadapter",
"phpseclib/phpseclib":"tousePhpseclibSftpadapter",
"aws/aws-sdk-php":"tousetheAmazonS3adapter",
"amazonwebservices/aws-sdk-for-php":"tousethelegacyAmazonS3adapters",
"doctrine/dbal":"tousetheDoctrineDBALadapter",
"microsoft/windowsazure":"touseMicrosoftAzureBlobStorageadapter",
"ext-zip":"tousetheZipadapter",
"ext-apc":"tousetheAPCadapter",
...
},
...
}
21/46

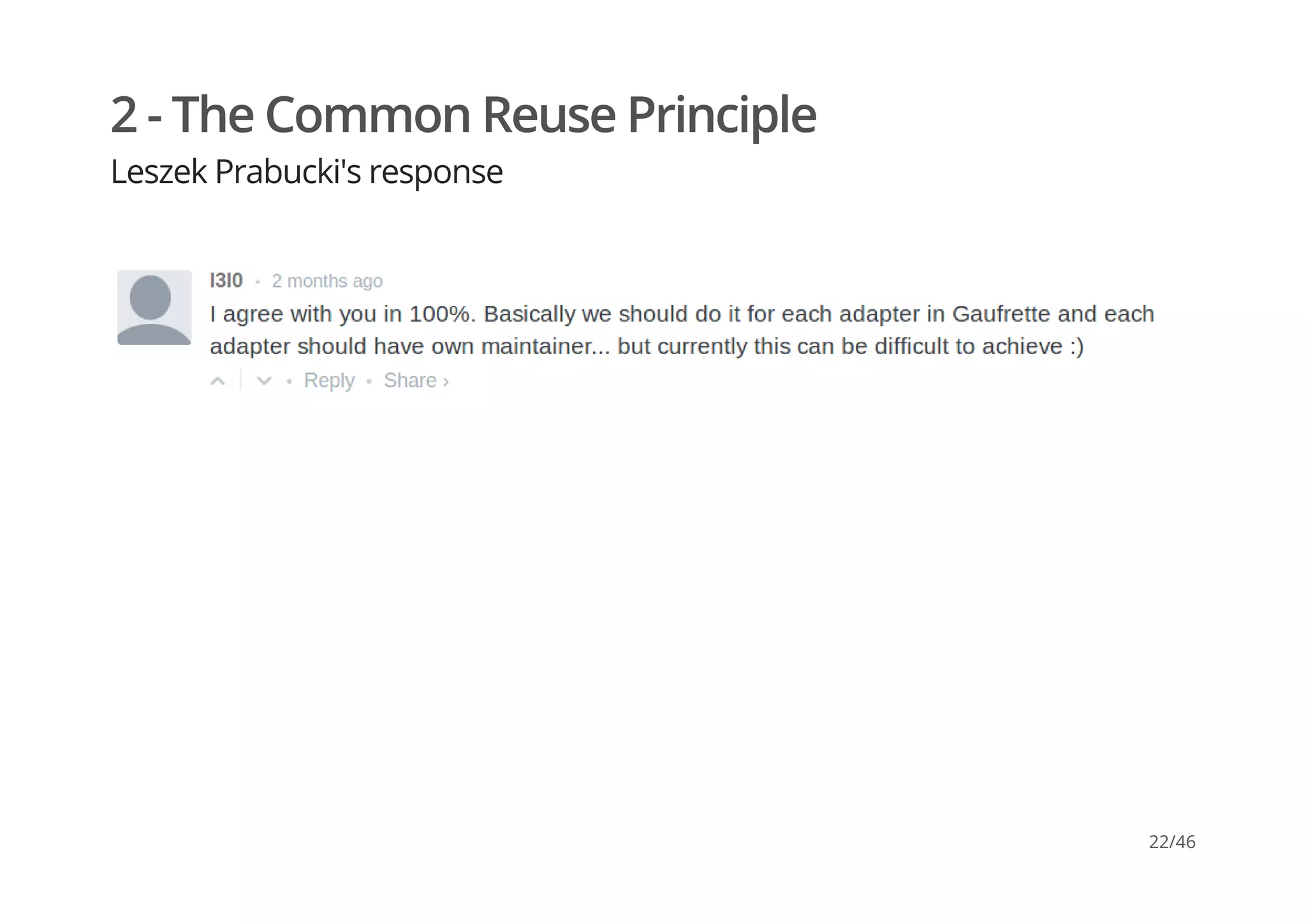

22. 2 - The Common Reuse Principle
Leszek Prabucki's response
22/46

23. 3 - The Common Closure Principle
Classes that change together are packaged together
23/46

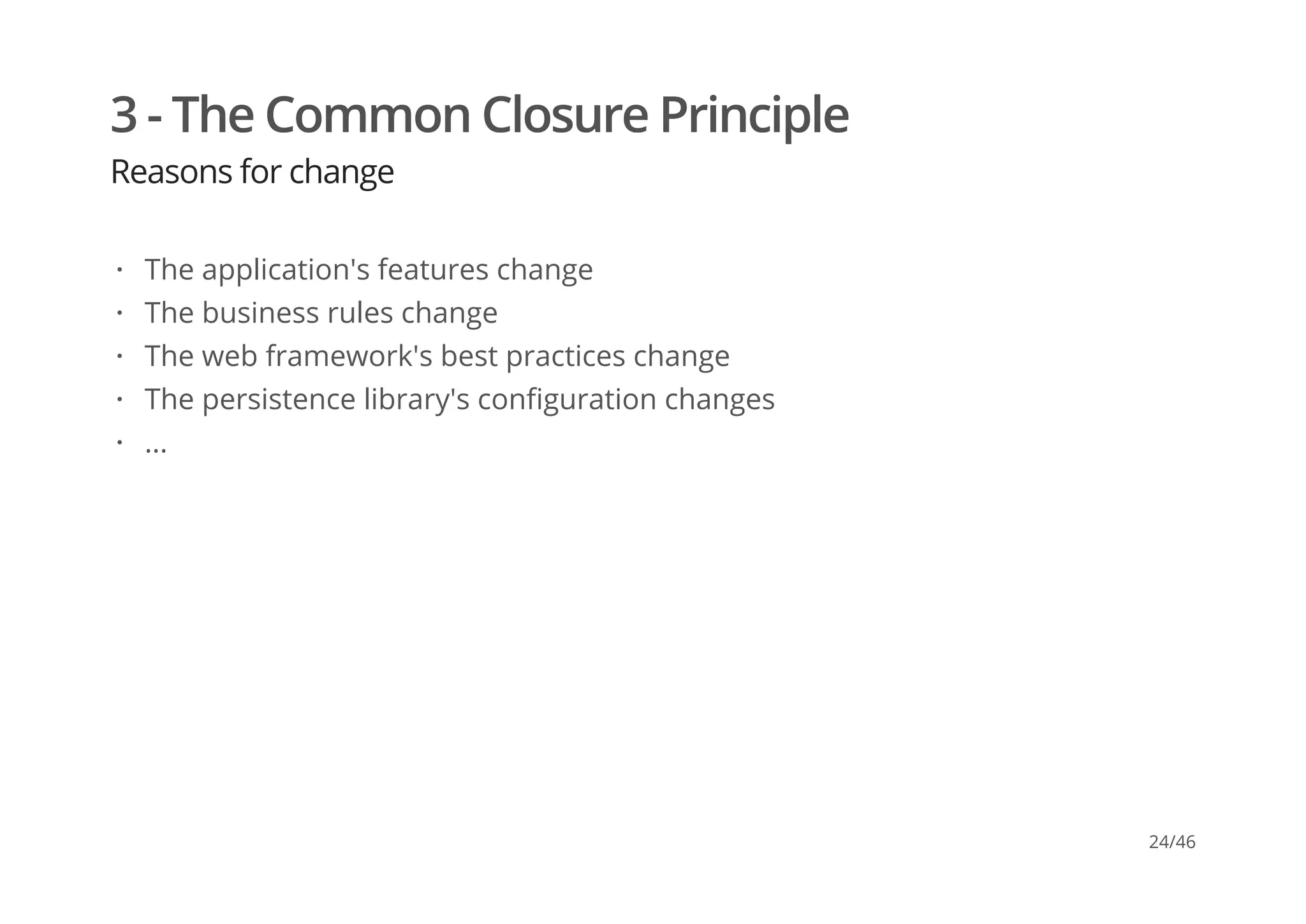

24. 3 - The Common Closure Principle
Reasons for change
The application's features change
The business rules change
The web framework's best practices change
The persistence library's configuration changes
...
·
·
·
·
·
24/46

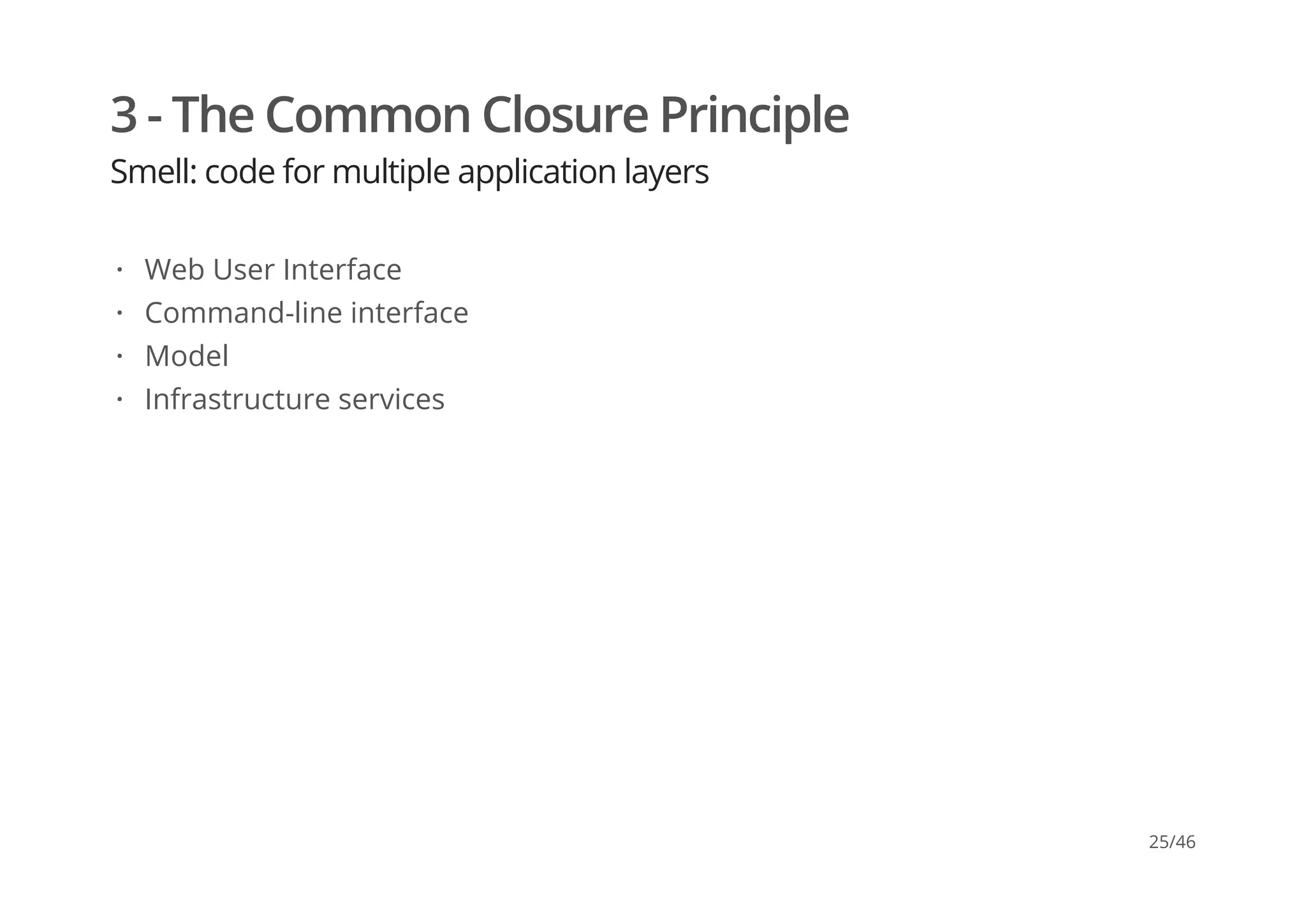

25. 3 - The Common Closure Principle
Smell: code for multiple application layers
Web User Interface
Command-line interface
Model
Infrastructure services
·
·
·
·
25/46

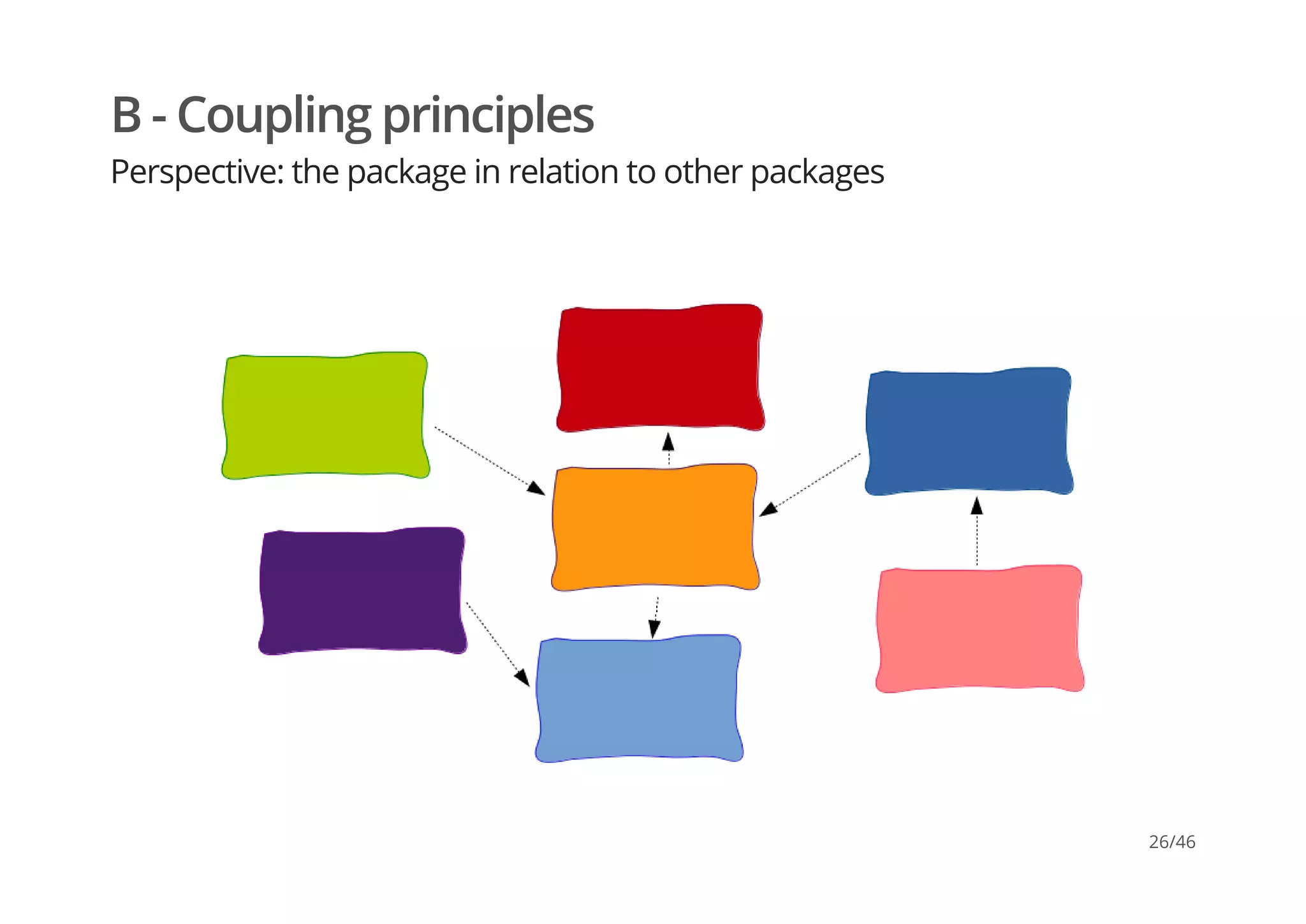

26. B - Coupling principles
Perspective: the package in relation to other packages
26/46

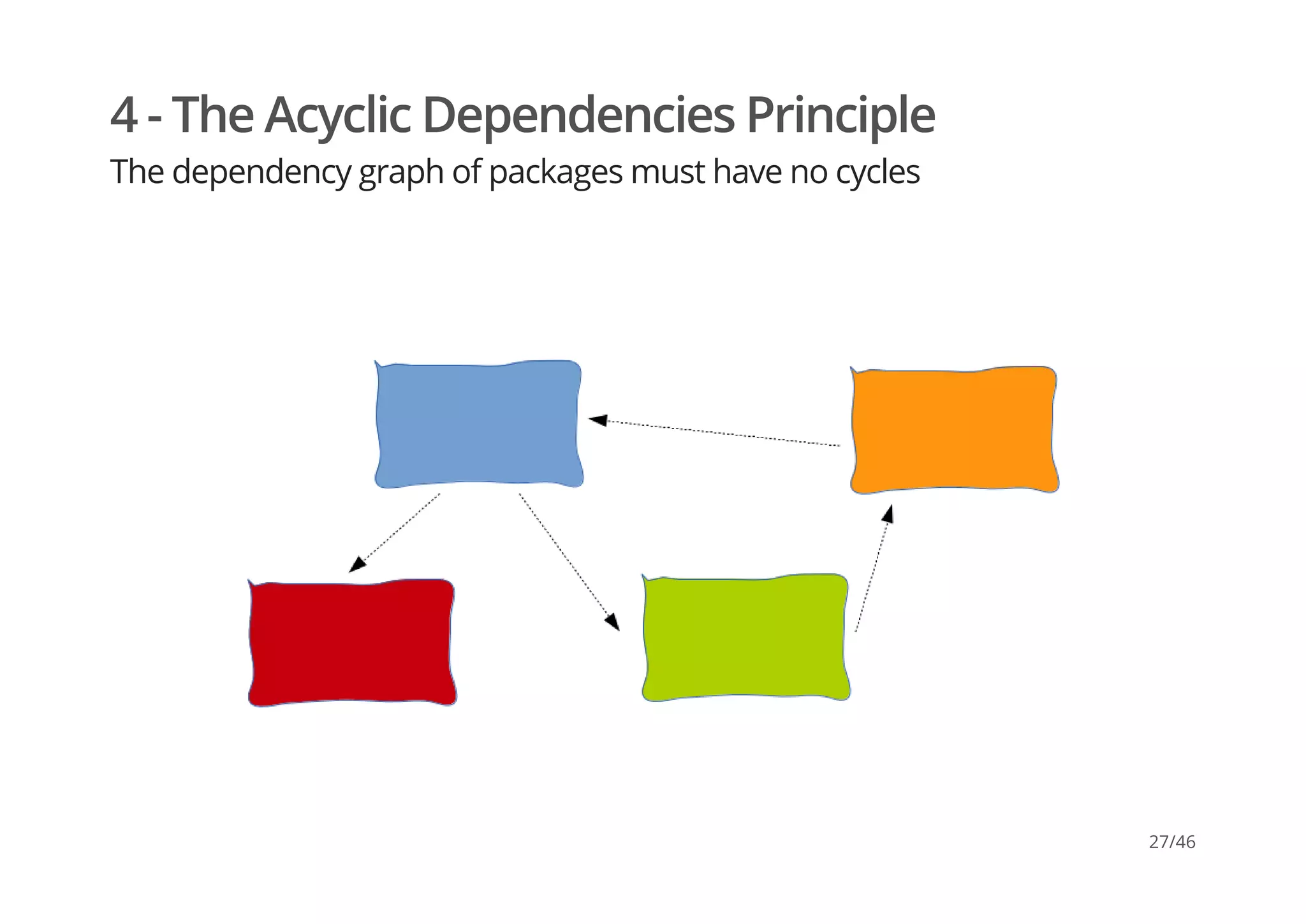

27. 4 - The Acyclic Dependencies Principle
The dependency graph of packages must have no cycles
27/46

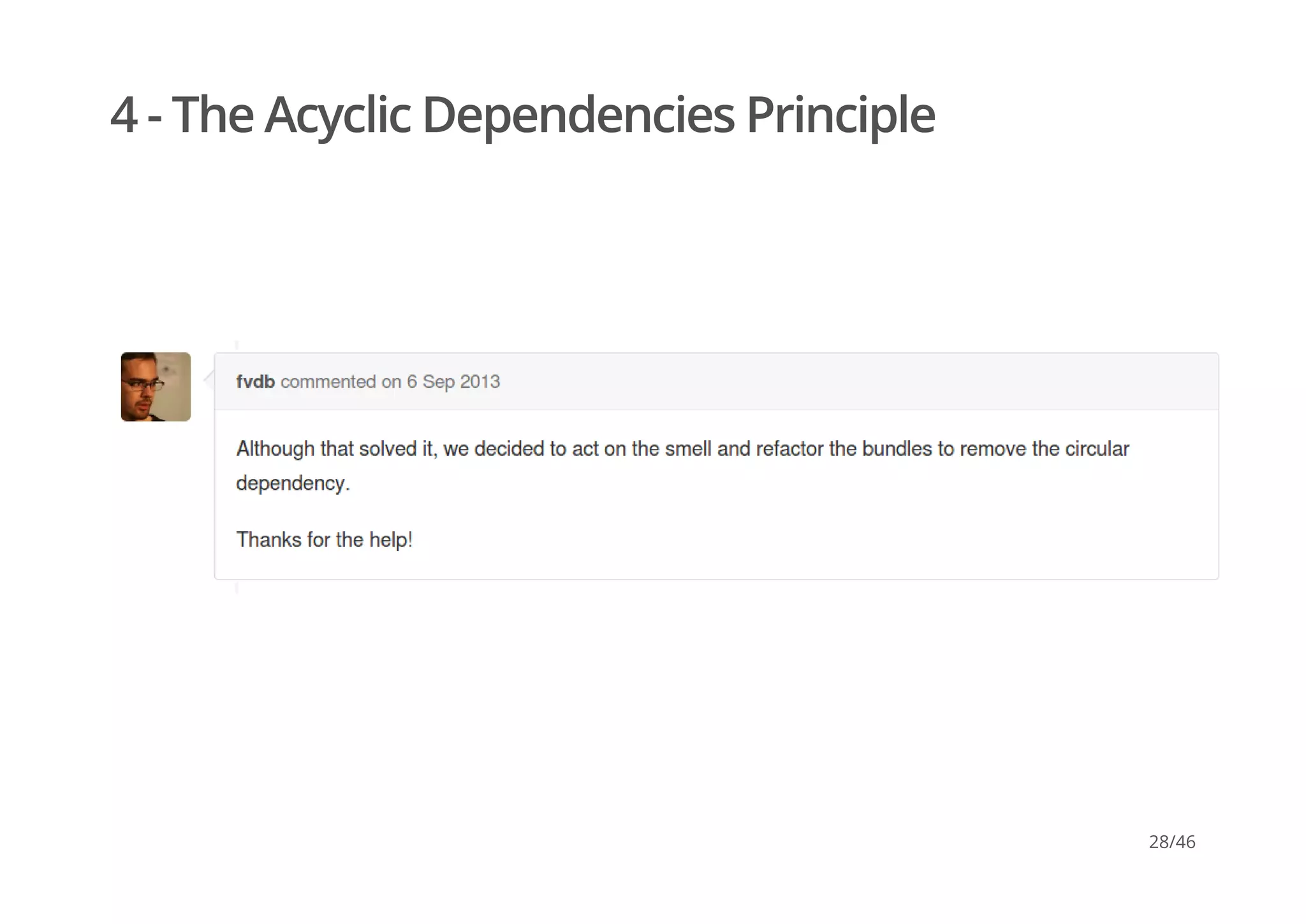

28. 4 - The Acyclic Dependencies Principle
28/46

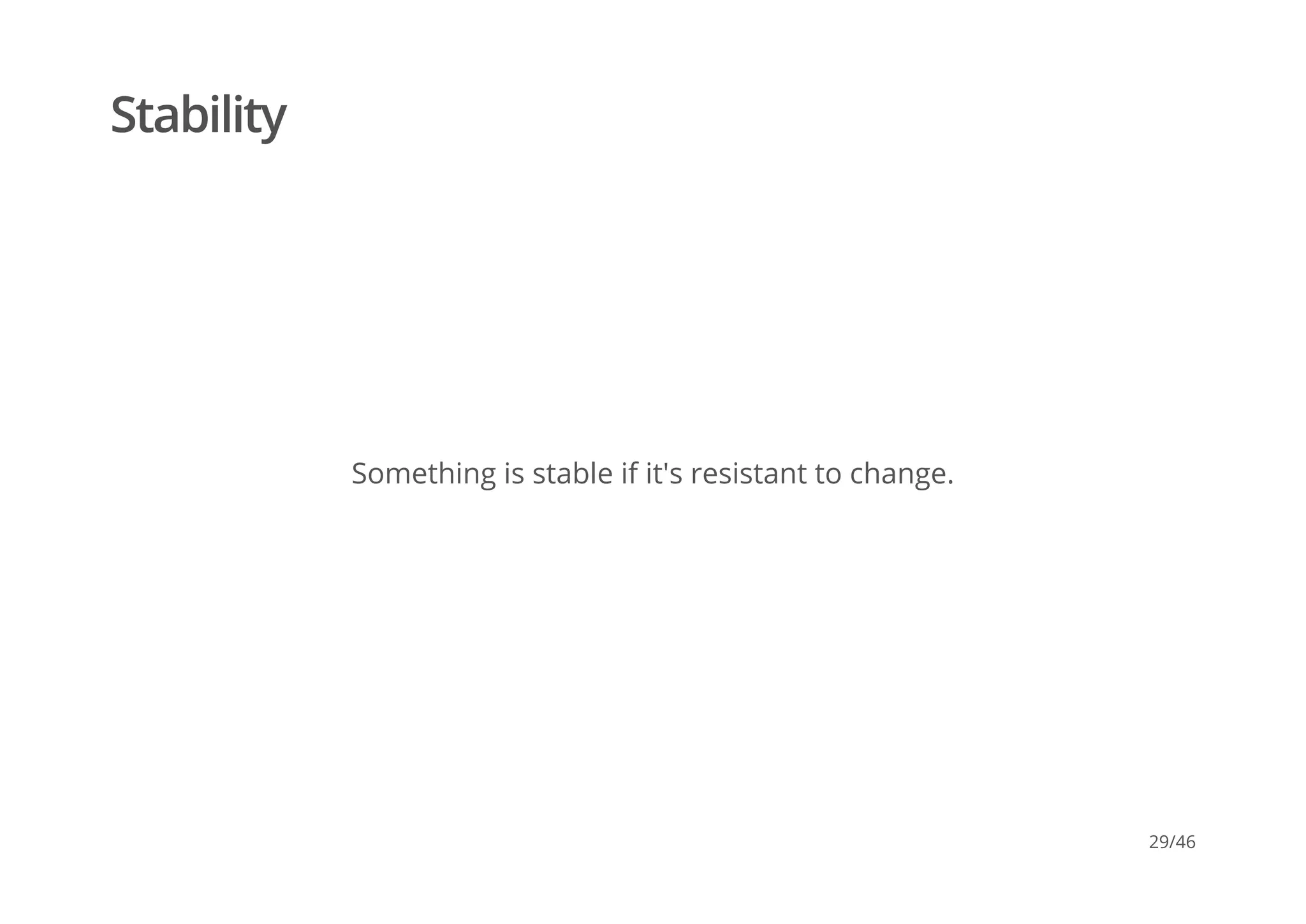

29. Stability
Something is stable if it's resistant to change.
29/46

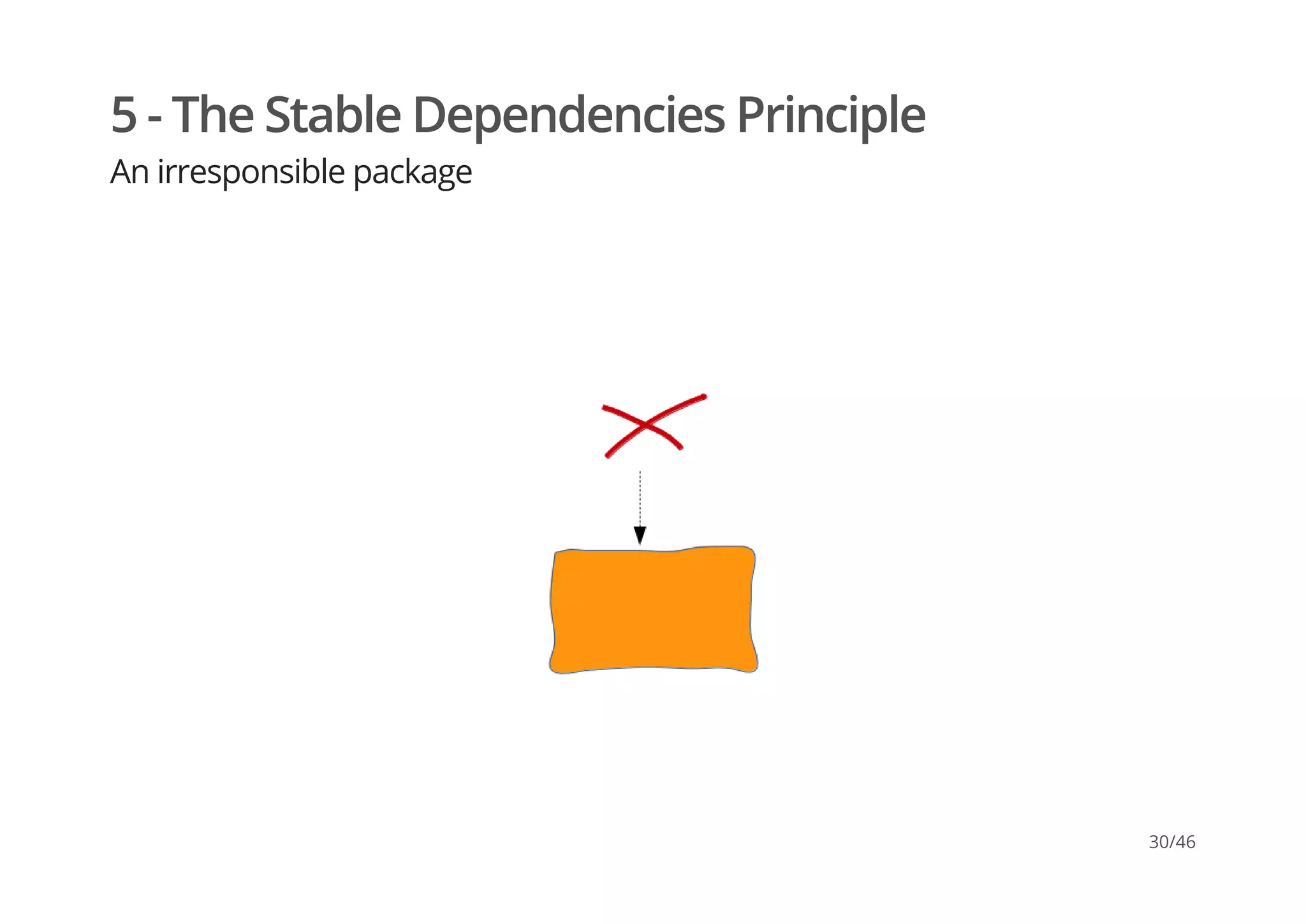

30. 5 - The Stable Dependencies Principle
An irresponsible package
30/46

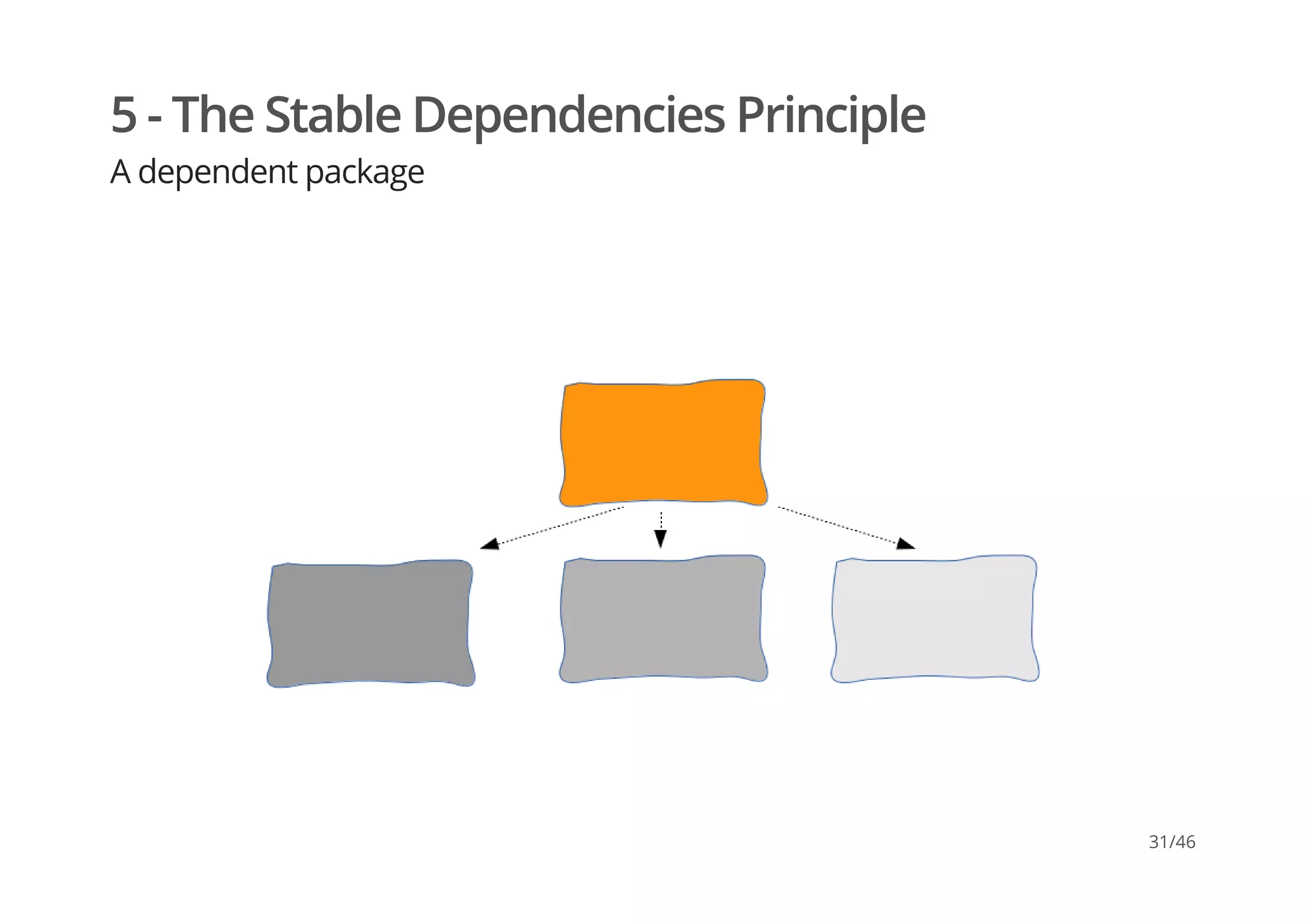

31. 5 - The Stable Dependencies Principle
A dependent package
31/46

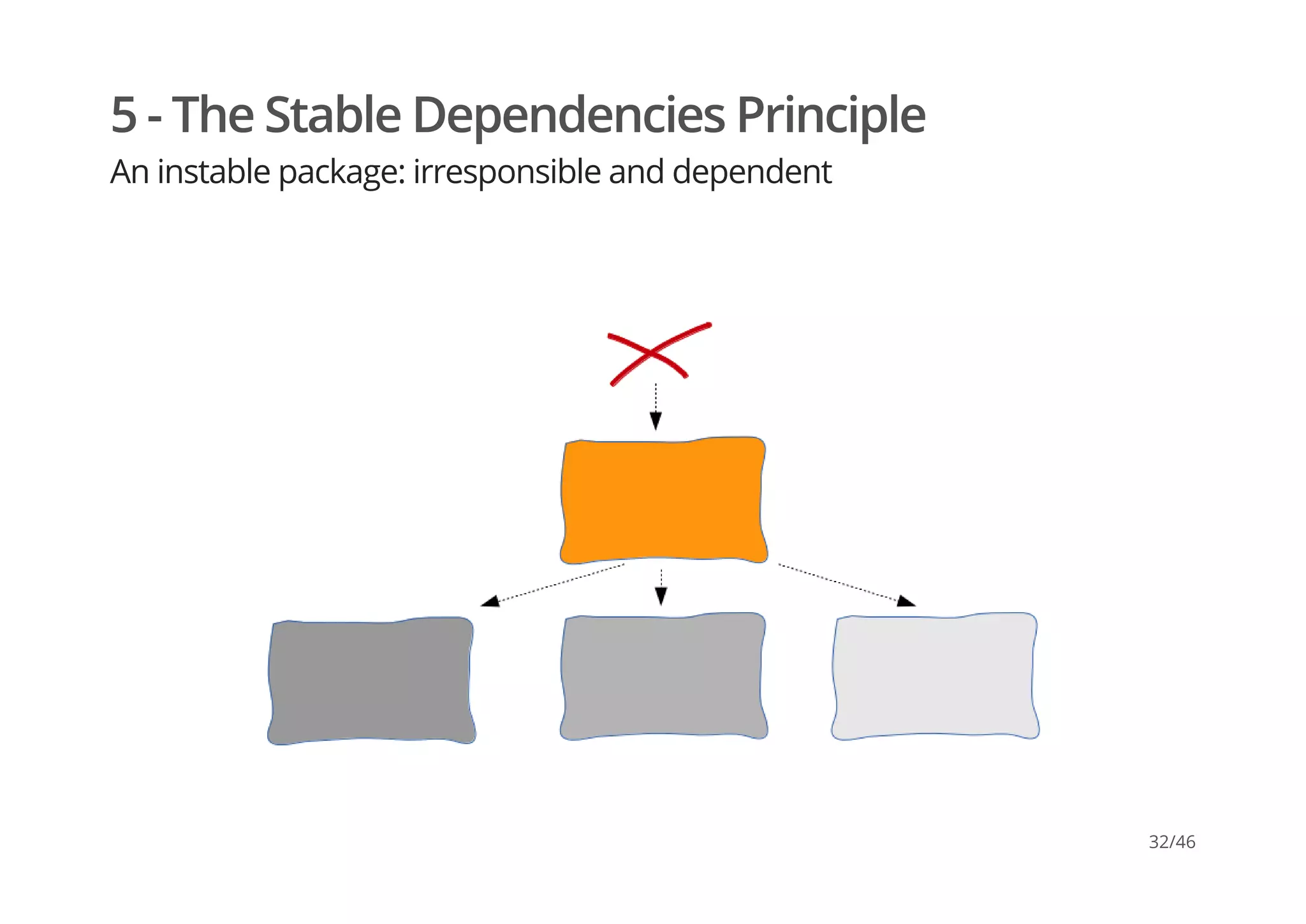

32. 5 - The Stable Dependencies Principle
An instable package: irresponsible and dependent
32/46

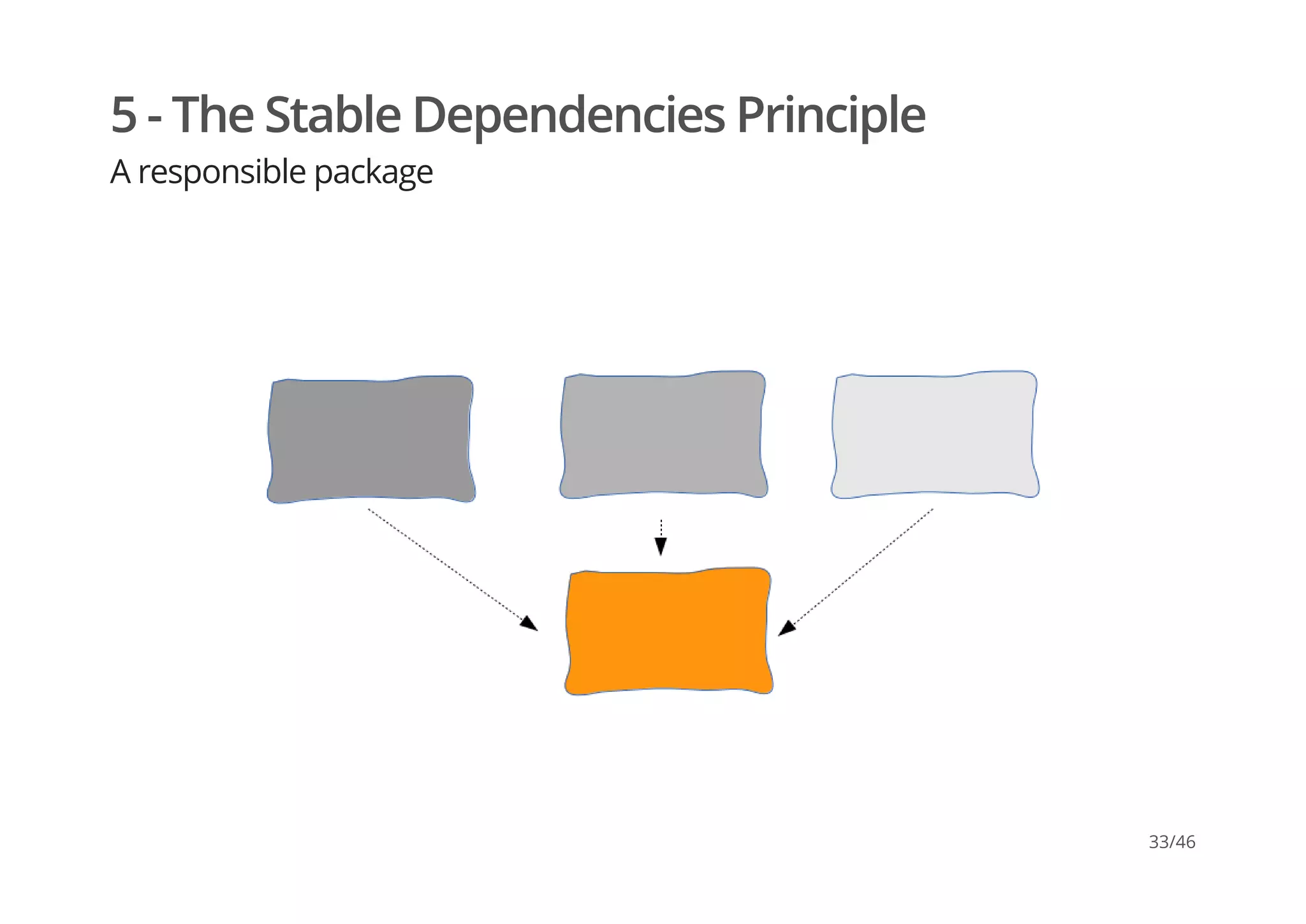

33. 5 - The Stable Dependencies Principle
A responsible package
33/46

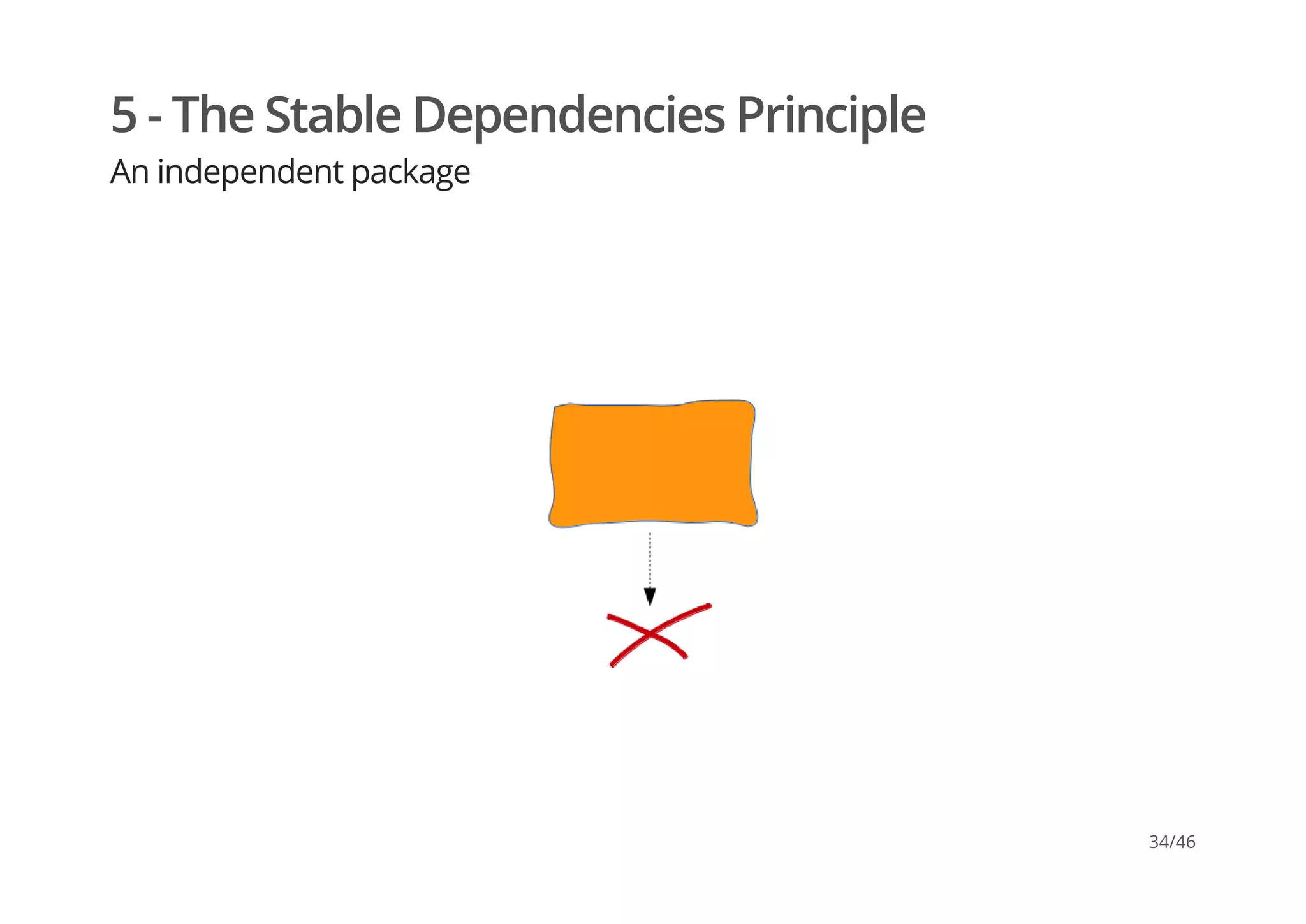

34. 5 - The Stable Dependencies Principle
An independent package
34/46

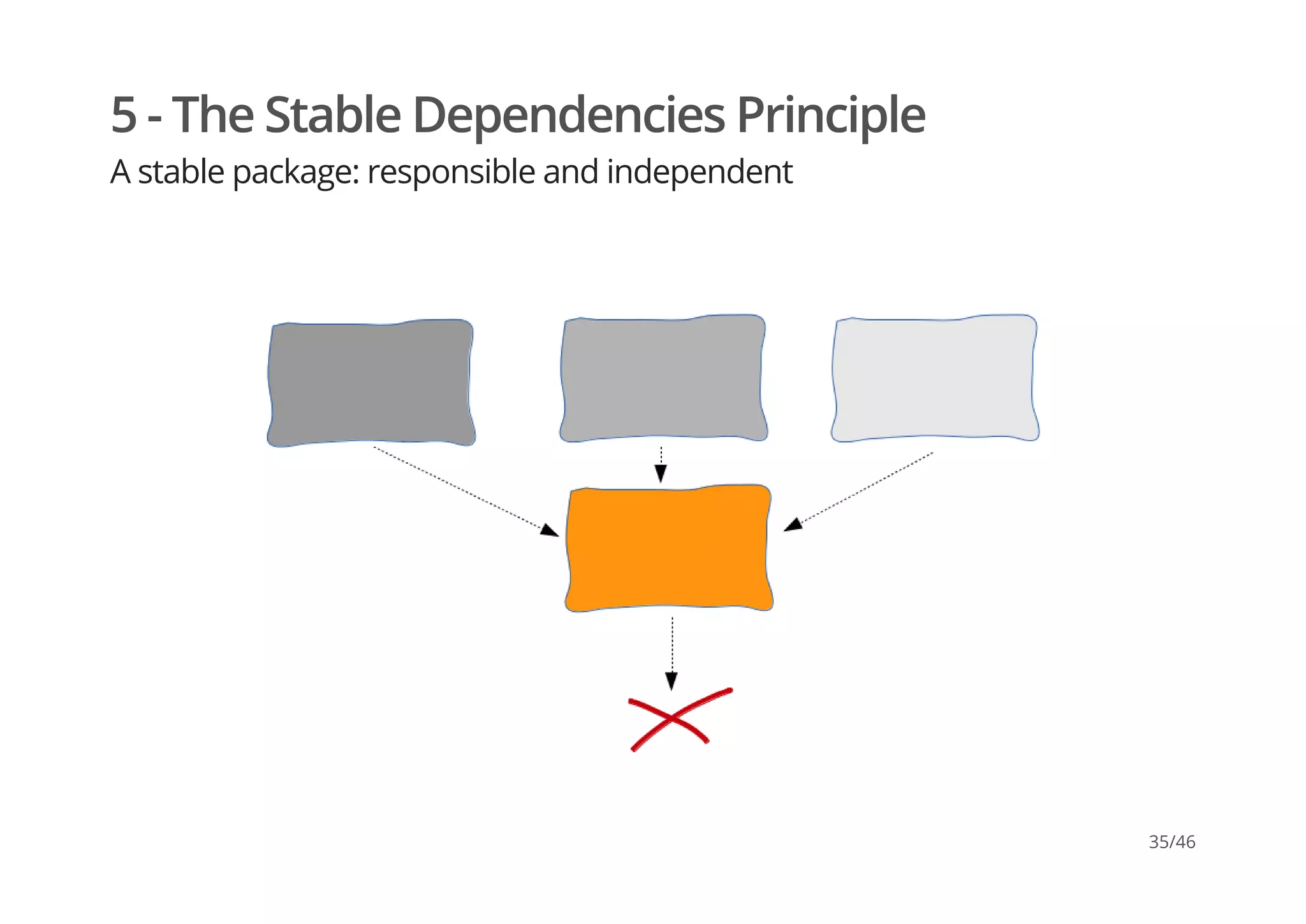

35. 5 - The Stable Dependencies Principle
A stable package: responsible and independent
35/46

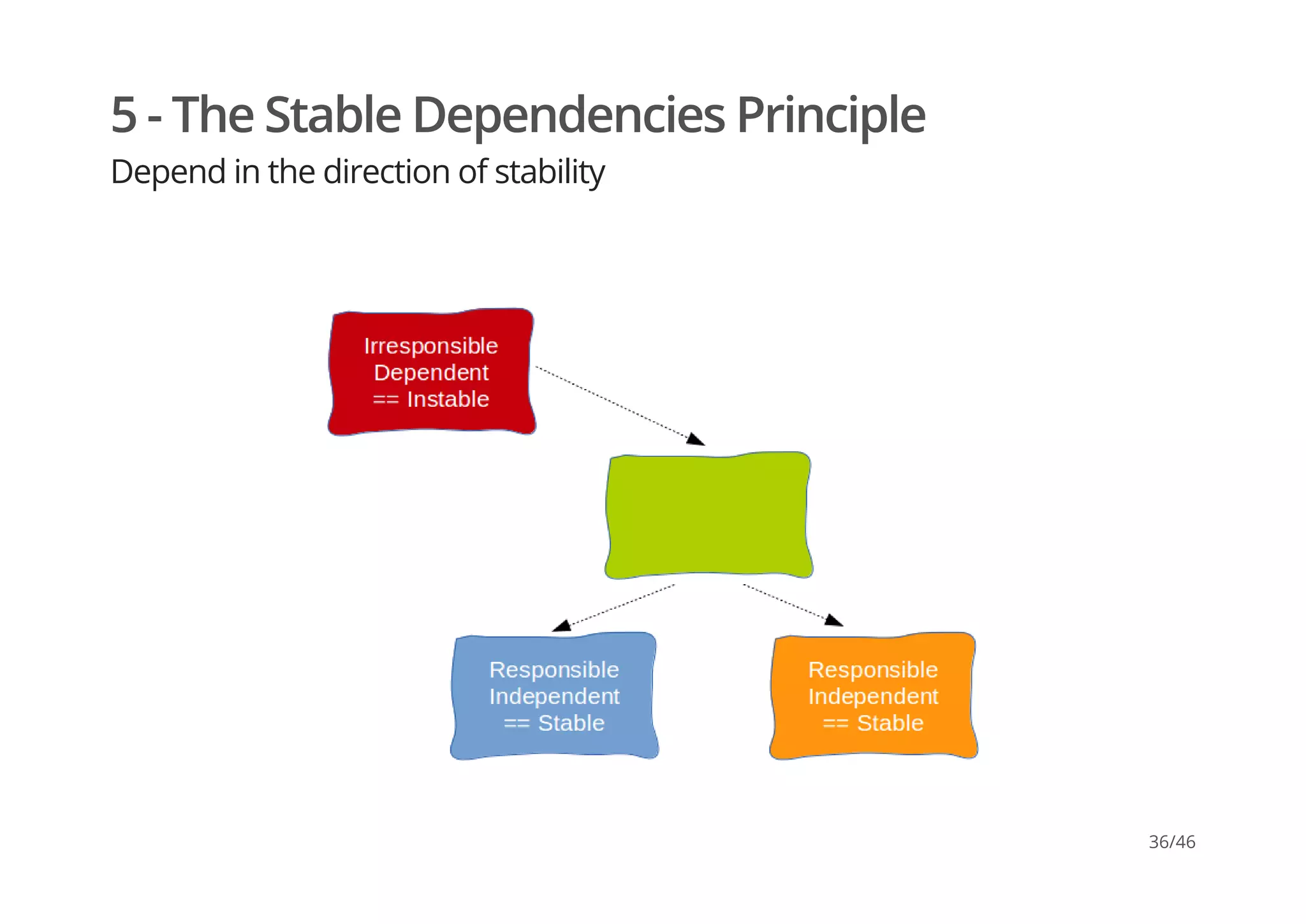

36. 5 - The Stable Dependencies Principle
Depend in the direction of stability
36/46

37. 5 - The Stable Dependencies Principle
Counter example
37/46

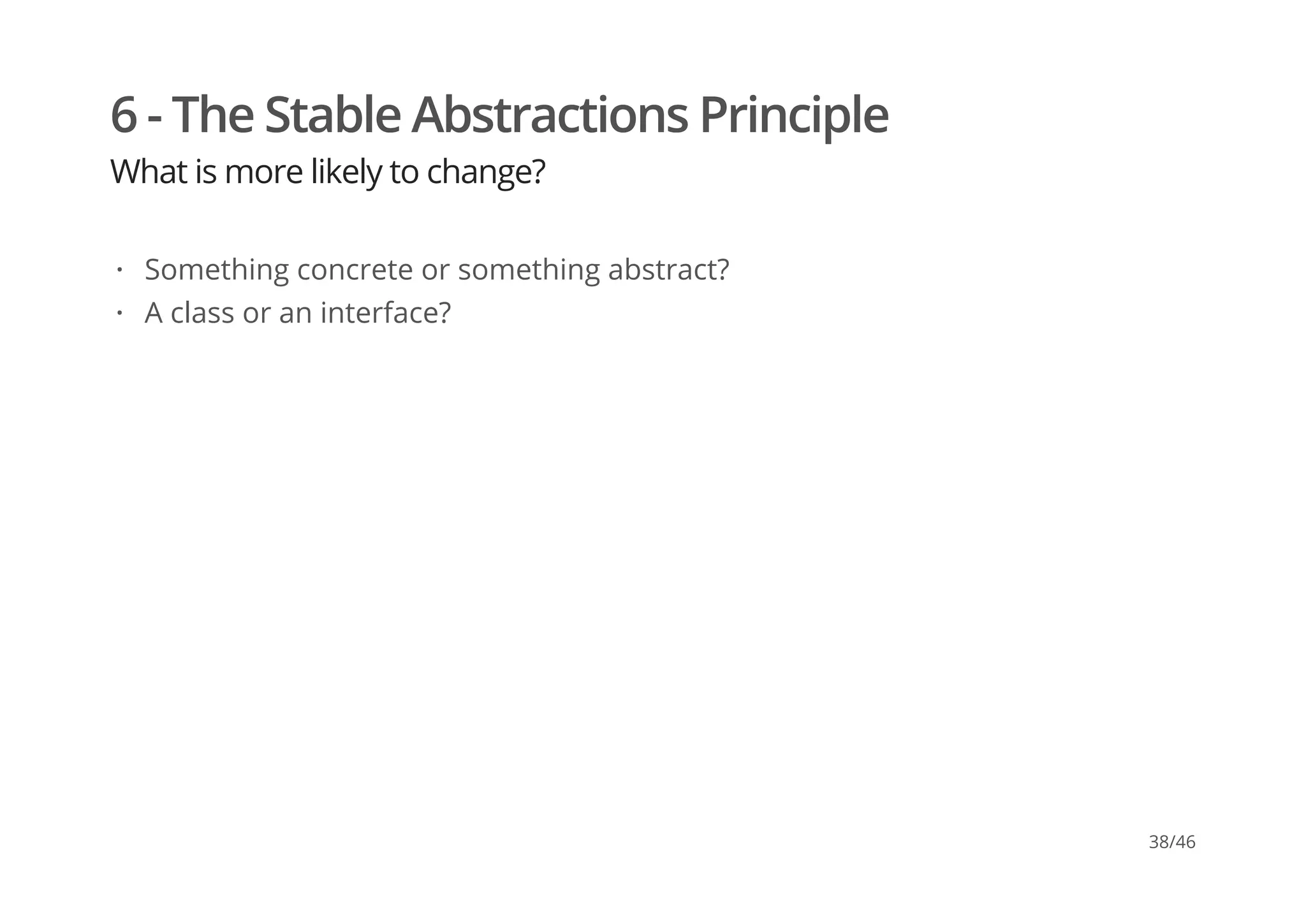

38. 6 - The Stable Abstractions Principle
What is more likely to change?
Something concrete or something abstract?
A class or an interface?
·
·
38/46

39. 6 - The Stable Abstractions Principle
Abstractness should increase with stability
39/46

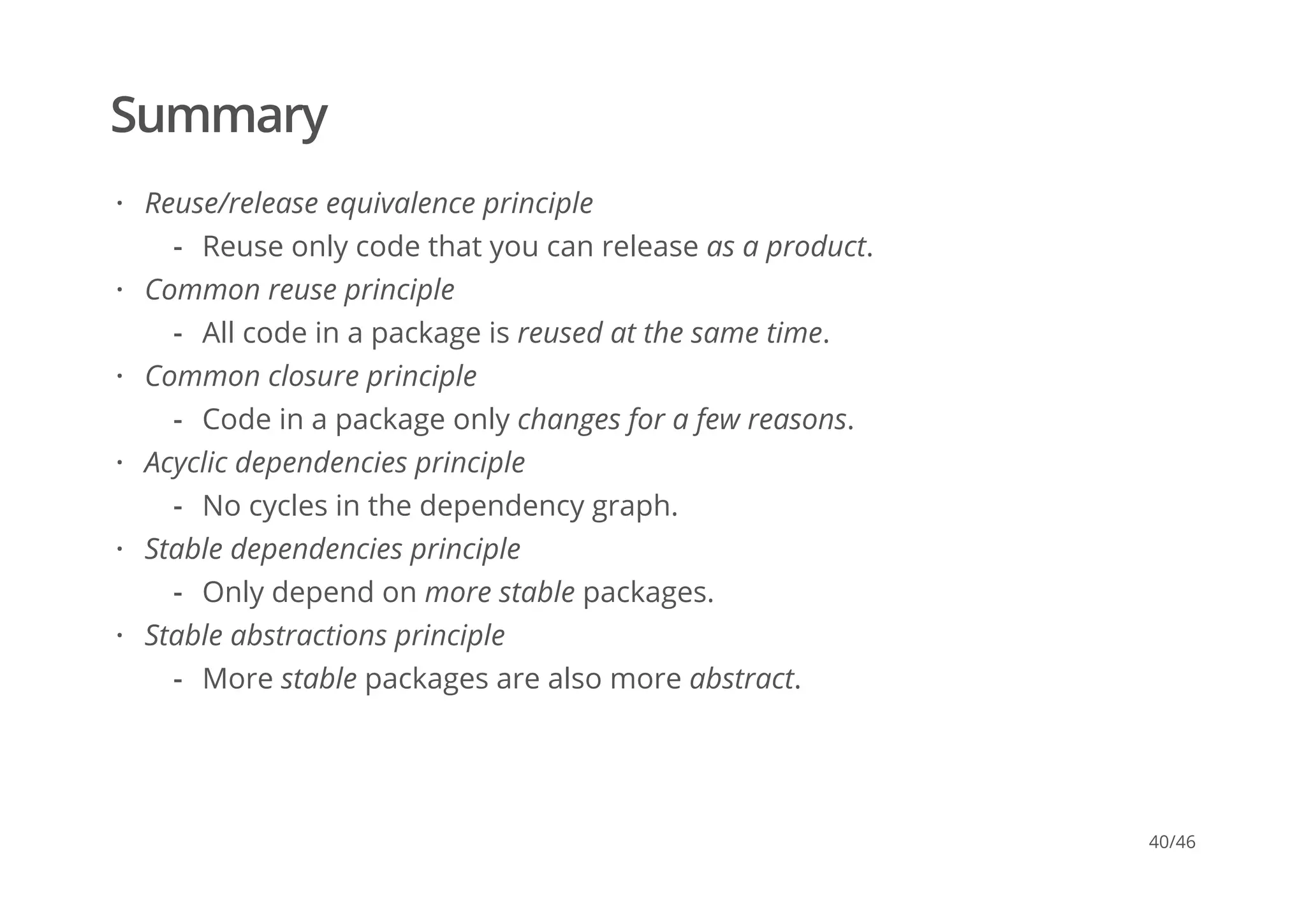

40. Summary
Reuse/release equivalence principle
Common reuse principle
Common closure principle
Acyclic dependencies principle
Stable dependencies principle
Stable abstractions principle
·
Reuse only code that you can release as a product.-
·
All code in a package is reused at the same time.-
·
Code in a package only changes for a few reasons.-
·
No cycles in the dependency graph.-
·
Only depend on more stable packages.-
·
More stable packages are also more abstract.-
40/46

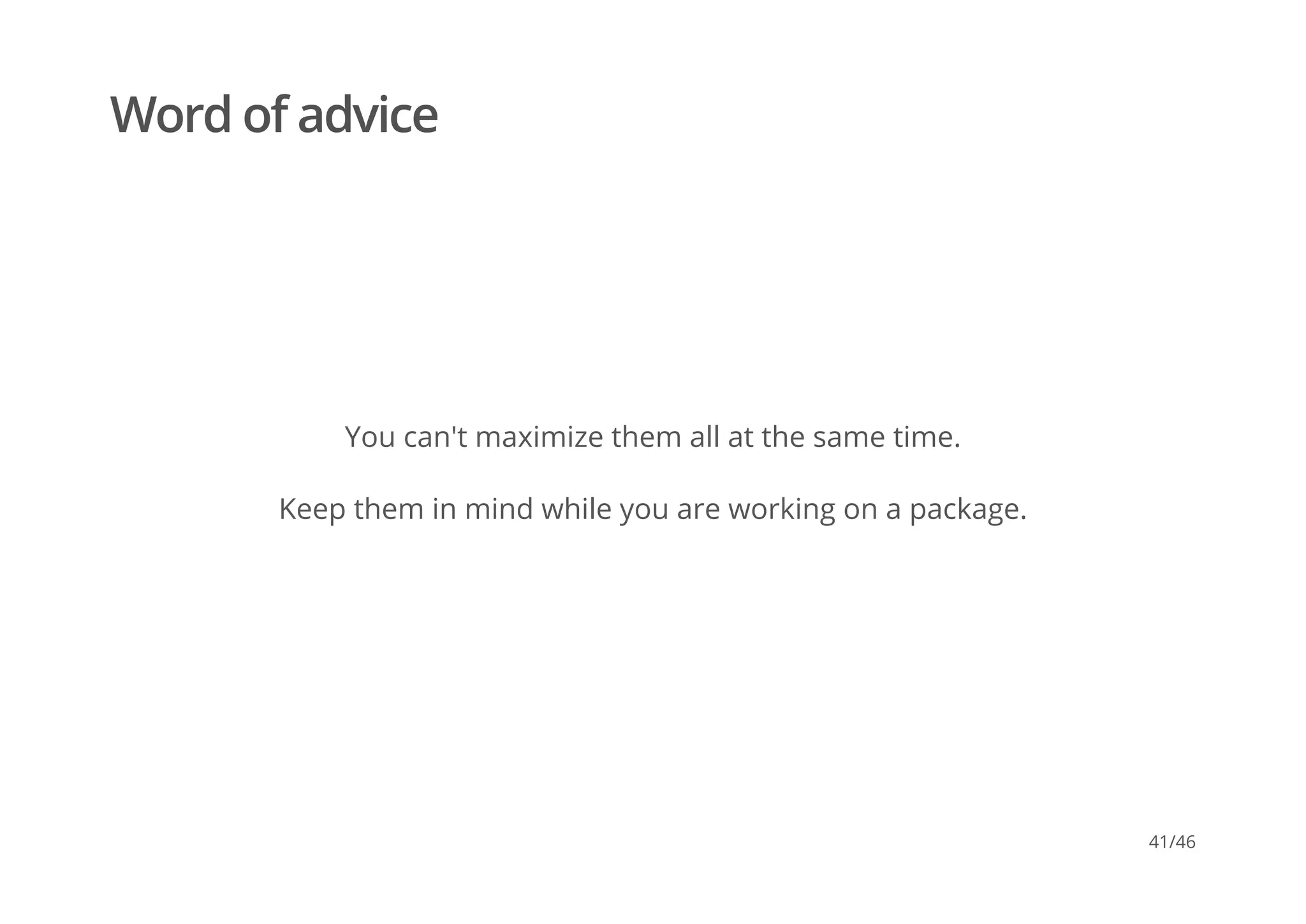

41. Word of advice
You can't maximize them all at the same time.
Keep them in mind while you are working on a package.
41/46

42. Principles of Package Design
leanpub.com/principles-of-package-design
42/46

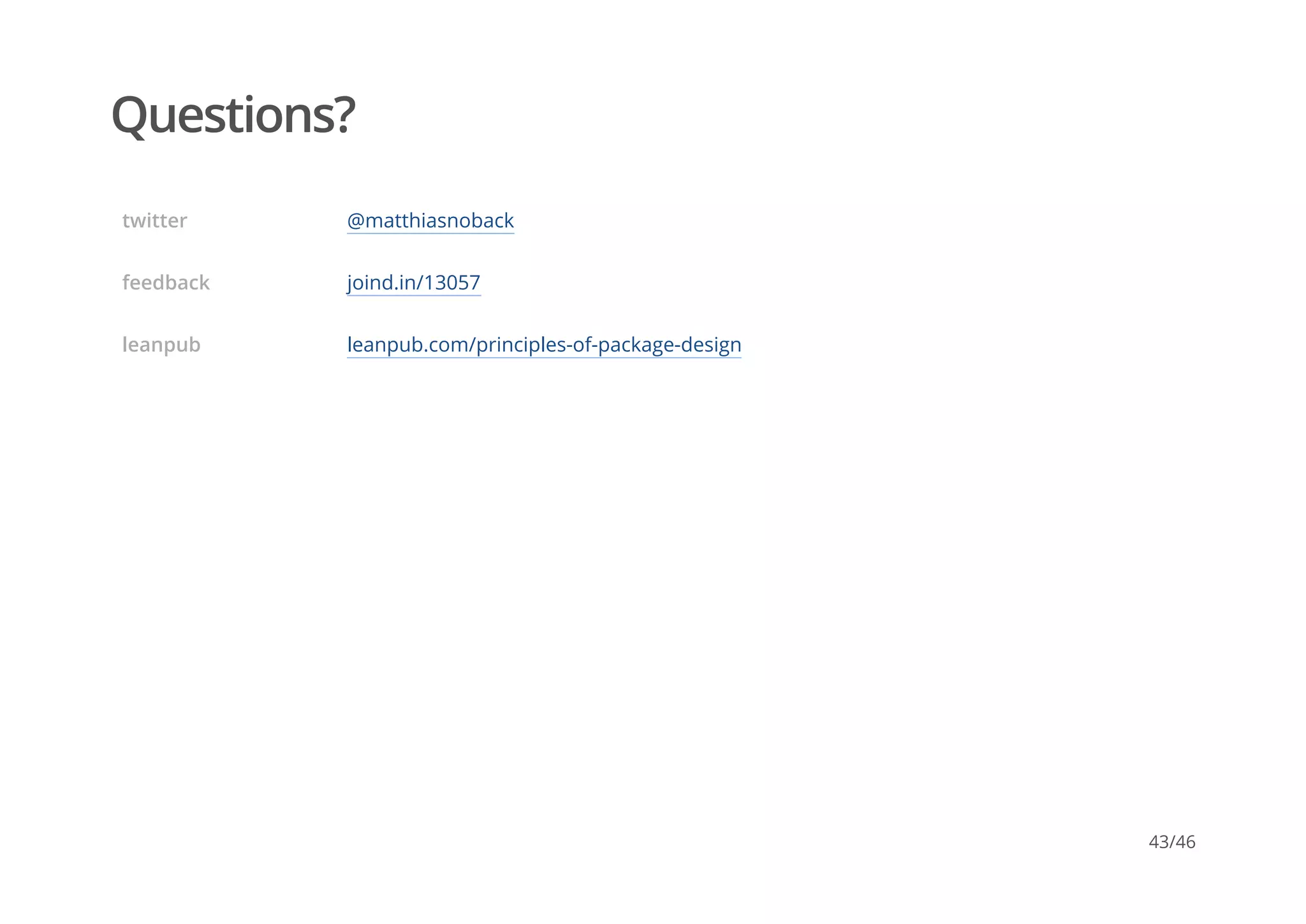

43. Questions?
twitter @matthiasnoback
feedback joind.in/13057
leanpub leanpub.com/principles-of-package-design
43/46

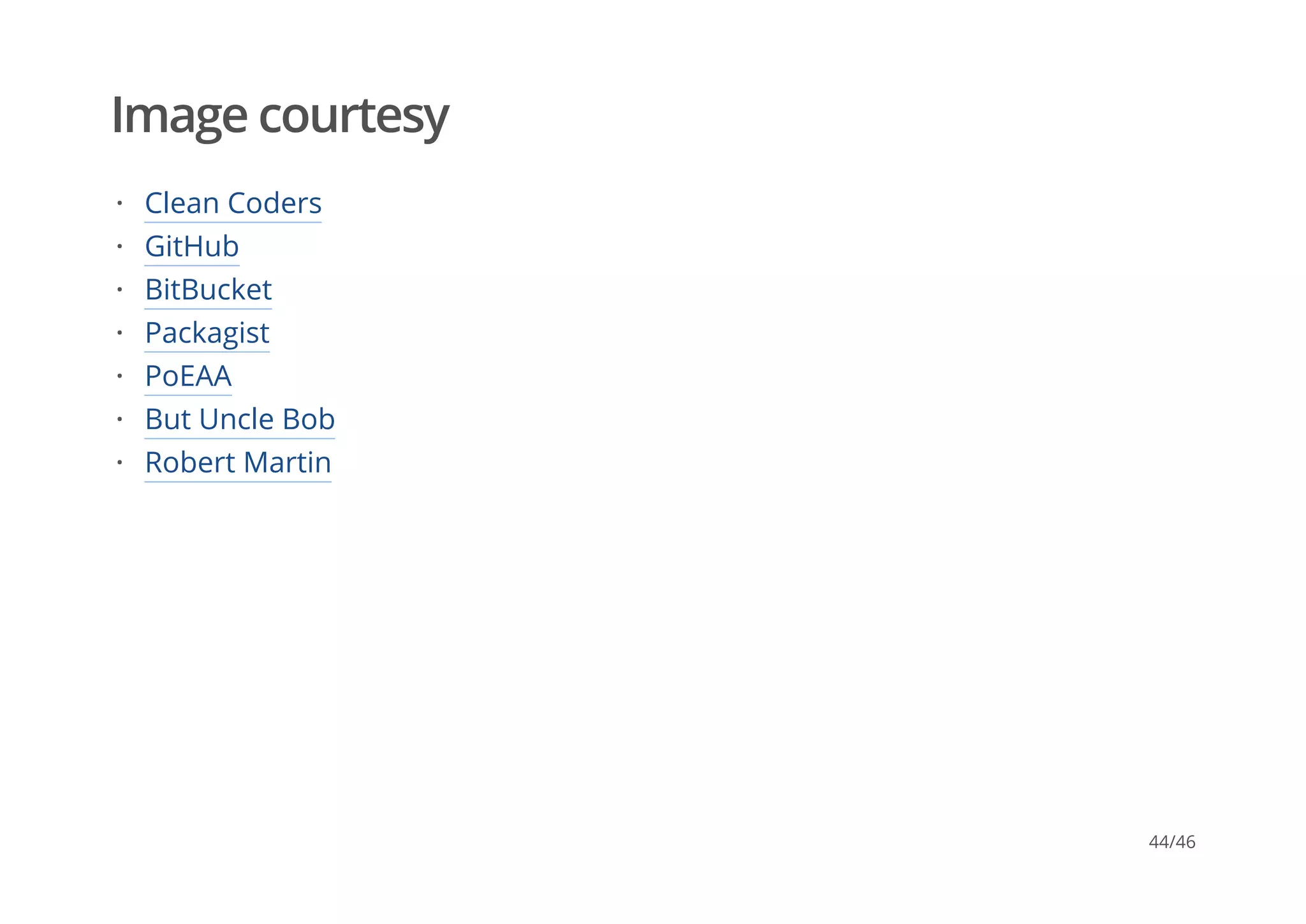

44. Image courtesy
