Tiago Sena Dias created an animation project in December 2013 that involved modeling characters and environments in Blender, animating 9 scenes, rendering the scenes, recording sound effects, and editing the scenes and sound together into a final video. The animation depicts a medical emergency at a train station where one man has a heart attack and another man uses a defibrillator to resuscitate him. The project documentation includes photos of the modeling, animation, and video editing processes and took a total of 19 hours to render the final 5770 frame animation.

1. December 2013
Tiago Sena Dias / ICT
Animation/Video
Project
Tiago Sena Dias
1

2. Tiago Sena Dias / ICT
December 2013

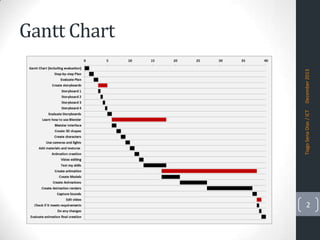

Gantt Chart
2

3. Modelling
•Character
•Train Station
•Train
•Defibrillator
Animations
•Produce
animations
Rendering
•Render all
animations
HD quality
Sound Capture
•Capture
sounds to use
Video Editing
•Create the
final video
Tiago Sena Dias / ICT
December 2013

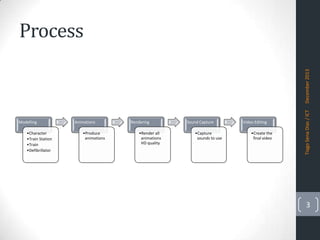

Process
3

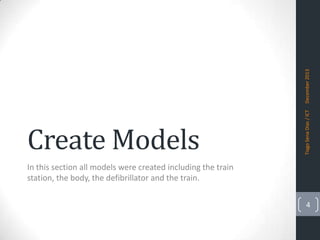

4. December 2013
Tiago Sena Dias / ICT
Create Models
In this section all models were created including the train
station, the body, the defibrillator and the train.
4

5. CREATE DEFIBRILLATOR MODEL
5
Tiago Sena Dias / ICT
December 2013

6. Tiago Sena Dias / ICT
December 2013
Add a plane mesh
6

7. Tiago Sena Dias / ICT
December 2013

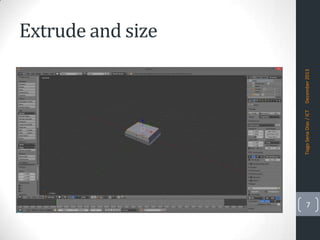

Extrude and size
7

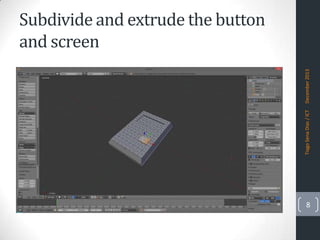

8. Tiago Sena Dias / ICT
December 2013
Subdivide and extrude the button
and screen
8

9. Tiago Sena Dias / ICT
December 2013

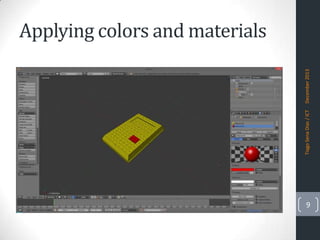

Applying colors and materials
9

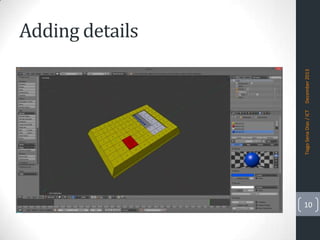

10. Tiago Sena Dias / ICT
December 2013
Adding details
10

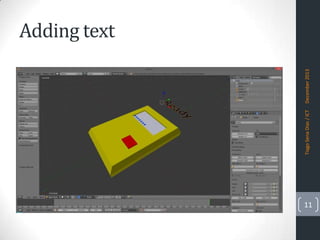

11. Tiago Sena Dias / ICT
December 2013
Adding text
11

12. Tiago Sena Dias / ICT
December 2013

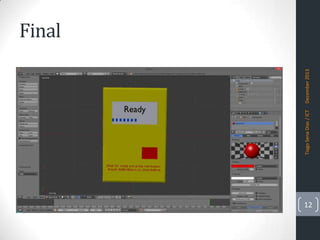

Final
12

13. Tiago Sena Dias / ICT
December 2013

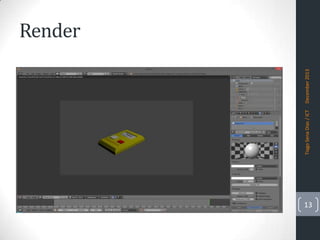

Render
13

14. BUILD THE STATION
14
Tiago Sena Dias / ICT
December 2013

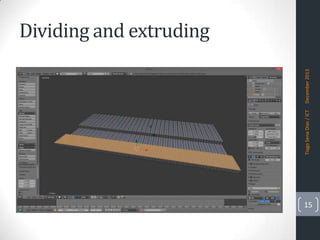

15. Tiago Sena Dias / ICT
December 2013
Dividing and extruding
15

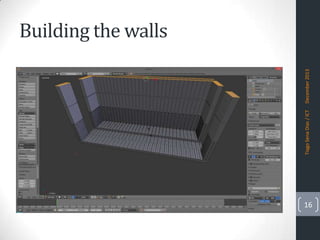

16. Tiago Sena Dias / ICT
December 2013
Building the walls
16

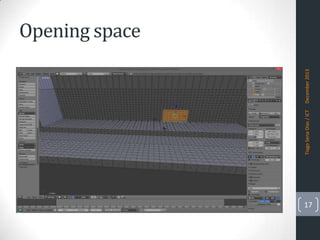

17. Tiago Sena Dias / ICT
December 2013
Opening space
17

18. Tiago Sena Dias / ICT
December 2013
Dividing and extruding
18

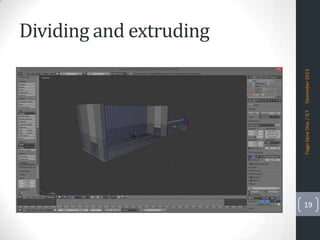

19. Tiago Sena Dias / ICT
December 2013
Dividing and extruding
19

20. Tiago Sena Dias / ICT
December 2013

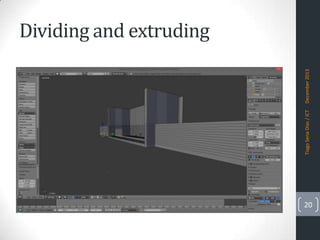

Dividing and extruding
20

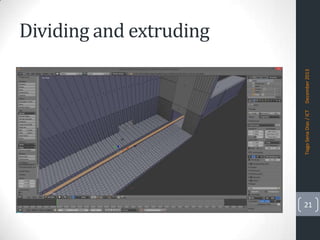

21. Tiago Sena Dias / ICT
December 2013
Dividing and extruding
21

22. Tiago Sena Dias / ICT
December 2013

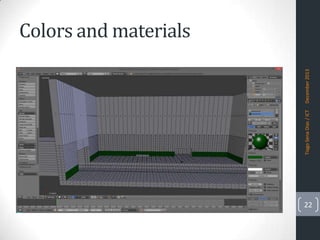

Colors and materials
22

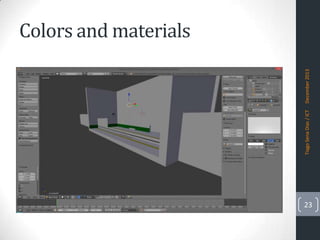

23. Tiago Sena Dias / ICT
December 2013
Colors and materials
23

24. Tiago Sena Dias / ICT
December 2013
Render
24

25. BUILDING THE TRAIN
25
Tiago Sena Dias / ICT
December 2013

26. Tiago Sena Dias / ICT
December 2013
New cube mesh
26

27. Tiago Sena Dias / ICT
December 2013
Extrude and Subdivide
27

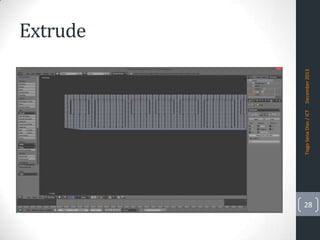

28. Tiago Sena Dias / ICT
December 2013
Extrude
28

29. Tiago Sena Dias / ICT
December 2013
Use mirror modifier
29

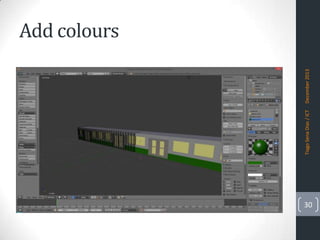

30. Tiago Sena Dias / ICT
December 2013
Add colours
30

31. Tiago Sena Dias / ICT
December 2013
Render
31

32. BUILD CHARACTER
32
Tiago Sena Dias / ICT
December 2013

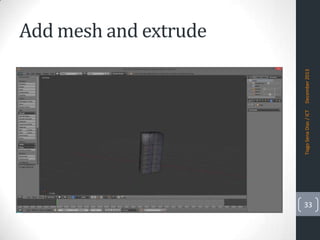

33. Tiago Sena Dias / ICT
December 2013
Add mesh and extrude
33

34. Tiago Sena Dias / ICT
December 2013
Extrude to form shape
34

35. Tiago Sena Dias / ICT
December 2013
Smooth
35

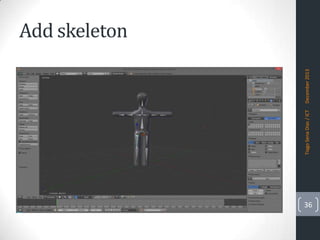

36. Tiago Sena Dias / ICT
December 2013
Add skeleton
36

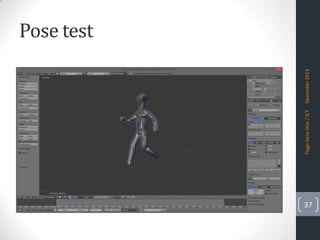

37. Tiago Sena Dias / ICT
December 2013
Pose test
37

38. December 2013
Tiago Sena Dias / ICT
Adding models to the
station
In this section all models have to be imported and put in the
right place in the train station created.
38

39. December 2013
Tiago Sena Dias / ICT
ADDING THE DEFIBRILLATOR TO THE
STATION
39

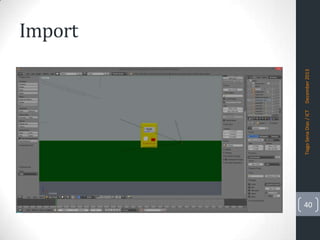

40. Tiago Sena Dias / ICT
December 2013
Import
40

41. Tiago Sena Dias / ICT
December 2013

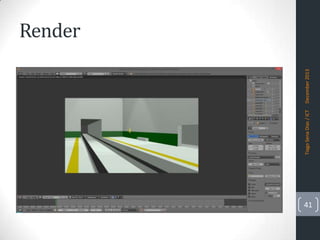

Render
41

42. ADDING THE TRAIN TO THE STATION
42
Tiago Sena Dias / ICT
December 2013

43. Tiago Sena Dias / ICT
December 2013
Import and resize
43

44. ADDING CHARACTER TO THE STATION
44
Tiago Sena Dias / ICT
December 2013

45. Tiago Sena Dias / ICT
December 2013
Import and position
45

46. Tiago Sena Dias / ICT
December 2013
Import second character
46

47. December 2013
Tiago Sena Dias / ICT
Create animations
In this section each scene is to be built. The animation will
be divided into 9 different scenes and then put together to
create the full animation.
47

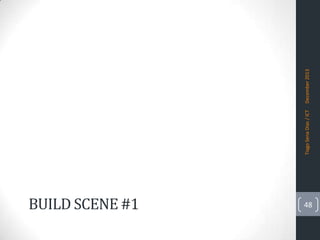

48. BUILD SCENE #1
48
Tiago Sena Dias / ICT
December 2013

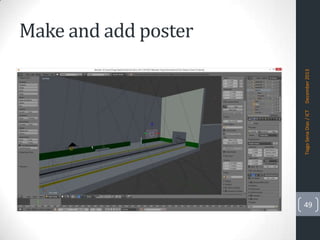

49. Tiago Sena Dias / ICT
December 2013
Make and add poster
49

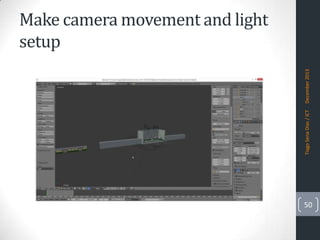

50. Tiago Sena Dias / ICT
December 2013
Make camera movement and light
setup
50

51. BUILD SCENE #2
51
Tiago Sena Dias / ICT
December 2013

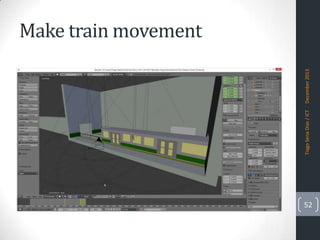

52. Tiago Sena Dias / ICT
December 2013
Make train movement
52

53. Tiago Sena Dias / ICT
December 2013
Make man walking
53

54. BUILD SCENE #3
54
Tiago Sena Dias / ICT
December 2013

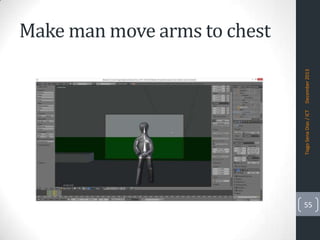

55. Tiago Sena Dias / ICT
December 2013
Make man move arms to chest
55

56. Tiago Sena Dias / ICT
December 2013

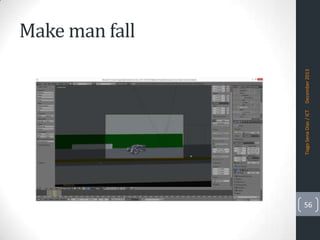

Make man fall
56

57. BUILD SCENE #4
57
Tiago Sena Dias / ICT
December 2013

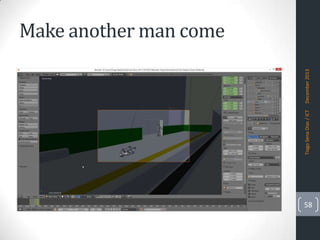

58. Tiago Sena Dias / ICT
December 2013
Make another man come
58

59. Tiago Sena Dias / ICT
December 2013
Close-up on man
59

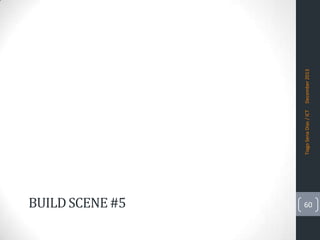

60. BUILD SCENE #5
60
Tiago Sena Dias / ICT
December 2013

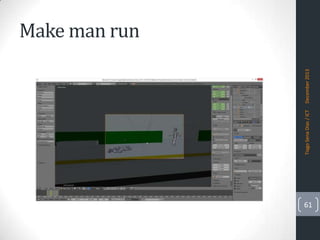

61. Tiago Sena Dias / ICT
December 2013
Make man run
61

62. Tiago Sena Dias / ICT
December 2013

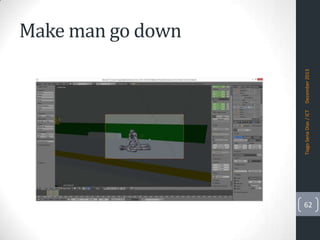

Make man go down
62

63. BUILD SCENE #6
63
Tiago Sena Dias / ICT
December 2013

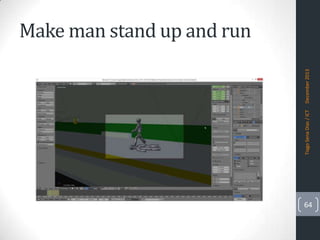

64. Tiago Sena Dias / ICT
December 2013
Make man stand up and run
64

65. Tiago Sena Dias / ICT
December 2013

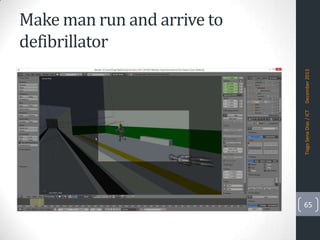

Make man run and arrive to
defibrillator
65

66. BUILD SCENE #7
66
Tiago Sena Dias / ICT
December 2013

67. Tiago Sena Dias / ICT
December 2013
Make man take defibrillator
67

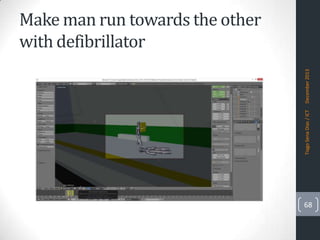

68. Tiago Sena Dias / ICT
December 2013
Make man run towards the other
with defibrillator
68

69. BUILD SCENE #8
69
Tiago Sena Dias / ICT
December 2013

70. Tiago Sena Dias / ICT
December 2013
Make man put defibrillator on floor
and press button
70

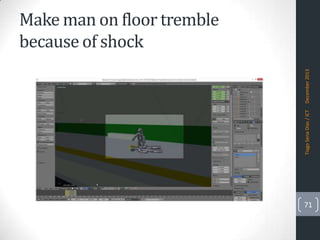

71. Tiago Sena Dias / ICT
December 2013
Make man on floor tremble
because of shock
71

72. BUILD SCENE #9
72
Tiago Sena Dias / ICT
December 2013

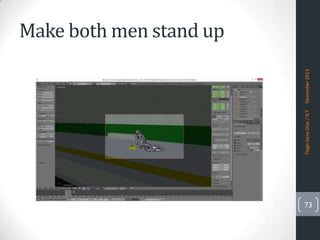

73. Tiago Sena Dias / ICT
December 2013
Make both men stand up
73

74. Tiago Sena Dias / ICT
December 2013
Make handshake
74

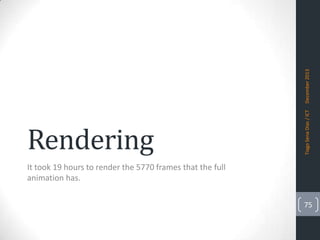

75. December 2013
Tiago Sena Dias / ICT
Rendering
It took 19 hours to render the 5770 frames that the full
animation has.
75

76. Tiago Sena Dias / ICT
December 2013

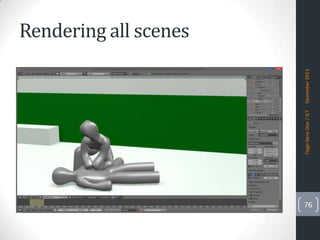

Rendering all scenes
76

77. Tiago Sena Dias / ICT
December 2013

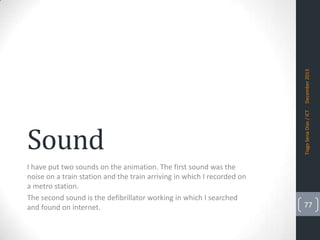

Sound
I have put two sounds on the animation. The first sound was the
noise on a train station and the train arriving in which I recorded on
a metro station.
The second sound is the defibrillator working in which I searched
and found on internet.
77

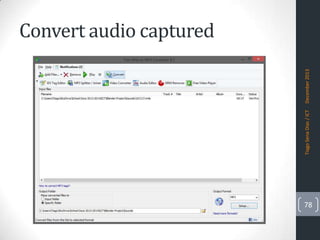

78. Tiago Sena Dias / ICT
December 2013
Convert audio captured
78

79. Tiago Sena Dias / ICT
December 2013

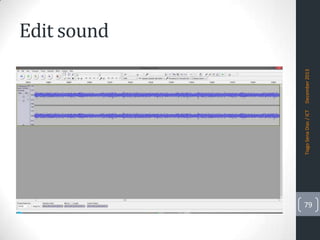

Edit sound
79

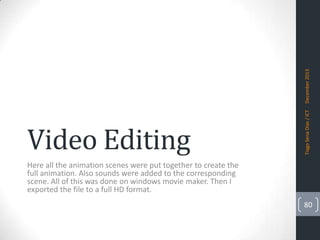

80. December 2013
Tiago Sena Dias / ICT
Video Editing
Here all the animation scenes were put together to create the
full animation. Also sounds were added to the corresponding
scene. All of this was done on windows movie maker. Then I
exported the file to a full HD format.
80

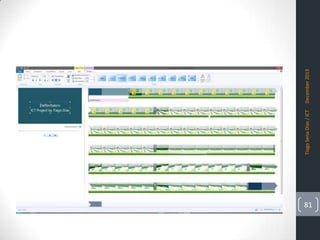

81. 81
Tiago Sena Dias / ICT
December 2013

82. Tiago Sena Dias
82
Tiago Sena Dias / ICT
December 2013
