AMIR BARYLKO
ADVANCED
DESIGN PATTERNS

Amir Barylko Advanced Design Patterns

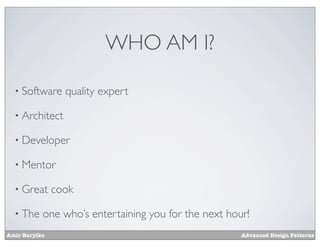

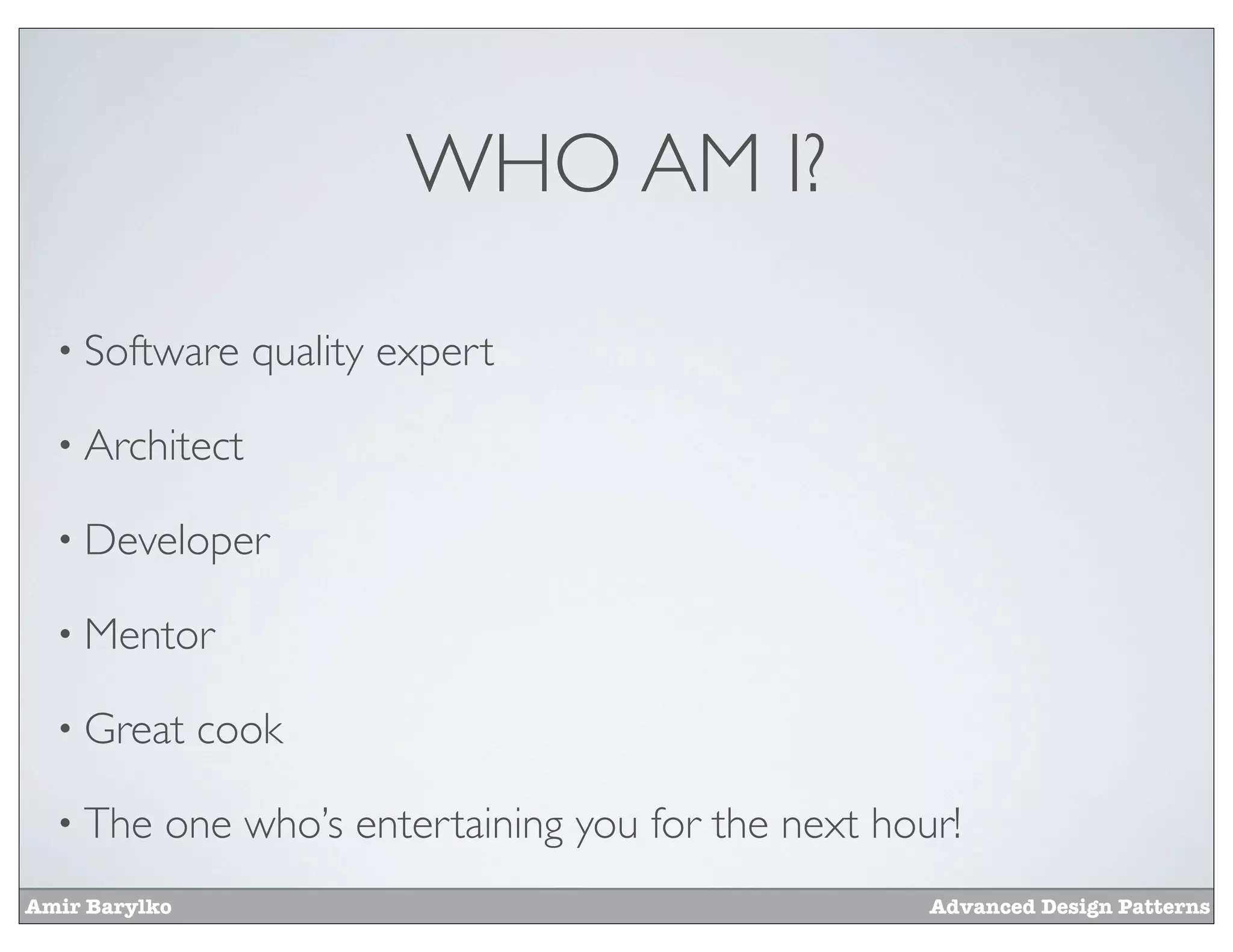

WHO AM I?

• Software quality expert

• Architect

• Developer

• Mentor

• Great cook

• The one who’s entertaining you for the next hour!

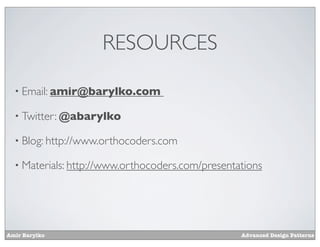

RESOURCES

• Email: amir@barylko.com

• Twitter: @abarylko

• Blog: http://www.orthocoders.com

• Materials: http://www.orthocoders.com/presentations

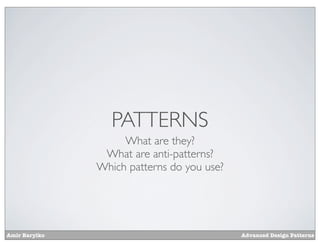

PATTERNS
What are they?
What are anti-patterns?
Which patterns do you use?

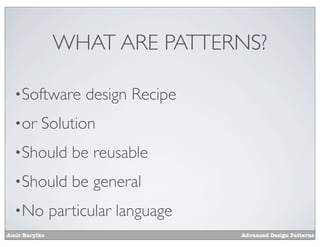

WHAT ARE PATTERNS?

•Software design Recipe
•or Solution
•Should be reusable
•Should be general
•No particular language

ANTI-PATTERNS
• More patterns != better design

• No cookie cutter

• Anti Patterns : Patterns to identify failure

• God Classes

• High Coupling

• Breaking SOLID principles....

• (name some)

WHICH PATTERNS
DO YOU USE?
• Fill here with your patterns:

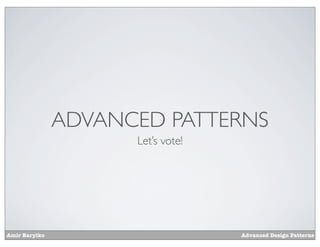

ADVANCED PATTERNS
Let’s vote!

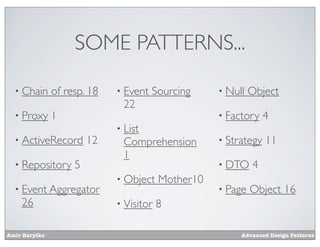

SOME PATTERNS...

• Chain of resp. 18 • Event Sourcing • Null Object
22
• Proxy 1 • Factory 4
• List
• ActiveRecord 12 Comprehension • Strategy 11
1
• Repository 5 • DTO 4
• Object Mother10
• Event Aggregator • Page Object 16
26 • Visitor 8

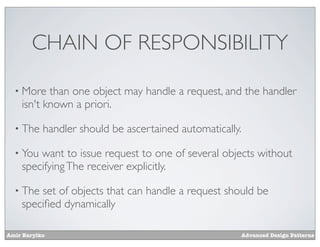

CHAIN OF RESPONSIBILITY

• More than one object may handle a request, and the handler
isn't known a priori.

• The handler should be ascertained automatically.

• You want to issue request to one of several objects without
specifying The receiver explicitly.

• The set of objects that can handle a request should be
speciﬁed dynamically

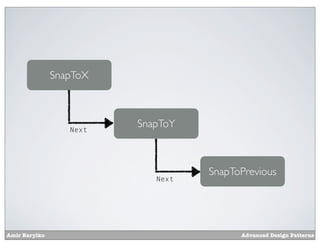

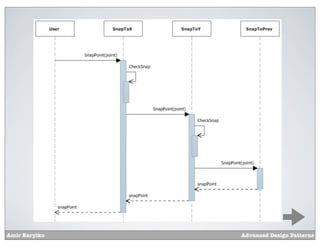

SnapToX

Next
SnapToY

SnapToPrevious
Next

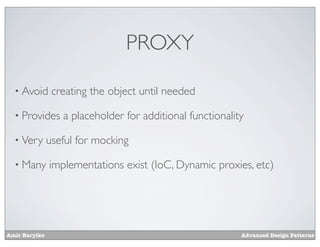

PROXY

• Avoid creating the object until needed

• Provides a placeholder for additional functionality

• Very useful for mocking

• Many implementations exist (IoC, Dynamic proxies, etc)

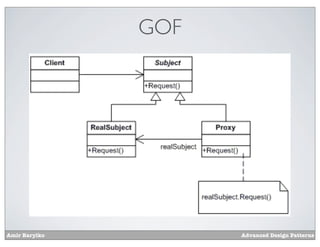

GOF

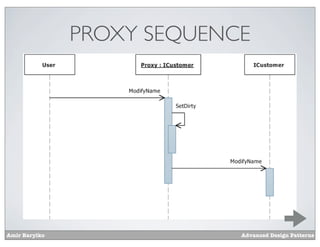

PROXY SEQUENCE

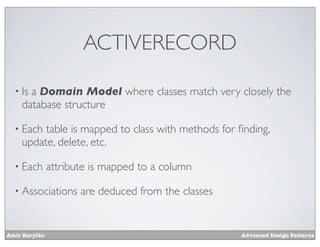

ACTIVERECORD

• Isa Domain Model where classes match very closely the
database structure

• Each table is mapped to class with methods for ﬁnding,
update, delete, etc.

• Each attribute is mapped to a column

• Associations are deduced from the classes

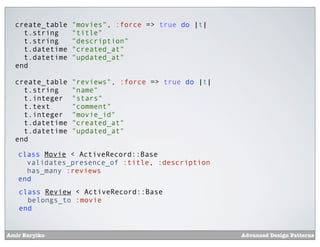

create_table "movies", :force => true do |t|
t.string "title"
t.string "description"
t.datetime "created_at"
t.datetime "updated_at"
end

create_table "reviews", :force => true do |t|
t.string "name"
t.integer "stars"
t.text "comment"
t.integer "movie_id"
t.datetime "created_at"
t.datetime "updated_at"
end

class Movie < ActiveRecord::Base
validates_presence_of :title, :description
has_many :reviews
end
class Review < ActiveRecord::Base
belongs_to :movie
end

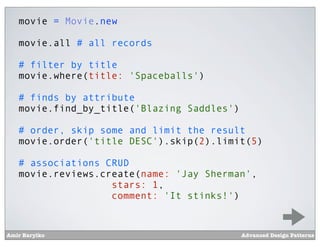

movie = Movie.new

movie.all # all records

# filter by title
movie.where(title: 'Spaceballs')

# finds by attribute
movie.find_by_title('Blazing Saddles')

# order, skip some and limit the result
movie.order('title DESC').skip(2).limit(5)

# associations CRUD
movie.reviews.create(name: 'Jay Sherman',
stars: 1,
comment: 'It stinks!')

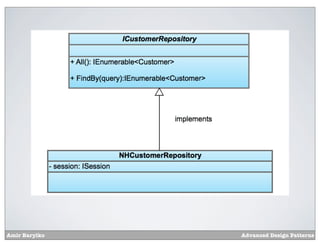

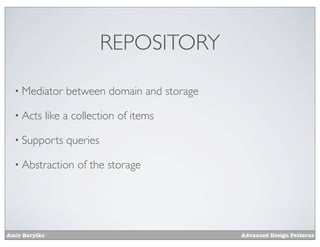

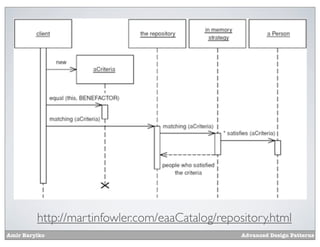

REPOSITORY

• Mediator between domain and storage

• Acts like a collection of items

• Supports queries

• Abstraction of the storage


http://martinfowler.com/eaaCatalog/repository.html

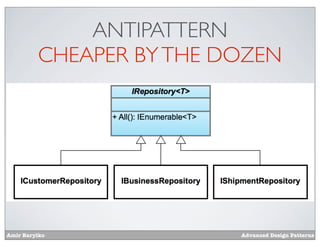

ANTIPATTERN
CHEAPER BY THE DOZEN

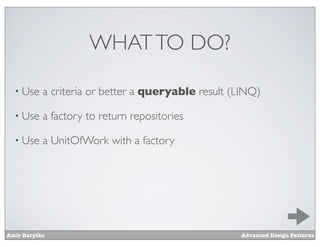

WHAT TO DO?

• Use a criteria or better a queryable result (LINQ)

• Use a factory to return repositories

• Use a UnitOfWork with a factory

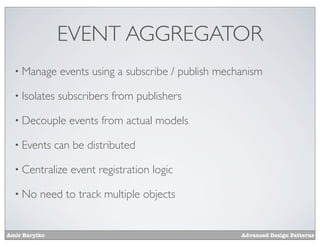

EVENT AGGREGATOR
• Manage events using a subscribe / publish mechanism

• Isolates subscribers from publishers

• Decouple events from actual models

• Events can be distributed

• Centralize event registration logic

• No need to track multiple objects

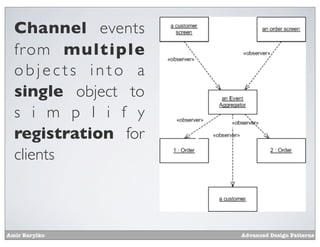

Channel events
from multiple
objects into a
single object to
s i m p l i f y
registration for
clients

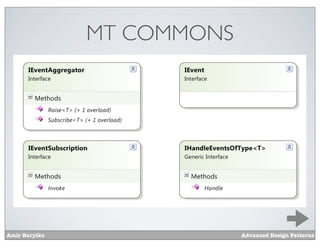

MT COMMONS


COUPLED

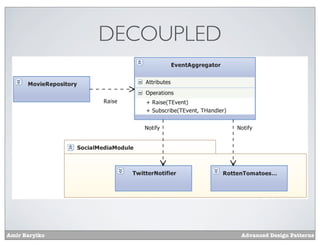

DECOUPLED

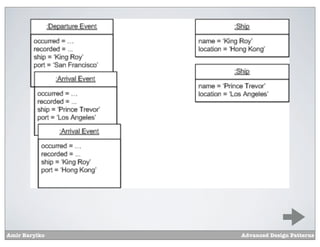

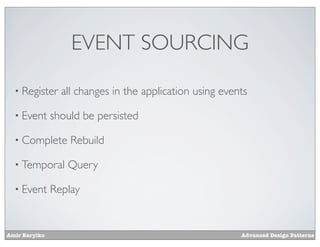

EVENT SOURCING

• Register all changes in the application using events

• Event should be persisted

• Complete Rebuild

• Temporal Query

• Event Replay


http://martinfowler.com/eaaDev/EventSourcing.html

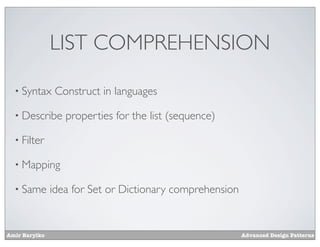

LIST COMPREHENSION

• Syntax Construct in languages

• Describe properties for the list (sequence)

• Filter

• Mapping

• Same idea for Set or Dictionary comprehension

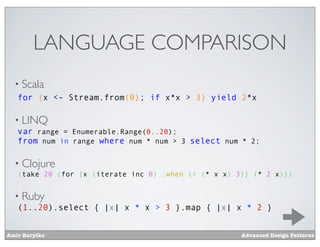

LANGUAGE COMPARISON
• Scala
for (x <- Stream.from(0); if x*x > 3) yield 2*x

• LINQ
var range = Enumerable.Range(0..20);
from num in range where num * num > 3 select num * 2;

• Clojure
(take 20 (for [x (iterate inc 0) :when (> (* x x) 3)] (* 2 x)))

• Ruby
(1..20).select { |x| x * x > 3 }.map { |x| x * 2 }

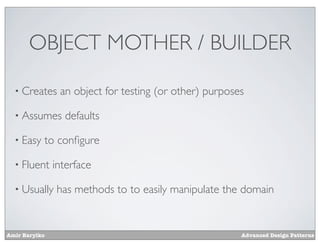

OBJECT MOTHER / BUILDER

• Creates an object for testing (or other) purposes

• Assumes defaults

• Easy to conﬁgure

• Fluent interface

• Usually has methods to to easily manipulate the domain

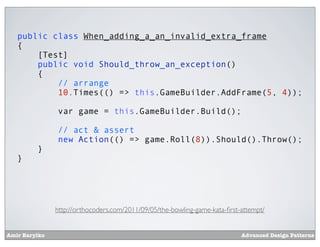

public class When_adding_a_an_invalid_extra_frame
{
[Test]
public void Should_throw_an_exception()
{
// arrange
10.Times(() => this.GameBuilder.AddFrame(5, 4));

var game = this.GameBuilder.Build();

// act & assert
new Action(() => game.Roll(8)).Should().Throw();
}
}

http://orthocoders.com/2011/09/05/the-bowling-game-kata-ﬁrst-attempt/

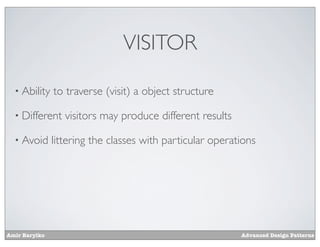

VISITOR

• Ability to traverse (visit) a object structure

• Different visitors may produce different results

• Avoid littering the classes with particular operations

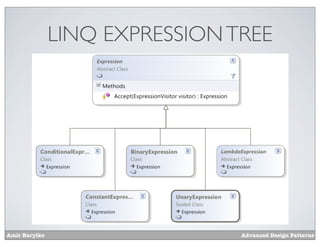

LINQ EXPRESSION TREE


EXPRESSION VISITOR

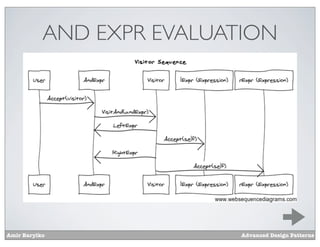

AND EXPR EVALUATION

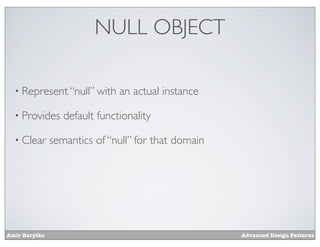

NULL OBJECT

• Represent “null” with an actual instance

• Provides default functionality

• Clear semantics of “null” for that domain

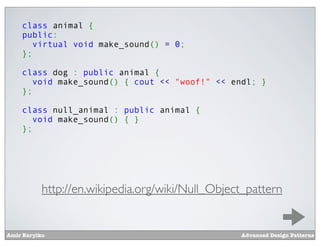

class animal {
public:
virtual void make_sound() = 0;
};

class dog : public animal {
void make_sound() { cout << "woof!" << endl; }
};

class null_animal : public animal {
void make_sound() { }
};

http://en.wikipedia.org/wiki/Null_Object_pattern

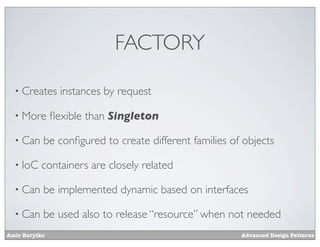

FACTORY

• Creates instances by request

• More ﬂexible than Singleton

• Can be conﬁgured to create different families of objects

• IoC containers are closely related

• Can be implemented dynamic based on interfaces

• Can be used also to release “resource” when not needed

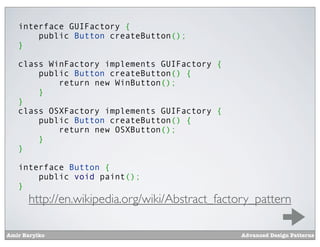

interface GUIFactory {
public Button createButton();
}

class WinFactory implements GUIFactory {
public Button createButton() {
return new WinButton();
}
}
class OSXFactory implements GUIFactory {
public Button createButton() {
return new OSXButton();
}
}

interface Button {
public void paint();
}
http://en.wikipedia.org/wiki/Abstract_factory_pattern

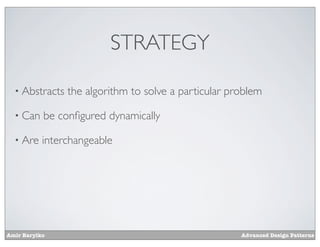

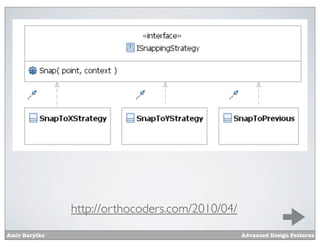

STRATEGY

• Abstracts the algorithm to solve a particular problem

• Can be conﬁgured dynamically

• Are interchangeable


http://orthocoders.com/2010/04/

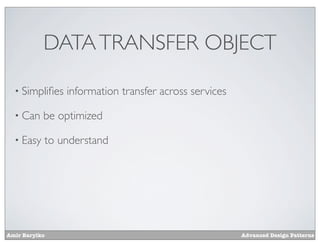

DATA TRANSFER OBJECT

• Simpliﬁes information transfer across services

• Can be optimized

• Easy to understand


http://martinfowler.com/eaaCatalog/dataTransferObject.html

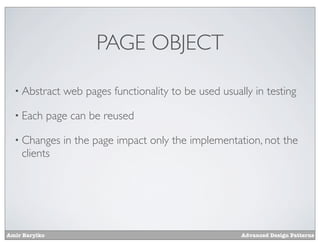

PAGE OBJECT

• Abstract web pages functionality to be used usually in testing

• Each page can be reused

• Changes in the page impact only the implementation, not the
clients


class ProjectListPage
include PageObject

def navigate
visit('/projects')
self
end

def edit(project)
row = find(:xpath, "//td[.='#{project.name}']")
row.parent.click_link('Edit')
ProjectEditPage.new
end

def projects
all(:css, "#projects tr")......
end
end

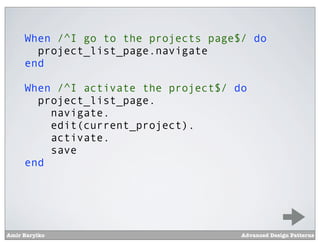

When /^I go to the projects page$/ do
project_list_page.navigate
end

When /^I activate the project$/ do
project_list_page.
navigate.
edit(current_project).
activate.
save
end


QUESTIONS?

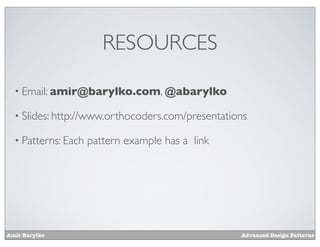

RESOURCES

• Email: amir@barylko.com, @abarylko

• Slides: http://www.orthocoders.com/presentations

• Patterns: Each pattern example has a link


RESOURCES II


RESOURCES III

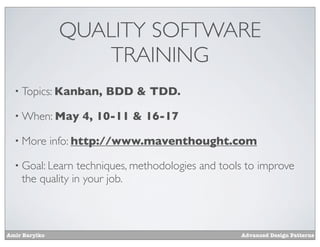

QUALITY SOFTWARE
TRAINING
• Topics: Kanban, BDD & TDD.

• When: May 4, 10-11 & 16-17

• More info: http://www.maventhought.com

• Goal: Learn techniques, methodologies and tools to improve
the quality in your job.
