SC Turkey - Presentation on 10 May

1. DEVOPS Zirvesi 2017
Practical Cryptography
and
Security Concepts
for Developers
Gökhan Şengün
Ar-Ge Yeni Ürün Geliştirme
Müdürü
@gokhansengun
gokhansengun@gmail.com
www.gokhansengun.com

2. DEVOPS Zirvesi 2017
Practical
Cryptography
and
Security Concepts
for Developers

3. DEVOPS Zirvesi 2017
Agenda
Motivation and History
Cryptographic Hash Functions
Secure Storage of Secrets
Symmetric Encryption
Asymmetric Encryption
PKI and Digital Signatures
Techniques and Use Cases

4. DEVOPS Zirvesi 2017
!! DISCLAIMER !!
I am neither a cryptographist nor a
security professional, just a curious
coder who implemented several
techniques that will be discussed in
the talk. Please consult to a security
professional in implementing any of
the techniques mentioned.

5. DEVOPS Zirvesi 2017
Motivation
And
History

6. DEVOPS Zirvesi 2017
Scope and Aim of the Talk
Understanding the basics of the cryptography in
order to understand practical implementations
Learning the concepts and the techniques
Learning how they apply to our daily lives
Not about understanding how the techniques
implemented mathematically
We will just call mathematical background as
“magic” and do not enter that territory
Motivation and History

7. DEVOPS Zirvesi 2017
History
Cryptography is 4000 years old
Julius Caesar (BC 100) used it too
Today what is known as Caesar Cipher or Shift Cipher
Motivation and History
https://learncryptography.com/classical-encryption/caesar-cipher

8. DEVOPS Zirvesi 2017
History
Ceaser Cipher was ok until people find out how it
works
Then emerged Substitution Cipher
Motivation and History
http://www.stealthcopter.com/blog/2009/12/python-cryptography-substitution-cipher-improving-on-the-caesar-cipher/

9. DEVOPS Zirvesi 2017
History
Substitution Cipher was also ok until again
people find out how it works
Then emerged Vigenere Cipher
Motivation and History
Message: THIS IS ONLY A TEST
Key: CRYPTCRYPTCRYPTCRYP
Encryption: VYFGSKIXCFNOXPSVVPH

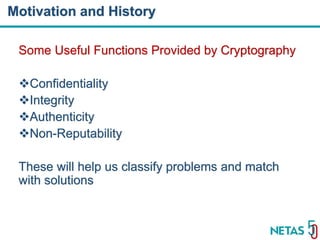

10. DEVOPS Zirvesi 2017
Some Useful Functions Provided by Cryptography
Confidentiality
Integrity
Authenticity
Non-Reputability
These will help us classify problems and match
with solutions
Motivation and History

11. DEVOPS Zirvesi 2017
Cryptographic
Hash Functions

12. DEVOPS Zirvesi 2017
Popular Hash Functions
MD5
SHA1
SHA256
SHA512
Example
Cryptographic Hash Functions
“SC Turkey” SHA-1 98bdf215e96120c968120700ee4952c9fc5b40a7
20 Bytes

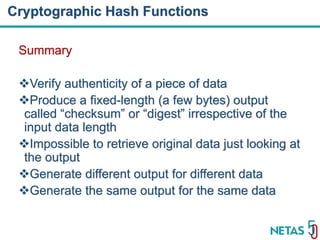

13. DEVOPS Zirvesi 2017
Summary
Verify authenticity of a piece of data
Produce a fixed-length (a few bytes) output
called “checksum” or “digest” irrespective of the
input data length
Impossible to retrieve original data just looking at
the output
Generate different output for different data
Generate the same output for the same data
Cryptographic Hash Functions

14. DEVOPS Zirvesi 2017
Conversion of the Checksum (Digest) data
Checksums are binary and they are GENERALLY
converted to Hex like below
Cryptographic Hash Functions

15. DEVOPS Zirvesi 2017
Authenticity of Data
Use Case #1:
You downloaded an ISO file (Ubuntu 16.04.1) via
Torrent or an insecure medium
You would like to make sure that the file is not
altered by someone else
Demo
Cryptographic Hash Functions

16. DEVOPS Zirvesi 2017
Authenticity of Data
Use Case #2: (DO NOT USE IN PRODUCTION)
You want to keep user’s password in the DB to
use in authenticating your users
But you do not want to store it directly
So you store password’s hash in the DB
Every time the user is logging in, you compare
the hash of provided password and the one in DB
Cryptographic Hash Functions

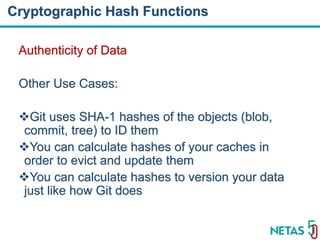

17. DEVOPS Zirvesi 2017
Authenticity of Data
Other Use Cases:
Git uses SHA-1 hashes of the objects (blob,
commit, tree) to ID them
You can calculate hashes of your caches in
order to evict and update them
You can calculate hashes to version your data
just like how Git does
Cryptographic Hash Functions

18. DEVOPS Zirvesi 2017
Authenticity of Data – The Risk
The Rainbow Tables
Precomputed tables for reversing Cryptographic
Hash Functions
So do not just hash the passwords and keep
them in the DB.
LinkedIn made this mistake in 2012 and 167M
password hashes leaked
117M of 167M could be cracked
Cryptographic Hash Functions

19. DEVOPS Zirvesi 2017
Hash Collusion
Cryptographic Hash Functions promise NOT to
produce same output for different input. Hash
Collusion occurs if they do not keep their promise
:-)
Hash algorithm is considered broken if a Hash
Collusion is found
MD5 was broken for years (since 2007)
SHA-1 was broken on 23 Feb 2017!!
It required 6610 years of processor time to do it
Cryptographic Hash Functions

20. DEVOPS Zirvesi 2017
Hashed Message Authentication Code (HMAC)
What if we would like to carry the checksum with
the message itself?
Cryptographic Hash Functions

21. DEVOPS Zirvesi 2017
HMAC – Sending a Message
Cryptographic Hash Functions
Graphics From: https://docstore.mik.ua/orelly/other/puis3rd/0596003234_puis3-chp-7-sect-4.html

22. DEVOPS Zirvesi 2017
HMAC – Validating a Message
Cryptographic Hash Functions
Graphics From: https://docstore.mik.ua/orelly/other/puis3rd/0596003234_puis3-chp-7-sect-4.html

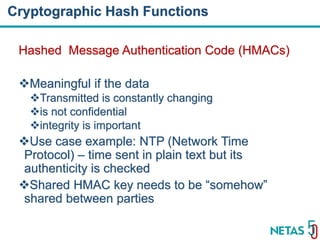

23. DEVOPS Zirvesi 2017
Hashed Message Authentication Code (HMACs)
Meaningful if the data
Transmitted is constantly changing
is not confidential
integrity is important
Use case example: NTP (Network Time
Protocol) – time sent in plain text but its
authenticity is checked
Shared HMAC key needs to be “somehow”
shared between parties
Cryptographic Hash Functions

24. DEVOPS Zirvesi 2017
Secure Storage
of Secrets (e.g.
Password)

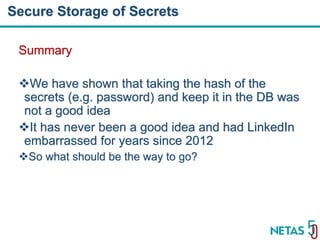

25. DEVOPS Zirvesi 2017
Summary
We have shown that taking the hash of the
secrets (e.g. password) and keep it in the DB was
not a good idea
It has never been a good idea and had LinkedIn
embarrassed for years since 2012
So what should be the way to go?
Secure Storage of Secrets

26. DEVOPS Zirvesi 2017
Options
Option #1: Keep secret (password) in plain text
Pros/Cons:
This is definitely not an option
When an attacker breaches the database (by SQL
injection or any other way), s/he can retrieve all of
your passwords
Secure Storage of Secrets

27. DEVOPS Zirvesi 2017
Options
Option #2: Encrypt passwords with a symmetric
key in storing and retrieving
Pros/Cons:
Passwords are not in plain text
When the database and the secret key are
breached, all of the passwords could be cracked
It is very difficult to keep the secret key really
secret and safe
Secure Storage of Secrets

28. DEVOPS Zirvesi 2017
Options
Option #3: Use hashing function on the
password but now multiple times (like 1000 times)
Hash = sha1(sha1(sha1(…)))
Pros/Cons:
Passwords are not in plain text
Still vulnerable to rainbow attacks
Secure Storage of Secrets

29. DEVOPS Zirvesi 2017
Options
Option #4: Salting
Secure Storage of Secrets

30. DEVOPS Zirvesi 2017
Options
Option #4: Salted Hashes (depiction)
Secure Storage of Secrets
Password Salt
Cryptographic Hash Function
d1d3ec2e6f20fd420d50e2642992841d833
8a314b8ea157c9e18477aaef226ab

31. DEVOPS Zirvesi 2017
Options
Option #4: Use hashing function with a salt in
addition to the password
Pros/Cons:
Passwords are not in plain text
Salted hashing produce different hashes even
for the same passwords
Safe against rainbow attack but not that good
against brute force attack
Modern GPUs can calculate billions of hashes per
second
Secure Storage of Secrets

32. DEVOPS Zirvesi 2017
Options
Option #5: Make salted hashes secure by
iterations (like 1000), Password Based Key
Derivation Functions (PBKDF2)
Pros/Cons:
Passwords are not in plain text
One of the state of the art secure methods in the
town
Requires lots and lots of CPU cycles
Could be used for DOS attacks
Secure Storage of Secrets

33. DEVOPS Zirvesi 2017
Options
Option #5: PBKDF2 (depiction)
Secure Storage of Secrets
Salt
# of
iteration
PBKDF2
d1d3ec2e6f20fd420d50e2642992841d833
8a314b8ea157c9e18477aaef226ab
Password

34. DEVOPS Zirvesi 2017
PBKDF2 is fine but how many iterations are
secure?
Moore’s Law:
Overall processing power of computers will
double every two years
So your iterations should be doubled every two
years
Example: AspNetCore.Identity uses a default
value of 1000 for PBKDF2 as per Rfc2898
https://github.com/aspnet/Identity/blob/5480aa182bad3fb3b729a0169d0462873331e306/src/Microsoft.AspNetCor
e.Identity/PasswordHasher.cs#L113
Secure Storage of Secrets

35. DEVOPS Zirvesi 2017
Symmetric-
Key
Encryption

36. DEVOPS Zirvesi 2017
Summary
An encryption system in which the sender and
receiver of a message shares a single, common
key that can encrypt and decrypt the message
Symmetric-Key Encryption
http://etutorials.org/Networking/Wireless+lan+security/Chapter+2.+Basic+Security+Mechanics+and+Mechanisms/Security+Mechanics/

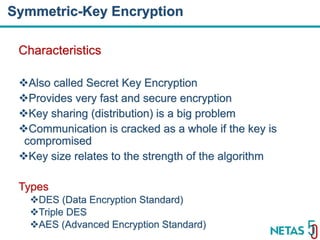

37. DEVOPS Zirvesi 2017
Characteristics
Also called Secret Key Encryption
Provides very fast and secure encryption
Key sharing (distribution) is a big problem
Communication is cracked as a whole if the key is
compromised
Key size relates to the strength of the algorithm
Types
DES (Data Encryption Standard)
Triple DES
AES (Advanced Encryption Standard)
Symmetric-Key Encryption

38. DEVOPS Zirvesi 2017
Asymmetric-Key
Encryption

39. DEVOPS Zirvesi 2017
Summary
An encryption system having a pair of keys
where the data encrypted with one key can only
be decrypted with the other
Asymmetric-Key Encryption
https://msdn.microsoft.com/en-us/library/ff647097.aspx

40. DEVOPS Zirvesi 2017
Characteristics
Also called Public Key Cryptography
Attempts to solve biggest problem of Symmetric-Key
Encryption namely Key Sharing (distribution)
Both parties have a private and public keys where
public key is distributed to anyone and private key
remains secret
Provides slow but secure encryption
Not feasible to be used alone in encrypted
communication due to expensive nature usually closes
the gap of Symmetric-Key Encryption
Asymmetric-Key Encryption

41. DEVOPS Zirvesi 2017
Types
RSA (Rivest, Shamir, Adelman) Cryptosystem
ElGamal Cryptosystem
Elliptic Curve Cryptography
RSA is the widely known and used one
Each party generates a pair of keys (public and
private)
RSA is based on the practical difficulty of factoring the
product of two large prime numbers
Asymmetric-Key Encryption

42. DEVOPS Zirvesi 2017
PKI and Digital
Signatures

43. DEVOPS Zirvesi 2017
Summary
A public key infrastructure (PKI) supports
Distributing public encryption keys
Identifying public encryption keys
Securing exchange of data over untrusted networks (such
as the Internet)
Verifying the identity of the other party
PKI (Public Key Infrastructure)

44. DEVOPS Zirvesi 2017
Distributing public encryption keys
Identifying public encryption keys
Securing exchange of data over untrusted networks (such as the
Internet)
Verifying the identity of the other party
PKI (Public Key Infrastructure)

45. DEVOPS Zirvesi 2017
Digital Signatures – Summary
Provides Integrity and Non-Reputability
Just like HMACs but with Asymmetric Keys (so no
problem with distributing the secret key)
Remember how it was with HMAC first below
PKI (Public Key Infrastructure)
https://msdn.microsoft.com/en-us/library/ff647097.aspx

46. DEVOPS Zirvesi 2017
Creating a Digital Signature
PKI (Public Key Infrastructure)
https://www.signinghub.com/oldelectronic-signatures-draft/

47. DEVOPS Zirvesi 2017
Verifying a Digital Signature
PKI (Public Key Infrastructure)
https://www.signinghub.com/oldelectronic-signatures-draft/

48. DEVOPS Zirvesi 2017
Digital Certificates – Summary
Provides Authenticity, simple but the missing feature
CA (Certification Authorities) guarantees the validity of
information in the certificate by signing it
Digital Certificates contains Public Key of the identity
for which the certificate is issued
Therefore solving the key distribution problem
PKI (Public Key Infrastructure)

49. DEVOPS Zirvesi 2017
Obtaining a Digital Certificate
PKI (Public Key Infrastructure)
https://msdn.microsoft.com/en-us/library/ff647097.aspx

50. DEVOPS Zirvesi 2017
Verifying a Digital Certificate (Chain)
PKI (Public Key Infrastructure)
https://sites.google.com/site/ddmwsst/digital-certificates

51. DEVOPS Zirvesi 2017
Techniques
and
Use Cases

52. DEVOPS Zirvesi 2017
HTTPS
HTTPS is nothing but plain HTTP with SSL/TLS
handshake
Any TCP-based protocol can be secured with
SSL/TLS
Examples: HTTPS, FTPS, SMTPS, NTPS
So let’s look at SSL and SSL Handshake
Techniques and Use Cases

53. DEVOPS Zirvesi 2017
SSL/TLS
SSL/TLS is secure handshake protocol that provides
encryption on the transport (TCP) layer
Provides Confidentiality and Data Integrity
SSL (Secure Socket Layer) is superseded by TLS
(Transport Layer Security)
SSL is still referred to in docs and APIs although
obsoleted long time ago
If somebody says SSL, s/he is probably meaning TLS
Techniques and Use Cases

54. DEVOPS Zirvesi 2017
SSL/TLS Handshake
Techniques and Use Cases

55. DEVOPS Zirvesi 2017
Cipher Suites
A collection of symmetric and asymmetric
encryption algorithms grouped together to be
used in determining common set of a suite
Techniques and Use Cases

56. DEVOPS Zirvesi 2017

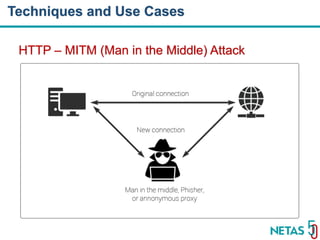

HTTP – MITM (Man in the Middle) Attack
Techniques and Use Cases

57. DEVOPS Zirvesi 2017
HTTP – MITM Attack Examples
Great China DDoSed Github
Tunusia Telco recorded Facebook passwords in
login page
Your ISP (telco) for AKK (Adil Kullanım Kotası)
message
Free WiFi hotspots using “Captive Portals”
Yourself when using a HTTP proxy like Fiddler,
Burp Suite
Your employer if using a corporate HTTP proxy
Techniques and Use Cases

58. DEVOPS Zirvesi 2017
HTTPS – Why is it important?
Confidentiality
Communication is private
Integrity
No intermediary can modify the content
Authenticity
Client may validate server’s identity
Server may validate client’s identity (Not used)
So HTTPS everything -
Techniques and Use Cases

59. DEVOPS Zirvesi 2017
HTTPS – Any disadvantages?
Requires more CPU cycles (< %2)
Increase page load time (due to SSL negotiation <
%3)
Obsolete with HTTP/2 adoption
Techniques and Use Cases

60. DEVOPS Zirvesi 2017
Let’s Encrypt
Digital certificates are issued for free (sponsored)
Need to demonstrate the control over the domain
Uses Certbot to issue and auto-renew certs
Certificates issued for only 3 months
https://certbot.eff.org
https://github.com/certbot/certbot
Techniques and Use Cases

61. DEVOPS Zirvesi 2017
Self-signed Certificates
Techniques and Use Cases

62. DEVOPS Zirvesi 2017
Self-signed Certificates
Certificate is signed by own private key hence self-
signed
Best for development
Beneficial in internal use where certificate stores of
computers are reachable
Beneficial in an isolated network
Might loose value after Let’s Encrypt adoption
Very easy to generate with OpenSSL
Just provide X.509 attributes in the CSR
Demo
Techniques and Use Cases

63. DEVOPS Zirvesi 2017
SSL/TLS Tools
OpenSSL
A full-blown crypto library
Also includes a TLS api
https://badssl.com
Observe browser behaviors on SSL/TLS vulnerabilities
https://www.ssllabs.com/ssltest/
Analysis on your SSL
Techniques and Use Cases

64. DEVOPS Zirvesi 2017
SSH (Secure SHell)
Techniques and Use Cases
http://sebastien.saunier.me/blog/2015/05/10/github-public-key-authentication.html

65. DEVOPS Zirvesi 2017
VPN
Stands for Virtual Private Network
Creates an encrypted tunnel between two points on
the insecure medium (internet)
IPSec VPNs provide Network Layer (IP) Security
IPSec VPNs may require 3rd party HW and/or SW to
work which provide additional security
SSL VPNs rely on browser capability, everybody has
browsers so everybody has client SW
Techniques and Use Cases

66. DEVOPS Zirvesi 2017
Perfect Forward Secrecy
What if all the SSL/TLS traffic is recorded for years
and after the private key is obtained
All the traffic could be decrypted
Perfect Forward Secrecy attempts to solve this by
using ephemeral private keys and rotate them time to
time to overcome this issue
Good old Diffie-Hellman key exchange algorithm to the
rescue
RSA private key could still be used in accomplishing
authenticity while DH is used for determining the
shared secret
Techniques and Use Cases

67. DEVOPS Zirvesi 2017
THANKS
