The document summarizes an online crime management system project. The proposed system aims to automate crime records management to overcome limitations of manual systems like lack of security, time consumption, and large paperwork. It has modules for inspector login, crime reports, FIR registration, case records, criminal records search, and officer transfers. The system uses a Java-based architecture with a MySQL database for storage. It is intended to provide efficient, secure and easy access to crime information for police stations across the country.

1. Presentation By
Donkala Sritha [197Y1A1252]
N.Avinash [197Y1A1204]
Under the Guidance of
MS.K.JAYASRI
Assistant Professor
Department of IT
ONLINE CRIME MANAGEMENT SYSTEM

2. 2
Department of IT
 Abstract
 Introduction
 Objective
 Existing Systems
 Proposed Systems
 Proposed System Architecture
 Advantages
 Modules of proposed Systems
 System Requirements
 Conclusion
 References

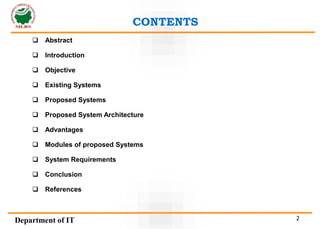

CONTENTS

3. 3
Department of IT

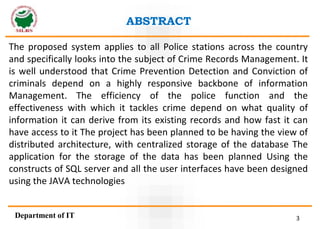

ABSTRACT
The proposed system applies to all Police stations across the country
and specifically looks into the subject of Crime Records Management. It
is well understood that Crime Prevention Detection and Conviction of
criminals depend on a highly responsive backbone of information
Management. The efficiency of the police function and the
effectiveness with which it tackles crime depend on what quality of
information it can derive from its existing records and how fast it can
have access to it The project has been planned to be having the view of
distributed architecture, with centralized storage of the database The
application for the storage of the data has been planned Using the
constructs of SQL server and all the user interfaces have been designed
using the JAVA technologies

4. Department of IT
INTRODUCTION
4
• The project titled as “Online Crime Management System “is a web-
based application.
• The purpose of Crime Management System is to automate the existing
manual system by the help of computerized equipment’s and full-
fledged computer software, fulfilling the requirements of all policemen.
• So that their valuable data/information can be stored for a longer
period with easy accessing of the same.

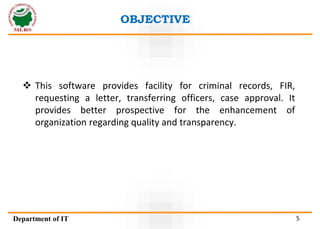

5. OBJECTIVE
Department of IT 5
 This software provides facility for criminal records, FIR,
requesting a letter, transferring officers, case approval. It
provides better prospective for the enhancement of
organization regarding quality and transparency.

6. In the existing crime management system, most of the
operations are done manually like send complaints, taking
actions against crimes, view status etc.
DISADVANTAGES:
Lack of security and data
More man power
Time consuming
Consumes large volume of pare work
EXISTING SYSTEMS
Department of IT 6

7. • The proposed crime records management system
can overcome all the limitations of the existing
system. The system provides proper security and
reduces the manual work. The efficiency of the
police function and the effectiveness with which it
tackles crime depend on what quality of information
it can derive from its existing records and how fast it
can have access to it. The existing system has several
disadvantages and many more difficulties to work
well.
PROPOSED SYSTEMS
Department of IT 7

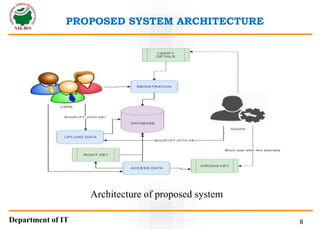

8. PROPOSED SYSTEM ARCHITECTURE
Architecture of proposed system
Department of IT 8

9. ADVANTAGES:
❖ Ensure data accuracy
❖ Minimize manual data entry
❖Minimum time needed for the various processing
❖ Greater efficiency
ADVANTAGES
Department of IT 9

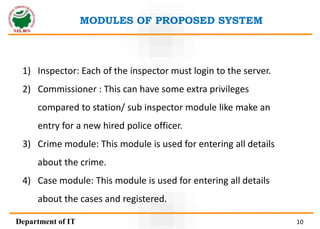

10. 1) Inspector: Each of the inspector must login to the server.
2) Commissioner : This can have some extra privileges
compared to station/ sub inspector module like make an
entry for a new hired police officer.
3) Crime module: This module is used for entering all details
about the crime.
4) Case module: This module is used for entering all details
about the cases and registered.
MODULES OF PROPOSED SYSTEM
Department of IT 10

11. PROPOSED APPROACH

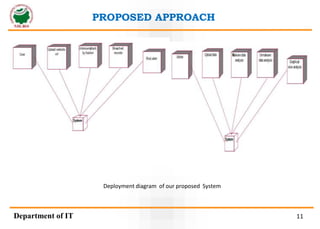

Deployment diagram of our proposed System
Department of IT 11

12. SYSTEM REQUIREMENTS
Department of IT 12
Software Requirements:
Operating System : Windows 2000/xp
Languages : java 2(EJB2.0, JDBC, JSP, Servlet )
Front End : HTML, JavaScript Platform : J2EE
Web Servers : Web Logic8.1/Tomcat 5.0
Backend : My SQL
Browser Program : Internet explorer/Mozilla Fireworks

13. Department of IT 13
SYSTEM REQUIREMENTS
Hardware Requirements:
Processor : Pentium III/AMD Athlone XP
RAM : 128 MB
Hard disk : 20 GB
FDD : 1.44MB
Monitor : 14 inches
Mouse : 3 Button scroll
CD Drive : 52 X
Keyboard : 108 keys

14. RESULTS/OUTPUTS
Department of IT 14

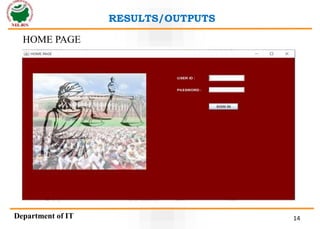

HOME PAGE

15. RESULTS/OUTPUTS
Department of IT 15

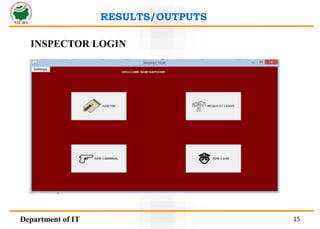

INSPECTOR LOGIN

16. RESULTS/OUTPUTS
Department of IT 16

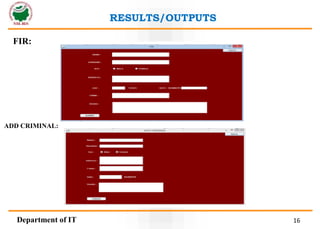

ADD CRIMINAL:
FIR:

17. Department of IT 17
RESULTS/OUTPUTS

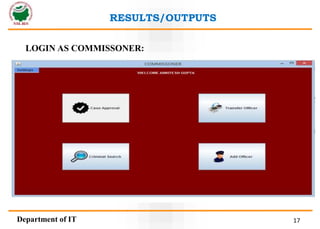

LOGIN AS COMMISSONER:

18. 18
RESULTS/OUTPUTS
Department of IT

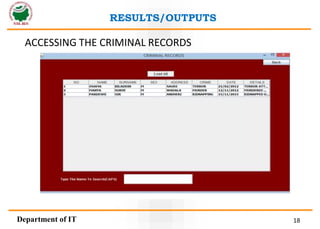

ACCESSING THE CRIMINAL RECORDS

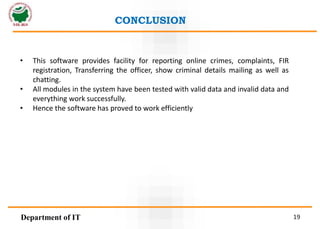

19. • This software provides facility for reporting online crimes, complaints, FIR
registration, Transferring the officer, show criminal details mailing as well as
chatting.
• All modules in the system have been tested with valid data and invalid data and
everything work successfully.
• Hence the software has proved to work efficiently
CONCLUSION
Department of IT 19

20. • Elmasri Navathe ‘Fundamentals of database systems’
• John Bukowski (2000) ‘Mastering Java2’ BPB Publications
• Internet
• www.theserverside.com
• www.java.sun.com
REFERENCES
Department of IT 20
