Zero waste solution of the city of Boras, Sweden - Hans Björk
- 1. Zero waste solutionof the city of Borås, Sweden Converting Waste into Value-added Products. Hans Björk Dean, School of Engineerng University of Borås Sweden www.wasterecovery.se
- 2. Borås government university ~11,000 students(6000 full time) ~500 employees ~40 full professors ~20 Master programs ~130 PhD students www.wasterecovery.se
- 3. Borås 105,000 inhabitants www.wasterecovery.se
- 4. Closing the loops www.wasterecovery.se
- 5. Ref.BEM brochure Waste Generation Waste Handling, Separation, Storage, and Processing at the source Collection Ref.BEM brochure Minimizing Reuse Recycle Energy Recovery Landfill www.wasterecovery.se
- 6. District heating District cooling Biogas Hydropower Waste management Drinking water production Waste water cleaning Producer of Electricity Services within waste management and effective energy use www.wasterecovery.se

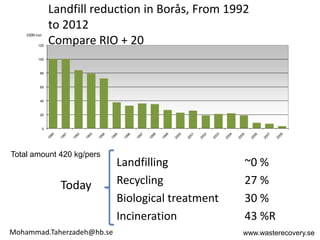

- 7. Landfill reduction inBorås, From 1992 to 2012 1000 ton 120 Compare RIO + 20 100 80 60 40 20 0 Total amount 420 kg/pers Landfilling ~0 % Today Recycling 27 % Biological treatment 30 % Incineration 43 %R Mohammad.Taherzadeh@hb.se www.wasterecovery.se

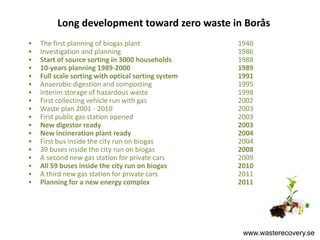

- 8. Long development towardzero waste in Borås • The first planning of biogas plant 1940 • Investigation and planning 1986 • Start of source sorting in 3000 households 1988 • 10-years planning 1989-2000 1989 • Full scale sorting with optical sorting system 1991 • Anaerobic digestion and composting 1995 • Interim storage of hazardous waste 1998 • First collecting vehicle run with gas 2002 • Waste plan 2001 - 2010 2003 • First public gas station opened 2003 • New digestor ready 2003 • New incineration plant ready 2004 • First bus inside the city run on biogas 2004 • 39 buses inside the city run on biogas 2008 • A second new gas station for private cars 2009 • All 59 buses inside the city run on biogas 2010 • A third new gas station for private cars 2011 • Planning for a new energy complex 2011 www.wasterecovery.se

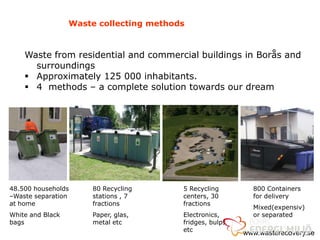

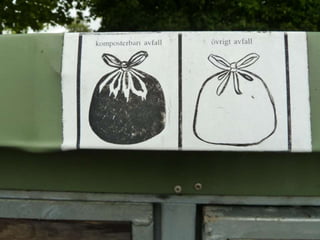

- 9. Waste collecting methods Waste from residential and commercial buildings in Borås and surroundings Approximately 125 000 inhabitants. 4 methods – a complete solution towards our dream 48.500 households 80 Recycling 5 Recycling 800 Containers –Waste separation stations , 7 centers, 30 for delivery at home fractions fractions Mixed(expensiv) White and Black Paper, glas, Electronics, or separated bags metal etc fridges, bulps etc www.wasterecovery.se
- 10.

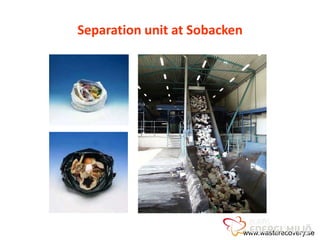

- 11. Separation unit atSobacken www.wasterecovery.se

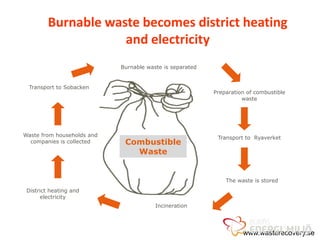

- 12. Burnable waste becomesdistrict heating and electricity Burnable waste is separated Transport to Sobacken Preparation of combustible waste Waste from households and Transport to Ryaverket companies is collected Combustible Waste The waste is stored District heating and electricity Incineration www.wasterecovery.se
- 13. Why combustion ofWastes? • Treatment – Volume reduction • Prevention – Decrease green house gas emissions • Avoid methane formation – Control emissions – leakages • Production – Energy recovery • MSW can be a raw material and not only waste Tobias.Richards@hb.se www.wasterecovery.se
- 14.

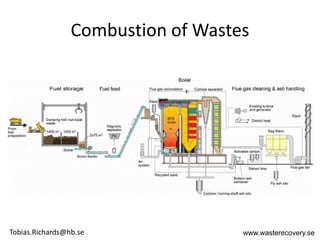

- 15. Combustion of Wastes Tobias.Richards@hb.se www.wasterecovery.se

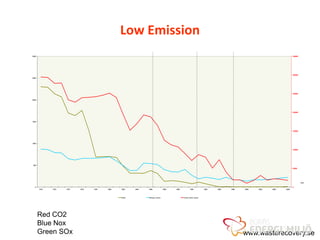

- 16. Low Emission Emissions 1970-2006 Sulfur and Nitorgen oxides Fossil carbon dioxides 3000 350000 300000 2500 250000 2000 200000 1500 150000 1000 100000 500 50000 Year 0 0 1970 1972 1974 1976 1978 1980 1982 1984 1986 1988 1990 1992 1994 1996 1998 2000 2002 2004 2006 Sulfur Nitrogen oxides Fossil carbon dioxid Red CO2 Blue Nox Green SOx www.wasterecovery.se
- 17.

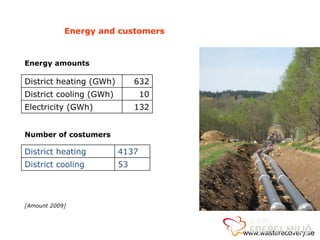

- 18. Energy and customers Energyamounts District heating (GWh) 632 District cooling (GWh) 10 Electricity (GWh) 132 Number of costumers District heating 4137 District cooling 53 [Amount 2009] www.wasterecovery.se

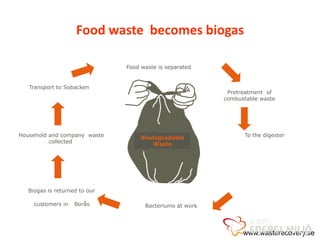

- 19. Food waste becomesbiogas Food waste is separated Transport to Sobacken Pretreatment of combustable waste Household and company waste Biodegradable To the digester collected Waste Biogas is returned to our customers in Borås Bacteriums at work www.wasterecovery.se
- 20.
- 21. Biogas from waste SOR1 SOR2 www.wasterecovery.se

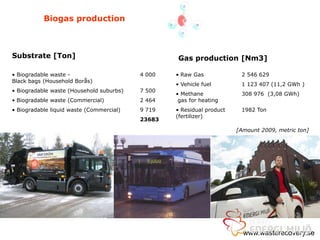

- 22. Biogas production Substrate [Ton] Gas production [Nm3] • Biogradable waste - 4 000 • Raw Gas 2 546 629 Black bags (Household Borås) • Vehicle fuel 1 123 407 (11,2 GWh ) • Biogradable waste (Household suburbs) 7 500 • Methane 308 976 (3,08 GWh) • Biogradable waste (Commercial) 2 464 gas for heating • Biogradable liquid waste (Commercial) 9 719 • Residual product 1982 Ton (fertilizer) 23683 [Amount 2009, metric ton] www.wasterecovery.se

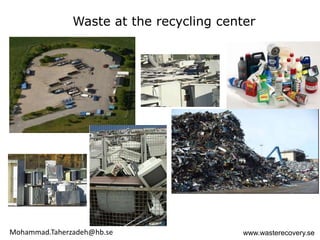

- 23. Waste at therecycling center Mohammad.Taherzadeh@hb.se www.wasterecovery.se
- 24. Stena Metall AB The Group in figures • Operations at 250 locations in 15 countries • Net sales 4 billion $US • Number of employees, 3500 Stena Technoworld, WEEE Stena Aluminium AB Stena Recycling, AB, A/S, AS, OY • 10 car shredders • NF-plants • Cable Recycling plants • Plastics separation plants • Transformer / Capacitor recycling plant • Hazardous waste treatment plants • Paper recycling plants www.wasterecovery.se
- 25. Driving forces 1. Legislation(Environmental, Tax, Producer responsibility, etc.) 2. Material value www.wasterecovery.se

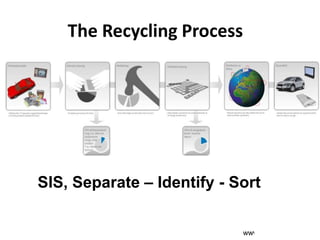

- 26. The Recycling Process SIS,Separate – Identify - Sort www.wasterecovery.se

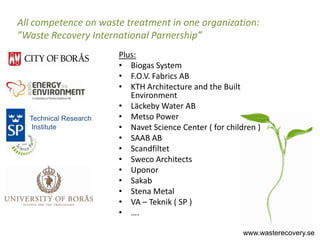

- 27. All competence onwaste treatment in one organization: ”Waste Recovery International Parnership” Plus: • Biogas System • F.O.V. Fabrics AB • KTH Architecture and the Built Environment • Läckeby Water AB Technical Research • Metso Power Institute • Navet Science Center ( for children ) • SAAB AB • Scandfiltet • Sweco Architects • Uponor • Sakab • Stena Metal • VA – Teknik ( SP ) • …. www.wasterecovery.se

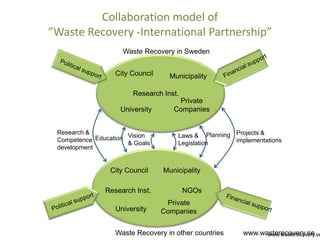

- 28. Collaboration model of ”WasteRecovery -International Partnership” Waste Recovery in Sweden City Council Municipality Research Inst. Private University Companies Research & Vision Laws & Planning Projects & Competence Education implementations & Goals Legislation development City Council Municipality Research Inst. NGOs Private University Companies Waste Recovery in other countries www.wasterecovery.se www.wasterecovery.se
- 29.

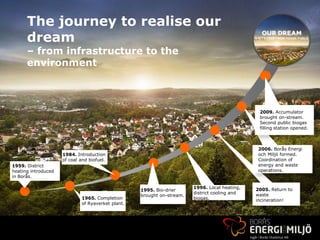

- 30. The journey torealise our dream – from infrastructure to the environment 2009. Accumulator brought on-stream. Second public biogas filling station opened. 2006. Borås Energi 1984. Introduction och Miljö formed. of coal and biofuel. Coordination of 1959. District energy and waste heating introduced operations. in Borås. 1996. Local heating, 2005. Return to 1995. Bio-drier district cooling and waste brought on-stream. 1965. Completion biogas. incineration! of Ryaverket plant. www.wasterecovery.se
Editor's Notes
